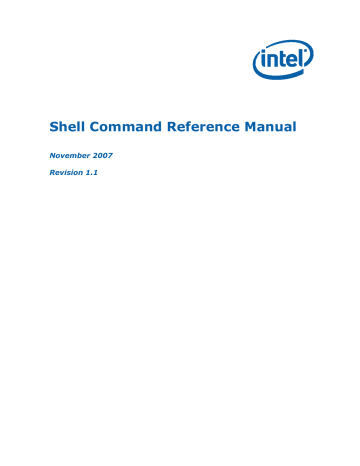

Shell Command Reference Manual

Shell Command Reference Manual

Shell Command Reference Manual

November 2007

Revision 1.1

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR

IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT

AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY

WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL

PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY,

OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, or life sustaining applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel, the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2007, Intel Corporation. All rights reserved. ii

Contents

1

2

Introduction .....................................................................................................1

1.1

Overview ..............................................................................................1

1.2

Related Information................................................................................1

1.3

Terms...................................................................................................2

Command Descriptions ......................................................................................5

2.1

Overview ..............................................................................................5

2.1.1

Command Summary ..................................................................5

2.1.2

Explanation of Command Description Layout .................................7

2.1.3

Supported EFI Protocols in the Shell.............................................7

2.2

Commands from Default Build Shell ........................................................10

2.2.1

alias ......................................................................................10

2.2.2

attrib.....................................................................................11

2.2.3

cd .........................................................................................13

2.2.4

cls.........................................................................................15

2.2.5

connect .................................................................................16

2.2.6

cp .........................................................................................19

2.2.7

date ......................................................................................21

2.2.8

del ........................................................................................22

2.2.9

dh.........................................................................................25

2.2.10

dir ........................................................................................27

2.2.11

disconnect..............................................................................30

2.2.12

drivers...................................................................................31

2.2.13

drvcfg....................................................................................33

2.2.14

drvdiag ..................................................................................36

2.2.15

echo......................................................................................39

2.2.16

exit .......................................................................................40

2.2.17

help ......................................................................................41

2.2.18

load ......................................................................................42

2.2.19

ls ..........................................................................................43

2.2.20

map ......................................................................................46

2.2.21

mkdir ....................................................................................50

2.2.22

mv ........................................................................................51

2.2.23

reconnect...............................................................................53

2.2.24

reset .....................................................................................54

2.2.25

rm ........................................................................................55

2.2.26

set ........................................................................................58

2.2.27

time ......................................................................................59

2.2.28

touch.....................................................................................61

2.2.29

type ......................................................................................62

2.2.30

unload ...................................................................................64

2.2.31

ver........................................................................................65

2.2.32

vol ........................................................................................68

2.3

Additional Commands from Full Build Shell...............................................70

2.3.1

comp.....................................................................................70

2.3.2

dblk ......................................................................................71

2.3.3

devices ..................................................................................74

iii

2.3.4

devtree..................................................................................75

2.3.5

dmem ...................................................................................76

2.3.6

dmpstore ...............................................................................79

2.3.7

edit .......................................................................................80

2.3.8

eficompress............................................................................81

2.3.9

efidecompress ........................................................................82

2.3.10

err ........................................................................................83

2.3.11

guid ......................................................................................85

2.3.12

hexedit ..................................................................................86

2.3.13

ipconfig .................................................................................87

2.3.14

loadpcirom .............................................................................88

2.3.15

mem .....................................................................................89

2.3.16

memmap ...............................................................................91

2.3.17

mm.......................................................................................92

2.3.18

mode ....................................................................................95

2.3.19

openinfo ................................................................................97

2.3.20

pci ........................................................................................98

2.3.21

sermode .............................................................................. 101

2.3.22

smbiosview .......................................................................... 103

2.3.23

telnetmgmt .......................................................................... 105

2.3.24

timezone.............................................................................. 106

Tables

Table 1 Commands from Default Build Shell..........................................................5

Table 2 Additional Commands from Full Build Shell ................................................6

Table 3 EFI Shell Protocol Information Table .........................................................7

Table 4 Conventions for Directory Names ...........................................................14

Table 5 Default Values for the Type Parameter ....................................................34

Table 6 Display Format of devices ....................................................................74

Table 7 Open Protocol Information Layout ..........................................................97

iv

Revision History

Revision

Number

1.0

1.1

Initial release.

Add –u option to map.

Description Revision

Date

January 2007

November 2007

v

§

3BIntroduction

vi

1 Introduction

1.1

1.2

Overview

The EFI Shell environment provides a rich set of commands that extend and enhance the EFI Shell capability. These commands can be used directly from a command prompt.

This document describes all the shell commands a user can execute directly in EFI

Shell command prompt.

Shell commands can be categorized as two sets. One is built into the Default Build

Shell and the other is only built into the Full Build Shell. Both of Shell Builds can be obtained from the EDK release package, It can be downloaded from http://edk.tianocore.org

.

The Default Build Shell location:

Edk\Other\Maintained\Application\$(UEFI_PREFIX)Shell\bin\$(PROCESSOR)\She ll.efi

The Full Build Shell location:

Edk\Other\Maintained\Application\$(UEFI_PREFIX)Shell\bin\$(PROCESSOR)\She ll_Full.efi

UEFI_PREFIX

is “Uefi” if the image is UEFI build or “” if the image is EFI build, and

PROCESSOR

could be

ia32

,

x64

or

ipf

.

This document describes both command categories.

Related Information

The following publications and sources of information may be useful or are referred to by this document:

Extensible Firmware Interface Specification, Version 1.10, Intel, 2001, http://developer.intel.com/technology/efi .

Unified Extensible Firmware Interface Specification, Version 2.0, Unified EFI, Inc,

2006, http://www.uefi.org

.

Intel® Platform Innovation Framework for EFI Specifications, Intel, 2006, http://www.intel.com/technology/framework/ .

EFI Shell User’s Guide, Version 1.0_to7thRvw, Intel, 2005, http://efi-shell.tianocore.org

.

1

1.3

3BIntroduction

Terms

The following terms are used throughout this document to describe varying aspects of input localization:

Component

An executable image. Components defined in this specification support one of the defined module types.

EFI

Generic term that refers to one of the versions of the EFI specification: EFI

1.02, EFI 1.10, or UEFI 2.0.

EFI 1.10 Specification

Intel Corporation published the Extensible Firmware Interface

Specification. Intel donated the EFI specification to the Unified EFI Forum, and the UEFI now owns future updates of the EFI specification. See the current UEFI Specification.

Foundation

The set of code and interfaces that glue implementations of EFI together.

Framework

Intel® Platform Innovation Framework for EFI consists of the Foundation, plus other modular components that characterize the portability surface for modular components designed to work on any implementation of the

Tiano architecture.

GUID

Globally Unique Identifier. A 128-bit value used to name entities uniquely. without the help of a centralized authority, an individual can generate a unique GUID. This allows the generation of names that will never conflict, even among multiple, unrelated parties.

Protocol

An API named by a GUID as defined by the EFI specification.

UEFI Application

An application that follows the UEFI specification. The only difference between a UEFI application and a UEFI driver is that an application is unloaded from memory when it exits regardless of return status, while a driver that returns a successful return status is not unloaded when its entry point exits.

UEFI Driver

A driver that follows the UEFI specification.

2

3BIntroduction

UEFI Specification Version 2.0

The first EFI specification released by the Unified EFI Forum. This specification builds on the EFI 1.10 specification and transfers ownership of the EFI specification from Intel to a non-profit, industry trade organization.

UEFI Specification Version 2.1

Current version of the UEFI specification released by the Unified EFI

Forum.

Unified EFI Forum

A non-profit collaborative trade organization formed to promote and manage the UEFI standard. For more information, see www.uefi.org.

3

§

3BIntroduction

4

2 Command Descriptions

2.1

2.1.1

Overview

Command Summary

The tables below list all Shell commands.

Table 1 Commands from Default Build Shell

Command Description

alias

attrib

cd

cls

connect

cp

Displays, creates, or deletes aliases in the EFI Shell.

Displays or changes the attributes of files or directories

Displays or changes the current directory

Clears the standard output and optionally changes the background color

Binds a driver to a specific device and starts the driver

Copies one or more source files or directories to a destination

date

del

Displays and sets the current date for the system

Deletes one or more files or directories

dh

dir

Displays the device handles in the EFI environment

Lists directory contents or file information

disconnect

Disconnects one or more drivers from the specified devices

drivers

drvcfg

drvdiag

echo

exit

help

load

ls

Displays a list of information for drivers

Invokes the Driver Configuration Protocol

Invokes the Driver Diagnostics Protocol

Displays messages or turns command echoing on or off

Exits the EFI Shell environment

Displays the list of commands that are built into the EFI Shell

Loads an EFI driver into memory

Lists a directory's contents or file information

map

mkdir

mv

reconnect

reset

rm

Defines a mapping between a user-defined name and a device handle

Creates one or more new directories

Moves one or more files to a destination within a file system

Reconnects drivers to the specific device

Resets the system

Deletes one or more files or directories

5

6

set

time

touch

type

unload

ver

vol

4BCommand Descriptions

Used to maintain the environment variables

Displays or sets the current time for the system

Updates the time and date on a file to the current time and date

Sends the contents of a file to the standard output device

Unloads a driver image that was already loaded

Displays the version information for this EFI firmware

Displays the volume information for the file system

Table 2 Additional Commands from Full Build Shell

Command Description

comp

Compares the contents of two files on a byte for byte basis

dblk

devices

devtree

dmem

Displays the contents of one or more blocks from a block device

Displays the list of devices managed by EFI drivers

This command displays the tree of devices

Displays the contents of system or device memory

dmpstore

edit

Manages all EFI NVRAM variables

Full screen editor for ASCII or UNICODE files

eficompress

Compress a file

efidecompress

Decompress a file

err

guid

hexedit

ipconfig

loadpcirom

mem

memmap

mm

mode

openinfo

pci

sermode

smbiosview

telnetmgmt

timezone

Displays or changes the error level in the system

Displays all registered EFI GUIDs

Full screen hex editor for files, block devices, or memory

Displays or modifies the current IP configuration

Loads a PCI Option ROM from the specified file

Displays the contents of system or device memory

Displays the memory map maintained by the EFI environment

Displays or modifies MEM/MMIO/IO/PCI/PCIE address space

Displays or changes the console output device mode

Displays the protocols and agents associated with a handle

Displays PCI device list or PCI function configuration space

Sets serial port attributes

Displays SMBIOS information

Change terminal type

Displays or sets time zone information

2.1.2

2.1.3

Explanation of Command Description Layout

The description of each command is composed of four sections:

Summary

,

EFI

Versions

,

Usage,

and

Description

.

Summary

is a brief explanation of the function of the command.

EFI Versions

are the versions of EFI specification that the command requires for execution.

Usage

describes how the command is used.

Description

describes the details of the command.

Supported EFI Protocols in the Shell

The table below shows all the supported protocol information in the EFI Shell. Some

Shell commands need this information to operate. For example, the dh

command needs the protocol symbol for its -

p

flag to list all the handles on which the specific protocol was installed.

Table 3 EFI Shell Protocol Information Table

Protocol Symbol EFI Protocol

ARPSb

BlkIo

ComponentName

ARP Service Binding Protocol

Block I/O Protocol

Component Name Protocol

DebugSupport

DevIo

DHCPv4Sb

Diagnostics

DiskIo

Dpath

DriverBinding

ErrOutSplit

ExtScsiPassThru

Fs


Debug Support Protocol

Device I/O Protocol

DHCPv4 Service Binding Protocol

Driver Diagnostics Protocol

Disk I/O Protocol

Device Path Protocol

Driver Binding Protocol

Error-out Splitter Protocol

Extended SCSI Pass Through Protocol

Simple File System Protocol

Loaded Image Protocol

7

8

IPv4Config

IPv4Sb

IsaAcpi

IsaIo

LegacyBoot

Load

MNP

MNPSb

Net

Nii

PciIo

PciRootBridgeIo

Pxebc

ScsiIo

ScsiPassThru

Simple Network Protocol

Network Interface Identifier Protocol

PCI I/O Protocol

PCI Root Bridge I/O Protocol

PXE Base Code Protocol

SCSI I/O Protocol

SCSI Pass Thru Protocol

SerialIo Serial I/O Protocol

SimplePointer Simple Pointer Protocol

StdErr Standard Error Device

4BCommand Descriptions

IPv4 Configuration Protocol

IPv4 Service Binding Protocol

ISA ACPI Protocol

ISA I/O Protocol

Legacy Boot Protocol

Load File Protocol

Managed Network Protocol

Managed Network Service Binding Protocol

TCPv4Sb

Txtin

TxtInSplit

Txtout

TxtOutSplit

UDPv4Sb

UgaDraw

UgaIo

UnicodeCollation

UsbHc

UsbHc2

UsbIo

VgaClass

TCPv4 Service Binding Protocol

Simple Text-in Protocol

Text-in Splitter Protocol

Simple Text Output Protocol

Text-out Splitter Protocol

UDPv4 Service Binding Protocol

UGA Draw Protocol

UGA I/O Protocol

Unicode Collation Protocol

USB Host Controller Protocol

USB2 Host Controller Protocol

USB I/O Protocol

VGA Class Driver Protocol

Note: If the

Handle

parameter is required in the Shell command argument—for example, in

the dh

or

disconnect

command—it actually indicates the handle index, not the real handle. For convenience, the EFI Shell views the handle index as the equivalent of the real handle to operate an image handle, device handle, and so on. As a result, users should also use the handle index instead of the real handle value in Shell commands.

The handle index can change after some hardware changes or the execution of some commands, such as

disconnect

, connect

, and reconnect . To get the current handle

index for the specified device, driver, or image, use the

dh command.

Note: In some file-operation-related Shell commands, such as load and

attrib , an argument

is listed as

File...

or

Directory...

in the syntax. The suffix "

...

" here indicates that the arguments can be one or more files/directories. The command will process these arguments in the order in which they appear on the command line. Any previous execution failures will not prevent the following commands from executing. For example,

attrib +h file1 file2 file3

is a legal command and has the same execution results as the following command sequence:

attrib +h file1 attrib +h file2 attrib +h file3

Note: If any execution among them fails, the next command will continue executing until all the arguments in the list have been executed.

9

4BCommand Descriptions

2.2 Commands from Default Build Shell

2.2.1 alias

Summary

Displays, creates, or deletes aliases in the EFI Shell environment.

EFI Versions

EFI 1.02 and above.

Usage

ALIAS [-d|-v] [sname] [value]

-d - Deletes an alias

-v - Volatile variable

sname - Alias name

value - Original name

Description

This command displays, creates, or deletes aliases in the EFI Shell environment. An alias provides a new name for an existing EFI Shell command or an EFI application.

Once the alias is created, it can be used to run the command or launch the EFI application. There are some aliases that are predefined in the EFI Shell environment.

These aliases provide the MS-DOS and UNIX equivalent names for the file manipulation commands. The examples below show the default aliases that are available in the EFI Shell.

10

Examples

Shell> help alias

Displays, creates, or deletes aliases in the EFI Shell environment.

ALIAS [-d|-v] [sname] [value]

-d - Deletes an alias

-v - Volatile variable

sname - Alias name

value - Original name

Note:

1. 'sname' should not be an internal EFI Shell command.

2. 'value' can be an internal EFI Shell command, a script, or an

EFI application. However, any other values are also acceptable.

3. ALIAS values are stored in EFI NVRAM and will be retained

between boots unless the '-v' option is specified.

4. ALIAS will not add a nonvolatile alias when a volatile alias of

the same name already exists, or vice versa.

Examples:

* To display all aliases in the EFI Shell environment:

Shell> alias

md : mkdir

rd : rm

* To create an alias in the EFI Shell environment:

Shell> alias myguid guid

Shell> alias

md : mkdir

rd : rm

myguid : guid

* To delete an alias in the EFI Shell environment:

Shell> alias -d myguid

Shell> alias

md : mkdir

rd : rm

* To add a volatile alias in the current EFI environment, which has a star * at the line head. This volatile alias will disappear at next boot.

Shell> alias -v fs0 floppy

Shell> alias

md : mkdir

rd : rm

* fs0 : floppy

2.2.2 attrib

Summary

Displays or changes the attributes of files or directories.

EFI Versions

EFI 1.02 and above.

11

4BCommand Descriptions

Usage

ATTRIB [+a|-a] [+s|-s] [+h|-h] [+r|-r] [file...] [directory...]

+a|-a - Sets or clears the 'archive' attribute

+s|-s - Sets or clears the 'system' attribute

+h|-h - Sets or clears the 'hidden' attribute

+r|-r - Sets or clears the 'read only' attribute

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Description

This command displays and sets the attributes of files or directories. The following four attribute types are supported in the EFI file system:

• Archive [A]

• System [S]

• Hidden [H]

• Read only [R]

If a file (in general meaning) is a directory, then it is also shown to have the attribute

[D].

If any file in the file list that is specified in the command line does not exist,

attrib

will continue processing the remaining files while reporting the error.

12

Examples

Shell> help attrib

Displays or changes the attributes of files or directories.

ATTRIB [+a|-a] [+s|-s] [+h|-h] [+r|-r] [file...] [directory...]

+a|-a - Sets or clears the 'archive' attribute

+s|-s - Sets or clears the 'system' attribute

+h|-h - Sets or clears the 'hidden' attribute

+r|-r - Sets or clears the 'read only' attribute

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Notes:

1. If no attributes parameters are specified, the current

attributes of the specified files or directories will be

displayed.

2. If no files or directories are specified, then the command

applies to all files and sub-directories within the current

directory.

Examples:

* To display the attributes of a directory:

fs0:\> attrib fs0:\

attrib:D fs0:\

* To display the attributes of all files and sub-directories in the

current directory:

fs0:\> attrib *

attrib: AS fs0:\serial.efi

attrib:DA fs0:\test1

attrib: A HR fs0:\bios.inf

attrib: A fs0:\VerboseHelp.txt

attrib: AS fs0:\IsaBus.efi

* To add the system attribute to all files with extension '.efi':

fs0:\> attrib +s *.efi

* To remove the read only attribute from all files with extension

'.inf':

fs0:\> attrib -r *.inf attrib: A H fs0:\bios.inf

2.2.3 cd

Summary

Displays or changes the current directory.

EFI Versions

EFI 1.02 and above.

13

4BCommand Descriptions

Usage

CD [path]

path - The relative or absolute directory path

Description

This command changes the current working directory that is used by the EFI Shell environment. The table below describes the conventions that are used to refer to the directory, its parent, and its driver mapping in the EFI Shell environment.

Table 4 Conventions for Directory Names

Convention Description

.

Refers to the current directory.

..

Refers to the directory's parent.

\

Refers to the root of the current driver mapping.

The following example shows how to move between the directories on a floppy drive containing an

EFI

directory and a

TOOLS

subdirectory below the

EFI

directory.

14

Examples

Shell> help cd

Displays or changes the current directory.

CD [path]

path - The relative or absolute directory path

Note:

1. Type CD without parameters to display the current fs and

directory.

2. There must be at least one blank space between CD and path.

3. The 'path' parameter supports certain special characters:

- '.' refers to the current directory.

- '..' refers to the parent directory.

- '\' used at the beginning of the path refers to the root

directory of the current filesystem.

4. CD can only be used to change directories in the current file

system.

Examples:

* To change the current filesystem to the mapped fs0 filesystem:

Shell> fs0:

* To change the current directory to subdirectory 'efi':

fs0:\> cd efi

* To change the current directory to the parent directory (fs0:\):

fs0:\efi\> cd ..

* To change the current directory to 'fs0:\efi\tools':

fs0:\> cd efi\tools

* To change the current directory to the root of the current fs

(fs0):

fs0:\efi\tools\> cd \

fs0:\>

* To change volumes with cd will not work!! For example:

fs0:\efi\tools\> cd fs1:\ !!!! will not work !!!!

must first type fs1: then cd to desired directory

* To move between volumes and maintain the current path.

fs0:\> cd \efi\tools

fs0:\efi\tools\> fs1:

fs1:\> cd tmp

fs1:\tmp> cp fs0:*.* . copies all of files in fs0:\efi\tools into fs1:\tmp directory

2.2.4 cls

Summary

Clears the standard output and optionally changes the background color.

EFI Versions

EFI 1.02 and above.

15

4BCommand Descriptions

Usage

CLS [color]

color - New background color

0 - Black

1 - Blue

2 - Green

3 - Cyan

4 - Red

5 - Magenta

6 - Yellow

7 - Light gray

Description

This command clears the standard output device with an optional background color attribute. If

color

is not defined, then the background color does not change.

Examples

Shell> help cls

Clears the standard output and optionally changes the background color.

CLS [color]

color - New background color

0 - Black

1 - Blue

2 - Green

3 - Cyan

4 - Red

5 - Magenta

6 - Yellow

7 - Light gray

Note:

1. If no parameters are specified, this command clears the standard

output device. The background color is not changed.

Examples:

* To clear standard output without changing the background color:

fs0:\> cls

* To clear standard output and change the background color to cyan:

fs0:\> cls 3

* To clear standard output and change the background to the default color: fs0:\> cls 0

2.2.5 connect

Summary

Binds a driver to a specific device and starts the driver.

EFI Versions

EFI 1.10 and above.

16

Usage

CONNECT [[DeviceHandle] [DriverHandle] | [-c] | [-r]]

-r - Connect recursively

-c - Connect console devices described in the EFI

Environment Variables

DeviceHandle - Device handle, always taken as hexadecimal number

DriverHandle - Driver handle, always taken as hexadecimal number

Description

This command binds a driver to a specific device and starts the driver. If the

-r

flag is used, then the connection is done recursively until no further connections between devices and drivers are made. If the

-c

flag is used, then the

connect

command will bind the proper drivers to the console devices that are described in the EFI environment variables. The example below shows the typical output from the verbose help for this command.

17

4BCommand Descriptions

Examples

Shell> help connect

Connects one or more EFI drivers to a device.

CONNECT [[DeviceHandle] [DriverHandle] | [-c] | [-r]]

DeviceHandle - Device handle in hexadecimal format

DriverHandle - Driver handle in hexadecimal format

-c - Connect console devices

-r - Connect recursively

Note:

1. If no 'DeviceHandle' parameter is specified, all device handles

in the current system will be the default.

2. If no 'DriverHandle' parameter is specified, all matched drivers

will be bound to the specified device.

3. If 'DriverHandle' parameter is provided, the specified driver

will have highest priority on connecting the device(s).

4. If the '-c' option is specified, only console devices described

in the EFI Shell environment variables and related devices will

be connected.

5. If the '-r' option is specified, the command will recursively

scan all handles and check to see if any loaded or embedded

driver can match the specified device. If so, the driver will be

bound to the device.

Additionally, if more device handles are created during the

binding, these handles will also be checked to see if a matching

driver can bind to these devices as well. The process is

repeated until no more drivers are able to connect to any

devices. However, without the option, the newly created device

handles will not be further bound to any drivers.

6. If only a single handle is specified and the handle has an

EFI_DRIVER_BINDING_PROTOCOL on it, then the handle is assumed to

be a driver handle. Otherwise, it is assumed to be a device

handle.

7. If no parameters are specified, then the command will attempt to

bind all proper drivers to all devices without recursion. Each

connection status will be displayed.

8. Output redirection is not supported for 'connect -r' usage.

Examples:

* To connect all drivers to all devices recursively:

Shell> connect -r

* To display all connections:

Shell> connect

ConnectController(1) : Status = Success

ConnectController(2) : Status = Success

ConnectController(3) : Status = Success

...

ConnectController(3D) : Status = Success

* To connect drivers with 0x17 as highest priority to all the devices

they can manage:

Shell> connect 17

* To connect all possible drivers to device 0x19:

Shell> connect 19

* To connect drivers with 0x17 as highest priority to device 0x19

they can manage:

Shell> connect 19 17

* To connect console devices described in the EFI Shell environment

variables:

Shell> connect -c

18

2.2.6 cp

Summary

Copies one or more source files or directories to a destination.

EFI Versions

EFI 1.02 and above.

Usage

CP [-r] [-q] src [src...] [dst]

-r - Recursive copy

-q - Quiet copying (replace existing files without

prompt)

src - Source file/directory name (wildcards are

permitted)

dst - Destination file/directory name (wildcards are not

permitted)

Description

This command copies one or more source files or directories to a destination. If the source is a directory, the

-r

flag must be specified. If

-r

is specified, then the source directory will be recursively copied to the destination (which means that all subdirectories will be copied). If a destination is not specified, then the current working directory is assumed to be the destination.

If any target file (not directory) already exists, there will be a prompt asking the user to confirm replacing the file. The following four choices are available:

• Yes: Replace the file.

• No: Do not replace the file.

• All: Replace the existing files in all subsequent cases.

• Cancel: Do not replace any existing files in all subsequent cases.

If there are multiple source files/directories, the destination must be a directory.

19

4BCommand Descriptions

Examples

Shell> help cp

Copies one or more files/directories to another location.

CP [-r] [-q] src [src...] [dst]

-r - Recursive copy

-q - Quiet copying (replace existing files without

prompt)

src - Source file/directory name (wildcards are

permitted)

dst - Destination file/directory name (wildcards are not

permitted)

Note:

1. ‘-r’ must be specified if src is a directory. If '-r' is

specified, then the source directory will be recursively

copied to the destination.

Src itself will be copied.

2. If 'dst' parameter is not specified, then the current

directory is assumed to be the destination.

3. 'Cp -r src1 src2 dst' is to copy all files and subdirectories

in 'src1' and 'src2' to the destination 'dst'. 'Src1' and

'src2' themselves are also copied. 'dst' parameter will be

interpreted as a directory.

4. Copying a directory/file to itself is not allowed.

5. If an error occurs, Cp will exit immediately and the remaining

files or directories will not be copied.

6. When 'cp' is executed with a script file, it always performs

Quiet copy regardless of whether the '-q' option is specified.

7. If you are copying multiple files, the destination must be an

existing directory.

Examples:

* To display the contents of current directory first of all:

fs0:\> ls

Directory of: fs0:\

06/18/01 01:02p <DIR> 512 efi

06/18/01 01:02p <DIR> 512 test1

06/18/01 01:02p <DIR> 512 test2

06/13/01 10:00a 28,739 IsaBus.efi

06/13/01 10:00a 32,838 IsaSerial.efi

06/18/01 08:04p 29 temp.txt

06/18/01 08:05p <DIR> 512 test

3 File(s) 61,606 bytes

4 Dir(s)

* To copy a file in the same directory, but change the file

name:

fs0:\> cp temp.txt readme.txt

copying fs0:\temp.txt -> fs0:\readme.txt

- [ok]

* To copy multiple files to another directory:

fs0:\> cp temp.txt isaBus.efi \test

copying fs0:\temp.txt -> fs0:\test\temp.txt

- [ok]

copying fs0:\isaBus.efi -> fs0:\test\IsaBus.efi

- [ok]

* To copy multiple directories recursively to another

directory:

fs0:\> cp -r test1 test2 boot \test

copying fs0:\test1 -> fs0:\test\test1

copying fs0:\test1\test1.txt -> fs0:\test\test1\test1.txt

- [ok]

20

copying fs0:\test2 -> fs0:\test\test2

copying fs0:\test2\test2.txt -> fs0:\test\test2\test2.txt

- [ok]

copying fs0:\boot -> fs0:\test\boot

copying fs0:\boot\shell.efi -> fs0:\test\boot\shell.efi

- [ok]

* To see the results of the above operations:

fs0:\> ls \test

Directory of: fs0:\test

06/18/01 01:01p <DIR> 512 .

06/18/01 01:01p <DIR> 0 ..

01/28/01 08:21p <DIR> 512 test1

01/28/01 08:21p <DIR> 512 test2

01/28/01 08:21p <DIR> 512 boot

01/28/01 08:23p 29 temp.txt

01/28/01 08:23p 28,739 IsaBus.efi

2 File(s) 28,828 bytes

5 Dir(s)

Shell>

2.2.7 date

Summary

Displays and sets the current date for the system.

EFI Versions

EFI 1.02 and above.

Usage

DATE [mm/dd/[yy]yy]

mm - Month of date to be set, Month range: 1 – 12

dd - Day of date to be set, Day range: 1 – 31

yyyy - Year of date to be set, Year range: 1998 – 2099

Description

This command displays and/or sets the current date for the system. If no parameters are used, it shows the current date. If a valid month, day, and year are provided, then the system's date will be updated. Detailed rules are listed below:

1. Except for numeric characters and /, all other characters in the argument are invalid. The Shell will report an error if the number is in the wrong month/date/year range.

2. Space before or after the numeric character is not allowed. Inserting a space into the number is invalid.

3. Repeated zeros are allowed before the number. For example:

21

4BCommand Descriptions

Shell > date 0000008/000004/000097

Shell > date

08/04/2097

Shell >

4. The year range is greater than or equal to 1998. Two numeric characters indicate the year. Numbers below 98 are regarded as 20xx, and numbers equal to or above 98 are regarded as 19xx. 00 means 2000. For example:

Shell > date 8/4/97

Shell > date

08/04/2097

Shell >

Shell > date 8/4/98

Shell > date

08/04/1998

Shell >

5. The range of valid years is from 1998–2099.

Examples

Shell> help date

Displays the current date or sets the date in the system.

DATE [mm/dd/[yy]yy]

mm - Month of date to be set, Month range: 1 - 12

dd - Day of date to be set, Day range: 1 - 31

yyyy - Year of date to be set, Year range: 1998 - 2099

Note:

1. yy: 98=1998, 99=1999, 00=2000, 01=2001, ..., 97=2097.

2. yyyy: 1998 - 2099, other values are invalid.

3. EFI may behave unpredictably if illegal date values are used.

Examples:

* To display the current date in the system:

fs0:\> date

06/18/2001

* To set the date with long year format:

fs0:\> date 01/01/2050

fs0:\> date

01/01/2050

* To set the date with short year format:

fs0:\> date 06/18/01

fs0:\> date

06/18/2001

Shell>

2.2.8

Summary del

Deletes one or more files or directories.

22

EFI Versions

EFI 1.02 and above.

Usage

DEL [-q] file/directory [file/directory ...]

-q - Quiet mode; does not prompt user for a confirmation

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Description

This command deletes one or more files or directories. If the target is a directory, it will delete the directory, including all its subdirectories. It is not allowed to redirect a file whose parent directory (or the file itself) is being deleted.

23

4BCommand Descriptions

Examples

Shell> help del

Deletes one or more files or directories.

DEL [-q] file/directory [file/directory ...]

-q - Quite mode; does not prompt user for a

confirmation

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Note:

1. Removing a read-only file/directory will result in a failure.

Removing a directory containing read-only file(s) will result

in a failure.

2. If an error occurs, DEL will exit immediately and later

files/directories will not be removed.

3. You cannot remove a directory when the current directory is

itself or its subdirectory.

4. If file contains wildcards, it will not ask user for

confirmation.

5. You cannot remove the root directory.

6. You cannot remove the current directory or its ancestor.

7. Redirecting output to a file that exists under the directory

that will be removed is not allowed.

Examples:

* To remove multiple directories at a time:

fs0:\> ls test

Directory of: fs0:\test

06/18/01 01:01p <DIR> 512 .

06/18/01 01:01p <DIR> 0 ..

06/19/01 12:59a <DIR> 512 temp1

06/19/01 12:59a <DIR> 512 temp2

0 File(s) 0 bytes

4 Dir(s)

* Error occurs and DEL will exit:

fs0:\> del test\temp11 temp2

rm/del: Cannot find 'fs0:\test\temp11' - Not Found

* To remove multiple directories with wildcards:

fs0:\> del test\temp*

rm/del: Remove subtree 'fs0:\test\temp1' [y/n]? y

removing fs0:\test\temp1\temp1.txt

- [ok]

removing fs0:\test\temp1\boot\nshell.efi

- [ok]

removing fs0:\test\temp1\boot

- [ok]

removing fs0:\test\temp1

- [ok]

rm/del: Remove subtree 'fs0:\test\temp2' [y/n]? y

removing fs0:\test\temp2\temp2.txt

- [ok]

removing fs0:\test\temp2

- [ok]

* Removing a directory that contains a read-only file will

fail:

fs0:\> attrib +r test\temp1\readme.txt

A R fs0:\test\temp1\readme.txt

fs0:\> del test\temp1

rm/del: Cannot open 'readme.txt' under 'fs0:\test\temp1' in

24

writable mode

- [error] - Access Denied

Exit status code: Access Denied

Shell>

2.2.9 dh

Summary

Displays the device handles in the EFI environment.

EFI Versions

EFI 1.10 and above.

Usage

DH [-l <lang>] [handle | -p <prot_id>] [-d] [-v]

handle - Dumps information of a specified handle, always

taken as hexadecimal number

-p - Dumps all handles of a protocol specified by

prot_id

-d - Dumps EFI Driver Model related information

-l - Dumps information using the ISO 639-2 language

specified by lang.

-v - Dumps verbose information on specified handle

Description

This command displays the device handles in the EFI environment. If this command is used with a specific handle number, the details of all the protocols that are associated with that device handle are displayed. Otherwise, the

-p

option can be used to list the

device handles that contain a specific protocol. See Supported EFI Protocols in the

Shell

for the abbreviations that are used with this command for EFI protocols. The following examples show how the command can be used.

25

4BCommand Descriptions

Examples

Shell> help dh

Displays the handles in the EFI environment.

DH [-l <lang>] [handle | -p <prot_id>] [-d] [-v]

handle - Dumps information of a specified handle,

always taken as hexadecimal number

-p - Dumps all handles of a protocol specified by

prot_id

-d - Dumps EFI Driver Model related information

-l - Dumps information using the ISO 639-2 language

specified by lang.

-v - Dumps verbose information on specified handle

Note:

1. When neither 'handle' nor 'prot_id' is specified, a list of

all the handles in the EFI environment is displayed.

2. Option '-d' can be used to display EFI Driver Model related

information, including its parent handles, child handles, all

drivers on it, etc.

3. Option '-v' can be used to display verbose information on the

specified handle, including all the protocols on it and their

details.

4. If option '-p' is specified, all handles containing the

specified protocol will be displayed. Otherwise, the 'handle'

parameter has to be specified for display. In this case,

option '-d' will be enabled automatically if option '-v' is

not specified.

Examples:

* To display all handles and display one screen at a time:

Shell> dh -b

Handle dump

1: Image(DXE Core)

2: FwVol FwFileSys FwVolBlk DevPath(MemMap(11:1B50000-

1D4FFC8))

3: Image(Ebc)

4: DevPath(MemMap(11:1CA0000-1CB0000))

5: Image(WinNtThunk)

6: WinNtThunk DevPath(..76F3-11D4-BCEA-0080C73C8881))

7: Image(WinNtBusDriver) DriverBinding

...

* To display the detailed information on handle 0x30:

Shell> dh 30

Handle 30 (01AF5308)

IsaIo

ROM Size......: 00000000

ROM Location..: 00000000

ISA Resource List :

IO : 000003F8-000003FF Attr : 00000000

INT : 00000004-00000000 Attr : 00000000

dpath

PNP Device Path for PnP

HID A0341D0, UID 0x0

Hardware Device Path for PCI

PNP Device Path for PnP

HID 50141D0, UID 0

AsStr: 'Acpi(PNP0A03,0)/Pci(1F|0)/Acpi(PNP0501,0)'

* To display all handles with 'diskio' protocol:

Shell> dh -p diskio

Handle dump by protocol 'Diskio'

15: DiskIo BlkIo DevPath(..i(3|1)/Ata(Secondary,Master))

26

16: DiskIo BlkIo DevPath(..,1)/PCI(0|0)/Scsi(Pun0,Lun0))

44: DiskIo BlkIo Fs DevPath(..ABD0-01C0-507B-9E5F8078F531))

ESP

45: DiskIo BlkIo Fs DevPath(..i(Pun0,Lun0)/HD(Part4,SigG0))

ESP

17: DiskIo BlkIo DevPath(..PCI(3|1)/Ata(Primary,Master))

* To display all handles with 'Image' protocol and break when

the screen is full:

Shell> dh -p Image -b

Handle dump by protocol 'image'

1: Image(DXE Core)

5: Image(WinNtThunk)

7: Image(WinNtBusDriver) DriverBinding

8: Image(Metronome)

A: Image(IsaBus) DriverBinding

B: Image(WinNtConsole) DriverBinding

...

Shell>

2.2.10 dir

Summary

Lists directory contents or file information.

EFI Versions

EFI 1.02 and above.

Usage

DIR [-r] [-a[attrib]] [file]

-r - Displays recursively (including subdirectories)

attrib - 'a', 's', 'h', 'r', 'd' or combination of them

a - Archive

s - System

h - Hidden

r - Read-only

d - Directory

file - Name of file/directory (wildcards are permitted)

Description

This command lists directory contents or file information. If no file name or directory name is specified, then the current directory is assumed. The contents of a directory are listed if all of the following are true:

• If option

-r

is not specified

• If no wildcard characters are specified in the

file

parameter

• If

file

represents an existing directory

In all other cases, the command functions as follows:

27

4BCommand Descriptions

• All files/directories that match the specified name are displayed.

• The

-r

flag determines whether a recursive search is performed.

• The option flag

-a[attrib]

tells the command to display only those files with the attributes that are specified by

[attrib]

. If more than one attribute is specified, only the files that have all those attributes will be listed. If

-a

is followed by nothing, then all files/directories are displayed, regardless of their attributes. If

-a

itself is not specified, then all files except system and hidden files are displayed.

28

Examples

Shell> help dir

Displays a list of files and subdirectories in a directory.

DIR [-r] [-a[attrib]] [file]

-r - Displays recursively (including subdirectories)

attrib - 'a', 's', 'h', 'r', 'd' or combination of them

a - Archive

s - System

h - Hidden

r - Read-only

d - Directory

file - Name of file/directory (wildcards are permitted)

Examples:

* To hide files by adding the hidden or system attribute to

them:

fs0:\> attrib +s +h *.efi

ASH fs0:\IsaBus.efi

ASH fs0:\IsaSerial.efi

* To display all, except the files/directories with 'h' or 's'

attribute:

fs0:\> dir

Directory of: fs0:\

06/18/01 09:32p 153 for.nsh

06/18/01 01:02p <DIR> 512 efi

06/18/01 01:02p <DIR> 512 test1

06/18/01 01:02p <DIR> 512 test2

06/18/01 08:04p 29 temp.txt

06/18/01 08:05p <DIR> 512 test

01/28/01 08:24p r 29 readme.txt

3 File(s) 211 bytes

4 Dir(s)

* To display files with all attributes in the current

directory:

fs0:\> dir -a

Directory of: fs0:\

06/18/01 09:32p 153 for.nsh

06/18/01 01:02p <DIR> 512 efi

06/18/01 01:02p <DIR> 512 test1

06/18/01 01:02p <DIR> 512 test2

06/18/01 10:59p 28,739 IsaBus.efi

06/18/01 10:59p 32,838 IsaSerial.efi

06/18/01 08:04p 29 temp.txt

06/18/01 08:05p <DIR> 512 test

01/28/01 08:24p r 29 readme.txt

5 File(s) 61,788 bytes

4 Dir(s)

* To display files with read-only attributes in the current

directory:

fs0:\> dir -ar

Directory of: fs0:\

06/18/01 11:14p r 29 readme.txt

1 File(s) 29 bytes

0 Dir(s)

29

4BCommand Descriptions

* To display the files with attribute of 's':

fs0:\> dir -as isabus.efi

Directory of: fs0:\

06/18/01 10:59p 28,739 IsaBus.efi

1 File(s) 28,739 bytes

0 Dir(s)

* To display all in fs0:\efi directory recursively:

fs0:\> dir -r -a efi

* To search for files with the specified type in the current

directory recursively:

fs0:\> dir -r -a *.efi -b

Shell>

2.2.11 disconnect

Summary

Disconnects one or more drivers from the specified devices.

EFI Versions

EFI 1.10 and above.

Usage

DISCONNECT DeviceHandle [DriverHandle [ChildHandle]]

DISCONNECT -r

DeviceHandle - Device handle, always taken as hexadecimal

number

DriverHandle - Driver handle, always taken as hexadecimal

number

ChildHandle - Child handle of a device, always taken as

hexadecimal number

-r - Disconnect drivers from all devices

Description

This command disconnects one or more drivers from the specified devices. If the

-r

option is used, all drivers are disconnected from all devices in the system. The following example is the typical output from the help for this command.

30

Examples

Shell> help disconnect

Disconnects one or more EFI drivers from a device.

DISCONNECT DeviceHandle [DriverHandle [ChildHandle]]

DISCONNECT -r

DeviceHandle - Device handle in hexadecimal format

DriverHandle - Driver handle in hexadecimal format

ChildHandle - Child handle of device in hexadecimal format

-r - Disconnect drivers from all devices

Note:

1. If the 'DriverHandle' parameter is not specified, the default is

to disconnect 'DeviceHandle'.

2. If the 'ChildHandle' parameter is not specified, the default is

to disconnect all child handles of the 'DeviceHandle'.

3. If the '-r' option is specified, all drivers will be

disconnected from all devices in the system. In this case, no

other parameters are allowed.

4. This command does not support output redirection.

Examples:

* To disconnect all drivers from all devices:

Shell> disconnect -r

* To disconnect all drivers from device 0x28:

fs0:\> disconnect 28

* To disconnect driver 0x17 from device 0x28:

fs0:\> disconnect 28 17

* To disconnect driver 0x17 from controlling the child 0x32 of device

0x28

fs0:\> disconnect 28 17 32

2.2.12 drivers

Summary

Displays a list of information for drivers that follow the EFI Driver Model in the EFI environment.

EFI Versions

EFI 1.10 and above.

Usage

DRIVERS [-l XXX]

-l - Displays drivers using the ISO 639-2

language specified by XXX

Description

This command displays a list of information for drivers that follow the EFI Driver

Model in EFI environment. The list has the following columns:

DRV

: The handle number of the EFI driver.

31

4BCommand Descriptions

VERSION

: The version number of the EFI driver.

TYPE

: The driver type. A

B

in this column indicates a bus driver, and

D

indicates a device driver.

CFG

: Indicates that the driver supports the Driver Configuration Protocol.

DIAG

: Indicates that the driver supports the Driver Diagnostics Protocol.

#D

: The number of devices that this driver is managing.

#C

: The number of child devices that this driver has produced.

DRIVER NAME

: The name of the driver from the Component Name Protocol.

IMAGE NAME

: The file path from which the driver was loaded.

32

Examples

Shell> help drivers

Displays the list of drivers that follow the EFI Driver Model

DRIVERS [-l XXX]

-l - Displays drivers using the ISO 639-2

language specified by XXX

Display Format:

DRV - The handle number of the EFI driver

TYPE - The driver type

[B] Bus driver

[D] Device driver

CFG - The driver supports the Driver Configuration Protocol

DIAG - The driver supports the Driver Diagnostics Protocol

#D - The number of devices that this driver is managing

#C - The number of child devices that this driver has produced

DRIVER NAME - The name of the driver from the Component Name Protocol

IMAGE NAME - The file path from which the driver was loaded

Examples:

* To display the list:

Shell> drivers

T D

D Y C I

R P F A

V VERSION E G G #D #C DRIVER NAME IMAGE NAME

=== ======= = = = == == ===================================== ==========

39 00000010 D - - 1 - Platform Console Management Driver ConPlatform

3A 00000010 D - - 1 - Platform Console Management Driver ConPlatform

3B 00000010 B - - 1 1 Console Splitter Driver ConSplitter

3C 00000010 ? - - - - Console Splitter Driver ConSplitter

3D 00000010 B - - 1 1 Console Splitter Driver ConSplitter

3E 00000010 ? - - - - Console Splitter Driver ConSplitter

42 00000010 D - - 1 - UGA Console Driver GraphicsConsole

43 00000010 ? - - - - Serial Terminal Driver Terminal

44 00000010 D - - 1 - Generic Disk I/O Driver DiskIo

45 00000010 D - - 1 - FAT File System Driver Fat

48 00000010 ? - - - - ISA Bus Driver IsaBus

49 00000010 ? - - - - ISA Serial Driver IsaSerial

4C 00000010 B - - 1 1 PCI Bus Driver PciBus

55 00000010 D X X 1 - Windows Block I/O Driver WinNtBlockIo

56 00000010 ? - - - - Windows Text Console Driver WinNtConsole

57 00000010 ? - - - - Windows Serial I/O Driver WinNtSerialIo

58 00000010 D - - 1 - Windows Simple File System Driver WinNtSimpleFileSystem

59 00000010 B - - 1 3 Windows Bus Driver WinNtBusDriver

5F 00000010 D - - 1 - Windows Universal Graphics Adapter WinNtUga

Shell>

2.2.13 drvcfg

Summary

Invokes the Driver Configuration Protocol.

EFI Versions

EFI 1.10 and above.

33

4BCommand Descriptions

Usage

DRVCFG [-l XXX] [-c] [-f <Type>|-v|-s] [DriverHandle [DeviceHandle

[ChildHandle]]]

-c - Configure all child devices

-l - Configure using the ISO 639-2 language

specified by XXX

-f - Force defaults

-v - Validate options

-s - Set options

Type - The type of default configuration options to

force on the controller.

0 - Safe Defaults.

1 - Manufacturing Defaults.

2 - Custom Defaults.

3 - Performance Defaults.

DriverHandle - The handle of the driver to configure

DeviceHandle - The handle of a device that DriverHandle is

managing

ChildHandle - The handle of a device that is a child of

DeviceHandle

Description

This command invokes the Driver Configuration Protocol. The table below describes the values for the

Type

parameter. Other values depend on the driver’s implementation.

Table 5 Default Values for the

Type

Parameter

Value Type of Default Description

0x0000 Safe Defaults Places a controller in a safe configuration that has the greatest probability of functioning correctly in a platform.

0x0001 Manufacturing Defaults Optional type that places the controller in a configuration that is suitable for a manufacturing and test environment.

0x0002 Custom Defaults Optional type that places the controller in a custom configuration.

0x0003 Performance Defaults Optional type that places the controller in a configuration that maximizes the controller’s performance in a platform.

34

Examples

Shell> help drvcfg

Invokes the Driver Configuration Protocol

DRVCFG [-l XXX] [-c] [-f <Type>|-v|-s] [DriverHandle [DeviceHandle

[ChildHandle]]]

-c - Configure all child devices

-l - Configure using the ISO 639-2 language

specified by XXX

-f - Force defaults

-v - Validate options

-s - Set options

Type - The type of default configuration options to

force on the controller.

0 - Safe Defaults.

1 - Manufacturing Defaults.

2 - Custom Defaults.

3 - Performance Defaults.

DriverHandle - The handle of the driver to configure

DeviceHandle - The handle of a device that DriverHandle is

managing

ChildHandle - The handle of a device that is a child of

DeviceHandle

Notes:

1. Default Type.

0 - Safe Defaults. It places a controller in a safe

configuration that has the greatest probability of

functioning correctly in a platform.

1 - Manufacturing Defaults. Optional type that places the

controller in a configuration suitable for a

manufacturing and test environment.

2 - Custom Defaults. Optional type that places the

controller in a custom configuration.

3 - Performance Defaults. Optional type that places the

controller in a configuration that maximizes the

controller's performance in a platform.

Other values depend on the driver's implementation.

Examples:

* To display the list of devices that are available for

configuration:

Shell> drvcfg

* To display the list of devices and child devices that are

available for configuration:

Shell> drvcfg –c

* To force defaults on all devices:

Shell> drvcfg –f 0

* To force defaults on all devices that are managed by driver

0x17:

Shell> drvcfg –f 0 17

* To force defaults on device 0x28 that is managed by driver

0x17:

Shell> drvcfg –f 0 17 28

* To force defaults on all child devices of device 0x28 that is

managed by driver 0x17:

Shell> drvcfg –f 0 17 28 –c

35

4BCommand Descriptions

* To force defaults on child device 0x30 of device 0x28 that is

managed by driver 0x17:

Shell> drvcfg –f 0 17 28 30

* To validate options on all devices:

Shell> drvcfg –v

* To validate options on all devices that are managed by driver

0x17:

Shell> drvcfg –v 17

* To validate options on device 0x28 that is managed by driver

0x17:

Shell> drvcfg –v 17 28

* To validate options on all child devices of device 0x28 that

is managed by driver 0x17:

Shell> drvcfg –v 17 28 –c

* To validate options on child device 0x30 of device 0x28 that

is managed by driver 0x17:

Shell> drvcfg –v 17 28 30

* To set options on device 0x28 that is managed by driver 0x17:

Shell> drvcfg –s 17 28

* To set options on child device 0x30 of device 0x28 that is

managed by driver 0x17:

Shell> drvcfg –s 17 28 30

* To set options on device 0x28 that is managed by driver 0x17

in English:

Shell> drvcfg –s 17 28 –l eng

* To set options on device 0x28 that is managed by driver 0x17

in Spanish:

Shell> drvcfg –s 17 28 –l spa

Shell>

2.2.14 drvdiag

Summary

Invokes the Driver Diagnostics Protocol.

EFI Versions

EFI 1.10 and above.

36

Usage

DRVDIAG [-c] [-l XXX] [-s|-e|-m] [DriverHandle [DeviceHandle

[ChildHandle]]]

-c - Diagnose all child devices

-l - Diagnose using the ISO 639-2 language

specified by XXX

-s - Run diagnostics in standard mode

-e - Run diagnostics in extended mode

-m - Run diagnostics in manufacturing mode

DriverHandle - The handle of the driver to diagnose

DeviceHandle - The handle of a device that DriverHandle is

managing

ChildHandle - The handle of a device that is a child of

DeviceHandle

Description

This command invokes the Driver Diagnostics Protocol.

37

4BCommand Descriptions

Examples

Shell> help drvdiag

Invokes the Driver Diagnostics Protocol

DRVDIAG [-c] [-l XXX] [-s|-e|-m] [DriverHandle [DeviceHandle

[ChildHandle]]]

-c - Diagnose all child devices

-l - Diagnose using the ISO 639-2 language

specified by XXX

-s - Run diagnostics in standard mode

-e - Run diagnostics in extended mode

-m - Run diagnostics in manufacturing mode

DriverHandle - The handle of the driver to diagnose

DeviceHandle - The handle of a device that DriverHandle is

managing

ChildHandle - The handle of a device that is a child of

DeviceHandle

Examples:

* To display the list of devices that are available for

diagnostics:

Shell> drvdiag

* To display the list of devices and child devices that are

available for diagnostics:

Shell> drvdiag –c

* To run diagnostics in standard mode on all devices:

Shell> drvdiag –s

* To run diagnostics in standard mode on all devices in

English:

Shell> drvdiag –s –l eng

* To run diagnostics in standard mode on all devices in

Spanish:

Shell> drvdiag –s –l spa

* To run diagnostics in standard mode on all devices and child

devices:

Shell> drvdiag –s –c

* To run diagnostics in extended mode on all devices:

Shell> drvdiag –e

* To run diagnostics in manufacturing mode on all devices:

Shell> drvdiag –m

* To run diagnostics in standard mode on all devices managed by

driver 0x17:

Shell> drvdiag –s 17

* To run diagnostics in standard mode on device 0x28 managed by

driver 0x17:

Shell> drvdiag –s 17 28

* To run diagnostics in standard mode on all child devices of

device 0x28 managed by driver 0x17:

Shell> drvdiag –s 17 28 –c

* To run diagnostics in standard mode on child device 0x30 of

device 0x28 managed by driver 0x17:

Shell> drvdiag –s 17 28 30

Shell>

38

2.2.15 echo

Summary

Controls whether or not batch commands are displayed as they are read from the batch file and prints the given message to the display.

EFI Versions

EFI 1.02 and above.

Usage

ECHO [-on|-off]

ECHO [message]

-on - Displays when reading command lines from batch

files

-off - Does not display when reading batch command

lines

message - Displays a message string

Description

The first form of this command controls whether or not batch commands are displayed as they are read from the batch file. If no argument is given, the current "on" or "off" status is displayed. The second form prints the given message to the display.

39

4BCommand Descriptions

Examples

Shell> help echo

Displays a message, or turns command echoing on or off in batch files.

ECHO [-on|-off]

ECHO [message]

-on - Displays when reading command lines from batch

files

-off - Does not display when reading batch command

lines

message - Displays a message string

Note:

1. Echo -off means to not display the command line when reading

from batch files. This command is not like the MS-DOS echo.

2. Echo without a parameter shows the current echo setting.

Examples:

* To display a message string of 'Hello World':

fs0:\> echo Hello World

Hello World

* To turn command echoing on:

fs0:\> echo -on

* To execute HelloWorld.nsh, and display when reading lines

from the batch file:

fs0:\> HelloWorld.nsh

+HelloWorld.nsh> echo Hello World

Hello World

* To turn command echoing off:

fs0:\> echo -off

* To display the current echo setting:

fs0:\> echo

Echo is off

Shell>

2.2.16 exit

Summary

Exits the EFI Shell environment and returns control to the parent that launched the

EFI Shell.

EFI Versions

EFI 1.02 and above.

Usage

EXIT

Description

This command exits the EFI Shell environment and returns control to the parent that launched the EFI Shell.

40

Examples

Shell> help exit

Exits the EFI Shell environment and returns control to its parent.

EXIT

Examples:

Shell> exit

2.2.17 help

Summary

Displays the list of commands that are built into the EFI Shell.

EFI Versions

EFI 1.02 and above.

Usage

HELP [cmd | pattern]

cmd - Shell command

pattern – Wildmatch pattern

Description

The help command displays the list of commands that are built into the EFI Shell. It also supports displaying the verbose help information for a specified command.

You can also use

cmd -?

to display the verbose help of a command, where

cmd

is the name of the EFI Shell command or application. This syntax does the same thing as

help cmd

and can be used for both internal and external Shell commands. The form of

help cmd

, however, can be used only for internal Shell commands.

The following example shows the output from this command.

41

4BCommand Descriptions

Examples

Shell> help help

Displays the list of commands or verbose help of a command in the EFI

Shell.

HELP [cmd | pattern]

cmd - Shell command

pattern – Wildmatch pattern

Note:

1. 'cmd -?' also displays the verbose help of cmd, the same as

'help cmd'.

2. If cmd has no verbose help, its line help will be displayed

instead.

3. HELP will only show commands that were documented in the

Shell.

Examples:

* To display the list of commands in the EFI Shell and break

after one screen:

Shell> help –b

? - Displays commands list or verbose help of a

command

alias - Displays, creates, or deletes aliases in the

EFI shell

attrib - Displays or changes the attributes of files

or directories

cd - Displays or changes the current directory

cls - Clears the standard output with an optional

background color

connect - Binds an EFI driver to a device and starts

the driver

copy - Copies one or more files/directories to

another location

...

* To display help information of a Shell command - ls:

Shell> help ls

Shell> ? ls

Shell> ls -?

* To display the list of commands that start with character

‘p’:

Shell> help p*

pause – Prints a message and suspends for keyboard input

2.2.18 load

Summary

Loads an EFI driver into memory.

EFI Versions

EFI 1.10 and above.

42

Usage

LOAD [-nc] file [file...]

-nc - Load the driver, but do not connect the driver.

file - File that contains the image of the EFI driver

(wildcards are permitted)

Description

This command loads an EFI driver into memory. It can load multiple files at one time, and the file name supports the asterisk wildcard. If the

-nc

flag is not specified, this command will try to connect the driver to a proper device; meanwhile it may cause loaded drivers be connected to their corresponding devices. This action is not a bug but the implementation policy.

Examples

Shell> help load

Loads EFI drivers and then they can provide available services.

LOAD [-nc] file [file...]

-nc - Load the driver, but do not connect the driver.

file - File that contains the image of the EFI driver

(wildcards are permitted)

Note:

1. LOAD can deal with multiple files and supports wildcards.

2. Use the 'UNLOAD' command to unload a driver if it supports

unloading.

3. If option –nc is not specified, then the loaded drivers will

be automatically connected. If –nc is specified, then none of

the loaded drivers will be connected. Loading without –nc

could cause the previously loaded drivers to be connected.

This is not a bug, and it complies with the EFI Specification.

Examples:

fs0:\> load Isabus.efi

load: Image 'fs0:\Isabus.efi' loaded at 18FE000 - Success

fs0:\> load Isabus.efi IsaSerial.efi

load: Image 'fs0:\Isabus.efi' loaded at 18E5000 - Success

load: Image 'fs0:\IsaSerial.efi' loaded at 18DC000 - Success

fs0:\> load Isa*.efi

load: Image 'fs0:\IsaBus.efi' loaded at 18D4000 - Success

load: Image 'fs0:\IsaSerial.efi' loaded at 18CB000 – Success

fs0:\> load –nc IsaBus.efi

load: Image ‘fs0:\Isabus.efi’ loaded at 18FE000 - Success

Shell>

2.2.19 ls

Summary

Lists a directory's contents or file information.

43

4BCommand Descriptions

EFI Versions

EFI 1.02 and above.

Usage

LS [-r] [-a[attrib]] [file]

-r - Displays recursively (including subdirectories)

attrib - 'a', 's', 'h', 'r', 'd' or combination of them

a - Archive

s - System

h - Hidden

r - Read-only

d - Directory

file - Name of file/directory (wildcards are

permitted)

Description

This command lists directory contents or file information. If no file name or directory name is specified, then the current directory is assumed. The contents of a directory are listed if all of the following are true:

• If option

-r

is not specified

• If no wildcard characters are specified in the

file

parameter

• If

file

represents an existing directory

In all other cases, the command functions as follows:

• All files/directories that match the specified name are displayed.

• The

-r

flag determines whether a recursive search is performed.

• The option flag

-a[attrib]

tells the command to display only those files with the attributes that are specified by

[attrib]

. If more than one attribute is specified, only the files that have all those attributes will be listed. If

-a

is followed by nothing, then all files/directories are displayed, regardless of their attributes. If

-a

itself is not specified, then all files except system and hidden files are displayed.

44

Examples

Shell> help ls

Displays a list of files and subdirectories in a directory.

LS [-r] [-a[attrib]] [file]

-r - Displays recursively (including subdirectories)

attrib - 'a', 's', 'h', 'r', 'd' or combination of them

a - Archive

s - System

h - Hidden

r - Read-only

d - Directory

file - Name of file/directory (wildcards are permitted)

Examples:

* To hide files by adding the hidden or system attribute to

them:

fs0:\> attrib +s +h *.efi

ASH fs0:\IsaBus.efi

ASH fs0:\IsaSerial.efi

* To display all, except the files/directories with 'h' or 's'

attribute:

fs0:\> ls

Directory of: fs0:\

06/18/01 09:32p 153 for.nsh

06/18/01 01:02p <DIR> 512 efi

06/18/01 01:02p <DIR> 512 test1

06/18/01 01:02p <DIR> 512 test2

06/18/01 08:04p 29 temp.txt

06/18/01 08:05p <DIR> 512 test

01/28/01 08:24p r 29 readme.txt

3 File(s) 211 bytes

4 Dir(s)

* To display files with all attributes in the current

directory:

fs0:\> ls -a

Directory of: fs0:\

06/18/01 09:32p 153 for.nsh

06/18/01 01:02p <DIR> 512 efi

06/18/01 01:02p <DIR> 512 test1

06/18/01 01:02p <DIR> 512 test2

06/18/01 10:59p 28,739 IsaBus.efi

06/18/01 10:59p 32,838 IsaSerial.efi

06/18/01 08:04p 29 temp.txt

06/18/01 08:05p <DIR> 512 test

01/28/01 08:24p r 29 readme.txt

5 File(s) 61,788 bytes

4 Dir(s)

* To display files with read-only attributes in the current

directory:

fs0:\> ls -ar

Directory of: fs0:\

06/18/01 11:14p r 29 readme.txt

1 File(s) 29 bytes

0 Dir(s)

45

4BCommand Descriptions

* To display the files with attribute of 's':

fs0:\> ls -as isabus.efi

Directory of: fs0:\

06/18/01 10:59p 28,739 IsaBus.efi

1 File(s) 28,739 bytes

0 Dir(s)

* To display all in fs0:\efi directory recursively:

fs0:\> ls -r -a efi

* To search for files with the specified type in the current

directory recursively:

fs0:\> ls -r -a *.efi -b

Shell>

2.2.20 map

Summary

Defines a mapping between a user-defined name and a device handle.

EFI Versions

EFI 1.02 and above.

Usage

MAP [-d <sname>]

MAP [[-r | -u][-v][-c][-f][-t <type[,type…]>][sname]]

MAP [sname handle | mapname]

-d - Deletes a mapping

-r - Resets to default mappings

-u - Update mappings

-v - Lists verbose information of mappings

sname - Defines a name for the mapping by users

handle - The number of handle, which is same as dumped from

' dh '

command

-c - Shows the consistent mapping name.

-f - Shows the normal mapping name(not consiste

mapping).

-t - Shows the device mapping name according to the

device type.

type - The device type. The current supported types are:

fp (Floppy)

hd (Hard Disk)

cd (CD Rom)

Types can be combined by putting a comma between

two types. Spaces are not allowed between types.

mapname – The device’s mapped name. Use this parameter to

assign a new mapping name to a device. There is a

postfix ':' after the mapname.

Description

This command is used to define a mapping between a user-defined name and a device handle. The most common use of this command is to assign drive letters to device

46

handles that support a file system protocol. Once these mappings are created, the drive letters can be used with all the file manipulation commands.

The EFI Shell environment creates default mappings for all the device handles that support a recognized file system.

This command can be used to create additional mappings, or it can be used to delete an existing mapping with the

-d

option. If the

map

command is used without any parameters, all the current mappings will be listed. If the

-v

option is used, the mappings will be shown with additional information about each mapped handle. The

r

option is used to regenerate all the default mappings in a system; this option is useful if the system configuration has changed since the last boot.

The

–u

option will add mappings for newly-installed devices and remove mappings for uninstalled devices but will not change the mappings of existing devices. The userdefined mappings are also preserved. A mapping history will be saved so that the original mapping name is used for a device with a specific device path if that mapping name was used for that device path last time. The current directory is also preserved if the current device is not changed.

Each device in the system has a consistent mapping name. If the hardware configuration has not changed, the device’s consistent mapping names do not change.

If two or more machines have the same hardware configurations, the device’s consistent mapping will be the same. Use the

-c

option to list all the consistent mapping names in the system.

The mapping name consists of digits and characters. Other characters are illegal.

This command support wildcards. You can use the wildcards to delete or show the mapping name. However, when you assign the mapping name, wildcards are forbidden.

47

4BCommand Descriptions

Examples

Shell> help map

Displays or defines mappings between user-defined names and device handles.

MAP [-d <sname>]

MAP [[-r | -u][-v][-c][-f][-t <type[,type…]>][sname]]

MAP [sname handle | mapname]

-d - Deletes a mapping

-r - Resets to default mappings

-u - Update mappings

-v - Lists verbose information of mappings

sname - Defines a name for the mapping by users

handle - The number of handle, which is same as dumped from

' dh

'

command

-c - Shows the consistent mapping name.

-f - Shows the normal mapping name (not consistent

mapping).

-t - Shows the device mapping name according the device

type.

type - The device type.The currrent supported types are:

fp (Floppy)

hd (Hard Disk)

cd (CD Rom)

Types can be combined by putting a comma between

two types. Spaces are not allowed between types.

mapname – The device’s mapped name. Use this parameter to

assign a new mapping name to a device. There is a

postfix ':' after the mapname.

Note:

1. Consistent mapping is persistent across the 'map -r' command

and a system reboot.

2. Only characters and numbers are allowed inside of sname.

3. Redirection is not allowed when running map, because we do not

know the file system before mapping is done.

4. Output redirection is not supported for 'map –r' usage.

5. Option '-u' will only add/delete the mappings for new/removed

devices. The unchanged device mappings with user-defined mappings

are unchanged. The current dir, if current device is not changed,

will also be preserved.

Examples:

* To reset the mapping table to the default mappings:

shell> map -r

Device mapping table

f4 :UnknownDevice - Alias fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

fs0 :UnknownDevice - Alias f4 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

blk0 :UnknownDevice - Alias f4 fs0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

48

* To display all mappings in the device mapping table:

Shell> map

Device mapping table

f4 :UnknownDevice - Alias fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

fs0 :UnknownDevice - Alias f4 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

blk0 :UnknownDevice - Alias f4 fs0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

* To display mapping table verbosely:

Shell> map -v

Device mapping table

f4 Consist Name f4

Other Name fs0 blk0

Handle 5F: Fs DiskIo BlkIo WinNtDriverIo

Media Type UnknownDevice

Removeable NO

Current Dir \

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

fs0 Consist Name f4

Other Name blk0

Handle 5F: Fs DiskIo BlkIo WinNtDriverIo

Media Type UnknownDevice

Removeable NO

Current Dir \

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

blk0 Consist Name f4

Other Name fs0

Handle 5F: Fs DiskIo BlkIo WinNtDriverIo

Media Type UnknownDevice

Removeable NO

Current Dir \

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

* To assign fs0 another name:

Shell> map floppy fs0:

floppy:UnknownDevice - Alias f4 fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

* To display the information of the mapped name:

Shell> map floppy

floppy:UnknownDevice - Alias f4 fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

* To operate with the mapped name:

Shell> floppy:

floppy:\> ls

49

4BCommand Descriptions

* To delete a mapped name:

Shell> map -d floppy

Shell> map

Device mapping table

f4 :UnknownDevice - Alias fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

fs0 :UnknownDevice - Alias f4 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

blk0 :UnknownDevice - Alias f4 fs0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

* To display all the mapped names that start with 'f':

Shell> map f*

Device mapping table:

f4 :UnknownDevice - Alias fs0 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

fs0 :UnknownDevice - Alias f4 blk0

Device Path VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

/VenHw(0C95A92F-A006-11D4-BCFA-0080C73C8881)

2.2.21 mkdir

Summary

Creates one or more new directories.

EFI Versions

EFI 1.02 and above.

Usage

MKDIR dir [dir...]

dir - Name of a directory to be created (wildcards are

not allowed).

Description

This command creates one or more new directories.

50

Examples

Shell> help mkdir

Creates one or more directories.

MKDIR dir [dir...]

dir - Name of a directory to be created(wildcards are not

allowed)

Note:

1. The parent directory must already exist.

2. If the directory already exists, it will fail to make such a

directory.

3. The directories in the command line should not rely on the

creation of other directories in the command line. For

example, ‘mkdir new new\test’ is not allowed.

4. Redirecting output to a file that exists under the directory

specified on the command line is not allowed.

Examples:

* To create a new directory:

fs0:\> mkdir rafter

fs0:\>

ls

Directory of: fs0:\

06/18/01 08:05p <DIR> 512 test

06/18/01 11:14p r 29 readme.txt

06/18/01 11:50p <DIR> 512 rafter

1 File(s) 211 bytes

2 Dir(s)

* To create multiple directories:

fs0:\> mkdir temp1 temp2

fs0:\> ls

Directory of: fs0:\

06/18/01 08:05p <DIR> 512 test

06/18/01 11:14p r 29 readme.txt

06/18/01 11:50p <DIR> 512 rafter

06/18/01 11:52p <DIR> 512 temp1

06/18/01 11:52p <DIR> 512 temp2

1 File(s) 211 bytes

4 Dir(s)

Shell>

2.2.22 mv

Summary

Moves one or more files to a destination within a file system.

EFI Versions

EFI 1.02 and above.

51

4BCommand Descriptions

Usage

MV src [src...] [dst]

src - Source file/directory name (wildcards are

permitted)

dst - Destination file/directory name (wildcards are not

permitted)

Description

This command moves one or more files to a destination within a file system. Moving between file system volumes is not supported. If the destination is an existing directory, then the sources are moved into that directory. Otherwise, the sources are moved to the destination, as if the directory has been renamed. If a destination is not specified, the current directory is assumed to be the destination.

Examples

Shell> help mv

Moves one or more files/directories to destination within fs.

MV src [src...] [dst]

src - Source file/directory name (wildcards are

permitted)

dst - Destination file/directory name (wildcards are not

permitted)

Note:

1. If 'dst' is not specified, then the current directory is

assumed to be the 'dst'.

2. If there is more than one argument in the command line, the

last one will be taken as 'dst' unconditionally. If there is

more than one source file/directory to move, the 'dst' should

be an existing directory.

3. Attempting to move a read-only file/directory will result in

failure.

4. Moving a directory that contains read-only file(s) is allowed.

5. You cannot move a directory into itself or its subdirectories.

6. You cannot move a directory if the current directory is itself

or its subdirectory.

7. Redirecting output to a file that exists under the directory

that will be moved is not allowed.

8. If an error occurs, the remaining files or directories will

still be moved.

Examples:

* To rename a file:

fs0:\> mv IsaBus.efi Bus.efi

moving fs0:\IsaBus.efi -> \Bus.efi

- [ok]

* To move a directory to the current directory:

fs0:\>

mkdir

test1\temp

fs0:\> mv test1\temp

moving fs0:\test1\temp -> \.\temp

- [ok]

* To rename a directory:

fs0:\> mv efi efi1.1

moving fs0:\efi -> \efi1.1

- [ok]

52

* To move multiple directories at a time:

fs0:\> mv test1 test2 test

moving fs0:\test1 -> \test\test1

- [ok]

moving fs0:\test2 -> \test\test2

- [ok]

* Moving a read-only directory will result a failure:

fs0:\test> attrib

+r temp1

DA R fs0:\test\temp1

fs0:\test> mv temp1 temp2

moving fs0:\test\temp1 -> \test\temp2

- error - Invalid Parameter

Shell>

2.2.23 reconnect

Summary

Reconnects drivers to the specific device.

EFI Versions

EFI 1.10 and above.

Usage

RECONNECT DeviceHandle [DriverHandle [ChildHandle]]

RECONNECT -r

DeviceHandle - Device handle, always taken as hexadecimal

number

DriverHandle - Driver handle, always taken as hexadecimal

number

ChildHandle - Child handle of device, always taken as

hexadecimal number

-r - Reconnect drivers to all devices

Description

This command reconnects drivers to the specific device. It will first disconnect the specified driver from the specified device and then connect the driver to the device recursively.

If the

-r

option is used, then all drivers will be reconnected to all devices. See the

connect

and

disconnect

commands for more details. The example below is the typical output from the help for this command.

53

4BCommand Descriptions

Examples

Shell> Help Reconnect

Reconnects one or more EFI drivers to a device.

RECONNECT DeviceHandle [DriverHandle [ChildHandle]]

RECONNECT -r

DeviceHandle - Device handle in hexadecimal format

DriverHandle - Driver handle in hexadecimal format

ChildHandle - Child handle of device in hexadecimal format

-r - Reconnect drivers to all devices

Note:

1. This command disconnects the drivers from the controller similar

to 'DISCONNECT'. The main difference is this command then

immediately reconnects all drivers recursively.

2. If no 'DriverHandle' parameter is specified, all drivers on the

specified device will be the default.

3. If no 'ChildHandle' parameter is specified, all child handles of

the specified device will be the default.

4. If 'DriverHandle' parameter is provided, the specified driver

will have highest priority on connecting the device(s).

5. If the '-r' option is specified, any drivers that are binding to

any devices will be disconnected first and then connected

recursively.

6. This command is a great way to test if drivers are compliant

with the EFI 1.10 Driver Model.

7. This command does not support output redirection.

Examples:

* To reconnect all drivers to all devices:

Shell> reconnect -r

* To reconnect all drivers to device 0x28:

fs0:\> reconnect 28

* To disconnect 0x17 from 0x28 then reconnect drivers with 0x17 as

highest priority to device 0x28:

fs0:\> reconnect 28 17

* To disconnect 0x17 from 0x28 destroying child 0x32 then reconnect

drivers with 0x17 as highest priority to device 0x28

fs0:\> reconnect 28 17 32

2.2.24 reset

Summary

Resets the system.

EFI Versions

EFI 1.02 and above.

54

Usage

RESET [-w [string]]

RESET [-s [string]]

-w - Performs a warm reset

-s - Performs a shutdown

string - String to be passed to reset service

Description

This command resets the system. The default is to perform a cold reset unless the

-w

parameter is specified. If the reset

string

is specified, then it is passed into the

Reset()

function, so the system can know the reason for the system reset.

Examples

Shell> help reset

Resets the system.

RESET [-w [string]]

RESET [-s [string]]

-w - Performs a warm reset

-s - Performs a shutdown

string - String to be passed to reset service

Note:

1. Not all systems implement '-w' flag. This may mean different

things depending on which BIOS EFI is implemented.

2. Reset will be guaranteed to reset the chipset as well as the

Processor when cold reset is called.

3. This command does not support output redirection.

Shell>

2.2.25 rm

Summary

Deletes one or more files or directories.

EFI Versions

EFI 1.02 and above.

55

4BCommand Descriptions

Usage

RM [-q] file/directory [file/directory ...]

-q - Quiet mode; does not prompt user for a

confirmation

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Description

This command deletes one or more files or directories. If the target is a directory, it will delete the directory, including all its subdirectories. It is not allowed to redirect a file whose parent directory (or the file itself) is being deleted.

56

Examples

Shell> help rm

Deletes one or more files or directories.

RM [-q] file/directory [file/directory ...]

-q - Quite mode; does not prompt user for a

confirmation

file - File name (wildcards are permitted)

directory - Directory name (wildcards are permitted)

Note:

1. Removing a read-only file/directory will result in a failure.

Removing a directory containing read-only file(s) will result

in a failure.

2. If an error occurs, RM will exit immediately and later

files/directories will not be removed.

3. You cannot remove a directory when the current directory is

itself or its subdirectory.

4. If file contains wildcards, it will not ask user for

confirmation.

5. You cannot remove the root directory.

6. You cannot remove the current directory or its ancestor.

7. Redirecting output to a file that exists under the directory

that will be removed is not allowed.

Examples:

* To remove multiple directories at a time:

fs0:\>

ls

test

Directory of: fs0:\test

06/18/01 01:01p <DIR> 512 .

06/18/01 01:01p <DIR> 0 ..

06/19/01 12:59a <DIR> 512 temp1

06/19/01 12:59a <DIR> 512 temp2

0 File(s) 0 bytes

4 Dir(s)

* Error occurs and RM will exit:

fs0:\> rm test\temp11 temp2

rm/del: Cannot find 'fs0:\test\temp11' - Not Found

* To remove multiple directories with wildcards:

fs0:\> rm test\temp*

rm/del: Remove subtree 'fs0:\test\temp1' [y/n]? y

removing fs0:\test\temp1\temp1.txt

- [ok]

removing fs0:\test\temp1\boot\nshell.efi

- [ok]

removing fs0:\test\temp1\boot

- [ok]

removing fs0:\test\temp1

- [ok]

rm/del: Remove subtree 'fs0:\test\temp2' [y/n]? y

removing fs0:\test\temp2\temp2.txt

- [ok]

removing fs0:\test\temp2

- [ok]

* Removing a directory that contains a read-only file will

fail:

fs0:\>

attrib

+r test\temp1\readme.txt

A R fs0:\test\temp1\readme.txt

fs0:\> rm test\temp1

57

4BCommand Descriptions

rm/del: Cannot open 'readme.txt' under 'fs0:\test\temp1' in

writable mode

- [error] - Access Denied

Exit status code: Access Denied

Shell>

2.2.26 set

Summary

Used to maintain the environment variables that are available from the EFI environment.

EFI Versions

EFI 1.02 and above.

Usage

SET [-v] [sname [value]]

SET [-d <sname>]

-d - Deletes the environment variable

-v - Volatile variable

sname - Environment variable name

value - Environment variable value

Description

This command is used to maintain the environment variables that are available from the EFI environment. This command can do the following:

• Display the environment variables.

• Create new environment variables.

• Change the value of existing environment variables.

• Delete environment variables.

The

set

command will set the environment variable that is specified by

sname

to

value

. This command can be used to create a new environment variable or to modify an existing environment variable. If the

set

command is used without any parameters, then all the environment variables are displayed. If the

set

command is used with the

-d

option, then the environment variable that is specified by

sname

will be deleted. The following examples show how this command can be used to create, modify, and delete the environment variable

DiagnosticPath

.

58

Examples

Shell> help set

Displays, creates, changes, or deletes EFI environment variables.

SET [-v] [sname [value]]

SET [-d <sname>]

-d - Deletes the environment variable

-v - Volatile variable

sname - Environment variable name

value - Environment variable value

Notes:

1. Size of NVRAM for set command will depend on the system

implementation.

2. May send NVRAM variables to /efi/boot/bootstr.nvr on the file

system if no NVRAM is implemented in the core EFI routines.

3. SET values are stored in EFI NVRAM and will be retained

between boots unless the option -v is specified.

4. A * in front of sname means that this variable is a volatile

variable.

To make any changes to it, please use the command with the –v option.

Examples:

* To add an environment variable:

Shell> set DiagnosticPath fs0:\efi\diag;fs1:\efi\diag

* To display environment variables:

Shell> set

* path : .

diagnosticPath : fs0:\efi1.1\diag;fs1:\efi1.1\diag

* To delete an environment variable:

Shell> set -d diagnosticpath

Shell> set

* path : .

* To change an environment variable:

fs0:\> set src efi

fs0:\> set

* path : .;fs0:\efi\tools;fs0:\efi\boot;fs0:\

src : efi

fs0:\> set src efi1.1

fs0:\> set

* path : .;fs0:\efi\tools;fs0:\efi\boot;fs0:\

src : efi1.1

* To append an environment variable:

Shell> set

* path : .

Shell> set path %path%;fs0:\efi\tools;fs0:\efi\boot;fs0:\

Shell> set

* path : .;fs0:\efi\tools;fs0:\efi\boot;fs0:\

* To set a volatile variable that will disappear at the next

boot:

Shell> set -v EFI_SOURCE c:\project\EFI1.1

Shell> set

* path : .;fs0:\efi\tools;fs0:\efi\boot;fs0:\

* EFI_SOURCE : c:\project\EFI1.1

Shell>

2.2.27 time

59

4BCommand Descriptions

Summary

Displays or sets the current time for the system.

EFI Versions

EFI 1.02 and above.

Usage

TIME [hh:mm[:ss]]

hh - Hour of time, Hour range: 0 - 23

mm - Minute of time, Minute range: 0 - 59

ss - Second of time, Second range: 0 - 59

Description

This command displays or sets the current time for the system. If no parameters are used, it shows the current time. If valid hours, minutes, and seconds are provided, then the system's time will be updated. Note the following rules:

• Except for numeric characters and the : character, all other characters in the argument are invalid. The Shell will report an error if the number is in the wrong hour/minute/second range.

• Spaces before or after the numeric character are not allowed. Spaces inserted into the number are not allowed either.

• Repeated zeros are allowed before the number. For example:

Shell > time 00000017:000004:0000

Shell > time

17:04:00 (GMT+08:00)

Shell >

• The seconds parameter is optional. If there is no seconds number, it will set to zero by default.

60

Shell > time 17:23

Shell > time

17:23:00(GMT+08:00)

Shell > time 17:23:

Shell > time

17:23:00(GMT+08:00)

Examples

Shell> help time

Displays the current time or sets the time of the system.

TIME [hh:mm[:ss]]

hh - Hour of time, hour range: 0 - 23

mm - Minute of time, minute range: 0 - 59

ss - Second of time, second range: 0 - 59

Note:

1. Hour and minute are required to set the time.

2. If second is not specified, 0 will be used as default.

Examples:

* To display current time:

fs0:\> time

16:51:03 (GMT+08:00)

* To set the system time:

fs0:\> time 9:51:30

fs0:\> time

09:51:31 (GMT+08:00)

Shell>

2.2.28 touch

Summary

Updates the time and date on a file to the current time and date.

EFI Versions

EFI 1.02 and above.

Usage

TOUCH [-r] file [file …]

-r - Recursive to subdirectories

file - The name or pattern of the file or directory. There

can be multiple files on the command line.

Description

This command updates the time and date on the file that is specified by the

file

parameter to the current time and date.

61

4BCommand Descriptions

Examples

Shell> help touch

Updates time and date with current time.

TOUCH [-r] file [file …]

-r - Recursive to subdirectories

file - The name or pattern of the file or directory. There

can be multiple files on the command line.

Notes:

1. If multiple files are specified on the command line, it will

continue processing. It will touch the files one by one and

errors will be ignored.

2. Touch cannot change the time and date of read-only files and

and directories.

Examples:

* To touch a file (the time and date of the file will be

changed after

TOUCH):

fs0:\>

ls

for.nsh

Directory of: fs0:\

06/18/01 09:32p 153 for.nsh

1 File(s) 153 bytes

0 Dir(s)

fs0:\> touch for.nsh

touch: fs0:\for.nsh [ok]

fs0:\> ls for.nsh

Directory of: fs0:\

06/19/01 09:54a 153 for.nsh

1 File(s) 153 bytes

0 Dir(s)

* To touch a directory recursively:

fs0:\>

touch

-r efi1.1

touch: fs0:\efi1.1 [ok]

touch: fs0:\efi1.1\boot [ok]

touch: fs0:\efi1.1\boot\nshell.efi [ok]

2.2.29 type

Summary

Sends the contents of a file to the standard output device.

EFI Versions

EFI 1.02 and above.

62

Usage

TYPE [-a|-u] file [file...]

-a - Displays the file as ASCII characters

-u - Displays the file as Unicode characters

file - Name of file to display

Description

This command sends the contents of a file to the standard output device. If no options are used, then the file type is automatically detected and sent to the standard output device. If the

-a

option is specified, the file is sent to the standard output device as a stream of ASCII characters. If the

-u

option is specified, the file is sent to the standard output device as a stream of Unicode characters. The example below shows how to send the ASCII file

README.TXT

on the floppy drive to the standard output device and the Unicode file

READMEU.TXT

on the floppy drive to the standard output device.

Type redirection to the same file is not supported currently. Wildcards are permitted in the file name. If the

type

command is used in conjunction with an ASCII file with the

-u

flag, this flag will be ignored and the contents of the file will be sent to the standard output device as ASCII characters. If the

type

command is used in conjunction with a Unicode file with the

-a

flag, the file will be sent as ASCII characters but with an additional space between each character.

63

4BCommand Descriptions

Examples

Displays file contents on the standard output device.

TYPE [-a|-u] file [file...]

-a - Display file in ASCII format

-u - Display file in Unicode format

file - Name of file to display

Examples:

* To display a file in Unicode format:

fs0:\> type -u pause.nsh

File: fs0:\pause.nsh, Size 204

#

# Example script for 'pause' command

#

echo pause.nsh begin..

date

time

pause

echo pause.nsh done.

* To display a file in ASCII format:

fs0:\> type -a pause.nsh

File: fs0:\pause.nsh, Size 204

#

# E x a m p l e s c r i p t f o r ' p a u s e ' c o m m a n d

#

e c h o p a u s e . n s h b e g i n . .

d a t e

t i m e

p a u s e

e c h o p a u s e . n s h d o n e .

* To display multiple files:

fs0:\> type test.*

File: fs0:\test.txt, Size 23

How to Install?

File: fs0:\test.nsh, Size 48

time

stall 3000000

time

2.2.30 unload

Summary

Unloads a driver image that was already loaded.

EFI Versions

EFI 1.10 and above.

64

Usage

UNLOAD [-n] [-v] Handle

-n - Without prompt

-v - Dump Verbose information

Handle - Handle of driver to unload, always taken as

hexadecimal number

Description

This command unloads a driver image that was already loaded.

Examples

Shell> help unload

Unloads a driver image.

UNLOAD [-n] [-v] Handle

-n - Without prompt

-v - Dump Verbose information

Handle - Handle of driver to unload, always taken as

hexadecimal number

Note:

1. Option '-n' can be used to skip all the prompts during the

unloading so that it can be used in a batch file.

2. If option '-v' is specified, the verbose information on the

image will be displayed before the image is unloaded.

3. Only those images that can support the unloading operation can

be unloaded successfully.

4. The ' load

' command does the opposite opposite of the 'UNLOAD'

command.

Examples:

* To find the handle index driver image to unload:

Shell>

dh

-b

Handle dump

1: Image(DXE Core)

2: FwVol FwFileSys FwVolBlk DevPath(MemMap(11:1760000-

189FFC8))

...

27: Image(Reset)

28: Image(WinNtBlockIo) DriverBinding

29: Image(Timer)

...

* To unload the driver image of 'Reset':

Shell>

unload

27

27: Image(Reset)

Unload driver image (y/n)? n

Exit status code: Aborted

2.2.31 ver

Summary

Displays the version information for this EFI firmware.

65

EFI Versions

EFI 1.02 and above.

4BCommand Descriptions

66

Usage

VER [-s]

-s - Displays only the EFI Shell version

Description

This command displays the version information for this EFI Firmware or the version information for the EFI Shell itself. The information is retrieved through the EFI

System Table or the Shell image.

67

4BCommand Descriptions

Examples

Shell> help ver

Displays the version information for this EFI Firmware.

VER [-s]

-s - Displays only the EFI Shell version

Examples:

* To display the version information of a platform:

fs0:\> ver

EFI Specification Revision : 1.10

EFI Vendor : INTEL

EFI Revision : 14.5

* To display the version information of another platform:

Note that the version information may vary from different

platforms due to some platform-specific information.

fs0:\> ver

EFI Specification Revision : 1.02

EFI Vendor : INTEL

EFI Revision : 12.38

SAL Specification Revision 3. 0

SAL_A Revision = 1. 1

SAL_B Revision = 1. 1

PAL_A Revision 66.23

PAL_B Revision 66.23

Other modules mentioned in FIT (Firmware Interface Table)

FIT_Entry Type 0, Revision 2.60

FIT_Entry Type 15, Revision 66.23

FIT_Entry Type 16, Revision 0.90

FIT_Entry Type 32, Revision 0.30

FIT_Entry Type 30, Revision 1. 0

FIT_Entry Type 17, Revision 0.90

FIT_Entry Type 18, Revision 6. 0

FIT_Entry Type 20, Revision 0.80

SalProc Entry 000000003FE3F720 and GP 000000003FF22480

PalProc Entry 000000003FF48010 IO Port Base 00000FFFFC000000

Cache Enabled

* To display the version information of the EFI Shell:

Shell> ver -s

EFI Shell Revision 1.0

EFI Shell Signature: D2C18636-40E5-4EB5-A31B-36695FD42C87

Shell>

2.2.32 vol

Summary

Displays the volume information for the file system that is specified by

fs

.

EFI Versions

EFI 1.02 and above.

68

Usage

VOL [fs] [-n <Volume Label>]

VOL [fs] [-d]

fs - The name of the file system

Volume Label - New volume label

-d - Empty volume label

Description

This command displays the volume information for the file system that is specified by

fs

. If

fs

is not specified, the current file system will be taken as the correct

fs

. If

Volume Label

is specified, then the volume label for

fs

will be set to

Volume Label

.

The maximum length for

Volume Label

is 11 characters.

Examples

Shell> help vol

Displays volume information for the file system specified by fs.

VOL [fs] [-n <Volume Label>]

VOL [fs] [-d]

fs - The name of the file system

Volume Label - New volume label

-d - Empty volume label

Notes:

1. The following characters cannot be used in Volume Label:

% ^ * + = [ ] | : ; “ < > ? / ..

2. No space is allowed in Volume Label.

3. If fs is not specified, the current file system will be taken

as fs.

Examples:

* To display the volume of the current fs:

fs0:\> vol

Volume has no label (rw)

1,457,664 bytes total disk space

1,149,440 bytes available on disk

512 bytes in each allocation unit

* To change the label of fs0:

shell> vol fs0 –n help_test

Volume HELP_TEST (rw)

1,457,664 bytes total disk space

1,149,440 bytes available on disk

512 bytes in each allocation unit

* To get rid of the label of fs0:

fs0:\> vol fs0 -d

Volume has no label (rw)

1,457,664 bytes total disk space

220,160 bytes available on disk

512 bytes in each allocation unit

Shell>

69

4BCommand Descriptions

Additional Commands from Full Build Shell 2.3

2.3.1 comp

Summary

Compares the contents of two files on a byte for byte basis.

EFI Versions

EFI 1.10 and above.

Usage

COMP [-b] file1 file2

-b - Display one screen at a time file1 - First file name (directory name or wildcards not

permitted) file2 - Second file name (directory name or wildcards not

permitted)

Description

This command compares the contents of two files in binary mode. It displays up to 10 differences between the two files. For each difference, up to 32 bytes from the location where the difference starts is dumped.

70

Examples

Shell> help comp

Compares the contents of two files on a byte for byte basis.

COMP [-b] file1 file2

-b - Display one screen at a time file1 - First file name (directory name or wildcards not

permitted) file2 - Second file name (directory name or wildcards not

permitted)

Note:

1. COMP will compare files in binary mode.

2. COMP will exit immediately if the lengths of the compared files

are different.

3. COMP will exit if 10 differences encountered.

Examples:

* To compare two files with different lengths:

fs0:\> comp bios.inf legacy.inf

Compare fs0:\bios.inf to fs0:\legacy.inf

Difference #1: File sizes mismatch

[difference(s) encountered]

* To compare two files with the same contents:

fs0:\> comp bios.inf rafter.inf

Compare fs0:\bios.inf to fs0:\rafter.inf

[no difference encountered]

* To compare two files with the same length but different contents:

fs0:\> comp bios.inf bios2.inf

Compare fs0:\bios.inf to fs0:\bios2.inf

Difference #1:

File1: fs0:\bios.inf

00000000: 5F *_*

File2: fs0:\bios2.inf

00000000: 33 *3*

Difference #2:

File1: fs0:\bios.inf

0000000C: 00 00 00 00 *....*

File2: fs0:\bios2.inf

0000000C: 25 32 03 03 *%2..*

[difference(s) encountered]

2.3.2 dblk

Summary

Displays the contents of one or more blocks from a block device.

EFI Versions

EFI 1.10 and above.

71

4BCommand Descriptions

Usage

DBLK device [Lba] [blocks] [-b]

-b - Display one screen at a time

device - Block device name

Lba - Index of the first block to be displayed in hex format

blocks - Number of blocks to be displayed in hex format

Description

This command displays the contents of one or more blocks from a block device.

Lba

and

blocks

should be typed in hex value. If

Lba

is not specified, block #0 is assumed. If

blocks

is not specified, then on1y 1 block will be displayed. The maximum number of blocks that can be displayed at one time is 0x10.

If an MBR is found on the block, the partition information will be printed after all the block contents have been displayed.

If the block is a FAT partition, some FAT parameters will be displayed (label, systemid, oemid, sectorsize, clustersize, media etc) after all the blocks have been displayed.

72

Examples

Shell> help dblk

Displays the contents of one or more blocks from a block device.

DBLK device [Lba] [blocks] [-b]

-b - Display one screen at a time

device - Block device name

Lba - Index of the first block to be displayed in hex format

blocks - Number of blocks to be displayed in hex format

Note:

1. The 'Lba' and 'blocks' parameters are in hexadecimal format.

2. The 'Lba' parameter defaults to 0 if not specified.

3. The 'blocks' parameter defaults to 1 if not specified.

4. If 'blocks' is larger than 0x10, only the first 0x10 blocks will

be displayed.

5. Lba + blocks should not be larger than the last block of the

device.

6. If a FAT file system is detected, some FAT parameters will also

be displayed (label, systemid, oemid, sectorsize, clustersize,

media etc) after all the blocks have been displayed.

7. If a MBR is detected on a FAT file system, the partition

information will be displayed after all the block contents have

been displayed.

Examples:

* To display one block of blk0, beginning from block 0:

Shell>dblk blk0

* To display one block of fs0, beginning from block 0x2:

Shell>dblk fs0 2

* To display 0x5 blocks of fs0, beginning from block 0x12:

Shell>dblk fs0 12 5

* To display 0x10 blocks of fs0, beginning from block 0x12:

Shell>dblk fs0 12 10

* The attempt to display more than 0x10 blocks will display only 0x10

blocks:

Shell>dblk fs0 12 20

* To display one block of blk2, beginning from the first block

(blk0):

fs1:\tmps1> dblk blk2 0 1

LBA 0000000000000000 Size 00000200 bytes BlkIo 3F0CEE78

00000000: EB 3C 90 4D 53 44 4F 53-35 2E 30 00 02 04 08 00 *.<.MSDOS5.0.....*

00000010: 02 00 02 00 00 F8 CC 00-3F 00 FF 00 3F 00 00 00 *........?...?...*

00000020: 8E 2F 03 00 80 01 29 2C-09 1B D0 4E 4F 20 4E 41 *./....),...NO NA*

00000030: 4D 45 20 20 20 20 46 41-54 31 36 20 20 20 33 C9 *ME FAT16 3.*

00000040: 8E D1 BC F0 7B 8E D9 B8-00 20 8E C0 FC BD 00 7C *......... ......*

00000050: 38 4E 24 7D 24 8B C1 99-E8 3C 01 72 1C 83 EB 3A *8N$.$....<.r...:*

00000060: 66 A1 1C 7C 26 66 3B 07-26 8A 57 FC 75 06 80 CA *f...&f;.&.W.u...*

00000070: 02 88 56 02 80 C3 10 73-EB 33 C9 8A 46 10 98 F7 *..V....s.3..F...*

00000080: 66 16 03 46 1C 13 56 1E-03 46 0E 13 D1 8B 76 11 *f..F..V..F....v.*

00000090: 60 89 46 FC 89 56 FE B8-20 00 F7 E6 8B 5E 0B 03 *`.F..V.. ....^..*

000000A0: C3 48 F7 F3 01 46 FC 11-4E FE 61 BF 00 00 E8 E6 *.H...F..N.a.....*

000000B0: 00 72 39 26 38 2D 74 17-60 B1 0B BE A1 7D F3 A6 *.r9&8-t.`.......*

000000C0: 61 74 32 4E 74 09 83 C7-20 3B FB 72 E6 EB DC A0 *at2Nt... ;.r....*

000000D0: FB 7D B4 7D 8B F0 AC 98-40 74 0C 48 74 13 B4 0E *[email protected]*

000000E0: BB 07 00 CD 10 EB EF A0-FD 7D EB E6 A0 FC 7D EB *................*

000000F0: E1 CD 16 CD 19 26 8B 55-1A 52 B0 01 BB 00 00 E8 *.....&.U.R......*

00000100: 3B 00 72 E8 5B 8A 56 24-BE 0B 7C 8B FC C7 46 F0 *;.r.[.V$......F.*

00000110: 3D 7D C7 46 F4 29 7D 8C-D9 89 4E F2 89 4E F6 C6 *=..F.)....N..N..*

00000120: 06 96 7D CB EA 03 00 00-20 0F B6 C8 66 8B 46 F8 *........ ...f.F.*

00000130: 66 03 46 1C 66 8B D0 66-C1 EA 10 EB 5E 0F B6 C8 *f.F.f..f....^...*

73

4BCommand Descriptions

00000140: 4A 4A 8A 46 0D 32 E4 F7-E2 03 46 FC 13 56 FE EB *JJ.F.2....F..V..*

00000150: 4A 52 50 06 53 6A 01 6A-10 91 8B 46 18 96 92 33 *JRP.Sj.j...F...3*

00000160: D2 F7 F6 91 F7 F6 42 87-CA F7 76 1A 8A F2 8A E8 *......B...v.....*

00000170: C0 CC 02 0A CC B8 01 02-80 7E 02 0E 75 04 B4 42 *............u..B*

00000180: 8B F4 8A 56 24 CD 13 61-61 72 0B 40 75 01 42 03 *[email protected]*

00000190: 5E 0B 49 75 06 F8 C3 41-BB 00 00 60 66 6A 00 EB *^.Iu...A...`fj..*

000001A0: B0 4E 54 4C 44 52 20 20-20 20 20 20 0D 0A 52 65 *.NTLDR ..Re*

000001B0: 6D 6F 76 65 20 64 69 73-6B 73 20 6F 72 20 6F 74 *move disks or ot*

000001C0: 68 65 72 20 6D 65 64 69-61 2E FF 0D 0A 44 69 73 *her media....Dis*

000001D0: 6B 20 65 72 72 6F 72 FF-0D 0A 50 72 65 73 73 20 *k error...Press *

000001E0: 61 6E 79 20 6B 65 79 20-74 6F 20 72 65 73 74 61 *any key to resta*

000001F0: 72 74 0D 0A 00 00 00 00-00 00 00 AC CB D8 55 AA *rt............U.*

Fat 16 BPB FatLabel: 'NO NAME ' SystemId: 'FAT16 ' OemId: 'MSDOS5.0'

SectorSize 200 SectorsPerCluster 4 ReservedSectors 8 # Fats 2

Root Entries 200 Media F8 Sectors 32F8E SectorsPerFat CC

SectorsPerTrack 3F Heads 255

2.3.3 devices

Summary

Displays the list of devices managed by EFI drivers.

EFI Versions

EFI 1.10 and above.

Usage

DEVICES [-b] [-l XXX]

-b - Display one screen at a time

-l XXX - Display devices using the specified ISO 639-2 language

Description

The command prints a list of devices that are being managed by EFI drivers that follow the EFI Driver Model.

Table 6 Display Format of

devices

Columns Description

CTRL

TYPE

CFG

DIAG

#P

#D

Device Name

The handle number of the EFI device

The device type:

• [R] – Root Controller

• [B] – Bus Controller

• [D] – Device Controller

A managing driver supports the Driver Configuration Protocol

A managing driver supports the Driver Diagnostics Protocol

The number of parent controllers for this device

The number of child controllers produced by this device

The name of the device from the Component Name Protocol

74

Examples

Shell> help devices

Displays the list of devices managed by EFI drivers.

DEVICES [-b] [-l XXX]

-b - Display one screen at a time

-l XXX - Display devices using the specified ISO 639-2

language

Display Format:

CTRL - The handle number of the EFI device

TYPE - The device type:

[R] - Root Controller

[B] - Bus Controller

[D] - Device Controller

CFG - A managing driver supports the Driver Configuration

Protocol

DIAG - A managing driver supports the Driver Diagnostics

Protocol

#P - The number of parent controllers for this device

#D - The number of drivers managing the device

#C - The number of child controllers produced by this

device

DEVICE NAME - The name of the device from the Component Name

Protocol

Examples:

* To display all devices compliant with the EFI Driver Model

Shell> devices

C T D

T Y C I

R P F A

L E G G #P #D #C Device Name

== = = = == == == =============================================================

20 R - - - 1 13 VenHw(58C518B1-76F3-11D4-BCEA-0080C73C8881)

3D D - - 3 - - Primary Console Input Device

3E D - - 3 - - Primary Console Output Device

64 B - - 1 6 2 "UGA Window 1

65 B - - 1 6 2 UGA Window 2"

66 B - - 1 1 1 EFI_WIN_NT_SERIAL_PORT=COM1

67 B - - 1 1 1 COM1

68 B - - 1 4 2 PC-ANSI Serial Console

69 D - - 1 - - EFI_WIN_NT_SERIAL_PORT=COM2

6E D - - 1 - - EFI_WIN_NT_PHYSICAL_DISKS=e:RW;262144;512

6F D - - 1 - - EFI_WIN_NT_CPU_MODEL=Intel(R) Processor Model

70 D - - 1 - - EFI_WIN_NT_CPU_SPEED=3000

71 D - - 1 - - EFI_MEMORY_SIZE=64

72 D - - 1 - - EFI_MEMORY_SIZE=64

2.3.4 devtree

Summary

This command displays the tree of devices compliant with the EFI Driver Model.

EFI Versions

EFI 1.10 and above.

75

4BCommand Descriptions

Usage

DEVTREE [-b] [-d] [-l XXX] [DeviceHandle]

-b - Display one screen at a time

-d - Display device tree using device paths

-l - Display device tree using the specified ISO 639-2

language

DeviceHandle - Display device tree below a certain handle

Description

This command prints a tree of devices that are being managed by drivers that follow the EFI Driver Model. By default, the devices are printed in device names that are retrieved from the Component Name Protocol. If the option

–d

is specified, the device paths will be printed instead.

Examples

Shell> help devtree

Displays the tree of devices compliant with the EFI Driver Model.

DEVTREE [-b] [-d] [-l XXX] [DeviceHandle]

-b - Display one screen at a time

-d - Display device tree using device paths

-l - Display device tree using the specified ISO 639-2

language

DeviceHandle - Display device tree below a certain handle

Examples:

* To display the tree of all devices compliant with the EFI Driver

Model:

Shell> devtree

* To display the tree of all devices below device 28 compliant with

the EFI Driver Model:

Shell> devtree 28

* To display the tree of all devices compliant with the EFI Driver

Model one screen at a time:

Shell> devtree -b

2.3.5 dmem

Summary

Displays the contents of system or device memory.

EFI Versions

EFI 1.10 and above.

76

Usage

DMEM [-b] [Address] [Size] [-MMIO]

-b - Display one screen at a time

address - Starting address in hexadecimal format

size - Number of bytes to display in hexadecimal format

-MMIO - Forces address cycles to the PCI bus

Description

This command displays the contents of system memory or device memory.

Address

and

Size

should be typed in hex value. If Address is not specified, then the contents of the EFI System Table are displayed. Otherwise, memory starting at Address is displayed.

Size

specifies the number of bytes to display. If

Size

is not specified, then it defaults to 512 bytes. If

MMIO

is not specified, then main system memory is displayed. Otherwise, device memory is displayed through the use of the

EFI_PCI_ROOT_BRIDGE_IO_PROTOCOL .

77

4BCommand Descriptions

Examples

Shell> dmem

Displays the contents of system or device memory.

DMEM [-b] [Address] [Size] [-MMIO]

-b - Display one screen at a time

address - Starting address in hexadecimal format

size - Number of bytes to display in hexadecimal format

-MMIO - Forces address cycles to the PCI bus

Note:

1. All units are in hexadecimal format.

2. Address must be aligned on an even processor address boundary.

3. If the 'address' parameter is not specified, DMEM will display

the all system table pointer entries by default.

Examples:

* To display the EFI system table pointer entries:

fs0:\> dmem

Memory Address 000000003FF7D808 200 Bytes

3FF7D808: 49 42 49 20 53 59 53 54-02 00 01 00 78 00 00 00 *IBI SYST....x...*

3FF7D818: 5C 3E 6A FE 00 00 00 00-88 2E 1B 3F 00 00 00 00 *\>j........?....*

3FF7D828: 26 00 0C 00 00 00 00 00-88 D3 1A 3F 00 00 00 00 *&..........?....*

3FF7D838: A8 CE 1A 3F 00 00 00 00-88 F2 1A 3F 00 00 00 00 *...?.......?....*

3FF7D848: 28 EE 1A 3F 00 00 00 00-08 DD 1A 3F 00 00 00 00 *(..?.......?....*

3FF7D858: A8 EB 1A 3F 00 00 00 00-18 C3 3F 3F 00 00 00 00 *...?..........*

3FF7D868: 00 4B 3F 3F 00 00 00 00-06 00 00 00 00 00 00 00 *.K............*

3FF7D878: 08 DA F7 3F 00 00 00 00-70 74 61 6C 88 00 00 00 *...?....ptal....*

3FF7D888: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D898: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8A8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8B8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8C8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8D8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8E8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8F8: 00 00 00 00 00 00 00 00-70 68 06 30 88 00 00 00 *........ph.0....*

3FF7D908: 65 76 6E 74 00 00 00 00-02 02 00 60 00 00 00 00 *evnt.......`....*

3FF7D918: 18 6F 1A 3F 00 00 00 00-10 E0 3F 3F 00 00 00 00 *.o.?..........*

3FF7D928: 10 00 00 00 00 00 00 00-40 C0 12 3F 00 00 00 00 *[email protected]?....*

3FF7D938: 10 80 13 3F 00 00 00 00-00 00 00 00 00 00 00 00 *...?............*

3FF7D948: 00 00 00 00 00 00 00 00-40 7D 3F 3F 00 00 00 00 *[email protected]*

3FF7D958: 50 6F 1A 3F 00 00 00 00-00 00 00 00 00 00 00 00 *Po.?............*

3FF7D968: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D978: 00 00 00 00 00 00 00 00-70 74 61 6C 88 00 00 00 *........ptal....*

3FF7D988: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D998: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9A8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9B8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9C8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9D8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9E8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9F8: 00 00 00 00 00 00 00 00-70 68 06 30 A0 00 00 00 *........ph.0....*

Valid EFI Header at Address 000000003FF7D808

--------------------------------------------

System: Table Structure size 00000078 revision 00010002

ConIn (3F1AD388) ConOut (3F1AF288) StdErr (3F1ADD08)

Runtime Services 000000003F3FC318

Boot Services 000000003F3F4B00

SAL System Table 000000003FF22760

ACPI Table 000000003FFD9FC0

ACPI 2.0 Table 00000000000E2000

MPS Table 000000003FFD0000

SMBIOS Table 00000000000F0020

* To display memory contents from 1af3088 with size of 16 bytes:

Shell> dmem 1af3088 16

Memory Address 0000000001AF3088 16 Bytes

01AF3088: 49 42 49 20 53 59 53 54-00 00 02 00 18 00 00 00 *IBI SYST........*

78

01AF3098: FF 9E D7 9B 00 00 *......*

* To display memory mapped IO contents from 1af3088 with size of 16

bytes:

Shell> dmem 1af3088 16 -MMIO

2.3.6 dmpstore

Summary

Manages all EFI NVRAM variables.

EFI Versions

EFI 1.10 and above.

Usage

DMPSTORE [-b] [-d] [Variable]

DMPSTORE [Variable] -s file

DMPSTORE [Variable] -l file

-b - Display one screen at a time

Variable - Display the specified variable name

-d - Delete variables

-s - Save variables to file

-l - Load and set variables from file

Description

This command is used to manage the EFI NVRAM variables. All EFI NVRAM variables are displayed when

Variable

is not specified. The variable value is printed as HEX dump.

Option

–d

is used to delete variables. Option

–s

and

–l

are used to save and load variables to and from file. The variable name can be specified when using these variables so that the operation only takes effect on that variable.

79

4BCommand Descriptions

Examples

Shell> help dmpstore

Displays all EFI NVRAM variables.

DMPSTORE [-b] [-d] [Variable]

DMPSTORE [Variable] -s file

DMPSTORE [Variable] -l file

-b - Display one screen at a time

Variable - Display the specified variable name

-d - Delete variables

-s - Save variables to file

-l - Load and set variables from file

Note:

1. If the 'variable' parameter is not specified, all variables will

be displayed.

2. The variable name is not case sensitive.

Examples:

* To display all EFI NVRAM variables:

Shell> dmpstore

Dump NVRAM

Variable RT+BS 'Efi:BootCurrent' DataSize = 2

00000000: FF FF *..*

Variable NV+RT+BS 'Efi:LangCodes' DataSize = 2A

00000000: 65 6E 67 65 6E 6D 61 6E-67 63 68 69 7A 68 6F 64 *engenmangchizhod*

00000010: 65 75 67 65 6D 67 65 72-67 6D 68 67 6F 68 66 72 *eugemgergmhgohfr*

00000020: 61 66 72 65 66 72 6D 66-72 6F *afrefrmfro*

Variable NV+RT+BS 'Efi:Lang' DataSize = 3

00000000: 65 6E 67 *eng*

...

Variable NV+BS 'ShellAlias:copy' DataSize = 6

00000000: 63 00 70 00 00 00 *c.p...*

Variable NV+BS 'SEnv:path' DataSize = 4

00000000: 2E 00 00 00 *....*

* To display the Boot0000 EFI NVRAM variable:

Shell> dmpstore Boot0000

Dump Variable Boot0000

Variable NV+RT+BS 'Efi:Boot0000' DataSize = 48

00000000: 01 00 00 00 30 00 42 00-6F 00 6F 00 74 00 30 00 *....0.B.o.o.t.0.*

00000010: 30 00 30 00 30 00 00 00-01 04 14 00 B1 18 C5 58 *0.0.0..........X*

00000020: F3 76 D4 11 BC EA 00 80-C7 3C 88 81 01 04 18 00 *.v.......<......*

00000030: 2F A9 95 0C 06 A0 D4 11-BC FA 00 80 C7 3C 88 81 */............<..*

00000040: 00 00 00 00 7F FF 04 00- *........*

2.3.7 edit

Summary

Full screen editor for ASCII or UNICODE files.

EFI Versions

EFI 1.10 and above.

80

Usage

EDIT [file]

file - Name of file to be edited

Description

This command allows a file to be edited using a full screen editor. The editor supports both Unicode and ASCII file types. The following example shows typical output for help on this command.

Examples

Shell> help edit

Full screen editor for ASCII or UNICODE files.

EDIT [file]

file - Name of file to be edited

Note:

1. If the file is not specified, NewFile.txt is edited.

2. The size of file shall not be larger than 16 Mbytes.

Examples:

* To edit the 'shell.log' file:

fs0:\> edit shell.log

2.3.8 eficompress

Summary

Compress a file using EFI Compression Algorithm.

EFI Versions

EFI 1.10 and above.

Usage

EFICOMPRESS infile outfile

infile - Filename for uncompressed input file

outfile - Filename for compressed output file

Description

This command is used to compress a file using EFI Compression Algorithm and write the compressed form out to a new file.

Note: The Shell binary before (and including) Edk-Dev-Snapshot-20061228 uses Tiano

Compression Algorithm which is not compatible with EFI Compression Algorithm. Files compressed with the EFI Compression Algorithm can’t be decompressed with those previous versions of Shell binaries.

81

4BCommand Descriptions

Examples

Shell> help eficompress

Compress a file.

EFICOMPRESS infile outfile

infile - Filename for uncompressed input file

outfile - Filename for compressed output file

Examples:

* To compress a file named ‘uncompressed’ to file ‘compressed’:

fs0:\> eficompress uncompressed compressed

2.3.9 efidecompress

Summary

Decompress a file using EFI Decompression Algorithm.

EFI Versions

EFI 1.10 and above.

Usage

EFIDECOMPRESS infile outfile

infile - Filename of compressed input file

outfile - Filename of decompressed output file

Description

This command is used to decompress a file using EFI Decompression Algorithm and write the decompressed form out to a new file.

Note: The Shell binary before (and including) Edk-Dev-Snapshot-20061228 uses Tiano

Compression Algorithm which is not compatible with EFI Compression Algorithm. The files that are compressed with previous version of Shell binaries have to be decompressed with those previous Shell binaries.

82

Examples

Shell> help efidecompress

Decompress a file.

EFIDECOMPRESS infile outfile

infile - Filename of compressed input file

outfile - Filename of decompressed output file

Examples:

* To decompress a file named ‘compressed’ to file ‘uncompressed’:

fs0:\> efidecompress compressed uncompressed

2.3.10 err

Summary

Displays or changes the error level in the system.

EFI Versions

EFI 1.10 and above.

Usage

ERR [ErrorLevel]

ERR -dump [Handle]

ERR Handle ErrorLevel

ErrorLevel - New error level bit mask

-dump - Display debug mask of all handles or specified

handle

Handle - Device handle

Description

This command sets the current debug error level in the system by setting the variable

“EFIDebug” to the value of

ErrorLevel

. Error Level is a bit mask for different types of error messages.

This command can also be used to dump or change the error level of a specific device handle.

83

4BCommand Descriptions

Examples

Shell> help err

Displays or changes the error level in the system.

ERR [ErrorLevel]

ERR -dump [Handle]

ERR Handle ErrorLevel

ErrorLevel - New error level bit mask

-dump - Display debug mask of all handles or specified

handle

Handle - Device handle

Note:

1. Saving to NVRAM will cause the error level to be saved and used

on all future reboots. The EFI Core will use the new error level

as system reboots. All core EFI routines will then output using

the new error level.

2. Error console must be set to a device path (i.e. com port or

console).

3. Not all EFI implementations include an error console or support

debug output. Consult the BIOS release notes for this support.

4. In debug version, the message whose error level is higher than

the specified level will be displayed.

5. To add your own errors/error level see debug macro in sample

implementation source in efidebug.h.

Examples:

* To display the current error message output level:

Shell> err

EFI ERROR 80000000

00000001 EFI_D_INIT

00000002 EFI_D_WARN

00000004 EFI_D_LOAD

00000008 EFI_D_FS

00000010 EFI_D_POOL

00000020 EFI_D_PAGE

00000040 EFI_D_INFO

00000100 EFI_D_VARIABLE

00000400 EFI_D_BM

00001000 EFI_D_BLKIO

00004000 EFI_D_NET

00010000 EFI_D_UNDI

00020000 EFI_D_LOADFILE

00080000 EFI_D_EVENT

80000000 EFI_D_ERROR

* To change the error message output level:

Shell> err 80000107

Make this change and save to NVRAM? [Y/N]y

Shell> _

* To dump the debug mask of all handles which support debug mask

protocol:

Shell> err -dump

Handle Mask

======== ========

1: 80000004

9: 80000004

B: 80000004

D: 80000004

F: 80000004

11: 80000004

13: 80000004

45: 80000004

84

62: 80000004

63: 80000004

64: 80000004

* To display the debug mask of handle 0x13:

Shell> err -dump 13

Handle Mask

======== ========

13: 80000004

* To change the debug mask of handle 0x13:

Shell> err 13 80000007

Shell>

2.3.11 guid

Summary

Displays all registered EFI GUIDs.

EFI Versions

EFI 1.10 and above.

Usage

GUID [-b]

-b - Display one screen at a time

Description

This command displays a list of all the GUIDs that have been registered with the EFI environment. The following example shows the output from this command.

85

4BCommand Descriptions

Examples

Shell> help guid

Displays all registered EFI GUIDs.

GUID [-b]

-b - Display one screen at a time

Note:

1. Only displays the GUIDs included in the core EFI build at the

time the core was built. Additional GUIDs may have been added by

the BIOS integrator. Any GUIDs that are not in the original core

build or were added by a new protocol loaded by the user will

show up as an Unknown Device.

2. The GUID with a '*' at end means that there will probably be

dump information or token available for the protocol to this

GUID. The 'dh' command can be used to dump this information.

Examples:

fs0:\> guid -b

DevIo : AF6AC311-84C3-11D2-8E3C-00A0C969723B

diskio : CE345171-BA0B-11D2-8E4F-00A0C969723B

blkio : 964E5B21-6459-11D2-8E39-00A0C969723B *

txtin : 387477C1-69C7-11D2-8E39-00A0C969723B

txtout : 387477C2-69C7-11D2-8E39-00A0C969723B *

fs : 964E5B22-6459-11D2-8E39-00A0C969723B

load : 56EC3091-954C-11D2-8E3F-00A0C969723B

image : 5B1B31A1-9562-11D2-8E3F-00A0C969723B *

...

2.3.12 hexedit

Summary

Full screen hex editor for files, block devices, or memory.

EFI Versions

EFI 1.10 and above.

Usage

HEXEDIT [[-f] FileName | [-d DiskName Offset Size] | [-m Address Size]]

-f - Name of file to edit

-d - Disk block to edit:

DiskName - Name of disk to edit (for example fs0)

Offset - Starting block number (beginning from 0)

Size - Number of blocks to be edited

-m - Memory region to edit:

Address - Starting 32-bit memory address (beginning

from 0)

Size - Size of memory region to be edited in bytes

Description

This command allows a file, block device, or memory region to be edited. The region being edited is displayed as hexadecimal bytes, and the contents can be modified and saved. The following example shows typical output for help on this command.

86

Examples

Shell> help hexedit

Full screen hex editor for files, block devices, or memory.

HEXEDIT [[-f] FileName | [-d DiskName Offset Size] | [-m Address Size]]

-f - Name of file to edit

-d - Disk block to edit:

DiskName - Name of disk to edit (for example fs0)

Offset - Starting block number (beginning from 0)

Size - Number of blocks to be edited

-m - Memory region to edit:

Address - Starting 32-bit memory address (beginning

from 0)

Size - Size of memory region to be edited in bytes

Examples:

* To edit a file in hex mode:

fs0:\> hexedit test.bin

* To edit block device fs0 starting at block 0 with size of 2 blocks:

fs0:\> hexedit -d fs0 0 2

* To edit memory region starting at address 0x00000000 with size of 2

bytes: fs0:\> hexedit -m 0 2

2.3.13 ipconfig

Summary

Displays or modifies the current IP configuration.

EFI Versions

EFI 1.10 and above.

Usage

IPCONFIG [-r]|[-b] [-c Instance] [IpAddress [-m NetMask]]

-r - Restart the PXE base code and DHCP settings

-b - Display one screen at a time

Instance - Zero-based Simple Network Protocol instance

IpAddress - IP address in a.b.c.d format

NetMask - Network mask in 255.255.255.0 format

Description

This command displays or modifies the IP configuration of

EFI_PXE_BASE_CODE_PROTOCOL. If no parameter is specified in the command line, it just displays the IP configuration of EFI_PXE_BASE_CODE_PROTOCOL. If

IpAddress

or

NetMask

is specified, the according configuration of

EFI_PXE_BASE_CODE_PROTOCOL will be changed.

87

4BCommand Descriptions

Examples

Displays or modifies the current IP configuration.

IPCONFIG [-r]|[-b] [-c Instance] [IpAddress [-m NetMask]]

-r - Restart the PXE base code and DHCP settings

-b - Display one screen at a time

Instance - Zero-based Simple Network Protocol instance

IpAddress - IP address in a.b.c.d format

NetMask - Network mask in 255.255.255.0 format

Examples:

* To restart the PXE base code and refresh the DHCP settings:

shell:\> IpConfig -r

* To display the current IP configuration:

Shell:\> IpConfig

* To modify the IP address without changing the network mask:

shell:\> IpConfig 192.168.10.30

* To modify the IP address and network mask: shell:\> IpConfig 192.168.10.30 -m 255.255.255.0

2.3.14 loadpcirom

Summary

Loads a PCI Option ROM from the specified file.

EFI Versions

EFI 1.10 and above.

Usage

LoadPciRom [-nc] romfile [romfile...]

-nc - Load the ROM image but do not connect the driver

romfile - PCI option ROM image file (wildcards are permitted)

Description

This command is used to load PCI option ROM images into memory for execution. The file can contain legacy images and multiple PE32 images, in which case all PE32 images will be loaded. The example below shows typical output from help for this command.

88

Examples

Shell> help LoadPciRom

Loads a PCI Option ROM from the specified file.

LoadPciRom [-nc] romfile [romfile...]

-nc - Load the ROM image but do not connect the driver

romfile - PCI option ROM image file (wildcards are permitted)

Examples:

* To load a rom file ‘rom.bin’:

fs0:\> LoadPciRom rom.bin

* To load ‘*.bin’ files but do not connect the driver

fs0:\> LoadPciRom –nc *.bin

2.3.15 mem

Summary

Displays the contents of system or device memory.

EFI Versions

EFI 1.10 and above.

Usage

MEM [-b] [Address] [Size] [-MMIO]

-b - Display one screen at a time

address - Starting address in hexadecimal format

size - Number of bytes to display in hexadecimal format

-MMIO - Forces address cycles to the PCI bus

Description

This command displays the contents of system memory or device memory.

Address

and

Size

should be typed in hex value. If Address is not specified, then the contents of the EFI System Table are displayed. Otherwise, memory starting at Address is displayed.

Size

specifies the number of bytes to display. If

Size

is not specified, then it defaults to 512 bytes. If

MMIO

is not specified, then main system memory is displayed. Otherwise, device memory is displayed through the use of the

EFI_PCI_ROOT_BRIDGE_IO_PROTOCOL .

89

4BCommand Descriptions

Examples

Shell> help mem

Displays the contents of system or device memory.

MEM [-b] [Address] [Size] [-MMIO]

-b - Display one screen at a time

address - Starting address in hexadecimal format

size - Number of bytes to display in hexadecimal format

-MMIO - Forces address cycles to the PCI bus

Note:

1. All units are in hexadecimal format.

2. Address must be aligned on an even processor address boundary.

3. If the 'address' parameter is not specified, DMEM will display

the all system table pointer entries by default.

Examples:

* To display the EFI system table pointer entries:

fs0:\> mem

Memory Address 000000003FF7D808 200 Bytes

3FF7D808: 49 42 49 20 53 59 53 54-02 00 01 00 78 00 00 00 *IBI SYST....x...*

3FF7D818: 5C 3E 6A FE 00 00 00 00-88 2E 1B 3F 00 00 00 00 *\>j........?....*

3FF7D828: 26 00 0C 00 00 00 00 00-88 D3 1A 3F 00 00 00 00 *&..........?....*

3FF7D838: A8 CE 1A 3F 00 00 00 00-88 F2 1A 3F 00 00 00 00 *...?.......?....*

3FF7D848: 28 EE 1A 3F 00 00 00 00-08 DD 1A 3F 00 00 00 00 *(..?.......?....*

3FF7D858: A8 EB 1A 3F 00 00 00 00-18 C3 3F 3F 00 00 00 00 *...?..........*

3FF7D868: 00 4B 3F 3F 00 00 00 00-06 00 00 00 00 00 00 00 *.K............*

3FF7D878: 08 DA F7 3F 00 00 00 00-70 74 61 6C 88 00 00 00 *...?....ptal....*

3FF7D888: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D898: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8A8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8B8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8C8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8D8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8E8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D8F8: 00 00 00 00 00 00 00 00-70 68 06 30 88 00 00 00 *........ph.0....*

3FF7D908: 65 76 6E 74 00 00 00 00-02 02 00 60 00 00 00 00 *evnt.......`....*

3FF7D918: 18 6F 1A 3F 00 00 00 00-10 E0 3F 3F 00 00 00 00 *.o.?..........*

3FF7D928: 10 00 00 00 00 00 00 00-40 C0 12 3F 00 00 00 00 *[email protected]?....*

3FF7D938: 10 80 13 3F 00 00 00 00-00 00 00 00 00 00 00 00 *...?............*

3FF7D948: 00 00 00 00 00 00 00 00-40 7D 3F 3F 00 00 00 00 *[email protected]*

3FF7D958: 50 6F 1A 3F 00 00 00 00-00 00 00 00 00 00 00 00 *Po.?............*

3FF7D968: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D978: 00 00 00 00 00 00 00 00-70 74 61 6C 88 00 00 00 *........ptal....*

3FF7D988: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D998: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9A8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9B8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9C8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9D8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9E8: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

3FF7D9F8: 00 00 00 00 00 00 00 00-70 68 06 30 A0 00 00 00 *........ph.0....*

Valid EFI Header at Address 000000003FF7D808

--------------------------------------------

System: Table Structure size 00000078 revision 00010002

ConIn (3F1AD388) ConOut (3F1AF288) StdErr (3F1ADD08)

Runtime Services 000000003F3FC318

Boot Services 000000003F3F4B00

SAL System Table 000000003FF22760

ACPI Table 000000003FFD9FC0

ACPI 2.0 Table 00000000000E2000

MPS Table 000000003FFD0000

SMBIOS Table 00000000000F0020

* To display memory contents from 1af3088 with size of 16 bytes:

Shell> mem 1af3088 16

Memory Address 0000000001AF3088 16 Bytes

01AF3088: 49 42 49 20 53 59 53 54-00 00 02 00 18 00 00 00 *IBI SYST........*

90

01AF3098: FF 9E D7 9B 00 00 *......*

* To display memory mapped IO contents from 1af3088 with size of 16

bytes:

Shell> mem 1af3088 16 -MMIO

2.3.16 memmap

Summary

Displays the memory map maintained by the EFI environment.

EFI Versions

EFI 1.10 and above.

Usage

MEMMAP [-b]

-b - Display one screen at a time

Description

This command displays the memory map that is maintained by the EFI environment.

The EFI environment keeps track all the physical memory in the system and how it is currently being used. The EFI Specification defines a set of Memory Type Descriptors.

Please see the EFI Specification for a description of how each of these memory types is used. The following example shows typical output for help on this command.

91

4BCommand Descriptions

Examples

Shell> help memmap

Displays the memory map maintained by the EFI environment.

MEMMAP [-b]

-b - Display one screen at a time

Note:

1. The EFI environment keeps track all the physical memory in the

system and how it is currently being used.

2. Total memory is the physical memory size not including the

MemMapIO and MemPortIO size.

3. Refer to the EFI specification for memory type definitions.

Examples:

* To display the system memory map:

fs0:\> memmap

Type Start End # Pages Attributes available 0000000000750000-0000000001841FFF 00000000000010F2 0000000000000009

LoaderCode 0000000001842000-00000000018A3FFF 0000000000000062 0000000000000009 available 00000000018A4000-00000000018C1FFF 000000000000001E 0000000000000009

LoaderData 00000000018C2000-00000000018CAFFF 0000000000000009 0000000000000009

BS_code 00000000018CB000-0000000001905FFF 000000000000003B 0000000000000009

BS_data 0000000001906000-00000000019C9FFF 00000000000000C4 0000000000000009

...

RT_data 0000000001B2B000-0000000001B2BFFF 0000000000000001 8000000000000009

BS_data 0000000001B2C000-0000000001B4FFFF 0000000000000024 0000000000000009 reserved 0000000001B50000-0000000001D4FFFF 0000000000000200 0000000000000009

reserved : 512 Pages (2,097,152)

LoaderCode: 98 Pages (401,408)

LoaderData: 32 Pages (131,072)

BS_code : 335 Pages (1,372,160)

BS_data : 267 Pages (1,093,632)

RT_data : 19 Pages (77,824)

available : 4,369 Pages (17,895,424)

Total Memory: 20 MB (20,971,520) Bytes

2.3.17 mm

Summary

Displays or modifies MEM/MMIO/IO/PCI/PCIE address space.

EFI Versions

EFI 1.10 and above.

92

Usage

MM Address [Value] [-w 1|2|4|8] [-MEM | -MMIO | -IO | -PCI | -PCIE] [-n]

Address - Starting address

Value - The value to write

-MEM - Memory Address type

-MMIO - Memory Mapped IO Address type

-IO - IO Address type

-PCI - PCI Configuration Space Address type:

Address format: 0x000000ssbbddffrr

ss - Segment

bb - Bus

dd - Device

ff - Function

rr - Register

-PCIE - PCIE Configuration Space Address type:

Address format: 0x00000ssbbddffrrr

ss - Segment

bb - Bus

dd - Device

ff - Function

rrr - Register

-w - Unit size accessed in bytes:

1 - 1 byte

2 - 2 bytes

4 - 4 bytes

8 - 8 bytes

-n - Non-interactive mode

Description

This command allows the user to display or modify I/O register, memory contents, or

PCI configuration space. The user can specify the start address and the access size they wish to perform using the

Address

parameter and

–w

option.

Address

should be typed in hex value.

-MEM

accesses system memory,

-MMIO

accesses device memory,

-

IO

accesses device I/O ports,

-PCI

accesses PCI Configuration Space, and

–PCIE

accesses PCIE Configuration Space. If

Value

is specified which should be typed in hex value, this command will write this value to specified address. Otherwise when this command is executed, the current contents of

Address

are displayed. If

-n

is not specified, the command will run in interactive mode and the user has the option of modifying the contents by typing in a hex value. When the user pressed ‘ENTER’, then next address is displayed. This is continued until the user enters ‘q’.

93

4BCommand Descriptions

Examples

Shell> help mm

Displays or modifies MEM/MMIO/IO/PCI/PCIE address space.

MM Address [Value] [-w 1|2|4|8] [-MEM | -MMIO | -IO | -PCI | -PCIE] [-n]

Address - Starting address

Value - The value to write

-MEM - Memory Address type

-MMIO - Memory Mapped IO Address type

-IO - IO Address type

-PCI - PCI Configuration Space Address type:

Address format: 0x000000ssbbddffrr

ss - Segment

bb - Bus

dd - Device

ff - Function

rr - Register

-PCIE - PCIE Configuration Space Address type:

Address format: 0x00000ssbbddffrrr

ss - Segment

bb - Bus

dd - Device

ff - Function

rrr - Register

-w - Unit size accessed in bytes:

1 - 1 byte

2 - 2 bytes

4 - 4 bytes

8 - 8 bytes

-n - Non-interactive mode

Note:

1. If the address type parameter is not specified, address type

defaults to the 'MEM' type.

2. If the 'Value' parameter is specified, the '-n' option will be

used automatically. In this case, this command will write the

value to the specified address in non-interactive mode. If the

'Value' parameter is not specified, only the current contents

in the address are displayed.

3. If the '-w' option is not specified, unit size defaults to 1

byte.

4. If the PCI address type is specified, the 'Address' parameter

should follow the PCI Configuration Space Address format above.

The 'PCI' command can be used to determine the address for a

specified device. It is listed in the PCI configuration space

dump information, in the following format:

"[EFI 0x000000ssbbddffxx]".

5. If the PCIE address type is specified, the 'Address' parameter

should follow the PCIE Configuration Space Address format

above.

6. In interactive mode, type a hex value to modify, 'q' or '.' to

exit. If the '-n' option is specified, it will run in

non-interactive mode which supports batch file operation

without user intervention.

7. Not all PCI configuration register locations are writable.

8. MM will only write the specified value. Read-modify-write

operations are not supported.

9. The 'Address' parameter should be aligned on a boundary of the

specified width.

10. Not all addresses are safe to access. Access to any improper

address can bring unexpected results.

Examples:

* To display or modify memory:

Address 0x1b07288, default width=1 byte:

94

fs0:\> mm 1b07288

MEM 0x0000000001B07288 : 0x6D >

MEM 0x0000000001B07289 : 0x6D >

MEM 0x0000000001B0728A : 0x61 > 80

MEM 0x0000000001B0728B : 0x70 > q

fs0:\> mm 1b07288

MEM 0x0000000001B07288 : 0x6D >

MEM 0x0000000001B07289 : 0x6D >

MEM 0x0000000001B0728A : 0x80 > *Modified

MEM 0x0000000001B0728B : 0x70 > q

* To modify memory:

Address 0x1b07288, width = 2 bytes:

Shell> mm 1b07288 -w 2

MEM 0x0000000001B07288 : 0x6D6D >

MEM 0x0000000001B0728A : 0x7061 > 55aa

MEM 0x0000000001B0728C : 0x358C > q

Shell> mm 1b07288 -w 2

MEM 0x0000000001B07288 : 0x6D6D >

MEM 0x0000000001B0728A : 0x55AA > *Modified

MEM 0x0000000001B0728C : 0x358C > q

* To display IO space:

Address 80h, width = 4 bytes:

Shell> mm 80 -w 4 -IO

IO 0x0000000000000080 : 0x000000FE >

IO 0x0000000000000084 : 0x00FF5E6D > q

* To modify IO space using non-interactive mode:

Shell> mm 80 52 -w 1 -IO

Shell> mm 80 -w 1 -IO

IO 0x0000000000000080 : 0x52 > FE *Modified

IO 0x0000000000000081 : 0xFF >

IO 0x0000000000000082 : 0x00 >

IO 0x0000000000000083 : 0x00 >

IO 0x0000000000000084 : 0x6D >

IO 0x0000000000000085 : 0x5E >

IO 0x0000000000000086 : 0xFF >

IO 0x0000000000000087 : 0x00 > q

* To display PCI configuration space, ss=00, bb=00, dd=00, ff=00,

rr=00:

Shell> mm 0000000000 -PCI

PCI 0x0000000000000000 : 0x86 >

PCI 0x0000000000000001 : 0x80 >

PCI 0x0000000000000002 : 0x30 >

PCI 0x0000000000000003 : 0x11 >

PCI 0x0000000000000004 : 0x06 >

PCI 0x0000000000000005 : 0x00 > q

* These contents can also be displayed by 'PCI 00 00 00'.

* To display PCIE configuration space, ss=00, bb=06, dd=00, ff=00,

rrr=000:

Shell> mm 00060000000 -PCIE

PCIE 0x0000000060000000 : 0xAB >

PCIE 0x0000000060000001 : 0x11 >

PCIE 0x0000000060000002 : 0x61 >

PCIE 0x0000000060000003 : 0x43 >

PCIE 0x0000000060000004 : 0x00 > q

2.3.18 mode

95

4BCommand Descriptions

Summary

Displays or changes the console output device mode.

EFI Versions

EFI 1.10 and above.

Usage

MODE [row col]

row - Number of rows

col - Number of columns

Description

This command is used to change the display mode for the console output device.

When this command is used without any parameters, it shows the list of modes that the standard output device currently supports. The mode command can then be used with the

row

and

col

parameter to change the number of rows and columns on the standard output device. The following examples show how the mode command can be used. The first example lists all modes that are currently available, and the current selected mode is indicated by an '*'. The second example changes the mode to an 80

X 50 text mode display. The display is cleared every time the mode command is used to change the currently selected display mode.

96

Examples

Shell> help mode

Displays or changes the console output device mode.

MODE [row col]

row - Number of rows

col - Number of columns

Note:

1. The mode with a star at line end is the current mode setting.

2. Only 80x25 mode is supported if console redirection is enabled.

3. Most EFI command output was designed for 80x50 mode (50 rows).

Examples:

* To display all available modes on standard output:

Shell> mode

Available modes on standard output

col 80 row 25 *

col 80 row 50

col 80 row 43

col 100 row 100

* To change the current mode setting:

Shell> mode 80 50

Available modes on standard output

col 80 row 25

col 80 row 50 *

col 80 row 43

col 100 row 100

2.3.19 openinfo

Summary

Displays the protocols and agents associated with a handle.

EFI Versions

EFI 1.10 and above.

Usage

OPENINFO Handle [-b]

-b - Display one screen at a time

Handle - Display open protocol information for specified handle

Description

This command is used to display the open protocols on a given handle. The example below is typical output from help for this command.

Table 7 Open Protocol Information Layout

Column Index Description

1 Agent handle that opens the protocol

2 Controller handle that requires the protocol interface

97

4BCommand Descriptions

4

5

Open type:

HandProt

,

GetProt

,

TestProt

,

Child

,

Driver

,

Exclusive

,

DriverEx

or

Unknown

Name of image of the agent if available

Examples

Shell> help openinfo

Displays the protocols and agents associated with a handle.

OPENINFO Handle [-b]

-b - Display one screen at a time

Handle - Display open protocol information for specified handle

Examples:

* To show open protocols on handle 0x23:

It shows that the PCI Root Bridge is being managed by the PCI

Bus Driver, and the PCI Bus contains 7 PCI child controllers.

Shell> openinfo 23

Handle 23 (07DEE108)

PciRootBridgeIo

Drv[1D] Ctrl[23] Cnt(01) Driver Image(PciBus)

Drv[1D] Ctrl[28] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[29] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[2A] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[2B] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[2C] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[2D] Cnt(01) Child Image(PciBus)

Drv[1D] Ctrl[2E] Cnt(01) Child Image(PciBus)

Drv[00] Ctrl[ ] Cnt(01) HandProt

dpath

Drv[1D] Ctrl[23] Cnt(01) Driver Image(PciBus)

Drv[00] Ctrl[ ] Cnt(0D) HandProt

2.3.20 pci

Summary

Displays PCI device list or PCI function configuration space.

EFI Versions

EFI 1.10 and above.

98

Usage

PCI [Bus Dev [Func] [-s Seg] [-i]]

Bus - Bus number

Dev - Device number

Func - Function number

-s - Optional segment number specified

Seg - Segment number

-i - Information interpreted

Description

This command will display all the PCI devices found in the system. And it can also display the configuration space of PCI device according to specified bus (

Bus

), device

(

Dev

),and function (

Func

) addresses. If the function address is not specified, it will default to 0. The

–i

option is used to display verbose information for the specified PCI device. The PCI configuration space for the device will be dumped with a detailed interpretation.

99

4BCommand Descriptions

Examples

Shell> help pci

Displays PCI device list or PCI function configuration space.

PCI [Bus Dev [Func] [-s Seg] [-i]]

Bus - Bus number

Dev - Device number

Func - Function number

-s - Optional segment number specified

Seg - Segment number

-i - Information interpreted

Note:

1. If no parameters are specified all PCI devices will be listed.

2. If the Bus and Device number parameters are specified while the

Function or Segment parameters are not, Function or Segment will

be set as default value 0.

3. The '-i' option can be used to display verbose information for

the specified PCI device. The PCI configuration space for the

specified device will be dumped with a detailed interpretation.

Examples:

* To display all PCI devices in the system:

Shell> PCI

Seg Bus Dev Func

--- --- --- ----

00 00 00 00 ==> Bridge Device - Host/PCI bridge

Vendor 8086 Device 1130 Prog Interface 0

00 00 01 00 ==> Bridge Device - PCI/PCI bridge

Vendor 8086 Device 1131 Prog Interface 0

00 00 1E 00 ==> Bridge Device - PCI/PCI bridge

Vendor 8086 Device 244E Prog Interface 0

00 00 1F 00 ==> Bridge Device - PCI/ISA bridge

Vendor 8086 Device 2440 Prog Interface 0

00 00 1F 01 ==> Mass Storage Controller - IDE controller

Vendor 8086 Device 244B Prog Interface 80

00 00 1F 02 ==> Serial Bus Controllers - USB

Vendor 8086 Device 2442 Prog Interface 0

00 00 1F 03 ==> Serial Bus Controllers - System Management Bus

Vendor 8086 Device 2443 Prog Interface 0

00 00 1F 04 ==> Serial Bus Controllers - USB

Vendor 8086 Device 2444 Prog Interface 0

00 00 1F 05 ==> Multimedia Device - Audio device

Vendor 8086 Device 2445 Prog Interface 0

00 00 1F 06 ==> Simple Communications Controllers - Modem

Vendor 8086 Device 2446 Prog Interface 0

00 01 00 00 ==> Display Controller - VGA/8514 controller

Vendor 1002 Device 5246 Prog Interface 0

00 02 07 00 ==> Multimedia Device - Audio device

Vendor 1274 Device 1371 Prog Interface 0

00 02 0A 00 ==> Bridge Device - CardBus bridge

Vendor 1180 Device 0476 Prog Interface 0

00 02 0A 01 ==> Bridge Device - CardBus bridge

Vendor 1180 Device 0476 Prog Interface 0

* To display the configuration space of Bus 0, Device 0, Function 0:

Shell> PCI 00 00 00 -i

PCI Segment 00 Bus 00 Device 00 Func 00

00000000: 86 80 30 11 06 00 90 20-02 00 00 06 00 00 00 00 *..0.... ........*

00000010: 08 00 00 20 00 00 00 00-00 00 00 00 00 00 00 00 *... ............*

00000020: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000030: 00 00 00 00 88 00 00 00-00 00 00 00 00 00 00 00 *................*

100

00000040: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000050: 50 00 09 38 00 00 00 00-00 00 00 00 00 00 00 00 *P..8............*

00000060: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000070: 00 00 18 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000080: DE 2C CF 00 00 00 00 00-09 A0 04 F1 00 00 00 00 *.,..............*

00000090: 00 00 D6 FF FE FF 00 00-33 80 33 80 85 84 C4 00 *........3.3.....*

000000A0: 02 00 20 00 07 02 00 1F-00 00 00 00 00 00 00 00 *.. .............*

000000B0: 00 00 00 00 30 00 00 00-00 00 00 00 00 00 08 00 *....0...........*

000000C0: 00 00 00 00 00 00 00 00-00 08 00 00 00 00 00 00 *................*

000000D0: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

000000E0: 00 00 00 00 00 00 00 00-00 00 90 14 00 00 00 00 *................*

000000F0: 00 00 00 00 74 F8 00 00-00 00 00 00 08 00 00 00 *....t...........*

Vendor ID(0): 8086 Device ID(2): 1130

Command(4): 0006

(00)I/O space access enabled: 0 (01)Memory space access enabled: 1

(02)Behave as bus master: 1 (03)Monitor special cycle enabled: 0

(04)Mem Write & Invalidate enabled: 0 (05)Palette snooping is enabled: 0

(06)Assert PERR# when parity error: 0 (07)Do address/data stepping: 0

(08)SERR# driver enabled: 0 (09)Fast back-to-back transact...: 0

Status(6): 2090

(04)New Capabilities linked list: 1 (05)66MHz Capable: 0

(07)Fast Back-to-Back Capable: 1 (08)Master Data Parity Error: 0

(09)DEVSEL timing: Fast (11)Signaled Target Abort: 0

(12)Received Target Abort: 0 (13)Received Master Abort: 1

(14)Signaled System Error: 0 (15)Detected Parity Error: 0

Revision ID(8): 02 BIST(0F): Incapable

Cache Line Size(C): 00 Latency Timer(D): 00

Header Type(0E): 0, Single function, PCI device

Class: Bridge Device - Host/PCI bridge -

Base Address Registers(10):

Start Type Space Prefetchable? Size Limit

----------------------------------------------------------------

20000000 Mem 32 bits YES 04000000 24000000

----------------------------------------------------------------

No Expansion ROM(30)

Cardbus CIS ptr(28): 00000000

Sub VendorID(2C): 0000 Subsystem ID(2E): 0000

Capabilities Ptr(34): 88

Interrupt Line(3C): 00 Interrupt Pin(3D): 00

Min_Gnt(3E): 00 Max_Lat(3F): 00

* To display configuration space of Segment 0, Bus 0, Device 0, Function 0:

Shell> PCI 00 00 00 -s 0

PCI Segment 00 Bus 00 Device 00 Func 00

00000000: 86 80 30 11 06 00 90 20-02 00 00 06 00 00 00 00 *..0.... ........*

00000010: 08 00 00 20 00 00 00 00-00 00 00 00 00 00 00 00 *... ............*

00000020: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000030: 00 00 00 00 88 00 00 00-00 00 00 00 00 00 00 00 *................*

00000040: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000050: 50 00 09 38 00 00 00 00-00 00 00 00 00 00 00 00 *P..8............*

00000060: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000070: 00 00 18 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

00000080: DE A8 CE 00 00 00 00 00-09 A0 04 F1 00 00 00 00 *................*

00000090: 00 00 D6 FF FE FF 00 00-33 80 33 80 85 84 C4 00 *........3.3.....*

000000A0: 02 00 20 00 07 02 00 1F-00 00 00 00 00 00 00 00 *.. .............*

000000B0: 00 00 00 00 30 00 00 00-00 00 00 00 00 00 08 00 *....0...........*

000000C0: 00 00 00 00 00 00 00 00-00 08 00 00 00 00 00 00 *................*

000000D0: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*

000000E0: 00 00 00 00 00 00 00 00-00 00 A0 18 00 00 00 00 *................*

000000F0: 00 00 00 00 74 F8 00 00-00 00 00 00 08 00 00 00 *....t...........*

2.3.21 sermode

Summary

101

4BCommand Descriptions

Sets serial port attributes.

EFI Versions

EFI 1.10 and above.

Usage

SERMODE [handle [baudrate parity databits stop bits]]

handle - Device handle for a serial port

baudrate - Baud rate for specified serial port

parity - Parity bit settings for specified serial port:

d - Default parity

n - No parity

e - Even parity

o - Odd parity

m - Mark parity

s - Space parity

databits - Data bits for specified serial port

stopbits - Stop bits for specified serial port

Description

This command displays or sets baud rate, parity attribute, data bits and stop bits of serial ports.

102

Examples

Shell> help sermode

Sets serial port attributes.

SERMODE [handle [baudrate parity databits stop bits]]

handle - Device handle for a serial port

baudrate - Baud rate for specified serial port

parity - Parity bit settings for specified serial port:

d - Default parity

n - No parity

e - Even parity

o - Odd parity

m - Mark parity

s - Space parity

databits - Data bits for specified serial port

stopbits - Stop bits for specified serial port

Note:

1. The 'handle' parameter is the device handle of the desired

serial port. The 'DH' command can be used to retrieve this

information.

2. The 'stopbits' parameter supports the following settings:

0 (0 stop bits - default setting)

1 (1 stop bit)

2 (2 stop bits)

15 (1.5 stop bits)

All other settings are invalid.

3. The 'baudrate' parameter supports the following settings:

50, 75, 110, 150, 300, 600, 1200, 1800, 2000, 2400, 3600, 4800,

7200, 9600(default), 19200, 38400, 57600, 115200, 230400,

460800

All other values will be converted to the next highest setting.

4. The 'databits' parameter supports the following settings:

4

7

8 (default)

All other settings are invalid.

5. Parity attributes are mutually exclusive.

Examples:

* To display the settings for all serial port devices:

Shell> sermode

4F06B08 - (115200, N, 8, 1)

4F05F88 - (115200, N, 8, 1)

* To display the settings for the serial port device whose handle is

0x6B:

Shell> sermode 6B

4F06B08 - (115200, N, 8, 1)

* To configure the serial port settings for handle 0x6B to 9600bps,

even parity, 8 data bits, and 1 stop bit:

Shell> sermode 6B 9600 e 8 1

sermode: Mode set on handle 04F06B08

2.3.22 smbiosview

Summary

Displays SMBIOS information.

103

4BCommand Descriptions

EFI Versions

EFI 1.10 and above.

Usage

SMBIOSVIEW [-t SmbiosType]|[-h SmbiosHandle]|[-s]|[-a]

-t - Display all structures of SmbiosType

SmbiosType - SMBIOS structure type

-h - Display structure of SmbiosHandle

SmbiosHandle - SMBIOS structure unique 16-bit handle

-s - Display statistics table

-a - Display all information

Description

This command displays the SMBIOS information. Users can display the information of

SMBIOS structures specified by type or handle.

104

Examples

Shell> help smbiosview

Displays SMBIOS information.

SMBIOSVIEW [-t SmbiosType]|[-h SmbiosHandle]|[-s]|[-a]

-t - Display all structures of SmbiosType

SmbiosType - SMBIOS structure type

-h - Display structure of SmbiosHandle

SmbiosHandle - SMBIOS structure unique 16-bit handle

-s - Display statistics table

-a - Display all information

Notes:

1. The SmbiosType parameter supports the following types:

0 - BIOS Information

1 - System Information

3 - System Enclosure

4 - Processor Information

5 - Memory Controller Information

6 - Memory Module Information

7 - Cache Information

8 - Port Connector Information

9 - System Slots

10 - On Board Devices Information

15 - System Event Log

16 - Physical Memory Array

17 - Memory Device

18 - 32-bit Memory Error Information

19 - Memory Array Mapped Address

20 - Memory Device Mapped Address

21 - Built-in Pointing Device

22 - Portable Battery

34 - Management Device

37 - Memory Channel

38 - IPMI Device Information

39 - System Power Supply

2. The SmbiosHandle parameter can be specified in either decimal or

hexadecimal format. Use the '0x' prefix format for hexadecimal

values.

3. Internal commands:

:q -------- quit smbiosview

:0 -------- Change smbiosview display NONE info

:1 -------- Change smbiosview display OUTLINE info

:2 -------- Change smbiosview display NORMAL info

:3 -------- Change smbiosview display DETAIL info

/? -------- Show help

2.3.23 telnetmgmt

Summary

Change terminal type

EFI Versions

EFI 1.10 and above.

105

4BCommand Descriptions

Usage

TELNETMGMT [-t <TerminalType>]

-t - Specifies the terminal type

Available types:

0 - PcAnsi type

1 - vt100 type

2 - vt100 plus type

3 - VTUTF8 type

Description

This command sets the terminal type for the system.

Examples

Shell> help telnetmgmt

Change terminal type

TELNETMGMT [-t <TerminalType>]

-t - Specifies the terminal type

Available types:

0 - PcAnsi type

1 - vt100 type

2 - vt100 plus type

3 - VTUTF8 type

Examples:

* Set the terminal type to PcAnsi:

Shell> telnetmgmt –t 0

2.3.24 timezone

Summary

Displays or sets time zone information.

EFI Versions

EFI 1.10 and above.

Usage

TIMEZONE [-s hh:mm | -l] [-b] [-f]

-s hh:mm - Set time zone associated with hh:mm offset from GMT

-l - Display list of all time zones

-b - Display one screen at a time

-f - Display full information for specified timezone

Description

This command displays and sets the current time zone for the system. If no parameters are used, it shows the current time zone. If valid

hh:mm

parameter is provided, then the system's time zone information will be updated.

106

Examples

Shell> timezone

Displays or sets time zone information.

TIMEZONE [-s hh:mm | -l] [-b] [-f]

-s hh:mm - Set time zone associated with hh:mm offset from GMT

-l - Display list of all time zones

-b - Display one screen at a time

-f - Display full information for specified timezone

Examples:

* To display all available time zones:

Shell> timezone -l

GMT-12:00, International Date Line West

GMT-11:00, Midway Island, Samoa

GMT-10:00, Hawaii

GMT-09:00, Alaska

GMT-08:00, Pacific Time(US & Canada); Tijuana

GMT-07:00, Arizona, Chihuahua, La Paz, Mazatlan

GMT-06:00, Central America, Central Time(US & Canada)

GMT-05:00, Bogota, Lima, Quito, Eastern Time(US & Canada)

GMT-04:00, Atlantic Time(Canada), Caracas, Santiago

GMT-03:30, Newfoundland

GMT-03:00, Brasilia, Buenos Aires, Georgetown, Greenland

GMT-02:00, Mid-Atlantic

GMT-01:00, Azores, Cape Verde Is.

GMT, Greenwich Mean Time, Casablanca, Monrovia, Dublin, London

GMT+01:00, Amsterdam, Berlin, Bern, Rome, Paris, West Central Africa

GMT+02:00, Athens, Istanbul, Bucharest, Cairo, Jerusalem

GMT+03:00, Baghdad, Kuwait, Riyadh, Moscow, Nairobi

GMT+03:30, Tehran

GMT+04:00, Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan

GMT+04:30, Kabul

GMT+05:00, Ekaterinburg, Islamabad, Karachi, Tashkent

GMT+05:30, Chennai, Kolkata, Mumbai, New Delhi

GMT+05:45, Kathmandu

GMT+06:00, Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura

GMT+06:30, Rangoon

GMT+07:00, Bangkok, Hanio, Jakarta, Krasnoyarsk

GMT+08:00, Beijing, Chongqing, Hong Kong, Urumqi, Taipei, Perth

GMT+09:00, Osaka, Sapporo, Tokyo, Seoul, Yakutsk

GMT+09:30, Adelaide, Darwin

GMT+10:00, Canberra, Melbourne, Sydney, Guam, Hobart, Vladivostok

GMT+11:00, Magadan, Solomon Is., New Caledonia

GMT+12:00, Auckland, Wellington, Fiji, Kamchatka, Marshall Is.

GMT+13:00, Nuku'alofa

* To set the time zone:

Shell> timezone -s -7:00

Shell> timezone

GMT-07:00

Shell> timezone -s 5:00

Shell> timezone

GMT+05:00

* To display detailed information for the current time zone:

Shell> timezone -f

GMT+05:00, Ekaterinburg, Islamabad, Karachi, Tashkent

Shell> timezone

GMT+05:00

107
