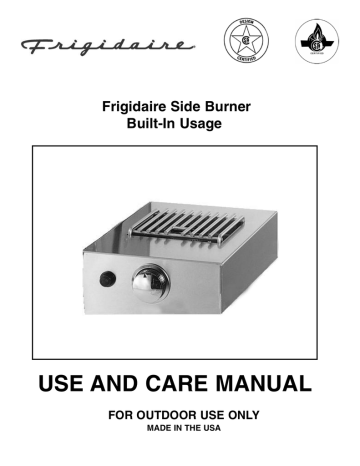

Frigidaire Side Burner
Built-In Usage
USE AND CARE MANUAL
FOR OUTDOOR USE ONLY
MADE IN THE USA
General Safety Instructions
IMPORTANT SAFETY INFORMATION
- Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury.
- Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN
SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.
- This appliance must be kept clear from combustible materials, gasoline or other flammable vapors and
liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.
- Do not repair or replace any part of this appliance unless it is specifically recommended in this manual.
A qualified service technician should conduct all other service.
- Follow the installation and servicing instructions provided with this product. Have your grill installed by a
qualified service technician. Locate the main gas supply valve so that you know how to shut the gas off to
your grill. If you smell gas, make sure all gas connections are tight before operation. If you continue to smell
gas call a qualified technician.
- When lighting the burners, always pay close attention to what you are doing. Be certain you are pushing
the igniter to light the burners you intend on using.
WARNING
If you smell gas:
1.
2.
3.
4.
Shut off gas to the appliance.
Extinguish any open flames.
Open lid.
If odor continues, immediately
call your gas supplier.
CALIFORNIA PROPOSITION 65 WARNING: The Burning of gas cooking fuels generates some by products which are on the list of substances which are known by the State of California to
cause cancer or reproductive harm. California law
requires businesses to warn customers of potential
exposure to such substances. To minimize exposure
to these substances, always operate this unit according to the use and care manual, ensuring you provide
good ventilation when cooking with gas.
This appliance is not intended to be
installed in or on recreational vehicles or boats.
TESTED IN ACCORDANCE WITH ANSI
Z21.58a-1998/CGA 1/6a-M98 STANDARD
FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS FOR OUTDOOR
USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, this unit should be installed in accordance with the National Fuel Gas Code No.
Z223.1 and the National Electrical Code
ANSI/NFPA No. 70
FOR YOUR SAFETY
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this
grill.
FOR YOUR SAFETY
DO NOT try lighting this grill without reading
the “LIGHTING INSTRUCTIONS” section of
this manual.
Built-In Instructions
The Frigidaire side burner is designed to be installed as a built-in side burner, in conjunction with
a Frigidaire & Frigidaire Gallery grills. If installed as a built-in Grill, the Grill surround must be
constructed of Non-combustible material.
PLANNING AND DESIGN
Start by identifying the number and size of components you want to include in your outdoor cooking
center. Countertops must be constructed of non-combustible, outdoor-safe materials. Consider outdoor lighting to illuminate after-dark grilling. For assistance in designing and building your outdoor
cooking center, contact a landscape architect or general contractor. Review the drawings on the following
pages to determine the exact dimensions and items needed for an outdoor cooking center. Keep in mind
that the gas line hook-up is on the right hand side of the main built in-grill. The structure, grill and support
items must be kept level throughout the installation to ensure proper operation.
LOCATION
Take into account convenience and visual impact as well as traffic flow, wind exposure, and the
site’s structural suitability. The grill should never be placed in an enclosed area without an approved
ventilation system, or beneath a combustible overhang. Because the grill exhausts to the rear, it
should never be located in front of a window or less than 12” from hard-to-clean surfaces. We recommend keeping your gas supply lines as short as possible for best performance. To ensure a perfect fit, we strongly recommend that you have all components on hand prior to final construction.
CLEARANCE TO NON-COMBUSTIBLE CONSTRUCTION
For your safety a minimum of 3” clearance from the back of the grill to non-combustible construction
is required. You should allow at least 6” side clearance to non-combustible construction. The side
vents on this unit can be covered for built in installations without danger of fire or without impairing
the operation of the grill.
UTILITIES
For natural gas grills, consult your local gas utility company for hook-up requirements. All gas connections
should be made by a certified technician or a gas supply company. For natural gas installation, the supply
line must be at least 1/2” diameter. The rotisserie requires a 110/120 volt electric supply and GFI
receptacle. (6.5 amp min.) that should be installed by a qualified electrical technician. If your plan
includes a sink, arrange for a certified plumbing technician to run a water line to the site.
Built-In Instructions
Additional Requirements:
• If using a backsplash apron or rear wall, locate electrical service on the left hand side for rotisserie motor construction.
• A minimum clearance of 12” from the back of the outdoor cooking center must be maintained between the grill and
any combustible construction such as wood siding of residence, 3” minimum for non-combustible construction.
• The side vents on this unit can be covered for built in installations without danger of fire or without impairing the
operation of the grill.
Natural Gas Installation
1. Under the grill, remove the NG gas regulator
assembly from the main gas pipe. Once the
NG gas regulator is removed, the main gas
pipe will be showing under grill. (See Fig 1)
Fig. 1
2. Using pipe sealant, attach the “T” Fitting to
the main gas pipe coming out of the bottom of
the grill. (See Fig 2)
3. Using pipe sealant, attach a 3/8” flared fitting
to the side of the “T” fitting. (See Fig 3)
4. Attach the one end of the flex line to the fitting
on the side of the “T” fitting. Connect the other
end of the flex line to the side burner valve.
(See Fig 4)
Fig. 2
Note: This line can be extended using a 3/8”
flared coupling and an additional flex line if
necessary.
5. Using pipe sealant, attach a 3/8” nipple to the
bottom of the “T” fitting. (See Fig 5)
6. Using pipe sealant, attach the NG gas regulator
to the 3/8” nipple. (See Fig 6)
Fig. 3
7. Attach the NG gas line to the bottom flared
fitting. (See Fig 7)
Note: Make sure all fittings are tightened with
a wrench.
Fig.6
Fig.7
Fig. 4
Fig. 5
LP Side Burner Conversion
Underside of
right side
burner shelf
1. Loosen the flex line attached to the side burner valve using an adjustable wrench. (See Fig.
1)
Fig 1
2. Remove the flex line completely from the side
burner valve. (See Fig. 2)
Flex Line
3. Remove the control knob from the front of the
side burner. (See Fig. 3)
Valve Assembly
4. Remove the screw holding the bezel in place
on the side burner and remove bezel from
front of side burner. (See Fig. 4)
Fig 2
5. Grasp and remove NG valve assembly from
the side burner tube assembly and remove
from the side burner. (See Fig. 5)
Flex Line
6. Install LP valve assembly into the side burner.
(See Fig. 6)
Fig 3
Screw
Bezel
Fig 4
Fig 5
Fig 6
LP valve
Assembly
LP Side Burner Conversion
7. Reattach bezel and screw new LP valve onto
front of side burner. (See Fig 4, again)
8. Reattach the flex line to the LP valve assembly and tighten securely. (See Fig. 7
9. Reattach the control knob onto the manifold
stem. (See Fig. 3, again)
Fig 7
Flex line
attached
10. Looking down at top of side burner, use a
7mm nut driver to remove the NG. (See Fig.
8)
Top of Side Burner
Looking down
16. Install the new LP orifice (See Fig. 9)
17. From the bottom of the side burner place the
LP orifice into the main burner assembly, finger tighten. (See Fig. 10)
18. Using the 7mm nut driver tighten the LP
orifice in the main burner assembly.
(See Fig. 11)
Fig 8
NG orifice
LP orifice
Fig 9
19. This completes the side burner conversion.
Bottom of side
burner main
assembly
Fig 10
LP orifice
Nut driver through
top of side burner
Fig 11
LP Grill Conversion
IMPORTANT: Make sure you have converted
the side burner to Liquid Propane prior to
completing the following steps.
1. Remove the LP gas hose assembly from the
flare fitting. (this has the regulator attached to
it.) (See Fig. 12)
LP hose/
regulator
supplied
with grill.
Fig. 12
2. Using an adjustable wrench remove the
flare fitting coming out of the bottom of the
grill.Once the flare fitting is removed the main
gas pipe will be showing under grill. (See Fig. 13)
4. Using pipe sealant, attach the “T” Fitting to the
main gas pipe coming out of the bottom of the
grill and tighten with a wrench. (See Fig. 14)
Fig. 13
5. Using pipe sealant, attach a 3/8” flared fitting to
the side and bottom of the “T” fitting. (See Fig.
15)
Main Gas Pipe
6. Attach the Flex Line to the fitting on the side of
the “T” fitting. Connect the other end of the flex
line to the side burner valve. (See Fig. 16)
Fig. 14
Note: This line can be extended using a 3/8”
flared coupling and an additional flex line if
necessary.
7. Attach the LP gas hose assembly to the
bottom flared fitting. (See Fig. 17)
Be sure your L.P. cylinder has an overfill
protection device on it. Max inlet pressure
cannot exceed 10”-11” water column.
Flex Line
“T” fitting
Attach to fitting
Fig.17
Gas Hose
Fig. 15
Fig. 16
Installation Instructions
Tools Required: Adjustable wrench, flat head screwdriver and a 1/4” socket wrench
Please use the built in information on the following pages for the exact dimensions needed to fit the
side burner into the structure. Once installed into the structure use the following steps to complete
the side burner installation.
INSTALLATION OF SIDE BURNER PARTS
1. Install burner into side burner tray lining up the three
cutouts on the underside of the burner. (See Fig. 1)
2. Install burner cap onto burner (See Fig. 2)
Fig. 1
3. Install grate into burner. (See Fig. 3)
Fig. 2
Fig. 3
Lighting The Side Burner
LEAK TESTING
Make sure all burners are turned to “OFF”.
Turn on the gas at the cylinder (LP models) or main
valve (Natural models). DO NOT turn on the side
burner. Perform a leak test at all connections and fittings by spraying a 50/50 solution of water and soap.
If any bubbles appear, correct the leak before
attempting to light the grill or side burner.
LIGHTING INSTRUCTIONS
Push and turn the control knob to the “HIGH”position
and immediately press and hold the electronic igniter
button. You’ll hear a snapping sound. It may be necessary to hold the electronic starter button for about 4
seconds. If the burner does not light in 4 seconds,
turn the knob to the “OFF” position and wait 5 minutes before trying again. Repeat above steps to light
remaining burners. (See Fig. 5)
Match Lighting
If by chance the electronic igniter does not light the
burner, the burner may be lit with a match. Keep
your face as far away from the burner as possible
and place a lit, long stem match through the spaces
in the grate to the ports of the burner. Position the
match near the burner ports and push and turn the
control knob to the “HIGH”position.
Fig. 5
Warranty
LIMITED LIFETIME WARRANTY
Electrolux Icon Grills have a limited lifetime warranty on all stainless steel panels, a limited 3 year warranty on
stainless steel burners, including labor within one year of the date of purchase; and a limited 1 year warranty
on all other parts, labor included.
In the U.S.A., your appliance is warranted by Electrolux Home Products North America. We authorize no person to change or add
to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by an
authorized Electrolux Home Products North America qualified service technician.
WARRANTY
PERIOD:
THROUGH OUR AUTHORIZED SERVICERS,
WE WILL:
THE CONSUMER WILL BE RESPONSIBLE FOR:
LIMITED ONE YEAR
WARRANTY *
One Year from
original purchase
date
Pay all costs for repairing or replacing any parts
of this appliance which prove to be defective in
materials or workmanship.
Cost of service calls that are listed under NORMAL
RESPONSIBILITIES OF THE CONSUMER.
LIMITED 3 YEAR
WARRANTY ON
STAINLESS STEEL
BURNERS *
2nd through 3rd
years from original
purchase date
Provide a replacement for any defective stainless
steel burner which prove to be defective in
materials or workmanship.
Diagnostic and any transportation and labor costs
which are required because of service.
All of the provisions of the full and limited warranties
above and the exclusions listed below apply.
Costs of the technicians travel to the home and any
costs for pick up and delivery of the appliance required
because of service.
From original date
LIMITED LIFETIME
WARRANTY ON
of purchase
STAINLESS PANELS *
* Some restrictions apply
NORMAL
RESPONSIBILITIES
OF THE CUSTOMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance
and in accordance with all local plumbing, electrical and/or gas codes.
3. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,which
are not a part of the appliance when it was shipped from the factory.
4. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products North America or its authorized
servicers; use of parts other than genuine Electrolux Home Products parts or parts obtained from persons other than
authorized servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
5. All other warranties, including implied warranties of merchantability and fitness for a particular purpose, which are expressly
excluded. consequential or incidental damages resulting from breach of warranty which are expressly excluded.
6. This limited warranty does not cover corrosion or discoloring due to lack of maintenance, misuse, hostile environments,
alterations, accidents or abuse or neglect.
7. This limited warranty does not cover any scratches, dents, corrosion or discoloring by heat, abrasive and chemical cleaners
nor any components used in the installation of the appliance.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products.
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as
described or illustrated are subject to change without notice. In the U.S. A., all warranties are made by Electrolux Home
Products North America. In Canada, your appliance is warranted by Electrolux Canada Corp.
If you have any other questions, please contact the Customer Service Hotline at
1-800-320-0859
Because of continuing product improvement, these specifications are subject to change without notice
RMP-122-FSSBIM
01/18/05
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
