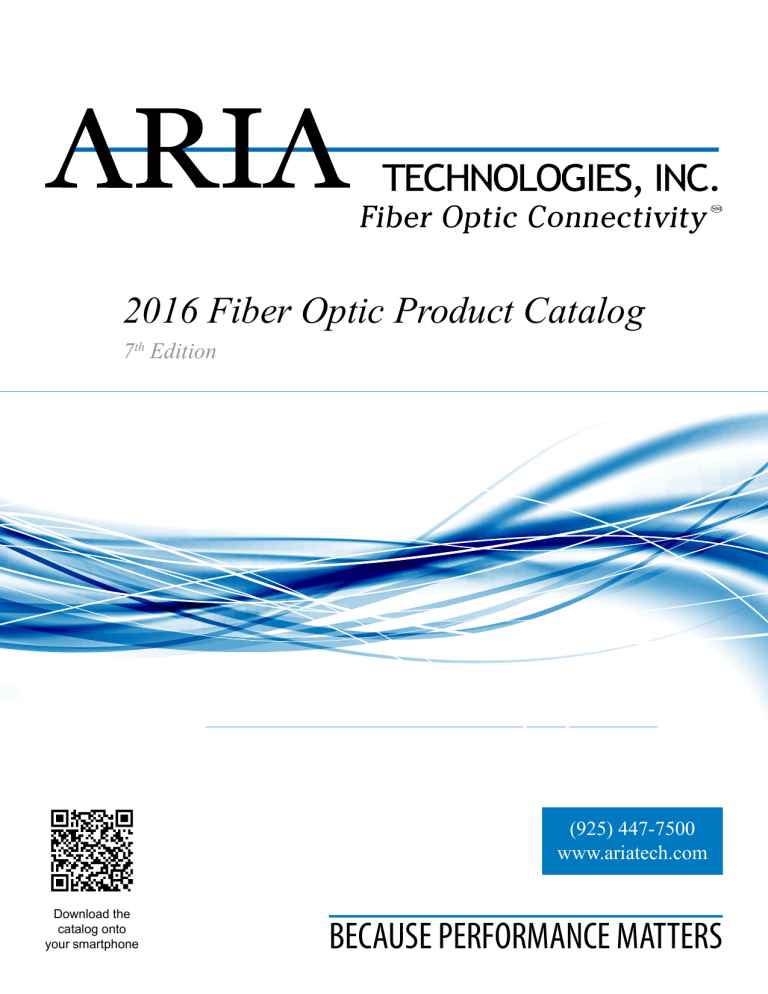

2016 Fiber Optic Product Catalog

7

th

Edition

Download the catalog onto your smartphone

(925) 447-7500 www.ariatech.com

BECAUSE PERFORMANCE MATTERS

Fiber Optic Product Catalog

ARIA Technologies

i

DS-BS-1 04/27/2016

ARIA Technologies,

a Woman Business

Enterprise (WBE) and California Certified

Small Business, is located in Livermore, CA and has been in business for 25 years. CEO

Paula McGuinness has been the owner since inception. Our products are of the highest quality, 100% tested, and conform to industry standards including Telcordia GR-326-CORE

Issue 4, TIA 568, UL listing, RUS Listing, and BAA certified (Buy American Act). Our commitment to responsive, informative, timely, and knowledgeable customer service and support makes ARIA Technologies stand out among suppliers.

California Woman Business Enterprise VON ID: 0FN00006

California Certified Small Business Supplier ID: 1790778

ARIA Technologies products are compliant with

the Buy American provisions of the

American Reconstruction and Reinvestment

Act of 2009 (ARRA). For those companies using stimulus dollars, Section 1605 of the American

Reconstruction and Reinvestment Act (ARRA), also known as the Buy American provision, requires that certain materials used in projects funded by the act be manufactured in the US or in specific foreign countries signatory to the Free

Trade Agreement (FTA) and the World Trade

Organization (WTO) Agreement.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

The USDA Rural Development has listed many of our products, making them approved for use in US Broadband Projects funded entirely or in part by the USDA. Only the products which have undergone successful trials and have content that is primarily American made can qualify for these listings.

Fiber Optic Product Catalog

ARIA Technologies

ii

DS-BS-1 04/27/2016

Our products include fiber patch, splice, and combination patch & splice enclosures that are wall mountable, rack mountable, indoor rated, and outdoor rated. ARIA Technologies offers the most complete line of small 1-48 fiber patch & splice enclosures for drops to businesses, schools, municipalities, hospitals, and customer premises. Customers enjoy doing business with ARIA

Technologies because of our high quality components and low costs. We are able to achieve this because we manufacture the assemblies and components loaded inside our enclosures.

“Some of the most demanding end users such as

Data Centers, Collocation Hotels, CATV MSOs, and

Independent Telcos prefer ARIA Technologies products for their important networks.”

-Paula McGuinness CEO ARIA Technologies, Inc.

ARIA’s Manufacturing Standards

ARIA Technologies utilizes a quality management system that meets or exceeds the ISO 9000 & TL

9000 international standards. We are determined to provide a quality experience for our customers.

ARIA’s Quality Policy

ARIA Technologies will meet customer requirements and promote corporate growth by delivering defect-free products on-time and provide support through continual improvement that is prevention based and customer focused.

ARIA’s Environmental Policy

ARIA Technologies is committed to the prevention of pollution. We minimize our negative impact to the environment by adopting processes that conserve natural resources and raw materials.

ARIA products are manufactured with RoHS compliant materials. We will continually improve our environmental management system, promote environmental awareness to our employees, and comply with relevant legislation and regulations.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Table of Contents

iii

DS-BS-1 04/27/2016

Wallmount Enclosures

AWM Series Wallmount Enclosures ······································································

Tri-Panel Series Wallmount Enclosures ·································································

XWM-4X Wallmount Enclosure ············································································

Network Interface Device (NID) Wallmount Enclosures ·············································

Fiber Gateway Panel (FGP) Wallmount Enclosure ···················································

SMDU Wallmount Enclosure ···············································································

ODP Wallmount Enclosure ··················································································

Mini Wallmount Enclosure ···················································································

FiberPatch™ ····································································································

NEMA Rated 8X Wallmount Enclosure ··································································

Optical Splice Entrance Cabinet (OSEC) Series Splice Wallmount Enclosures ···············

SPLWM Series Splice Wallmount Enclosures ··························································

11

13

15

17

1

4

7

9

20

26

28

31

Rackmount Enclosures

LGX Patch & Splice Series Rackmount Enclosures ··················································

LGX Pre-Terminated Patch Series Rackmount Enclosures ·········································

RDR Series Rackmount Enclosures ······································································

RDP Series Rackmount Enclosure ········································································

RDA Series Rackmount Enclosure ········································································

ARM Series Rackmount Enclosures ······································································

Swing-Out Series Rackmount Enclosures ······························································

HD Mini Cassette System ···················································································

High Density MTP-MPO (HDM) Series Rackmount Enclosures ···································

49

51

54

56

62

33

39

41

46

Fiber Optic Cable Assemblies

Fiber Optic Cable Assemblies ··············································································

Bend-Insensitive Cable Assemblies ·······································································

Jumpers (Patch Cords) ·······················································································

High Density Jumpers ························································································

Uniboot Polarity Switchable LC Jumpers ································································

MTP

®

Polarity Management ·················································································

MPO Trunk Cable Assemblies ··············································································

Optical Amplifier Drop Cable Assemblies ································································

Interfacility Cable (IFC) Assemblies ·······································································

ODVA Style IP67 Rated Cable Assemblies ······························································

69

71

75

79

64

65

66

67

81

83

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Table of Contents

iv

DS-BS-1 04/27/2016

Components

LGX, CCH, & SMP Type Adapter Plates and Pigtail Fanouts ······································

Attenuators ······································································································

A-MOD Patch and Splice LGX Cassette ·································································

MPO/MTP

®

Cassette Module ···············································································

WDM Modules (CWDMs and DWDMs) ··································································

8 Channel CWDM Module for FOSC Splice Trays ····················································

8 Channel DWDM Module for FOSC Splice Trays ····················································

Splitters and Couplers ························································································

Planar Lightwave Circuit (PLC) Splitter Cassettes ····················································

1RU Rackmount Splitter ·····················································································

Enclosures for Splitters, Couplers, and WDMs ························································

ARIA Lightpaths Raceway for Cable Management ···················································

Splice Trays ·····································································································

Splice Sleeves (Single and Mass Fusion) ·······························································

Cable Clamps ··································································································

Launch Boxes ··································································································

Fiber Test Box (Network Simulation System) ···························································

Precision Optical Fiber Cleaver ············································································

Connector Cleaning Products ··············································································

104

106

108

109

118

120

121

122

94

97

100

103

86

88

89

92

123

124

125

Copper

Cat 5e and Cat 6 Patch Cords ·············································································

LGX Adapter Plate for Keystone Jacks ···································································

SFP+ Passive Direct Attach Copper (DAC) Cables ···················································

AT-1100 Series Media Converters ·········································································

AT-2100 Series Media Converters ·········································································

AT-3011 Series Media Converters ·········································································

129

130

131

133

135

137

General Information

Indoor Cable ·····································································································

Indoor/Outdoor Cable ·························································································

Outdoor Cable ··································································································

ECAM Product Support ·······················································································

Connector Types ·······························································································

139

143

145

152

154

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

AWM Series Wallmount Enclosures

1

DS-BS-1 04/27/2016

AWM 2 AWM 4 AWM 8 AWM 12 AWM 18

ARIA Wallmount (AWM) Patch & Splice 6-432 fiber count enclosures are utilized for the splicing and/or direct termination of optical fibers in an indoor setting.

Units accommodate splice trays and LGX adapter plates.

Panels are stackable and allow for top or bottom cable entry.

Lockable double doors have a wide swing radius offering maximum access to the enclosure interior.

Enclosures are constructed of steel and have a durable powder-coating.

Specifications

AWM 2

Dimensions: 9”x14”x3.4” (HxWxD)

Capacity: Holds 2 adapter plates

6-Pack duplex SC or LC: 24 fibers

6-Pack quad LC: 48 fibers

Cable Entry Holes: 4 patch side (two 0.75” and two

1.00”) and 4 splice side (two 0.75” and two 1.00”)

Color: White

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

AWM 4

Dimensions: 16”x15”x3.4” (HxWxD)

Capacity: Holds 4 adapter plates

6-Pack duplex SC or LC: 48 fibers

6-Pack quad LC: 96 fibers

Cable Entry Holes: 4 patch side (two 1.00” and two

1.25”) and 4 splice side (two 1.00” and two 1.25”)

Color: White

Fiber Optic Product Catalog

Wallmount Enclosures

AWM Series Wallmount Enclosures

2

DS-BS-1 04/27/2016

AWM 8

Dimensions: 16”x20”x6.1” (HxWxD)

Capacity: Holds 8 adapter plates

6-Pack duplex SC or LC: 96 fibers

6-Pack quad LC: 192 fibers

Cable Entry Holes: 8 patch side (two 1.00” and six

1.25”) and 8 splice side (two 1.00” and six 1.25”)

Color: White

AWM 12

Dimensions: 16”x20”x6.1” (HxWxD)

Capacity: Holds 12 adapter plates

6-Pack duplex SC or LC: 144 fibers

6-Pack quad LC: 288 fibers

Cable Entry Holes: 8 patch side (two 1.00” and six

1.25”) and 8 splice side (two 1.00” and six 1.25”)

Color: White

AWM 8 & AWM 12 additional features: Patch side door and side panel are removable easing cassette installation. The enclosure doors come standard with an attached padlock hasp. Wide enclosure provides additional room for cassettes.

AWM 18

Dimensions: 16.1”x20.1”x8.5” (HxWxD)

Capacity: Holds 18 adapter plates

6-Pack duplex SC or LC: 216 fibers

6-Pack quad LC: 432 fibers

Cable Entry Holes: 8 patch side (six 1.00” and two

1.50”) and 8 splice side (six 1.00” and two 1.50”)

Color: ARIA Gray

AWM 18 additional features: Dust resistant strengthened doors. The enclosure doors come standard with an attached padlock hasp. Wide enclosure provides additional room for cassettes.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

AWM Series Wallmount Enclosures

Accessories

Grounding and Bonding Kit

P/N: AWMGB-KIT

3

DS-BS-1 04/27/2016

Key Lock Mechanism

P/N: C610-S

Small Compression Fitting

Supports Cable O.D.: 0.200”-0.525”

For AWM 2, 4, 8, 12, and 18 (P/N: CF-SM)

Medium Compression Fitting

Supports Cable O.D.: 0.15”-0.70”

For AWM 4, 8, and 12 (P/N: CF-MD)

Large Compression Fitting

Supports Cable O.D.: 0.425”-0.975”

For AWM 18 (P/N: CF-LG)

Part Number

AWM -

1 1 2 2 3 3 4 4 4 5 6 7 8 8 9 9 9 9

1

Enclosure

02 = AWM 2

04 = AWM 4

08 = AWM 8

12 = AWM 12

18 = AWM 18

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

3

Adapter Plate

Quantity

01 = 1 Plate 02 = 2 Plates

03 = 3 Plates 04 = 4 Plates

05 = 5 Plates 06 = 6 Plates

07 = 7 Plates 08 = 8 Plates

09 = 9 Plates 10 = 10 Plates

11 = 11 Plates 12 = 12 Plates

13 = 13 Plates 14 = 14 Plates

15 = 15 Plates 16 = 16 Plates

17 = 17 Plates 18 = 18 Plates

4

Adapter Type

6

Fiber Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

7

Splice Trays

5

Pigtail

N = None

Y = Yes*

N = No Pigtail

M = 900 μm in

Mesh

D = Distribution

Style (MIC)

R = Ribbon

Note: 3 meter pigtail

length is standard

*AWM enclosures come standard with

4”x8” splice trays in

24 fiber single fiber or 6 position ribbon fiber configurations.

8

Stub Cable Type

Leave Blank for No Stub

DR = Distribution Style

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

9

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

Tri-Panel Series Wallmount Enclosures

Tri-Panel enclosures feature two compartments for splicing and patching.

The compact and intuitive design requires less space and provides easy access to the connectors.

Tri-Panels are ideal for use when a compact, wall mountable, patch, splice, and storage enclosure is required such as drops to commercial customers, cell sites, hospitals, or anywhere separate compartments are needed to separate/demarc patch and splice areas.

TRI-2X

Dimensions: 7”x12”x4.1” (HxWxD)

Capacity: Holds 2 adapter plates

6-Pack duplex SC or LC: 24 fibers

6-Pack quad LC: 48 fibers (ribbon only)

Cable Entry Holes: 2 patch side

(1.50”) and 2 splice side (1.18”)

TRI-4X

Dimensions: 7”x12”x7.6” (HxWxD)

Capacity: Holds 4 adapter plates

6-Pack duplex SC or LC: 48 fibers

6-Pack quad LC: 96 fibers (ribbon only)

Cable Entry Holes: 2 patch side

(1.50”) and 2 splice side (1.18”)

TRI-6X

Dimensions: 12”x12”x6.5” (HxWxD)

Capacity: Holds 6 adapter plates

6-Pack duplex SC or LC: 72 fibers

6-Pack quad LC: 144 fibers (ribbon only)

Cable Entry Holes: 2 patch side

(1.50”) and 2 splice side (1.18”)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

4

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Wallmount Enclosures

Tri-Panel Series Wallmount Enclosures

Features

• The patch and splice compartments are separated and allow ARIA Tri-Panel enclosures to make efficient use of wall space

• The fiber pigtails are well organized and easily accessible

• The intuitive design supports simple customer cable entry, organization, splicing, and patching

• ARIA coupler, splitter, CWDM, and DWDM cassettes are supported

• Single door design requires less wall space

• Angled adapter plate mounting surface makes it easy to access the connectors

• All metal construction offered in white or black

• Sizable splicing compartment provides ample room for pigtail storage and protection

• Available in three different size formats to accommodate various installations

Pre-Terminated Option Available

Tri-Panels are available as a “pre-term panel” with a connectorized stub

Black Color Available

TRI-2X

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

TRI-4X

5

DS-BS-1 04/27/2016

TRI-6X

Fiber Optic Product Catalog

Wallmount Enclosures

Tri-Panel Series Wallmount Enclosures

Accessories

6

DS-BS-1 04/27/2016

Medium Compression

Fitting Supports Cable O.D.:

0.15”-0.70” (P/N: CF-MD)

Large Compression Fitting

Supports Cable O.D.:

0.425”-0.975” (P/N: CF-LG)

Key Lock Mechanism

Splice Side

P/N: TRI-SS-LOCK

Key Lock Mechanism

Patch Side

P/N: TRI-PS-LOCK

Part Number

TRIX-

1 2 2 3 4 4 4 5 6 7 8 9 9 10 10 10 10

1

Enclosure

2 = Tri-2X

4 = Tri-4X

6 = Tri-6X

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

3

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

4 = 4 Plates

5 = 5 Plates

6 = 6 Plates

4

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

6

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

5

Pigtail

N = No Pigtail

M = 900 μm in

Mesh

D = Distribution

Style (MIC)

R = Ribbon

Note: 3 meter pigtail

length is standard

7

Splice Trays

N = None

Y = Yes*

*Tri-Panel enclosures come standard with

4”x8” splice trays in

24 fiber single fiber or 6 position ribbon fiber configurations.

8

Color

B = Black

W = White

9

Stub Cable Type

Leave Blank for No Stub

DR = Distribution Style

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

10

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

XWM-4X Wallmount Enclosure

7

DS-BS-1 04/27/2016

Overview

ARIA’s XWM-4X is a compact wall mount fiber optic distribution enclosure designed to support patching and/or splicing.

The unit has the capacity to accept 4 LGX-type adapter plates allowing for the termination of a variety of connector types and fiber counts of up to 48 SC or 96 LC.

The unit has a key-lockable drop-down-door splice compartment which serves as a work shelf for splicing.

The patch side door comes equipped with a padlock hasp for additional security.

Accessories

Specifications

Parameter Value

Dimensions (H”xW”xD”) 11.4 x 14.2 x 4.2

10 lbs

Weight

Fiber Capacity

Cable Entry

Material

Finish

48 fibers SC or 96 fibers LC

Four 1.175” Openings

16 Gauge Steel

Black electrostatically applied powder coat

Grounding and Bonding Kit

P/N: AWMGB-KIT

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Medium Compression Fitting Supports Cable O.D.: 0.15”-

0.70” (P/N: CF-MD)

Fiber Optic Product Catalog

Wallmount Enclosures

8

DS-BS-1 04/27/2016

XWM-4X Wallmount Enclosure

Part Number

XWM-4X-

1 1 2 3 3 3 4 5 6 7 7 8 8 8 8

1

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

2

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

4 = 4 Plates

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Splice Trays

N = None

Y = Yes*

*This enclosure comes standard with 4.0”x8.0” splice trays in 24 fiber single fiber or 6 position ribbon fiber configurations.

7

Stub Cable Type

Leave Blank for No Stub

DR = Distribution Style

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

8

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

Network Interface Device (NID) Wallmount Enclosures

ARIA low profile, full-featured NIDs are constructed of materials capable of withstanding harsh indoor and outdoor conditions, such as UV degradation, chemical exposure, and sub-freezing temperatures.

Designed for wall mounting, the NID-4 will accommodate up to 8 fiber terminations and the NID-12 will accommodate up to 12 fiber terminations, with or without splicing.

Hinges hold the door in the open position for service and the door seal securely protects the contents from moisture and foreign matter intrusion. Cable entry ports are also sealed.

Useful for demarcation points, telecommunications rooms, and equipment rooms.

Product is UL 497 listed.

9

DS-BS-1 04/27/2016

NID-4

Dimensions:

10.22”x5.64”x2.73” (HxWxD)

Capacity:

Simplex SC: 2 fibers or LC: 4 fibers

Duplex SC: 4 fibers or LC: 8 fibers

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

NID-12

Dimensions:

8.54”x10.00”x2.88” (HxWxD)

Capacity:

6-Pack duplex SC or LC: 12 fibers

Unique Features:

Available as a single or dual door enclosure.

Door is available with a weatherproof gasket.

Fiber Optic Product Catalog

Wallmount Enclosures

10

DS-BS-1 04/27/2016

Network Interface Device (NID) Wallmount Enclosures

• Compact molded splice tray (2.75” x 5.50”) included

• Capable of withstanding harsh indoor and outdoor conditions

• Accommodates one 12-fiber splice tray and up to 8 or 12 terminations depending upon the model

• Flexible grommets seal cable entry ports

• Secure fit provides maximum protection from the elements and foreign matter intrusion

• Hinged lockable door allows convenient access to all components

• Unique detent/release mechanism provides easy installation and servicing by holding the door open

Part Number

NIDP D-

1 1 2 2 3 3 4 4 4 4 4 5 6 7

1

Enclosure

04 = NID-4

12 = NID-12

2

Door Type

SS = Single Door without gasket

DS = Double Door without gasket

(NID-12 Only)

SG = Single Door with gasket

(NID-12 Only)

DG = Double Door with gasket

(NID-12 Only)

3

Port Quantity

02 = 2 Port (SC)

(NID-4 Only)

04 = 4 Port (SC/LC)

(NID-4 Only)

06 = 6 Port (SC)

(NID-12 Only)

08 = 8 Port (SC/LC)

(SC: NID-12 Only)

(LC: NID-4 Only)

12 = 12 Port (SC/LC)

(NID-12 Only)

4

Adapter Type

Singlemode

SCUPC = SC/UPC

SCAPC = SC/APC

LCUPC = LC/UPC

LCAPC = LC/APC

5

Pigtail

N = No Pigtail

M = 900 μm in

Mesh

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

6

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

7

Splice Trays

N = None

Y = Yes*

*NID enclosures come standard with

2.9”x5.6” splice trays in a 12 fiber single fiber configuration.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

11

DS-BS-1 04/27/2016

Fiber Gateway Panel (FGP) Wallmount Enclosure

ARIA’s Fiber Gateway Panel (FGP) Wallmount Enclosure is a compact unit which features connectivity between the

OSP fiber drop and customer fiber drop and slack storage.

The unit is configurable for up to 12 fiber terminations.

Features easy installation for patch or patch & splice options.

Rugged plastic housing with separate entry points for

OSP fiber and customer fiber.

Features/Benefits

• Indoor/outdoor rated for wall and pole mounting

• Provides demarcation point between outdoor fiber drop and customer premise fiber

• Constructed of superior materials capable of withstanding harsh outdoor environments, including: UV degradation, chemical exposure, and extreme temperatures

• Up to 12 fiber ports for OSP to customer fiber transitions

• Integrated and removable splice tray assembly

• Entry grommets accept up to 1 inch conduit with provision for tie wrap retention

• 2X internal tie down features for proper strain relief of fiber cables

• Hinged cover fits securely on the base to provide maximum protection against environmental conditions and intrusion of foreign matter, protecting sensitive fiber connectivity

• Cover closes securely with 3/8” hex head bolt and has a provision for a padlock

• Meets Telcordia GR-771 requirements

Interior and Exterior View

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

Fiber Gateway Panel (FGP) Wallmount Enclosure

Dimensions

10.26

8.48

12

DS-BS-1 04/27/2016

2.91

5.000

.93

1.31

 1.00

9.93

Dimensions are in Inches

Part Number

1

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

FGP-

1 1 2 2 2 3 4

2

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

Multimode

SCM = SC

LCM = LC

3

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution Style (MIC)

Note: 3 meter pigtail

length is standard

4

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

SMDU Wallmount Enclosure

ARIA Technologies SMDU Wallmount Enclosures are patch or patch and splice indoor wallmount enclosures with the capability of housing up to four 1x8 splitters.

When used as a splitter enclosure they provide a distribution point where OSP or Distribution cables can be spliced to preloaded PON Splitters housed inside the unit.

The panel includes removable grounding or strain relief lugs.

The enclosure is made of ABS plastic and the lid is pad-lockable.

Capacity

Six cable entry openings (two 0.61”, two 0.81”, and two

0.95”) and their associated compression fittings are provided to enable multiple locations for incoming OSP or Distribution Cable and Patchcords.

Enclosure Dimensions: 11.8 x 10.4 x 3.1 (H”xW”xD”).

Fiber Capacity: 24 fiber SC with 1 Splice Tray or

32 fiber LC with 2 Splice Trays

Splitter Specifications

Parameter

Operating Wavelength (nm)

Fiber Type

Insertion Loss (dB)

Loss Uniformity (dB)

Polarization Dependent Loss (dB)

Return Loss (dB)

Directivity (dB)

Wavelength Dependent Loss (dB)

Device Dimension (mm)

Value

1260-1650

G.657.A1

10.2

0.8

0.2

55

55

0.5

60 x 7 x 4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

13

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Wallmount Enclosures

14

DS-BS-1 04/27/2016

SMDU Wallmount Enclosure

Part Number

SMDU-

1 2 2 2 3 4 5 6 6 7 7 7 7

1

Enclosure Application

0 = Patch/Splice Application

1 = One 1x8 Splitter (SC/LC)

2 = Two 1x8 Splitters (SC/LC)

3 = Three 1x8 Splitters (SC/LC)

4 = Four 1x8 Splitters (LC)

2

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

Multimode

SCM = SC

LCM = LC

4

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

5

Splice Trays

N = None

Y = Yes*

*This enclosure comes standard with 4.0”x7.0” splice trays in 24 fiber single fiber or 4 position ribbon fiber configurations.

3

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

6

Stub Cable Type

Leave Blank for No Stub

DR = Distribution Style

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

7

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

15

DS-BS-1 04/27/2016

ODP Wallmount Enclosure

ARIA’s ODP Wallmount Enclosure is compact and features patch and splice capabilities.

The enclosure provides the user with separate compartments and ample bending radius guides for improved fiber management.

The unit is configurable for up to 12 fiber terminations.

It features a rugged plastic housing with separate entry points for OSP fiber and customer fiber.

Features

• Indoor/outdoor rated for wall mounting

• Dimensions: 8.85 x 7.85 x 2.55 (H”xW”xD”)

• Provides a clamping solution for feeder cable, drop cable, fiber splicing, fixation, storage, and distribution all in one

• Constructed of superior materials capable of withstanding harsh outdoor environments including: UV degradation, chemical exposure, and extreme temperatures

• Up to 12 fiber ports for OSP to customer fiber transitions

• Hinged cover fits securely on the base providing a water and dust proof seal (IP65 Rated)

• Cover closes securely with a self locking mechanism (comes with a custom key)

• The grounding device is isolated within the cabinet

Cable Routing

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

ODP Wallmount Enclosure

Interior View

16

DS-BS-1 04/27/2016

Part Number

1

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

Multimode

SCM = SC

LCM = LC

A-ODPWM-12-

1 1 1 2 3

2

Pigtail

N = No Pigtail

M = 900 μm in Mesh

D = Distribution Style (MIC)

Note: 3 meter pigtail

length is standard

3

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

Mini Wallmount Enclosure

ARIA Mini Wallmount fiber patch & splice enclosures can patch & splice up to 24 fibers LC and 12 fibers SC in

Singlemode or Multimode configurations.

These compact sized enclosures can be supplied fully loaded with adapter panels, pigtails, a splice sleeve holder, and a pre-terminated stub cable or as a plug and play module with an MTP adapter or pigtails.

100% tested for insertion and return loss.

Available in CCH or LGX size formats.

Features

• Simply loosen the thumbscrews (CCH) or flip the latches (LGX) and open the door to gain access to the internal components

• Enclosures can be pre-terminated for patching only or supplied with a splice chip for patching and splicing capability

• Enclosures are wall mountable and are also rack mountable with optional rackmount brackets

Component Layout

Adapter

Plate

Adapter

Zip Tie

Cable to enclosure

Fiber

Connectors

Zip Tie

Cable to enclosure

Splice

Chip

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Cable

Entry

Grommet

Cable

Fibers

Patch Only or Pre-Term

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

17

DS-BS-1 04/27/2016

Fiber

Pigtails

Cable

Entry

Grommet

Patch & Splice

Cable

Fibers

Adapter

Plate

Adapter

Fiber Optic Product Catalog

Wallmount Enclosures

Mini Wallmount Enclosure

LGX or CCH Format

18

DS-BS-1 04/27/2016

LGX Format: 5.51”x6.25”x1.25” (HxWxD)

Accessories

CCH Format: 6.25”x5.32”x1.45” (HxWxD)

CCH Mini Wallmount Shroud

P/N: SHROUD-MWM-BLK

Mini Compression Fitting Supports Cable O.D.: 0.175”-

0.370” For LGX Mini Wallmount (P/N: CF-XS)

Small Compression Fitting Supports Cable O.D.: 0.200”-

0.525” For CCH Mini Wallmount (P/N: CF-SM)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

19

DS-BS-1 04/27/2016

Mini Wallmount Enclosure

Part Number

MWM-

1 2 2 3 3 3 4 5 6 6 7 7 7 7

1

Format

L = LGX

C = CCH

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Pigtail

N = No Pigtail

9 = 900 μm

M = 900 μm in Mesh

R = Ribbon

T = MTP Adapter

(CCH Only)

Note: 3 meter pigtail

length is standard

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Stub Cable Type

Leave Blank for No Stub

DR = Distribution Style

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

*Not available on 24 fiber configurations

7

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

FiberPatch™

FiberPatch™ is a unique fiber optic enclosure that is supplied with connectors on the front of the cassette and can be supplied with an MPO/MTP

®

adapter or preterminated with connectors or a pigtail for splicing on the rear end.

Lengths as long as 1 km can be supplied in OFNR,

OFNP, interlocking armor plenum, indoor/outdoor, OSP non-armored, OSP armored, flat drop, or alternative jacket cable.

Most popular connectors can be supplied with up to 24 fibers.

FiberPatch™ is compact and minimizes the use of crucial rack or wall space.

This unique product can eliminate splicing at the building entrance and customer premise. It instead requires just one splice in a manhole or an OSP splice case. Instead of installing conduit, pulling fiber through it, and then splicing pigtails, FiberPatch™ can be supplied as a system with cable, conduit, and connectors all pre-installed at the factory.

Features

• ARIA FiberPatch™ is mountable in a variety of hardware and is offered with many pre-terminated cable options

• ARIA FiberPatch™ can be installed in any rackmount or wallmount enclosure that supports LGX or CCH type cassettes

• LGX Dimensions: 4.0 x 5.1 x 1.1 (H”xW”xD”)

• CCH Dimensions: 3.8 x 6.1 x 1.4 (H”xW”xD”)

• FiberPatch™ is compact and minimizes the use of crucial rack or wall space

• FiberPatch™ is pre-terminated and eliminates the risk of damaging the internal fiber optic connections

• This durable plug and play product offers rodent protection and supports the use of a shroud to protect jumpers.

20

DS-BS-1 04/27/2016

FiberPatch™ can be supplied on a reel

FiberPatch™ with Non-Armored Alternative Jacket Cable and Pulling Eye Shown

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

FiberPatch™

Applications: MDU Drops to Customer Premises

21

DS-BS-1 04/27/2016

FiberPatch™

SPLWM

Series

Wallmount

Enclosure

In this instance, the Pre-terminated FiberPatch™ is located at the customer premises and the spooled indoor/outdoor cable is routed outside to the manhole and spliced. This method eliminates the costly splicing of fibers at both the building entrance and at the customer premises which results in savings of thousands of dollars in labor and materials as well as faster customer hook-up.

In this instance, the Pre-terminated FiberPatch™ is located at the customer premises and the spooled OFNR or OFNP cable is routed to the basement or building entry point and is spliced in an indoor rated splice-only enclosure (ARIA

SPLWM shown above). Another splice is performed at the manhole in an OSP Splice Case.

Applications: Drops to ITS Cabinets

FiberPatch™

Underground

Splice Enclosure

Drop

Cable

Drop Cable

When Cabinets or Cell Tower Shelter racks are loaded to capacity and leave no room for rack mount enclosures, just mount the ARIA FiberPatch™ on the wall and route the cable to manholes or where splice cases are located for transition to backbone cables.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

FiberPatch™

Mounting Options

22

DS-BS-1 04/27/2016

Wall mount brackets can be utilized to mount FiberPatch™ directly onto a wall

Open top Wallmount/Rackmount brackets can be utilized to mount multiple modules on a wall

Open top Wallmount/Rackmount brackets can be utilized to mount multiple modules in a rack

Open top Wallmount/Rackmount brackets can be utilized to mount multiple modules in a cell tower cabinet

The shroud accessory protects the patchcords from damage when the

FiberPatch

is mounted on a wall

The shroud with door accessory protects the patchcords and allows quick access to them after installation

Wall mount brackets can be utilized to mount the 2X

FiberPatch™ directly onto a wall

The LGX FiberPatch™ and 2X FiberPatch™ Wallmount/

Rackmount Bracket can be utilized to mount an LGX

FiberPatch

and a 2X FiberPatch

™ on a wall or in a rack

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

FiberPatch™

2X FiberPatch™

The ARIA 2X FiberPatch™ supports up to 24 fibers SC or

48 fibers LC.

It is twice as wide as the standard LGX FiberPatch™ and it has two locations for pre-terminated cable assemblies to exit on the back of the cassette.

The enclosure size of the ARIA 2X FiberPatch™ is

4.00 x 10.51 x 1.13 (H”xW”xD”).

Need MPO/MTP

®

Connectivity?

ARIA’s MPO/MTP

®

Cassette Module is similar to

FiberPatch™ but provides an MPO/MTP

®

adapter on the rear of the cassette instead of the pre-terminated stub.

This feature allows the module to interconnect MPO/

MTP

®

backbones and patch cords.

This product is available in the following configurations:

12 Fiber SC to 12 Fiber MPO/MTP

®

12 Fiber LC to 12 Fiber MPO/MTP

®

24 Fiber LC to Dual 12 Fiber MPO/MTP

®

LC Duplex

Connector

Accessories

23

DS-BS-1 04/27/2016

MPO/MTP

®

Connector

LGX FiberPatch™ and 2X FiberPatch™ Wallmount/

Rackmount Bracket - P/N: 2X1 LGX W-R BRACKET-OT

FiberPatch™ and 2X FiberPatch™ Wallmount Bracket

P/N: (Ordered with FiberPatch™ Part Number)

19”-23” Extension Bracket for 1RU Wallmount/Rackmount

Bracket (P/N: 19-23-REB-1RU-ALUM)

19”-23” Extension Bracket for 2RU Wallmount/Rackmount

Bracket (P/N: 19-23-REB-2RU-STL0

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

FiberPatch™

Accessories (Continued)

3 Module 1RU LGX Wallmount/Rackmount Bracket

P/N: 3XLGXW-RBRACKET-B-OT

24

DS-BS-1 04/27/2016

2 Module 1RU CCH Wallmount/Rackmount Bracket

P/N: 2XCCHW-RBRACKET-B-OT

6 Module 2RU LGX Wallmount/Rackmount Bracket

P/N: 6XLGXW-RBRACKET-B-OT

4 Module 2RU CCH Wallmount/Rackmount Bracket

P/N: 4XCCHW-RBRACKET-B-OT

2X LGX Wallmount Bracket

P/N: 2XLGXWMBRACKET-B-OT

2X CCH Wallmount Bracket

P/N: 2XCCHWMBRACKET-B-OT

LGX FiberPatch™ Shroud with Door

P/N: AFP-LGX-SHROUD-WD

LGX FiberPatch™ Shroud

P/N: AFP-LGX-SHROUD

CCH FiberPatch™ Shroud

P/N: AFP-CCH-SHROUD

CCH FiberPatch™ Shroud with Door

P/N: AFP-CCH-SHROUD-WD

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

25

DS-BS-1 04/27/2016

FiberPatch™

Part Number

-AFP-

1 1 1 2 2 3 3 3 4 4 5 6 6 6 6 7 7 7

1

Cassette Type

LGX = LGX

CCH = CCH

2XF = 2X FiberPatch™

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (FiberPatch™: LC

or 2X FiberPatch™: SC)

48 = 48 Port (2X FiberPatch™: LC)

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Rear Connectivity

DR = Distribution Style

Riser Rated Cable

DP = Distribution Style

Plenum Rated Cable

AP = Interlocking Armor

Plenum Rated Cable*

IR = Indoor/Outdoor

Riser Rated Cable

IP = Indoor/Outdoor

Plenum Rated Cable

OA = Outside Plant

Armored Cable

ON = Outside Plant

Non-Armored Cable

AJ = Non-Armored

Alternative Jacket Cable

*Only available in CCH

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Cable Length

Leave Blank for No Stub

XXXF = XXX feet

XXXM = XXX meters

7

Wallmount Bracket

WMB = Wallmount Bracket

Leave Blank for No

Wallmount Bracket

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

NEMA Rated 8X Wallmount Enclosure

26

DS-BS-1 04/27/2016

The ARIA NEMA Rated 8X Wallmount Enclosure is designed for environments where durability, security, and weather resistance are required.

The enclosure is NEMA 4 rated and has a gasketed and pad-lockable outer door.

The enclosure is manufactured out of aluminum and coated with polyester powder coating for corrosion resistance.

This enclosure features eight LGX adapter plates, cable management radius guides, dual post internal grounding lugs, 6 position exterior grounding lugs, and a grounded door.

Pedestal, pole, or wall-mountable.

Patching and splicing capacity of 96 fibers. It can support 192 fibers when using ribbon fiber and LC connectors.

Dimensions: 15.00”x17.75”x7.00” (HxWxD) (19.1” height with brackets)

Cable Entry

Two 1.10” knockouts, two 1.50” knockouts, and two 2.45” knockouts provide six cable entry/exit holes on the bottom of the enclosure and accommodate single or multi-drop cables.

These knockouts support 1” conduit, 2” conduit, medium compression fittings, and large compression fittings.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

NEMA Rated 8X Wallmount Enclosure

Accessories

27

DS-BS-1 04/27/2016

Medium Compression Fitting

Supports Cable O.D.: 0.15”-0.70” (P/N: CF-MD)

Large Compression Fitting

Supports Cable O.D.: 0.425”-0.975” (P/N: CF-LG)

Part Number

AWM-NEMA8X-

1 1 2 3 3 3 4 5 6

1

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

2

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

4 = 4 Plates

5 = 5 Plates

6 = 6 Plates

7 = 7 Plates

8 = 8 Plates

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Splice Trays

N = None

Y = Yes*

*This enclosure comes standard with 4.0”x8.0” splice trays in 24 fiber single fiber or 6 position ribbon fiber configurations.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

28

DS-BS-1 04/27/2016

Optical Splice Entrance Cabinet (OSEC) Series Splice Wallmount Enclosures

ARIA Optical Splice Entrance Cabinets allow the user to sort and organize the splicing of pre-terminated (stubbed) riser cables from fiber patch panels to outside plant trunk cables at a building entrance.

OSEC cabinets are dust proof, water resistant, and constructed of aluminum, with a durable powder coated finish.

The full size gasketed door offers maximum access to the enclosure interior during installation and service.

OSEC 4 OSEC 8 OSEC 12

OSEC 4

Part Number: OSEC4-STD

Dimensions: 13.7”x21.4”x11.0” (HxWxD)

Capacity: Holds 4 molded splice trays

864 fibers mass fusion or 192 fibers single fusion

Cable Entry: 24 Openings (four horseshoe, fourteen 1.2”, six 1.5”)

Finish: ARIA Gray

Mounting: Wallmount

Unique Features: Strain relief lugs for cable attachment and horseshoe-shaped openings for mid-span access

OSEC 8

Part Number: OSEC8-STD

Dimensions: 19.0”x24.0”x11.1” (HxWxD)

Capacity: Holds 8 molded splice trays

1728 fibers mass fusion or 384 fibers single fusion

Cable Entry: 24 openings (four horseshoe, sixteen 1.2”, six 1.5”)

Finish: ARIA Gray

Mounting: Wallmount

Unique Features: Strain relief lugs for cable attachment and horseshoe-shaped openings for mid-span access

OSEC 12

Part Number: OSEC12-STD

Dimensions: 22.0”x20.0”x8.8” (HxWxD)

Capacity: Holds 12 molded splice trays

1152 fibers mass fusion or 288 fibers single fusion

Cable Entry: 13 openings (one 0.88”, six 1.25”, six 1.50”)

Finish: ARIA White

Mounting: Rackmount or Wallmount

Unique Features: Lift-off reversible door with document holder, ability to store up to 10 meters of OSP cable, and multi-section radius guides to store and segregate fiber

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

29

DS-BS-1 04/27/2016

Optical Splice Entrance Cabinet (OSEC) Series Splice Wallmount Enclosures

Features

• Cable entry holes feature protective removable caps

• OSEC 4 and OSEC 8 drop-down door serves as a work table

• Wall or unistrut mountable

• Organize and manage optical fiber splices between outside plant and indoor cable routed to cross-connect equipment

• Can be installed in a building entrance facility or an outside plant vault as a cable pull box and/or a cable splice enclosure

• Corrosion resistant aluminum construction, heavy-duty door with gasket, and robust hinges and latches protect fiber

• Six position grounding block and fiber management rings

• Individual access to each splice tray

OSEC 4/8 Accessories

48 Fiber Single Fusion Splice Tray

P/N: AT1B-F/F

216 Fiber Mass Fusion Splice Tray

P/N: AT1B-MF/MF

12A1 Cable Clamp for Metallic Sheath Cable

P/N: 104-384-490-SRE-W

12A2 Cable Clamp for Dielectric Sheath Cable

P/N: 106-230-337-SRE-W

12A3 Cable Clamp for 0.25”-1.25”

Diameter Cable (P/N: 108-527-423)

Padlock Kit for the Door Latch Assembly (P/N: O-PADLOCK-KIT)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Lock Kit (OSEC 4 Only)

P/N: TRI-PS-LOCK

Fiber Optic Product Catalog

Wallmount Enclosures

30

DS-BS-1 04/27/2016

Optical Splice Entrance Cabinet (OSEC) Series Splice Wallmount Enclosures

OSEC 12 Accessories

12 Fiber Single Fusion Splice Tray (4”x6”)

P/N: 4612CWMP

24 Fiber Single Fusion Splice Tray (4”x8”)

P/N: 4824CWMP

72 Fiber Mass Fusion Splice Tray (4”x8”)

P/N: 4872RCWM

OSEC 4/8/12 Accessories

Grounding and Bonding Kit

P/N: OSECGB-KIT

Medium Compression Fitting

Supports Cable O.D.: 0.15”-0.70” (P/N: CF-MD)

Large Compression Fitting

Supports Cable O.D.: 0.425”-0.975” (P/N: CF-LG)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Wallmount Enclosures

SPLWM Series Splice Wallmount Enclosures

These compact fiber splice enclosures are ideal for wall mounting indoors.

The rear-hinged, 16 gauge steel, pad lockable door provides quick access to the enclosure interior.

The riser cable entrance slot accommodates most OSP cables (Outer Diameters up to .71”) and makes it easy to mount cable where riser cables already exist.

Slack storage space behind the splice trays provides simple cable re-entry and access.

SPLWM-1

Part Number: SPLWM-1

Dimensions: 9.0”x14.0”x3.4” (HxWxD)

Capacity: 4 - 4”x6”, 2 - 4”x7”, or 3 - 4”x8” splice trays

Single Fusion Splicing: 72 fibers

Mass Fusion Splicing: 216 fibers

Cable Entry: 8 openings (four 0.75” and four 1.00”)

SPLWM-2

Part Number: SPLWM-2

Dimensions: 16.0”x15.0”x3.4” (HxWxD)

Capacity: 4 - 4”x6”, 2 - 4”x7”, or 3 - 4”x8” splice trays

Single Fusion Splicing: 72 fibers

Mass Fusion Splicing: 216 fibers

Cable Entry: 8 openings (four 1.00” and four 1.25”)

SPLWM-3

Part Number: SPLWM-3

Dimensions: 16.0”x15.0”x6.2” (HxWxD)

Capacity: 7 - 4”x6”, 4 - 4”x7”, or 6 - 4”x8” splice trays

Single Fusion Splicing: 144 fibers

Mass Fusion Splicing: 432 fibers

Cable Entry: 12 openings (four 1.00” and eight 1.25”)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

31

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Wallmount Enclosures

SPLWM Series Splice Wallmount Enclosures

Features

• Spacious splice only wallmount enclosure allows for ample cable slack

• Multiple cable entry ports support a wide variety of cable diameters

• Easy to access and re-enter the enclosure

• Attached padlock hasp and lock kit option provides enhanced security

Accessories

32

DS-BS-1 04/27/2016

Small Compression Fitting (For SPLWM-1,

SPLWM-2, SPLWM-3) Supports Cable

O.D.: 0.200”-0.525” (P/N: CF-SM)

Medium Compression Fitting

(For SPLWM-2, SPLWM-3) Supports Cable

O.D.: 0.15”-0.70” (P/N: CF-MD)

Lock Kit

P/N: AWM-LOCK-KIT

Grounding and Bonding Kit

P/N: AWMGB-KIT

12 Fiber Single Fusion Splice Tray (4”x6”)

P/N: 4612CWMP

24 Fiber Single Fusion Splice Tray (4”x7”)

P/N: 4724CWMPST

72 Fiber Mass Fusion Splice Tray (4”x7”)

P/N: 4772CWMPST

24 Fiber Single Fusion Splice Tray (4”x8”)

P/N: 4824CWMP

72 Fiber Mass Fusion Splice Tray (4”x8”)

P/N: 4872RCWM

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

33

DS-BS-1 04/27/2016

LGX Patch & Splice Series Rackmount Enclosures

LGX Patch & Splice Series Rackmount Enclosures are available in 12 to 1728 fiber configurations. They are typically composed of a stack of multiple termination shelves and one splice shelf. Each fiber termination shelf is equipped with adapter panels and fanouts. Each splice shelf is equipped with mass fusion or single fusion splice organizers. All of the shelves are secured together in the factory, shipped, and installed as a single unit.

The unconnectorized end of each fanout is routed from the rear of the termination shelf down to the splice shelf and into the splice organizers. The unconnectorized end is positioned in the organizer ready for mass fusion or single fusion splicing. The unconnectorized end of each fanout is clearly identified to correspond to a termination shelf and to the connector positions within that shelf. The splice shelf and organizers are located at the bottom of the assembly, in the position most convenient for splicing.

Example Configurations

6 Pack SC Simplex:

24 Fibers

12 Pack SC Duplex:

48 Fibers

6 Pack SC Simplex:

72 Fibers

8 Pack SC Simplex:

96 Fibers

12 Pack SC Duplex:

144 Fibers

6 Pack SC Simplex: 216 Fibers

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

6 Pack SC Simplex: 432 Fibers 12 Pack SC Simplex: 864 Fibers

Fiber Optic Product Catalog

Rackmount Enclosures

LGX Patch & Splice Series Rackmount Enclosures

Individual Enclosures

34

DS-BS-1 04/27/2016

5.25” Patch & Splice (SC: 48 Fiber or LC: 96 Fiber Capacity)

(48 Fiber Single Fiber or 18 Position Ribbon Fiber Capacity)

5.25” Splice Only (144 Fiber Single Fiber or

54 Position Ribbon Fiber Capacity)

7.00” Patch Only

SC: 144 Fiber or LC: 288 Fiber Capacity

7.00” Splice Only

(108 Position Ribbon Fiber Capacity)

8.75” Patch Only

SC: 144 Fiber or LC: 288 Fiber Capacity

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

8.75” Splice Only (288 Fiber Single Fiber or

108 Position Ribbon Fiber Capacity)

Fiber Optic Product Catalog

Rackmount Enclosures

LGX Patch & Splice Series Rackmount Enclosures

Features

• Easy network build with on-bay splicing

• No cable stubs eliminate riser requirements and cost

• All panels are 17” wide and 11” deep

• Fits 19”, 23”, or ETSI frames

• LGX Patch & Splice Series Rackmount Enclosures only require mounting to the network frame, reducing installation time and cost

• Modular units allow rapid network growth

• All pigtails are labeled for easy identification

35

DS-BS-1 04/27/2016

Specifications

Parameter

Enclosure Material and Finish

Operating Temperature Range (°C)

Mounting

Insertion Loss (dB)

Return Loss (dB)

Dimensions for 24, 48 fiber (HxWxD)

Dimensions for 72, 96 fiber (HxWxD)

Dimensions for 144 fiber (HxWxD)

Dimensions for 216 fiber (HxWxD)

Dimensions for 432 fiber (HxWxD)

Dimensions for 864 fiber (HxWxD)

Applications

• Central office frames: LGX FDF, 23-inch and 19-inch wide mount frames

• Local Area Networks (LANs)

• Controlled Environment Vaults (CEV)

• Cable TV Headend

• Enterprise

• Private Networks

Value

Rolled sheet metal powder coated putty white

-40 to +70

19” or 23” (mounting brackets can be reversed to accommodate either)

0.40 max

SC/UPC: -55 dB min, SC/APC: - 65 dB min

5.25” x 17” x 11”

12.00” x 17” x 11”

14.00” or 21.00” x 17” x 11”

21.00” or 28.00” x 17” x 11”

28.00” or 49.00” x 17” x 11”

63.00” or 51.00” x 17” x 11”

Bend radius guides protect patchcords from kinks and increased attenuation

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

36

DS-BS-1 04/27/2016

LGX Patch & Splice Series Rackmount Enclosures

Ordering Guide

Description OFS Product Code

(ARIA P/N same)

LPST-S-SCUU-

AR-432-51 (MAMU)

OFS

Comcode

Height

(“)

108 298 829 51

LPST-S-SCUU-

AR-432-30 (MAMU)

Reduced Size

LPST-W-SCUU-

AR-432-51 (MAMU)

LPST-W-SCUU-

AR-432-30 (MAMU)

Reduced Size

LPST-S-LCUU-

AR-432-30 (MAMU)

LPST-S-SCUU-

AR-864-63 MAMU

(Enhanced)

LPST-S-SCUU-

AR-864-51 MAMU

(Enhanced) Reduced

Size

LPST-S-LCUU-

AR-864-51 MAMU

(Enhanced) Reduced

Size

LPST-W-SCUU-

AR-864-63 MAMU

(Enhanced)

LPST-W-LCUU-

AR-864-51 MAMU

(Enhanced)

LPS1-S-LAUU-

AR-864-62 SF MAMU

(Enhanced)

30

108 736 976 51

30

30

108 617 481 63

51

51

108 736 968 63

51

62

MAMU - The unit consists of a stack of six pre-loaded LST1U072 / 7 SC Fiber Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice Enclosure with six

AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced)

MAMU - The unit consists of a stack of three pre-loaded LST1U144 / 7 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced)

MAMU - The unit consists of a stack of six pre-loaded LST1U072 / 7 SC Fiber Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice Enclosure with six

AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced). This product is tailored to the AllWave Advantage™ solution.

MAMU - The unit consists of a stack of three pre-loaded LST1U144 / 7 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced). This product is tailored to the AllWave Advantage™ solution.

MAMU - The unit consists of a stack of three pre-loaded LST1U144 / 7 LC Fiber Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice Enclosure with six

AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced).

For this product to be tailored to the AllWave Advantage™ solution utilize P/N: LPST-W-LCUU-

AR-432-30 (MAMU).

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 9 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 72 x 12-fiber mass fusion splices (864 individual fibers spliced).

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 7 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 72 x 12-fiber mass fusion splices (864 individual fibers spliced).

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 7 LC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 72 x 12-fiber mass fusion splices (864 individual fibers spliced).

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 7 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 72 x 12-fiber mass fusion splices (864 individual fibers spliced). This product is tailored to the AllWave Advantage™ solution.

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 7 LC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/9 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 72 x 12-fiber mass fusion splices (864 individual fibers spliced). This product is tailored to the AllWave Advantage™ solution.

Super MAMU - The unit consists of a stack of six pre-loaded LST1U144 / 7 LC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/10 Splice

Enclosure with 18 AT1B-F/F single fusion splice trays containing 864 x 1-fiber single fusion splices

(864 individual fibers spliced).

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

37

DS-BS-1 04/27/2016

LGX Patch & Splice Series Rackmount Enclosures

Ordering Guide

Description OFS Product Code

(ARIA P/N same)

LPST-S-SCUU-AR-432-

DIAMOND (MAMU)

OFS

Comcode

Height

(“)

108 934 506 57

LPS1-W-SCUU-

AR-216/28 (MAMU)

LPS1-S-SCUU-

AR-288/25 (MAMU)

LPS1-S-SCUU-

AR-288/21 (MAMU)

Reduced Size

LPS1-L-SCUU-

AR-288/25 (MAMU)

LPS1-L-SCUU-

AR-288/21 (MAMU)

Reduced Size

LPS1-S-LCUU-

AR-288/21 (MAMU)

LPS1-L-LCUU-

AR-288/21 (MAMU)

LPS2-S-SAUU-

AR-288/25 (MAMU)

E/W AT1B F/F

LPS2-S-SAUU-

AR-288/21 (MAMU)

E/W AT1B F/F Reduced

Size

300 386 901 28

300 399 037 25

21

300 399 052 25

21

21

21

300 410 305 25

21

Co-Location MAMU - The unit consists of a stack of three pre-loaded LST1U-144 / 9 SC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and six LSS1U-072/5 Splice

Enclosure with 18 AT1B-MF/MF mass fusion splice trays containing 36 x 12-fiber mass fusion splices (432 individual fibers spliced)

Mini-MAMU. The unit consists of a stack of three pre-loaded LST1U-072 / 7 SC Fiber Patch

Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-MF/MF mass fusion splice trays containing 18 x 12-fiber mass fusion splices (216 individual fibers spliced). This product is tailored to the AllWave Advantage™ solution.

SC SM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 9 SC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with singlemode SC pigtail fanouts dressed down to the splice shelf.

SC SM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 7 SC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with singlemode SC pigtail fanouts dressed down to the splice shelf.

SC MM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 9 SC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with multimode 62.5 SC pigtail fanouts dressed down to the splice shelf.

SC MM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 7 SC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with multimode 62.5 SC pigtail fanouts dressed down to the splice shelf.

LC SM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 7 LC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with singlemode LC pigtail fanouts dressed down to the splice shelf.

LC MM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 7 LC Fiber

Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7 Splice

Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with multimode 62.5 LC pigtail fanouts dressed down to the splice shelf.

SC/APC SM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 9 SC/APC

Fiber Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7

Splice Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with singlemode SC/APC pigtail fanouts dressed down to the splice shelf.

SC/APC SM Mini-MAMU. The unit consists of a stack of two pre-loaded LST1U-144 / 7 SC/APC

Fiber Patch Enclosures fully loaded with adapters, plates, ribbon pigtails, and one LSS1U-144/7

Splice Enclosure with six AT1B-F/F single fusion splice trays containing 288 x 1-fiber single fusion splices (288 individual fibers spliced). Pre-loaded with singlemode SC/APC pigtail fanouts dressed down to the splice shelf.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

LGX Patch & Splice Series Rackmount Enclosures

Black Color Available in the Following Configurations

38

DS-BS-1 04/27/2016

5.25” Patch & Splice

Accessories

7.00” Patch Only 7.00” Splice Only 8.75” Splice Only

12A1 Cable Clamp for Metallic Sheath Cable and for

0.400” to 0.999” Diameter Cable

P/N: 104-384-490-SRE-W

12A2 Cable Clamp for Dielectric Sheath Cable and for

0.400” to 0.999” Diameter Cable

P/N: 106-230-337-SRE-W

12A3 Cable Clamp for 0.25”-1.25” Diameter Cable

P/N: 108-527-423

Part Number

Contact Sales Department

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

LGX Pre-Terminated Patch Series Rackmount Enclosures

LGX Pre-Terminated Patch Series Rackmount Enclosures are available in 5.25”, 7.00”, and 8.75” configurations.

They are supplied with adapters and a pre-terminated stub cable.

OFNR and OFNP rated stranded and ribbon cable types are available.

All enclosures are preloaded at the factory and 100% tested.

12A1, 12A2, and 12A3 cable clamps to affix OSP Cable to the enclosure can be ordered separately.

Bend radius guides are included with the panel and protect patchcords from kinks and increased attenuation.

Available Sizes

39

DS-BS-1 04/27/2016

5.25” (SC: 48 Fiber or

LC: 96 Fiber Capacity)

Accessories

7.00” (SC: 144 Fiber or

LC: 288 Fiber Capacity)

8.75” (SC: 144 Fiber or

LC: 288 Fiber Capacity)

12A1 Cable Clamp for Metallic Sheath Cable and for

0.400” to 0.999” Diameter Cable

P/N: 104-384-490-SRE-W

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

12A2 Cable Clamp for Dielectric Sheath Cable and for

0.400” to 0.999” Diameter Cable

P/N: 106-230-337-SRE-W

Fiber Optic Product Catalog

Rackmount Enclosures

LGX Pre-Terminated Patch Series Rackmount Enclosures

Accessories (Continued)

40

DS-BS-1 04/27/2016

12A3 Cable Clamp for 0.25”-1.25” Diameter Cable

P/N: 108-527-423

Part Number

LGX-

1 1 2 3 4 4 4 5 6 6 6 7 7 7 8 8

1

Enclosure

05 = 5.25” Height

07 = 7.00” Height

09 = 8.75” Height

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

3

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

4

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

5

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

Cable Type

1 = OFNR Ribbon

2 = OFNP Ribbon

3 = OFNR Stranded

4 = OFNP Stranded

0 = No Cable

6

Number of Fibers

024 = 24 Fibers

048 = 48 Fibers

072 = 72 Fibers

096 = 96 Fibers

144 = 144 fibers

7

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

8

Stub Direction

Leave Blank for No Stub

LR = Enters Lower Right

LL = Enters Lower Left

UR = Enters Upper Right

UL = Enters Upper Left

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

RDR Series Rackmount Enclosures

41

DS-BS-1 04/27/2016

1RU 2RU 4RU

ARIA RDR Series rackmount panels feature a unique removable sliding tray which permits working at a comfortable level.

RDR enclosures are available in 14” or 17” depths and in 1RU, 2RU, or 4RU formats with each providing a different amount of space to maneuver and store fibers.

RDR panels are supplied fully loaded with adapter plates, pigtails, splice trays, and mounting brackets for 19” racks. 1RU and 4RU enclosures are compatible with both 19” and 23” racks. Recessed or flush mount brackets are also available.

The sliding tray features radius guides to secure slack and prevent kinks and the fiber pigtails are managed at the proper curvature to prevent attenuation.

ARIA RDR Series enclosures accept LGX type adapter plates. 2RU and 4RU size enclosures accept LGX type cassettes supporting a wide range WDMs, splitters, and couplers. 1RU size enclosures will accept LGX type cassettes if their radius guides are removed or when they are ordered with the Cassette Ready option.

Removable lids and doors ease component installation.

17” deep 2RU and 4RU enclosures feature an extended sliding tray. The extended sliding tray design increases component accessibility by moving the locking mechanism for the sliding tray to the front of the panel.

1RU, 2RU, and 4RU Formats

1RU Capacity: 36 fibers SC or

72 fibers LC (ribbon only)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

2RU Capacity: 72 fibers SC or

144 fibers LC (ribbon only)

4RU Capacity: 144 fibers SC or

288 fibers LC (ribbon only)

Fiber Optic Product Catalog

Rackmount Enclosures

RDR Series Rackmount Enclosures

1RU

Dimensions:

14” or 17” Deep Panels are Available

14” Deep: 1.75”x17.00”x14.00” (HxWxD)

17” Deep: 1.75”x17.00”x17.00” (HxWxD)

Capacity:

Holds 3 LGX adapter plates

6-Pack duplex SC or LC: 36 fibers

6-Pack quad LC: 72 fibers (ribbon only)

Options:

Cassette Ready, Rodent Proof, and Cut Top Lid

2RU

Dimensions:

14” or 17” Deep Panels are Available

14” Deep: 3.50”x17.00”x14.00” (HxWxD)

17” Deep: 3.50”x17.00”x17.00” (HxWxD)

Capacity:

Holds 6 LGX adapter plates

6-Pack duplex SC or LC: 72 fibers

6-Pack quad LC: 144 fibers (ribbon only)

Options:

Rodent Proof

4RU

Dimensions:

7.00”x17.00”x17.00” (HxWxD)

Capacity: Holds 12 LGX adapter plates

6-Pack duplex SC or LC: 144 fibers

6-Pack quad LC: 288 fibers (ribbon only)

Options:

Rodent Proof

4RU additonal features: Includes threaded posts and a hold down strap to secure the splice trays

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

42

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Rackmount Enclosures

RDR Series Rackmount Enclosures

Latching, Sliding, and Removable Tray System

43

DS-BS-1 04/27/2016

A spring latch on the rear side of the sliding tray when lifted permits the tray to slide forward or backward

The sliding tray in the forward position provides access to the splice trays and the connectors for splicing, cleaning, and testing

The sliding tray can be removed and brought to a comfortable level on a table or workstation for easy access to the splice trays and connectors

Rodent Proof Option

The front and rear side cable entry holes are protected from rodent entry with protector plates.

Also, the rear door is provided with no cable entry openings.

1RU Cassette Ready Option

Standard 1RU 14” RDR

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Cassette Ready 1RU 14” RDR

Fiber Optic Product Catalog

Rackmount Enclosures

RDR Series Rackmount Enclosures

Accessories

44

DS-BS-1 04/27/2016

Flush Mount Brackets for 1RU 14”

P/N: 1RU14D-FMBKIT

Flush Mount Brackets for 1RU 17”

P/N: 1RU17D-FMBKIT

Flush Mount Brackets for 2RU 17”

P/N: 2RU-17D-FMBKIT

19”-23” Extension Bracket for 2RU 17”

P/N: 19-23-REB-2RU-STL

Perforated L-Bracket on Sliding Tray for 1RU 14”, 2RU 17” Rodent P., and

4RU (P/N: 1RU-TRAY-L-BRACKET)

Strain Relief Bracket

P/N: STD-SRB-KIT

Front Cut Top Lid for 1RU 14” and

1RU 17” P/N: 17IN-LID-CT

Extended Strain Relief Bracket

P/N: EX-SRB-KIT

Bottom Entry Strain Relief Bracket

P/N: BE-SRB-KIT

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Door Lock Kit for 1RU

P/N: 1RU-LOCK-KIT

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Door Lock Kit for 2RU and 4RU

P/N: C610-S

Fiber Optic Product Catalog

Rackmount Enclosures

45

DS-BS-1 04/27/2016

RDR Series Rackmount Enclosures

-1 RU-

1 1 2 2 3 3 4 4 5 5 5 6 7 8 9 9 10 10 10 10

1

Option

00 = No Option

RR = Rodent Proof

CR = Cassette Ready*

RT = Cassette Ready

with Cut Top Lid*

CP = Cassette Ready

with Rodent Proof*

CT = Cut Top Lid*

*1RU Only

2

Enclosure

41 = 14” 1RU

71 = 17” 1RU

42 = 14” 2RU

72 = 17” 2RU

74 = 17” 4RU

3

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

(Ribbon Only)

4

Adapter Plate Quantity

01 = 1 Plate 07 = 7 Plates

02 = 2 Plates 08 = 8 Plates

03 = 3 Plates 09 = 9 Plates

04 = 4 Plates 10 = 10 Plates

05 = 5 Plates 11 = 11 Plates

06 = 6 Plates 12 = 12 Plates

5

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

6

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

7

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

8

Splice Trays

N = None

Y = Yes*

*1RU & 2RU enclosures come standard with 4.0”x8.2” splice trays in 24 fiber single fiber or 6 position ribbon fiber configurations. 4RU enclosures come standard with 5.5”x12.0” splice trays in 36 fiber single fiber or 16 position ribbon fiber configurations.

9

Stub Cable Type

Leave Blank for No Stub

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

10

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

46

DS-BS-1 04/27/2016

RDP Series Rackmount Enclosure

ARIA RDP Series rackmount enclosures are 14” deep

1RU panels with the capacity to accept three LGX adapter plates.

RDP Series panels feature a unique sliding removable drawer which permits working at a comfortable level.

RDP enclosures support up to 36 fibers SC or

72 fibers LC (ribbon only).

Features

RDP panels are supplied fully loaded with adapter panels, pigtails, splice trays, and mounting brackets for both 19” and

23” racks. Recessed or flush mount brackets are also available.

The front door is made of Plexiglas

®

allowing the user to see inside and the sliding tray features radius guides to secure cable slack and prevent kinks.

Enclosure dimensions are: 1.75” x 17.00” x 14.00” (HxWxD).

Front View

Panel shown with optional Cut Top Front Lid with Removable Plexiglas

®

accessory

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

RDP Series Rackmount Enclosure

Accessories

Cut Top Front Lid with Removable Plexiglas

®

P/N: K-PLEXI-LID-C-OK

47

DS-BS-1 04/27/2016

Strain Relief Bracket

P/N: ML-SRB-KIT

Bottom Entry Strain Relief Bracket

P/N: BE-SRB-KIT

1RU Perforated L-Bracket

P/N: 1RU-TRAY-L-BRACKET

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Flush Mount Brackets

P/N: 1RU-ML-FMB-EM-B

Fiber Optic Product Catalog

Rackmount Enclosures

48

DS-BS-1 04/27/2016

RDP Series Rackmount Enclosure

Part Number

RDP-

1 1 2 3 3 3 4 5 6 7 7 8 8 8 8

1

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

(Ribbon Only)

2

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution Style (MIC)

Note: 3 meter pigtail

length is standard

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Splice Trays

N = None

Y = Yes*

*RDP enclosures come standard with 4.0”x8.2” splice trays in 24 fiber single fiber or 6 position ribbon fiber configurations.

7

Stub Cable Type

Leave Blank for No Stub

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

8

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

49

DS-BS-1 04/27/2016

RDA Series Rackmount Enclosure

ARIA’s RDA Series Rackmount Enclosures accommodate up to 36 fibers SC and 72 fibers LC (ribbon only) in a 1RU space -

1.75”x17.00”x14.00” (HxWxD).

Units are supplied fully loaded with adapter plates, pigtails, splice trays, and rackmount brackets for recessed mounting in both 19” and 23” racks.

100% tested for insertion loss, return loss, and endface clarity.

These enclosures feature a unique removable drawer to permit working at a comfortable level.

Features

Combination patch & splice design minimizes rack space required.

Preloaded configurations (pigtails and adapter panels) save on contractor labor and help meet project timelines.

100% factory tested product meets Telcordia GR326-CORE Issue 4 specifications.

Enclosure features an almond finish, magnetic latching front plexiglass door, and utilizes captive screws to hold the rear lid in place.

Front View Interior View

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Panel shown with the front and rear lid removed

Fiber Optic Product Catalog

Rackmount Enclosures

RDA Series Rackmount Enclosure

Accessories

50

DS-BS-1 04/27/2016

Flush Mount Brackets

P/N: 1RU14D-FMBKIT

Strain Relief Bracket

P/N: STD-SRB-KIT

Bottom Entry Strain Relief

Bracket (P/N: BE-SRB-KIT)

Extended Strain Relief

Bracket (P/N: EX-SRB-KIT)

Part Number

WC-141RU-

1 1 2 3 3 3 4 5 6 7 7 8 8 8 8

1

2

3

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

(Ribbon Only)

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution Style (MIC)

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend Insensitive G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

6

Splice Trays

N = None

Y = Yes*

*RDA enclosures come standard with 4.0”x8.2” splice trays in 24 fiber single fiber or 6 position ribbon fiber configurations.

7

Stub Cable Type

Leave Blank for No Stub

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

8

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

ARM Series Rackmount Enclosures

51

DS-BS-1 04/27/2016

Overview

ARIA ARM Series rackmount enclosures are 14” deep panels that come in 2RU and 3RU configurations.

ARM panels feature a removable door, rear lid, and front lid. The door and front lid are both made of Plexiglas

®

and allow the user to see inside the jumper area.

ARM panels are supplied fully loaded with adapter panels, pigtails, splice trays, and mounting brackets for both 19” and

23” racks.

Features

Grommets cover cable entry openings.

ARM panels include threaded posts and a hold down strap to secure the splice trays.

Enclosure chassis is made of powdercoated 15 gauge stainless steel.

The 2RU management area features radius guides to secure cable slack and prevent kinks.

The fiber pigtails are managed at the proper curvature to prevent attenuation.

Fiber Capacity

2RU Capacity: 72 fibers SC or 144 fibers LC (ribbon only) 3RU Capacity: 144 fibers SC or 288 fibers LC (ribbon only)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

ARM Series Rackmount Enclosures

Dimensions

Accessories

2RU 3RU

52

DS-BS-1 04/27/2016

12A1 Cable Clamp for Metallic Sheath Cable and for

0.400” to 0.999” Diameter Cable (P/N: 104-384-490-SRE-W)

12A2 Cable Clamp for Dielectric Sheath Cable and for

0.400” to 0.999” Diameter Cable (P/N: 106-230-337-SRE-W)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

12A3 Cable Clamp for 0.25”-1.25” Diameter Cable

P/N: 108-527-423

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

53

DS-BS-1 04/27/2016

ARM Series Rackmount Enclosures

Part Number

ARM -

1 2 2 3 3 4 4 4 5 6 7 8 8 9 9 9 9

1

Enclosure

2 = 2RU

3 = 3RU

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

(Ribbon Only)

3

Adapter Plate Quantity

01 = 1 Plate 07 = 7 Plates

02 = 2 Plates 08 = 8 Plates

03 = 3 Plates 09 = 9 Plates

04 = 4 Plates 10 = 10 Plates

05 = 5 Plates 11 = 11 Plates

06 = 6 Plates 12 = 12 Plates

4

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

5

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution Style (MIC)

Note: 3 meter pigtail

length is standard

6

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

7

Splice Trays

N = None

Y = Yes*

*ARM enclosures come standard with 5.5”x12.0” splice trays in 36 fiber single fiber or 16 position ribbon fiber configurations.

8

Stub Cable Type

Leave Blank for No Stub

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

9

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

Swing-Out Series Rackmount Enclosures

54

DS-BS-1 04/27/2016

ARIA Swing-Out Series Patch & Splice Rackmount Enclosures come in either a 1RU, 2 adapter plate capacity or a 2RU, 4 adapter plate capacity configuration.

The swing-out tray allows easy access to terminations and splicing.

Two universal 19” or 23” mounting brackets are included.

Enclosure can be terminated with adapters, pigtails, or a pre-terminated stub cable.

Specifications

Parameter

Dimensions (H”xW”xD”)

Material

Fiber Capacity

Swing Out 2X 1RU

1.75 x 17.00 x 11.10

Swing Out 4X 2RU

3.50 x 17.00 x 11.10

Powdercoated .06” thick aluminum Powdercoated .06” thick aluminum

24 fibers SC or 48 fibers LC (ribbon only) 48 fibers SC or 96 fibers LC (ribbon only)

Interior View

1RU with Lid Removed and Tray Open

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

2RU with Lid Removed and Tray Open

Fiber Optic Product Catalog

Rackmount Enclosures

Swing-Out Series Rackmount Enclosures

Accessories

55

DS-BS-1 04/27/2016

Swing Out Strain Relief Bracket Kit for

1RU (P/N: SWRM-CLMP)

Bottom Entry Strain Relief Bracket for

1RU (P/N: BE-SRB-KIT)

Swing Out Strain Relief Bracket Kit for

2RU (P/N: SRB-2RUSO)

Part Number

X-SO-

1 2 2 3 4 4 4 5 6 7 8 8 9 9 9 9

1

Enclosure

2 = 1RU, 2 Adapter

Plate Capacity

4 = 2RU, 4 Adapter

Plate Capacity

2

Adapter Plate Type

06 = 6 Port (SC/FC/ST)

08 = 8 Port (SC/FC/ST)

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

(Ribbon Only)

3

Adapter Plate

Quantity

1 = 1 Plate

2 = 2 Plates

3 = 3 Plates

4 = 4 Plates

4

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

5

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

6

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

7

Splice Trays

N = None

Y = Yes*

*1RU & 2RU enclosures come standard with

4.0”x8.2” splice trays in

24 fiber single fiber or

6 position ribbon fiber configurations.

8

Stub Cable Type

Leave Blank for No Stub

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

9

Stub Length

Leave Blank for No Stub

XXXF = XXX Feet

XXXM = XXX Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

56

DS-BS-1 04/27/2016

HD Mini Cassette System

ARIA’s High Density (HD) MTP/MPO Mini Cassette System is driven by the concept of network space optimization, it is an MTP/MPO based system for fast deployments to meet the evolution paths of 40G and 100G fiber optic links.

ARIA’s High Density (HD) MTP/MPO Mini Cassette System offers simple installation, modular upgradeability, easy accessibility, and a reliable fiber management solution.

1RU and 2RU size rackmount enclosures are available and are mountable in a standard 19” telecom rack.

The 1RU size enclosure supports 12 Mini Cassette slots or 144 fibers and the 2RU size enclosure supports 24 Mini

Cassette slots or 288 fibers.

Each slot in the enclosure is used to accommodate a Mini

Cassette module.

Features

• Ultra high fiber density, compact modular design, and easy installation

• Up to 12 slots supporting 144 fibers in 1RU of rack space or up to 24 slots supporting 288 fibers in 2RU of rack space

• Customizable module polarity and modular system management using Mini Cassettes provides easy reconfiguration for moves, adds, and changes

• Easy fiber management migration from 10G to 40/100G for Telecommunications and Broadband/CATV Networks

LAN/WAN Premises

Applications

• Data Center Infrastructure

• Ultra High Density Fiber Management

• Telecommunications networks and Broadband / CATV networks

• LAN/WAN Premises

Specifications

Parameter

Singlemode Standard / Elite Ferrule Loss (dB)

Multimode Standard / Elite Ferrule Loss (dB)

1RU Enclosure Dimensions

2RU Enclosure Dimensions

Mini Cassette Module Dimensions

Value

<0.7 / <0.6

<0.35 / <0.35

1.75”x17.00”x10.50” (HxWxD)

3.50”x17.00”x10.50” (HxWxD)

0.50”x4.00”x4.75” (HxWxD)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

HD Mini Cassette System

Loaded 1RU Enclosure

Front View

Loaded 2RU Enclosure

Rear View

Front View

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Rear View

57

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Rackmount Enclosures

HD Mini Cassette System

Mini Cassette Modules

58

DS-BS-1 04/27/2016

Singlemode 12 Fiber LC/UPC to MPO/MTP Mini Cassette Singlemode 12 Fiber LC/APC to MPO/MTP Mini Cassette

Multimode OM3 12 Fiber LC to MPO/MTP Mini Cassette Multimode OM4 12 Fiber LC to MPO/MTP Mini Cassette

Three 8 Fiber MPO/MTP to One 24 Fiber MPO/MTP Mini Cassette Six 8 Fiber MPO/MTP to Two 24 Fiber MPO/MTP Mini Cassette

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

HD Mini Cassette System

Three 8 Fiber MPO/MTP to One 24 Fiber MPO/MTP Mini Cassette Details

0.50"

4.75"

59

DS-BS-1 04/27/2016

4.00"

01

12

01

12

8 Fiber

MTP/MPO

Adapter A

8 Fiber

MTP/MPO

Adapter B

Key Up

01

12

8 Fiber

MTP/MPO

Adapter C

Left

7

8

5

6

1

2

3

4

9

10

11

12

24 Fiber Adapter Fiber Details

Fiber 8 Fiber

Adapter

A12

B10

B9

C12

C11

C10

C9

A11

A10

A9

B12

B11

Fiber

17

18

19

20

13

14

15

16

21

22

23

24

B3

B4

C1

C2

C3

C4

A2

A3

A4

B1

B2

8 Fiber

Adapter

A1

Front

24 Fiber

MTP/MPO

Adapter

24

01

Key Up

Right

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

HD Mini Cassette System

Six 8 Fiber MPO/MTP to Two 24 Fiber MPO/MTP Mini Cassette Details

0.50"

4.75"

60

DS-BS-1 04/27/2016

4.00"

Key Up

12

01

12

01

01

12

01

12

01

12

01

12

8 Fiber

MTP/MPO

Adapter A

8 Fiber

MTP/MPO

Adapter B

8 Fiber

MTP/MPO

Adapter C

8 Fiber

MTP/MPO

Adapter D

8 Fiber

MTP/MPO

Adapter E

8 Fiber

MTP/MPO

Adapter F

Left

24 Fiber Adapter A Fiber Details

Fiber

6

7

4

5

1

2

3

8

9

10

11

12

8 Fiber

Adapter

A12

A11

A10

A9

B12

B11

B10

B9

C12

C11

C10

C9

Fiber

16

17

18

19

13

14

15

20

21

22

23

24

B2

B3

B4

C1

A2

A3

A4

B1

C2

C3

C4

8 Fiber

Adapter

A1

Front

24 Fiber

MTP/MPO

Adapter A

24 Fiber

MTP/MPO

Adapter B

24

01

24

01

Key Up

Right

24 Fiber Adapter B Fiber Details

Fiber

6

7

4

5

1

2

3

8

9

10

11

12

8 Fiber

Adapter

D12

D11

D10

D9

E12

E11

E10

E9

F12

F11

F10

F9

Fiber

16

17

18

19

13

14

15

20

21

22

23

24

E2

E3

E4

F1

D2

D3

D4

E1

F2

F3

F4

8 Fiber

Adapter

D1

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

HD Mini Cassette System

Enclosure Part Number

1RU Chassis to Accept 12 High Density MPO/MTP Mini Cassettes

P/N: HD-MCM-1RU

61

DS-BS-1 04/27/2016

2RU Chassis to Accept 24 High Density MPO/MTP Mini Cassettes

P/N: HD-MCM-2RU

Mini Cassette Module Part Number

MCM-

1 1 2 2 2 3 4 4 4

1

Mini Cassette Type

LC = 12 Fiber LC to MPO/MTP

3M = Three 8 Fiber MPO/MTP to One 24 Fiber MPO/MTP

6M = Six 8 Fiber MPO/MTP to Two 24 Fiber MPO/MTP

2

Fiber Type

SMF = Singlemode 8.3/125μm Fiber

OM3 = Multimode 50/125μm OM3 Fiber

OM4 = Multimode 50/125μm OM4 Fiber

3

Ferrule Type

S = Standard

E = Elite

4

LC Singlemode Adapter Type

Leave Blank for Mini Cassette Module with No Singlemode LC Adapters

UPC = Singlemode LC/UPC Adapter

APC = Singlemode LC/APC Adapter

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

High Density MTP-MPO (HDM) Series Rackmount Enclosures

62

DS-BS-1 04/27/2016

ARIA’s High Density MTP/MPO (HDM) Series rackmount panels support high fiber counts and use minimal rack space.

Dense Connectivity: 1RU HDM Series enclosures support up to 432 fibers and 2RU HDM Series enclosures support up to

864 fibers.

HDM Series panels are loaded with MTP/MPO adapters and support either patching or patching and splicing.

Panels include mounting brackets for 19” and 23” rack systems.

A front door with spring loaded slide latches and removable plexiglass lid provide the user with great jumper visibility, quick access, and spacious maneuverability.

Specifications

Parameter

Dimensions (H”xW”xD”)

Material

Fiber Capacity

Weight (Unloaded)

LGX Adapter Plate Capacity

1RU

1.75” x 17.00” x 14.00”

Powdercoated .09” thick aluminum

432 Fibers

4.0lbs / 1.8kgs

3

2RU

3.50” x 17.00” x 14.00”

Powdercoated .09” thick aluminum

864 Fibers

5.0lbs / 2.2kgs

6

Patching Capability

ARIA’s HDM Series rackmount enclosures can be loaded with plug and play type LGX cassettes to support patching between SC or LC connectors and MTP/MPO connectors.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Rackmount Enclosures

High Density MTP-MPO (HDM) Series Rackmount Enclosures

Splicing Capability

63

DS-BS-1 04/27/2016

ARIA HDM Series rackmount enclosures can also be provided with an attached splice shelf.

The splice shelf features a sliding rail system which guides each 216 fiber mass fusion splice tray in and out independently.

Part Number

HDMRU-

1 1 2 3 4 4 4 5 6

1

Panel Option

P1 = 1RU Patch Only

P2 = 2RU Patch Only

S1 = 1RU Patch & Splice

S2 = 2RU Patch & Splice

2

Adapter Plate Type

N = No adapter plates

A = 6 MPOs

B = 8 MPOs

C = 12 MPOs

3

Adapter Plate Quantity

0 = 0 Plates

1 = 1 Plate 4 = 4 Plates

2 = 2 Plates 5 = 5 Plates

3 = 3 Plates 6 = 6 Plates

4

Adapter Color

Non = No Adapters

Blk = Black

Bge = Beige

Grn = Green

Aqa = Aqua

Blu = Blue

Gry = Gray

Red = Red

Mga = Magenta

5

Pigtail Fiber Type

N = No Pigtails

8 = Singlemode 8.3/125μm

B = Singlemode 8.3/125μm BI

6 = Multimode 62.5/125μm

5 = Multimode 50/125μm

3 = Multimode 50/125μm OM3

4 = Multimode 50/125μm OM4

6

Splice Tray Quantity

0 = 0 Trays

1 = 1 Tray 4 = 4 Trays

2 = 2 Trays 5 = 5 Trays

3 = 3 Trays 6 = 6 Trays

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

Fiber Optic Cable Assemblies

64

DS-BS-1 04/27/2016

ARIA Fiber Optic Cable Assemblies are available with your choice of fiber count, features, flame rating, connector type, polish type, fiber type, and cable type.

All assemblies are 100% tested and certified to Telcordia GR-326-CORE Issue 4 specifications.

Connector Performance

Polish Type

UPC

APC

Insertion Loss max/ typical (dB)

0.4/0.2

0.4/0.2

Return Loss max/ typical (-dB)

55/60

65/70

Durability change in dB

(1000 matings)

0.2

0.2

Polish Type

UPC

APC

Tensile Strength

50 lbs (220N)

0.2 db

0.2 db

Temperature Cycling

-20 to +80°C (40 cycles)

0.2 db

0.2 db

Materials ferrule/housing ceramic/metal ceramic/metal

Cable Performance

Fiber Type Wavelengths

(nm)

Maximum

Attenuation db/km

9/125μm SM

1310/1550

62.5/125μm MM 850/1310

50/125μm MM

850/1310

50/125μm OM3 850/1310

50/125μm OM4 850/1310

0.35/0.25

3.5/1.0

3.5/1.5

3.0/1.5

3.0/1.0

LED

Bandwidth

MHz/km

N/A

200/500

500/500

1500/500

3500/500

Modal

Bandwidth

MHz/km

N/A

220

510

2000

4700

Serial

Gigabit

Ethernet

Distance (m)

5000

300/550

600/600

1000/600

N/A

Serial 10

Gigabit

Ethernet

Distance (m)

1000/4000

33

82

300

550

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

65

DS-BS-1 04/27/2016

Bend-Insensitive Cable Assemblies

ARIA Technologies now offers a complete line of pigtails, patchcords, fan-outs, and trunk cables with bend-insensitive fibers.

Cable bends can create high loss in congested areas.

Bend-Insensitive cable assemblies ensure low loss even with a small 10mm bend radius in the fiber cable.

Features

• <0.25dB bend induced loss in the 1530-1565 nm &

1565-1625 nm wavelength spans, i.e., the C-band and the L-band

• Low insertion loss: 0.4dB max and <0.2dB typical

• Low return loss: <-55dB for UPC and <-65dB for APC

• Blue jacket identifies the cable as bend-insensitive

• Easy to remove buffer coating

• Fully compatible with all standard singlemode fiber systems

• Meets or exceeds all industry standards for singlemode fiber performance

Bend

Induced

Loss (dB)

2

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

Bend Induced Loss with

Respect to Bend Radius

10 12.5

15

Bend Radius (mm)

17.5

Applications

• FTTH Networks in indoor or outdoor compact enclosures

• High density patch panels where patchcord congestion may exist

• In central offices, point-of-presence locations (POPs), or Nodes

• High performance networks operating in the C-band and L-band spectrums

• Networks carrying high traffic on a single fiber

(> OC-48)

• Data Centers with multiple cable runs

• DWDM networks

• Digital video networks

• Ideal for networks operating in the 1530-1625 nm wavelengths

Standard

Fiber

Bend

Insensitive

Fiber

Bend Induced Loss with

Respect to Wavelength

2

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

1520 1540 1560 1580 1600 1620 1640

Wavelength (nm)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

Jumpers (Patch Cords)

ARIA Technologies offers a complete line of simplex and duplex jumpers in singlemode and multimode configurations with Corning, Draka, and OFS fiber that is manufactured to Telcordia GR326-CORE

Issue 4 specifications.

Custom colors are available for easy identification in

CATV headends, Telco COs, or Data Centers.

66

DS-BS-1 04/27/2016

Features

Free of surface defects with a proper radius of curvature, fiber height, and apex offset.

Low insertion loss: 0.4dB max and <0.2dB typical.

Low return loss: <-55dB for UPC and <-65dB for APC.

Easy to remove buffer coating.

Meets or exceeds all industry standards for singlemode fiber performance.

50 degree angled boots are available

Part Number

RA-

1 2 2 3 4 4 4 5 5 5 6 6 6 6

1

Cable Size

1 = 1.6 mm

2 = 2.0 mm

2

Cable Construction

SX = Simplex

DX = Duplex

3

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

4

Connector Type End 1

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

LU5 = LC/UPC with 50° boot

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

LM5 = LC with 50° boot

FCM = FC

STM = ST

000 = Pigtail (No Connector)

5

Connector Type End 2

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

LU5 = LC/UPC with 50° boot

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

LM5 = LC with 50° boot

FCM = FC

STM = ST

6

Length

XXXF = Length in Feet

XXXM = Length in Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

67

DS-BS-1 04/27/2016

High Density Jumpers

ARIA High Density Jumpers are available with SC and LC connectors

Uniboot design reduces fiber congestion

LC jumper features a unique compact pull tab

Singlemode (UPC/APC) and Multimode

2mm round OFNR (riser rated) cable

Features

• Free of surface defects with a proper radius of curvature, fiber height, and apex offset

• Low insertion loss: 0.40dB max and <0.20dB typical

• Low return loss: <-55dB for UPC and <-65dB for APC

• Compliant with Telcordia GR 326-CORE Issue 4 specifications

LC Uniboot Compact Pull Tab Connector

The uniboot design consumes less space than zipcord and reduces fiber congestion in high density environments.

The LC high density jumper is easily removed by pulling on the compact pull tab.

The LC compact pull tab minimizes the required enclosure size because there is no need to leave additional space at the top or bottom of the adapter in order to engage the latch and remove the connector.

The LC high density jumper is designed so that the latch can be slid back, instead of being pushed down, in order to facilitate smooth removal.

Compliance

RoHS

UL 94V-0

Telcordia GR 326-CORE Issue 4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

High Density Jumpers

68

DS-BS-1 04/27/2016

LC uniboot compact pull tab connector SC uniboot connector

Part Number

-

1 2 2 2 3 3 3 4 4 4

1

Fiber Type

S = Singlemode

B = Singlemode

Bend Insensitive

G.657.A1

3 = OM3

4 = OM4

2

Connector End #1

LCU = *SM LC/UPC (blue housing)

LCA = *SM LC/APC (green housing)

LC3 = *LC OM3 (aqua housing)

LC4 = *LC OM4 (aqua housing)

SCU = SM SC/UPC (blue housing)

SCA = SM SC/APC (green housing)

SC3 = SC OM3 (aqua housing)

SC4 = SC OM4 (aqua housing)

4

Length

XXF = Length in feet

XXM = Length in meters

*LC uniboot compact pull tab connector

3

Connector End #2

LCU = *SM LC/UPC (blue housing)

LCA = *SM LC/APC (green housing)

LC3 = *LC OM3 (aqua housing)

LC4 = *LC OM4 (aqua housing)

SCU = SM SC/UPC (blue housing)

SCA = SM SC/APC (green housing)

SC3 = SC OM3 (aqua housing)

SC4 = SC OM4 (aqua housing)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

Uniboot Polarity Switchable LC Jumpers

ARIA Uniboot Polarity Switchable LC Jumpers feature round style 2.0mm jacketed OFNR rated cable instead of traditional zipcord duplex cable for a more compact design.

The housing of the connector can be taken apart in the field without the use of any special tooling.

Disassembly of the connector allows the fiber polarity to be switched at anytime without having to re-terminate the connectors.

Features

• Connector is easy to disassemble for polarity switching

• Riser (OFNR) rated 2.0mm jacket

• Streamlined connector design

• Uniboot connector supports good cable management

• Mini boot and flex angled boots are available

• Right angled clip provides good panel management

Specifications

Parameter

Insertion Loss (dB)

Return Loss (dB)

Durability (dB change per 1000 matings)

Operating Temperature (°C)

Applications

• Gigabit ethernet

• Video

• Multimedia

• Active device termination

• Premise installations

• Telecommunication networks

Singlemode

≤0.40

≥55 dB (UPC) or ≥65 dB (APC)

<0.20

-40 to 85

Multimode

≤0.40

≥55 dB

<0.20

-40 to 85

69

DS-BS-1 04/27/2016

Switching the Polarity

Locate the areas shown above Insert a small flathead screwdriver into the locations shown

Remove the connector lid, switch the connectors, and replace the lid

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

Uniboot Polarity Switchable LC Jumpers

Polarity

70

DS-BS-1 04/27/2016

Connector A

(Fiber 1)

Connector B

(Fiber 2)

Connector A

(Fiber 2)

Assemblies come standard with a polarity configuration of A to B and B to A.

Part Number

PS-

1 2 2 2 3 4 4 4 4

1

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend Insensitive

G.657.A1

Multimode

3 = 50/125μm OM3

4 = 50/125μm OM4

2

Connector Type

Singlemode

LCU = LC/UPC

LCA = LC/APC

Multimode

LCM = LC

3

Boot Type

S = Standard

M = Mini Boot

F = Flex Angled

Connector B

(Fiber 1)

4

Length

XXXF = Length in Feet

XXXM = Length in Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

71

DS-BS-1 04/27/2016

MTP

®

Polarity Management

Local area network (LAN) campus and building backbones as well as data center backbones are migrating to higher cabled fiber counts in order to meet system bandwidth needs and provide the highest connectivity density relative to cable diameter to maximize utilization of pathway and spaces. Network designers are turning to MTP

® connectorized optical fiber trunk cable designs for today’s duplex fiber transmission and to provide an easy migration path for future data rates that will use parallel optics such as

40/100G Ethernet.

Optical cables require unique polarity design considerations to ensure reliable system performance as well as support ease of installation, maintenance and reconfiguration. These

Guidelines for Maintaining Polarity Using Array Connectors have been incorporated into the TIA-568-C.0 standard to facilitate use of MTP

®

connectorized optical cables.

Technical Bulletin

TIA MTP Polarity Guidance

The TIA-568-C.0 standard provides serial transmission fiber polarity guidance for systems using MTP

®

optical connectivity.

Dense wiring requirements in the LAN and data center storage area network (SAN) facilitate the use of 12-fiber array style connectors like the MTP

®

Connector. Pre-assembled and field-terminated MTP

®

-to-MTP

®

connectorized optical cables called trunks are often used in these locations. Since there are MTP

®

Connectors on both ends of these trunks and the end equipment typically has standard duplex transceiver ports, the trunks are plugged into factory-made breakout furcations called modules that transition from the MTP

®

Connector to a duplex connector/adapter style (Figure 1).

Figure 1

LC Duplex

Connector

MTP

®

Connector

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

72

DS-BS-1 04/27/2016

MTP

®

Polarity Management

Each 12-fiber MTP

®

translates into six 2-fiber serial optical circuits that require polarity management that can be achieved using one of numerous methods. Like simplex and duplex connectors and adapters, the MTP

®

Connectors and adapters are also keyed to ensure the proper orientation is maintained when connectors are mated. With MTP

®

Connectors, this keying establishes the orientation of one fiber array in one connector relative to the array in the mating connector, but does not ensure that duplex fiber pair polarity is maintained.

The TIA-568-C.0 standard includes guidance on three sample methods identified as Method A, Method B and Method C.

It is important to note that the standard states that “While many methods are available to establish polarity, this standard outlines sample methods that may be employed for array cabling systems where the connectors have one row of fibers only.” The word “may” implies that alternate polarity methods, which are not discussed or included in the standard, are available to accomplish the same results. Thus, the standard shows three examples and recognizes that other valid methods also exist, including the Plug & Play™ Universal Systems polarity management method.

Method A

Method A (Figure 2) uses a single module type wired in a “straight-through” configuration and two different patch cords in an optical circuit. One patch cord is straight wired and the other has a pair-wise flip. All components in the channel are mated key-up to key-down. No guidance is included in the standard to differentiate where the patch cord with pairwise flips should be used and how it should be made so that it is easily recognizable from the regular duplex patch cord

“straight-wired.” Because polarity is addressed in the patch cords, the end-user is ultimately responsible for managing it.

Figure 2

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

73

DS-BS-1 04/27/2016

MTP

®

Polarity Management

Method B

Method B (Figure 3) uses a single module type wired in a straight-through configuration and standard patch cords on both ends. The differences are that all components in the system are mated key-up to key-up. When the link is configured in this fashion, physical position #1 goes to physical position #12 on the other end. A module on one end is inverted so logically (label-wise) position #1 goes to position #1. This method requires advanced planning for module locations in order to identify the module types and location of the inverted module in the optical link. This adds complexity to the polarity management. Using an MTP

®

Connector key-up to key-up configuration does not easily accommodate angled polished (APC) single-mode connectors.

Figure 3

Method C

Method C (Figure 4) uses a pair-wise fiber flip in the trunk cable to correct for polarity. This enables the use of the same module type on both ends of the channel and standard patch cords. Because polarity is managed in the trunk, extending the links requires planning of the number of trunks in order to maintain polarity. The TIA standard does not include text regarding the ability to migrate to parallel optics for Method C, but parallel optic capability can easily be achieved with a special patch cord to reverse the pair-wise fiber flips in the trunk.

Figure 4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

74

DS-BS-1 04/27/2016

MTP

®

Polarity Management

Universal Polarity Management Method

The Plug & Play™ Universal Systems polarity management method (Figure 5) is an enhanced polarity management method that is not included but meets the intent of the TIA standard. The method uses the same module and patch cord type at both ends with no inversion or reconfiguration needed to maintain polarity. Polarity is easily accomplished and managed with the modules internal fiber wiring scheme.

The system is mated key-up to key-down. The method supports simple concatenation of multiple trunks without effecting polarity. The method easily accommodates all simplex/duplex connector types as well as single-mode fiber APC MTP

®

Connectors. Similar to Methods A, B and C, the universal polarity management method easily facilitates migration to parallel optics. The wired modular system components enable fast and simple networking moves, adds and changes without polarity concerns associated with special polarity-compensating components used in Methods A, B and C.

Figure 5

R L R L R L R L R L R L R L R L R L R L R L R L

Key-Up to Key-Down

Module with

MTP Connector

Module with

MTP Connector

Key-Up to Key-Down

Trunk with Standard MTP and

Ribbon Twist MTP Connectors

Conclusion

Each of the methods works when the rules of that method are followed. The user is cautioned, however, not to mix and mate component parts from the various methods. This will not necessarily work. The TIA-568-C.0 standard states “it is recommended that a method be selected in advance and maintained consistently throughout an installation.”

In summary, numerous MTP

®

polarity methods are available to consider. It is essential that end-users and system designers evaluate each method before implementing to ensure that criteria such as reliability, ease of installation, maintenance and reconfiguration, as well as the ability to easily migrate to higher-data-rate solutions that may require parallel optics, are addressed and satisfied.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

75

DS-BS-1 04/27/2016

MPO Trunk Cable Assemblies

MPO Trunk Cables provide a physical conduit, pipeline, or circuit for a trunk connection in a fiber optic network.

Factory terminated cables provide a quick-to-deploy, scalable solution that improves reliability and reduces installation time and cost, using high density MPO connectors.

Trunk cables are capable of supporting multiple users or devices from one point to another while distributing multiple data channels.

They are a convenient and economical alternative to running multiple “jumpers” or patch cables.

Trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space.

Features

• Rapid Deployment - application specific designs tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed up deployment, and improve flexibility and manageability for lower installation costs.

• Round, easy to spool cable and breakout legs.

• 100% Tested - assures verified optical performance for improved network integrity.

• High-Density Cable - uses pathway space more efficiently to improve manageability and reduce installation costs.

• Optimized Performance - assemblies are constructed with low loss MPO/MTP proprietary MT polishing. Providing low insertion and return loss and minimizing variability for improved channel link loss performance.

Applications

• High density architectures

• Storage area networking fiber channel

• Parallel optics

• Infiniband

Compliance

• Jacketed cable is compliant with the NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) and

IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

• Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

• MPO connector complies with IEC-61754-7 and EIA/TIA-604-5.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

MPO Trunk Cable Assemblies

Specifications

Parameter

Connector Type

Polish

Housing Color

Insertion Loss (Max) (dB)

Return Loss (dB)

Durability (500 Matings) (dB)

Fiber Type

Singlemode Elite

Singlemode Standard

Outer diameter (mm)

Outer jacket Color

Multimode Elite

Multimode Standard

Singlemode Elite

Singlemode Standard

Outer jacket material

Tensile strength (N)

Operating Temperature (°C)

Storage Temperature (°C)

76

DS-BS-1 04/27/2016

Value

8-Fiber, 12-Fiber, or 24-Fiber MPO/MTP

MPO: PC (Multimode); APC (Singlemode)

Singlemode (Yellow or Green), Multimode OM3 (Aqua),

Multimode OM4 (Aqua or Violet)

0.35

0.60

0.35

0.75

≥60 (8° Angle Polish)

≥60 (8° Angle Polish)

< 0.2

Singlemode OS2, Multimode OM3, Multimode OM4

12 cores: 4.5±0.2; 24 cores: 5.4±0.2

Singlemode OS2 (Yellow), Multimode OM3 (Aqua),

Multimode OM4 (Violet)

Low Smoke Zero Halogen (LSZH), Plenum Rated (OFNP)

500

-20 to +60

-40 to +70

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

MPO Trunk Cable Assemblies

Example Singlemode Configurations

77

DS-BS-1 04/27/2016

End 1: One 12 Fiber MPO

End 2: One 12 Fiber MPO

End 1: Two 12 Fiber MPO

End 2: Two 12 Fiber MPO

Example OM3 Configurations

End 1: Four 12 Fiber MPO

End 2: Four 12 Fiber MPO

End 1: One 12 Fiber MPO

End 2: Six 2 Fiber LC

End 1: One 12 Fiber MPO

End 2: One 12 Fiber MPO

End 1: Two 12 Fiber MPO

End 2: Two 12 Fiber MPO

Example OM4 Configurations

End 1: Four 12 Fiber MPO

End 2: Four 12 Fiber MPO

End 1: One 12 Fiber MPO

End 2: Six 2 Fiber LC

End 1: One 12 Fiber MPO

End 2: One 12 Fiber MPO

End 1: Two 12 Fiber MPO

End 2: Two 12 Fiber MPO

End 1: Four 12 Fiber MPO

End 2: Four 12 Fiber MPO

End 1: One 12 Fiber MPO

End 2: Six 2 Fiber LC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

78

DS-BS-1 04/27/2016

MPO Trunk Cable Assemblies

Part Number

MCR -

1 1 2 2 3 4 4 5 5 6 7 8 8 8 8 9 9 10 10

1

MPO Fiber Count

08 = 8 Fiber MPO Connector

12 = 12 Fiber MPO Connector

24 = 24 Fiber MPO Connector

2

MPO Quantity

XX = Number of MPO Connectors

3

Fiber Type

S = Singlemode

3 = Multimode OM3

4 = Multimode OM4

4

Connector Type End 1

MS = MPO Male Standard Ferrule

ME = MPO Male Elite Ferrule

FS = MPO Female Standard Ferrule

FE = MPO Female Elite Ferrule

5

Connector Type End 2

MS = MPO Male Standard Ferrule

ME = MPO Male Elite Ferrule

FS = MPO Female Standard Ferrule

FE = MPO Female Elite Ferrule

LS = LC Simplex

LD = LC Duplex

6

Wiring Method

A = Method A

B = Method B

C = Method C

U = Universal Method

7

Jacket Type

L = Low Smoke

Zero Halogen

O = Plenum Rated

8

Length

XXXF = Length in Feet

XXXM = Length in Meters

9

Breakout Length

08 = 8 Inch Breakout

12 = 12 Inch Breakout

18 = 18 Inch Breakout

24 = 24 Inch Breakout

10

Pulling Eye End 2

00 = No Pulling Eye

PE = Pulling Eye

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

79

DS-BS-1 04/27/2016

Optical Amplifier Drop Cable Assemblies

ARIA Optical Amplifier Drop Cable Assemblies provide connectivity to an Optical Network Unit (ONU).

They feature a rugged design and eliminate the need for additional splice points and hardware at the amplifier location.

This unique product provides the end-user with the ability to configure the system with pre-terminated cables dropped at the node location and splice enclosure.

Cable lengths up to 1,000 feet can be supplied to eliminate additional splice points, hardware, and labor time at the node location.

To guarantee the flexibility necessary inside the amplifier or node housing, different fanout support tube lengths and a variety of fiber optic connector types are available.

Overview

The furcation unit terminates the cable with 2.0 mm fan-out tubes for each 250μm fiber, 6 fiber cables, 8 fiber cables, and

12 fiber cables.

The entry connector encloses the outside plant cable, clamps the support members, secures the armored jacket if present, and provides a stable strong connection to the amplifier housing using the industry standard thread size.

The connectors and fibers can be fed into the Amplifier housing from the outside.

In order to prevent water penetration with any entry connector, use Raychem or Canusa epoxy lined heatshrink with moisture block. This will also resist potential destructive forces on the cable. 8 inches of Canusa epoxy lined heat shrink, connector cleaning instructions, and installation instructions are included with each Drop Cable Assembly.

Features

• Available in cable lengths up to 1,000 feet

• Standard lengths are 25, 50, 75, 100, and 150 feet

• Provides protection against inside and outside water penetration when coupled with heatshrink

• Eliminates pistoning of the cable core. The Opto-Entry fitting provides a pull strength of 450 lbs

• Rugged design

• Provides time savings and easy installation

• Guarantees maximum clearance inside the amplifier housing

• Average UPC Return Loss: -55dB

• Average APC Return Loss: -65dB

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

80

DS-BS-1 04/27/2016

Optical Amplifier Drop Cable Assemblies

Part Number

-

1 1 2 2 3 3 4 4 5 6 7 7 7 7

1

Connector Type

50 = FC/UPC

51 = SC/UPC

52 = LC/UPC

60 = FC/APC

61 = SC/APC

62 = LC/APC

63 = E2000 APC

2

Breakout Length

XX = Length in Inches

Example:

28 = 28 inches

3

Number of

Connectors

02 = 2 Connectors

03 = 3 Connectors

04 = 4 Connectors

05 = 5 Connectors

06 = 6 Connectors

07 = 7 Connectors

08 = 8 Connectors

09 = 9 Connectors

10 = 10 Connectors

11 = 11 Connectors

12 = 12 Connectors

4

Fiber Count

02 = 2 Fibers

03 = 3 Fibers

04 = 4 Fibers

05 = 5 Fibers

06 = 6 Fibers

07 = 7 Fibers

08 = 8 Fibers

09 = 9 Fibers

10 = 10 Fibers

11 = 11 Fibers

12 = 12 Fibers

5

Cable Type

A = Outside Plant Armored

B = Outside Plant Non-Armored

P = Polyurethane Breakout

X = Custom Cable or Other Design

Bend Insensitive Fiber Available

Contact Sales Department

6

Fitting Type

O = Opto-Entry (5/8-24)

S = Opto-Entry Stainless

Z = Opto-Short Stainless

2.5 inches

7

Overall Cable

Length

XXXF = XXX Feet

XXXM = XXX Meters

Example: 025F = 25 feet

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

Interfacility Cable (IFC) Assemblies

ARIA Interfacility Cable (IFC) assemblies are multi-fiber cables that are pre-terminated and used within a building for cross-connecting or interconnecting fibers.

IFC assemblies are available in stranded and ribbon cable types with 12 to 288 fibers.

ARIA IFC assemblies meet UL-1666 OFNR Riser or OFNP

Plenum ratings.

They have an all dielectric construction that is designed to meet the fire resistant characteristics required in the central office.

The stranded cable type bundles individual 900 μm fibers into subunits of 6-12 fibers. The ribbon cable type consists of

12 fiber ribbons identified as a subunit. Stranded and ribbon cable types identify each subunit and the individual fibers within the subunits are color-coded.

Interfacility Cable (IFC) Assembly Example

Singlemode SC/UPC connectors,

900um-type, 48 each end

Color coded 900um fiber - both ends

48-fiber singlemode distribution style cable, OFNR rated, SMF-28e fiber, Corning Cable Systems cable

36 in. breakout

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Numbered subunit jackets, approx. 4 in.

40 meters

81

DS-BS-1 04/27/2016

36 in. breakout

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

82

DS-BS-1 04/27/2016

Interfacility Cable (IFC) Assemblies

Part Number

-

1 2 2 2 3 4 4 4 5 5 5 6 6 6 6 6 7 7 8 8 9

1

Flame Rating

R = OFNR

P = OFNP

2

Fiber Count

012 = 12 Fibers

024 = 24 Fibers

048 = 48 Fibers

096 = 96 Fibers

144 = 144 Fibers

288 = 288 Fibers

4

Connector Type End 1

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

000 = Pigtails

(No Connector)

Additional connector styles available upon request

6

Breakout Length

24NBO = 24 inch breakout

36NBO = 36 inch breakout

XXNBO = Custom breakout

7

Breakout Outer Diameter

09 = 900μm

20 = 2.0mm AFK tubing

30 = 3.0mm AFK tubing

8

Pulling Eye

00 = No Pulling Eye

PE = Pulling Eye

3

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

5

Connector Type End 2

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

9

Length

XXXU = (Length, Unit)

Example:

100F = 100 Feet

020M = 20 Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

83

DS-BS-1 04/27/2016

ODVA Style IP67 Rated Cable Assemblies

ARIA ODVA Style IP67 Rated Cable Assemblies are available with LC or MPO connector types.

All assemblies come with an ODVA style connector on one end and an LC, MPO, or ODVA style connector on the other end.

Cable assemblies can be easily installed onto a panel by using an adapter.

Features

• Meets IP67 Standards

• No tools required

• Bayonet style locking mechanism

• Designed for harsh environment applications

• All fiber types and cable types are available

Enclosure Compatibility

Applications

• Outdoor events requiring sound or video

• Industrial machinery

• Diagnostic equipment

• Communication equipment

• Anywhere rugged weatherproof connectivity is required

ODVA Style IP67 Rated Cable Assemblies are compatible with ARIA’s NEMA 8X Wallmount Enclosure.

These cable assemblies can be used with any enclosure up to 0.158” (4mm) thick with a 1.08”-1.25” sized hole.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

ODVA Style IP67 Rated Cable Assemblies

Product Design

84

DS-BS-1 04/27/2016

ODVA Style Duplex LC/APC to Duplex LC/APC Patchcord

See Part Number on Next Page

ODVA Style MPO to MPO Patchcord

See Part Number on Next Page

ODVA Style LC to LC Adapter

Part Number: ODVA-A-LC

ODVA Style LC to ODVA Style LC Adapter

(In-Line Bulkhead) (Part Number: ODVA-I-LC)

ODVA Style MPO to MPO Adapter

Part Number: ODVA-A-MPO

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

ODVA Style MPO to ODVA Style MPO Adapter

(In-Line Bulkhead) (Part Number: ODVA-I-MPO)

Fiber Optic Product Catalog

Fiber Optic Cable Assemblies

85

DS-BS-1 04/27/2016

ODVA Style IP67 Rated Cable Assemblies

Part Number

ODVA-

1 2 2 3 4 4 5 5 5 5 6 6 6 6 7 7 7 7

1

Cable Size

5 = 5.0 mm

7 = 7.0 mm

2

Fiber Count

02 = 2 Fibers

04 = 4 Fibers

06 = 6 Fibers

08 = 8 Fibers

12 = 12 Fibers

24 = 24 Fibers

3

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

4

Cable Type

DR = Distribution

Riser Rated

DP = Distribution Style

Plenum Rated

AP = Interlocking Armor

Plenum Rated

IR = Indoor/Outdoor

Riser Rated

IP = Indoor/Outdoor

Plenum Rated

OA = Outside Plant

Armored

ON = Outside Plant

Non-Armored

AJ = Non-Armored

Alternative Jacket

LZ = Low Smoke Zero

Halogen

5

Connector Type End 1

Singlemode

OLCU = ODVA Style LC/UPC

OLCA = ODVA Style LC/APC

OMSS = ODVA Style MPO

OMES = ODVA Style MPO

Elite Ferrule

Multimode

OLCM = ODVA Style LC

OMSM = ODVA Style MPO

OMEM = ODVA Style MPO

Elite Ferrule

6

Connector Type End 2

Singlemode

SLCU = LC/UPC

SLCA = LC/APC

OLCU = ODVA Style LC/UPC

OLCA = ODVA Style LC/APC

SMSS = MPO

SMES = MPO Elite Ferrule

OMSS = ODVA Style MPO

OMES = ODVA Style MPO

Elite Ferrule

Multimode

SLCM = LC

OLCM = ODVA Style LC

SMSM = MPO

SMEM = MPO Elite Ferrule

OMSM = ODVA Style MPO

OMEM = ODVA Style MPO

Elite Ferrule

7

Length

XXXF = Length in Feet

XXXM = Length in Meters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

LGX, CCH, & SMP Type Adapter Plates and Pigtail Fanouts

ARIA Adapter Plates are available in 6, 8, 12, and 24-port designs equipped with adapters only or with adapters and pigtail fanouts in the 900 μm in mesh, distribution, or ribbon cable type.

Adapter plates are available in the LGX, CCH, and SMP type footprints.

Corning equivalent footprint adapter plates accommodate the CCH, PCH,

CCS, WCH, ICH, EDC, and FZB housing families.

Singlemode adapter sleeves are made of ceramic and multimode adapter sleeves are made of phosphor bronze for frequent mating and demating connector endurance. Adapter plates are 100% tested for insertion and return loss, and fit into ARIA Rackmount and Wallmount Enclosures as well as most LGX, CCH, and SMP type equivalent enclosures.

Pigtail fanouts can be supplied with either standard Singlemode, Bend-

Insensitive Singlemode, 62.5 μm Multimode, 50 μm Multimode, 10 gig 50

μm OM3 Multimode, or 10 gig 50 μm OM4 Multimode fibers.

Pigtail Fanout Examples

LGX 12-Fiber Distribution Style SC/APC

Adapter Plate Examples

86

DS-BS-1 04/27/2016

CCH 12-Fiber Distribution Style SC/APC

LGX 12-Fiber SC/UPC LGX 12-Fiber SC/APC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

LGX 6-Fiber SC/UPC

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

LGX 6-Fiber SC/APC

Fiber Optic Product Catalog

Components

LGX, CCH, & SMP Type Adapter Plates and Pigtail Fanouts

LGX 6-Fiber ST LGX 6-Fiber FC

87

DS-BS-1 04/27/2016

LGX 24-Fiber LC/UPC LGX 24-Fiber LC/APC

Part Number

LGX 12-Fiber LC/UPC

1

Adapter Type

LGX = LGX Type

SMP = PLP/SMP

Type

CCH = CCH Type

2

Adapter Plate

Type

06 = 6 (SC/FC/ST)

08 = 8 (SC/FC/ST)

12 = 12 (SC/LC)

24 = 24 (LC)

LGX 12-Fiber LC/APC

-

1 1 1 2 2 3 3 3 4 5 6

3

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

4

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

5

Pigtail

N = No Pigtail

B = 900 μm in Mesh

C = Distribution Style

D = Ribbon

Note: 3 meter pigtail

length is standard

6

Plate Color

B = Black

W = White

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

88

DS-BS-1 04/27/2016

Attenuators

Fiber attenuators are used to control the power level of optical communication signals at the output of the light source and E/O converters. They are also used for the testing of linearity and dynamic range in photosensors.

ARIA attenuators are Telcordia GR-910-CORE compliant.

Attenuation variations of 5% for <10 dB and 10% for >10 dB ensure accurate power output.

Testing

Water Immersion - 7 days in 43°C, 5.5 pH water

Vibration - 10-55 Hz freq, 1.52 mm amp for 2 hours

Flex Test - 100 cycles with a 0.5 lb or 2 lb load

Twist Test - 10 cycles with a 1.1 lb, 1.65 lb, or 3 lb load

Side Pull - 0.55 lb or 2.75 lb load at a 90 degree angle

Cable Retention - 1 lb, 1.54 lb, or 4.4 lb load for 1 min

Durability - 200 mating cycles with 3 ft, 4.5 ft, or 6 ft length

Impact Test - 8 cycles with a 6 ft drop on 3 different axes

Features

Precise attenuation values

Environmentally stable and reliable

Excellent return loss

Bidirectional

No air gap

Applications

Telecommunications

CATV

Fiber-to-the-home

Local Area Network

(LAN) Test Equipment

Specifications

Attenuation Range: 3~20 dB

Operating Temperature: -40 to 75 °C

Storage Temperature: -50 to 85 °C

Return Loss UPC: >55dB

Return Loss APC: >60dB

Part Number

ATN-

1 1 1 2 2 3 3 4

1

Connector Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

FCU = FC/UPC

FCA = FC/APC

STU = ST/UPC

Multimode

SCM = SC

LCM = LC

FCM = FC

STM = ST

2

Wavelength

35 = Singlemode 1310 nm and 1550 nm

85 = Multimode 850 nm

03 = Multimode 1300 nm

83 = Multimode 850 nm and 1300 nm

3 dB Value

01 = 1 dB

03 = 3 dB

10 = 10 dB

15 = 15 dB

05 = 5 dB 20 = 20 dB

Custom Values are Available

4

Multimode

Specifications

3 = OM3 Aqua Body

4 = OM4 Violet Body

5 = 50 μm

6 = 62.5 μm

Leave blank for

Singlemode

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

A-MOD Patch and Splice LGX Cassette

ARIA A-MOD Patch and Splice LGX Cassettes provide an innovative means to accommodate up to 24 fiber interconnections in an industrystandard, single-slot LGX footprint.

A-MOD features convenient fiber cable entry and attachment, a rugged metal construction, and flexible splice sleeve storage locations.

The end user is able to securely manage both single and ribbon fiber arrangements.

A-MOD allows a 4RU rackmount enclosure to be outfitted with up to 288-fiber interconnections.

Features

• 24-fiber interconnection capacity

• LGX compatibility

• Rugged metal construction

• Intuitive cable entry and attachment

• Flexible splice sleeve storage locations

• Available in SC and LC connector arrangements

• Organized fiber routing

• Fixed solution with no moving parts

Dimensions

6.1 inches

(154.5 mm)

Applications

• Telecommunications Closets

• Data Centers

• Customer Premise

• Local and Wide Area Networks

• Central Offices

• Hub Sites

• Cabinets

• Remote Terminals

• Distributed Antenna Systems (DAS)

1.1 inches

(29.0 mm)

89

DS-BS-1 04/27/2016

4.1 inches

(105.0 mm)

5.1 inches

(130.0 mm)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

A-MOD Patch and Splice LGX Cassette

Convenient Cable Entry Adapter Plate Options

90

DS-BS-1 04/27/2016

Quick Detach Clear Lid Option Available

6 Port, SC Simplex 6 Port, SC Duplex

Quick Detach Clear Lid Option Comes

With Easy to Use Splice Sleeve Holder

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

A-MOD Patch and Splice LGX Cassette

Mounting Accessories

91

DS-BS-1 04/27/2016

A-MOD Wallmount Bracket

P/N: AM-WMB

3X 1RU LGX Wall/Rackmount Bracket

P/N: 3XLGXW-RBRACKET-B-OT

6X 2RU LGX Wall/Rackmount Bracket

P/N: 6XLGXW-RBRACKET-B-OT

Splice Sleeves

• 40 mm Single Fiber Fusion Splice Sleeve

P/N: FSSSD-040-1

• 45 mm Ribbon Fiber Mass Fusion Splice Sleeve

P/N: FSPS-45MM-R-1

Part Number

A-MOD -

1 1 2 3 3 4 4 4 5

1

Adapter Plate

SX = 6 Port, SC Simplex

(6 Fibers Simplex SC or 12 Fibers Duplex LC)

DX = 6 Port, SC Duplex

(12 Fibers Duplex SC or 24 Fibers Quad LC)

2

Pigtail

N = No Pigtail

M = 900 μm in Mesh

R = Ribbon

D = Distribution

Style (MIC)

Note: 3 meter pigtail

length is standard

3

Lid Type

ML = Metal Lid

CP = Clear Plastic Lid

4

Adapter Type

Singlemode

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

Multimode

SCM = SC

LCM = LC

000 = No Adapters

5

Fiber Type

Singlemode

S = SMF-28e+

B = SMF Bend

Insensitive

G.657.A1

Multimode

1 = 62.5/125μm

2 = 50/125μm

3 = 50/125μm OM3

4 = 50/125μm OM4

0 = No Pigtail

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

MPO/MTP

®

Cassette Module

ARIA’s MPO/MTP

®

Cassette Module is an LGX format cassette that transitions between MPO/MTP

®

and LC or

SC connectors.

This module is used to interconnect MPO/MTP

® backbones with LC or SC patch cords.

The cassette faceplate features SC or LC adapters and the rear of the cassette features MPO/MTP

®

adapters.

Various mounting options are available to mount the

MPO/MTP

®

Cassette Module in a rack or on a wall.

Available Formats

LC Duplex

Connector

92

DS-BS-1 04/27/2016

MTP®

Connector

12 Fiber SC to 12 Fiber MPO/MTP

®

Accessories

12 Fiber LC to 12 Fiber MPO/MTP

®

24 Fiber LC to dual 12 Fiber MPO/MTP

®

6X MPO/MTP

®

Cassette Module 2RU Wallmount/Rackmount Bracket

P/N: 6XLGXW-RBRACKET-B-OT

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

MPO/MTP

®

Cassette Module

Accessories

3X MPO/MTP

®

Cassette Module 1RU LGX Wallmount/Rackmount Bracket

P/N: 3XLGXW-RBRACKET-B-OT

93

DS-BS-1 04/27/2016

2X MPO/MTP

®

Cassette Module Wallmount Bracket

P/N: 2XLGXWMBRACKET-B-OT

MPO/MTP

®

Cassette Module Wallmount Bracket

P/N: MPO-BRACKET-B

MPO/MTP

®

Cassette Module Shroud

P/N: AFP-LGX-SHROUD

Part Number

MPO/MTP

®

Cassette Module Shroud with Door

P/N: AFP-LGX-SHROUD-WD

MCM-

1 1 2 2 2 3

1

Adapter Plate Type

12 = 12 Port (SC/LC)

24 = 24 Port (LC)

2

Adapter Type

Singlemode Multimode

SCU = SC/UPC SCM = SC

SCA = SC/APC LCM = LC

LCU = LC/UPC

LCA = LC/APC

3

Fiber Type

Singlemode Multimode

S = SMF-28e+ 1 = 62.5/125μm

B = SMF Bend 2 = 50/125μm

Insensitive 3 = 50/125μm OM3

G.657.A1 4 = 50/125μm OM4

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

94

DS-BS-1 04/27/2016

WDM Modules (CWDMs and DWDMs)

ARIA’s Optical Fiber WDM Modules carry multiple wavelengths across the same fiber so CATV MSOs can separate content and push it onto separate wavelengths. The filtered traffic can then be carried over the same fiber and dropped off at different coaxial termination points within the same node. This effectively splits the node sizes by creating different delivery points but does not physically alter the HFC configuration. With this technology, the transmission distance does not matter and one does not have to optimize for a specific distance. The transmitter technology multiplexes the signals onto the existing fiber and makes sure it can be demultiplexed at the end point: while technically still part of the node, that end point becomes, in effect, a smaller node.

Low loss and high isolation WDMs are available in various form factors. WDM cassettes can be supplied with adapters

(bulkheads) only, with pigtailed leads, or a combination of both. WDMs are 100% tested for insertion and return loss and meet Telcordia GR1209 and GR1221 specifications making them suitable for any PON application. The wavelengths accommodated range from 1310nm to 1625nm.

ARIA Optical Fiber WDM Cassettes are designed to mount in wallmount enclosures, rackmount enclosures, or directly into a rack or cabinet. Cassettes fit into ARIA Tri-Panel, ARIA 1RU, 2RU, and 4RU RDR Series, RDP Series, as well as

LGX type 5” and 7” height enclosures.

Available Form Factors

1x8 Mux/Demux WDM Function

Module

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Cassette with 250/900 µm pigtail Cassette

Fiber Optic Product Catalog

Components

WDM Modules (CWDMs and DWDMs)

Example WDM: 16 Channel LGX DWDM

Features

Low Insertion Loss

High Isolation

Low PDL

LGX Footprint

Wide Operating Wavelength

Wide Operating Temperature

High Reliability and Stability

Applications

DWDM System

PON Networks

CATV Links

Specifications

Parameter

Channel Spacing (GHz)

Center Wavelength (C25-C40) (nm)

Channel Pass Band @-0.5 dB (nm)

IL (dB)

2% Test TX & RX IL (dB)

Isolation (dB)

Adjacent Channel

Non-Adjacent Channel

EXP Channel

Ripple (dB)

PDL (dB)

PMD (ps)

RL (dB)

Directivity (dB)

Maximum Optical Power (mW)

Operating Temperature (°C)

Storage Temperature (°C)

Package Dimensions (mm)

Connector Type

95

DS-BS-1 04/27/2016

Value

100

1557.36, 1556.56, 1555.75, 1554.94, 1554.13, 1553.33,

1552.52, 1551.72, 1550.92, 1550.12, 1549.32, 1548.52,

1547.72, 1546.92, 1546.12, 1545.32

0.22

≤4.7

≤23 RX & ≤27 TX

≥30

≥40

≥12

≤0.4

≤0.2

≤0.1

≥45

≥50

500

-5~75

-40~85

129x29x100

LC/APC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

WDM Modules (CWDMs and DWDMs)

Example WDM: 16 Channel LGX DWDM

Part Number: LGX-16CH-25/40-DWDM-LCA

Description

16 Channel DWDM

ITU C-band channels 25-40

Terminated with LC/APC Connectors

Loaded into an LGX Cassette

Custom Availability

Wavelengths

Adapters

Connectors

Enclosures

Port Configuration

Port and Structure Diagram

Test Tx

Not Used

COM

(Out)

37

39

33

35

29

31

25

27

38

40

34

36

30

32

26

28

2x2

Coupler

2% monitor Out/Mux

Test Rx

Test Tx

2% monitor In/Demux

Not Used

Test Rx

2x2

Coupler

COM

(In)

ARIA

16-channel

DWDM

ITU C-band channels 25, 26, 27,

28, 29, 30, 31, 32, 33, 34, 35,

36, 37, 38, 39 and 40

1

16-channel

DWDM

ITU C-band channels 25, 26, 27,

28, 29, 30, 31, 32, 33, 34, 35,

36, 37, 38, 39 and 40

1

16

16

Compliance

Telcordia GR-1209-CORE-2001

ITU-T G.694.1

Telcordia GR-1221-CORE-1999

RoHS

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

96

DS-BS-1 04/27/2016

All non - 1 thru 16 's

(Express or Upgrade port)

MUX (Rx)

All non- 1 thru 16 's

(Express or Upgrade port)

DEMUX (Tx)

Fiber Optic Product Catalog

Components

97

DS-BS-1 04/27/2016

8 Channel CWDM Module for FOSC Splice Trays

ARIA’s 8 Channel CWDM Module for FOSC Splice

Trays provides the user with enhanced connectivity in a compact package.

This product is designed for use in FOSC size A,

B, and D splice trays. The module locks into place anywhere splice chips are accepted on the FOSC splice tray.

This product is also offered with up to 10 channels.

Meets Telcordia GR-1221-CORE specifications.

Features

• Low Insertion Loss

• Wide Passband

• High Channel Isolation

• High Stability and reliability

• Epoxy free on optical path

• Compact size

Specifications

Parameter

Central Wavelength (nm)

Channel Spacing (nm)

Passband (nm)

Isolation (dB)

Channels

Upgrade port

Adjacent Channel

Non-adjacent Channel

Upgrade port

Insertion Loss (dB)

Power Handling (mW)

Ripple in Passband (dB)

Polarization Dependent Loss (dB)

Polarization Mode Dispersion (ps)

Directivity (dB)

Return Loss (dB)

Operating / Storage Temperature (C)

Applications

• Line Monitoring

• WDM Network

• Telecommunication

• Cellular Application

• Fiber Optical Amplifier

• Access Network

Value

1271, 1291…1611

20

+/-6.5

1310+/-50 or 1260~1457 (depends on configuration)

>30

>40

>15

2.4

500

<0.3

<0.15

<0.1

>50

>45

-5 ~ +70 / -40 ~ +85

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

8 Channel CWDM Module for FOSC Splice Trays

Straightforward Installation

All fibers are labeled for easy identification

Module Loaded into a FOSC Size B Splice Tray

98

DS-BS-1 04/27/2016

Module Loaded into a FOSC Size D Splice Tray

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

99

DS-BS-1 04/27/2016

8 Channel CWDM Module for FOSC Splice Trays

Part Number

FOSC-CWDM-

1 1 2 3 3 3 3 4 5 5 6 6 6 7

1

Type

M8 = Multiplex 8 Channel

D8 = Demultiplex 8 Channel

M9 = Multiplex 9 Channel

D9 = Demultiplex 9 Channel

M1 = Multiplex 10 Channel

D1 = Demultiplex 10 Channel

2

Additional Port(s)

0 = None

1 = 1310 nm

2 = Express

3 = 1310 nm & Express

3

Starting Channel

(20 nm spacing)

1271 = 1271 nm

1291 = 1291 nm

1311 = 1311 nm

1331 = 1331 nm

1351 = 1351 nm

1371 = 1371 nm

1391 = 1391 nm

1411 = 1411 nm

1431 = 1431 nm

1451 = 1451 nm

1471 = 1471 nm

1491 = 1491 nm

1511 = 1511 nm

1531 = 1531 nm

1551 = 1551 nm

1571 = 1571 nm

1591 = 1591 nm

1611 = 1611 nm

4

Fiber Type

1 = Bare Fiber

2 = 900 μm

5

Fiber Length

10 = 1.0 meter

15 = 1.5 meters

20 = 2.0 meters

6

Connector Type

NNN = No connectors

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

7

Included Splice Tray

A = FOSC Size A Splice Tray

B = FOSC Size B Splice Tray

D = FOSC Size D Splice Tray

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

8 Channel DWDM Module for FOSC Splice Trays

ARIA’s 8 Channel DWDM Module for FOSC Splice

Trays provides the user with enhanced connectivity in a compact package.

This product is designed for use in FOSC size B and

D splice trays.

The module locks into place anywhere splice chips are accepted on the FOSC splice tray.

This module meets Telcordia GR-1209-CORE-2001 and Telcordia GR-1221-CORE-1999 specifications.

Features

• Low Insertion Loss

• High Isolation

• Low PDL

• Compact Design

• Good channel-to-channel uniformity

• Wide Operating Wavelength: 1460nm to 1620nm

• Wide Operating Temperature: -40°C to 75°C

• High Reliability and Stability

Applications

• DWDM System

• CATV System

• Network upgrading

Compliance

• Telcordia GR-1209-CORE-2001

• Telcordia GR-1221-CORE-1999

• RoHS

Specifications

Parameter

Passband (nm)

Operating Wavelength (nm)

Channel Space (nm)

Fiber Type

IL (dB)

Adjacent Channel Isolation (dB)

Non-Adjacent Channel Isolation (dB)

Express Channel Isolation (dB)

Ripple (dB)

PDL (dB)

PMD (ps)

RL (dB)

Value

ITU±0.11

1460~1620

0.8

G657A with 0.9 loose tube

<3.0

>30

>40

>12

<0.4

<0.2

<0.1

>45

100

DS-BS-1 04/27/2016

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

8 Channel DWDM Module for FOSC Splice Trays

Specifications (Continued)

Parameter

Directivity (dB)

Power (mw)

Operating Temperature (°C)

Storage Temperature (°C)

ABS Module Dimensions (mm)

Value

>50

<500

-5~75

-40~85

80 x 58 x 8

Straightforward Installation

All fibers are labeled for easy identification

Module Loaded into a FOSC Size B Splice Tray

101

DS-BS-1 04/27/2016

Module Loaded into a FOSC Size D Splice Tray

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

102

DS-BS-1 04/27/2016

8 Channel DWDM Module for FOSC Splice Trays

Part Number

FOSC-DWDM-

1 2 3 4 5 5 6 7 7 8 8 8 9

1

Type

M = Multiplex

D = Demultiplex

2

Channel Spacing

1 = 100 GHz

2 = 200 GHz

3

Alternate Port 1

1 = 1310 nm

U = Upgrade

T = Test

N = None

4

Alternate Port 2

1 = 1310 nm

U = Upgrade

T = Test

N = None

5

Starting Channel

21 = Channel 21

22 = Channel 22

23 = Channel 23

24 = Channel 24

25 = Channel 25

26 = Channel 26

27 = Channel 27

28 = Channel 28

29 = Channel 29

30 = Channel 30

31 = Channel 31

32 = Channel 32

33 = Channel 33

34 = Channel 34

35 = Channel 35

36 = Channel 36

37 = Channel 37

38 = Channel 38

39 = Channel 39

40 = Channel 40

41 = Channel 41

42 = Channel 42

43 = Channel 43

44 = Channel 44

45 = Channel 45

46 = Channel 46

47 = Channel 47

48 = Channel 48

49 = Channel 49

6

Fiber Type

1 = Bare Fiber

2 = 900 μm

7

Fiber Length

10 = 1.0 meter

15 = 1.5 meters

20 = 2.0 meters

8

Connector Type

NNN = No connectors

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

9

Included Splice Tray

B = FOSC Size B Splice Tray

D = FOSC Size D Splice Tray

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Splitters and Couplers

ARIA splitters and couplers are bi-directional multi-port devices which effectively combine or separate optical signals in singlemode fiber systems.

The singlemode standard couplers are manufactured using the fused biconic taper (FBT) process to ensure consistency in quality, reliability and high performance in a wide range of applications.

Splitting ratios can be designed to meet customer specifications. Various types of pigtails and connector terminations are available.

Features

Coupling ratio: 1-99%

Low insertion loss

Excellent uniformity

Low PDL

High directivity

Bidirectional

Environmentally stable and reliable

Applications

Telecommunications

CATV

Subscriber loop

Fiber-to-the-home

Local Area Network (LAN)

Test equipment

Optical fiber sensors

103

DS-BS-1 04/27/2016

602 Series Tree Coupler 600 Series Dual Window Coupler Splitter Cassette

Bare Optical Fiber Splitters

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Rackmount Splitters

Fiber Optic Product Catalog

Components

Planar Lightwave Circuit (PLC) Splitter Cassettes

ARIA Planar Lightwave Circuit (PLC) Splitter Cassettes are optical power management devices that are fabricated using silica optical waveguide technology.

They come in the LGX Cassette form factor, feature

SC/UPC, SC/APC, LC/UPC, or LC/APC adapter types, and are available in 1x2, 1x4, 1x8, and 1x16 configurations.

ARIA PLC Splitter Cassettes feature small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and are widely used in PON networks for optical signal power splitting.

ARIA PLC Splitter Cassettes meet Telcordia

GR-1209-CORE, Telcordia GR-1221-CORE, and RoHS requirements.

Applications

• FTTX Systems

• PON Networks

• CATV Links

• Optical Signal Distribution

Features

• Low Insertion loss

• Low PDL

• Compact Design

• Good channel-to-channel uniformity

• Wide Operating Wavelength: From 1260nm to 1650nm

• Wide Operating Temperature: From -40 to 85 °C

• High Reliability and Stability

Specifications

Parameter

Operating Wavelength (nm)

Fiber Type

Insertion Loss (dB)

Loss Uniformity (dB)

Polarization Dependent Loss (dB)

Return Loss (dB)

Directivity (dB)

Wavelength Dependent Loss (dB)

Operating/Storage Temperature (°C)

Cassette Dimensions (HxWxD) (mm)

1x2 Splitter

Values

1260~1650

G657A1

4.0

0.4

0.2

50

55

0.3

-40~85

129 x 23 x 70

1x4 Splitter

Values

1260~1650

G657A1

7.3

0.6

0.2

50

55

0.3

-40~85

129 x 23 x 70

1x8 Splitter

Values

1260~1650

G657A1

10.5

0.8

0.2

50

55

0.3

-40~85

129 x 23 x 70

104

DS-BS-1 04/27/2016

1x16 Splitter

Values

1260~1650

G657A1

13.7

1.2

0.25

50

55

0.5

-40~85

129 x 23 x 70

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Planar Lightwave Circuit (PLC) Splitter Cassettes

Configurations

105

DS-BS-1 04/27/2016

1x4 LC/UPC

Part Number

1x8 LC/UPC 1x16 LC/UPC 1x2 SC/APC 1x4 SC/APC

PLC-SPLITTER-

1 1 2 2 2

1

Configuration

02 = 1x2 Splitter

04 = 1x4 Splitter

08 = 1x8 Splitter

16 = 1x16 Splitter

2

Adapter Type

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

1x8 SC/APC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

1RU Rackmount Splitter

106

DS-BS-1 04/27/2016

Features

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good Channel-to-channel Uniformity

Wide Operating Wavelength

High Reliability and Stability

1x32 Splitter

Overview

One 1x16 or 1x32 PLC Splitter

Loaded into a 1RU Rackmount Enclosure

Available with SC/UPC, SC/APC, LC/UPC, or LC/APC adapters

Applications

FTTH Systems

PON Network

CATV Links

Communication Equipment

Specifications

Parameter

Operating Wavelength (nm)

Maximum Insertion Loss (dB)

Maximum Uniformity (dB)

Maximum PDL (dB)

Minimum Return Loss (dB)

Minimum Directivity (dB)

Operating Temperature (°F)

Storage Temperature (°F)

1x16 Splitter Values

1260~1650

<14.0

<1.2

0.25

50

≥55

-40~+75

-40~+85

1x32 Splitter Values

1260~1650

<17.2

<2.0

0.3

50

≥55

-40~+75

-40~+85

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

1RU Rackmount Splitter

Port Diagrams

107

DS-BS-1 04/27/2016

IN

ARIA

1 2 3 4 5 6 7 8

1x16 Splitter

9 10 11 12 13 14 15 16

IN

ARIA

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

Custom Availability

Adapters

Enclosures

Port Configurations

1x32 Splitter

Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

YD/T-1272Q

Q/CT-2295

RoHS

Part Number

AT-1X -1U-19N-B

1 1 2 2 2

1

Port Configuration

16 = 1x16 Splitter

32 = 1x32 Splitter

Alternate Port Configurations Available Upon Request

2

Adapter Type

SCU = SC/UPC

SCA = SC/APC

LCU = LC/UPC

LCA = LC/APC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Enclosures for Splitters, Couplers, and WDMs

108

DS-BS-1 04/27/2016

1 RU RDR accommodates 3 cassettes 2 RU RDR accommodates 6 cassettes 7” 4 RU LGX Patch Series accommodates 12 cassettes

TRI-2X accommodates 2 cassettes TRI-4X accommodates 4 cassettes TRI-6X accommodates 6 cassettes

3 Module 1RU LGX

Wallmount/Rackmount Bracket

P/N: 3XLGXW-RBRACKET-B-OT

2 Module LGX Wallmount Bracket

P/N: 2XLGXWMBRACKET-B-OT

6 Module 2RU LGX

Wallmount/Rackmount Bracket

P/N: 6XLGXW-RBRACKET-B-OT

1 RU Rackmount Panel accommodates 1x32 Splitters

Contact sales for additional information

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

TYCO FOSC Splice Trays accommodate Splitters and

WDM Modules (DWDMs and CWDMs)

Fiber Optic Product Catalog

Components

109

DS-BS-1 04/27/2016

ARIA Lightpaths Raceway for Cable Management

Lighpaths™ Fiber Protection System, ducting, or raceway is the ideal system for routing and protecting cables routed through exchanges, central offices, CATV headends, data centers, collocation sights, hubs, shelters, nodes, and customer premises.

Lighpaths™ maintains a 2” bend radius throughout the system. Lighpaths™ is the only Halogen-free system on the market, and the only system that exceeds Telcordia

GR-63 NEBS requirements as tested by an independent third party test lab.

Mounting Hardware

The parts connecting the Lighpaths™ system do not require mounting hardware. No other system on the market can make this claim. Parts are assembled in seconds with the new patented slide-on-joiner. Vertical drops can be added in less than 5 minutes by snapping them in place with no mounting hardware required. Drops exit the side of the raceway in order to not interfere with overhead ladder racking. Lighpaths™ is available in all popular sizes to accommodate virtually any application.

Available Services

Mounting kits are available to affix the ducting to the ladder racking, threaded rod, cabinets, racks, and wall. Technical application assistance and field support is provided to end-users, installers, and contractors. Installation services and engineering services are also available.

Typical Installations

Colocation Sites or Central

Offices

CATV Headends or Data

Centers

Customer Premises, Hubs, or Shelters

Standards

• ISO 9001 Certified Quality Management System by NCS International

• Fire retardant plastic, Halogen Free, UL94-VO rated

• UL2024A standard

• EEU - ROHS requirements

Fiber Frame Management

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

110

DS-BS-1 04/27/2016

ARIA Lightpaths Raceway for Cable Management

Capacity

Raceway Size (HxW)

2”x2”

(50mm x 50mm)

Max Patchcord

Capacity (3.0 mm OD)

145

4”x4”

(100mm x 100mm)

720

4”x8”

(100mm x 200mm)

1100

4”x12”

(100mm x 300mm)

1500

Solid Straight Sections

Solid straight sections are used for horizontal routes.

Standard length is 2 meters (6.5 feet). Lids are hinged, providing easy accessibility.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Body Part Number

TC1279-81

TC1279-23NS

TC1279-21NS

TC1279-275NS

Slotted Straight Sections

Slotted straight sections are used for vertical routes bringing cables to equipment in racks or cabinets.

Slot trumpets provide bend radius protection (order separate).

Cover Part Number

TC1279-80

TC1279-24

TC1279-22

TC1279-276

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm) (includes mounting hardware & short lid)

Slot trumpets (can be used with any slotted straight section)(10 per bag)

Slot Trumpets provide the proper bend radius for cables exiting

Part Number

TC1279-81SLAKit

TC1279-212

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Horizontal Tees & Covers

Horizontal Tees are used to change directions perpendicular to the main route.

Tees can also tee-off in a different size (i.e. 4”x 8” to

4” x 4”).

Use tees at corners where horizontal routes may continue.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Body Part Number

TC1279-75A

TC1279-03NS

TC1279-01NS

TC1279-279NS

Horizontal Crosses & Covers

Horizontal Crosses are used to change directions perpendicular to the main route.

Cover Part Number

Supplied with body

TC1279-04

TC1279-02

TC1279-280

111

DS-BS-1 04/27/2016

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Body Part Number

TC1279-139A

TC1279-71

TC1279-61

TC1279-300

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Cover Part Number

Supplied with body

TC1279-70

TC1279-62

TC1279-300L

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Horizontal Elbows & Covers

Horizontal Elbows are used to change directions perpendicular to the main route.

Elbows are ideal for use at corners where horizontal routes will not continue.

30, 45, and 90 degree elbows are available.

Part Numbers

Angle

30 Degree

30 Degree

30 Degree

45 Degree

45 Degree

45 Degree

45 Degree

90 Degree

90 Degree

90 Degree

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

Body Part Number

TC1279-77-30A

TC1279-31-30

4”x8” (100mm x 200mm)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-29-30

TC1279-77-45A

TC1279-31-45

TC1279-29-45

4”x12” (100mm x 300mm) TC1279-304

2”x2” (50mm x 50mm) TC1279-77A

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-31

TC1279-29

End Caps

End Caps are used to close the end of a horizontal or vertical route.

Some end caps are used with tubing to drop cables into frames or cabinets.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x4” (100mm x 100mm), with 2 ea 5 feet length tubes

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Body Part Number

TC1279-127D

TC1279-57

TC1279-57B2Kit

TC1279-56

TC1279-288

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

112

DS-BS-1 04/27/2016

Cover Part Number

Supplied with Body

TC1279-32-30

TC1279-30-30

Supplied with Body

TC1279-32-45

TC1279-30-45

TC1279-305

Supplied with Body

TC1279-32

TC1279-30

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Vertical Elbows & Covers

Vertical Elbows are used to change directions upward or downward to avoid obstacles.

45 and 90 degree elbows are available in most sizes.

Retro elbows are supplied with a slit in the body to permit entrance of existing cables without the need to disconnect.

113

DS-BS-1 04/27/2016

Vertical Elbow

Part Numbers

Type and Angle

Elbow Up 45 Degree

Size (HxW)

2”x2” (50mm x 50mm)

Body Part Number

TC1279-143-45A

Elbow Up 45 Degree

Elbow Up 45 Degree

Elbow Up 45 Degree

Elbow Up 90 Degree

Elbow Up 90 Degree

Elbow Up 90 Degree

Elbow Up 90 Degree

Elbow Down 45 Degree

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-113-45A

TC1279-125-45A

4”x12” (100mm x 300mm) TC1279-283

2”x2” (50mm x 50mm) TC1279-143A

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-113A

TC1279-125A

4”x12” (100mm x 300mm) TC1279-298

2”x2” (50mm x 50mm) TC1279-87-45A

Elbow Down 45 Degree

Elbow Down 45 Degree

Elbow Down 45 Degree

Elbow Down 90 Degree

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-111-45A

TC1279-123-45A

4”x12” (100mm x 300mm) TC1279-285

2”x2” (50mm x 50mm) TC1279-87A

Elbow Down 90 Degree

Elbow Down 90 Degree

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

TC1279-111A

TC1279-123A

Elbow Down 90 Degree 4”x12” (100mm x 300mm) TC1279-296A

Retro Elbow Down 90 Degree 4”x4” (100mm x 100mm) TC1279-111R

Retro Elbow Down 90 Degree 4”x8” (100mm x 200mm)

Retro Elbow Up 90 Degree 4”x4” (100mm x 100mm)

Retro Elbow Up 90 Degree 4”x8” (100mm x 200mm)

TC1279-123R

TC1279-113R

TC1279-125R

Retro Elbow

Cover Part Number

Supplied with Body

Supplied with Body

Supplied with Body

TC1279-284

Supplied with Body

Supplied with Body

Supplied with Body

TC1279-284A

Supplied with Body

Supplied with Body

Supplied with Body

TC1279-285L

Supplied with Body

Supplied with Body

Supplied with Body

TC1279-286A

Supplied with Body

Supplied with Body

Supplied with Body

Supplied with Body

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Flared Trumpets

Flared Trumpets are used to ensure proper bend radius for cables exiting vertically from the horizontal route.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

Downspouts

Downspouts are typically used for adding drops to an existing horizontal route.

By exiting the side of the system, interference with ladder racking and other objects, typically mounted above the horizontal raceway, is avoided.

To use the downspout to add drops, a quick punch-out is made in the side wall, and a bend-radius ramp and downspout are snapped into place in a few seconds.

Body and Cover Part Number

TC1279-93A

TC1279-218A

TC1279-289R

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm) Punch Tool

4”x4” (100mm x 100mm) Punch Tool

2”x2” (50mm x 50mm) Downspout

4”x4” (100mm x 100mm) Downspout

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Kit Part Number

TC1279-50

TC1279-231A

TC1279-93KIT

TC1279-111KIT

114

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Pre-assembled Downspouts

Pre-assembled Downspouts are horizontal tees with vertical downspouts. By exiting the side of the system, interference with ladder racking and other objects, typically mounted above the horizontal raceway, is avoided.

Kits can be supplied with downspouts preassembled on one or both sides of short straight section. To use the downspout to add drops, just assemble to a slide-on joiner which takes seconds.

115

DS-BS-1 04/27/2016

Part Numbers

Size (HxW)

4”x4” (100mm x 100mm) with 4”x4” drop

4”x4” (100mm x 100mm) with 2”x2” drop

4”x8” (100mm x 200mm) with 4”x4” drop

4”x8” (100mm x 200mm) with 2”x2” drop

4”x12” (100mm x 300mm) with 4”x4” drop

Body and Cover Part Number

TC1279-4DROP-4

TC1279-2DROP-4

TC1279-4DROP-8

TC1279-2DROP-8

TC1279-4DROP-12

Vertical Tees & Covers

Vertical Tees are used to drop cables vertically from horizontal routes into frames or cabinets directly underneath raceway.

Vertical Tees have cable dividers.

Retro Tees are supplied with a slit in the body to permit entrance of existing cables without the need to disconnect.

Part Numbers

Type

Vertical Tee

Vertical Tee

Vertical Tee

Vertical Tee

Retro Tee

Retro Tee

Size (HxW)

2”x2” (50mm x 50mm)

Drop Size (HxW) Body Part Number Cover Part Number

2”x2” TC1279-145A Supplied with Body

4”x4” (100mm x 100mm) 4”x4”

4”x8” (100mm x 200mm) 4”x4”

4”x12” (100mm x 300mm) 4”x8”

4”x4” (100mm x 100mm) 4”x4”

4”x8” (100mm x 200mm) 4”x4”

TC1279-63

TC1279-11

TC1279-277

TC1279-63R

TC1279-111R

TC1279-64

TC1279-12

TC1279-278

Supplied with Body

Supplied with Body

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

ARIA Lightpaths Raceway for Cable Management

Joiners/Junctions

Joiners are used to connect two parts together, and slide on to parts with no tooling or hardware required.

Joiners connect in seconds. 1/4 turn locks parts together.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Part Number

TC1279-73

TC1279-248A

TC1279-250A

TC1279-287A

Lightpaths to ADC Adapter kits

Adapters and Reducers are used to connect parts of different sizes or brands.

116

DS-BS-1 04/27/2016

Part Numbers

Size (HxW)

100mm x 100mm to 100mm x 200mm 4” x 4” - 4” x 8” left

100mm x 100mm to 100mm x 200mm 4” x 4” - 4” x 8” right

100mm x 200mm to 100mm x 300mm 4” x 8” - 4” x 12”

100mm x 100mm to ADC 4” straight 4” x 4” - ADC 4”

100mm x 100mm to ADC 4” horizontal tee 4” x 4” - ADC 4”

100mm x 200mm to ADC 6” straight 4” x 8” - ADC 6”

100mm x 200mm to ADC 6” straight 4” x 8” - ADC 6”

100mm x 200mm to ADC 6” horizontal tee 4” x 8” - ADC 6”

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Body and Cover Part Number

TC1279-07A

TC1279-05A

TC1279-281A

TC1279-109KIT

TC1279-173KIT

TC1279-149KIT

TC1279-150KIT

TC1279-175KIT

Fiber Optic Product Catalog

Components

117

DS-BS-1 04/27/2016

ARIA Lightpaths Raceway for Cable Management

Storage Spools

Storage Spools are used to store excess cable slack up in the ducting system where it is safe from mishandling and potential damage.

In-line Spools can be placed within or at the end of a horizontal run.

Spools are ideal for under-floor slack cable storage in data centers.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x8” (100mm x 200mm)

4”x12” (100mm x 300mm)

Part Number

TC1279-209KIT (in-line)

TC1279-208KIT (in-line)

TC1279-207KIT (in-line)

TC1279-314-K (under floor)

TC1279-315-K (under floor)

Mounting Hardware

Mounting Hardware is available for virtually any kind of installation. Kits are available for mounting to ladder racking, threaded rod, wall mounting, and under floor pedestal mounting.

Part Numbers

Size (HxW)

2”x2” (50mm x 50mm)

2”x2” (50mm x 50mm)

2”x2” (50mm x 50mm)

4”x4” (100mm x 100mm)

4”x4” (100mm x 100mm)

4”x4” (100mm x 100mm)

4”x4” (100mm x 100mm)

4”x4” (100mm x 100mm)

4”x8” (100mm x 200mm)

4”x8” (100mm x 200mm)

4”x8” (100mm x 200mm)

4”x8” (100mm x 200mm)

4”x8” (100mm x 200mm)

4”x12” (50mm x 300mm)

4”x12” (50mm x 300mm)

Under Floor Mount Trapeze Mount Ladder Rack Mount Threaded Rod Mount

Mounting Kit Style

Ladder Rack

Cabinet Mount

Wall Mount

Ladder Rack

Threaded Rod 1/2 inch existing

Threaded Rod 5/8 inch existing

Under Floor Pedestal Mount

Wall Mount

Ladder Rack

Threaded Rod 1/2 inch existing

Threaded Rod 5/8 inch existing

Under Floor Pedestal Mount

Wall Mount

Trapeze Kit Threaded Rod 1/2 inch existing

Trapeze Kit Threaded Rod 5/8 inch existing

Part Number

TC1279-203KIT

TC1279-168KIT

TC1279-168KIT

TC1279-202KIT

TC1279-105KITC-1

TC1279-105KITD-1

TC1279-197KITA

TC1279-14 -104KIT

TC1279-184KIT

TC1279-105KITC-2

TC1279-105KITD-2

TC1279-197KITA

TC1279-133KIT

TC1279-297BKIT

TC1279-297DKIT

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Splice Trays

118

DS-BS-1 04/27/2016

12 Fiber Single Fusion Splice Tray (4”x6”)

P/N: 4612CWMP

12 Fiber Single Fusion Splice Tray (3”x5”)

P/N: 3512CWMPST

24 Fiber Single Fusion Splice Tray (4”x7”)

P/N: 4724CWMPST

72 Fiber Mass Fusion Splice Tray (4”x7”)

P/N: 4772CWMPST

24 Fiber Single Fusion Splice Tray (4”x8”)

P/N: 4824CWMP

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

72 Fiber Mass Fusion Splice Tray (4”x8”)

P/N: 4872RCWM

Fiber Optic Product Catalog

Components

Splice Trays

119

DS-BS-1 04/27/2016

48 Fiber Single Fusion Splice Tray

P/N: AT1B-F/F

216 Fiber Mass Fusion Splice Tray

P/N: AT1B-MF/MF

24/48 Fiber Single/Mass Fusion Splice Tray (4”x7”)

P/N: 4x7-ST-ACCG

24/48 Fiber Single/Mass Fusion Splice Tray (4”x9”)

P/N: 4812C4RMTB

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

12 Fiber Single Fusion Splice Tray (5”x7”)

P/N: 5712CWMPST

Fiber Optic Product Catalog

Components

Splice Sleeves (Single and Mass Fusion)

ARIA Splice Sleeves provide mechanical and environmental protection for fusion splices of fiber.

ARIA Splice Sleeves are compatible with most of the industry standard fiber management systems and organizers.

ARIA Splice Sleeves are available for single fusion splicing of single fibers and mass fusion splicing of multiple fibers.

Mass fusion splice sleeves protect ribbons with two to twelve fibers.

Features

• Protect single or mass fusion splices

• Fits into most splice holders

• Quick shrink-down time

• Low temperature hot-melt adhesive encapsulates the splice

• Ceramic rod ensures proper alignment and rigidity

Ordering Information

Product Name

Fusion splice sleeve, standard, 40mm

Fusion splice sleeve, standard, 60mm

Fusion splice sleeve, slim, 16mm

Quantity

50/pack

50/pack

50/pack

Fusion splice sleeve, slim, 25mm

Fusion splice sleeve, slim, 40mm

Fusion splice sleeve, slim, 60mm

Fusion splice sleeve, mini, 10mm

Fusion splice sleeve, mini, 25mm

Fusion splice sleeve, mini, 40mm

50/pack

50/pack

50/pack

100/pack

100/pack

100/pack

Fusion splice sleeve, micro,10mm

Fusion splice sleeve, micro, 25mm

Fusion splice sleeve, micro, 40mm

100/pack

100/pack

100/pack

Fusion splice sleeve, ribbon, polyetherimide, 40mm 25/pack

Fusion splice sleeve, ribbon, quartz, 40mm 25/pack

Fusion splice sleeve, ribbon, 45mm 50/pack

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Part Number

FSSSD-040

FSSSD-060

FSSSL-016

FSSSL-025

FSSSL-040

FSSSL-060

FSSMI-010

FSSMI-025

FSSMI-040

FSSMR-010

FSSMR-025

FSSMR-040

FSSRB-P40

FSSRB-Q40

FSPS-45MM-R

120

DS-BS-1 04/27/2016

Fiber Optic Product Catalog

Components

Cable Clamps

12A1, 12A2, and 12A3 style cable clamps are compatible with ARIA strain relief brackets.

12A1 cable clamps are used to secure and ground a metallic sheath cable with an outside diameter of 0.4” to

0.999” (1.016 cm to 2.537 cm).

12A2 cable clamps are used to secure a dielectric sheath cable with an outside diameter of 0.4” to 0.999” (1.016 cm to 2.537 cm).

12A3 cable clamps are used to secure and ground both

Metallic and Dielectric Sheath Cable types with an outside diameter of 0.25” to 1.50” (0.635 cm to 3.81 cm).

121

DS-BS-1 04/27/2016

Bracket to accept 12A1 and 12A2 type cable clamps on

LGX, OSEC, and ARM style enclosures (P/N: SRE-W)

12A1 Cable Clamp for Metallic Sheath Cable

P/N: 104-384-490

12A2 Cable Clamp for Dielectric Sheath Cable

P/N: 106-230-337

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

12A3 Cable Clamp for 0.25”-1.25” Diameter Cable

P/N: 108-527-423

Fiber Optic Product Catalog

Components

122

DS-BS-1 04/27/2016

Launch Boxes

Launch boxes aid in the testing of fiber optic cable when using an Optical Time Domain Reflectometer (OTDR). Launch boxes are used with OTDRs to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty. They are used for

Installation/Testing, Training, and Calibration. They can also be called a Pulse Suppressor or Delay Line.

All ARIA Launch Boxes are terminated with low loss connectors for exceptional accuracy and performance.

Launch boxes are available with 1 km of fiber and different connector configurations.

Features

• The lockable compound latch provides a positive seal and easy opening capability

• Nonmetal constructed lightweight case will not dent, corrode, or conduct electricity

• Water and dust proofing allows the unit to be taken into almost any environment

• Auto purge valve allows for changes in altitude and temperature

Specifications

Parameter

Enclosure Dimensions (H”xW”xD”)

Enclosure Capacity (km)

Material

Color

Enclosure Weight Without Fiber (kg)

Operating Temperature

Typical Loss for 1000 m

Fiber Type

Value

9.37 x 5.55 x 2.64

1.0

SR Polypropylene

Yellow/Black

0.75

-40° to +55 °C

< 1dB @ 1310nm

Singlemode Fiber - Corning 9/125 - SMF-28e+

Part Number

LB-

1 2

1

Input Connector/

Adapter Type

A = SC/UPC Singlemode

B = LC/UPC Singlemode

C = FC/UPC Singlemode

D = SC/APC Singlemode

E = LC/APC Singlemode

F = FC/APC Singlemode

2

Output Connector/

Adapter Type

A = SC/UPC Singlemode

B = LC/UPC Singlemode

C = FC/UPC Singlemode

D = SC/APC Singlemode

E = LC/APC Singlemode

F = FC/APC Singlemode

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

123

DS-BS-1 04/27/2016

Fiber Test Box (Network Simulation System)

The ARIA Fiber Test Box (Network Simulation System) allows the user to easily simulate optical networks of different lengths and with varying numbers of splices and connector matings, all in your work area.

The ARIA Fiber Test Box (Network Simulation System) comes in a black 3RU size chassis with rackmount brackets for recessed mounting in both 19” and 23” racks.

Enclosures are stackable and bolt together.

Select from 1 to 8 channels per enclosure and up to 50 km of total fiber per enclosure.

Overview

These systems allow the user to measure true loss through fiber, connectors, and splices. They also allow the user to measure signal delay which is not possible with attenuators. By connecting different reel lengths, either with patch cords or splices, the user can create many different channel lengths to test their network products.

The ARIA Fiber Test Box (Network Simulation System) is offered with SMF-28e+ singlemode fiber, 62.5/125μm multimode fiber, 50/125μm multimode fiber, 50/125μm OM3 multimode fiber, and 50/125μm OM4 multimode fiber.

Choose any industry standard fiber optic connector type for your channel end terminations.

Connector Saver Jumper Feature

All systems come with the ARIA standard Connector Saver (CS) Jumper feature. This ensures that the wear and tear of multiple connector matings occurs on the CS jumper and not on the connectorized end of each channel. Replacement of a worn channel end is as simple as replacing a jumper. Your system stays up and no retermination is needed.

Modular Design

Singlemode

Fiber

10.0

Km

10.0

Km

1A

1B

2A

2B

Singlemode

Fiber

10.0

Km

10.0

Km

2A

2B

1A

1B

Singlemode

Fiber

10.0

Km

10.0

Km

2A

2B

1A

1B

Singlemode

Fiber

10.0

Km

10.0

Km

1A

1B

2A

2B

Singlemode

Fiber

10.0

Km

10.0

Km

1A

1B

2A

2B

Singlemode

Fiber

10.0

Km

10.0

Km

1A

1B

2A

2B

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

124

DS-BS-1 04/27/2016

Precision Optical Fiber Cleaver

The Precision Optical Fiber Cleaver is the ultimate tool for single fiber cleaving.

Built on a robust, high-quality platform, the Precision Optical Fiber

Cleaver is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance.

The Precision Optical Fiber Cleaver works with 250 to 900 micron coated single fibers.

A fiber scrap collector helps maintain loose scraps resulting from cleaving. The scrap collector works to automatically grab and store the scrap fibers as the cleaver’s lid is raised following a completed cleave.

Features

• Used for single fiber cleaving

• Utilizes an automatic anvil drop for fewer required steps and better cleave consistency

• Prevents double scoring of the fibers

• Has superior blade height and rotational adjustment

• Automatic fiber scrap collection

• Can be operated with minimal steps

Specifications

Parameter

Dimensions (HxWxD)

Weight

Coating Diameter

Cladding Diameter

Cleave Lengths

Typical Cleave Angle

Typical Blade Life

Number of Steps for Cleave

Blade Adjustments

Value

63 x 63 x 65 mm

475 g

0.25 - 0.90 mm (Single)

0.125 mm

9 - 16 mm (Single Fiber - 0.25 mm Coating)

10 - 16 mm (Single Fiber - 0.90 mm Coating)

0.5 Degrees

36,000 Fiber Cleaves

2

Rotational & Height

Part Number

Precision Fiber Optic Cleaver: FC-6S-C

Replacement Cleaver Blade: FCP-BL

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

125

DS-BS-1 04/27/2016

Connector Cleaning Products

Dust and contaminant free connectors and adapters are critical to error free operation. Due to the sensitivity of fiber optic systems, contamination can occur at many stages of its transportation and implementation. Proper inspection, cleaning, and installation of fiber optic connectors and adapters is of paramount importance to installing and maintaining an operational fiber optic network.

Particles of dust, oil from skin, and other contaminants trapped in the connection between two pieces of fiber can cause attenuation due to back reflections, air gaps, and misalignment. It can also damage the glass surface of the connector.

NTT-AT Cleaning Kit

The NTT-AT Cleaning Kit is a dry cloth cleaning system that provides excellent cleaning performance for single-fiber and multi-fiber connectors. ARIA also offers NTT-ME Cletop Optical Connector Cleaner products.

Specifications

Dispenser Material: ABS Resin

Dimensions: 83 x 127 x 48 mm

Weight: 150 g

Cleanings: 400 per reel

Connector Cleaning Tool

The ARIA Connector Cleaning Tool is a mechanical cleaning tool designed to clean mated and unmated connectors.

A simple pushing motion engages the tool with an audible click. Unit permits over 525+ engagements. Dry cleaning strand eliminates the need for solvents. Crush resistant to over 250N and impact resistant to survive drops over 1.5M.

Applications

The NTT Cleaning Kit accommodates multi-fiber and singlefiber connectors. The kit can be configured to clean male and female MT, male and female MT-RJ, 1.25mm (LC, MU), or 2.5mm (SC, FC) connectors.

Clean End Face

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Dirty End Face

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

126

DS-BS-1 04/27/2016

Connector Cleaning Products

In a study conducted by NTT-Advanced Technology, 80% of network owners (blue) and 98% of installers (gray) reported that issues with connector cleanliness and contamination were the greatest cause of network failure.

Contamination of the connector endface

Poor polishing of the ferule

Mistakes in attaching labels to the cable

Damage to the optical connector

Damage on the ferrule endface

Defective splicing

Excessive bending for the cable

0 10 20 30 40 50 60 70 80 90 100

Network Installer

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Connector Cleaning Products

NTT-ME Cletop Products

Product Name

Cletop Type-A Cassette

Cletop Type-B Cassette

Cletop MPO Cassette

Cletop MT-RJ Cassette

Cletop S Type-A Cassette

Cletop S Type-B Cassette

Cletop Replacement Reel

Cletop Stick 1.25mm

Cletop Stick 2.50mm

Part Number Description

CLRSL 1 pc (2-slotted window)

CLROP

CLRMP

CLRMT

CLRSA

CLRSB

CLETR

CLST12

CLST25

1 pc (Open window)

1 pc (Open MPO window)

1 pc (Open MT-RJ window)

1 pc (2-slotted window)

1 pc (Open window)

1 case (6 reels)

1 case (200 pcs)

1 case (200 pcs)

NTT-AT Reel Cleaner Products

Product Name

Reel Cleaner Cassette -SL

Reel Cleaner Cassette -OP

Reel Cleaner Cassette -MPO

Reel Cleaner Cassette -MT-RJ

Replacement Reel

Card Cleaner

Card Cleaner Refill

Stick Cleaner 1.25mm

Stick Cleaner 2.50mm

Part Number Description

FCRSL 1 pc (2-slotted window)

FCROP 1 pc (Open window)

FCRMP

FCRMT

FCRRF

FCRWH

FCCRF

FCST12

FCST25

1 pc (Open MPO window)

1 pc (Open MT-RJ window)

1 case (6 reels)

1 pc (with 10 sheets)

1 box (10 pack=100 sheets)

1 case (200 pcs)

1 case (200 pcs)

127

DS-BS-1 04/27/2016

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Components

Connector Cleaning Products

Connector Cleaning Tools

Connector Cleaning Tools are designed to clean SC, ST,

FC, E2000, LC, MU, MTP

®

and generic MPO connectors.

Connector Cleaning Tools clean unmated cable assemblies and connectors loaded in a bulkhead adapter.

The advanced “push” style connector cleaner is quick and efficient at removing contaminants and keeping your network infrastructure running clean.

128

DS-BS-1 04/27/2016

Specifications

• Unit performs over 525 cleanings.

• MPO/MTP

®

Connector Cleaning Tool cleans male (with guide pins) and female MT ferrules

• MPO/MTP

®

Connector Cleaning Tool cleans multimode (flat) and singlemode (8° angled) MT ferrules

• RoHS compliant

Dimensions

19

Part Number

Part Number

9392

9393

7104

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

43

198.3

Description

SC – SC, ST, FC, and E2000 connectors

LC – LC and MU connectors

MPO/MTP

®

connectors

Fiber Optic Product Catalog

Copper

Cat 5e and Cat 6 Patch Cords

129

DS-BS-1 04/27/2016

Features and Benefits

• Staggered plug design provides increased performance

• Injection molded boots for critical Cat 6 bend radius requirements and sealing of the plug/cable interface

• “Flush” mold design allows booted patch cables to be installed side by side in high-density patch fields

• 50u short body plugs have minimal “de-twisting” of the cable pairs during manufacturing

• 24AWG stranded or solid constructed cables are available

• PVC or plenum jackets are available

• Compliant with EIA/TIA Cat 6 specifications

• Available in Gray, Blue, White, Red, Black, Green, Yellow, or Orange

Part Numbers

Cat 6 with Boots

C6-WB-GRY-XXF

C6-WB-BLU-XXF

C6-WB-WHT-XXF

C6-WB-RED-XXF

C6-WB-BLK-XXF

C6-WB-GRN-XXF

C6-WB-YEL-XXF

C6-WB-ORG-XXF

Cat 6 without Boots

C6-GRY-XXF

C6-BLU-XXF

C6-WHT-XXF

C6-RED-XXF

C6-BLK-XXF

C6-GRN-XXF

C6-YEL-XXF

C6-ORG-XXF

Replace XX with desired length in feet

Cat 5e with Boots

C5e-WB-GRY-XXF

C5e-WB-BLU-XXF

C5e-WB-WHT-XXF

C5e-WB-RED-XXF

C5e-WB-BLK-XXF

C5e-WB-GRN-XXF

C5e-WB-YEL-XXF

C5e-WB-ORG-XXF

Flush style

No boot style

Cat 5e without Boots

C5e-GRY-XXF

C5e-BLU-XXF

C5e-WHT-XXF

C5e-RED-XXF

C5e-BLK-XXF

C5e-GRN-XXF

C5e-YEL-XXF

C5e-ORG-XXF

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

LGX Adapter Plate for Keystone Jacks

ARIA’s LGX Adapter Plates for Keystone Jacks are designed to fit in standard LGX type enclosures and accommodates six snap-in keystone jacks for fast and easy installation.

Choose from a variety of our keystone jacks to create the perfect solution for a home or office network.

130

DS-BS-1 04/27/2016

1RU RDR Rackmount Panel with CAT 6 Keystone Jacks

Supported Keystone Jacks

2RU RDR Rackmount Panel with CAT 6 Keystone Jacks

CAT 5E Keystone Jack CAT 6 Keystone Jack Singlemode LC Duplex

Fiber Keystone Jack

Singlemode SC Simplex

Fiber Keystone Jack

Part Number

1

Number of Jacks

1 = 1 Keystone Jack

2 = 2 Keystone Jacks

3 = 3 Keystone Jacks

4 = 4 Keystone Jacks

5 = 5 Keystone Jacks

6 = 6 Keystone Jacks

LGX-KJ-

1 2 2 2 2 3 3

2

Keystone Jack Type

CAT5 = CAT5E Keystone Jack

CAT6 = CAT6 Keystone Jack

LCDX = Singlemode LC Duplex

Fiber Keystone Jack

SCSX = Singlemode SC Simplex

Fiber Keystone Jack

3

CAT 6 Keystone Jack Color

Leave Blank for No CAT 6 Keystone Jack

AL = Almond

BK = Black

BL = Blue

GR = Green

IV = Ivory

OR = Orange

WH = White

YL = Yellow

GY = Gray

RD = Red

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

131

DS-BS-1 04/27/2016

SFP+ Passive Direct Attach Copper (DAC) Cables

ARIA SFP+ Passive Direct Attach Copper (DAC) cable assemblies, also known as Twinax Cables, are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications.

They are hot-pluggable, industry-standard Small Form-

Factor Pluggable (SFP+) copper cables, available in

1 meter, 3 meter or 5 meter lengths.

SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget.

These high speed cable assemblies meet and exceed

Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.

They feature 10.5 Gpbs line speed, full duplex performance and a bit error rate that is better than 10*10

-12

.

Features

• Support for multi-gigabit data rates up to 10.5 Gbps

• Data rates backward compatible to 1 Gbps

• Hot-pluggable SFP 20PIN footprint

• I/O Connector designed for high speed differential signal applications

• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance

• Operating Temperature Range: 0~70 °C

• Storage Temperature Range: -40~85 °C

• Compatible with SFP+ MSA

• RoHS Compatible

Applications

• High capacity I/O in Storage Area Networks, Network

Attached Storage, and Storage Servers

• Switched fabric I/O such as ultra high bandwidth switches and routers

• Data center cabling infrastructure

• High density connections between networking equipment

Detailed View

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

132

DS-BS-1 04/27/2016

SFP+ Passive Direct Attach Copper (DAC) Cables

Serial Number Label on the Cable:

8

9

14

15

16

10

11

12

13

17

18

19

20

3

6

7

4

5

Pin Descriptions

Pin Logic

1

2 LV-TTL-O

Symbol

VeeT

TX_Fault

LV-TTL-I TX_DIS

LV-TTL-I/O SDA

LV-TTL-I SCL

LV-TTL-I

MOD_DEF0

RS0

LV-TTL-O

LV-TTL-I

CML-O

CML-O

CML-I

CML-I

LOS

RS1

VeeR

VeeR

RD-

RD+

VeeR

VccR

VccT

VeeT

TD+

TD-

VeeT

Name/Description

Transmitter Ground

N/A

Notes

Transmitter Disable

Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor

Passive cable assemblies do not support

LOS and TX_DIS

Tow Wire Serial Data

Tow Wire Serial Clock

Module present, connect to VeeT

N/A

LOS of Signal

N/A

Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor

Passive cable assemblies do not support

LOS and TX_DIS

Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor

Receiver Ground

Receiver Ground

Receiver Data Inverted

Receiver Data Non-Inverted

Receiver Ground

Receiver Supply 3.3 V

Transmitter Supply 3.3 V

Transmitter Ground

Transmitter Data Non-Inverted

Transmitter Data Inverted

Transmitter Ground

Part Number

Part Number

SFP+SFP+-01M

SFP+SFP+-03M

SFP+SFP+-05M

Product Description

SFP+ Direct Attach Passive Cable (10GSFP+Cu), 1 meter, 30 AWG

SFP+ Direct Attach Passive Cable (10GSFP+Cu), 3 meter, 30 AWG

SFP+ Direct Attach Passive Cable (10GSFP+Cu), 5 meter, 24 AWG

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

AT-1100 Series Media Converters

133

DS-BS-1 04/27/2016

External Power Supply Configuration Internal Power Supply Configuration

Overview

The ARIA AT-1100 Series Media Converters connect copper and fiber optic networks together. Media Converters are commonly used when the distance limit for copper cable (100m) is exceeded and fiber optic cable is needed because it is capable of transmission over longer distances.

The AT-1100 comes equipped with a dual fiber SC adapter and RJ45 port.

The ARIA AT-1100 Series Media Converter interconverts electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX.

The AT-1100 series media converter supports transmission in a singlemode or multimode dual fiber network configuration.

Features

• Electrical port and optical port link failure alert system.

• Auto-sensed 10/100Mbps configuration helps facilitates network upgrades.

• Built-in efficient switching core implements flow control and reduces broadcast packets.

• Auto-sensing of full-duplex and half-duplex communications systems.

• Auto-sensing of MDI/MDI-X facilitates system commissioning and installation.

• Supports half/full-duplex FX.

• Supports 10/100Mbps store-and-forward and 100Mbps cut-through transmission.

• Supports 100Base-FX or STM-1 transmission.

• Provides low latency data transmission.

• Supports the transmission of extra-long packets up to 1600 bytes in size.

• Extremely low power consumption (less than 2 Watts).

• Reliable and stable performance.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

134

DS-BS-1 04/27/2016

AT-1100 Series Media Converters

Specifications

Parameter

Access mode

Standard

Wavelength

Transmission distance

Port

Conversion means

Buffer space

Flow control

BER

MTBF

LED indicator

Power supply

Power Consumption

Operating temperature

Operating humidity

Maintaining temperature

Maintaining humidity

Dimensions

Value

10/100Mbps

IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet,

IEEE802.3x Flow Control

850nm/1310nm/1550nm

Dual-fiber Multimode: 2 km;

Dual-fiber Singlemode: 20/40 km;

Category-5 twisted pairs: 100m

One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B

One optical port:

Multimode Dual-fiber: SC (50/125μm or 62.5/125μm)

Singlemode Dual-fiber: SC (9/125μm)

Store and Forward mode or Cut-Through mode

Built in 128Kb RAM for data buffer

Full duplex: flow control;

Half duplex: back pressure

<19

-9

100,000 hours

POWER (power supply), FX LINK/ACT (optical link action)

FDX (full duplex), TX LINK/ACT (TP cable link/action)

TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)

AC90~264V input, 5V1A output

<2W

-10~55ºC

5%~90%

-40~70ºC

5% ~ 90% non-condensing

26 mm (H)x71mm (W)×94mm (D) (external power supply)

30 mm (H)x110mm (W)×140mm (D) (internal power supply)

Ordering Information

Part Number

AT-1100S-20

AT-1100S-40

AT-1100

AT-1100SI-20

AT-1100SI-40

AT-1100I

Power Supply

External

External

External

Internal

Internal

Internal

Fiber Type

Singlemode

Singlemode

Multimode

Singlemode

Singlemode

Multimode

Link Length

20 kilometers

40 kilometers

2 kilometers

20 kilometers

40 kilometers

2 kilometers

Adapter

SC

SC

SC

SC

SC

SC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

AT-2100 Series Media Converters

135

DS-BS-1 04/27/2016

External Power Supply Configuration Internal Power Supply Configuration

Overview

The ARIA AT-2100 Series Media Converters connect copper and fiber optic networks together. Media Converters are commonly used when the distance limit for copper cable (100m) is exceeded and fiber optic cable is needed because it is capable of transmission over longer distances.

The AT-2100 comes equipped with a dual fiber SC adapter and RJ45 port.

The ARIA AT-2100 Series Media Converter interconverts electrical signals of 1000Base-T twisted pairs with optical signals of 1000Base-SX/LX.

The AT-2100 series media converter supports transmission in a singlemode or multimode dual fiber network configuration.

Features

• Supports interconversion between 1000Base-T and 1000Base-SX/LX

• Auto-sensing of full-duplex and half-duplex communications systems.

• Auto-sensing of MDI/MDI-X facilitates system commissioning and installation.

• Supporting the transmission of extra-long VLAN packets.

• Supports Quality of Service (QoS) technology and ensures the transmission of VoIP packets.

• Reliable and stable performance.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

136

DS-BS-1 04/27/2016

AT-2100 Series Media Converters

Specifications

Parameter

Access mode

Standard

Wavelength

Transmission distance

Port

Conversion means

BER

MTBF

LED indicator

Power supply

Power Consumption

Operating temperature

Operating humidity

Maintaining temperature

Maintaining humidity

Dimensions

Value

1000Mbps Gigabit Ethernet

IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

850nm/1310nm

Dual-fiber Multimode 62.5/125μm: 500 m;

Dual-fiber Multimode 50/125μm: 550 m;

Dual-fiber Singlemode: 20/40 km;

Category-5 twisted pairs: 100m

One RJ45 port: Connecting STP/UTP category-5 twisted pairs

One optical port:

Multimode Dual-fiber: SC (50/125μm or 62.5/125μm)

Singlemode Dual-fiber: SC (9/125μm)

Media conversion

<10

-9

100,000 hours

POWER (power supply), FX LINK (optical link action),

TP LINK1000 (TP cable link1000M), TP LINK100 (TP cable link 100M),

TP ACT (TP cable packet forwarding action)

AC90~264V input, 5V2A output

5W

-10~55ºC

5%~90%

-40~70ºC

5% ~ 90% non-condensing

26 mm (H)x71mm (W)×94mm (D) (external power supply)

30 mm (H)x110mm (W)×140mm (D) (internal power supply)

Ordering Information

Part Number

AT-2100S-20

AT-2100S-40

AT-2100

AT-2100SI-20

AT-2100SI-40

AT-2100I

Power Supply

External

External

External

Internal

Internal

Internal

Fiber Type

Singlemode

Singlemode

Multimode

Singlemode

Singlemode

Multimode

Link Length

20 kilometers

40 kilometers

500 meters

20 kilometers

40 kilometers

500 meters

Adapter

SC

SC

SC

SC

SC

SC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

AT-3011 Series Media Converters

137

DS-BS-1 04/27/2016

External Power Supply Configuration Internal Power Supply Configuration

Overview

The ARIA AT-3011 Series Media Converters connect copper and fiber optic networks together. Media Converters are commonly used when the distance limit for copper cable (100m) is exceeded and fiber optic cable is needed because it is capable of transmission over longer distances.

The AT-3011 comes equipped with a dual fiber SC adapter and RJ45 port.

The ARIA AT-3011 Series Media Converter interconverts electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX.

The AT-3011 series media converter supports transmission in a multimode dual fiber network configuration.

Features

• Supports interconversion between 10/100/1000Base-T and 1000Base-SX/LX.

• Auto-sensing of full-duplex and half-duplex communications systems.

• Auto-sensing of MDI/MDI-X facilitates system commissioning and installation.

• Supporting the transmission of extra-long VLAN packets.

• Store-and-Forward mechanism.

• Supports Quality of Service (QoS) technology and ensures the transmission of VoIP packets.

• Reliable and stable performance.

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

Copper

138

DS-BS-1 04/27/2016

AT-3011 Series Media Converters

Specifications

Parameter

Access mode

Standard

Wavelength

Transmission distance

Port

Conversion means

BER

MTBF

LED indicator

Power supply

Power Consumption

Operating temperature

Operating humidity

Maintaining temperature

Maintaining humidity

Dimensions

Value

10/100/1000Mbps Gigabit Ethernet

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

850nm

Dual-fiber Multimode 62.5/125μm: 220 m;

Dual-fiber Multimode 50/125μm: 550 m;

Category-5 twisted pairs: 100m

One RJ45 port: Connecting STP/UTP category-5 twisted pairs , EIA568A/B

One optical port:

Multimode Dual-fiber: SC (50/125μm or 62.5/125μm)

Media conversion

<10

-9

100,000 hours

POWER (power supply), FX LINK (optical link action),

TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M)

TP ACT (TP cable packet forwarding action), FDX (TP full duplex operation)

AC90~264V input, 5V2A output

5W

-10~55ºC

5%~90%

-40~70ºC

5% ~ 90% non-condensing

26 mm (H)x71mm (W)×94mm (D) (external power supply)

30 mm (H)x110mm (W)×140mm (D) (internal power supply)

Ordering Information

Part Number

AT-3011

AT-3011I

Power Supply

External

Internal

Fiber Type

Multimode

Multimode

Link Length

550 meters

550 meters

Adapter

SC

SC

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

139

DS-BS-1 04/27/2016

Indoor Cable

Riser or Plenum Rated

Indoor tight buffered cables assure reliable broadband performance, meet flame retardant safety codes, and support easy field termination.

This cable family packages 900μm tight buffered fibers into a single flame retardant cable. This cable design is available in both riser rated and plenum rated versions for deployment in any indoor application.

The tight buffered distribution cable supports standard installation practices and may be easily terminated using established field connectorization methods.

Color-Coded

Tight Buffer

Coating (900 µm)

Flame-Rated

Jacket

Optical Fibers

Aramid Strength Yarns

Features

• 900μm tight buffered fibers are designed to support rapid field termination

• Industry standard color coding provides quick, error-free fiber identification

• Single-Unit designs provide space savings and cost advantages

• Subunit construction improves organization and termination practices

• Available with bend-insensitive singlemode and multimode optical fibers

• Flexible, flame-retardant, and color coded outer jacket

• Supports all high performance networks including OM4/10 Gigabit Ethernet systems

Fiber Information

Fiber Type Wavelength

(nm)

Singlemode

Singlemode

Bend Insensitive

Multimode

(62.5μm)

Multimode

(50μm)

Multimode OM3

(50μm)

Multimode OM4

(50μm)

1310 / 1383 /

1550

1310 / 1383 /

1550

850/1300

850/1300

850/1300

850/1300

Attenuation

(dB/km)

0.7/0.7/0.7

0.7/0.7/0.7

3.5/1.0

3.5/1.5

3.5/1.5

3.5/1.5

Bandwidth

(MHz km)

N/A

N/A

200/500

500/500

1500/500

3500/500

1 GbE

Distance

(meters)

N/A

N/A

300/550

550/550

1000/550

1100/550

N/A

33

82

300

550

10 GbE

Distance

(meters)

N/A

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

140

DS-BS-1 04/27/2016

2

4

6

8

12

18

24

Indoor Cable

Riser Specifications

Fiber Count Diameter inches (mm)

0.19 (4.8)

0.22 (5.6)

0.24 (6.0)

0.25 (6.2)

0.28 (7.0)

0.28 (7.0)

0.32 (8.1)

15 (22)

19 (28)

21 (31)

23 (34)

30 (45)

35 (51)

43 (64)

Cable

Weight lb/kft (kg/km)

Bend Radius

Load inches (cm)

Bend Radius

No Load inches (cm)

3.8 (9.7)

4.4 (11.2)

4.8 (12.2)

5.0 (12.7)

5.6 (14.3)

5.5 (14.0)

6.4 (16.3)

1.9 (4.9)

2.2 (5.6)

2.4 (6.1)

2.5 (6.4)

2.8 (7.2)

2.8 (7.0)

3.2 (8.2)

Maximum

Installation

Load lbs

(newtons)

148 (660)

148 (660)

148 (660)

148 (660)

148 (660)

296 (1320)

296 (1320)

Maximum

Operation

Load lbs

(newtons)

44.4 (198)

44.4 (198)

44.4 (198)

44.4 (198)

44.4 (198)

88.8 (396)

88.8 (396)

2

4

6

8

12

18

24

Plenum Specifications

Fiber Count Diameter inches (mm)

0.16 (4.2)

0.17 (4.3)

0.18 (4.7)

0.20 (5.0)

0.23 (5.8)

0.26 (6.5)

0.30 (7.6)

9 (13)

14 (21)

15 (22)

18 (27)

22 (33)

32 (48)

42 (62)

Cable

Weight lb/kft (kg/km)

Bend Radius

Load inches (cm)

Bend Radius

No Load inches (cm)

3.2 (8.2)

3.4 (8.7)

3.6 (9.2)

4.0 (10.2)

4.6 (11.7)

5.1 (13.0)

6.0 (15.3)

1.6 (4.1)

1.7 (4.4)

1.8 (4.6)

2.0 (5.1)

2.3 (5.9)

2.6 (6.5)

3.0 (7.7)

Maximum

Installation

Load lbs

(newtons)

98.9 (440)

98.9 (440)

98.9 (440)

98.9 (440)

98.9 (440)

148 (660)

148 (660)

Maximum

Operation

Load lbs

(newtons)

29.6 (132)

29.6 (132)

29.6 (132)

29.6 (132)

29.6 (132)

44.4 (198)

44.4 (198)

Specifications

Applications:

Versatile Indoor Flame-Rated Cable provides unsurpassed performance for intrabuilding applications that require crossing floors in multi-level buildings or placement in air handling spaces

Constructions: Single-Unit (≤ 24f); Subunits (≥ 18f); Interlock Armor optional

Flame Ratings: Riser (OFNR / OFCR / FT4); Plenum (OFNP / OFCP / FT6)

Standards:

ANSI/ICEA S-83-596, UL-1666, NFPA 262, CSA 22.2 No 230, Telcordia GR-409, RoHS Compliant

Temperatures: Shipping and Storage - Riser/Plenum: -40 °F to +176 °F (-40 °C to +80 °C)

Installation - Riser: +14 °F to +140 °F (-10 °C to +60 °C), Plenum: +32 °F to +140 °F (0 °C to +60 °C)

Operation - Riser: -4 °F to +176 °F (-20 °C to +80 °C), Plenum: +32 °F to +176 °F (0 °C to +80 °C)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

Indoor Cable

Interlocking Armor Plenum Rated

141

DS-BS-1 04/27/2016

Overview

With a rugged, armored design delivering up to 10 to 13 times the crush resistance of standard fiber optic cable, interlocking armor fiber cables are ideal for campus & building backbones, data centers and industrial applications.

Interlocking Armor Plenum fiber cables are not governed by fill ratios because they are UL listed as cable assemblies, allowing a higher concentration of cables in an area compared to conduit. Because the cable is extremely durable and has an indoor rating, Interlocking Armor Plenum is an excellent choice for campus environments.

Interlocking Armor Plenum fiber cables also provide outstanding flexibility for modifications, alterations and changes,

(MACs) as well as relocations, pathway changes or design modifications after the cable has been pulled, something conduit cannot easily accommodate.

Protecting optical fiber cables with interlocking armor provides improved network reliability, flexibility and security. It is a user-friendly, cost and space effective alternative to conduit or plenum innerduct. By installing Interlocking Armor

Plenum fiber cables instead of plenum innerduct or conduit, savings can run from 25-50% in materials, and reduce costly installation time and labor costs by as much as 60%. This is a significant advantage over traditional installation methods.

Interlocking armor delivers superior crush and rodent resistance as well as security and is available in fiber counts of 6-24.

Specifications

Parameter

Type

Coating Diameter

Buffer Jacket

Configuration

Armor

Jacket Material, Inner & Outer

Jacket Color

Cable Weight

Cable Outer Diameter

Value

Step index singlemode or graded index multimode optical fiber with protective UV cured acrylate coating

245 ± 10 μm

PVC - 900 ± 50 μm (0.0354 in) Outer Diameter (OD)

12-24 tight buffer fibers are in a matrix of aramid strength members enclosed under an inner jacket. Armor and a second jacket is applied

Aluminum Interlock

Plenum Grade Thermoplastic

Orange for Multimode, Aqua for OM3, or Yellow for Singlemode

129 kg/km (87 lb/1000 ft) (12 Fiber)

13.3-15.3 mm (0.523-0.602 in) (12-24 Fiber)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

142

DS-BS-1 04/27/2016

Indoor Cable

Interlocking Armor Plenum Rated

Description

Cladding Diameter

Numerical Aperture

Maximum Attenuation @

850/1300 nm (dB/km)

Minimum Bandwidth @

850/1300 nm (MHz•km)

100 Mb Transmission distance @ 850/1300 nm (m)

1 GbE Transmission distance @ 850/1300 nm (m)

10 GbE Transmission distance @ 850/1300 nm (m)

40/100 GbE Transmission distance @ 850 nm (m)

Singlemode Multimode

62.5 µm

Multimode

50 µm

Multimode

OM3 50 µm

Multimode

OM4 50 µm

125.0 ± 1.0 μm 125.0 ± 2.0 μm 125.0 ± 1.0 μm 125.0 ± 1.0 μm 125.0 ± 1.0 μm

0.12

0.275 ± 0.015

0.200 ± 0.015

0.200 ± 0.015

0.200 ± 0.015

N/A 3.5/1.0

3.5/1.5

3.0/1.0

3.0/1.0

N/A

> 5000 @ 1310 nm

> 5000 @ 1310 nm

> 10,000 @

1310 nm

10k/40k @

1310 nm

200/500

300/2000

300/600

36/300

N/A

500/500

300/2000

550/550

N/A

N/A

2000/500

300/2000

1000/600

300/300

100

4700/500

300/2000

1040/600

550/300

150

Ratings

Flame Listing: Engineering Testing Laboratories (ETL) or Underwriters Laboratories (UL) Type OFNP (Nonconductive

Optical Fiber Plenum Cable) and c(ETL or UL) OFN-FT6 75C

Operating Temperature: -20°C to +75°C

Storage Temperature: -40°C to +85°C

Maximum Loading: Installation - 1335 N (300 lb) & Long Term - 400 N (90 lb).

Minimum Bend Radius: Installation 19.9 cm (7.8 in) & Long Term 13.3 cm (5.2 in).

Compression (crush) Strength: 440 N/cm per TIA/EIA FOTP-41.

Impact: 2 impacts at 5.88 N-m per TIA/EIA FOTP-25.

Cable Flex: 25 cycles per TIA/EIA FOTP-104.

Proof Test: 0.7 GPa (100 kpsi) per TIA/EIA FOTP-31

Applications

IEEE 802.3ae 10GBASE-X (10 Gb/s)

IEEE 802.3 1000BASE-SX/LX (1 Gb/s)

Fiber Channel FC-PH (1.062 Gb/s)

IEEE 802.3 10BASE-F (10 Mb/s)

IEEE 802.3 FOIRL (10 Mb/s)

FDDI (100 Mb/s)

ATM (155 Mb/s, 622 Mb/s, 1.2/2.4 Gb/s)

Standards

ISO/IEC 11801

EN 50173

Telcordia GR-409 & GR-20

ICEA S-104-696

ANSI/ICEA S-87-640

ETL, UL

OFNR/FT4, OFNP/FT6

ANSI/TIA/EIA-568-B.3

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

143

DS-BS-1 04/27/2016

Indoor/Outdoor Cable

Central Tube

Indoor/Outdoor Cable is composed of 2 to 24 colored tight buffers, water blocking aramid yarn, and a UV resistant black PVC outer jacket. All component materials meet the EU

RoHS and REACH Directive standards.

Indoor/Outdoor Cable is UL Listed. OFNR/

OFNP jackets are available. Standard surface print denotes construction, NEC rating, fiber type, and includes footage markers.

Outer Jacket

Tight Buffer

Water Blocking

Aramid Yarn

Outer Jacket

Water Blocking Aramid Yarn

Tight Buffer

Fiber

Optical Characteristics

Items

Wavelength

Singlemode

(1310/1550) nm

Max. Attenuation

(0.5/0.4) dB/km

Multimode

62.5 µm

(850/1300) nm

(3.5/1.5) dB/km

Bandwidth (EMB)

(High

Performance)

Link Length

(10Gb/ s)

N/A

N/A

220 MHz

@850nm

N/A

Multimode

50 µm

(850/1300) nm

(3.5/1.5) dB/km

850 MHz

@850nm

150 meters

Multimode

OM3 (50 µm)

(850/1300) nm

(3.5/1.5) dB/km

2000 MHz

@850nm

300 meters

Multimode

OM4 (50 µm)

(850/1300) nm

(3.5/1.5) dB/km

4700 MHz

@850nm

550 meters

Cable Characteristics

Parameter

Fiber Count

Outer Jacket Material

Strength Member

Tight Buffer Material

Tight Buffer Color

Nominal Outer Diameter of 2/4/6/8/12/24 fiber count (mm)

Weight (lbs/ km) of 2/4/6/8/12/24 fiber count - Riser

Weight (lbs/ km) of 2/4/6/8/12/24 fiber count - Plenum

Min Bend Radius, Install of 2/4/6/8/12/24 fiber count (cm)

Min Bend Radius, Operate of 2/4/6/8/12/24 fiber count (cm)

Application

Riser/Plenum Flame Rating

Storage/Operating Temperature

Value

2, 4, 6, 8, 12, 24

Flame Retardant PVC

Aramid Yarn

Flame Retardant PVC

Available in 12 TIA/ EIA color standard

4.40 / 4.80 / 5.30 / 5.80 / 6.30 / 8.10

34 / 45 / 55 / 70 / 94 / 120

40 / 52 / 64 / 87 / 115 / 140

6.6 / 7.2 / 7.95 / 8.7 / 9.45 / 12.15

4.40 / 4.80 / 5.30 / 5.80 / 6.30 / 8.10

Riser or Duct

UL1666/ NFPA262

-40 °C to +70 °C

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

Indoor/Outdoor Cable

Central Tube - Aerial and Duct Applications

144

DS-BS-1 04/27/2016

Flame Retardant Jacket

Water Blocking Strength Members

Gel-Filled Buffer Tube Containing up to 12 Fibers

Ripcord

Features

Indoor/Outdoor Design

• Provides additional mechanical protection

• Can be installed using typical loose tube cable methods and hardware

Dry Water-Blocking Technology

• Permits rapid cable preparation and termination

• Water-blocking materials are easily removed

Flexible Buffer Tube

• Superior kink resistance

• Increased flexibility

• Facilitates route management in closure

• Eliminates need for closure transportation tubing

Available in Two Different Flame Ratings

• Riser rated design complies with UL 1666 and is

OFNR and OFN-FT4 rated

• Low-Smoke, Zero-Halogen design complies with UL

1685 and is OFN-LS and OFN-FT1 rated

All-Dielectric Construction

• Great for low fiber count applications where armor is not permitted

• Easy access to cable core

• No metallic elements to bond or ground

Performance

• Tested in accordance with Telcordia GR-20, GR-409 and with relevant EIA/TIA-455 series FOTPs for fiber optic cables

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Specifications

Parameter

Dynamic Bend Radius

Static Bend Radius

Installation Load

Tensile Rating

Residual Load

Tensile Rating

Operating

Temperature Rating

Installation

Temperature Rating

Storage/Shipping

Temperature Rating

Fiber Count

Buffer Tube O.D.

Cable O.D.

Cable Weight

Value

20 x Cable OD

10 x Cable OD

1800 N (400 lbf)

540 N (120 lbf)

-40 to +70 °C

(-40 to +158 °F)

-30 to +60 °C

(-22 to +140 °F)

-40 to +75 °C

(-40 to +167 °F)

12

4.1 mm (0.16 in)

8.5 mm (0.34 in)

68 kg/km (46 lbs/kft)

Fiber Optic Product Catalog

General Information

Outdoor Cable

Non-Armored

Polyethylene Outer Jacket

Polyethylene Inner Jacket (double jacket designs only)

O u t e r S t r e n g t h M e m b e r s ( w h e r e a p p il

Dielectric Central Strength Member c a b l e )

Water Blocking Tape

Gel-Filled Buffer Tube Containing up to 12 Fibers

Ripcord

Central

Strength

Member

145

DS-BS-1 04/27/2016

Flexible Buffer

Tubes (2.5 mm)

Jacket

(polyethylene)

Features

Dry Water-Blocking Technology

• Permits rapid cable preparation and termination

• Water-Blocking materials are easily removed

Flexible Buffer Tubes

• Increased flexibility and superior kink resistance

• Facilitates route management in closures

• Eliminates need for closure transportation tubes

Medium Density Polyethylene Jacket

• Low friction installation

• Excellent protection from environmental hazards

Reverse Oscillated Lay Stranding Method

• Facilitates access to fibers

All-Dielectric Construction

• No bonding or grounding required

Performance

• Meets or exceeds the requirements of Telcordia GR-

20 and ICEA 640

• Tested in accordance with the relevant EIA/TIA-455 series FOTPs for fiber optic cables

• PE-90 compliant for applications that do not require mid-span tube storage

Optical Fibers

Strength Yarns

Specifications

Parameter

Fiber Count

Value

2-24

Buffer Tube OD (mm)

2.65

Single Jacket Cable OD (mm / in)

10.8 / 0.43

Single Jacket Cable Weight

(kg/km / lb/kft

82 / 55

Single Jacket Max Length (m / ft)

12,800 / 41,984

Double Jacket Cable OD (mm / in) 13 / 0.51

Double Jacket Cable Weight

(kg/km / lb/kft)

116 / 78

Double Jacket Max Length (m / ft) 12,800 / 41,984

Dynamic Bend Radius

Static Bend Radius

20 x Cable OD

10 x Cable OD

Installation Tensile Rating (N / lbf) 2700 / 600

Residual Tensile Rating

800 / 200

Short Term / Long Term Crush

Resistance (N/cm / lbf/in)

Operation Temp Rating (C)

220/110 / 125/63

-40 to +70

Storage/Shipping Temp Rating (C) -40 to +75

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

146

DS-BS-1 04/27/2016

Outdoor Cable

Armored - Central Tube

Economical armored protection for lower fiber counts, ideal for multi-purpose outdoor aerial and underground use near the network edge.

Armored cable has an efficient design with a single central loose tube. A better fit and cost-effective alternative for low fiber count designs, this Central Loose Tube cable provides easy cable entry and flexible routing for multi-purpose installation of up to 12 fibers.

Water Blocking

(swellable tape)

Optical Fibers

Ripcord

Armor (corrugated steel) Optional dual armor, double jacket

Central Buffer Tube

(3.0 mm gel-free)

Jacket

(polyethylene)

Features

Easy Cable Entry & Preparation

• Adhesive bond armor protects & improves mid-entry

• Ripcord speeds cable entry & outer jacket removal

• Proven water-blocking with dry core swellable binders

Meets the Following Standards

• ANSI / ICEA 640, IEC 60794-3-11, RUS 7 CFR 1755

(RUS LISTED), Telcordia GR20

Flexible Routing and Termination

• Flexible buffer tubes and strength members

• Small diameter & lightweight extends installation lengths

Temperature Rating

• Installation: -22 to +140 °F (-30 to +60 °C)

• Operation: -40 to +158 °F (-40 to +70 °C)

Cable Specifications

Tube

Construction

Fiber Count Diameter inches (mm)

Gel-Free 2 to 12 0.38 (9.7)

Cable

Weight lb/kft

(kg/km)

63 (94)

Bend Radius

Load inches

(cm)

8 (20)

Bend Radius

No Load inches (cm)

6 (15)

Maximum

Installation

Load

600 lbf (2670 N)

Fiber Information

Fiber Type Wavelength

(nm)

Attenuation

(dB/km)

Bandwidth

(MHz km)

Singlemode

1310 / 1383 / 1550 0.35 / 0.35 / 0.25 N/A

Singlemode Bend Insensitive 1310 / 1383 / 1550 0.35 / 0.35 / 0.25 N/A

Multimode (62.5μm)

850/1300 3.5/1.0

200/500

Multimode (50μm)

Multimode OM3 (50μm)

850/1300

850/1300

3.0/1.0

3.0/1.0

700/500

1500/500

Multimode OM4 (50μm)

850/1300 3.0/1.0

3500/500

1 GbE

Distance

(meters)

N/A

N/A

300/550

800/550

1000/550

1100/550

N/A

33

150

300

550

10 GbE

Distance

(meters)

N/A

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

Outdoor Cable

Armored - 12 Fiber Loose Tube

147

DS-BS-1 04/27/2016

Colored Fiber and Water Blocking Yarn

PBT Loose Tube (Gel-Free)

Steel Armored Tape

Water Blocking Tape

MDPE Sheath (UV Resistant)

Water Blocking Yarn

FRP Strength Member

PP Filler (Natural)

Ripcord

Specifications

Parameter

Attenuation (G657A1) @ 1310 nm

Attenuation (G657A1) @ 1550 nm

Long Term Tensile Strength (IEC60794-1)

Short Term Tensile Strength (IEC60794-1)

Long Term Crush Resistance (IEC60794-1)

Short Term Crush Resistance (IEC60794-1)

Fiber Color

PBT Tube Color

Ripcord Count

Operating Temperature

Storage Temperature

Static Bending Radius

Dynamic Bending Radius

Cable Diameter

Cable Weight

Sheath Thickness

Specification

≤ 0.36 dB/km

≤ 0.22 dB/km

300 N

1000 N

300 N/100mm

1000 N/100mm

Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow,

Violet, Pink, Aqua

Blue

2

-40C to +70C

-40C to +70C

10×Diameter

20×Diameter

12.0 mm

125 kg/km

1.5 mm

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

148

DS-BS-1 04/27/2016

Outdoor Cable

Non-Armored Alternative Jacket

Non-Armored Alternative Jacket is a patented polymer blend that utilizes non-toxic, non-harmful, and environmentally friendly food-grade additives to deter squirrels from chewing on the jacket. The material is intended to make the act of cutting their teeth back on cable an unpleasant experience through the combination of taste and sensation.

System operators have traditionally installed a protective barrier such as squirrel guard around the aerial plant or endured the expense of moving the plant underground.

Both repairing the damage and the traditional methods of preventing the damaged are costly and consume man hours. To reduce the cost of protection and decrease repairs utilize Non-Armored Alternative Jacket cable.

Overview

Non-Armored Alternative Jacket cable is suitable for direct buried, aerial and conduit applications. The construction features the use of dry water blocking elements and reduced diameter buffer tubes, yielding a light weight, smaller cable.

The result is a fiber optic cable that is an ideal transmission medium for the outside plant environment.

The fiber and buffer tubes are color coded for easy identification. The all dry cable construction removes the need for filling gels and flooding compounds from the cable. This significantly reduces cable preparation time and eliminates the need for solvents and other consumables during cable preparation. These cables are designed to improve the cleanliness of the work environment and provide full water blocking protection for outside plant applications.

Features

• Robust cable design

• Complies with applicable standards

• Provides very stable low temperature performance

• Cable withstands typical installation forces with a good safety margin

• Reduces installation loads due to the reduced weight and diameter

• Provides performance equivalent to gel-filled cable designs

• Improves network deployment speed for capturing revenues and starting services sooner

Standards/Compliance/Certifications

ANSI/ICEA S-87-640-2006

EN 187105

Telcordia GR-20-CORE Issue 3

RoHS 2011/65/EU

ISO 9001:2008

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

Outdoor Cable

Non-Armored Alternative Jacket

Parameter

Cable Type

Construction Type

Subunit Type

Jacket

Buffer Tube/Subunit Diameter

Cable Weight

Diameter Over Jacket

Minimum Bend Radius, loaded

Minimum Bend Radius, unloaded

Tensile Load, long term, maximum

Tensile Load, short term, maximum

Tensile Load Test Method

Vertical Rise, maximum

Environmental Space

Installation Temperature

Operating Temperature

Storage Temperature

Compression

Compression Test Method

Flex

Flex Test Method

Impact

Impact Test Method

Twist

Twist Test Method

Water Penetration

Water Penetration Test Method

Cable Freeze

Cable Freeze Test Method

Heat Age

Low High Bend

Low High Bend Test Method

Temperature Cycle

Temperature Cycle Test Method

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

149

DS-BS-1 04/27/2016

Value

Stranded loose tube

Non-armored

Gel-free

Black Alternative jacket PE - UV Stabilized

2.50 mm | 0.10 in

66.0 kg/km | 45.0 lb/kft

10.10 mm | 0.40 in

15.2 cm | 6.0 in

10.1 cm | 4.0 in

800 N | 180 lbf

2700 N | 607 lbf

FOTP-33 | IEC 60794-1-2, Section 5

1234.0 m | 4048.0 ft

Aerial, lashed | Buried

-30 °C to +70 °C (-22 °F to +158 °F)

-40 °C to +70 °C (-40 °F to +158 °F)

-40 °C to +75 °C (-40 °F to +167 °F)

22 N/mm | 125 lb/in

FOTP-41 | IEC 60794-1-2, Section 7

35 cycles

FOTP-24 | IEC 60794-1-2, Section 10

2.94 N-m | 2.17 ft lb

FOTP-25 | IEC 60794-1-2, Section 8

10 cycles

FOTP-85 | IEC 60794-1-2, Section 11

24 h

FOTP-82 | IEC 60794-1-2, Section 24

-2 °C | 28 °F

FOTP-98

-40 °C to +85 °C (-40 °F to +185 °F)

-30 °C to +60 °C (-22 °F to +140 °F)

FOTP-28 | IEC 60794-1-2, Section 28

-40 °C to +70 °C (-40 °F to +158 °F)

FOTP-3 | IEC 60794-1-2, Section 22

Fiber Optic Product Catalog

General Information

Outdoor Cable

Ribbon Central Tube

150

DS-BS-1 04/27/2016

Features

Compact Design

• Efficient packaging of fiber

• Lightweight and easy to handle during installation

Easily Removable Ribbon Matrix

• Allows for ease of stripping and fiber breakout

• Improves mid-span strippability

Precision Ribbon Geometry

• Time and labor savings during fiber splicing

Flexible Buffer Tube

• Superior kink resistance

• Increased flexibility

• Facilitates route management in closures

Dry Water-Blocking Technology

• Buffer tube and core are completely dry—no gel

• Permits rapid cable preparation and termination

• Water-blocking materials are easily removed

Corrugated Steel Armor

• Provides additional mechanical protection

• Special coating reduces time and effort to remove jacket

Performance

• Meets or exceeds the requirements of Telcordia

GR-20 & ICEA 640 and is tested in accordance with relevant EIA/TIA-455 series FOTPs for fiber cables

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Water Blocking Tape

Ribbon Stack

Water-Blocking Tape (In tube)

Dry Water-Blocked Buffer Tube

Ripcord

MDPE Outer Jacket

Specifications

Parameter

Dynamic Bend Radius

Static Bend Radius

Installation Load

Tensile Rating

Residual Load

Tensile Rating

Crush Resistance

Short Term

Crush Resistance

Long Term

Operating

Temperature Rating

Installation

Temperature Rating

Storage/Shipping

Temperature Rating

Fiber Count

Ribbon Count

Buffer Tube O.D.

Cable O.D.

Cable Weight

Value

20 x Cable OD

10 x Cable OD

2700 N (700 lbf)

800 N (180 lbf)

220 N/cm (125 lbf/in)

110 N/cm (63 lbf/in)

-40 to +70 °C

(-40 to +158 °F)

-30 to +60 °C

(-22 to +140 °F)

-40 to +75 °C

(-40 to +167 °F)

12-48

1-4

6.2 mm (0.24 in)

12.5 mm (0.50 in)

152 kg/km (102 lbs/kft)

Fiber Optic Product Catalog

General Information

Outdoor Cable

Flat Drop Cable

151

DS-BS-1 04/27/2016

Strength Member

Water-Blocking Material

MDPE Outer Jacket

Gel-Filled Buffer Tube (up to 12 Fibers)

Ripcord

Features

Easy Access Design

• Jacket can be easily opened with a knife and the included ripcords

• Buffer tube is easily separated from the jacket and strength members

All-Dielectric Messengers

• No bonding or grounding required

• Flexible and kink resistant

Dry Water-Blocking Technology

• Permits rapid cable preparation and termination

• Water-blocking materials are easily removed

Versatile Design

• Small cross-section and high strength allow good aerial performance

• Can be pushed or pulled through duct

• Highly crush-resistant

Dual Strength Member Design

• More flexible than a single, all-dielectric rod of the same strength

• Easier to handle and coil than other all-dielectric Figure-8 designs

• A great alternative where steel strength members are not permissible

Medium Density Polyethylene Jacket

• Low friction installation

• Excellent protection from environmental hazards

Sheath Markings

• Provides positive identification and length verification

Performance

• RDUP listed (tested in accordance with PE-90)

Specifications

Parameter

Dynamic Bend

Radius

Value

150 mm (5.9”)

Static Bend Radius 100 mm (3.9”)

Installation Load

Tensile Rating

1336 N (300 lbf)

122 mm (400”)

NESC Light Load

District Span Rating

NESC Medium Load

District Span Rating

76 mm (250”)

46 mm (150”)

NESC Heavy Load

District Span Rating

Operating

Temperature Rating

Installation

Temperature Rating

Storage/Shipping

Temperature Rating

-40 to +70 °C

(-40 to +158 °F)

-30 to +60 °C

(-22 to +140 °F)

-40 to +75 °C

(-40 to +167 °F)

Buffer Tube O.D.

Cable Thickness

Cable Width

Cable Weight

2.8 mm (0.11 in)

5.0 mm (0.20 in)

8.5 mm (0.33 in)

39 kg/km (26 lbs/kft)

Max. Cable Length

25,000 m (82,000 ft)

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

ECAM Product Support

ARIA offers a full line of wallmount enclosures designed to protect fiber optic connectivity in any environment.

These ARIA panels support ECAM (External Cable

Assembly Module) connectivity.

The ECAM connector features weatherproof connectivity and supports simple product installation and re-entry.

Features

• No special tools required

• Indoor and outdoor use

• Waterproof seal

• Easy and quick plug and play type installation

• Rugged design

Supported Sizes

ECAM shown installed on the ARIA NEMA 8X

Wallmount Enclosure using an ARIA ECAM

Receptacle

152

DS-BS-1 04/27/2016

12 mm ECAM Connector

Product Design

18 mm ECAM Connector

ECAM installed on an ARIA NEMA 8X Wallmount Enclosure A cover plate is installed when an ECAM is not used

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

Fiber Optic Product Catalog

General Information

ECAM Product Support

ECAM Cable Entry Port Enclosure Compatibility

153

DS-BS-1 04/27/2016

NEMA 8X Wallmount Enclosure AWM 12 Wallmount Enclosure (12 mm ECAM only)

AWM 18 Wallmount Enclosure OSEC 4 Wallmount Enclosure (12 mm ECAM only)

OSEC 8 Wallmount Enclosure

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

OSEC 12 Wallmount Enclosure

Fiber Optic Product Catalog

General Information

Connector Types

154

DS-BS-1 04/27/2016

SC - Singlemode, Simplex SC - Singlemode, Duplex SC - Singlemode, 900 um SC/APC - Singlemode, Simplex

SC/APC - Singlemode, Duplex SC/APC - Singlemode, 900 um SC - Multimode, Simplex SC - Multimode, Duplex

SC - Multimode, 900 um LC - Singlemode, Simplex LC - Singlemode, Duplex LC - Singlemode, 900 um

LC/APC - Singlemode, Simplex LC/APC - Singlemode, Duplex LC/APC - Singlemode, 900 um LC - Multimode, Simplex

LC - Multimode, Duplex

ST - Multimode

FC/APC - Singlemode FC/APC - Singlemode, 900 um

MTP-(M), Singlemode

LC - Multimode, 900 um

ST - Multimode, 900 um

MTP-(F), Singlemode

MTRJ-(M), Multimode

102 Wright Brothers Ave

Livermore, CA 94551 www.ariatech.com

Phone (925) 447-7500

Fax (925) 447-7511 [email protected]

ST - Singlemode

FC - Singlemode

FC - Multimode

MTP-(M), Multimode

MTRJ-(F), Multimode

ST - Singlemode, 900 um

FC - Singlemode, 900 um

FC - Multimode, 900 um

MTP-(F), Multimode

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
