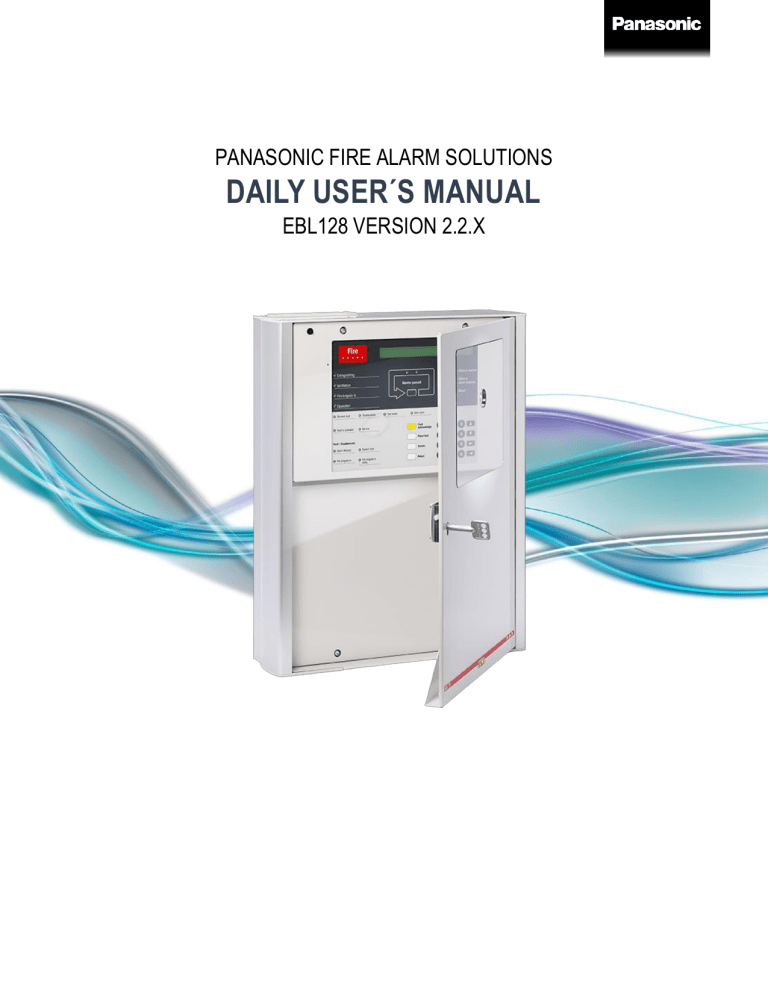

DAILY USER´S MANUAL
PANASONIC FIRE ALARM SOLUTIONS
DAILY USER´S MANUAL
EBL128 VERSION 2.2.X
DOCUMENT INFORMATION
DOCUMENT NAME:
DOCUMENT NUMBER:
DATE OF ISSUE:
REVISION
DATE OF REVISION:
DAILY USER´S MANUAL – EBL128 VERSION 2.2.X
MEW01786
2015-01-19
1
2015-03-30
TABLE OF CONTENTS
INTERLOCKING OUTPUTS AND INPUTS (H9) ....................................................... 16
1. INTRODUCTION
This document is intended to be used for the daily duties like disablements / re-enablements, zone tests, and so on in the EBL128 system.
Due to continual development and improvement different S/W versions can be found. This document is valid for EBL128 S/W version 2.2.x.
The document describes the main menus and the sub menus valid for access level "Building officer".
DAILY USER´S MANUAL
3
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
2. DESCRIPTION OF THE FRONT
YYYY-MM-DD *** EBL128 *** hh:mm [i]
User programmable information text.
DAILY USER´S MANUAL
4
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
2.1. LED INDICATORS
See reference picture on page 4.
1
Fire
2
Alarms queued
3
Extinguishing
4
Ventilation
5
Fire brigade tx
6
Operation
7
General fault
8
Disablements
9
Fault tx activated
10
Sevice
11
Alarm devices
12
Fire brigade tx
Fire alarms.
More than one alarm point / zone have activated fire alarm.
Output(s) for extinguishing equipment activated.
Output(s) for fire/smoke ventilation equipment activated.
Output "Fire alarm" for fire brigade tx (routing equipment) activated.
The c.i.e. is powered via the rectifier and/or the battery.
Fault(s) in the system.
Disablement(s) in the system.
Not acknowledged fault(s):
Output "Fault condition" for fault tx (routing equipment) is activated.
One or more sensors have reached the service level. See menu H4/U4.
Steady light: Output(s) type "Alarm device" are disabled.
Flashing light: Output(s) type "Alarm device" have generated fault(s).
Steady light: Output(s) for "Routing equipment" disabled via menu H2/B3 or
B9 or via open door.
Flashing light: Routing equipment power supply outputs or supervised outputs of type "Routing equipment" have generated fault(s) or the c.i.e. has lost contact with these outputs.
13
System fault
14
Fire brigade tx delay
15
Test mode
16
Door open
EBL128 is not running because of:
S/W fault
CPU fault
Memory fault
C.i.e. restart (fault code ≠ 00 / 03).
The Alert Annunciation function is enabled.
Zones are in "test mode".
The door is open in the EBL 128 or an external FBP in the system.
DAILY USER´S MANUAL
5
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
2.2. PUSH BUTTONS
See reference picture on page 4.
17
Fault acknowledge
18
Paper feed
19
Access
20
Return
21
C
22
Key pad
23
A
24
Left / right keys
25
Up / down keys
26
Alarms queued
27
Evacuate / Test LED
28
Reset
29
Silence Alarm devices
30
Silence buzzer
Used to acknowledge the faults shown in menu H6. Also used to acknowledge SERVICE signal, see menu H8/S4.
Not used in EBL128.
Used to log on and get access to the menu.
Used to stop input of data, leave a menu ("one step up") and to log off.
Used to clear /delete just written data.
Numeric key pad for the digits 0-9.
Used to accept / select a menu or input of data.
Used to move the cursor in a menu.
Used to scroll between the menus.
Used when LEDs "Alarms queued" are lit. Scroll through the queued alarm points or zone addresses.
Used to activate all the sounders or test LED. (Option, only available for some countries and conventions.)
Used to reset the fire alarms. Has to be pressed for > 0.5 sec.
Used to silence the alarm devices.
May be configured to disable alarm devices.
Used to silence the buzzer in the EBL 128 when it is sounding.
2.3. DISPLAY
See reference picture on page 4.
31
Display
This is the information the display will show in normal operation state.
The user programmable information text is created via EBLWin.
In normal operation and in quiescent state, the LCD-backlight will be turned off.
As soon as any other information is shown in the display, the backlight is turned on.
DAILY USER´S MANUAL
6
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
3. ACCESS LEVELS
INFORMATION ONLY
H4 Present system status
H6 Display faults
H9 Interlocking outputs and inputs
H10 Change password
BUILDING OFFICER
H1 Perform monthly test
H2 Disable or re-enable
H3 Set calendar and clock
H4 Present system status
H6 Fault acknowledge
H7 Perform zone test
H9 Interlocking outputs and inputs
H10 Change password
Described in this document
SERVICE PERSONNEL
H1 Perform monthly test
H2 Disable or re-enable
H3 Set calendar and clock
H4 Present system status
H5 Service
H6 FAULT Acknowledge
H7 Perform zone test
H8 Maintenance
H9 Interlocking outputs and inputs
H10 Change password
4. LOG ON TO THE CONTROL UNIT (C.I.E.)
USER NAME
Up to ten users, 0 to 9 may be programmed. By default at delivery, three users are available:
0 = Information only
1 = Building officer
2 = Service personnel
PASSWORD
Each user has a password for an access level, for example. "Information only", "Building officer" or "Service personnel".
4.1. HOW TO LOG ON
a) Open the door. Press the button “Access”. b) On the keypad, press 0, 1, 2 - - 8 or 9 to select a user. Press “A”. c) Type the password for that user. (Six digits. * * * * * *)
After typing a correct password, the first option of the available menus will be displayed. This is a list in which you can scroll.
For "0", Information only, no password is required.
DAILY USER´S MANUAL
7
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
5. NAVIGATION / GENERAL PROCEDURES
Scroll in lists or menus with .
Press to toggle between different choices.
The letter 'L' in the lower right corner indicates that this is list in which you can scroll with .
Press “A” to select / accept.
Press the digits on the numeric pad to choose a menu or enter data.
If an operation is completed successfully, the display will normally show a message, for example
"Output xx disabled".
If an operation has failed, the information will be "Operation failed".
To leave a menu and step upward in the menu system, press “Return”.
To logout, close the door.
DAILY USER´S MANUAL
8
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
6. PERFORM MONTHLY TEST (H1)
a) Log on to the c.i.e. b) Press “A”. c) Check that all LEDs light up. d) Press “A”. The c.i.e. buzzer sounds, all the dots in the display are shown and all LEDs on the front are turned on. e) Press “A”. Up to four zones can be set in test mode. Use the keypad to type the zone numbers. f) Press “A”. g) Perform the test. h) To end the test, press “A”.
If the routing equipment shall not be tested, the monthly test is completed. Press “A”.
If the routing equipment shall be tested, press “1”. To start the test press "A".
Started test is indicated by LED "Fault tx activated" and after 30 seconds also LED "Fire brigade tx".
After 60 seconds in total, the routing equipment test is ended and the LEDs are turned off. Press "A".
DAILY USER´S MANUAL
9
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
7. DISABLE OR RE-ENABLE (H2)
a) Log on to the c.i.e. b) Navigate to menu H2. c) Press "A". The sub menu consists of a list (B1 - B11) in which you can scroll. B1 is displayed. d) Select a sub menu and press “A”.
7.1. SUB MENU LIST (B1 – B11)
B1 Disable zone
Use the keypad to type the zone number (01-99). Press "A".
If "Automatically re-enablement" shall be used. Press “1”, insert time
(hh:mm). Press “A”.
B2 Disable zone-address
Use the keypad to type the zone number (01-99) and address (01-
99). Press "A".
If "Automatically re-enablement" shall be used. Press “1”, insert time
(hh:mm). Press “A”.
B3 Disable output
B5 Re-enable zone
Use the keypad to select type of output:
- 0 = Loop unit output.
- 1 = C.i.e. output S0 or S1.
- 2 = C.i.e. output R0.
- 3 = C.i.e. expansion board output.
Press "A".
Depending on the selected type, use the keypad to type additional data:
- 0: Output number (0-2) and COM loop (technical) address.
- 1: Output (S) number 0-1.
- 2: Output (R) number 0.
- 3: Output number (0-7) and expansion board number (0-3).
Press "A".
Use the keypad to select type of output:
- 0=Outputs type Control (not control neutral).
- 1=Outputs type Ventilation.
- 2=Outputs type Extinguishing.
- 3=Output type Interlocking.
Press "A".
Select a zone.
To re-enable the selected zone press "A".
Continued
DAILY USER´S MANUAL
10
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
Continued
B6 Re-enable zone-address
B7 Re-enable output
B8
B9
Re-enable all control, ventilation, exting or interlocking outputs
Disable / re-enable alarm devices
B10
Disable / re-enable outputs for routing equipment
Select an alarm point (zone-address).
To re-enable the selected alarm point press "A".
Only disabled types will be shown.Use the keypad to select type of output:
- 0 = Loop unit output.
- 1 = C.i.e. output S0 or S1.
- 2 = C.i.e. output R0.
- 3 = C.i.e. expansion board output.
Press "A".
Select the output to re-enable. Press "A".
Only disabled types will be shown.Use the keypad to select type of output:
- 0 = Outputs type Control.
- 1 = Outputs type Ventilation.
- 2 = Outputs type Extinguishing.
- 3 = Output type Interlocking.
Press "A".
Select “Alarm devices in normal condition” or “Alarm devices disabled”.
Press "A". The status is changed.
The actual status for the output FIRE and FAULT respectively will be shown. Use the keypad to select:
- 1 = enabled or
- 0 = disabled for the output respectively.
Step right / left with the arrow keys.
Press "A". The status is changed.
“Alert annunciation function is in normal operation” or “Alert annunciation function turned off” will be shown.
Press "A". The status is changed.
The AA function will stay disabled until re-enabled again via this menu.
NOTE! Disabled Alert Annunciation function is indicated by LED
"Fault / Disablements Fire brigade tx delay" turned off.
DAILY USER´S MANUAL
11
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
8. SET CALENDER AND CLOCK (H3)
a) Log on to the c.i.e. b) Navigate to menu H3. c) Press "A". Depending on if it is the date, time and/or the day that shall be set, press and to highlight it. d) Use the keypad to enter new values. Press "A".
NOTE! To exit the menu without making any changes, press “Return”.
DAILY USER´S MANUAL
12
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
9. PRESENT SYSTEM STATUS (H4)
Information only. a) Log on to the c.i.e. b) Navigate to menu H4. c) Press "A". The sub menu consists of a list (U1 - U8) in which you can scroll. U1 is displayed. d) Select a sub menu and press “A”.
9.1. SUB MENU LIST (U1 – U8)
U1 Disablement
Disablements, except "disablements by time channel", are displayed.
Indicated by LED "Disablements".
U2 Disablement by time channel
U3 Sensor values
U4
Sensors activating service signal
U5 Technical warning
U6 Event log
U7 Version and alarm counter
Only "disablements by time channel", are displayed.
Indicated by LED "Disablements", also the LEDs "Fault /
Disablements Alarm devices" and/or "Fire brigade tx".
Use the keypad to specify the "Start sensor".
The default zone-address 00-00 can be used.
Press "A". This is a list in which you can scroll.
NOTE! For most detectors additional information can be shown by using .
Indicated by LED "Service".
NOTE! Service signal is acknowledged via menu H8/S2, which require log on with a password for access level "Service personnel".
If one or more technical warnings are activated in the system, the technical warning symbol [i] is shown.
Use the keypad to select event log:
- 0 = Alarm.
- 1 = Interlocking.
- 2 = General.
Press "A". This is a list in which you can scroll.
- Version: The EBL128 software / firmware version.
- Alarm counter The alarm counter is increased with "1" every time the c.i.e. enters the real "fire alarm condition".
DAILY USER´S MANUAL
13
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
10. FAULT ACKNOWLEDGE (H6)
LED "Fault tx activated" on the front is indicating that the output for Fault condition routing equipment is activated. The LED will be turned off when all faults are acknowledged.
LED "General fault" on the front is indicating that not all faults are acknowledged and corrected.
No status info. = not corrected / serviced and not acknowledged fault.
Acknowledged = not corrected / serviced but acknowledged fault.
Serviced = corrected / serviced but not acknowledged fault. a) Log on to the c.i.e. b) Navigate to menu H6. c) Press "A". A list will be displayed, in which you can scroll. The most recent fault is on top of the list. d) Scroll with and or press for more information. e) To acknowledge the fault shown in the display, press the button "Fault acknowledge".
NOTE! A fault that is both serviced and acknowledged will disappear from the list.
DAILY USER´S MANUAL
14
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
11. PERFORM ZONE TEST (H7)
Up to 99 zones can be set in test mode, which is indicated by the LED "Test mode" on the front. After one hour without any testing activity, the test mode will be automatically ended. Valid for each zone respectively.
No outputs will be activated except the fire door outputs. The test mode alarm will be automatically reset after approximately 10 seconds. a) Log on to the c.i.e. b) Navigate to menu H7. c) Press "A". The sub menu "Set zone in test mode D1" opens. d) Press "A". Use the keypad to type a zone number (01-99). e) Press "A". The zone is now in test mode. f) If more zones shall be set in test mode, repeat procedure c) to e). g) Perform the testing. To end the test mode for one zone press .
END TEST MODE
a) Open the sub menu D1 as described above. b) Press to open the sub menu "End zone in test mode D2". c) Press "A". d) L = this is a list in which you can scroll. Select the zone for which the test mode shall be ended. e) Press "A". f) The next zone in the list will be shown. End the test mode like above.
DAILY USER´S MANUAL
15
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
12. INTERLOCKING OUTPUTS AND INPUTS (H9)
a) Log on to the c.i.e. b) Navigate to menu H9. c) Press "A". The sub menu consists of a list (C1 - C5) in which you can scroll. C1 is displayed. d) Select a sub menu and press “A”.
12.1. SUB MENU LIST (C1 – C5)
This is a list in which you can scroll. Read only.
C2 Activate interlocking output
C3 Reset interlocking output
C4 Disable interlocking output
C5 Re-enable interlocking output
Use the keypad to specify Area – Point (AA and PP) for the interlocking output to be activated.
Press "A". The status is changed.
This is a list in which you can scroll. Select the Area – Point for the interlocking output to be reset.
Press "A" The status is changed.
NOTE! For the following the output must be reset via this menu:
- Interlocking output activated via its control expression and with latching output selected in EBLWin.
- Interlocking output activated via menu C2.
Press "A". Use the keypad to specify Area – Point (AA and PP) for the interlocking output to be disabled.
Press "A". The status is changed.
This is a list in which you can scroll. Select the Area – Point for the interlocking output to be re-enabled.
Press "A". The status is changed.
13. CHANGE PASSWORD (H10)
You can only change the password for the user that is currently logged on to the control unit. a) Log on to the c.i.e. b) Navigate to menu H10. c) Press "A". The user that is currently logged on to the control unit is shown. d) Use the keypad to type the old password. e) Type the new Password. (Six digits. * * * * * *) f) Verify the new password.
DAILY USER´S MANUAL
16
•
EBL128 VERSION 2.2.X
•
DOCUMENT NUMBER: MEW01786
•
REVISION: 1
Panasonic Eco Solutions Nordic AB
Jungmansgatan 12
SE-211 19 Malmö
Sweden
Tel: +46 (0)40 697 70 00
Fax: +46 (0)40 697 70 99
E-mail: [email protected]
Internet: http://pesn.panasonic.se
This product has been successfully tested to the highest standards, ensuring high quality and reliable fire alarm solutions.
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
