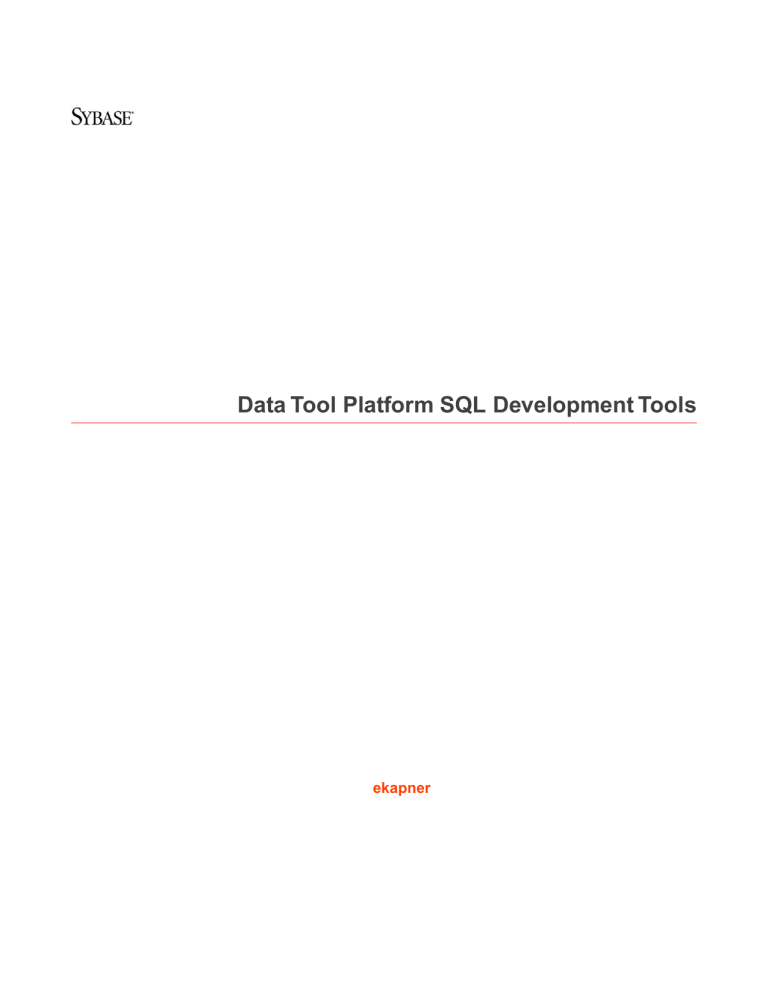

Data Tool Platform SQL Development Tools

Data Tool Platform SQL Development Tools

Data Tool Platform SQL Development Tools

ekapner

Contents

Setting SQL Development Preferences................................................................5

Execution Plan View Options Preferences...............................................................................5

General Preferences................................................................................................................5

Label Decorations Preferences................................................................................................6

SQL Editor Preferences...........................................................................................................6

Code Assist Preferences...............................................................................................7

SQL Files/Scrapbooks Preferences...............................................................................7

Syntax Coloring Preferences.........................................................................................7

Templates Preferences..................................................................................................8

SQL Query Builder Preferences...............................................................................................8

SQL Results View Options Preferences...................................................................................9

Export Format Options Preferences..............................................................................9

History Options Preferences........................................................................................10

Result Set Viewer Preferences....................................................................................10

SQL Query Builder...............................................................................................12

Creating a SELECT Statement..............................................................................................12

Creating a FULLSELECT (UNION) Statement............................................................13

Creating a WITH Statement.........................................................................................14

Creating Joins..............................................................................................................15

Creating an INSERT Statement From a Values Set...............................................................16

Creating an INSERT Statement From a Subquery.................................................................16

Creating an UPDATE Statement............................................................................................17

Creating a DELETE Statement..............................................................................................18

Building Expressions..............................................................................................................19

Expression Types.........................................................................................................19

Editing a SQL Statement........................................................................................................20

Running the SQL Statement Code.........................................................................................21

Creating a SQL File...............................................................................................22

SQL File Editor.......................................................................................................................22

SQL Scrapbook......................................................................................................................22

Editing a SQL File..................................................................................................................23

Opening a SQL File................................................................................................................23

Saving a SQL File..................................................................................................................23

Executing a SQL Statement.................................................................................24

Running an Ad Hoc SQL Statement....................................................................25

Executing a SQL File............................................................................................26

Running a Routine Object....................................................................................27

Creating a Launch Configuration for Routine Objects............................................................27

Routine Objects......................................................................................................................28

Viewing SQL Results............................................................................................30

Data Tool Platform SQL Development Tools iii

Contents

SQL Results View...................................................................................................................30

Terminating Execution in SQL Results View .........................................................................31

Exporting SQL Execution Results..........................................................................................32

Saving Execution Results to a Project....................................................................................32

Removing Results from SQL Results View............................................................................33

Saving SQL Results History...................................................................................................33

Filtering SQL Results History.................................................................................................33

iv

Setting SQL Development Preferences

Setting SQL Development Preferences

Set SQL Development preferences for label decorations, execution plans, SQL Editor, SQL Query Builder, and SQL Results view.

1. Select Window > Preferences from the main menu bar.

2. In the left pane, under Data Management, expand SQL Development.

Execution Plan View Options Preferences

Set execution plan view options to specify defaults for viewing query plans.

Table 1. Execution plan view options

Property

SQL Execution Plan View Orientation

Description

Select Vertical Orientation to display the plan from top to bottom.

Select Horizontal Orientation (default) to display the plan from left to right.

Export Encoding

Specify the output encoding. The default is Cp1252.

Cp1252

ISO-8859-1

US-ASCII

UTF-16

UTF-16BE

UTF-16LE

UTF-8

General Preferences

The general user preferences concern executing and debugging procedural objects.

Property

Show Affordance in Hover on How to

Make it Sticky

SQL Error Execution Action

Table 2. General preferences

Description

Displays the

Press F2 for focus message in hover help (ToolTips). If you make a hover message sticky, the message text opens in a scrollable window from which you can select and copy content.

Select the action to be taken on an error during SQL execution.

• Always — always continues execution when an error occurs.

• Never — always stops execution when an error occurs.

• Prompt — interrupts execution on each error, displaying a dialog to resume execution (default).

Data Tool Platform SQL Development Tools 5

Setting SQL Development Preferences

Label Decorations Preferences

Set label decorations preferences to set the display format of objects appearing in the Database Development perspective.

Property

Column format

Example

Table 3. Label decorations: Text tab

Description

Specify the display format for table columns. Select Add Variables to add a variable to the format.

Displays an example of the selected format.

SQL Editor Preferences

SQL Editor preferences define the behavior of the SQL File Editor.

Field

Enable Syntax Validation

Table 4. SQL Editor preferences: General

Description

Automatically update SQL statement structure in outline view and perform syntax validation while editing (default).

Disabling validation also disables portability checking and the Outline view.

Portability Check Target Database type used as the standard target for portability checks. You must enable syntax validation to select a portability target.

Each line that is not portable to the target is annotated with a check .

You can display additional information for the target (including error messages) by moving your cursor over the marker, if you enable show detailed annotation information.

Maximum Number of Lines

Prompt to Disable Syntax Validation

When Content Exceeds Maximum

Number of Lines

Show Detailed Annotation Information

Disable syntax validation when content exceeds this number of lines. Use this option to adjust editor performance. The default is 1000.

Select to prompt before disabling validation (default).

Display additional annotation information, including lists of expected commands for the encountered syntax, if you enabled syntax validation.

Field

Close Single Quotes

Close Double Quotes

Close Parentheses

Close Comments

Table 5. SQL Editor preferences: Typing

Description and default values

Automatically close single quotes ( ').

Automatically close double quotes ( ").

Automatically close curly braces { }.

Automatically close comments ( /* */).

6

Field

Begin-End

Setting SQL Development Preferences

Description and default values

Automatically add the END statement (for Transact-SQL).

Code Assist Preferences

SQL Editor Code Assist preferences define the behavior of the Code Assist feature in SQL File Editor.

Field

Insert Single Proposals Automatically

Table 6. Code Assist preferences

Explanation

Insert single proposals (default).

Show System Tables

Show System Views

Show System Procedures and Functions

Show Owner of Table or View

Enable Auto Activation

Auto Activation Delay

Display system tables when applicable.

Display system views when applicable.

Display system procedures and functions when applicable.

Display the owner.

Invoke Code Assist automatically (default).

Specify the time in milliseconds that must elapse after you type a character before Code Assist is automatically invoked. Default is 500.

When you enter a character and pause before entering another character, Code Assist automatically displays a menu of keywords you can select to complete the SQL statement.

Auto Activation Triggers for SQL Enter characters that automatically activate Code Assist.

Enter characters in any order with no separator character.

When you type these characters, the Code Assist menu displays after the auto activation delay unless you enter another character.

SQL Files/Scrapbooks Preferences

SQL files and scrapbooks preferences define the behavior of SQL files in SQL File Editor and SQL Scrapbook.

Table 7. SQL Files/Scrapbooks preferences

Field

Default Connection Information for New SQL

Files/Scrapbooks

Description

Select a connection type, connection profile name, and database to use by default in new SQL File Editor or SQL

Scrapbook sessions.

Persist the Target Connection Information When Executing

Multiple SQL Files

Use the same target connection information for multiple files.

Syntax Coloring Preferences

Indicate your preferences for syntax coloring for SQL source code in SQL File Editor or SQL Scrapbook.

Data Tool Platform SQL Development Tools 7

Setting SQL Development Preferences

Field

Syntax Items

Preview

Table 8. Syntax Coloring preferences

Description

Select a syntax item and then click the color box and/or select a style check box to determine how that item type is rendered in the editor.

Displays an example of the syntax coloring choices.

Templates Preferences

You can create new SQL templates and edit existing ones.

Templates make code generation more convenient by allowing you to insert frequently recurring source code patterns into your projects in SQL Editor.

Field

Create, Edit, or Remove Templates

Table 9. SQL Editor template preferences

Description

Preview

Displays the existing templates in your workspace. Displayed information includes the name, context, description, and status of the auto-insert attribute.

Displays the first few lines of the SQL template.

New

Edit

Remove

Restore Removed

Revert to Default

Import

Export

Create a new template. New templates are added to the list.

Edit the selected template.

Deletes all selected templates.

Restores removed default templates.

Reverts the selected template to its default state.

Imports templates into your workspace from the file system.

Exports all selected templates to a specified location in the file system.

SQL Query Builder Preferences

Indicate the SQL Query Builder preferences.

Table 10. SQL Query Builder preferences

Field

Omit Current Schema in Generated SQL Statement

Description

Current Schema

Select to indicate that the table references qualified by the current schema become unqualified in the SQL code.

If you omit the current schema, select its replacement:

• Authorization ID — uses the user name from the connection profile. The table references are qualified using the current schema name.

• Schema Name — enter the schema to use as the current schema.

8

Setting SQL Development Preferences

SQL Results View Options Preferences

The SQL Results view preferences determine the behavior of the SQL Results view.

Field

Display Window

Table 11. SQL Results view options

Explanation

Select a window display style:

Single Window — display execution results in a single window, with status details at the end. For a single statement with multiple results, display result sets one after another in the same window.

Multiple Windows — display execution status and each result for the current statement in a separate window.

Display Mode

Show Column Headings

Show Row Number

Show Row Count Message

Select a results display mode:

Text Mode — similar to iSQL output when in single-tab mode.

Grid Mode — similar to the Interactive SQL window.

Show column headings in the results view.

Show row numbers in results view.

• In text mode, this property is always enabled.

• In grid mode, this property is selected by default.

Show number of rows affected.

• In text mode, this property is always enabled. Row count appears at the end of the results.

• In grid mode, this property is selected by default. Row count appears in the Status window.

Max Row Count

Max Display Row Count

Enter the number of rows to retrieve from the result set. The default is 0 (retrieve all rows).

Set a maximum to improve performance when testing queries and to avoid running out of memory when retrieving data from very large tables, for example, tables with a hundred million rows.

Enter number of rows to display in the results view.

To see all results, set Maximum Rows to Retrieve to 0, and then save to a file.

Display Null Value As

Split All Messages Into Multiple

Message Tabs

Limit Tabs Number to

Enter characters to display when the value is NULL. Default is NULL.

Split messages among more than one tab.

Limit Visible Tables Number to

If you selected Multiple windows for the Display Window preference, enter a maximum number of tabs.

If you selected Single window for the Display Window preference, enter a maximum number of visible tables.

Export Format Options Preferences

Set export format options for the XML format, column delimiters, and encoding.

Data Tool Platform SQL Development Tools 9

Setting SQL Development Preferences

Field

Table 12. Export Format Options preferences: General

Add XML Header Automatically

Description

Insert the XML header string automatically at the beginning of each XML file.

XML Header

Add XML Root Tag Automatically

Root Tag

Enter the header string to be inserted at the beginning of the XML file, for example,

<?xml version="1.0" encoding="UTF-8"?>

.

Include the contents of the SQL result enclosed in a root tag you specify in the

Root Tag field.

Enter the XML root tag to wrap the SQL results with, for example, resultsets

.

Do not include angle brackets.

Field

Output Format

Table 13. Export Format Options preferences: Default column delimiter

Description

Column Aligned — use the same-width font to display the result, and align each column, fill spaces between columns (default)

Comma Separated — use comma to separate columns

Tab Delimited — use tab to separate columns

User-defined — use user-defined string to separate columns

Delimeter Displays the delimiter for the output format.

Table 14. Export Format Options preferences: Default output encoding

Property

Default Output Encoding

Description

ISO-8859-1 — ISO 8859-1 Latin 1.

US-ASCII — US ASCII, with 8-bit data, ISO 646.

UTF-16 — Unicode UTF-16.

UTF-16BE — Unicode UTF-16, big endian.

UTF-16LE — Unicode UTF-16, little endian.

UTF-8 (default) — Unicode UTF-8.

History Options Preferences

Set history option preferences for the display of history in the SQL Results view.

Property

Columns to Display

Automatically Persist Result History

Table 15. History options preferences

Description

Select the columns that comprise the history displayed in the SQL Results view: Status, Operation, Frequency, Date, Action Type, Consumer Name, and Connection Profile.

Save the results history during shutdown; load the results history in the SQL

Results view during startup.

Result Set Viewer Preferences

Select the viewer to display SQL results.

10

Field

Select Viewer

Setting SQL Development Preferences

Table 16. Result Set Viewer preferences

Description

Select viewer from dropdown list.

Data Tool Platform SQL Development Tools 11

SQL Query Builder

SQL Query Builder

Create, edit, or run SQL statements using the SQL Query Builder graphical interface, which provides access to your database schema and objects so that you can quickly create or edit SQL statements without actually typing any SQL code. However, you also have the flexibility to add or modify the SQL code in the editor window.

The options in the SQL Query Builder change depending on the statement type you are building. By default, the statement type is SELECT.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

12

Creating a SELECT Statement

Use SQL Query Builder to create a SELECT statement to retrieve data from a database and display the results set in table format.

Prerequisites

Connect to the data source through a connection profile.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. Add one or more tables to the statement.

a) Right-click in the Tables pane and select Add Table.

b) (Optional) Indicate a Table alias.

You might want to use a table alias to make the table name more readable or shorten it for display/output.

4. (Optional) If you added two or more tables, you can create a join.

5. (Optional) Select DISTINCT if you want only one instance each of duplicated rows returned in the final result set.

6. Specify the columns to use in the statement.

Option

Specify all columns

Specify specific columns

Description

Right-click the table in the Tables pane, and select Select All Columns.

Use either method:

• In the Tables pane, select the check box next to the column name.

• In the Columns tab, select the specific column from the drop-down menu.

7. (Optional) Define other column attributes.

a) Specify a column alias.

You might want to use a column alias to make the column name more readable or shorten it for display/output.

b) Deselect Output if you do not want the column values to display in the results set but want to use it for some other purpose.

SQL Query Builder

For example, you might want to order the output by customer number but you do not want the customer number to display.

c) Change the Sort Type for each column.

By default, columns are sorted in ascending order.

d) Change the Sort Order.

By default, columns are sorted in the order they appear in the Columns table.

8. (Optional) In the Conditions tab, indicate the conditions for the statement.

The conditions enable you to better define which columns appear in the results set. For example, you might only want to list store locations with sales greater than $10,000.

a) Select a Column.

Alternately, select define a condition using the Expression Builder wizard.

b) Select an Operator.

c) Enter a specific Value, select a column from the drop-down list, or build an expression.

d) (Optional) Select AND or OR to specify another condition.

9. (Optional) In the Group tab, indicate on which column you want to group results.

For example, you might want to group the sum of all sales from each store.

10. (Optional) To limit the output based on the specified GROUP clause, add a Group Condition.

a) Select a Column.

Alternately, select define a condition using the Expression Builder wizard.

b) Select an Operator.

c) Enter a specific Value, select a column from the drop-down list, or build an expression.

d) (Optional) Select AND or OR to specify another condition.

11. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

12. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Creating a FULLSELECT (UNION) Statement

Use SQL Query Builder to create a FULLSELECT UNION statement, which combines the results set for two tables.

Prerequisites

Connect to the data source through a connection profile.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. Righ-click SELECT Statement, and select Convert to FULLSELECT (UNION).

4. Add one or more tables to the statement.

a) Right-click in the Tables pane and select Add Table.

Data Tool Platform SQL Development Tools 13

SQL Query Builder b) (Optional) Indicate a Table alias.

You might want to use a table alias to make the table name more readable or shorten it for display/output.

5. Define the SELECT statements.

a) In Outline view, expand the SELECT Statement and Union trees.

b) Click the first SELECT, and then create the SELECT statement.

c) Click the second SELECT, and then create the SELECT statement.

All selected columns need to be of the same data type.

You can nest a FULLSELECT UNION statement under a SELECT statement.

6. (Optional) Click SELECT Statement to define any other SELECT Statement options, such as operator or sort type.

UNION only selects distinct values while UNION ALL selects all values.

a) Next to the statement type, select UNION ALL to change the Operator from the default UNION.

b) Change the sort type or sort order.

7. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

8. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Creating a WITH Statement

Use SQL Query Builder to create a WITH statement that you can reference from a SELECT statement. A

WITH statement comprises one or more common table expressions and a SELECT statement. A common table expression defines a named result table that you can specify as a table in the FROM clause of a subsequent SELECT statement.

Prerequisites

1. Connect to the data source through a connection profile.

2. Open a new or existing SQL file, and be sure to select the connection profile Type, Name, and Database.

3. In SQL Query Builder, create a SELECT statement.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. In the Outline pane, right-click SELECT Statement and select Add Common Table Expression (WITH).

SQL Query Builder adds the WITH statement code in the SQL Source pane and to the tree in the Outline pane.

2. In the Outline view, expand the WITH statement tree, click SELECT node contained inside the WITH node, and define its SELECT statement.

SQL Query Builder creates a temporary table on which the main SELECT statement is based.

3. Add a table.

a) (Optional) Select the WITH node and enter a name for the temporary Table.

b) Select columns from the table.

c) (Optional) Select the WITH node and enter names for each Column in the temporary table.

4. In the Outline view, click the SELECT statement at the bottom of the outline tree.

14

SQL Query Builder

The SELECT statement is based on the temporary table just defined.

5. Add the temporary WITH table and/or any other tables and select columns from the tables.

The WITH table is now listed as a choice in the Add Table dialog.

6. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

7. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Creating Joins

Create a join in a SELECT statement to retrieve data from two or more tables based on matching column values.

Prerequisites

1. Connect to the data source through a connection profile.

2. Open a new or existing SQL file, and be sure to select the connection profile Type, Name, and Database.

3. In SQL Query Builder, create a SELECT statement.

A join enables you to select data from two or more tables into a single results set without repeating unnecessary data. You can create different kinds of joins depending on what data from each table you want in the results set.

Join operator

Inner join

Left outer join

Right outer join

Full outer join

Table 17. Join operators

Description

Returns data from all tables based on a common condition.

Returns all the values from the left table plus matched values from the right table, and fills in NULLs for any missing values from the right table.

Returns all the values from the right table and matched values from the left table, and fills in NULLs for any missing values from the left table.

Combines the results of both left and right outer joins. The joined table contains all records from both tables, and fills in NULLs for missing matches on either side.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. In the Tables pane, add two or more tables

2. Drag the pointer from a column in one table to a column in another table.

By default, SQL Query Builder creates an inner join. You can also create a join by right-clicking anywhere in the Tables pane and selecting Create Join.

3. (Optional) To change the join type from the default inner join, right-click on the connector line and select

Specify Join Type.

All joins defined between the two tables change to the selected join type.

Data Tool Platform SQL Development Tools 15

SQL Query Builder

4. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

5. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Creating an INSERT Statement From a Values Set

Use SQL Query Builder to create an INSERT statement to insert new rows at the end of a table with the values you indicate for the specified columns.

Prerequisites

Connect to the data source through a connection profile.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. In the Outline pane, right-click SELECT Statement and select Change Statement Type.

4. Select INSERT and click OK.

5. Select the table by right-clicking in the Tables pane and selecting Add Table.

6. Specify the columns to use in the statement.

Option

Specify all columns

Specify specific columns

Description

Right-click the table in the Tables pane, and select Select All Columns.

Use either method:

• In the Tables pane, select the check box next to the column name.

• In the Columns tab, select the specific column from the drop-down menu.

7. Enter the values for the selected columns.

a) In the Values pane, click the Values box next to the column name.

b) Enter a value, select NULL, or build an expression.

8. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

9. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

16

Creating an INSERT Statement From a Subquery

Use SQL Query Builder to create an INSERT statement from a subquery.

SQL Query Builder

Prerequisites

Connect to the data source through a connection profile.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. In the Outline pane, right-click SELECT Statement and select Change Statement Type.

4. Select INSERT and click OK.

5. Select the table by right-clicking in the Tables pane and selecting Add Table.

6. Specify the columns to use in the statement.

Option

Specify all columns

Specify specific columns

Description

Right-click the table in the Tables pane, and select Select All Columns.

Use either method:

• In the Tables pane, select the check box next to the column name.

• In the Columns tab, select the specific column from the drop-down menu.

7. Select Subquery.

8. From the Query name list, select Add SELECT Statement or Add FULLSELECT Statement.

9. Complete the SELECT or FULLSELECT statement.

You can nest a FULLSELECT statement under a SELECT statement.

10. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

11. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Creating an UPDATE Statement

Use SQL Query Builder to create an UPDATE statement to update data in a table. You can explicitly set the values or derive them from the results of a build expression.

Prerequisites

Connect to the data source through a connection profile.

By specifying one or more conditions, you can indicate which rows in the database table to update. If you do not specify any conditions, all rows of the target table are updated.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. In the Outline pane, right-click SELECT Statement and select Change Statement Type.

4. Select UPDATE and click OK.

5. Select the table by right-clicking in the Tables pane and selecting Add Table.

Data Tool Platform SQL Development Tools 17

SQL Query Builder

6. Specify the columns to use in the statement.

Option

Specify all columns

Specify specific columns

Description

Right-click the table in the Tables pane, and select Select All Columns.

Use either method:

• In the Tables pane, select the check box next to the column name.

• In the Columns tab, select the specific column from the drop-down menu.

7. In the Set tab, indicate the columns to update and the update value.

a)

Select an individual column by clicking a column and then

Add individual column to statement

to select it for update, or select multiple columns by highlighting two or more columns and clicking

Add columns to statement as a group.

b) In the Expression box, enter an expression or value.

Enter a value directly in the box or select Specify Value to enter one. Select Edit Expression or

Replace Expression to build an expression using Expression Builder. Leave as DEFAULT if you do not wish to change the value during update.

8. (Optional) In the Where tab, indicate a condition that targets specific rows for update.

a) Select a Column.

Alternately, select define a condition using the Expression Builder wizard.

b) Select an Operator.

c) Enter a specific Value, select a column from the drop-down list, or build an expression.

d) (Optional) Select AND or OR to specify another condition.

9. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

10. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

18

Creating a DELETE Statement

Use SQL Query Builder to create a DELETE statement to remove data from a specified table. By specifying one or more conditions, you can indicate which rows in the database table to delete. If you do not specify any conditions, all rows in the target table are deleted.

Prerequisites

Connect to the data source through a connection profile.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. Open a new or an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. In an appropriate place in the editor window, right-click and select Edit in SQL Query Builder.

3. In the Outline pane, right-click SELECT Statement and select Change Statement Type.

SQL Query Builder

4. Select DELETE and click OK.

5. Select the table by right-clicking in the Tables pane and selecting Add Table.

6. (Optional) Indicate one or more conditions that target specific rows for deletion.

a) Select a Column.

Alternately, select define a condition using the Expression Builder wizard.

b) Select an Operator.

c) Enter a specific Value, select a column from the drop-down list, or build an expression.

d) (Optional) Select AND or OR to specify another condition.

7. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

8. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Building Expressions

Use the Expression Builder in SQL Query Builder to build simple or complex expressions, or subqueries when creating SELECT, UPDATE, INSERT, and DELETE statements.

Prerequisites

1. Connect to the data source through a connection profile.

2. Open a new or existing SQL file, and be sure to select the connection profile Type, Name, and Database.

3. Edit an existing SQL statement or create a new one in SQL Query Builder.

Note: Some syntactic variations might exist between your database and the SQL syntax that SQL Query

Builder supports; consequently, some SQL Query Builder features might not work with your database.

1. In the Column cell in which you want to create the expression, select Build Expression, and then click outside the cell to launch the Expression Builder wizard.

2. Select the expression type and click Next.

3. Enter appropriate information in the wizard pages.

4. Once you enter all applicable information, click Finish.

Expression Types

In SQL Query Builder, you can use build expressions of these types when creating SQL statements.

Data Tool Platform SQL Development Tools 19

SQL Query Builder

Type

Function

CASE

CAST

Constant

Subquery

Build up expressions by operators

Table 18. Expression types

Description

A function returns a value. Functions types include column functions, scalar functions, row functions, or table functions.

• The argument of a column function is a collection of like values (a column). This function can return a NULL value.

• The argument(s) of a scalar function are individual scalar values, which can be of different types. This function can return a NULL value.

• The argument of a row function is a structured type.

The function returns a row of built-in data types and can only be specified as a transform function for a structured type.

• The argument(s) of a table function are individual scalar values, which can be of different types. The function returns a table, and can be specified only within the

FROM clause of a SELECT statement.

CASE expressions allow an expression to be selected based on the evaluation of one or more conditions. A CASE expression contains one or more when

clauses of either

Search or Simple type.

• A Search CASE expression contains a condition that is evaluated, such as i<8.

A Simple CASE expression determines if the when clause evaluates to true; otherwise, the else

clause determines the value of the case-expression.

A CAST function converts instances of a datatype to instances of a different datatype.

A constant specifies a value: a string or a number.

• Numeric constants can be an integer, floating-point, or decimal.

• A string constant can be a character string, hexadecimal, or a host variable name. A colon precedes the host variable name, for example,

:var

. The host variable becomes a value when the statement is executed.

A subquery is a SELECT, WITH, or FULLSELECT statement nested within another SQL statement. The expression value is the result of the subquery.

You can build an expression by applying operators to columns or expressions such as x+y where x

is a column and y

is an expression.

Editing a SQL Statement

Use SQL Query Builder to edit an individual SQL statement. You can only edit one SQL statement at a time.

20

SQL Query Builder

Prerequisites

Connect to the data source through a connection profile.

1. Open an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. Highlight the entire single SQL statement, right-click and select Edit in SQL Query Builder.

3. Edit the SQL statement as required.

4. (Optional) To run the SQL code, in the SQL Source pane, right-click and select Run SQL.

View the results in the SQL Results tab.

5. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Running the SQL Statement Code

Use SQL Query Builder to run an individual SQL statement and view its execution results.

Prerequisites

Connect to the data source through a connection profile.

1. Open an existing SQL file, and be sure to select the connection profile Type, Name, and Database.

2. Highlight the entire single SQL statement, right-click and select Edit in SQL Query Builder.

3. In the SQL Source pane, right-click and select Run SQL.

4. (Optional) View the results in the SQL Results tab.

5. Click OK to exit SQL Query Builder and to return to the SQL File Editor, where the SQL code displays in the editor window.

Clicking Cancel results in no changes to the SQL code in the SQL File Editor. You lose any changes you made in SQL Query Builder.

Data Tool Platform SQL Development Tools 21

Creating a SQL File

Creating a SQL File

Use Database Development tools to create SQL files.

You can use an existing project to store the SQL file or create a project when you create the SQL file.

1. In the Database Development perspective, select File > New > SQL File.

You can also click

SQL Scrapbook.

Open Scrapbook to Edit SQL Statements to quickly create SQL statements in

2. Associate the SQL file with a project.

To

Use an existing project

Create a new project

Do this

Enter or select the project in the Enter or Select the Parent Folder.

Click Create Project, and follow the wizard instructions.

3. Enter the File Name.

4. (Optional) Click Advanced to link to a file in the file system and to create, edit, or remove defined path variables.

5. (Optional) Associate the SQL file with a connection profile.

a) Select a Connection Profile Type.

b) Select a Connection Profile Name, or click Create to create one.

c) Select the Database Name.

6. (Optional) Select Do Not Connect Now to remain disconnected from the server.

You cannot use the complete Content Assist feature if you select this option.

7. Click Finish.

A SQL file is created under the project in Navigator and opens in the SQL File Editor.

8. Right-click in the SQL File Editor and select Edit in SQL Query Builder to graphically build SQL statements, or type your SQL directly in the editor window.

9. (Optional) To add or remove comment delimiters for a line of code, right-click one or more lines of code, and select Toggle Comment.

10. When finished, save the SQL file.

SQL File Editor

Use the SQL File Editor to create and edit SQL statements.

The SQL File Editor enables standard text-based editing of SQL statements with the added functionality of

Content Assist, syntax color, and multiple statement support. You can associate the SQL file with a specific connection profile, and use the SQL File Editor to graphically build SQL statements using SQL Query Builder.

22

SQL Scrapbook

SQL Scrapbook enables you to quickly create and execute SQL commands and queries without creating a

SQL file.

Creating a SQL File

You can associate SQL Scrapbook with a specific connection profile and database, and you can execute a highlighted SQL statement or all SQL statements directly from the editor window. You can also create procedural objects and use SQL Query Builder to create select, insert, update, and delete statements.

You access SQL Scrapbook by clicking the Open Scrapbook to Edit SQL Statements button.

Editing a SQL File

Edit the SQL statements in a SQL file.

1. In Navigator, double-click the SQL file to open it in SQL File Editor.

2. (Optional) Change the connection profile Type, Name, and/or Database.

Associating a SQL file with the connection profile of a connected data server enables you to use the full capabilities of Content Assist and to execute the SQL file or selected statements.

3. (Optional) Right-click in the left margin and select Show Line Numbers.

4. Edit the SQL file by manually editing the SQL code or by launching SQL Query Builder.

5. (Optional) Remove edits since your last save by right-clicking and selecting Revert File.

6. Save the file to the project or to a new project.

Opening a SQL File

Open a SQL file for viewing or editing in the SQL File Editor.

1. In Navigator, expand the project folder in which the SQL file resides.

2. Double-click the SQL file to open it.

Saving a SQL File

Save one or more SQL files to the current project, or save a SQL file to a different project or to a different file name.

• Save one or more SQL files simultaneously.

Option

Save to current project

Save to different project

Save to different file name

Save all SQL files to the current project

Description

Select File > Save from the main menu bar.

Select File > Save As from the main menu bar, and specify project information in the Save As dialog.

Select File > Save As from the main menu bar, and specify a file name in the Save As dialog.

Select File > Save All from the main menu bar.

Data Tool Platform SQL Development Tools 23

Executing a SQL Statement

Executing a SQL Statement

Execute a SQL statement from an editor.

Prerequisites

Be sure the data server for which you are executing a SQL statement is running, and you created and established a connection to the data server. Open the SQL file.

1. Highlight the SQL statements you want to execute.

2. Execute one, multiple, or all SQL statements.

To

Execute one or more SQL statements

Execute all statements

Do this

HIghtlight the statements and select Execute Selected Text.

Select Execute All.

Execution status and and results appear in the SQL Results view.

24

Running an Ad Hoc SQL Statement

Running an Ad Hoc SQL Statement

Use the Eclipse launch configuration mechanism to run an ad hoc SQL query.

Prerequisites

Make sure that the database server is running. Establish a connection to the database through a connection profile.

1. Select Run > Run Configurations.

2. In the Main tab, click Adhoc SQL.

3. Select the connection Profile and Database.

4. In the Run box, enter the SQL query, or click SQL to graphically build the SQL statements in SQL Query

Builder.

5. Click Run to execute the query.

You can view the results of the ad hoc query in the SQL Results view.

Data Tool Platform SQL Development Tools 25

Executing a SQL File

Executing a SQL File

You can execute a SQL file from the SQL File Editor or from Navigator.

Prerequisites

Make sure the database server is running and you are connected to it through a connection profile.

Execute the SQL file using one of the following methods.

Option

From SQL File Editor

Description

1. In the Navigator project folder, double-click to open the SQL file in SQL File

Editor.

2. Right-click in the editor, and select Execute All.

From Navigator

1. Select one or more SQL files.

2. Right-click the files and choose Execute SQL File.

3. If you selected multiple SQL files, click OK in the Select Profiles for the File dialog.

The SQL file executes, and results appear in the SQL Results view. SQL Results view displays the result sets, database server messages, execution status (success or failure) and operation details.

26

Running a Routine Object

Running a Routine Object

Run a routine object to obtain SQL results from the database.

Prerequisites

Connect to your database server through a connection profile. Save or deploy the routine object to a database.

1. In Data Source Explorer, find the routine object in the navigation tree.

2. Right-click the object and select Run.

Note: If the object includes parameters, the Configure Parameters dialog appears. Edit parameter values as necessary.

3. Click OK to run the object.

The SQL Results view displays the status of the run instance and execution details, and returns result sets and server messages, if any.

Creating a Launch Configuration for Routine Objects

Use the launch configuration feature to run stored procedures, triggers, and ad hoc queries. Creating your own launch configurations is optional, but it can help you perform more consistent, robust, and efficient iterative testing of routine objects.

DTP creates a launch configuration automatically using the name, connection profile name and type, and object type. You can create additional launch configurations with different launch properties. For example, you can specify different parameters or ad hoc SQL statements.

1. Select Run > Run Configurations from the main menu.

2.

Click New Launch Configuration.

You can also choose an existing launch configuration by selecting it in the left pane. You can edit it, or duplicate it and use it as a basis for a new configuration.

3. Enter a unique Name for the launch configuration.

4. On the Main tab, select a connection Profile and a Database.

5. Select the object Type.

6. If basing the launch configuration on an existing object, click Browse to select the object.

7. In the Run box, complete the execution information.

Object

Stored procedures

Triggers

Ad hoc SQL

Description

Click Configure Parameter, and assign values to any parameters.

Enter an INSERT, UPDATE, or DELETE statement, or click SQL to visually build the statement using SQL Query Builder.

Enter the SQL statement, or click SQL to visually build the statement using SQL

Query Builder.

8. (Optional) Click the Options tab to set additional preferences, if the database server support this feature.

9. (Optional) Click the Common tab to set other attributes for this object.

Data Tool Platform SQL Development Tools 27

Running a Routine Object

Field

Save As

Table 19. Common launch configuration attributes

Explanation

Specify where to save the launch configuration:

• Select Local File to make it available to this project only.

• Select Shared File to make it available to other projects.

Display in Favorites Menu

Console Encoding

Standard Input and Output: Allocate Console

Standard Input and Output: File

Standard Input and Output: Append

Launch in Background

10. Click Apply to accept launch configuration changes.

11. Click Run to execute the object.

Results appear in SQL Results view.

Click Debug or Run to display the configuration in a

Favorites menu.

(Optional) Click Other, and select an encoding to override

Export Format preferences.

Select Allocate Console if the object requires input

(default).

(Optional) Click File to choose a location for file output:

• Click Workspace to select a project resource to which to redirect output.

• Click File System to save the output as a file.

• Click Variables to select and configure a variable for output.

(Optional) Click Append to append output from each launch to the existing file. Otherwise, each launch overwrites previous output.

Indicates that the object runs in the background.

Routine Objects

Routine objects are the building blocks of a database application. Database Development builds the skeleton for routine objects and provides tools to populate the body of the object with the appropriate SQL.

Routine objects standardize actions performed by more than one application program. By coding an action once and storing it in the database for future use, applications need only execute the routine or fire the trigger to achieve the desired result repeatedly. Because changes occur in only one place, all applications using the action automatically acquire the new functionality if the implementation of the action changes. When you create an object, it is automatically checked for correct syntax and stored in the system tables. The first time any application calls or fires the object, it is compiled from the system tables into the server's virtual memory and executed from there.

28

Running a Routine Object

Object type

Stored procedures

Triggers

Table 20. Object types

Description

A stored procedure is a collection of SQL statements and optional control-of-flow statements. A stored procedure can use parameters to accept values and return values to the calling environment. A stored procedure can also return result sets or invoke other procedures.

A trigger is a special form of stored procedure that executes when a user attempts to change table or column data using a command such as insert

, delete

, or update

.

Triggers can call stored procedures and functions and can fire other triggers. Triggers are often used to enforce referential integrity and can cascade changes through related tables, roll back transactions, enforce complex restrictions, and perform simple analyses.

You can develop the object types that your database and server support.

Data Tool Platform SQL Development Tools 29

Viewing SQL Results

Viewing SQL Results

Use the SQL Results view to see the results of an executed SQL query or routine object.

1. Execute your SQL query, code to create a database object, or a routine object.

2. Examine the execution results in SQL Results view.

Results include the status of the query or object, the text of the query, the date and time, and error or informational messages.

Note: The maximum number of result tabs that display is determined via the SQL Results view preference page. Any result sets that exceed the maximum number do not display. To view more result tabs, increase the limit. To view all results, export all results to a file and view the results in an external editor.

SQL Results View

SQL Results view displays the results of executing SQL statements, running routine objects, and creating database objects.

SQL Results view appears in the Database Development perspective and consists of a history frame and a details frame. The history frame displays the execution history for past queries. The details frame displays the status and results of the last execution. Use the view pull-down menu to filter history results and set preferences.

Field

History Filter

Status

Operation

Date

Connection Profile

Table 21. SQL Results history

Description

Enter a query expression in the text field at the top the SQL Results history pane to filter the results that match the expression.

Displays whether the operation failed, succeeded, terminated, or is still running.

Displays the SQL statement that was executed.

Displays the current date and time when the operation failed, successfully executed, terminated, or reached a breakpoint.

Displays the connection profile on which the corresponding operation was run.

To save SQL results, right-click in the history pane, and select Save History.

When you execute multiple queries in a SQL file containing a delimiter (such as go) using the Execute All or Execute Selected Text options, the results are grouped in a tree structure in the SQL Results view. The root node is a top-level result history. Expand this node in the SQL Results view to see the results for each individual SQL statement.

Right-click the root node of the group SQL statement and select Save History to save all the resultsets from one group execution of a set of SQL queries.

There are two modes for the details frame, single-tab and multitab:

• In single-tab mode, all results and messages appear in the same column, with messages and status at the end.

• In multitab mode, each result and message is in a separate tab.

30

Option

Find/Replace

Save Results

Export Results

Print Results

Tab

Status

Parameters

Result n

Icon

Viewing SQL Results

Table 22. Text View context menu options

Description

Launches the Find/Replace dialog, which allows you to search for and replace specific text in the resultset. This replaces the data of the displayed resultset only. It does not replace the data on the server.

Note: Find/Replace is enabled only when results are displayed in text mode.

Launches the Save dialog, which allows you to save the

SQL results to a project. You can choose to Save All

Results or Save Current Results.

Launches the Export All Results dialog, which allows you to save the result set to a file outside of any project for use with other applications. You can choose to Export All

Results or Export Current Results.

Allows you to print the SQL results. You can choose to

Print All Results or Print Current Results.

Table 23. SQL Results tabs for multi-tab mode

Description

Shows the interim status of running the routine object or selected text.

For a routine object, displays the input and output parameter names, datatypes, values, and parameter types (IN, OUT, or IN/OUT).

Displays results for a SQL query in the routine object, SQL file, or selected statement.

Name

Terminate Result

Table 24. SQL Results buttons

Action

Terminate a long-running instance.

Remove Result

Remove All Visible Results

Remove the status, result sets, and messages of a selected SQL

result instance.

Remove all results for completed statements from the SQL

Results view.

Display the Result in Text Mode Toggle between text mode and grid mode.

Display the Result in Single Tab Toggle between single-tab and multitab display.

Filter Results Filter the SQL results.

Terminating Execution in SQL Results View

You can terminate the execution of a routine object or SQL statement from the SQL Results view. Terminating the execution of an object or SQL statement stops further results from being displayed for the corresponding query.

Data Tool Platform SQL Development Tools 31

Viewing SQL Results

You can terminate a running result from SQL Results view. Terminating a result stops it from running and makes it possible to remove it from the history, but does not remove it automatically.

Right-click a running result in the History frame of the SQL Results view and select Terminate.

Exporting SQL Execution Results

In SQL Results view, you can export a single result set or all execution results.

Prerequisites

Open SQL Results view.

Exporting saves the result set to a file outside of the workspace project for use with other applications.

1. If in Single Tab mode, switch to Text (multitab) mode.

2. Export a single result or all results.

To export

A single result

All results

Do this

In the Result tab, , right-click and select Export > Current Result.

In the Result tab, right-click and select Export > All Results.

3. Enter a File Name, or click Browse to find an existing file or save the results to a specific location and file name.

If you do not specify a file location, the file is saved to the <installation>\eclipse directory.

4. Select a file Format.

5. Select the Export Options.

6. Click Finish.

Saving Execution Results to a Project

After you execute SQL queries or run objects, you can save the results to a project from SQL Results view.

Prerequisites

Open SQL Results view.

1. If in Single Tab mode, switch to Text (multitab) mode.

2. Save a single result or all results.

To save

A single result

All results

Do this

In the Result tab, , right-click and select Save > Current Result.

In the Result tab, right-click and select Save > All Results.

3. Select the project folder in which to save the result set.

4. Enter the File Name.

5. Select the File Type.

6. Specify the Export Options.

32

Viewing SQL Results

7. Click OK.

The result set opens in the editor or external tool for the format you chose.

Removing Results from SQL Results View

Remove query results from the History frame of the SQL Results view.

All execution results remain in SQL Results view. You can remove one or all finished results. Removing a result deletes all result sets for that result instance from the display and from the history.

In the SQL Results view History pane, right-click a finished result and select one:

Option

Remove

Remove All

Description

Remove only the selected result

Remove all results

Saving SQL Results History

Save the SQL Results view history to a log file that includes the history summary and the result sets.

1. In SQL Results view, right-click any result in the History frame, and select Save History.

2. Choose a location for the history log file, and enter a File Name.

3. Click Save.

Filtering SQL Results History

Set filtering options for the SQL Results history to limit the visible results sets.

1. In SQL Results view, select Filters from the view pull-down menu.

2. Specify which options to view in the SQL results history.

Filtering option

Connection Profiles

Action

Deselect one or more connection profiles to remove the result sets from view.

Limit Visible History To

Indicate the maximum number of entries to display in the History pane. The default is 50.

Display Results of Unresolvable Connection

Profiles

View results for deleted profiles or profiles with changed names.

Result Status

Select which statuses to view.

3. Click OK.

Data Tool Platform SQL Development Tools 33

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
