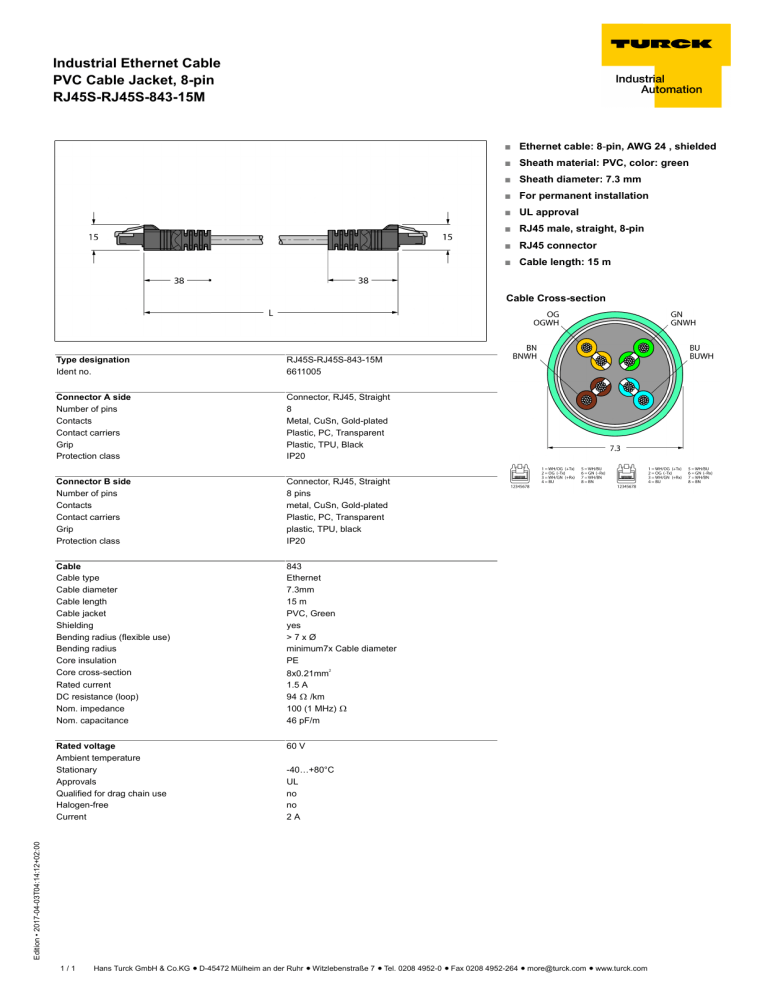

Industrial Ethernet Cable

Industrial Ethernet Cable
Industrial Ethernet Cable
PVC Cable Jacket, 8-pin
RJ45S-RJ45S-843-15M
■ Ethernet cable: 8-pin, AWG 24 , shielded
■ Sheath material: PVC, color: green
■ Sheath diameter: 7.3 mm
■ For permanent installation
■ UL approval
■ RJ45 male, straight, 8-pin
■ RJ45 connector
■ Cable length: 15 m
Cable Cross-section
Type designation
Ident no.
RJ45S-RJ45S-843-15M
6611005
Connector A side
Number of pins
Contacts
Contact carriers
Grip
Protection class
Connector, RJ45, Straight
8
Metal, CuSn, Gold-plated
Plastic, PC, Transparent
Plastic, TPU, Black
IP20
Connector B side
Number of pins
Contacts
Contact carriers
Grip
Protection class
Connector, RJ45, Straight
8 pins
metal, CuSn, Gold-plated
Plastic, PC, Transparent
plastic, TPU, black
IP20
Cable
Cable type
Cable diameter
Cable length
Cable jacket
Shielding
Bending radius (flexible use)
Bending radius
Core insulation
Core cross-section
843
Ethernet
7.3mm
15 m
PVC, Green
yes
>7xØ
minimum7x Cable diameter
PE
Rated current
DC resistance (loop)
Nom. impedance
Nom. capacitance
2
60 V
-40…+80°C
UL
no
no
2A
Edition • 2017-04-03T04:14:12+02:00
Rated voltage
Ambient temperature
Stationary
Approvals
Qualified for drag chain use
Halogen-free
Current
8x0.21mm
1.5 A
94 ò /km
100 (1 MHz) ò
46 pF/m
1/1
Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ m[email protected] ñ www.turck.com
