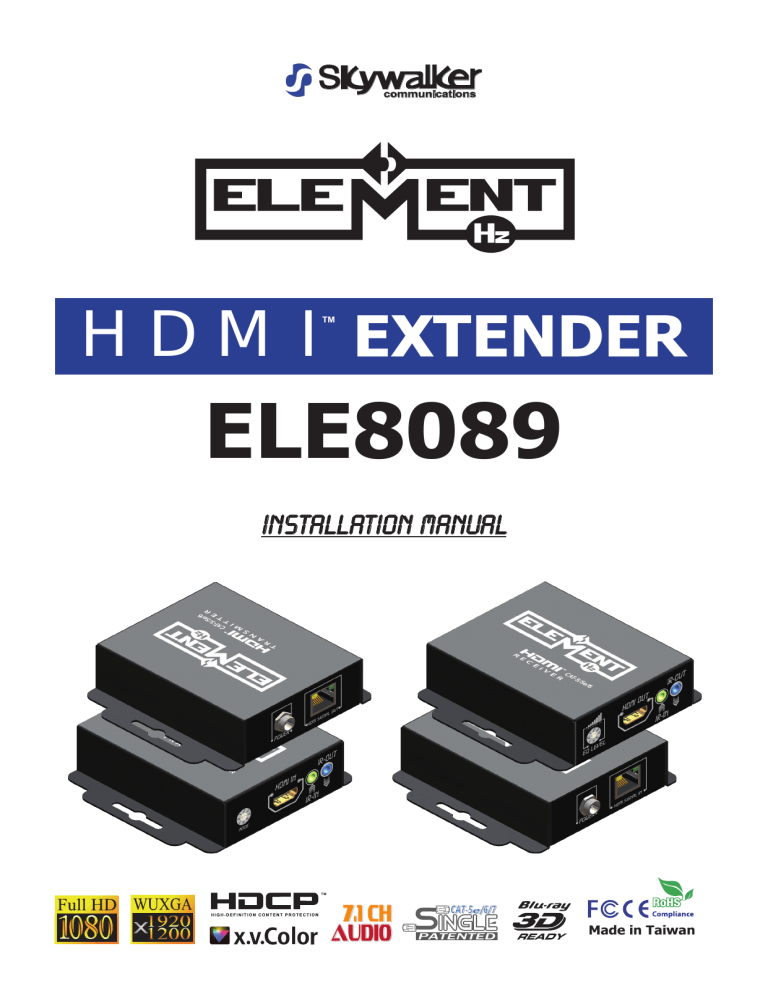

ELE8089 - a1Components
HDMI EXTENDER
TM
ELE8089
INSTALLATION Manual
7.1 CH
AUDIO
Made in Taiwan
Safety and Notice
The ELE8089 HDMI™ EXTENDER has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like
all electronic equipments, the ELE8089 should be used with care. Please read and follow
the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
●F
ollow all instructions and warnings marked on this unit.
●D
o not attempt to service this unit yourself, except where explained in this manual.
●P
rovide proper ventilation and air circulation and do not use near water.
●K
eep objects that might damage the device and assure that the placement of this unit is
on a stable surface.
●U
se only the power adapter and power cords and connection cables designed for this
unit.
●D
o not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
1
INTRODUCTION
The ELE8089 HDMITM EXTENDER boosts up your video/audio transmission distance up to
60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV
1080p with 36-bit color depth. ELE8089 also supports the most advanced 3D video format and
therefore guarantees the highest 3D video compatibility on the market. With only one cost
effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc
player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors
including HDMITM or DVI enabled TV sets or LCD PC monitors. With the advanced design for the
latest HDMITM technology, deep color video, DTS-HD Master Audio or Dolby TrueHD audio, and
HDCP supports and compatibility are all further insured. This flexibility makes HDCP compliant DVD
players or PS3 transmit utmost high quality video and audio with a greater distance at the minimal
cost, when integrating several components apart. In addition, ELE8089 is also equipped with bidirectional IR pass-through path. This bonus feature allows users to boost IR control distance up
to 100m (330 ft) and makes IR control possible through only single Cat.5/5e/6 cable including
HDMITM signals.
The ELE8089 includes two units: transmitting unit and receiving unit. The transmitting unit is used
to capture the input HDMITM / DVI signals with IR control packets and carry the signals via one cost
effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMITM
signal and reconstructing IR signals. The transmission distance between the sending and receiving
units can be up to 60m (200ft) at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p. With an 8-level
equalization rotary control on the receiving unit, users can adjust the equalization strength to the
received HDMITM signals accordingly, and therefore optimize the transmission distance between
source and destination.
2
 Features
»S
upport HDMITM Deep Color & full 3D
»E
xtends the transmission up to 60m (200ft) from the HDMITM source at HD 1080i or 720p 24-bit
»E
xtends the transmission up to 40m (130ft) from the HDMITM source at Full HD 1080p 24-bit
»E
xtends the transmission up to 20m (65ft) from the HDMITM source at Full HD 1080p 36-bit
»H
DCP 1.1 compliant
»M
inimizes the cable skew by adjustable 8-level equalization control
»P
ure unaltered uncompressed 7.1ch digital HDMITM over Cat.5/5e/6 cable transmission
»D
TS-HD and Dolby TrueHD high bit rate audio support
»S
upports full frequency IR signal from 20KHz to 60KHz
»B
i-directional IR path
»A
llows cascading
»W
all mounting housing design for easy and robust installation
»P
erfectly integrated with other HDMITM over CAT5 series products
The claimed transmission distance here is subject to the grade of installed cable(s),
source device and display.
For over CAT5/COAX transmission, the cable(s) has to be solid, not stranded. Any
keystone jack along the transmission path will kill the transmission performance
significantly!
 Package Contents
» ELE8089 x1 (TX unit & RX unit)
» IR blaster x1
» IR receiver x1
» DC 5V 4A in-line with C7 power cord x1
» DC 5V 2A wall wart x1
» Installation manual x1
3
 Specifications
Model Name
Transmitter
Receiver
Technical
HDMITM compliance
HDMITM Deep Color & full 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p60
TM
Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]
HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
HDMI over UTP
transmission [24-bit]
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
Signal Equalization
8-level digital control at receiving unit
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
ESD protection
5 Volts [peak-to-peak, TTL]
[1] H
uman body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thru
Full-duplex bi-directional
Input
Output
HDMITM source control
IR remote control
HDMI
TM
1x HDMITM + 1x 3.5mm
1x RJ45 + 1x 3.5mm
1x RJ45 + 1x 3.5mm
1x HDMITM + 1x 3.5mm
Controllable via IR pass-through from receiver to transmitter
and from transmitter to receiver with IR extenders
Electro-optical characteristics: π = 25° / Carrier frequency: 20-60kHz
connector
RJ45 connector
3.5mm connector
Rotary control switch
Type A [19-pin female]
WE/SS 8P8C with 2 LED indicators
IR blaster & IR receiver
EDID Mode selection
Signal level equalization
Mechanical
Housing
Dimensions
[L x W x H]
Weight
Metal enclosure
Model
2.9" x 3.5" x 1" (75 x 91 x 24mm)
Package
10.6" x 6.9" x 3.1" (270 x 175 x 80mm)
Carton
1'6" x 1'3" x 11.8" (450 x 370 x 300mm)
Model
8.4oz (239g)
Package
Fixedness
2.2 lbs (1000g)
Wall-mounting case with screws
Power supply
5V 2A DC
Power consumption
1 Watts
Operation temperature
32~104°F (0~40°C)
Storage temperature
Relative humidity
-4~140°F (-20~60°C)
20~90% RH (no condensation)
4
INPUT/OUTPUT PANELS
 Transmitting unit (TX)
Input Panel
MODE: 0 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
1
2
3
4
5
6
7
-
EDID
EDID
EDID
EDID
EDID
EDID
EDID
Full-HD(1080p@60) - 24bit 2D video & 2ch audio
Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
Full-HD(1080p@60) - 36bit 2D video & 2ch audio
HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 7.1ch audio
HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
Full-HD(1080p@60) - 36bit 3D video & 2ch audio
learning mode
HDMI IN: Connects to a HDMITM source with a HDMITM male-male cable
IR-IN: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
IR-OUT: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
output Panel
POWER: Connect to 5V DC power supply
HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting
unit
5
 Receiving unit (RX)
input Panel
POWER: Connect to 5V DC power supply
HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit
output Panel
Adjust the 8-level equalization control to the received HDMI TM signals.
The HDMITM signal level varies from 0 (strongest) to 7 (weakest) for respective
transmission length from longest possible range to short distance. Please adjust the
signal level from 7 to 0 and stop turning the rotary switch whenever the audio/video
is playing normally. Inappropriate signal level setting may cause overpowering issue
that would shorten the product life significantly!
EQ Level:
HDMI OUT: Connect to a HDMITM display with a HDMITM male-male cable
IR-IN: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
IR-OUT: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
6
IR PASS-THROUGH
 IR Extenders
IR Blaster
IR Receiver
 IR Sockets
IR-OUT: plug in the IR blaster to emit all IR command signals received from the IR receiver
from the other enf to control the devices corresponding to the IR signals.
IR-IN: plug in the IR receiver to receive all IR command signals from the IR remote controls
of the corresponding devices.
CAUTION!
Incorrect placement of IR Blaster and Receiver may result in the failure of the
IR extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
 Definition of IR Earphone Jack
IR Blaster
1. IR Signal [20-60KHz]
2. Grounding
12
IR Receiver
1. IR Signal [20-60 kHz]
2. Grounding
3. Power
1 23
7
HARDWARE INSTALLATION
1. C
onnect a HDMITM or DVI source (such as a Blu-ray Disc player) to the transmitting unit.
2. C
onnect a HDMITM or DVI display (such as a LCD TV) to the receiving unit.
3. C
onnect IR Blaster/Receiver to both transmitting and receiving units.
4. C
onnect a Cat-5/5e/6 cable between the transmitting and receiving units.
5. M
ake sure this Cat-5/5e/6 cable is tightly connected and not loose.
6. P
lug in 5V DC power supply unit to the power jack of the receiving unit.
7. P
lug in 5V DC power supply unit to the power jack of the transmitting unit.
8. I f you see flickering or blinking image on the display, please adjust the rotary control
switch to improve the cable skew. 0 stands for the strongest HDMITM signal level for
longest possible transmission length while 7 stands for the weakest HDMI TM signal
level for short transmission length. Please adjust the signal level from 7 to 0 and stop
turning the rotary switch whenever the audio/video is playing normally. Inappropriate
signal level setting may cause overpowering issue that would shorten the product life
significantly!
EDID LEARNING
1. T
urn off the transmitting unit and disconnect the Cat.5/5e/6 between transmitting and
receiving units.
2. C
onnect the HDMITM display to "HDMI IN" on the transmitting unit with a HDMITM
cable.
3. S
et "MODE" on the transmitting unit at 7.
4. T
urn on the transmitting unit.
5. T
he LED on the RJ45 of transmitting unit will dim and light again, which indicates the
EDID learning procedure is complete.
6. U
nplug the HDMITM cable from the display and follow the instruction in [Hardware
Installation] to set up the ELE8089 and enjoy the experience.
8
PIN DEFINITION
HDMITM
Type A (Receptacle) HDMITM
Pin 1 — TMDS Data2+
Pin 8 — TMDS Data0 Shield
Pin 15 — SCL
Pin 2 — TMDS Data2 Shield
Pin 9 — TMDS Data0–
Pin 16 — SDA
Pin 3 — TMDS Data2–
Pin 10 — TMDS Clock+
Pin 17 — DDC/CEC Ground
Pin 4 — TMDS Data1+
Pin 11 — TMDS Clock Shield
Pin 18 — +5V Power
Pin 5 — TMDS Data1 Shield
Pin 12 — TMDS Clock–
Pin 19 — Hot Plug Detect
Pin 6 — TMDS Data1–
Pin 13 — CEC
Pin 7 — TMDS Data0+
Pin 14 — Reserved (N.C. on device)
CAT5 [RJ45]
RJ-45 Jack
Data Link TIA/EIA-568-B
PIN
Function
Color
1
W-O
TX0-
2
O
TX0+
3
W-G
TX1-
4
BL
TX2-
5
W-BL
TX2+
6
G
TX1+
7
W-BR
TXC-
8
BR
TXC+
PAIR3
PAIR2
PAIR1
PAIR4
W-O O W-G BL W-BL G W-BR BR
JACK POSITION
9
NOTICE
1. W
hen adjusting the signal level on the receiver unit, please dial the rotary control switch
from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing
normally. Inappropriate signal level setting may cause overpowering issue that would
shorten the product life significantly!
2. W
rongly insert IR blaster and IR receiver to wrong 3.5mm infrared sockets may result in
the failure of the IR extenders. Please check carefully before plugging in the IR extender
to the respective IR sockets.
3. I f the DVI or HDMITM device requires the EDID information, please use EDID Reader/
Writer to retrieve and provide DVI or HDMITM display EDID information.
4. A
ll HDMITM over CAT5 transmission distances are measured using Belden 1583A CAT5e
125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
5. T
he transmission length is largely affected by the type of Cat-5/5e/6 cables, the type
of HDMITM sources, and the type of HDMITM display. The testing result shows solid UTP
cables (usually in the form of 300m [1,000ft] bulk cables) can transmit a lot longer
signals than stranded UTP cables (usually in the form of fixed length patch cords).
Shielded STP cables are better suited than unshielded UTP cables. A solid UTP Cat5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
6. E
IA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended for better
performance.
7. T
o reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6
cable, one can use shielded STP cables to improve EMI problems, which is worsen in
long transmission.
8. B
ecause the quality of the CAT5/6 cables has the major effect on how long the
transmission limit can achieve and how good is the received picture quality, the
actual transmission range is subject to one's choice of Cat-5/5e/6 cables. For desired
resolutions greater than 1080i or 1280x1024, a Cat-6 cable is recommended.
9. I f your HDMITM display has multiple HDMITM inputs, it is found that the first HDMITM input
[HDMITM input #1] generally can produce better transmission performance among all
HDMITM inputs.
10
Designed & Manufactured by
Headquarters: 9390 Veterans Memorial Parkway, O’Fallon, MO 63366
 (800) 844 – 9555 / (636) 272 – 8025
 (636) 272 – 8214
 retailsupport@skywalker.com
Branch Office: 4168 North Pecos Rd, Ste 103, Las Vegas, NV 89115
 (888) 319 – 3554 / (702) 632 – 3413
 (702) 643 – 2379
Branch Office: 2445 South 179th St, New Berlin, WI 53146
 (800) 444 – 9320 / (262) 786 – 5887
 (262) 786 – 9031
www.skywalker.com
11
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
