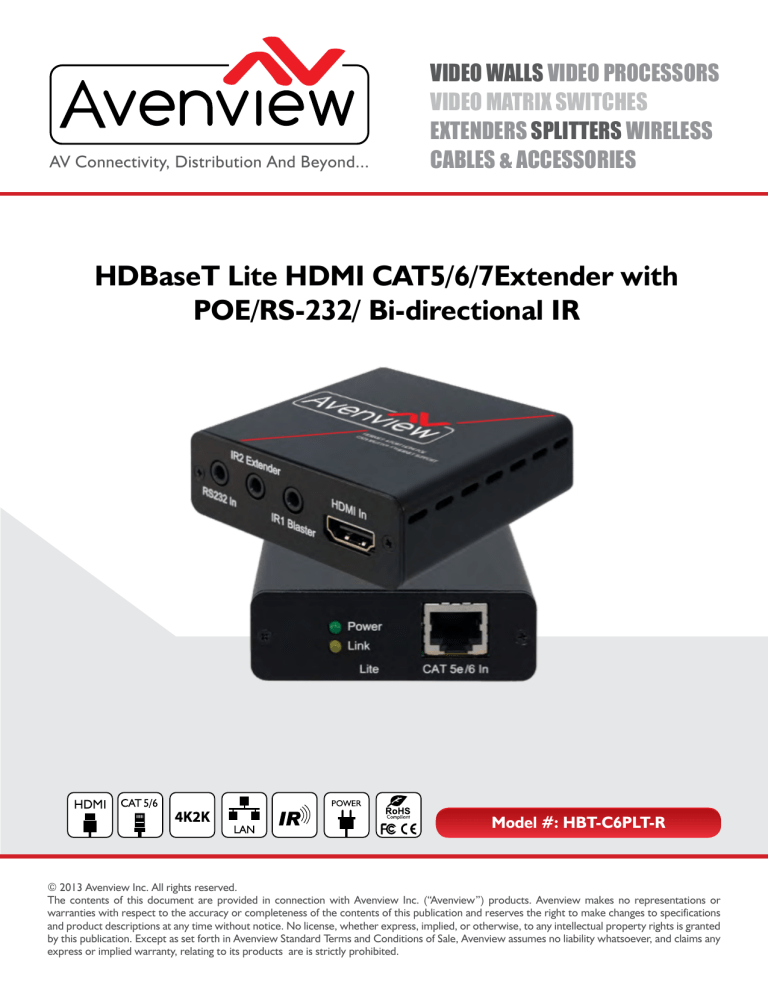

HDBaseT Lite HDMI CAT5/6/7Extender with
POE/RS-232/ Bi-directional IR
Model #: HBT-C6PLT-R
© 2013 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any
express or implied warranty, relating to its products are is strictly prohibited.
Product Application & Market Sectors
Corporate
House Of Worship
Military
Residential
Education
Industrial
Medical
Aviation
www.avenview.com
TABLE OF CONTENTS
1.
GETTING STARTED...........................................................................................................................1
1.1 Important Safeguards...............................................................................................................1
1.2 Safety Instructions...................................................................................................................1
1.3 Regulatory Notices Federal Communications Commission (FCC)............................ 2
2.Introduction...............................................................................................................................3
2.1PACKAGE CONTENTS......................................................................................................................4
2.2 BEFORE INSTALLATION....................................................................................................................5
2.3 CABLE SPECIFICATIONS...................................................................................................................5
3.
APPLICATION DIAGRAM...................................................................................................................6
4.Panel Description........................................................................................................................7
INPUT PANEL (Receiver, HBT-C6POE-R) Front................................................................................7
5.
IR CABLE DEFINITIO.........................................................................................................................8
6.
INSTALLATION (HBT-C6POE-R).......................................................................................................9
7.
GENERAL TROUBLESHOOTING....................................................................................................10
8.SPECIFICATIONS..............................................................................................................................11
www.avenview.com
Page
3
1.GETTING STARTED
SECTION 1: GETTING STARTED
1.1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
•• Any product, on which the serial number has been defaced, modified or removed.
•• Damage, deterioration or malfunction resulting from:
•• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
•• Repair or attempted repair by anyone not authorized by us.
•• Any damage of the product due to shipment.
•• Removal or installation of the product.
•• Causes external to the product, such as electric power fluctuation or failure.
•• Use of supplies or parts not meeting our specifications.
•• Normal wear and tear.
•• Any other causes which does not relate to a product defect.
•• Removal, installation, and set-up service charges.
1.2 Safety Instructions
The HBT-C6PLT-R HDBaseT Lite HDMI CAT5/6/7 Receiver has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the HBT-C6PLT-R should
be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
! Do not dismantle the housing or modify the module.
! Dismantling the housing or modifying the module may result in electrical shock or burn.
! Refer all servicing to qualified service personnel.
! Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
! Keep the module away from liquids.
! Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
! Have the module checked by a qualified service engineer before using it again.
! Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
www.avenview.com
Page
1
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols
Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
www.avenview.com
Page
2
2.Introduction
The Avenview HBT-C6PLT-R HDBaseT Lite Receiver CAT5/6/7 with POE, Bi-Directional IR and Ethernet has been designed to
extend High Definition video and multi-channel digital audio formats to any HD Monitor.
Video Signals: 4K2K@30 (Ultra HD), 3D, Deep Color, and Full HD 1080p 36-bit color depth.
Audio signals: Lossless Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).
Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz over CAT5/6.
The HBT-C6PLT-R includes one (1) unit: Receiving unit (Rx) HBT-C6PLT-R with one (1) UTP output port which allows the user
to extend video and audio up to 60m (200ft). The HBT-C6PLT-R also allows bi- directional IR control of the source connected
to the unit from the users IR remote control at the monitor side.
The bonus features with this device it can support PoE (Power over the CATx cable to the RX).
-- INPUT: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
-- VIDEO BANDWIDTH: From 300MHz / 9 Gbps
-- PC RESOLUTIONS: Up to VGA to WUXGA
-- HD RESOLUTIONS: Up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)1080p (1920x1080@60Hz)
-- AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
-- AUDIO TRANSMISSION: (32-192kHz sample rate)
-- SUPPORTS: CEC bypass
-- DISTANCE: Up to 60 meters through CAT6e/6a/7 cables
-- UNCOMPRESSED VIDEO: 1080p, 60 Hz, 36-bit
-- 3D SUPPORT: Follow by Display / TV’s EDID
NOTE:
-- The PoE function is designed for powering compatible Receiver units only.
-- The non-PoE Receivers has to be powered with a power supply.
-- Receivers (Rx) from different manufactures would not be compatible.
-- Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.
www.avenview.com
Page
3
2.1PACKAGE CONTENTS
1
HBT-C6PLT-R
2
IR Extender
X1
3
User’s Manual
X1
X1
www.avenview.com
Page
4
2.2 BEFORE INSTALLATION
•• Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
•• Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
•• Use the DC power adapter with correct specifications and supplied with the unit. If improper power supply is used the
unit may malfunction and cause a fire.
•• Do not twist or pull by force ends of the UTP cable. It can cause malfunction.
2.3 CABLE SPECIFICATIONS
Cable Type
Range
CAT5e/6
100m
70m
Pixel clock rate Video Data Rate
<=225MHz
>225MHz
<=5.3Gbps
Supported Video
(HD Video)
Up to 1080p, 60Hz, 36 bits,
3D (Data rates lower than
5.3 Gbps or below 225 Mhz
TMDS clock).
>5.3Gbps
4K2K, 30Hz video formats
(Ultra HD Video)
CAT6A/7
100m
>225MHz
>5.3Gbps
4K2K, 30Hz video formats
(Ultra HD Video)
www.avenview.com
Page
5
3.
APPLICATION DIAGRAM
www.avenview.com
Page
6
4.Panel Description
INPUT PANEL (Receiver, HBT-C6PLT-R) Front
1
2
3
4
1. HDMI OUT: Connect to HDMI display Max 35ft via
HDMI Cable or cascade with another Avenview type
Transmitter
2. IR 2 Blaster: plug an IR Blaster cable for IR signal being
transmitted. place IR Blaster within direct site of the
device being controlled.
3. RS-232: Connect to a device that has the ability to Receive control commands via RS232 only with compatible
Transmitters.
4.
IR 1 Extender: Plug the IR Extender cable for IR signal
being received. Place IR Extender within direct line of
site with the IR Remote.
INPUT PANEL (Receiver HBT-C6PLT-R) Rear
6
5
5. LED Power: Illuminates when connected to the Tx with
Power (POE initialized)
7
6. CAT5e/6/7 IN Connect CAT5e/6/7 cable to extend
the signal up to 60m (200ft)
7. LED LINK: Illuminate when both the input and output signals are in sync.
www.avenview.com
Page
7
5.
IR CABlE DEfINITION
*Optional
IR Sockets
-- IR BLASTER: plug in the IR blaster to the HBT-C6PLT-R to emit all IR command signals received from the IR Extender
plugged into the Rx (Monitor Side) to control the devices corresponding to the IR signals. Example: Set Top Box or DVD
player (The Source).
-- IR EXTENDER: plug in the IR Extender into the (RX) Receiver (Monitor Side) to receive all IR command signals from the
IR remote controls of the corresponding source. Example: Set Top Box or DVD player (IR Remote Control).
-- NOTE: Incorrect placement of IR Blaster and IR Extender into the extender may result in the
failure of the IR extenders.
-- Please check carefully before plugging in the IR extender to the respective IR sockets.
-- It is clearly marked and IR IN: IR EXTENDER /IR OUT: IR BLASTER
-- WARRANTY WILL NOT COVER THE DAMAGE.
www.avenview.com
Page
8
6.
INSTALLATION (HBT-C6PLT-R)
To setup Avenview HBT-C6PLT-R please follow these steps for connecting to a device:
1. Turn off all devices including monitors / TV
2. Connect to a HDMI source (such as a Blu-Ray Disc player) to the Transmitter HBT-C6POE-SP4/8 or Matrix 4x4/8x8
3. Connect HBT-C6PLT-R 60m or HBT-C6POE-R 100m with a CAT5/6/7 cable with shielded ends, then connect to display
with HDMI cable.
4. Plug in Power for the Tx.
5. plug in the IR BlASTER (optional): into IR out and the blinker on the IR eye (Source)
6. Plug in the IR Extender to IR IN to receive IR Signals from Remote
7. Power on the HDMI display
8. Power on HDMI Sources.
NOTE
The QUALITY and TRANSMISSION of the video signals depends on the characteristics and quality of the UTP
cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best
performance.
Unshielded CAT6 with metal RJ-45 connectors is recommended.
www.avenview.com
Page
9
7.
GENERAL TROUBLESHOOTING
PROBLEM
POSSIBLE SOLUTION
•• Check if connection to the source and the display are correct.
•• Ensure that display device supports 480p, 720p and 1080p 4K@30 resolution
•• Terminated to 568B standard with Shielded Ends Recommended
•• High Quality CAT5/6/7 Cable helps signal transmission
NO IMAGE
•• Please use the supplied power supply-DC 24V 2.7A
•• Check LED Link light see (Section 3 Panel Description)
•• Check LED Sync light see (Section 3 Panel Description
•• EDID MODE-TV: The default factory setting is on TV. The unit will detect the
1st CAT5e/6/7 output’s EDID. When obtained a (4K2K) Ultra HD 3840x2160
EDID the signal is transmitted.
EDID ISSUE
•• If the 1st CAT5e/6/7 output is without a Ultra HD 3840x2160 EDID the unit
will detect all output’s EDID and Transmit the signal that all outputs can accept.
•• EDID MODE-STD: Switch to STD to use built-in EDID if the display has No
Image. STD EDID’s video at 1080p@60Hz and audio at LPCM 2CH.
Set-Top Box
No Picture
•• HDBaseT and HDMI 1.3 standards support CLOCK STRETCHING for i2c
buss protocol
•• Example set top boxes like Scientific Atlantic results no picture. This can be
resolved by swapping out the box for a newer version that supports HDMI 1.3
not HDMI 1.2
•• Ensure the UTP cable is run within the wall away from EMI and High Voltage
power Lines.
NO Infrared
Communication
•• Please check manual of device to ensure proper placement of IR Blaster on IR
EYE.
•• Some LED /Plasma TV have EMI interference with the IR Extender, please
place the IR Rx 3-6” away from Screen
Recommended TEST
End-to-End Testing
HDBaseT system, a final end-to-end test of all the A/V components should take place.
These tests include checking the HDMI stream at the far end (sink end), the clock
rate, frame compare, video pattern, audio, EDID and HDCP with Quantum 780
(recommended)
Passive Monitoring
Passive monitoring enables an integrator to view the HDCP transactions, EDID
exchange, as well as the connection events between the actual devices in the network.
NOTE
Addional info on Guidelines to Test & Troubleshoot HDBaseT Systems
Can be retreived from our website under the category Downloads for this product HBT-C6PLT-R
www.avenview.com
Page
10
8.
SPECIFICATIONS
Item
UNITS
Description
HBT-C6PLT-R
UNIT DESCRIPTION
HDBaseT HDMI Receiver
HDMI COMPLIANCE
YES HDBaseT
HDCP
VIDEO BANDWIDTH
Yes
Single-link 340MHz [9 Gbps]
4480i / 480p / 720p / 1080i / 1080p60 /
SUPPORTED RESOLUTIONS
4K@30 Up to Ultra HD (3840x2160@24/25/30Hz)
4K2K-(4096x2160@24Hz)
CEC SUPPORT
CAT5/6/7 CABLE
AUDIO SUPPORT
INPUT TMDS SIGNAL
INPUT DDC SIGNAL
ESD PROTECTION
INPUT
ALLOWS CEC BYPASS
4K2K: (3840X2160@30Hz) ~ 35meter (115feet) (CAT6e/6a)
FULL HD: (1080p) ~ 60meter (200feet) (CAT6e/6a)
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
1.2 Volts (peak-to-peak)
5 Volts (peak-to-peak, TTL)
Human body model — ±8kV (air-gap discharge)
& ±4kV (contact discharge)
1x 3.5mm IR Extender
1x CAT5e/6/7
1x RS-232
OUTPUT
1x 3.5mm IR
1x HDMI
HDMI CONNECTOR
LED
Type A (19 pin female)
GREEN LED YELLOW LED
IR FREQUENCY
DIMENSIONS (L X W X H)
30~50kHz
2.8” x 2.9” x 1”
71 mm (L)×73.5mm (W)×23 mm (H)
WEIGHT
POWER SUPPLY
POWER CONSUMPTION
0.3lbs 126g
24V / 1.25A DC
(US/EU standards, CE/FCC/UL certified)
6 Watt (max)
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
32˚ ~ 104˚F (0˚ to 40˚C)
-4˚ ~ 140˚F (-20˚ ~ 60˚C)
20~90% RH (non-condensing)
www.avenview.com
Page
11
Notice
-- All HDMI over CAT5 transmission distances are measured using Belden CAT6A (625MHz), 4-Pair, U/UTPUnshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation,
Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal HDMI Video Generator Module Video
Pattern Testing.
-- 2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and
the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk
cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP
connectors are better suit than unshielded UTP connectors. A solid UTP CAT5e cable shows longer transmission
length than stranded STP CAT6 cable. For long extension users, solid cables are your only choice.
-- 3. EIA/TIA-568-B termination (T568B) for category cables is recommended for better performance.
-- 4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can use shielded
STP cables with shielded connector to improve EMI problems, which occurs in long transmission.
-- 5. Because the quality of the category cables has the major effects in how long transmission distance will be made
and how good is the received display, the actual transmission length is subject to your category cables. For resolution
greater than 1080i or 1280x1024, a solid CAT6 cable is the only viable choice.
PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION
PERFORMANCE RATING
WIRING
SOLID
SHIELDING
CAT5
CAT5E
CAT6
UNSHIELDED (UTP)
✶✶✶✶
✶✶✶✶✶
✶✶✶✶✶
✶✶✶
✶✶✶✶
✶✶✶✶
✶
✶✶
✶✶
✶✶
✶
✶✶
SHIELDED (STP)
STRANDED
TYPE OF CATEGORY CABLE
UNSHIELDED (UTP)
SHIELDED (STP)
TERMINATION
PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME
www.avenview.com
Page
12
Notes
www.avenview.com
Page
13
Avenview Warranty Certificate
AVENVIEW CORP. (“Avenview”) warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used
normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview’s
published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.
LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance
and reliability if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs,
please contact support@avenview.com.
PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if
the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact
support@avenview.com.
To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented
to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must
be shipped in Avenview’s original packaging or in packaging pertaining equal degree of protection to Avenview’s. Both Avenview and purchaser are responsible for freight
charges and brokerages when shipping the product(s) to the receiver.
NOT COVERED BY THIS WARRANTY
This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including
but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire,
earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview’s manuals or guidelines; (e) to damage caused by service
performed by anyone who is not a representative of Avenview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the
normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).
AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR
ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS;
LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.
Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or
exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
275 Woodward Avenue, Kenmore, NY 14217
1.866.508.0269
www.avenview.com
AV Connectivity, Distribution And Beyond...
TECHNICAL SUPPORT
USA Head Office
Office Avenview
Corp. 275 Woodward Avenue
Kenmore, NY 14217
Phone: +1.716.218.4100 ext223
Fax: +1.866.387-8764
Email: info@avenview.com
Canada Sales
Avenview
151 Esna Park Drive, Unit 11 & 12
Markham, Ontario, L3R 3B1
Phone: 1.905.907.0525
Fax: 1.866.387.8764
Email: info@avenview.com
Avenview Europe
Avenview Europe
Demkaweg 11
3555 HW Utrecht
Netherlands
Phone: +31 (0)85 2100- 613
Email: info@avenview.eu
Avenview Hong Kong
Unit 8, 6/F., Kwai Cheong Centre,
50 Kwai Cheong Road,
Kwai Chung, N.T.
Hong Kong
Phone: 852-3575 9585
Email: wenxi@avenview.com
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
