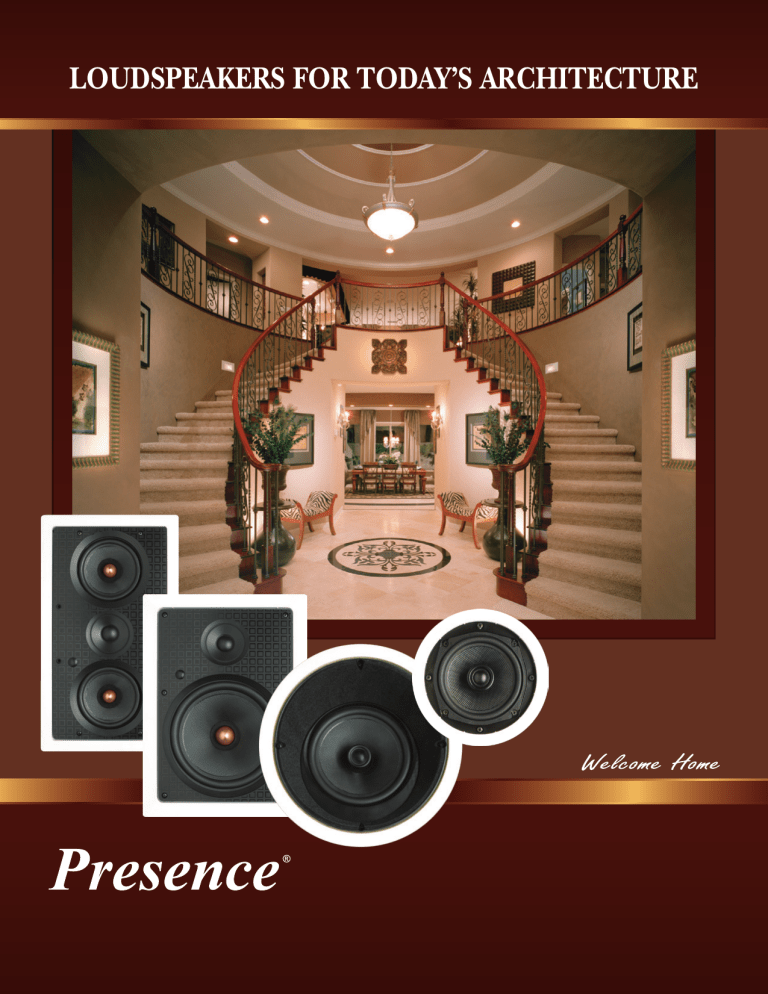

LOUDSPEAKERS FOR TODAY`S ARCHITECTURE

LOUDSPEAKERS FOR TODAY`S ARCHITECTURE

LOUDSPEAKERS FOR TODAY’S ARCHITECTURE

LOUDSPEAKERS FOR TODAY’S ARCHITECTURE

A-505

5-1/4" In-Ceiling

2-way Loudspeaker

Woven Kevlar

®

Woofer with Butyl Rubber Surround

Silk, Soft-Dome, Pivoting Tweeter

Frequency Response

Power Handling

Sensitivity

Impedance

Overall Dimensions

Cut-Out Dimensions

Loudspeaker Depth

A-606

6-1/2" In-Ceiling

2-way Loudspeaker

A-505

5-1/4"

3/4"

50 - 20K

40 / 80

91

8

7-1/2"

6-1/2"

2-3/8"

A-606

6-1/2"

1"

45 - 20K

50 / 100

91

8

8-3/8"

7-3/8"

2-7/8"

Features:

• High-temperature Polyimide voice coils

• High-grade crossovers

• Polyswitch overdrive protection

• Proven mounting system

RIR-5 for

A-505

• Frame and Grille may be painted to match mounting surface

• Sold and Shipped in Pairs

Optional Pre-Construction Brackets

RIR-6 for

A-606

A-808

8" In-Ceiling

2-way Loudspeaker

A-808

8"

1"

35 - 20K

60 / 120

91

8

9-3/4"

8-5/8"

3-3/8"

Woofer Size

Hz ± 3 dB watts nom. / max. dB 1 watt / 1 meter ohms

Diameter

Diameter

RIR-8 for

A-808

Supplied with grille, baffle

& frame

View all our

Presence

Models:

®

®

A-SP6

6-1/2" In-Ceiling Loudspeaker

6-1/2" 2-way Single Point Stereo Loudspeaker

Frequency Response: 45Hz - 20kHz ± 3 dB

Power Handling: 50 watts nom. 100 max.

                                    both channels combined

Sensitivity: 91dB 1 watt / 1 meter

Impedance: 8 ohms nominal

Tweeter: Dual (L & R) 3/4" Silk, soft-dome tweeters

Cut-out dimensions: 7-3/4" dia. x 2-7/8" deep

Overall dimensions: 8-3/8" dia.

Sold and shipped individually

Features:

• Woven Kevlar

®

woofers with butyl rubber surrounds

• High-temperature Polyimide voice coils

• High-grade crossovers

• Polyswitch overdrive protection

• Proven Mounting System

• Frame and Grille may be painted to match mounting surface

A-SP8

8" In-Ceiling Loudspeaker

8" 2-way Single Point Stereo Loudspeaker

Frequency Response: 35Hz - 20kHz ± 3 dB

Power Handling: 60 watts nom. 120 max.

                                    both channels combined

Sensitivity: 91dB 1 watt / 1 meter

Impedance: 8 ohms nominal

Tweeter: Dual (L & R) 3/4" Silk, soft-dome tweeters

Cut-out dimensions: 8-5/8" dia. x 3-3/8" deep

Overall dimensions: 9-3/4" dia.

Sold and shipped individually

Optional Pre-Construction Brackets

RIR-6 for

A-SP6

RIR-8 for

A-SP8

Supplied with grille, baffle

& frame

View all our

Presence

Models:

®

A-6LCRS

6-1/2" In-Ceiling Loudspeaker

6-1/2" 2-way 15º Angled Loudspeaker

Frequency Response: 45Hz - 20kHz ± 3 dB

Power Handling: 50 watts nom. 100 max.

Sensitivity: 91dB 1 watt / 1 meter

Impedance: 8 ohms nominal

Tweeter: 1" Silk, soft-dome, pivoting tweeter

Cut-out dimensions: 9-1/4" dia. x 5" deep

Overall dimensions: 10-3/4" dia.

Sold and shipped individually

Features:

• Woven Kevlar

®

woofers with butyl rubber surrounds

• High-temperature Polyimide voice coils

• High-grade crossovers

• Polyswitch overdrive protection

• Proven mounting system

• Frame and Grille may be painted to match mounting surface

A-8LCRS

8" In-Ceiling Loudspeaker

8" 2-way 15º Angled Loudspeaker

Frequency Response: 35Hz - 20kHz ± 3 dB

Power Handling: 60 watts nom. 120 max.

Sensitivity: 91dB 1 watt / 1 meter

Impedance: 8 ohms nominal

Tweeter: 1" Silk, soft-dome, pivoting tweeter

Cut-out dimensions: 11-1/2" dia. x 5-3/4" deep

Overall dimensions: 12-7/8" dia.

Sold and shipped individually

for

A-6LCRS

RIR-615

RIR-815 for

A-8LCRS

Optional Pre-Construction Brackets

Supplied with grille, baffle

& frame

View all our

Presence

Models:

PV-6LCRS

6-1/2" In-Ceiling 2-way

15û Angled Loudspeaker

Poly Woofer with Butyl Rubber Surround

Silk, Soft-Dome, Pivoting Tweeter

Frequency Response

Power Handling

Sensitivity

Impedance

Overall Dimensions

Cut-Out Dimensions

Loudspeaker Depth

PV-8LCRS

8" In-Ceiling 2-way

15û Angled Loudspeaker

PV-6LCRS

6-1/2"

3/4"

50 - 20K

40 / 80

91

8

7-1/2" Diameter

6-1/2" Diameter

2-3/8"

Features:

• High-temperature Polyimide voice coils

• High-grade crossovers

• Polyswitch overdrive protection

• Proven mounting system for

PV-6LCRS

RIR-615

• Frame and Grille may be painted to match mounting surface

• Sold and Shipped Individually

Additional PV-LCRS Features:

• Phase plug pole piece extensions | IR Knockouts |

Magnetically Shielded | Orient Vertically or Horizontally

Industry Leading Superior Clamp-ring Mounting System

PV-8LCRS

8"

3/4"

35 - 20K

60 / 120

91

8

12-7/8" Diameter

11-1/2" Diameter

5-3/4"

Optional Pre-Construction Brackets

RIR-815 for

PV-8LCRS

PV-LCRS

Dual 5-1/4" In-Wall 2-way

Center / All Channel Loudspeaker

PV-LCRS

Dual 5-1/4"

1"

45 - 20K

50 / 100

91

8

9" x 15-3/4"

7-7/8" x 14-7/16"

3-1/2"

Woofer Size

Hz ± 3 dB watts nom. / max. dB 1 watt / 1 meter ohms

RIB-LCR for PV-LCRS

Supplied with grille, baffle & frame

View all our

Presence

Models:

®

A-LCRS

Dual 5-1/4" In-Wall Center Channel Loudspeaker

Frequency Response: 45Hz - 20kHz ± 3 dB

Power Handling: 50 watts nom. 100 max.

Sensitivity: 91dB 1 watt / 1 meter

Impedance: 8 ohms nominal

Tweeter: 1" Silk, soft-dome, pivoting tweeter

Cut-out Dimensions: 7-7/8" x 14-7/16" x 3-1/2" deep

Overall Dimensions: 9" x 15-3/4"

Sold and shipped individually

Features:

• Woven Kevlar

®

woofers with butyl rubber surrounds

• High-temperature Polyimide voice coils

• Phase plug pole piece extensions

• IR Knockouts

• High-grade crossovers

• Polyswitch overdrive protection

• Industry leading superior clamp-ring mounting system

• Magnetically shielded

• Orient Vertically or Horizontally

• Frame and Grille may be painted to match mounting surface

Optional Pre-Construction Brackets

RIB-LCR

Supplied with Grille, Baffle and Frame

View all our

Presence

Models:

®

A-525

Dual 5-1/4" In-Wall

2-way Loudspeaker

A-650

6-1/2" In-Wall

2-way Loudspeaker

Woven Kevlar

®

Woofer with Butyl Rubber Surround

Silk, Soft-Dome, Pivoting Tweeter

1-3/8" Textile Soft Dome

Midrange

Frequency Response

Power Handling

Sensitivity

Impedance

Overall Dimensions

Cut-Out Dimensions

Loudspeaker Depth

IR Knockouts

A-820

8" In-Wall

2-way Loudspeaker

Features:

• High-temperature Polyimide voice coils

• Phase plug pole piece extensions

• High-grade crossovers

• Polyswitch overdrive protection

• Industry leading superior clamp-ring mounting system

• Frame and Grille may be painted to match mounting surface

• Sold and Shipped in Pairs

RIR-6914

(for A-525)

A-830

8" In-Wall

3-way Loudspeaker

A-525

5-1/4"

1"

50 - 20K

40 / 80

91

8

6-3/4"x 9-3/8"

5-1/2" x 8-3/16

2-3/8"

A-650

6-1/2"

1"

45 - 20K

50 / 100

91

8

9-1/16" x 12-3/4"

8" x 11-3/4"

3-1/4"

A-820

8"

1"

35 - 20K

60 / 120

91

8

10-1/2" x 14-1/2" 10-1/2" x 14-1/2"

9" x 13"

3-1/4"

A-830

8"

3-way

3/4"

35- 20K

60 / 100

91

8

9" x 13"

3-1/4"

Woofer Size

Hz ± 3 dB watts nom. / max. dB 1 watt / 1 meter ohms

W x H

W x H

D

Optional Pre-Construction Brackets:

RIB-62

(for A-650)

Supplied with Grille, Baffle and Frame

RIB-82

(for A-820

& A-830)

View all our

Presence

Models:

®

A-525CC

Dual 5-1/4" 2-way MTM LCRS Loudspeaker

The A-525CC has been optimized for high fidelity home theatre applications, primarily as a center channel speaker. The broad dispersion design does not limit the sweet spot to just one seat in the room but provides a large sound field to enjoy hi-fi audio.

Frequency Response: 80Hz - 20kHz ± 3 dB

Power Handling: 60 watts nom. 120 max.

Sensitivity: 89dB 2.83V / 1 meter

Impedance: 8 ohms nominal, 6 ohms minimum

Tweeter: 1" Silk dome ferro-fluid cooled tweeter with

acoustically optimized aluminum baffle

Overall Dimensions: 18-5/16"W x 6-11/16"H x 6-5/8"D (including grille)

Sold and shipped individually

Features:

• Dual 5-1/4'' Magnetically shielded Kevlar

®

Woofers with

butyl rubber surrounds

• Non-reflective-black MDF cabinet

• Equally suitable for left/right primary and surround channels

• Gold-Plated spring-post connections that accept up to #10 wire

& dual banana plugs

• Proven mounting system

Rear Gold-Plated

Spring-Post

Connections

Supplied with Black Cloth Grille

View all our

Presence

Models:

®

Rev. E

A-120

300W Powered Subwoofer with

12" Extra-Long-Throw Heavy Duty Driver

Features:

• The A-120 subwoofer was designed for exceptional performance and value. It features a

12'' extra-long excursion woofer with high BL motor. The bass reflex enclosure with flared port ensures extended bass response and high acoustic efficiency.

• The woofer is driven with an integral 300W, class A/B amplifier utilizing patented

BASH

®

technology for high electrical efficiency.

• The integral rear-mounted 300W amplifier includes level, phase (continuously variable

0-180°) and crossover control to contour the subwoofer’s output to blend with virtually all loudspeakers and room environments.

• The integral low-pass crossover network is continuously variable from 40Hz to 120Hz and can be bypassed if it is preferable to use an external crossover located in an outboard receiver or processor.

• The A-120’s integral amplifier incorporates a defeatable signal-sensing circuit that automatically powers up the amplifier when a signal is detected.

• A double-insulated, isolated-ground electrical supply prevents electrical ground loops and reduces the noise floor of the entire audio system.

The A-120 is shipped with adjustable feet, (4 spiked and 4 rubber) with tool-less knurled jam nuts. These feet can be installed in the bottom of the enclosure in either a 3-point triangular pattern or a more traditional 4-point square pattern.

The bottom of the enclosure has 5 threaded inserts arranged to accept either pattern.

Included Hardware

Spiked Feet (4)

Knurled Jam Nuts (4)

View all our

Presence

Models:

Rubber Feet (4)

Rev. G

A-120

300-Watt Powered Subwoofer with

12" Extra-Long-Throw Heavy Duty Driver

Specifications:

Frequency Response: 28Hz - 300Hz (System Response)

Crossover Response: 40Hz - 120Hz (Low-pass filter with bypass switch)

Phase Adjustment: 0 - 180 degrees (Continuously variable)

Amplifier Output Power: 300 watts, with thermal and clipping limiters

Audio Inputs:

Input Impedance:

Summing stereo line level (RCA x 2)

LFE (RCA shared with Left input connector)

Speaker Level (Stereo 5-way binding post)

Line Level - 20k ohms, Unbalanced / Speaker Level - 220 ohms

Input Power: 120V 60Hz AC

Input Power Connection: IEC 2-wire receptacle with integral fuse holder

Power (Mains) Fuse:

Power Modes:

3.15A 250V T3.15AL (5x20mm) style Slow Blow

Auto signal sensing and always on

Auto Off Delay:

Overall Dimensions:

~10 minutes

15-3/8"W x 17-5/16"H x 14-3/4"D (without feet)

Shipping Dimensions: 21"W x 20"H x 20"D

Weight: 43 lbs (19.5 kg)

Shipping Weight: 51 lbs (23.2 kg)

View all our

Presence

Models:

Rev. G

®
