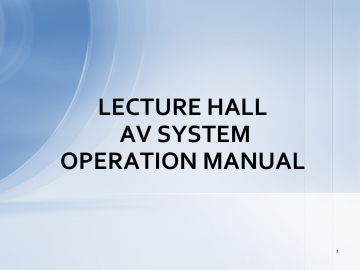

LECTURE HALL

AV SYSTEM

OPERATION MANUAL

1

INDEX

1.System Power On …………………………………………………….. 3

2.Overview …………………………………………………….. 4

3.Source …………………………………………………….. 7

4.Notebook (VGA) …………………………………………………….. 8

5.Notebook (HDMI) …………………………………………………….. 9

6.Visualizer …………………………………………………….. 10

7.Blu-ray …………………………………………………….. 13

8.VGA AUX …………………………………………………….. 14

9.Video AUX …………………………………………………….. 16

10.Camera …………………………………………………….. 18

11.Controls …………………………………………………….. 19

12.Miedia Volume Control …………………………………………………….. 20

13.Microphone Volume Control …………………………………………………….. 21

14.Projector Control …………………………………………………….. 22

15.Screen Split …………………………………………………….. 23

16.Enviroment …………………………………………………….. 26

17.Lighting Control …………………………………………………….. 27

18.Screen Control …………………………………………………….. 29

19. Window Curtain Control …………………………………………………….. 30

2

OPERATION MANUAL - POWER ON SYSTEM

Switch language

CHINESE / ENGLISH

Press the “SYSTEM ON" button to turn on the AV system and it takes

5 seconds.

3

OPERATION MANUAL - OVERVIEW

Switch language

CHINESE / ENGLISH

NAVIGATION TAB

MEDIA VOLUME BAR

POWER OFF

4

OPERATION MANUAL - OVERVIEW

Navigation Tab contains

3 pages:

SOURCE , CONTROLS and ENVIROMENTS .

SOURCE

CONTROLS

5

OPERATION MANUAL - OVERVIEW

ENVIRONMENT

6

OPERATION MANUAL - SOURCE

Source Page contains

7 individual source:

NOTEBOOK VGA ,

NOTEBOOK HDMI , VISULIZER , BLU-RAY , CAMERA , VGA AUX and VIDEO

AUX .

Press to enter

SOURCE page

7

Step

1

OPERATION MANUAL - NOTEBOOK VGA

Connect the VGA cable on the desk

to your notebook.

Step

2

Press the “NOTEBOOK VGA” button.

Step

3

Press the appropriate function keys on your notebook for image output. The function keys locate among F

1 - F12, on which there is a monitor icon or the words “CRT/LCD”.

8

OPERATION MANUAL - NOTEBOOK HDMI

Step

1

Connect the HDMI cable on the desk

to your notebook.

Step

2

Press the “NOTEBOOK HDMI” button.

Step

3

Press the appropriate function keys on your notebook for image output. The function keys locate among F

1 - F12, on which there is a monitor icon or the words “CRT/LCD”.

9

OPERATION MANUAL - VISUALIZER OPERATION

POWER

ON

Turn on the visualizer by pressing the “ON/OFF” button.

LED

LAMP

Press the “Lamp Switch” button to change the LED lamp status: bright, dim, and off.

10

OPERATION MANUAL - VISUALIZER OPERATION

AUTO

FOCUS

Press the “Focus” button to auto focus.

ZOOM

IN / OUT

The display range of the document can be adjusted by pressing the “Zoom In” and “Zoom Out” buttons.

11

OPERATION MANUAL - VISUALIZER SELECTION

Step

1

Turn on the visualizer by pressing the “ON/OFF” button.

Step

2 Press the “VISUALIZER” button.

12

OPERATION MANUAL - BLU-RAY PLAYER

Step

1

Turn on the BLU-RAY player by pressing the “ON/STANDBY” button.

Step

2

Press button to open or close disk tray.

Press the “BLU-RAY” button.

13

OPERATION MANUAL - VGA AUX

VGA AUX is for external devices to connect to classroom AV system.

Step

1

Press the “VGA AUX” button in Source Selection Page.

Step

2

Select the appropriate VGA source by pressing the VGA AUX button

in the Page, then press to return.

14

Step

3

OPERATION MANUAL - VGA AUX

Connect your notebook to the corresponding VGA AUX panel with a

VGA cable.

Step

4

Press the appropriate function keys on your notebook for image output. The function keys locate among F

1 - F12, on which there is a monitor icon or the words “CRT/LCD”.

15

OPERATION MANUAL - VIDEO AUX

VIDEO AUX is for external devices, such as VCR or portable sound systems, to connect the AV system.

Step

1

Press the “VIDEO AUX” button in Source Selection Page.

Step

2

Select the appropriate Video source by pressing the Video AUX button

in the Page, then press to return.

16

Step

3

OPERATION MANUAL - VIDEO AUX

Connect the your external device to the corresponding video AUX panel with a video cable.

17

OPERATION MANUAL - CAMERA

Press “CAMERA” button in source page to output the image of camera.

18

OPERATION MANUAL - CONTROLS

Controls Page contains

3 control functions:

Media Volume , MIC. Volume and

Projector .

Press to enter

CONTROLS page

19

OPERATION MANUAL - MEDIA VOLUME CONTROL

Media Volume Control (Notebook, Blu-ray, VGA AUX, VIDEO AUX).

Step

1

Press the “MEDIA VOLUME” button or ” MEDIA VOLUME BAR” .

OR

Step

2

“CONTROL FADER” determines the level of media volume.

RESET MEDIA

VOLUME TO

DEFAULT LEVEL

VOLUME LEVEL

CONTROL FADER

MUTE / UNMUTE

20

OPERATION MANUAL - MICROPHONE VOLUME CONTROL

Step

1

Press the “MICROPHONE VOLUME” button.

Step

2

“CONTROL FADER” determines the level of microphone volume.

VOLUME LEVEL

CONTROL FADER

RESET MIC. VOLUME

TO DEFAULT LEVEL

21

OPERATION MANUAL - PROJECTOR CONTROL

Step

1

Press the “PROJECTOR” button.

Step

2

Press appropriate button to control projector screen.

Mute /Unmute projector picture.

Auto adjust projector picture.

Change projector picture aspect ratio:

16:10, 4:3 and normal.

Select picture in picture function.

22

OPERATION MANUAL - SCREEN SPLIT

Screen split function is use to spilt the screen as 2 separate screen

which allow to present 2 individual sources.

Step

1

Press “SCREEN SPLIT” button in projector control page.

23

Step

2

OPERATION MANUAL - SCREEN SPLIT

Select appropriate source by pressing the source button.

Step

3

Select the appropriate split screen for image present.

24

Step

4

OPERATION MANUAL - SCREEN SPLIT

Press “SCREEN SPLIT” button again to disable the screen split function.

25

OPERATION MANUAL - ENVIRONMENT

Environment Page contains

3 control functions:

LIGHTING CONTROL , SCREEN CONTROL and WINDOW CURTAIN

CONTROL .

Press to enter

ENVIRONMENT

Control page

26

OPERATION MANUAL - LIGHTING CONTROL

Step

1

Press the “LIGHTING CONTROL” button.

27

OPERATION MANUAL - LIGHTING CONTROL

Step

2

Press appropriate button to select lighting mode.

PROJECTION mode

THEATRE mode

FULL ON mode

FULL OFF mode

28

OPERATION MANUAL - SCREEN CONTROL

Step

1

Press the “SCREEN CONTROL” button.

Step

2 Press appropriate button to control screen.

29

OPERATION MANUAL - WINDOW CURTAIN CONTROL

Step

1 Press the “WINDOW CURTAIN CONTROL” button.

Step

2

Press appropriate button to control window curtain.

30
