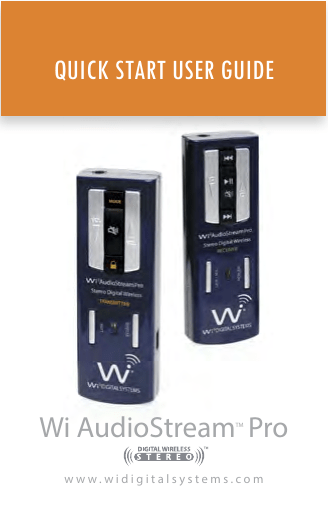

QUICK START USER GUIDE
Wi AudioStream Pro
TM
w w w.widigitalsystems.com
Charging
1. Plug the AC Charger into a power socket.
2. Connect the USB Y-Split power cable to
the USB port on the AC Charger.
3. Connect one of the two mini USB connectors
into the transmitter USB port.
4. Connect the second mini USB connector into
the receiver USB port.
5. The Power/Status LED will turn to solid
Red ON.
6. When charging is complete the Red LED
will turn OFF.
7. Remove the charging cable and the AC Charger and store in the carrying case.
The battery will last 4 to 6 hours of
continuous operation.
AC Charger
USB Connector
K
LIN
USB Port
ER
POW
USB Port
Mini USB
Connector
Pairing (Only If Needed)
1. First turn ON the transmitter (Tx) and the
receiver (Rx) units by pressing and
holding the POWER buttonk ,v on each
of the units for 2 seconds.
2. Press and hold the LINK buttonp on the
transmitter (Tx) for 3 seconds. The Power/
Status LED on the transmitter will start fast
flashing. The transmitter is now in a Pairing
mode and ready to search for the receiver.
3. Press and hold the LINK button z on the
receiver (Rx) for 3 seconds. The Power/
Status LED on the receiver will start fast
flashing. The receiver is now in a Pairing mode and ready to be found by the
transmitter.
4. Once the transmitter links with the receiver
the Power/Status LED on both devices will
turn to solid Green.
(Rx)
(Tx)
r
z
v p
k
Wireless Microphone Setup
(Tx)
PLEASE READ FIRST
Set Transmitter to Mono Mic-in
Mode r (fast blue LED flashing)
for operation with ear worn
microphones. Refer to back
of transmitter for additional
information.
r
Transmitter Connection
Audio Input Jack
(Tx)
Audio Cable
Ear-Worn Microphone
Belt Clip
Always route
the audio
cable beneath
Tx & Rx belt
clip to prevent
accidental
disconnection.
Receiver Connection
Sound System
Application
Recording to
your Computer
Computer
Mic-In Jack
Mixing
Console
ER
/VoI
P
1/8” to 1/8” Cable
LINK
LINK/VoIP
(Rx)
(Rx)
POW
POWER
1/4” Stereo Y-Split to 1/8”
Stereo Cable
In-Ear Monitoring Setup
(Tx)
PLEASE READ FIRST
Set Transmitter to Line-in Stereo
Mode r (two blue LED flashes)
for operation with earphones.
Refer to back of Transmitter
for additional information.
r
Transmitter Connection
Stage Monitoring
Music Listening from
Computer
Audio Input
Jack
(Tx)
P
/VoI
LINK
ER
1/4” Stereo Y-Split to 1/8”
Stereo Cable
(Rx)
1/8” to 1/8” Cable
Receiver Connection
Audio Cable
Belt Clip
(Rx)
Always route
the audio
cable beneath
Tx & Rx belt
clip to prevent
accidental
disconnection.
POW
Computer
Headphone Jack
Mixing
Console
QUICK START USER GUIDE
TM
The Sound of Digital Wireless Innovation
© 2013 Wi Digital Systems, Inc. All rights reserved. Stylized Wi logo is a
registered trademark of Wi Digital Systems, Inc. in the United States and may
be a registered trademark in other countries. Wi, Digital Wireless Stereo logos
and Wi AudioStream, Wi Sure-Sound, Wi Sure-Fit, Wi Sure-Ears, Wi Micro-In-Ear
are trademarks of Wi Digital Systems, Inc. All other trademarks included herein
are the property of their respective owners. US and Foreign Patents Pending.
(Design and specifications subject to change without notice).
w w w.widigitalsystems.com
Wi Transmitter
1. Audio IN Jack
7. Link/Pairing
2. Power ON/OFF
8. Lock
3. Power/Status LED
9. Operation Mode
4. Volume UP
5. Volume Down
10. USB Audio
Interface &
Charging Port
6. Mute
11. Belt Clip
j
r
o
n
q
p
l
m
11
k
s
Transmitter Button Function
Function
Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK
3 sec Fast Green Flash
Volume UP
Click Volume Down
Mute ON/OFF
1.5sec Solid Green & Blue
Lock Keypad
2 sec Solid Green Only
Unlock Keypad
Click Solid Green & Blue Flashes
MIC-In Stereo MODE 2 sec Solid Green & Slow
MIC-In Mono MODE 2 sec
Line-In Stereo MODE 2 sec
Blue LED Flashes
Solid Green & Fast
Blue LED Flashes
Solid Green & Two
Blue LED Flashes Transmitter LED Indicator
Function
Searching For Receiver
Linked to Receiver
Lock Mode
Low Battery
Charging With Power OFF
Charging With Power ON
Charging Complete
LED Status
l
l
l
l
l
l
l
Flashing Green
Solid Green
Solid Green Only
Solid Green &
Flashing Red
Solid Red
Solid Red & Green
Red OFF
Wi Receiver
1. Audio OUT Jack
7. Next Track
2. Power ON/OFF
8. Previous Track
3. Power/Status LED
9. Mute/ Play/Pause
4. Volume UP
10.USB Charging Port
5. Volume Down
11. Belt Clip
6. Link/MIC
u
|
}
y
{
z
w
x
11
v
~
*Functions are activated when Transmitter is connected to a USB Port
Receiver Button Function
Function
Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK
3 sec
Fast Green Flash
MIC On/Off
Click
2 Blue LED Flashes / Solid Green LED
MIC
Volume UP
Volume Down
Click Mute ON/OFF
1.5 sec Solid Green & Blue
Play/Pause
*
Click
Next Track
*
Click
Prev Track
*
Click
Receiver LED Indicator
Function
Searching For Transmitter
Linked to Transmitter
Lock (Activated By Tx)
Low Battery
Charging With Power OFF
Charging With Power ON
Charging Complete
LED Status
w
w
w
w
w
w
w
Flashing Green
Solid Green
Solid Green Only
Solid Green &
Flashing Red
Solid Red
Solid Red & Green
Red OFF
