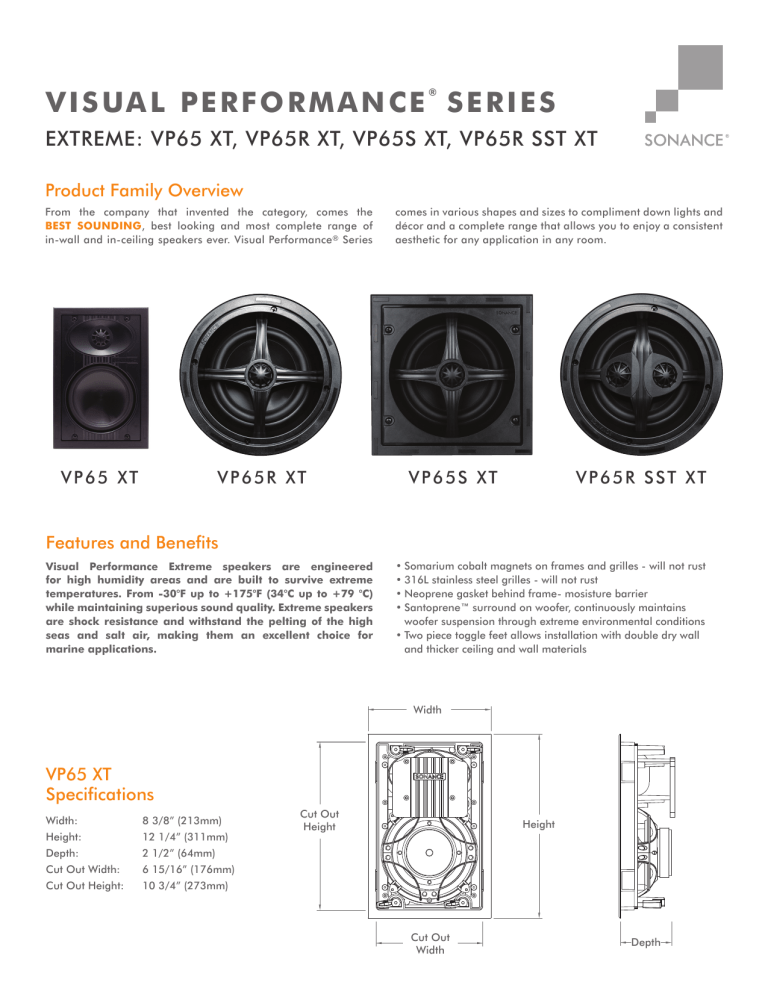

V I S UA L P E R F O R M A N C E S E R I E S
®
EXTREME: VP65 XT, VP65R XT, VP65S XT, VP65R SST XT
Product Family Overview
From the company that invented the category, comes the
BEST SOUNDING, best looking and most complete range of
in-wall and in-ceiling speakers ever. Visual Performance® Series
VP65 XT
VP65R XT
comes in various shapes and sizes to compliment down lights and
décor and a complete range that allows you to enjoy a consistent
aesthetic for any application in any room.
VP65S XT
VP65R SST XT
Features and Benefits
Visual Performance Extreme speakers are engineered
for high humidity areas and are built to survive extreme
temperatures. From -30°F up to +175°F (34°C up to +79 °C)
while maintaining superious sound quality. Extreme speakers
are shock resistance and withstand the pelting of the high
seas and salt air, making them an excellent choice for
marine applications.
•Somarium cobalt magnets on frames and grilles - will not rust
•316L stainless steel grilles - will not rust
•Neoprene gasket behind frame- mosisture barrier
•Santoprene™ surround on woofer, continuously maintains
woofer suspension through extreme environmental conditions
•Two piece toggle feet allows installation with double dry wall
and thicker ceiling and wall materials
Width
VP65 XT
Specifications
Width: 8 3/8” (213mm)
Height:
12 1/4” (311mm)
Depth:
2 1/2” (64mm)
Cut Out Width:
6 15/16” (176mm)
Cut Out Height:
10 3/4” (273mm)
Cut Out
Height
Height
Cut Out
Width
Depth
Diameter
VP65R XT
Specifications
Diameter: 9 3/4” (248mm)
Depth:
3 1/2” (89mm)
Cut Out Diameter: 8 1/4” (210mm)
Cut Out
Diameter
Depth
Width
VP65S XT
Specifications
Width: 9 7/8” (251mm)
Height:
9 7/8” (251mm)
Depth:
3 1/2” (89mm)
Cut Out Width:
8 1/4” (210mm)
Cut Out Height:
8 1/4” (210mm)
Cut Out
Height
Height
Cut Out
Width
Depth
Diameter
VP65R SST XT
Specifications
Diameter: 9 3/4” (248mm)
Depth:
3 1/2” (89mm)
Cut Out Diameter: 8 1/4” (210mm)
Cut Out
Diameter
Depth
4.72 [119.8] 4.72 [119.8]
SPECIFICATIONS
VP65 XT
VP65R XT
VP65S XT
VP65R SST XT
SKU
92751
92752
92835
92753
UOM
Pair
Pair
Pair
Each
Tweeter
1" (25mm)
polyurethane dome
1" (25mm)
polyurethane dome
1" (25mm)
polyurethane dome
Two 1" (25mm)
polyurethane domes
Woofer
6 1/2" (165mm) injection-molded
polypropylene/graphite cone,
with integral Santoprene™ surround
6 1/2" (165mm) injection-molded
polypropylene/graphite cone,
with integral Santoprene™ surround
6 1/2" (165mm) injection-molded
polypropylene/graphite cone,
with integral Santoprene™ surround
6 1/2" (165mm) injection-molded
polypropylene/graphite cone,
with integral Santoprene™ surround
55Hz - 20kHz ±3dB
55Hz - 20kHz ±3dB
55Hz - 20kHz ±3dB
55Hz - 20kHz ±3dB
8 ohms nominal;
6 ohms minimum
8 ohms nominal;
6 ohms minimum
8 ohms nominal;
6 ohms minimum
8 ohms nominal;
6 ohms minimum
5 watts minimum;
130 watts maximum
5 watts minimum;
130 watts maximum
5 watts minimum;
130 watts maximum
5 watts minimum;
130 watts maximum
89dB SPL
(2.83V/1 meter)
89dB SPL
(2.83V/1 meter)
89dB SPL
(2.83V/1 meter)
89dB SPL
(2.83V/1 meter)
Grille
Powder-coated stainless steel
Powder-coated stainless steel
Powder-coated stainless steel
Powder-coated stainless steel
Dimensions
(WxHxD) or (Dia. x D)
8 3/8" x 12 1/4" x 2 1/2"
(213mm x 311mm x 64mm)
9 3/4" x 3 1/2"
(248mm x 89mm)
9 7/8" x 9 7/8" x 3 1/2"
(251mm x 251mm x 89mm)
9 3/4" x 3 1/2"
(248mm x 89mm)
Cut-Out Dimensions
(WxH) or (Dia.)
6 15/16" x 10 3/4"
(176mm x 273mm)
8 1/4"
(210mm)
8 1/4" x 8 1/4"
(210mm x 210mm)
8 1/4"
(210mm)
Shipping Weight
12 lbs (5.4 kg) pair
12 lbs (5.4 kg) pair
12 lbs (5.4 kg) pair
4.5 lbs (2.1 kg) each
Frequency Response
Impedance
Power Handling
Sensitivity
Associated Products for VP65 XT
Medium Rectangle Retrofit Enclosure
(Pair Per Box)
92342
Medium Rectangle Flex Bracket (5 Pair Per Box)
92336
Medium Rectangle Masonry Bracket (Pair Per Box)
92066
Medium Rectangle Acoustic Enclosure (Each)
91687
Fire-Rated Listed Shallow Backcan (Each)
92807
Associated Products for VP65R XT & VP65R SST XT
Medium Round Flex Bracket (5 Pair Per Box)
92337
Medium Round Acoustic Enclosure (Each)
91688
Medium Round Retrofit Enclosure (5 Pair Per Box)
92343
Fire-Rated Listed Deep Backcan (Each)
92808
Associated Products for VP65S XT
Medium Square Acoustic Enclosure (Each)
92474
Medium Square Flex Bracket (5 Pair Per Box)
92344
Medium Round/Square Retrofit Enclosure (5 Pair Per Box)
92343
Fire-Rated Listed Deep Backcan (Each)
92808
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Visual Performance Extreme Speaker”), when purchased
from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for
the grille, which is warranted for five (5) years. Sonance will at its option and expense either repair the defect or replace the Product with a
new or remanufactured Product or a reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty
and exclusion information.
©2017 Sonance. All rights reserved.
Sonance, Visual Performance and Roto-Lock, are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
www.sonance.com
05.22.17
