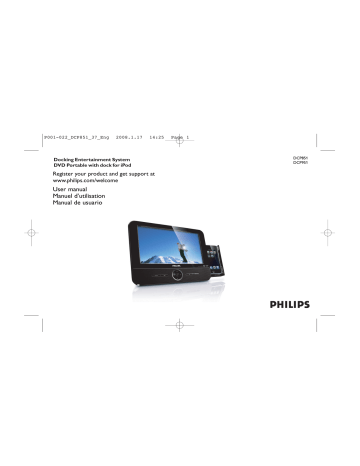

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 1

Docking Entertainment System

DVD Portable with dock for iPod

Register your product and get support at www.philips.com/welcome

User manual

Manuel d’utilisation

Manual de usuario

DCP851

DCP951

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 2

2

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 3

This product complies with the FCC-Rules, Part 15 and with

21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio

Interference Regulations of the Canadian Department of

Communications. This Class B digital apparatus complies with

Canadian ICES-003.

Français:

Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de

Classe B prescrites dans le Règlement sur le Brouillage

Radioélectrique édicté par le Ministère des Communications du

Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

English - - - - - - - - - - - - - - - - - - - - 4

Français - - - - - - - - - - - - - - - - - - 23

Español - - - - - - - - - - - - - - - - - - 42

3

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 4

IMPORTANT SAFETY INSTRUCTIONS

4

Return your Product Registration Card today to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:

*Proof of

Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety

Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional

Benefits of

Product

Ownership

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safety

symbols

For Customer Use

Enter below the Serial No. which is

C A U T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Retain this information for future reference.

Model No. ______________________

Serial No. ______________________

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

WARNING:

To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

CAUTION:

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Clean only with dry cloth.

Where the MAINS plug or an appliance coupler is used as the disconnet device, the disconnet device shall remain readily operable.

9

materials

Class II equipment symbol

This symbol indicates that the unit has a double insulation system

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 5

PHILIPS LIMITED WARRANTY

ONE (1) YEAR

WARRANTY COVERAGE:

PHILIPS warranty obligation is limited to the terms set forth below.

Philips, or (d) if any Philips serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished Philips product sold “AS IS” by some retailers.

WHO IS COVERED:

Philips warrants the product to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase

(“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.

WHAT IS COVERED:

The Philips warranty covers new products if a defect in material or workmanship occurs and a valid claim is received by Philips within the Warranty Period. At its option, Philips will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.

Philips warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Philips’ property. When a refund is given, your product becomes Philips’ property.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

This Limited Warranty does not cover:

• Shipping charges to return defective product to Philips.

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of Philips.

• Damage or claims for products not being available for use, or for lost data or lost software.

• Damage from mishandled shipments or transit accidents when returning product to Philips.

• A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• A product used for commercial or institutional purposes

(including but not limited to rental purposes).

• Product lost in shipment and no signature verification receipt can be provided.

• Failure to operate per Owner’s Manual.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO

RICO, OR U.S. VIRGIN ISLANDS…

Contact Philips Customer Care Center at:

1-888-PHILIPS (1-888-744-5477)

WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-

TATIONS:

This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply to any non-Philips hardware product or any software, even if packaged or sold with the product. Non-Philips manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product.

Philips is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or any non-Philips product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

TO OBTAIN ASSISTANCE IN CANADA…

1-800-661-6162 (French Speaking)

1-888-PHILIPS (1-888-744-5477) - (English or Spanish

Speaking)

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS

WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-

SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-

TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF

ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-

UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE

LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT

IS LIMITED IN DURATION TO THE DURATION OF THIS

WARRANTY.

This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-Philips product, (b) to damage caused by service performed by anyone other than

Philips or Philips Authorized Service Location, (c) to a product or a part that has been modified without the written permission of

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 671539, Marietta, GA. 30006-0026

3121 233 48802

5

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 6

English

FUNCTIONAL OVERVIEW

Main unit controls

( see figure 1)

1

MENU

.....................Display the MENU page.

2

2

;

.........................Start or interrupt playback.

3

3, 4, 1, 2 ...........Navigate in a menu.

...........(

1 / 2) search backward/forward in a disc at different speeds.

OK ..........................Confirm a selection.

................................Power indicator

4

J( / § ..................Skip to the previous/next chapter, track or title.

5 DOCK for iPod... ...Place an iPod player.

Top of player

( see figure 1)

6

OPEN

.....................Open the disc door to insert or remove disc.

7 MONITOR ..............Switch the aspect ratio between 16:9 or 4:3.

8

SOURCE

... ..............Select respective sources: DISC, iPod, SD/MMC or AV.

9

ON/OFF

... ..............Switch the power on/off .

1

6

1

2

3

6

9

8

7

5

4

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 7

FUNCTIONAL OVERVIEW

Left of player ( see figure 2)

0 RESET ..........................Reset the player when it hangs.

!

1 p

2

.

.. .......................Headphone jacks.

@ AV OUT.........................Audio/Video output jack.

#

AV IN... .........................Audio/Video input jack.

$

VOL +/-

.. .......................Volume control.

% SD/MMC CARD...........Insert an SD/MMC card.

^

9V DC IN and CHG

.....Power supply socket.

..... charge indicator

Right of player

( see figure 2)

& IPod EJECT..................Push to eject the iPod player.

Desk stand of the player

( see figure 3)

You can prop up the DVD player on your table for movie watching.

Pull out the stand at the rear of the player.

2

0

!

@

#

$

%

^

3

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

&

7

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 8

Remote controls

( see figure 4)

1 Source keys ........Select respective sources: DISC, iPod, SD/MMC or AV .

2 REPEAT ..................Repeat a chapter/track/title.

3 A-B... ......................Repeat playback of a specific section on a disc.

4 SHUFFLE ................Play a disc randomly.

5 PROG......................Enter the program menu.

6

9 .............................Stop playback or erase a program.

7

2

;

...........................Start or interrupt playback.

8 DISC MENU ..........Enter or exit the disc contents menu.

9 SETUP ....................Enter or exit the system menu.

0

3, 4, 1, 2 ...........Navigate in a menu.

...........(

1 / 2) search backward/forward in a disc at different speeds.

!

OK ...........................Confirm a selection.

@

J( / §...................Skip to the previous/next chapter, track or title.

# Numeric Keypad (0-9)...Input numbers.

$ ZOOM.....................Enlarge or reduce a picture or active image on the TFT.

% MONITOR ..............Switch the aspect ratio between 16:9 or 4:3.

^ DISPLAY ................Display information on TFT during playback.

& TITLE/RETURN......Display the disc title or return to the previous level of the

VCD disc menu.

* SUBTITLE ..............Select a subtitle language.

( AUDIO ....................Select an audio language when playing a DVD disc or select an audio mode (Stereo, Mono-Left or Mono-Right) when playing a VCD/CD disc.

8

REMOTE CONTROL

4

8

9

!

3

2

6

#

$

1

4

5

7

0

@

(

*

&

^

%

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 9

INTRODUCTION

Your portable DVD player

Your portable DVD player plays digital video discs conforming to the universal

DVD Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, and stereo or multichannel sound (depending on the disc and on your playback set-up).

The unique features of DVD-Video, such as selection of soundtrack and subtitle languages, and of different camera angles (again depending on the disc), are all included.

What’s more, parental lock lets you decide which discs your children will be able to see. You will find your player remarkably easy to use with the On-Screen

Display and player display in combination with the remote control.

Unpacking

First check and identify the contents of your package, as listed below:

• Portable DVD player • Remote Control

• Car adaptor (12V)

• User Manual

• Quick Start Guide

• Audio / Video cable

• Warranty

• AC power adaptor, DSA-9W-09 F (DVE), AY4132 (PHILIPS) or AY4193 (PHILIPS)

Placement

• Place the player on a firm, flat surface.

• Keep away from domestic heating equipment and direct sunlight.

• If the player cannot read CDs/DVDs correctly, try using a commonly available cleaning CD/DVD to clean the lens before taking the player to be repaired. Other cleaning methods may destroy the lens.

• Always keep the disc door closed to avoid dust on the lens.

• The lens may cloud over when the player is suddenly moved from cold to warm surroundings. It is then not possible to play a CD/DVD. Leave the player in a warm environment until the moisture evaporates.

INTRODUCTION

About Built-in Rechargeable Battery

Precautions related to battery recharge

1

Once the battery is fully discharged, immediately recharge it (regardless of whether you plan to use the battery or not) in order to maximize the battery life.

When the power is low, the battery icon will be shown on the upperright corner of the TFT for warning.

2

To charge the battery, please directly connect this DVD player to AC mains and the charge indicator will turn on.

Using and maintaining your rechargeable batteries

1

Please make sure you always use only the AC adapter included with the player to recharge your batteries.

2

Recharge efficiency will degrade when the environmental temperature drops below 50 o

F (10 o

C) or exceed 95 o

F (35 o

C).

3

The lasting time of the fully charged battery when a headphone is connected to the DVD player is approximately 2.5 hours.

Playable disc formats

In addition to DVD-Video disc, you will also be able to play all Video CDs and audio CDs (including CDR, CDRW,DVD ± R and DVD ± RW).

DVD-Video

Depending on the material on the disc (a movie, video clips, a drama series, etc.) these discs may have one or more Titles, and each Title may have one or more Chapters. To make access easy and convenient, your player lets you move between Titles, and also between

Chapters.

CD with JPEG files

You can also view JPEG still photos on this player.

9

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 10

INTRODUCTION

Video CD

Depending on the material on the disc (a movie, video clips, a drama series, etc.) these discs may have one or more Tracks, and tracks may have one or more indexes, as indicated on the disc case.To make access easy and convenient, your player lets you move between tracks and between indexes.

Audio CD / MP3 CD

Audio CDs / MP3-CD contain music tracks only. You can play them in the conventional way through a stereo system using the keys on the remote control and/or main unit, or via the TV using the On Screen Display (OSD).

About DivX

DivX is a popular media technology created by DivX, Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively samll file size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download online, and you can create your own using your personal content and easy-to-use tools from www.DivX.com.

Zero Bright Dot

TM

Enjoy highest-quality images that are free from annoying blank spots on the LCD screen. LCD displays commonly have imperfections, termed as

'bright dots' by the LCD industry. A limited number of bright dots were once considered an inevitable side effect of LCD mass production. With Philips' strict quality control procedures used in our

Portable DVD Players, our LCD displays are produced with zero tolerance for bright dots. Select Portable DVD Players come with Philips Zero

Bright Dot TM Policy to guarantee optimal screen quality.

Warranty service varies from region to region. Contact your local Philips representative for more detailed information.

About SD Memory Card

SD Memory Card is a slim and compact bridge media linking various kinds of digital equipment through its easy connectivity. The card's control circuitry allows data to be read and written (in its protection area) only when appropriate external devices are detected. Using decoder software, an SD Memory Card-compatible device can play music, video clips and more without a drive mechanism like those in CD and DVD players.

10

GENERAL INFORMATION

Power Sources

This unit operates on a supplied AC adapter, car adapter, or the built-in lithium battery.

• Make sure that the input voltage of the AC adaptor is in line with the local voltage. Otherwise, the AC adaptor and unit may be damaged.

• Do not touch the AC adaptor with wet hands to prevent electric shock.

• When connecting with car power (cigarette lighter) adaptor, be sure the input voltage of the adaptor is identical with car voltage.

• Unplug the AC adaptor from the outlet when the unit is not used for long periods of time.

• Hold the plug to disconnect the AC adaptor. Do not pull the power cord.

Safety and maintenance

• Do not disassemble the unit for laser rays are dangerous to eyes.

Any service should be done by qualified service personnel.

• Unplug the AC adaptor to cut the power if liquid or objects get inside the unit.

• Take care not to drop the unit or subject it to strong shocks, which may cause malfunction.

• Important (for models with by-packed headphones): Philips guarantees compliance with the maximum sound power of its audio players as determined by relevant regulatory bodies only with the original model of provided headphones. In case this one needs replacement, we recommend that you contact your retailer to order a model identical to that of the original provided by Philips.

• Traffic safety: do not use while driving or cycling as you may cause an accident

• Do not expose to excessive heat caused by heating equipment or direct sunlight.

• This product is not waterproof: do not allow your player to be submersed in water. Water entering the player may cause major damage.

• Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as these may harm the player.

• Apparatus shall not be exposed to dripping or splashing. Do not place any sources of danger on the appartus (e.g. liquid filled objects,lighted candles)

• Do not touch the lens!

Note: When the player is in use for a long period of time, the surface will be

heated. This is normal.

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 11

GENERAL INFORMATION

Hearing Safety

Listen at a moderate volume:

• Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.

• Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally "safe" levels, can also cause hearing loss.

• Be sure to use your equipment reasonably and take appropriate breaks.

Be sure to observe the following guidelines when using your headphones:

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can't hear what's around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations.

• Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.

GENERAL INFORMATION

Handling discs

• Do not attach paper or tape to the disc.

• Keep the disc away from direct sunlight or heat sources.

• Store the disc in a disc case after playback.

• To clean, wipe the disc outwards from the center with a soft, lint-free clean cloth.

On handling the LCD screen

The LCD is manufactured using high precision technology. You may, however, see tiny black points and/or bright points(red,blue,green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.

Environmental information

We have reduced the packaging to its minimum and made it easy to separate into mono materials: cardboard, PS, PE and PET.

Your set consists of material which can be recycled if disassembled by a specialized company. Please observe the local regulations to dispose of packaging, exhausted batteries and old equipment.

Copyright information

“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc. and are used under license.”

All other brand and product names are trademarks of their respective companies or organizations.

Unauthorized duplication of any recordings downloaded from the internet or made from CDs / VCDs / DVDs is a violation of copyright laws and international treaties.

Dolby Information: Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trade marks of Dolby Laboratories.

11

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 12

PREPARATIONS

Power supply

Using the AC / DC adaptor

Connect the supplied adapter to the set and the main power supply (as shown).

TIP

To avoid damage to the player, switch off before plugging or unplugging the AC adaptor.

Using the car adapter

Connect the supplied car adapter to the set and the car cigarette lighter outlet.

TIP

• To avoid damage to the player, switch off before plugging or unplugging the car adaptor.

• When connecting with car power (cigarette lighter) adaptor, be sure the input voltage of the adaptor is identical with car voltage.

• Make sure the temperature is below 35oC when the DVD player is connected to DC 16.0V in a car.

Powering your remote control

1

Push the iPod EJECT key to take out the remote control. Open the battery compartment. Remove the protective plastic tab (first time users only).

2

Insert 1 x lithium 3V battery, type CR2025, then close the compartment.

CAUTION

- Batteries contain chemical substances, so they should be disposed of properly.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

- Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.

12

PREPARATIONS

Remove the battery if the remote control is not to be used for a long time.

Connections

Connecting headphones

Connect the headphones into the n1 or the n2 jack of your set.

Connecting additional equipment

• Turn off your set before connecting to any additional equipment.

• You can connect the player to a TV or an amplifier to enjoy DVDs or karaoke.

AV OUT

Connect the desired device to this terminal directly (no setting needed in the DVD, iPod or SD/MMC mode).

White

Red

Yellow

AV IN

On the DVD player panel, press the source key repeatedly (AV on the remote) to select AV IN (AUX).

Connection

Color

Video

Yellow

Audio (Left) Audio (Right)

White Red

White

Red

Yellow

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 13

PREPARATIONS

SD/MMC card slot

You can play video/audio/picture files stored in an SD/MMC card by inserting it into the SD/MMC CARD slot.

On the DVD player panel, press the SOURCE key repeatedly (or

SD/MMC CARD on the remote) to select the SD/MMC source.

TIP

Make sure the metal contact of the card to be inserted is facing down.

Dock for iPod

You can dock your iPod player for playback of stored files and recharging.

IPod classic, nano and touch are supported.

Connecting the iPod player

1

Press iPod to switch to iPod mode.

“Please connect the iPod” is displayed.

Please connect the iPod

3

Pull the dock out.

“Connecting to iPod” is displayed. The certification will take about three seconds.

After certification is complete, the display on the DVD and iPod players is as follows:

PREPARATIONS

4

Put your iPod player in the dock.

2 Push the iPod EJECT key to eject the dock for iPod.

Removing the iPod player

Remove the iPod player as shown.

13

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 14

GENERAL EXPLANATION BASIC FUNCTIONS

About this manual

This manual gives the basic instructions for operating this DVD player.

Some DVD discs however are produced in a way that requires specific operation or allows only limited operation during playback. In these cases the player may not respond to all operating commands. When this occurs, please refer to the instructions in the disc inlay. When a “ ” appears on the screen, the operation is not permitted by the player or the disc.

Remote control operation

• Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player, making sure there are no obstructions in the path of the infrared beam.

• When there are corresponding keys on the main unit, they can also be used.

Menu navigation

• Your player has an intuitive menu navigation system to guide you through various settings and operations.

• Use the function keys to activate / disable relevant operations.

• Use

3, 4, 1, 2 to browse through menus.

• Press OK key to confirm your selection.

Switching on for OSD language setup

English is the default language of your player’s on screen display. You may choose to use English, French or Spanish for your player’s on screen display.

Country

America

OSD Language Options

English, French, Spanish

1

Press ON briefly to switch on the player.

2

Press SETUP for the setup menu.

3

Select

Language

and press

4

.

4

Select OSD and press

2 to select from OSD language options.

5

Select your preferred language and press OK.

Loading discs and switching on

1

Push OPEN to open the disc door .

2

Insert your chosen disc, label side up (also when a double sided

DVD disc is inserted). Make sure it is sitting properly in the correct recess.

3

Gently push to close the door.

4

Slide the POWER switch to ON to switch on the player.

TIP

A normal mechanical noise is heard during playback.

14

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 15

BASIC FUNCTIONS

Playing a DVD disc

After switching on, inserting the disc and closing the door, playback starts automatically. The screen shows the type of disc loaded. The disc may invite you to select an item from a menu. Use the

3, 4, 1, 2 keys to highlight your selection,and press OK.

Note: Since it is usual for DVD movies to be released at different times in different regions of the world, all players have region codes and discs can have an optional region code. If you load a disc of a different region code to your player, you will see the region code notice on the screen. The disc will not play, and should be unloaded.

Playing an audio or video CD disc

• After switching on, inserting the disc and closing the door, playback starts automatically. The screen shows the type of disc loaded as well as information about the disc’s contents.

• While playing VCD with MTV/Karaoke, press number keys(0-9) to select the track and press

2

; or OK to play the track. Press TITLE/RETURN to go back to menu of the selection.

Playing DivX® disc

• Philips provide you the DivX® VOD (Video on Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

• Select the DivX® VOD on the Custom Page.

• The registration code will appear.

• Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.

TIP

All the downloaded videos from DivX® VOD can only be played back on this DVD player.

Playing an MP3 CD

BASIC FUNCTIONS

The following playback features are available for MP3 CDs.

Please refer to the corresponding sections for more information.

Volume control, skipping tracks, searching, repeat, shuffle, etc.

Use the

3, 4 keys to highlight your selected music folder.

Press OK to play.

Playing a JPEG discs

Use the

3, 4 keys to highlight your selected picture.

Press OK. The player will then automatically enter the slide show mode.

During playback, you can:

• Use the

1, 2 to rotate the picture.

• Use the

3 to filp left/right .

• Use the

4 to flip up/down .

• Press DISC MENU or

9 to go back to folder screen.

• Press ZOOM repeatedly to display the picture with different scales.

• Use the

3, 4, 1, 2 to view the zoomed picture (for picture zoomed in only).

Note: 1. Unless stated otherwise, all operations described are based on remote control operation.

2. I

f setting BROWSE to Thumbnail, you can press

9 to go to group preview.

15

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 16

BASIC FUNCTIONS

Playing files stored in an SD/MMC card

After connecting an SD/MMC card to this player, you can play audio/video files stored in the card by selecting the desired file with

3 4 and OK.

Playing files stored in your iPod player

After connecting your iPod player as described in the "Connections" section, you can play files stored in the iPod player with keys on your iPod player or the following keys on the remote control of your DVD player directly.

OK

2

;

1/2

J( / §

9

Confirm a selection.

Start or interrupt playback.

Search backward/forward.

Skip to the previous/next track.

Stop playback.

DISC MENU

Exit the menu.

3/4

Select an item in a menu.

REPEAT

Select repeat function (repeat one/all/off is available).

SHUFFLE

Select shuffle function (shuffle all/album/off is available).

TIP

To recharge your iPod player, you must connect your DVD player to AC

• mains (or the car cigarette lighter outlet) and ensure: Your DVD player is in the power-off mode; OR, the DVD player is in the power-on mode and the current source is “iPod”.

Once the battery is running low, immediately recharge it (regardless of whether you plan to use the battery or not) in order to maximize the battery life.

It is impossible to recharge your iPod with the built-in battery of the DVD player.

Make sure to recharge your iPod player below 35oC.

GENERAL FEATURESS

Moving to another title / track / chapter

When a disc has more than one title or track, you can move to another title/track/chapter as follows:

• Press

§ briefly during play to select the next title/ track / chapter.

• Press

J( briefly during play to step back to the previous title/track/chapter.

• To go directly to any title, track or chapter, enter the corresponding number using the numerical keys (0-9).

Search

During playback, press

2 repeatedly for the following forward search options:

Press

1 repeatedly for the following backward search options:

1 2

2 X backwards 2 X forward

4 X backwards

8 X backwards

16 X backwards

4 X forward

8 X forward

16 X forward

32 X backwards normal speed

32 X forward normal speed

Press OK or

2

; to resume normal playback.

16

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 17

GENERAL FEATURES

Changing the audio output (for VCD/CD)

Press AUDIO repeatedly for the following audio options.

x 1 x 3

Mono left

Stereo x 2 Mono right

TIP

This key is used to select audio languages during DVD playback.

ZOOM

The Zoom function allows you to enlarge the video image and to pan through the enlarged image. Press ZOOM repeatedly to select the following zooming options.

Zoom x 1 2X

Zoom x 3 Normal

Zoom x 2 4X

TIP

During JPEG operation, the sequence is 100%, 150%, 200%, 25%, 50% and normal.

GENERAL FEATURES

TIP

The repeat function is also available for JPEG, SD/MMC etc. The actions may vary for different media being played.

Volume Control

• Use the rotatary switch on the left side of the unit to increase or decrease playback volume.

REPEAT

Press REPEAT repeatedly for the following repeat options:

DVD actions MP3 actions x 1 repeats chapter repeats one

CD actions JPEG/DivX actions repeats track repeats one x 2 repeats title x 3 repeats all x 4 cancels repeat repeats folder cancels repeat repeats all repeats folder cancels repeat cancels repeat

SHUFFLE

Press SHUFFLE on the remote to play all tracks (for CD), chapters (for DVD) or all tracks in the selected folder/whole disc (for MP3) randomly.

Repeat A - B

To repeat or loop a sequence in a title:

• Press A

-

B at your chosen starting point;

A appears on the screen.

• Press A

-

B again at your chosen end point;

AB appears on the display, and the repeat sequence begins.

• To exit the sequence, press A

-

B.

17

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 18

GENERAL FEATURES

MONITOR

(on the main unit)

Press MONITOR repeatedly to adjust the display mode (normal or full screen).

DISPLAY

Press DISPLAY on the remote repeatedly for the following display options: x 1 x 2 x 3 x 4

X5

X6

DVD

Title elapsed

Title remained

Chapter elapsed

Chapter remained

Disc information

Display off

TIP

During JPEG operation, pressing this button enables you to select 17 slideshow modes.

PROGRAM

1

During playback, press PROG on the remote to enter a program menu.

2

Use the numerical keys 0-9 to directly input the tracks or chapters (single track number with digit "0" in front, for example "05").

3

Move the cursor by pressing to select START and then press OK to start program playback.

SPECIAL DVD FEATURES

Checking the contents of DVD-Video discs: DISC MENU.

For titles and chapters, selection menus may be included on the disc.

The DVD’s menu feature allows you to make selections from these menus. Press the appropriate numerical key; or use the

3, 4, 1, 2 keys to highlight your selection, and press OK.

Disc menu

Press DISC MENU. The menu may list, for example, camera angles, spoken language and subtitle options, and chapters for the title.

C

hanging the language

Press AUDIO. If the current disc has different langauge options, this now appears on the screen.

Press AUDIO repeatedly until you have reached your desired language option.

Subtitle

Press SUBTITLE. If the current disc has different subtitles options, this now appears on the screen.

Press SUBTITLE repeatedly until you have reached your desired subtitles option.

TIP

The above two features depend on whether your disc contains any language or subtitle options.

18

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 19

SPECIAL DVD FEATURES

Playing a title

1

Press DISC MENU to enter the disc title menu.

2

Use

1 2 3 4 or numeric keys (0-9) to select a play option.

3

Press OK to confirm.

SETUP OPERATIONS

To maximize your playback experience, use SETUP to fine tune your settings.

Use the

3,4,1, 2 keys to highlight your selection, and press OK.

1 Press SETUP. A list of features is shown.

2 Use the

3 4 keys to highlight your selection.

When the cursor highlights these settings, press OK to:

Screen


Custom select screen options select photo options select custom options

Exit exit the system menu

3 Press

1 to abort current settings or go back to previous menu level.

4 Press SETUP to exit.

Language

When the cursor highlights these settings, press OK to:

OSD select on-screen display language

Menu

Audio

Subtitle select disc menu language options select disc audio language options select disc subtitle language options

Press

1 to abort current settings or go back to previous menu level.

19

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 20

SETUP OPERATIONS

Screen

When the cursor highlights these settings, press OK to:

Display Type select display ratio

Brightness

Contrast select brightness level select contrast level

Press

1 to abort current settings or go back to previous menu level


When the cursor highlights these settings, press OK to:

Interval Time set the time between two photos

Transition Effect

Show Type select 17 slideshow modes switch between Fit Screen and Full Screen

Browse switch between Thumbnail and File Manager

Press

1 to abort current settings or go back to previous menu level

Custom

When the cursor highlights these settings, press OK to:

Parental Control

DivX R VOD

Change PIN

Angle Mark

Default select parental options get DivX ID for VOD change PIN for Parental control select angle mark display options restore factory settings

Press

1 to abort current settings or go back to previous menu level.

Note: Before using the

3,4 keys to select your desired angle mark, ensure the

disc has been recorded with angle mark and you have enabled the angle mark option in the system menu.

TROUBLESHOOTING

If it appears that the DVD-Video player is faulty, first consult this checklist.

It may be that something has been overlooked.

WARNING

Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee.

If a fault occurs, first check the points listed, before taking the set for repair. If you are unable to solve a problem by following these hints, consult your dealer or service centre.

Symptom Remedy

No power

– Check if both plugs of the mains cord are properly connected.

– Check if there is power at the AC outlet by plugging in another appliance.

Distorted picture

– Check if the built-in battery is drained.

– Check if car adaptor is connected appropriately.

– Check the disc for fingerprints and clean with a soft cloth, wiping from centre to edge.

– Sometimes a small amount of picture distortion may appear. This is not a malfunction.

Completely distorted picture / no colour in the TV screen

No sound

– The PAL setting may be in the wrong status. Match your TV’s setting with the player’s setting.

– Check audio connections. If using a HiFi amplifier, try another sound source.

20

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 21

TROUBLESHOOTING

Symptom Remedy

Disc can’t be played

The player does not respond to the remote control

– Ensure the disc label is upwards.

– Clean the disc.

– Check if the disc is defective by trying another disc

– Aim the remote control directly at the sensor on the front of the player. Avoid all obstacles that may interfere with the signal path. Inspect or replace the batteries.

Distorted or B/W picture with DVD

Player does not respond

– Operations are not permitted by the disc.

to all operating commands

– Refer to the instructions in the disc inlay.

during playback

Player feels warm

– Use only discs formatted according to the

TV-set used ( NTSC ).

– When the player is in use for a long period of time, the surface will be heated.

This is normal.

Display goes dimmer when – The unit is saving power to ensure longer

AC is unplugged

playtime with battery. It is normal.

Adjust the brightness using the rotary brightness control.

TECHNICAL DATA

Dimensions

Weight

Power supply

Power Consumption

Operating temperature range

Laser wavelength

Video system

Frequency response

Signal/noise ratio

Audio distortion + noise

Channel separation

Dynamic range

Output

Audio out (analog audio)

Load impedance:

Video out Output level:

Load impedance:

235 x 178 x 40 mm

909 g

DC 9V 1.0A

9W

0 - 45°C

650nm

NTSC

20Hz ~ 20KHz ± 1dB

≥ 80 dB

≤ -80(1KHz)

≥ 80 dB

≥ 80dB

Output level: 2V ± 10%

10KΩ

1Vp - p ± 20%

75Ω

PHILIPS reserves the right to make design and specification changes for product improvement without prior notice.

This set complies with the radio interference requirements of the

European Union.

Modifications not authorized by the manufacturer may void users authority to operate this device.

All rights reserved.

21

P001-022_DCP851_37_Eng 2008.1.17 14:25 Page 22

DISPOSAL OF YOUR OLD PRODUCT

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.

22

P042-062_DCP851_37_Spa 2008.1.17 14:26 Page 62

Need help?

Online

Go to www.philips.com/support

C Royal Philips Electronics N.V. 2008

Meet Philips at the Internet http://www.philips.com

Printed in China

PDCC-2008

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
