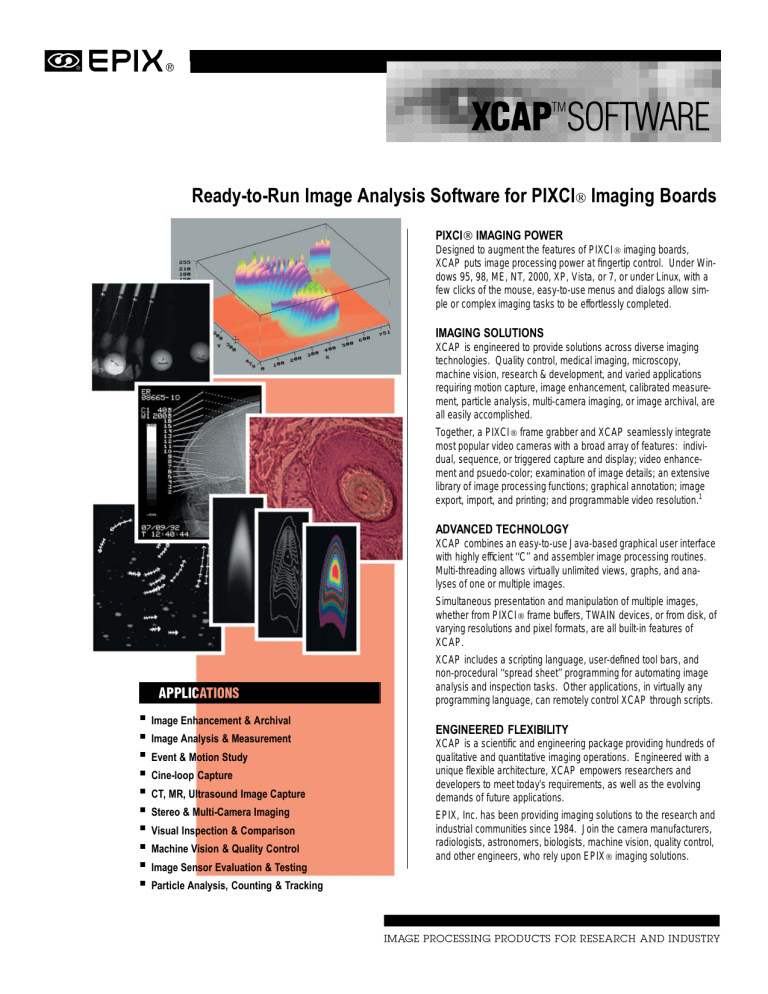

Ready-to-Run Image Analysis Software for PIXCI® Imaging Boards

Ready-to-Run Image Analysis Software for PIXCI® Imaging Boards
Ready-to-Run Image Analysis Software for PIXCI® Imaging Boards
PIXCI® IMAGING POWER
Designed to augment the features of PIXCI ® imaging boards,
XCAP puts image processing power at fingertip control. Under Windows 95, 98, ME, NT, 2000, XP, Vista, or 7, or under Linux, with a
few clicks of the mouse, easy-to-use menus and dialogs allow simple or complex imaging tasks to be effortlessly completed.
IMAGING SOLUTIONS
XCAP is engineered to provide solutions across diverse imaging
technologies. Quality control, medical imaging, microscopy,
machine vision, research & development, and varied applications
requiring motion capture, image enhancement, calibrated measurement, particle analysis, multi-camera imaging, or image archival, are
all easily accomplished.
Together, a PIXCI ® frame grabber and XCAP seamlessly integrate
most popular video cameras with a broad array of features: individual, sequence, or triggered capture and display; video enhancement and psuedo-color; examination of image details; an extensive
library of image processing functions; graphical annotation; image
export, import, and printing; and programmable video resolution.1
ADVANCED TECHNOLOGY
XCAP combines an easy-to-use Java-based graphical user interface
with highly efficient ‘‘C’’ and assembler image processing routines.
Multi-threading allows virtually unlimited views, graphs, and analyses of one or multiple images.
Simultaneous presentation and manipulation of multiple images,
whether from PIXCI ® frame buffers, TWAIN devices, or from disk, of
varying resolutions and pixel formats, are all built-in features of
XCAP.
XCAP includes a scripting language, user-defined tool bars, and
non-procedural ‘‘spread sheet’’ programming for automating image
analysis and inspection tasks. Other applications, in virtually any
programming language, can remotely control XCAP through scripts.
Image Enhancement & Archival
Image Analysis & Measurement
Event & Motion Study
Cine-loop Capture
CT, MR, Ultrasound Image Capture
Stereo & Multi-Camera Imaging
Visual Inspection & Comparison
Machine Vision & Quality Control
Image Sensor Evaluation & Testing
Particle Analysis, Counting & Tracking
ENGINEERED FLEXIBILITY
XCAP is a scientific and engineering package providing hundreds of
qualitative and quantitative imaging operations. Engineered with a
unique flexible architecture, XCAP empowers researchers and
developers to meet today’s requirements, as well as the evolving
demands of future applications.
EPIX, Inc. has been providing imaging solutions to the research and
industrial communities since 1984. Join the camera manufacturers,
radiologists, astronomers, biologists, machine vision, quality control,
and other engineers, who rely upon EPIX ® imaging solutions.
Ready-to-Run Image Analysis Software for PIXCI ® Imaging Boards
XCAP VERSIONS
INTEGRATED CAMERA CONTROLS
IMAGING DEVICES:
The XCAP-Lite version provides access
to PIXCI® imaging board(s) and can also
load, view, and save images and image
sequences to/from files, while PIXCI®
imaging board(s) are present and open
for use. XCAP-Lite also exports customized video formats and camera serial
commands to assist programming
PIXCI® imaging boards via the XCLIB
‘‘C’’ library. For imaging boards capturing
directly into host computer memory,
XCAP-Lite is limited to 64 MBytes of
frame buffer memory; no limitation on
frame buffer memory when used with the
PIXCI® CL3SD or PIXCI® SI2. XCAPLite is provided with each PIXCI® imaging board.
Built-in, camera-specific, on-screen graphical controls for selected cameras that are
configured via RS-232, I2C, or Camera Link, integrate the camera’s controls within
XCAP! No need to also run the camera manufacturer’s software - both PIXCI® imaging
board and camera can be configured together!
Supports any PIXCI ® A, A310, D, D24, D32, D2X,
D3X, CL1, CL2, CL3SD, E1, E1DB, E4, E4DB,
E8, E8DB, EB1, EB1-PoCL, EC1, ECB1,
ECB1-34, ECB2, EL1, EL1DB, ELS2, SI, SI1, SI2,
SI4, SV2, SV3, SV4, SV5, or SV7 series imaging
board.7
For selected cameras configured by physical switch settings, XCAP provides an onscreen virtual camera and switches - setting the on-screen switches to match the physical switches easily configures the PIXCI® imaging board to match the camera!
Up to eight (32 bit O.S.) or sixteen (64 bit O.S.)
identical PIXCI ® series imaging boards can be
operated simultaneously.8 XCAP-Std version also
allows operating up to four non-identical PIXCI ®
imaging boards.
The XCAP-Ltd version provides access
to PIXCI® imaging board(s) and includes
all features of the -Lite version, adding
graphics, load/save images and image
sequences in additional formats, and
more image viewer and convenience
features. XCAP-Ltd can load, view, and
save single images and image sequences
even when the PIXCI® imaging board(s)
are not present. XCAP-Ltd supports full
access to as much as 4 GBytes of frame
buffer memory under 32 bit systems, and
is limited to 8 GByte of frame buffer
memory under 64 bit systems. 2
The XCAP-Std version provides access
to PIXCI® imaging board(s) and includes
all features of the -Ltd version, also enabling use of all image processing, measurement, graphics, load/save, image
viewer, and analysis features. XCAP-Std
can load, view, analyze, and save preexisting images and image sequences
even when the PIXCI® imaging board(s)
are not present. XCAP-Std supports full
access to as much as 4 GBytes of frame
buffer memory under 32 bit systems, and
to as much as 16 EByte of frame buffer
memory under 64 bit systems. 3
The XCAP-Viewer version allows loading
and viewing single images and image
sequences from files, such as those
saved by XCAP-Lite, XCAP-Ltd, or
XCAP-Std. XCAP-Viewer also allows
browsing the hundreds of processing,
measurement, analysis, load/save, and
graphics features that can be applied to
images and allows browsing XCAP’s
integrated camera controls.
1. Features dependent upon hardware options, or upon a specific version of the
PIXCI® imaging card, function only in conjunction with required hardware.
2,3. The maximum available computer based frame buffer memory is also limited
by the computer hardware, configuration, and operating systems.
4. The PIXCI® CL3SD and CL1 are customized for one, or a group of similar,
cameras and can’t be used as a generic Camera Link imaging card.
5. Support for various video formats, resolution, triggering and other features are
dependent upon specific version(s) of the PIXCI® imaging card, and are effective
only in conjunction with required hardware.
6. Frame rate is dependent upon host PC hardware and disk drive(s).
7. Software may require upgrade to operate future versions of the PIXCI® imaging board. PIXCI® SV2 and SV3 are not supported under 64 bit Windows or
Linux.
For cameras controlled by hardwired signals via the PIXCI® frame grabber, XCAP provides a convenient graphical user interface.
Supports up to eight (32 bit O.S.) or sixteen (64 bit
O.S.) SILICON VIDEO ® 1281M, 1281C, 1310,
1310C, 2112, 2112C, 5C10, 5M10, 642M, 642C,
643M, 643C, 9C10, 9M001, 9M001C, 9T001C,
10C6, 10M6, 10C-CL, 10M-CL, WGA-C, or WGAM cameras.
The XCAP-Std version allows capturing from
TWAIN compatible devices (Windows only). The
XCAP-Ltd and -Std versions also provide image
load, save, process, analysis, and graphics
features without a PIXCI ® imaging board present.
Provides integrated camera controls for Adimec, Allied Vision, Atmel, Basler, Baumer, CIS, CMOS
Sensor, Cohu, Dalsa, Dalstar, E2V, FLIR, Hamamatsu, Hitachi, Ikegami, Imperx, Indigo, Intevac,
ISVI, Jai, Mikrotron, NED, PCO AG, Perkin Elmer, Point Grey, Princeton Instruments, Pulnix (Jai),
Raptor Photonics, Reticon, Salvador Imaging, Sensors Unlimited, Sentech, Silicon Imaging,
SILICON VIDEO ®, Sony, Takenaka, Thomson/Thales, Toshiba Teli, Uniq Vision, Vieworks, and
many other cameras. See the complete list of integrated camera controls at
_________________________.
www.epixinc.com/guide/index.htm
GENERIC CAMERA LINK CONFIGURATION
MULTIPLE FORMAT VIDEO CAPTURE5
Capture from any video source supported by a PIXCI® imaging board: area scan, line
scan, high resolution, high frame rate cameras; with digital or analog output; in monochrome or color; with 8, 10, 12, or more bits per monochrome pixel or color pixel component value.
Control the capture window, undersampling, and reconfigurable frame buffers. Capture
from multiple cameras with multiple imaging boards.
Provides video rate image sequence capture, triggered event acquisition, continuous
(circular) sequence acquisition until terminated by trigger event, video recording to
memory, video recording to disk,6 live recursive or FIFO averaging, and live merge of
RGB filtered monochrome images into color. Allows trigger on TTL signal, time of day,
mouse, or video time code.
View the camera compatibility list?
Download XCAP-Viewer and click
PIXCI®, PIXCI® Camera Info. Click
under Adjust Dialog to see the built-in
controls for your camera!
8. Each functional half of a PIXCI® E1DB, E4DB, E8DB, ECB2, EL1DB, ELS2,
SI2, or SV7, or each functional quarter of a PIXCI® SI4, counts as one board.
9. Contact EPIX, Inc. for suggested S/VGA cards which support full video rate
display in conjunction with a specific PIXCI® imaging board.
10. Requires O.S. with support for USB devices.
EPIX, SILICON VIDEO, PIXCI, XCAP, XCOBJ, and XCLIB are trademarks or
registered trademarks of EPIX, Inc. Other brand, product, and company names
are trademarks or registered trademarks of their respective owners.
CT brain scan image courtesy of Dataview, Inc. Specifications subject to change
without notice. EPIX® imaging products are made in the USA. Copyright ©
2012 EPIX, Inc. All rights reserved. 21-Sep-2012.
For Windows 95, 98, and ME, as a 32 bit, multithreaded, application.
For Windows NT (V4.0), 2000, XP, Vista, and 7 as
a 32 bit, multi-threaded, application.
For Windows XP(x64), Vista(x64), and 7(x64) as a
64 bit, multi-threaded, application.
For Linux (kernel V2.4.8 or later) on Intel 80x86.
For Linux (kernel V2.6 or later) on Intel x86-64.
Use any Camera Link camera, combined with a Camera Link style PIXCI® imaging
board4, even when XCAP doesn’t provide camera specific controls. An easy to use
graphical interface configures XCAP and PIXCI® imaging board for the camera’s resolution, bit depth, color space, etc. Use the camera manufacturer’s software for control of
the camera via serial commands, or directly enter serial commands into XCAP’s ’terminal’ dialog.
SOFTWARE TEST DRIVE: Have a
PIXCI® imaging board with older
software? Download XCAP from
www.epixinc.com to see the newest
XCAP solution.
OPERATING SYSTEM:
Don’t yet have a PIXCI® imaging
board? Download XCAP-Viewer and peruse
its windows and features. (Many features,
other than perusal and image display requires
either a PIXCI ® imaging board, or use of the
XCAP-Ltd or -Std versions).
REQUIREMENTS:
Processor/Memory - Intel Pentium or newer
processor and 32-64 MBytes of memory
exclusive of user-requested in-memory
image buffers, operating system, and other
software.
Graphics Display - Windows: Minimum:
Windows compatible S/VGA w. 16 bits per
pixel. Suggested: ACP or PCI Express
S/VGA w. 24 or 32 bits per pixel.
Linux: Graphics display system (S/VGA)
supporting TrueColor or DirectColor mode.
Video display rate depends upon video format, S/VGA card, S/VGA mode, and motherboard speed and bandwidth.9
Mouse - A Windows or Linux compatible
mouse is required.
Printer - Image and graphics printing on any
Windows or Linux compatible printer. Special support for high-quality printing on
Hewlett-Packard PCL4 and PCL5 compatible printers, IBM 4019 Laser-Printer, CalComp PlotMaster, and Alden 9315 printers.
Disk Space - Approximately 140 megabytes,
exclusive of stored images and reports.
Other - The XCAP-Ltd and -Std versions
use a USB10 authorization key, or a key on
the parallel port which may be shared with
a printer.
SOFTWARE INCLUDES:
Peruse the full manual? Download
XCAP-Viewer and click Help, XCAP
Reference Manual.
Browsable reference manual. Printed
reference manual included with
XCAP-Std and -Ltd; optionally available for XCAP-Lite.
DISTRIBUTED BY: I­CUBE
Glen Burnie, MD 21061 USA
Tel 410­987­5555
Fax 410­987­1188
www.i­cubeinc.com
[email protected]­cubeinc.com
Ready-to-Run Image Analysis Software for PIXCI ® Imaging Boards
XCAP Feature
File - Load New Image
- Load New Image Sequence
- Image File Info
- TWAIN Select Source (Win)
- TWAIN New Acquire (Win)
Images - New Image (Workspace)
Scripts - Record
- Play
- Remote Control
- Load Tool Bar
Utility - Black Board
- Message Log
- Audio Clip (Win)
- RS-232 Terminal
- Screen Capture
- I/O Port Peek & Poke (W95)
Devices - Birger EF232
- Directed Perception Pan-Tilt Unit
- Fujinon CCTV Lens
- Illumination Technologies 3900
- Sagebrush Pan-Tilt Gimbal
- Volpi intralux dc-1100
PIXCI® - Open/Close - Single Board
- Multiple Identical Boards
- Multiple Different Boards
- Frame Buffer Memory Limit w. PIXCI® CL3SD
w. PCI 32 bit
w. PCI 64 bit
w. PCI Express & 32 bit O.S.
w. PCI Express & 64 bit O.S.
w. ExpressCard/54 & 32 bit O.S.
w. ExpressCard/54 & 64 bit O.S.
- Driver Assistant/Wizard
- Video Setup
- Export Video Setup
- Import Video Setup
- TWAIN Sourcery (Win)
- Image-Pro Sourcery (Win)
- Status
- Serial Terminal
- Connections Info
- Camera Info
- Camera Speci fic Controls
Help - XCAP Release Notes
- XCAP Reference Manual
- PC Configuration Tips
File - Save Image
- Load Image
- Save Image Sequence
- Load Image Sequence
- E-Mail Image
- Print Image
- Duplicate Image
- Duplicate Image Sequence
- BlackBoard Image
View - Full Screen
- Palette
- Sequence Play
- Sequence Thumbnails
- Cursor
- Zoom, Pan, Scroll
- Launch 2nd Viewer
Examine
- Pixel Peek
- Pixel Peek & Poke
- Pixel Plot Row
- Pixel Plot Column
- Pixel Plot Buffer
- Pixel Plot All Rows
- Pixel Plot 3D
- SMPTE VITC
Modify - Patterns
- Set
- Arithmetic
- Binning
- Contrast Modification
- Convolution
- Correlation Map
- Edge Detection
- FFT
- HSB Tweak
- Interlace & Flicker
- Morphology
- Noise Generator
- Normalization
- Rotation & Shift
- Spatial Filtering
- Spatial Normalization
- Threshold
- Threshold Adaptive
- Warping
- Copy & Resize
- Pair Arithmetic
- Pair Normalization
- Triplet Normalization
- Average Sequence
- Difference Sequence
- Tile Sequence
-Plus
-Std
-Ltd
-Lite (A)
-Viewer
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes (C)
Yes (C)
Yes
No
No
Yes (C)
Yes (C)
Yes
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
No
No
No
Yes
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
No
Yes
No
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
No
No
No
No
None (E)
None (E)
None (E)
None (E)
None (E)
None (E)
None (E)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (F)
None (E)
None (E)
None (E)
None (E)
None (E)
None (E)
None (E)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (F)
None (E)
4 GByte (E)
4 GByte (E)
4 GByte (E)
8 GByte (E)
4 GByte (E)
8 GByte (E)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (F)
None
64 MByte(E)
64 MByte(E)
64 MByte(E)
64 MByte(E)
64 MByte(E)
64 MByte(E)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (F)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
No
No
No
No
No
No
No
No
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes (C)
Yes (C)
No
Yes (C)
No
Yes (R)
No
No
No
No
Yes (C)
No
Yes (C)
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes (G)
Yes
No
Yes
Yes
No
No
Yes (G)
Yes
No
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (H)
Yes
Yes (I)
Yes (I)
Yes (I)
No
Yes (S)
Yes
Yes (H)
Yes
Yes (I)
Yes (I)
Yes (I)
No
Yes (S)
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (J)
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
Yes (J)
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
Yes (J)
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
XCAP Feature
-Plus
Measure - Intensity Calibration
Yes
- Spatial Calibration
Yes
- Histogram
Yes
- Histogram Pair
Yes
- Mass & Moments
Yes
- Line Profile
Yes
- Radial Mass Plot
Yes
- Ruler
Yes
- Protractor
Yes
- Cartesian Reticle
Yes
- Polar Reticle
Yes
- Dist. & Angle Crosshairs
Yes
- Shape Analysis
Yes
- Blob Analysis
Yes
- Particle Tracking
Yes
- SubPixel Edger
Yes
- Ellipse Fitter
Yes
- Correlation Finder
Yes
Draw - Arrow
Yes
- Text
Yes
- Point
Yes
- Points
Yes
- Bezier Curve
Yes
- Circle
Yes
- Circle Arc
Yes
- Ellipse
Yes
- Ellipse Arc
Yes
- Line
Yes
- Parallel Lines
Yes
- Path Curve
Yes
- Polyline
Yes
- Rectangle
Yes
- Window
Yes
- Annulus
Yes
- Annulus Arc
Yes
- Bezier Region
Yes
- Elliptical Annulus
Yes
- Elliptical Annulus Arc
Yes
- Rectangle Array
Yes
- Path Enclosed
Yes
- Polygon
Yes
- Rectangular Frame
Yes
- Graphic Manager
Yes
- Paint Brush
Yes
- Paint Fill
Yes
- Image Overlay
Yes
Capture - Snap (Video)
Yes
- Live (Video)
Yes
- Frame Date&Time Stamp
Yes
- First Buffer
Yes
- Next Buffer
Yes (M)
- Previous Buffer
Yes (M)
- Last Buffer
Yes (M)
- Adjustments - Snap/Live Buffer Number
Yes
- Resolution (video window)
Yes
- Camera Speci fic Controls
Yes (F)
- Color & White Balance
Yes (N)
- Auto Gain/Exposure Control
Yes (O)
- Pixel Normalization
Yes (V)
- Load & Save Presets
Yes
- Shortcuts
Yes
- GIO Event Capture Single
Yes
- GIO Event Capture Sequence
Yes
- Waterfall Display
Yes
- RGB Merge
Yes
- Frame Average
Yes
- Quad Pixel Merge
Yes
- Lens Control - Birger EF232
Yes
Sequence Capture (Single Sequence and Continuous
- to Frame Buffers
Yes (E)
- to Frame Buffers at Event
Yes
- to Virtual Memory
Yes
- to Virtual Memory at Event
Yes
- to Image Files
Yes
- to Image Files at Event
Yes
- to Image Files - FTP Copy
Yes
- to Image Files - HTTP Server
Yes
- to Disk File
Yes
- to Disk File at Event
Yes
- to StreamStor (Win)
Yes
(continued)
-Std
-Ltd
-Lite (A)
-Viewer
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
Yes (K,L)
No
Yes (K)
No
Yes (K)
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes (I,K,L)
No
Yes (K)
No
Yes (K)
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes (I,K,L)
No
Yes (K)
No
Yes (K)
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
No
No
No
No
No
No
No
No
Yes
No
No
No
No
Yes
No
No
No
No
No
No
No
No
No
Yes
No
No
No
Yes
No
No
No
No
No
No
No
No
Yes
No
No
No
No
Yes
No
No
No
No
No
No
No
No
No
Yes
No
No
No
Yes
Yes
Yes
Yes
Yes (M)
Yes (M)
Yes (M)
Yes
Yes
Yes
Yes
Yes (M)
Yes (M)
Yes (M)
Yes
Yes
Yes
Yes
Yes (M)
Yes (M)
Yes (M)
No
No
No
No
No
No
No
Yes
Yes
Yes (F)
Yes (N)
Yes (O)
Yes (V)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes (F)
Yes (N)
Yes (O)
Yes (V)
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
Yes
Yes (F)
Yes (N)
No (O)
Yes (V)
No
Yes
Yes
No
Yes
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No(U)
No(U)
No
Yes (E)
Yes
Yes (T)
Yes (T)
Yes
Yes
Yes
Yes
No
No
No
Yes (P)(E)
No (Q)
Yes (P)(T)
No (Q)
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
Sequence) Yes (E)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Ready-to-Run Image Analysis Software for PIXCI ® Imaging Boards
Notes: (A) For -Lite, the imaging board is assumed installed and open for use, otherwise -Lite provides the same
features as -Viewer. (C) For -Lite and -Viewer, images may not be loaded directly from an Internet URL, or saved
directly to an FTP URL. (E) A combination of the characteristics of PIXCI® imaging cards, operating systems, and of
software. The PIXCI® CL3SD and SI2 have on-board frame buffer memory, other PIXCI® imaging cards use computer based frame buffer memory. The PIXCI® CL1, CL2, D, D24, D32, D2X, D3X, SI, SV2, SV3, SV4, and SV5 are
designed to access up to 4 GB of computer memory. The PIXCI® A310, E1, E1DB, E4, E4DB, E8, E8DB, EB1,
EB1-PoCL, EC1, ECB1, ECB1-34, ECB2, EL1, EL1DB, ELS2, SI1, SI4, and SV7 are designed to access up to
16 EByte of computer memory (a theoretical limit, as no currently available PC provides 16 EByte of memory). For
-Lite, a maximum of 64 MByte of computer based frame buffer memory is supported. On 32 bit systems, -Std and
XCAP-Ltd support up to 4 GBytes of computer based frame buffer memory. On 64 bit systems, XCAP-Std supports
up to 16 EByte of computer based frame buffer memory; XCAP-Ltd supports up to 8 GByte of computer based frame
buffer memory. The maximum available computer based frame buffer memory is also limited by the computer
hardware, configuration, and memory needed by the operating system. (F) Camera specific controls provided for cameras supported by PIXCI® ELS2, SI, SI1, SI2, and SI4, and for most digital cameras supported by PIXCI® CL1, CL2,
CL3SD, D, D24, D32, D2X, D3X, E1, E1DB, E4, E4DB, E8, E8DB, EB1, EB1-PoCL, EC1, ECB1, ECB1-34, ECB2,
EL1, and EL1DB; the ’PIXCI® Camera Info’ feature shows the specific, customized, support provided for each camera. (G) For -Lite and -Viewer, the View, Palette feature does not include save, load, import, or export, nor the
‘‘Extract Bright/Dark Reference’’ features. (H) For -Lite and -Viewer, the Examine, Pixel Peek feature does not
include save. (I) For -Lite and -Viewer, plotting features do not include statistics, save, or export options. For
-Viewer, plotting features do not include printing. (J) For -Ltd, -Lite, and -Viewer, the Modify, Set feature does not
include non-rectangular regions. (K) For -Ltd, -Lite, and -Viewer, the Measure features do not include calibration.
(L) For -Ltd, -Lite, and -Viewer, the Line Profile is limited to straight lines. (M) Subject to the amount of frame buffer
memory versus image resolution yielding more than one frame buffer. (N) For Bayer output digital color cameras with
software providing white balance and color corrections. The -Lite provides automatic, continuous, white balance only
for SILICON VIDEO® cameras. The -Lite does not provide custom color calibration from a Macbeth chart or other
color reference. (O) Software implemented AGC/AEC is provided for selected cameras; of those, -Lite provides
AGC/AEC only for SILICON VIDEO® cameras. (P) For -Lite, the Sequence Capture does not include the time stamp
feature, nor the strobe features added by software (as selected in the Sequence Capture dialog); any strobe features
provided by the PIXCI® imaging board or camera (either inherent or selected in the Capture & Adjust dialog) are
available. (Q) For -Lite, the ‘‘triggered’’ sequence capture is provided when the camera is being triggered (often
referred to as ‘‘Async Reset Mode’’); sequence capture from a free-running camera where the trigger or event is handled separately is not provided. (R) For -Lite, the image printing feature supports only the operating system’s built-in
image printing feature(s), not printing via EPIX® imaging drivers. (S) For -Lite and -Viewer, plotting features do not
include save or export options. For -Viewer, plotting features do not include printing. (T) For -Lite, the sequence capture to virtual memory is limited to using 1 GByte of virtual memory For -Ltd, the sequence capture to virtual memory
is limited to using 4 GByte of virtual memory. The operating system’s configuration may impose additional limitations.
(U) Interactive control of the lens is provided, but not automatic aperture or automatic focus features. (V) Software
implemented pixel normalization is provided for SILICON VIDEO® and other selected cameras; of those, -Lite does
not provide pixel normalization in generic Camera Link mode. (W95) Feature available only under Windows 95, 98,
and ME. (Win) Feature available only under Windows.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
