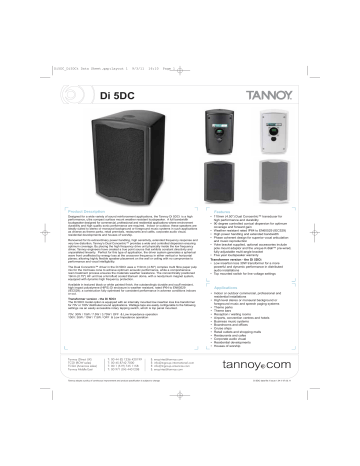

Di 5DC

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 1

Di 5DC

Product Description

Designed for a wide variety of sound reinforcement applications, the Tannoy Di 5DCt is a high performance, ultra compact surface mount weather resistant loudspeaker. A full bandwidth loudspeaker designed for commercial, professional and residential applications where environment durability and high quality sonic performance are required. Indoor or outdoor, these speakers are ideally suited to stereo or monaural background or foreground music systems in such applications as diverse as theme parks, retail premises, restaurants and cafés, corporate audio visual, residential developments and houses of worship.

Renowned for its extraordinary power handling, high sensitivity, extended frequency response and very low distortion, Tannoy’s Dual Concentric™ provides a wide and controlled dispersion ensuring optimum coverage. By placing the high frequency drive unit physically inside the low frequency driver, Tannoy engineers have created a true point source that exhibits constant directivity and unparalleled linearity. Perfect for this type of application, the driver system generates a spherical wave front unaffected by energy loss at the crossover frequency in either vertical or horizontal planes; allowing highly flexible speaker placement on the wall or ceiling with no compromise to performance and vocal intelligibility.

The Dual Concentric™ driver in the Di 5DCt uses a 110mm (4.50") complex multi fibre paper pulp mix for the mid bass cone to achieve optimum acoustic performance, while a comprehensive resin treatment process ensures the materials weather resistance. The concentrically positioned

19mm (0.75") HF unit has a ferrofluid cooled titanium dome, with a neodymium magnet system, equipped with dynamic high frequency protection.

Available in textured black or white painted finish, the outstandingly durable and scuff resistant, high impact polystyrene (HIPS) Di enclosure is weather resistant, rated IP64 to EN60529

(IEC529); a construction fully optimised for consistent performance in adverse conditions indoors or out.

Transformer version - the Di 5DCt

The Di 5DCt model option is equipped with an internally mounted low insertion loss line transformer for 70V or 100V distributed sound applications. Wattage taps are easily configurable to the following settings via an easily accessible rotary tapping switch, which is top panel mounted.

70V: 30W / 15W / 7.5W / 3.75W / OFF & Low Impedance operation

100V: 30W / 15W / 7.5W / OFF & Low Impedance operation

Features

• 110mm (4.50”) Dual Concentric™ transducer for high performance and durability

• 90 degree controlled conical dispersion for optimum coverage and forward gain

• Weather resistant rated IP64 to EN60529 (IEC529)

• High power handling and extended bandwidth

• Phase coherent design for superior vocal articulation and music reproduction

• Yoke bracket supplied, optional accessories include pole mount adaptor and the unique K-Ball™ pre-wired, fully adjustable multi-angle bracket

• Five year loudspeaker warranty

Transformer version - the Di 5DCt

• Low insertion loss 30W transformer for a more powerful and dynamic performance in distributed audio installations

• Top mounted switch for line voltage settings

Applications

• Indoor or outdoor commercial, professional and residential installations

• High level stereo or monaural background or foreground music and speech paging systems

• Theme parks

• Theme bars

• Reception / waiting rooms

• Airports, convention centres and hotels

• Business music systems

• Boardrooms and offices

• Cruise ships

• Retail outlets and shopping malls

• Restaurants and cafes

• Corporate audio visual

• Residential developments

• Houses of worship

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 2

Di 5DC

TECHNICAL SPECIFICATIONS

System Di5 DC / Di5 DCt

Frequency Response (-3dB) (1)

90Hz - 50kHz

Frequency Range (-10dB) (1)

80Hz - 54kHz

System Sensitivity (1W @1m)

(2)

88dB (1W = 2.83V for 8 Ohms)

90 degrees conical

Dispersion (-6dB)

Driver Complement

Low Frequency 1x 110mm (4.50")

Dual Concentric™ constant directivity driver with resin treated multi fibre paper pulp mid bass cone

High Frequency

Crossover

Directivity Factor (Q)

19mm (0.75") titanium dome with neodymium magnet system

2kHz - 2nd order LF,

2nd order HF

(with dynamic HF protection)

5.3 averaged 1kHz to 10kHz

Directivity Index (DI)

Rated Maximum SPL

(2)

Average

6.6 averaged 1kHz to 10kHz

106dB

(103dB - 30W tapping on transformer)

112dB Peak

Power Handling

Average

Programme

Peak

60W

120W

240W

Recommended Amplifier Power 120W @ 8 Ohms

Nominal Impedance

8 Ohms

Di5DCt - Transformer Taps (top rotary switch)

70V

30W / 15W / 7.5W / 3.75W / OFF

& low impedance operation

100V

30W /15W / 7.5W / OFF

& low impedance operation

Distortion

10% Full Power (6.9V)

250Hz

1kHz

10kHz

1% Full Power (2.2V)

250Hz

1kHz

10kHz

2nd Harmonic

4.00%

3rd Harmonic

0.2%

0.76% 0.6%

0.65% 0.15%

2nd Harmonic 3rd Harmonic

2.0% 0.15%

0.009% 0.124%

0.32% 0.17%

Construction

Enclosure

Grille

Finish

Connectors

Fittings

Supplied

Accessories

Optional

Accessories

Dimensions

NET Weight

High Impact Polystyrene (HIPS) rated IP64 to EN60529 (IEC529)

Steel, with weather resistant coating

Textured black or white paint

Euroblock type removable locking connector with screw terminals with "loop through" facility

1 x K-Ball™ Bracket socket

2 x M8 yoke bracket inserts

Yoke bracket

Pole mount adaptor

K-Ball™ pre-wired multi angle bracket

240.7 x 155 x 162mm (H x W x D)

(9.47 x 6.1 x 6.38”) (H x W x D)

2.7kg (5.94lbs)

Notes:

(1) Average over stated bandwidth. Measured at 1 metre on axis.

(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber

A full range of measurements, performance data, CLF and Ease™ Data can be downloaded from www.tannoy.com

Full independent verification of published specifications carried out by NWAA Labs,

California can also be obtained from the downloads section of www.tannoy.com

Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Ordering Information

PART NUMBER MODEL NAME

8001 3980

8001 3981

8001 3990

8001 3991

Di 5DC

Di 5DC

Di 5DCt

Di 5DCt

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

COLOUR

Black

White

Black

White

E: e[email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

PACKED QUANTITY

2

2

2

2

PACKED WEIGHT

3.0 (6.61lb)

3.0 (6.61lb)

3.5kg (7.72lbs)

3.5kg (7.72lbs)

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 3

ANECHOIC

FREQUENCY

RESPONSE

Di 5DC

PERFORMANCE MEASUREMENTS

1m on-axis frequency response

100

90

80

70

60

50

10 100 1000 frequency (Hz)

10000

30

20

10

0

10 100 frequency (Hz)

1000

IMPEDANCE

100

90

80

70

60

50

10

100000

10000

100 1000 frequency (Hz)

10000

0 deg

10 deg

20deg

30deg

40deg

100000

OFF AXIS

RESPONSE

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 4

BEAMWIDTH

Di 5DC

PERFORMANCE MEASUREMENTS

Beamwidth vs Frequency

270

240

210

180

150

120

90

60

360

330

300

30

0

100 1000 frequency (Hz)

DI vs Frequency

100

10

1

100 1000

DIRECTIVITY INDEX

10000

10000

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 5

Di 5DC

PERFORMANCE MEASUREMENTS POLAR PLOTS (1/3 OCTAVE)

270

300

330

0

-12

-24

-36

-48

0

30

60

100Hz

125Hz

160Hz

200Hz

90 270

300

330

0

-12

-24

-36

-48

0

30

60

90

250Hz

315Hz

400Hz

500Hz

270

300

330

0

-12

-24

-36

-48

0

270

300

330

0

-12

-24

-36

-48

0

30

60

90

270

300

330

0

-12

-24

-36

-48

0

30

60

4kHz

5kHz

6.3kHz

8kHz

90

270

300

330

0

-12

-24

-36

-48

0

30

30

60

60

90

90

10kHz

12.5kHz

16kHz

20kHz

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 6

Di 5DC

PERFORMANCE MEASUREMENTS POLAR PLOTS (1/3 OCTAVE)

270

300

330

0

-12

-24

-36

-48

0

30

60

100Hz

125Hz

160Hz

200Hz

90

270

300

330

0

-12

-24

-36

-48

0

30

60

90

250Hz

315Hz

400Hz

500Hz

270

300

330

0

-12

-24

-36

-48

0

270

300

330 0

-12

-24

-36

-48

0

30

60

90

270

300

330

0

-12

-24

-36

-48

0

30

60

4kHz

5kHz

6.3kHz

8kHz

90

270

300

330

0

-12

-24

-36

-48

0

30

30

60

60

90

90

10kHz

12.5kHz

16kHz

20kHz

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 7

Di 5DC

DIMENSIONAL SKETCHES

R165.0mm

(R6.50”)

102.0mm

(4.02”)

162.0mm

(6.38”)

155.0mm

6.10”

R300.0mm

(R11.81”)

240.7mm

(9.47”)

SUPPLIED MOUNTING BRACKET

Di5 DCt Yoke

[9.49"]

(9.49”)

130.4mm

(5.13”)

85.0

85.0mm

(3.35”)

90.0

90.0mm

(3.54”)

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

Tannoy adopts a policy of continuous improvement and product specification is subject to change

Ø22.0mm

(Ø0.87”)

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 8

Di 5DC

OPTIONAL ACCESSORIES

K-BallBracket

65.0

[2.56"]

Pole Mount Adapter

240.0

240.0mm

(9.45”)

Pole Mount Adapter with Yoke bracket

40.0

40.0mm

(1.57”)

Ordering Information

PART NUMBER

8001 4190

8001 4191

8001 4600

8001 4601

MODEL NAME

K-Ball™ Bracket

K-Ball™ Bracket

Pole Mount Adapter

Pole Mount Adapter

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

COLOUR

Black

White

Black

White

Pole Mount Adapter with K-Ballbracket

PACKED QUANTITY

1

1

1

1

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 9

Di 5DC

Architectural specifications Di 5DC

The weather resistant, full bandwidth surface mount speaker system shall consist of a 110mm (4.50") full range, point source Dual Concentric™ transducer mounted in an optimally tuned vented, injection moulded high impact polystyrene (HIPS) enclosure, rated IP64 to EN60529 (IEC529). The protective grille shall be constructed from steel with a weather resistant coating.

Performance of the Di 5DC surface mount speaker shall meet or exceed the following criteria: The system shall have a conical coverage pattern of

90 degrees (-6dB). Frequency response measured on axis shall be 80Hz - 54kHz (-10dB from rated sensitivity, average over stated bandwidth. Measured at

1 metre in an anechoic chamber) with no equalisation. Sensitivity shall be 88dB (1W = 2.83V for 8 Ohms). Long term power handling capacity as defined in

EIA-426B test shall be 60W, recommended amplifier power 120W. The nominal system impedance shall be 8 Ohms (in low impedance setting).

A termination recess shall be integrated with the rear panel, a removable Euroblock type locking connector with screw terminals for secure wire termination with "loop through" facility shall be provided. A yoke mounting bracket shall be included with the speaker system and additional security shall be provided by a tie back point.

The dimensions shall not exceed 240.7 x 155 x 162mm (9.47 x 6.10 x 6.38”).

The surface mount speaker system shall be the.....Di 5DC.

Architectural specifications Di 5DCt

The weather resistant, full bandwidth surface mount speaker system shall consist of a 110mm (4.50") full range, point source Dual Concentric™ transducer mounted in an optimally tuned vented, injection moulded high impact polystyrene (HIPS) enclosure, rated IP64 to EN60529 (IEC529). The protective grille shall be constructed from steel with a weather resistant coating.

Performance of the Di 5DCt surface mount speaker shall meet or exceed the following criteria: The system shall have a conical coverage pattern of

90 degrees (-6dB). Frequency response measured on axis shall be 80Hz - 54kHz (-10dB from rated sensitivity, average over stated bandwidth. Measured at

1 metre in an anechoic chamber) with no equalisation. Sensitivity shall be 88dB (1W = 2.83V for 8 Ohms). Long term power handling capacity as defined in

EIA-426B test shall be 60W, recommended amplifier power 120W. The nominal system impedance shall be 8 Ohms (in low impedance setting).

The Di 5DCt speaker system shall be equipped with a 30W high performance line transformer for use in 70.7 or 100 Volt distributed audio systems with

30 / 15 / 7.5 / 3.75* Watt, OFF and Low Impedance taps available. An easily accessible rotary switch located under the rubber trim on the top of the cabinet shall be available for selecting transformer and low impedance settings.

A termination recess shall be integrated with the rear panel, a removable Euroblock type locking connector with screw terminals for secure wire termination with "loop through" facility shall be provided. A yoke mounting bracket shall be included with the speaker system and additional security shall be provided by a tie back point.

The dimensions shall not exceed 240.7 x 155 x 162mm (9.47 x 6.10 x 6.38”).

The surface mount speaker system shall be the.....Di 5DCt.

*70 Volt only

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 10

Di 5DC

NOTES

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 11

Di 5DC

NOTES

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Di5DC_Di5DCt Data Sheet.qxp:Layout 1 9/3/11 16:10 Page 12

Di 5DC

NOTES

Tannoy (Direct UK)

TCGI (ROW sales)

TCGA (Americas sales)

Tannoy Middle East

T: 00 44 (0) 1236 420199

T: 00 45 8742 7000

T: 00 1 (519) 745 1158

T: 00 971 (04) 4401208

E: [email protected]

E: [email protected]

E: [email protected]

E: [email protected]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

D i5DC data file // issue 1.04 // 07.03.11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
