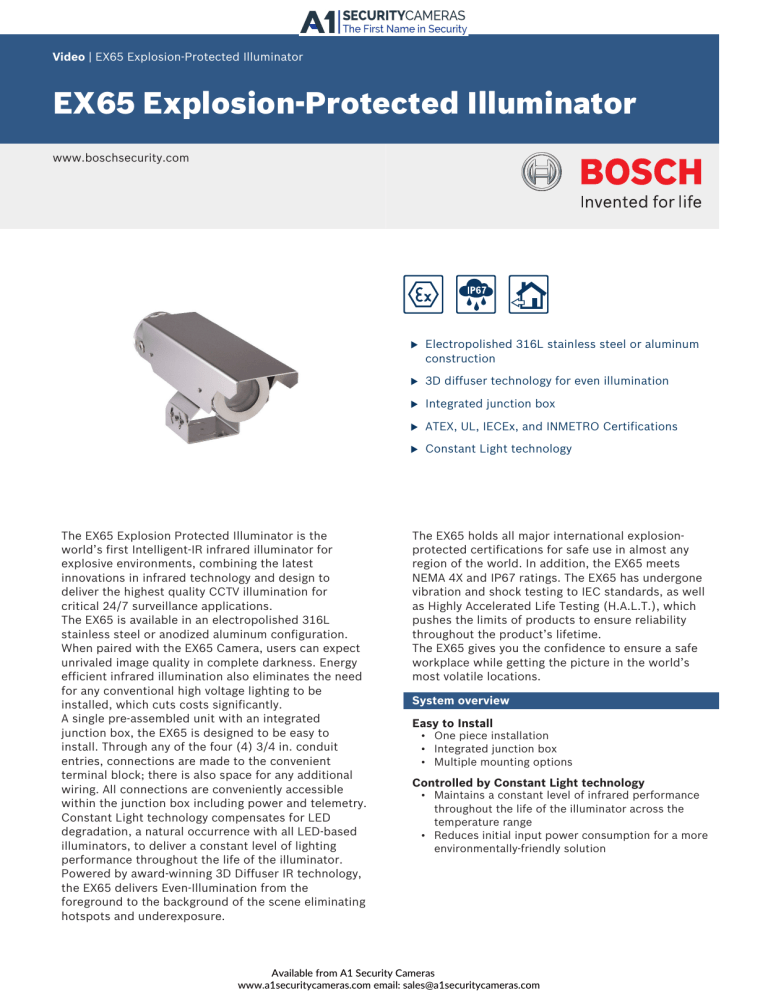

EX65 Explosion-Protected Illuminator

EX65 Explosion-Protected Illuminator
Video | EX65 Explosion-Protected Illuminator
EX65 Explosion-Protected Illuminator
www.boschsecurity.com
The EX65 Explosion Protected Illuminator is the
world’s first Intelligent-IR infrared illuminator for
explosive environments, combining the latest
innovations in infrared technology and design to
deliver the highest quality CCTV illumination for
critical 24/7 surveillance applications.
The EX65 is available in an electropolished 316L
stainless steel or anodized aluminum configuration.
When paired with the EX65 Camera, users can expect
unrivaled image quality in complete darkness. Energy
efficient infrared illumination also eliminates the need
for any conventional high voltage lighting to be
installed, which cuts costs significantly.
A single pre-assembled unit with an integrated
junction box, the EX65 is designed to be easy to
install. Through any of the four (4) 3/4 in. conduit
entries, connections are made to the convenient
terminal block; there is also space for any additional
wiring. All connections are conveniently accessible
within the junction box including power and telemetry.
Constant Light technology compensates for LED
degradation, a natural occurrence with all LED-based
illuminators, to deliver a constant level of lighting
performance throughout the life of the illuminator.
Powered by award-winning 3D Diffuser IR technology,
the EX65 delivers Even-Illumination from the
foreground to the background of the scene eliminating
hotspots and underexposure.
u
Electropolished 316L stainless steel or aluminum
construction
u
3D diffuser technology for even illumination
u
Integrated junction box
u
ATEX, UL, IECEx, and INMETRO Certifications
u
Constant Light technology
The EX65 holds all major international explosionprotected certifications for safe use in almost any
region of the world. In addition, the EX65 meets
NEMA 4X and IP67 ratings. The EX65 has undergone
vibration and shock testing to IEC standards, as well
as Highly Accelerated Life Testing (H.A.L.T.), which
pushes the limits of products to ensure reliability
throughout the product’s lifetime.
The EX65 gives you the confidence to ensure a safe
workplace while getting the picture in the world’s
most volatile locations.
System overview
Easy to Install
• One piece installation
• Integrated junction box
• Multiple mounting options
Controlled by Constant Light technology
• Maintains a constant level of infrared performance
throughout the life of the illuminator across the
temperature range
• Reduces initial input power consumption for a more
environmentally-friendly solution
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
2 | EX65 Explosion-Protected Illuminator
Powered by 3D Diffuser Even Illumination
Technology
• Award winning 3D Diffuser IR Technology eliminates
hotspots in the foreground and underexposed
backgrounds
• Less camera noise reduces IP video bandwidth
requirement
• Corner mount bracket (MIC-CMB), for installation in a
corner
• Pole mount bracket (MIC-PMB), for installation on the
side of a CCTV pole
Refer to the datasheet “MIC Mounting Brackets and
Other Accessories” for details about these mounts.
Cool Operation Surface Mount LEDs
• Maintains T6 temperature rating
• Reduces power input and consumption
Functions
Construction
The EX65 Explosion Protected Illuminator includes a
smart infrared illuminator pre-wired into an
electropolished 316L stainless steel housing offering
excellent corrosion protection. For less corrosive
environments, an anodized aluminum configuration is
also available. The EX65 holds the most common
explosion-protected certifications for guaranteed safe
operation in explosive environments and also NEMA 4X
and IP67 ratings for wet locations. For operation in
areas prone to vibration, the EX65 has been tested to
IEC standards for vibration and shock.
Wide Temperature Range
Designed with the harshest conditions in mind, the
EX65 welcomes deployment in the toughest areas on
the planet including the subzero conditions found in
northern Russia or the scorching heat found in Middle
Eastern deserts. The impressive –50°C to +60°C (–
58°F to +140°F) temperature range is standard on all
models.
Global Explosion Protection Certification
The EX65 holds all major international explosion
protected certifications for global installation. As a UL
listed product the EX65 is certified for the division and
zone system per the NEC standards. For Europe it
holds the ATEX certification. The EX65 has been tested
against and conforms to the international IECEx
scheme. For Brazil the EX65 holds the INMETRO
certification.
Integrated Junction Box
The integrated junction box allows for easy
connections to the terminal block for power and alarm
outputs. An integral junction box saves money and
time spent on installing external junction boxes and
provides easy access for setup and maintenance.
Various mounting options with the mount adapter
The EXS-ADPT is a stainless steel mount adapter that
allows installers to mount an EXTEGRA/EX65 device
onto one of a variety of mounting brackets originally
designed for the MIC Series of cameras. Installers
secure the mounting cradle of the device to the mount
adapter, and then secure the adapter to a MIC wall
mount bracket (MIC-WMB). The MIC-WMB can be
mounted to any of the following MIC Series mounting
brackets:
EXTEGRA IP 9000/EX65 device to EXS-ADPT (1) to MIC
Wall Mount Bracket (MIC-WMB) (2)
Certifications and approvals
Region
Certification
Europe
CE Declaration of Conformity
Certificate of Conformity 11/UL-BRHZ-0037X
UL DEMKO 10 ATEX 0948139X
USA
UL, FCC
Canada
cUL
Brazil
INMETRO
International
Certificate of Conformity IECEx UL 10.0010X
Electromagnetic Compatibility (EMC)
Emission
EN55022 class B, FCC part 15 class B
Immunity
EN 61000-4, EN 50130-4:1996
Safety
UL 508, CAN/CSA C22.2 No. 60065-03, IEC 60825-1
Explosion Protection
• Spreader plate (MIC-SPR), for installation on a wall
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
3 | EX65 Explosion-Protected Illuminator
UL/cUL Listed 3RR9
UL/cUL Hazardous Locations Listed as per NEC Division and Zone
requirements
• Class I, Div 1, Groups C, and D; Class II, Groups E, F, and G;
Class III
• Class I, Zone 1, AEx d IIB T6; Ex d IIB T6 X
• AEx tD 21 T85°C
• DIP DIP A21 Ta85°C X
ATEX
• DEMKO 10 ATEX 0948139X
• CE 0344 II 2 GD
• Ex d IIB T6 Gb
• Ex tb IIIC T85°C Db IP67
IECEx
• IECEx UL 10.0010X
• Ex d IIB T6 Gb
• Ex tb IIIC T85°C Db IP67
11/UL-BRHZ-0037X
UL 1203, UL 60079-0, UL 60079-1, ANSI/ISA-61241-0, ANSI/
ISA-61241-1, CAN/CSA C22.2 No. 30-M1986, CAN/CSA C22.2 No.
25-1966, CAN/CSA C22.2 No. 60079-0-07, CAN/CSA C22.2 No.
60079-1-07, CAN/CSA E61241-1-1-02, EN 60079-0:2006, EN
60079-1:2007, EN 60079-31:2009, IEC 60079-0:2009, IEC
60079-1:2007, IEC 60079-31:2008, INMETRO Portaria 179:2010,
ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009
471
18.54
114
4.50
208
8.18
90°
100
3.94
381
15.01
Side View
135
5.30
128
5.04
Environmental
102
4.01
UL Type 4X; IP67; Sinusoidal Vibration tested; Random Vibration tested; Shock tested;
UL50, UL50E, IEC 60529, EN60068-2-6, EN60068-2-64,
EN60068-2-27, CAN/CSA C22.2 No. 94.1-07, CAN/CSA C22.2 No.
94.2-07, CAN/CSA C22.2 No. 60529-05
Region
Certification
Certificate of Conformity 11/ULBRHZ-0037X
Europe
CE
Declaration of Conformity
USA
UL
E333679 Certificate of Compliance
UL
DEMKO 10 ATEX 0948139X
UL
Certificate of Conformity IECEx UL
10.0010X
116
4.57
125
4.93
Front View
Technical specifications
Installation/configuration notes
Electrical
IR Source
High-efficiency LED array with current limited
integral power circuit
Beam Patterns
20° or 50°
Wavelength
850 nm
Power consumption
37 to 40 W (40 W max. power). Power
consumption will vary over time due to the
intelligent IR’s optical output control which
compensates for LED degradation and
ambient temperature fluctuations.
3/4-in. NPTX 4
6.6
0.26
71°
60.0
Ø 2.36
Bottom View
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
4 | EX65 Explosion-Protected Illuminator
Performances Ranges
Model
Horizont
al Angle
Achievable
Distance1
Horizontal Field
of View
LED-658AM/SM
20
54.3 m (178.1
ft)
18.9 m (61.9 ft)
LED-658AW/SW
50
39.3 m (c ft)
33.2 m (109.0
ft)
1. Actual illumination distance achieved is dependent on camera and lens characteristics.
These values are based on test results with an EX65 camera.
Mechanical
Dimensions (L x W x H)
381 x 114 x 114 mm
(11.01 x 4.5 x 4.5 in.) without sunhood
or mounting cradle
Weight
Stainless Steel: 12.7 kg (28 lb)
Aluminum: 6.1 kg (13.5 lb)
Construction
Electropolished 316L Stainless Steel or
Anodized Aluminum
Bracket
Pan(±36°)/Tilt(±45°),
mounting cradle included
Cable Entry
Four (4) 3/4-in. NPT entries
View Window
9-mm thick borosilicate float glass
Intelligent-IR 850 nm illuminator for explosive
environments. IP67; LED array; Constant Light
technology; 3D Diffuser; 18.9 m HFOV; 54.3 m
distance; 20º beam pattern, stainless steel
Order number LED-658-SM
LED-658-SW Stainless Steel EX65 Explosion Protected
Illuminator
Intelligent-IR 850 nm illuminator for explosive
environments. IP67; LED array; Constant Light
technology; 3D Diffuser; 33.2 m HFOV; 39.3 m
distance; 50º beam pattern, stainless steel
Order number LED-658-SW
Accessories
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor power supply for camera. 220 VAC, 50 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-60
EXS-ADPT EX65-to-MIC Mount Adapter, Stainless Steel
Environmental
Operating Temperature
-50 °C to +60 °C (-58 °F to +140 °F)
Storage Temperature
-55 °C to +70 °C (-67 °F to +158 °F)
Operating Humidity
0 to 100% relative (condensing, after
installed and sealed)
Storage Humidity
LED-658-SM Stainless Steel EX65 Explosion Protected Illuminator
20 to 98% relative (non-condensing)
Adapter that allows the EX65 camera or illuminator to
be mounted on a MIC wall mount bracket (MIC-WMB)
and then to one of a variety of other MIC Series
mounting brackets.
Order number EXS-ADPT
MIC-CMB-S Corner Mount Bracket, Stainless Steel
Corner mount bracket, grade 316 stainless steel
Order number MIC-CMB-S
MIC‑WMB‑S Wall Mount Bracket, Stainless Steel
Ordering information
LED-658-AM Aluminum EX65 Explosion Protected Illuminator
Intelligent-IR 850 nm illuminator for explosive
environments. IP67; LED array; Constant Light
technology; 3D Diffuser; 18.9 m HFOV; 54.3 m
distance; 20º beam pattern, aluminum
Order number LED-658-AM
LED-658-AW Aluminum EX65 Explosion Protected Illuminator
Intelligent-IR 850 nm illuminator for explosive
environments. IP67; LED array; Constant Light
technology; 3D Diffuser; 33.2 m HFOV; 39.3 m
distance; 50º beam pattern, aluminum
Wall mount bracket, grade 316 stainless steel
(Requires MIC‑SPR or MIC‑PMB for secure mounting
because of weight.)
Order number MIC-WMB-S
MIC-PMB Pole Mount Bracket
Pole mount bracket (includes 2 x 455 mm stainless
steel banding straps for pole diameters 75 to 145 mm)
Order number MIC-PMB
MIC-SPR-S Spreader Plate, Stainless Steel
316L stainless steel spreader plate suitable for
brickwork surface mounting, plain finish
Order number MIC-SPR-S
Order number LED-658-AW
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
5 | EX65 Explosion-Protected Illuminator
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd.
Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
[email protected]
www.boschsecurity.com.cn
www.boschsecurity.com
© Bosch Security Systems 2014 | Data subject to change without notice
2231636747 | en, V4, 11. Nov 2014
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
