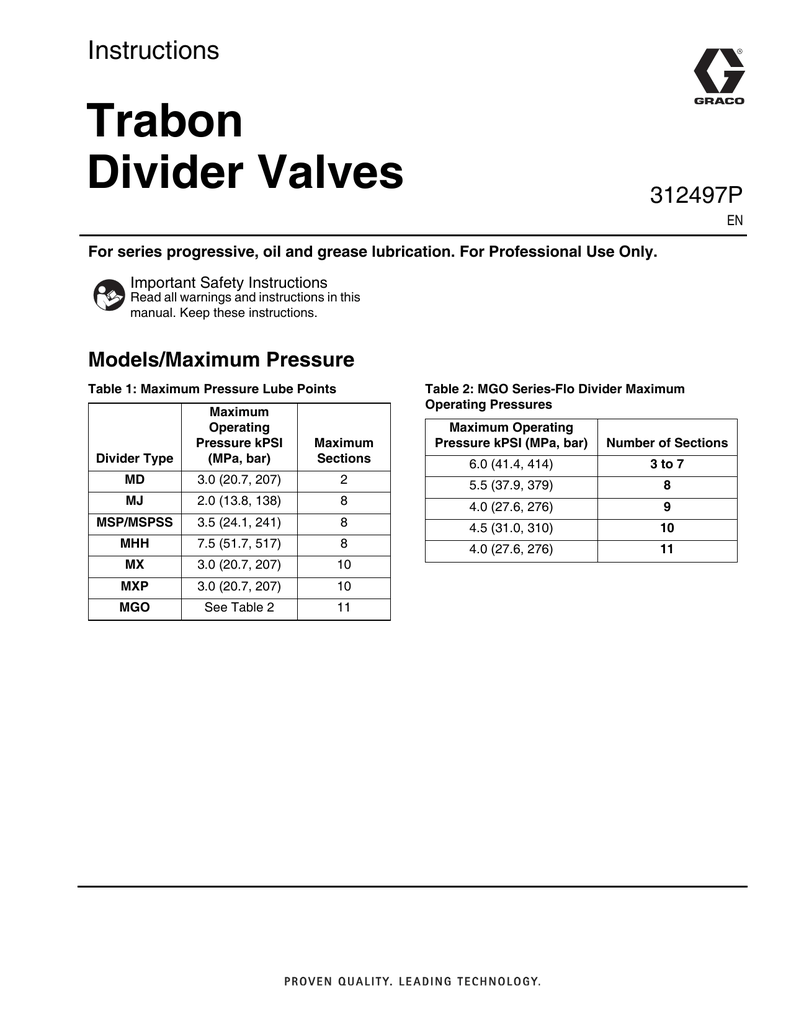

Graco 312497P User's Manual

Instructions
Trabon
Divider Valves
312497P
EN
For series progressive, oil and grease lubrication. For Professional Use Only.
Important Safety Instructions
Read all warnings and instructions in this
manual. Keep these instructions.
Models/Maximum Pressure
Table 1: Maximum Pressure Lube Points
Table 2: MGO Series-Flo Divider Maximum
Operating Pressures
Divider Type
Maximum
Operating
Pressure kPSI
(MPa, bar)
Maximum
Sections
MD
3.0 (20.7, 207)
2
MJ
2.0 (13.8, 138)
8
MSP/MSPSS
3.5 (24.1, 241)
8
MHH
7.5 (51.7, 517)
8
MX
3.0 (20.7, 207)
10
MXP
3.0 (20.7, 207)
10
MGO
See Table 2
11
Maximum Operating
Pressure kPSI (MPa, bar)
Number of Sections
6.0 (41.4, 414)
3 to 7
5.5 (37.9, 379)
8
4.0 (27.6, 276)
9
4.5 (31.0, 310)
10
4.0 (27.6, 276)
11
Warnings
Warnings
The following Warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation point symbol alerts you to a general warning and hazard symbols refer to procedure-specific risks. Refer back to
these Warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•
Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
•
Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.
•
Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
•
Do not alter or modify equipment.
•
Use equipment only for its intended purpose. Call your distributor for information.
•
Keep children and animals away from work area.
•
Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
•
Do not point dispense valve at anyone or at any part of the body.
•
Do not put your hand over the end of the dispense nozzle.
•
Do not stop or deflect leaks with your hand, body, glove, or rag.
•
Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
CALIFORNIA PROPOSITION 65
This product contains a chemical known to the State of California to cause cancer, birth defects or other
reproductive harm. Wash hands after handling.
2
312497P
Setup
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
NOTICE
Do not install a divider valve into a system rated for
more than the valve’s maximum operating pressure.
This type of installation could result in o-ring damage
and cause the divider valve to leak.
To install the divider valve in your system:
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury
from pressurized fluid, such as skin injection,
splashing fluid and moving parts, follow the Pressure
Relief Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
1. Determine an appropriate, remote mounting location.
2. Install a rupture to atmosphere fitting with a blow-out
disk that is rated for 7,500 psi (52 MPa, 517 bar) or
less between the force feed lubricator pump and
master divider valve inlet.
3. Install an analog pressure gauge at the inlet to the
divider valve.
1. Verify pump feeding valve is stopped and disconnected from, or locked out of it’s driver.
2. Using a wrench, slowly loosen inlet nut.
3. Then, using a wrench, slowly loosen each port nut.
4. Install a slow or no cycle shutdown in one of the piston enclosure plugs. Program it to shut down after
no more than 180 seconds without a complete
cycle.
5. Torque. See Table 4 on page 15.
Setup
The divider valve is shipped ready to install in your system. It has been factory-tested and should not require
any additional modification.
As long as lubricant is supplied under pressure to the
inlet section of the divider assembly, valves sections will
continue to operate in a progressive manner. Divider
assemblies always follow a constant discharge pattern.
Whenever lubricant flow ceases, the valving pistons will
stop. When flow resumes, it will start again at the same
point in the discharge cycle.
For MJ and MX series valves only: Gaskets (a) must be
installed between every valve section (b) of the block
assembly to prevent leaking.
b
a
b
FIG. 1
312497P
3
Setup
Component Identification
Divider Valves
B
A
D
C
E
F
A Series-Flo type divider valve is a manifold proportioning device consisting of an inlet and end section plus a
minimum of three valve sections. The divider valve is
manifolded together with tie rods and nuts. A master
divider valve is the first divider valve downstream from
the lube pump. A secondary divider valve is any divider
valve receiving lubricant from the master divider valve.
Valve Sections (MSP, MHH and MXP
modular-type, divider valves, only)
Valve sections (three or more required per manifold)
contain a piston specially fitted to that section, built in
outlet check valves and various passageways that,
working with the piston, meters and valves the flow of
lubricant (FIG. 3).
G
Piston
Enclosure/End
Plug
Enclosure Plug Gasket
H
FIG. 2
Piston
O-Rings
Key:
A
B
C
D
E
F
G
H
Valve Section
Inlet Section
Indicator / Port Plug
Crossport Plate
End Plug
Subplates with Outlet Ports
End Section
Tie Rod Nut
Check
Valve
Indicator
Port
TI11102
FIG. 3
Table 3: Typical Divider Valve
Combinations
TYPE OF
APPLICATION
MASTER
SECONDARY
MJ
MD
Machine tools, Printing,
Wire Forging &
Packaging Machinery
MSP
MJ, MSP
Machine tools, Textile,
Glass & Can Machinery,
Mobile Equipment
MX, MXP
MX, MXP, MSP
Cranes, Presses, Steel
Mills, etc.
MGO
MX
Levellers, Shears,
Conveyors, etc.
4
Indicator Port Plug
Valve sections may be manufactured to require one or
two lube outlets. Stamping located on the face of each
section indicates:
•
the style of divider valve section, i.e., MSP, MX,
etc.,
•
the discharge per piston stroke expressed in
thousandths of cubic inches (35 = .035 in3 )
and,
•
the number of lube outlets required (S = single,
one outlet only; T = twin, two lube outlets
required).
312497P
Setup
Prefilling Lubricant Distributor Lines
Follow the following procedure exactly as written, in the
order written.
4. Stroke the hand pump until air-free lubricant is
observed flowing from the end of the lube line.
NOTICE
•
•
3. In order to verify when lubricant is flowing and has
reached the end of the lube line, loosen the connector at the lube point of the line that is to be filled.
The initial startup and operation is the most critical
operating period for a newly installed machine in
terms of potential for being damaged by unremoved/unfiltered lubricant contaminants and lack of
adequate lubrication. Proper prefilling of lubrication
system ensures that lubricant is immediately available to every lube point during machine startup,
protecting them from damage.
Use only clean oil filtered to the SAE -recommended cleanliness level of ISO 18/14 (ISO Standard 4406) when prefilling a system. The
manufacturers of the machine tool and its component bearings should be consulted to ensure that
the ISO 18/14 cleanliness level is adequate.
5. Tighten the lube line connector at the lube point, but
do not replace the port plugs or performance indicators into the ports on the front of the working section.
6. Repeat steps 1-5 for each of the other lube lines
connected to the other outlet ports in the secondary
divider valve assembly and for any other secondary
divider assemblies in the system.
NOTE: Do not replace any of the performance indicators or port plugs removed in Step 1 until the line-filling
procedure described in Section 2 (Filling Master
-to-Secondary Lube Lines) has been completed.
Filling Master-to-Secondary Lube Lines
Filling Secondary-to-Lube Point Lines
Refer to FIG. 5. when performing this procedure.
Refer to FIG. 4. when performing this procedure
.
LUBE POINT
MASTER
LUBE POINT
SECONDARY
BLEED HOSE
HERE
MASTER
SECONDARY
BLEED
THROUGH
ALL PORTS
REMOVE INDICATOR
OR PORT PLUG
REMOVE INDICATOR
OR PORT PLUG
HAND PUMP
HAND PUMP
TI11098
FIG. 4
1. Remove port plugs or performance indicators from
all of the indicator ports on front of secondary
divider valves.
2. Connect a hand pump filled with clean, filtered lubricant to the indicator port closest to the first line to be
filled that corresponds to the output port that is feeding the line to be filled.
312497P
TI11099
FIG. 5
1. Remove the port plugs or performance indicators
from all the indicator ports on the front of the master
divider valve.
2. Connect a hand pump filled with clean, filtered lubricant to the indicator port closest to the lube output
port that is feeding the line to the secondary divider
valve.
3. Stroke the hand pump to fill the line between the
master divider valve and secondary divider valve.
5
Setup
4. Continue to stroke the pump until the lubricant
purges all the air out of the internal passages of the
secondary divider valve and lubricant flows freely
from all indicator ports with no evidence of included
air.
Filling Master Divider Valve
Refer to FIG. 6. when performing this procedure.
5. Reinstall the port plugs or performance indicators in
their respective positions in the secondary divider
valve. Do not replace the port plugs or performance
indicators in the master divider valve yet.
LUBE POINT
SECONDARY
MASTER
6. Repeat Steps 1-5 for each of the other lube lines
between the master divider valve and all other secondary divider valves.
BLEED
HERE
NOTE: Do not replace any of the performance indicators or port plugs removed in Step 1 from the master
divider valve assembly until the air-purging procedure
described in Section 3 (Filling Master Divider Valve) has
been completed.
CYCLE PUMP
TI11000
FIG. 6
1. Verify that all port plugs or performance indicators
have been removed from all indicator ports in the
master divider valve.
2. Verify that the system pump is properly connected
to the inlet port of the master divider valve.
3. Cycle the system pump sufficiently to fill the main
feeder line between the pump and the master
divider valve and the lubricant is observed being
discharged from all of the indicator ports on the front
of the master divider valve with no evidence of
included air.
4. Reinstall the master divider valve port plugs or performance indicators into their respective positions.
6
312497P
Repair
Repair
General Repair Instructions
Purging Air From the System
Before machine operation is resumed following maintenance or repair, manual system air purging must be performed.
•
Before performing any repair procedures, relieve
pressure, page 3.
•
Pressure test distribution blocks yearly or every
8000 hours. Replace seals and divider valves as
necessary.
Page
Section
There are several air purging procedures available
depending upon the maintenance or repair procedure.
NOTE: Use only clean oil filtered to the SAE -recommended cleanliness level of ISO 18/14 (ISO Standard
4406) when prefilling a system. The manufacturers of
the machine tool and its component bearings should be
consulted to ensure that the ISO 18/14 cleanliness level
is adequate.
Air purging after:
8
1
Replacing line between a secondary divider valve and lube point.
9
2
Replacing a line between the master divider valve and a secondary
divider valve.
10
3
Replacing a line between pump and master divider valve.
11
4
Adding or replacing any component in a master divider valve assembly.
12
5
Adding or replacing any component in module in a secondary divider
valve assembly.
312497P
7
Repair
Section 1: Purging Air from Secondary Divider Valve Lube-to-Lube Point Lines
LUBE POINT
SECONDARY
BLEED HOSE
HERE
MASTER
REMOVE INDICATOR
OR PORT PLUG
HAND PUMP
TI11098
FIG. 7
Steps 1-6, refer to FIG. 7.
1. Install the line from the secondary divider valve to
the lube point, but do not completely tighten the
connection at the lube point.
2. Remove the performance indicator port plug or the
performance indicator from the working valve section on the secondary divider valve assembly corresponding to the outlet port and the line connected to
the lube point.
3. Attach a hand pump filled with clean, filtered lubricant to the port on the secondary divider valve that
was opened in Step 2.
4. Operate the hand pump until air-free lubricant is
observed flowing from the line at the lubrication
point.
5. Tighten the fitting at the lubrication point while lubricant is still flowing.
6. Remove the hand pump and reinstall the performance indicator or indicator port plug removed in
Step 2.
NOTE: If check valves were not installed at the lubrication point, lubricant may continually drain out of the line
when the secondary port is open. Therefore, when
check valves are not used, the method for bleeding this
line is to tighten the line at both ends and repeatedly
cycle the secondary divider valve via hand pump operation until lubricant, free of air, flows from the lubrication
point
8
312497P
Repair
Section 2: Purging Air from Master to Secondary Divider Valve Lube Lines
LUBE POINT
SECONDARY
BLEED HERE
FIRST
MASTER
REMOVE INDICATOR
OR PORT PLUG
HAND PUMP
AFTER BLEEDING INLET,
REMOVE ALL INDICATORS
OR PORT PLUGS AND BLEED
ALL PORTS
TI11113
FIG. 8
Steps 1- 9, refer to FIG. 8.
1. Install the lines from the master divider valve to the
secondary divider valve, but do not completely
tighten the connection at the secondary divider
valve’s inlet.
2. Remove the performance indicator port plug or the
performance indicator from the working valve section on the master divider valve assembly corresponding to the outlet port and the line connected to
the secondary valve.
3. Attach a hand pump filled with clean, filtered lubricant on the master divider valve that was opened in
Step 2.
4. Operate the hand pump until air-free lubricant is
observed flowing freely from the secondary valve’s
lube inlet connector.
312497P
5. Tighten the fitting at the secondary valve’s inlet
while lubricant is still flowing.
6. Remove all of the indicators or indicator port plugs
from the secondary divider valve’s working sections.
7. Operate the hand pump again until air-free lubricant
is observed flowing out of all the secondary divider
valve’s indicator ports.
8. Reinstall all of the performance indicators or port
plugs in the secondary divider valve while lubricant
is still flowing from the ports.
9. Remove the hand pump and reinstall the performance indicator or indicator plug removed in Step 2
into the master divider working valve’s open port.
The system is now ready for operation.
9
Repair
Section 3: Purging Air from Pump to Master Divider Valve Lines
LUBE POINT
SECONDARY
MASTER
BLEED THROUGH
ALL PORTS
SYSTEM PUMP
TI11114
FIG. 9
Steps 1-3, refer to FIG. 9.
1. Install the line from the system pump to the master
divider valve, but do not completely tighten the connection at the master valve’s lube inlet.
2. Cycle the system pump until air-free lubricant is
observed flowing from the line at the master divider
valve’s lube inlet.
3. Tighten the fitting at the lube inlet port while lubricant is still flowing.
The system is now ready for operation.
10
312497P
Repair
Section 4: Purging Air After Adding or Replacing a Master Divider Valve Module
LUBE POINT
SECONDARY
MASTER
DISCONNECT
LINE
HAND PUMP
BLEED
HERE
NEW VALVE
BLOCK
TI11116
FIG. 10
Steps 1-7, refer to FIG. 10.
1. Install the new or replacement module into the master divider valve assembly. Also connect the tubing
or hoses to the appropriate secondary divider
valve(s) or lubrication point(s) if the new/replacement module is a base section.
2. Do not completely tighten the connection(s) at the
secondary divider valve’s inlet or at lubrication
points.
3. Disconnect and remove the line from the pump at
the inlet of the master divider valve.
5. Operate the hand pump until air-free lubricant is
observed flowing from each secondary valve’s lube
inlet connector and/or each lubrication point’s connector.
6. Tighten the fitting at the secondary valve inlet or at
the lubrication port while lubricant is still flowing.
7. Remove the hand pump and reconnect the system
pump to the inlet of the master divider valve.
The system is now ready for operation.
4. Attach a hand pump filled with clean, filtered lubricant to the inlet port on the master divider valve.
312497P
11
Repair
Section 5: Purging Air After Adding or Replacing a Secondary Divider Valve Module
BLEED HOSE
HERE
LUBE POINT
SECONDARY
MASTER
BLEED
HERE
NEW VALVE
BLOCK
REMOVE INDICATOR
OR PORT PLUG
HAND PUMP
TI11115
FIG. 11
Steps 1-8, refer to FIG. 11.
1. Install the new or replacement module to the secondary divider valve assembly. Also connect the
tubing or hoses to the appropriate lubrication point if
the new/replacement module is a base section.
2. Do not completely tighten the connection(s) at the
lubrication point.
3. Remove the performance indicator or indicator port
plug from the working valve section on the secondary divider valve assembly corresponding to the outlet port and line connected to a particular lube point.
4. Attach a hand pump filled with clean, filtered lubricant to the port on the secondary divider valve that
was opened in Step 3.
12
5. Operate the hand pump until air-free lubricant is
observed flowing from the loosened connector at
the lube point.
6. Tighten the fitting at the lube point while lubricant is
still flowing.
7. Repeat Steps 3 - 6 for any additional lubrication
points connected to the new module.
8. Remove the hand pump and reinstall the performance indicator or port plug removed in Step 3 into
the secondary divider valve’s open port.
The system is now ready for operation.
312497P
Repair
Locating and Repairing
Blockages
Blocks will cause a higher than normal pumping pressure. Depending on the application or system design,
this blockage will usually result in a complete loss of
lubricant flow into the total system and no bearing will be
receiving lubrication.
The loss of flow due to a blockage is first indicated with
the higher than normal system pressure that is developed by the pump as it attempts to overcome this blockage. Higher pressure is limited, isolated and signaled
through the use of various performance indicators, reset
and relief, incorporated into the system design.
Performance Indicators
Performance indicators are pressure-sensitive devices
that pinpoint excessive pressure in the lubricating system.
These devices are installed in the indicator ports of
divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant into the
atmosphere.
NOTE: Never block a lube outlet that is designed to discharge lubricant.
Reset Indicator with Memory
Reset indicators stop lube system operation when a
fault occurs. These devices can be used in either master
or secondary divider valves.
When a lube line becomes blocked, the resultant high
pressure pushes the indicator pin through the opening in
the cap. The high pressure prevents the affected divider
valve piston from completing its cycle, causing a pressure backup through the divider valve which trips a pressure switch upstream from the valve and shuts off the
pump.
The indicator pin remains extended until it is reset manually. This helps locate the lube line that is blocked.
312497P
Rupture Indicator
Rupture indicators are used on MSP/MH divider valve
applications where lube system pressure exceed 2500
psi (17 MPa, 172 bar). The high pressure from the lube
line blockage causes a disc to rupture. The lubricant
then forces an indicator to protrude, locating the blockage. The high pressure backs up through the system
and trips a switch to shut the system off. When the fault
is corrected, the disc must be replaced and the pin reset
manually.
Automatic Relief Indicator
An automatic relief indicator pinpoints lube line blockage
but allows the lube system to continue supplying lubricant to points that are not blocked. They are used primarily in secondary divider valves. The excessive
pressure created by line blockage moves a piston,
enabling the lubricant to escape through a vent. When
the pressure is relieved, the spring resets the piston.
Because these devices permit the lube system to keep
operating when a lube point is blocked, a separate pressure switch connected to an audible alarm should be
used to warn of high pressure.
Locating and Repairing Blockages
1. Make a visual inspection of the system. Check for
crushed lines or improper divider valve installation.
2. Verify that each divider valve outlet required to discharge lubricant can do so and that no pipe plugs
have been installed in an outlet designed to serve a
bearing or another divider valve.
3. Use a manual pump with a gauge. Fill the pump with
clean, filtered lubricant. Connect the manual pump
to the inlet of the master divider valve and slowly
operate pump. If system will not cycle freely, below
1500 psi, see Master Divider Valve Equipped with
Performance Indicator [Step 4a (below)].
NOTE: Use only clean oil filtered to the SAE -recommended cleanliness level of ISO 18/14 (ISO Standard
4406) when prefilling a system. The manufacturers of
the machine tool and its component bearings should be
consulted to ensure that the ISO 18/14 cleanliness level
is adequate.
13
Repair
4a. Master Divider Valve Equipped With Performance
Indicator
With manual pump connected to the master divider
valve as outlined in Locating Blockages, Step 3,
raise pressure to 2000 psi (14 MPa, 138 bar). The
indicators in the indicator ports will signal the location of the blockage. An indicator in the up position
indicates pressure is in that outgoing line and signals the blockage is in the area being served from
this outlet (FIG. 12).
If no indicator pins are protruding, the blockage is in
the master divider valve.
NOTE:
•
If all indicator port plugs are removed, the master
will not cycle. Blockage is in this divider valve.
•
When indicator port plug of a blocked area is
removed, a small shot of trapped lubricant will usually surge out of this outlet as the inlet pressure on
the divider valve drops.
•
If testing (Step 4) indicates a blockage in the master
divider valve, this divider valve must be disassembled and cleaned. See Clean Divider Valve, Step 7,
page 15.
HAND PUMP
HAND PUMP
LUBE
OUTLETS
LUBE
OUTLETS
INDICATOR PIN UP
MASTER
DIVDER
VALVE
SECONDARY
DIVIDER
VALVE
TI11103
4b. Master Divider Valve Equipped Without Performance
Indicator
1) With manual pump connected to the master
divider valve as outlined in Locating Blockages,
Step 3, raise pressure to 2000 psi (14 MPA, 138
bar).
2) Remove, one at a time, each indicator port plug
and attempt to operate manual pump after each
plug is removed. Do not exceed 2000 psi (14
MPa, 138 bar)
3) If pressure drops and the master cycles freely
after an indicator port plug is removed, then
blockage is downstream in the area that is
being served from that outlet. See Locating
Blockages, Step 3.
14
INDICATOR
PORT
PLUGS
REMOVED
MASTER
DIVDER
VALVE
SECONDARY
DIVIDER
VALVE
FIG. 12
SYSTEM PUMP
TI11104
FIG. 13
5. If in Step 4, a blockage has been indicated
downstream of the master divider valve, install a
manual pump in the indicator port of the master
divider valve that is common to the blocked area.
(See FIG. 13).
a. Proceed to downstream secondary divider valve
and remove all indicator port plugs.
b. Slowly operate manual pump. If lubricant can be
discharged freely through each of the indicator
ports of this divider valve, the blockage is not in
the supply line or the divider valve. Go to step 6.
If lubricant is not freely discharged through open
indicator ports of the second divider valve, the
blockage is in this divider valve or its supply
line. Disconnect supply line at secondary inlet
312497P
Repair
fitting and slowly operate manual pump to verify
location. If blockage is in this divider valve, go to
step 7.
NOTE: Dirt and foreign material will damage lubricating
equipment. Perform all service and disassembly under
the cleanest possible conditions.
LUBE
OUTLET
a. Before disassembling any divider valve, make a
sketch noting the arrangement of Valve Sections. For example: INLET 10T - 20S - 10T 30S - END (FIG. 15). Also remove end plugs
only and try to move each piston back and forth
without removing the piston from the valve section.
SYSTEM PUMP
MASTER
DIVDER
VALVE
Inlet
10T
LUBE OUTLETS
20S
INDICATOR PORT
PLUGS REMOVED
10T
30S
End
FIG. 15
NOTICE
SECONDARY
DIVIDER
VALVE
Do not insert hard metal objects into piston bore (i.e.,
punches, screwdrivers, etc.). Hard metal objects can
damage the surface and cause divider valves to leak
fluid. Use a brass rod and hand pressure only.
HAND PUMP
BEARING
FIG. 14
6. Install manual pump into each indicator port of secondary divider valve in turn and slowly operate
pump (FIG. 14). If high pressure exists, blockage
has been located. Look for crushed line, tight
bearing, improperly drilled fittings and/or lube
inlet port. Correct as necessary.
b. If all pistons move freely and there is no indication of a more serious problem, replace end
plugs.
c.
Using a new gasket, tighten and torque as indicated in Table 4 (below).
7. Clean Divider Valve
Table 4: Torque Values (*see FIG. 2, page 4)
Assembly Torque ft-lbs (N.m)
MJ
MD
MSP/MH
MX
MXP
MGO
MSD-SST
Tie Rod Nuts
12 (16.3)
-
5-8 (6.8-10.9)
23 (31.2)
6-9 (8.1-12.2)
12 (16.3)
5-8 (6.8-10.9)
Indicator Plugs*
6-7
(8.1-9.5)
15 (20.3)
8-9
(10.9-12.2)
18 (24.4)
12-15
(16.3-20.3)
6-8
(8.1-10.9)
5-7 (6.8-9.5)
11-13
(14.9-17.6)
-
12-15
(16.3-20.3)
46 (62.4)
46-50
(62.4-67.8)
15 (20.34)
6-8 (8.1-10.9)
-
-
8-9
(10.9-12.2)
-
12-13
(16.3-17.6)
-
8-9
(10.9-12.2)
End Plugs*
Valve Section
Mounting Screw
312497P
15
Repair
d. Clean sections and pistons in suitable clean solvent until all lubricant has been removed.
e. Use compressed air to dry and blow out all ports
thoroughly.
A small metal probe should be used to make
sure all passages are clean and open.
Inspect cylinder bore and piston carefully for
scratches, score marks or other damage.
NOTE: If either piston or cylinder bore is damaged, a
new section must be installed. All pistons are selectively
fitted to the bore for proper clearance. Be sure to reinstall piston only into the valve section from which it was
removed.
f.
Separation Blockage
If a hard wax or soap-like material is found in the Valve
Section, grease separation is occurring. This means that
the oil is being squeezed from the grease at normal system operating pressure and the grease thickener is
being deposited in the divider valve. Cleaning the
divider valve will only temporarily solve the problem.
Consult your lubricant supplier for recommendations on
alternate lubricants and your local Graco/Trabon distributor to verify compatibility with centralized lubricating
systems.
If all indictor port plugs are removed, master will not
cycle. Blockage is in this divider valve.(FIG. 12).
If divider valve section and piston both appear
in good condition, reassemble section making
certain piston slides smoothly but snugly in cylinder bore.
g. Repeat cleaning and inspection of each section.
After all sections have been cleaned, blown out,
inspected and found to be in good condition,
reassemble divider valve using notes and
sketches (Step 7) as a reference.
NOTE:
•
Always use new gaskets.
•
Test operation of divider valve using manual pump.
Contamination Blockage
If dirt, foreign material or any other form of contamination is found in a divider valve, cleaning that divider
valve will only temporarily solve contamination blockage
problems. The source of the contamination must be
eliminated for satisfactory service.
The system filtering method must be investigated, filter
elements should be inspected and cleaned if necessary.
The reservoir filling method should be reviewed to eliminate any chance of foreign material entering the reservoir during filling.
16
312497P
MD Series
MD Series
Technical Data
Dimensions
Material
Steel
Pressure (max)
3,000 psi (20.7 MPA,
206.8 bar)
Lubricant
Oil or grease
Net Weight (approx.)
1-lb. 8 oz (0.68 kg)
1.46
(37.0)
CYCLE INDICATOR
PIN (OPTIONAL)
Volume (Lubricant to cycle
divider valve one complete cycle)
0.28
(7.11)
OUTLET
MD-2, MD-3, MD-4
0.080 in.3 (1.31 ccm)
MD-6
0.060 in.3 (0.98 ccm)
1.19
(30.2)
0.87
(22.0)
2.12
(53.9)
0.40
(10.7)
0.28
(7.11) Dia. 2-Mtg. Holes
Torque Ratings
Assembly Bolts
8-9 ft. lbs (10.9-12.2 N.m)
Enclosure Plugs
11-13 ft. lbs (14.9-17.6
N.m)
Indicator Plug
15 ft. lbs (20.3 N.m)
Outlet Plugs
6-7 ft. lbs. (8.1-9.5 N.m)
1.25 1.75
(31.7) (44.4)
3.12
(79.3)
,5"%).,%4
1.19
(30.2
Parts
Ref
1
Part No.
562656
562657
562658
562659
562653
562654
562655
563270
563271
564356
Description
VALVE, feeder, MD 2
VALVE, feeder, MD 3
VALVE, feeder, MD 4
VALVE, feeder, MD 6
VALVE, feeder, MD 2, IND
VALVE, feeder, MD 3, IND
VALVE, feeder, MD 4, IND
VALVE, feeder, MD 2, IND/Switch
VALVE, feeder, MD 3, IND/Switch
VALVE, feeder, MD 4, IND/Switch
1
312497P
0.25
(6.3)
3.00
(76.2)
Assembly
Bolts
0.87
(22.0)
0.28
(7.11)
1.21
(30.9)
1/8”OUTLET
LUBE INLET
1.19
(30.2
0.87
(22.0)
0.28
(7.11)
1.21
(30.9)
1/8” OUTLET
v/54,%4-$/NLY
ti11472
17
MJ Series
MJ Series
Technical Data
Dimensions
Material
Plated
Pressure (max)
2,000 psi (13.8 MPa, 137.9
bar)
Lubricant
Oil or grease up to NLGI
Grade 1
Max Operating Temperature
200°F (93°C)
Max Cycle Rate With
Cycle Pin
60 CPM
3.23
(82.2)
1.06
(26.9)
CYCLE INDICATOR PIN (OPTIONAL)
.750
(19.0)
LUBE INLET
Net Weight (approx.)
3 section divider valve
1-lb. 15 oz (0.88 kg)
4 section divider valve
2 lbs. 5 oz (1.04 kg)
5 section divider valve
2 lbs. 11 oz (1.21 kg)
6 section divider valve
3 lbs. 1 oz (1.38 kg)
7 section divider valve
3 lbs. 7 oz (1.55 kg)
8 section divider valve
3 lbs. 13 oz (1.72 kg)
1.37
(34.9)
INDICATOR OUTLET
1.09
(27.7)
4 MTG. HOLES
.750
(19.0)
.270 (6.8)
A
.858
(21.79)
LUBE
OUTLET
.582 TYPICAL
(14.7)
B
Torque Ratings
Tie Rod Nut
12 ft. lbs (16.3 N.m)
Enclosure Plug
11-13 ft. lbs (14.9-17.6
N.m)
Outlet Port Plugs
6-7 ft. lbs. (8.1-9.5 N.m)
.250
(6.3)
2.12
(53.9)
2.54
(64.5)
18
.687
(17.4)
ti11474
312497P
MJ Series
Parts
Ref
1*
2*
3*
4
5
6
Part No.
562500
562501
562502
562503
562504
562505
562508
562512
562510
562513
562509
562511
564205
560643
560645
557515
557516
557517
557518
557519
557520
556371
557514
Description
VALVE, assembly, MJ 5S
VALVE, assembly, MJ 10S
VALVE, assembly, MJ 15S
VALVE, assembly, MJ 5T
VALVE, assembly, MJ 10T
VALVE, assembly, MJ 15T
VALVE, assembly, IND MJ 10S
VALVE, assembly, IND MJ 10S Left
VALVE, assembly, IND MJ 10 T
VALVE, assembly, IND MJ 10T Left
VALVE, assembly, IND MJ 15S
VALVE, assembly, IND MJ 15T
VALVE, assembly, IND MJ 15T Left
INLET, CRS, MJ
END, CRS, MJ
ROD, tie, MJ 3 (3 required)
ROD, tie, MJ 4 (3 required)
ROD, tie, MJ 5 (3 required)
ROD, tie, MJ 6 (3 required)
ROD, tie, MJ 7 (3 required)
ROD, tie, MJ 8 (3 required)
NUT, tie rod, 1/4-28 (3 required)
GASKET, feeder, MJ
2
1
6
*Component is shipped with gasket
3
4
5
312497P
19
MSP Series
MSP Series
Technical Data
Material
Corrosion Protected Steel (optional: Type 303 Stainless
Steel)
Pressure (max)
Zero Leak Inlet
1500 psi (10.3 MPa, 103.4 bar)
Shunt/Shutoff Inlet
3000 psi (20.7 MPa, 206.8 bar)
Ambient Temperature (max)
140°F (60°C)
Lubricant
Zero Leak Inlet
Oil Only - up to 5000 SUS, requires 25 micron (min) filtration
Shunt/Shutoff Inlet
Oil and fluid grease - filter oil through 25 micron filter and
grease through 100 micron mesh strainer
New Weight (approx.)
Carbon Steel
3 section divider valve assembly
5.9 lbs (2.7 kg)
4 section divider valve assembly
7.3 lbs (3.3 kg)
5 section divider valve assembly
8.7 lbs (4.0 kg)
6 section divider valve assembly
10.2 lbs (4.6 kg)
7 section divider valve assembly
11.6 lbs (5.6 kg)
8 section divider valve assembly
13.0 lbs (5.9 kg)
Stainless Steel
3 section divider valve assembly
8.2 lbs (3.7 kg)
4 section divider valve assembly
9.9 lbs (4.5 kg)
5 section divider valve assembly
11.7 lbs (5.3 kg)
6 section divider valve assembly
13.5 lbs (6.2 kg)
7 section divider valve assembly
15.2 lbs (6.9 kg)
8 section divider valve assembly
16.9 lbs (7.7 kg)
Torque Ratings
20
Mounting Screw
8-9 ft. lbs (10.9-12.2 N.m)
Enclosure Plugs
6-8 ft. lbs (8.1-9.5 N.m)
Indicator Port Plug
5-7 ft. lbs (6.8-9.5 N.m)
Bleed Screws
1-2 ft. lbs. (1.4-2.7 N.m)
Tie Rod Nut
5-8 ft. lbs. (6.8-10.9 N.m)
312497P
MSP Series
Dimensions
CROSSPORT PLATE (OPTIONAL)
312497P
ti11478
21
MSP Series
Parts
Ref Part No.
1
562711
562712
562713
562714
562715
562716
562717
562718
562720
562721
562722
562723
562724
562725
562726
562727
562729
562730
562731
562732
562733
562734
562735
562736
562737
562738
562739
562740
562741
562742
562743
562744
562745
562746
562747
562748
24B474
562755
24B475
562756
24B476
24B477
24B478
562757
24B479
562758
24B480
562759
24B481
24B482
24B483
562760
2
24B497
563425
563447
563451
563479
24N369
22
Description
VALVE, assembly MSP 05S
VALVE, assembly MSP 10S
VALVE, assembly MSP 15S
VALVE, assembly MSP 20S
VALVE, assembly MSP 25S
VALVE, assembly MSP 30S
VALVE, assembly MSP 35S
VALVE, assembly MSP 40S
VALVE, assembly MSP 05T
VALVE, assembly MSP 10T
VALVE, assembly MSP 15T
VALVE, assembly MSP 20T
VALVE, assembly MSP 25T
VALVE, assembly MSP 30T
VALVE, assembly MSP 35T
VALVE, assembly MSP 40T
VALVE, assembly IND MSP 20S
VALVE, assembly IND MSP 25S
VALVE, assembly IND MSP 30S
VALVE, assembly IND MSP 35S
VALVE, assembly IND MSP 40S
VALVE, assembly IND left MSP 20S
VALVE, assembly IND left MSP 25S
VALVE, assembly IND left MSP 30S
VALVE, assembly IND left MSP 35S
VALVE, assembly IND left MSP 40S
VALVE, assembly IND MSP 20T
VALVE, assembly IND MSP 25T
VALVE, assembly IND MSP 30T
VALVE, assembly IND MSP 35T
VALVE, assembly IND MSP 40T
VALVE, assembly IND left MSP 20T
VALVE, assembly IND left MSP 25T
VALVE, assembly IND left MSP 30T
VALVE, assembly IND left MSP 35T
VALVE, assembly IND left MSP 40T
VALVE, assembly, MSP 05S - SST
VALVE, assembly, MSP 10S - SST
VALVE, assembly, MSP 15S - SST
VALVE, assembly, MSP 20S - SST
VALVE, assembly, MSP 25S - SST
VALVE, assembly, MSP 30S - SST
VALVE, assembly, MSP 35S - SST
VALVE, assembly, MSP 40S -SST
VALVE, assembly, MSP 05T - SST
VALVE, assembly, MSP 10T - SST
VALVE, assembly, MSP 15T - SST
VALVE, assembly, MSP 20T - SST
VALVE, assembly, MSP 25T - SST
VALVE, assembly, MSP 30T -SST
VALVE, assembly, MSP 35T - SST
VALVE, assembly, MSP 40T - SST
BLOCK, base, MSP, NPTF, SST
BLOCK, base, MSP NPSF
BLOCK, base, MSP, BSPP
BLOCK, base, MSP, SAE
BLOCK, base, MSP w/No outlets
BLOCK, base, MSP, BSPP, SST
Ref Part No.
3
560919
560936
560943
560976
563421
563422
15Y070
16P368
4
563279
563424
24B498
5
563469
563470
563471
24R631
24R632
24R633
6
563472
7
562660
8
557731
557732
557733
557734
557735
557736
557738
557739
557740
126247
126248
126249
126250
126251
126252
9
556371
558633
Description
BLOCK, inlet, MSP, NPSF
BLOCK, inlet, MSP, BSPP
BLOCK, inlet, MSP, SAE
BLOCK, inlet, MSP, ISO 6149
BLOCK, inlet, MSP, NPSF, w/bleed
BLOCK, inlet, MSP SAE w/bleed
BLOCK, inlet, MSP, NPTF, SST
BLOCK, inlet, MSP, BSPP, SST
BLOCK, MSP end w/alt inlet
BLOCK, end, MSP
BLOCK, end, MSP, SST
KIT, crossport bar, right
KIT, crossport bar, left
KIT, crossport bar, both
KIT, crossport, MSP, LH/RH, sst
KIT, crossport, MSP, RH, sst
KIT, crossport, MSP, LH, sst
KIT, singling bar
VALVE, assembly bypass, standard MSP
ROD, tie, 3 section, MSP (3 required)
ROD, tie, 4 section, MSP (3 required)
ROD, tie, 5 section, MSP (3 required)
ROD, tie, 6 section, MSP (3 required)
ROD, tie, 7 section, MSP (3 required)
ROD, tie, 8 section, MSP (3 required)
ROD, tie, 9 section, MSP (3 required)
ROD, tie, 10 section, MSP (3 required)
ROD, tie, 11 section, MSP (3 required)
ROD, tie, 3 section, MSP, SST
ROD, tie, 4 section, MSP, SST
ROD, tie, 5 section, MSP, SST
ROD, tie, 6 section, MSP, SST
ROD, tie, 7 section, MSP, SST
ROD, tie, 8 section, MSP, SST
NUT, 1/4 - 28 (3 required)
NUT, SST 1/4 - 28 light hex (3 required)
312497P
MSP Series
3
1
5 or 6
2
7
4
8
9
312497P
23
MHH Series
MHH Series
Technical Data
Material
Steel Body (corrosion protected) Steel Piston (honed fit)
Pressure (max)
7,500 psi (52 MPa, 517 bar) for Petroleum or Synthetic
Oil - fluoroelastomer O-rings
Lubricant
Petroleum or synthetic oil only
Maximum Operating Temperature
Fluoroelastomer O-rings (557722)
Maximum Cycle Rate Without Cycle Pin
350°F (163°C)
200 CPM
Net Weight (approx.)
3 section divider valve assembly
5.9 lbs (2.7 kg)
4 section divider valve assembly
7.3 lbs (3.3 kg)
5 section divider valve assembly
8.7 lbs (4.0 kg)
6 section divider valve assembly
10.2 lbs (4.6 kg)
7 section divider valve assembly
11.6 lbs (5.6 kg)
8 section divider valve assembly
13.0 lbs (5.9 kg)
Torque Ratings
24
Mounting Screw
8-9 ft. lbs (10.9-12.2 N.m)
Enclosure Plugs
6-8 ft. lbs (8.1-9.5 N.m)
Indicator Port Plug
5-7 ft. lbs (6.8-9.5 N.m)
Bleed Screws
1-2 ft. lbs. (1.4-2.7 N.m)
Tie Rod Nut
5-8 ft. lbs. (6.8-10.9 N.m)
312497P
MHH Series
Dimensions
",%%$3#2%73
1.656
(42.06)
1.500
(38.1)
2.188
(55.56)
.781
(19.9)
1.125
(28.58)
.406
(10.31)
.734
(18.85)
.922 (TYP)
(23.41)
LUBE
INLET
LUBE
OUTLET
(TYPICAL)
PISTON ENCLOSURE PLUG (TYPICAL)
3.000
(76.2)
1.750
(44.4)
.625
(15.9)
.484
(12.3)
OUTLET IS PLUGGED
ON ONE SIDE WHEN
WORKING SECTION IS
SINGLED
"A"
MOUNTING SCREW
(TYPICAL)
.484
(12.3)
.28
(7.1)
INDICATOR PORT
(TYPICAL)
,
.281 (7.137) DIA
(4) MTG HOLES
TIE ROD AND NUT
(TYPICAL)
ti11480
312497P
25
MHH Series
Parts
Ref Part No.
1
562679
562680
562681
562682
562683
562684
562685
562686
562687
562688
562689
562690
2
563425
563447
563451
563479
3
560919
560936
560943
560976
Description
VALVE, assembly MHH 06S
VALVE, assembly MHH 09S
VALVE, assembly MHH 12S
VALVE, assembly MHH 18S
VALVE, assembly MHH 24S
VALVE, assembly MHH 30S
VALVE, assembly MHH 06T
VALVE, assembly MHH 09T
VALVE, assembly MHH 12T
VALVE, assembly MHH 18T
VALVE, assembly MHH 24T
VALVE, assembly MHH 30T
BLOCK, base, MHH, NPSF
BLOCK, base, MHH, BSPP
BLOCK, base, MHH, SAE
BLOCK, base, MHH w/no outlets
BLOCK, inlet, MHH, NPSF
BLOCK, inlet, MHH, BSPP
BLOCK, inlet, MHH, SAE
BLOCK, inlet, MHH, ISO 6149
Ref Part No.
563421
563422
4
563279
563424
5
563469
563470
563471
6
563472
7
562660
8
557731
557732
557733
557734
557735
557736
557738
557739
557740
9
556371
Description
BLOCK, inlet, MHH, NPSF, w/bleed
BLOCK, inlet, MHH SAE w/bleed
BLOCK, MHH end w/alt inlet
BLOCK, end, MHH
KIT, crossport bar, right
KIT, crossport bar, left
KIT, crossport bar, both
KIT, singling bar
VALVE, assembly bypass
ROD, tie, 3 section (3 required)
ROD, tie, 4 section (3 required)
ROD, tie, 5 section (3 required)
ROD, tie, 6 section (3 required)
ROD, tie, 7 section, (3 required)
ROD, tie, 8 section (3 required)
ROD, tie, 9 section (3 required)
ROD, tie, 10 section (3 required)
ROD, tie, 11 section (3 required)
NUT, 1/4 - 28 (3 required)
3
1
5 or 6
7
2
4
8
9
26
312497P
MXP Series
MXP Series
Technical Data
Material
Zinc Plated Steel
Pressure (max)
3,000 psi (20.7 MPa, 206.8 bar)
Lubricant
Oil or grease
Maximum Operating Temperature
350°F (177°C)
Maximum Cycle Rate With Cycle Pin
60 CPM
Maximum Cycle Rate Without Cycle Pin or With Prox
Cycle Switch
200 CPM
Net Weight (approx.)
3 section divider valve assembly
18-lb. 2 oz (8.3 kg)
4 section divider valve assembly
22 lbs. 6 oz (10.2 kg)
5 section divider valve assembly
26 lbs. 9 oz (12.2 kg)
6 section divider valve assembly
31 lbs. 3 oz (14.2 kg)
7 section divider valve assembly
35 lbs. 6 oz (16.2 kg)
8 section divider valve assembly
39 lbs. 9 oz (18.1 kg)
9 section divider valve assembly
44 lbs. 3 oz (20.1 kg)
10 section divider valve assembly
48 lbs. 6 oz (22.1 kg)
Torque Ratings
Tie Rod Nut
6-9 ft. lbs (8.1-12.2 N.m)
Enclosure Plugs
48 +/- 2 ft. lbs (2.7 N.m)
Indicator Plug
12 -15 ft. lbs (16.3-20.3 N.m)
Valve Section Mounting Screw
12-13 ft. lbs. (16.3-17.6 N.m)
312497P
27
MXP Series
Dimensions
,5"%).,%4
).$)#!4/20/24
,5"%/54,%4
/04)/.!,
ti11477
#2/330/240,!4%/04)/.!,
28
312497P
MXP Series
Parts
Ref Part No.
1
562813
562814
562815
562816
562817
562818
562819
562820
562821
562822
562823
562824
562825
562826
562827
562828
562829
562830
562831
562832
562833
562834
Description
VALVE, twin, .025 MXP
VALVE, twin, .050 MXP
VALVE, twin, .075 MXP
VALVE, twin, .100 MXP
VALVE, twin, .125 MXP
VALVE, twin, .150 MXP
VALVE, single, .025 MXP
VALVE, single, .050 MXP
VALVE, single, .075 MXP
VALVE, single, .100 MXP
VALVE, single, .125 MXP
VALVE, single, .150 MXP
VALVE, twin, .050 MXP w/indicator
VALVE, twin, .075 MXP w/indicator
VALVE, twin, .100 MXP w/indicator
VALVE, twin, .125 MXP w/indicator
VALVE, twin, .150 MXP w/indicator
VALVE, single, .050 MXP w/indicator
VALVE, single, .075 MXP w/indicator
VALVE, single, .100 MXP w/indicator
VALVE, single, .125 MXP w/indicator
VALVE, single, .150 MXP w/indicator
Ref Part No.
2
563519
563521
563522
563479
3
15R994
15R993
561029
4
563518
5
563524
563525
563526
6
15R997
7
557766
557767
557768
557769
557770
557771
557772
563520
8
555406
Description
BLOCK, BSPLT interm MXP 1/4 NPSF
BLOCK, BSPLT interm MXP SAE
BLOCK, BSPLT interm MXP 1/4 BSPP
BLOCK, base, MSP/MHH w/no outlets
BLOCK, inlet, MXP
BODY, inlet, MXP
BLOCK, sect MXP inlet BSPP thread
BLOCK, end, machine MX
KIT, MXP, crossport bar, left
KIT, MXP, crossport bar, right
KIT, MXP, crossport bar, both
BLOCK, bypass, MXP
ROD, tie, 3 section, MXP (3 required)
ROD, tie, 4 section, MXP (3 required)
ROD, tie, 5 section, MXP (3 required)
ROD, tie, 6 section, MXP (3 required)
ROD, tie, 7 section, MXP (3 required)
ROD, tie, 8 section, MXP (3 required)
ROD, tie, 9 section, MXP (3 required)
ROD, tie, 10 section, MXP (3 required)
NUT, 5/16 - 24 light hex (3 required)
3
1
5
2
6
4
7
8
312497P
29
MGO Series
MGO Series
Technical Data
Material
Zinc Plated Steel and Phosphate Coated Cast Iron
Pressure (max)
3-7 section divider valve assembly
6000 psi (41 MPa, 414 bar)
8 section divider valve assembly
5500 psi (38 MPa, 379 bar)
9 section divider valve assembly
5000 psi (34 MPa, 345 bar)
10 section divider valve assembly
4500 psi (31 MPa, 310.3 bar)
11 section divider valve assembly
4000 psi (27 MPa, 27.6 bar)
Lubricant
Oil or grease
Maximum Operating Temperature
200°F (93°C)
Maximum Cycle Rate With Cycle Pin
60 CPM
Maximum Cycle Rate Without Cycle Pin or With Prox
Cycle Switch
200 CPM
Net Weight (approx.)
3 section divider valve assembly
45-lb. (20.41 kg)
4 section divider valve assembly
53 lbs. 5 oz (24.18 kg)
5 section divider valve assembly
61 lbs. 10 oz (27.95 kg)
6 section divider valve assembly
70 lbs. 15 oz (32.17 kg)
7 section divider valve assembly
80 lbs. 4 oz (36.40 kg)
8 section divider valve assembly
89 lbs. 9 oz (40.62 kg)
9 section divider valve assembly
98 lbs. 14 oz (44.84 kg)
10 section divider valve assembly
108 lbs. 3 oz (49.07 kg)
11 section divider valve assembly
117 lbs. 8 oz (53.40 kg)
Torque Ratings
30
Tie Rod Nut
12 ft. lbs (16.3 N.m)
Enclosure Plug
15 ft. lbs (20.3 N.m)
Outlet Port Plug
6-8 ft. lbs (8.1-10.9 N.m)
Valve Section Mounting Screw
12-13 ft. lbs. (16.3-17.6 N.m)
312497P
MGO Series
Dimensions
).,%4
/54,%43
).$)#!4/20/243
312497P
31
MGO Series
Parts
Ref Part No.
1
562570
562571
562572
562573
562574
562575
562576
562577
562578
562579
562580
562581
562582
562583
562584
562585
2
563277
3
563278
4
560591
560592
560593
560594
560595
560596
560597
560598
5
560600
560601
560602
560603
15U857
560604
560605
560606
6
555406
32
Description
VALVE, MGO, assembly 150S SAE
VALVE, MGO, assembly 300S SAE
VALVE, MGO, assembly 450S SAE
VALVE, MGO, assembly 600S SAE
VALVE, MGO, assembly 150T SAE
VALVE, MGO, assembly 300TS SAE
VALVE, MGO, assembly 450T SAE
VALVE, MGO, assembly 600T SAE
VALVE, MGO, assembly 150S SAE IND
VALVE, MGO, assembly 300S SAE IND
VALVE, MGO, assembly 450S SAE IND
VALVE, MGO, assembly 6000S SAE IND
VALVE, MGO, assembly 150T SAE IND
VALVE, MGO, assembly 300T SAE IND
VALVE, MGO, assembly 450T SAE IND
VALVE, MGO, assembly 600T SAE IND
INLET,
END
ROD, tie, short MGO 3 (2 required)
ROD, tie, short MGO 4 (2 required)
ROD, tie, short MGO 5 (2 required)
ROD, tie, short MGO 6 (2 required)
ROD, tie, short MGO 7 (2 required)
ROD, tie, short MGO 8 (2 required)
ROD, tie, short MGO 9 (2 required)
ROD, tie, short MGO 10 (2 required)
ROD, tie, long MGO 3 (2 required)
ROD, tie, long MGO 4 (2 required)
ROD, tie, long MGO 5 (2 required)
ROD, tie, long MGO 6 (2 required)
ROD, tie, long MGO 7 (2 required)
ROD, tie, long MGO 8 (2 required)
ROD, tie, long MGO 9 (2 required)
ROD, tie, long MGO 10 (2 required)
NUT, tie rod 3/8 - 24 lock (8 required)
4
5
6
5
2
1
3
312497P
MX Series
MX Series
Technical Data
Material
Plated Steel
Pressure (max)
3,000 psi (21 MPa, 206.8 bar)
Lubricant
Oil or grease
Maximum Operating Temperature
200°F (93°C)
Maximum Cycle Rate With Cycle Pin
60 CPM
Maximum Cycle Rate Without Cycle Pin
200 CPM
Net Weight (approx.)
3 section divider valve assembly
21-lb. 6 oz (9.69 kg)
4 section divider valve assembly
25 lbs. 10 oz (11.62 kg)
5 section divider valve assembly
29 lbs. 14 oz (13.55 kg)
6 section divider valve assembly
34 lbs. 2 oz (15.47 kg)
7 section divider valve assembly
38 lbs. 6 oz (17.40 kg)
8 section divider valve assembly
42 lbs. 12 oz (19.39 kg)
9 section divider valve assembly
47 lbs. 2 oz (21.37 kg)
10 section divider valve assembly
51 lbs. 8 oz (23.26 kg)
Torque Ratings
Tie Rod Nut
30 ft. lbs (40.7 N.m)
Enclosure Plug
48 ft. lbs (65.1 N.m)
Outlet Port Plugs
18 ft. lbs. (24.4 N.m)
312497P
33
MX Series
Dimensions
v/54,%4
ti11476
34
312497P
MX Series
Parts
Ref Part No.
1* 562514
562515
562516
562517
562538
562539
562540
562541
562542
562543
562545
562546
562528
562518
562533
562523
562529
562519
562534
562524
562530
562520
562569
562525
562531
562521
562535
562526
562532
562522
562536
562527
2* 560620
3* 563287
4
557488
557489
557490
557491
557492
557493
560576
560577
5
557494
6
557509
Description
VALVE, MX assembly 25S
VALVE, MX assembly 25T
VALVE, MX assembly 50S
VALVE, MX assembly 50T
VALVE, MX assembly 75S
VALVE, MX assembly 75T
VALVE, MX assembly 100S
VALVE, MX assembly 100T
VALVE, MX assembly 125S
VALVE, MX assembly 125T
VALVE, MX assembly 150S
VALVE, MX assembly 150T
VALVE, MX assembly 50S IND LH
VALVE, MX assembly 50S IND RH
VALVE, MX assembly 50T IND LH
VALVE, MX assembly 50T IND RH
VALVE, MX assembly 75S IND LH
VALVE, MX assembly 75S IND RH
VALVE, MX assembly 75T IND LH
VALVE, MX assembly 75T IND RH
VALVE, MX assembly 100S IND LH
VALVE, MX assembly 100S IND RH
VALVE, MX assembly 100T IND LH
VALVE, MX assembly 100T IND RH
VALVE, MX assembly 125S IND LH
VALVE, MX assembly 125S IND RH
VALVE, MX assembly 125T IND LH
VALVE, MX assembly 125T IND RH
VALVE, MX assembly 150S IND LH
VALVE, MX assembly 150S IND RH
VALVE, MX assembly 150T IND LH
VALVE, MX assembly 150T IND RH
BLOCK, inlet
BLOCK, end
ROD, tie, MX 3 (4 required)
ROD, tie, MX 4 (4 required)
ROD, tie, MX 5 (4 required)
ROD, tie, MX 6 (4 required)
ROD, MX 7 (4 required)
ROD, tie, MX 8 (4 required)
ROD, tie, MX 9 (4 required)
ROD, tie, MX 10 (4 required)
NUT, tie rod 3/8 - 24 lock (8 required)
GASKET feeder, MX
5
4
2
6
1
3
*Component shipped with gasket
312497P
35
Accessories
Accessories
Tube Clips
Mounting Brackets
Clips are plated and provided with 17/64” (6.75 mm)
mounting holes.
All mounting brackets include screws, lock washers and
nuts.
Part No. Description
Part No. Description
557324
558711
558710
563435
Holds 1 - 1/4” (6.35 mm) OD tube
Holds 1 - 3/8” (9.52 mm) OD tube
Holds 3 - 1/4” (6.35 mm) OD tube
563436
Mounting Bars
563437
Part No. Description
563438
560920
561101
561102
563439
563465
MSP, 1/2” (12.7 mm) thick, 1/4-20 thread
MJ, 1/2” (12.7 mm) thick, 10-24 thread
MX and MXP, 1/2” (12.7 mm) thick, 5/16-18
threads, two sets of mounting holes
KIT, mounting bar, includes 2 mounting bars,
4 screws, washers and lock washers
563440
MSP and MH, M-3 and M-4, 1/8” (3.175 mm)
thick, top mounting.
MSP and MH, M5 and M-6, 1/8” (3.175 mm)
thick, top mounting
MSP and MH, M7 and M-8, 1/8” (3.175 mm)
thick, top mounting
MSP and MH, M-3 and M-4, 1/8” (3.175 mm)
thick, side mounting.
MSP and MH, M5 and M-6, 1/8” (3.175 mm)
thick, side mounting
MSP and MH, M7 and M-8, 1/8” (3.175 mm)
thick, side mounting
Performance Indicators
Performance indicators are pressure sensitive devices that signals a fault when there is excessive build up of pressure in a series progressive lubricating system. A fault is identified by either causing a pin to protrude or by releasing
lubricant to the atmosphere.
Reset Indicator with Memory
Reset Indicators stop lube system operation when a fault occurs. They can be used in either master or secondary
divider valves. Fault is indicated when a pin protrudes through the opening in the cap and is manually reset.
Description
Pressure PSI
(MPa, bar)
250 (2, 17)
500 (3, 34)
750 (5, 51)
1000 (7, 69)
1500 (10, 103)
2000 (14, 138)
2500 (17, 172)
3000 (21, 207)
5000 (34, 344)
36
1/8” NPTF
MJ, MH, MS, MXP
1/8” NPSF
w/O-Ring
MH, MS, MXP
Nickel Plated
1/8” NPTF
MJ, MH, MS, MXP
1/4” NPTF
MX Only
7/8” SAE
w/O-Ring
MGO
1/8 NPSF
w/O-Ring
MSP SST
563231
563232
563233
563234
563235
563236
563237
NA
NA
563252
563253
563254
563255
563256
563257
563258
563261
563262
NA
563246
NA
563247
563248
NA
563249
NA
NA
563239
563240
563241
563242
563243
563244
563245
NA
NA
NA
NA
NA
NA
564200
NA
NA
NA
NA
NA
NA
NA
24B495
24B496
24N373
NA
NA
NA
312497P
Accessories
Automatic Relief Indicator
Automatic Relief Indicators pinpoint lube line blockage but allow the lube system to continue to supply lubrication to
points that are not blocked. They are used primarily in secondary divider valves. When needed, pressure is relieved
through a vent. When pressure is relieved the spring resets the piston. Because these indicators permit the lube system to continue operating when a lube point is blocked, a separate pressure switch connected to an audible or visual
alarm should be used to warn of high pressure.
Description
Pressure PSI (MPa, bar)
Color*
1/8” NPTF
MJ, MH, MSP,
MXP
750 (5, 51) + 20%
1000 (7, 69) + 20%
1250 (9, 86) + 20%
1500 (10, 103) + 20%
2000 (14, 138) + 20%
2500 (17, 172) + 20%
3000 (34, 344) + 24%
Blue
Green
Yellow
Red
Orange
Aluminum
Purple
563163
563164
563165
563166
563167
563168
563169
1/8” NPSF
w/O-Ring
MH, MSP, MXP
1/4” NPTF
MX Only
1/8 NPT w/O-Ring
MSP SST
563170
563171
563172
563173
563174
563175
563176
563156
563157
NA
563158
563159
563160
563161
24N945
NA
NA
24N948
24N949
24N951
24N952
* Color provided for reference only to aid in selection of replacement indicator. Indicators used to be identified by the color of the
spring retainer located in the end of the indicator.
Rupture Indicator - MH Divider Valves Only
Rupture Indicators are only used on MH divider valve applications where lube system pressures exceed 2500 psi.
The high pressure from a lube line blockage causes a disc to rupture. The lubricant then forces an indicator pin to
protrude, locating the blockage. The high pressure backs up through the system and trips a switch to shut the system
off. When the fault is corrected, the disc must be replaced the pin reset manually.
Description
Pressure PSI (MPa, bar)
1/8” - 27 NPTF
1/8” - 27 NPSF
w/O-Ring
2800 (19, 193) + 20%
3700 (26, 255) + 20%
4600 (32, 317) + 20%
5500 (38, 379) + 20%
6400 (44, 441) + 20%
7300 (50, 503) + 20%
8200 (57, 565) + 20%
563228
563220
564355
563223
563225
563227
NA
563229
563221
563222
563224
563226
NA
NA
312497P
Disc Color
Replacement Disc
3/8” Diameter
Green
Yellow
Red
Orange
Pink
Blue
Purple
557422
557423
557424
557425
557427
557428
557429
37
Accessories
Rupture-to-Atmosphere Indicator
Rupture-to-Atmosphere Indicators are standard on all Graco pumps. When the pressure reaches a predetermined
pressure setting, the pressure disc ruptures, venting lubricant into the atmosphere and relieving pressure.
Description
Pressure PSI* (MPa, Bar) Complete Assembly
900 (6.2, 62)
1450 (10, 100)
1750 (12, 121)
2050 (14, 141)
2350 (16, 162)
2650 (18, 183)
2950 (20, 203)
3250 (22, 224)
900 (6.2, 62)
1450 (10, 100)
1750 (12, 121)
2050 (14, 141)
2350 (16, 162)
2650 (18, 183)
2950 (20, 203)
3250 (22, 224)
5000 (34, 344)
3700 (26, 255)
4600 (32, 317)
5500 (38, 379)
6400 (44, 441)
7300 (50, 503)
8200 (57, 565)
9500 (66, 655)
Replacement
1/4” NPTF Fittings
11/16” Diameter
NA
563179
563182
563183
563184
NA
563185
NA
557431
557433
557434
557435
557436
557437
557438
557439
1/8” NPTF Fittings
3/8” Diameter
NA
NA
564059
NA
563191
NA
563192
563193
563194
555788
557423
557424
557425
557426
557427
557428
557429
557430
High Pressure
1/8” NPTF Fittings
3/8” Diameter
564476
563216
563217
563218
563219
NA
NA
557423
557424
557425
557427
557428
557429
NA
Disc Color
Blowout Disc
Quantity = 6
Black
Yellow
Red
Orange
Aluminum
Pink
Blue
Purple
NA
563962
563963
563964
563965
NA
563966
NA
Quantity = 25
Black
Yellow
Red
Orange
Aluminum
Pink
Blue
Purple
Brown
563952
563954
563955
563956
563957
563958
563959
563960
563961
Quantity = 25
Yellow
Red
Orange
Pink
Blue
Purple
Gray
563954
563955
563956
563958
563959
563960
NA
Rupture-to-Atmosphere Indicator with Spud Assembly
A Spud Assembly is available to return vented lubricant to the reservoir by way of a tube. A high pressure switch is
recommended to provide an audible or visual warning alarm that height system pressure has occurred.
Description
Pressure PSI* (MPa, bar) Complete Assembly
1450 (10, 100)
563186
1750 (12,121)
563187
2350 (16, 162)
563188
Replacement
Disc Color
557433
557434
557436
Yellow
Red
Aluminum
*All pressures have a tolerance of + 500 psi (3.4 MPa, 34.5 bar)
38
312497P
Accessories
Rupture Discs
All discs are 11/16” diameter.
Pressure PSI*
(MPa, bar)
900 (6.2 62)
1175 (8.1, 81)
1450 (10, 100)
1750 (12, 121)
2050 (14, 141)
2350 (16, 162)
2650 (18, 183)
2950 (20, 203)
3250 (22, 224)
Description
Single Disc
Disc Color
Quantity 6/package
557431
557432
557433
557434
557435
557436
557437
557438
557439
Black
Green
Yellow
Red
Orange
Aluminum
Pink
Blue
Purple
NA
NA
563962
563963
563964
563965
NA
563966
NA
*All pressures have a tolerance of + 500 psi (3.4 MPa, 34.5 bar)
Singling and Crossporting Bar Assemblies
Singling Kits externally convert a “T” (Twin Outlet) section to an “S” (Single Outlet) section.
Crossporting Kits externally combine the output of two (2) adjacent sections.
Part Numbers
Divider
Single Kit
Right Side
Left Side
4Rside
MJ
MHH
MSP
MS (Nickel)
MX
MXP
MXP (Nickel)
MGO
562915
563469
563469
NA
562916
NA
NA
NA
562914
563469
563469
NA
562917
563525
NA
NA
562914
563470
563470
NA
562917
563524
NA
NA
NA
563471
563471
NA
NA
563526
NA
NA
90 Duro
Gasket
Gasket
Valve Block
Fluoroelastomer
Upper Seal Lower Seal
Mounting
O-Ring (plate
(Bar Type) (Bar Type)
Screw-Long
Type)
557359
557403
NA
NA
NA
NA
122276
556514
NA
NA
122276
556514
NA
NA
NA
NA
557511
557512
NA
NA
NA
NA
557773
555601
NA
NA
NA
NA
NA
NA
NA
NA
Cycle Indicators
Cycle Indicators provide a means of visually monitoring lube flow thru the system.
The pin type cycles in and out when lubricant is flowing. Movement of the pin is caused by the piston (the two are
attached) so that when the piston moves the indicator pin in and out once, the entire divider valve has cycled.
312497P
Valve Series
O-Ring Sealed
MS/MHH
MX/MXP
MGO
563251
563260
NA
39
Accessories
Cycle Counters - Part No.: 563444
The purpose of a cycle counter is to give assurance that the lubricant is flowing thru the system. Every “count” indicates one complete cycle of the divider valve. Visual inspection and/or recording of counts provides a constant check
on the performance of your lubricant system and the pump. The Cycle Counter can be used on any MJ, MS, MH, MX
and MXP divider valve assembly.
Cycle Switches
The function of a Cycle Switch is to electrically give assurance that the lubricant is flowing through the system. Actuated by a cycle pin, the switch can be wired to various controls.
NOTE: The cycle switch MUST be attached to a section that is equipped with a cycle indicator pin.
Part Numbers
Series Flo Divider Valves
MJ
MS/MH
MS (Nickel)
MX
MXP
MGO
563272
563272
563272
563272
563272
563269
Cycle Switch and Bracket Assembly
Electrical Ratings: 15 amps at 125, 250 and 480 VAC; 1/2 amp at 125 VDC, 1/4
SPDT
amp at 250 VDC, 6.0 amp at 24 VDC Non-Inductive
Replacement Switch
557781
557781
557781
557781
557781
557781
564357
564357
564537
564357
564537
NA
Cycle Switch and Bracket Assembly
Electrical Ratings: 10 amps at 125 or 250 VAC; 0.3 amp at 125 VDC or 0.15 amp
DPDT
at 250 VDC
Replacement Switch
NA
NA
NA
NA
NA
NA
Replacement Bracket for either
557546
557546
557546
557546
557546
560573
SPDT or DPDT Switch Assembly
563273
563273
563273
563273
563273
NA
Moisture Resistant Cycle Switch
with 6-foot Cable and Bracket
Electrical Ratings: 5 amps at 125 or 250 VAC; Wire Code for Moisture Resistant
Assembly SPDT
Switch: BK (Com), Red (N.C), WH (N.O.), GN (Ground)
Replacement Switch with 6-foot
557782
557782
557782
557782
557782
NA
Cable
40
312497P
Accessories
Proximity Cycle Switches
The Proximity Cycle Switches are magnetically operated single throw switches that sense the movement of the
divider valve piston when it is cycling. Each proximity cycle switch provides a signal that is used to monitor the system. There are 3 different types of switches available.
Reed Type Proximity Switch: Can be used with oil applications only for MS, MH and MGO divider valves at pressures up to 518 bar (7500 psi, 52 MPa) at cycle rates under 60 cycles per minute.
Field Sensitive Magnetic Proximity Switch: Dry contact, ceramic magnet operated switch. Used at pressures that
do not exceed 242 bar (3500 psi, 24 MPa) at cycle rates up to 200 cycles per minute. Used in MS/MH, MX/MXP and
MGO divider valves. An explosion proof version for MS/MH divider valves is available.
Magnetic Operated Proximity Switch: Not limited to valve size. Miniature snap-action switch is tripped by attraction
of internal magnet to the moving divider piston. Can be used at pressures up to 518 bar (7500 psi) at cycle rates that
do not exceed 150 cycles per minute.
Description
No.
of Pins
MS
MH
MX
MXP
MGO
O-Ring
563427
563427
NA
NA
NA
O-Ring
Gasket*
O-Ring
Gasket*
O-Ring
557741
NA
557746
NA
557747
557741
NA
557746
NA
557747
563476
NA
564399
NA
558939
563476
NA
564399
NA
558939
563970
NA
NA
NA
563495
O-Ring
557745
557745
564401
564401
NA
O-Ring
563478
563478
NA
NA
NA
5
O-Ring
563477
563477
NA
NA
NA
3
5
Pigtail Lead
(Explosion
Proof)
Gasket*
O-Ring
NA
563484
NA
563484
563486
564400
563486
564400
NA
NA
O-Ring
563485
563485
NA
NA
NA
4
O-Ring
563500
563501
NA
NA
NA
Unattached Reed Type (oil only) 1/2 NPT with
Leads
10mA @ 120VAC
(Explosion
24 mA @ 24VDC
Proof)
10,000,000 Cycle Life
3
Field Sensitive Magnetic Type
3-pin and 5-pin (AC only)
2A @ 120/240 VAC
4-pin (DC only) 0.1A @ 28VDC
150,000,000 Cycle Life
Magnetic Type with LED’s
5
4
Pigtail Lead
(Explosion
Proof)
3
5A @ 24 VDC
10,000,000 Cycle Life
Magnetic Type
5A @ 24VDC
5A @ 120/240 VAC
10,000,000 Cycle Life
Part Number
Type
Seal
Field Sensitive Magnetic Type
25 mA @ 24VDC
M12 x 1, 4-pin (DC only)
10,000,000, cycle life
*Consult your distributor for availability.
312497P
41
Accessories
Proximity Switch Connection Cables
Connection Cables for:
3-Pin Proximity Switch
Connector
Straight
Straight
NA
Length - ft (m)
6 (1.83)
12 (3.66)
NA
Straight
7 (2.13)
5-Pin Proximity Switch
Part No.
Connector
558021
Straight
558022
Straight
NA
90°
4-Pin Proximity Switch
568738
NA
Length - ft (m)
6 (1.83)
12 (3.66)
6 (1.83)
Part No.
558023
558024
558965
NA
NA
Base Section Sub Assemblies
Part No. Description
24N382
24N383
24N384
24N385
24N386
24N387
24N388
24N389
24N390
24N391
24N392
24N393
42
PLATE, base, MSP, NPTF, 3 sect, SS
PLATE, base, MSP, NPTF, 4 sect, SS
PLATE, base, MSP, NPTF, 5 sect, SS
PLATE, base, MSP, NPTF, 6 sect, SS
PLATE, base, MSP, NPTF, 7 sect, SS
PLATE, base, MSP, NPTF, 8 sect, SS
PLATE, base, MSP, BSPP, 3 sect, SS
PLATE, base, MSP, BSPP, 4 sect, SS
PLATE, base, MSP, BSPP, 5 sect, SS
PLATE, base, MSP, BSPP, 6 sect, SS
PLATE, base, MSP, BSPP, 7 sect, SS
PLATE, base, MSP, BSPP, 8 sect, SS
312497P
Notes
Notes
312497P
43
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 312497
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2009, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised December 2014

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
