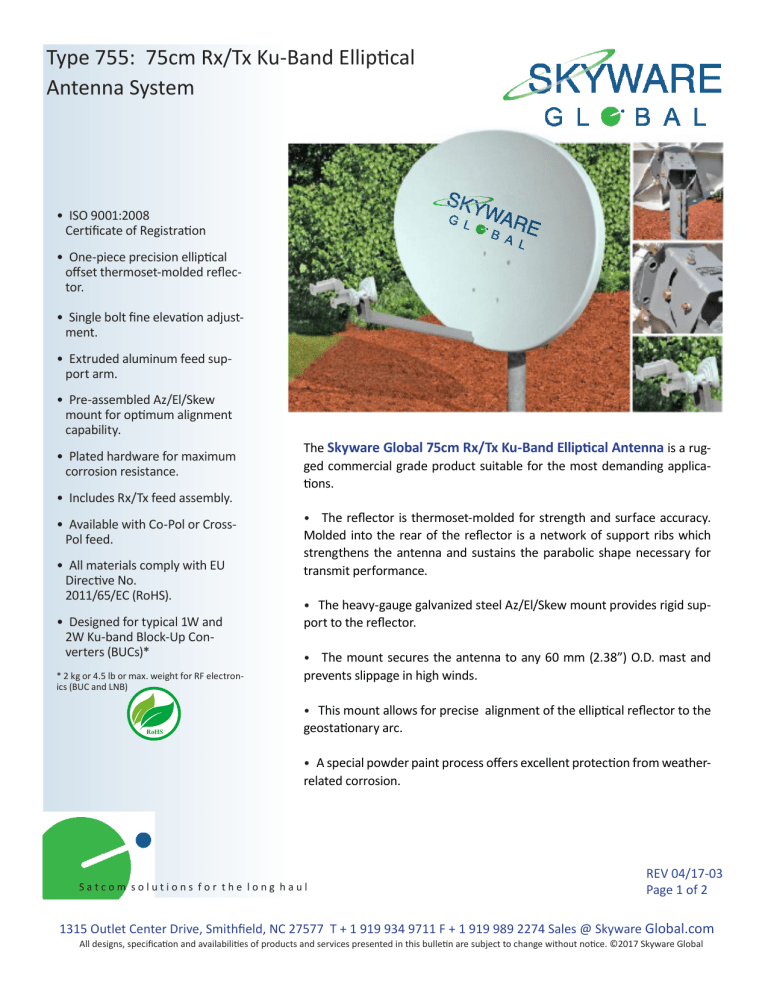

Type 755: 75cm Rx/Tx Ku-Band Elliptical Antenna

Type 755: 75cm Rx/Tx Ku-Band Elliptical Antenna
Type 755: 75cm Rx/Tx Ku-Band Elliptical
Antenna System
• ISO 9001:2008
Certificate of Registration
• One-piece precision elliptical
offset thermoset-molded reflector.
• Single bolt fine elevation adjustment.
• Extruded aluminum feed support arm.
• Pre-assembled Az/El/Skew
mount for optimum alignment
capability.
• Plated hardware for maximum
corrosion resistance.
• Includes Rx/Tx feed assembly.
• Available with Co-Pol or CrossPol feed.
• All materials comply with EU
Directive No.
2011/65/EC (RoHS).
• Designed for typical 1W and
2W Ku-band Block-Up Converters (BUCs)*
* 2 kg or 4.5 lb or max. weight for RF electronics (BUC and LNB)
The Skyware Global 75cm Rx/Tx Ku-Band Elliptical Antenna is a rugged commercial grade product suitable for the most demanding applications.
• The reflector is thermoset-molded for strength and surface accuracy.
Molded into the rear of the reflector is a network of support ribs which
strengthens the antenna and sustains the parabolic shape necessary for
transmit performance.
• The heavy-gauge galvanized steel Az/El/Skew mount provides rigid sup-
port to the reflector.
• The mount secures the antenna to any 60 mm (2.38”) O.D. mast and
prevents slippage in high winds.
• This mount allows for precise alignment of the elliptical reflector to the
geostationary arc.
• A special powder paint process offers excellent protection from weather-
related corrosion.
Satcom solutions for the long haul
REV 04/17-03
Page 1 of 2
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2017 Skyware Global
•P R O D U C T S P E C I F I C AT I O N S
75cm Rx/Tx Ku-Band Elliptical Antenna
RF Performance
Mechanical Performance
Effective Aperture . . . . . . . . . 75 cm equivalent (30 in)
(62 cm x 89 cm Elliptical Aperture)
Reflector Material . . . . . . . .Glass Fiber Reinforced Polyester
Operating Frequency
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13.75-14.50GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.70-12.75GHz
Mount Type . . . . . . Three Axis, Skew, Elevation and Azimuth
Polarization . . . . . . . . . . .Linear, Co or Cross-Polarized
Gain (±0.2 dB)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . 39.3 dBi @ 14.3GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . .37.8 dBi @ 12.0GHz
Antenna Optics . . . . . . . One-Peice Offset Feed Prime Focus
Polarization (Skew) Adjustment Range . . . . ±90° Continuous
Elevation Adjustment Range . . . . . . . . . . .5°-90° Continuous
Fine Adjustment
Azimuth Adjustment Range . . . . . . . . . . . . . 360° Continuous
3 dB Beamwidth
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6° @ 14.3GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0° @ 12.0GHz
Mast Pipe Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . .60 mm
(2.38 in) Diameter
Sidelobe Envelope (Tx, Co-Pol dBi)
1.8 < q < 20°. . . . . . . . . . . . . . . . . . . . . . 29-25 log q dBi
20° < q < 26.3°. . . . . . . . . . . . . . . . . . . . . . . . . . . .-3.5dBi
26.3° < q < 48°. . . . . . . . . . . . . . . . . . . . . 32-25 log q dBi
48° < q < 180°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10
Enviromental Performance
Antenna Cross-Polarization. . . . . . . . . . .30 db on Axis
Functional Survival . . . . . . . . . . . . . . . . . .80 mph (128 km/h)
Antenna Noise Temperature 1
30° EL . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 50K
Ultimate Survival . . . . . . . . . . . . . . . . . . 125 mph (200 km/h)
VSWR
TX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1
RX . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 1.5:1
Survival Temperature. . . . . . . . . . . . . . . . . . . . .-50°C to +80°C
Isolation (Port to Port)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80db
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35db
Feed Interface
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . .WR75 Flat Flange
Wind Loading
Operational. . . . . . . . . . . . . . . . . . . . . . . . . 50 mph (80 km/h)
Operational Temperature. . . . . . . . . . . . . . . . . -40°C to +60°C
Humidity. . . . . . . . . . . . . . . . . . . . . . .0 to 100% (Condensing)
Atmosphere. . . . . . . . . . . . . . . . .Standard Hardware 500 Hrs
SST Requirements (ASTM B-117)
Solar Radiation. . . . . . . . . . . . . . . . . . . . . . . . . . 360 BTU/h/ft2
Shock and Vibration. . . . . . . . . . . . . . As Encountered during
Shipping and handling
(All specifications typical)
