Graco Cycle-Indicator Proximity Switches User's Manual

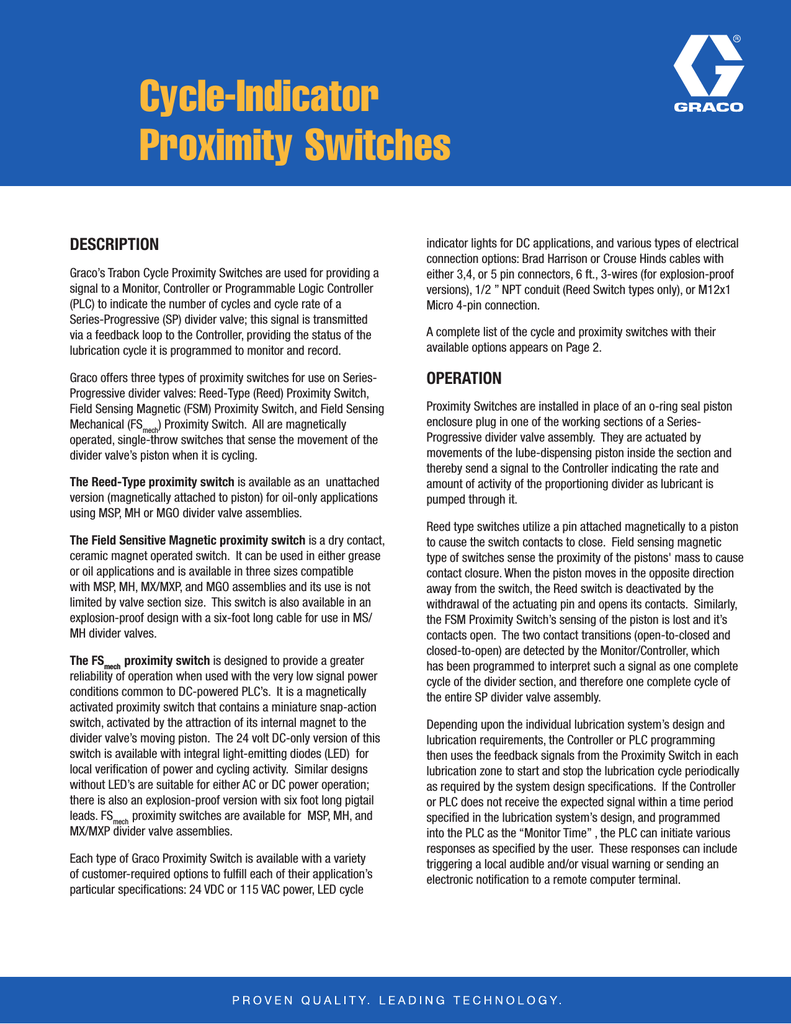

Cycle-Indicator Proximity Switches DESCRIPTION Graco’s Trabon Cycle Proximity Switches are used for providing a signal to a Monitor, Controller or Programmable Logic Controller (PLC) to indicate the number of cycles and cycle rate of a Series-Progressive (SP) divider valve; this signal is transmitted via a feedback loop to the Controller, providing the status of the lubrication cycle it is programmed to monitor and record. Graco offers three types of proximity switches for use on SeriesProgressive divider valves: Reed-Type (Reed) Proximity Switch, Field Sensing Magnetic (FSM) Proximity Switch, and Field Sensing Mechanical (FSmech) Proximity Switch. All are magnetically operated, single-throw switches that sense the movement of the divider valve’s piston when it is cycling. The Reed-Type proximity switch is available as an unattached version (magnetically attached to piston) for oil-only applications using MSP, MH or MGO divider valve assemblies. The Field Sensitive Magnetic proximity switch is a dry contact, ceramic magnet operated switch. It can be used in either grease or oil applications and is available in three sizes compatible with MSP, MH, MX/MXP, and MGO assemblies and its use is not limited by valve section size. This switch is also available in an explosion-proof design with a six-foot long cable for use in MS/ MH divider valves. The FSmech proximity switch is designed to provide a greater reliability of operation when used with the very low signal power conditions common to DC-powered PLC’s. It is a magnetically activated proximity switch that contains a miniature snap-action switch, activated by the attraction of its internal magnet to the divider valve’s moving piston. The 24 volt DC-only version of this switch is available with integral light-emitting diodes (LED) for local verification of power and cycling activity. Similar designs without LED’s are suitable for either AC or DC power operation; there is also an explosion-proof version with six foot long pigtail leads. FSmech proximity switches are available for MSP, MH, and MX/MXP divider valve assemblies. Each type of Graco Proximity Switch is available with a variety of customer-required options to fulfill each of their application’s particular specifications: 24 VDC or 115 VAC power, LED cycle indicator lights for DC applications, and various types of electrical connection options: Brad Harrison or Crouse Hinds cables with either 3,4, or 5 pin connectors, 6 ft., 3-wires (for explosion-proof versions), 1/2 ” NPT conduit (Reed Switch types only), or M12x1 Micro 4-pin connection. A complete list of the cycle and proximity switches with their available options appears on Page 2. OPERATION Proximity Switches are installed in place of an o-ring seal piston enclosure plug in one of the working sections of a SeriesProgressive divider valve assembly. They are actuated by movements of the lube-dispensing piston inside the section and thereby send a signal to the Controller indicating the rate and amount of activity of the proportioning divider as lubricant is pumped through it. Reed type switches utilize a pin attached magnetically to a piston to cause the switch contacts to close. Field sensing magnetic type of switches sense the proximity of the pistons' mass to cause contact closure. When the piston moves in the opposite direction away from the switch, the Reed switch is deactivated by the withdrawal of the actuating pin and opens its contacts. Similarly, the FSM Proximity Switch’s sensing of the piston is lost and it’s contacts open. The two contact transitions (open-to-closed and closed-to-open) are detected by the Monitor/Controller, which has been programmed to interpret such a signal as one complete cycle of the divider section, and therefore one complete cycle of the entire SP divider valve assembly. Depending upon the individual lubrication system’s design and lubrication requirements, the Controller or PLC programming then uses the feedback signals from the Proximity Switch in each lubrication zone to start and stop the lubrication cycle periodically as required by the system design specifications. If the Controller or PLC does not receive the expected signal within a time period specified in the lubrication system’s design, and programmed into the PLC as the “Monitor Time” , the PLC can initiate various responses as specified by the user. These responses can include triggering a local audible and/or visual warning or sending an electronic notification to a remote computer terminal. L15600 O-Ring Seal Style" (1) Cycle-Indicator Proximity Switches Modular Divider Type Proximity Switch Part No. (Old Part No.) Prox. Switch Type Operating Voltage Cable Electric Connection LED Max Cycle Rate Per Min Max Pressure Rating - psi Rated Life Cycle MGO UL+CSA 563495 (527-007-120) FSM 10-32 VDC 4-pin CH Mini No 200 10,000** 150,000,000+ MGO UL+CSA 564402 (527-007-160) FSM 115 VAC 5-pin BH Mini No 200 10,000* 150,000,000+ – MG0 (570-155-001) Reed 115 VAC 1/2 in NPT cond No 60 7,500 10,000,000+ MGO UL+CSA 563970 (570-999-060) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+ MGO UL+CSA Disc. (570-999-220) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+ MXP/MX/MXO UL+CSA 564399 (527-005-190) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+ MXP/MX/MXO UL+CSA 563476 (527-005-520) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+ MXP/MX/MXO 563486 (527-006-130) FSmech 20-32 VDC 3-pin BH Mini Yes 150 7,500 10,000,000+ MXP/MX/MXO 564400 (527-006-140) FSmech 20-32 VDC 5-pin BH Mini Yes 150 7,500 10,000,000+ MXP/MX/MXO CSANRTL 564401 (527-006-150) FSmech 115 VAC or 10-32 VDC Expl Proof* No 150 7,500 10,000,000+ MXP/MX/MXO UL+CSA 557752 (527-007-110) FSM 10-32 VDC 4-pin CH Mini No 200 10,000** 150,000,000+ MXP/MX/MXO UL+CSA 558938 (527-007-140) FSM 115 VAC 5-pin BH Mini No 200 10,000** 150,000,000+ MXP/MX/MXO UL+CSA 564403 (527-007-269) FSM 10-32 VDC 4-pin Micro No 200 10,000** 150,000,000+ MSP/MH UL+CSA 557741 (527-003-251) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+ MSP/MH 557745 (527-003-431) FSM 115 VAC Expl Proof* No 200 3,500 150,000,000+ MSP/MH UL+CSA 557746 (527-004-111) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+ MSP/MH UL+CSA 557747 (527-004-112) FSM 10-32 VDC 4-pin CH Mini No 200 3,500 150,000,000+ MSP/MH 563477 (527-005-670) FSmech 20-32 VDC 5-pin BH Mini Yes 150 7,500 10,000,000+ MSP/MH 563478 (527-005-690) FSmech 20-32 VDC 3-pin BH Mini Yes 150 7,500 10,000,000+ MSP/MH 563484 (527-006-050) FSmech 115 VAC or 10-32 VDC 5-pin BH Mini No 150 7,500 10,000,000+ 563485 (527-006-060) FSmech 115 VAC or 10-32 VDC Expl Proof* No 150 7,500 10,000,000+ MSP/MH 563427 (527-001-231) Reed 115 VAC or 10-32 VDC 1/2 in NPT cond No 60 7,500 10,000,000+ MSP/MH 563501 (527-007-273) FSmech 20-32 VDC 4-pin Micro Yes 150 7,500 10,000,000+ MSP/MH CSANRTL UL+CSA = Approved CSANRTL = Approved for hazardous locations: Class I, Groups A, B, C & D - Division 1 = UL and CSA approved for hazardous locations: Class I, Groups A, B, C & D - Division 1; Class II, Groups E, F & G - Division 1 *Includes 6ft, 3 conductor cable, shown on page 4 **Specially developed and recommended for stamping press applications NOTE: (1) Cycle Indicator Proximity Switches shown in this bulletin are for use in divider valves having O-ring sealed piston closure ports only. TRABON® REED TYPE PROXIMITY SWITCHES SPECIFICATIONS Material Aluminum HSG, SS Magnet HSG, Buna-N O-Ring Electrical 0.5A @ 50 VDC, 10mA @ 115 VAC, N.O. Lubricant Oil Only Max Cycle Rate 60 cpm Temperature Range -20ºF to 180ºF (-29ºC to 83ºC) Max Pressure 7500 psi 7/16-20 UNF-2A Thd. (MSP & MH) 1/4-20 Soc. Set Screw 3 Places 120o Apart 1 3 /8-16 UN-2A Thd. 1/2 NPT 1/4-20 Soc. Set Screw 3 Places 120o Apart 1.12 Dia. (28.5) 1.56 Dia. (39.6) Wrench Surface 0.62 (15.8) 4.50 Min. Adjustment (114.3) 4.75 Max. Adjustment (120.6) 1/2 NPT 1.12 Dia. (28.5) Part No. 563427 (527-001-231) Used on MH, MSP Divider Valves Part No. – (570-155-001) Used on MGO Divider Valves Wrench Surface 0.62 (15.8) 3.87 Min. Adjustment (98.4) 4.12 Max. Adjustment (104.7) Page 2 L15600 Cycle-Indicator Proximity Switches TRABON® FSM -TYPE PROXIMITY SWITCHES - 3 PIN, 4 PIN, 5 PIN, EXPL. PROOF SPECIFICATIONS 4.000 REF. Material Type 303 SS Housing, Buna-N O-Ring Electrical 2A @ 120/240 VAC, 1A @ 12-32 VDC, N.O. Lubricant Oil or Grease Max Cycle Rate 200 cpm (See rated life cycles in table) Temperature Range -22ºF to 250ºF (-30ºC to 121ºC) Max Pressure (See Table) Used on MGO 7/8-16 UNC THREAD FOR BRAD HARRISON CABLE CONNECTOR 1 3/8-16 THREAD. FOR DIRECT MOUNTING INTO MGO PISTON ENCLOSURE PORT 4.000 REF. 4.000 REF. 3/4-16 THREAD FOR DIRECT MOUNTING INTO MXP ENCLOSURE PORT Used on MXP M12x1 4-PIN MICRO CABLE CONNECTION Used on MSP, MH Used on MX/MXP 7/8-16 UNC THREAD FOR BRAD HARRISON CABLE CONNECTOR 3/4-16 THREAD FOR DIRECT MOUNTING INTO MXP PISTON ENCLOSURE PORT 7/8-16 UNS THREAD FOR BRAD HARRISON CABLE CONNECTOR (TYPICAL) 7/16-20 THREAD FOR DIRECT MOUNTING INTO MSP & MHP PISTON ENCLOSURE PORT. TRABON® FSMECH- TYPE PROXIMITY SWITCHES - 3 PIN, 4 PIN, 5 PIN, EXPL. PROOF Type 303 SS Housing, Viton O-Ring †Electrical With LEDs 25mA @ 24 VDC, N.O.; Without LEDs 1.2 VA @ 24 VDC, 5A @ 115/230 VAC, N.O. Lubricant Oil or Grease Max Cycle Rate 150 cpm (See rated life cycles in table) -58ºF to 167ºF (-50ºC to 75ºC) Max Pressure 7500 psi 2.400 REF USED BY MSP, MH Page 3 2.400 REF 3.500 APPROX. LED INDICATOR LUBRIQUIP, INC. 24 VDC PROXIMITY SWITCH 7/16-20 THREAD FOR MOUNTING INTO MSP & MHP PISTON ENCLOSURE PORT 4.35 APPROX. 7/16-20 THREAD FOR MOUNTING INTO MSP PISTON ENCLOSURE PORT 7/8-16 UNS THREAD FOR BRAD HARRISON CABLE CONNECTION LED INDICATOR LUBRIQUIP, INC. 24 VDC PROXIMITY SWITCH Temperature Range 3.500 APPROX LED INDICATOR 2.400 LUBRIQUIP, INC. 24 VDC Material 3/4-16 THREAD FOR MOUNTING INTO MXP PISTON ENCLOSURE PORT PROXIMITY SWITCH SPECIFICATIONS USED BY MSP, MH M12X1 THREAD FOR 4 PIN MICRO CONNECTOR † The FSmech illuminated Proximity Switches (i.e. 527-005-670) are designed to work with controllers and PLCs which have a typical input impedance of 1500 ohms or less. Using the switch on devices which have an input impedance about 3000 ohms or larger may cause the input to not recognize a change of state to the closed position. If using a high impedance input, it is suggested that a 527-006-050 non illuminated FSmech switch be used. If state indication is required, a connecting cable with LEDs should be used. ACCESSORIES - CABLES Graco offers a variety of connecting cables for use with its proximity switches. Cables are available with either straight or right-angle Mini, or Micro connectors; with or without indicator lights and in lengths from three to twelve feet as listed in the tables below. (Pin callouts shown below are from connecting cable). DC CABLE PIN ASSIGNMENTS 4-PIN CABLE OPTIONS For DC-Powered Applications with LED Power/Operational Indicators CABLE WIRES COLOR CODE: EURO PNP Cable*1 (with LED Operational Indicators) Polarity Part No. (Old) Cable Length Straight NPN 558968 (570-999-937) 12 ft Pin 1 - N.O. Pin 1 - N.O. NPN – (570-999-938) Black 90O 12 ft Blue Pin 3 - Common Pin 2 - Common Straight PNP 558025 (570-999-953) 12 ft White Pin 4 - Ground Pin 4 - Ground Brown Pin 2 - Power Pin 3 - Power PNP 558026 (570-999-954) 90O * 1 = Sourcing * 2 = Sinking 12 ft 5-PIN CABLE OPTIONS for AC or DC-Powered Applications (No Operational Indicators in Cables) USA COLOR CODES Connector Part N0. (Old) Cable Length Straight – (570-999-180) 3 ft Straight 558023 (570-999-160) 6 ft Straight 558024 (570-999-170) 12 ft 90O 558965 (570-999-390) 6 ft 3-PIN CABLE OPTIONS for AC or DC-Powered Applications (No Operational Indicators in Cables) Pin 1 - N.O. Red Pin 2 - Not Used Green Pin 3 - Ground Orange Pin 4 - Not Used Black Pin 5 - Common 4 Part No. (Old) Cable Length Straight Disc. (570-999-070) 3 ft Straight 558021 (570-999-080) 6 ft Straight 558022 (570-999-090) 12 ft 90O Disc. (570-999-350) 6 ft Green Pin 1 - Ground Black Pin 2 - Common White Pin 3 - N.O. 1/2-14 NPT CONDUIT CONNECTION COLOR CODES DC CABLE PIN ASSIGNMENT Brown Pin 1 - Com. (Pwr) White Pin 2 - Not Used Blue Pin 3 - Ground Black Pin 4 - N.O. 3 4-PIN CABLE OPTIONS for DC-Powered Applications EXPLOSION - PROOF PROXIMITY SWITCHES 3 No 18 AWG WIRE CABLE 6 FEET LONG Part No. (Old) Connector Part No. (Old) Cable Length Straight – (570-999-590) 6.6 ft 90 Disc. (570-999-600) 6.6 ft O AC CABLE PIN ASSIGNMENTS USA COLOR CODES Connector (MICRO CONNECTOR M12 X 1 THREAD) 2 AC CABLE PIN ASSIGNMENTS White DC PROX. SWITCH CABLES - 4 PIN 1 NPN Cable*2 (with LED Operational Indicators) Connector 557745 (527-003-431) 563485 (527-006-060) 564401 (527-006-150) Wire Color For Common Normally Open Ground Black Blue or White Red Black or Red w/Black Stripes White or Red w/White Stripes Green Black or Red w/Black Stripes White or Red w/White Stripes Green All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. Contact us today! To receive product information or talk with a Graco representative, call 800-533-9655 or visit us online at www.graco.com. ©2006-2009 Graco Inc. Form No. L15600 Rev. B 3/09 Printed in U.S.A. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.
