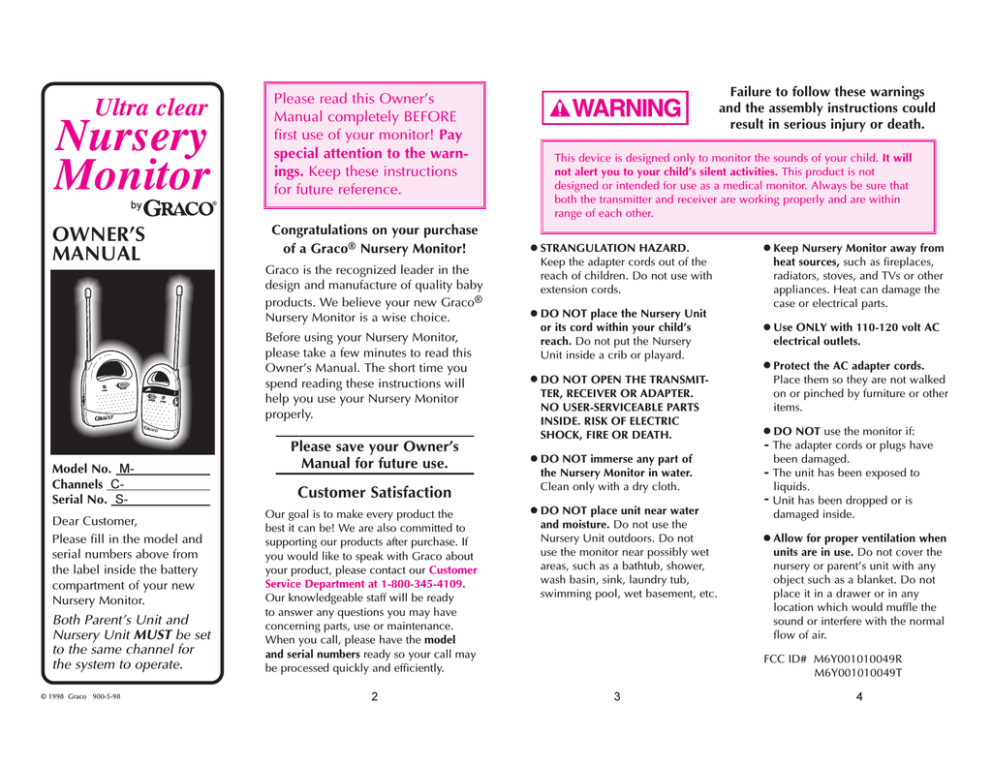

Graco Ultra Clear 2700 User's Manual

Ultra clear
Nursery
Monitor
by
OWNER’S
MANUAL
Please read this Owner’s
Manual completely BEFORE
first use of your monitor! Pay
special attention to the warnings. Keep these instructions
for future reference.
Congratulations on your purchase
of a Graco® Nursery Monitor!
Graco is the recognized leader in the
design and manufacture of quality baby
products. We believe your new Graco®
Nursery Monitor is a wise choice.
Before using your Nursery Monitor,
please take a few minutes to read this
Owner’s Manual. The short time you
spend reading these instructions will
help you use your Nursery Monitor
properly.
Model No. MChannels CSerial No. SDear Customer,
Please fill in the model and
serial numbers above from
the label inside the battery
compartment of your new
Nursery Monitor.
Both Parent’s Unit and
Nursery Unit MUST be set
to the same channel for
the system to operate.
© 1998 Graco 900-5-98
Please save your Owner’s
Manual for future use.
Customer Satisfaction
Our goal is to make every product the
best it can be! We are also committed to
supporting our products after purchase. If
you would like to speak with Graco about
your product, please contact our Customer
Service Department at 1-800-345-4109.
Our knowledgeable staff will be ready
to answer any questions you may have
concerning parts, use or maintenance.
When you call, please have the model
and serial numbers ready so your call may
be processed quickly and efficiently.
2
Failure to follow these warnings
and the assembly instructions could
result in serious injury or death.
This device is designed only to monitor the sounds of your child. It will
not alert you to your child’s silent activities. This product is not
designed or intended for use as a medical monitor. Always be sure that
both the transmitter and receiver are working properly and are within
range of each other.
! STRANGULATION HAZARD.
! Keep the adapter cords out of the
! reach of children. Do not use with
! extension cords.
! DO NOT place the Nursery Unit
! or its cord within your child’s
! reach. Do not put the Nursery
! Unit inside a crib or playard.
! DO NOT OPEN THE TRANSMIT! TER, RECEIVER OR ADAPTER.
! NO USER-SERVICEABLE PARTS
! INSIDE. RISK OF ELECTRIC
! SHOCK, FIRE OR DEATH.
! DO NOT immerse any part of
! the Nursery Monitor in water.
! Clean only with a dry cloth.
! DO NOT place unit near water
! and moisture. Do not use the
! Nursery Unit outdoors. Do not
! use the monitor near possibly wet
! areas, such as a bathtub, shower,
! wash basin, sink, laundry tub,
! swimming pool, wet basement, etc.
! Keep Nursery Monitor away from
! heat sources, such as fireplaces,
! radiators, stoves, and TVs or other
! appliances. Heat can damage the
! case or electrical parts.
! Use ONLY with 110-120 volt AC
! electrical outlets.
! Protect the AC adapter cords.
! Place them so they are not walked
! on or pinched by furniture or other
! items.
! DO NOT use the monitor if:
- The adapter cords or plugs have
! been damaged.
- The unit has been exposed to
! liquids.
- Unit has been dropped or is
! damaged inside.
! Allow for proper ventilation when
! units are in use. Do not cover the
! nursery or parent’s unit with any
! object such as a blanket. Do not
! place it in a drawer or in any
! location which would muffle the
! sound or interfere with the normal
! flow of air.
FCC ID# M6Y001010049R
M6Y001010049T
3
4
Product Features
FRONT VIEW:
REAR VIEW:
Antenna
Antenna
Power Light
Channel
Selector*
Power Light
Channel
Selector*
Handle
Handle
Signal
Indicator
Lights
Belt Clip
AC
Adapter
Jack
AC
Adapter
Jack
On/Off/
Volume
Control
On/Off
Switch
Nursery Unit
(Transmitter)
Parent’s Unit
(Receiver)
*Both the Parent’s Unit and the Nursery Unit MUST be set to
the same channel. If receiver detects sounds from another
nursery monitor or cordless phone, set both units to the other
channel. If problem persists, contact Graco.
900-5-98
5
6
AC Adapters
(2 included)
7
Battery
Compartment
8
Installing A Battery
Battery changing should only be
done by an adult.
The Parent’s Unit can be operated
on battery power.
BATTERY USE TIPS
Remove battery from Parent’s Unit if
it will not be used for a long time.
Charging of a rechargeable battery
should only be done by an adult.
Remove a dead battery promptly. A
dead battery left in unit may leak,
damaging your unit.
Battery power will be conserved
when Parent’s Unit is powered
through AC adapter. It is not
necessary to remove battery when
using AC adapter.
Do not attempt to recharge a nonrechargeable battery.
1. Push a screwdriver or similar
object into slot at top of the battery
cover. Angle tool toward antenna to
release battery lid. Remove cover
with an upward motion as shown.
The cover is designed to open only
with a tool so as not to be easily
opened by a child.
A rechargeable battery CANNOT be
recharged by plugging AC adapter
into the Parent’s Unit. Remove the
battery from unit to recharge it.
Change battery if:
! Signal reception becomes poor
! Indicator lights begin to dim
! Static noise develops (also check
! for appliance interference)
!
2. Snap a nine volt battery into
proper terminals. An alkaline battery
is recommended. Place battery into
compartment.
3. Position cover so its two short
tabs are inside battery compartment,
lined up with slots in case.
Using AC Adapters
4. Lower the battery cover into the
slot. Snap the cover into place.
The Parent’s Unit can use either a
battery or standard 120 volt AC
household current. The Nursery
Unit uses standard 120 volt AC
household current only. The included
AC adapters must be used for this
purpose.
To use AC adapters, plug the connector on the cord into the AC adapter
jack on the side of the unit. Then
plug adapter into a standard wall
outlet.
900-5-98
9
10
11
Use ONLY the Graco® adapters
included with the unit. Do not use
these adapters with other equipment
under any circumstances.
If units do not work, check that AC
adapters are plugged into working
outlets.
When electricity is off (from a power
failure, etc.), the transmitter will NOT
work, since it only operates on AC
current.
12
System Setup
SETTING UP
THE MONITOR
1. Check that both Nursery Unit
and Parent’s Unit are set to the
same channel.
2. Discard the decorative sticker on
the front of the Parent’s unit. Place
the Nursery Unit within 10 feet (2-3
meters) of your baby. Plug an AC
adapter into the jack on the side of
the Nursery Unit. Plug it into a
working 120 volt AC outlet.
3. Aim the Nursery Unit toward
your baby. Check that there are
no walls or large objects that
could block sound transmission.
Do not place the
Nursery Unit or AC adapter cord
within your child’s reach. DO NOT
place Nursery Unit inside a crib or
play yard.
4. Turn on the Nursery Unit using
the ON/OFF switch on the left
side. The red power light should
come on.
5. Install a nine volt battery into the
Parent’s Unit, or plug it into a
working 120 volt AC outlet using
the other AC adapter.
6. Turn on the Parent’s Unit using
the volume control dial on the
right side. The red power light
should come on.
900-5-98
13
Solving Problems
TESTING THE UNITS
It is VERY IMPORTANT to test the
system when first set up, and at regular
times thereafter. Test the units any time
they may have been damaged or have
not been used for a long time.
1. If two adults are present, have one
take the Parent’s Unit to different
locations, trying various volume
settings, while the other speaks
into the Nursery Unit.
2. If only one adult is available,
place a ticking clock, radio, or
other sound-producing device
near the Nursery Unit to test it.
3. When testing, keep the level of
your child’s sounds in mind, and
adjust the volume accordingly.
4. If there is sound interference,
switch both the Nursery Unit and
the Parent’s Unit to the other
channel setting.
NOTE: As with all radio frequency
devices, transmission range and
reception may vary. Your Nursery
Monitor uses public airwaves, so it is
possible for conversations near the
Nursery Unit to be broadcast to other
nursery monitors, radios, cordless
phones or scanners outside your
home. For your privacy, always turn
off the Nursery Unit when not in use.
This monitor operates on one or more of the following frequencies:
49.830 Mhz, 49.845 Mhz, 49.860 Mhz, 49.875 Mhz, 49.890 Mhz.
Maximum signal strength is 10 millivolts/meter at 3 meters.
14
Most problems have a simple solution. First, check that:
! Power is turned ON for both units
! Both units are plugged in (or battery is fresh in Parent’s Unit)
! Electrical outlet works
! Units are set to same channel
! Volume is turned up on Parent’s Unit
! Parent’s Unit is in range of the Nursery Unit
If necessary, try the following ideas:
NO SOUND:
Battery dead or weak—replace or use AC adapter.
Channel settings do not match—set both units to same channel.
AC adapter not properly connected—check the connections.
Nursery Unit covered or blocked—remove the obstruction.
WEAK SOUND:
Parent’s Unit too far from Nursery Unit—move closer.
Large objects blocking the signal—try repositioning Nursery Unit.
Check that antennas are vertical and are not touched by other objects.
Volume setting too low—turn it up.
STATIC:
Interference from other electrical equipment—eliminate cause of static
(TVs, mixers, computers, fans, fluorescent lights, light dimmers, etc.)
Parent’s Unit too far from Nursery Unit—move them closer.
Channel settings do not match—set both units to same channel.
Try other channel on both Parent’s Unit and Nursery unit.
SHRILL NOISE (FEEDBACK):
Nursery Unit and Parent’s Unit too close together—move them farther apart.
Volume set too high—lower the volume.
PARENT’S UNIT DISPLAY LIGHTS STAY ON:
Nursery Unit is off—turn it on, or check AC adapter and power outlet.
Parent’s Unit too far from Nursery Unit—move them closer.
If you cannot solve the problem, please contact our
Customer Service Department at 1-800-345-4109.
Do not attempt to modify the unit. Any modifications to the transmitter and/or
receiver can void the operator’s authority to operate the equipment.
15
