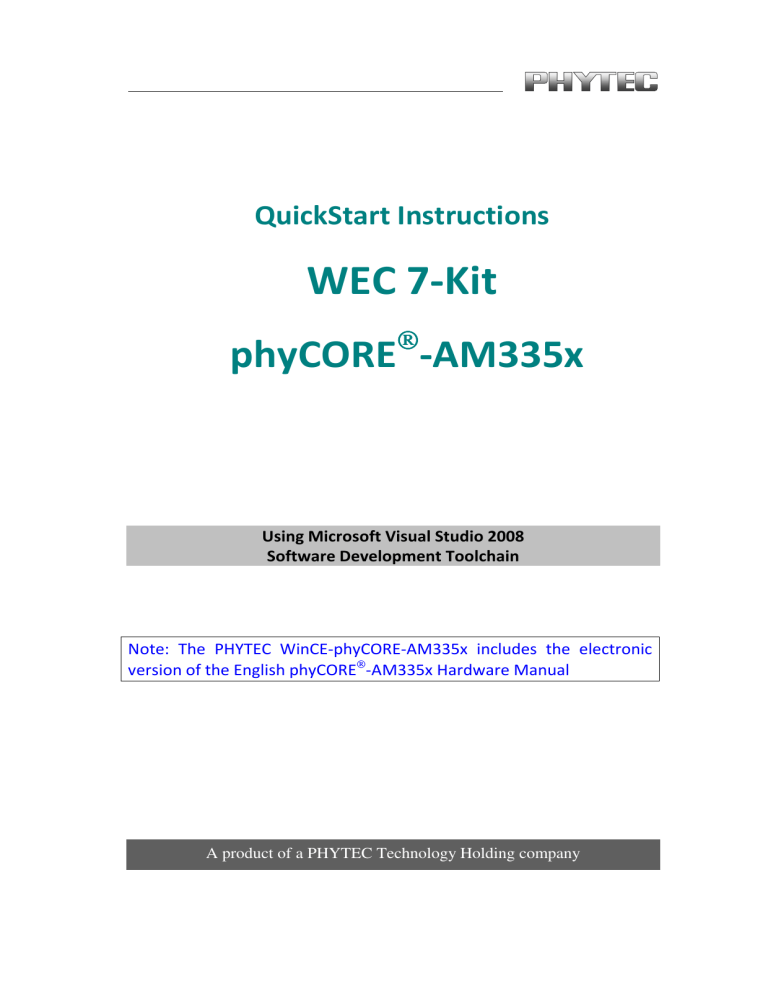

WEC 7-Kit
QuickStart Instructions
WEC 7-Kit

phyCORE -AM335x
Using Microsoft Visual Studio 2008
Software Development Toolchain
Note: The PHYTEC WinCE-phyCORE-AM335x includes the electronic
version of the English phyCORE-AM335x Hardware Manual
A product of a PHYTEC Technology Holding company
phyCORE-AM335x
QuickStart Instructions
In this manual copyrighted products are not explicitly indicated. The absence of the
trademark () and copyright () symbols does not imply that a product is not
protected. Additionally, registered patents and trademarks are similarly not expressly
indicated in this manual.
The information in this document has been carefully checked and is believed to be
entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for
any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts
any liability whatsoever for consequential damages resulting from the use of this
manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to
alter the information contained herein without prior notification and accepts no
responsibility for any damages which might result.
Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability
for damages arising from the improper usage or improper installation of the hardware
or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout
and/or design of the hardware without prior notification and accepts no liability for
doing so.
 Copyright 2012 PHYTEC Messtechnik GmbH, 55129 Mainz.
Rights - including those of translation, reprint, broadcast, photomechanical or similar
reproduction and storage or processing in computer systems, in whole or in part - are
reserved. No reproduction may be made without the explicit written consent from
PHYTEC Messtechnik GmbH.
Address:
EUROPE
NORTH AMERICA
PHYTEC Technologie Holding AG
Robert-Koch-Str. 39
55129 Mainz
GERMANY
PHYTEC America LLC
203 Parfitt Way SW, Suite G100
Bainbridge Island, WA 98110
USA
Ordering
+49 (800) 0749832
Information: [email protected]
1 (800) 278-9913
[email protected]
Technical
Support:
+49 (6131) 9221-31
[email protected]
1 (800) 278-9913
[email protected]
Fax:
+49 (6131) 9221-33
1 (206) 780-9135
Web Site:
http://www.phytec.de
http://www.phytec.com
1st Edition: October 2012
© PHYTEC Meßtechnik GmbH 2012
L-780e_1
Introduction
1
2
3
4
5
6
7
Introduction ............................................................................................ 3
1.1 Rapid Development Kit Documentation.......................................3
1.2 Professional Support Packages available .....................................4
1.3 Overview of this QuickStart Instruction .......................................4
1.4 Conventions used in this QuickStart.............................................5
1.5 System Requirements...................................................................6
1.6 Microsoft Visual Studio 2008 Development Toolchain ................7
Getting Started........................................................................................ 9
2.1 Installing Visual Studio 2008.........................................................9
2.2 Installing Platform Builder ..........................................................10
2.3 Installing WinCE phyCORE-AM335x-Kit software.......................12
2.4 Installing Microsoft Active Sync 4.5............................................15
2.5 Preparing the phyCORE-AM335x to interface to a host-PC .....16
2.5.1 Windows 7 / Windows Vista..........................................17
2.5.2 Windows XP ...................................................................18
2.6 Downloading Example Code with Active Sync ...........................19
2.6.1 Windows 7 / Windows Vista..........................................19
2.6.2 Windows XP ...................................................................20
2.7 Downloading Example Code with Visual Studio 2008................22
Getting More Involved.......................................................................... 26
3.1 Creating a New Project ...............................................................26
3.2 Create a Button on dialog...........................................................30
3.3 Modifying the Source Code ........................................................32
3.4 Building the Project ....................................................................33
Debugging.............................................................................................. 35
4.1 Starting the Debugger.................................................................35
4.2 Visual Studio 2008 Debug Features............................................37
4.3 Using the Visual Studio 2008 Debug Features............................38
4.4 Changing Target Settings for the "Executable Version".............39
Building an image.................................................................................. 40
5.1 Changing an image......................................................................40
5.2 Download an image ....................................................................41
5.2.1 Configure terminal program on Windows 7 / Vista ......41
5.2.2 Configure Hyper Terminal on Windows XP ...................42
5.2.3 Downloading Image .......................................................45
Summary ............................................................................................... 48
How to install Windows Embedded Compact on the phyCOREAM335x Kit ............................................................................ 49
7.1 SD-Card preparation ...................................................................49
© PHYTEC Messtechnik GmbH 2012
L-780e_1
5 min
4-5 h
30 min
40 min
50 min
1
phyCORE-AM335x
QuickStart Instructions
7.2 Configuring boot jumper ............................................................49
7.3 Configure terminal program.......................................................50
7.3.1 Windows 7 / Vista..........................................................50
7.3.2 Windows XP...................................................................51
7.4 Update Bootloader (XLDR / EBOOT)...........................................53
2
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Introduction
1 Introduction
5 min
This QuickStart provides general information on the PHYTEC phyCOREAM335x Single Board Computer (SBC). It gives you also an overview of
Microsoft’s Visual Studio 2008 software development toolchain and
instructions on how to run example programs on the phyCORE-AM335x,
mounted on the PHYTEC phyCORE Development Board, in conjunction
with Visual Studio 2008.
Please refer to the phyCORE-AM335x Hardware Manual for specific information on such board-level features as jumper configuration, memory
mapping and pin layout. Selecting the links on the electronic version of
this document leads to the respective section of the phyCORE-AM335x
Hardware Manual.
1.1 Rapid Development Kit Documentation
This "Rapid Development Kit" (RDK) includes the following electronic
documentation on the enclosed "PHYTEC WinCE-phyCORE-AM335x-Disc":
• the PHYTEC phyCORE-AM335x Hardware Manual
• controller User's Manuals and Data Sheets
• this QuickStart Instructions with general "Rapid Development Kit"
description, software installation advice and an example program,
enabling quick out-of-the box start-up of the phyCORE-AM335x in
conjunction with the Microsoft Visual Studio 2008 software
development toolchain
© PHYTEC Messtechnik GmbH 2012
L-780e_1
3
phyCORE-AM335x
QuickStart Instructions
1.2 Professional Support Packages available
This Kit comes with free installation support. If you do have any questions
concerning installation and setup, you are welcome to contact our support
department.
For more in-depth questions, we offer a variety of custom tailored
packages with different support options (e-mail, phone, direct contact to
the developer) and different reaction times.
Please contact our sales team to discuss the appropriate support option if
professional support beyond installation and setup is important to you.
1.3 Overview of this QuickStart Instruction
This QuickStart Manual gives a general "Rapid Development Kit"
description, as well as software installation advice and an example
program enabling quick out-of-the box start-up of the
phyCORE-AM335x in conjunction with Microsoft's Visual Studio 2008. It
is structured as follows:
1) The “Getting Started” section uses the example HelloWorld to
demonstrate the download of user code to the target device using
Visual Studio 2008 with ActiveSync.
2) The “Getting More Involved” section provides step-by-step instructions
on how to configure and build a new WinCE image, modify the example,
create and build a new project and generate and download output files
to the phyCORE-AM335x using the Microsoft tools.
3) The “Debugging” section demonstrates simple debug functions using
Visual Studio 2008 debug environment.
In addition to the dedicated data for this Rapid Development Kit, the
PHYTEC WinCE Kit disc contains supplemental information on embedded
microcontroller design and development.
4
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Introduction
1.4 Conventions used in this QuickStart
The following is a list of the typographical conventions used in this book:
Italic
Used for file and directory names, program and command
names, command-line options, menu items, URLs, and other
terms that correspond the terms on your desktop.
Bold
Used in examples to show commands or other text that should
be typed literally by the user.
Pay special attention to notes set apart from the text with the following
icons:
At this part you might leave be path of this QuickStart.
This is a warning. It helps you to avoid annoying problems.
Provides useful supplementary information about the topic.
At the beginning of each chapter you can find information of
the time to pass the following chapter.
You have successfully passed an important part of this
QuickStart manual.
You can find information to solve problems.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
5
phyCORE-AM335x
QuickStart Instructions
1.5 System Requirements
The use of this "Rapid Development Kit" requires:
• the PHYTEC phyCORE-AM335x
• the phyCORE Development Board with the included DB-9 serial cable,
USB A/mini-B cable, Ethernet cross-over cable and AC adapter supplying
5 VDC (min. 2 A)
• Windows Embedded Compact 7 (Eval version)
• the PHYTEC WinCE-phyCORE-AM335x-Disc for WEC 7
• an IBM-compatible host-PC (586 or higher running with WindowsXP and
at least 10 GB free hard disc space)
For more information and example updates, please refer to the following
sources:
http://www.phytec.de
[email protected]
6
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Introduction
1.6 Microsoft Visual Studio 2008 Development Toolchain
Microsoft's Software development tools for the phyCORE-AM335x
architecture aid every level of developer from the professional
applications engineer to the student just learning about embedded
software development.
Visual Studio 2008 is the version of Microsoft’s popular IDE that supports
also WEC 7. The needed Platform Builder is integrated in Visual Studio
2008. So it is possible to customize the Windows Embedded Compact
Image and write user applications with just one tool. Visual Studio 2008
combines project management, source code editing, program debugging,
and target programming in a single, powerful environment. This
QuickStart provides an overview of the most commonly used VS 2008
features including:
•
•
•
•
Project management, device setup, and tool configuration
Editor facilities for creating, modifying, and correcting programs
Target debugging
Building a new image
The VS 2008 editor offers many standard and advanced software editing
features like:
• Automatic completion of code statements
• Auto listing of object members
• Detailed Syntax Highlighting. Colors are used in printed output.
• Automatic indent and tab blocks of code
The Visual Studio 2008 Toolchain is available from your local Microsoft
dealer. There is also an evaluation version available which is used in this
© PHYTEC Messtechnik GmbH 2012
L-780e_1
7
phyCORE-AM335x
QuickStart Instructions
QuickStart. You can use it to develop standard WinCE applications, MFC
WinCE applications and .NET Applications for WinCE.
If you already have installed another version of Visual Studio
2008, you can use this one. We recommend installing the
evaluation version when working with this QuickStart.
8
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
2 Getting Started
4-5 h
In this chapter you will install Rapid Development Kit software and prepare the
phyCORE-AM335x, mounted on the Development Board, to interface to a
host-PC. You will also learn how to download an example application from a
host-PC using Visual Studio 2008.
2.1 Installing Visual Studio 2008
To install Visual Studio 2008 on your desktop PC insert the DVD labeled “Visual
Studio 2008 Professional Edition” included in this kit in your DVD Rom drive.
The setup should launch automatically. If not, open a windows file explorer, go
to your DVD drive and start “setup.exe” manually. Visual Studio 2008 needs at
least 2 GB free hard disc space to install.
The following screen appears:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
9
phyCORE-AM335x
QuickStart Instructions
Click “Install Visual Studio 2008” and follow the instructions of the setup
program.
After installation you have to download and install the Visual Studio 2008
Service Pack 1 at:
http://www.microsoft.com/download/en/details.aspx?id=10986
2.2 Installing Platform Builder
To install the Platform Builder Plug-in for Visual Studio 2008, please insert the
DVD labeled “Windows Embedded Compact 7” in your DVD drive. The setup
should start automatically. If not, open a windows file explorer, select your
DVD drive and start “WindowsEmbeddedCompact7.exe” manually. On the
opening window click “Install” to start further installation steps.
To getting an up-to-date development environment, you have to click “Update”
for downloading the newest installation files. If you don’t have internet
connection, skip the update process and download it later. It is recommended
to download the updates for best environment compatibility.
10
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
Follow the install instructions and choose “Full install” to get the hole product
support.
During the setup you have to enter a product activation key. You
will find it on the front of the DVD case.
After complete installation, it is recommended to register for the Windows
Embedded Developer Update program to get all necessary updates. Click
“Register” for the registration.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
11
phyCORE-AM335x
QuickStart Instructions
2.3 Installing WinCE phyCORE-AM335x-Kit software
In this section you will find a description of the WinCE-phyCORE-AM335x-Kit
setup. This setup will install the following tools and programs:
•
•
•
•
SDK for phyCORE-AM335x WEC 7.0
A binary BSP for the phyCORE-AM335x and a project to build a new image
Example programs for Visual Studio 2008
Digital version of this QuickStart instruction and the hardware manuals
The phyCORE-AM335x SDK for WinCE is needed for writing target-oriented
applications. It will integrate in the Visual Studio IDE, offering a new target
device for code generation. Also the SDK includes all functionality that is
included in the image that runs on the phyCORE-AM335x. Therefore using the
SDK allows the compiler to check if all functionality that is needed in the
12
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
application will be present in the image. The absence of specific features is
therefore recognized at “compile-time” not at “runtime”.
For proper installation of the SDK it is essential to first install
Visual Studio 2008 as described in chapter 2.1.
Insert the CD labeled “PHYTEC phyCORE-AM335x” in your CDROM/DVD drive
and start setup.exe.
In this dialog you are asked for a destination path for installing the demo
software and the manuals. We recommend using the default path for working
with this QuickStart.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
13
phyCORE-AM335x
QuickStart Instructions
In the next dialog you can choose a program folder. We recommend using the
default program folder for working with this QuickStart.
In the next steps, the BSP for the PHYTEC phyCORE-AM335x will be installed.
Please follow the instructions on the screen.
14
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
After this the installation of the SDK will be launched. Follow the instructions of
the installation program. Choose complete when being asked for the amount of
files to install.
2.4 Installing Microsoft Active Sync 4.5
If Windows 7 is installed on the PC it is not necessary to install
Active Sync. Wndows 7 brings his own Mobile Device Center for
the connection to the device.
To be able to upload the software you are developing to your phyCOREAM335x device you need Microsoft Active Sync 4.5. When your PC is connected
to your phyCORE-AM335x device via a USB cable this software allows you to
create a direct connection to your device.
You can download Microsoft Active Sync 4.5 from the Microsoft website at
http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx
© PHYTEC Messtechnik GmbH 2012
L-780e_1
15
phyCORE-AM335x
QuickStart Instructions
To download the software follow the instruction given on the webpage and
save the downloaded file to your hard drive. Select the folder you saved the
software to and double-click setup.msi.
Click “Next” and in the following dialog click “Install” to start the installation
process for Microsoft Active Sync 4.5. This may take a few minutes.
You have successfully installed the software for the WinCEphyCORE-AM335x-Kit. You can find the programs you will
need to develop own applications for the target on your host
system. All necessary configurations were done by the setup
program.
2.5 Preparing the phyCORE-AM335x to interface to a host-PC
To be able to interface your phyCORE-AM335x with your PC you must first setup
the correct network settings on your phyCORE-AM335x. For downloading
software to the phyCORE-AM335x with ActiveSync or Windows Mobile Device
Center we will use the USB interface in this QuickStart. This chapter explains
how to configure WinCE to connect to your host PC.
Connect the AC adapter with the power supply connector (5V) on your board.
The power connector should have 5 VDC inside and outside
should be ground.
If Windows Embedded Compact didn’t start within 1 minute, you
have a kit with linux preinstalled. Please continue with Appendix
A “How to install Windows Embedded Compact on the phyCOREAM335x Kit” and continue here after you have finished this
chapter successfully.
16
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
When Windows Embedded Compact has loaded it will show a screen to
calibrate the touch panel. Click on the cross on the screen to calibrate your
touch panel. When calibration is done you will see the WinCE screen.
2.5.1 Windows 7 / Windows Vista
Windows Mobile Device Center (WMDC 6.1) is pre-installed in Windows 7.
Connect the USB A/mini-B cable with the USB OTG connector on the target to a
free USB port on your host.
The jumper JP12 on the carrier board must be open for a
successful USB OTG client connection.
Ensure to use the USB A/mini-B included in this RDK.
Establishing the connection might take a few seconds. Once the connection has
been established WMDC will show a screen with status information.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
17
phyCORE-AM335x
QuickStart Instructions
2.5.2 Windows XP
ActiveSync should already be running after the installation in chapter 2.4
Connect the USB A/mini-B cable with the USB OTG connector on the target to a
free USB port on your host.
The jumper JP12 on the carrier board must be open for a
successful USB OTG client connection.
Ensure to use the USB A/mini-B included in this RDK.
Establishing the connection might take a few seconds. Once the connection has
been established Active Sync will show a screen with status information.
Your PC is now connected to your phyCORE-AM335x device.
18
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
2.6 Downloading Example Code with Active Sync
To download the example code provided on the WinCE-phyCORE-AM335x-Disc,
you need to have Active Sync or WMDC running on your PC to be able to
establish a connection to your phyCORE-AM335x device as described in the
previous chapter.
2.6.1 Windows 7 / Windows Vista
Click on “File Management” and “Browse the contents of your device” to open
a windows explorer showing up the device file system. Under the volume “/”
you will be find all directories.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
19
phyCORE-AM335x
QuickStart Instructions
Open a file manager and navigate to the folder
C:\PHYTEC\PCM051_phyCORE-AM335x\WEC7-Kit\QuickStart\Demos
\Demo\HelloWorld\HelloWorld\phyCORE-AM335x (ARMV4I)\Debug.
Select HelloWorld.exe and copy it to the device in the folder Program Files
using drag and drop.
The program has now been copied to your phyCORE-AM335x device. You will
be able to access it by double-clicking the My Device icon on your phyCOREAM335x device. This opens a window that will show you the file structure of
your device. You should be able to find HelloWorld.exe at the location you
copied it to. Double-click it to execute the program. A window will open on
your phyCORE-AM335x device that shows a listbox and a button “Print Hello
World”. Click on the button for printing Hello World in the listbox.
2.6.2 Windows XP
Click Tools in the menu bar of Active Sync and select Explore Device. An
Explorer window called Mobile Device will open that will show you the folder
structure of the Windows Embedded Compact installation on your phyCOREAM335x device.
20
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
Open a file manager and navigate to the folder
C:\PHYTEC\PCM051_phyCORE-AM335x\WEC7-Kit\QuickStart\Demos
\Demo\HelloWorld\HelloWorld\ phyCORE-AM335x (ARMV4I)\Debug.
Select HelloWorld.exe and copy it to the Mobile Device window in the folder
Program Files using drag and drop. If a question regarding file conversion
arises, just confirm with OK.
The program has now been copied to your phyCORE-AM335x device. You will
be able to access it by double-clicking the My Device icon on your phyCOREAM335x device. This opens a window that will show you the file structure of
your device. You should be able to find HelloWorld.exe at the location you
copied it to. Double-click it to execute the program. A window will open on
your phyCORE-AM335x device that will print a Hello World message.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
21
phyCORE-AM335x
QuickStart Instructions
2.7 Downloading Example Code with Visual Studio 2008
PHYTEC provides you with example code to learn about downloading code onto
your phyCORE-AM335x device. This code has already been copied to your local
hard drive by the setup.
Start the toolchain by selecting Microsoft Visual Studio 2008 from the programs
group: Start / Programs / Microsoft Visual Studio 2008.
After starting Visual Studio 2008 the window shown below will appear. Here
you can create projects, edit files, configure tools, assemble, link and start the
debugger. Close all projects that might be open by selecting File / Close
Solution.
The HelloWorld example downloads a program to your device that, when
executed, prints the text Hello World on the display of your phyCORE-AM335x.
• To open the HelloWorld project select File / Open / Project/Solution… from
the Visual Studio 2008 menu bar.
22
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
• Browse to the folder
C:\PHYTEC\PCM051_phyCORE-AM335x\WEC7-Kit\QuickStart\Demos
\Demo\HelloWorld.
• Select the HelloWorld project HelloWorld.
• Click Open.
• In the Solution Platform pull-down menu make sure that the phyCOREAM335x (ARMv4I) configuration is selected. Also make sure that phyCOREAM335x ARMV7 Device is selected in the Target device menu.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
23
phyCORE-AM335x
QuickStart Instructions
If these menus are not shown in your Visual Studio IDE, move
your mouse to an empty space on the toolbar, press the right
mouse button and select from the pop up menu the menus
Target and Device.
Build the Project
• Build the target by either selecting the Build icon
on the build toolbar or
in the main menu bar select Build / Build HelloWorld.
• If any source file of the project contains any errors, they will be shown in the
Output Window - Build tab. Use the editor to correct the error(s) in the
source code, save the file and repeat the build.
• If there are no errors, the code can be downloaded to your phyCOREAM335x device. For this to work you need to have established an Active Sync
or Windows Mobile Device Center connection between your PC and your
phyCORE-AM335x device as described in section 2.6. When the connection is
established select Build / Deploy HelloWorld from the main menu bar.
• The individual steps of the download procedure can be viewed in the Output
Window - Build tab.
• Wait until the download is complete.
24
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting Started
• The newly created application was now deployed on your phyCORE-AM335x
device. To start it select My Device on the target platform, go to the folder
Program Files / Helloworld and double tap on “HelloWorld”.
• A window with one button will open on your phyCORE-AM335x device. Click
on the button to print the Hello World message on a listbox.
• Click the Close icon in the window to close the application.
You have successfully passed the Getting Started part of this
QuickStart. In this chapter you learned how to open a project,
build an executable and transfer and run this executable on the
target hardware.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
25
phyCORE-AM335x
QuickStart Instructions
3 Getting More Involved
30 min
In this chapter you will learn how to configure the Visual Studio 2008 IDE
(Integrated Development Environment), create a new MFC application, which
will print a Hello World message on the serial interface, and build and
download a machine-readable output file to the target hardware.
3.1 Creating a New Project
• To create a new project file select File / New / Project… from the Visual
Studio 2008 menu. This opens a dialog that will ask about the kind of project
you wish to create.
• Open the Visual C++ tree and select Smart Device.
• In the Templates field select MFC Smart Device Application.
26
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting More Involved
• In the text field Name, enter the name of the project you wish to create, e.g.
myHelloWorld.
• Click OK.
• Click Next.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
27
phyCORE-AM335x
QuickStart Instructions
• Click the entry phyCORE-AM335x in the field Installed SDKs: and click the >
button. The phyCORE-AM335x will appear in the Selected SDKs: field.
• Select Pocket PC 2003 in the field Selected SDKs and press the < button. This
removes the Pocket PC 2003 SDK from the list of selected SDKs.
• Click Next >
28
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting More Involved
• Select Dialog based and press Finish.
At this point you have created a new project for the phyCORE-AM335x board.
The next step is to modify the C source file before building your project. This
includes compiling, linking, locating and creating the executable.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
29
phyCORE-AM335x
QuickStart Instructions
3.2 Create a Button on dialog
Expand Resource Files at the Solution Explorer on the left site. Double-click on
myHelloWorld.rc for opening the Resource View window. Expand the Dialog
folder and double-click the IDD_MYHELLOWORLD_DIALOG. Now your
development-view has to look like the following.
Before we start, select the “TODO: Place dialog controls here” text on the
dialog window and delete it.
Have a look at the Toolbox window on the right. You can drag and drop any
control field in your dialog window myHelloWorld. For our example we need
only one button. Select the Button tool in the toolbox and drag it on your dialog
window like below.
30
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting More Involved
To edit the button caption do right-click on the button and select “Properties”.
On the properties window edit the “Caption” field in “Send Hello World”.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
31
phyCORE-AM335x
QuickStart Instructions
3.3 Modifying the Source Code
Double-Click on the created button. Visual Studio automatically adds the
function for the button. Copy the following code in the void
CmyHelloWorldDlg::OnBnClickedButton1() function:
CString sCom;
HANDLE hComPort;
DCB dcb;
DWORD err = 0;
// name of serial interface, getting from platform.reg
sCom = "COM0:";
// open COM-Port for communication
hComPort = CreateFile ( sCom,
GENERIC_WRITE | GENERIC_READ,
0,
NULL,
OPEN_EXISTING,
0,
NULL);
if(!hComPort)return;
if(hComPort == INVALID_HANDLE_VALUE)return;
// config COM-Port
ZeroMemory(&dcb,sizeof(DCB));
dcb.DCBlength = sizeof(DCB);
GetCommState (hComPort, &dcb);
dcb.BaudRate = 115200;
dcb.ByteSize = 8;
dcb.Parity = 0;
dcb.StopBits = 1;
if(!SetCommState (hComPort, &dcb))
err = GetLastError();
DWORD dwWritten;
// write message
WriteFile(hComPort, "Hello World!",13, &dwWritten, NULL);
CloseHandle(hComPort);
32
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Getting More Involved
Save the modified file by choosing File / Save or by clicking the save icon
.
3.4 Building the Project
You are now ready to run the compiler and linker.
• Build the target by either selecting the Build icon
on the build toolbar or
in the main menu bar select Build / Build myHelloWorld.
• If any source file of the project contains any errors, they will be shown in the
Output Window - Build tab. Use the editor to correct the error(s) in the
source code, save the file and repeat the build.
• If there are no errors, the code can be downloaded to your phyCOREAM335x device. For this to work you need to have established an Active Sync
or Windows Mobile Device Center connection between your PC and your
phyCORE-AM335x device as described in section 2.6. When the connection is
established select Build / Deploy myHelloWorld from the main menu bar.
• The individual steps of the download procedure can be viewed in the Output
Window - Build tab.
• Wait until the download is complete.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
33
phyCORE-AM335x
QuickStart Instructions
• The newly created application was now deployed on your phyCORE-AM335x
device. To start it select My Device on the target platform and go to the
folder Program Files / myHelloWorld and double tap on “myHelloWorld”.
• Please connect the UART RS232 (X18) to your computer and open the
terminal program. Set the configuration like following:
Baudrate:
Databits:
Parity:
Stopbits:
115200
8
None
1
• Click on the “Send Hello World!” button and look at the terminal program for
the “Hello World!” message.
You have now modified source code, recompiled the code, created
a downloadable file, and successfully executed this modified code.
34
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
4 Debugging
40 min
This Debugging section provides a basic introduction to the debug functions
included in Visual Studio 2008. The most important features are described by
using an existing example. For a more detailed description of the debugging
features, please refer to the appropriate manuals provided by Microsoft.
4.1 Starting the Debugger
• Make sure that Debug is selected in the Solution Configurations pull-down
menu.
• Open up the myHelloWorld tree and Source Files. Double-click on the
myHelloWorldDlg.cpp file to open the file in the source code editor.
• Locate the following code section
// write message
WriteFile(hComPort, "Hello World!",13, &dwWritten, NULL);
• Edit the line like this
for (int i = 0; i < 5; i++)
{
// write message
WriteFile(hComPort, "Hello World!\n",13, &dwWritten, NULL);
}
• Position the cursor on the “WriteFile” function.
• Select Debug / Toggle Breakpoint on the main menu bar or press F9 to set a
breakpoint here. The red marker on the left-hand side of the selected line
indicates the breakpoint.
• To start debugging with Visual Studio 2008, select Debug / Start Debugging
or press F5.
• A progress bar will indicate the download process of the debug program.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
35
phyCORE-AM335x
QuickStart Instructions
If a problem occurs during data transfer, an error message will be displayed. If
this should occur, make sure you have established a connection between your
PC and your phyCORE-AM335x device as described in section 2.5.
If data transfer was successful, a screen similar to the one shown below will
appear. The debug toolbar is displayed. In the lower part of the debug screen
you will see the Variables and Watch windows.
You may need to open, resize and/or move some windows to make
your screen look similar to the screen capture. You can open
inactive windows by choosing the desired window from the Debug
/ Windows pull-down menu.
The debugger will run up to the code section you have marked with a
breakpoint and stop automatically. Notice the yellow arrow pointing to that
breakpoint.
You can click on Debug / Toggle Breakpoint or press F9 again to remove the
breakpoint you have set.
36
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
4.2 Visual Studio 2008 Debug Features
• The Debugger window toolbar gives access to the following
debug commands: Restart, Stop Debugging, Break Execution, Show Next
Statement, Step Into, Step Over, Step Out and Run to Cursor.
• The first button on the debugger toolbar is the Start Debugging button. This
starts or continuous debugging.
• The Break All halts execution and the editor shows the current source code
line.
• The Stop Debugging button stops the debugger and will lead you back to
your project screen.
• The Restart button restarts the execution of the program from the
beginning.
• The Show Next Statement button allows you to go through your program
code line by code line.
• The first button allowing exact control of the program execution is the Step
Into button. The Step Into command performs the execution of the
command line to which the Current-Statement Arrow points. This can be a C
command line or a single assembler line, depending on the current display
mode. If the command line is a function call, Step Into jumps to the C
function or subroutine, enabling you to explore the code contained in the
accessed subroutine.
• The Step Over button is next on the debugger toolbar. The Step Over
command executes the command line, to which the Current-Statement
Arrow points. This can be a C command line or a single assembler line,
depending on the current display mode. If the command line is a function
call, the function will be executed without single stepping into the function.
• The next button is the Step Out button. Step Out is used to exit a function
you are currently in. Step Out is very useful if you find yourself in a function
you are not interested in and need to return quickly to your intended
function.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
37
phyCORE-AM335x
QuickStart Instructions
• The Hex button toggles the display style of watch variables between
hexadecimal and decimal.
• The last button pops up a menu where you can choose different windows
useful for debugging, like watch windows, process information, memory
information and calling stack.
4.3 Using the Visual Studio 2008 Debug Features
• The Variables window – Auto tab automatically shows the value of the local
variable i. You can change the number base from decimal to hexadecimal by
right clicking on the variable and selecting hexadecimal Display.
• Click Step Over several times and watch the value of i count up.
• As you can see in the source code, the for{} loop will end if i
becomes equal to 5. To leave the for{} loop, change the value of i by
selecting the value, changing it to 10 and pressing <Enter>. Now repeat
clicking on Step Over until you leave the loop.
• Remove the breakpoint by clicking into the source code line that has the
breakpoint and press F9 or the Insert / Remove Breakpoint icon.
• To run your program without stopping at any time, delete all breakpoints by
clicking on the Insert / Remove Breakpoint icon.
• Click the Go
button.
• You can use the Stop Debugging
any time.
38
button to stop program execution at
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
4.4 Changing Target Settings for the "Executable Version"
After successfully debugging the program, next change the project and the
target settings in order to create an executable file that can then be
downloaded to and executed out of the memory on the phyCORE-AM335x.
•
•
•
•
Make sure the program execution is stopped.
Exit the current debug session by selecting Stop Debugging.
In the Solution Configurations pull down menu select ’Release’.
Build and execute your project.
You can now watch your final example on the screen of your phyCORE-AM335x
device.
You have successfully finished the debug section of this
QuickStart. You learned how to set breakpoints, run your
program to a specific line of code and inspect variables.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
39
phyCORE-AM335x
QuickStart Instructions
5 Building an image
50 min
In this section you will learn how to add your own application to a WinCE
project, create a new image and download this image on the phyCOREAM335x. We will use the application build and debugged in the chapters before
as an example.
5.1 Changing an image
First you need a project to build the image with. In this example you can use
the project we provide on the phyCORE-AM335x WEC7-Kit CD, which is already
installed on your system.
• Open Visual Studio 2008, if not already open.
• To open the project select File / Open / Project/Solution… from the Visual
Studio 2008 menu bar.
• Browse to the folder C:\WINCE700\OSDesigns\PhytecAM335x_RDK and
select the project PhytecAM335x_RDK.
When the project is loaded you will see the project in the Solution Explorer Tab
in the left window. If a dialog “Missing Catalog Items in OS Design” appears,
just press Cancel.
Open the Solution Explorer on the left side and expand
PhytecAM335x_RDK\Parameter Files and double click on OSDesign.bib. Under
the “Files” section add the following line:
HelloWorld.exe "C:\PHYTEC\PCM051_phyCORE-AM335x\WEC7-Kit\QuickStart\Demos\Demo\
HelloWorld\HelloWorld\ phyCORE-AM335x (ARMV4I)\Debug\HelloWorld.exe" NK
This will add the executable HelloWorld.exe to the Windows directory of the
target. The path tells the platform builder where to find the executable that
should be added to the image and the parameter NK specifies the name of the
memory region where it should be added to.
40
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
To build a new image, select Build / Build Solution from the Visual Studio 2008
menu bar. The build process will take about 20 minutes, depending on your
host platform hardware.
You don’t have always to do a complete build process that takes
this long. If you just want to add a file to the image like in the
example before, you can do this by selecting Build / Copy Files to
Release Directory. This copies all necessary files to the Release
directory. Then you can build the image with Build / Make RunTime Image. This takes only about 1 minute. Please refer to the
Visual Studio 2008/Platformbuilder documentation for more
information.
5.2 Download an image
In the next step we want to download the image to the target.
For this step you need a terminal program like HyperTerminal or another
terminal program like Putty if you are using Windows 7.
5.2.1 Configure terminal program on Windows 7 / Vista
If you are using Windows 7 / Vista it is necessary to download a terminal
program like Putty, because Hyper Terminal is not yet included under Windows
7 / Vista.
Download Putty here:
http://www.putty.org/
After downloading Putty.exe to your PC, execute and configure it like the
following screenshot:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
41
phyCORE-AM335x
QuickStart Instructions
You have to change “COM3” to your correct serial interface number on your
PC.
5.2.2 Configure Hyper Terminal on Windows XP
Start the HyperTerminal program within the Programs / Accessories bar.
The HyperTerminal main window will now appear:
42
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
Double-click on the HyperTerminal icon “Hypertrm” to create a new
HyperTerminal session.
The Connection Description window will now appear. Enter “COM Direct” in
the Name text field.
Next click OK. This creates a new HyperTerminal session named “COM Direct”
and advances you to the next HyperTerminal window.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
43
phyCORE-AM335x
QuickStart Instructions
The COM Direct Properties window will now appear. Specify Direct to
COM1/COM2 under the Connect Using pull-down menu (be sure to indicate the
correct COM setting for your system).
Click the Configure button in the COM Direct Properties window to advance to
the next window (COM1/COM2 Properties).
• Set the following COM parameters: Bits per second = 115200; Data bits = 8;
Parity = None; Stop Bits = 1; Flow Control = None.
• Selecting OK advances you to the COM Direct–HyperTerminal monitoring
window. Notice the connection status report in the lower left corner of the
window.
44
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
5.2.3 Downloading Image
• Connect the UART RS232 (X18) on carrier board to the computer.
• Power up the baseboard.
• You will now see some output messages from the bootloader in the terminal
window. Press space to stop the bootloader.
• Connect the cross-over Ethernet cable with the Ethernet connector on the
target and the right network card of your host.
• Press ‘4’ for submenu Network Settings. Press ‘6’ to change the IP address of
the device and ‘7’ to change the network mask. Change the default settings
so it will fit to the network settings on your PC.
• Press ‘5’ to disable DHCP.
• Press ‘0’ to go back to main menu.
• Press ‘2’ for Select Boot Device and then choose ‘1’ for Internal EMAC.
• Press ‘7’ to save the configuration.
• Press ‘0’ for start downloading the image. You will see some output
messages followed by a BOOTME message.
• Select Target Attach Device… from the Visual Studio 2008 menu bar.
• Following windows should appear:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
45
phyCORE-AM335x
QuickStart Instructions
• Select the AM335X device and exit by clicking “Apply”.
• A download message with a status bar should appear and the download
should start.
• When the download is finished, the image should start. Calibrate the touch
panel, then navigate to the folder MyDevice\Windows. There you find your
HelloWorld application that can be executed.
In this example the image that was build is a RAM image.
•
•
•
•
Reset the device and press space to stop the bootloader.
Press ‘2’ for Select Boot Device and then choose ‘2’ for NK from NAND.
Press ‘7’ to save the configuration.
Press ‘0’ and the original image from flash will be started again.
To build an image that can be stored in flash, select Project -> OMAP4Phytec
Properties… in the Visual Studio 2008. On the OMAP4Phytec Property Pages
expand Configuration Properties and select Environment. Click on “New…” and
write IMGNAND as “Variable name” with the “Variable Value” set to “1”.
Confirm your entry by clicking “OK”. Now, your Property Page have to looks
like the following screenshot.
46
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Building an image
Click “OK” and select Build -> Make run-time image in Visual Studio. Please
read Appendix A “How to install Windows Embedded Compact on the
phyCORE-AM335x” for information on how to flash the image.
You have successfully finished this QuickStart.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
47
phyCORE-AM335x
6
QuickStart Instructions
Summary
This QuickStart Instruction gave a general "Rapid Development Kit"
description, as well as software installation advice and an example
program enabling quick out-of-the box start-up of the phyCORE-AM335x
in conjunction with WinCE.
In the Getting started section you learned how to configure your host to
provide a basis for working with your target platform. You installed the
Rapid Development Kit software and you learned to copy and run a
program on the target.
In the Getting More Involved section you got a step-by-step instruction on
how to modify the example, create and build new projects and copy
output files to the phyCORE-AM335x using Visual Studio 2008.
The Debugging part of this QuickStart gave you information on setting up
and using the debugger with Visual Studio 2008. You learned how to set
breakpoints, watching and changing variables content.
In the Building an Image section you learned how to build a new image
based on a preconfigured BSP and project.
48
© PHYTEC Messtechnik GmbH 2012
L-780e_1
Summary
7
How to install Windows Embedded Compact on the
phyCORE-AM335x Kit
In this section will be described how to get Windows Embedded Compact
7 on the Rapid development KIT.
7.1
SD-Card preparation
Please format the SD-Card within windows-command-line with the
following command:
format G: /FS:FAT32 /Q /A:512
G: is the volume used in the example. You have to edit the volume.
On the phyCORE-AM335x KIT-CD will be all necessary files to install
Windows Embedded Compact 7 on the device. Otherwise you can find the
files on the Phytec FTP:
ftp://ftp.phytec.de/pub/Products/phyCORE-AM335x/WEC7/
Please copy following files located on the CD to the formatted SD-Card:
..\WEC7-Kit\BSP\Bootloader\NAND\XLRDRNAND.bin
..\ WEC7-Kit\BSP\Bootloader\NAND\EBOOTND.bin
..\ WEC7-Kit\BSP\Bootloader\SDCARD\MLO
..\ WEC7-Kit\BSP\Bootloader\SDCARD\ebootsd.nb0
..\ WEC7-Kit\BSP\Image\NAND\NK.bin
7.2
Configuring boot jumper
Set the S5 boot jumper configuration to boot from SD-Card like the
following table:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
49
S5
8
ON
7.3
7
ON
6
ON
5
OFF
4
ON
3
ON
2
ON
1
ON
Configure terminal program
7.3.1 Windows 7 / Vista
If you are using Windows 7 / Vista it is necessary to download a terminal
program like Putty, because Hyper Terminal is not yet included under
Windows 7 / Vista.
Download Putty here:
http://www.putty.org/
After downloading Putty.exe to your PC, execute and configure it like the
following screenshot:
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
You have to change “COM3” to your correct serial interface number on
your PC.
7.3.2 Windows XP
Start the HyperTerminal (Programs Accesoires Communication Hyper Terminal) and configure it like the following steps:
Type “COM Direkt” in the coming window:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
51
Next click on OK. This creates a new HyperTerminal session named “COM
Direct” and advances you to the next HyperTerminal window.
The COM Direct Properties window will now appear. Specify Direct to
COM1/COM2 under the Connect Using pull-down menu (be sure to
indicate the correct COM setting for your system).
Click the Configure button in the COM Direct Properties window to
advance to the next window (COM1/COM2 Properties).
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
• Set the following COM parameters: Bits per second = 115200; Data bits
= 8; Parity = None; Stop Bits = 1; Flow Control = None.
• Selecting OK advances you to the COM Direct–HyperTerminal
monitoring window. Notice the connection status report in the lower
left corner of the window.
• Connect the UART RS232 to the computer and insert the SD-Card in the
SD-Card Slot and power up the baseboard.
7.4
Update Bootloader (XLDR / EBOOT)
After powering up the baseboard the following boot main menu should
appear on the terminal window:
© PHYTEC Messtechnik GmbH 2012
L-780e_1
53
Select “[5] SDCard settings” to enter “SDCard Settings”-Menu. Presss “2”
for “Enter Filename” and type “xldrnand.bin” like in the screenshot below.
Confirm your entry with ENTER-Key.
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
Select “[0] Exit and Continue” to go back to the main menu. Now you have
to configure the bootloader to select your typed file from the SD-Card.
Select “[2] Select Boot Device” to enter boot device menu. Configure the
boot order to NK from SDCard File.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
55
Back to the main menu select “[0] Exit and Continue” to start downloading
xldrnand.bin. Following screenshot shows successful XLDR update.
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
You have successfully updated the first stage bootloader. The next steps
will be for programming the second stage bootloader called EBOOT.
Press the Reset-Button on the baseboard to booting from the SD-Card
again. Select “[5] SDCard settings” and press “2” to enter the file name like
following screenshot.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
57
Select “[0] Exit and continue” to go back to the main menu and configure
the boot order to boot from SD-Card.
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
Back to the main menu select “[0] Exit and Continue” to start downloading
ebootnd.bin. Following screenshot shows successful EBOOT update.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
59
You have successfully updated the second stage bootloader. The next
steps will be for programming the WEC7 image called NK.bin.
Press the Reset-Button on the baseboard to booting from the SD-Card
again. Select “[5] SDCard settings” and press “2” to enter the file name like
following screenshot.
Select “[0] Exit and continue” to go back to the main menu and configure
the boot order to boot from SD-Card.
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
Back to the main menu select “[0] Exit and Continue” to start downloading
NK.bin. This step takes a while, because of the big file size. After successful
program the image execute directly and boot up in WEC7 like the
following screenshot.
© PHYTEC Messtechnik GmbH 2012
L-780e_1
61
You have successfully updated the device with Windows Embedded
Compact 7.
To boot the device from NAND flash you have to change the boot jumper
configuration S5 like the following:
8
ON
7
ON
6
ON
5
OFF
4
OFF
3
ON
2
ON
1
ON
Remove the SD-Card Power OFF and power ON the baseboard. The
bootloader should execute Windows Embedded Compact from NAND
flash.
Published by
 PHYTEC Messtechnik GmbH 2012
Ordering No. L-780e_1
Printed in Germany
Summary
Document: WEC7-Kit with phyCORE-AM335x QuickStart Instructions
Document number: L-780e_1 October 2012
How would you improve this manual?
Did you find any mistakes in this manual?
Submitted by:
Customer number:
Name:
Company:
Address:
Return to:
PHYTEC Messtechnik GmbH
Robert-Koch-Str. 39
55129 Mainz, Germany
Fax: +49 (6131) 9221-33
© PHYTEC Messtechnik GmbH 2012
L-780e_1
63
Was this manual useful for you? yes no
Thank you for your participation!
