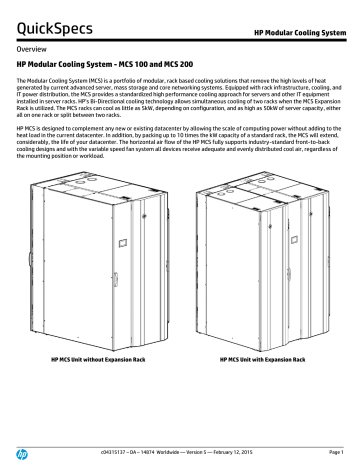

HP Modular Cooling System
QuickSpecs
HP Modular Cooling System
Overview
HP Modular Cooling System - MCS 100 and MCS 200
The Modular Cooling System (MCS) is a portfolio of modular, rack based cooling solutions that remove the high levels of heat
generated by current advanced server, mass storage and core networking systems. Equipped with rack infrastructure, cooling, and
IT power distribution, the MCS provides a standardized high performance cooling approach for servers and other IT equipment
installed in server racks. HP's Bi-Directional cooling technology allows simultaneous cooling of two racks when the MCS Expansion
Rack is utilized. The MCS racks can cool as little as 5kW, depending on configuration, and as high as 50kW of server capacity, either
all on one rack or split between two racks.
HP MCS is designed to complement any new or existing datacenter by allowing the scale of computing power without adding to the
heat load in the current datacenter. In addition, by packing up to 10 times the kW capacity of a standard rack, the MCS will extend,
considerably, the life of your datacenter. The horizontal air flow of the HP MCS fully supports industry-standard front-to-back
cooling designs and with the variable speed fan system all devices receive adequate and evenly distributed cool air, regardless of
the mounting position or workload.
HP MCS Unit without Expansion Rack
HP MCS Unit with Expansion Rack
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 1
QuickSpecs
HP Modular Cooling System
Models
HP MCS Key Features















Medium To High Density Rack Based Performance Cooling Solutions
MCS 100 Up To 30kw 2,800 CFM In Single Or Dual Rack Configurations
MCS 200 Up To 50kw, 4,500 CFM In Single Or Dual Rack Configurations
Standard 19" 42U HP Rack Design , Up To 3,000 Lbs. IT Weight Capacity
MCS-Rack Solution - 1.5 Racks Wide, Maintains Datacenter 2' Tiling Floor Plan
Front And Rear Rack Containment For Ultra Density And Efficiency
Up To 6 Hot Scalable/Swappable High Airflow Fans Per MCS
High Efficiency Heat Exchanger: pPUE Of As Low As 1.05
Warm Water Cooling Ready: 30kw Of Cooling From 64?F Water
Extend MCS Cooling To A Second Rack With Optional MCS Expansion Rack
Integrated Automatic Door Opening System Standard
MCS System/Environmental Monitor With SNMP Integration
Integrated Automatic Transfer Switch For Power Input Redundancy
Condensate Evacuation System For Simplified Maintenance
Full MCS Services Offering Available: Planning, Deployment, Maintenance
Modular Cooling System (MCS) 100 and 200
HP MCS 100 Cooling Unit

BW976A
The MCS 100 Cooling Unit (BW976A) Includes:
o MCS Cooling Unit, 10kW Capacity, Expandable to 30kW with additional fan modules (BW978A)
o 1200 mm. (HP 642 Rack) 19" Rack, Expandable with MCS Expansion Rack Option
o 1 Fan (BW978A) Included Standard - 10kW Expandable Increments to 30kW or N+X
redundancy with each additional BW978A
o Options: Automatic Door Opening Kit, Expansion Rack, 200 mm. Rack Extension Kit, LCD
Touchscreen, Automatic Transfer Switch, Additional Fans, Condensate Pump, 277V Input, and
Connection Kit.
HP MCS 200 Cooling Unit

BW974A
The MCS 200 Cooling Unit (BW974A) includes:
o MCS 200 Cooling Unit, 30kW Capacity, Expandable to 50kW or N+X redundancy with additional
fan modules (BW978A)
o 1200 mm. (HP 10k Rack) 19" Rack, Expandable with MCS Expansion Rack Option
o 4 Fans (BW978A) Included Standard - 30kW Expandable to 50kW with additional fan modules
(BW978A)
o LCD Touchscreen
o Automatic Transfer Switch
o Condensate Pump
o Automatic Door Opening Kit
o 200 mm. Rack Extension Kit
o Optional: Expansion Rack, 277V Input, Connection Kit
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 2
QuickSpecs
HP Modular Cooling System
MCS Options
HP MCS Expansion Rack
HP MCS Scalable Fans
HP MCS Rear Rack
Extension
HP MCS Touchscreen
HP MCS Condensation
Pumps
HP MCS 277 Volt Kit
Allows for MCS cooling unit cooling capacity to be shared between two IT racks.
Includes all necessary hardware.
HP Modular Cooling System 100 Expansion Rack
NOTE: Optional for the MCS100, ships separately
HP Modular Cooling System 200 Expansion Rack
NOTE: Optional for the MCS 200, ships separately
Provides additional hot-pluggable capacity or redundancy for the MCS System
HP Modular Cooling System Scalable Fan Unit
NOTE: See "MCS Capacity Chart" for cooling and airflow reference of MCS 100/MCS
200
200 mm. rear rack extension for the MCS system (IT Rack and Cooling System).
Provides more room for rack mounted PDU's. Includes all necessary hardware.
HP 42U Rack 200mm Rear Extension Kit
NOTE: Optional for the MCS 100, included standard in the MCS 200
LCD management display unit located on front of MCS unit
HP Modular Cooling System 100 Touchscreen Display
NOTE: Optional for the MCS 100, Standard with the MCS 200
Condensation pump is used in addition to the condensation evacuation system in
the MCS and provides additional fail-over redundancy
HP Modular Cooling System Condensation Pump
NOTE: Optional for the MCS 100, Standard with the MCS 200
BW977A
BW975A
BW978A
AF036A
BW981A
BW982A
Allows for the MCS to accept 208V to 277V AC power Input
HP Modular Cooling System 277 Volt Kit
NOTE: Optional for the MCS 100 and MCS 200
BW983A
HP MCS Auto Transfer
Switch
Provides dual power input functionality of the MCS system. ATS module fits inside
HP Modular Cooling System Auto Transfer Switch
NOTE: Optional for the MCS 100, Standard with the MCS 200
BW979A
HP MCS Grounding Kit
Electrical grounding for the MCS System (IT rack and cooling unit)
HP Rack Grounding Kit
HP MCS Automatic Door
Opening Kit
HP Modular Cooling System Auto Door Release Kit
NOTE: System Requires Auto Transfer Switch (BW979A)
NOTE: Optional for MCS 100, Standard with the MCS 200
HP Universal 1U Filler
Panels
Blanking panels are made from high grade molded plastic, and designed to be
installed without tools. Using blanking panels is recommended to ensure proper
airflow in unused rack U space.
HP 1U 10-pack Black Universal Filler Panel
NOTE: Pack of 10
HP 1U 100-pack Black Universal Filler Panel
NOTE: Pack of 100
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
BW891A
BW980A
BW928A
BW929A
Page 3
QuickSpecs
HP Modular Cooling System
MCS Options
HP MCS Hook-Up Kit
HP MCS Services
For More Information
Kit provides easy connection of the MCS to chilled water system. Includes hose
assembly, elbow Allows water connection from bottom (vertical) or from top
(vertical) or from back (horizontal)
HP Modular Cooling System Hookup Kit
Installation Services
HP Install Modular Cooling-Series SL5042 Rack Service
NOTE: Installation of MCS per the product user installation manual, BTO MCS units
only.
BW971A
UE005E
Modular Cooling System (MCS) Website: http://www.hp.com/go/mcs
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 4
QuickSpecs
HP Modular Cooling System
Technical Specifications
MCS Per Rack Capacity Chart
# of Fans
MCS 100
(BW978A)
1 Fan
10kW (934 CFM)
2 Fans
20kW (1,866 CFM)
10kW N+1
3 Fans
30kW (2,800 CFM)
20kW N+1
4 Fans
30kW N+1
20kW N+2
5 Fans
N/A
MCS 100 w/Expansion Rack
MCS 200
MCS 200 w/Expansion Rack
5kW (467 CFM)
10kW (933 CFM)
5kW N+1
15kW (1,400 CFM)
10kW N+1
15kW N+1
10kW N+2
N/A
N/A
N/A
N/A
N/A
N/A
N/A
30kW (3,000 CFM)
15kW (1,600 CFM)
40kW (3,750 CFM)
20kW (2,000 CFM)
30kW N+1
15kW N+1
6 Fans
N/A
N/A
50kW (4,500 CFM)
25kW (2,400 CFM)
40kW N+1, 30kW N+2
20kW N+1, 15kW N+2
NOTE: Cooling performance is rated at 43°F EWT, MCS with Expansion Rack capacity/airflow is pooled and doesn't have to be
evenly split between racks ex. MCS 100 with 3 fans provides at total of 2,800 CFM - one rack can use 2,000 CFM and the other can
use 800 CFM with no problem.
MCS 100 and MCS 200 Specifications
NOTE: The specifications below are for the base MCS (100 or 200) unit without Expansion Rack.
MCS 100 (Intl.)
MCS 200 (Intl.)
Unpacked Dimensions
Height in U
42U
(HxWxD)
Height
78.9 in. (2,004 mm.)
Width
36 in (915 mm.)
Depth
51.6 in. (1,311 mm.)
59.5 in. (1,510 mm.)
Net Weight
919 lbs. (417 kg.)
1,054 lbs. (478 kg.)
(w/MCS Rack)
Packed Specifications* Shipping Height
90 in (2,285 mm.)
Shipping Width
48 in (1,219 mm.)
Shipping Depth
72 in (1,829 mm.)
Shipping Weight
1,479 lbs. (670 kg.)
1,614 lbs. (732 kg.)
Shipping Ramp Length
103 in (2,616 mm.)
Offloading Ramp Clearance
20.28 ft. (6.18 m.)
Rack
Static IT Rack Load
3,000 lbs. (1,364 kg.)
Dynamic IT Rack Load
2,000 lbs. (907 kg.)
2,300 lbs. (1,043 kg.)
Door Color
Black With Silver Extrusion
Frame Color
Black
Rack Front Door
Contained - Transparent Polycarbonate Insert Behind Mesh
Rack Rear Doors
Contained - Solid, Split Doors
Rack Side Panels Included
Yes
Cooling
Cooling System Type
Chilled Water
Heat Exchanger
(1) 30 kW
(1) 50 kW
Fan Type
Electrically Commutated (EC), 0-100%
Fans
1 Standard, Supports Up To 4
4 Standard, Supports Up To 6
Max Cooling Capacity
30 kW
50 kW
Air Flow To Servers
2,800 CFM Max.
4,500 CFM Max.
Chilled Water Inlet
Recommended: 45°F to 64°F (7°C to 18°C)
Temperature
Max. Chilled Water Flow Rate
13.2 GPM (50 LPM)
32.8 GPM (124 LPM)
Chilled Water Pressure Drop
7.3 PSI @ 13.2 GPM (50 LPM)
17 PSI @ 32.8 GPM (124 LPM)
Water Connection Location
Bottom, Overhead
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 5
QuickSpecs
HP Modular Cooling System
Technical Specifications
Water Connection Pipe Size
Power Input
Environment
Environmental
Monitoring
Communications &
Management
Warranty
Certifications
1.75 in. (44.45 mm.)
1.25 in. (31.75 mm. BSPP (G type)
Water Connection Coupling
supplied in MCS Hook up Kit
Condensation Evacuation
Yes (gravity drain standard and condensate pump option)
Nominal Input Voltage
208 to 230 VAC +/- 10% (208 to 277V Input is Optional)
Voltage Frequency Range
50/60 Hz
Input Power Draw
1,800 Watts Max.
2,800 Watts Max.
Rated Line Current
18A per line cord
Max Inrush Current
200A peak
Circuit Breaker Rating
20A per line cord
Power Factor Correction
>0.95 at all loads
Ground Leakage Current (Ma)
<19.4mA per line cord
Input Connections
NEMA L6-20P (IEC309), 277V Option is L6-30P
1 (2 if Automatic Transfer Switch
2 (Using standard Automatic
Power Cords
option is used)
Transfer Switch)
Power Input Redundancy
Yes, with optional auto transfer switch, transfer time 2 ms.
Allowable 20%-80% (non-condensing)
Humidity Range
Recommended min. 41.9° F (5.5° C) dew point
Recommended max. 60% relative humidity and 59° F (15° C) dew point
Water Temperature Monitor
Yes
Multi-function LCD status and
LCD Control Panel
Optional: LCD Display
control console
SIM 5.0 Integration
Yes (SNMP traps)
RJ45 Port
Standard MCS Warranty
Standard Rack Warranty
Regulatory Approvals
1
1-0-0
3-0-0
UL Listing 484
EN61000-3-2
EN61000-3-3 Flicker
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
CB report to IEC 60950-1
TÜV / GS EN 60335-1 (according to 60335-2-40)
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 6
QuickSpecs
HP Modular Cooling System
Technical Specifications
MCS 100 and MCS 200 Expansion Rack Specifications
NOTE: The MCS Expansion Rack ships separately and must be attached onsite.
MCS 100
MCS 200
Dimensions
Height in U
42U
Height
78.9 in. (2,004 mm.)
Width
23.6 in. (600 mm.)
Depth
47.2 in. (1,200 mm.)
55.1 in. (1,399 mm.)
Shipping Height (on skid)
85 in. (2,159 mm.)
Shipping Width (on skid)
36 in. (914.4 mm.)
Shipping Depth (on skid)
68 in. (1,727 mm.)
Ramp Length
107 in. (2,718 mm.)
Offloading Ramp Clearance
20.6 ft. (6.28 mm.)
Weight
Net
299 lbs. (135 kg.)
395 lbs. (179 kg.)
Shipping
584 (265 kg.)
680 lbs. (308 kg.)
Load
Static
3,000 lbs. (1,364 kg.)
Dynamic
2,000 lbs. (1,043 kg.)
2,300 lbs. (1,043 kg.)
Color
Doors
Black With Silver Extrusion
Frame
Black
Warranty
MCS Expansion Rack
3-0-0
Environment-friendly
Products and Approach
End-of-life Management Hewlett-Packard offers end-of-life HP product return, trade-in, and
and Recycling
recycling programs in many geographic areas. For trade-in information,
please go to http://www.hp.com/go/green. To recycle your product, please
go to: http://www.hp.com/go/green or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed of in
a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard web site at: http://www.hp.com/go/green. These
instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 7
QuickSpecs
HP Modular Cooling System
Summary of Changes
Date
12-Feb-2014
Version History
From Version 4 to 5
Action
Changed
24-Apr-2014
18-Apr-2014
01-Apr-2014
From Version 3 to 4
From Version 2 to 3
From Version 1 to 2
Removed
Changed
Changed
Changed
Description of Change:
Models, MSC Options, and Technical Specifications sections
were revised.
Hardware services on-site was removed from HP MSC services.
Formatting changes were made.
Formatting changes were made.
Changes were made throughout the QuickSpec.
© Copyright 2015 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
c04315137 – DA – 14874 Worldwide — Version 5 — February 12, 2015
Page 8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
