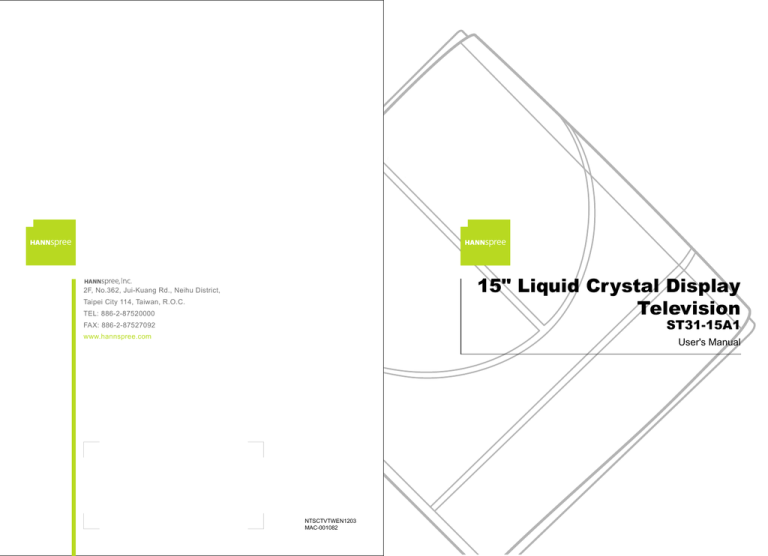

15" Liquid Crystal Display
Television
2F, No.362, Jui-Kuang Rd., Neihu District,
Taipei City 114, Taiwan, R.O.C.
TEL: 886-2-87520000
ST31-15A1
FAX: 886-2-87527092
www.hannspree.com
User's Manual
NTSCTVTWEN1203
MAC-001082
HoosierEN.book
Page 1
Friday, July 30, 2004
10:16 AM
Table of Contents
1. Warranty and Service .................................................... 3
2. Preface ......................................................................... 4
3. Description of Warning Symbols ..................................... 5
4. Safety Notices ............................................................... 6
5. Regulatory Information ................................................ 14
6. Introducing the TV ....................................................... 16
Features .................................................................. 16
7. Checking Package Contents ........................................ 17
8. Getting to Know Your TV ............................................. 18
Front View ............................................................... 18
Input and Output Ports ............................................. 20
9. Getting Started ............................................................
Connecting to an Antenna or Cable TV .....................
Connecting to AV Devices ........................................
Connecting to a VCR, VCD or DVD Player ...........
Connecting to a Video Camera ............................
Connecting Headphones ..........................................
Connecting an Amplifier or Speakers (Build-in amplifier) .
Connecting the Power Adapter .................................
22
22
23
23
24
25
26
27
10. Using the TV ..............................................................
Using the Remote Control ........................................
Turning the TV On and Off .......................................
Selecting Channels ..................................................
Switching Source Signals .........................................
Adjusting the Volume ...............................................
28
28
29
29
30
30
1
HoosierEN.book
Page 2
Friday, July 30, 2004
10:16 AM
Table of Contents
11. Adjusting On-Screen Display (OSD) Settings ...............
OSD Setting Menus .................................................
Picture Setting .........................................................
Brightness ..........................................................
Contrast .............................................................
Sharpness ..........................................................
Hue ....................................................................
Saturation ...........................................................
Color ..................................................................
Preset ................................................................
Audio Setting ...........................................................
Treble .................................................................
Bass ...................................................................
Balance ..............................................................
Surround ............................................................
Enhance .............................................................
Preset ................................................................
TV Setting ...............................................................
TV/CATV ............................................................
Channel Add/Erase .............................................
Auto Program ......................................................
Customize Setting ....................................................
Sleep Timer ........................................................
OSD Timeout ......................................................
Language ...........................................................
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
51
52
52
12. Taking Care of Your TV .............................................. 53
13. Troubleshooting .......................................................... 54
14. Specifications ............................................................. 56
15. Glossary .................................................................... 57
2
HoosierEN.book
1
Page 3
Friday, July 30, 2004
10:16 AM
Warranty and Service
The instructions on this manual are for the model(s) listed on the front
cover. Before you start reading, check your product number by looking
at the rear of your TV.
Thank you for purchasing our Liquid Crystal Display Television (LCD
TV). With this product, you will be able to enjoy superior audio and
video while enriching your lifestyle with advanced technology.
The Hannspree TV is warranted for one year limited service from the
date the product is received (as shown on the Warranty and Service
Manual); please refer to the "Warranty and Service Manual" for the
detailed warranty information.
Hannspree provides complete service information in the included "Warranty and Service Manual", or directly from Hannspree global customer
service center. Our service representatives will be very happy to serve
you to your satisfaction.
Hannspree global customer service center telephone number:
From Taiwan please call 0800-008-800
The Hannspree E-mail Address:
[email protected]
3
HoosierEN.book
Page 4
2
Friday, July 30, 2004
10:16 AM
Preface
This manual is designed to assist users in setting up and using the
LCD TV. Information in this document has been carefully checked
for accuracy; however, no guarantee is given to the correctness of
the contents. The information in this document is subject to change
without notice.
Copyright
© Copyright 2003 Hannspree, Inc.
All rights reserved. This product and related documentation are protected by copyright and are distributed under licenses restricting their
use, copying, and distribution. No part of this documentation may be
reproduced in any form by any means without prior written authorization
of Hannspree, Inc., and its licensors, if any.
4
HoosierEN.book
3
Page 5
Friday, July 30, 2004
10:16 AM
Description of Warning Symbols
Warning
Caution
This symbol is used to remind
users to pay attention to
important descriptions regarding usage and maintenance
(repair) or additional important information related to this
product.
This symbol is used to remind
users to pay attention to the
danger of electric shocks due
to dangerous internal noninsulated components.
Electric Power Notice
Electric power may cause personal injury and mechanical damage if it is
misused. Although safety has been taken into consideration during the
design and production of this product, electric shock or fire can result
when the product is misused. To prevent potential danger, follow the
instructions below when installing, operating and cleaning the product.
In addition, read the following “Safety Notices” carefully before using the
product to ensure that your TV is safe and long-lasting.
5
HoosierEN.book
4
Page 6
Friday, July 30, 2004
10:16 AM
Safety Notices
Power Supply Safety Notes
1. To avoid electric shocks, do not use an extended power cord or
an outlet that does not match this product's plug or leaves the
plug exposed.
2. This product has a 3-pin grounded plug. The third pin connects
to ground; do not remove it.
3. If the power cord or plug is damaged or worn, unplug it immediately and contact a qualified service technician for maintenance.
4. To avoid fire or electric shocks, do not overload electric power
outlets.
Installation Safety Notes
Antenna
We suggest that you use an outdoor antenna to get the best signal
possible unless you have cable TV or a centralized indoor antenna
system. You may, however, use an antenna indoors if it is placed in
a location free from interference.
Location
Avoid allowing the TV to get prolonged exposure to sunlight or
other strong sources of heat. Leave sufficient distance between the
TV and the wall to provide enough space for the emission of heat.
6
HoosierEN.book
Page 7
Friday, July 30, 2004
10:16 AM
Before You Proceed
1. Read the Safety Notices and the User’s Manual carefully
before turning the product on.
2. Keep your User’s Manual in a safe place for future reference.
Keep the box and packaging in case the product needs to be
shipped in the future.
3. Follow the product and warning label instructions.
4. Any changes or modifications that do not follow the instructions
in this manual will void this product's warranty.
Warning
To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Power
To avoid danger of fires or electric shock, make sure that you use a
proper adapter. The TV is compatible with the following adapters:
• EDAC POWER ELECTRONICS CO., LTD.: EA1050A-120
• LI SHIN INTERNATIONAL ENTERPRISE CORP.: 0218B1260
7
HoosierEN.book
Page 8
Friday, July 30, 2004
10:16 AM
Optimal Viewing Area
MUTE
MENU
SOURCE
8
160 cm
HoosierEN.book
Page 9
Friday, July 30, 2004
10:16 AM
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug: A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your
safety. If the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
9
HoosierEN.book
Page 10
Friday, July 30, 2004
10:16 AM
10. Protect the power cord from being walked on
or pinched particularly at the plug, convenience receptacles, and the point where they
exit from the apparatus.
11. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
12. Only use attachments/accessories specified
by the manufacturer.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
if the power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
10
HoosierEN.book
Page 11
Friday, July 30, 2004
10:16 AM
Personal Safety
To avoid overloading the power supply, do not
plug too many electrical devices into an outlet or
extension cable.
Dangerous high-voltage electric power components are located inside the TV. To avoid electric
shock, do not disassemble the casing.
Do not place or drop metals, small objects, or
flammable materials in the vent to avoid an electric shock or a fire.
If the TV is dropped, falls down, or is otherwise
damaged, unplug the power cord immediately
and notify a qualified service technician.
If any fluid is sprayed or dropped into the TV,
remove the power plug immediately and notify a
qualified service technician.
The screen of the TV is made of glass, be careful to avoid hitting or scraping it. If the screen is
broken, avoid cutting yourself on the broken
glass.
Do not allow children to use the TV unattended
to avoid accidents caused by improper operation.
11
HoosierEN.book
Page 12
Friday, July 30, 2004
10:16 AM
Installation
To avoid damage to power circuits, do not place
the TV in locations where there is excessive
steam or dust.
Do not place the TV on a bed, sofa, carpet, or in
a sealed cabinet to avoid blocking the product's
vents.
Install the outdoor antenna far from power transmission lines to avoid possible danger.
Remove the power cord and antenna connector
when there is a storm or when the TV is not in
use for a long period to avoid electric shock from
lightning.
12
HoosierEN.book
Page 13
Friday, July 30, 2004
10:16 AM
Operation
V
This product is designed for power sources as
labeled on the casing. Avoid using any other
power accessories to avoid electric shock or
other damage.
The plug can be inserted into an outlet in only
one direction. Notify a qualified service technician if you cannot plug it in correctly.
If there is any problem that cannot be resolved
according to the instructions given in this manual, notify a qualified service technician immediately. Do not attempt any methods not covered in
this manual.
Maintenance
J.
Do not attempt to repair the TV by yourself.
Notify a qualified service technician. Ask the service technician to complete a safety inspection
before switching the power on after completing
any maintenance.
13
HoosierEN.book
5
Page 14
Friday, July 30, 2004
10:16 AM
Regulatory Information
FCC Compliance Statement1
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
•
•
•
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
•
Warning: A shielded-type power cord is required in order to meet FCC
emission limits and also to prevent interference to nearby radio and television reception. It is essential that only the supplied power cord be
used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment.
1. applies only to products purchased in the United States of America
14
HoosierEN.book
Page 15
Friday, July 30, 2004
10:16 AM
DOC Compliance Notice1
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulations of the Canadian Department of Communications.This
device complies with Canada ICES-003 Class B.
CE Conformity Statement2
This device complies with the requirements set out in the Council Directive on the approximation of the Laws of the Member States relating to
Electromagnetic Compatibility (89/336/EEC) and the Amendment Directive (92/31/EEC), Low-Voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC).
1. applies only to products purchased in Canada
2. applies only to products purchased in the European Union
15
HoosierEN.book
Page 16
6
Friday, July 30, 2004
10:16 AM
Introducing the TV
Thank you for purchasing this Liquid
Crystal Display TV. Your TV is designed
to be safe, versatile, and easy to use.
The Hoosier design makes it a fun
addition to any room.
You can watch standard NTSC television
channels, and easily connect a VCR,
VCD, or DVD player to the standard
CVBS and S-Video input ports located at
the rear of the unit.
MUTE
MENU
SOURCE
Convenient control buttons located on the front panel let you change
channels, adjust the volume, and change display settings through an
easy-to-use on-screen menu system. The TV speakers provide full,
rich stereo sound and a convenient audio output port lets you
connect to an external audio system or headphones.
Features
•
•
•
•
15-inch color TFT LCD TV
Safe, sturdy construction
Built-in TV tuner
Audio/video support:
– Stereo audio inputs
– Composite video inputs
– S-Video input
• On-screen display (OSD) menu system
• Multi-channel Television Sounds (MTS) Stereo with SAP
• Built-in 2W+2W stereo audio amplifier
16
HoosierEN.book
7
Page 17
Friday, July 30, 2004
10:16 AM
Checking Package Contents
Make sure the following components are included in the box. Contact
your vendor immediately if anything is missing or damaged.
TV
SOURCE
User’s Manual
User's
Manua
MENU
MUTE
Quick Start Guide
l
Warranty and Service
Manual
Quick Sta
Guide rt
Warranty
and
manual service
Wire Material Package
4-in-1 Cable
E77
874
Power Adapter
W
-1
Power Cord
0V
G W A 1 8 30
80 C
V
17
HoosierEN.book
Page 18
8
Friday, July 30, 2004
10:16 AM
Getting to Know Your TV
Front View
MUTE
MENU
CE
SOUR
Lift the leather cover
over as shown to view
the LCD screen.
8
SOURCE
MENU
8
MUTE
Signal sensor
SOURCE
1
Description
MENU
MUTE
2
3
4
5
6
7
Function
1
Source
Selects the input source to be displayed
(TV, AV1, or AV2).
2
Menu
Turns the on-screen display (OSD)
menus on and off.
3
Select channel
Changes the channel. Press S to increase
the channel number. Press T to decrease
the channel number.
4
Adjust volume
Increases (+) and decreases (–) the volume.
18
HoosierEN.book
Page 19
Friday, July 30, 2004
Description
10:16 AM
Function
5
Mute
Press this button to eliminate sound.
Press this button again or press the
VOLUME buttons directly to restore
sound.
6
Headphone line out
Connects to headphones.
7
Power / Power
LED
Turns the TV on and off. Green LED
indicates power on.
8
Speakers
Output audio content.
19
HoosierEN.book
Page 20
Friday, July 30, 2004
10:16 AM
Input and Output Ports
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
1
1
20
2
3
4
5
Description
Function
AV2
Use the included 4-in-1 Audio/Video
cable to connect external devices, such
as a VCR, VCD, or DVD player
Audio Input: AV connectors white and
red audio cables.
Video Input: AV connector video (yellow) or S-Video cables.
HoosierEN.book
Page 21
Friday, July 30, 2004
10:16 AM
Description
Function
Line out
Connects to external amplifier.
3
AV1
Use the AV1 input to connect an external
device, such as a VCR, or a VCD, or
DVD player.
Audio Input: AV connector white and
red audio cables.
Video Input: AV concocter video (yellow) cable or S-Video cables.
4
DC-IN
Connects to the included power adapter.
5
Antenna/cable TV
line in
Connects to an antenna or CATV cable
television line.
2
21
HoosierEN.book
Page 22
9
Friday, July 30, 2004
10:16 AM
Getting Started
Connecting to an Antenna or Cable TV
1 Connect one end of the VHF/UHF (Antenna) or CATV cable to the
ANT Jack (VHF/UHF IN Jack) on the back of the TV.
2 Connect the other end of the VHF/UHF (Antenna) or CATV cable to
the Antenna or CATV socket.
Antenna
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
ANT jack
(VHF/UHF IN jack)
Antenna/CATV socket
Antenna/CATV
coaxial cable
Note
If you cannot receive channels after connecting to an antenna or cable TV
line, try scanning for channels. See “Auto Program” on page 49.
22
HoosierEN.book
Page 23
Friday, July 30, 2004
10:16 AM
Connecting to AV Devices
Connect external devices such as VCD/DVD players or VCRs to the
TV using the AV1 and AV2 ports on the back of the TV.
Connecting to a VCR, VCD or DVD Player
The illustration presented here shows you how to connect your TV to
a VCR, VCD or DVD player. Actual connections may vary according
to the make and model of your device. Refer to the user’s manual
included with the AV device for more detailed instructions.
VCR
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
VCD
AV1
DVD
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
B
R
W
Y
AV1
AV2
S-Video
connector
4-in-1 cable
AV
connectors
Cables and connectors are colorcoded (black, red, white, yellow).
23
HoosierEN.book
Page 24
Friday, July 30, 2004
10:16 AM
Connecting to a Video Camera
The following illustration shows you how to connect the TV to a
camcorder. Actual connections may vary according to the make and
model of the device. Refer to the user’s manual included with the
camcorder for more detailed instructions.
WB
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
S
ANT
AV1
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
AV2
S-Video
connector
B
R
W
4-IN-1 cable
Y
AV connctors
Note: When connecting the S-Video connector and AV connectors at the same time, the
priority is given to the S-Video connector.
24
Cables and connectors are colorcoded (black, red, white, yellow).
HoosierEN.book
Page 25
Friday, July 30, 2004
10:16 AM
Connecting Headphones
Headphones may be used to listen to the TV instead of using the
built-in speakers. Connect headphones to the headphone line out
port as illustrated.
Headphones
SOURCE
SOURCE
MENU
MUTE
MENU
MUTE
Headphone
line out port
Notes
• Headphones are not included with the product.
• The internal TV speakers will not output sound when headphones are
plugged in.
25
HoosierEN.book
Page 26
Friday, July 30, 2004
10:16 AM
Connecting an Amplifier or Speakers (Build-in
amplifier)
Connect an external amplifier or speakers to the line out port to
provide better sound quality. Refer to the following illustration.
Amplifier
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
L
Line out
26
R
Speakers
(Bulld-in amplifier)
HoosierEN.book
Page 27
Friday, July 30, 2004
10:16 AM
Connecting the Power Adapter
1 Connect the power cord to the power adapter as illustrated.
2 Plug the power adapter connector into the DC-IN on the rear panel of
the TV.
3 Plug the three-pronged plug at the other end of the power cord into a
power outlet.
Power outlet
Three-pronged
plug
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
Power cord
AV2
LINE OUT
S-VIDEO
R
L
VIDEO
DC-IN
ANT
AV1
DC-IN
Power adapter
27
HoosierEN.book
10
Page 28
Friday, July 30, 2004
10:16 AM
Using the TV
Using the Remote Control
For best results, use the remote control within a distance of 5 meters
(16 feet) from the front of the TV’s signal sensor. Do not exceed an
angle of 30 degrees when pointing at the signal sensor. Refer to the
following illustration.
3m
MUTE
MENU
SOURCE
3m
28
30
30
5m
HoosierEN.book
Page 29
Friday, July 30, 2004
10:16 AM
Turning the TV On and Off
1 Press the POWER
button on the
CH 33
remote control or on the TV control
panel. The power LED indicator on the
front of the TV changes from red to
green, indicating that the power is on.
2 Press the POWER
button again.
The power LED changes from green
to red, indicating that the TV is in
SOURCE
MENU
MUTE
Power/Power LED
standby (off) mode.
Selecting Channels
1 Press the CH UP button to increase
CH 33
the channel number by one.
2 Press the CH DOWN button to
decrease the channel number by one.
3 Enter the specific channel number by
pressing the number buttons on the
SOURCE
MENU
MUTE
remote control. The channel is
displayed on the LCD panel.
Channel down
Channel up
29
HoosierEN.book
Page 30
Friday, July 30, 2004
10:16 AM
Switching Source Signals
Press the SOURCE button to select
different source signals.
CH 33
CH, AV1, and AV2 appear on the top
right corner of the screen in that order.
Note
The TV supports S-Video input in addition
to normal video and audio signals. The TV
detects the signal type automatically and
gives priority to S-video when two signals
are detected at the same time.
SOURCE
MENU
MUTE
Source
Adjusting the Volume
1 Press the VOL UP button to increase
CH 33
the volume.
2 Press the VOL DOWN button to
decrease the volume.
3 Press the MUTE button. The word
“MUTE” appears on the top right
corner of the screen and sound is
turned off.
4 Press the MUTE button again to
restore the original volume.
30
SOURCE
MENU
Volume down
Volume up
Mute
MUTE
HoosierEN.book
Page 31
11
Friday, July 30, 2004
10:16 AM
Adjusting On-Screen Display (OSD)
Settings
The On-Screen Display (OSD) menu system provides a quick and
simple method to adjust your TV's settings. This chapter describes
how to change each of the available settings. The OSD can be used
with either the front control panel or remote control.
Button Descriptions
Front Panel Control
MENU
MENU
CH UP
S
T
+
–
CH DOWN
VOL UP
VOL DOWN
The following sections explain how to adjust settings in the OSD
menus using the front panel control.
OSD Setting Menus
MAIN MENU
AUDIO
TV
CUSTOMIZE
SEL
Press MENU to enter the OSD
Main Menu screen.
ENTER
MENU
The Main Menu appears.
Note
Press the MENU button to exit the OSD menus and submenus at any time.
Repeatedly press the MENU button to exit the OSD menus and submenus
and return to TV mode.
31
HoosierEN.book
Page 32
Friday, July 30, 2004
10:16 AM
Picture Setting
MAIN MENU
AUDIO
TV
CUSTOMIZE
SEL
Press MENU to enter the OSD
Main Menu screen.
ENTER
MENU
1 Press the CH UP / DOWN buttons to select PICTURE.
2 Press the VOL UP button to
enter the PICTURE Menu.
Note
You can operate the OSD with either the remote control or the front panel
control.
32
HoosierEN.book
Page 33
Friday, July 30, 2004
10:16 AM
Brightness
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
SEL
ENTER
1 Press the VOL UP button. The
brightness slide bar appears.
MENU
2 Press the VOL UP button to
BRIGHTNESS
+12
BRIGHTNESS
-12
increase the brightness.
3 Press the VOL DOWN button to
decrease the brightness.
4 Press MENU to confirm the setting
and return to the Picture Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
BRIGHTNESS
MAX
MID
MIN
+12
0
-12
33
HoosierEN.book
Page 34
Friday, July 30, 2004
10:16 AM
Contrast
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
SEL
ENTER
1 Press the CH DOWN button to select
CONTRAST.
2 Press the VOL UP button. The
contrast slide bar appears.
MENU
3 Press the VOL UP button to
CONTRAST
30
CONTRAST
15
increase the contrast.
4 Press the VOL DOWN button to
decrease the contrast.
5 Press MENU to confirm the setting
and return to the Picture Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
CONTRAST
34
MAX
MID
MIN
30
15
1
HoosierEN.book
Page 35
Friday, July 30, 2004
10:16 AM
Sharpness
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
SEL
ENTER
1 Press the CH DOWN button to select
SHARPNESS.
2 Press the VOL UP button. The
sharpness slide bar appears.
MENU
3 Press the VOL UP button to
SHARPNESS
+8
SHARPNESS
-8
increase the sharpness.
4 Press the VOL DOWN button to
decrease the sharpness.
5 Press MENU to confirm the setting
and return to the Picture Menu.
Note
The new setting is confirmed automatically when the OSD times out.
SHARPNESS
MAX
MID
MIN
+8
0
-8
35
HoosierEN.book
Page 36
Friday, July 30, 2004
10:16 AM
Hue
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
SEL
ENTER
1 Press the CH DOWN button to select
HUE.
2 Press the VOL UP button. The hue
slide bar appears.
MENU
3 Press the VOL UP button to
increase the hue toward the green
end of the spectrum. The image
HUE
+24
becomes more green.
4 Press the VOL DOWN button to
decrease the hue toward the red end
HUE
-24
of the spectrum. The image
becomes more red.
5 Press MENU to confirm the setting
and return to the Picture Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
HUE
36
MAX
MID
MIN
+24
0
-24
HoosierEN.book
Page 37
Friday, July 30, 2004
10:16 AM
Saturation
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
SEL
ENTER
1 Press the CH DOWN button to select
SATURATION.
2 Press the VOL UP button. The
saturation slide bar appears.
MENU
3 Press the VOL UP button to
SATURATION
+24
increase the saturation.
4 Press the VOL DOWN button to
decrease the saturation.
SATURATION
-24
5 Press MENU to confirm the setting
and return to the Picture Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
SATURATION
MAX
MID
MIN
+24
0
-24
37
HoosierEN.book
Page 38
Friday, July 30, 2004
10:16 AM
Color
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
ADJ
MENU
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
ADJ
select COLOR.
2 Press the VOL UP button. The
current setting appears blinking in
the brackets.
Neutral Color
Press the VOL UP button to select
NEUTRAL, then press MENU.
“NEUTRAL” appears in the brackets.
MENU
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
WARM
PRESET
ADJ
Warm Color
Press the VOL UP button to select
WARM, then press MENU. “WARM”
appears in the brackets.
MENU
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
COLD
PRESET
SEL
1 Press the CH DOWN button to
ENTER
Cold Color
Press the VOL UP button to select
COLD, then press MENU. “COLD”
appears in the brackets.
MENU
Note
The default color temperature is NEUTRAL.
38
HoosierEN.book
Page 39
Friday, July 30, 2004
10:16 AM
Preset
PICTURE MENU
BRIGHTNESS
0
CONTRAST
30
SHARPNESS
0
HUE
0
SATURATION
0
COLOR
NEUTRAL
PRESET
OK
SEL
ENTER
1 Press the CH DOWN button to
select PRESET.
2 Press the VOL UP button. “OK”
appears in the brackets. All picture
settings are returned to the factory-
MENU
set default values.
Note
The preset function erases all of your
custom picture settings.
39
HoosierEN.book
Page 40
Friday, July 30, 2004
10:16 AM
Audio Setting
MAIN MENU
AUDIO
TV
CUSTOMIZE
SEL
Press MENU to enter the OSD
Main Menu screen.
ENTER
MENU
1 Press the CH UP / DOWN buttons to select AUDIO.
2 Press the VOL UP button to
enter the Audio Menu.
Note
You can operate the OSD with either the remote control or the front panel
control.
40
HoosierEN.book
Page 41
Friday, July 30, 2004
10:16 AM
Treble
1 Press the VOL UP button. The treble
AUDIO MENU
TREBLE
0
0
BASS
0
BALANCE
SURROUND OFF
ON
ENHANCE
PRESET
SEL
TREBLE
+24
ENTER
slide bar appears.
MENU
2 Press the VOL UP button to
increase the treble.
3 Press the VOL DOWN button to
TREBLE
-24
decrease the treble.
4 Press MENU to confirm the setting
and return to the Audio Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
Treble
MAX
MID
MIN
+24
0
-24
41
HoosierEN.book
Page 42
Friday, July 30, 2004
10:16 AM
Bass
1 Press the CH DOWN button to select
AUDIO MENU
TREBLE
0
BASS
0
BALANCE
0
SURROUND OFF
ON
ENHANCE
PRESET
SEL
BASS
+24
BASS
-24
ENTER
BASS.
2 Press the VOL UP button. The bass
slide bar appears.
MENU
3 Press the VOL UP button to
increase the bass.
4 Press the VOL DOWN button to
decrease the bass.
5 Press MENU to confirm the setting
and return to the Audio Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
Bass
42
MAX
MID
MIN
+24
0
-24
HoosierEN.book
Page 43
Friday, July 30, 2004
10:16 AM
Balance
1 Press the CH DOWN button to select
AUDIO MENU
TREBLE
0
0
BASS
0
BALANCE
SURROUND OFF
ON
ENHANCE
PRESET
SEL
BALANCE
-24
BALANCE
+24
ENTER
BALANCE.
2 Press the VOL UP button. The
balance slide bar appears.
MENU
3 Press the VOL DOWN button to shift
the balance to the left speaker.
4 Press the VOL UP button to shift the
balance to the right speaker.
5 Press MENU to confirm the setting
and return to the Audio Menu.
Note
The new setting is confirmed automatically
when the OSD times out.
Balance
LEFT
MID
RIGHT
-24
0
+24
43
HoosierEN.book
Page 44
Friday, July 30, 2004
10:16 AM
Surround
1 Press the CH DOWN button to select
AUDIO MENU
TREBLE
0
BASS
0
BALANCE
0
SURROUND OFF
ON
ENHANCE
PRESET
SEL
ENTER
MENU
SURROUND.
2 Press the VOL UP button to enter the
setting field.
3 Press the VOL UP button to turn
surround on or off.
4 Press MENU to confirm your choice.
Enhance
1 Press the CH DOWN button to select
AUDIO MENU
TREBLE
0
BASS
0
0
BALANCE
SURROUND OFF
ON
ENHANCE
PRESET
SEL
ENTER
MENU
ENHANCE.
2 Press the VOL UP button to enter the
setting field.
3 Press the VOL UP button to turn
enhance on or off.
4 Press MENU to confirm your choice.
Note
Turning Enhance on boosts the volume;
however, if the input signal is over
specification, audio distortion may occur.
44
HoosierEN.book
Page 45
Friday, July 30, 2004
10:16 AM
Preset
1 Press the CH DOWN button to
AUDIO MENU
TREBLE
0
0
BASS
BALANCE
0
SURROUND OFF
ON
ENHANCE
OK
PRESET
SEL
ENTER
MENU
select PRESET.
2 Press the VOL UP button. “OK”
appears in the brackets. All audio
settings are returned to the factoryset default values.
Note
The preset function erases all of your
custom audio settings.
45
HoosierEN.book
Page 46
Friday, July 30, 2004
10:16 AM
TV Setting
MAIN MENU
AUDIO
TV
CUSTOMIZE
SEL
ENTER
MENU
1 Press the CH UP / DOWN
Press MENU to enter the OSD
Main Menu screen.
buttons to select TV.
2 Press the VOL UP button to
enter the TV Menu.
Note
You can operate the OSD with either the remote control or the front panel
control.
46
HoosierEN.book
Page 47
Friday, July 30, 2004
10:16 AM
TV/CATV
TV MENU
TV/CATV
CATV
CH ADD/ERASE
AUTO PROGRAM
SEL
ENTER
MENU
TV MENU
TV/CATV
CATV
CH ADD/ERASE
AUTO PROGRAM
+ADJ
TV MENU
TV/CATV
CH ADD/ERASE
AUTO PROGRAM
+ADJ
Press the VOL UP button. The current
setting appears flashing in the
brackets.
MENU
Receiving Cable TV
Press the VOL UP button to select
CATV, then press MENU. “CATV”
appears in the brackets.
Receiving Broadcast TV
TV
MENU
Press the VOL UP button to select TV,
then press MENU. “TV” appears in the
brackets.
Note
The default TV setting is “CATV”.
47
HoosierEN.book
Page 48
Friday, July 30, 2004
10:16 AM
Channel Add/Erase
TV MENU
TV/CATV
CATV
CH ADD/ERASE
AUTO PROGRAM
SEL
ENTER
MENU
1 Press the CH DOWN button to
select CH ADD/ERASE.
2 Press the VOL UP button. The OSD
menu display switches to the
following screen.
TV 43
CH UP/DOWN
-ERASE ADD+
MENU
Press the CH UP / DOWN button to
select a channel on the front panel.
Add Channel
Then press the VOL UP button on the
front panel to add the selected channel.
The channel number changes from
yellow into green after adding the
channel.
Erase Channel
Then press the VOL DOWN button on
the front panel to erase the selected
channel. The channel number changes
from green into yellow after erasing the
channel.
Note
You can still access the erased channel
by entering the channel number using
the number buttons on the remote
control. Add the channel again if it was
erased accidentally.
48
HoosierEN.book
Page 49
Friday, July 30, 2004
10:16 AM
Auto Program
TV MENU
TV/CATV
CATV
CH ADD/ERASE
AUTO PROGRAM
SEL
ENTER
1 Press the CH DOWN button to
select AUTO PROGRAM.
MENU
2 Press the VOL UP button to begin
AUTO PROGRAM
TV
44
auto programming. The screen
displays channels incrementally as
the TV scans for available
channels.
Note
The screen displays the first channel that
is successfully found after scanning is
completed.
49
HoosierEN.book
Page 50
Friday, July 30, 2004
10:16 AM
Customize Setting
MAIN MENU
AUDIO
TV
CUSTOMIZE
SEL
Press MENU to enter the OSD
Main Menu screen.
ENTER
MENU
1 Press the CH UP / DOWN
buttons to select CUSTOMIZE.
2 Press the VOL UP button to
enter the Customize Menu.
Note
You can operate the OSD with either the remote control or the front panel
control.
50
HoosierEN.book
Page 51
Friday, July 30, 2004
10:16 AM
Sleep Timer
The sleep timer turns the TV off automatically after a set time.
CUSTOMIZE MENU
SLEEP TIMER
OFF
OSD TIMEOUT 20 SEC
LANGUAGE
ENGLISH
SEL
ENTER
value: OFF, 30, 60, 90, or 120
minutes.
MENU
CUSTOMIZE MENU
SLEEP TIMER 30 MIN
OSD TIMEOUT 20 SEC
LANGUAGE
ENGLISH
+ADJ
1 Press the VOL UP button to select a
2 Press MENU to confirm your
choice.
MENU
30SLEEP
60SLEEP
90SLEEP
You can also press SLEEP on the
remote control to select 30, 60, 90 or
120 minutes. The setting appears on
the TV screen.
The remaining time is updated every
10 minutes on the display. During the
last minute, the sleep timer flashes.
120SLEEP
51
HoosierEN.book
Page 52
Friday, July 30, 2004
10:16 AM
OSD Timeout
This setting allows you to set the length of time the OSD menus
appear on the screen when a button is not pressed.
CUSTOMIZE MENU
SLEEP TIMER
OFF
OSD TIMEOUT 20 SEC
LANGUAGE
ENGLISH
+ADJ
MENU
1 Press the CH DOWN button to
select OSD TIMEOUT.
2 Press the VOL UP button. The
current setting appears flashing in
the brackets.
3 Press the VOL UP button to select
a value: 20, 40, or 60 seconds.
4 Press MENU to confirm your
choice.
Language
CUSTOMIZE MENU
SLEEP TIMER
OFF
OSD TIMEOUT 20 SEC
LANGUAGE
ENGLISH
SEL
ENTER
MENU
1 Press the CH DOWN button to
select LANGUAGE.
2 Press the VOL UP button. The
current setting appears flashing in
the brackets.
3 Press the VOL UP button to select
ENGLISH or CHINESE.
4 Press MENU to confirm your
MENU
choice.
Note
The default language setting is Traditional Chinese.
52
HoosierEN.book
Page 53
12
Friday, July 30, 2004
10:16 AM
Taking Care of Your TV
Turn the power off before you begin cleaning the
TV.
For best results, use a clean lens cloth to
remove dust and fingerprints from the screen.
GAS
OIL
Do not wipe the shell of the TV with alcohol,
methanol, gasoline or oil products to avoid
damaging the finish. Wipe the shell with a dry
soft cloth and use neutral cleaning fluids.
If your model has leather components, wipe the
leather parts with a dry cloth and keep the area
dry. Place the TV far from sources of steam to
avoid making the leather wet.
Be careful to remove the power plug correctly.
Hold the plug instead of pulling the power cord.
Arrange the power cord with other cords to avoid
knotting or bending which may cause fire due to
damage or electric leakage.
53
HoosierEN.book
13
Page 54
Friday, July 30, 2004
10:16 AM
Troubleshooting
Situation
Solution
•
•
•
No picture and sound.
•
•
•
•
No picture, or poor picture,
sound is OK.
Picture is not in color.
Picture is OK, no sound.
One of the speakers has no
sound.
Can’t receive some TV channels using cable TV.
Want to reset TV settings.
54
•
Connect the power cord properly.
Press the POWER button on the control panel or remote control.
Press the SOURCE button to cycle
through connected video sources.
Press the CH UP or CH DOWN button to switch to other TV stations.
Check the TV/CATV OSD settings.
See “TV/CATV” on page 47.
Make sure all cables are connected
properly.
Check the antenna and cable connections.
Adjust the brightness in the OSD
menus. See “Brightness” on page 33.
•
Adjust the saturation in the OSD
menus. See “Saturation” on page 37.
•
Press the VOL UP button on the control panel or remote control.
Make sure the MTS option is set to
MAIN or MONO.
•
•
Adjust the balance in the OSD
menus. See “Balance” on page 43.
•
Try the Auto Program function in the
OSD “TV Setting” menu. See “Auto
Program” on page 49.
•
Use the Preset function in the OSD
Picture and Audio menu.
HoosierEN.book
Page 55
Friday, July 30, 2004
10:16 AM
Situation
Solution
•
If OSD items are colored light blue,
the system is in a state such that
those settings are not available. For
example, video setting is available in
TV mode.
•
Make sure the video signal cable is
connected properly.
•
Make sure the source device is functioning
properly.
Set the volume to a higher level.
Make sure the audio cable is connected securely.
Turn the mute off.
Cannot operate menus.
No image but have sound.
No sound but have image.
•
•
•
•
Make sure the video signal cable is
connected
properly.
•
Adjust the location of the antenna,
placing it far from roads or sources of
interference.
Check the antenna and the video signal line connections.
Screen image turns over.
Snow appears on the screen.
•
Blurred or overlapped
images.
•
•
•
Readjust the sharpness setting.
Choose programs with high quality
signals.
Adjust the direction of the antenna or
change the video signal cable.
55
HoosierEN.book
Page 56
14
Friday, July 30, 2004
10:16 AM
Specifications
ST31-15A1
LCD Panel Size
15-inch TFT
Aspect Ratio
4:3
Best Resolution
1024 (horizontal) x 768 (vertical)
Maximum Display Area
304.1 mm (H) x 228.1mm (V)
TV System
NTSC
Video System
AV1: Composite Video (RCA jack; yellow +
S-Video)
AV2: mini-DIN 10-pin (Composite + SVideo)
Audio System
AV1: L/R RCA jacks (audio input)
AV2: mini-DIN 10-pin L/R RCA jacks (audio
input)
3.5 mm headphone/line out jacks (audio
output)
Built-in stereo audio
amplifier
2W + 2W
Power Supply
100~240V, 50/60 Hz, 12V DC
Power Consumption
42W Max.
Weight (including base)
2.88 KG
Dimensions (including
base)
382 mm (H) x 402 mm (W) x 40 mm (D)
56
HoosierEN.book
15
Page 57
Friday, July 30, 2004
10:16 AM
Glossary
Aspect Ratio The ratio of width to height of a film, image or display screen.
Broadcast TV Broadcasting video signals using high-frequency electromagnetic
waves to distribute television channels to viewers (standard TV broadcast).
CATV Community Antenna Television, the original name for cable TV. A television
distribution system that uses coaxial cable instead of the traditional radio broadcasting (over-the-air) method to deliver television, FM radio, and other services to
consumers.
Color Temperature Adjusting the color temperature enables you to set the intensity of white light. Color temperature is measured in Kelvin (K). Higher color temperatures result in a blue tint. Lower temperatures result in a red tint.
Hue Colors in a color system are measured by hue, saturation and luminance.
Hue indicates the predominant color.
LCD Liquid Crystal Display. A display technology that uses rod-shaped molecules
(liquid crystals) that flow like liquid and bend light.
MAIN is the default audio signal belonging to a particular channel.
MTS Multi-channel Television Sound. Enables reception of audio other than the
primary (MAIN) audio signal. SAP (Second Audio Program) enables reception of a
separate channel that may be a different language or completely different information such as the news.
RCA connector An RCA or phono connector is a plug and socket for a two-wire
(signal and ground) coaxial cable that is widely used to connect audio and video
components. RCA sockets are commonly found at the rear of A/V equipment.
Saturation Chromatic purity indicating the amount of white contained in a color.
Fully saturated colors are pure colors; less saturated colors appear as pastel
shades.
S-Video Super-video, a video cabling standard used to transmit video by keeping
brightness (Y) and color information (C) on separate channels. Most often used
with camcorders, VCRs, and quality receivers and amplifiers to provide sharper pictures.
57
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
