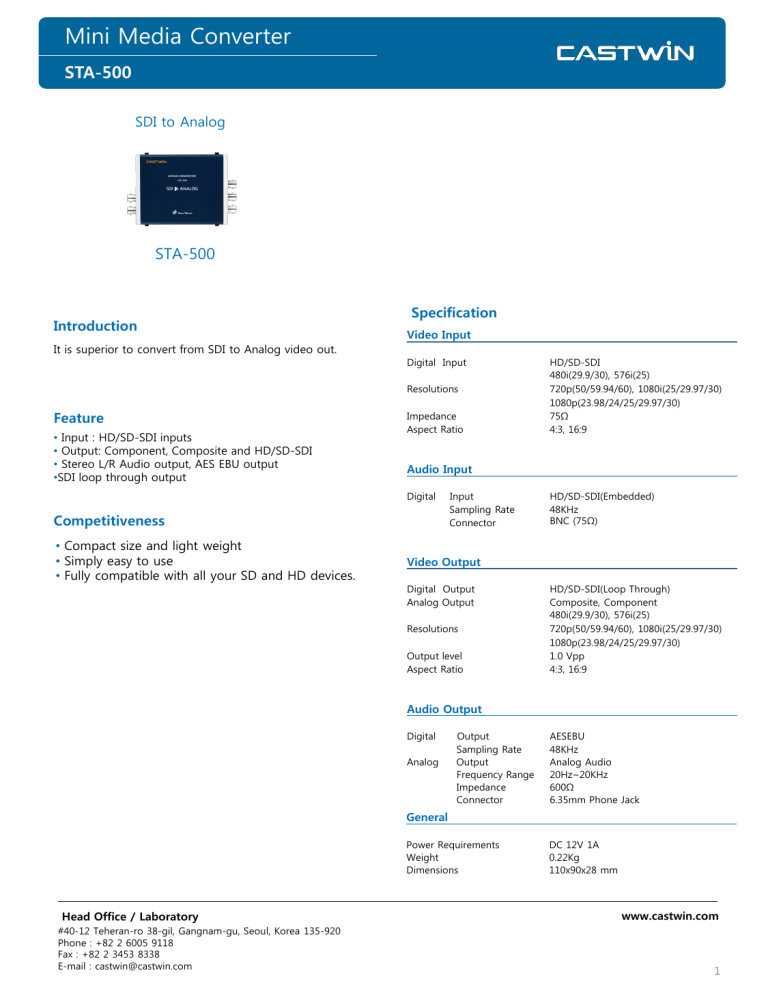

Mini Media Converter
STA-500
SDI to Analog
STA-500
Introduction
It is superior to convert from SDI to Analog video out.
Specification
Video Input
Digital Input
Resolutions
Feature
• Input : HD/SD-SDI inputs
• Output: Component, Composite and HD/SD-SDI
• Stereo L/R Audio output, AES EBU output
•SDI loop through output
Impedance
Aspect Ratio
Audio Input
Digital
Competitiveness
• Compact size and light weight
• Simply easy to use
• Fully compatible with all your SD and HD devices.
HD/SD-SDI
480i(29.9/30), 576i(25)
720p(50/59.94/60), 1080i(25/29.97/30)
1080p(23.98/24/25/29.97/30)
75Ω
4:3, 16:9
Input
Sampling Rate
Connector
HD/SD-SDI(Embedded)
48KHz
BNC (75Ω)
Video Output
Digital Output
Analog Output
Resolutions
Output level
Aspect Ratio
HD/SD-SDI(Loop Through)
Composite, Component
480i(29.9/30), 576i(25)
720p(50/59.94/60), 1080i(25/29.97/30)
1080p(23.98/24/25/29.97/30)
1.0 Vpp
4:3, 16:9
Audio Output
Digital
Analog
Output
Sampling Rate
Output
Frequency Range
Impedance
Connector
AESEBU
48KHz
Analog Audio
20Hz~20KHz
600Ω
6.35mm Phone Jack
General
Power Requirements
Weight
Dimensions
Head Office / Laboratory
#40-12 Teheran-ro 38-gil, Gangnam-gu, Seoul, Korea 135-920
Phone : +82 2 6005 9118
Fax : +82 2 3453 8338
E-mail : [email protected]
DC 12V 1A
0.22Kg
110x90x28 mm
www.castwin.com
1
