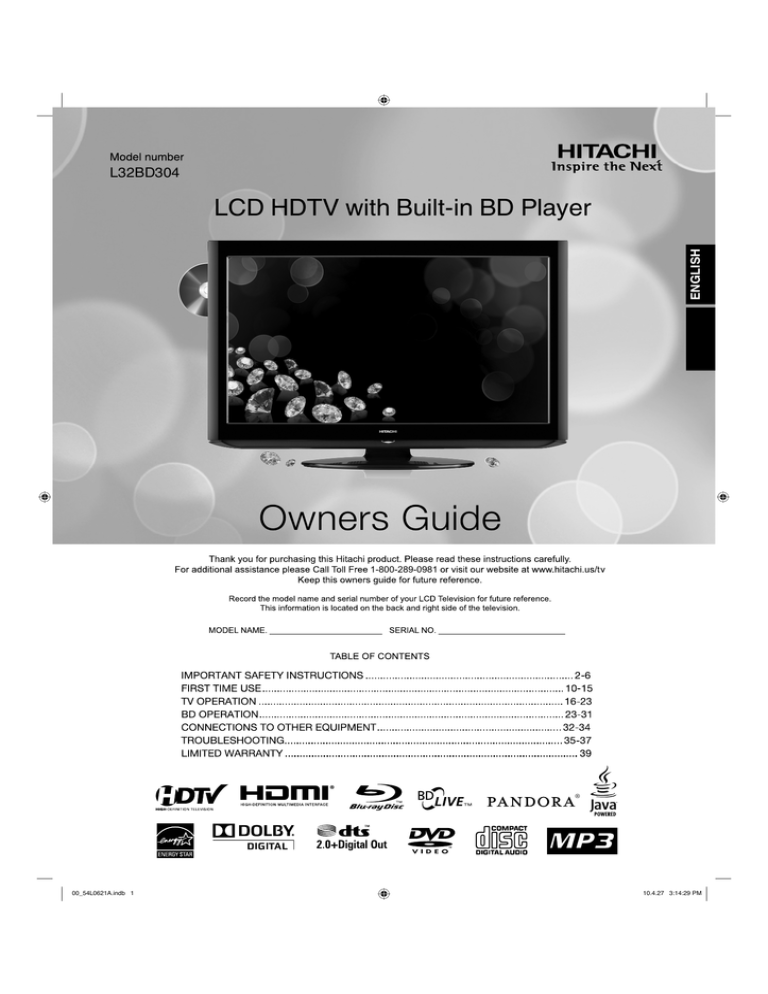

L32BD304
ESPAÑOL
ENGLISH
LCD HDTV with Built-in BD Player
1-800-289-0981
®
00_54L0621A.indb 1
10.4.27 3:14:29 PM
ENGLISH
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING:
CAUTION:
WARNING:
CAUTION:
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT
ALL TIMES.
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s
authority to operate this equipment.
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ
THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE
REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT
AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY
TO OPEN THE ENCLOSURE. RADIATION MAY BE PRESENT WHEN THE
ENCLOSURE IS OPENED. DO NOT STARE INTO THE BEAM.
CLASS 1
LASER PRODUCT
Location of the required Marking
The rating sheet and the safety caution are on the rear of
the unit.
CERTIFICATION: COMPLIES WITH FDA RADIATION
PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.
Complies with FDA performance standards for laser
products except for deviations pursuant to Laser Notice
No. 50, dated June 24, 2007.
Lead/Mercury Notice
Hg
This product contains lead and one or more non-replaceable mercury backlights. Do not put in trash. Recycle or dispose of
according to applicable laws. For product recycling and disposal information, contact your local government agency or visit
www.eiae.org (in USA) or www.epsc.ca (in Canada). FOR MORE INFORMATION, CALL 800-289-0981.
ENERGY STAR®
This television’s factory default settings as shipped meet ENERGY STAR requirements.
Please see the Convenience Functions section of this operating guide for more information on factory settings and the energy saving
Auto Shut Off feature.
This Hitachi LCD TV/Blu-ray Combo is in part operated by the Linux OS. The Linux OS contains software that complies with GPL/
LGPL. In order to obtain additional information and the source code please visit ORION’s website at www.orionsalesinc.com/GPL.
2
00_54L0621A.indb 2
10.4.27 3:14:45 PM
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not
be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts
that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
EXAMPLE OF ANTENNA GROUNDING AS PER THE
19) If an outside antenna or cable system is connected to the unit, be sure
NATIONAL ELECTRICAL CODE
the antenna or cable system is grounded to provide some protection
ANTENNA
against voltage surges and built-up static charges, Section 810 of the
LEAD IN WIRE
National Electrical Code, ANSI/NFPA 70, provides information with
GROUND
respect to proper grounding of the mast and supporting structure,
CLAMP
ANTENNA
grounding of the lead-in wire to an antenna discharge unit, size of
DISCHARGE UNIT
(NEC SECTION 810-20)
grounding conductors, location of antenna discharge unit, connection
GROUNDING CONDUCTORS
ELECTRIC SERVICE
(NEC SECTION 810-21)
EQUIPMENT
to grounding electrodes, and requirements for the grounding
GROUND CLAMPS
electrode.
NEC-NATIONAL
20) When replacement parts are required, be sure the service technician
uses replacement parts specified by the manufacturer or those that
have the same characteristics as the original part.
ELECTRICAL CODE
S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22) Keep your fingers clear of the disc slot as it is closing. It may cause injury.
23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall
outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other
equipment carefully and follow the instructions when making any connections.
24) Reduce the volume to the minimum level before you turn off the product. Otherwise, sudden high volume sound may
cause hearing or speaker damage.
00_54L0621A.indb 3
3
10.4.27 3:14:45 PM
IMPORTANT SAFETY INSTRUCTIONS (continued)
25) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating.
26) When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with
high volume sound, it may cause hearing damage.
27) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the laser beam.
It may cause eye damage.
28) Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal
injury and product malfunction.
29) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
30) The socket-outlet must be installed near the unit and easily accessible.
31) The mains plug is used as the disconnect device and shall remain readily operable.
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature
of the room rises suddenly. When this happens, player's performance will be impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room
temperature rises gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the
location of the player.
HOW TO HANDLE THE LCD PANEL
• Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your
skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Power source
This LCD television is designed to operate on 120 volts 60 Hz, AC current. Insert the power cord into a 120 volt 60 Hz outlet.
To prevent electric shock, do not use the LCD television’s (polarized) plug with an extension cord, receptacle, or other outlet unless
the blades and ground terminal can be fully inserted to prevent blade exposure.
Never connect the LCD television to 50 Hz, direct current, or anything other than the specified voltage.
Warning
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Caution
Never remove the back cover of the LCD television as this can expose you to very high voltages and other hazards. If the television
does not operate properly, unplug the LCD television and call your authorized dealer or service center.
Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by
Hitachi could void the user’s warranty.
Declaration of Conformity
This device compiles with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2)This device must accept any interference received, including interference that
may cause undesired operation.
For questions regarding this declaration, contact:
Hitachi America, Ltd.
900 Hitachi Way
Chula Vista, CA 91914-3556
ATTN: Customer Relations
4
00_54L0621A.indb 4
10.4.27 3:14:46 PM
ENGLISH
CHILD SAFETY NOTICE
5
00_54L0621A.indb 5
10.4.27 3:14:46 PM
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block
ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space
around the entire unit.
4 inches
4 inches
Notes when mounting the LCD TV/BD on a wall
If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/BD for advice, and have the equipment
professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV/BD.
The screws ISO M6 thread type should be used. The insertion length must be within 12 - 16mm.
If the insertion length is less than 12mm, the weight can not be maintained.
If the insertion length is more than 16mm, a space is created between the Wall Mount Bracket and the Television.
(Insertion Length) = (Screw Length) - (Washers Thickness) - (Mounting Bracket Thickness)
Securing to a Wall
1. Using metallic wire fasten the set to the clamping screw (supplied) on the rear of the LCD TV/BD as shown below.
2. Keep the LCD TV/BD 4 inches away from the wall except when mounted using the wall mount bracket and secure to the wall as
shown below:
Wire
Wire
4 inches
Screw
Clamp
Wire
NOTICE FOR TV CABINET
If the unit is to be mounted on a cabinet smaller than length of the unit, it could result in an unstable location and the unit may tumble
over, making a risk of personal, possibly fatal injury. Also, this would damage the product seriously. Accordingly, Hitachi accepts no
responsibility or liability for any injuries or property damage resulting from the improper installation.
YES !!
NO !!
IMPORTANT NOTICE
6
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for
these symptoms.
• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be
missing picture elements or have luminous spots.
This is not a sign of a malfunction.
• Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some equipment placed too
near this unit may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.
00_54L0621A.indb 6
10.4.27 3:14:48 PM
Disc
Disc type and logo mark
CAUTION:
content
Blu-ray Video
Audio
+
Video
DVD Video
Audio
+
Video
CD-DA
Audio
• Only the left types of discs can be played on this unit. DVDROM, DVD-RAM, DVD-Audio, SACD, CD-ROM, SVCD, CVD,
VCD, etc. cannot be played.
• 8cm discs can be played directly. If an 8cm disc adapter is used
it will cause errors.
• If you insert an irregular shaped disc, it may get stuck and cause
a malfunction.
• The use of a ring protector or other disc accessories will cause
errors.
• This unit is to be used exclusively with the NTSC color system.
PAL and SECAM system discs cannot be used with this unit.
• Some CD-R/RWs and DVD-R/RW cannot be played back
depending on the recording conditions.
ENGLISH
Playable discs
The following discs are also available.
• DVD-R/RW discs of DVD Video format.
• CD-R/RW discs of MP3/WMA/JPEG.
Region codes
Blu-ray Discs and DVDs have region codes to help prevent illegal distribution of discs. If the disc’s region code does not match the unit’s
region code, the disc will not play.
The unit’s region code is “A”, “1” and “ALL”. The disc’s region code is displayed on the disc or disc packaging.
Title
When two or more movies are recorded on a disc, the disc is divided into two or more sections. Each section is called a “TITLE”.
Chapter
The titles can be subdivided into many sections.
Each section is called a “CHAPTER”.
DVD DISC
TITLE 1
CHAPTER 1
Track
CHAPTER 2
TITLE 2
CHAPTER 1
CHAPTER 2
CHAPTER 3
TRACK 4
TRACK 5
An Audio CD can contain several items.
These are assigned to the tracks.
Audio - CD
Removing Disc from Case
TRACK 1
TRACK 2
TRACK 3
Be sure to hold the edge of disc. Do not touch the surface of the disc.
Pick up the disc gently from the case.
•
•
•
•
Do not scratch the disc.
Do not get dirt on the surface of the disc.
Do not stick a label or adhesive tape on the disc.
Do not drop or bend the disc.
Storing Disc
• Store the disc in the case to avoid risk of scratches, dirt or damage.
• Do not leave disc exposed to direct sunlight or in hot or humid places.
Cleaning Disc
Wipe the disc with a clean, dry cloth from center to edge.
• Do not wipe the disc in a circular motion.
• Do not use liquid or aerosol cleaners.
7
00_54L0621A.indb 7
10.4.27 3:14:57 PM
Features
LCD color TV With BD/DVD/CD player
Unique space saving design combines a 32” class LCD color TV and a BD/DVD/CD player.
A BD has much more capacity, but is the same size as a DVD. The Picture/Audio quality of a BD is very good.
The audio quality is higher than an audio CD. The BD/DVD also has special options; audio language selection, subtitle language
selection, or multi-angle, etc.
The BD/DVD PLAYER can play back both audio CDs and MP3/WMA/JPEG CDs.
Personalized Radio You’ll
Love
Built-in Blu-ray Player
1080p Perfected
Watch Live HD
Broadcasts
Subscription service and/or
internet connection is required
x2
2 Pure Digital Inputs
x1
Component Inputs
Component
Connect Your
Computer
UltraClear Picture
for Bright Rooms
Sleep Timer
High Quality Sound
Closed Captions
Capability
Energy Saving
LCD Design
Perfect
High Quality Video
Featuring DTS®
Technology
Netflix-Ready!
Netflix Streaming Video will be ready in
August.
Please upload by “Update Via Network”
(see page29) after August.
* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
* This product incorporates copy protection technology that is protected by U.S. and other intellectual property rights. The use of
Rovi Corporation’s copy protection technology in the product must be authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.
*
is a trademark of DVD Format/Logo Licensing Corporation.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
* Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos
are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
* This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this
product is prohibited without a license from Microsoft.
* “BD-Live” and “BD-Live” logo are trademarks of Blu-ray Disc Association.
* © 2005-2010 Pandora Media, Inc., All Rights Reserved Pandora and the Music Genome Project are registered trademarks of
Pandora Media, Inc.
* VGA and XGA are trademarks of International Business Machines Corporation.
* VESA is a registered trademark of the Video Electronics Standard Association.
VC-1 Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD (“VC-1 VIDEO”)
AND/OR (ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO
LICENSE IS GRANTED OR SHALL BE IMPLIED FOR OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM.
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO
LICENSE IS GRANTED OR SHALL BE IMPLIED FOR OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
8
00_54L0621A.indb 8
10.4.27 3:14:58 PM
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................3
CHILD SAFETY NOTICE ...................................................5
SAFETY PRECAUTIONS ..................................................6
IMPORTANT NOTICE ........................................................6
Disc....................................................................................7
Features.............................................................................8
Contents ............................................................................9
How to attach the stand ...................................................10
Location of controls..........................................................11
Remote control ................................................................12
Power source ...................................................................13
Antenna connections .......................................................14
Cable TV connections ......................................................15
TV operation
Starting setup ..................................................................16
TV operation ....................................................................16
Quick guide for menu operation .......................................17
Convenience functions ....................................................18
Memorizing channels .......................................................19
Checking the digital-signal strength .................................20
Labeling channels ............................................................20
Labeling video inputs .......................................................20
Setting the Parental Control .............................................20
Closed Caption ................................................................22
CC advanced ...................................................................22
Aspect Switching .............................................................22
BD operation
Using the Blu-ray Disc player ...........................................23
Status display of disc .......................................................24
Repeat playback .................................................................24
Changing soundtrack language ......................................... 24
Locating desired scene ....................................................25
Subtitles ...........................................................................25
Changing angles ..............................................................25
Using PIP (picture-in-picture) mode .................................25
MP3/WMA/JPEG and Audio CD playback ...........................26
Playing audio files ............................................................26
Viewing JPEG files ...........................................................27
Using Pandora .................................................................27
Quick guide for Setup Menu operation .............................28
Setup Menu options .........................................................29
Setting disc parental controls ...........................................30
Connecting to the network ...............................................31
ENGLISH
Before using your unit
Additional information
Connections to other equipment ......................................32
Reception disturbances ...................................................35
Problems and troubleshooting .........................................36
Specifications .................................................................38
LIMITED WARRANTY .....................................................39
9
00_54L0621A.indb 9
10.4.27 3:14:58 PM
How to attach the stand
Installing the stand
Tips
• Unplug the AC cord from the AC INPUT jack.
• Before beginning this process, make sure that you lay the unit
on a clean, safe, and cushioned surface to avoid any damage to
the unit.
• Do not touch or press the TV screen. The glass might break
under pressure.
4 Secure the bottom plate with the four provided silver screws
(M6×10mm)
To install the stand:
1 Place the unit face down on table, aligning the bottom of the
unit with the edge of the table.
Place a towel or similar material between the screen and the
table to protect the screen.
Note:
• To remove the stand, reverse these steps.
2 Align the stand assembly with the metal bracket on the bottom
of the unit. The bracket will only fit in one direction. Do not touch
or apply pressure to the screen. It may break.
3 Place the base on the stand assembly. Make sure that the
symbol ▲ is pointing toward the screen side of the unit.
10
00_54L0621A.indb 10
10.4.27 3:14:59 PM
Location of controls
Front
Left Side
EJECT button
VOLUME +/– buttons
CHANNEL /1 (PLAY) button
CHANNEL /3 (STOP) button
MENU button
INPUT/ENTER button
POWER button
ENGLISH
DISC slot
Remote sensor
To display the menu screen.
Press the MENU button to display the menu screen.
CHANNEL / buttons, VOLUME +/– buttons and
INPUT/ENTER button can be used to select the
desired setting during the menu screen operations.
POWER indicator
Red : Standby
Blue : On
Rear
USB jack
ETHERNET jack
PC MONITOR IN jack
VAR (VARIABLE) AUDIO OUT jack
AC INPUT jack
DIGITAL AUDIO COAXIAL OUT jack
ANT. IN jack
HDMI 2 IN jack
HDMI 1/DVI IN jack
PC/DVI AUDIO IN jack
COMPONENT IN jacks
LINE 2 VIDEO IN jack
LINE 1 IN jacks (VIDEO/S-VIDEO/AUDIO (L (MONO)/R))
AUDIO (L (MONO)/R) jacks
(for COMPONENT IN and LINE2 VIDEO IN)
00_54L0621A.indb 11
11
10.4.27 3:15:05 PM
Remote control
POWER
DISPLAY/–
Power On/Off
Display TV information
Display DVD information
Input “–” for digital channels
TV/BD
Switch between TV/AV and Blu-ray
EJECT
Eject a disc
0-9
Direct channel selection of TV
Input setting
Enter a password
INPUT
Display source selection menu
MUTE
Switch off the sound
Select channel of TV
CH /
VOL +/–
Adjust volume of TV
MENU
Display menu of TV
STREAMING
Shortcut for Network applications
▲▼◀▶
Cursor buttons
ENTER
Enter information in the menu
EXIT
Exit from On-Screen menu
POPUP MENU/ In Blu-ray mode, press to open the top menu.
TITLE
DISC MENU
In Blu-ray mode, press to open the Blu-ray setup menu.
ANGLE
Press to select an alternate viewing angle (if available) on a Blu-ray
Disc or DVD.
RANDOM
In Audio CD mode, press to play songs in random order.
RETURN
Press to exit the Blu-ray setup menus.
AUDIO
Press to cycle through the languages available on a Blu-ray Disc.
SUBTITLE
Press to cycle through the available subtitle languages or a Blu-ray
Disc or DVD.
REPEAT
Press to repeat the current title, chapter, track, or repeat all.
REPEAT A-B
Press to repeat a specific portion of a Blu-ray Disc, DVD, or CD.
SECONDARY
In PIP mode, press to turn the audio for the secondary video on or off.
AUDIO
SECONDARY
In PIP mode, press to turn the subtitle for the secondary video on or
SUBTITLE
off.
PIP
Press to turn PIP (picture-in-picture) mode on or off.
JUMP
Locating desired scene
C. C.
Closed Caption
LAST CH
Switch between present/last channel
SLEEP
Sleep timer
ASPECT
Display ASPECT menu
STEP
Press to advance one frame at a time on a Blu-ray Disc
or DVD. Press PLAY to resume normal playback.
Press to play forward slowly on a Blu-ray Disc or DVD.
SLOW
Press to fast-reverse on a Blu-ray Disc, DVD, or CD.
SEARCH 8
Press to start playback on a Blu-ray Disc, DVD, or CD.
PLAY 1
Press to fast-forward on a Blu-ray Disc, DVD, or CD.
SEARCH 9
Press to go to the previous chapter on a Blu-ray Disc or DVD or to the
SKIP 6
previous track on a CD.
Press to pause playback on a Blu-ray Disc, DVD, or CD.
PAUSE 4
Press to stop disc playback.
STOP 3
Press to go to the next chapter on a Blu-ray Disc or DVD
SKIP 7
or to the next track on a CD.
(blue) (red)
Some Blu-ray Discs (those with Java™ ) are programmed
(green) (yellow) to use these buttons to access certain playback
features. If you insert a Java Blu-ray Disc, follow the
on-screen instructions or the documentation that
came with the disc.
12
00_54L0621A.indb 12
10.4.27 3:15:14 PM
Remote control
(continued)
Inserting Batteries
the battery compartment cover in
two “AA” batteries, paying
1 Open
2 Install
3 Replace the compartment cover.
the direction of the arrow.
attention to the polarity diagram in the
ENGLISH
battery compartment.
Operation
• Aim the remote control at the remote sensor and press control
buttons to operate.
• Operate the remote control within a 30° angle on either side of
the remote sensor, up to a distance of approximately 15 feet.
Approximately 15 feet
NOTE:
• Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.
• The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote sensor may shorten
operating distance.
• Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries properly.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Remove batteries if the remote control will not be operated for an extended period of time.
• Please use caution when inserting batteries to avoid battery damage. If the spring terminal in the remote control remains in contact
with a side of a damaged battery it can cause a short circuit. Never use damaged batteries as they can become very hot and are
dangerous.
Power source
TO USE AC POWER
1. Connect the AC cord plug into this unit’s AC IN jack.
2. Connect the AC cord into an AC outlet.
AC Outlet
AC 120V, 60Hz
AC cord (supplied)
NOTE:
• Please make sure to insert the cord securely at both the LCD TV/BD and the wall outlet.
• The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet, contact a qualified electrician,
do not defeat the purpose of a grounding plug.
WARNING:
• DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC CORD. THIS COULD
CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE FIRE, ELECTRICAL
SHOCK, OR DAMAGE.
CAUTION:
• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF SAFETY, BE SURE TO
UNPLUG IT FROM THE AC OUTLET.
• DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL SHOCK.
• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS RECOMMENDED. CONTACT
THE DEALER THAT YOU PURCHASED THE UNIT FROM.
13
00_54L0621A.indb 13
10.4.27 3:15:15 PM
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you
are using a Cable TV service, see page 15 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna
Jack
75 ohm
Coaxial
Cable
Antenna
Jack
Connect the 75 ohm cable from the combination VHF/UHF antenna to the
antenna jack.
If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the
use of the 300-75 ohm matching transformer may be necessary.
300-75 ohm
Matching
Transformer
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Connect the UHF 300 ohm twin-lead wire to the Combiner (not supplied).
Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the Combiner, then attach the
Combiner to the Antenna Jack.
Antenna
Jack
Combiner
UHF 300 ohm
VHF 300 ohm
300-75 ohm Matching Transformer
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the
Combiner (not supplied).
Attach the Combiner to the Antenna Jack.
Antenna
Jack
Combiner
UHF 300 ohm
VHF 75 ohm
IMPORTANT NOTICE
The nationwide switch to digital television broadcasting was
scheduled to be complete on June 12, 2009, but your local television stations may switch sooner. After the switch, analog-only
television sets that receive TV programming through an antenna
will need a converter box to continue to receive over-the-air TV.
Watch your local stations to find out when they will turn off their
analog signal and switch to digital-only broadcasting.
Information about the DTV transition is available from your local
television stations, www.DTV.gov, or 1-888-CALL-FCC (TTY
1-888-TELL-FCC), and www.dtv2009. gov or 1-888-DTV-2009
(TTY 1-877-530-2634) for information about
subsidized coupons for digital-to-analog converter boxes.
Please review this Operating Guide for further information
regarding such connections.
Hitachi supports the DTV transition and as a member of the
DTV Transition Coalition urges consumers to visit these web
sites for interactive guides and further detailed information:
• www.dtvtransition.org
• www.myceknowhow.com
• www.dtv2009.gov
14
00_54L0621A.indb 14
10.4.27 3:15:17 PM
Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some
cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal
viewing requires the use of a descrambler device which is generally provided by the Cable TV company.
For basic Cable TV service not requiring a Converter/Descrambler box, connect the
75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV.
Antenna
Jack
75 ohm
Coaxial Cable
ENGLISH
For subscribers to basic Cable TV service
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial
Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler
box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler
box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.
Incoming
75 ohm
Cable TV
Cable
Converter/
Descrambler
75 ohm Cable to TV
Antenna
Jack
For subscribers to unscrambled Cable TV service with scrambled premium channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/
Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics
supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels
on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and
use the Converter/Descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable TV
Cable
Converter/
Descrambler
Splitter
A/B Switch A
B
75 ohm Cable to TV
Antenna
Jack
15
00_54L0621A.indb 15
10.4.27 3:15:18 PM
Starting setup
TO SELECT ANALOG CHANNELS
1-9:
Press 1-9 as needed. Example, to select channel 2,
press 2, then press ENTER.
10-99:
Press the 2 digits in order. Example, to select
channel 12, press 1, 2, then press ENTER.
100-135: Press the 3 digits in order. Example, to select
channel 120, press 1, 2, 0, then press ENTER.
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the – button, followed by the
remaining number.
Example, to select channel 15-1, press 1, 5, –, 1, then press
ENTER.
• If a channel is selected with only audio content, “Audio
Only” will be displayed on the screen.
• If a channel is selected with a weak digital signal, “Weak
Signal or Channel not available.” will be displayed on the
screen.
• The same program may be available on either an analog
channel or a digital channel. You may choose to watch
either format.
• If a channel is selected to which you have not subscribed,
“Digital channel is encrypted” will be displayed on the
screen.
The Starting Setup menu appears the first time you turn on
the TV. It will assist you to specify the Air/Cable setting and
program your channels automatically.
IMPORTANT: Make sure that the antenna or cable TV system
connection is made!
1
To turn on the TV, press POWER (POWER indicator on the front
of the unit changes blue. It may take approx. 10 seconds for a
picture to appear on screen.). The starting setup function begins.
Auto Setup
TV Location
Store
Source
Cable
Scan
Start
This unit has been preset to STORE brightness
This setting does not qualify under ENERGY
STAR V4.0. To reduce brightness and energy
consumption, change setting to ‘HOME’. This
setting does qualify under ENERGY STAR V4.0.
2
3
4
5
: Move
: Adjust
Press ▲/▼ to select “TV Location”, then press ◀/▶ to select
“Home” or “Store”. This product qualifies for ENERGY STAR
V4.0. in Home mode default setting.
NOTE:
• This unit has been preset to Store brightness. This setting
does not qualify under ENERGY STAR V4.0. To reduce
brightness and energy consumption, change setting to
‘Home’. This setting does qualify under ENERGY STAR V4.0.
• The device may not conform to the ENERGY STAR V4.0.
standard after Reset is performed or the Backlight is
adjusted.
Press ▲ or ▼ to select “Scan”, then press ▶ or ENTER.
Now the “Auto Setup” starts. After the starting setup is
completed, the TV channel appears on the screen.
• Depending on the reception condition, it may take from 15
minutes to 30 minutes to complete memorizing digital cable
channels. Please be patient.
TV operation
2
3
4
Air
Cable
VHF
2-13
UHF
14-69
Press ▲ or ▼ to select “Source”, then press ◀ or ▶ to select
“Cable” or “Air”.
NOTE:
• If you press ENTER in the process of “Auto Setup”, the Starting
Setup stops and changes to the normal screen.
• When you make a menu selection, your changes occur
immediately. You do not have to press EXIT to see your changes.
1
VHF/UHF/CABLE CHANNELS
To turn on the TV, press POWER.
(POWER indicator on the front of the unit changes blue.
It may take approx. 10 seconds for a picture to appear on
screen.)
Adjust the volume level by pressing VOL + or – . The volume
level will be indicated on the screen by blue bars. As the
volume level increases, so do the number of bars. If the
volume decreases, the number of blue bars also decreases.
Set the Signal Type option to the appropriate position (see
“Air/Cable selection” on page 19).
Press the Direct Channel Selection (0-9, –) buttons to
select the channel.
(If you press only the channel number, channel selection will
be delayed for a few seconds.)
VHF
2-13
STD/HRC/IRC
14-36
(A) (W)
37-59
(AA) (WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-1)
100-135 (100) (135)
01
(4A)
NOTE:
• If a channel with no broadcast is selected, the sound will
automatically be muted.
• It may take a few seconds for a digital channel picture to appear
on screen after being selected.
To select the video input source
To view a signal from another device connected to your LCD
TV/BD, such as a VCR player, press INPUT, then press ▲/▼ or
corresponding Number buttons (0-7), then press ENTER. You
can select TV, Video 1, Video 2, Component, HDMI1, HDMI2, PC
or Blu-ray (Built-in) depending on which input jacks you used to
connect your devices.
Input List
0.TV
1.Video 1
2.Video 2
3.Component
4.HDMI 1
5.HDMI 2
6.PC
7.Blu-ray
[0-7]:Select
CH
/
Press and release CH / . The channel automatically stops at
the next channel set into memory.
For proper operation, before selecting channels, they should be
set into the memory. See “Memorizing channels” on page 19.
16
00_54L0621A.indb 16
10.4.27 3:15:18 PM
DISPLAY
Press DISPLAY to display the current information on the screen.
When the TV receives a digital signal, the digital information will
appear.
62-1 HDTV Moving Picture1
CH-1
Digital
Sleep Timer
Off
English
Air
No Program Information is available
Quick guide for menu
operation
Example: Select Language.
1
2
Press INPUT to select TV mode.
Press MENU. The TV menu screen will appear.
•
•
•
•
•
•
Channel number
Channel label (if preset)
V-Chip rating
Sleep timer
Program guide
Resolution
•
•
•
•
•
Station name
Broadcast program name
Signal type
Audio language
Picture size
When the TV receives an analog signal, the analog
information will appear.
Sleep Timer
Off
14
Analog
Cable
Channel number
V-Chip rating
Sleep timer
Audio information
(Stereo, SAP or Mono)
>>
Locks
Setup
3
4
5
: Move
ENTER:Select
Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Menu Language”, then press ◀ / ▶ to
select the desired language.
…on the following pages the menu can be called in the same
way as here.
Press EXIT to return to the normal screen.
NOTE:
• If no buttons are pressed for more than 60 seconds, the menu
screen will clear and the TV will return to normal viewing
automatically.
Mono
Full
480i
•
•
•
•
ENGLISH
Main Menu
Video
Audio
Channel
Full
1080i
•
•
•
•
Channel label (if preset)
Signal type
Picture size
Resolution
Press DISPLAY again to clear the display.
NOTE:
• After a few seconds, DISPLAY screen will return to normal TVoperation automatically.
LAST CH
This button allows you to go back to the last channel selected by
pressing LAST CH. Press LAST CH again to return to the last
channel you were watching.
MUTE
Press MUTE to switch off the sound. The TV’s sound will be
silenced and “Mute” will appear on the screen. The sound can be
switched back on by pressing this button again or by pressing the
VOL + or – buttons.
SLEEP
To set the TV to turn off after a preset amount of time, press
SLEEP on the remote control. The clock will count up 10 minutes
for each press of the SLEEP button (Off, 0h 10m, 0h 20m, ..., 2h
0m). After the sleep timer is programmed, the display will appear
briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the
remaining time will be displayed for a few seconds. To cancel the
sleep timer, press SLEEP repeatedly until the display turns to Off.
17
00_54L0621A.indb 17
10.4.27 3:15:19 PM
Convenience functions
You can change the default settings to your preferred settings.
Icon
Video
Selected Items
Setting
Picture Mode
DBC *2
You can adjust the picture quality to your preference.
Color Temperature
Bluish (Cool) / Neutral (Standard) / Reddish (Warm)
Backlight *
The Backlight feature adjusts the screen brightness for improved picture clarity.
3
Dynamic
Bright and dynamic picture (factory-set)
Standard
Standard picture quality (factory-set)
Movie
Movie-like picture setting (factory-set)
Custom
Your personal preferences (set by you; see “Picture Setting”)
On/Off
Use this feature to change the Back light automatically according to the brightness of an image. The
Back light will become bright in a bright scene, and will become dark in a dark scene.
Aspect
See page 22.
Auto Movie
Mode
On/Off
A smoother motion may be obtained by setting the Auto Movie Mode to “On” when you view a
external input signal.
PC Setting
H Position /
V Position
Adjust the horizontal / vertical position of the image on the PC Monitor screen. Each video standard
will require a different value for this setting.
Clock
Minimize any vertical bars or stripes visible on the screen background.
Phase
This must be adjusted after the frequency has been set optimize picture quality.
Auto Adjust
Adjust the all PC settings automatically.
On/Off
Noise Reduction can reduce the roughness of the picture.
Noise
Reduction
Audio
Bass / Treble / Balance
You can adjust the sound quality to your preference.
MTS
Stereo / SAP / Mono
The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can
transmit a second audio program (SAP) containing a second language or other audio information.
When the TV receives a stereo or SAP broadcast, the word “Stereo” or “SAP” displays on-screen
when you press DISPLAY.
Surround
On/Off
The dynamic presence and sound created offers a thoroughly enjoyable listening experience.
Audio Language
When two or more audio languages are included in a digital signal, you can select one of the audio
language. (This function is available only for digital broadcast.)
HDMI 1 Audio HDMI
When you connect the HDMI device to the TV, select this setting.
Speakers
Channel
DVI
When you connect the DVI device to the TV with an analog audio connection, select this setting.
On/Off
Use this feature to turn the TV/BD speakers off when you connect an audio system.
Channel Manager
See page 19.
Signal Meter
See page 20.
Auto Channel Scan
See page 19.
Channel Labels
See page 20.
Closed Captions
See page 22.
Menu Language
You can choose from three different languages (English, Français (French) and Español (Spanish))
for the on-screen displays.
Select the language you prefer first, then proceed with the other menu options.
Video Label
See page 20.
Locks
Setup
Setup hint
Brightness / Contrast
/ Sharpness / Color
/ Tint
See page 20.
On Timer
Off / 0h30m / 1h00m
/ 1h30m / 2h00m /
3h00m⋅⋅⋅12h00m
You can set the On Timer to automatically turn on the TV. To cancel the On Timer select “Off”.
Auto Shut *1
Off
On/Off
If the Auto Shut Off feature is On, a station being viewed stops broadcasting and the TV is not
operated, the TV will automatically shut itself off after 15 minutes.
Auto Setup
See page 16.
Reset *
The Reset function returns your settings to the factory settings.
“Aspect”, “MTS”, “Audio Language”, “HDMI1 Audio” and “Speakers” cannot be reset by this function.
3
NOTE:
*1 If there is no input signal in the HDMI or PC mode after 1 minute, Auto Shut Off will be activated.
*2 In PC mode, the DBC option is not available.
*3 The device may not conform to the ENERGY STAR V4.0. standard after Reset is performed or the Backlight is adjusted.
18
00_54L0621A.indb 18
10.4.27 3:15:20 PM
Memorizing channels
Adding Channel
This TV is equipped with a channel memory feature which
allows channels to skip up or down to the next channel set
into memory, skipping over unwanted channels. Before
selecting channels, they must be programmed into the TV’s
memory. To use this TV with an antenna, set the Source
option to the Air mode. When shipped from the factory, this
menu option is in the Cable mode.
1
2
3
If you find a new unregistered digital channel, you can add the
new channel into the channel memory.
1
2
3
4
Add Digital Channel
View/Skip
Clear All
Press ▲ or ▼ to select “Auto Channel Scan”, then press ▶ or
ENTER.
Press ◀ or ▶ to select “Air” or “Cable”.
Air - VHF/UHF channels
Cable - CABLE TV channels
: Move
4
Cable
Start
: Adjust
NOTE:
• It may take a few seconds for a digital channel picture to appear
on screen after being selected.
3
1
2
3
4
Press ▲ or ▼ to select “Scan”, then press ▶ or ENTER.
Auto Channel Scan
Cable
Cancel
Analog Channel Found : 7
Digital Channel Found : 5
Scanning
4
Select “Channel”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Channel Manager”, then press ▶ or
ENTER.
Press ▲ or ▼ to select “View/Skip”, then press ▶ or ENTER.
Press ▲ or ▼ to select the channel that you want to skip.
CH
Press ▲ or ▼ to select “Auto Channel Scan”, then press ▶ or
ENTER.
: Move
Press ▲ or ▼ to select “Add Digital Channel”, then press ▶
or ENTER. The new channel will be added into the channel
memory.
View/Skip
2
3
3-1
3-2
4
Select “Channel”, then press ▶ or ENTER.
Source
Scan
ENTER:Select
You can select the channel that you want to skip.
Automatic search
1
2
: Move
>>
>>
>>
Add/Delete channel
Auto Channel Scan
Source
Scan
Press ▲ or ▼ to select “Channel Manager”, then press ▶ or
ENTER.
Channel Manager
Select “Channel”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Source”.
Select “Channel”, then press ▶ or ENTER.
ENGLISH
Air/Cable selection
Tune in the new channel.
ENTER:Cancel
The TV will begin memorizing all the channels available in
your area.
• It may take from 15 minutes to 30 minutes to complete
memorizing digital cable channels.
• Depending on the reception condition, a bar display may
not advance for several minutes, please be patient.
NOTE:
• Memorizing channels is best accomplished during evening
“PRIMETIME” hours, as more stations are broadcasting digital
signals. Memorizing channels can only be accomplished while
a station is broadcasting a digital signal to set that channel into
memory.
• If you are unsure of the digital channels available in your area,
you may visit www.antennaweb.org to receive a list based on your
address or zip code. Should you require further assistance you
may call our toll-free customer service line at 1-800-289-0981.
• New digital channels may be added to your area periodically, it
is recommended to perform the “Scan” procedure regularly.
5
6
: Move
Signal
Analog
Analog
Digital
Digital
Analog
Skip
View
View
View
View
: Adjust
Press◀ or ▶to select “View” or “Skip”, whichever function you
want to perform.
Repeat steps 4 - 5 for other channels you want to view or skip.
Clear All
All channels are deleted from the channel memory.
1
2
3
Select “Channel”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Channel Manager”, then press ▶ or
ENTER.
Press ▲ or ▼ to select “Clear All”, then press ▶ or ENTER.
Channel Manager
Add Digital Channel
View/Skip
Clear All
: Move
>>
>>
>>
ENTER:Select
19
00_54L0621A.indb 19
10.4.27 3:15:20 PM
Checking the digital-signal
strength
5
6
This TV will allow you to view the digital signal meter for
digital channels.
To clear a Channel Label
1
2
3
Select “Channel”, then press ▶ or ENTER.
After step 3 above, press ▲ or ▼ to select “Label Clear”, then
press ▶ or ENTER.
NOTE:
• The channel labels will be reset after “Scan” on page 19.
Press ▶ or ENTER to check the Digital-Signal strength.
The Digital-Signal strength screen will appear.
If necessary, adjust the direction of the antenna to obtain the
maximum signal strength.
Labeling video inputs
0
50
100
Signal Level
NOTE:
• Signal meter feature is not available for analog channels.
• After 240 seconds, Signal Meter screen will clear and the TV will
return to normal viewing automatically.
The Video Label feature allows you to label each input
source for your TV.
1
2
3
4
Select “Channel”, then press ▶ or ENTER.
Channel Labels
Channel Number
Channel Label
Label Clear
15-1
>>
Press ▲ or ▼ to select an input which you want to label.
Press ◀ or ▶ to select the desired label for that input source.
Video 1
Video 2
Component
-
HDMI 1
HDMI 2
-
–
VCR
DVD
DTV
SAT
CBL
HD
To create channel labels
Press ◀ or ▶ to select a channel you want to label, then press ▼.
Press ▲ or ▼ to select “Video Label”, then press ▶ or ENTER.
: Adjust
: Move
Channel label appears with the channel number display each
time you turn on the TV, select a channel, or press DISPLAY.
You can choose any four characters to identify a channel.
Press ▲ or ▼ to select “Channel Labels”, then press ▶ or
ENTER.
The “Channel Labels” menu will appear.
Select “Setup”, then press ▶ or ENTER.
Video Label
Labeling channels
3
When you finish inputting the label name, press EXIT to return
to the normal screen.
Press ▲ or ▼ to select “Signal Meter”.
Signal Meter
1
2
Repeat steps 3-4 for other channel. You can assign a label to
each channel.
: Uses the default label name
: Video cassette recorder
: DVD video
: Digital TV set-top box
: Satellite box
: Cable box
: HDMI device (only for HDMI inputs)
Setting the Parental Control
An age limitation can be set to restrict children from viewing
or hearing violent scenes or pictures that you may choose
to exclude. The restriction applies to “TV” and “Movie”
if this data is transmitted. You may set this restriction
separately. To use the Parental Control function, you must
register a password.
To register a password
4
: Adjust
: Move
Press ◀ or ▶ repeatedly until the character you want appears
in the first space.
1
2
Select and enter your password (4 digits) using Number
buttons (0-9), then press ENTER.
Locks
Channel Labels
Channel Number
Channel Label
Label Clear
Select “Locks”, then press ▶ or ENTER.
New Password
[0-9] : Enter Code
: Move
: Adjust ENTER:Select
The characters rotation as follows:
-
, () @ / + = -
SPACE
If the character which you desire appears, press ENTER.
Repeat this step to enter the rest of the characters.
If you would like a blank space in the label name, you must
choose the empty space from the list of characters.
20
00_54L0621A.indb 20
* * *_
15-1
A
>>
3
ENTER:Select
“ ” appears instead of the number.
Enter the same password again to confirm, then press
ENTER.
The password is now registered.
NOTE:
• If you forget the password, contact Customer Service at 1-800289-0981 for assistance.
Your original remote control will be required.
• To avoid forgetting the password, write it down and keep in a
safe place.
10.4.27 3:15:21 PM
1
2
3
4
5
Select “Locks” menu, then press ▶ or ENTER.
Use Number buttons (0-9) to enter your password, then
press ENTER. Then Locks menu will appear.
Press ▲ or ▼ to select “Parental Control”, then press ◀ or ▶ to
select “On” .
3
4
Press ▲ or ▼ to select which rating will be used, then press ▶
or ENTER. Each rating below will appear.
TV Rating
5
ALL D
L
S
V
FV
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Select “Locks”, then press ▶ or ENTER.
Use Number buttons (0-9) to enter your password, then press
ENTER. The Locks menu will appear.
Press ▲ or ▼ to select “Change Password”, then press ▶ or
ENTER.
The Change Password screen will appear.
Enter a new password using Number buttons (0-9), then
press ENTER.
Enter the same password again to confirm, then press
ENTER.
The password is now registered.
Downloading the additional Parental Control rating
system
As a supplement to the standard Parental Control rating system,
your television will be able to download an additional rating
system, if such a system becomes available in the future.
: Move
ENTER:Select
You can set the rating using age level and genre.
Age:
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
: All children
: 7 years old and above
: General audience
: Parental guidance
: 14 years old and above
: 17 years old and above
Genre:
ALL
D
L
S
V
FV
: All
: Dialogue
: Language
: Sex
: Violence
: Fantasy Violence
Movie Rating
G
PG
PG-13
R
NC-17
X
: Move
To download the additional Parental Control rating system
(when available)
1
2
3
4
5
6
7
Movie
ENTER:Select
G
PG
PG-13
R
7
1
2
Press ▲ or ▼ to select “Ratings”, then press ▶ or ENTER.
The Ratings Menu appears.
TV
6
To change the password
ENGLISH
To set the Parental Control
: All ages
: Parental guidance
: Parental guidance less than 13 years old
: Under 17 years old parental guidance
suggested
NC-17 : 17 years old and above
X
: Adult only
Press ▲/▼/◀/▶ to select the desired rating, then press
ENTER.
Press EXIT to return to the normal screen.
Parental Control function is activated now.
To use the TV after the TV is protected.
When a program is received that is blocked by the Parental
Control, press MUTE, then enter your password.
The protection will be temporarily overridden. If the TV is turned off
or the channel is changed, the Parental Control restriction will be
reactivated.
NOTE:
• The Parental Control function is activated only on programs and
input sources that include a rating signal.
Select “Locks”, then press ▶ or ENTER.
Use Number buttons (0-9) to enter your password, then press
ENTER. The Locks menu will appear.
Press ▲ or ▼ to select “Parental Control”, then press ◀ or ▶
to select “On”.
Press ▲ or ▼ to select “Region 5”, then press ▶ or ENTER.
If the TV is not storing the additional rating system, the TV
will begin downloading it, which may take some time to be
completed.
Set your preferred content rating limits for the additional rating
system.
You also need “Region 5 Update” procedure to update rating
information.
NOTE:
• You can only download the additional Parental Control rating
system when your TV is receiving a digital signal.
• When you download the additional rating system, it may take
some time for the download to occur.
• The Parental Control rating information and system are not
determined or controlled by the TV.
• The standard Parental Control rating system is available
whether your TV is receiving a digital signal or not, and will
block both analog and digital programs. To set the restriction
level using the standard Parental Control rating system, select
Parental Control Set in step 4.
• The downloadable Parental Control rating system is an evolving
technology, and availability, content, and format may vary.
• You cannot select this feature if the TV is not receiving a digital
signal for the current station.
To clear the all Parental Control settings
1
2
3
4
Select “Locks”, then press ▶ or ENTER.
Use Number buttons (0-9) to enter your password, then
press ENTER. The Locks menu will appear.
Press ▲ or ▼ to select “Reset”, then press ▶ or ENTER.
The Password screen will appear.
Use Number buttons (0-9) to enter your password, then
press ENTER. All your settings return to the factory settings.
21
00_54L0621A.indb 21
10.4.27 3:15:22 PM
Closed Caption
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display Closed
Captioned television programs. Closed Captioning will display
text on the screen for hearing impaired viewers.
Captions: This Closed Caption Mode will display text on the
screen in English or another language if program supports other
languages. Generally, Closed Captions in English are transmitted
on CC1 and a Closed Caption in other languages is transmitted
on CC2.
Text: The Text Closed Caption Mode will usually fill 1/2 of the
screen with other text information such as weather if program
supports this feature.
1
2
3
4
5
6
Select “Setup”, then press ▶ or ENTER.
1
2
3
4
5
6
Press ▲ or ▼ to select “CC Advanced”, then press ▶ or
ENTER.
The CC Advanced menu will appear.
Press ▲ or ▼ to select the desired item, then press ◀ or ▶ to
change the setting.
Auto
Text Type
Auto
Text Edge
Auto
Text Color
Auto
Text Opacity
Auto
Background Color
Auto
: Move
Auto
: Adjust
You can select from among the following items and
parameters.
Text Size:
Text Type:
Auto, Small, Standard, Large
Auto, Style1, Style2, Style3, Style4, Style5,
Style6, Style7
Text Edge:
Auto, None, Raised, Depressed, Uniform, Left
Shadow, Right Shadow
Text Color:
Auto, Black, White, Red, Green, Blue, Yellow,
Magenta, Cyan
Text Opacity: Auto, Solid, Transparent, Translucent,
Flashing
Background Auto, Black, White, Red, Green, Blue, Yellow,
Color:
Magenta, Cyan
Background Auto, Solid, Transparent, Translucent,
Opacity:
Flashing
When you select “Digital Caption”, you can choose from
Service1, Service2, Service3, Service4, Service5 and Service6.
Press ◀ or ▶ to select the desired Closed Caption mode for
both Digital and Analog Caption.
Press ▲ or ▼ to select “CC Priority”, then press ◀ or ▶ to
select “Digital CC” or “Analog CC”.
• Depending on the broadcast signal, some Analog Captions
will function with a Digital broadcast signal. This step
prevents that two kind of captions are overlapping.
This feature is designed to customize Digital Captions only.
Press ▲ or ▼ to select “Digital CC Preset”, then press ◀ or ▶
to select “Custom”.
Background Opacity
When you select “Analog Caption”, you can choose from CC1,
CC2, CC3, CC4, Text1, Text2, Text3 and Text4.
When you have selected Custom as the display method,
you can adjust the various setting listed below as follows:
Press ◀ or ▶ to set “CC Display” to “On”.
Text Size
Press ▲ or ▼ to select “Analog Caption” or “Digital Caption”.
CC advanced
Press ▲ or ▼ to select “Closed Captions”, then press ▶ or
ENTER.
The Closed Caption menu will appear.
CC Advanced
Press ▲ or ▼ to select “Closed Captions”, then press ▶ or
ENTER.
The Closed Caption menu will appear.
Press ◀ or ▶ to set “CC Display” to “On”.
On: Captions will be displayed on the screen.
Off: Captions will not be displayed on the screen.
NOTE:
• If the program or video you selected is not closed-captioned, no
captions will display on-screen.
• If text is not available in your viewing area, a black rectangle
may appear on-screen. If this happens, set the CC Display to
“Off”.
• When selecting Closed Captions, the captioning will be delayed
approx. 10 seconds.
• If no caption signal is received, no captions will appear, but the
television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear
during Closed Captioning.
This is normal with Closed Captioning, especially with live
programs. This is because during live programs, captions are
also entered live. These transmissions do not allow time for
editing.
• When Captions are being displayed, on-screen displays, such
as volume and mute may be seen but may interfere with Closed
Captions.
• Some cable systems and copy protection systems may
interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the
Closed Caption Decoder may not appear or may appear with
strange characters or misspelled words. In this case, adjust the
antenna for better reception or use an outdoor antenna.
Select “Setup”, then press ▶ or ENTER.
NOTE:
• You cannot set both “Text Color” and “Background Color” as a
same color.
• You cannot set both “Text Opacity” and “Background Opacity” to
“Transparent”.
Aspect Switching
You can display the image at its optimum condition by
selecting display aspect.
Selecting the picture format aspect ratio
1
2
Select “Video”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Aspect”, then press ▶ or ENTER
to display Aspect. Press ▲/▼ or corresponding Number
buttons (0-4) to select the desired picture format aspect ratio,
as described below.
Aspect
0.Natural
1.Cinema Wide1
2.Cinema Wide2
3.Cinema Wide3
4.Full
[0-4]:Select
22
00_54L0621A.indb 22
10.4.27 3:15:22 PM
Natural
In some cases, this image will display the size of standard 4:3 with
a black side bar.
Using the Blu-ray Disc player
Playing a disc - Standard playback
1
2
Press POWER on the unit or on the remote, then press
TV/BD to select Blu-ray mode.
Place the disc in the disc slot with the label side facing
forward. Hold the disc without touching either of its surfaces,
align it with the guides, and place it in position.
The main menu as shown below will appear.
Cinema Wide1 (for 4:3 format programs)
To fill the screen, the right and left edges are extended. However,
the center of the picture remains near its former ratio.
The top and bottom edges of the picture may be hidden.
Connected
Settings
Cinema Wide2 (for letter box programs)
To fill the width of the screen, it is extended horizontally. However,
it is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden.
4
5
To fill the width of the screen, it is extended horizontally. However,
it is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden.
ABCDEFG----------------
ABCDEFG--------------------------
Full (for 16:9 source programs)
Full will display the picture at the maximum size.
Native (for PC mode only)
Detects the resolution of the signal of the image and it will be shown
on the screen with same amount of pixels.
NOTE:
• Some High Definition and/or Digital broadcasts may not allow
you to change the picture format aspect ratio.
• In HDMI or COMPONENT mode with a scanning rate of 720p,
1080i or 1080p (only HDMI), only the Cinema Wide2 and Full
are available.
• In PC Mode, only the Natural, Full and Native are available. In
PC Mode (WXGA), only the Full and Native are available.
PANDORA®
internet radio
3
Cinema Wide3 (for letter box programs with subtitles)
ENGLISH
NOTE:
• Selectable picture format aspect ratios may vary depending on
the input source or broadcast signal.
• Picture Size menu also can be displayed by pressing ASPECT
on the remote control.
Press C or D to select the disc, then press ENTER.
After a period of time, Chapter 1 of Title 1 on the disc will
begin playback.
On many BD/DVDs, Chapter 1 of Title 1 is an advertisement
or preview of upcoming releases. If you wish, you may press
DISC MENU to bring up the main disc menu. From there, you
can use C, D, B or A to select the “PLAY MOVIE” menu item.
To stop playback, press STOP 3 .
Press EJECT
to remove the disc.
When you eject the disc, you may hear mechanism noise, but
it is not malfunction.
NOTE:
• Some discs may take a minute or so to start playback.
• If an 8 cm disc is placed into the disc slot and picture playback
or menu display does not begin automatically, press PLAY 1.
• A “Prohibited” symbol “ ” may appear at the upper right of the
screen. This symbol means either the feature you tried is not
available on the disc, or the unit cannot access the feature at
this time. This does not indicate a problem with the unit.
• If you place a single-faced disc label backwards (i.e. the wrong
way) then “No Disc” will be displayed.
• Some playback operations of BDs may be intentionally fixed
by software producers. Since this unit plays BDs according to
the disc content recorded, some playback features may not be
available. Also refer to the instructions supplied with the BDs.
Playing a disc - Special playback
Fast Forward Playback
Press SEARCH 9during normal playback.
Fast forward begins at 2x normal playback speed. Each press of
SEARCH 9cycles the playback speed through 2x, 4x, 8x, 16x,
32x, 64x and 128x.
• To resume normal playback, press PLAY 1.
Fast Reverse Playback
Press SEARCH8 during normal playback.
Fast reverse begins at 2x normal playback speed. Each press of
SEARCH8 cycles the playback speed through 2x, 4x, 8x, 16x,
32x, 64x and 128x.
• To resume normal playback, press PLAY 1.
23
00_54L0621A.indb 23
10.4.27 3:15:23 PM
Still Playback
Repeat playback
• To resume normal playback, press PLAY 1.
Title, chapter Playback
Press PAUSE 4 during normal playback to pause playback.
• To resume normal playback, press PLAY 1.
Pressing REPEAT causes “Repeat Off” to appear on screen.
The second time you press this button, unit repeats the current
title. The third time you press this button, unit repeats the current
chapter. The fourth time you press this button, “Repeat Off” will
disappear and normal playback resumes.
Slow Forward Playback
A-B Repeat Playback:
• To resume normal playback, press PLAY 1.
1
2
Frame Advance
Press STEP during playback. Each time you press STEP, one frame
is advanced.
Press SLOW n during playback.
Each press of SLOW n cycles the playback speed through
x 1/2, x 1/4 and x 1/8 of the normal speed.
Skipping to the next chapter
Press SKIP 7 once during normal playback to jump to the
next chapter on the disc. The next chapter will start playing
automatically.
Skipping to the start of the current chapter
Press SKIP6 once during normal playback to jump to the
beginning of the currently playing chapter. The current chapter will
start playing from the beginning automatically.
Skipping to a previous chapter
Press SKIP6 once during normal playback to jump to the
beginning of the currently playing chapter, then press the
button again to skip to the beginning of the previous chapter.
The previous chapter will start playing from the beginning
automatically.
NOTE:
• The unit is capable of holding a still video image or On screen
display image on your television screen indefinitely. If you leave
the still video image or On screen display image displayed on
your TV for an extended period of time, you risk permanent
damage to your television screen.
• There may be a slight delay between when you press the button
and the function activating.
Status display of disc
1
2
A-B repeat playback allows you to repeat material between two
selected points.
3
Press REPEAT A-B during playback.
The start point is selected.
Press REPEAT A-B again.
The end point is selected. Playback starts at the point that
you selected. Playback stops at the end point, returns to Point
A automatically, then starts again.
To resume normal playback press REPEAT A-B again.
NOTE:
• Some discs may not work with the repeat operation.
• In A-B repeat mode, subtitles near point A or B may not appear.
• During the A-B Repeat Playback the ANGLE feature will not
operate.
• You may not be able to set A-B Repeat, depending on the
scenes of the BD/DVD.
• A-B Repeat does not work with an interactive BD/DVD, MP3/
WMA/JPEG-CD.
Changing soundtrack
language
You can select the language when you play a multilingual disc.
1
2
3
Press AUDIO during playback.
The popup menu will appear.
Press C or D to select “Audio” or “PIP Audio”, then press
ENTER.
Press C or D to select the desired language.
Press DISPLAY to display the disc status on screen.
Display content may vary depending on the disc or file.
To remove the status display, press DISPLAY again.
[BD/DVD]
Media
selected
Current
title No.
Elapsed
time
Current chapter No./
Total No. of chapters
Progress
bar
Repeat
status
Play
status
Total time of
current title
[CD-DA]
Media
selected
Current track No./
Total No. of tracks
Elapsed
time
Progress
bar
Random
status
Total time of
current track
The on-screen display will disappear after a few seconds.
NOTE:
• If the desired language is not heard after pressing AUDIO
several times, the language is not recorded on the disc.
• Changing soundtrack language is canceled when you eject the
disc.
The initial default language or available language will be heard if
the disc is played back again.
Play
status
Repeat
status
24
00_54L0621A.indb 24
10.4.27 3:15:24 PM
Locating desired scene
Changing angles
1
When playing back a disc recorded with multi-angle facility,
you can change the view angle.
Time to
Jump to
2
Total time
of current title
1
2
Press C or D to select the desired angle, then press ENTER.
Current play time
Press the number buttons to enter the title number, chapter
number, or amount of elapsed time, then press ENTER. Unit
goes to the title, chapter, or elapsed time you specified.
Subtitles
Turning the subtitles on and off
When playing back a disc recorded with subtitles, you can turn the
subtitles on or off.
Press SUBTITLE during playback until “Off” appears.
Changing the subtitle language
You can select the language when playing back a disc recorded
with multilingual subtitles.
1
2
3
Press ANGLE during playback.
The popup menu will appear.
ENGLISH
Press JUMP one or more times to select:
The popup menu will appear.
• Title: first button press
• Chapter: second button press
• Time: third button press
01/05
PIP Subtitle
N/A
NOTE:
• Depending on the BD/DVD, you may not be able to change the
angles even if multi-angles are recorded on the BD/DVD.
Using PIP (picture-in-picture)
mode
Some Blu-ray Discs are compatible with picture-in-picture (PIP)
mode. In PIP mode, the primary video is displayed on the full
screen, and the secondary video is displayed in a small window.
Primary video
Press SUBTITLE during playback.
The popup menu will appear.
Press C or D to select “Subtitle” or “PIP Subtitle”, then press
ENTER.
Press C or D to select the desired subtitle.
Secondary video
Subtitle
01/06 ENG
The on-screen display will disappear after a few seconds.
NOTE:
• Changing subtitle language is canceled when you eject the disc.
• Some functions may not work on some BD/DVD. You may not be
able to turn subtitles on or off or change subtitles. While playing
the BD/DVD, the subtitle may change when:
- you eject the disc.
- you change the title.
• In some cases, the subtitle language may not change to the
selected one immediately.
See the documentation that came with the disc for playback
instructions.
1
2
Press PIP during playback.
The popup menu will appear.
Press C or D to select the desired secondary video, then
press ENTER.
• If PIP mode is on, press SECONDARY AUDIO to change
the PIP audio or press SECONDARY SUBTITLE to change
the PIP subtitle (if available).
25
00_54L0621A.indb 25
10.4.27 3:15:24 PM
MP3/WMA/JPEG and
Audio CD playback
This player can play back MP3/WMA/JPEG-data which has
been recorded on CD-R or CD-RW. To produce MP3/WMA/
JPEG-data, you need a Windows-PC with CD-ROM drive and
MP3/WMA/JPEG-encoding software (not supplied).
The Apple-HFS-System cannot be played.
MP3/WMA/JPEG CD information
Limitations on MP3/WMA/JPEG CD playback
• MP3/WMA/JPEG CD is the disc that is standardized by
ISO9660, its file name must include 3-digit extension letters,
“mp3”, “wma”, “jpg”.
• The directory and file names of MP3/WMA/JPEG CD must
correspond to ISO standardized files.
• This unit can read 2046 files per directory. If one directory has
more than 2046 files, it reads up to 2046 files, the remaining
files will be omitted.
• MP3/WMA CDs cannot be used for playback for the purpose of
recording.
• It may take more than one minute for this unit to read MP3/
WMA/JPEG files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be
played back.
• The music files recorded by “Hierarchical File System” (HFS)
cannot be played.
• The unit can play back baseline and progressive JPEG files.
Notes on MP3/WMA/JPEG files
To play back MP3/WMA/JPEG CD in the recorded order,
1. Use MP3/WMA/JPEG software that records data alphabetically
or numerically.
2. Name each file including a two-digit or three-digit number (e.g.
“01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
CAUTION:
• Some MP3/WMA/JPEG CDs cannot be played back depending
on the recording conditions.
• The CD-R/RW that has no music data or non-MP3/WMA/JPEG
files cannot be played back.
Preparing the BD player for music/photo playback
If you will be viewing photos and/or listening to music burned onto
a data disc, insert the disc.
If you will be viewing photos and/or listening to music stored in a
USB drive, you must turn off the TV before inserting the USB drive.
After inserting the USB drive, turn the TV on.
NOTE:
• Inserting/removing a USB drive during playback may corrupt the
data on the USB drive.
NOTE:
• At least one available media type must be in the unit for the
menu to appear.
CAUTION:
• Compatible USB drives are flash memory. Some USB drives
may not be recognized correctly. We do not guarantee
compatibility with all mass storage devices and assumes no
responsibility for any loss of data that may occur with a device
connected to the unit.
To select the playback source:
1
2
To turn on the unit, press POWER.
Insert a disc or USB drive. A file type selection screen will
appear.
When both (disc and USB drive) are inserted, select the
desired source, then press ENTER.
Playing audio files
To play audio files:
1
2
3
Insert a disc or USB drive that contains an MP3 or WMA
file(s).
Press C or D to select “Music”, then press A or ENTER.
The Music browser will appear.
Press C, D, B or A to select the file you want to play, then
press ENTER.
The selected file plays and the information on the file
appears.
Once a song starts playing, playback status will appear,
showing the File, Title, Artist, Album, Album name (if available)
and playback duration. Pressing RETURN cause the status
information to disappear and return to the Music browser.
To play individual audio files, navigate through the files and
folders, select the desired file, then press ENTER.
To control MP3 or WMA playback:
• To pause playback, press PAUSE 4.
• To stop playback, press STOP 3.
• To fast forward or fast reverse, press SEARCH 9
(forward) or SEARCH8 (reverse).
• Within four seconds of starting playback of a file, press
SKIP 6 to go to the previous file.
After four seconds of playback, press SKIP6 to go to the
beginning of the file and press SKIP 6 again to go to the
previous file. Each press of SKIP 7 skips the current file
and plays to the next file.
• To return to the previous menu, press RETURN.
When a data disc or USB drive containing picture and audio files
is inserted into the BD player, the menu screen displays icons
indicating the files or that music or picture files are available for
playback, as shown below:
Settings
Connected
PANDORA®
internet radio
Music
Pictures
26
00_54L0621A.indb 26
10.4.27 3:15:25 PM
Viewing JPEG files
Using Pandora
To view JPEG files:
This option provides music personalized to your taste.
3
Insert a disc or USB drive that contains the JPEG file(s).
Press C or D to select “Pictures”, then press A or ENTER.
The Picture browser will appear.
Press C, D, B or A to select the file you want to view, then
press ENTER.
The selected JPEG picture(s) will appear on screen.
A folder list and supported picture files will appear (along with
thumbnail views of the pictures themselves).
• To return to the previous menu, press RETURN.
1
Press TV/BD to select Blu-ray mode. The Setup Menu screen
will appear.
NOTE:
• If the BD player is not properly connected to the Internet, an
alert message will appear on the main menu. In this case, press
the RED button to properly configure the network connection
(refer to “Connecting to the network” on page 31 for details).
2
Press C or D to select “Connected”. The Pandora screen will
appear.
ENGLISH
1
2
Pictures
USB 1
21 item(s)
Graduation
Party
Vacation
Settings
Connected
Main Menu
PANDORA®
internet radio
Previous folder
Start Slide Show
Browse Music
Now Playing
File: 0/0
To control JPEG playback:
3
4
• To go to the next or previous file, press SKIP 7 or SKIP
6.
• To return to the previous menu, press RETURN.
To view JPEG files in a slide show:
1
2
3
4
Select the desired folder on the Picture browser using C, D,
B or A, then press ENTER.
Press B and press C or D to select “Settings”, then press
ENTER.
Press B and press C or D to select “Slide Show Effects” or
“Slide Show Delay”, then press ENTER.
You can select one of the following options by pressing C or
D, then press ENTER.
Press D to select “OK”, then press ENTER.
5
Press A or ENTER.
Press C or D to select the option, then press ENTER.
If you already have a Pandora account, select “I have a
Pandora account”.
If you do not have a Pandora account, select “I am new to
Pandora” to display a Pandora website popup. You can
obtain a new account by entering the activation code on this
website.
Enter your email address and password, then press D to
select “next”.
A list of stations created from the website or player will appear
and start playing music.
NOTE:
• To cancel Pandora setting in step 4, select “Exit Pandora”.
Slide Show Effects: None/Horizontal Scroll/Fade/Shutter
Slide Show Delay: 5 Seconds/2 Seconds/1 Seconds/
No Delay/10 Seconds/15 Seconds/30 Seconds
Press C or D to select “Start Slide Show”, then press ENTER.
The slide show starts.
• To return to the previous menu, press RETURN.
27
00_54L0621A.indb 27
10.4.27 3:15:25 PM
Quick guide for Setup Menu operation
1
2
3
Press POWER on the unit or on the remote.
Press TV/BD to select Blu-ray mode.
The main menu will appear.
Press C or D to select “Settings”, then press ENTER.
The Setup Menu will appear.
Language
Parental
Settings
System
Network
Display
Audio
4
5
Press C or D to select the desired menu option on the Setup Menu, then press ENTER.
A list of sub-options appears on the right of the screen.
Press C or D to select the desired sub-option, then press ENTER.
The circled checkmark will move to the selected option.
BD-Live Internet Access
Please choose a new BD-Live Internet Access.
Always Allow Access
ernal (0.0KB Free)
Limit Access
Settings
System
Always Allow Access
Prohibit Access
Restore factory defaults
6
Press B or RETURN until the Setup Menu returns, then press C or D to select another menu category.
28
00_54L0621A.indb 28
10.4.27 3:15:27 PM
Icon
Option
Description
BD-Live Internet
Access
Sets the Internet access level.
BD-Live Storage
Selects a USB drive to store BD-Live content.
Erase Blu-ray
Storage
Clears the non-volatile storage (application data area) on a Blu-ray Disc. The application data area is the
space on a Blu-ray Disc that stores information such as the subtitle language selection.
When you select this option, a confirmation box will appear. If you select “Ok”, unit erases the Blu-ray Disc
application data area. (Press A or ENTER to select Erase Blu-ray Storage, Update Via Network and Restore
factory defaults options.)
Update Via Network
Updates the BD player’s software via the Internet. Check if the unit is connected to the Internet properly, then
select “Update Via Network” from the Setup Menu. When there is new software available on the software
update server, the “Automatic Upgrades Over the Internet” screen will appear.
Select “Ok”, then press ENTER. Downloading will start automatically and a progress bar will appear on
screen. Once the update is complete, the unit will automatically turn off and on.
Restore factory
defaults
• Restore factory setting—Resets all settings to factory default.
• Deactivate Pandora—Resets Pandora settings.
Wired
• Link Status—Indicates whether or not the BD player is currently able to access an Internet site. Useful
when confirming the unit is properly connected to a network; “Link Up” is displayed if properly connected
and “Link down” if not.
• MAC Address—Shows unit’s MAC address.
• IP Mode—Selects the IP configuration mode. Select Dynamic (uses DHCP to automatically obtain an
IP address), Manual (let you manually configure network settings, such as IP Address, Subnet Mask,
Gateway, Primary DNS and Secondary DNS settings), or Off (disables the network interface).
* The network cannot be connected to the Internet by way of a proxy server.
Network Test
Press ENTER to select this option. It tests unit’s Internet connection by “pinging” an IP address. A “ping” sends
a message to an Internet address and waits for a reply to verify that a connection is working.
BD/DVD Output
Selects the picture size, so you can match the size of the TV screen. You can select “16:9 Wide” or “16:9
Pillarbox”.
Note: For a wide-screen TV, select one of the 16:9 aspect ratios. If you select an aspect ratio that does not match
your TV’s screen size, the resulting picture display may be unpredictable.
• This setting applies to Blu-ray mode only. It changes the aspect ratio for a disc recorded at in a 4:3 format,
but does not change the aspect ratio for a disc recorded in a 16:9 format.
Digital Output
Selects the digital audio output. The option you select depends on the capabilities of the sound system you
have connected to unit.
• PCM Stereo—Sends mixed digital audio over SPDIF in two-channel PCM format.
• Bitstream—Sends the original bitstream from disc over SPDIF using legacy audio formats. Blu-ray Disc
audio is limited to the soundtrack for main movie and does not send PIP audio or audio effects.
• Bitstream Mixed—Blu-ray Disc audio streams are mixed and encoded into a single bitstream. Use
this option if you are using an SPDIF 5.1CH receiver and you want to enjoy mixed Blu-ray Disc audio in
surround sound.
Note: When “Bitstream” is selected, unit cannot output secondary audio.
Dynamic Range
Control
Sets Dynamic Range Control to “On” or “Off”.
Dynamic Range Control is only active when a Dolby Digital signal is received. When you turn on this option
and movie soundtracks are played at low volume or from smaller speakers, unit applies compression to make
low-level audio more intelligible and prevents loud audio from getting too loud.
• On—Select this option if you play movies at low volume or if you have small speakers. Unit uses
compression to make low-audio content easier to hear and prevent high-audio content from getting too
loud.
• Off—Select this option if you do not want to use the DRC feature. The DRC gain value is ignored, and the
audio program is reproduced with full dynamic range.
OSD
Selects the Setup Menu language. You can select “English”, “Français”, or “Español”.
Menu
Selects the menu language for the disc.
Audio
Selects the audio language for the disc.
Subtitle
Selects the subtitle language for the disc.
System
Network
Display
Audio
Language
ENGLISH
Setup Menu options
Parental Country
Parental
Parental Control
Parental Level
See page 30.
Parental Password
29
00_54L0621A.indb 29
10.4.27 3:15:30 PM
Setting disc parental controls
6
Some discs are specified as not suitable for children.
Such discs can be limited not to playback with the unit.
To set parental controls:
1
2
3
Press C or D to select “Parental Control”, then press ENTER.
Press C to select “On”, then press ENTER.
Parental Control must be set to “On” for parental controls to
work.
To change the password:
Press TV/BD to select Blu-ray mode.
1
Press C or D to select “Settings”, then press A or ENTER.
Press C or D to select “Parental”, then press A or ENTER.
“Please Input 4-Digit Parental Password:” screen will appear
when “Parental Control” is set to “On”. Enter the password
using Number buttons (0 - 9).
Press C or D to select “Parental Password”, then press
ENTER.
“Please enter new parental control password:” screen will
appear.
Parental Country
USA
Please enter a new Parental control password.
Parental
Settings
Audio
OK
Language
Settings
* *
Password
Parental
Parental Country
Parental Control
Parental Level
Parental Password
Cancel
USA
Off
1 [Kid Safe]
[Kids Safe]
Parental Password
Parental
System
2
Network
Display
4
Press C or D to select “Parental Country”, then press ENTER.
Press C or D to select the country you live in, then press
ENTER.
Parental Country
Please choose a new Parental Country.
Settings
USA
Off
3
Enter the new password using Number buttons (0 - 9), then
press D to select “Ok”.
Press ENTER to save your password and return to the
previous menu level.
NOTE:
• If you forget your password it can be reset. With no disc in the
player and in Blu-ray mode, press STOP on the unit. Continue
holding the button and press 7 on the remote at the same time.
“Release Parental Lock Completed!” appears on screen. Now
the password has been returned to the initial value (0000).
USA
Parental
Canada
[Kids Safe]
Parental Password
5
Press C or D to select “Parental Level”, then press ENTER.
Please choose a new Parental Level.
USA
Parental Country
USA
2 [G]
3 [PG]
Settings
Off
4 [PG-13]
Parental
5 [PG-R]
1 [Kids Safe]
6 [R]
7 [NC-17]
8 [Adult] Parental Password
Press C or D to select the rating you want to block, then press
ENTER.
You can select:
• 1[Kid Safe]—Suitable for all children.
• 2[G]—General audiences.
• 3[PG]—Parental guidance suggested.
• 4[PG-13]—Not suitable for anyone under 13.
• 5[PG-R]—Parental guidance recommended.
• 6[R]—Not suitable for anyone under 17 unless supervised
by a parent or adult guardian.
• 7[NC-17]—Not suitable for anyone under 17.
• 8[Adult]—All BDs or DVDs can be played.
30
00_54L0621A.indb 30
10.4.27 3:15:30 PM
Connecting to the network
To access network service or upgrade the current firmware, you must make one of the following connections.
By connecting the unit to a network, you have access to services such as software updates, BD-Live content, and streaming
services such as Pandora, etc. We recommend you use an AP or router for the network.
Cable network
ENGLISH
Connect the BD player’s Ethernet port to the corresponding port on your modem or router using a LAN cable.
Use a commercially available LAN or Ethernet cable (CAT5 or better) with RJ45 connector.
To LAN port
Connecting using a router
(e.g. DSL)
Broadband modem
(with integrated router)
Router
Broadband modem
Broadband
service
Broadband
service
To LAN port
To LAN port
Or
PC connection to Router for
PC streaming
NOTE:
• Make sure to set network options after connecting the LAN cable.
• Internet access to the software update server may not be allowed, depending on the router you use or the ISP’s policy. For more
information, contact your ISP (Internet Service Provider).
• For DSL users, please use a router to make a network connection.
• Our company is not responsible for any malfunction of the BD player and/or the Internet connection feature due to communication
errors/malfunctions associated with your Internet connection, or other connected equipment.
• Our company is not responsible for any trouble with your Internet connection.
• The use of a router may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details,
contact your ISP directly.
• Your ISP may prevent this BD player from being connected to the network by checking the MAC Address. In that case, contact your
ISP and request that the MAC Address be initialized.
31
00_54L0621A.indb 31
10.4.27 3:15:34 PM
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features
of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.
To connect the LCD TV/BD to a VCR
Rear of the unit
VCR
To Video/Audio OUT
To LINE 2 VIDEO/
AUDIO IN
Video/Audio cable (not supplied)
To connect the LCD TV/BD to a VCR with an S-Video cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also connect the audio cables to
the AUDIO IN jacks on the rear side of the unit.
The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
• When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable takes precedence.
Rear of the unit
To Audio OUT
To LINE 1 AUDIO IN
To S-Video OUT
Audio cable (not supplied)
To LINE 1
S-VIDEO IN
VCR
S-Video cable (not supplied)
To connect to a BD or DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your BD or DVD player with the
COMPONENT video cables (not supplied).
Component video cable (not supplied)
Rear of the unit
Y
Pb
Pr
To COMPONENT IN
To Component OUT
Y
Pb
DVD
Pr
To Audio OUT
To LINE 2 AUDIO IN
Audio cable (not supplied)
32
NOTE:
• Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive
signals.
00_54L0621A.indb 32
10.4.27 3:15:35 PM
Connections to other equipment
(continued)
To connect a HDMI or a DVI device to the unit
The HDMI 1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cables are
required.
Rear of the unit
To PC/DVI
AUDIO IN
ENGLISH
To DVI output
DVI device
Audio cable (not supplied)
or
To HDMI1/DVI IN
HDMI - to - DVI adapter cable
(HDMI type A connector)
HDMI device
To HDMI out
(not supplied)
To HDMI1/DVI
IN or HDMI2 IN
HDMI cable (type A connector)
(not supplied)
NOTE:
• When using HDMI 1/DVI to connect your HDMI or DVI devices, you must select the corresponding audio input source
(HDMI or DVI) on the menu screen (see page 18). Otherwise you will only see the image with no sound.
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround
audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder etc. as shown below.
Rear of the unit
Front
Speaker
(Right)
Subwoofer
Digital Audio
Coaxial Output
Front
Speaker
(Left)
TV/BD
Coaxial digital cable
(not supplied)
To Coaxial
Digital Audio Input
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Surround
Speaker (Left)
Surround
Speaker
(Right)
NOTE:
• When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio. There will be no sound output if
connected to an AV amplifier with a built-in DTS decoder.
33
00_54L0621A.indb 33
10.4.27 3:15:35 PM
Connections to other equipment
(continued)
To connect an audio system
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote control.
To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see page 18).
Rear of the TV
Amplifier
To VAR (VARIABLE)
AUDIO OUT
To Audio (L) Input
To Audio (R) Input
Audio cable (not supplied)
NOTE:
To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set above 0 (zero).
For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest
level.
To connect the TV/BD to a camcorder, or a TV Game
To play back from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these
devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need
to consult each component’s Owner’s Manual for additional information.
Rear of the unit
To LINE 1
VIDEO/AUDIO IN
To Video/Audio OUT
Video/Audio cable
(not supplied)
or
To connect the TV/BD to a PC (Personal Computer)
Before you connect this TV/BD to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC MONITOR
IN on the rear of the TV/BD. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio
cable to the audio output of your Multimedia computer and to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV/BD. You can
also connect the PC with HDMI cable. If you use a HDMI cable, you don’t have to connect the audio cable. If you use a DVI-to-HDMI
cable, please connect the audio cable in the same way as the VGA cable.
Press INPUT on the remote control to select PC mode.
Switch on the computer. The TV/BD can operate as the computer monitor.
To PC
Rear of the unit
MONITOR IN
Monitor Display modes
MODE Resolution
Refresh rate
To PC/DVI
AUDIO IN
To HDMI1/
DVI IN
Audio cable
(not supplied)
VGA cable
(not supplied)
HDMI cable (not supplied)
VGA
640x480
60/ 72/ 75 Hz
VGA
720x400
70Hz
SVGA 800x600
56/ 60/ 72/ 75 Hz
XGA
1024x768
60/ 70/ 75 Hz
SXGA 1280x1024 60Hz
WXGA 1280x768
60Hz
WXGA 1280x720
60Hz
WXGA 1360x768
60Hz
WXGA+ 1440x900
60Hz
FHD
1920x1080 60Hz
To return to normal mode
Press INPUT again.
NOTE:
• The on-screen displays will have a different appearance in PC mode than in TV mode.
• If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV screen.
34
00_54L0621A.indb 34
10.4.27 3:15:35 PM
Reception disturbances
GHOSTS:
Ghosts are caused by the television signal following two paths. One is the direct path and the other
is reflected from tall buildings, hills or some other objects. Changing the direction or position of the
antenna may improve reception. Ghosting may also be caused by defects in the antenna system such
as unshielded leads or connecting several sets to the same antenna without using multiple antenna
couplers.
ENGLISH
IGNITION NOISE:
Black spots or horizontal streaks may appear, picture may flutter or drift. Usually caused by interference
from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.
SNOW:
If your receiver is located in the fringe area of a television station where the signal is weak, your
picture may be marred by the appearance of small dots. When the signal is extremely weak, it may be
necessary to install a special antenna to improve the picture.
RADIO FREQUENCY INTERFERENCE:
The interference produces moving ripples or diagonal streaks, and in some cases, causes loss of
contrast in the picture.
•
•
•
•
PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS
This television has been designed pursuant to the FCC class B Rules. This is to prevent a problem to
Radio receivers. If this television causes a problem to Radio receivers, then take the following steps:
Keep the television away from Radio.
Adjust Radio antennas in order for the television not to receive interference.
The antenna cable of Radio should be kept away from the television.
Use a coaxial cable for antenna.
You can check if this television influences Radio receivers by turning off all other equipment other than
the television. If you find a problem receiving Radio when using the television, check the instructions
mentioned above.
BLOCK NOISE or FREEZE (DIGITAL INPUT):
Fuzzy blocks may appear in some area or the whole area of the screen. This is usually caused by
interference from automobile ignition systems, neon lamps, electrical drills, ghosting of the image and
lost or weak receiving signals.
BLACK SCREEN:
When using an antenna, weak signals will display a black screen. It may be necessary to upgrade your
antenna.
NOTE:
• The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment from the TV set to a
considerable distance.
FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:
1-800-289-0981
WHEN CALLING CUSTOMER SERVICE – PLEASE HAVE YOUR MODEL NUMBER READY
OR WRITE TO:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
35
00_54L0621A.indb 35
10.4.27 3:15:36 PM
Problems and troubleshooting
Use the following check list for troubleshooting when you have problems with your TV/BD. Consult your local dealer or service outlet if
problems persist.
Be sure all connections are properly made when using with other units.
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
POWER
TV/BD does not operate.
• Make sure the power cord is plugged in.
• Unplug unit, then plug it back in.
13
TV BROADCAST RECEPTION
Poor sound or no sound.
• Station or Cable TV experiencing problems, tune to another station.
• Check Volume adjustments or mute mode.
• Check for sources of possible interference.
16
16, 17
35
Poor picture or no picture.
•
•
•
•
Station or Cable TV experiencing problems, tune to another station.
Check antenna or Cable TV connections, reorient antenna.
Check for sources of possible interference.
Check picture control adjustments.
16
14, 15
35
18
Poor reception on some
channels.
• Station or Cable TV experiencing problems, tune to another station.
• Station signal is weak, reorient antenna to receive stronger station.
• Check for sources of possible interference.
Poor color or no color.
•
•
•
•
•
Station or Cable TV experiencing problems, tune to another station.
Make sure channels are set into memory.
Check picture control adjustments.
Check antenna or Cable TV connections, reorient antenna.
Check for sources of possible interference.
16
19
18
14, 15
35
Picture wobbles or drifts.
•
•
•
•
Station or Cable TV experiencing problems, tune to another station.
Make sure channels are set into memory.
Cable TV company is scrambling signal.
Check antenna orientation.
16
19
–
14
No Cable TV reception.
• Check all Cable TV connections.
• Set Source option to the “Cable” mode.
• Station or Cable TV system problems, try another station.
15
19
16
Horizontal or diagonal bars on
screen.
• Check antenna connections, reorient antenna.
• Check for sources of possible interference.
14
35
No reception above channel 13.
• Make sure Source option is in the appropriate mode.
• If using antenna, check UHF antenna connections.
19
14
TV shuts off.
• No broadcast on station tuned.
• Sleep Timer is set.
• Power interrupted.
16
17
–
Closed - Caption is not available.
• TV station experiencing problems or program tuned is not closed captioned. Try
another program.
• Set Closed caption in the menu.
16
Display is not shown in your
language.
• Select proper language in the menu options.
18
The image on the screen is
moving in an oblique direction.
• Check “Clock” and “Phase”.
18
Vertical stripes can be seen in
full-display mode.
• Check “Clock”.
18
Part of the image is missing.
• Check “Auto Adjust”.
18
Horizontal stripes are moving
vertically with flickering screen.
• Check the signal status of the PC.
When the characters are
displayed on the whole screen,
vertical stripes appear and some
of the characters are blurred.
• Check “Auto Adjust”.
• If the display condition is not improved with “Auto Adjust”, check “Clock”.
16
14
35
22
PC
–
18
• The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few non-active pixels may appear on
the screen as a fixed point of blue, green or red. Please note that this is not a malfunction.
36
00_54L0621A.indb 36
10.4.27 3:15:37 PM
Problems and troubleshooting
SYMPTOMS
When a letter string is displayed in fullscreen, all of the characters on the screen
are blurred.
When small patterns are displayed on the
screen, the entire screen is flickering.
Image cannot be displayed in the correct
position.
DVD/Blu-ray Disc
TV/Blu-ray combo does not work.
Playback will not start, or playback starts
then stops.
No picture.
No sound.
Startup is slow.
The player is on and displays the start logo
and menu, but there is no image from the
disc displayed.
Picture is distorted during CUE or REVIEW.
Stopping playback, search, slow-motion
play, repeat play, or program play, etc.
cannot be performed.
No surround sound.
The unit is not functioning.
Playback does not start when the title is
selected.
Audio soundtrack and/or subtitle language
is not changed when you play back a disc.
No subtitle.
Angle cannot be changed.
“Prohibited”, “ ” or “This operation can’t be
performed” appears on the screen.
POSSIBLE SOLUTIONS
PAGE
• Check “Auto Adjust”.
• If the condition is not improved with “Auto Adjust”, check “Phase” until you get the clearest image.
18
• Check “Auto Adjust”.
• If the condition is not improved with “Auto Adjust”, check “Phase” until you get a flicker-free display.
18
• Check the signal status of the PC.
–
• A built-in safety device may have been activated. Press POWER on the side of unit to turn it off, then turn
it on again. If unit still does not turn on, unplug the power cord, wait about one minute, plug it in again, then
press POWER on the side of unit.
• Condensation may have formed inside unit. Turn off unit and wait about two to three hours for the
condensation to evaporate.
After connecting to the Internet, cannot
download a file.
File downloaded successfully, but playback
pauses.
When playing a file on a USB drive,
playback pauses.
REMOTE CONTROL
The remote control does not function.
–
23
23
7
7
If you see
, the action you are trying is not allowed by unit or the disc.
Make sure that the disc is inserted with the label facing forward.
Make sure that the disc is not dirty.
The disc may be blank or not compatible with unit.
TV/BD selector is not set correctly.
Check the input selector of the amplifier is set properly.
The unit is in the Special playback mode.
Select the correct Audio Output position on AV amplifier.
Startup may be slow if the TV is connected to the HDMI cable.
Startup may be slow the first time you plug in the power cord or after a power failure.
23
–
23
34
–
–
• Make sure that the disc is not dirty.
• Try resetting your player. Press POWER, wait five seconds, then press POWER again.
7
–
• The picture will be distorted occasionally.
–
• Some discs may not allow these functions.
–
•
•
•
•
•
•
•
•
•
•
• The setup does not match your stereo system.
• Turn off the unit and unplug the AC power cord for several minutes, then replug it.
33
13
• Check the Parental setup.
30
• Multilingual language is not recorded on the disc.
25
• Some discs have no subtitles.
• Subtitles are cleared. Press SUBTITLE.
• Multi-angles are not recorded on the disc.
25
• The function is prohibited with the unit or the disc.
23
25
BD-Live, Pandora and USB connections
Cannot connect to the Internet.
–
•
•
•
•
•
•
•
Make sure that the Internet connection is set up correctly.
Test the Internet connection to make sure that it is working.
Make sure that the BD-Live Internet Access option is not set to Prohibit Access.
Make sure that the disc you are playing is a legal copy.
BD storage may be full. Try clearing storage.
Make sure that the Internet connection is still working. Try testing the connection.
If you are using a USB drive, try a different drive.
–
–
31
–
–
–
–
• Make sure that the USB drive is a 2.0 USB drive. If the drive is a 1.1 USB drive, pausing can occur.
–
• Try another USB drive.
–
•
•
•
•
•
Aim the remote control at the remote sensor.
Operate within Approx. 15 feet or reduce the light in the room.
Clear the path of the beam.
The batteries are weak. Replace the batteries.
Check that the batteries are inserted correctly.
Energency Disc Eject
ENGLISH
PC
(continued)
13
Rear of the unit
Note: This procedure must be done in the order described below.
1 Be sure to unplug the power cord from the AC outlet.
2 Insert the tip of a flathead screwdriver (5 mm dia. or smaller) vertically into Slot 1 on the
back of the TV. Push the internal lever to the right until it stops.
3 Insert the tip of the screwdriver vertically into Slot 2. Push the internal lever to the right
until the disc ejects.
Attention
• A flashlight may be required to see the release levers.
• Be sure to perform these steps in the order shown above, and as exhibited in the diagram,
or a malfunction may occur.
• This procedure is for emergency use only. Performing these steps on a normal operating
unit may cause the TV to malfunction.
• Please call the service center if Disc does not eject.
00_54L0621A.indb 37
2
3
Slot 1
Slot 2
37
10.4.27 3:15:38 PM
Specifications
GENERAL
Power supply
Power consumption
Weight
Dimensions
Operating temperature
Operating humidity
TELEVISION
Type
Display method
Number of pixels
Broadcasting system
Receiving channels
Tuner type
Inputs
Outputs
Speaker
Audio output power
BD/DVD/CD player
Signal system
Applicable disc
ACCESSORIES
AC 120V 60Hz
Operation: 130W
Stand by: 0.3W
13.6 kg (30.0 lbs)
Width: 796 mm (31-5/16 inches)
Height: 549 mm (21-5/8 inches)
Depth: 300 mm (11-13/16 inches)
5˚C - 35˚C
Less than 80%
31.55 inches (801.3 mm diagonal)
Transmission TFT color LCD panel
1920 (H) x 1080 (V)
US system M
ATSC standard (8VSB), QAM
VHF
2-13
UHF
14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Frequency synthesized
S-Video: Y-Input:1.0 V (p-p), 75 ohms
C-Input:0.3 V (p-p), 75 ohms
Video: 1.0 V p-p/75 ohms
Audio:
–8 dBm/50K ohms
Component video:
(Y) 1.0 V (p-p), 75 ohms
(Pb)/(Pr) 0.7 V (p-p), 75 ohms
HDMI: HDMI compliant (type A connector)
HDCP compliant
E-EDID compliant
Suggested scan rates: 1080p, 1080i, 720p, 480p, 480i
HDMI Audio: 2-channel PCM
32/44.1/48 kHz sampling frequency
16/20/24 bits per sample
PC Monitor: Mini-Dsub 15pin x 1
USB:
USB 2.0
Antenna:
VHF/UHF In 75 ohms coaxial
Digital audio out:
0.5 Vp-p 75 ohms terminated
41 mm x 122 mm (1-5/8 inches x 4-13/16 inches), 8 ohms x 2
10.0W + 10.0W
NTSC
BD-ROM, BD-JAVA 1.1, DVD-Video, DVD-RW/-R, CD-RW/-R, CD-DA
Remote control
Batteries (AA) x 2
AC Cord
Clamp
Clamp Screw
Stand
Stand Screw x 4
• Designs and specifications are subject to change without notice.
• For information on our other products, please visit our website at www.hitachi.us
38
00_54L0621A.indb 38
10.4.27 3:15:39 PM
LIMITED WARRANTY
32” LCD HDTV with Built-in BD Player
Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunction during the first 12
months from date of original purchase, ORION will provide carry-in service only by an ORION authorized Independent Service Center
at no charge. Also, if an original part fails due to manufacturing defect in material and workmanship within one year from date of original
purchase we will replace the defective part, provided the defect or malfunction is verified along with dated proof of purchase.
ENGLISH
ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions
for a period of 1 year from date of original purchase in the United States.
There are ORION authorized Independent Service Centers located throughout the country. For the one nearest you, DIAL TOLL
FREE: 1-800-289-0981. ORION will not be liable for damages incurred in shipment of the unit. If there are no ORION authorized
Independent Service Centers in your area please call - 1-800-289-0981 for assistance.
Note: This warranty is void if the product is:
(a) Damaged through negligence, misuse, abuse, or accident.
(b) Used in a commercial application or rentals.
(c) Modified or repaired by anyone other than an Independent Service Center authorized by ORION to effect
warranty repairs to the class of product or by the ORION Factory Service Center.
(d) Damaged because it is improperly connected to the equipment of other manufacturers.
This warranty does not cover:
(a) Damage to video disc.
(b) Damage to equipment not properly connected to the product.
(c) Costs incurred in the shipping of the product to an ORION authorized Independent Service Center or ORION Factory Service Center.
(d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow operating instructions
provided with the product.
(e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner’s manual.
(f) Signal reception problems caused by external antenna or cable systems.
THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT EXTEND
TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN
BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED
SHALL APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR
ANY PARTICULAR PURPOSE AND USE.
UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT.
THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO
NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE
RESTRICTIONS MAY NOT APPLY TO YOU.
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
39
00_54L0621A.indb 39
10.4.27 3:15:39 PM
