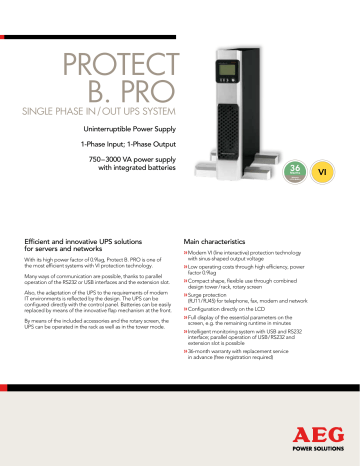

Flyer PROTECT B.PRO
Protect
B. PRO
Single phase in / out UPS system
Uninterruptible Power Supply
1-Phase Input; 1-Phase Output
750 – 3000 VA power supply
with integrated batteries
Efficient and innovative UPS solutions
for servers and networks
With its high power factor of 0.9lag, Protect B. PRO is one of
the most efficient systems with VI protection technology.
Many ways of communication are possible, thanks to parallel
operation of the RS232 or USB interfaces and the extension slot.
Also, the adaptation of the UPS to the requirements of modern
IT environments is reflected by the design. The UPS can be
configured directly with the control panel. Batteries can be easily
replaced by means of the innovative flap mechanism at the front.
By means of the included accessories and the rotary screen, the
UPS can be operated in the rack as well as in the tower mode.
Main characteristics
»»Modern VI (line interactive) protection technology
with sinus-shaped output voltage
»»Low operating costs through high efficiency, power
factor 0.9lag
»»Compact shape, flexible use through combined
design tower / rack, rotary screen
»»Surge protection
(RJ11 / RJ45) for telephone, fax, modem and network
»»Configuration directly on the LCD
»»Full display of the essential parameters on the
screen, e.g. the remaining runtime in minutes
»»Intelligent monitoring system with USB and RS232
interface; parallel operation of USB / RS232 and
extension slot is possible
»»36-month warranty with replacement service
in advance (free registration required)
Part number (UPS incl. internal battery)
Part number (battery pack)
UPS input
Input voltage
Voltage range without battery mode
Frequency (auto selection)
Current consumption at nominal load (max.)
UPS output
Rated output voltage / AVR technology
Frequency in battery mode
Output current (at 230 V AC)
Transfer time at mains outage
Voltage waveform
Overload response (VI operation)
Overload response (battery operation)
Battery
Type
Integrated
Rated voltage
Battery management
B. 750 PRO
750 VA
675 W
600 000 8422
4A
3.2 A
Yes
Autonomy time in min.
(full / half-load, cos j = 0.9lag)
Ditto UPS incl. battery expansion unit
Charging time (to 90 % rated capacity)
Communication
User interface
Interface (dual monitoring)
3.5 / 10
Conformity
5.4 A
B. 1800 PRO
1800 VA
1620 W
600 001 3873
600 001 3874
220 V AC / 230 V AC / 240 V AC
±20 %
50 Hz / 60 Hz ±5 Hz
7.5 A
9.7 A
B. 2300 PRO
2300 VA
2070 W
600 000 8431
B. 3000 PRO
3000 VA
2700 W
600 001 3875
600 001 3877
12.4 A
16.1 A
208 V AC / 220 V AC / 230 V AC (default) / 240 V AC ±10 % (±3 % free running)
50 Hz / 60 Hz ±1 Hz
4.3 A
6.1 A
7.8 A
10 A
2 – 6 ms (typical), 8 ms max.
sinusoidal
<120 % for 5 min. / 120 – 150 % for 10 s / >150 % for 1 s
<110 % for 1 min. / 110 – 150 % for 10 s / 150 – 200 % for 500 ms
Sealed, maintenance free (proprietary brand), hot swappable
Yes
Yes
Yes
Yes
24 V DC
48 V DC
72 V DC
Temperature compensated with overload and deep discharge protection;
automatic battery test; battery pack detection
3.5 / 11
5 / 13
4.5 / 13.5
3.5 / 13.5
13 A
Yes
4 / 11
17.5 / 43.5
15 / 36
8h
LCD display with digital indication of relevant UPS values
RS232 and USB (with status notification and UPS data), additional communication slot in parallel mode
(SNMP / relay card); input contact for emergency power off
5 network licenses for all common OS (e.g. Windows, Linux, Mac)
3 LED indicators show UPS status, detailed indication via LCD display
(mains failure, overload, battery discharge, battery replace, fan failure)
>97 %
>90 %
≤45 dB(A)
≤40 dB(A)
≤55 dB(A)
≤45 dB(A)
0° – 40 °C
0 – 90 % (without condensation)
Up to 1000 m at nominal load
EN 62040-2 Class C2, EN 61000-3-2, EN 61000-3-3
EN 62040-1
RJ11 (telephone, fax, modem) / RJ45 (Ethernet 10 Mbit / s / 100 Mbit / s)
IEC 320 C14
IEC 320 C20
8/4
7/3
8 x IEC 320 C13
6 x IEC 320 C13, 1 x IEC 320 C19
Black metal case / silver front
482.6 (19") x 88 (2 U) x 420
482.6 (19") x 88 (2 U) x 520
482.6 (19") x 88 (2 U) x 640
14.5 kg
15 kg
24 kg
25 kg
29 kg
29.5 kg
16 kg (BP)
26.5 kg (BP)
39 kg (BP)
Mains input cord (1 x EU, 1 x UK), 2 x device connection cables (10 A), additional cable (16 A) for Protect B. 2300
PRO and Protect B. 3000 PRO, 2 x mounting brackets, 2 x base feet, 1 x management software “CompuWatch”
(CD), 5 network licenses, RS232 and USB cable, operating instructions
CE
AEG Power Solutions
Approach your local AEG Power Solutions
representative for further support.
Contact details can be found on:
www.aegps.com
B. 1400 PRO
1400 VA
1260 W
600 000 8426
14 / 36
Shutdown software (on CD)
Failure indicators (acoustic /visual)
General data
Efficiency (in ECO mode)
Efficiency (at whole AVR range)
Audible noise (1 m distance)
Ditto in ECO mode and max. 70 % load
Operating temperature range
Humidity
Operation altitude
EMC conformity
Product safety
Data line protection
Mains input
Number of outputs / controllable via connectors
Equipment color
Dimensions approx. W x H x D (mm)
Weight approx. UPS incl. battery system
Battery expansion unit
Shipment
B. 1000 PRO
1000 VA
900 W
600 001 3872
600 001 3876
AEG PS - Protect B. PRO - EN - 01/2012 V1 - Technical data in this document does not contain any binding guarantees or warranties. Content only serves for information purposes and can be modified at any time. We will make binding
commitments only upon receipt of concrete enquiries and customer notification of the relevant conditions. Due to the non-binding nature of these terms, we assume liability neither for the accuracy nor completeness of the data provided here.
AEG is a registered trademark used under license from AB Electrolux.
Classification VI SS 211 acc. to IEC 62040-3
Power type rating
