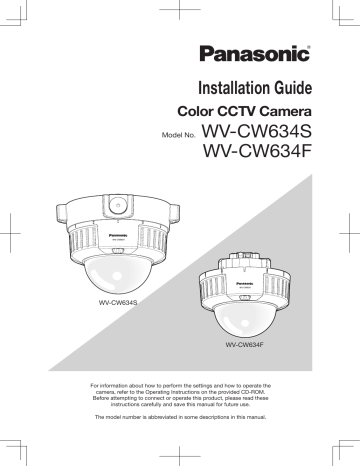

Installation Guide
Color CCTV Camera
Model No.
WV-CW634S
WV-CW634F
WV-CW634S
WV-CW634F
For information about how to perform the settings and how to operate the
camera, refer to the Operating Instructions on the provided CD-ROM.
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
CAUTION:
• An ALL-POLE MAINS SWITCH with a contact
separation of at least 3 mm in each pole shall
be incorporated in the electrical installation of
the building.
• Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
WARNING:
• This apparatus must be earthed.
• A pparatus shall be connected to a mains
socket outlet with a protective earthing connection.
• The mains plug or an appliance coupler shall
remain readily operable.
• All work related to the installation of this product should be made by qualified service personnel or system installers.
• T he connections should comply with local
electrical code.
• To prevent injury, this apparatus must be
securely attached to the floor/wall/ceiling in
accordance with the installation instructions.
For Canada
CAN ICES-3(A)/NMB-3(A)
For U.S.A.
NOTE: This equipment has been tested and
found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area
is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
FCC Caution: To assure continued compliance,
(example - use only shielded interface cables
when connecting to computer or peripheral
devices). Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
2
For U.S.A.
The model number and serial number of this
product may be found on the surface of the
unit.
You should note the model number and serial
number of this unit in the space provided and
retain this book as a permanent record of your
purchase to aid identification in the event of
theft.
Model No.
Serial No.
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
7) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8) Only use attachments/accessories specified by the manufacturer.
9) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
S3125A
10) Unplug this apparatus during lightning storms or when unused for long periods of time.
11) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
3
Limitation of liability
THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY’S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS.
CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR NEGLIGENT OPERATION OF THE USER;
(3) ALL MALFUNCTIONS OR TROUBLES FROM UNAUTHORIZED DISASSEMBLE, REPAIR OR
MODIFICATION OF THE PRODUCT BY THE USER, REGARDLESS OF THE CAUSE OF THE
MALFUNCTION OR TROUBLE;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT BY ANY PERSON OR ORGANIZATION
BEING A PHOTOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY WITH THE RESULT OF
THAT SURVEILLANCE-CAMERA'S PICTURE, INCLUDING SAVED DATA, FOR SOME REASON, BECOMES PUBLIC OR IS USED FOR ANY PURPOSE;
(7) LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE.
4
Contents
Important safety instructions.......................................................................................................... 3
Limitation of liability........................................................................................................................ 4
Disclaimer of warranty.................................................................................................................... 4
Preface........................................................................................................................................... 6
Features.......................................................................................................................................... 6
About the user manuals................................................................................................................. 7
Trademarks and registered trademarks......................................................................................... 7
Precautions.................................................................................................................................... 8
Precautions for Installation........................................................................................................... 10
Major operating controls and their functions............................................................................... 12
Preparations................................................................................................................................. 14
Make a connection....................................................................................................................... 19
Camera installation....................................................................................................................... 23
Setup menu.................................................................................................................................. 32
Basic operation............................................................................................................................ 33
Troubleshooting............................................................................................................................ 36
Specifications............................................................................................................................... 37
Standard accessories................................................................................................................... 39
Optional Accessories................................................................................................................... 40
5
Preface
This product is a 1/3-inch type {1/3"} CCD color CCTV camera. Connection of this product to a
video monitor allows users to use this product as a monitoring camera.
Features
Super Dynamic 6
For photographic subjects which contain high contrast between the bright and dark areas, light
compensation on the pixel level will result in more natural-looking images.
Introduction of newly developed high-resolution CCD
The introduction of the newly developed CCD with 976 of horizontal pixels has led to the horizontal
resolution of as high as 700 TV lines (typ.). Auto back focus (ABF) function equipped
Moving the CCD inside the camera to an optimal position with the operation button of this unit or
the setup menu allows users to automatically adjust the back focus.
The back focus is adjustable with the setup menu through the system controller (option) even after
installation of this unit.
The auto back focus function also allows users to correct out of focus when changing between
color and black-and-white images.
High sensitivity achieved thanks to noise reduction function
The introduction of low noise circuit design has achieved excellently high sensitivity resulting in the
minimum illuminance of 0.08 lx in the color mode and 0.008 lx in the black-and-white mode.
Night monochrome image activation function equipped
No operation is required at night because the image automatically changes from the color mode to
the black-and-white mode at low illuminance.
Motion detection function (VMD) equipped
The motion of an object is detectable. The acts of covering the camera with a cloth, a cap or other
acts and changing the camera direction during surveillance can be detected.
6
Note:
• The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for any accidents or damages caused by applying the function for the above purposes.
Optional heater unit can be connected
When using the optional heater unit, the product can be used at temperatures within –30 °C to
+60 °C {–22 °F to +140 °F} and humidity within 10 % to 90 %.
The camera conforms to the IP66*1 and provides high dust resistance and waterproof
performance.
Waterproofing treatment is not required for the camera body (waterproofing treatment is required
for cable connections).
*1 IP66 rating: The applicable product has "Dust tight (6)" protection against foreign solids and has
"Powerful water jets (6)" against water (IEC60529).
About the user manuals
The operating instructions of the camera consist of 2 sets: this book and operating instructions
(PDF).
This book explains how to install the camera.
Refer to the "Operating Instructions (PDF)" on the provided CD-ROM for descriptions of how to perform
the unit settings. Adobe® Reader® is required to read PDF. When the Adobe® Reader® is not installed
on the PC, download the latest Adobe® Reader® from the Adobe web site and install it.
Trademarks and registered trademarks
Adobe, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
7
Precautions
The following points as well as the contents of "Warning" and "Caution" shall be
observed.
Refer installation work to the dealer.
Installation work requires technique and experiences. Otherwise injury, or damage to the
product may result.
Be sure to consult the dealer.
Do not insert objects inside the product.
If water or metallic items enter the product, it
may cause fire or electric shock.
Turn the power off immediately and contact
qualified service personnel for service.
Install this product in a location high
enough to avoid people and objects from
bumping the product.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not strike or give a strong shock to this
product.
Failure to observe this may cause injury or fire.
Do not attempt to disassemble or modify
the product.
Failure to observe this may cause fire or electric
shock.
Consult the dealer for the repair or inspections.
Turn the power off when do wiring of this
product.
Failure to observe this may cause electric
shock. A short circuit or wrong wiring may
cause fire.
Stop operation immediately when something is wrong with the product.
When smoke goes up from the product or the
smell of smoke comes from the product, continued use will result in fire, injury, or damage to
the product.
Turn the power off immediately and contact
qualified service personnel for service.
Do not use the product in an atmosphere
of flammable gases.
Failure to observe this may cause injury by
explosion.
Select an installation area that can support the total weight.
Selecting an inappropriate installation surface
may cause the product to fall down or topple
over, resulting in injury.
Installation work shall be started after sufficient
reinforcement.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause
the product to fall down resulting in injury.
Consult the dealer for the inspections.
8
This product shall be installed in a vibration-free place.
Failure to observe this may cause screws and
bolts to be loosened and consequently to fall
resulting in injury.
Avoid installing the product in locations
where it is subject to damage by salt or
corrosive gas.
Otherwise the mounting fixtures will deteriorate,
causing the product to fall down and leading to
accidents.
Use the specified mount bracket.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not rub the edges of metal parts with
your hand.
Failure to observe this may cause injury.
Tighten screws and mounting fixtures to
the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
[Precautions for use]
This product has no power switch.
Turn the power off when cleaning the product.
To keep on using with stable performance
Parts of this product may deteriorate and it
may shorten the lifetime of this product when
using in locations subject to high temperatures
and high humidity.
Do not expose this product to direct heat
sources such as a heater.
Handle this product with care.
Do not abuse this product. Avoid striking, shaking, etc. The product could be damaged by
improper handling or storage. If a strong shock
or vibration is applied to the enclosure, it may
cause damage or allow water to enter this
product.
Do not touch the dome cover with your
bare hands.
A dirty dome cover causes deterioration of picture quality.
Discoloration on the CCD color filter
When continuously shooting a bright light
source such as a spotlight, the color filter of the
CCD may have deteriorated and it may cause
discoloration. Even when changing the fixed
shooting direction after continuously shooting a
spotlight for a certain period, the discoloration
may remain.
Do not aim this product at strong light
sources.
A light source such as a spot light causes a
blooming (light bleeding) or a smear (vertical
lines).
Smear
Cleaning this product body
Turn the power off when cleaning the product.
Do not use strong abrasive detergent when
cleaning this product. Otherwise, it may cause
discoloration. When using a chemical cloth for
cleaning, read the caution provided with the
chemical cloth product.
To remove stubborn stains
When the dirt is hard to remove, use a mild
detergent and wipe gently. Then, wipe off the
remaining detergent with a dry cloth.
What to do if "OVER HEAT" appears on the
display
This message indicates that the inside of the
camera has become extremely hot. Immediately turn off the power of the camera and contact
your dealer.
What to do if "WARMING UP-PLEASE
WAIT" appears on the display*
This message indicates that the temperature
inside the camera has become extremely low.
In such a case, wait until the heater unit (option)
raises the internal temperature (for around
2 hours or more in low temperatures below
–10 °C {+14 °F}), and turn on the power again.
* To ensure this function works normally, the
heater unit (option) is required.
What to do if "CAMERA TEMP. TOO COLD.
POWER ON AT –30 DEG C (–22 DEG F) OR
MORE." appears on the display
The ambient temperature is too cold.
Please turn on the power under the conditions
where the ambient temperature is above
–30 °C {–22 °F}.
Blight subject
Blooming
9
Precautions for Installation
The following points as well as the contents of "Warning" and "Caution" shall be observed.
Panasonic assumes no responsibility for
injuries or property damage resulting from
failures arising out of improper installation
or operation inconsistent with this documentation.
Installation work shall be performed in
accordance with the technology standard
of the electric installation.
Keep the product out of direct sunlight.
When the product is installed in areas that receive
direct sunlight, such as on external walls, use the
optional "Sun Shade WV-Q7118*".
* In order to attach WV-Q7118 to WV-CW634F,
WV-Q115A is required.
Installing place
Contact your dealer for assistance if you are
unsure of an appropriate place in your particular environment.
• Make sure that the installation area is
strong enough to hold the product, such
as a concrete ceiling.
• Install the camera in the foundation area of
the architecture or where sufficient strength
is assured.
• If a ceiling board such as plaster board is
too weak to support the total weight, the
area shall be sufficiently reinforced.
Avoid installing this product in the following locations.
• Locations where a chemical agent is used
such as a swimming pool.
• Locations subject to steam and oil smoke
such as a kitchen, Locations near flammable gas or vapor.
• Locations where radiation or x-ray emissions are produced.
• Locations where corrosive gas is produced, Locations where it may be damaged by briny air such as seashores.
10
• Locations where the temperature is not within –10 °C to +60 °C {+14 °F to +140 °F}. (When using the optional heater unit, the
product can be used at temperatures within
–30 °C to +60 °C {–22 °F to +140 °F} and
humidity below 90 %.)
• Locations subject to vibrations (This product is not designed for on-vehicle use.)
Avoid moist or dusty places to install this
system.
Otherwise, lifetime of the internal parts may be
shortened.
Avoid installing the camera in a place with
a high level of noise.
Installation near an air conditioner, an air cleaner, a vending machine, or the like causes noise.
Be sure to remove this product if it is not
in use.
Keep the camera cable away from the
lighting cable.
Failure to observe this may cause noise.
Radio interference
When the camera is used near TV/radio antenna, strong electric field or magnetic field (near a
motor or a transformer), images may be distorted and noise sound may be produced.
In such a case, run the camera cable through
specialized steel conduit tubes.
Locally procure the screws
Screws are not supplied with this product. Prepare the screws according to the material,
structure, strength and other factors of the
mounting area and the total weight of objects
to be mounted.
Mounting screws
• The screws and bolts must be tightened
with an appropriate tightening torque
according to the material and strength of
the installation area.
• Do not use an impact driver. Failure to
observe this may cause overtightening and
consequently damage to the screws. • When a screw is tightened, make the
screw at a right angle to the surface. After
tightening the screws or bolts, perform
visual check to ensure tightening is enough
and there is no backlash. Do not remove or loosen the screws.
Do not remove or even loosen the screws (7
pieces) on the rear of the camera.
Otherwise, water exposure may cause damage
or malfunction of camera, or camera dropping
may result in injury.
11
Major operating controls and their functions
w Video output cable
q Power cord
!9 Inner dome
e Enclosure
@0 Dome
* This illustration shows the camera
without the inner dome.
r Panning table
t Tilt adjusting table
u Panning lock screw
y Tilting lock screw
i Focus lock knob
o Zoom lock knob
!0 Camera fixing screw
!1 Monitor output connector
!2 Right button
[(RIGHT), FAR]
!3 Left button
[(LEFT), NEAR]
!4 Up button
[(UP)]
!5 Down button
[(DOWN), ABF1]
!6 Setting button
[(SET), ABF2/MENU]
!7 Heater output connector
!8 ABF operation indicator
12
Operation
buttons
q Power cord
w Video output cable
e Enclosure
r Panning table
Rotate this table to adjust the panning
angle of the camera.
t Tilt adjusting table
Adjust the azimuth angle of the image.
y Tilting lock screw
Locks the tilt position.
u Panning lock screw
Fixes the panning table.
!5 Down button [(DOWN), ABF1]
Moves the cursor downward and selects
items in the setup menu. Refer to page 29
for further information about [ABF1].
(Pressing and holding for 3 s, image upsidedown)
!6 Setting button [(SET), ABF2/MENU]
Confirms the setting contents. Refer to page 31
for further information about [ABF2].
!7 Heater output connector
The cable of heater unit (option) is connected
to this connector. (+ page 22)
!8 ABF operation indicator
Indicates the status of ABF operation.
!9 Inner dome
i Focus lock knob
Locks the focal point.
@0 Dome
o Zoom lock knob
Locks the zoom point.
!0 Camera fixing screw
Fix the attachment on the camera body.
!1 Monitor output connector
Connect the monitor for adjustment to this
output connector.
!2 Right button [(RIGHT), FAR]
Moves the cursor to the right, selects the
mode and adjusts some levels.
!3 Left button [(LEFT), NEAR]
Moves the cursor to the left, selects the
mode and adjusts some levels.
!4 Up button [(UP)]
Moves the cursor upward and selects
items in the setup menu.
(Pressing and holding for 3 s, SD6 ON/OFF)
13
Preparations
When installing the camera on a wall or a ceiling, there are two methods as specified below.
(+ Next page)
• Using a two-gang junction box (locally procured)
• WV-CW634S: Using the mounting base (accessory)
WV-CW634F: Using the mounting base WV-Q115A (option)
Refer to all work related to the installation of this product to qualified service personnel or system
installer.
• The mounting base WV-Q115A is optional for WV-CW634F. Use the screws supplied with the
camera mount bracket.
Important:
• Prepare the mounting screw according to the material of the area where the attachment plate
(accessory) is to be installed. In this case, wood screws and nails should not be used. For
mounting a camera on a concrete ceiling, use an anchor bolt (M4) or an AY plug bolt (M4) for
securing.
(Recommended tightening torque M4: 1.6 N·m {1.18 lbf·ft})
• Required pull-out capacity of a single screw/bolt is 196 N {44.06 lbf} or more.
• If a ceiling board such as plaster board is too weak to support the total weight, the area shall
be sufficiently reinforced.
• When using an optional mount bracket, refer to the operating instructions of the bracket in use.
The mounting conditions of the camera mount bracket are described as follows:
Installation
place
Applicable mount
bracket
Recommended
screw
Number
of screw
Minimum pull-out
strength
(per 1 pc.)
Ceiling/wall
Two-gang junction box
(locally procured)
M4 or equivalent
4 pcs.
196 N {44.06 lbf}
Ceiling/wall
WV-Q115A or mounting
base (accessory)
M4 or equivalent
4 pcs.
196 N {44.06 lbf}
Ceiling/wall
Optional mount brackets
(Refer to page 40)
–
–
*
* Make sure that the installed mount bracket can support more than 5 times of the total weight of
the camera, attachment plate and screws.
14
Using a two-gang junction box (locally procured)
• When the camera is installed using the two-gang junction box, mount the attachment plate
(accessory) to the embedded box installed on the wall or ceiling as a first step. [Mounting position on wall or ceiling]
46 mm {1-13/16"}
FRO
NT
TOP
Two-gang junction box
FRON
T
TOP
83.5 mm {3-9/32"}
Attachment plate (accessory)
Note:
• For wall mounting:
Installation shall be performed in such a manner that " TOP" of the attachment plate faces
upward.
• For ceiling mounting:
The front side (model number indication face) of the camera shall be aligned in the direction of
the arrow in " FRONT" on the attachment plate.
WV-CW634S: Using the mounting base (accessory)
WV-CW634F: Using the mounting base WV-Q115A (option)
• When installing the camera with the mounting base WV-Q115A, attach the mounting base to
the wall or ceiling in the first place. (+ next page.)
Mount the attachment plate (accessory) by using the screws supplied with mount bracket. (+ next
page.)
(Recommended tightening torque: 0.78 N·m {0.58 lbf·ft})
Note:
• When installing the camera on the wall or ceiling where cable holes are already provided, or
when installing the camera with exposed wiring, the mount bracket shall be used.
• The female thread for conduit is compliant with ANSI NPSM (parallel pipe threads) 3/4 or ISO
228-1(parallel pipe threads) G3/4.
Cap for the female thread for the conduit shall be removed with a hexagon wrench.
• To connect conduit from the top, refer to page 18.
15
1Install the mount bracket (mounting base) on the wall/ceiling.
ø27 mm {1-1/16"}
Cable access hole
(A For use of the hole)
51 mm
{2"}
WV-Q115A
Center of mounting base
Female thread for conduit
Cap for the female thread for the conduit
(For use of the hole A)
(For use of the hole B)
85 mm {3-11/32"}
138 mm {5-7/16"}
85 mm
{3-11/32"}
Note:
• Only the same type of holes, A or B, shall be
used for mounting.
B
A
A
B
B
A
A
B
16 138 mm
{5-7/16"}
2Previously run the cables from the wall or ceiling through the cable access hole.
3Mount the attachment plate onto the mount bracket (mounting base).
Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}
Attachment plate
Note:
• For wall mounting:
Installation shall be performed in such a manner that " TOP" of the attachment plate faces
upward. (Except for the case of connecting the conduit from the top. (+ page 18))
• For ceiling mounting:
The front side (model number indication face) of the camera shall be aligned in the direction of
the arrow in " FRONT" on the attachment plate.
• Ensure that any one of the arrows on the mount bracket is aligned with the arrow of " TOP" on
the attachment plate.
17
Important:
• If open wiring is conducted, be sure to use conduits and run the cables inside the tubes to protect the cables from direct sunlight.
• When the conduit is connected at the lateral or bottom position, either of the arrow marks on
the bracket shall be the top position.
• When the conduit is connected from the top, the arrow mark on the attachment shall be either
of the right or left position.
<To connect conduit from the side or bottom>
Arrow mark
Connecting
conduit
<To connect conduit from the top>
Female thread for conduit
• Installation work shall be such that there is no intrusion of water into the architecture through
the conduits having been joined.
18
Make a connection
Cautions:
• ONLY CONNECT WV-CW634S/WV-CW634F TO 24 V AC OR 12 V DC CLASS 2 POWER
SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1).
• Be sure to connect the grounding lead to the GND terminal.
Power cord
(approx. 17 cm
{55.8 ft})
BNC connector
Brown (Live)
Blue (Neutral)
To 24 V AC/12 V DC*
power supply
Green/Yellow (GND)
To GND (only for 24 V AC)
* When using 12 V DC power supply,
the optional heater unit is unavailable.
BNC connector
Video output cable
(approx. 16 cm {52.5 ft})
BNC connector
To VIDEO IN
l Video output connection
• Wire colors & functions
The video output connector is connected to
the monitor or other system devices with a
coaxial cable (locally procured).
The maximum extensible length is shown in the
table.
Camera power cord
Type of coaxial RG-59/U RG-6/U RG-11/U RG-15/U
cable
(3C-2V) (5C-2V) (7C-2V) (10C-2V)
Recommended m
250
500
600
800
maximum cable
ft
825
1
650
1
980
2
640
length
l Power connection
Precaution:
The following connections should be made
by qualified service personnel or system
installers in accordance with NEC 725-51.
Wire color
24 V AC
12 V DC
Brown
24 V AC (L)
Positive
Blue
24 V AC (N)
Negative
Green/yellow
To GND
–
Cautions:
• Be sure to connect the GND (grounding)
lead of the camera and grounding terminal
of the power supply when using a 24 V AC
power source.
• Shrinking the cable-entry seal is a onetime
procedure. Do not shrink the cable-entry
seal until it has been ascertained that unit
is functioning.
ONLY CONNECT THIS TO 24 V AC or 12
V DC CLASS 2 POWER SUPPLY.
19
• Cord length and wire gauge
24 V AC
The recommended cord length and copper
wire size are shown in the table for reference.
The voltage supplied to the camera should be
between 19.5 V AC and 28 V AC.
Recommended wire gauge for 24 V AC line.
#22
#20
#18
Copper wire
#24
size (AWG)
(0.22 mm2) (0.33 mm2) (0.52 mm2) (0.83 mm2)
Length of m
20
30
45
75
c a b l e
(approx.) ft
66
100
150
250
12 V DC
The recommended resisance and copper wire
size are shown in the table for reference.
The voltage supplied to the camera should be
between 10.8 V DC and 16 V DC.
Resistance of copper wire [20 °C {68 °F}]
#22
#20
#18
Copper wire size
#24
(AWG)
(0.22 mm2) (0.33 mm2) (0.52 mm2) (0.83 mm2)
Resistance (Ω/m)
0.078
0.050
0.03
0.018
Resistance (Ω/ft)
0.024
0.015
0.009
0.005
Use the formula below to calculate the power
cord and power supply.
"L", "R", "VA", "I" shall satisfy the inequalitty
below.
10.8 V DC ≤ VA - 2(R x I x L) ≤ 16 V DC
L: Cord length (m) {ft}
R: Resistance of copper wire (Ω/m) {Ω/ft}
VA:DC output voltage of power supply unit
I: DC current consumption (A). See specifications.
Important:
• When using 12 V DC power supply, the
heater is unavailable.
20
Waterproof treatment for the cable joint sections
Adequate waterproof treatment is required for the cables when the camera with exposed cables is
installed by means of the mounting base WV-Q115A or it is installed under the eaves. The camera
body is waterproof, but the cable ends are not waterproof.
Be sure to use the supplied waterproof tape at the connection parts of the power cord and video
output cable to apply waterproof treatment in the following procedure. Failure to observe this may
cause water leakage resulting in malfunction.
When using power
cord
When using video output cable
<How to wind the supplied waterproof tape>
Stretch the tape by approx. twice (see the illustration below) and wind it around the cable. Insufficient tape stretch causes insufficient waterproofing.
Stretch the tape to about twice.
Double length
Note:
• To install this product outdoors, be sure to waterproof the cables. The camera body is waterproof (IEC IP66 or equivalent) only when installation specified in this document and appropriate
waterproofing are properly performed. The bracket is not waterproof.
• The cable shall be wound with waterproof tape in a half-overlapping manner.
21
Optional Heater Unit WV-CW5HA (option)
Installing the heater unit enables the camera to operate in a low-temperature environment below
–30 °C {–22 °F}. The heater turns on automatically when the temperature inside the camera drops
below +10 °C {50 °F} and turns off when the temperature rises. A small fan inside the unit will minimize condensation on the surface of the enclosure caused by changes in ambient temperature
unless temperatures change too rapidly. Important:
• When using 12 V DC power supply, the optional heater unit is unavailable.
• Turning the heater on and off may disturb the camera images.
• The power supply of the camera shall be turned off when mounting or dismounting the heater.
When servicing, pay attention to high temperature on the surface of the heater unit. Disconnect
the harness and wait until the heater unit cools.
• When the camera is installed and operated in low temperatures below –10 °C {14 °F}, normal
images may not be obtained immediately after startup. In such a case, wait approxilately 60
minutes or more.
How to install the heater unit
q Remove the camera’s enclosure and mount it in the specified position as shown in the drawing
with the supplied screw.
w Connect the heater unit cable to the connector of the camera.
Screw for heater unit*
(supplied with heater unit)
Heater output connector
Harness cable
* Two screws including a spare screw are
provided as the standard accessories.
Important:
• After mounting the heater unit, arrange the harness cable as shown in the drawing so as not to
be tangled around the enclosure, safety wire, and equipment inside the camera.
22
Camera installation
1Mount the camera.
LOCK
OPEN
<To mount the camera on a two-gang junction box>
q Connect the power cord and the video output cable. (+ page 19)
w Align the "OPEN" mark of the camera with the protrusion of the attachment plate.
e Engage the attachment mounting screw of the camera with the camera mounting hole of the
attachment plate and rotate the camera in the direction of the arrow to the "LOCK" position to
secure the camera to the attachment plate without any backlash.
Camera mounting hole
Protrusion
FRO
NT
TOP
Attachment mounting screw
23
LO
C
K
OP
EN
<To use the mounting base>
q Attach the camera onto the attachment plate
while aligning the "OPEN" mark of the camera
with the projection of the attachment plate.
LO
CK
OP
EN
Projection
Important:
• When mounting the camera body, cables shall
be run between the attachment plate and
mounting base as indicated by the arrow in the
illustration.
* Cable running as indicated by the arrow is an
example. Cable running shall be varied with
installation environment.
24
LO
CK
OP
EN
w Engage the attachment mounting screw of
the camera with the camera mounting hole
of the attachment plate and rotate the
camera in the direction of the arrow to the
"LOCK" position to secure the camera to
the attachment plate without any backlash.
LO
CK
OP
EN
Projections
e Connect the power cord and the video
output cable at the side of the mounting
base. (+ page 19)
Apply waterproof treatment to the connected section. (+ page 21)
Make cable
connections.
r Accommodate the connected cables
inside the cable guide of the mounting
base.
Important:
• To prevent the cables from being caught
when the cover is attached, keep the
Cable guide
cables inside the cable guide.
Connected cable
Cable guide
25
t Mount the supplied base cover on the
mounting base.
Important:
• To prevent the cables from being caught
when the base cover is attached, keep the
cables inside the cable guide.
Base cover
y Use the bit for tamperproof screw (accessory) to tighten the fixing screws provided
on both sides of the base cover.
(Recommended tightening torque: 0.78 N·m {0.58 lbf·ft})
26
Base cover fixing screw
2Remove the enclosure and inner
dome from the main body by loosening the three fixing screws.
Loosen the three fixing screws by using
the provided bit for tamperproof screw.
Detach the inner dome while pushing the
parts with the "PUSH" indication.
Important:
• Do not hold the inner dome when carrying
the camera. Otherwise, the camera part
may fall and it may damage the camera.
Press the parts with the
"PUSH" indication.
Note:
• Perform the same procedure when replacing with the optional dome cover WVCW4SA.
3Secure the camera to the bracket
with the camera fixing screw (red, 1
position).
Important:
• The camera fixing screw shall be securely
tightened. Otherwise, water exposure may
cause damage or malfunction of camera,
or camera dropping may result in injury.
(Recommended tightening torque:
0.78 N·m {0.58 lbf·ft})
* The camera fixing screw
shall be securely tightened.
4Remove the screw (blue, 1 position)
for transport protection with a
Phillips screw driver.
Camera fixing screw (red)
Screw for transport protection (blue)
27
Adjust the camera
1Be sure to view the monitor for adjustment when the camera angle is adjusted.
Connect the monitor for adjustment (e.g. a small LCD) to the monitor output connector, and
adjust the camera angle.
When determining the camera angle, repeat fine follow the adjusting procedure of q, w, and
e shown below.
Tilt adjusting table
Tilting lock screw
Monitor output connector
(RCA)
Panning lock screw
Panning table
q Loosen the panning lock screw and rotate the camera head horizontally to adjust panning,
and tighten the panning lock screw. (Panning range: ±170 °)
w Loosen the tilting lock screws and rotate the camera head vertically to adjust tilting, and
tighten the tilting lock screw. (Tilting range: ±75 °)
e Rotate the tilt adjusting table, and adjust the azimuth angle of the image. (Azimuth range: ±100 °)
Important:
• The panning lock screw and the tilting lock screw shall be securely tightened.
(Recommended tightening torque: 0.59 N·m {0.44 lbf·ft})
Note:
• The video output to the BNC connector will be interrupted while an adjusting monitor is connected to the monitor output connector.
• At the same time for the pan and tilt adjustments, make focus adjustments of Step 2.
28
2Adjusts the focus.
Focus adjustment shall be performed when camera
Focus lock knob
angle adjustment are performed.
Adjust the focus by following the adjusting procedure of q, w, and e shown below.
FAR
q Loosen the zoom lock knob and move the Zoom lock knob
knob between TELE and WIDE to obtain the
TELE
appropriate angle of view, and then tighten the
zoom lock knob.
w Loosen the focus lock knob, make coarse
adjustment of the focus, and then tighten the
focus lock knob.
e Perform major adjustment of back focus
through the setup menu or perform major
adjustment by following Steps 3 and 4 below (+ Operating Instructions (PDF)).
NEAR
WIDE
Note:
• Reset the back focus position to the CS mount default position before the back focus adjustment. (Hold down the right and left buttons simultaneously for 2 seconds or more, or move the
cursor to "MANUAL-ADJ" of "BACK-FOCUS SETUP" in the setup menu and press the right and
left buttons simultaneously for 2 seconds or more after pressing the setting button.)
3Press the [ABF1] button after adjusting the view angle while viewing the monitor
for adjustment.
The ABF operation indicator (+ page 12) lights, the focus position is displayed in the lower part of
the screen, and the back focus is automatically adjusted.
NEAR
FAR
.........|..........
INDICATOR XXXX FOCUSING
29
4To perform fine adjustment of the back focus after the ABF operation indicator
goes off and automatic back focus is adjusted, use the right or left button.
Note:
• No operation for 10 seconds or more automatically clears the focus position indicator.
• To change the angle of view by moving the zoom adjustment ring, also move the focus lock
knob to adjust the focus.
• The originally adjusted focus may be slightly off depending on the iris state resulting from the
focal depth of the lens. In such a case, open the aperture by darkening the subject as much as
possible in the same way of taking picture, and then adjust the focus. Defocus can be prevented.
• Use of "ABF" of "BACK-FOCUS" in the setup menu (+ Operating Instructions (PDF)) allows
users to adjust the focus optimally in the range of the capability to automatically follow the variation in illuminance.
• The out-of-focus level in the near-infrared light region may be higher than that in the visible light
region.
Setting "C/L B/W" of "BACK-FOCUS SETUP" to "AUTO" or "PRESET" in the setup menu (+
Operating Instructions (PDF)) allows users to adjust the focus in both the near-infrared light and
visible light regions (The variation in illuminance is not followed after focus adjustment.).
30
5Mount the enclosure and inner
dome.
Tighten the screws that have been loosened in Step 2 in page 27 using the supplied
driver bit.
(Recommended tightening torque: 0.78 N·m {0.58 lbf·ft})
Cutout for
mounting
Groove for
mounting
Important:
• Attach the inner dome in accordance with
the lens direction to not to change the lens
direction.
• Check if the tabs of the inner dome are
firmly fit.
• Remove the cushioning (pink sheet) from
the inside of the dome and the protection
sheet from the outside of the dome.
Note:
• Defocus may be caused by the reinstalled enclosure. When using a system controller (option),
adjust the back-focus on the setup menu after attaching the enclosure. (+ Operating Instructions (PDF))
• When not using a system controller, by using the [ABF2] button back-focus adjustment is available after attaching the enclosure. The procedure for the use of the [ABF2] button is as specified below.
q Press the [ABF2] button. → The ABF operation indicator will start blinking.
w While the indicator is blinking (for around 3 minutes), attach the enclosure to the camera.
e When the indicator changes to steady light, back-focus will be adjusted automatically. After
the back-focus is adjusted, the indicator will go out.
* Do not aim the camera to objects continuously moving.
* If the indicator blinks again after changing to steady light, back-focus adjustment may have
failed. In this case, check the back-focus on the LCD monitor.
To adjust the back-focus again, perform Step q to e again.
31
Setup menu
Performing each setting item in the setup menu should be completed in advance to use this unit. Perform
the settings for each item in accordance with the installation conditions and customer requirements.
List of setup menu
Setup item
CAMERA ID
CAMERA
SCENE 1/
SCENE 2
ALC/ELC
SHUTTER
AGC
SENS UP
WHITE BAL
DNR
D&N (IR)
VMD
SYSTEM
SYNC
PRIVACY ZONE
STABILIZER
EL-ZOOM
UPSIDE-DOWN
LDC
BACK-FOCUS
SPECIAL
CHROMA GAIN
AP GAIN
PEDESTAL
HUE
DISPLAY
PIX OFF
COMMUNICATION
CAMERA RESET
SER.NO.
LANGUAGE
32
Description
This item specifies the camera title. The camera title that indicates the
camera location and other information about the camera is created with
alphanumeric characters and symbol, and then displayed on the screen.
Performs the camera operation settings.
Selects a scene file. It is possible to register and save the settings as a
scene file in case that it is necessary to change the settings such when
shooting at night.
Selects the method of controlling the quantity of light in accordance with
the lens to be used.
Specifies the electronic shutter speed.
Specifies gain adjustment.
Specifies electronic sensitivity enhancement.
Specifies white balance adjustment.
Selects the level of the digital noise reduction function. Performs each setting regarding the black-and-white mode such as
switching between color and black-and-white images.
Performs settings regarding VMD (Video Motion Detection).
Performs the settings regarding the camera system such as
synchronization and privacy zone.
Specifies the synchronization type.
Hides undesired portions in the camera shooting area.
Decides whether or not to enable the image stabilizer.
Switches the electronic zoom on and off.
Flips the camera images vertically or horizontally.
Adjusts the Lens distortion correction to convert the image so that it
matches the square monitor.
Selects the back focus setting type and performs fine adjustment.
Adjusts the chroma level (color density).
Adjusts the aperture level.
Adjusts the pedestal (brightness) level.
Adjusts the chroma phase (hue).
Performs the image display setting.
Corrects image defects such as flaws.
Performs the communication setting of the system with a receiver into
which this unit is integrated.
Restores the settings in the setup menu to the default settings.
Displays the serial number of this unit.
Selects a language to be used in the setup menu.
Basic operation
The operations in the setup menu are performed with the operation buttons after calling up the
setup menu on the connected video monitor.
The description below explains how to operate the setup menu basically.
Screenshot 1
Hold down the [SET] button for about 2 seconds
to call up the top screen of the setup menu.
MODEL
WV-CW634
CAMERA ID
OFF
CAMERA
SYSTEM
BACK-FOCUS
SPECIAL
LANGUAGE
END
SETUP DISABLE
Step 1
Press the [UP] or [DOWN] button to move the
cursor to "END".
Step 2
Press the [RIGHT] button to move the cursor to
"SETUP", and press the [SET] button to
change the setup mode from "DISABLE" to
"ENABLE".
Screenshot 2
The setup mode changes to "ENABLE", and
the setup menu becomes ready to be set.
Step 3
Move the cursor to the item to be set, and
press the [SET] button. MODEL
WV-CW634
CAMERA ID
OFF
CAMERA
SYSTEM
BACK-FOCUS
SPECIAL
LANGUAGE
END
SETUP ENABLE
33
Screenshot 3
The selected setup screen in the setup menu
appears on the screen. **CAMERA SETUP**
SCENE1
ALC/ELC
ALC
SHUTTER
OFF
AGC
ON(HIGH)
SENS UP
OFF
WHITE BAL
ATW1
DNR
HIGH
D&R(IR)
AUTO1
VMD
OFF
RET TOP END
Step 4
Perform the settings for each item.
• Selection of setting item:
Press the [UP] button or [DOWN] button to
move the cursor.
• Change of settings:
Press the [RIGHT] button or [LEFT] button.
• Display of advanced setup screen:
Press the [SET] button when "
attached to the target setting item.
" is
• Return to previous setup screen:
Note:
• If the top screen of the setup menu is
called up with the [SET] button while the
camera is operated, the setup mode is
always "DISABLE" to prevent operation
errors.
To perform settings in the setup menu,
change the setup mode to "ENABLE".
• The cursor is a reversely highlighted part.
Move the cursor to "RET" and press the
[SET] button.
• Return to the top screen:
Move the cursor to "TOP" and press the
[SET] button, to display the top screen of
the setup menu.
Step 5
Move the cursor to “END” and press the [SET]
button to return to the camera image screen,
or wait about 5 minutes and the setup menu
will automatically close.
34
Screen transition diagram
Top screen
MODEL
WV-CW634
CAMERA ID
OFF
CAMERA
SYSTEM
BACK-FOCUS
SPECIAL
LANGUAGE
END
SETUP DISABLE
“CAMERA ID” screen
**CAMERA ID**
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$
SPACE POSI
RET TOP END RESET
................
“SYSTEM SETUP” screen
“CAMERA SETUP” screen
**CAMERA
SCENE1
ALC/ELC
SHUTTER
AGC
SENS UP
WHITE BAL
DNR
D&N(IR)
VMD
RET TOP END
SETUP**
ALC
OFF
ON(HIGH)
OFF
ATW1
HIGH
AUTO1
OFF
**SYSTEM SETUP**
SYNC
INT
PRIVACY ZONE OFF
STABILIZER
OFF
EL-ZOOM
OFF
UPSIDE-DOWN
OFF
LDC
I...... 0
+
RET TOP END
“BACK-FOCUS SETUP” screen
**BACK-FOCUS SETUP**
ABF
PUSH SET
MANUAL-ADJ
C/L B/W
AUTO
SETUP-SW LOCK OFF
“SPECIAL SETUP” screen
**SPECIAL SETUP**
....I..160
CHROMA GAIN
..I.... 20
AP GAIN
...I... 32
PEDESTAL
...I... 0
HUE
+
DISPLAY
ALARM
PIX OFF
COMMUNICATION COAX
CAMERA RESET PUSH SET
SER.NO. XXXXXXXX
RET TOP END
NEAR
FAR
.........I..........
INDICATOR XXXX FOCUSING
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE
ENGLISH
SET
RET TOP END
35
Troubleshooting
Before asking for repairs, check the symptoms with the following table.
Contact your dealer if a problem cannot be solved even after checking and trying the solution in the
table or a problem is not described below.
Symptom
No image displayed
Blurred image
Cause/solution
• Are the power cord and coaxial cable
connected appropriately?
→ Check whether the connection is
appropriately established.
• Is the adjusting monitor connected ?
→ Check whether connection is established.
• Is the monitor brightness appropriately
adjusted, or is the contrast appropriately
adjusted?
→ Check whether the monitor settings
are appropriate.
• Were the shock absorbers in the dome
cover already removed?
→ Confirm whether the shock absorbers
have been already removed.
• Is the dome cover free from contamination and/or flaws?
→ Check the dome cover.
• Is the focus adjusted correctly?
→ Check if the focus is adjusted correctly.
• Is the lens of the camera soiled with dirt
or dust?
→ Check whether the lens of the camera
is clean.
Reference
pages
19
28
–
–
–
29
–
Damaged power cord
sheathing
Heated portion of power line
consisting of power cord
during use
Warmed power cord or loosened connection by bending
or stretching during use
36
The power cord and connector is damaged. Use of the damaged cord or connector may cause electric shock or fire.
Turn off the power immediately and request
repair to your dealer.
–
Specifications
Basic
WV-CW634F
WV-CW634S
24 V AC 60 Hz, 12 V DC
24 V AC: 3.0 W (without heater unit)/13.2 W (with heater unit)
Power consumption
12 V DC: 241 mA*1
Ambient operating
–10 °C to +60 °C {+14 °F to +140 °F}
temperature
(with heater unit): –30 °C to +60 °C {–22 °F to +140 °F}*2
Ambient operating humidity
10 % to 90 % (no condensation)
Main body: IEC60529 (IP66)
Waterproof*3
Shock resistance
50J, IEC60068-2-75
Video output
VBS: 1.0 V [p-p]/75 Ω, NTSC, BNC connector
ø154 mm × 146 mm (H) ø164 mm × 146 mm (H), {ø6-1/16" × 5-3/4" (H)}
191.5 mm (W) (Base Cover) Dimensions
{ø6-7/16" × 5-3/4" (H), 7-9/16" (W)} (Base Cover)
Main body: 1.45 kg {3.20 lbs.}
Mass
(including attachment plate 100 g {0.22 lbs.})
Mount bracket (only for WV-CW634S): 350 g {0.78 lbs.}
Main body: Aluminum die cast, light gray
Finish
Dome cover: Clear polycarbonate resin
Others
Tamper-resistant enclosure*4
*1 When using 12 V DC power supply, the optional heater unit is unavailable.
*2 With heater unit WV-CW5HA (option)
*3 Only when installation work is properly performed according to the instructions in this manual and
appropriate waterproof treatment is performed.
*4 Component that has a structure on which the screws that are accessible after installation cannot
be screwed or unscrewed using an ordinary screwdriver.
Power source
Camera
Image sensor
Effective pixels
Scanning area
Scanning system
Scanning line
Scanning frequency
Synchronization
Resolution
1/3 inch interline transfer CCD
976 (H) × 494 (V)
4.8 mm (H) × 3.6 mm (V) {3/16" × 5/32"}
2:1 interlace
525 lines
Horizontal: 15.734 kHz Vertical: 59.94 Hz
INT (internal sync)/VD2
Horizontal: 700 TV lines or more
Vertical: 350 TV lines or more (at center)
37
Minimum illumination
Signal-to-noise ratio
Dynamic range
Monitor output
Camera title
Light control mode setting
Super Dynamic 6
High light compensation (HLC)
Fog compensation
Electronic shutter speed
AGC
Sensitivity up
White balance
Digital noise reduction
Color/BW
VMD
Number of scene file
Privacy zone
Image stabilizer
Electronic zoom
Image flip
Lens distortion correction
Auto back focus
Display language
38
When using clear dome cover:
Color Mode:0.08 lx {0.01 footcandle} at F1.4 WIDE
0.0024 lx {0.0003 footcandle} (sensitivity up x32, at F1.4 WIDE)*
BW mode:0.008 lx {0.001 footcandle} at F1.4 WIDE
0.00024 lx {0.00003 footcandle} (sensitivity up x32, at F1.4 WIDE)*
When using smoke dome cover (option):
Color Mode:0.16 lx {0.16 footcandle} at F1.4 WIDE
0.0048 lx {0.0048 footcandle} (sensitivity up x32, at F1.4 WIDE)*
BW mode:0.016 lx {0.016 footcandle} at F1.4 WIDE
0.00048 lx {0.00048 footcandle} (sensitivity up x32, at F1.4 WIDE)*
* Converted value
52 dB (AGC Off)
52 dB typ. (Super Dynamic 6 ON)
VBS: 1.0 V [p-p]/75 Ω, NTSC, RCA jack
Up to 16 characters (alphanumeric characters, marks)
ALC/ALC+/ELC
ON/OFF
ON (1)/ON (2)/OFF
ON/OFF
OFF (1/60 s), 1/100 s, 1/250 s, 1/500 s, 1/1000 s, 1/2000 s,
1/4000 s, 1/10000 s, 1/120000 s
ON (HIGH, MID, LOW)/OFF
OFF/AUTO (×2, ×4, ×6, ×10, ×16, ×32)/
FIX (×2, ×4, ×6, ×10, ×16, ×32, ×64, ×128, ×256, ×512)
ATW1/ATW2/AWC (area can be set)
HIGH/LOW
AUTO1/AUTO2/ON/OFF
OFF
Motion detection
Scene change detection
2
ON (1)/ON (2)/OFF
ON/OFF
ON (Up to 2x)/OFF
ON/OFF
0 to 255
ABF/MANUAL/switching between color and BW interlocking
JAPANESE/ENGLISH/FRANÇAIS/ESPAÑOL/DEUTSCH/ITALIANO/
РУССКИЙ/中文/PORTUGUÊS
Lens
Type
Focal length
F number
Focus range
2.1 x variable focal lens
3.8 mm - 8.0 mm
F1.4 (WIDE) - F1.9 (TELE)
∞ - 1.2 m
Horizontal: 34 ° (TELE) - 75 ° (WIDE)
Angle of view
Vertical: 25 ° (TELE) - 56 ° (WIDE)
Panning range: ±170 °
Adjusting angle
Tilting range: ±75 °
Azimuth range: ±100 °
ALC lens drive
DC drive
Lens mount
CS-mount
Dimensions and Weight indicated are approximate.
Specifications are subject to change without notice.
Standard accessories
CD-ROM* . ............................................................................................................................. 1 pc.
Installation Guide (this book) ................................................................................................... 1 pc.
Warranty card . ....................................................................................................................... 1 pc.
*The CD-ROM contains the operating instructions (PDF).
The following parts are used during installation procedures.
Base cover (for WV-CW634S) ................................................................................................ 1 pc.
Mounting base (for WV-CW634S) ........................................................................................... 1 pc.
Fixing screw for mounting base (for WV-CW634S) . ............................................................... 5 pcs.
(incl. 1 spare screw)
Fixing screw for ceiling mount bracket (for WV-CW634F) . ..................................................... 5 pcs.
(incl. 1 spare screw)
Attachment plate .................................................................................................................... 1 pc.
Bit for tamperproof screw........................................................................................................ 1 pc.
Waterproof tape ..................................................................................................................... 1 pc.
39
Optional Accessories
Dome cover:
(Smoke type)
WV-CW4SA
Heater unit:
WV-CW5HA
Mounting base:
WV-Q115A (only for WV-CW634F)
Ceiling mount bracket:
(Use when installing camera on weak ceiling
boards, etc.)
WV-Q169A*
Ceiling mount bracket:
(Use when installing camera on weak ceiling
boards, etc.)
WV-Q105A*
Ceiling hanging mount bracket:
(Use with the WV-Q124 (suspension mount
bracket) to be able to install on a ceiling.)
WV-Q121B
Wall mount bracket:
(Use with the WV-Q124 (suspension mount
bracket) to be able to install on a wall.)
WV-Q122A
Mount bracket:
(Use when installing camera using the WV-Q121B or WV-Q122A.)
WV-Q124
Sun shade:
WV-Q7118*
* In order to attach WV-Q169A, WV-Q105A or WV-Q7118 to WV-CW634F, WV-Q115A is required.
When using WV-Q169A or WV-Q105A ceiling mount brackets, use them indoors.
40
41
42
43
Panasonic System Communications Company of North America,
Unit of Panasonic Corporation of North America
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Two Riverfront Plaza, Newark, NJ 07102-5490.
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
© Panasonic System Networks Co., Ltd. 2015
sL1115-2125 PGQX1940XA Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
