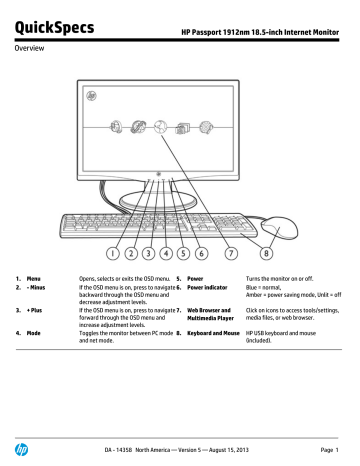

QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Overview
1. Menu
2. - Minus
3. + Plus
4. Mode
Opens, selects or exits the OSD menu. 5.
If the OSD menu is on, press to navigate 6.
backward through the OSD menu and
decrease adjustment levels.
If the OSD menu is on, press to navigate 7.
forward through the OSD menu and
increase adjustment levels.
Toggles the monitor between PC mode 8.
and net mode.
Power
Power indicator
Turns the monitor on or off.
Blue = normal,
Amber = power saving mode, Unlit = off
Web Browser and
Multimedia Player
Click on icons to access tools/settings,
media files, or web browser.
Keyboard and Mouse
HP USB keyboard and mouse
(included).
DA - 14358 North America — Version 5 — August 15, 2013
Page 1
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Overview
At a Glance
Delivers reliable, easy-to-use and everyday web experiences
without a PC
Fast and easy access to Internet and social media
Media player to watch videos, view photos and listen to
music
Adobe® Flash® Player
USB keyboard and mouse included
Built-in speakers
1366 x 768 resolution for a crisp, clear view 600:1(typical)
contrast ratio
5ms on/off response time
VGA port allows connection to PC or notebook
Tilt adjustment (-5° to +15°)
Environmental features including; Arsenic-free glass,
recyclable plastics and packaging
Model:
A1K82AA
DA - 14358 North America — Version 5 — August 15, 2013
Page 2
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
System Specifications
Software Specifications
Panel
ARM Based Processor
TI OMAP™ 4430 Cortex-A9 1.0Ghz Dual Core
Flash RAM memory
2 GB
DDR2 Memory
1GB
USB Ports
(1) upstream and (5) downstream
Card Reader 4-in-1
SD*, MultiMediaCard*, MS*
Removable Storage
Support
Audio
HP recommends the use of SanDisk based USB/SD/MultiMediaCard/MSstorage
devices.*
* The storage device must be formatted FAT16/32.
(1) Line-in and (1) Line-out
Speakers
Built-in speakers, 2W/channel
Keyboard
Yes; USB (included)
Mouse
Yes; USB (included)
Operating System
Custom HP Linux based OS
Image / Component
Updates
HP Auto Update
Internet Browser
Mozilla Firefox Browser
Video Player
Included
Audio Player
Included
Photo Frame
Included
Adobe® Flash® Player
Adobe® Flash® Player 11.1 (720P)
Video Codecs
H.264, H.263, MPEG2, MPEG4, VC-1
Video Container
MP4, M4V, MPG, MKV, WMV, AVI, MOV, ASF, 3GP, VOB
Audio Codecs
MP3, AACLC, HE-ACC, WMA10 std, WMA Pro, WMA9 lossless
Audio Container
MP1, MP2, MP3, ACC, M4A, WMA, ASF
Picture Codecs
(2048 x 1536, 3M max)
Type
JEPG, PNG, GIF, BMP
Viewable Image Area
(diagonal)
Active Area
(W x H)
Aspect Ratio
47,02 cm (18.51 in) real diagonal widescreen; diagonally measured
Viewing Angle (typical)*
Up to 90° horizontal/50° vertical
Brightness (typical)*
200 nits (cd/m2)
Contrast Ratio (typical)*
600:1
Dynamic Contrast Ratio
(typical)*
Response Time (typical)*
None
Pixel Pitch*
0,300 mm
Pixels Per Inch (PPI)
85 PPI
TN Type CCFL Backlit LCD
40,98 cm x 23,04 cm (16.13 x 9.07 in)
16:9
5 ms (on/off)
DA - 14358 North America — Version 5 — August 15, 2013
Page 3
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
On Screen Display
(OSD) Controls
Signal Interface/
Performance
Backlight Lamp Life
(to half brightness)*
Color Gamut (typical)*
50,000 hours
Color Depth*
16 million colors
*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Buttons or Switches
Power, Menu, "+", "-", Mode Switch
Languages
User Controls
English , Dutch, French, German, International Spanish, Italian, Simplified
Chinese, Traditional Chinese, Japanese , Brazilian Portuguese
Picture, OSD, Display Setting, Other Setting, Information
Horizontal Frequency
24 to 83 kHz
Vertical Frequency
48 to 76 Hz
Native Resolution
1366 x 768 @ 60 Hz
Preset VESA Graphic
Modes (non-interlaced)
1366 x 768 @ 60 Hz
1280 x 1024 @ 60Hz
1280 x 960 @ 60 Hz
1280 x 720 @ 60 Hz
1024 x 768 @ 60Hz
800 x 600 @ 60Hz
720 x 400 @ 70Hz
640 x 480 @ 60Hz
640 x 480 @ 60Hz / 720 x 400 @ 70Hz
Text Mode
Video/Other Inputs
Power
60%
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes (10)
Anti-Glare
Yes
Default Color
Temperature
6500
Plug and Play
Yes
Input Connectors
(1) VGA (analog)
Input Impedance
75 Ohms
Sync Input
TTL separate synch
Video Cable
Not included
Audio
(1) Line-in, (1) Line-out; (2) built-in speakers
USB
(5) USB Downstream Ports, (1) USB Upstream Port
Ethernet
(1) RJ-45 (10/100 Mb/s); LAN cable not included
Card Reader
Built-in 4-in-1 card reader; Formats supported: SD, MultiMediaCard, MS
Input Power
Internal Power Supply; 100-240 VAC, 47 or 63 Hz
Typical Power
Consumption
40 W
DA - 14358 North America — Version 5 — August 15, 2013
Page 4
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
Mechanical
Maximum
50 W
Power Saving
<1W (off)
Power Cable Length
1,9 m (6.2 ft.)
Dimensions (H x W x D)
Unpacked w/stand
Head Only
44,8 x 18 x 34,8 cm
(17.65 x 7.09 x 13.7 in.)
44,8 x 6,76 x 28,66 cm
(17.65 x 2.66 x 11.29 in.)
52 x 41 x 16 cm
(20.5 x 16.15 x 6.3 in.)
22 x 18 cm
(8.67 x 7.09 in.)
3,4 kg (7.5 lb.)
Unpacked
3,65 kg (8.05 lb.)
Packaged
6,5 kg (14.33 lb)
Unpacked w/o stand
(head only)
Packaged
Base area (footprint)
Weight
Environmental
Tilt Range
-5° to +15°
Swivel Range
No
Height Adjustable
No
Pivot Rotation
No
Base
Detachable base
Temperature – Operating 5° to 35° C (41° to 95° F)
Temperature – Nonoperating
-20° to 60° C (-4° to 140° F)
Humidity – Operating
20% to 80% non-condensing
Humidity – Non-operating 5% to 95%, 38.7° C max wet-bulb
Altitude – Operating
0 to 3658 m (12,000 ft)
Altitude – Non-operating 0 to 12192 m (0 to 40,000 ft)
Environmental Data
LED Backlights
No
CCFL Panel
Yes
Arsenic-Free Glass3
Yes
Low Halogen4
Yes (excluding external cables)
Mercury Free
No
Eco-Label Certifications This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
& Declarations
US ENERGY STAR®
IT ECO declaration
EPEAT® Silver where HP registers commercial desktop products. See
http://www.epeat.net for registration status in your country.
Energy Consumption
(in accordance with US
Energy Star test method)
Normal Operation
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
43.2 W
42.7 W
43.4 W
DA - 14358 North America — Version 5 — August 15, 2013
Page 5
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
Sleep
Off
Heat Dissipation*
Normal Operation
Sleep
Off
Additional Information
Packaging Materials
0.72 W
0.65 W
115VAC, 60Hz
0.78 W
0.71 W
230VAC, 50Hz
0.71 W
0.65 W
100VAC, 60Hz
148 BTU/hr
146 BTU/hr
148 BTU/hr
2.4 BTU/hr
2.6 BTU/hr
2.4 BTU/hr
2.2 BTU/hr
2.4 BTU/hr
2.2 BTU/hr
*NOTE: Heat dissipation is calculated based on the measured watts, assuming
the service level is attained for one hour.
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Silver level, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked
per ISO 11469 and ISO1043.
This product contains 65% post-consumer recycled plastic (by wt.)
This product is 98.1% recycle-able when properly disposed of at end of
life.
External:
PAPER/Corrugated
996 g
Internal:
RoHS Compliance
Material Usage
PLASTIC/EPE-Expanded
18 g
Polyethylene
Hewlett-Packard is committed to compliance with all applicable environmental
laws and regulations, including the European Union Restriction of Hazardous
Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by
meeting the requirements of the RoHS Directive on a worldwide basis. By July
1, 2006, RoHS substances will be virtually eliminated (virtually = to levels
below legal limits) for all HP electronic products subject to the RoHS Directive,
except where it is widely recognized that there is no technically feasible
alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
DA - 14358 North America — Version 5 — August 15, 2013
Page 6
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
Packaging
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be
frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and corrugated
materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
and Recycling
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/recyclers. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Hewlett-Packard
Corporate Environmental
Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
DA - 14358 North America — Version 5 — August 15, 2013
Page 7
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
Options
HP LCD Monitor Quick
Release – Part number
EM870AA1
HP Single Monitor Arm
–Part number BT861AA
HP Business PC Security
Lock Kit – Part number
PV606AA
What's in the box?
Other
HP Wireless Keyboard and The HP Wireless Keyboard and Mouse combine a cordless keyboard, cordless
laser mouse, and USB wireless receiver in a single package. It reduces the
Mouse – Part number
tangle and clutter associated with wired peripherals, regains valuable
QY449AA
workspace, and places advanced functionality and ergonomic ease of
operation at your fingertips.
Monitor and accessories HP Passport 1912nm 18.5-inch Internet Monitor; A/C power cable (1,9 m); HP
Standard USB keyboard and USB scroll mouse (wired)
Documentation
Limited Warranty Card
Featured Software
Yes (see Software Specifications above)
User Guide Languages
Color
English, French, Spanish, German, Italian, Portuguese (Euro), Portuguese
(Brazil), Russian, S. Chinese, T. Chinese, Japanese, Korean
English, French, Spanish, German, Italian, Portuguese (Euro), Portuguese
(Brazil), Russian, S. Chinese, T. Chinese, Japanese, Korean
Black
VESA External Mounting
Yes (one set of standard 4-hole pattern, 100 mm).
Security Lock-Ready
Yes
Warranty Languages
Certification and
Compliance
Compatibility
Service and Warranty
An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows
you to quickly and securely attach an LCD monitor to a variety of stands,
brackets, arms or wall mounts. For more information, refer to this product's
QuickSpecs document.
The flexible design of the HP Single Monitor Arm provides a seemingly endless
range of display adjustments with an amazing 13 inches of lift, 50 degrees of
tilt, and 360 degrees of pan and rotation - all at your fingertips -- helping you
stay comfortable and productive throughout the day.
Attaches to the rear of the PC with a six-foot steel cable that can be used to
secure a PC or peripherals such as mice, keyboards, monitors or USB security
devices to protect them against unauthorized removal by physically
connecting the system to an anchor point.
CISPR Requirements, VCCI Approvals, KC and KCC (Korean) Requirements, CSA 60950-1, UL 60950-1,
EN55022 Class B, CNS 13438 Class B, IEC 60950-1, SmartWay - NA only - Energy logistics, EUP Lot 6 Tier 1
AS/NZS 3548 Class B Approval, TUV Approvals, GEEA, CE Marking, FCC Part 15 class B Approval, EN55024
Class B, EN60950 -1, CUL, CCIB, CCEE, IT ECO (EDS), CEL, CECP, SEPA, ENERGY STAR®, [email protected] Silver5.
Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Protected by HP, including a 3 year standard limited warranty (may vary by region). Certain restrictions
and exclusions apply.2
DA - 14358 North America — Version 5 — August 15, 2013
Page 8
QuickSpecs
HP Passport 1912nm 18.5-inch Internet Monitor
Technical Specifications
© Copyright 2013 Hewlett-Packard Development Company, L.P.
1 The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting
surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the
VESA-compliant screws). HP recommends that you consult with a qualified engineering, architectural or construction professional to
determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that your mounting
solution is properly installed to support applied loads.
2 Service levels and response times for HP Care Pack Services may vary depending on your geographic location. Service starts from
date of hardware purchase. Restrictions and limitations apply. HP Care Pack Services extend service contracts beyond the standard
warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at
www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at www.hp.com/hps/carepack.
3 Arsenic and its compounds were not detected using US EPA Test Methods 3052 & 3052/6010b by ICP or ICP-AES.
4 External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be
Low Halogen.
5 EPEAT® Gold where HP registers commercial display products. See www.epeat.net for registration status in your country.
All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either
higher or lower. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein. Adobe® Flash® Player is a trademark of Adobe Systems Incorporated in the United
States and/or other countries.
DA - 14358 North America — Version 5 — August 15, 2013
Page 9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
