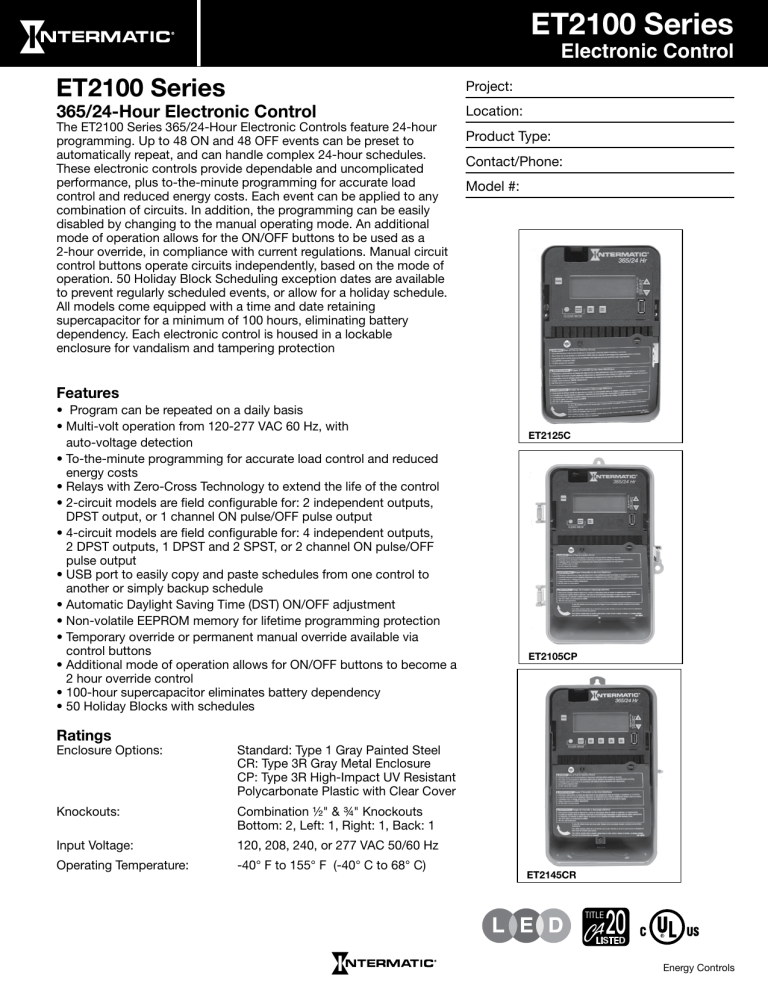

ET2100 Specifications
ET2100 Series
Electronic Control
ET2100 Series
Project:
365/24-Hour Electronic Control
The ET2100 Series 365/24-Hour Electronic Controls feature 24-hour
programming. Up to 48 ON and 48 OFF events can be preset to
automatically repeat, and can handle complex 24-hour schedules.
These electronic controls provide dependable and uncomplicated
performance, plus to-the-minute programming for accurate load
control and reduced energy costs. Each event can be applied to any
combination of circuits. In addition, the programming can be easily
disabled by changing to the manual operating mode. An additional
mode of operation allows for the ON/OFF buttons to be used as a
2-hour override, in compliance with current regulations. Manual circuit
control buttons operate circuits independently, based on the mode of
operation. 50 Holiday Block Scheduling exception dates are available
to prevent regularly scheduled events, or allow for a holiday schedule.
All models come equipped with a time and date retaining
supercapacitor for a minimum of 100 hours, eliminating battery
dependency. Each electronic control is housed in a lockable
enclosure for vandalism and tampering protection
Location:
Product Type:
Contact/Phone:
Model #:
Features
• Program can be repeated on a daily basis
• Multi-volt operation from 120-277 VAC 60 Hz, with
auto-voltage detection
• To-the-minute programming for accurate load control and reduced
energy costs
• Relays with Zero-Cross Technology to extend the life of the control
• 2-circuit models are field configurable for: 2 independent outputs,
DPST output, or 1 channel ON pulse/OFF pulse output
• 4-circuit models are field configurable for: 4 independent outputs,
2 DPST outputs, 1 DPST and 2 SPST, or 2 channel ON pulse/OFF
pulse output
• USB port to easily copy and paste schedules from one control to
another or simply backup schedule
• Automatic Daylight Saving Time (DST) ON/OFF adjustment
• Non-volatile EEPROM memory for lifetime programming protection
• Temporary override or permanent manual override available via
control buttons
• Additional mode of operation allows for ON/OFF buttons to become a
2 hour override control
• 100-hour supercapacitor eliminates battery dependency
• 50 Holiday Blocks with schedules
ET2125C
ET2105CP
Ratings
Enclosure Options:
Standard: Type 1 Gray Painted Steel
CR: Type 3R Gray Metal Enclosure
CP: Type 3R High-Impact UV Resistant
Polycarbonate Plastic with Clear Cover
Knockouts:
Combination ½" & ¾" Knockouts
Bottom: 2, Left: 1, Right: 1, Back: 1
Input Voltage: 120, 208, 240, or 277 VAC 50/60 Hz
Operating Temperature: -40° F to 155° F (-40° C to 68° C)
ET2145CR
TITLE
20
LISTED
Energy Controls
ET2100 Series
ET2100 Models
SPST Contact Ratings:Resistive: 30 A @ 120/240 VAC
Resistive: 20 A @ 28 VDC
Inductive: 30 A @ 120/240 VAC
Tungsten: 5 A @ 120/240 VAC
Magnetic Ballast: 20 A @ 277 VAC
Electronic Ballast/LED: 10 A @ 120/277 VAC
Motor: 1 HP @ 120 VAC
Motor: 2 HP @ 240 VAC
SPDT NO Contact Ratings:Resistive: 20 A @ 120-240 VAC
Resistive: 20 A @ 28 VDC
Inductive: 20 A @ 120-240 VAC
Magnetic Ballast: 20 A @ 120-277 VAC
Electronic Ballast/LED: 10 A @ 120/277 VAC
Motor: 1 HP @ 120 VAC
Motor: 2 HP @ 240 VAC
SPDT NC Contact Ratings:Resistive: 10 A @ 120-240 VAC
Resistive: 10 A @ 28 VDC
Inductive: 10 A @ 120-240 VAC
Magnetic Ballast: 3 A @ 120-277 VAC
Motor: ¼ HP @ 120 VAC
Motor: ½ HP @ 240 VAC
Pulse Feature: 2-second pulse option for contactor and bell ringing applications
(2 and 4 -circuit models only)
Auto DST: Automatic adjustment for Daylight Saving Time
Supercapacitor Backup: A supercapacitor to maintain date and time accuracy for a minimum of 100-hours if
power is lost
Wiring Terminals:
#18 to #10 AWG wire
Minimum ON/OFF Time:
1 minute
Maximum ON/OFF Time: 23 hours, 59 minutes
Warranty:
Limited 2-year
Model Number
Circuits
Switch
Volts AC
Rating
Enclosure
Shipping Weight
ET2105C
1
SPST
120-277 VAC
30 A
Indoor Metal
2.95 lbs.
ET2105CP
1
SPST
120-277 VAC
30 A
Indoor/Outdoor Plastic
2.25 lbs.
ET2105CR
1
SPST
120-277 VAC
30 A
Outdoor Metal
3.30 lbs.
ET2115C
1
SPDT
120-277 VAC
20 A
Indoor Metal
2.95 lbs.
ET2115CP
1
SPDT
120-277 VAC
20 A
Outdoor Metal
2.25 lbs.
ET2115CR
1
SPDT
120-277 VAC
20 A
Indoor/Outdoor Plastic
3.30 lbs.
ET2125C
2
SPST
120-277 VAC
30 A
Indoor Metal
2.95 lbs.
ET2125CP
2
SPST
120-277 VAC
30 A
Indoor/Outdoor Plastic
2.25 lbs.
ET2125CR
2
SPST
120-277 VAC
30 A
Outdoor Metal
3.30 lbs.
ET2145C
4
SPST
120-277 VAC
30 A
Indoor Metal
2.95 lbs.
ET2145CP
4
SPST
120-277 VAC
30 A
Indoor/Outdoor Plastic
2.25 lbs.
ET2145CR
4
SPST
120-277 VAC
30 A
Outdoor Metal
3.30 lbs.
All 2 or 4-circuit models can be wired to DPST
2-circuit models = 2 x SPST or 1 x DPST
4-circuit models = 4 x SPST, 2 x DPST, or 1 x DPST and 2 x SPST
Energy Controls
www.intermatic.com
XXXXXXXX
ET2100
Series
Specification
The 365/24-Hour Electronic Control shall be capable of permitting up to 48 ON/48 OFF events. The electronic control
shall provide a minimum ON or OFF time of 1 minute. The electronic control to be powered by ___ (120)(208)(240)(277)
VAC, ___ 60 Hz power supply. The electronic control mechanism features a snap-in design to provide easy mechanism
removal for mounting the enclosure. The electronic control enclosure shall be a _____ (Type 1 Steel)(Type 3R Steel)
(Type 3R Plastic) lockable enclosure that shall be painted with an electrostatic process to eliminate the potential for
corrosion. The electronic control shall provide clear terminal identification on a transparent non-curling terminal insulator.
The electronic control shall have a USB port to provide for schedule backup and transfer capabilities. Switch
configuration shall be _____ (SPST)(DPST)(SPDT) with a UL or CSA listed switch rating of:
If SPST:
If SPDT:
• Resistive: 30 A @ 120/240 VAC
• Resistive: 20 A @ 120/240 VAC
• Resistive: 20 A @ 28 VDC
• Resistive: 20 A @ 28 VDC
• Inductive: 30 A @ 120/240 VAC
• Inductive: 20 A @ 120/240 VAC
• Tungsten: 5 A @ 120/240 VAC
• Magnetic Ballast: 20 A @ 120/240 VAC
• Magnetic Ballast: 20 A @ 120-277 VAC • Electronic Ballast: 10 A @ 120/277 VAC
• Electronic Ballast: 10 A @ 120/277 VAC • Motor: 1 HP @ 120 VAC
• Motor: 1 HP @ 120 VAC
• Motor: 2 HP @ 240 VAC
• Motor: 2 HP @ 240 VAC
The electronic control shall be UL or CSA listed under UL category 916 Energy Management Equipment and shall be
Intermatic model ________________(See Model Numbers Listed).
Diagrams
TIMER
POWER
All Units
CIRCUIT 1
TIMER
POWER
TIMER POWER
AC IN
CIRCUIT 1
CIRCUIT 2
CIRCUIT 3
CIRCUIT 4
NO-1 COM1 NC-1
L1
LOAD1
L2/N
LOAD2
AC IN
AC IN
OUTPUT CONFIGURATION - SPDT
L1
L2/N
L2/N
LOAD 1
POWER TO TIMER
120/208/240/277
VAC
SPDT
(AUTO VOLTAGE, NO JUMPERS REQUIRED)
TIMER
POWER
CIRCUIT 1
LOAD 2
N
L3
N
LOAD 3
L4
N
LOAD 4
L5
N
L6
4 - INDIVIDUAL 120/277 VAC LOADS
OUTPUT CONFIGURATION: IND - CIRCUIT 1 AND 2
OUTPUT CONFIGURATION: IND - CIRCUIT 3 AND 4
1 Circuit SPST
TIMER
POWER
NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
L1
CIRCUIT 1
CIRCUIT 2
AC IN
CIRCUIT 3
TIMER
POWER
CIRCUIT 4
CIRCUIT 1
CIRCUIT 2
CIRCUIT 3
CIRCUIT 4
NO-1 COM1
L1
L2/N
LOAD 1
AC IN
NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
1 Circuit
SPDTFOR TWO 208/240 VAC DPST
TIMER CONFIGURATION
OUTPUT CONFIGURATION: SIM
- CIRCUIT 1 AND 2
SPST
OUTPUT CONFIGURATION: SIM - CIRCUIT 3 AND 4
TIMER
POWER
TIMER
POWER
CIRCUIT 1
TIMER CONFIGURATION FOR TWO CONTACTOR CONTROLS
OUTPUT CONFIGURATION: PUL - CIRCUIT 1 AND 2
OUTPUT CONFIGURATION: PUL - CIRCUIT 3 AND 4
CIRCUIT 1
CIRCUIT 2
AC IN
CIRCUIT 3
OPEN
L2/N
LOAD 2
COM
L2
OUTPUT CONFIGURATION: IND
(120/277 VAC LOAD)
CLOSE
LOAD 1
OPEN
L1
NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
L1
L
CLOSE
N
COM
AC IN
TIMER
POWER
CIRCUIT 4
NO-1 COM1 NC-1
CIRCUIT 1
CIRCUIT 2
CIRCUIT 3
CIRCUIT 4
L1
LOAD1
L2/N
AC IN
L1
LOAD2
COM2 NO-3
NO-1 COM1
NO-2CONFIGURATION
COM3 NO-4 COM4
OUTPUT
- SPDT
L2/N
AC IN
NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
L1
L2/N
LOAD 1
N
LOAD 2
L3
N
SPDT
L4
LOAD 1
LOAD 3
L5 L6
LOAD 2
L3 L5
N
LOAD 3
L6
N
L7
