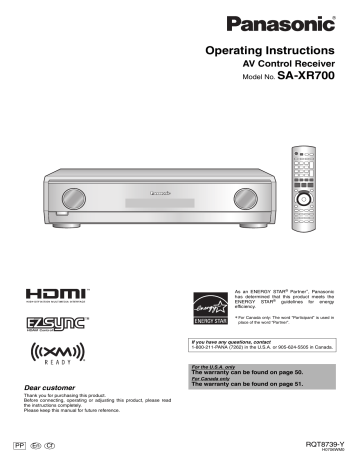

Operating Instructions

AV Control Receiver

Model No.

SA-XR700

Dear customer

Thank you for purchasing this product.

Before connecting, operating or adjusting this product, please read the instructions completely.

Please keep this manual for future reference.

As an ENERGY STAR ® Partner

, Panasonic has determined that this product meets the

ENERGY STAR ® guidelines for energy efficiency.

For Canada only: The word “Participant” is used in place of the word “Partner”.

If you have any questions, contact

1-800-211-PANA (7262) in the U.S.A. or 905-624-5505 in Canada.

For the U.S.A. only

The warranty can be found on page 50.

For Canada only

The warranty can be found on page 51.

PP

En Cf

RQT8739-Y

H0706WM0

2

RQT8739

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Telephone No.: 1-800-211-7262

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO

RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL

BE PLACED ON THE APPARATUS.

The socket outlet shall be installed near the equipment and easily accessible.

The mains plug of the power supply cord shall remain readily operable.

To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

Enjoying the Home Theater has become easy!

Connections

Many different cables were necessary

Simple connections using

HDMI cables. (

➡ page 7)

Other connections are also possible.

Settings

We must make speaker settings...

Manual setting for each speaker

Speakers are set with just one press.

(

➡ page 10)

Automatic setting with simple operations!

It’s difficult.

It’s easy.

Playback

Remote control operations for surround playback

Speakers provide surround sound when you just play

DVDs or receive TV broadcast. (

➡ page 12)

How can we get sound from speakers behind us?

When you connect the unit to your TV (VIERA) and DVD

Press just one button and enjoy the Home Theater. (

➡ page 13)

Previous Home Theater systems required multiple operations.

The

Home

Theater begins.

One-touch playback

Supplied accessories

Please check and identify the supplied accessories.

1 AC power supply cord

(K2CB2CB00018)

1 Setup microphone

(L0CBAB000123)

1 FM indoor antenna

(RSA0006-L)

1 AM loop antenna

(RSA0037)

2 Batteries 1 Remote control

(EUR7662YR0)

Use numbers indicated in parentheses when asking for replacement parts.

(Product numbers correct as of July 2006. These may be subject to change.)

Only for the U.S.A.: to order accessories, refer to “Accessory Purchases” on page 50.

Only for Canada: to order accessories, call the dealer from whom you have made your purchase.

3

RQT8739

Table of contents

Before use

IMPORTANT SAFETY INSTRUCTIONS ................................ 2

Enjoying the Home Theater has become easy! .................. 3

Supplied accessories............................................................ 3

Control guide ......................................................................... 5

Quick guide

Step 1

Connect a TV and a DVD recorder/DVD player using HDMI cables ................................................. 7

Step 2

Connect speakers................................................... 8

Step 3

Set speakers and test speaker output

Detecting speakers automatically.................................10

Testing speaker output ..................................................11

Step 4

Watch DVDs or TV ................................................ 12

Control with HDMI (Ez Sync

HDAVI Control

)

Enjoying the Home Theater through one-touch operations......13

Connections

Connections

Connecting cables to video and audio terminals

(to use the TV, DVD recorder, DVD player, VCR)............................14

Connecting cables to S video and audio terminals

(to use the TV, DVD recorder, DVD player) .....................................15

Connecting cables to component and audio terminals (to use the TV and DVD recorder) ...16

Other connections

To enjoy TV with surround sound .......................................... 17

To connect a DVD recorder with built-in VCR........................ 17

To enjoy analog sounds......................................................... 18

To enjoy high-quality analog sounds using DVD-Audio discs

(DVD analog 6-channel connections) .................................... 18

To connect the unit to a cable box or satellite receiver etc. ... 19

To connect the unit to a CD player......................................... 19

To connect the unit to a video camera or game player etc......... 19

Connecting speakers

To connect bi-wire speakers .................................................. 20

Making bi-wire setting............................................................ 20

To connect a second pair of front speakers........................... 21

Making surround speakers wireless with SH-FX50/SH-FX60 .... 21

Sending audio to another room with SH-FX80...................... 22

Making MULTI ROOM setting................................................ 22

Connecting antennas.......................................................... 23

Connecting XM Connect & Play or XMPassport system...... 23

Basic operations

Auto speaker setup using the setup microphone...24

Enjoying the Home Theater.......................................26

Using SPEAKERS B ............................................................. 27

MULTI ROOM ........................................................................ 27

ADVANCED DUAL AMP........................................................ 27

BI-AMP .................................................................................. 27

Playing DVD-Audio (Enjoying DVD-Audio sources through digital connections/

Playing DVD ANALOG 6CH/Enjoying high quality 2-channel analog sounds) .... 27

Operations

4

RQT8739

Listening to surround sound

Dolby Pro Logic /NEO:6/SFC (Sound Field Control).... 28

Remote controlling sound effects/convenient functions

Adjusting Dolby Pro Logic ’s “

MUSIC

” mode ................... 30

Adjusting NEO:6’s “

MUSIC

” mode ........................................30

Adjusting SFC (Sound Field Control) .....................................30

Adjusting speaker volumes ....................................................31

Adjusting the subwoofer level.................................................31

Silencing speakers temporarily ..............................................31

Dimming the display light (Dimmer) .......................................31

Sound effects/Convenient functions

How to set up........................................................................32

Adjusting the bass..................................................................33

Adjusting the treble ................................................................33

Balancing front speaker volumes ...........................................33

Changing the audio output (Dual program)............................33

Adjusting the brightness of the display...................................33

Sleep timer .............................................................................33

Settings

How to set up........................................................................34

Setting speakers and their sizes ............................................35

Setting distances....................................................................35

Setting the lowpass filter ........................................................35

Changing auto speaker settings (To return speakers to factory settings/

Setting the unit against automatic polarity adjustment) ......................36

Making BI-AMP settings (Canceling BI-AMP (using the triple amp mode)/

Adjusting the balance/Correcting the HF and LF difference) ...............36

Setting ADVANCED DUAL AMP off .......................................36

Changing the digital input settings .........................................37

Setting input signals ...............................................................37

Reducing standby power consumption (power saving standby mode)...37

Setting the unit against Ez Sync HDAVI Control ....................37

Listening clearly at low volume ..............................................38

Switching the attenuator.........................................................38

Adjusting audio timing to video timing....................................38

RESET (factory settings)........................................................38

Using headphones .....................................................38

Audio signals and amp mechanism .........................39

The radio

Manual tuning.......................................................................40

Preset tuning ........................................................................41

Presetting stations..................................................................41

Listening to preset stations ....................................................41

Reducing excessive noise......................................................41

XM

®

Satellite Radio

Displaying the XM Satellite Radio ID .....................................42

Positioning the antenna for optimal reception ........................42

Selecting XM channels by direct entry ..............................43

Selecting XM channels by category ...................................43

Displaying the XM channel information ..................................43

Preset tuning ........................................................................44

Presetting your favorite XM channels.....................................44

Selecting the channel presets ................................................44

XM advisory messages..........................................................44

Remote controlling a TV or DVD recorder etc.

Remote controlling a TV......................................................45

Remote controlling a DVD recorder ...................................45

Remote controlling a VCR...................................................46

Remote controlling a DVD player........................................46

Remote controlling a CD player..........................................47

Changing the remote control code .........................................47

Entering a code to operate other equipment..........................47

Reference

Troubleshooting guide.........................................................48

Help message .......................................................................49

Specifications.......................................................................49

Limited Warranty (Only for the U.S.A.) ...............................50

Limited Warranty (Only for Canada)...................................51

Maintenance .........................................................................51

Product Service ...................................................................52

Listening caution .................................................................52

Control guide

This unit

For selecting input sources

(

á

pages 12 and 26)

Standby indicator (

^

)

When the unit is connected to the household AC outlet, this indicator lights up in standby mode and goes out when the unit is turned on.

[

8

, POWER]

Press to switch the unit from on to standby mode or vice versa.

In standby mode, the unit is still consuming a small amount of power.

For MENU operations

(

á

pages 32, 33, 41 and 44)

For SETUP operations

(

á

pages 20, 22, 34 to 38 and 47)

POWER

INPUT SELECTOR

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY

-MENU/-SETUP ENTER SURROUND

MULTI ROOM

SPEAKERS

Lights on when ADVANCED DUAL AMP is on (

á

page 27)

Lights on when BI-AMP is on (

á

page 27)

Lights on during surround playback (

á

pages 12 and 26)

Lights on when the digital transceiver is in (

á

page 21)

Lights on during MULTI ROOM playback (

á

page 27)

Lights on during the auto speaker setup (

á

page 24)

AUTO DETECTOR -MULTI ROOM

TUNE

AUX

AUTO SPEAKER SETUP HDMI

VOLUME

SETUP MIC

W

Lights on while communicating through

HDMI connections

(

á

page 12)

For adjusting volumes

(

á

pages 12 and 26)

RETURN

-MENU/-SETUP ENTER

RETURN

SURROUND SPEAKERS

AUTO DETECTOR

-MULTI ROOM

TUNE

S VIDEO VIDEO

AUX

L AUDIO R SETUP MIC W

For tuning the radio and selecting preset stations (

á

pages 40 to 44)

For connecting headphones

(

á

page 38)

(

For selecting front speakers

á

pages 11, 12, 24, 26 and 27)

For detecting speakers automatically (

á

page 10)

For connecting the setup microphone (

á

page 24)

For connecting a video camera etc. (

á

page 19)

For switching the surround function on and off (

á

pages 12 and 26)

Display

Lights on when

2-channel mix is functioning

2CH MIX

Radio display

TUNED MONO ST

SPEAKERS

BI-WIRE

A B

Displays front speakers in use

Remote control

Sleep timer indicator

General display

Unit display Lights on when PCM FIX is selected

M SLEEP inft

DIGITAL INPUT

PCM

DTS 96/24DTS-ES

DIGITAL EX

EX kHz

MHz

Frequency unit indicators

Input signals (digital audio)

(

á

page 39)

Power button

For selecting tuner/

For switching FM, AM or XM

(

á

pages 40, 42 and 43)

For inputting channels

TV (

á

page 45)

DVD recorder (

á

page 45)

VCR (

á

page 46)

For selecting a track or chapter

DVD recorder (

á

page 45)

DVD player (

á

page 46)

For selecting a track

CD player (

á

page 47)

For inputting the station frequency/

For selecting a channel

TUNER (

á

pages 40 to 44)

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

RECORDER

DVD

VCR

PLAYER

BD/DVD

ANALOG 6CH

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

CH

VOLUME

SKIP SLOW/SEARCH

STOP PAUSE PLAY

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

For switching an input source on and off/

Source switching/

Switching remote control modes (

á

pages 45 to 47)

For playing DVD-Audio sources on 6 channels

(

á

page 27)

For selecting a channel

TV (

á

page 45)

DVD recorder (

á

page 45)

VCR (

á

page 46)

TUNER

(

á

pages 41 and 44)

For adjusting volumes

(

á

pages 13 and 31)

Batteries

Press on the tab to open.

(R6/LR6, AA)

Place this side in before the other side when you close.

• Insert so the poles (

(

and

)

) match those in the remote control.

• Do not use rechargeable type batteries.

• Do not heat or expose to flame.

Use

Remote control signal sensor

For operating other equipment

(

á

pages 13 and 45 to 47)

POWER

INPUT SELECTOR

AUTO SPEA BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

MENU/- SETUP ENTER SURROUND AUX SPEAKERS

A B

AUTO DETECTOR MULTI ROOM

TUNE

About 7 meters (23 feet) or less when you sit directly in front of the signal sensor (Exact distance depends on angles).

For dimming the display light (

á

page 31)

For adjusting the subwoofer level (

á

page 31)

For listening to surround sounds (

á

pages 28 to 30)

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER

DIMMER

TV

LEVEL EFFECT VOL

NEO : 6 TV/VIDEO

SFC AUTO

MUSIC MOVIE TEST MUTING

Transmission window

For silencing speakers temporarily (

á

page 31)

For confirming speaker output (

á

page 11)/

For auto speaker setup using the setup microphone

(

á

page 24)/

For adjusting speaker volumes (

á

page 31)

Caution

• Do not place an object between the signal sensor and the remote control.

• Do not place the signal sensor under direct sunlight or the strong light of an inverter fluorescent lamp.

• Keep the transmission window and the unit’s sensor free from dust.

When you set the unit in a cabinet

The remote controlling range may decrease depending on the thickness or colors of glass cabinet doors.

5

RQT8739

6

RQT8739

Quick guide

This section introduces basic connection, setting and playback methods for enjoying the Home Theater.

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

Step

1

Connect a TV and a DVD recorder/DVD player using HDMI cables

(

á

page 7)

Using HDMI connections, you can easily enjoy high-quality pictures and sounds.

To make HDMI connections, you need an HDMI terminal on both your TV and DVD recorder (DVD player).

When one of the two or both equipment lacks an HDMI terminal:

You can connect cables to S video terminals (

á

page 15).

You can connect cables to component terminals (

á

page 16).

You can connect cables to video terminals (in the absence of component or S video terminals) (

á

page 14).

・メニュー  −初期設定 決定

戻る

サラウンド スピーカー

自動検出

外部入力 測定マイク 引‑開

Step

2

Connect speakers

(

á

page 8)

You install and connect speakers in this step.

・メニュー  −初期設定

戻る

決定 サラウンド スピーカー

自動検出

外部入力 測定マイク 引‑開

Step

3

Set speakers and test speaker output

(

á

page 10)

Using automatic speaker detection, you can easily set speakers.

After speakers are set, you can confirm audio output using the test signal.

Step

4

Watch DVDs or TV

(

á

page 12)

You can enjoy DVDs with surround sound.

・メニュー  −初期設定

戻る

決定 サラウンド スピーカー

自動検出

外部入力 測定マイク

引‑開

.

Step

1

Connect a TV and a DVD recorder/DVD player using HDMI cables

Connection cable (All cables are sold separately)

Video and Audio cable

HDMI Cable

(It is recommended that you use Panasonic’s HDMI cable.)

[Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m) etc.]

Audio cable

Optical fiber cable

DIGITAL

AUDIO OUT

(OPTICAL)

FM ANT

DIGITAL IN

AM ANT

DIGITAL TRANSCEIVER

EXT LOOP ANT

GND

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

HDMI

(AV IN)

TV

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

XM

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

You need an optical fiber cable for enjoying TV with surround sound.

See “To enjoy TV with surround sound”

(

á page 17) for making analog connections.

Rear panel

R

FRONT   A

LF

L

BI-WIRE

R

FRON

HF

How to connect the optical fiber cable

Insert the cable after making sure shapes match.

Y P

B

SPEAKERS (6 〜

P

R

Y

TV MONITOR OUT DVD RE

COMPO

Do not sharply bend the optical fiber cable.

DVD player

(BD player)

HDMI

(AV OUT)

HDMI

(AV OUT)

DVD recorder

HDMI connection

The HDMI input terminal on the unit’s rear is made to specifications that presume connection of a DVD recorder/DVD player.

When other equipment is connected, sounds may not come out of the unit, or pictures shown on the equipment (TV) connected to the HDMI output terminal may be disrupted.

In such cases, see page 19 and make connections other than HDMI.

You can hear DVD sounds from speakers on the TV when you turn off the unit connected in the way shown above (standby through function). This convenient function enables you to enjoy DVDs late at night.

Note

HDMI stands for High-Definition Multimedia Interface.

• The HDMI cable enables you to transmit digital audio and video signals using a single cable. You can also transmit control signals using HDMI connections.

• The unit complies with CPPM

∗ 1

. It can digitally transmit surround sound in DVD-Audio sources.

1 Content Protection for Prerecorded Media (CPPM): This copyright protection technology prevents copying of DVD-Audio files.

• We recommend using Panasonic cables 5.0 meters long or shorter for enjoying 1125p

∗ 2

(1080p) pictures. They prevent picture degradation.

2 1125p (1080p): a progressive (non-interlace) scanning system that sends 1,125 scan lines every 1/60 second.

• The audio signal transmitted through HDMI takes priority when you use both HDMI and digital terminals (

á pages 14 to 17) for connection.

When the HDMI terminal does not exist on your TV, DVD recorder (DVD player) or both

You can connect cables to S video terminals.

You can connect cables to component terminals.

You can connect cables to video terminals.

See page 15.

See page 16.

See page 14.

Move on to “Connect speakers”

(

á

page 8) in the Quick guide.

7

RQT8739

Step

2

Connect speakers

The ideal placement is to set each speaker (excluding the subwoofer) the same distance away from the listening-viewing position.

Measure the actual distance from each of the connected speakers to the listening-viewing position and perform steps instructed in “Setting distances” (

á

page 35) or perform steps instructed in “Auto speaker setup using the setup microphone” (

á

page 24) when you cannot install speakers the same distance away.

Example: Center speaker (1), front speakers (2), surround speakers (2), surround back speaker(s)

(1 or 2) and subwoofer

This is a placement suited for playing 6.1-channel sources

(Dolby Digital Surround EX and DTS-ES materials).

This placement offers 7.1/6.1-channel playback of 2-channel and 5.1-channel sources with the aid of Dolby Pro Logic ,

NEO:6, and SFC technology.

Center speaker

Front speaker (left)

Front speaker (right)

Surround speaker (right)

Subwoofer

Surround speaker (left)

Surround back speaker

(right)

Surround back speaker

(one speaker only)

Surround back speaker (left)

Front speakers (left, right)

Place on the left and right of the TV at seated ear height so that there is good coherency between the picture and sound.

Center speaker

Place underneath or above the center of the TV. Aim the speaker at the seating area.

When you do not install the center speaker, sound assigned to it is distributed to front speakers and output from them.

Surround speakers (left, right)

Place on the side of or slightly behind the seating area.

When you do not install surround speakers, sound assigned to them is distributed to front speakers and output from them.

Surround back speakers (left, right)

Place behind the seating area, about 1 meter (3 feet) higher than ear level.

When you do not install any surround back speaker, sound assigned to them is distributed to surround speakers or front speakers and output from them.

Subwoofer

The subwoofer can be placed in any position as long as it is at a reasonable distance from the TV.

If using 4-mm plug

Turn speaker terminals clockwise and tighten them before inserting plugs into their holes.

8

RQT8739

How to connect speaker cables

1

Remove the vinyl covering the tips of speaker cords by twisting it off.

2

Speaker terminals

Note

• Connect speaker cords properly to terminals after making sure left and right, and

(

and

)

.

Improper connections may cause the unit to develop problems.

• Do not short-circuit speaker cords. The action may damage circuits.

( )

( )

Speaker impedance

Front A:

Center:

Surround:

6 to 8

6 to 8

6 to 8

Surround back: 6 to 8

Use the terminal for the left speaker when you connect one surround back speaker only.

Front speakers

(R) (L)

Surround speakers

(R) (L)

Center speaker

Surround back speakers

(R) (L)

Speaker cable

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

R

SURROUND

L

SURROUND BACK

R

L

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

Y P

B

SPEAKERS

P

R

Y P

B

P

R

HAUT-PARLEURS

Y P

B

P

R

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

TV MONITOR OUT

Monaural connection cable

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC power supply cord

(included)

AC IN

Active subwoofer

Household AC outlet

(AC 120 V, 60 Hz)

Connect AC power supply cord after all other cables and cords are connected.

• The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

• Do not use an AC power supply cord from any other type of equipment with this unit.

• The unit’s settings remain effective after AC the power supply cord is removed from the household AC outlet.

Note

Do not forget to take steps instructed in “Set speakers and test speaker output” (

á

page 10) or “Auto speaker setup using the setup microphone” (

á

page 24) after connecting a new speaker.

9

RQT8739

Step

3

Set speakers and test speaker output

The unit checks each speaker’s connection status and make speaker settings automatically.

SPEAKERS

A B

“ ”

AUTO DETECTOR

CH

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

VOLUME

SKIP SLOW/SEARCH

STOP PAUSE PLAY

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER

DIMMER

TV

LEVEL EFFECT VOL

NEO : 6 TV/VIDEO

SFC AUTO

MUSIC MOVIE TEST MUTING

INPUT SELECTOR VOLUME

POWER

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND SPEAKERS

TUNE

RETURN

MENU/ SETUP

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

R SETUP MIC

W

1

Detecting speakers automatically

To turn the unit on

POWER

Press

2

To check the speaker presence

SPEAKERS

A B

AUTO DETECTOR

Automatic speaker detection starts.

• The standby indicator “

^

” goes off when you turn the unit on.

The unit checks the center speaker, surround speakers, surround back speakers and the subwoofer in that order.

(The connection status for front speakers is always present.)

The display shows the number of detected speakers

(excluding the subwoofer).

The display shows connected speakers.

(e.g.)

When automatic detection is finished, the display returns to the original.

How speakers are displayed

L

: Front left

C

: Center

R

: Front right

S

: Surround

SB

: Surround back

W

: Subwoofer

WARNING

” messages may appear on the display depending on detection results.

The right surround back speaker was detected, but the unit did not detect the left surround back speaker. Use the terminal for the left speaker when you connect one surround back speaker only

(

á

page 9).

The unit did not detect left and right surround speakers.

Connect surround speakers as well when you connect surround back speakers to the unit.

The unit did not detect one of the two surround speakers.

Check speaker connections.

10

RQT8739

Note

• Automatic detection does not work well depending on speakers and cables.

Make speaker settings manually in such cases (

á

page 35).

• These settings remain effective after the unit goes off.

• The unit considers seven speakers and one subwoofer are connected to the unit (keeps factory settings) unless you perform these steps.

• Perform the above steps when you connect a new speaker.

Testing speaker output

Confirm audio output using the test signal after speakers are set.

1

To select “SPEAKERS A”

Press

SPEAKERS

A

to switch “

A

” on.

When only the SPEAKERS A setting is selected

When SPEAKERS A and

SPEAKERS B settings are selected

SPEAKERS SPEAKERS

A A B

• If you select SPEAKERS B only, the test signal will not be output.

To test speaker output

2

• Adjust the volume of front speakers to the normal listening level.

• The test signal is output from one speaker at a time for two seconds in the order shown below.

L C R RS SBR SBL LS SW

or

L C R RS SB LS SW

(When you connect one surround back speaker)

Speaker

How speakers are displayed

L

: Front left

RS

: Surround right

C

: Center

R

: Front right

LS

: Surround left

SBR

: Surround back right

SB

: Surround back

SBL

: Surround back left

(When you connect one surround back speaker)

SW

: Subwoofer

To stop the test signal

3

Note

• Unconnected speakers do not output the test signal.

• Check connections and perform automatic speaker detection once again when a connected speaker does not output the test signal.

(

á

pages 9 and 10)

• When bi-wire speakers are connected (

á

page 20), press [SPEAKERS A] or [SPEAKERS B] to switch “

A B

” on.

SPEAKERS

BI-WIRE

A B

To make detailed settings

To make various settings automatically

To set speakers the way you like

With the supplied setup microphone, the unit sets speaker distances, polarity, size, filter frequency and levels automatically (

á

page 24).

“Adjusting speaker volumes” (

á

page 31)

“Setting speakers and their sizes” (

á

page 35)

“Setting distances” (

á

page 35)

“Setting the lowpass filter” (

á

page 35)

11

RQT8739

12

RQT8739

Step

4

Watch DVDs or TV

INPUT SELECTOR

“SURROUND”

SPEAKERS

A

“HDMI”

VOLUME

“ ”

POWER

SURROUND

INPUT SELECTOR

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

MENU/

-

SETUP

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

MULTI ROOM

TUNE

VOLUME

AUX

AUTO SPEAKER SETUP

HDMI

S VIDEO VIDEO

AUX

L

SETUP MIC

W

SETUP MIC W

Turn the TV on and switch the TV’s input mode (to “HDMI” and others).

1

To turn the unit on

Press

8

• The standby indicator “

^

” goes off when you turn the unit on.

The “SURROUND” indicator lights on

(factory setting).

To select “SPEAKERS A”

2

Press

A

SPEAKERS

to switch “

A

” on.

SPEAKERS

A

3

To select “

DVR

”, “

BD/DVD

” or “

TV/STB

INPUT SELECTOR

Turn

Note

You can also select the input source using the remote control (

á

page 5).

4

• Select the connected terminal when the names of the terminal and equipment you wish to use for playback do not match.

Watch DVDs or TV

• The “HDMI” indicator lights on while communicating through HDMI connections.

5

To adjust the volume

VOLUME

Turn

Volume range:

– –

dB

(minimum),

79dB

to

0dB

(maximum)

To finish watching

Be sure to reduce the volume and press [

8

, POWER] to turn the unit to standby.

Note

Playback modes switch between 2-channel stereo and surround each time you press [SURROUND].

The “SURROUND” indicator is off during 2-channel stereo playback.

When you play back sources using a CD player and other equipment

See page 26.

Control with HDMI (Ez Sync

HDAVI Control

)

What is Ez Sync HDAVI Control?

Ez Sync HDAVI Control is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or DVD recorder (DIGA) under Ez Sync HDAVI Control. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details.

.

1 Connect the unit to a Panasonic TV (VIERA) and DVD recorder (DIGA) under Ez Sync HDAVI Control using the

HDMI cable.

(It is recommended that you use Panasonic’s HDMI cable. Non-

HDMI-compliant cables cannot be utilized.)

2 Make settings in the menu for the TV (VIERA) to activate linked Ez Sync HDAVI Control operations.

3 Perform the following steps to make sure the unit accurately identifies connected equipment.

1) Turn all equipment on.

2) Switch the TV (VIERA) off and then put it back on.

3) Switch the unit’s input to “

DVR

” and make sure the TV

(VIERA) correctly shows pictures.

(Take these steps after changing connections or settings.)

DIGITAL

AUDIO OUT

(OPTICAL)

HDMI

(AV IN)

TV (VIERA)

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER)

(

CD

)

COAXIAL1 COAXIAL2

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

CENTER

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

VCR

DVD recorder

(DIGA)

HDMI

(AV OUT)

You need an optical fiber cable for enjoying TV with surround sound.

Enjoying the Home Theater through one-touch operations

CH

DIRECT

TUNING

DISC

XM CAT

0

ENTER

VOLUME

XM CH

SKIP SLOW/SEARCH

STOP PAUSE PLAY

Aim the remote control at the DVD recorder (DIGA) and press

ONE T

OUCH PLAY

The following operations are automatically performed when you just press [ONE TOUCH PLAY].

1 The DVD recorder goes on and starts playing back the recorded media in the selected drive (e.g.

HDD, DVD).

2 The TV goes on and the TV input changes.

3 Surround playback starts after the unit is turned on and the input source for the unit switches to

DVR

”.

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

VOLUME

To adjust the volume:

Press

You can also adjust the volume on your TV (VIERA)’s remote control.

(A message informing the action appears on your TV while you adjust the volume.)

• Press [ u

SKIP] to start playing a DVD disc or a recorded TV program again when playback does not start from the beginning.

Note

• Only this unit turns off when you shut it down. Other connected equipment compatible with Ez Sync HDAVI Control stay on.

• Audio output automatically switches to speakers on your TV (VIERA) when you turn the unit off.

Audio output from the DVD recorder (DIGA) switches from speakers on the TV (VIERA) to speakers connected to the unit when you turn the unit on.

• This unit goes from off to on, and speakers connected to this unit start making audio output when you set the TV (VIERA) to output sounds from the unit.

• This unit automatically goes off when you switch your TV (VIERA) off. (This operation is unavailable when you set the input source as

TUNER

” or “

CD

” on this unit.)

• The input for the unit switches automatically to “

DVR

” when a source is played back on the DVD recorder.

• When pictures arrive after sounds, select “

ON

” in “Adjusting audio timing to video timing” (

á

page 38).

• To set the unit against Ez Sync HDAVI Control, see page 37.

• The remote control supplied with the TV (VIERA) may not work on the equipment connected to the BD/DVD player terminal when you connect Ez Sync HDAVI Control compatible equipment to both of the unit’s two HDMI input terminals.

Enjoying sounds from the TV

The input source for the unit switches to “

TV/STB

” when you select a TV channel or operate the TV in other ways (

á

page 45).

13

RQT8739

14

RQT8739

Connections

Connecting cables to video and audio terminals (to use the TV, DVD recorder, DVD player, VCR)

Connection cable (All cables are sold separately)

Video cable

Video connection cable

Optical fiber cable

Coaxial cable

Audio cable

Stereo connection cable

White

Red

(L)

(R)

Changing the digital input settings

For example, you can connect the unit to a DVD player that makes optical output only by performing the steps instructed in “Changing the digital input settings” (

á page 37).

How to connect the optical fiber cable

Insert the cable after making sure shapes match.

TV

VIDEO IN

• To enjoy TV with surround sound, make additional connections instructed on page 17.

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

OUT

(BD/DVD PLAYER) IN

(DVD RECORDER) IN

S VIDEO VIDEO

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y

TV

Do not sharply bend the optical fiber cable.

DIGITAL

AUDIO OUT

(COAXIAL)

VIDEO

OUT

DIGITAL

AUDIO OUT

(OPTICAL)

VIDEO

OUT

(R) (L)

AUDIO OUT

VIDEO

OUT

VCR DVD player

(BD player)

DVD recorder

Note

• The input video signal can be sent out through an output terminal of the same type only.

• See page 19 for connecting the unit to a cable box or satellite receiver.

Connecting cables to S video and audio terminals

(to use the TV, DVD recorder, DVD player)

Connection cable (All cables are sold separately)

Video cable

S VIDEO connection cable

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

Optical fiber cable

Audio cable

Coaxial cable

Changing the digital input settings

For example, you can connect the unit to a DVD player that makes optical output only by performing the steps instructed in “Changing the digital input settings” (

á page 37).

How to connect the optical fiber cable

Insert the cable after making sure shapes match.

S VIDEO

IN

• To enjoy TV with surround sound, make additional connections instructed on page 17.

TV

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y

TV

Do not sharply bend the optical fiber cable.

DIGITAL

AUDIO OUT

(COAXIAL)

S VIDEO

OUT

S VIDEO

OUT

DIGITAL

AUDIO OUT

(OPTICAL)

DVD player

(BD player)

DVD recorder

Note

• The input video signal can be sent out through an output terminal of the same type only.

• See page 19 for connecting the unit to a cable box or satellite receiver.

15

RQT8739

16

RQT8739

Connections

Connecting cables to component and audio terminals (to use the TV and DVD recorder)

The component video terminals can produce more accurate colors than the S video terminals (

á

page 15).

Connection cable (All cables are sold separately)

Video cable

Video connection cable

Optical fiber cable

Audio cable

Y P

B

P

R

COMPONENT

VIDEO IN

“Changing the digital input settings” (

á

page 37)

TV

• To enjoy TV with surround sound, make additional connections instructed on page 17.

R

FRONT



A

LF

L

BI-WIRE

R

FRONT



B

HF

L

CENTER

Rear panel

R

SURROUND

L

SURROUND BACK

R L

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER)

(

CD

)

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

CENTER

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y P B

SPEAKERS

P R Y

TV MONITOR OUT

P B P R

HAUT-PARLEURS

Y P B P R

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

How to connect the optical fiber cable

Insert the cable after making sure shapes match.

DIGITAL

AUDIO OUT

(OPTICAL)

Y P

B

P

R

COMPONENT

VIDEO OUT

Do not sharply bend the optical fiber cable.

DVD recorder

Component video terminals

The component video terminals (color-difference video terminals) output red (P

R

), blue (P

B

), and luminance (Y) signals separately. The terminals reproduce colors with greater accuracy for this reason.

Note

• The input video signal can be sent out through an output terminal of the same type only.

• See page 19 for connecting the unit to a cable box or satellite receiver.

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

Other connections

Connection cable (All cables are sold separately)

Video cable

Video connection cable

Optical fiber cable

Audio cable

Stereo connection cable

White

Red

(L)

(R)

To enjoy TV with surround sound

Make the following connections in addition to those instructed on pages 14 to 16.

• Speakers produce sounds when you make connections for either digital audio (OPTICAL) output or analog audio output. Make connections according to your equipment and preference.

• Use the optical fiber cable for connection when your TV has the digital output terminal.

DIGITAL

AUDIO OUT

(OPTICAL)

AUDIO OUT

(R) (L)

TV

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

settings” (

á

page 37)

DIGITAL TRANSCEIVER

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

To connect a DVD recorder with built-in VCR

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

Rear panel

SURROUND

R L

SURROUND BACK

R

L

Y P

B

SPEAKERS

TV MONITOR OUT

P

R

Y P

B

P

R

HAUT-PARLEURS

Y P

B

P

R

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

VIDEO IN

“Changing the digital input settings” (

á

page 37)

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

TV

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

Rear panel

R

SURROUND

L

SURROUND BACK

R

L

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

How to connect the optical fiber cable

Insert the cable after making sure shapes match.

XM

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Do not sharply bend the optical fiber cable.

DIGITAL

AUDIO OUT

(OPTICAL)

VIDEO

OUT

DVD OUT terminals

Y P

B

SPEAKERS

P

R

Y

TV MONITOR OUT

(R) (L)

AUDIO OUT

P

B

P

R

HAUT-PARLEURS

Y P

B

P

R

DVD RECORDER IN

COMPONENT VIDEO

VIDEO

OUT

DVD/VCR COMMON OUT terminals

TV / STB IN

AC IN

DVD recorder with built-in VCR

• See page 26 for playback instructions.

17

RQT8739

18

RQT8739

Connections

Other connections

Connection cable (All cables are sold separately)

Video connection cable

Video cable

S VIDEO connection cable

Optical fiber cable

Coaxial cable

Audio cable

Stereo connection cable

White

Red

(L)

(R)

To enjoy analog sounds

Make analog connections according to your equipment and preference. See pages 14 to 16 for video connections.

EXT LOOP ANT

GND

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

Rear panel

SURROUND

R L

SURROUND BACK

R L

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y P

B

SPEAKERS

TV MONITOR OUT

P

R

Y P

B

P

R

HAUT-PARLEURS

Y P

B

P

R

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

DVD player

(BD player)

(R) (L)

AUDIO OUT

(R) (L)

AUDIO OUT

DVD recorder

To enjoy high-quality analog sounds using DVD-Audio discs (DVD analog 6-channel connections)

EXT LOOP ANT

GND

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

Rear panel

R

SURROUND

L

SURROUND BACK

R L

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y P

B

SPEAKERS

TV MONITOR OUT

P

R

Y P

B

P

R

HAUT-PARLEURS

Y P

B

P

R

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

DVD recorder or

DVD player

(BD player)

SUBWOOFER CENTER (R) (L)

FRONT

(R) (L)

SURROUND

• See page 27 for playback instructions.

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

To connect the unit to a cable box or satellite receiver etc.

Make either digital audio (OPTICAL) output connections or analog audio output connections according to your equipment and preference.

• Use cables that belong to the same type as the video cable you used for connecting the unit to your TV.

• See pages 14 to 16 for connecting the unit to the TV.

Rear panel

Cable box or satellite receiver etc.

FM ANT

EXT LOOP ANT

GND

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

R

SURROUND

L

SURROUND BACK

R L

S VIDEO

OUT

DIGITAL IN

VIDEO OUT

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

CENTER

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

L

IN

VCR

XM

R

DIGITAL TRANSCEIVER

“Changing the digital

CD

input settings”

IN

(

á

page 37)

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

TV/STB

IN

TV/STB

OUT

SUBWOOFER

Y

SPEAKERS

Y

TV MONITOR OUT

HAUT-PARLEURS

Y P

B

P

R

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

P

R

P

B

COMPONENT

VIDEO OUT

Y

(L)

(R)

AUDIO

OUT

DIGITAL

AUDIO OUT

(OPTICAL)

To connect the unit to a CD player

Make either digital audio (COAXIAL) output connections or analog audio output connections according to your equipment and preference.

CD player

Rear panel

EXT LOOP ANT

GND

R

FRONT   A

LF

L

BI-WIRE

R

FRONT   B

HF

L

CENTER

R

SURROUND

L

SURROUND BACK

R L

FM ANT

DIGITAL IN

AM ANT

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

input settings”

(

á

page 37)

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

CENTER

BD/

IN

DVD PLAYER

IN

DVD RECORDER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Y

SPEAKERS

P R Y

TV MONITOR OUT

P B

HAUT-PARLEURS

Y

DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

DIGITAL

AUDIO OUT

(COAXIAL)

(L)

(R)

AUDIO

OUT

To connect the unit to a video camera or game player etc.

These terminals are convenient for equipment you want to connect only temporarily.

• Use a cable that belongs to the same type as the video cable you used for connecting the unit to your TV.

• See pages 14 to 16 for connecting the unit to the TV.

INPUT SELECTOR VOLUME

S VIDEO

OUT

VIDEO OUT

(L)

(R)

AUDIO

OUT

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

-

MENU/

-

SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

AUTO SPEAKER SETUP

HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

SETUP MIC W

Video camera etc.

19

RQT8739

20

RQT8739

Connections

Connecting speakers

See pages 8 and 9 for placing and connecting your speakers according to their number.

To connect bi-wire speakers

Bi-wire speakers have separate connection terminals for high frequency and low frequency signals.

• Bi-wiring prevents high frequency and low frequency signals from interfering with each other. It offers playback in high audio quality.

• HF and LF stand for high frequency and low frequency, respectively.

• Make sure to select “

YES

” in “Making bi-wire setting” (below) when you connect the unit to bi-wire speakers. The speakers do not produce adequate sounds unless you make this setting.

HF

R

FRONT

LF

L

BI-WIRE

R

FRONT

HF

L

CENTER

Rear panel

R

SURROUND

L

SURROUND BACK

R

HF

DER) IN

Front speaker (R)

Rear view

VIDEO

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

VCR

IN

TV/STB

Front speaker (L)

Rear view

Y P

B

SPEAKERS

P

R

Y P

B

P

R

HAUT-PARLEURS

Y

LF LF

FRONT

6CH

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

TV MONITOR OUT DVD RECORDER IN

COMPONENT VIDEO

TV / STB IN

AC IN

Speaker cable

Speaker impedance

BI-WIRE: 6 to 8

Note

• Make sure to connect speakers’ HF terminals with the unit’s FRONT B terminals, and speakers’ LF terminals with the unit’s FRONT A terminals.

• Different amps for high frequency and low frequency signals produce BI-AMP stereo sounds that are clearer and higher in audio quality when you play on 2 channels sources containing analog audio and 2-channel PCM signals (

á

page 27).

Making bi-wire setting

INPUT SELECTOR

Turn to select.

Basic operation

-

MENU/

-

SETUP

ENTER

Press to confirm your choice.

RETURN

To return to the previous display/

To cancel

1 Press and hold [-MENU/–SETUP, RETURN] for about 2 seconds to enter the SETUP.

2 Select and confirm the choice.

3 Select and confirm the choice.

INPUT SELECTOR

INPUT SELECTOR

-

MENU/

-

SETUP ENTER

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

-

MENU/

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

MULTI ROOM

TUNE

RETURN

Note

See “Making BI-AMP settings” (

á

page 36) for detailed settings.

YES

: When bi-wire speakers are connected

NO

: When bi-wire speakers are not connected

Factory setting:

NO

4 Select and finish the setting.

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

To connect a second pair of front speakers

Make the following connections when you wish to install a second pair of speakers in another room and enjoy music there.

Rear panel

R

FRONT

LF

L

BI-WIRE

R

FRONT

HF

L

CENTER

R

SURROUND

L

SURROUND BACK

R

Front speaker (R)

CORDER) IN

VIDEO

Front speaker (L)

Speaker impedance

Front A and B: 6 to 8

Front B: 6 to 8

OR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

VCR

IN

TV/STB

Y

TV MONITOR OUT

ND FRONT

VD 6CH

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

Speaker cable

SPEAKERS

Y

HAUT-PARLEURS

DVD RECORDER IN

COMPONENT VIDEO

Y P B

TV / STB IN

P R

AC IN

Note

• “Auto speaker setup using the setup microphone” (

á

page 24) is unavailable for speakers connected to the FRONT B terminals.

When “SPEAKERS B” is selected, the unit automatically switches the selection to “SPEAKERS A” only and uses the setting for the auto speaker setup.

• Select “SPEAKERS B” when you wish to enjoy sounds from speakers connected to the FRONT B terminals (

á

page 27).

• If you select “SPEAKERS B” only, playback is 2-channel stereo. When a surround source is played, the sounds intended for all the speakers are played through the front left and front right speakers (

2CH MIX

).

Making surround speakers wireless with SH-FX50/SH-FX60

You can connect left and right surround speakers wirelessly by using Panasonic SH-FX50/SH-FX60 (A set consisting of a digital transceiver and a wireless system sold separately) with the unit.

To use this option, insert the digital transceiver into the unit’s digital transceiver terminal and connect surround speakers to SH-FX50/

SH-FX60’s wireless system.

• See SH-FX50/SH-FX60’s operating instructions for details.

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER) ( CD )

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

XM

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH IN

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

POWER

8

INPUT SELECTOR

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

ENTER SURROUND SPEAKERS

A B

TUNE

“ WIRELESS READY ”

AUTO SPEAKER SETUP HDMI

AUX

VOLUME

SETUP MIC

W

“ SURROUND ”

The “WIRELESS READY” indicator stays on while the digital transceiver is in.

The indicator may stay off, go off or flash in the following cases.

The indicator stays off:

• When the “SURROUND” indicator is off

• When surround speakers are set as absent (

á

page 35)

The indicator flashes:

• When radio waves are interrupted (when SH-FX50/SH-FX60 is off)

Note

• Audio output changes as follows when you use surround speakers wirelessly.

- The maximum number of playback channels is 5.1. Surround back speakers become unavailable. Sounds assigned to them are consolidated and output from surround speakers on the left and right.

- Left and right surround terminals on the unit make no audio output. (No audio is output from the terminals while the “WIRELESS

READY” indicator is flashing.)

• Make sure to turn the unit off before inserting or removing the digital transceiver.

• Surround speakers are set as connected when you perform automatic speaker detection (

á

page 10).

• SH-FX60’s “2-way wireless” function becomes unavailable.

• This function is unavailable when you select “

MULTI ROOM

” in “Making MULTI ROOM setting” (

á

page 22).

To perform the auto speaker setup using the supplied setup microphone:

Settings made with the setup microphone are canceled when you insert or remove the transceiver after performing the setup.

21

RQT8739

22

RQT8739

Connections

Connecting speakers

Sending audio to another room with SH-FX80

You can enjoy music wirelessly in another room (MULTI ROOM) by installing Panasonic SH-FX80 (a set consisting of a digital transceiver and a wireless system sold separately).

Insert SH-FX80’s digital transceiver into the unit’s digital transceiver terminal.

• See SH-FX80’s operating instructions for details.

• To use this function, make sure to select “

MULTI ROOM

” in “Making MULTI ROOM setting” (below). The speakers do not produce adequate sounds unless you make this setting.

Rear panel

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

OUT (BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

(TV/STB) (DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER)

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

XM

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

BD/ IN

DVD PLAYER

IN

DVD RECORDER

CENTER

L

IN

VCR

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

OUT

SUBWOOFER

• Make sure to turn the unit off before inserting or removing the digital transceiver.

Making MULTI ROOM setting

INPUT SELECTOR

Basic operation

ENTER

-

MENU/

-

SETUP

1 Press and hold [-MENU/–SETUP, RETURN] for about 2 seconds to enter the SETUP.

2 Select and confirm the choice.

Turn to select.

Press to confirm your choice.

RETURN

To return to the previous display/

To cancel

3 Select and confirm the choice.

INPUT SELECTOR

INPUT SELECTOR

MULTI ROOM

:when SH-FX80 is connected

SURR SPKR

: when SH-FX50/SH-FX60 is connected

Factory setting:

SURR SPKR

4 Select and finish the setting.

-

MENU/

-

SETUP ENTER

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

MENU/ SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR MULTI ROOM

TUNE

RETURN

Note

• See page 27 to enjoy music with MULTI ROOM.

• Settings made with the setup microphone are canceled when you change the “

SURR SPKR

” or “

MULTI ROOM

” setting.

• Turn off all equipment before making any connections.

• Peripheral equipment sold separately unless otherwise indicated.

• To connect equipment, refer to the appropriate operating instructions.

Connecting antennas

Adhesive tape

FM indoor antenna

(included)

Fix the other end of the antenna where reception is best.

1

2

AM loop antenna (included)

Keep the antenna cord away from DVD recorders, DVD players, and other cords.

Rear panel

1

EXT LOOP ANT

GND

FM ANT

DIGITAL IN

AM ANT

(DVD RECODER)

OPTICAL1 OPTICAL2

(BD/

DVD PLAYER)

COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

OUT

3

(BD/DVD PLAYER) IN (DVD RECORDER) IN

S VIDEO VIDEO

XM

OUT

TV MONITOR

BD/

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT

TV MONITOR

CENTER

BD/

IN

DVD PLAYER

IN

DVD RECORDER

L

R

IN

CD

SUBWOOFER SURROUND

BD/DVD/

FRONT

DVD 6CH

IN

DVD RECORDER

AUDIO

Black

Red

White

FM outdoor antenna (not included)

• Disconnect the FM indoor antenna.

• The antenna should be installed by a competent technician.

• Twist the coaxial cable’s shield braid firmly and connect it to the GND terminal.

GND

2

1

FM ANT

Shield braid

20 mm (25/32")

Core wire

10 mm (3/8")

FM outdoor antenna

75

Ω coaxial cable

Connecting XM Connect & Play or XMPassport system

You can enjoy XM Satellite Radio on this unit by connecting the XM Connect & Play or XMPassport system (both not included).

• To receive XM Satellite Radio broadcast, you must apply to XM Satellite Radio Inc. for subscription.

XM Connect & Play or XMPassport system (both not included)

Refer to page 42 for optimizing the reception.

Rear panel

EXT LOOP ANT

GND

OUT (DVD RECORDER) IN

FM ANT

DIGITAL IN

AM ANT

S VIDEO VIDEO

(TV/STB)

OPTICAL1

(DVD RECORDER) (DVD PLAYER) (CD)

OPTICAL2 COAXIAL1 COAXIAL2

DIGITAL TRANSCEIVER

SURROUND CHANNEL

XM

OUT

TV MONITOR

IN

DVD PLAYER

IN

DVD RECORDER

IN

TV/STB

OUT IN

TV MONITOR DVD PLAYER

IN

DVD RECORDER

CENTER

IN

VCR

L

IN

TV/STB

R

IN

CD

SUBWOOFER SURROUND FRONT IN

DVD/DVD 6CH IN DVD RECORDER

AUDIO

IN

VCR

IN

TV/STB

XM Connect & Play or

XMPassport system

OUT

SUBWOOFER

23

RQT8739

Auto speaker setup using the setup microphone

Using the supplied setup microphone, you can measure such items as distance from the seating area, polarity and size and make adjustment for connected speakers.

Keep quiet during the auto speaker setup. Conversational voice, air-conditioning noise and small sounds made by winds may cause an error or produce an incorrect setting. Speakers output loud test signals during the auto speaker setup. Make sure to keep little children out of the room.

• Mute the TV volume before starting the auto speaker setup.

• When the subwoofer is connected, make sure it is turned on. (There are subwoofer models that turn off automatically.)

Set the subwoofer volume to the normal listening level.

“ ”

SPEAKERS

A

INPUT SELECTOR VOLUME

POWER

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

VCR

RECORDER

DVD

PLAYER

BD/DVD

ANALOG 6CH

CH

AUTO SPEAKER SETUP HDMI

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

POWER

-MENU/-SETUP ENTER SURROUND TUNE

AUX

SETUP MIC

W

SETUP MIC W

“AUTO SPEAKER SETUP”

RETURN

-

MENU/

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

S VIDEO VIDEO

AUX

L

-

AUDIO

-

1

To turn the unit on

Press

POWER

8

• The standby indicator “

^

” goes off when you turn the unit on.

To select “SPEAKERS A”

2

Press

A

SPEAKERS

(on the unit) to switch “

A

” on.

SPEAKERS

A

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

VOLUME

3

Connect the setup microphone.

VOLUME

SKIP SLOW/SEARCH

STOP PAUSE PLAY

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

R SETUP MIC W

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER TV

DIMMER

LEVEL EFFECT VOL

4

Place the setup microphone.

• Place the setup microphone on a flat surface to stabilize it.

Examples: a level bench sharing the height with the seating area, a top section of a sofa etc.

• Set the microphone at seated ear height.

• Use a tripod (for camera and other products) for best results.

NEO : 6 TV/VIDEO

Tripod

SFC AUTO

MUSIC MOVIE

TEST MUTING

To cancel the setup halfway

Press [TEST, –AUTO].

5

6

To start the setup

Press and hold

AUTO

TEST

(on the remote control) for 2 seconds.

• The “AUTO SPEAKER SETUP” indicator flashes.

• When all auto settings are made, “

COMPLETE

” appears and the “AUTO SPEAKER SETUP” indicator lights on.

• The auto speaker setup takes about 3 minutes to finish in the case of a 5.1-channel system.

• The unit cancels the auto speaker setup halfway through when you give a different operational instruction before the setup finishes. (You can perform other operations after “

COMPLETE

” is displayed.)

To finish the setup

Press

AUTO

TEST

(on the remote control).

• The unit turns off and on in quick succession for completing the setup.

• Unplug the setup microphone when the setup is finished.

24

RQT8739

Note

• The setup microphone is sensitive to heat. Keep it away from direct sunlight and avoid placing it on top of the unit.

• These settings remain effective after the unit goes off.

• The setup microphone jack is for use with the setup microphone only. Do not connect other microphones.

With the setup microphone, the unit automatically sets the following.

STEP1

STEP2

STEP3

DISTANCE

: The unit measures the distance between each speaker and the seating area and corrects the sound delay in the seating area. The maximum speaker distance for correcting the delay is 45 feet (15 meters).

POLARITY

: The unit checks the polarity of each speaker and, when the polarity is wrong, corrects it.

Select “

CHECK NO

” in “Setting the unit against automatic polarity adjustment” (

á

page 36) before starting the auto speaker setup when you do not want the unit to adjust polarity automatically.

SIZE / FREQUENCY

: The unit measures acoustic characteristics of the room including speaker characteristics (size and lowpass filter settings) and adjusts them.

LEVEL

: The unit checks the output level of each speaker and makes adjustment.

Error messages

When one of the following error messages appears, press [TEST, –AUTO] to cancel and perform the auto speaker setup again.

Message Cause Countermeasure

• The setup microphone is not connected.

• Connect the setup microphone properly.

• The setup microphone does not catch test signals.

• Check if the microphone is placed properly.

• Loud noise is preventing measurement.

• A speaker is too far.

• An error occurred from an unknown cause.

• The right surround back speaker was detected, but the left surround back speaker was not detected.

• Perform the auto speaker setup again when the room is quiet.

• Turn off an air-conditioner and other equipment that are producing noise.

• Check speaker locations.

• Perform the setup again.

• Connect to the left surround back speaker terminal when you connect only one surround back speaker.

• Check the left surround back speaker’s connections.

• Surround back speakers were detected, but left and right surround speakers were not detected.

• Connect surround speakers as well when you connect surround back speakers.

• Unable to detect one or both of the two surround speakers

• Check connections.

• Unable to detect one or both of the two front speakers

• Check connections.

• Test signals from the speakers are too weak to allow accurate measurement with the microphone.

• Change the microphone location (height, direction etc.).

• Check if there is any obstacle near a speaker that is blocking the test signals.

• Set the subwoofer volume to the normal listening level.

Note

• You can also perform automatic speaker detection only (

á

page 10).

• Speaker placement, speaker directions and other conditions may prevent correct setting.

• The unit sets the lowpass filter frequency at the value of the speaker capable of reproducing the lowest frequency signal among speakers judged as “SMALL”.

• When left and right speakers differ in size, they are set as “SMALL”.

• When surround speakers and surround back speakers differ in size, they are set as “SMALL”.

• Left and right front speakers are set as “

LARGE

” even if their size is “SMALL” when you perform the auto speaker setup without connecting the subwoofer.

• Only level is adjusted for the subwoofer.

• Ez Sync HDAVI Control (

á

page 13) does not work during the auto speaker setup.

• The selection switches automatically to “SPEAKERS A” only when you perform the auto speaker setup without selecting

“SPEAKERS A”.

• The auto speaker setup is unavailable while muting (

á

page 31) is on.

• The unit sets at 45 feet (15 meters) the distance of speakers located more than 45 feet (15 meters) away from the seating area. The set distance is displayed as “

OVER

” (

á

page 35).

• Speakers whose polarity was automatically adjusted are displayed with “

” such as “

L 10.0 –

” (

á

page 35).

• Speaker settings made with the setup microphone are canceled when you perform automatic speaker detection (

á

page 10).

When the “AUTO SPEAKER SETUP” indicator is off after the auto speaker setup:

Auto speaker settings have been canceled as a result of various setting changes.

Speaker size

• LARGE: Speakers that can sufficiently reproduce the bass range down to 20 Hz.

• SMALL: Speakers that do not satisfy the requirements for

LARGE speakers.

You can perform steps instructed in “Setting speakers and their sizes” (

á

page 35) to change speaker sizes set automatically.

Lowpass filter

When the speaker size is “SMALL”, the unit cannot sufficiently reproduce the bass range.

You can set the lowpass filter frequency according to the playback frequency range and arrange the unit to output the missing bass range from the subwoofer.

25

RQT8739

Enjoying the Home Theater

SPEAKERS

A

B

POWER

“ ” “BI-AMP”

“SURROUND”

“MULTI ROOM”

VOLUME

INPUT SELECTOR

POWER

INPUT SELECTOR

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

VOLUME

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

SETUP MIC W

SURROUND

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

VCR

RECORDER

DVD

PLAYER

BD/DVD

ANALOG 6CH

CH

“ADVANCED DUAL AMP”

1

To turn the unit on

POWER

Press

The “SURROUND” indicator lights on (factory setting).

2

To select “SPEAKERS A”

Press

A

SPEAKERS

to switch “

A

” on.

3

4

5

• The standby indicator “

^

” goes off when you turn the unit on.

Note

Do not forget to perform speaker detection when you play a source with the unit for the first time or when you change the number of connected speakers (

á

pages 10 and 24).

SPEAKERS

A

To select “SPEAKERS B”

Press [SPEAKERS B].

(

á

page 27)

To use bi-wire speakers (

á

page 20)

Press [SPEAKERS A] or [SPEAKERS B] to switch

A B

” on.

SPEAKERS

BI-WIRE

A B

To enjoy BI-AMP stereo sounds

See page 27.

To switch input sources

• Select the connected terminal when the names of the terminal and equipment you wish to use for playback do not match.

INPUT SELECTOR

(e.g.)

Turn

TUNER FM TUNER AM TUNER XM CD

AUX VCR DVR BD/DVD TV/STB

• When you select “

DVR

”, “

DVD RECORDER

” scrolls across the display once.

• You can also select an input source using the remote control (

á

page 5).

To use a DVD recorder with built-in VCR (

á

page 17)

• To play a DVD: select “

DVR

• To play a video cassette: select “

VCR

Play the selected input source.

To switch between 2-channel stereo playback and surround playback

Press [SURROUND].

To adjust the volume

VOLUME

Turn

Volume range:

– –

dB

(minimum),

79dB

to

0dB

(maximum)

To finish the Home Theater

Be sure to reduce the volume and press [

8

, POWER] to turn the unit to standby.

Digital signals this unit can play:

Dolby Digital (including Dolby Digital Surround EX), DTS (including DTS-ES and DTS 96/24) and PCM (

á

page 39)

26

RQT8739

Note

• The unit memorizes whether [SURROUND] has been pressed on or off for each input source.

• The setting always switches from off to on when the input comes from a surround source in Dolby Digital, DTS or other formats.

• When you press [SURROUND] off while playing a surround source (excluding a DVD-Audio source that does not allow down-mixing), 2-channel mix (2CH MIX) activates.

2-channel mix is canceled when you turn the unit off or when you switch input sources.

• The “SURROUND” indicator goes off when the sampling frequency for the input signal is higher than 96 kHz.

• The number of source channels appears on the display when a digital signal is input or input sources are switched. (Their number may not appear depending on the selected source.)

Subwoofer

Number of surround and surround back channels

Number of front and center channels

• The unit is compatible with linear PCM 8-channel surround signals decoded by the BD player and other equipment (up to

96 kHz/24 bit). See the operating instructions for equipment used for playback.

Using

SPEAKERS B

MULTI ROOM

ADVANCED

DUAL AMP

BI-AMP

Playing

DVD-Audio

Sound is output from the speakers connected to the FRONT B terminals on this unit.

Press

SPEAKERS

B

to switch “

B

” on.

SPEAKERS

B

To turn off speakers connected to the FRONT A terminals

Switch “

A

” on the display off by pressing [SPEAKERS A].

The wireless speaker unit outputs 2-channel stereo sound.

1 Press [SPEAKERS B] to switch “

B

” on.

2 Press and hold [SPEAKERS B] for 2 seconds.

• When the function is on, the “MULTI

ROOM” indicator lights on.

• This function is not available while muting is on.

ADVANCED DUAL AMP activates automatically when you use 2-channel stereo playback or 5.1-channel playback.

The “ADVANCED DUAL AMP” indicator stays on while this function is on.

• You can also set the ADVANCED

DUAL AMP off (

á

page 36).

This function activates automatically when you play analog audio sources or 2-channel PCM signals through bi-wire connections.

• Connect bi-wire speakers (

á page 20).

• Select “

YES

” in “Making bi-wire setting” (

á page 20).

• Press [SURROUND] off (

á pages 12 and 26).

Enjoying DVD-Audio sources through digital connections

• The “BI-AMP” indicator stays on while

BI-AMP is at work.

• Refer to “Making BI-AMP settings”

(

á

page 36) for detailed settings.

Connect the unit to a DVD recorder or DVD player using the HDMI cable (

á

page 7) or a digital cable (COAXIAL1) (

á pages 14 and 15).

Playing DVD

ANALOG 6CH

• Make analog 6-channel connections (

á

page 18).

• Select “SPEAKERS A” or turn bi-wire speakers on (

á

page 26).

• Switch the input source to “

BD/DVD

” (

á

page 26).

PLAYER

Press and hold

BD/DVD

ANALOG 6CH

until

DVD 6CH

” is displayed.

When the unit is connected to a

DVD recorder

Playback is unavailable while the input source is “

DVR

”. Make analog 6-channel connections and switch the mode to “

BD/DVD

”.

• To cancel, press and hold until

BD/DVD

” is displayed.

Enjoying high quality 2-channel analog sounds

You can enjoy high quality stereo sound with 192 kHz 2-channel DVD-Audio.

1 Cancel the “

DVD 6CH

” setting. (above)

2 Set the input signal to “

ANALOG

” in “Setting input signals”. (

á

page 37)

Note

SREAKERS B

• Playback is in 2-channel stereo when you select “SPEAKERS B” only.

• When only “SPEAKERS B” is selected and the input source is surround, “

2CH MIX

” appears on the display.

• Selected speakers output sounds assigned to front 2 channels when you make DVD ANALOG 6CH connections.

• If you select “SPEAKERS B” only, the following are set automatically irrespective of settings selected in “Setting speakers and their sizes” (

á

page 35).

Speaker size: “

LARGE

Subwoofer: “

NO

” (Bass is output from the front speakers.)

• Settings made through the auto speaker setup (

á

pages 24 and 25) are canceled.

MULTI ROOM

• When you press [SPEAKERS A] or [SPEAKERS B], consolidated 2-channel stereo sound is output from front and surround speakers (in the original room).

MULTI ROOM is canceled when you press [SPEAKERS A] or [SPEAKERS B].

• BI-AMP or ADVANCED DUAL AMP turns off when you perform MULTI ROOM playback.

• “

SPEAKERS ARE OFF

” is displayed when you press and hold [SPEAKERS

B] for 2 seconds without selecting “SPEAKERS A” and “SPEAKERS B”.

ADVANCED DUAL AMP (

á

page 39)

• The unit takes advantage of unused amps, and runs one speaker with 2 amps when this function is on. ADVANCED DUAL AMP offers you sounds that are clearer and higher in audio quality than those available in normal playback. In 2-channel stereo playback, 3 speaker amps drive front speakers. The operation is called the triple amp mode.

2-channel stereo playback: Front, surround and surround back speaker amps are used for driving front speakers (triple amp mode).

5.1-channel playback: Front and surround back speaker amps are used for driving front speakers (dual amp mode).

• When surround speakers are connected wirelessly (

á

page 21), the unit uses the wireless system amp for 5.1-channel playback. Under the condition, front speakers are driven in the triple amp mode.

BI-AMP (

á

page 39)

• The unit takes advantage of the front speaker and the surround speaker amps, and drives the speakers’ high-frequency and lowfrequency ranges separately when this function is on.

• ADVANCED DUAL AMP is available with BI-AMP. When combined, the two functions enhance clarity and audio quality of stereo sounds.

• When you make bi-wire setting (

á

page 20), both BI-AMP and

ADVANCED DUAL AMP take effect as long as overlap is possible. In such case, ADVANCED DUAL AMP activates in the dual amp mode.

Select “

OFF

” in “Canceling BI-AMP (using the triple amp mode)”

(

á

page 36) when you wish to use the triple amp mode.

• You cannot use BI-AMP with analog 6-channel connections for

DVD-Audio sources.

Playing DVD-Audio

Make the following speaker settings on the DVD recorder or the

DVD player. (They are normal factory settings for the DVD recorder and the DVD player.)

• Speaker size: “

LARGE

” for all speakers

• Speaker presence: present for all speakers

• Distance setting: 0 or an equal distance for all speakers

27

RQT8739

28

RQT8739

Listening to surround sound

You can add surround effects or create surround sound from 2-channel stereo sources.

Dolby Pro Logic

RECEIVER

AV

SYSTEM

TUNER

CD

TV

VCR

RECORDER

DVD

PLAYER

BD/DVD

ANALOG 6CH

• Dolby Pro Logic offers you surround playback of 2-channel stereo sources.

• The technology enables you to play 5.1-channel Dolby Digital and DTS sources on

7.1 channels (when two surround back speakers are connected to the unit) and on

6.1 channels (when only one surround back speaker is connected).

• The technology makes surround back channels available for the playback of

Dolby Digital Surround EX sources.

BAND

CH

Press to select one of the following modes.

(The modes switch each time you press the button.)

To cancel

Press

OFF

VOLUME

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH or

SKIP SLOW/SEARCH

STOP PAUSE PLAY

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

NEO:6

NEO:6 offers you surround playback of 2-channel stereo sources.

The technology enables you to play 5.1-channel Dolby Digital and DTS sources on

6.1 channels.

NEO : 6

Press to select one of the following modes.

(The modes switch each time you press the button.)

To cancel

Press

OFF

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER TV

DIMMER

LEVEL EFFECT VOL

NEO : 6 TV/VIDEO

SFC AUTO

MUSIC MOVIE TEST MUTING

Note

• Speaker output levels set with the setup microphone (

á

pages 24 and 25) apply to Dolby Pro Logic , NEO:6 and SFC.

• Surround effects may be unavailable depending on sources.

• These settings remain effective after the unit goes off.

• The unit makes output through speakers according to the number of channels recorded in sources when you switch Dolby Pro Logic , NEO:6, or SFC off.

Example: The unit makes output through front speakers, the center speaker, surround speakers, and the subwoofer when you play 5.1-channel sources. Surround back speakers go silent.

SFC (Sound Field Control)

You can add presence and spread to surround sound according to your choice when you use SFC with Dolby Digital, DTS, PCM or analog sources.

Use this mode when playing music.

(Music)

To cancel

Press modes.

MUSIC

SFC

to select one of the following

(The modes switch each time you press the button.)

You can also select each of the following modes by pressing

MUSIC

SFC

, and in succession.

Use this mode when playing movies.

(Movie)

Press

SFC

MOVIE

modes.

to select one of the following

(The modes switch each time you press the button.)

You can also select each of the following modes by pressing

SFC

To cancel

Press

MOVIE

, and in succession.

Dolby Pro Logic

MOVIE

This mode produces good effects when you play commercial film titles in the Dolby Surround format.

Sounds assigned to surround back channels become stereo in playback when you connect two surround back speakers to the unit.

Dolby Pro Logic is in this mode in the factory setting.

Use this mode when playing music.

MUSIC

EX

(Dolby Digital EX)

This mode produces good effects when you play commercial film titles recorded in the Dolby Digital Surround

EX format.

This mode is effective on sources containing surround channels only.

Sounds assigned to surround back channels become monaural in playback when you connect two surround back speakers to the unit.

• “

DIGITAL EX

” or “

EX

” replaces “

PL

” on the display when you connect one surround back speaker.

GAME

NEO:6

CINEMA

MUSIC

Use this mode when playing movies.

Use this mode when playing music.

SFC (Sound Field Control)

LIVE

POP/ROCK

VOCAL

JAZZ

DANCE

You can play games with dynamic sounds in this mode.

This mode is effective on 2-channel stereo sources.

This mode is unavailable when surround and surround back speakers are unconnected (

á

pages 9, 10, 24 and

25) or when you set them as absent in “Setting speakers and their sizes” (

á

page 35).

Imparts the reflection and spread of a large concert hall.

Best suited for dynamic sound such as pop and rock music.

Best suited to enhance vocals.

Recreates natural sound ambience and direction.

PARTY

DRAMA

ACTION

SPORTS

MUSICAL

GAME

Enjoy a dance hall like audio effect.

This mode gives you a stereo impression wherever your listening position may be. Music played in the mode sounds like background music at parties.

Best suited for dialogues in drama movies.

Best suited for action movies with impact.

Enjoy a feeling like being at a live sporting event.

Enjoy a feeling like being at a live musical performance.

Enjoy games with greater audio impact.

Note

Dolby Pro Logic

Choices become “

EX

” or “

MUSIC

” when you connect one surround back speaker only.

NEO:6

• The “

CINEMA

” mode is available for 2-channel stereo Dolby Digital and DTS sources containing surround data. The “

MUSIC

” mode is available for the same sources containing no surround data.

• The subwoofer goes silent when you use NEO:6 on 2-channel stereo sources as long as all speakers have been set as “

LARGE

” in

“Setting speakers and their sizes” (

á

page 35).

SFC (Sound Field Control)

• The SFC function is off when the center speaker and surround speakers are not connected.

• In the “

PARTY

” mode, when only one surround back speaker is connected and the center speaker is unused, the surround back speaker goes off.

The center speaker goes silent when you connect no surround back speaker to the unit.

• Sound may be distorted when the selected input source and SFC mode do not match.

In such cases, lower the effect level in “Adjusting the effect level” (

á

page 30) or select another mode through procedures instructed on page 28.

29

RQT8739

Remote controlling sound effects/convenient functions

See pages 28 and 29 for information about each mode.

Adjusting Dolby Pro Logic ’s “

MUSIC

” mode

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

RECORDER

DVD

VCR

PLAYER

BD/DVD

ANALOG 6CH

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

VOLUME

DRIVE SELECT

CH

SKIP SLOW/SEARCH

STOP PAUSE PLAY

CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

You can use the following modes when the input source is 2-channel stereo.

(Dimension Control)

You can make up for differences in the output level of the front and surround speakers.

Press

EFFECT

to select “

DIMEN

”, and press for adjustment.

Adjustment range:

-3

(More surround sound) to

+3

(More front sound)

Factory setting:

0

(Center Width Control)

(Panorama)

In this mode, you can play music more naturally by adjusting sounds assigned to front and center speakers as a whole.

Press

EFFECT

to select “

C-WIDTH

”, and press for adjustment.

Adjustment range:

0

(Center becomes clearer) to

7

(Center becomes wider)

Factory setting:

3

Sound is spread out more so you feel like you are surrounded by music.

Press

EFFECT

to select “

PANORAMA

”, and press

for selecting “

ON

” or “

OFF

”.

30

RQT8739

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER

DIMMER

TV

LEVEL EFFECT

VOL

NEO : 6 TV/VIDEO

SFC AUTO

MUSIC MOVIE TEST MUTING

Factory setting:

OFF

Adjusting NEO:6’s “

MUSIC

” mode

You can use the following modes when the input source is 2-channel stereo.

In this mode, you can play music more naturally by adjusting sounds assigned to front and center speakers as a whole.

(Center Image

Control)

Press

EFFECT

to select “

C-IMAGE

”, and press for adjustment.

Adjustment range:

0

(Center becomes clearer) to

5

(Center becomes wider)

Factory setting:

2

Adjusting SFC (Sound Field Control)

Note

These settings remain effective after the unit goes off.

Adjusting the output level

Press

LEVEL

to select a speaker, and press adjustment.

for

C

(Center),

RS

(Surround right),

SBR

(Surround back right),

SBL

(Surround back left)

(

SB

when only one surround back speaker is connected),

LS

(Surround left):

Adjustment range;

-20 dB

to

+10 dB

Factory setting;

0 dB

SUBW

(Subwoofer):

Adjustment range;

---

(off),

MIN

(minimum),

1

to

29

,

MAX

(maximum)

Factory setting;

20

Note

• You cannot adjust the output levels of speakers other than the subwoofer in the

PARTY

” mode (

á

pages 28 and 29).

• You cannot adjust speakers not connected (

á

pages 9, 10, 24 and 25) and others set as absent in “Setting speakers and their sizes” (

á

page 35).

Adjusting the effect level

Press

EFFECT

, and press for adjustment.

Adjustment range:

EFFECT 1

(minimum) to

EFFECT 10

(maximum)

Factory setting:

EFFECT 5

Note

You cannot adjust the effect level in the “

PARTY

” mode (

á

pages 28 and 29).

Adjust speaker output to balance front speaker sounds with those from each of the other speakers in the seating area.

Make adjustment after detecting speakers automatically (

á

page 10).

Adjusting speaker volumes

How speakers are displayed

L

: Front left

C

: Center

R

: Front right

RS

: Surround right

LS

: Surround left

SBR

: Surround back right

SBL

: Surround back left

SB

: Surround back

(If you connect one surround back speaker)

SW

(

SUBW

)

: Subwoofer

Press [SPEAKERS A] on the unit to switch “

A

” on.

(Press [SPEAKERS A] or [SPEAKERS B] to switch “ on when bi-wire speakers are connected.)

A B

AUTO

1 Press

TEST

• A test signal is output from one speaker at a time for two seconds in the following order.

L C R RS SBR SBL LS SW

L C R RS SB LS SW

(When you connect one surround back speaker)

• Speakers not connected (

á

pages 9, 10, 24 and 25) or set as unconnected in “Setting speakers and their sizes” (

á

page 35) do not output test signals.

VOLUME

2 Press to adjust the volumes of front speakers to the normal listening level.

LEVEL

3 Press to select a speaker for adjustment.

• Speakers switch in the following order each time you press the button.

C RS SBR SBL LS SUBW

Note

If you select “SPEAKERS B” only, the test signal will not be output.

Speaker

Volume range:

- - dB

(minimum),

-79dB

to

0dB

(maximum)

Speaker

C RS SB LS SUBW

(When you connect one surround back speaker)

4 Press selected speaker.

to adjust the volume of the

Repeat steps 3 and 4 to adjust the level of each speaker.

• Only the adjusted speaker produces the test signal in steps

3

and

4

.

• Connected speakers start producing the test signal again in the above order 2 seconds after both steps.

• Press [TEST, –AUTO] to stop the test signal.

Adjustment range:

–20dB

to

+10dB

Factory setting:

0dB

SUBW

only

:

MIN

(minimum)

MAX

(maximum)

1

to

29

Factory setting:

20

You can adjust the output level while playing sources. You can adjust the level according to your preference by thickening or thinning the ultra bass, for example.

Adjusting the subwoofer level

Press

SUBWOOFER

to select a level.

• Select “

---

” to stop output.

Adjustment range:

---

(off),

MIN

(minimum),

5

,

10

,

15

,

20

,

25

,

MAX

(maximum)

Factory setting:

SUBW 20

Silencing speakers temporarily

Note

• Sound can be distorted if you raise the volume while the subwoofer level is high. Reduce the subwoofer level if this occurs.

• Adjust the output level by taking steps described in “Adjusting speaker volumes” (above) when you wish to make detailed settings.

Press

MUTING

• “

MUTING IS ON

” scrolls across the display while the volume is muted.

• Press the button again to cancel the operation.

Dimming the display light

(Dimmer)

Note

Muting is canceled when you turn the unit off or adjust the volume.

Press

DIMMER

• Press the button to dim the display. The light above [INPUT SELECTOR] and [VOLUME] goes off.

• Press the button again to cancel the operation.

Note

Refer to page 33 for adjusting the brightness on the unit.

31

RQT8739

32

RQT8739

Sound effects/Convenient functions

-

MENU/

-

SETUP ENTER

RETURN

INPUT SELECTOR

INPUT SELECTOR

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

MENU/

-

SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR MULTI ROOM

TUNE

1

How to set up

To enter the MENU

Press

-

MENU/

-

SETUP

RETURN

2

To select the item you wish to change

INPUT SELECTOR

Turn to select an item.

VOLUME

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

R SETUP MIC W

ENTER

Press for confirming the choice.

3

To change the setting

Turn

INPUT SELECTOR

to change the setting.

ENTER

Press for confirming the choice.

4

To finish the setting

Press

-

MENU/

-

SETUP

several times to select “

EXIT

”.

RETURN

ENTER

Press for confirming the choice.

• The display returns to the original one.

• You can also select “

EXIT

” by turning [INPUT SELECTOR].

To return to the previous display/To cancel

Press

-

MENU/

-

SETUP

RETURN

Adjusting the bass

• You can adjust the bass through this operation.

1 Select and confirm the choice.

2 Make adjustment and confirm the choice.

Adjusting the treble

• You can adjust the treble through this operation.

1 Select and confirm the choice.

2 Make adjustment and confirm the choice.

Adjustment range:

-10

dB to

+10

dB

Factory setting:

0

dB

1 Select and confirm the choice.

Balancing front speaker volumes

2 Make adjustment and confirm the choice.

L

: Front left

R

: Front right

• You can adjust the balance of the front speakers.

The bar shows the standard balance.

Changing the audio output (Dual program)

• The unit allows you to switch dual audio signals in

Dolby Digital and DTS formats.

Note

You cannot adjust volume balance when you use SFC’s “

PARTY

” mode (

á

pages 28 and 29).

DUAL PRG

” appears on the display when the unit receives dual audio signals.

1 Select and confirm the choice.

2 Select audio and confirm the choice.

MAIN

:

Main audio output

SAP

:

Sub channel audio output

M+S

:

Main and sub channel audio output

Factory setting:

MAIN

1 Select and confirm the choice.

Adjusting the brightness of the display

2 Select a setting and confirm the choice.

• Dim the display for better viewing in a darkened room.

• Select “

DIMMER OFF

” to cancel.

• The light above [INPUT SELECTOR] and [VOLUME] goes off when you make this adjustment.

1 Select and confirm the choice.

Adjustment range:

DIMMER 1

(bright) to

DIMMER 3

(dim)

Factory setting:

OFF

Sleep timer

2 Select the time and confirm the choice.

• The sleep timer can turn the unit off after a set time.

• When this is set, “

SLEEP

” appears on the display.

• To check the setting:

After setting the time, you can check the remaining time using step

1

.

• To change a setting:

Repeat the procedure from the beginning.

Adjustment range:

-10

dB to

+10

dB

Factory setting:

0

dB

Times available for setting:

30, 60, 90, 120

(minutes)

Factory setting:

OFF

Note

Sleep timer is for this unit only.

33

RQT8739

34

RQT8739

Settings

-

MENU/

-

SETUP ENTER

RETURN

INPUT SELECTOR

INPUT SELECTOR

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

-

MENU/

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

TUNE SPEAKERS

AUTO DETECTOR

1

How to set up

To enter the SETUP

Press and hold

-

MENU/

-

SETUP

RETURN

for about 2 seconds.

2

To select the item you wish to change

INPUT SELECTOR

Turn to select an item.

ENTER

Press for confirming the choice.

VOLUME

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L AUDIO

-

R SETUP MIC W

3

To change the setting

INPUT SELECTOR

Turn to select an item.

ENTER

Press for confirming the choice.

• You must repeat these steps several times depending on settings.

4

To finish the setting

Press

-

MENU/

-

SETUP

several times to select “

EXIT

”.

RETURN

ENTER

Press for confirming the choice.

• The display returns to the original one.

• You can also select “

EXIT

” by turning [INPUT SELECTOR].

To return to the previous display/To cancel

Press

-

MENU/

-

SETUP

RETURN

Setting speakers and their sizes

• You can set connected speakers and their sizes manually.

• Different ranges are played by different speakers. Size setting is necessary for reproducing sources, particularly their bass section, completely.

1 Select and confirm the choice.

2 Select a speaker for setting and confirm the choice.

3 Change a setting and confirm the choice.

To go back to step 1

Select and confirm the choice.

When you set the front speakers (LR) as “

LARGE

• The subwoofer also makes audio output in the bass range when you perform stereo playback of analog and PCM sources.

• The subwoofer sends out only the LFE (low frequency effect channel) signal contained in

2-channel Dolby Digital or DTS sources when you play them in stereo.

SUBW

:Subwoofer

LR

: Front speakers

C

:

S

:

Center speaker

Surround speakers

SB

: Surround back speakers

SUBW

:

NO

; unconnected

YES

; connected

LR

,

C

,

S

:

NONE

;

For speakers you haven’t connected (center or surround only).

SMALL

;

For speakers that cannot adequately reproduce the bass range. This setting is sufficient for most speakers if you are using a subwoofer.

LARGE

;

For speakers that can sufficiently reproduce the bass range down to 20 Hz.

SB

:

NONE

;

For speakers you haven’t connected.

1-SPK

;

If you connect one surround back speaker.

2-SPK

;

If you connect two surround back speakers.

Factory settings:

LR

,

C

,

S

;

SMALL

SUBW

;

YES

SB

;

2-SPK

Setting distances

• By adjusting the distance from each speaker (except the subwoofer) to the seating area, the sound delay time is automatically adjusted so that sound reaches the listener at the same time.

Note

• Set the lowpass filter frequency according to frequencies available for playback when speakers are set as “

SMALL

”. The factory setting is 80 Hz. (below)

• The following are set automatically.

When you set “

LR

” to “

SMALL

”, “

SUBW

” is set to “

YES

”.

When you set “

SUBW

” to “

NO

”, “

LR

” is set to “

LARGE

”.

• The “

SB

” size becomes the “

S

” size because the unit does not offer “

SB

” size setting.

• When you change the number of connected speakers, settings made with the setup microphone are canceled. (

á

pages 24 and 25)

1 Select and confirm the choice.

2 Select a speaker for setting and confirm the choice.

L

: Front left

R

: Front

right

RS

: Surround right

SBL

: Surround back left

SBR

: Surround back right

C

: Center

LS

: Surround left

3 Select a distance and confirm the choice.

ft ft

Adjustment range:

1.0

to

45.0

ft

(feet)

This unit is adjusted at 0.5 feet intervals.

Factory settings:

L

,

R

;

C

;

10.0

ft

(feet)

10.0

ft

(feet)

LS

,

RS

;

5.0

ft

(feet)

SBL

,

SBR

;

5.0

ft

(feet)

Note

• Speakers whose polarity was automatically adjusted through the auto speaker setup using the setup microphone are displayed with “

” such as “

L 10.0 –

”.

• When the speaker distance measured through the auto speaker setup (

á

pages 24 and 25) exceeds 45 feet (15 meters), the distance is displayed as “

OVER

”.

1 Select and confirm the choice.

Setting the lowpass filter

• If the speaker sizes (above) are set to “

SMALL

”, make this setting.

• The unit cannot reproduce the entire bass range when speakers are set as “

SMALL

”. You can arrange the unit to provide missing bass sounds through the subwoofer by setting the lowpass filter frequency according to frequencies available for playback.

2 Select the lowpass filter frequency and confirm the choice.

Lowpass filter frequency for sending the bass range to the subwoofer:

80

,

100

,

120

,

140

,

160

,

180

,

200

(Hz)

Factory setting:

80

(Hz)

Note

The setting made through these steps applies to all speakers set as “

SMALL

”.

35

RQT8739

Settings

-

MENU/

-

SETUP ENTER

“BI-AMP”

RETURN

INPUT SELECTOR

INPUT SELECTOR VOLUME

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

MENU/ SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR MULTI ROOM

TUNE

AUTO SPEAKER SETUP

HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L AUDIO R SETUP MIC W

See page 34 for receiver operations.

Changing auto speaker settings

1) You can return speaker settings made with the setup microphone (

á

pages 24 and 25) to factory settings. (The

“AUTO SPEAKER

SETUP” indicator goes off when you perform this operation.)

2) The unit judges polarity of certain properly connected speakers as opposite. When this happens, set the unit against automatic polarity adjustment and prevent polarity reversal.

1)

To return speakers to factory settings

2)

Setting the unit against automatic polarity adjustment

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Select and confirm the choice.

• To cancel, press “

NO

”.

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Select and confirm the choice.

1 Select and confirm the choice.

YES

:

For returning to factory settings

NO

:

For keeping auto settings

CHECK YES

:

Normal auto speaker setup

CHECK NO

:

No automatic polarity adjustment

Making BI-AMP settings

1)

Canceling

BI-AMP

(using the triple amp mode)

• BI-AMP settings appear on the display and become selectable only when you set biwire speakers (

á

page 20).

1) You can drive speakers with front, surround and surround back speaker amps instead of using

BI-AMP (triple amp mode).

2) You can adjust HF (high frequency) and LF (low frequency) output balance of the bi-wired speakers.

3) You can reduce the delay time due to the difference in size of the

HF and LF units.

2)

Adjusting the balance

3)

Correcting the

HF and LF difference

(Side view of a speaker in cross section)

2 Select and confirm the choice.

3 Select and confirm the choice.

• The “BI-AMP” indicator goes off when the unit enters the triple amp mode.

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Make adjustment and confirm the choice.

The bar shows the standard balance.

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Make adjustment and confirm the choice.

in

AUTO

:

When using BI-AMP

OFF

:

When not using BI-AMP (when using the triple amp mode)

Factory setting :

AUTO

LF

: Low frequency

HF

: High frequency

Adjustment range:

0.0

to

12.0

in

(inch)

You can select differences at

0.5 inch intervals.

Factory setting:

0.0

in

(inch)

1 Select and confirm the choice.

36

RQT8739

Setting ADVANCED

DUAL AMP off

2 Select and confirm the choice.

AUTO

:

Advanced dual amp is on

OFF

:

Advanced dual amp is off

Factory setting:

AUTO

See page 34 for receiver operations.

Changing the digital input settings

1 Select and confirm the choice.

2 Select the equipment connected to the digital input terminal and confirm the choice.

• Change these settings to suit the connections you have made to the digital input terminals.

• You can only allocate one piece of equipment per terminal.

Example: “

OPT 1

” becomes the only digital terminal you can use for connecting the

DVD player to the unit when you change the DVD setting to the terminal.

3 Change the digital input setting and confirm the choice.

Repeat steps 2 and 3 to change settings.

1 Select and confirm the choice.

TV

: TV

DVR

: DVD recorder

DVD

: DVD player

CD

: CD player

Factory setting:

TV

;

OPT1

(OPTICAL1)

DVR

;

OPT2

(OPTICAL2)

DVD

;

COAX1

(COAXIAL1)

CD

;

COAX2

(COAXIAL2)

2 Select the equipment connected to the digital input terminal and confirm the choice.

Setting input signals

• You can fix the signal type

(digital, analog or PCM) supplied by such equipment as the DVD recorder and the

DVD player or make the unit identify the input signal type.

• Select “

AUTO

” when it is not necessary to fix the signal.

3 Select the method for identifying input signals and confirm the choice.

Repeat steps 2 and 3 to change settings.

PCM FIX mode

In rare cases, the unit may have trouble recognizing the digital signals on discs.

• Use this mode when, for example, the beginning of a playing CD track is cut off.

• You do not need to set the mode when playback is normal.

• When PCM FIX mode is on, the unit cannot process other signals.

Cancel the mode when noise occurs.

TV

: TV

DVR

: DVD recorder

DVD

: DVD player

CD

: CD player

AUTO

:

Automatic identification of digital and analog signals (HDMI takes priority when the input signal is digital.)

ANALOG

:

Fixes the input signal to analog.

DIG

:

Fixes the input signal to digital.

PCMFIX

:

Fixes the input signal to PCM.

Factory setting:

TV

,

DVR

,

DVD

,

CD

;

AUTO

Note

• “

DIGITAL INPUT

” stays on the display when you fix the input signal as digital.

• “

PCM

” appears on the display when you set the input signal as “

PCMFIX

”.

• “

PCM FIX

” flashes on the display when the unit is in the PCM FIX mode and a non-PCM source is input through digital (OPTICAL or COAXIAL) connections.

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Select and confirm the choice.

OFF

:

When you wish to reduce standby power consumption

ON

:

When you activate the standby through function (standby power consumption becomes 0.7 W in this setting)

Factory setting:

ON

Reducing standby power consumption

(power saving standby mode)

Setting the unit against

Ez Sync HDAVI Control

• You can set the unit against

EZ Sync HDAVI Control when compatible TV

(VIERA) and DVD recorder

(DIGA) are connected.

Note

When you select “

OFF

”, the following becomes applicable.

• Standby power consumption becomes 0.3 W.

• Standby through with HDMI connections (

á

page 7) does not work.

• Ez Sync HDAVI Control (

á

page 13) is canceled (when the unit is off).

1 Select and confirm the choice.

2 Select and confirm the choice.

3 Select and confirm the choice.

OFF

:

When not using EZ Sync HDAVI

Control

ON

:

When using EZ Sync HDAVI

Control

Factory setting:

ON

37

RQT8739

Settings

-

MENU/

-

SETUP ENTER

RETURN

INPUT SELECTOR

INPUT SELECTOR VOLUME

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

MENU/ SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

MULTI ROOM

TUNE

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

R SETUP MIC W

See page 34 for receiver operations.

Listening clearly at low volume

• This function compresses the dynamic range of Dolby Digital contents.

• Without affecting the sound field, the function makes spoken lines easier to catch at low volume by reducing the difference between the maximum and minimum sounds created by audio signals.

This convenient function allows you to enjoy commercial sources late at night when you cannot produce big sounds.

1 Select and confirm the choice.

2 Select a setting and confirm the choice.

Note

This function does not work when disc data does not support it.

Switching the attenuator

• Switch the attenuator on when sounds become distorted while playing an analog input source and the sign “

OVERFLOW

” appears on the display.

1 Select and confirm the choice.

2 Select and confirm the choice.

Adjusting audio timing to video timing

• Adjust audio timing to video timing by delaying audio output by 40 msec or so when pictures arrive after sounds.

• To cancel, select “

OFF

”.

1 Select and confirm the choice.

2 Select and confirm the choice.

OFF

:

The software is played with the original dynamic range

STANDARD

:

The level recommended by the producer of the software for household viewing

MAX

:

The maximum allowable compression (recommended for night viewing)

Factory setting:

OFF

OFF

:

For switching the attenuator off

ON

:

For switching the attenuator on

Factory setting:

OFF

OFF

: Normal

ON

: Setting for delaying audio output

Factory setting:

OFF

1 Select and confirm the choice.

38

RQT8739

RESET (factory settings)

• Re-enter settings to your liking when necessary.

2 Select and confirm the choice.

• To cancel, select “

NO

”.

YES

: Choice for resetting

NO

: Choice against resetting

Note

When you select “

YES

”, the input source becomes TUNER (preset channel 1).

Preset radio stations will not be erased.

Using headphones

POWER

INPUT SELECTOR

SPEAKERS

A B

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

MENU/

RETURN

ENTER

SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

VOLUME

VOLUME

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

W S VIDEO VIDEO

AUX

L

-

AUDIO

-

SETUP MIC

W

(Headphone jack)

1 Press [SPEAKERS A] and [SPEAKERS B] to switch all speakers off.

2 Lower the volume by turning [VOLUME, –, +] and connect headphones to the unit.

Plug type: ø 6.3 mm (1/4") stereo standard plug

3 Adjust the volume by turning [VOLUME, –, +].

SPEAKERS

Note

• Avoid listening for prolonged periods of time to prevent hearing damage.

• Playback channels become two when you switch all speakers off.

The 2-channel mix (2CH MIX) function activates automatically when you play a surround source. (Excluding DVD-Audio sources that do not allow down-mixing.)

• The DVD ANALOG 6CH (

á

page 27) goes off and front two channels make audio output when you play sources through analog

6-channel connections (

á

page 18).

Audio signals and amp mechanism

Digital signals this unit can play

Dolby Digital

(including Dolby

Digital Surround EX)

DTS

(including DTS-ES and DTS 96/24)

PCM

This is the digital surround system developed by Dolby Laboratories.

Dolby Digital Surround EX adds a surround back channel to the traditional 5.1-channel format of Dolby Digital. This creates a sound with greater presence.

This is the digital surround system developed by DTS (Digital Theater

Systems, Inc.). DTS-ES adds a surround back channel to the traditional

5.1-channel format of DTS. This creates a sound with greater presence.

DTS 96/24 provides 96 kHz sound at up to 24 bits. The 96 kHz/24 bit high frequency sounds are played through multiple channels.

This unit’s DIGITAL IN COAXIAL1 terminal can play up to 192 kHz and the other DIGITAL IN terminals can play up to 96 kHz.

Frequencies appear on the display when the unit receives input signals transmitted at the frequencies of 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.

Audio signal displays

DVD etc.

DVD etc.

CD,

DVD-Audio etc.

DIGITAL:

DIGITAL EX:

EX:

PL :

2CH MIX

SPEAKERS

BI-WIRE

A B

TUNED MONO ST

Dolby Digital decoder is being used.

Dolby Digital Surround EX decoder (Dolby

Pro Logic decoder) is being used when the input signal is Dolby Digital 5.1-channel or Dolby Digital Surround EX.

(Displayed only when you connect one surround back speaker.)

Dolby Digital Surround EX decoder (Dolby

Pro Logic decoder) is being used when the input signal is DTS 5.1-channel.

(Displayed only when you connect one surround back speaker.)

Dolby Pro Logic decoder is being used.

M

SLEEP

PL :

DTS:

DTS 96/24:

DTS-ES:

NEO:6:

SFC:

inft kHz

MHz

DIGITAL INPUT

PCM

DTS 96/24DTS-ES

DIGITAL EX

EX

The display informs Dolby Pro Logic

(the Dolby Pro Logic decoder) is used on

2-channel stereo sources when surround back speakers are absent.

DTS decoder is being used.

DTS 96/24 decoder is being used.

DTS-ES discrete or matrix decoder is being used.

DTS NEO:6 matrix decoder is being used.

SFC matrix function is being used.

ADVANCED DUAL AMP (

á

page 27)

n

Stereo playback

Front left (L)

Surround left (LS)

Surround back left (SBL)

Front right (R)

Surround right (RS)

Surround back right (SBR)

The unit

Front left (L)

Front right (R)

BI-AMP (

á

page 27)

n

BI-AMP

Front left (L)

Surround left (LS)

Surround back left (SBL)

Front right (R)

Surround right (RS)

Surround back right (SBR)

The unit

Front left (L)

Front right (R)

Bi-wire speakers

n

5.1-channel surround playback

Front left (L)

Surround left (LS)

Surround back left (SBL)

Front right (R)

Surround right (RS)

Surround back right (SBR)

The unit

Front left (L)

Front right (R) n

BI-AMP and ADVANCED DUAL AMP

Front left (L)

Surround left (LS)

Surround back left (SBL)

Front right (R)

Surround right (RS)

Surround back right (SBR)

The unit

Front left (L)

Front right (R)

Bi-wire speakers

39

RQT8739

40

RQT8739

The radio

-

MENU/

-

SETUP ENTER

INPUT SELECTOR

RETURN

INPUT SELECTOR

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

POWER

-MENU/-SETUP ENTER SURROUND TUNE

RETURN

-

MENU/

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR

-

TUNE

Basic operation

INPUT SELECTOR

TUNE

VOLUME

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L

-

AUDIO

-

SETUP MIC W

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

RECORDER

DVD

VCR

PLAYER

BD/DVD

ANALOG 6CH

CH

ENTER

Turn to select.

Manual tuning

(Using the remote control)

1

To use the radio tuner

Press

TUNER

BAND

Press to confirm your choice.

-

MENU/

-

SETUP

RETURN

To return to the previous display/

To cancel

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

VOLUME

(Using the unit)

1

To select “

TUNER FM

TUNER AM

” or

INPUT SELECTOR

Turn

2

To select “

TUNER FM

TUNER AM

” or

Press and hold

TUNER

for 2 seconds.

BAND

FM AM XM

3

To enter the station frequency

(direct tuning)

Press

DIRECT

TUNING

DISC

0

ENTER e.g. 107.9 MHz, Press [1]

[0]

[7]

[9]

Tuning intervals: FM - 0.1 MHz,

AM - 10 kHz

• If you do not press a button while the cursor is flashing, the display returns to the frequency being received.

• If the frequency has not been input correctly,

ERROR

” will be displayed.

• “

TUNED

” is displayed when a station is tuned.

• “

ST

” is displayed when a stereo FM broadcast is tuned.

2

To tune to the station

Press

TUNE

Tuning intervals: FM - 0.2 MHz,

AM - 10 kHz

Automatic tuning

Hold down [TUNE

2

or

1

] until the frequency begins to scroll. Tuning stops when a station is found.

(Tuning may stop if there is interference.)

Note

Improving reception

DVD recorders and DVD players can interfere with radio reception. Turn the DVD recorder and the DVD player off or move them further away from the AM loop antenna if this occurs.

Preset tuning

Presetting stations

n

Auto presetting

1 Tune to the frequency where you want to begin presetting. (

á

page 40)

Set the channel reception to FM 87.9 MHz or AM 530 kHz if you want automatic presetting to start from the lowest frequency.

Preset channels that are automatically assigned by this unit are:

FM: 1 to 30

AM: 21 to 30

Preset the FM stations first. If the AM stations are preset before the FM stations, they will be erased when the FM stations are preset.

-

MENU/

-

SETUP

2 Press to enter the MENU.

RETURN

3 Select “

TUNER

” and confirm the setting.

4 Select “

AUTO MEMO

” and confirm the setting.

5 Select “

START

” and press [ENTER].

Select “

CANCEL

” to cancel.

• During automatic presetting, the memory indicator (

M

) flashes and the frequency scrolls. The memory indicator and channel numbers are displayed for a second when a station is preset.

• The last station to be preset is displayed when presetting finishes.

• Frequencies may not be preset correctly when broadcast waves are too strong or too weak. In such cases, carry out presetting manually.

n

Manual presetting

1 Tune to the station you want to preset.

(

á

page 40)

2 Press

-

MENU/

-

SETUP

to enter the MENU.

RETURN

3 Select “

TUNER

” and confirm the setting.

4 Select “

MEMORY

” and confirm the setting.

5 Select a channel number and press [ENTER].

STORED

” is displayed.

• To continue presetting, press [TUNE

2

or

1

] to tune another station from step

1

.

6 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

• FM stations can also be preset in the MONO mode

(below).

Listening to preset stations

(Using the remote control)

n

Select the channel.

• Hold down the button to change channels faster.

n

Press the numbered buttons to select the channel.

Press

0

ENTER e.g. 21: [

10, ENTER]

[2]

[1]

(Using the unit)

1 Press

-

MENU/

-

SETUP

to enter the MENU.

RETURN

2 Select “

TUNER

” and confirm the setting.

3 Select “

TUNE MODE

” and confirm the setting.

4 Select “

PRESET

” and confirm the setting.

5 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

TUNE

6 Press to select the channel.

• Hold down the button to change channels faster.

• Select “

MANUAL

” in step

4

when you wish to perform manual tuning (

á

page 40).

Reducing excessive noise (on the unit)

Select if noise is excessive during radio reception.

Press [-MENU/–SETUP, RETURN] to enter the MENU.

n

During FM stereo reception

You can improve FM reception by switching reception to monaural.

1 Select “

TUNER

” and confirm the setting.

2 Select “

FM MODE

” and confirm the setting.

3 Select “

MONO

” and confirm the setting.

• When this is set, “

MONO

” appears on the display.

• Select “

AUTO

” to cancel.

4 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

n

During AM reception

When there is a lot of noise interference with an AM broadcast, try switching to this mode.

1 Select “

TUNER

” and confirm the setting.

2 Select “

BEAT PROOF

” and confirm the setting.

3 Select “

MODE 1

” or “

MODE 2

” and confirm the setting.

4 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

41

RQT8739

XM

®

Satellite Radio

TUNER

BAND

CD

TV

VCR

DVD

PLAYER

BD/DVD

ANALOG 6CH

DIRECT

TUNING

DISC

XM CAT

0

ENTER

VOLUME

XM CH

SKIP SLOW/SEARCH

STOP PAUSE PLAY

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

SUB MENU

XM DISPLAY

SUBWOOFER

CH

RETURN

TV

INPUT SELECTOR

INPUT SELECTOR VOLUME

TUNE

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI ROOM

TUNE SPEAKERS

AUTO DETECTOR

AUTO SPEAKER SETUP HDMI

AUX

SETUP MIC

W

S VIDEO VIDEO

AUX

L AUDIO

-

R SETUP MIC

W

For the U.S.A. only

Introducing XM Satellite Radio

XM Satellite Radio is the provider of satellite radio with more than 6 million subscribers. XM offers more than 170 digital radio channels with music, talk, news, sports, comedy, traffic and weather reports.

For more information, visit XM on the Web at www.xmradio.com.

How to Subscribe

XM monthly service subscription sold separately. XM

Connect & Play or XMPassport system required to receive XM service (sold separately). Installation costs and other fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL.

Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (1-800-967-2346). Subscriptions subject to Customer Agreement available at xmradio.com. XM service only available in the 48 contiguous United States. XM Ready is a trademark of

XM Satellite Radio Inc. 2006 XM Satellite Radio Inc. All rights reserved.

• To subscribe, visit XM on the Web at www.xmradio.com or call XM’s Listener Care at 1-800-XMRADIO (1-800-

967-2346). You should have your Radio ID ready; the

Radio ID can be found by selecting channel 0 on the radio.

For Canada only

Introducing XM Satellite Radio

XM Satellite Radio is the provider of satellite radio. XM offers up to 100 digital radio channels with music, talk, news, sports and comedy. For more information, visit XM on the Web at www.xmradio.ca.

How to Subscribe

XM monthly service subscription sold separately. XM

Connect & Play or XMPassport system required to receive XM service (sold separately). Installation costs and other fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL.

Channel blocking is available for XM radio receivers by calling 1-877-GET-XMSR (1-877-438-9677).

Subscriptions subject to Customer Agreement available at xmradio.ca. XM Ready is a trademark of XM Satellite

Radio Inc. 2006 XM Satellite Radio Inc. All rights reserved.

To subscribe, visit XM on the Web at www.xmradio.ca or call XM’s Listener Care at 1-877-GET-XMSR (1-877-438-

9677). You should have your Radio ID ready; the Radio

ID can be found by selecting channel 0 on the radio.

Displaying the XM Satellite Radio ID

You can confirm your XM Satellite Radio ID necessary for activating XM Satellite Radio as follows.

1 Connect the XM Connect & Play or

XMPassport system. (

á

page 23)

2 Press

TUNER

to use the radio tuner.

BAND

TUNER

3 Press and hold

TUNER XM

”.

BAND

for 2 seconds to select

FM AM XM

Positioning the antenna for optimal reception

The unit has a signal strength indicator that allows you to optimize the XM signal reception.

• Place the antenna near a south-facing window with an unobstructed view of the sky for the best satellite signal reception.

• To prevent interference with wireless equipment, place the antenna away from this unit, Panasonic wireless sound system SH-FX80, Panasonic wireless system SH-FX50/SH-FX60, and other equipment that emits radio waves (such as radio equipment and microwave ovens).

1 Press [TUNER, –BAND] to use the radio tuner.

2 Press and hold [TUNER, –BAND] for about 2 seconds to select “

TUNER XM

”.

DISC

5 Press

0

3 times to select XM channel 0.

6 Write down your XM Satellite Radio ID below.

ID:

• To avoid ambiguity, the letters I, O, S, and F are not used in the

ID.

3 Press and hold

XM DISPLAY

for 2 seconds.

Satellite and terrestrial signal levels (strength) are displayed.

4 Position the antenna for the best possible signal reception.

Satellite signal

Terrestrial signal

Signal strength:

4

(strong)

3

(good)

2

(marginal)

1

(weak)

0

(no signal)

When you move the antenna for the best reception, the signal strength on the display changes.

• Position the antenna in a place where either satellite signal reception or terrestrial signal reception is strong.

• If the satellite signal is weak or not available, you can optimize the terrestrial signal reception (where available).

5 Press and hold

XM DISPLAY

for about 2 seconds to return to the previous display.

• You can also return the display to the original by performing other operations.

42

RQT8739

• Refer also to the operating instructions of your XM Connect & Play or XMPassport system.

Selecting XM channels by direct entry (using the remote control)

XM channels can be selected manually by directly entering the XM channel number.

1

To use the radio tuner

TUNER

Press

BAND

2

To select “

TUNER XM

Press and hold

TUNER

for 2 seconds.

FM AM XM

BAND

3

To enter an XM channel number (direct tuning), or to search a channel up and down

Press

TUNING e.g. 3: Press [DIRECT TUNING, DISC]

[0]

[0]

[3]

21: Press [DIRECT TUNING, DISC]

[0]

[2]

[1]

123: Press [DIRECT TUNING, DISC]

[1]

[2]

[3]

DISC

• To return to the previous digit: Press [

10, ENTER].

0

ENTER

or

XM CH

Press

• Hold down the button to change channels faster.

Operation on the unit

1 Turn [INPUT SELECTOR] to select “

TUNER XM

”.

2 Press [TUNE

2

or

1

].

• Hold down the button to change channels faster.

Selecting XM channels by category (using the remote control)

XM channels are organized into categories such as Rock, Classical, Country and Dance to make browsing and selecting broadcast content easier.

Select “

TUNER XM

”. (above)

1

To select a category

XM CAT

Press

• Hold down the buttons to change categories quickly.

e.g.

Category

2

To select an XM channel

Press

XM CH

• To change the channels, repeat steps

1

and

2

.

• You cannot select XM channel 0.

• Hold down the buttons to change XM channels quickly.

e.g.

Channel number

• To cancel: press [ENTER] in step

1

.

• If you do not press a button while the cursor is flashing, the display returns to the broadcast being received.

• If the broadcast has not been input correctly, “

XM ---

” will be displayed.

• XM channel selection by category enables you to narrow down your choices to channels belonging to a broadcasting category of your choice and then to select a favorite channel from the chosen category. Available categories vary according to broadcasting hours. The unit does not display categories with no broadcasting XM channel.

• Each XM channel may belong to two categories (Category 1 and Category 2). Both categories are used for channel selection by category.

When “

2

” appears at the beginning of the category display, it means the XM channel selected by category belongs to Category 2.

Displaying the XM channel information

The display can be changed to inform broadcast contents such as XM channel number, channel name, category, song title (program title) and artist name (feature).

The display changes each time you press while receiving XM broadcast.

XM DISPLAY

(Factory setting)

• The unit memorizes the display item even if you turn it off.

43

RQT8739

XM

®

Satellite Radio

INPUT SELECTOR

Basic operation

Turn to select.

INPUT SELECTOR TUNER

BAND

CD VCR

PLAYER

BD/DVD

ANALOG 6CH

CH

POWER

INPUT SELECTOR

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

TUNE

RETURN

MENU/

RETURN

ENTER SURROUND

AUTO DETECTOR -MULTI ROOM

SPEAKERS

AUTO DETECTOR -

TUNE

TUNE

-

MENU/

-

SETUP ENTER

Press to confirm your choice.

To return to the previous display/To cancel

ENTER

-

MENU/

-

SETUP

DIRECT

TUNING

DISC

XM CAT

0

ENTER

VOLUME

XM CH

RETURN

RETURN

Preset tuning

Presetting your favorite XM channels (using the unit)

Channel presets allow you to quickly and conveniently select your favorite XM channels. Up to 15 XM channels can be stored as channel presets.

1 Tune to the channel you want to preset.

(

á page 43)

• You cannot preset XM channel 0. Select other channels.

2 Press [-MENU/–SETUP, RETURN] to enter the MENU.

3 Select “

TUNER

” and confirm the setting.

4 Select “

MEMORY

” and confirm the setting.

5 Select a preset channel (XM CH) and press [ENTER].

• “

STORED

” is displayed.

• To return to step

1

(and continue presetting), press [TUNE

2

or

1

].

6 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

e.g.

• Preset channels (XM CH) 1 to 15 all contain XM channel 1 in the factory setting.

Selecting the channel presets

(Using the remote control)

n

To search a channel up and down

Press

• Hold down the button to change channels faster.

n

To select preset channels (XM CH) directly

Press

0

ENTER e.g. 15: [

10, ENTER]

[1]

[5]

(Using the unit)

1 Press [-MENU/–SETUP, RETURN] to enter the MENU.

2 Select “

TUNER

” and confirm the setting.

3 Select “

TUNE MODE

” and confirm the setting.

4 Select “

PRESET

” and confirm the setting.

5 Press [-MENU/–SETUP, RETURN] twice to select “

EXIT

” and press [ENTER].

TUNE

6 Press to select a preset channel.

• Hold down the button to change channels faster.

• Select “

MANUAL

” in step

4

when you wish to perform manual tuning (

á

page 43).

XM advisory messages

44

RQT8739

Message Status and remedy

ANTENNA

(flashing)

• The XM Connect & Play or XMPassport system is not properly connected.

Check the connection and make sure the antenna cable is not damaged.

UPDATING

(flashing)

• The XM Connect & Play or XMPassport system is being updated with the latest encryption code. Wait a few seconds for the update to complete.

• You may have selected an XM channel that has been blocked, or is no longer available with your subscription package.

If you want to inquire about receiving the channel, call XM’s Listener Care at 1-800-XMRADIO (1-800-967-2346). In Canada, call XM’s Listener Care at 1-877-GET-XMSR (1-877-438-9677).

NO SIGNL

(flashing)

• The XM signal is too weak. Reorient the XM Connect & Play or XMPassport system for better reception.

LOADING

(flashing)

• The XM Connect & Play or XMPassport system is receiving and decoding the broadcast information. Wait a few seconds for loading to complete.

OFF AIR

(flashing) • The selected XM channel is not broadcast now. Select a different channel.

XM ---

• The selected XM channel is not available. Select a different channel.

---

(You can receive only promotional XM channels)

(Sometimes “

TUNER

XM

” stays on the display for a long time)

• Supplemental text information, such as the song title or artist name is not available for that particular broadcast.

You can change the type of XM channel information that is displayed by pressing [S, XM DISPLAY].

• Your XM Connect & Play or XMPassport system has not been activated, or your subscription has expired.

• To activate your XM Connect & Play or XMPassport system, or to renew your subscription, visit XM on the Web at www.xmradio.com or call XM’s Listener Care at 1-800-XMRADIO (1-800-967-2346). In Canada, visit www.xmradio.ca or call

XM’s Listener Care at 1-877-GET-XMSR (1-877-438-9677). You should have your Radio ID ready.

• When this happens, the unit is taking time to receive broadcast. Please wait for a while.

Remote controlling a TV or DVD recorder etc.

Besides this unit, you can operate a Panasonic TV, DVD recorder, DVD player, VCR or CD player (excluding certain models) using the supplied remote control. See respective equipment’s operating instructions for detailed operations.

You may need to enter a code to operate some equipment (

á

page 47).

Aim the remote control at the equipment you wish to operate.

RECEIVER

AV

SYSTEM

TV

RECORDER

DVD

TUNER

BAND

CD VCR

PLAYER

BD/DVD

ANALOG 6CH

CH

VOLUME

Remote controlling a DVD recorder

To switch the unit’s input to “

DVR

”/

To switch the remote control to the DVD recorder operation mode

To turn the DVD recorder on or off

RECORDER

DVD

Do not forget to press this before operating a DVD recorder.

AV

SYSTEM

To confirm the selected item

To select a track or chapter directly

• Some of the models require you to press

[ENTER] to confirm after pressing number buttons.

ENTER

0

ENTER

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

To start playback

PLAY

To pause

PAUSE

SKIP SLOW/SEARCH

STOP PAUSE PLAY

DRIVE SELECT CM SKIP

To skip a track or chapter

PAUSE

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

To search through the disc

SKIP

SLOW/SEARCH

To move forward or backward frame by frame

PAUSE

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER

DIMMER

TV

LEVEL EFFECT

VOL

To play in slow-motion

SLOW/SEARCH

To skip a minute forward

CM SKIP

NEO : 6 TV/VIDEO

TO

P

M

EN

U

VI

NA

GA

TO

R

To switch DVD recorder drives (HDD,

DVD drive, and SD drive etc.)

DRIVE SELECT

SFC AUTO

Remote controlling a TV

To show the direct navigator

(or the top menu)

To switch the unit’s input to “

TV/STB

”/

To switch the remote control to the TV operation mode

To turn the TV on or off

To switch the TV’s input mode (TV/video)

TV

Do not forget to press this before operating a TV.

AV

SYSTEM

TV/VIDEO

To show a sub menu

To show the

FUNCTIONS window

(while stopped)

To return to the previous screen

SUB MENU

FU

NC

TIO

RETURN

To select a channel

(When you make a selection in rising or falling order)

To select a channel

(When you select a channel directly)

To stop playback

CH

0

ENTER

STOP

To adjust the TV volume

TV

VOL

To select an item

Press to select after pressing

[DIRECT NAVIGATOR, TOP

MENU], [S, SUB MENU, XM

DISPLAY], or [FUNCTIONS].

To select a channel

(When you make a selection in rising or falling order)

To select a channel

(When you select a channel directly)

CH

0

ENTER

When operating a Panasonic DVD recorder using the supplied remote control

Change the control setting on the supplied remote control to match the DVD recorder’s remote control mode.

Confirm the DVD recorder’s remote control mode in its operating instructions.

1 Press [DVD RECORDER].

2 Press and hold [ENTER] together with

[1], [2], or [3] for 2 seconds or longer.

• [Mode 1], [Mode 2], or [Mode 3] is set on the remote control according to the pressed button.

• The factory setting is [Mode 1].

When DVD recorder drives do not switch

The condition may mean the DVD recorder does not recognize the signal this unit’s remote control transmits.

Switch the drives again after changing the signal in the following procedure.

1 Press [DVD RECORDER].

2 Press and hold [ENTER] together with [8] for 2 seconds or longer.

• To return: In step

2

above, press and hold

[ENTER] together with [9] for 2 seconds or longer.

Note

When you operate a DVD recorder with built-in VCR, press [DRIVE SELECT] to select a choice other than VCR.

45

RQT8739

Remote controlling a TV or DVD recorder etc.

Aim the remote control at the equipment you wish to operate.

RECEIVER

AV

SYSTEM

TUNER

BAND

CD

TV

RECORDER

DVD

VCR

PLAYER

BD/DVD

ANALOG 6CH

CH

Remote controlling a DVD player

To switch the unit’s input to “

BD/DVD

”/

To switch the remote control to the DVD player operation mode

To turn the DVD player on or off

PLAYER

BD/DVD

ANALOG 6CH

Do not forget to press this before operating a DVD player.

AV

SYSTEM

To confirm the selected item

To specify a disc

(5-disc changer only)

ENTER

DIRECT

TUNING

DISC

DIRECT

TUNING

DISC

XM CAT

0

ENTER

XM CH

VOLUME

SKIP SLOW/SEARCH

STOP PAUSE PLAY

To start playback

To skip a track or chapter

PLAY

SKIP

To select a track or chapter directly

• Some of the models require you to press

[ENTER] to confirm after pressing number buttons.

0

ENTER

DRIVE SELECT CM SKIP

TO

P

M

EN

U

VI

NA

GA

TO

R

ONE

TOUCH PLAY

ENTER

FU

NC

TIO

To search through the disc

SLOW/SEARCH

To pause

PAUSE

PAUSE

PAUSE

To play in slow-motion

To move forward or backward frame by frame

SUB MENU RETURN

OFF

XM DISPLAY

SUBWOOFER

DIMMER

TV

LEVEL EFFECT VOL

Remote controlling a VCR

To switch the unit’s input to “

VCR

”/

To switch the remote control to the VCR operation mode

VCR

Do not forget to press this before operating a VCR.

To turn the VCR on or off

AV

SYSTEM

To show the direct navigator

(or the top menu)

To show a sub menu

To show the

FUNCTIONS window

(while stopped)

SLOW/SEARCH

TO

P

M

EN

U

VI

NA

GA

TO

R

SUB MENU

FU

NC

TIO

To stop playback

STOP

Note

[FUNCTIONS] activates display functions on some of the Panasonic DVD players.

To start playback

To fast forward/rewind a tape

To pause

PLAY

SLOW/SEARCH

PAUSE

To return to the previous screen

To select an item

Press to select after pressing

[DIRECT NAVIGATOR, TOP

MENU], [S, SUB MENU, XM

DISPLAY], or [FUNCTIONS].

RETURN

To select a channel

(When you make a selection in rising or falling order)

CH

To select a channel

(When you select a channel directly)

0

ENTER

STOP

To stop playback

46

RQT8739

Note

When you operate a DVD recorder with built-in VCR, press [DRIVE SELECT] to select VCR.

Remote controlling a CD player

To switch the unit’s input to “

CD

”/

To switch the remote control to the CD player operation mode

CD

Do not forget to press this before operating a CD player.

To turn the CD player on or off

AV

SYSTEM

To start playback

To skip a track

To search through the disc

To pause

To specify a disc

(3-or 5-disc changer)

To start play from a specified disc [MEGA

CD changer] (holds more than 50 discs)

To select a track directly

To stop playback

PLAY

SKIP

SLOW/SEARCH

PAUSE

DIRECT

TUNING

DISC

DIRECT

TUNING

DISC

0

PLAY

0

ENTER

STOP

Changing the remote control code

Two or more Panasonic audio equipment may start functioning when you operate the unit using the supplied remote control.

Set the unit’s remote control mode to

REMOTE 2

” in such cases.

Do the following to set the same number

(2) as the remote control code.

INPUT SELECTOR

INPUT SELECTOR

Entering a code to operate other equipment

This remote control can operate Panasonic audiovisual equipment that has remote control sensors.

You may need to change the remote control code.

It can also operate some other brands of TVs,

VCRs, and DVD players. Check the table for the brand and enter the code as follows.

Changing the codes

TV VCR DVD player

TV

VCR

PLAYER

BD/DVD

ANALOG 6CH

Press and hold the button corresponding to the equipment.

POWER

BI-AMP SURROUND

ADVANCED DUAL AMP WIRELESS READY MULTI ROOM

-MENU/-SETUP ENTER SURROUND

RETURN

MENU/ SETUP ENTER

RETURN

SURROUND

AUTO DETECTOR -MULTI

SPEAKERS

AUTO DETECTOR

Basic operation

Turn to select.

-

MENU/

-

SETUP ENTER

RETURN

INPUT SELECTOR

Press to confirm your choice.

To return to the previous display/

To cancel

ENTER

-

MENU/

-

SETUP

RETURN

Operation on the unit

1 Press and hold [-MENU/

–SETUP, RETURN] for about

2 seconds to enter the SETUP.

2 Select and confirm the choice.

3 Select and confirm the choice.

4 Select and finish the setting.

Operation on the remote control

TUNER

5 Press

BAND

6 Press

ENTER

and simultaneously and hold them in the position for about 2 seconds.

When you return the remote control code to “

1

• Operation on the unit: select “

1

” in step

3

.

• Operation on the remote control: in step

6

, press [ENTER] and [1] simultaneously and hold them in the position for about 2 seconds.

0 e.g. 0250, Press [0]

[2]

[5]

[0]

The remote control outputs the on/off signal.

If the code is correct, the equipment turns on or off.

If it doesn’t, try entering another code.

• Note that this remote control cannot operate some equipment and that it may not be able to perform some operations.

• Re-enter the codes after you change the batteries.

Code table

TV

PANASONIC

0051/0250/

1492

AIWA

APEX

BOSE

DENON

FISHER

1096

NEC

NEXTBASE

ONKYO

ORITRON

PHILIPS

PIONEER

QUASAR

RAITE

RCA

SAMPO

SAMSUNG

SANYO

SHARP

SHINTOM

SILVANIA

SMC

SONY

FUNAI

G.E.

0047/0051/

0747

GOLD STAR

1240

HARMAN KARDON

HITACHI

1145

JVC

1053

KENWOOD

KONKA

KOSS

MAGNAVOX

0056/0694/

1308/1694

MINTEK

MITSUBISHI

0150

1487

0051

0747/1047/

1490/1491

0093/0165

0810

SYNPHONIC

0180

TOSHIBA

1488

VENTURER

WAVE

YAMAHA

ZENITH

0016/0017

VCR

0227/1244

0046/0047/

0054/0066

0184

0760/0761/

1613

1237

0042/1613

0008/0067/

0384/0486

0035/0226/

0563

0043/0075/

0196/1617

0038/0050

0563

0042/0051

0104

0048/0062

0753

0033/0034/

0586/0639/

0640/1232

0000

0057/0210

0039

DVD player

0490/0491

0641

0856/1352

2023

0634

0702

0664

0623

0737/1579

0711

1608

1472

1521

0826

0627/1891

0651

0539

0571

0665

0522

0698

0573

1606

0675

0811

1033/1604/

1607/1633

1459

1821

0709

0817

0741/1605

47

RQT8739

48

RQT8739

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to “Customer Services Directory” on page 50 if you reside in the U.S.A., or refer to “Product information” on page 52 if you reside in Canada.

n

Common problems Pages

No power.

No sound.

Sound is distorted.

Sound stops.

OVERLOAD

” appears on the display for about a second, and the unit turns off.

• Ensure the AC power supply cord is connected.

• Turn the volume up.

• Check connections to speakers and other equipment.

• Turn on the speakers.

• Select the correct source.

• Change DIG INPUT setting to suit the type of connection you have made.

• Check that the digital signals can be decoded by this unit.

• Turn the muting off.

• Turn PCM FIX off.

• Recording of some DVD-Audio may not be possible due to copyright protection.

• Determine and correct the cause, then turn the unit on.

Causes include:

- Shorting (bare wires touching) of positive and negative speaker wires.

- Using speakers with an impedance lower than that rated for this unit.

- Straining of the speakers through excessive volume or power.

- Using the unit in a hot environment without proper ventilation.

á

Consult your dealer if the problem occurs again after switching the unit on.

9

12, 26

7 to 9, 14 to 23

12, 26, 27

12, 26

37

39

31

37

8

9, 20, 21

Analog input becomes distorted and the message “

OVERFLOW

” appears on the display during playback.

F76

” appears on the display and the unit turns off.

F70

” appears on the display.

REMOTE 2

” or “

REMOTE 1

” appears on the display.

Display is dim.

• Switch the attenuator on.

• Turn the unit off, disconnect the AC power supply cord, and consult your dealer.

• Turn the unit off, disconnect the AC power supply cord, and consult your dealer.

• Match the codes on the main unit and the remote control.

38

47

• Cancel “

DIMMER

”.

31,33

Clicking sound is heard during play.

• Depending on the input signal when playing DVD etc., the ADVANCED DUAL AMP function changes automatically. A clicking sound is heard when it changes. This does not mean a problem with the unit.

á

You can also set the unit against automatic ADVANCED DUAL AMP operations.

36

n

Setup microphone

MEASURING ERROR

” appears on the display.

• A speaker is too far. Check speaker locations.

• An error occurred from a cause that cannot be identified. Perform the auto speaker setup again.

Pages

24, 25

When speaker distances are set (

á

page

35), “

” appears on the display with the speaker name such as “

L 10.0 –

”.

When speaker distances are set (

á

page

35), “

OVER

” appears on the display.

• It appears when polarity of a speaker is automatically adjusted.

á

You can set speakers against automatic polarity adjustment.

• It appears when the measured distance exceeds 45 feet (15 meters).

Check the speaker location.

36

Pages

10, 24, 25, 35

28 to 30

12, 26

10, 24, 25, 35

12, 26

9

12, 26

n

Surround effects

Sound is not heard from the center, surround or subwoofer speakers.

Sound is not heard from the surround back speaker.

Dolby Pro Logic , NEO:6, and

SFC are unavailable.

• Ensure the speaker settings for your speakers are correct.

• Confirm Dolby Pro Logic , NEO:6, or SFC settings, and select an adequate mode.

• Press [SURROUND] on when you play 2-channel stereo sources.

• Ensure the speaker settings for your speakers are correct.

• Press [SURROUND] on.

• Check if the center speaker, surround speakers, and surround back speakers are connected properly.

• Press [SPEAKERS A] on.

• You cannot use Dolby Pro Logic , NEO:6 or SFC on sources containing PCM signals with the sampling frequency of 192 kHz.

• Cancel DVD ANALOG 6CH playback.

• You cannot use the effect when the input source contains dual audio signals in Dolby Digital or DTS formats.

There is no DTS audio output.

There is audio output, but the DTS decoder indicator is not lit.

Sound is distorted when using the

Sound Field Control (SFC).

• Set the DTS Digital Audio Output setting on the DVD player or DVD recorder to “Bitstream”.

• Depending on the input source, sound may be distorted if you increase the SFC effect level. If this happens, decrease the SFC effect level.

n

Radio

The radio cannot be tuned in or there is a lot of noise and interference.

• Connect the appropriate antenna. (You may need an outdoor antenna or one with more elements.)

• Adjust the position of the FM or AM antenna.

• Reduce the treble.

• Turn off nearby televisions, video decks, DVD recorders, DVD players, and satellite receivers.

• Separate the antenna from other cables, cords, and appliances.

There is a lot of noise when listening to AM.

• Try changing the BEAT PROOF mode.

n

HDMI

When using an HDMI connection, the first few seconds of sound is cut off.

• Should you be playing a chapter on a DVD:

- Change the audio output setting on the DVD player or DVD recorder from “Bitstream” to “PCM”.

(6.1-channel sources will however be played as 5.1-channel.)

- Select “

PCMFIX

” as instructed in “Setting input signals” when you play 2-channel stereo sources.

U70-1-1

” appears on the display.

• The equipment connected by the HDMI cable is not compatible with the unit’s copyright protection technology.

U70-1-2

U70- 3

” appears on the display.

” appears on the display.

The unit does not work properly.

• The unit has received a signal for a picture format that is incompatible with the HDMI connection. Check the settings of the connected equipment.

• Should anything unusual happen using an HDMI connection:

Consult your dealer if the sign remains on the display after these steps.

- Turn the connected equipment off and on again.

- Pull out the HDMI cable then reinsert it.

- Reduce the number of equipment connected in series to the HDMI terminal if exceeding 2 units.

• The unit does not work properly when wrong cords are in HDMI input and output terminals. Turn the unit off, unplug the AC power supply cord, and make connections again.

Ez Sync HDAVI Control does not function properly.

• Connect the unit to your TV (VIERA) using the HDMI cable, switch the TV on, unplug the unit’s AC power supply cord, and insert it into a household AC outlet again.

n

Remote control

The remote control doesn’t work.

Other products respond to the remote control.

• Replace the batteries if they are worn.

• Change this unit’s remote control code to “

REMOTE 2

”.

27

30

Pages

23

23

33

41

Pages

37

7, 13

7, 13

Pages

5

47

1

2

3

4

5

Help message

Message Cause/countermeasure

Muting is on.

Press [MUTING] on the remote control to cancel the function

(

á

page 31).

The selected mode is not “

MUSIC

”.

Change the mode to “

MUSIC

(

á

pages 28 and 29).

Center and surround speakers are not connected, or they are set as absent. Connect the speakers

(

á

page 9) or change their setting to present (

á

page 35).

Surround and surround back speakers are not connected, or they are set as absent. Connect the speakers (

á

page 9) or change their setting to present

(

á

page 35).

Surround back speakers are not connected, or they are set as absent. Connect the speakers

(

á

page 9) or change their setting to present (

á

page 35).

6

7

8

9

Message

10

(flashing)

11

12

Cause/countermeasure

You are trying to use the effect unavailable for DTS-ES sources.

You are trying to use the effect unavailable for DVD-Audio sources.

You are trying to use the effect unavailable for DVD analog

6-channel playback.

You are trying to use the effect unavailable for the current input source.

The unit is in the “

PCMFIX

” mode.

Cancel this mode (

á

page 37).

“SPEAKERS A” is off. Select

“SPEAKERS A” (

á

pages 12 and

26).

“SPEAKERS A” and “SPEAKERS

B” are off. Select “SPEAKERS A” or “SPEAKERS B” (

á

pages 12, 26 and 27).

Specifications (IHF’78)

n

AMPLIFIER SECTION

Rated minimum sine wave RMS power output

20 Hz-20 kHz both channels driven

0.09 % total harmonic distortion

100 W per channel (6

)

1 kHz continuous power output both channels driven

105 W per channel (6

)

0.09 % total harmonic distortion

Total harmonic distortion rated power at 20 Hz-20 kHz

Power bandwidth

0.09 % (6

)

4 Hz to 88 kHz (6

, 0.9 %)

both channels driven, –3 dB

Power output each channel driven

0.9 % total harmonic distortion at 1 kHz

Front (L/R)

Center

Surround (L/R)

Surround Back (L/R)

Load impedance

Front (L/R)

A or B

A and B

BI-WIRE

Center

Surround (L/R)

Surround Back (L/R)

Frequency response

100 W (6

100 W (6

100 W (6

100 W (6

6 to 8

6 to 8

6 to 8

6 to 8

6 to 8

6 to 8

)

)

)

)

CD, AUX, TV/STB, VCR, DVD RECORDER, BD/DVD PLAYER

4 Hz to 88 kHz, ±3 dB

DVD 6CH

4 Hz to 44 kHz, ±3 dB

Input sensitivity

CD, AUX, TV/STB, VCR, DVD RECORDER, BD/DVD/DVD 6CH

27 mV (200 mV, IHF ’66)

Input impedance

CD, AUX, TV/STB, VCR, DVD RECORDER, BD/DVD/DVD 6CH

22 k

S/N (IHF A)

CD, TV/STB, BD/DVD PLAYER, DVD RECORDER (Digital Input)

Tone controls

BASS

TREBLE

Subwoofer frequency response (– 6 dB)

85 dB (103 dB, IHF ’66)

50 Hz, +10 to –10 dB

20 kHz, +10 to –10 dB

7 Hz to 200 Hz

Digital input (OPTICAL)

(COAXIAL)

2

2

HDMI (Version 1.2a)

n

FM TUNER SECTION

Frequency range

Sensitivity

50 dB quieting sensitivity

MONO

STEREO

Total harmonic distortion

MONO

STEREO

Input

Output

2

1

87.9 to 107.9 MHz

11.2 dBf (2 µV, IHF ’58)

18.3 dBf (4.5 µV, IHF ’58)

38.3 dBf (45 µV, IHF ’58)

0.2 %

0.3 %

S/N

MONO

STEREO

Frequency response

Alternate channel selectivity

Capture ratio

Image rejection at 98 MHz

Spurious response rejection at 98 MHz

AM suppression

Stereo separation

1 kHz

10 kHz

Antenna terminal

n

AM TUNER SECTION

Frequency range

Sensitivity

Selectivity

IF rejection at 1000 kHz

73 dB

67 dB

20 Hz to 15 kHz, +1 dB, –2 dB

65 dB

1.5 dB

40 dB

75 dB

50 dB

40 dB

30 dB

75 Ω (unbalanced)

530 to 1710 kHz

20 µV, 330 µV/m

55 dB

50 dB n

VIDEO SECTION

Output voltage at 1 V input (unbalanced)

Maximum input voltage

Input/output impedance

S-Video

Component Video

Input

Output

Input

Output

1±0.1 Vp-p

1.5 Vp-p

75 Ω

BD/DVD PLAYER, DVD RECORDER, TV/STB

TV MONITOR

DVD RECORDER, TV/STB

TV MONITOR n

GENERAL

Power supply

Power consumption

Dimensions (W x H x D)

Mass

AC 120 V, 60 Hz

140 W

430 mm x 107.5 mm x 390 mm

(16-15/16'' x 4-7/32'' x 15-11/32'')

Approx. 5.3 k g (11.7 lb.) n

DIN POWER

1 kHz, T. H. D. 1 %

2 x 100 W (6 Ω )

Power consumption in standby mode:

Power consumption in HDMI off mode:

Notes:

1. Specifications are subject to change without notice.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

0.7 W

0.3 W

Marking sign is located on bottom of the unit.

49

RQT8739

50

RQT8739

Limited Warranty (Only for the U.S.A.)

Limited Warranty (Only for Canada)

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

51

RQT8739

52

RQT8739

Product Service

1. Damage requiring service

— The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or the plug has been damaged; or

(b) Objects or liquids have gotten into the unit; or

(c) The unit has been exposed to rain; or

(d) The unit does not operate normally or exhibits a marked change in performance; or

(e) The unit has been dropped or the cabinet damaged.

2. Servicing

— Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts

— When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check

— After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Listening caution

EST. 1924

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer

Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing.

We recommend that you avoid prolonged exposure to excessive noise.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of

Digital Theater Systems, Inc.

The XM name and related logo XM Ready are registered trademarks of XM Satellite Radio Inc. All rights reserved.

Panasonic Consumer Electronics

Company, Division of Panasonic

Corporation of North America

One Panasonic Way Secaucus,

New Jersey 07094

http://www.panasonic.com

2006 Matsushita Electric Industrial Co., Ltd.

Printed in Malaysia

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

Product information

For product information or assistance with product operation:

In the U.S.A., refer to “Customer Services Directory” on page 50.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future reference.

MODEL NUMBER SA-XR700

SERIAL NUMBER

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-

IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE

UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE

THAT CURTAINS AND ANY OTHER MATERIALS DO NOT

OBSTRUCT THE VENTILATION VENTS.

CAUTION!

Do not place anything on top of this unit or block the heat radiation vents in any way. In particular, do not place tape decks or CD/DVD players on this unit as heat radiated from it can damage your software.

HDMl, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDAVI Control

™ is a trademark of Matsushita Electric Industrial Co., Ltd.

-If you see this symbol-

Information on Disposal in other Countries outside the

European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

www.panasonic.ca

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
