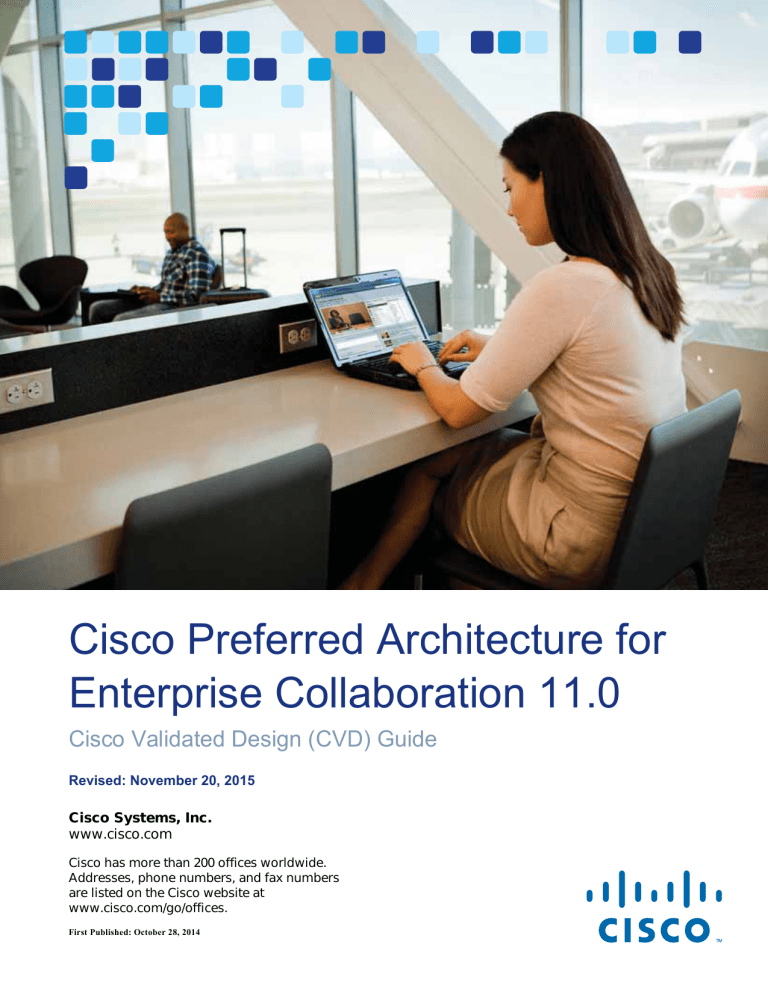

Cisco Preferred Architecture for
Enterprise Collaboration 11.0
Cisco Validated Design (CVD) Guide
Revised: November 20, 2015
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.
First Published: October 28, 2014
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display
output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in
illustrative content is unintentional and coincidental.
© 2014-2015 Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
xiii
Documentation for Enterprise Collaboration
About This Guide
Revision History
xiii
xiii
xiv
Obtaining Documentation and Submitting a Service Request
Conventions
CHAPTER
1
xv
xv
Introduction 1-1
What’s New in This Chapter
Architectural Overview
1-1
1-2
Virtualization 1-5
Cisco Unified Communications on the Cisco Unified Computing System (UCS)
Cisco Business Edition 7000 (BE7000) 1-5
Core Applications 1-6
Collaboration Endpoints
CHAPTER
2
1-5
1-6
Call Control 2-1
What’s New in This Chapter
Core Components 2-2
Key Benefits 2-2
2-1
Architecture 2-3
Unified CM Redundancy with Survivable Remote Site Telephony (SRST) 2-4
Unified CM and IM and Presence Service Clustering 2-4
High Availability 2-5
Computer Telephony Integration (CTI) 2-6
CTI Architecture 2-6
High Availability for CTI 2-7
Capacity Planning for CTI 2-7
IM and Presence Architecture 2-7
Deployment of the Unified CM and IM and Presence Service Cluster 2-8
Endpoints 2-9
Multi-Cluster Considerations 2-11
Topology Example 2-12
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
iii
Contents
Certificate Considerations 2-12
DNS Considerations 2-13
Endpoint Addressing 2-14
+E.164 Routing and Dialing Normalization 2-14
Classes of Service and Calling Search Spaces (CSSs) 2-15
Outbound Gateway Selection Using Local Route Group 2-16
Outbound Calls: Called and Calling Number Localization 2-16
Inbound Calls: Called and Calling Number Globalization 2-16
User Provisioning with LDAP Synchronization 2-16
User Authentication with LDAP 2-17
Deployment Overview 2-18
DNS Requirements 2-18
Provision the Cisco Unified CM and IM and Presence Service Cluster 2-19
Cisco Unified CM and IM and Presence Certificate Management 2-20
Initial Cisco Unified CM Configuration 2-21
Node Name Configuration 2-21
Enterprise Parameter Settings 2-22
Service Activation 2-23
Service Parameter Settings 2-24
Other IM and Presence Settings 2-25
Dial Plan Configuration 2-26
Example Topology 2-26
Endpoint Addressing 2-26
Addressing Enterprise Services for External Access 2-26
General Numbering Plan 2-27
Dialing Habits 2-28
Partitions 2-29
Dialing Normalization Translation Patterns 2-31
Classes of Service and Calling Search Spaces (CSSs) 2-33
Special CSSs 2-35
Local Route Groups for Call Type Specific Outbound Gateway Selection 2-37
Route Lists Using Local Route Groups 2-38
Route Patterns for PSTN Access and Emergency Calls 2-39
Emergency Call Considerations in Multi-National Environments 2-41
Route Patterns for Video PSTN (ISDN) Calls 2-42
Outbound Calls: Called and Calling Number Transformations on ISDN Gateways 2-43
Outbound Calls: Called and Calling Number Transformations on SIP Trunks 2-45
Inbound Calls: Called and Calling Number Transformations on ISDN Gateways 2-46
Inbound Calls: Called and Calling Number Transformations on SIP Trunks 2-47
Calling Party Information Display on Phones 2-47
Cisco Preferred Architecture for Enterprise Collaboration 11.0
iv
November 20, 2015
Contents
Automated Alternate Routing 2-49
Alternate Routing for Unregistered Endpoints 2-50
LDAP System Configuration 2-51
LDAP Custom Filter 2-51
Feature Group Templates 2-52
LDAP Synchronization Agreements 2-53
User Authentication with LDAP 2-55
Cisco Unified CM Group Configuration 2-55
Phone NTP References 2-56
Date and Time Groups 2-56
Media Resources 2-57
Media Resource Manager 2-57
Media Resource Selection and Avoiding the Default MRG 2-57
Cisco IP Voice Media Streaming Application 2-57
MRG and MRGL Definitions 2-58
Device Pools 2-60
SIP Trunks 2-65
SIP Profiles 2-65
SIP Trunk Security Profiles 2-66
SIP Trunk Connections 2-67
Route Groups 2-70
Specific Non-LRG Route Lists 2-71
Endpoint Provisioning 2-71
Configure the Device 2-72
Configure the Line 2-73
Add the Device to Devices Controlled by the User 2-75
Configure the Line Association for Presence 2-75
Verify the User's Primary Extension 2-75
Jabber Provisioning 2-75
ILS Configuration for Multi-Cluster Deployments 2-76
Assign Unique Cluster IDs for Each Unified CM Cluster in the Network
Activate ILS on the First ILS Hub Cluster in the Network 2-77
Activate ILS on the Remaining ILS Clusters in the Network 2-78
Consider UDS Certificate Requirements 2-78
GDPR Configuration (Multi-Cluster Only) 2-79
Advertise URIs 2-79
Configure Advertised Patterns 2-79
Configure Partitions for Learned Numbers and Patterns 2-80
Configure Intercluster Trunks 2-81
Configure SIP Route Patterns 2-81
2-77
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
v
Contents
Example GDPR Call Flow 2-82
IM and Presence Intercluster 2-83
Survivable Remote Site Telephony (SRST) Deployment 2-84
Deployment 2-84
Provisioning 2-84
Extension Mobility 2-85
Deploying Extension Mobility 2-85
Busy Line Field (BLF) Presence 2-86
Deploying BLF Presence 2-86
Deploying Computer Telephony Integration (CTI) 2-87
CHAPTER
3
Conferencing 3-1
What’s New in This Chapter
Core Components 3-2
Key Benefits 3-2
Conference Types 3-3
3-1
Architecture 3-4
Role of the TelePresence Conductor 3-5
Role of TelePresence Servers 3-6
Role of Cisco TMS 3-6
Role of Cisco TMS Extensions for Microsoft Exchange 3-6
Deployment Overview 3-7
Requirements and Recommendations 3-7
Conference Call Flows 3-8
Instant Conferences 3-9
Permanent Conferences with Collaboration Meeting Rooms
Scheduled Conferences 3-10
Multiway 3-12
Third-Party Endpoints 3-12
Cisco WebEx Software as a Service (SaaS) 3-12
Cisco CMR Hybrid 3-12
Cisco WebEx Meetings Server 3-12
Collaboration Meeting Rooms (CMR) Cloud 3-13
High Availability for Conferencing 3-13
TelePresence Server High Availability 3-13
TelePresence Conductor High Availability 3-13
TMS High Availability 3-14
Security for Conferencing 3-14
Scaling the Conferencing Solution 3-14
3-9
Cisco Preferred Architecture for Enterprise Collaboration 11.0
vi
November 20, 2015
Contents
Conferencing Deployment Process 3-15
1. Plan the Conferencing Deployment 3-15
Requirements 3-15
Product Models 3-15
Licensing 3-16
Cisco TelePresence Management Suite 3-17
2. Deploy TelePresence Servers 3-21
Overview 3-21
Deployment Considerations 3-21
Deployment Tasks for TelePresence Servers 3-22
Summary 3-22
3. Deploy TelePresence Conductor 3-23
Overview 3-23
Deployment Considerations 3-24
Deployment Tasks Common to Instant and Scheduled Conferences on TelePresence
Conductor 3-26
Deployment Tasks for Instant Conferences on TelePresence Conductor 3-28
Deployment Tasks for Scheduled Conferences on TelePresence Conductor 3-29
Summary 3-29
4. Enable Unified CM for Scheduled and Non-Scheduled Conferences 3-30
Overview 3-30
Deployment Considerations 3-31
Deployment Tasks to Enable Unified CM for Instant Conferences 3-32
Deployment Tasks to Enable Unified CM for CMR and Scheduled Conferences 3-36
Summary 3-38
5. Deploy TelePresence Management Suite 3-38
Overview 3-38
Deployment Tasks for Cisco TMS High Availability 3-39
Deployment Tasks for Cisco TMS Basic Configuration 3-41
Deployment Tasks for Cisco TMS for Scheduled Conferences 3-45
Summary 3-53
6. Deploy Cisco Collaboration Meeting Rooms 3-54
Overview 3-54
Deployment Considerations 3-54
Deployment Tasks for Unified CM for CMR 3-55
Deployment Tasks for TelePresence Conductor for CMR 3-56
Deployment Tasks for Cisco TMSPE for CMR 3-56
Summary 3-57
7. Deploy Collaboration Meeting Rooms (CMR) Hybrid 3-58
Overview 3-58
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
vii
Contents
Deployment Considerations 3-59
Deployment Tasks for TelePresence Conductor for CMR Hybrid 3-59
Deployment Tasks for Unified CM for CMR Hybrid 3-60
Deployment Tasks for Expressway for CMR Hybrid 3-60
Deployment Tasks for Cisco TMS for CMR Hybrid 3-60
Deployment Tasks for Cisco TMSXE for CMR Hybrid 3-61
Deployment Tasks for Audio for CMR Hybrid 3-62
Deployment Tasks for WebEx Site Administration for CMR Hybrid 3-62
Summary 3-62
Related Documentation
CHAPTER
4
3-63
Collaboration Edge 4-1
What’s New in This Chapter
Core Components 4-2
Key Benefits 4-2
4-1
Architecture 4-2
Role of Expressway-C and Expressway-E for Internet Access
Mobile and Remote Access 4-5
Business-to-Business Communications 4-6
Instant Messaging and Presence Federation 4-7
PSTN Access 4-7
Role of the Cisco Unified Border Element 4-7
Role of Voice Gateways 4-8
Role of Video ISDN Gateways 4-8
4-4
Deployment Overview 4-9
Deployment of Expressway-C and Expressway-E for Internet Connectivity 4-9
Mobile and Remote Access 4-13
Business-to-Business Communications 4-17
IP-based Dialing for Business-to-Business Calls 4-19
Deployment of External XMPP Federation through Expressway-C and Expressway-E 4-20
Deployment of Cisco Unified Border Element for PSTN Voice Connection Through a SIP Trunk
PSTN Gateways 4-23
Video ISDN Gateways 4-24
Requirements and Recommendations 4-24
4-21
High Availability for Collaboration Edge 4-25
High Availability for Expressway-C and Expressway-E 4-25
High Availability for Cisco Unified Border Element 4-28
High Availability for Voice Gateways 4-29
Security for Collaboration Edge
4-30
Cisco Preferred Architecture for Enterprise Collaboration 11.0
viii
November 20, 2015
Contents
Security for Expressway-C and Expressway-E 4-30
Network Level Protection 4-30
Mobile and Remote Access 4-30
Business-to-Business Communications 4-31
Security for Cisco Unified Border Element 4-32
Security for Voice Gateways 4-32
Security for Video ISDN Gateways 4-33
Scaling the Collaboration Edge Solution 4-33
Scaling the Internet Edge Solution 4-33
Mobile and Remote Access 4-33
Business-to-Business Communications 4-37
Scaling the Cisco Unified Border Element 4-40
Scaling the PSTN Solution 4-44
Scaling the Video ISDN Solution 4-45
Collaboration Edge Deployment Process 4-45
Deploy Expressway-C and Expressway-E 4-45
Deploy Mobile and Remote Access 4-45
Deploy Business-to-Business Communications
Deploy Cisco Unified Border Element 4-47
Deploy Cisco Voice Gateways 4-51
Deploy Cisco ISDN Video Gateways 4-54
CHAPTER
5
Core Applications 5-1
What’s New in This Chapter 5-1
Prerequisites 5-1
Unified Messaging Application 5-2
Tools Used in a Collaboration Deployment
Key Benefits 5-2
4-46
5-2
Unified Messaging with Cisco Unity Connection 5-2
Core Components 5-2
Key Benefits 5-2
Core Architecture 5-3
Centralized Messaging and Centralized Call Processing
Role of Unified CM 5-4
Role of Unity Connection 5-4
Role of Microsoft Exchange 5-4
High Availability for Unified Messaging 5-5
Licensing Requirements 5-6
Unified Messaging Requirements 5-7
5-3
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
ix
Contents
Scaling Unity Connection 5-7
Cisco Unity Connection Deployment Process 5-7
Prerequisites 5-7
Deployment Overview 5-8
1. Provision the Unity Connection Cluster 5-8
2. Configure Unified CM for Unity Connection Integration 5-10
3. Unity Connection Base Configuration 5-14
4. Enable Single Inbox 5-21
5. Enable Visual Voicemail 5-25
6. Voice Mail in SRST Mode 5-26
7. HTTPS Internetworking of Two Unity Connection Clusters 5-27
Related Documentation 5-31
Tools for Application Deployment 5-32
Cisco Prime Collaboration Deployment (PCD)
Cisco Prime License Manager (PLM) 5-32
Additional Applications
CHAPTER
6
5-32
5-33
Bandwidth Management 6-1
Core Components 6-1
Recommended Deployment
Key Benefits 6-3
6-3
Architecture 6-3
Introduction 6-4
Collaboration Media 6-5
Audio versus Video 6-5
"Smart" Media Techniques (Media Resilience and Rate Adaptation)
Opportunistic Video and Prioritized Audio 6-9
QoS Architecture for Collaboration 6-9
Identification and Classification 6-10
WAN Queuing and Scheduling 6-20
Provisioning and Admission Control 6-22
Enhanced Locations Call Admission Control 6-24
Call Admission Control Architecture 6-24
Multi-Cluster Considerations 6-31
Design Considerations for Call Admission Control 6-38
Bandwidth Management Deployment 6-42
Deployment Overview 6-42
Identification and Classification 6-43
Access Layer Endpoint Identification and Classification
6-7
6-44
Cisco Preferred Architecture for Enterprise Collaboration 11.0
x
November 20, 2015
Contents
Application Server QoS 6-49
WAN Edge Identification and Classification 6-50
WAN Edge Queuing and Scheduling 6-56
Provisioning and Admission Control 6-59
Enhanced Locations CAC 6-59
Deploy Device Mobility for Mobile and Remote Access (MRA)
Bandwidth Allocation Guidelines 6-65
CHAPTER
7
Sizing
6-63
7-1
What’s New in This Chapter
7-2
Call Control 7-2
Unified CM Sizing 7-2
IM and Presence Sizing 7-4
SRST Sizing 7-5
Conferencing 7-5
Conference Port Usage Guidelines 7-6
Screen Licenses and Port Capacity 7-7
TelePresence Server Platform Sizing 7-8
TelePresence Conductor Sizing 7-8
Cisco TelePresence Management Suite (TMS)
Collaboration Edge 7-10
Cisco Expressway Sizing 7-10
Cisco Unified Border Element Sizing
Core Applications 7-14
Cisco Unity Connection
A
Product List
7-13
7-14
Virtual Machine Placement and Platforms
Redundancy Consideration 7-16
Platforms 7-16
APPENDIX
7-9
7-15
A-1
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
xi
Contents
Cisco Preferred Architecture for Enterprise Collaboration 11.0
xii
November 20, 2015
Preface
Revised: November 20, 2015
Cisco Validated Designs (CVDs) explain important design and deployment decisions based on common
use cases and current system releases. They incorporate a broad set of technologies, features, and
applications to address customer needs. Cisco engineers have comprehensively tested and documented
the guidelines within the CVDs in order to provide faster, more reliable, and fully predictable
deployment. CVDs provide a tested starting point for Cisco partners and customers to begin designing
and deploying systems using their own setup and configuration.
Documentation for Enterprise Collaboration
Cisco Preferred Architecture (PA) Design Overview guides help customers and sales teams select the
appropriate architecture based on an organization's business requirements; understand the products that
are used within the architecture; and obtain general design best practices. These guides support sales
processes.
Cisco Validated Design (CVD) guides provide detailed steps for deploying the Cisco Preferred
Architectures. These guides support planning, design, and implementation of the Preferred
Architectures.
Cisco Collaboration System 11.x Solution Reference Network Design (SRND) guide provides detailed
design options for Cisco Collaboration. The SRND should be referenced when design requirements are
outside the scope of Cisco Preferred Architectures.
About This Guide
This Cisco Validated Design guide for the Cisco Enterprise Collaboration Preferred Architecture is for:
•
Sales teams that sell, design, and deploy collaboration solutions
•
Customers and sales teams who want detailed design best practices and ordered steps for deploying
Cisco Collaboration
Readers of this guide should have a general knowledge of Cisco voice, video, and collaboration products
and a basic understanding of how to deploy these products. We recommend that readers review the Cisco
Preferred Architecture for Enterprise Collaboration 11.x Design Overview before reading this CVD
document.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
xiii
Preface
The design decisions within this CVD are in line with the framework outlined in the Cisco Collaboration
SRND. While the SRND offers many design and deployment options, in this document a single
deployment recommendation is selected based on fundamental assumptions for the Preferred
Architecture design. Different assumptions can certainly lead to different design decisions, which then
should be validated against the SRND. For large deployments with unique needs and advanced
customization, it is recommended to work with your Cisco Account Manager for guidance beyond that
contained in this CVD or the SRND.
This guide simplifies the design and sales process by:
•
Building upon the product and design recommendations of the Cisco Preferred Architecture for
Enterprise Collaboration 11.x Design Overview
•
Cisco Preferred Architecture Design Overview
•
Detailing a collaboration architecture, identifying best practices, and explaining the reasoning
behind those recommendations
This CVD guide is organized into the following discrete modules that integrate together to form the
overall Collaboration solution:
•
Call Control — Explains fundamental concepts of dial plan design, Computer Telephony Integration
(CTI), Survivable Remote Site Telephony (SRST), IM and Presence, LDAP directory integration,
SIP trunks, and other aspects of call control. This chapter also lists the best practices for deploying
call control in the Enterprise Collaboration Preferred Architecture.
•
Conferencing — Describes the types of conferences available in the Enterprise Collaboration
Preferred Architecture and explains how to deploy conferencing capability.
•
Collaboration Edge — Explains how to deploy Cisco Collaboration Edge components to provide
remote registration services, external communications, and interoperability.
•
Core Applications — Lists the various applications and deployment tools available in the Enterprise
Collaboration Preferred Architecture, and focuses on two core applications for unified messaging
and conference scheduling.
•
Sizing — Provides simplified sizing examples to size the components of the Enterprise
Collaboration Preferred Architecture to fit the requirements of your deployment.
Revision History
This CVD guide may be updated at any time without notice. You can obtain the latest version of this
document online at:
http://www.cisco.com/go/cvd/collaboration
Visit the above website periodically and check for documentation updates by comparing the revision date
of your copy with the revision date of the online document.
Table 1 lists the revision history for this document.
Table 1
Revision History for This CVD Guide
Revision Date
Comments
November 20, 2015
This document was updated for Cisco Collaboration System Release
(CSR) 11.0. For details, in each chapter see What’s New in This Chapter.
October 28, 2014
Initial release of this document.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
xiv
November 20, 2015
Preface
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a
service request, and gathering additional information, see What’s New in Cisco Product Documentation
at: http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to What’s New in Cisco Product Documentation, which lists all new and revised
Cisco technical documentation, as an RSS feed and deliver content directly to your desktop using a
reader application. The RSS feeds are a free service.
Conventions
This document uses the following conventions:
Convention
Indication
bold font
Commands and keywords and user-entered text appear in bold font.
italic font
Document titles, new or emphasized terms, and arguments for which you supply
values are in italic font.
[ ]
Elements in square brackets are optional.
{x | y | z }
Required alternative keywords are grouped in braces and separated by
vertical bars.
[x|y|z]
Optional alternative keywords are grouped in brackets and separated by
vertical bars.
string
A nonquoted set of characters. Do not use quotation marks around the string or
the string will include the quotation marks.
courier
font
Terminal sessions and information the system displays appear in courier font.
< >
Nonprinting characters such as passwords are in angle brackets.
[ ]
Default responses to system prompts are in square brackets.
!, #
An exclamation point (!) or a pound sign (#) at the beginning of a line of code
indicates a comment line.
Note
Means reader take note. Notes contain helpful suggestions or references to material not covered in the
manual.
Tip
Means the following information will help you solve a problem. The tips information might not be
troubleshooting or even an action, but could be useful information, similar to a Timesaver.
Caution
Means reader be careful. In this situation, you might perform an action that could result in equipment
damage or loss of data.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
xv
Preface
Timesaver
Warning
Means the described action saves time. You can save time by performing the action described in
the paragraph.
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this device.
SAVE THESE INSTRUCTIONS
Warning
Statements using this symbol are provided for additional information and to comply with regulatory
and customer requirements.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
xvi
November 20, 2015
CH A P T E R
1
Introduction
Revised: November 20, 2015
In recent years, many new collaborative tools have been introduced to the market, enabling businesses
to enhance communications and extend collaboration outside the walls of their businesses. Organizations
realize the added value that collaboration applications bring to their businesses through increased
employee productivity and enhanced customer relationships. Significant advances have been made in the
collaboration space to simplify deployment, improve interoperability, and enhance the overall user
experience.
Today's collaboration solutions offer organizations the ability to integrate video, audio, and web
participants into a single, unified meeting experience. The guidelines within this Cisco Validated Design
(CVD) guide are written with the overall collaboration architecture in mind. Subsystems are used for
better organization of the content, and the recommendations within them are tested to ensure they align
with recommendations in related subsystems.
What’s New in This Chapter
Table 1-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 1-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
Described in:
Revision Date
Added bandwidth management information
Table 1-2
November 20, 2015
Removed Cisco EX Series endpoints, and replaced Table 1-3
Cisco IP Phone 7821 with 7811 model
November 20, 2015
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
1-1
Chapter 1
Introduction
Architectural Overview
Architectural Overview
This CVD for the Enterprise Collaboration Preferred Architecture incorporates a subset of products from
the total Cisco Collaboration portfolio that is best suited for the enterprise market segment. This
Preferred Architecture deployment model is prescriptive, out-of-the-box, and built to scale with an
organization as its business needs change. This prescriptive approach simplifies the integration of
multiple system-level components while also enabling an organization to select the features, services,
and capacities that best address its business needs.
This CVD for the Enterprise Collaboration Preferred Architecture provides end-to-end collaboration
targeted for deployments larger than 1,000 users. For smaller deployments, consult the Preferred
Architecture Design Overview and CVDs for Midmarket Collaboration.
This CVD for the Enterprise Collaboration Preferred Architecture provides high availability for critical
applications. The architecture supports an advanced set of collaboration services that extend to mobile
workers, partners, and customers through the following key services:
•
Voice communications
•
Instant messaging and presence
•
High definition video and content sharing
•
Rich media conferencing
•
Enablement of mobile and remote workers
•
Business-to-business voice and video communications
•
Unified voice messaging
Because of the adaptable nature of Cisco endpoints and their support for IP networks, this architecture
enables an organization to use its current data network to support both voice and video calls. The
preferred architecture employs a holistic approach to bandwidth management that incorporates an
end-to-end QoS architecture, call admission control, and video rate adaptation and resiliency
mechanisms to provide the best possible user experience for deploying pervasive video over managed
and unmanaged networks.
The Cisco Preferred Architecture for Enterprise Collaboration, shown in Figure 1-1, provides highly
available and secure centralized services. These services extend easily to remote offices and mobile
workers, providing availability of critical services even if communication with headquarters is lost. This
should be viewed as a fundamental architecture from which to design a new deployment or to evolve an
existing one. As the Preferred Architecture progresses, this architecture will be expanded upon with
additional products and solutions.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
1-2
November 20, 2015
Chapter 1
Introduction
Architectural Overview
Figure 1-1
Cisco Preferred Architecture for Enterprise Collaboration
Headquarters
Unity
Connection
Prime
Collaboration
Expressway-E
Cisco
WebEx
Mobile/Teleworker
DMZ
Applications
IM and
Presence
Expressway-C
Internet
Unified
Communications
Manager
Third-Party Solution
Integrated/Aggregated
Services Router
MPLS WAN
Collaboration Edge
Call Control
TelePresence Server
Integrated
Services
Router
Conductor
TelePresence
Management Suite
PSTN /
ISDN
Remote Site
349549
Conferencing
Endpoints
Table 1-2 lists the products in this architecture. For simplicity, products are grouped into modules to help
categorize and define their roles. The content of this CVD is organized into the same modules.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
1-3
Chapter 1
Introduction
Architectural Overview
Table 1-2
Components of the Cisco Preferred Architecture for Enterprise Collaboration
Module
Component(s)
Call Control
Cisco Unified Communications Manager
(Unified CM)
Conferencing
Cisco TelePresence Conductor
Purpose
Call control provides registration, call
processing, resource management and instant
messaging and presence for users and endpoints.
Cisco Unified Communications Manager IM and
It also encompasses remote site survivability for
Presence Service
remote offices.
Cisco Integrated Services Router (ISR) G2/G3
Cisco TelePresence Server
Cisco TelePresence Management Suite (TMS)
Conferencing allows three or more parties to
communicate via voice, video, and content
sharing in real time. Resources can be either
on-premises or hosted in the cloud, or both.
Cisco WebEx Software as a Service (Cloud)
Cisco WebEx Meetings Server (On-premises)
Collaboration Edge
Cisco Expressway-C
Cisco Expressway-E
Collaboration Edge provides remote registration
services, external communications, and
interoperability.
Cisco Integrated Services Router (ISR) G2/G3
Cisco Aggregation Services Routers (ASR)
Core Applications
Cisco Unity Connection
Cisco Prime Collaboration Deployment
Applications cover a wide range of services
including voice messaging and management.
Cisco Prime License Manager
Bandwidth
Management
Network infrastructure and products from all
chapters of this document
Bandwidth management incorporates an
end-to-end QoS architecture, call admission
control, and video rate adaptation and resiliency
mechanisms to provide the best possible user
experience for deploying pervasive video over
managed and unmanaged networks.
Sizing
Products from all chapters of this document
Sizing for all modules that are covered in this
document, as well as a virtual machine
placement example.
Virtual Machine Placement Tool (VMPT)
Network Services
The Preferred Architecture for Enterprise Collaboration requires a well-structured, highly available, and
resilient network infrastructure as well as an integrated set of network services, including Domain Name
System (DNS), Dynamic Host Configuration Protocol (DHCP), Trivial File Transfer Protocol (TFTP),
and Network Time Protocol (NTP). A detailed description of how these basic network services are
utilized by Cisco applications and endpoints can be found in the Network Services section of the Cisco
Collaboration SRND.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
1-4
November 20, 2015
Chapter 1
Introduction
Virtualization
Virtualization
Virtualizing multiple applications and consolidating them on physical servers lowers cost, minimizes
rack space, lowers power requirements, and simplifies deployment and management. Virtualization also
accommodates redeploying hardware and scaling software applications as organizational needs change.
Cisco Unified Communications on the Cisco Unified Computing System (UCS)
Cisco UCS servers are thoroughly tested with unified communications (UC) core applications to provide
reliable and consistent performance in a virtualized environment. There are two options for deploying
UC applications on UCS servers:
•
UC on UCS Tested Reference Configurations (TRCs)
UCS TRCs are specific hardware configurations of UCS server components. These components
include CPU, memory, hard disks (in the case of local storage), RAID controllers, and power
supplies. Specific TRCs are documented at the UC Virtualization Supported Hardware website.
•
UC on UCS Spec-Based
Specifications-based UCS hardware configurations are not explicitly validated with UC
applications. Therefore, no prediction or assurance of UC application virtual machine performance
is made when the applications are installed on UCS specs-based hardware. In those cases Cisco
provides guidance only, and ownership of assuring that the pre-sales hardware design provides the
performance required by UC applications is the responsibility of the customer.
Both options are fully supported by the Cisco Technical Assistance Center (TAC), provided all rules for
Unified Communications in a Virtualized Environment are followed.
Cisco Business Edition 7000 (BE7000)
The Cisco BE7000 is built on a virtualized UCS that ships ready-for-use with a pre-installed
virtualization hypervisor and application installation files. The BE7000 is a UCS TRC in that UC
applications have been explicitly tested on its specific UCS configuration. The Cisco BE7000 solution
offers premium voice, video, messaging, instant messaging and presence, and contact center features on
a single, integrated platform. For more information about the Cisco BE7000, see the Cisco Business
Edition 7000 Data Sheet.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
1-5
Chapter 1
Introduction
Collaboration Endpoints
Core Applications
In the Preferred Architecture for Enterprise Collaboration, the following virtualized applications are
deployed on multiple Cisco UCS servers to provide hardware and software redundancy:
•
Cisco Unified Communications Manager
•
Cisco Unified Communications Manager IM and Presence Service
•
Cisco Unity Connection
•
Cisco Expressway, consisting of Expressway-C and Expressway-E
•
Cisco TelePresence Conductor
•
Cisco TelePresence Server
•
Cisco TelePresence Management Suite
We recommend always deploying redundant configurations to provide the highest availability for critical
business applications.
Collaboration Endpoints
The recommendations within this CVD guide assume a deployment of Cisco voice and video endpoints,
including soft clients such as Cisco Jabber. These endpoints use SIP to register to Cisco Unified
Communications Manager (Unified CM). Table 1-3 lists the preferred endpoints for optimal features,
functionality, and user experience.
Table 1-3
Cisco Collaboration Endpoints
Product
Description
Mobile:
Soft client with integrated voice, video, voicemail,
instant messaging, and presence functionality as
well as secure edge traversal for mobile devices
and personal computers
•
Jabber for Android
•
Jabber for iPhone and iPad
Desktop:
•
Jabber for Mac
•
Jabber for Windows
Cisco IP Phone 7811
Public space, single-line phone
Cisco IP Phone 8800 Series
General office use, multiple-line audio and video
phones
Cisco IP Phone 8831
IP conference phone
Cisco DX Series
Personal TelePresence endpoint for the desktop
Cisco MX Series
TelePresence multipurpose room endpoint
Cisco SX Series
Integrator series TelePresence endpoint
Cisco IX Series
Immersive TelePresence room system
Cisco Preferred Architecture for Enterprise Collaboration 11.0
1-6
November 20, 2015
CH A P T E R
2
Call Control
Revised: November 20, 2015
This chapter describes the call control function for the Cisco Preferred Architecture (PA) for Enterprise
Collaboration.
Certain requirements might put your deployment outside the PA design guidelines and
recommendations, in which case you might have to use other documentation such as the Cisco
Collaboration SRND and related product documentation.
The first part of this chapter provides an architectural overview and introduces some fundamental design
concepts, while the second part explains more detailed deployment considerations. The Architecture
section discusses topics such as redundancy concepts, high availability, Computer Telephony Integration
(CTI), and IM and presence architecture, and it introduces a hypothetical customer topology used in the
examples throughout this document. The focus of this chapter is the Deployment Overview section. The
deployment examples in that section will help you to understand the background of certain design
decisions more clearly than an abstract discussion of concepts can. Topics covered in the Deployment
Overview section include DNS requirements, cluster provisioning, certificate management, dial plan
configuration, user provisioning using LDAP, media resources, SIP trunking considerations, endpoint
provisioning, and multi-cluster considerations. The order of the topics in the Deployment Overview
section follows the recommended configuration order.
What’s New in This Chapter
Table 2-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 2-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
No new content has been added for this release,
but some sections of this chapter have been
reorganized.
Described in:
Revision Date
November 20, 2015
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-1
Chapter 2
Call Control
Core Components
The core architecture contains these key elements (Figure 2-1):
Figure 2-1
•
Cisco Unified Communications Manager
•
Cisco Unified Communications Manager IM and Presence Service
•
Cisco Integrated Services Router (ISR)
Preferred Architecture Overview
Headquarters
Unity
Connection
Prime
Collaboration
Expressway-E
Cisco
c
WebEx
We
ebEx
Mobile/Teleworker
DMZ
Applications
Expressway-C
IM and
Presence
IInternet
ntern
net
net
Unified
Communications
Manager
Third-Party Solution
Integrated/A
Integrated/Aggregated
/ ggregated
Services Router
MPLS WAN
WA
AN
AN
Integrated
Services
Router
Collaboration Edge
Call Control
TelePresence Server
Conductor
TelePresence
Management Suite
PSTN /
PSTN
PST
ISD
DN
ISDN
Remote Site
349551
Conferencing
Endpoints
Key Benefits
•
Call control is centralized at a single location that serves multiple remote sites.
•
Management and administration are centralized.
•
Common telephony features are available across voice and video endpoints.
•
Single call control and a unified dial plan are provided for voice and video endpoints.
•
Critical business applications are highly available and redundant.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-2
November 20, 2015
Chapter 2
Call Control
Architecture
Architecture
The handling and processing of voice and video calls is a critical function provided by enterprise
communications systems. This functionality is handled by some type of call processing entity or agent.
Given the critical nature of call processing operations, it is important to design unified communications
deployments to ensure that call processing systems are scalable enough to handle the required number
of users and devices and are resilient enough to handle various network and application outages or
failures.
This chapter provides guidance for designing scalable and resilient call processing systems with Cisco
Unified Communications Manager (Unified CM) and Survivable Remote Site Telephony (SRST). A
centralized Unified CM cluster implements call processing services for all customer sites. Unified CM
IM and Presences Service as part of the centralized Unified CM cluster implements instant messaging
and presence services for the enterprise. Cisco Survivable Remote Site Telephony (SRST) is used to
implement backup services for remotes sites when the corporate WAN reliability does not match the
voice services availability requirements.
Cisco Unified CM provides call processing services for small to very large single-site deployments,
multi-site centralized call processing deployments, and/or multi-site distributed call processing
deployments. Unified CM is at the core of a Cisco Collaboration solution, and it serves as a foundation
to deliver voice, video, TelePresence, IM and presence, messaging, mobility, web conferencing, and
security.
Access to the enterprise collaboration network and to Unified CM from the Internet to enable remote
access and business-to-business secure telepresence and video communications, is also available
through various collaboration edge solutions such as VPN and Cisco Expressway.
Role of Unified CM
Cisco Unified CM is the central call control component in any Cisco collaboration deployment.
Unified CM provides foundation services including call control, endpoint registration, endpoint
configuration, call admission control, codec negotiation, trunk protocol translation, and CTI.
Unified CM is the central point of administration and provisioning. All SIP trunks to other components
– including conferencing media resources, gateways, and other components – are terminated on
Unified CM so that Unified CM can orchestrate access to all of those components. Call routing is
controlled by the dial plan configuration applied to Unified CM.
Role of IM and Presence Service
The Cisco Unified CM IM and Presence Service provides on-premises instant messaging and presence.
It uses standards-based XMPP and also supports SIP for interoperability with SIP IM providers. Cisco
Unified CM IM and Presence Service is an on-premise solution. The other Cisco instant messaging and
presence service, Cisco WebEx Messenger, is a cloud-based service and is not covered in this document.
Role of SRST
When deploying Cisco desk phones in branch locations separated from a centralized call processing
platform by a low-speed or unreliable WAN link, it is important to consider local call processing
redundancy. By leveraging Survivable Remote Site Telephony (SRST) on a Cisco IOS router in each
branch location, basic IP telephony services can be maintained for the desk phones if connectivity to the
centralized call processing platform is lost. However, the set of available user-facing features is much
smaller when a device is registered to SRST than when the phone is registered to Unified CM.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-3
Chapter 2
Call Control
Architecture
Unified CM Redundancy with Survivable Remote Site Telephony (SRST)
Cisco IOS SRST provides highly available call processing services for endpoints in locations remote
from the Unified CM cluster. Unified CM clustering redundancy schemes provide a high level of
redundancy for call processing and other application services within a LAN or MAN environment.
However, for remote locations separated from the central Unified CM cluster by a WAN or other
low-speed links, SRST can be used as a redundancy method to provide basic call processing services to
these remote locations in the event of loss of network connectivity between the remote and central sites.
We recommend deploying SRST-capable Cisco IOS routers at each remote site where call processing
services are considered critical and need to be maintained in the event that connectivity to the
Unified CM cluster is lost. Endpoints at these remote locations must be configured with an appropriate
SRST reference within Unified CM so that the endpoint knows what address to use to connect to the
SRST router for call processing services when connectivity to Unified CM subscribers is unavailable.
Unified CM and IM and Presence Service Clustering
Unified CM supports the concept of clustering. The Unified CM architecture enables a group of server
nodes to work together as a single call processing entity. This grouping of server nodes is known as a
cluster.
There are two types of Cisco Unified CM nodes: publisher and subscriber.
•
Unified CM publisher
The publisher is a required server node in all clusters. There can be only one publisher per cluster.
This server node contains the cluster configuration, and it provides the database services to all other
subscribers in the cluster. In this design, the Unified CM publisher is a dedicated node; it does not
handle TFTP requests, endpoint registration, or call processing.
•
Unified CM subscriber
Subscriber nodes subscribe to the publisher to obtain a copy of the database information. Subscriber
nodes include, for example, the Unified CM TFTP nodes and the Unified CM call processing
subscriber nodes.
Cisco IM and Presence nodes have the same clustering concept. The first IM and Presence node is the
IM and Presence publisher. The other IM and Presence nodes are the IM and Presence subscribers, and
they obtain a copy of their database from the IM and Presence publisher. The IM and Presence publisher
communicates with the Unified CM publisher and most of the IM and Presence configuration is actually
done through the Unified CM publisher (for instance, the Unified CM users, the UC services available
to presence users, and the service activation). Hence, all IM and Presence nodes, including the IM and
Presence publisher, are considered subscribers of the larger Unified CM and IM and Presence Service
cluster. Figure 2-2 shows the relationship between the Unified CM publisher and a two-node IM and
Presence cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-4
November 20, 2015
Chapter 2
Call Control
Architecture
Figure 2-2
Relationship Between Unified CM and a Two-Node IM and Presence Cluster
High Availability
Unified CM and IM and Presence nodes should be deployed in a highly available infrastructure. For
example, the use of dual power supplies combined with the use of uninterruptible power supply (UPS)
sources will provide maximum power availability. From a network perspective, the platform servers
should be connected to multiple upstream switches.
Unified CM and IM and Presence systems also handle high availability at the application level.
With Unified CM in this design, two TFTP servers should be deployed for redundancy. The call
processing nodes should be deployed with one-to-one (1:1) redundancy, where for every primary call
processing subscriber there is a backup call processing subscriber. This 100%:0% redundancy design
compared to a 50%:50% redundancy design has a number of advantages, including the reduction of
Unified CM groups and device pools and simplified configuration and distribution of devices with fewer
redundancy options.
Cisco IOS Survivable Remote Site Telephony (SRST) provides highly available call processing services
for endpoints in locations remote from the Unified CM cluster when the WAN links are down.
Individual Cisco IM and Presence nodes are grouped in subclusters. A subcluster can have one or two
nodes. Adding the second node in a subcluster provides high availability. High availability is
recommended, and therefore in this design each subcluster consists of two nodes. A two-node subcluster
allows for users associated with one server of the subcluster to use the other server in the subcluster
automatically if a failover event occurs. We recommend balancing the user assignment between the two
nodes in each pair. The IM and Presence publisher handles IM and Presence information from presence
clients just like any other IM and Presence subscriber does, and it is deployed as one of the two nodes
in an IM and Presence subcluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-5
Chapter 2
Call Control
Architecture
Computer Telephony Integration (CTI)
Cisco Computer Telephony Integration (CTI) extends the rich feature set available on Cisco Unified CM
to third-party applications.
CTI Architecture
Cisco CTI consists of the following components (Figure 2-3), which interact to enable applications to
take advantage of the telephony feature set available in Cisco Unified CM:
•
CTI application — Cisco or third-party application written to provide specific telephony features
and/or functionality. It can use a JTAPI or TAPI interface. The protocol between the CTI application
and Unified CM is Quick Buffer Encoding (QBE).
•
Unified CM subscriber with the following services:
– CCM — The Cisco CallManager Service, the telephony processing engine.
– CTI Manager (CTIM) — A service that runs on one or more Unified CM subscribers operating
in primary/secondary mode and that authenticates and authorizes telephony applications to
control and/or monitor Cisco IP devices.
Figure 2-3
CTI Architecture
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-6
November 20, 2015
Chapter 2
Call Control
Architecture
High Availability for CTI
High availability for CTI Manager relies on the CTI application being able to connect to the backup CTI
Manager Service in case the primary CTI Manager fails. In case both the CTI Manager and CCM
services on the primary Unified CM subscriber fail (for example, if the entire primary Unified CM
subscriber fails), then both CCM and CTI Manager services running on the backup Unified CM
subscriber will become active, and the CTI Manager service will monitor and control the devices that
are registered to the CCM service located on the same backup Unified CM subscriber. If the primary CTI
Manager Service fails but the primary CCM Service is still running (assuming you have 1:1 redundancy
with a distribution of 100%/0% on the primary/backup Unified CM subscribers), then all the devices will
stay registered to the CCM Service running on the primary Unified CM subscriber, and the CTI Manager
running on the backup Unified CM subscriber will become active and will monitor and control the CTI
devices even though they are registered to a CCM service running on a different node (the primary
Unified CM subscriber in this case).
Capacity Planning for CTI
Ensure the capacity limits are not exceeded for the three types of CTI resources:
•
The maximum number of CTI applications connecting to a given CTI Manager instance
(Unified CM node running the CTI Manager service). This number is typically low with CTI
server-based application, but with CTI client-based applications such as Jabber clients in deskphone
mode where each Jabber client is considered a CTI application, it is important to ensure the limit is
not exceeded when deploying a large number of Jabber clients.
•
The maximum number of CTI-enabled endpoints registered to a given Unified CM call processing
subscriber.
•
The maximum number of CTI-enabled endpoints monitored and controlled by a CTI Manager
instance. Ideally, the CTI Manager service running on a Unified CM node monitors only the
endpoints registered to that Unified CM node. But it is possible that a CTI Manager service also
monitors endpoints registered to other Unified CM nodes.
The CTI limits are the same for all three CTI resources described above. The CTI capacity limits vary
with the type of OVA template. If the CTI limit is reached, deploy another pair of Unified CM call
processing nodes running the CTI Manager service.
IM and Presence Architecture
The Cisco Unified CM IM and Presence Service provides on-premises instant messaging and presence.
The main presence component of the solution is the IM and Presence Service, which incorporates the
Extensible Communications Platform (XCP) and supports SIP/SIMPLE and Extensible Messaging and
Presence Protocol (XMPP) for collecting information regarding a user's availability status and
communications capabilities. The user's availability status indicates whether or not the user is actively
using a particular communications device such as a phone.
Applications (either Cisco or third-party) can integrate presence and provide services that improve the
end user experience and efficiency. In addition, Cisco Jabber is a supported client of the IM and Presence
Service that also integrates instant messaging and presence status.
The IM and Presence Service uses the same underlying appliance model and hardware used by
Unified CM on the Cisco Unified Computing System (UCS) platform.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-7
Chapter 2
Call Control
Architecture
The IM and Presence Service is deployed as an IM and Presence cluster. The IM and Presence cluster
consists of up to six nodes, including one designated as a publisher and up to five subscriber nodes. As
discussed in the sections on Unified CM and IM and Presence Service Clustering and High Availability,
the IM and Presence nodes are grouped in subclusters and each subcluster consists of two nodes for high
availability. As discussed in the sizing section, a single subcluster can be deployed in order to support
up to 15,000 users. The IM and Presence publisher handles IM and presence requests, just like the IM
and Presence subscribers do, so the first subcluster consists of the IM and Presence publisher and one
IM and Presence subscriber.
As discussed in the section on Unified CM and IM and Presence Service Clustering, the IM and Presence
nodes are considered part of the larger Unified CM and IM and Presence Service cluster.
Deployment of the Unified CM and IM and Presence Service Cluster
The Cisco Unified CM and IM and Presence Service cluster consists of the following nodes:
•
1x Cisco Unified CM publisher
•
2x (1 pair) Cisco Unified CM TFTP server subscribers
•
2x (1 pair) Cisco Unified CM call processing subscribers (Add additional pairs to scale.)
•
2x (1 pair) Cisco Unified IM and Presence nodes (Add additional pairs, or subclusters, to scale.)
The number of Unified CM call processing pairs and of IM and Presence pairs to add in order to scale
is discussed in the chapter on Sizing.
Figure 2-4 shows an example of a Unified CM and IM and Presence Service cluster deployment with up
to 10,000 devices and 10,000 users. For more sizing information, refer to the Sizing chapter.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-8
November 20, 2015
Chapter 2
Call Control
Architecture
Figure 2-4
Unified CM and IM and Presence Service Cluster Deployment
Endpoints
Jabber
Cisco Jabber clients provides core collaboration capabilities for voice, video, and instant messaging to
users. Cisco Jabber is available on a wide variety of platforms including Windows, Mac, and mobile
devices such as smartphones and tablets.
Cisco Jabber can be deployed in either of two modes:
•
Full UC and Cisco Jabber for Everyone (IM only) Mode
This is the default mode. The user's primary authentication is to an IM and Presence server. This is
the mode used in this Preferred Architecture design and cover in this document.
•
Phone Mode
In phone mode, the IM and Presence Service is not required.
Figure 2-5 illustrates the architecture of an on-premises deployment that includes Cisco Unified
Communications Manager IM and Presence.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-9
Chapter 2
Call Control
Architecture
Figure 2-5
Cisco Unified Communications with IM and Presence Architecture
To connect to services, Cisco Jabber requires the following information:
•
Source of authentication that enables users to sign in to the client
In full UC or IM-only modes, the source of authentication is the IM and Presence service. In
phone-only mode, it is Unified CM.
•
Location of services
The services include IM and Presence, directory, CTI, voicemail, and conferencing.
To provide this information to the client, we recommend using the Service Discovery method over the
Manual Connection method. With the Service Discovery method, the client automatically locates and
connects to services.
In this design, the client automatically discovers services and configuration with the SRV record
_cisco-uds that is retrieved when the user first enters his or her email address in the Jabber client.
The Jabber Contact Sources can be an LDAP contact Source with an Enhanced Directory Integration
(EDI) for the Microsoft Windows desktops or a Basic Directory Integration (BDI) for other platforms
such as OS X, iOS, or Android. Another source for the contacts can be the Unified CM User Data Service
(UDS), but that will reduce the number of users supported on Unified CM.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-10
November 20, 2015
Chapter 2
Call Control
Architecture
Multi-Cluster Considerations
In a multi-cluster deployment, interconnect all the individual Unified CM clusters through SIP trunks.
To avoid session traversal through individual clusters, deploy a full mesh of SIP trunks. With four or
more clusters, deploy Cisco Unified CM Session Management Edition (SME) to centralize the dial plan
and trunking and to avoid the complexity of a full-mesh SIP trunk topology. Cisco Unified CM SME is
not covered in this document. For more information about SME, refer to the Cisco Collaboration SRND.
In multi-cluster deployments, use Global Dial Plan Replication (GDPR) to replicate dial plan
information between clusters. GDPR can advertise a +E.164 number, one Enterprise Significant Number
(ESN), and up to five alpha-numeric URIs per directory number. An ESN is the abbreviated inter-site
dialing equivalent of a directory number. The information advertised and learned through GDPR enables
deterministic intercluster routing for these dialing habits:
•
+E.164 dialing based on the advertised +E.164 numbers
•
Enterprise abbreviated inter-site dialing based on the advertised ESNs
•
Alpha-numeric URI dialing based on the advertised URIs
GDPR uses Intercluster Lookup Service (ILS) as the transport medium, therefore setting up ILS between
all Unified CM clusters is required for multi-cluster deployments. In addition to GDPR, UDS-based
service discovery used by Jabber also relies on the ILS exchange to detect the existence of UDS nodes
on remote clusters to which /cucm-uds/homeCluster requests of non-local users can be forwarded to
determine the home cluster of a user trying to log in to Jabber.
IM and Presence functionality is limited by having communications within a single cluster. To extend
presence and instant messaging capability and functionality, these standalone clusters can be configured
for peer relationships for communication between clusters within the same domain. This functionality
provides the ability for users in one cluster to communicate and subscribe to the presence of users in a
different cluster within the same domain. To create a fully meshed presence topology, each Cisco IM and
Presence cluster requires a separate peer relationship for each of the other Cisco IM and Presence
clusters within the same domain. The intercluster peer is configured as the IP address of the remote
Unified CM cluster IM and Presence publisher node.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-11
Chapter 2
Call Control
Architecture
Topology Example
For the purpose of this document, we assume a centralized call processing deployment serving three sites
in the US: SJC, RCD, and RTP. The Unified CM and IM and Presence Service servers are centrally
located in RCD. Central PSTN access is in RCD as well. SJC and RTP are assumed to be small sites,
with Survivable Remote Site Telephony (SRST) configured locally, with local PSTN access when the
WAN connectivity to the RCD site is down. Figure 2-6 illustrates this topology example.
Figure 2-6
Example Topology
The topology example used in this document for multi-cluster considerations is a two-cluster
deployment: the cluster in the United States as shown in Figure 2-6, and a second cluster to cover
Europe, the Middle East, and Africa (EMEA).
Certificate Considerations
Whenever a certificate needs to be checked during session establishment, either between two servers or
between a central service and a client application such as Cisco Jabber for Windows, the certificate must
pass the following checks:
•
Validity — The current time and date must be within the certificate’s validity range.
•
Trust — The certificate must be trusted. A certificate is considered trusted if the signing (issuing)
party is trusted. Trust with signing parties typically is established by importing the certificate of the
signing party into a store of trusted certificates.
•
Identity — The subject or identity for which the certificate is issued must match the identity that the
initiator of the session intended to reach.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-12
November 20, 2015
Chapter 2
Call Control
Architecture
By default all certificates used by Unified CM and IM and Presence are self-signed certificates. While
the validity and identity aspect of the above checks does not create any special problems with the
self-signed certificates, the trust aspect is an issue. To establish trust with a service based on a self-signed
certificate, the self-signed certificate must be imported into the trusted certificates store of all entities
requiring secure connections to the service. This can be handled if the set of communicating parties is
small, but it becomes more difficult for large numbers of communication peers (for example, client
applications such as Jabber).
If certificate validation fails on Jabber clients, then the user is prompted and can accept the certificate,
which then is added to the trusted certificate store. This should be avoided because being prompted
multiple times to accept a number of certificates during startup of the client is not the best user
experience. Even more important is the fact that most users will not actually verify whether the presented
certificate is correct by checking the certificate's fingerprint, and instead will just accept any certificate.
This breaks the security concept of certificate-based authentication for secure session establishment.
For these reasons, the recommended deployment of Cisco Jabber clients requires that certificate
validation during startup of the clients must not fail. This can be achieved in either of two ways:
•
Use self-signed certificates and pre-distribute all required self-signed certificates to the devices'
certificate stores.
In Windows environments certificates can be added to devices' certificate stores via Microsoft group
policies.
•
Use certificates issued by a certificate authority (CA).
In this case the self-signed certificates used by the infrastructure services are replaced by certificates
issued and signed by a trusted CA. To establish trust with the CA, the CA's root certificate is added
to the trusted certificates store of all clients. By default most client devices include all of the major
public CA root certificates in their trusted certificate store.
The second option is the recommended approach because it allows issue of new service certificates
without having to update all client trusted certificate stores as long as the signing CA's root certificate
has already been added to the trusted certificates stores of all clients.
DNS Considerations
As explained in the previous section, the identity of server certificates presented during connection setup
is validated. This implies that clients need to initiate connections based on fully qualified domain names
(FQDNs) so that the subject in the presented certificate really can be checked against the identity to
which the client intends to connect. The use of FQDNs for connection initiation implies that DNS is a
fundamental requirement. The enterprise DNS needs to be set up so that name resolution is reliably
available for all clients and servers in the network. In addition to providing reliable FQDN-to-IP-address
(and reverse) resolution, DNS also is required for the automatic service discovery process used by Jabber
clients.
During startup, Jabber clients locate the UDS service required for UDS-based service discovery by
trying to resolve the _cisco-uds._tcp SRV using DNS. For best redundancy and load balancing, we
recommend provisioning DNS SRV records with equal priority and weight for the Unified CM publisher
and TFTP nodes.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-13
Chapter 2
Call Control
Architecture
Endpoint Addressing
All directory numbers on endpoints with DID address are provisioned as +E.164 numbers. The benefits
of this approach include the following:
•
+E.164 directory numbers are unique by definition.
•
+E.164 directory numbers enable one dialing habit (+E.164) directly without requiring any further
dial plan configuration.
•
+E.164 directory numbers simplify the implementation of forced on-net routing.
•
Configuration of Automated Alternate Routing (AAR) is greatly simplified. There is no need to
provision multiple AAR groups and AAR PSTN prefixes because the target on-net destination can
be used directly as an alternate PSTN address; it is a +E.164 number.
•
Correct caller ID is automatically achieved for all call flows (direct, forwarded, on-net, and off-net).
Unique addresses are also required for endpoints without an associated DID (for example, lobby phones)
and enterprise services (for example, call pickup, call park, and so forth). Since no +E.164 number exists
for them, we recommend the use of an alternate enterprise specific numbering (ESN) schema to address
them. The recommended format for the ESN schema is an access code chosen so that no overlap between
ESN dialing and other dialing habits is created, followed by a site code and the intra-site extension. The
length of the site code and extension is a trade-off between providing a large enough number space and
keeping the ESN dialing as short as possible.
+E.164 Routing and Dialing Normalization
To achieve the intended forced on-net routing (calls to any on-net destination dialed using any of the
supported numeric dialing habits has to be routed on-net), the recommended dial plan design uses a
two-step routing approach. In the first step, the dialed digit string is normalized to +E.164, if possible
(calls to non-DIDs obviously cannot be normalized to +E.164), and then in the second step the resulting
+E.164 digit string is matched against a +E.164 numeric plan that includes directory numbers and route
patterns.
The dialing normalization is achieved by provisioning translation patterns matching on the non+E.164
dial strings, and then the dialed string is transformed to +E.164 through the called party transformations
on the translation patterns.
Figure 2-7 shows an example of a dialing normalization translation pattern that can be used to normalize
abbreviated intra-site dialing in SJC to the full +E.164 number of the dialed destination. If a user in site
SJC dials 4001, this dialed string is matched by a translation pattern 4XXX; and the called party
transformation mask configured on the translation pattern, when applied to 4001, creates the resulting
digit string +14085554001, which then can be routed in a +E.164 routing schema.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-14
November 20, 2015
Chapter 2
Call Control
Architecture
Figure 2-7
Example Dialing Normalization Translation Pattern
After applying the called party transformations defined on a translation pattern, Unified CM then
executes a secondary lookup of the resulting digit string using the calling search space (CSS) defined on
the translation pattern. Unified CM enables definition of translation patterns that use the originator's
CSS for this secondary lookup. This allows definition of dialing normalization translation patterns that
can be reused in multiple context, because after applying the dialing normalization, the secondary
lookup of the normalized digit string is executed, not based on a single fixed CSS, but based on the CSS
in effect when the translation pattern was engaged.
Tip
On dialing normalization translation patterns, set the option Use Originator's Calling Search Space so
that the CSS used for the secondary lookup is identical to the CSS used for the primary lookup.
Tip
On dialing normalization translation patterns that are fixed length (they do not end with a variable length
wildcard), also set the option Do Not Wait For Interdigit Timeout On Subsequent Hops so that even
if the secondary lookup matches on a variable length route pattern, the call is still routed without
inter-digit timeout.
Classes of Service and Calling Search Spaces (CSSs)
Partitions and CSSs are the fundamental components in Unified CM used to build classes of service.
Dialable patterns are grouped into equivalence classes by putting patterns belonging to the same class
into the same partition. Each CSS then is a list of partitions that defines which partitions and, thus, which
patterns a calling entity using the CSS can access. A CSS effectively enforces class of service by
determining which destinations can be reached from a device using this CSS.
The number of classes of service defined is the major factor driving dial plan complexity, and thus the
number of required classes of service should be as small as possible. In a well designed enterprise dial
plan, re-use of patterns and partitions for multiple classes of service helps to simplify the dial plan
deployment.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-15
Chapter 2
Call Control
Architecture
Outbound Gateway Selection Using Local Route Group
Following the maxim to avoid and eliminate redundancies in the dial plan as much as possible, the
concept of Local Route Groups (LRGs) is used to define the egress gateway selection.
Route patterns using a local route group offer a unique characteristic: they allow for dynamic selection
of the egress gateway based on the device originating the call. By contrast, calls routed by route patterns
using static route groups will route the call to the same gateway, no matter which device originated the
call. Route patterns configured to refer to a route list that makes use of LRGs will resolve to the actual
route group configured as the LRG in the calling party's device pool.
This allows for re-use of route patterns that are not specific to each site, instead of requiring you to
provision site-specific route patterns that are directly associated with the egress gateway of the
respective site.
Outbound Calls: Called and Calling Number Localization
The dial plan design presented in this document uses local route groups for egress gateway selection
based on the calling device. Hence, calling and called party transformations required to adapt to service
provider requirements cannot be done on the route pattern or route list level. These transformations
would be shared among all gateways. Instead, these service provider specific transformations to localize
calling and called party information are configured either on the gateway using Cisco IOS voice
translation rules or on Unified CM using calling and called party transformation patterns addressed by
calling and called party transformation CSSs configured on the gateway or on the gateway's device pool.
Inbound Calls: Called and Calling Number Globalization
Because all call routing on Unified CM is based on +E.164 numbers for all incoming calls arriving at
Unified CM, we need to make sure that called party information is globalized to +E.164 from the format
received on the link from the provider. This is achieved through a combination of Cisco IOS translations
on the SIP gateways (required to avoid loss of number type information received from the ISDN network
when sending the request to Unified CM over SIP) and prefixes and possibly calling and called number
transforms configured on Unified CM.
User Provisioning with LDAP Synchronization
Synchronization of Unified CM with a corporate LDAP directory allows the administrator to provision
users easily by mapping Unified CM data fields to directory attributes. Critical user data maintained in
the LDAP store is copied into the appropriate corresponding fields in the Unified CM database on a
scheduled basis. The corporate LDAP directory retains its status as the central repository. Unified CM
has an integrated database for storing user data and a web interface within Unified CM Administration
for creating and managing user accounts and data. When LDAP synchronization is enabled, the local
Unified CM database is still used, and additional local end-user accounts can be created. Management
of end-user accounts is then accomplished through the interface of the LDAP directory and Unified CM
Administration.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-16
November 20, 2015
Chapter 2
Call Control
Architecture
User Authentication with LDAP
The LDAP authentication feature enables Unified CM to authenticate LDAP synchronized users against
the corporate LDAP directory. Locally configured users are always authenticated against the local
database. Also, PINs of all end users are always checked against the local database only.
To enable authentication, a single authentication agreement is defined for the entire cluster.
The following statements describe Unified CM's behavior when authentication is enabled:
•
End user passwords of users imported from LDAP are authenticated against the corporate directory
by a simple bind operation.
•
End user passwords for local users are authenticated against the Unified CM database.
•
Application user passwords are authenticated against the Unified CM database.
•
End user PINs are authenticated against the Unified CM database.
In environments that employ a distributed Active Directory topology with multiple domain controllers
geographically distributed, authentication speed might be unacceptable. When the Domain Controller
for the authentication agreement does not contain a user account, a search must occur for that user across
other domain controllers. If this configuration applies to your deployment, and login speed is
unacceptable, it is possible to set the authentication configuration to use a Global Catalog Server.
An important restriction exists, however. A Global Catalog does not carry the employeeNumber attribute
by default. In that case either use Domain Controllers for authentication (beware of the limitations listed
above) or update the Global Catalog to include the employeeNumber attribute. Refer to Microsoft Active
Directory documentation for details.
To enable queries against the Global Catalog, configure the LDAP Server Information in the LDAP
Authentication page to point to the IP address or host name of a Domain Controller that has the Global
Catalog role enabled, and configure the LDAP port as 3268.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-17
Chapter 2
Call Control
Deployment Overview
Deployment Overview
Deployment begins with provisioning of the centralized Cisco Unified CM cluster followed by further
configuration and provisioning tasks. The following sections describe how to set up and configure the
call control according to the Preferred Architecture design in this document:
•
DNS Requirements
•
Provision the Cisco Unified CM and IM and Presence Service Cluster
•
Cisco Unified CM and IM and Presence Certificate Management
•
Initial Cisco Unified CM Configuration
•
Other IM and Presence Settings
•
Dial Plan Configuration
•
LDAP System Configuration
•
Cisco Unified CM Group Configuration
•
Phone NTP References
•
Date and Time Groups
•
Media Resources
•
Device Pools
•
SIP Trunks
•
Endpoint Provisioning
•
ILS Configuration for Multi-Cluster Deployments
•
GDPR Configuration (Multi-Cluster Only)
•
Survivable Remote Site Telephony (SRST) Deployment
•
Extension Mobility
•
Busy Line Field (BLF) Presence
•
Deploying Computer Telephony Integration (CTI)
DNS Requirements
Before deploying the solution, make sure DNS resolution is available for all servers to be deployed. Both
forward (from DNS name to IP address) and reverse (from IP address to DNS name) lookups have to be
configured in the enterprise DNS.
In addition to enabling UDS-based service discovery for Jabber clients, provision DNS SRV records for
all Unified CM publisher and TFTP subscriber nodes, defining these as service locations for _cisco-uds.
Example 2-1 shows an example of DNS SRV records defining a number of Unified CM nodes as
_cisco-uds service locations.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-18
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Example 2-1
DNS SRV Record for UDS-Based Service Discovery
_cisco-uds._tcp.ent-pa.com
priority
=
weight
=
port
=
srv hostname
=
_cisco-uds._tcp.ent-pa.com
priority
=
weight
=
port
=
srv hostname
=
_cisco-uds._tcp.ent-pa.com
priority
=
weight
=
port
=
srv hostname
=
SRV service location:
10
10
8443
us-cm-pub.ent-pa.com
SRV service location:
10
10
8443
us-cm-tftp1.ent-pa.com
SRV service location:
10
10
8443
us-cm-tftp2.ent-pa.com
In Example 2-1, three Unified CM nodes (publisher and two TFTP subscriber nodes) are defined as
service locations for UDS service discovery to make sure that the load of the initial UDS requests from
Jabber clients making use of UDS service discovery are evenly distributed among all active Unified CM
nodes.
As part of the UDS service discovery process, after locating the home cluster using the /cucm
uds/clusterUser resource, Jabber clients will use the /cucm-uds/servers resource to get a list of all UDS
nodes in the user's home cluster, so that the actual UDS requests during the registration process are load
balanced between all UDS nodes of the cluster even if the SRV records defined only the publishers as
service locations.
Provision the Cisco Unified CM and IM and Presence Service Cluster
To deploy the Unified CM and IM and Presence Service cluster, perform the following tasks:
1.
Determine the number of required call processing subscriber pairs based on the target number of
users and devices.
2.
Determine the number of required IM and Presence nodes based on the target number of users.
3.
Determine the network parameters (DNS names, IP addresses, and so forth) for all required cluster
members. Make sure to consider the TFTP servers also.
4.
Deploy the required number of virtual machines on your compute infrastructure using the
appropriate Cisco provided OVA template files. For information on how to obtain these OVA files,
refer to the documentation at
http://docwiki.cisco.com/wiki/Downloading_OVA_Templates_for_UC_Applications
5.
In Cisco Prime Collaboration Deployment, define the Unified CM cluster with all its members, and
map the nodes to the virtual machines created in task 4.
6.
Deploy all nodes using Cisco Prime Collaboration Deployment.
For more information on how to provision a cluster using Cisco Prime Collaboration Deployment, refer
to the Cisco Prime Collaboration Deployment Administration Guide, available at
http://www.cisco.com/c/en/us/support/unified-communications/unified-communications-managercallmanager/products-maintenance-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-19
Chapter 2
Call Control
Deployment Overview
Cisco Unified CM and IM and Presence Certificate Management
As explained earlier, we recommend using certificates issued by a trusted CA to allow for easier client
certificate validation of all certificates listed in Table 2-2.
Table 2-2
Certificates Validated by Cisco Jabber Clients
Service
Certificate
Description
Validated by
Cisco Unified CM
Tomcat
Unified CM web services
certificate
Browser accessing GUI
Jabber clients
Cisco Unified CM IM
and Presence Service
Tomcat
Unified CM IM and Presence
web services certificate
Browser accessing GUI
Jabber clients
Cisco Unified CM IM
and Presence Service
cup-xmpp
Unified CM IM and Presence
XMPP service certificate
Jabber clients
Unity Connection web services
certificate
Browser accessing GUI
Jabber clients
Cisco Unity Connection Tomcat
Steps required prior to replacing self-signed certificates with CA issued certificates:
1.
Obtain the root certificate of the CA you plan to use to issue the certificates.
2.
Navigate to the OS administration GUI of Unified CM.
3.
Upload the CA root certificate as tomcat-trust.
4.
Navigate to the OS administration GUI of Unified CM IM and Presence.
5.
Upload the CA root certificate as xmpp-trust.
6.
Navigate to the OS administration GUI of Cisco Unity Connection.
7.
Upload the CA root certificate as tomcat-trust.
Steps to replace a self-signed certificate with a CA issued certificate:
1.
Navigate to the OS administration GUI of the respective platform:
– For Unified CM and Unified CM IM and Presence Tomcat certificate, use the Unified CM OS
GUI.
– For Unified CM IM and Presence cup-xmpp certificate, use the Unified CM IM and Presence
OS GUI.
– For Cisco Unity Connection Tomcat certificate, use Unity Connection OS GUI.
Tip
2.
Generate a certificate signing request (CSR) for the desired certificate. Make sure to always set
distribution to Multi-Server (SAN).
3.
Download the CSR.
4.
Obtain a CA signed certificate from the trusted CA for the generated CSR.
5.
On the OS administration GUI from step 1, upload the obtained CA issued certificate.
A single multi-server certificate signing request should be generated for all certificates so that only a
single certificate of a given type is required per cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-20
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Tip
Make sure that the X.509 key usage and X.509 extended key usage in the issued certificate match the
request in the CSR (see Table 2-3).
As mentioned above, it is important to make sure that certificates issued by the CA have the required key
usage and extended key usage. A typical problem is that the CA issuing the certificate based on the
provided CSR does not simply issue a certificate with the key usage and extended key usage copied from
the CSR, but instead sets the key usage and extended key usage of the issued certificate based on settings
in a template selected for issuing the certificate. A certificate issued based on a typical Web Server
template, for example, will not have the TLS Web Client Authentication extended key usage include.
This creates problems with inter-server communications – for example, Intercluster Lookup Service
(ILS) and User Data Store (UDS) – where the Tomcat certificate on the initiating side of the TLS
connection is also used as a client certificate, and thus TLS connection setup fails due to the incorrect
key usage (see the section Consider UDS Certificate Requirements).
Table 2-3
Key Usage Requirements for Tomcat and cup-xmpp Certificates
X.509 Key Usage
X.509 Extended Key Usage
Digital Signature
TLS Web Server Authentication
Key Encipherment
TLS Web Client Authentication
Data Encipherment
IPSec End System
Key Agreement
Initial Cisco Unified CM Configuration
Immediately after installing the Unified CM cluster, perform the following basic configuration tasks:
•
Node Name Configuration
•
Enterprise Parameter Settings
•
Service Activation
•
Service Parameter Settings
Node Name Configuration
To allow for correct certificate validation and to ensure that references to Unified CM cluster members
can always be resolved correctly, set the node names under System/Server in the Unified CM
administration GUI to fully qualified domain names (FQDNs) for all cluster members. To achieve this,
navigate to System/Server in the Cisco Unified CM administration GUI and verify that all servers show
up in the first column as FQDNs. Change the entries of servers showing up as only a hostname without
a DNS domain, to FQDNs.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-21
Chapter 2
Call Control
Deployment Overview
Enterprise Parameter Settings
Check and update the Enterprise Parameters listed in Table 2-4.
Table 2-4
Enterprise Parameters
Enterprise Parameter
Description
Value
Cluster ID
Used to uniquely identify the Unified CM cluster in a number of
intercluster features, including Intercluster Lookup Service (ILS)
and intercluster call admission control
Example: USCluster
Auto Registration Phone
Protocol
Signaling protocol provisioned for auto-registering phones
SIP
BLF For Call Lists
Specifies whether call lists in phones supporting this feature should Enabled
show presence
Advertise G.722 Codec
Allows G.722 between compatible devices
Enabled
URI Lookup Policy
According to RFC 3261, when determining SIP URI equivalence,
the check on the left-hand side (user portion) of the URI has to be
case-sensitive. The default behavior of Unified CM is to adhere to
this standard, but to avoid potential issues with URIs using mixed
capitalization, it is typically better to change the default.
Case Insensitive
Enable Dependency Records Dependency records simplify the administration of Unified CM.
True
Auto select DN on any
Partition
Simplifies administration. If enabled, the directory number
True
configuration page automatically gets populated with the data of the
first matching directory number.
CDR File Time Interval
Determines the time interval for call detail record (CDR) file
updates
10
Enable Dependency Records URLs used by endpoints for various purposes
True
Organization Top Level
Domain
Example: ent-pa.com
Cluster Fully Qualified
Domain Name
When routing numeric SIP URIs, Unified CM considers SIP URIs
with the right-hand side (host portion) of the URI matching the
configured Cluster Fully Qualified Domain Name (CFQDN) as
destinations to be routed according to the configured local numeric
dial plan. If no match is found for the numeric left-hand side of the
URI in the configured numeric dial plan, then Unified CM rejects
the call. For more details, see the section on Routing of SIP Requests
in Unified CM in the Dial Plan chapter of the Cisco Collaboration
System 11.x SRND.
Space-separated list of
all Unified CM call
processing nodes in the
cluster.
Example:
us-cm-sub1.ent-pa.com
us-cm-sub2.ent-pa.com
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-22
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Service Activation
Table 2-5 summarizes the services to be activated on the Unified CM publisher node, the dedicated
Unified CM TFTP server subscriber nodes, and the Unified CM call processing subscriber nodes.
Table 2-5
Unified CM Node Service Activation
Service
Publisher
Dedicated TFTP Subscriber
Call Processing Subscriber
CM Services
Cisco CallManager
Yes
Cisco IP Voice Media Streaming App
Yes
Cisco CTIManager
Yes
Cisco Intercluster Lookup Service
Yes
Cisco Location Bandwidth Manager
Yes
Cisco Dialed Number Analyzer Server
Yes
Cisco Dialed Number Analyzer
Yes
Cisco Tftp
Yes
CTI Services
Cisco WebDialer Web Service
Yes
Database and Admin Services
Cisco Bulk Provisioning Service
Yes
Cisco AXL Web Service
Yes
Performance and Monitoring Services
Cisco Serviceability Reporter
Yes
Cisco CallManager SNMP Service
Yes
Yes
Yes
Yes
Yes
Yes
Security Services
Cisco CTL Provider
Cisco Certificate Authority Proxy Function Yes
Directory Services
Cisco DirSync
Yes
Table 2-6 lists the services to be activated on Cisco Unified CM IM and Presence publisher and
subscriber nodes.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-23
Chapter 2
Call Control
Deployment Overview
Table 2-6
Unified CM IM and Presence Node Service Activation
Service
Publisher
Subscriber
Cisco AXL Web Service
Yes
Yes
Cisco Bulk Provisioning Service
Yes
Cisco Serviceability Reporter
Yes
Cisco SIP Proxy
Yes
Yes
Cisco Presence Engine
Yes
Yes
Cisco XCP Connection Manager
Yes
Yes
Cisco XCP Authentication Service
Yes
Yes
Service Parameter Settings
Some service parameters of the Cisco CallManager service are global in nature and need to be set only
once in Unified CM Administration. lists the global service parameter settings for Cisco CallManager
service are listed in Table 2-7.
Table 2-7
Note
Only non-default Service Parameter and other configuration field values are specified in this document.
If a field configuration value is not mentioned, then the default value should be assumed.
Note
Some of the service parameters listed are advanced service parameters.
Global Service Parameters
Service Parameter
Value
Description
Apply Transformations On
Remote Number
True
Makes sure that calling party transformations are also applied
mid-call; for example, if a call is transferred from one party to
another.
T302 Timer
5000
Whenever a destination is dialed digit-by-digit and based on
the numeric dial plan provisioned in Unified CM, no
immediate deterministic decision can be made about which
provisioned pattern has to be considered for the dialed
destination. Because a potential longer match (could be
variable length) exists, the T302 inter-digit timeout has to
expire before Unified CM selects the best route and routes the
call. The default of 15,000 milliseconds (ms) typically is too
long.
Automated Alternate
Routing Enable
Enable AAR
This service parameter globally enables automated alternate
routing (AAR).
Call Diagnostics Enabled
Enable Only When CDR
Enabled Flag is True
This parameter determines whether call management records
(CMR), also called diagnostic records, are generated.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-24
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-7
Global Service Parameters (continued)
Service Parameter
Value
Description
G.722 Codec Enabled
Enabled to All Devices
Except Recording-Enabled
Devices
G.722 disabled on recording-enabled devices to avoid
problems with G.722 not being supported by the recorder.
Stop Routing on Q.931
Disconnect Cause Code
3 21 27 28 38 42 63
Allows Unified CM to stop hunting down the configured hunt
list when receiving specific Q.850 cause codes.
Other service parameters of the Cisco CallManager service must be set explicitly as shown in Table 2-8
for each Unified CM call processing node.
Table 2-8
Per-Node Service Parameters
Service Parameter
Value
Description
CDR Enabled Flag
True
This parameter enables the generation of call
detail records (CDR).
CDR Log Calls with Zero
Duration Flag
True
This parameter enables or disables the logging of
call detail records (CDRs) for calls that never
connected or that lasted less than 1 second.
Digit Analysis Complexity
TranslationAndAlternatePatternAnalysis This parameter specifies the amount of digit
analysis information that CCM trace files will
provide.
Other IM and Presence Settings
Previous sections discussed the IM and Presence service activation, certificates management, and the IM
and Presence SIP trunk configuration. In addition to that, configure settings on IM and Presence servers:
•
Configure a Unified CM domain in the IM&P Cisco SIP Proxy Service Parameter.
•
In Cisco Unified CM IM and Presence Administration > Presence > Settings > Standard
Configuration:
– Configure a Cluster ID value.
– Enable availability sharing. If not enabled, users can view only their own availability status.
– Check Enable ad-hoc presence subscriptions to turn on ad-hoc presence subscriptions for
Cisco Jabber users.
•
In Cisco Unified CM IM and Presence Administration > Presence > Routing > Settings:
– Configure Proxy Server Settings: Enable Method/Event Routing Status
•
In Cisco Unified CM IM and Presence Administration > Messaging > Settings:
– Enable instant messaging.
Also configure UC services for Jabber clients, as described in the section on Jabber Provisioning.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-25
Chapter 2
Call Control
Deployment Overview
Dial Plan Configuration
A structured, well-designed dial plan is essential to successful deployment of any call control system.
The design of an enterprise dial plan needs to cover these main areas:
•
Endpoint addressing
•
General numbering plan
•
Dialing habits
•
Routing
•
Classes of service
The recommended dial plan design follows the design approach documented in the Dial Plan chapter of
the Cisco Collaboration System 11.x SRND.
Example Topology
For the purpose of this document, we assume a centralized call processing deployment serving three sites
in the US: SJC, RCD, and RTP. Table 2-9 provides the DID (direct inward dial) ranges for these sites.
Table 2-9
DID Ranges for Example Sites
Site
DID range
SJC
+1 408 555 4XXX
RCD
+1 972 555 5XXX
RTP
+1 919 555 1XXX
Endpoint Addressing
For endpoints with DID addresses, directory numbers are provisioned as full +E.164 numbers, where
+E.164 represents a leading "+" followed by the full global E.164 phone number. To provision a +E.164
directory number in Unified CM, the leading "+" has to be escaped; for example, extension 4001 in SJC
would have to be provisioned as \+14085554001.
Some endpoints will not have DIDs because not enough DIDs are available from the provider or because
the associated devices do not need to be reachable from the PSTN (for example, lobby phones). For these
endpoints no DIDs (E.164 numbers) exist, and thus an address format other than +E.164 is required for
these endpoints. This address format is discussed in the section on General Numbering Plan.
Addressing Enterprise Services for External Access
Some services have assigned PSTN numbers. An example of this might be a voicemail pilot number that
has to be reachable from the outside to enable users to call into voicemail from the PSTN. PSTN E.164
numbers for these services have to be reserved from the DID ranges assigned by the PSTN providers.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-26
November 20, 2015
Chapter 2
Call Control
Deployment Overview
General Numbering Plan
In addition to endpoints with associated DIDs for which +E.164 addresses can be used, a number of
additional destinations exist for which no DIDs exist:
•
Lobby phones
•
Regular endpoints for which no DIDs could be assigned by the provider
•
Services (call pickup numbers, call park numbers, conferences, and so forth)
In this document we refer to these types of destinations as non-DIDs.
Addresses for these non-DIDs, similar to +E.164 addresses, must be unique system-wide to avoid
site-specific partitions for non-DIDs. The recommended solution is to introduce an enterprise specific
numbering (ESN) schema for all non-DIDs. This ESN schema follows the structure of typical
abbreviated inter-site dialing:
•
Access-code
A single-digit access code for abbreviated inter-site dialing. In the design phase, choose the access
code so that there is no overlap with any other enterprise dialing habit (see below).
•
Site-code
A digit sequence uniquely identifying a site in the network. In the design phase, choose the length
of the site code so that it not only covers all existing sites, but also allows for growth.
•
Extension
A digit sequence uniquely identifying the respective entity within the site.
In this document we use 8 as the access-code for abbreviated inter-site dialing, and thus all ESNs start
with 8 and use a three-digit site code and a four-digit extension. Table 2-10 indicates an ESN range for
the DID and non-DID numbers for each site in our example.
Table 2-10
ESN Ranges for DIDs and Non-DIDs
Site
+E.164 Range
Site Code
ESN Range for DIDs
ESN Range for Non-DIDs
SJC
+1 408 555 4XXX
140
8-140-4XXX
8-140-5XXX
RCD
+1 972 555 5XXX
197
8-197-5XXX
8-197-6XXX
RTP
+1 919 555 1XXX
191
8-191-1XXX
8-191-2XXX
The plan is to use the same site code for DIDs and non-DIDs, but the first digit of the extension for
non-DIDs is different from the first digit of the DID extensions. This also allows for abbreviated
four-digit intra-site dialing to non-DIDs and DIDs.
While the ESN ranges in Table 2-10 leave room in the ESN plan for site-specific numbers, there is also
a requirement to assign number ranges for non-site-specific services such as, for example, scheduled
conferences. Table 2-11 shows an example of how this requirement can be addressed by reserving a
dedicated site code (in this case 099).
Table 2-11
ESN Ranges for Conferences
ESN Range
Usage
8099[12]XXX
Scheduled conferences
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-27
Chapter 2
Call Control
Deployment Overview
Dialing Habits
Dialing habits describe what end users must dial to reach various types of destinations. Dialing habits
can first be classified as numeric dialing (for example, 914085550123) or alphanumeric dialing (for
example, [email protected]).
In this design, in addition to alpha URI dialing, the numeric dialing habits shown in Table 2-12 are
supported.
Table 2-12
Supported Numeric Dialing Habits
Dialed Pattern
Example (site SJC)
Type of Destination
XXXX
4001 (DID)
Abbreviated intra-site dialing to reach a destination at
the same site.
5001 (non-DID)
The called destination can be a DID, a non-DID, or a
service number.
+E.164
+14085554001 (on-net, SJC)
+19195551001 (on-net, RTP)
+1212551001 (off-net)
Access code–site code–extension
8-140-4001 (DID, SJC)
8-140-5001 (non-DID, SJC)
8-191-1001 (DID, RTP)
8-191-2001 (non-DID, RTP)
Full +E.164 dialing for example from directories. The
dialed destination can be on-net or off-net. The
implemented dial plan makes sure that calls to on-net
destinations dialed as +E.164 are routed on-net.
Non-DIDs obviously cannot be called as +E.164.
Abbreviated inter-site dialing to reach a destination at
the same site or a different site. The called destination
can be a DID, a non-DID, or a service number. The
access code (8 in the example) has to be selected so that
it does not overlap with any other dialing habit; for
example any abbreviated intra-site dialing: access code
8 for inter-site dialing prohibits four digit intra-site
dialing starting with 8.
*E.164
*12125551567
Dialing of a video call through dedicated video ISDN
gateways. The * is used to create a specific dialing habit
with no overlap to any other numeric(!) dialing habit.
To avoid the use of * also a number area starting with
the abbreviated inter-site access code 8 can be used: for
example 8000-<E.164>.
91-<10 digits>
914085554001 (on-net, SJC)
US specific habitual PSTN dialing of national
destinations. The implemented dial plan ensures that if
the dialed destination is on-net then the call is routed
on-net. The leading 9 here is the PSTN access code
typically used in the US.
919195551001 (on-net, RTP)
912125551001 (off-net)
9011-<E.164 number>
90114961007739764
US specific habitual PSTN dialing of international
destinations. The implemented dial plan makes sure
that if the dialed destination is on-net then the call is
routed on-net.
In general, using fewer supported dialing habits simplifies the design. Starting the design process with
an overview of all dialing habits makes sure that overlaps between any two dialing habits leading to
inter-digit timeouts are detected and can be resolved before starting the dial plan deployment. Avoiding
overlaps with any other (typically on-net) dialing habit is the key reason for using a PSTN access code
(typically 9 in the US, as shown above).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-28
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Partitions
When defining the partitions and CSSs provisioned to build an enterprise dial plan, one goal is to avoid
replication of duplicate configuration as much as possible. Following this maxim, Table 2-13 shows the
global (that is, not site or country specific) partitions required.
Table 2-13
Global Partitions
Partition
Description
DN
Holds all +E.164 directory numbers and other local on-net +E.164
destinations (for example, pilot numbers reachable from the PSTN). All
+E.164 patterns are provisioned as urgent patterns.
ESN
Holds all Enterprise Specific Numbers (ESNs). This includes ESN directory
numbers (for example, for non-DID phones) as well as dialing normalization
translation patterns transforming from abbreviated inter-site dialing of DIDs
to +E.164.
PSTNInternational
Holds +E.164 route patterns required to provide PSTN access to
international destinations.
URI
Holds manually provisioned URIs.
onNetRemote
Holds all patterns of remote on-net destinations. In environments with
multiple Unified CM clusters, this includes all remote number ranges
learned via Global Dial Plan Replication (GDPR).
B2B_URI
Holds SIP route patterns required for business-to-business (B2B) URI
dialing through the Internet.
Directory URI
System Partition where all auto-generated URIs are put. This partition does
not need to be created. It is listed here for reference to introduce the partition,
which is used again later in this document.
All of the partitions Table 2-13 except the Directory URI partition must be created. In addition to the
pattern classes represented by these global partitions, several site, country, or class-of-service specific
pattern classes are required, as show in Table 2-14.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-29
Chapter 2
Call Control
Deployment Overview
Table 2-14
Country or Site Specific Partitions
Partition
Description
USPSTNNational
Holds +E.164 route patterns required to provide PSTN access to national
destinations in the US. To support other countries, and thus other
country-specific dialing habits, a country appropriate xxPSTNNational
partition (where xx represents the country; for example, DEPSTNNational,
UKPSTNNational, ITPSTNNational) also needs to be provisioned, which
then holds the +E.164 route patterns required to provide PSTN access to
national destinations of that country.
The reason we differentiate between international PSTN access (see
Table 2-13) and national PSTN access is that we need to be able to build
differentiated classes of service allowing calls to reach national only, or
national and international destinations.
USToE164
Holds dialing normalization translation patterns to transform US specific
habitual PSTN dialing (for example, 91-<10 digits>) to +E.164. To support
other countries, and thus other country-specific dialing habits, a country
appropriate xxToE164 partition (where xx represents the country; for
example, DEToE164, UKToE164, ITToE164) also needs to be provisioned,
which then holds the dialing normalization translation patterns required to
transform the country specific habitual PSTN dialing to +E.164.
USEmergency
Holds route patterns required to provide access to emergency calls using the
US specific emergency dialing habits.
USPhLocalize
Holds calling party transformation patterns to localize +E.164 calling party
numbers for abbreviated display on phones in the US.
<site>Intra
Site-specific intra-site dialing. For example: SJCIntra. Holds dialing
normalization patterns to transform site-specific abbreviated intra-site
dialing to DIDs, or non-DIDs to +E164 or ESN, respectively.
<site>PhLocalize
Site-specific. For example: SJCPhLocalize. Holds calling party
transformation patterns to localize +E.164 calling party numbers for
abbreviated display on phones in a given site.
As emergency calls are placed using country specific dialing habits, partition USEmergency with the
route patterns enabling the US dialing habit for emergency calls also is country specific. To also support
other dialing domains (countries), the equivalent partitions for these other dialing domains (for example,
DEEmergency, ITEmergency, DEPhLocalize, ITPHLocalize, for Germany and Italy respectively) would
need to be created.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-30
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Dialing Normalization Translation Patterns
Table 2-15 summarizes which dialing normalization translation patterns need to be provisioned using the
partitions from the previous section. All dialing normalization translation patterns are provisioned as
urgent patterns and have Use Originator's Calling Search Space set as described in section on
Partitions so that, after applying the called party transformation defined in the dialing normalization
translation pattern, the original CSS is used to find the final match for the dialed destination.
Table 2-15
Summary of Dialing Normalization Translation Patterns
Partition
Pattern
Called Party
Transformation Mask
Note
ESN
81404XXX
+14085554XXX
Abbreviated inter-site dialing to site SJC
ESN
81975XXX
+19725555XXX
Abbreviated inter-site dialing to site RCD
ESN
81911XXX
+19195551XXX
Abbreviated inter-site dialing to site RTP
SJCIntra
4XXX
+14085554XXX
Abbreviated intra-site dialing in site SJC to DID in
SJC
SJCIntra
5XXX
81405XXX
Abbreviated intra-site dialing in site SJC to non-DID
in SJC
RCDIntra
5XXX
+19725554XXX
Abbreviated intra-site dialing in site RCD to DID in
RCD
RCDIntra
6XXX
81976XXX
Abbreviated intra-site dialing in site RCD to non-DID
in RCD
RTPIntra
1XXX
+19195551XXX
Abbreviated intra-site dialing in site RTP to DID in
RTP
RTPIntra
2XXX
81912XXX
Abbreviated intra-site dialing in site RTP to non-DID
in RTP
UStoE164
9.1[2-9]XX[2-9]XXXXXX No Mask, strip pre-dot,
prefix +
US specific habitual PSTN dialing to national
destinations in the US
UStoE164
9011.!#
No Mask, strip pre-dot,
prefix +
US specific habitual PSTN dialing to national
destinations in the US.
UStoE164
9011.!
No Mask, strip pre-dot,
prefix +
US specific habitual PSTN dialing to national
destinations in the US
Note
This is the only pattern for which Do Not
Wait For Interdigit Timeout On
Subsequent Hops is not set.
For dialing domains other than the US, other country specific dialing normalization translation patterns
must be defined if the installation has to support those country specific dialing habits. Table 2-16 shows
the required dialing normalization for Germany (DE) and Italy (IT) as examples.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-31
Chapter 2
Call Control
Deployment Overview
Table 2-16
Dialing Normalization for Germany and Italy
Partition
Pattern
Called Party Transformation Note
DEtoE164
000.!
strip pre-dot, prefix +
Germany: international call (000-E.164).
Note
Do Not Wait For Interdigit Timeout On Subsequent
Hops is not set.
DEtoE164
000.!#
strip pre-dot trailing #,
prefix +
Germany: international call (000-E.164).
DEtoE164
00.[^0]!
strip pre-dot, prefix +49
Germany: national call (00-national significant number).
Note
The numbering plan in Germany is variable length and
this pattern needs to cover this.
Note
Do Not Wait For Interdigit Timeout On Subsequent
Hops is not set.
DEtoE164
00.[^0]!#
strip pre-dot trailing #,
prefix +49
Germany: national call (00-national significant number).
ITtoE164
000.!
strip pre-dot, prefix +
Italy: international call (000-E.164).
Note
Do Not Wait For Interdigit Timeout On Subsequent
Hops is not set.
ITtoE164
000.!#
strip pre-dot trailing #,
prefix +
Italy: international call (000-E.164)
ITtoE164
0.0[^0]!
strip pre-dot, prefix +39
Italy: national call (0-national significant number (NSN) where
NSN starts with 0).
Note
The numbering plan in Italy is variable length and this
pattern needs to cover this.
Note
Do Not Wait For Interdigit Timeout On Subsequent
Hops is not set.
ITtoE164
0.0[^0]!#
strip pre-dot trailing #,
prefix +39
Italy: national call (0-NSN where NSN starts with 0).
ITtoE164
0.[^0]!
strip pre-dot, prefix +39
Italy: national call (0-NSN where NSN does not start with 0).
ITtoE164
0.[^0]!#
strip pre-dot trailing #,
prefix +39
Note
The numbering plan in Italy is variable length and this
pattern needs to cover this.
Note
Do Not Wait For Interdigit Timeout On Subsequent
Hops is not set.
Italy: national call (0-NSN where NSN does not start with 0).
The example in Table 2-16 shows that in Italy and Germany the ITU recommended 0 is used to access a
trunk from inside the enterprise, and then 0 and 00 are used for national and international access. Since
1998, geographic numbers in Italy start with 0, and digits 1 to 9 as the first digit of a national significant
number indicate different types of numbers. Hence, dial strings starting with exactly two 0s (00) need to
be treated differently in Italy than in Germany. In Italy the second zero has to be considered part of the
NSN and hence has to be kept in the resulting +E.164 digit string, while a second zero in Germany would
need to be removed because geographic numbers in Germany do not start with a zero.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-32
November 20, 2015
Chapter 2
Call Control
Deployment Overview
The example of the dialing normalization required for these two countries shows how country specific
dialing habits can be modeled in the design approach presented.
For more information on international numbering plans, see the International Numbering Resources
page of the ITU-T at http://www.itu.int/en/ITU-T/inr/Pages/default.aspx. There you can find links to
various resources, including E.164 country codes and national numbering plans. An overview of dialing
procedures used in various countries can be found in Operational Bulletin No.994 (15.XII.2011) and
Annexed List: Dialling procedures (international prefix, national (trunk) prefix and national
(significant) number) (in accordance with ITU-T Recommendation E.164 (11/2010)) (Position on 15
December 2011), available at http://www.itu.int/pub/T-SP-OB.994-2011. The actual list of dialing
procedures starts at page 25 of that document and is also available for download at
http://www.itu.int/dms_pub/itu-t/opb/sp/T-SP-E.164C-2011-PDF-E.pdf.
Classes of Service and Calling Search Spaces (CSSs)
As mentioned before, a CSS is a list of partitions that defines which partitions, and thus patterns, a
calling entity using the CSS can access. In this document we use a dial plan approach that uses only the
line CSS to define class of service.
Table 2-17 lists the classes of service considered in this design. The classes of service chosen for this
design are only examples. If further classes of services are required, then these can be defined
equivalently.
Tip
The number of classes of service is one of the key parameters driving the complexity of enterprise dial
plan designs. Therefore, it is good practice to define as few classes of service as possible for the dial plan.
The recommended design makes use of only the CSS provisioned on the line and does not use the device
CSS to define class of service. The device CSS can be used to implement general dialing habits that need
to be available for everyone. An example for this is emergency calling; see the section on Emergency
Call Considerations in Multi-National Environments for more details on when to use the device CSS to
implement emergency calls.
Table 2-17
Classes of Service
Class of Service
Access to
International
All on-net destinations
National PSTN destinations
International PSTN destinations
Business-to-business URI dialing
Emergency calls
National
All on-net destinations
National PSTN destinations
Emergency calls
Internal
All on-net destinations
Emergency calls
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-33
Chapter 2
Call Control
Deployment Overview
Adding business-to-business URI dialing to only the International class of service is an example based
on the assumption that business-to-business (B2B) calls consume limited edge resources. Also we are
trying to avoid increasing the number of classes of service by a factor of two by introducing classes of
service International, InternationalB2B, National, NationalB2B, Internal, and InternalB2B.
Because only the line CSS is used to define both class of service and the set of dialing habits available
to a given caller, a CSS needs to be provisioned per site and class of service.
Table 2-18 shows how class of service International for a user in site SJC would be defined based on the
partition set previously defined (see Table 2-13 and Table 2-14).
Table 2-18
Class of Service International for SJC User
CSS Name
Partitions
SJCInternational
DN
Directory URI
URI
ESN
onNetRemote
SJCIntra
UStoE164
USPSTNNational
PSTNInternational
B2B_URI
USEmergency
As depicted in Table 2-19, the remaining classes of service are created equivalently by selectively
removing access to B2B URI dialing, international, and national PSTN destinations.
Table 2-19
Classes of Service National and Internal for SJC User
CSS Name
Partitions
CSS Name
Partitions
SJCNational
DN
Directory URI
URI
ESN
onNetRemote
SJCIntra
UStoE164
USPSTNNational
USEmergency
SJCInternal
DN
Directory URI
URI
ESN
onNetRemote
SJCIntra
UStoE164
USEmergency
CSSs for classes of services for users in other sites are created equivalent to the above CSSs, with the
only difference being a different partition used with the site-specific dialing normalization patterns.
Table 2-20 shows an example of the RTP site National and Internal classes of service.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-34
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-20
Classes of Service National and Internal for RTP User
CSS Name
Partitions
CSS Name
Partitions
RTPNational
DN
Directory URI
URI
ESN
onNetRemote
RTPIntra
UStoE164
USPSTNNational
USEmergency
RTPInternal
DN
Directory URI
URI
ESN
onNetRemote
RTPIntra
UStoE164
USEmergency
These examples clearly show that the chosen partition scheme allows for optimal reuse of patterns and
partitions when creating CSSs to implement classes of service for multiple sites.
For sites in other dialing domains (countries), the same CSS and partition schema as shown above can
be used, with the only difference being that the dialing normalization partition for the specific dialing
domain and the partition with the country specific route to national PSTN destinations would be used
instead of the US partitions used above. For example, Table 2-21 shows the CSS for class of service
International for a site FRA in Germany (DE).
Table 2-21
Class of Service International for Users in site FRA in Germany (DE)
CSS Name
Partitions
FRAInternational
DN
Directory URI
URI
ESN
onNetRemote
FRAIntra
DEtoE164
DEPSTNNational
PSTNInternational
B2B_URI
DEEmergency
Special CSSs
In addition to classes of service for users, calling search spaces (CSSs) also are used to define classes of
service for applications connected through trunks, such as Cisco Unity Connection, for example.
Assuming that Unity Connection should have access only to on-net destinations and that, in addition to
ESN and +E.164 dialing, also US dialing habits should be supported from Unity Connection, Table 2-22
shows the CSS to implement this class of service.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-35
Chapter 2
Call Control
Deployment Overview
Table 2-22
Class of Service for Voicemail
CSS Name
Partitions
VoiceMail
DN
ESN
URI
onNetRemote
Directory URI
UStoE164
In scenarios where Cisco Unity Connection needs to serve multiple countries, then implementing the
country specific dialing normalization as defined in partition UStoE164 in the above example is not an
option. The only dialing habits that can be supported in that case are the globally significant dialing
habits ESN and +E.164.
To use Unified CM presence, a subscribe CSS has to be provisioned, among other things, to allow access
to all presentities that a presence user subscribes to. To allow for a very simple provisioning of
Unified CM presence without further differentiation of presence access, a single CSS needs to be
provisioned that allows access to all possible on-net destinations. Table 2-23 shows the settings for this
default subscribe CSS.
Table 2-23
Default Subscribe CSS
CSS Name
Partitions
DefaultSubscribe
DN
ESN
URI
onNetRemote
Directory URI
This subscribe CSS ensures access to all types of on-net destinations.
Table 2-24 shows the (trivial) CSS "DN" to be used as the incoming CSS on PSTN trunks. To avoid
loops, a PSTN trunk can address only +E.164 directory numbers. A PSTN trunk would not need access
to ESN patterns, dialing normalization patterns, or URIs because only a single number format is
supported by the PSTN, and this is normalized to +E.164 on ingress.
Table 2-24
Inbound CSS for PSTN Gateways
CSS Name
Partitions
DN
DN
Cisco TelePresence Servers and the TelePresence Conductor require access to all on-net destinations,
and at the same time need to be able to place calls to any PSTN destination. On the other hand, they do
not require access to any dialing domain-specific or site-specific dialing normalization patterns. CSS
TelePresenceConferencing shown in Table 2-25 implements this class of service.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-36
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-25
Inbound CSS for Trunk from TelePresence Conferencing
CSS Name
Partitions
TelePresenceConferencing
DN
ESN
URI
onNetRemote
Directory URI
PSTNInternational
Table 2-26 shows the CSS ICTInbound to be used as an incoming CSS on trunks to other Unified CM
clusters. To avoid loops, the incoming CSS on these intercluster trunks should not provide access to
remote on-net destinations (partition onNetRemote), but the trunks (inbound CSS) need to support all
valid on-net addressing modes (+E.164, ESN, and URIs). Dialing normalization is not part of this CSS
because dialing habits other than +E.164 and ESN would already have been normalized to +E.164 or
ESN on the remote Unified CM cluster prior to landing on the incoming intercluster trunk.
Table 2-26
Inbound CSS for Trunks to Other Unified CM Clusters
CSS Name
Partitions
ICTInbound
DN
ESN
URI
Directory URI
Local Route Groups for Call Type Specific Outbound Gateway Selection
To allow for flexible egress gateway selection based on the calling device, we recommend using local
route groups (LRGs). Using LRGs for egress gateway selection avoids the need for site-specific route
patterns.
To allow for differentiated LRG selection for different call types, set up multiple LRG names as shown
in Table 2-27.
Table 2-27
Local Route Group Names
Local Route Group Name
Description
LRG_PSTN_1
Local route group referring to primary PSTN resources to be used
for PSTN calls
LRG_PSTN_2
Local route group referring to secondary PSTN resources to be used
for PSTN calls
LRG_VIDEO_1
Local route group referring to primary PSTN resources to be used
for video PSTN calls
LRG_VIDEO_2
Local route group referring to secondary PSTN resources to be used
for video PSTN calls
LRG_Emergency_1
Local route group referring to primary PSTN resources to be used
for emergency calls
LRG_Emergency_2
Local route group referring to secondary PSTN resources to be used
for emergency calls
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-37
Chapter 2
Call Control
Deployment Overview
With these LRG definitions, dedicated route lists can be created for both "normal" PSTN calls and
emergency calls so that different PSTN resources (gateways) are used for emergency calls than for
normal PSTN calls. This makes sense in scenarios where centralized PSTN resources are provisioned
for normal PSTN calls, but emergency calls should still use dedicated small gateways local to the site to
allow for local emergency call routing to the correct Public Safety Answering Point (PSAP).
The video LRGs are provisioned for video-enabled ISDN gateways and treat them as separate resources.
Route Lists Using Local Route Groups
Using the LRGs as defined in the previous section, route lists should be created as depicted in
Table 2-28.
Table 2-28
Route List Definitions
Route List
Members
Description
RL_PSTN
Normal PSTN calls should make use of the
primary and secondary site-specific PSTN
LRG_PSTN_1
resources defined for normal PSTN calls. The last
Standard Local Route Group member, Standard Local Route Group, allows for
fallback to PSTN resources not specific to a call
type.
RL_Emergency
LRG_Emergency_1
LRG_PSTN_1
LRG_Emergency_2
LRG_PSTN_1
LRG_PSTN_1
For emergency calls, the first call-specific
resources for emergency calls should be used, then
the second, then the PSTN resources defined for
normal PSTN calls, and lastly the non-specific
PSTN resources.
Standard Local Route Group
RL_VIDEO
LRG_VIDEO_1
LRG_VIDEO_2
LRG_PSTN_1
LRG_PSTN_2
For video calls, first the video-specific gateway
resources are used, then the regular PSTN
resources are considered as a fallback (audio
only), and lastly the Standard Local Route Group
is used if the others fail.
Standard Local Route Group
With the above LRG and route list definition on each device pool, up to seven route groups can be
selected for the defined LRGs to allow for very specific outbound gateway selection. The actual PSTN
resources to be used for certain call types are defined during device pool provisioning. If selecting
different outbound PSTN resources based on call type is not required for a given set of devices, and only
a single PSTN resource is needed for all call types, then it is sufficient to define only an actual route
group for the Standard Local Route Group on the respective device pool and leave all other LRGs in that
device pool set to <None>. Having Standard Local Route Group as the last entry in all route lists is a
good way to achieve this.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-38
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Route Patterns for PSTN Access and Emergency Calls
PSTN access is achieved through PSTN route patterns. As described in the section about Classes of
Service and Calling Search Spaces (CSSs), the route to international destinations needs to be provisioned
in the PSTNInternational partition, while national PSTN routes are provisioned in the dialing domain
specific partitions xxPSTNNational (where xx represents dialing domain USPSTNNational, for
example). Table 2-29 shows the configured PSTN route patterns.
Table 2-29
PSTN Route Patterns
Pattern
Partition
Gateway or Route List
Description
\+!
PSTNInternational
RL_PSTN
Variable length to allow for dialing of
arbitrary international destinations.
\+!#
PSTNInternational
RL_PSTN
Alternative pattern for international
destinations to allow terminating variable
length dialing with #.
Discard Digits set to Trailing-#
\+1[2-9]XX[2-9]XXXXXX
USPSTNNational
RL_PSTN
Explicit pattern for national destinations
in the US.
Urgent Priority checked to avoid overlap
with variable length PSTN route pattern
\+! defined for international destinations.
911
USEmergency
RL_Emergency
US emergency calling
Urgent Priority checked
9911
USEmergency
RL_Emergency
US emergency calling
Urgent Priority checked
Apart from the route pattern settings explicitly shown in Table 2-29, all other settings are left with
default values as shown in Table 2-30. This especially includes the calling, connected, and called party
transformations, which are left empty (apart from stripping a trailing # as mentioned above) because the
calling and called party transformations required to match the PSTN requirements are configured as
explicit calling and called party transformations. This is described in the sections on Outbound Calls:
Called and Calling Number Transformations on ISDN Gateways and Outbound Calls: Called and Calling
Number Transformations on SIP Trunks.
Table 2-30
Route Pattern Default Settings
Setting
Value
Pattern Definition
Numbering Plan
-- Not Selected --
Route Filter
<None>
MLPP Precedence
Default
Apply Call Blocking Percentage
Unchecked
Resource Priority Namespace Network Domain
<None>
Route Class
Default
Route Option
Route this pattern
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-39
Chapter 2
Call Control
Deployment Overview
Table 2-30
Route Pattern Default Settings (continued)
Setting
Value
Call Classification
OffNet
External Call Control Profile
<None>
Allow Device Override
Unchecked
Provide Outside Dial Tone
Checked
Allow Overlap Sending
Unchecked
Require Forced Authorization Code
Unchecked
Authorization Level
0
Require Client Matter Code
Unchecked
Calling Party Transformations
Use Calling Party's External Phone Number Mask Unchecked
Calling Party Transform Mask
Leave empty; do not enter any value
Prefix Digits (Outgoing Calls)
Leave empty; do not enter any value
Calling Line ID Presentation
Default
Calling Name Presentation
Default
Calling Party Number Type
Cisco CallManager
Calling Party Numbering Plan
Cisco CallManager
Connected Party Transformations
Connected Line ID Presentation
Default
Connected Name Presentation
Default
Called Party Transformations
Discard Digits
<None>
Called Party Transform Mask
Leave empty; do not enter any value
Prefix Digits (Outgoing Calls)
Leave empty; do not enter any value
Called Party Number Type
Cisco CallManager
Called Party Numbering Plan
Cisco CallManager
ISDN Network-Specific Facilities Information Element
Network Service Protocol
-- Not Selected --
Carrier Identification Code
Leave empty; do not enter any value
Network Service
-- Not Selected --
While the international PSTN route patterns in partition PSTNInternational are not dialing domain
(country) specific, the route patterns in partitions USPSTNNational and USEmergency are country
specific. If the dial plan needs to support other countries, then the route patterns for these countries need
to be created as shown in Table 2-31.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-40
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-31
Non-US Route Patterns for National Destinations
Pattern
Partition
Gateway or Route List
Description
\+49!
DEPSTNNational
RL_PSTN
Variable length because the German numbering
plan with country code 49 is variable length.
\+49!#
DEPSTNNational
RL_PSTN
Alternative pattern for national destinations to
allow terminating variable length dialing with #.
Discard Digits set to Trailing-#
\+33XXXXXXXXX
FRPSTNNational
RL_PSTN
Explicit pattern for national destinations in
France.
Urgent Priority checked to avoid overlap with
variable length PSTN route pattern \+! defined
for international destinations.
112
DEEmergency
RL_Emergency
German emergency calling
Urgent Priority checked
0112
DEEmergency
RL_Emergency
German emergency calling
Urgent Priority checked
112
FREmergency
RL_Emergency
French emergency calling
Urgent Priority checked
0112
FREmergency
RL_Emergency
French emergency calling
Urgent Priority checked
Table 2-31 shows the difference between fixed and variable length numbering plans. The national
numbering plan in Germany is variable length and thus the route pattern to match on national
destinations in Germany has to match on variable length digit strings, and we also need to provision an
alternate route pattern ending on # to enable users to explicitly terminate dial strings with # to avoid
inter-digit timeouts when dialing national destinations. In contrast to this, the national numbering plan
in France is fixed length (as in the US), and thus a single urgent fixed-length route pattern is enough to
cover all national numbers in France.
Because Germany and France use the same emergency dialing habit, the emergency routing can be
simplified by combining both emergency partitions DEEmergency and FREmergency into a single
partition 112Emergency and by using that partition instead in the CSS definitions.
Emergency Call Considerations in Multi-National Environments
Independent from individual classes of service, access to emergency numbers is required from all
endpoints at all times. As shown previously, this is easily achieved by adding the partition with the
emergency calling route patterns to all CSSs. This approach is problematic if multiple countries need to
be supported, those countries require different emergency dialing habits, and mobility features such as
extension mobility and device mobility are used.
In this case, if a user roams between countries with different emergency dialing habits, then the device
this user is using inherits the emergency dialing habits specific to the visiting user. For example, if a user
from Germany logs into a phone in the US, then the line CSS as defined on the German user's extension
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-41
Chapter 2
Call Control
Deployment Overview
mobility profile gets assigned to the visited phone in the US, so that on this phone emergency calls now
need to be placed using the German emergency calling dialing 112, and the US emergency call dialing
habit 911 is not supported any longer.
To make sure that phones in a given country always support the national emergency call dialing habit
independent of whether a foreign user logged into the phone, a different approach for emergency calls
can be implemented. Instead of adding the USEmergency to all CSSs, create a dedicated USEmergency
CSS and assign that CSS as the device CSS on all devices in the US. Then if a foreign user logs into a
phone in the US, the visiting user's "home" dialing habits as defined by the line CSS will be combined
with the visited countries emergency dialing habit. In the above case of a German user logging into a US
phone, that user's German PSTN dialing habits will be supported together with the US specific
emergency dialing habit 911. Keep in mind that this combination of dialing habits between different
countries might create overlaps between the visited sites' emergency dialing and the visiting user's
regular dialing habits. For example, if a site in Germany has four-digit extensions starting with 9 (such
as +E.164 range +49 6100 773 9XXX), then the abbreviated four-digit intra-site dialing defined for that
site through a 9XXX dialing normalization translation pattern creates an overlap with the US emergency
dialing 911 if a user from that German site logs into a phone in the US. As long as the emergency dialing
habit is more specific, then creating the emergency calling route pattern as urgent pattern makes sure that
no delay is experienced when placing an emergency call. On the other hand, the 911 US emergency
pattern would "block" all four-digit dialing starting with 911, affecting four-digit intra-site dialing to
directory numbers +49 6100 773 911X, for example.
Moving the emergency dialing from the line to the device CSS also avoids the problem that visiting users'
emergency dialing habits (112 in case of a user from Germany) need to be transformed to the visited
countries emergency dialing habit (911 in the US).
Route Patterns for Video PSTN (ISDN) Calls
Video ISDN gateways require special treatment from the dial plan perspective because it is unfeasible
from the cost perspective to use ISDN video gateways for regular voice calls. In this design the selection
of video ISDN gateways is explicitly tied to a special video PSTN dialing habit (see Table 2-12).
Table 2-32 shows the required route patterns to enable this dialing habit.
Table 2-32
Route Patterns for Video PSTN (ISDN) Calls
Pattern
Partition
Gateway or Route List Description
*!
PSTNInternational
RL_VIDEO
Variable length because we need to support E.164
behind the *
*!#
PSTNInternational
RL_VIDEO
Alternative pattern to allow termination of
variable length dialing with #.
Discard Digits set to Trailing-#
*1XXXXXXXXXX
PSTNInternational
RL_VIDEO
Supplementary route pattern to allow dialing to
US destinations (fixed length) without inter-digit
timeout.
Urgent Priority checked.
Putting the video ISDN route patterns into partition PSTNInternational effectively adds video dialing
capabilities to class of service International.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-42
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Outbound Calls: Called and Calling Number Transformations on ISDN Gateways
On ISDN trunks, calling and called party number information is sent and received in calling and called
party information elements. These information elements are a triplet consisting of numbering plan,
number type, and number. How these fields need to be set depends on the trunk service definition of the
provider. As an example, for a call to E.164 destination 4961007739764 on a trunk in Germany in the
same area code 6100, the called party number in the outgoing ISDN SETUP message could be sent as
(plan/type/number) ISDN/national/61007739764, ISDN/subscriber/7739764, or
unknown/unknown/061007739764.
If gateways terminating ISDN trunks are connected to Unified CM using SIP, then number types cannot
be sent from Unified CM to the gateway because SIP does not know the concept of number types.
Whether different ISDN number types need to be supported for different call types depends on the
provider's SIP trunk service definition. On ISDN trunks, some providers always allow called and calling
party numbers independent of called destination to be sent using the same ISDN plan and type
indication.
Table 2-33 shows an example of alternate called party number formats that an ISDN provider in the US
might accept.
Table 2-33
Alternate ISDN Number Format for Calls on US ISDN Trunk
Type of Call
Destination
Called Party Plan/Type/Number to Be Sent to PSTN
Digit String Sent to Gateway
National
+12125551234
unknown/unknown/12125551234
*12125551234
International
+4961007739764
unknown/unknown/0114961007739764
*0114961007739764
The digit string sent to the gateway is prefixed with a "*" to simplify the dial peer definition on the
gateway. Prefixing called party numbers sent to the gateway with a "*" enables easy non-colliding
destination-pattern based outbound dial-peer selection on the gateway for inbound and outbound calls
because called party numbers received from the PSTN never start with a "*". The leading "*" prefixed
by Unified CM needs to be removed on the gateway before sending the call to the PSTN. The leading
"*" on all called party numbers sent from Unified CM to the gateway allows the use of
"destination-pattern *" on the POTS dial peers on the gateway. The default digit stripping behavior of
Cisco IOS will then automatically strip the leading "*".
The transformation from the called +E.164 destination to the digit string to be sent to the PSTN can be
achieved on Unified CM, and on the gateway the ISDN plan and type can be enforced easily using
Cisco IOS voice translation rules as shown in Example 2-2.
Example 2-2
Cisco IOS Voice Translations to Force Single ISDN Plan and Type
voice translation-rule 1
rule 1 /^\*/ // type any unknown plan any unknown
rule 2 // // type any unknown plan any unknown
voice translation-profile ISDNunknown
translate called 1
translate calling 1
dial-peer voice 1 pots
translation-profile outgoing ISDNunknown
The Cisco IOS configuration piece shown in Example 2-2 demonstrates how to force a single ISDN plan
and type for calling and called party information to be sent to the PSTN through a given POTS dial-peer.
Rule 1 of voice-translation-rule 1 matches all numbers starting with "*" and simply removes this leading
"*". Rule 2 of voice translation-rule 1 matches on all numbers with any plan and type, and it forces both
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-43
Chapter 2
Call Control
Deployment Overview
plan and type to unknown while not changing the actual digit string of the number. With this Cisco IOS
voice translation-rule applied to the POTS dial peer pointing to the ISDN, all called and calling party
numbers sent from Unified CM to the gateway will be forwarded to the PSTN unchanged, with plan and
type forced to unknown.
With this translation logic in place on the gateway, the piece that still needs to be provisioned on
Unified CM is the transformation of the +E.164 called party information to the digit string to be sent to
the PSTN according to Table 2-33. Table 24 depicts the required called party transformation patterns for
localizing +E.164 for ISDN dialing.
Table 2-34
Called Party Transformation Patterns to Localize +E.164 for ISDN via SIP
Pattern
Partition
Transformation
Description
\+.1!
USGWLocalizeCd
Strip pre-dot, prefix *
+12125551234 –> *12125551234
\+.!
USGWLocalizeCd
Strip pre-dot, prefix *011
+4961007739764 –> *0114961007739764
To apply the called party transformations defined by the called party transformation patterns shown in
Table 2-34 to a gateway, a CSS USGWLocalizeCd with only partition USGWLocalizeCd in it needs to
be defined, and this CSS is then set as Called Party Transformation CSS in the Device Mobility
Related Information section on the gateway's device pool. Configuring these transformations on the
device pool enables sharing the same settings with multiple gateways in the same site sharing the same
called party transformation requirements. To achieve this, the Use Device Pool Called Party
Transformation CSS option needs to be checked in the Outbound Calls section on the gateway
configuration page.
Also, we need to provision the transformation required to force the calling party number from +E.164
to whatever needs to be sent to the service provider. Here we need to consider how to treat calling party
information for a call originating from a non-DID or a call originating from a DN that is not part of the
DID range associated with the given gateway. The most common option is to set the caller ID to a
site-specific main extension. This site specificity requires creation of site-specific calling party
transformations as illustrated by Table 2-35.
Table 2-35
Calling Party Transformation Patterns to Localize +E.164 for ISDN via SIP
Pattern
Partition
Transformation
Description
\+.19195551XXX
RTPGWLocalizeCn
Strip pre-dot
+19195551001 –> 19195551001
Forward caller ID from the DID range
associated with the gateway, but strip the
leading plus (+), assuming that the calling
party number can be sent to the provider as
1 plus 10 digits
\+!
RTPGWLocalizeCn
Mask 19195551888
Force everything to 19195551888
!
RTPGWLocalizeCn
Mask 19195551888
Force everything to 19195551888
The calling party transformation patterns in Table 2-35 perform the required transformations that make
sure any calling party number, whether in the form of a +E.164 number or an enterprise specific number
not matching the trunks DN range, is forced to a main number (19195551888).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-44
November 20, 2015
Chapter 2
Call Control
Deployment Overview
To enable these transformations equivalent to the above method to apply outbound called party
transformations, a CSS RTPGWLocalizeCn needs to be created using only partition
RTPGWLocalizeCn, and this CSS needs to be applied as the calling party transformation CSS in the
Outbound Calls section on the gateway configuration page or in the Device Mobility Related
Information section on the gateway's device pool.
If a specific called or calling party transformation is needed per gateway, then using the device pool level
settings for the called party transformations is overly complicated. In that case uncheck the Use Device
Pool Called/Calling Party Transformation CSS options in the Outbound Calls section on the gateway
configuration page, and set the called or calling party transformation CSS there.
Outbound Calls: Called and Calling Number Transformations on SIP Trunks
As mentioned earlier, SIP does not have the concept of "typed" numbers. Usually on SIP trunks all called
and calling party numbers need to be sent in a single format independent of the type of called destination.
The most common options are +E.164 or E.164. To enable easier dial-peer configuration with
non-overlapping destination patterns for inbound and outbound calls, again we want to prefix all E.164
called party information with "*" when sent to the Cisco Unified Border Element terminating the SIP
trunk.
If E.164 needs to be sent (without the +), then the above approach using called party transformation
patterns can be reused. The single called party transformation shown in Table 2-36 is enough to make
sure that the leading + of all +E.164 numbers gets stripped. Again we also need to create a CSS (for
example, GWNoPlus) that addresses only partition GWNoPlus, and then apply this called party
transformation pattern as Called Party Transformation CSS on either the gateway or the gateway's
device pool.
Table 2-36
Called Party Transformation Pattern to Localize +E.164 to *E.164 for SIP
Pattern
Partition
Transformation
Description
\+.!
GWNoPlus
Strip pre-dot, prefix *
+4961007739764 –> *4961007739764
+12125551234 –> *12125551234
Even if no format transformation is required for calling party information sent on a SIP trunk, some
filtering still needs to be applied to the calling party information to make sure that only valid numbers
are sent to the provider. The same calling party transformations as described before in section on
Outbound Calls: Called and Calling Number Transformations on ISDN Gateways and summarized in
Table 2-35 can be used. Cisco IOS voice translations on Cisco Unified Border Element then make sure
that the calling party information is sent to the provider according to the format requirements of the
provider. Example 2-3 shows Cisco IOS voice translations to be applied on the VoIP dial-peer on the
Cisco Unified Border Element (CUBE) pointing to the provider. These translations transform called
party information from *E.164 to +E.164 and the calling party information from E.164 to +E.164.
Example 2-3
Cisco IOS Voice Translations to Force +E.164 Calling and Called Party Number on CUBE
voice translation-rule 2
rule 1 /^\*/ /+/
rule 2 // /+/
voice translation-profile SIPtoE164
translate called 2
translate calling 2
dial-peer voice 2 voip
translation-profile outgoing SIPtoE164
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-45
Chapter 2
Call Control
Deployment Overview
Rule 1 in Example 2-3 replaces a leading "*" with a leading "+" while rule 2 just prefixes a "+" to all
numbers.
Inbound Calls: Called and Calling Number Transformations on ISDN Gateways
Because all call routing on Unified CM is based on +E.164 for all incoming calls arriving at Unified CM,
we need to make sure that called party information is transformed to +E.164 from the format received
on the link from the provider. As mentioned earlier in the section on Outbound Calls: Called and Calling
Number Transformations on ISDN Gateways, calling and called party information sent and received on
ISDN trunks is a triplet consisting of numbering plan, number type, and number. Because SIP does not
support number types, the semantics of the number type as received from the provider is lost if only the
actual number is forwarded by the gateway over the SIP trunk to Unified CM. To avoid this, Cisco IOS
voice translation needs to be deployed on the gateway to create a +E.164 digit string to be sent to
Unified CM based on the received number plan, type, and number. Example 2-4 shows the Cisco IOS
voice translation configuration to achieve this.
Example 2-4
Cisco IOS Voice Translations to Map from ISDN to +E.164
voice translation-rule 3
rule 1 /^\(.+\)$/ /+1\1/ type national unknown plan any unknown
rule 2 /^\(.+\)$/ /+\1/ type international unknown plan any unknown
voice translation-profile ISDNtoE164
translate called 3
translate calling 3
dial-peer voice 1 pots
translation-profile incoming ISDNtoE164
The Cisco IOS translation shown in Example 2-4 assumes that we received called party information as
type national and that the number in this case has only 10 digits. Rule 1 matches on any number
(/^\(.+\)$/) with type international and simply prefixes +1 (/+\1/) while forcing plan and type to unknown
because both are irrelevant when forwarded on the SIP trunk to Unified CM. The same translation rule
is applied to both calling and called party information in translation profile ISDNtoE164, so that the
calling party information as a 10-digit number with type national will be transformed correctly to +E.164
by rule 1. Rule 2 does not really apply to received called party information because the provider will
typically send called party information using only a single format. Hence, rule 2 is relevant only for calls
received from international destinations for which we expect to receive calling party information as type
international with the number set to the full E.164 number of the calling party.
Different number formats might be used, depending on the provider, and this will require use of different
transformations on the gateway or on Unified CM. For a detailed explanation of voice translation rules,
see the document on Number Translation using Voice Translation Profiles, available at
http://www.cisco.com/c/en/us/support/docs/voice/call-routing-dial-plans/64020-number-voice-tran
slation-profiles.html
If for some reason the same rules cannot be used for calling and called party information transformation,
then separate voice translation rules need to be provisioned for calling and called party information and
associated with translation of calling and called party information in one translation profile.
Using inbound Cisco IOS voice translation rules is required only if different number types are sent by
the provider. If the number type for calling or called party information is always unknown, for example,
then the digit transformation to globalized +E.164 can happen on Unified CM either by using the
inbound prefixes for calling and called party information or by using calling and called party
transformation CSSs. Both prefixes and calling and called party transformations can be defined either
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-46
November 20, 2015
Chapter 2
Call Control
Deployment Overview
on the trunk level or on the device pool level. Keep in mind that, because SIP does not support different
number types, inbound calling and called prefixes or CSSs need to be set for number type unknown if
set on the device pool level.
Inbound Calls: Called and Calling Number Transformations on SIP Trunks
Inbound call number information treatment on PSTN SIP trunks is generally simpler than the number
handling in the ISDN case described before. The main reason is that number information on SIP trunks
is not typed, and thus transformations are less complex and need to consider only the received digit
string. Typically both calling and called party information on a SIP trunk is already in +E.164 format,
and thus no transformations are needed.
If calling and called parties are received in E.164 format, then the easiest way to transform to +E.164 is
to simply configure a prefix "+" on the SIP trunk in Unified CM or on the trunk's device pool. This prefix
can be configured in the Incoming Calling Party Settings or Incoming Called Party Settings on the trunk
or the trunk's device pool. Remember that for SIP trunks the setting for number type Unknown Number
is relevant on the device pool level.
Calling Party Information Display on Phones
Because all directory numbers are provisioned as +E.164 numbers for calls originating from these
+E.164 directory numbers, calling party information is in +E.164 format automatically. To simplify and
provide consistent calling party presentation for all possible call flows, all calling party information
received from outside networks such as the PSTN is normalized to +E.164 as discussed earlier. When a
call is presented to a phone or to an outside network, the calling party information presented for that call
sometimes needs to be transformed to the format expected by the network in case of the call being sent
to a gateway or the format expected by the user in case of the call being sent to a phone.
Of special consideration are calls originating from phones with non-DIDs. In this case the only available
calling party information is identical to the provisioned non-DID in the format of an enterprise specific
number (ESN). Table 2-10 summarizes the ESN ranges used in the example topology.
On phones, sometimes +E.164 is not the preferred calling party display information, although keeping
this information as +E.164 simplifies the deployment and is preferred. In that case the desired format
typically depends on both the calling and called entities. Table 2-37 shows an example of the expected
calling party display on a phone in site SJC for calls from various sources.
Table 2-37
Expected Calling Party Display on SJC Phone
Calling Entity "Native"
Calling Party Information
Expected Display
Comment
+12125551234
912125551234
Call from US; display follows PSTN dialing
habit.
+14085554001
4001
Call from +E.164 DN in the SJC DID range;
display follows abbreviated intra-site dialing
habit.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-47
Chapter 2
Call Control
Deployment Overview
Table 2-37
Expected Calling Party Display on SJC Phone (continued)
Calling Entity "Native"
Calling Party Information
Expected Display
Comment
81405001
5001
Call from non-DID in the SJC ESN range (see
Table 2-10); display follows abbreviated
four-digit intra-site dialing to non-DIDs in site
SJC.
+4961007739764
90114961007739764
Call from international PSTN destination;
display follows US PSTN dialing habit for
international destinations.
To achieve the display format depicted in Table 2-37, calling party transformation patterns need to be
provisioned in adequate partitions, and calling party transformation CSSs based on these partitions have
to be configured on the phones, to enable the transformations.
Table 28 summarizes all calling party transformation patterns that must be provisioned to achieve the
abbreviated calling party number display shown in Table 2-37 for all US sites based on the number
ranges shown in Table 2-10.
Table 2-38
Phone Localization Calling Party Transformation Patterns
Pattern
Partition
Transformation
Description
\+.1!
USPhLocalize
Strip pre-dot, prefix 9
Any US destination:
+12125551234 –> 912125551234
\+.!
USPhLocalize
Strip pre-dot, prefix
9011
Any international destination:
+4961007739764 –> 90114961007739764
\+14085554XXX
SJCPhLocalize
Mask 4XXX
Call from local DN range:
+14085554001 –> 4001
81405XXX
SJCPhLocalize
Mask 5XXX
Call from local non-DID range:
81405001 –> 5001
\+19725555XXX
RCDPhLocalize
Mask 5XXX
Call from local DN range:
+19725555001 –> 5001
81976XXX
RCDPhLocalize
Mask 6XXX
Call from local non-DID range:
81976001 –> 6001
\+19195551XXX
RTPPhLocalize
Mask 1XXX
Call from local DN range:
+19195551001 –> 1001
81912XXX
RTPPhLocalize
Mask 2XXX
Call from local non-DID range:
81912001 –> 2001
Table 2-39 shows the calling party transformation CSSs to enable calling party localization for phones
in all US sites. The schema allows the reuse of dialing domain (country) specific calling party
localization transformation patterns for all sites in that dialing domain (country). The country specific
calling party localization patterns basically map national and international numbers to the country
specific national and international dialing habit.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-48
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-39
Phone Localization Calling Party Transformation CSSs for US Sites
CSS
Partitions
SJCPhLocalize
SJCPhLocalize
USPhLocalize
RCDPhLocalize
RCDPhLocalize
USPhLocalize
RTPPhLocalize
RTPPhLocalize
USPhLocalize
Table 2-40 shows an example of the country specific phone localization calling party transformation
patterns that would need to be provisioned for Italy and Germany.
Table 2-40
Phone Localization Calling Party Transformation Patterns for Italy and Germany
Pattern
Partition
Transformation
Description
\+49.!
DEPhLocalize
Strip pre-dot, prefix 00
Any German destination:
+4941001234 –> 0041001234
\+.!
DEPhLocalize
Strip pre-dot, prefix 000
Any international destination:
+14085551234 –> 00014085551234
\+39.!
ITPhLocalize
Strip pre-dot, prefix 0
Any Italian destination:
+390730123456 –> 00730123456
+393012345678 –> 03012345678
\+.!
ITPhLocalize
Strip pre-dot, prefix 000
Any international destination:
+14085551234 –> 00014085551234
Automated Alternate Routing
Automated alternate routing (AAR) is a mechanism that reroutes calls to registered endpoints via an
alternate route through the PSTN in case sufficient bandwidth is not available (call admission control
does not allow the call) between the originating endpoint, gateway, or trunk and the called endpoint.
AAR applies only to calls to endpoints. Insufficient bandwidth for calls to other destinations such as
gateways and trunks does not trigger AAR. For those cases, the alternate routing mechanism is based on
route lists and route groups. The following steps are required to activate AAR:
•
Set the Automated Alternate Routing Enable service parameter (see the section on Service
Parameter Settings).
•
Configure a single AAR group Default without any Dial Prefix (default).
•
Define a CSS PSTNReroute with access only to +E.164 PSTN route patterns. Based on the examples
in this design, this CSS would need to include only partition PSTNInternational.
•
On all endpoints, trunks, and other devices initiating calls that potentially might be subject to AAR:
– Set the AAR Calling Search Space to PSTNReroute.
– Set AAR Group to Default.
•
On all device pools, set the AAR Calling Search Space to PSTNReroute.
•
On all device pools, set AAR Group to Default
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-49
Chapter 2
Call Control
Deployment Overview
•
On +E.164 directory numbers, configure the AAR masks so that the resulting number is the +E.164
number of the directory number. In a country with a fixed length numbering plan, the mask can be
set to some identical value on all directory numbers (such as +1XXXXXXXXXX in the US). If
variable length directory numbers need to be covered, more specific masks covering a single site or,
as a worst case scenario, a fully qualified +E.164 AAR mask identical to the respective directory
number have to be provisioned. For non-DIDs the AAR mask is left empty. This effectively disables
AAR if a non-DID is called. This makes sense because a non-DID does not have an equivalent E.164
address and thus cannot be reached via the PSTN.
The above list shows one of the advantages of a dial plan using +E.164 directory numbers. In this case
the called +E.164 address can be reused directly for alternate dialing over the PSTN without applying
any other modifications.
Alternate Routing for Unregistered Endpoints
In case of a WAN failure in a multi-site deployment with centralized call processing, endpoints in the
affected lose connectivity with the centralized Unified CM and register with a local SRST gateway
instead (see the section on Survivable Remote Site Telephony (SRST) Deployment). This allows the
affected phones to still place and received calls to and from phones in the same site and the PSTN. Calls
from phones registered with the central Unified CM will fail, though, because from the central
Unified CM’s perspective the called device is unregistered and thus unreachable. To enable automatic
rerouting of calls to unregistered endpoints over the PSTN, perform the following tasks on each directory
number that requires automatic rerouting:
•
Set the Forward Unregistered Internal and Forward Unregistered External destination to the same
value as the +E.164 directory number.
•
Set the Forward Unregistered Internal and Forward Unregistered External CSS to PSTNReroute.
This is the same CSS as defined in the section on Automated Alternate Routing, and it allows access
to PSTN route patterns.
Alternate routing over the PSTN for unregistered endpoints makes sense only for endpoints with +E.164
directory numbers. For endpoints without a DID (endpoints with an ESN as directory number), the only
meaningful rerouting for unregistered endpoints is to forward incoming calls to voicemail. To forward
calls to unregistered endpoints to voicemail, perform these tasks:
•
Select the Voicemail options for Forward Unregistered Internal and Forward Unregistered External.
•
Set the Forward Unregistered Internal and Forward Unregistered External CSS to a CSS
implementing class of service Internal (for example, SJCInternal). Effectively this CSS has to
provide access to only the voicemail pilot number.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-50
November 20, 2015
Chapter 2
Call Control
Deployment Overview
LDAP System Configuration
Before defining the actual synchronization agreements, the LDAP system has to be enabled. In the LDAP
System Configuration menu, do the following:
•
Select (check) the Enable Synchronizing from LDAP Server option
•
Select the correct LDAP Server Type for your deployment.
•
Select the correct LDAP Attribute for User ID for your deployment.
In an environment where users are synchronized from Microsoft Active Directory, use the settings shown
in Table 2-41.
Table 2-41
LDAP System Settings for Microsoft Active Directory
Setting
Value
LDAP Server Type
Microsoft Active Directory
LDAP Attribute for User ID
sAMAccountName
LDAP Custom Filter
If a Unified CM based directory search is used on phones, then it does make sense to synchronized the
full corporate LDAP directory to Unified CM. In that case we need to be able to differentiate between
users who actually use UC services of the local cluster and users who are synchronized only to reflect
the complete corporate LDAP directory on Unified CM.
To achieve this goal, custom LDAP filters can be used to define two groups of users: local and remote.
Remote here means that these users do not use any UC services on the local Unified CM cluster.
Table 2-42 shows two custom LDAP filters, assuming that our deployment has users in the US and
Europe and that only the US users are considered as local users.
Table 2-42
Custom LDAP Filter Settings
LDAP Filter Name
Filter
Local
(&
(objectclass=user)
(!(objectclass=Computer))
(!(UserAccountControl:1.2.840.113556.1.4.803:=2))
(telephoneNumber=+1*)
)
Remote
(&
(objectclass=user)
(!(objectclass=Computer))
(!(UserAccountControl:1.2.840.113556.1.4.803:=2))
(|
(telephoneNumber=+3*)
(telephoneNumber=+4*)
)
)
For better readability, the LDAP filter strings in Table 2-42 are separated into multiple lines, with the
indentation levels reflecting the structure of the LDAP filter strings. To provision these LDAP filters in
Unified CM, you have to concatenate all lines of a given filter into a single line.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-51
Chapter 2
Call Control
Deployment Overview
Both LDAP filters are extensions of the default LDAP filter for Microsoft Active Directory. Default
LDAP filters for other directory types can be found in the chapter on Directory Integration and Identity
Management in the Cisco Collaboration System 11.x SRND and in the Unified CM online help for the
LDAP directory settings.
The LDAP filters in Table 2-42 use the beginning of the phone numbers as criteria to determine whether
the individual user is a local or a remote user.
When using multiple LDAP synchronization agreements, you have to make sure that the LDAP filters
used by these synchronization agreements are disjunct so that no single user is matched by both filters.
Feature Group Templates
Capabilities of users synchronized from LDAP are defined in a feature group template (FGT). Table 2-43
summarizes the settings for the FGT defining the capabilities of users with active devices on the
Unified CM cluster.
Table 2-43
Feature Group Template for Local Users
Setting
Value
Comment
Name
FGTlocal
Name should indicate that this is an
FGT used for local users.
Description
FGT for local users
Home Cluster
Checked
Make sure that UDS-based service
discovery for this user resolves to the
local Unified CM cluster.
Enable User for Unified CM
IM and Presence
Checked
Enable the user for IM and Presence
BLF Presence Group
Standard Presence Group
Single BLF presence group for all users,
to simplify the deployment.
SUBSCRIBE Calling Search DefaultSubscribe
Use the default subscribe CSS
described in the section on Special
CSSs.
All other settings can be left as default values.
Because remote users are also synchronized from LDAP (see the section on LDAP Custom Filter), an
FGT for remote users must also be provisioned. The key difference is that in that FGT the Home Cluster
and Enable User for Unified CM IM and Presence options are not checked. Table 2-44 summarizes
these settings.
Table 2-44
Feature Group Template for Remote Users
Setting
Value
Comment
Name
FGTremote
Name should indicate that this is an
FGT used for remote users.
Description
FGT for remote users
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-52
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-44
Feature Group Template for Remote Users (continued)
Setting
Value
Comment
Home Cluster
Not checked
Make sure that UDS-based service
discovery for this user does not resolve
to the local Unified CM cluster.
Enable User for Unified CM
IM and Presence
Not checked
Do not enable the user for IM and
Presence.
All other settings can be left as default values.
LDAP Synchronization Agreements
To synchronize all local users to Unified CM, an LDAP synchronization agreement needs to be
configured. Table 2-45 shows the required settings to be configured under
System/LDAP/LDAP Directory.
Table 2-45
LDAP Synchronization Agreement for Local Users
Setting
Value
Comment
LDAP Configuration Name
Local
Indicates that this LDAP synchronization agreement
synchronizes local users.
LDAP Manager Distinguished
Name
Name of admin users
Can be in the form of [email protected] or
cn=ldapaccess,cn=users,dc=ent-pa,dc=com
LDAP Password
Password of the LDAP admin
LDAP User Search Base
LDAP Search base
Example: dc=ent-pa,dc=com
LDAP Custom Filter
Local
Refers to the custom LDAP filter described in the
section on LDAP Custom Filter.
Perform Sync Just Once
Unchecked
LDAP synchronization is executed periodically.
Perform a Re-sync Every
Reasonable interval
Make sure to set the interval small enough to pick up
corporate directory changes in a reasonable time, but
keep in mind that executing the LDAP synchronization
creates significant load on the Unified CM publisher.
Synchronizing once every 24 hours probably is a good
default.
Directory URI
mail
Typically directory URIs of users are identical to their
email addresses.
Access Control Groups
Standard CCM End Users
Add or remove other access control groups as needed,
but keep in mind that without Standard CCM End
Users, the users will not be able to log into the
self-service portal.
Standard CTI Enabled
Feature Group Template
Local
Refers to the FGT described in the section on Feature
Group Templates.
LDAP Server Information
References to corporate LDAP
servers to be uses as source
Make sure to provision redundant servers, if possible.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-53
Chapter 2
Call Control
Deployment Overview
The LDAP synchronization agreement in Table 2-45 ties together the FGT and custom LDAP filter
defined before. This makes sure that, for all users in the corporate directory matching the custom LDAP
filter, a user on Unified CM is created with the capabilities defined in the FGT.
A dedicated LDAP synchronization agreement is also required to synchronize the remote users who do
not use UC services on the local Unified CM cluster. Table 2-46 summarizes the settings for this LDAP
synchronization agreement.
Table 2-46
LDAP Sync Agreement for Remote Users
Setting
Value
Comment
LDAP Configuration Name
Remote
Indicates that this LDAP synchronization agreement
synchronizes remote users.
LDAP Manager Distinguished
Name
Name of admin users
Can be in the form of [email protected] or
cn=ldapaccess,cn=users,dc=ent-pa,dc=com
LDAP Password
Password of the LDAP admin
LDAP User Search Base
LDAP Search base
Example: dc=ent-pa,dc=com
LDAP Custom Filter
Remote
Refers to the custom LDAP filter described in the
section on LDAP Custom Filter.
Perform Sync Just Once
Unchecked
LDAP synchronization is executed periodically.
Perform a Re-sync Every
Reasonable interval
Make sure to set the interval small enough to pick up
corporate directory changes in a reasonable time, but
keep in mind that executing the LDAP synchronization
creates significant load on the Unified CM publisher.
Synchronizing once every 24 hours probably is a good
default.
Directory URI
mail
Typically directory URIs of users are identical to their
email addresses.
Access Control Groups
No access control groups
selected
Remote users are not members of any access control
group.
Feature Group Template
Remote
Refers to the FGT described in the section on Feature
Group Templates.
LDAP Server Information
References to corporate LDAP
servers to be uses as source
Make sure to provision redundant servers, if possible.
Using the above LDAP synchronization agreements, all users can be identified from the corporate
directory, and the FGTs associated with the LDAP synchronization agreements make sure that
capabilities are configured correctly for all users.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-54
November 20, 2015
Chapter 2
Call Control
Deployment Overview
User Authentication with LDAP
Table 2-47 shows an example of LDAP authentication settings.
Table 2-47
LDAP Authentication Settings
Setting
Example
Comment
LDAP Authentication for End Users
Use LDAP Authentication for End Users Checked
Enables LDAP authentication for the
Unified CM cluster.
LDAP Manager Distinguished Name
cn=ldapmanager,dc=ent pa,dc=com
Distinguished name of an AD account
with read access rights to all user objects
in the desired user search base.
LDAP Password
Some password
Confirm Password
Same as above
LDAP User Search Base
ou=enterprise,dc=ent-pa,dc=com
LDAP Server Information
Host Name or IP Address for Server
ent-dc1.ent-pa.com
Server with global catalog role
LDAP Port
3268
Port to access global catalog
(recommended)
Cisco Unified CM Group Configuration
Cisco Unified CM groups allow you to define groups of Unified CM instances in the cluster that
determine which Unified CM instances should be used by devices to register to the Unified CM cluster.
If only a single Unified CM call processing pair is deployed (see the section on Provision the Cisco
Unified CM and IM and Presence Service Cluster for more information), then a single Unified CM group
named Default also needs to be deployed, and both Unified CM instances running on the single pair of
Unified CM call processing subscribers in the cluster have to be members of this single Unified CM
group.
If more than one pair of Unified CM call processing subscribers exists, then additional Unified CM
groups need to be provisioned (one for each pair of Unified CM call processing subscribers), and in each
Unified CM group the two Unified CM instances running on that specific pair are added to the group.
For a Unified CM cluster with two pairs of Unified CM call processing subscribers named
ucm1a.ent-pa.com and ucm1b.ent-pa.com in the first pair and ucm2a.ent-pa.com and ucm2b.ent-pa.com
in the second pair, with ucm1a and ucm2a being the primary Unified CM call processing subscribers in
each pair, Table 2-48 lists the Unified CM groups to be provisioned.
Table 2-48
Example Unified CM Group Definition
Unified CM Group
Unified CM Group Members
CM_1
CM_ucm1a.ent-pa.com
CM_ucm1b.ent-pa.com
CM_2
CM_ucm2a.ent-pa.com
CM_ucm2b.ent-pa.com
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-55
Chapter 2
Call Control
Deployment Overview
All registrations have to be equally balanced between Unified CM groups. This is achieved by assigning
devices to Unified CM groups via device pool configuration as discussed in the section on Device Pools.
Phone NTP References
If you want to do so, you can configure phone Network Time Protocol (NTP) references in Cisco Unified
Communications Manager Administration to ensure that a phone running SIP gets its date and time from
the NTP server. If all NTP servers do not respond, the phone that is running SIP uses the date header in
the 200 OK response to the REGISTER message for the date and time.
After you add the phone NTP reference to Cisco Unified CM Administration, you must add it to a
date/time group.
To define phone NTP references, get the IP addresses of the NTP servers you plan to use, and configure
the settings according to Table 2-49.
Table 2-49
Phone NTP Reference Settings
Setting
Example
Comment
IP Address
66.228.35.252
IP address of NTP server to be used
Description
0.pool.ntp.org
Should refer to the hostname of the IP address
being entered
Mode
Unicast
Unicast limits devices to using only NTP response
from listed servers
Make sure to provision multiple phone NTP references for redundancy.
Date and Time Groups
Date and time groups allow you to define the time zone and the date and time format to be used for sets
of devices registering with Unified CM. The date/time group configuration is specified in the device
pool, and the device pool is specified on the phone page. For more information on device pools, see the
section on Device Pools.
If you want SIP phones to get their date and time from NTP servers, then in the date/time group you
prioritize the phone NTP references, starting with the first server that you want the phone to contact.
Create one named Date/Time Group for each of the time zones in which you will deploy endpoints, as
illustrated in Table 2-50.
Table 2-50
Example Date/Time Group Definitions
Date and Time Group
Time Zone
RCD_Time
America/North_Dakota/New_Salem
RTP_Time
America/New_York
SJC_Time
America/Los_Angeles
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-56
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Media Resources
A media resource is a software-based or hardware-based entity that performs media processing functions
on the data streams to which it is connected. Media processing functions include mixing multiple
streams to create one output stream (conferencing), passing the stream from one connection to another
(media termination point), converting the data stream from one compression type to another
(transcoding), streaming music to callers on hold (music on hold), echo cancellation, signaling, voice
termination from a TDM circuit (coding/decoding), packetization of a stream, streaming audio
(annunciation), and so forth. The software-based resources are provided by the Cisco Unified CM
IP Voice Media Streaming Application.
Media Resource Manager
The Media Resource Manager (MRM), a software component in the Unified CM, determines whether a
media resource needs to be allocated and inserted in the media path. When the MRM decides and
identifies the type of the media resource, it searches through the available resources according to the
configuration settings of the media resource group list (MRGL) and media resource groups (MRGs)
associated with the devices in question. MRGLs and MRGs are constructs that hold related groups of
media resources together for allocation purposes
Media Resource Selection and Avoiding the Default MRG
Media resource groups (MRGs) and media resource group lists (MRGLs) provide a method to control
how resources are allocated, which could include rights to resources, location of resources, or resource
type for specific applications. MRGs are used to group together media resources of similar
characteristics, and MRGLs define a set of MRGs to be considered when selecting a required media
resource for a session. If the Media Resource Manager does not find a required resource by searching
through a configured MRGL, considering all media resources being members of MRGs of that list, then
the Media Resource Manager checks a default media resource group for media resources. All media
resources by default are members of this default MRG unless they are explicitly configured to be
members of any specific MRG.
In this design we will not use the default MRG because it makes troubleshooting of media resource
selection more complicated. To make sure that the default MRG is empty, you have to assign all media
resources to at least one MRG.
Cisco IP Voice Media Streaming Application
The Cisco IP Voice Media Streaming Application provides the following software-based media
resources:
•
Conference bridge
•
Music on Hold (MoH)
•
Annunciator
•
Media termination point (MTP)
When the IP Voice Media Streaming Application is activated on a node in the Unified CM cluster, one
of each of the above resources is automatically configured. For service activation recommendations, see
Table 2-5.
In this design only unicast MoH is used, with media being streamed from the Cisco IP Voice Media
Streaming Application running on the Unified CM cluster subscriber nodes.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-57
Chapter 2
Call Control
Deployment Overview
An annunciator is a software function of the Cisco IP Voice Media Streaming Application that provides
the ability to stream spoken messages or various call progress tones from the system to a user.
All MOH and annunciator media resources created by the Cisco IP Voice Media Streaming Application
running on Unified CM are combined in a single MRG by performing the following tasks:
•
Create an MRG named Software.
•
Assign all annunciator resources created by the Cisco IP Voice Media Streaming Application to
MRG Software.
•
Assign all MoH resources created by the Cisco IP Voice Media Streaming Application to MRG
Software.
The software-based conferencing and media termination points created by the Cisco IP Voice Media
Streaming Application are not used in this design. To disable them, perform the following tasks:
•
Create an MRG named Unused.
•
Assign all software-based conference bridges created by the Cisco IP Voice Media Streaming
Application to MRG Unused.
•
Assign all software-based media termination points created by the Cisco IP Voice Media Streaming
Application to MRG Unused.
This makes sure that these resources are not part of the default MRG any longer and are never considered
in the Media Resource Manager media resource selection process.
MRG and MRGL Definitions
Its good practice to keep the number of provisioned MRGLs to a minimum. Factors contributing to the
number of required MRGLs include:
•
Site specificity
If site-specific media resources exist, then site-specific MRGs for those resources need to be
configured, and typically also site-specific MRGLs are required to allow for site-specific selection
of (typically local) media resources.
•
Different types of media resources of the same class
Unified CM does not differentiate between audio-only and audio/video conferencing resources. If
both audio and audio/video conferencing media resources are provisioned, then an MRG (and
MRGL) is required per type of media resource to allow configuration of differential access policies
to these resources. See the Conferencing chapter for more details on conferencing resources.
If no site-specific media resources and no differentiation of media resource types is required, then at
least a single MRGL named Standard needs to be configured.
For each required MRGL based on site specificity and media resource type provision, create an MRGL
by performing the following tasks:
•
Set the MRGL name so that it reflects the site specificity and media resource type of the MRGL.
•
Select the desired MRGs for the MRGL. Make sure to always include the Software MRG so that
access to MoH and Annunciator is ensured.
Table 2-51 shows example MRGL definitions that provide differentiated treatment of audio and video
conferencing. MRGL Audio would need to be assigned to devices requiring access to audio conferencing
media resources only, while MRGL Video would allow access to video conferencing resources.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-58
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-51
Example MRGL Definition with Audio and Video Conferencing
MRGL Name
MRGs
Comment
Audio
Audio
MRGL with access to audio conferencing media
resources in MRG Audio.
Software
MRG Software added to provide access to MoH and
annunciator.
Video
Video
Software
MRGL with access to video conferencing media
resources in MRG Video.
MRG Software added to provide access to MoH and
annunciator.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-59
Chapter 2
Call Control
Deployment Overview
Device Pools
Device pools define sets of common characteristics for devices. Characteristics defined on the device
pool include the settings shown in Table 2-52.
Table 2-52
Device Pool Settings
Setting
Description
Cisco Unified
Communications Manager
Group
Unified CM groups are needed to distribute registrations equally among Unified CM call
processing subscriber pairs (see the section on Cisco Unified CM Group Configuration). The
Unified CM Group provisioned on the device pool determines the Unified CM call processing
subscribers to which devices associated with the given device pool will try to register.
Local Route Groups
As described in the section on Local Route Groups for Call Type Specific Outbound Gateway
Selection, multiple LRGs are defined to allow for call type specific egress gateway selection
based on LRGs. For each defined LRG name, the route group selected for that LRG name
defines which devices will be considered for a call of the selected type (defined by the route
pattern matching on the called number and pointing to a route list referring to specific LRGs).
It is important to set route groups for all defined LRG names to avoid call failures due to route
lists not containing any valid PSTN resources.
Roaming Sensitive Settings
Date/Time Group
Defines date and time format and phone NTP references. See the section on Phone NTP
References.
Media Resource Group List
MRGL defining the media resources available for a group of devices. See the section on MRG
and MRGL Definitions.
Device Mobility Related Information
AAR Calling Search Space
The CSS used to route calls to an alternate PSTN destination. The dial plan design in this
document allows use of the same AAR CSS (PSTNReroute) in all cases (see the section on
Automated Alternate Routing).
AAR Group
To enable AAR, an AAR group has to be defined. Using +E.164 directory numbers allows you
to deploy AAR using a single AAR group, Default (see the section on Automated Alternate
Routing).
Calling Party Transformation This CSS defines the calling party transformations applied to calling party information sent in
CSS
the direction of the affected device.
For gateways this CSS is tied to the calling party transformation CSS defined in the Outbound
Calls section on the gateway configuration page.
For phones this CSS is tied to the calling party transformation CSS defined in the Remote
Number section on the phone configuration page.
Called Party Transformation
CSS
This CSS defines the called party transformations applied to called party information sent in
the direction of the affected device.
For gateways this CSS is tied to the called party transformation CSS defined in the Outbound
Calls section on the gateway configuration page.
For phones this CSS has no equivalent on the phone configuration page and does not have any
effect when configured on a device pool used for phones.
Call Routing Information
This setting allows you to define incoming calling and called party transformations per
numbering type to be applied to incoming calls on gateways. The same settings also can be
configured in the gateway configuration page if individual gateway-specific settings are
required.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-60
November 20, 2015
Chapter 2
Call Control
Deployment Overview
All other device pool level settings are not used in this design.
Whenever the same settings for the configuration options listed in Table 2-52 need to be applied to a
group of devices, we recommend creating a device pool with these settings and then assigning all devices
to this device pool. If one of the settings needs to be changed for all of the devices, the device pool level
configuration allows you to change the setting for all devices at one point.
To minimize the number of device pools, create a device pool only if multiple devices share the same
characteristics. An example of this is phones in the same site. Table 2-53 shows an example of device
pool settings for phones with video conferencing capabilities in site RTP.
Table 2-53
Device Pool Settings for Phones with Video Conferencing Capabilities in Site RTP
Setting
Value
Comment
Device Pool Name
RTPPhoneVideo
Name should uniquely identify the devices (type and further
classification) this device pool is used for. In this case we use
this device pool for phones in site RTP with video
conferencing capabilities
Cisco Unified Communications
Manager Group
CM_1
Local Route Group Settings
Standard Local Route Group
RTP_PSTN
All route lists use Standard Local Route Group as last option.
Always set Standard Local Route Group to the local PSTN
gateways' route group.
LRG_PSTN_1
RTP_PSTN
First option for PSTN calls is to use local RTP gateways.
LRG_PSTN_2
SJC_PSTN
Use HQ gateways as fallback.
LRG_VIDEO_1
SJC_VIDEO
No site-specific video gateways exist. We use the video
gateway in site SJC.
LRG_VIDEO_2
<None>
LRG_EMERGENCY_1
<None>
No setting; fallback to Standard Local Route Group.
LRG_EMERGENCY_2
<None>
No setting; fallback to Standard Local Route Group.
Date/Time Group
RTP_Time
See the section on Date and Time Groups.
Media Resource Group List
Video
Provide access to video conferencing media resources (see
Table 2-51).
AAR Calling Search Space
PSTNReroute
Same for all devices and device pools.
AAR Group
Default
Same for all devices and device pools.
Calling Party Transformation
CSS
RTPPhLocalize
Site-specific calling party transformations (see Table 2-38
and Table 2-39).
Called Party Transformation
CSS
<None>
Does not apply to phones.
Roaming Sensitive Settings
Device Mobility Related Information
Table 2-53 shows how the actual site-specific PSTN gateways are assigned to the LRG names to achieve
the site-specific egress gateway selection for phones in different sites.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-61
Chapter 2
Call Control
Deployment Overview
Figure 2-8 shows how different LRG selections for the same LRG name LRG_PSTN_1 on the device
pools for phones in site RTP and SJC make sure that PSTN calls from phones in site RTP and SJC egress
to the PSTN through different gateways although the same route pattern and route list are used for calls
from both sites.
Figure 2-8
Site-Specific Egress Gateway Selection
From the example in Table 2-53 we can see that, following the same schema, we would need to provision
two device pools per site to be able to differentiate between devices with and without video conferencing
capabilities. If video conferencing capabilities were the exception, we could decide to use only one
device pool per site with MRGL set to Audio and then on the few video-enabled devices set the MRGL
to Video in the device configuration.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-62
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-54 summarizes the device pool settings of the device pool used for gateways in a specific site.
Site RTP is used as an example here.
Table 2-54
Device Pool Settings for PSTN Gateways in Site RTP
Setting
Value
Comment
Device Pool Name
RTP_PSTN
Name should uniquely identify the devices (type and further
classification) this device pool is used for. In this case we use this
device pool for PSTN gateways in site RTP.
Cisco Unified Communications
Manager Group
CM_1
Local Route Group Settings
Standard Local Route Group
RTP_PSTN
LRG_PSTN_1
<None>
LRG_PSTN_2
<None>
LRG_VIDEO_1
<None>
LRG_VIDEO_2
<None>
LRG_EMERGENCY_1
<None>
LRG_EMERGENCY_2
<None>
There actually is no call flow for which a PSTN trunk would need a
PSTN resource. Also see the note on configuration order in the
section on Route Groups. When you create the device pool, the
required route group does not exist yet. Hence, initially you need to
configure the device pool and leave the LRG mapping set to
<None>. After configuring the SIP trunks and route groups, you can
come back and set the LRG mapping.
Roaming Sensitive Settings
Date/Time Group
RTP_Time
See the section on Date and Time Groups.
Media Resource Group List
Audio
Calls coming in from the PSTN would not require access to video
conferencing resources.
AAR Calling Search Space
PSTNReroute
Same for all devices and device pools, although not really required
for a PSTN trunk.
AAR Group
Default
Same for all devices and device pools, although not really required
for a PSTN trunk.
Calling Party Transformation
CSS
RTPGWLocalizeCn
Site-specific calling party transformations to make sure that only
valid calling party information is sent (all numbers not belonging to
the RTP DID range are masked). Also, the digit string is set to a
format suitable for the ISDN gateway (see Table 2-35).
Called Party Transformation
CSS
USGWLocalizeCd
See Table 2-34. This transformation makes sure that called party
numbers are transformed from +E.164 to the format that can be sent
as plan unknown and type unknown.
Device Mobility Related Information
Call Routing Information
Incoming Calling Party Settings Nothing is configured here. We assume that the transformation from ISDN number format
Incoming Called Party Settings to +E.164 is achieved using Cisco IOS voice translation rules on the gateway (see the
section on Inbound Calls: Called and Calling Number Transformations on ISDN
Gateways).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-63
Chapter 2
Call Control
Deployment Overview
Table 2-55 summarizes the device pool settings for a SIP trunks to other Unified CM clusters and
application servers. SIP trunks to other Unified CM clusters do not require any transformations on
calling and called part information because the called party number already is globalized to +E.164 by
the dialing normalization translation patterns provisioned in the dial plan, and calling party information
internal to Unified CM based on the provisioned dial plan is either +E.164 or an ESN and both formats
make sense in the context of on-net intercluster calls.
Table 2-55
Device Pool Settings for Central Trunks and Applications
Setting
Value
Comment
Device Pool Name
Trunks_and_Apps
Name should uniquely identify the devices (type and further
classification) this device pool is used for.
Cisco Unified Communications
Manager Group
CM_1
Local Route Group Settings
Standard Local Route Group
RTP_PSTN
LRG_PSTN_1
RTP_PSTN
LRG_PSTN_2
SJC_PSTN
LRG_VIDEO_1
<None>
LRG_VIDEO_2
<None>
LRG_EMERGENCY_1
<None>
LRG_EMERGENCY_2
<None>
Trunks actually do not need PSTN access, but applications
might require PSTN access. So PSTN resources of one site
are selected via the Standard Local Route Group
configuration. Other site's PSTN resources can be used as
failover.
Roaming Sensitive Settings
Date/Time Group
RTP_Time
See the section on Date and Time Groups.
Media Resource Group List
Video
Intercluster calls could potentially require video media
resources.
AAR Calling Search Space
PSTNReroute
Same for all devices and device pools.
AAR Group
Default
Same for all devices and device pools.
Calling Party Transformation
CSS
<None>
No transformations on intercluster trunks and trunks to
application servers.
Called Party Transformation
CSS
USGWLocalizeCd
No transformations on intercluster trunks and trunks to
application servers.
Device Mobility Related Information
Call Routing Information
Incoming Calling Party Settings Nothing configured. We assume that inbound calling and called party numbers already are
Incoming Called Party Settings normalized.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-64
November 20, 2015
Chapter 2
Call Control
Deployment Overview
SIP Trunks
All connections to other entities, including call controls, applications, and conferencing resources, use
SIP trunks.
SIP Profiles
A SIP profile comprises the set of SIP attributes that are associated with SIP trunks and SIP endpoints.
To keep the number of SIP profiles to a minimum, follow these rules:
•
Consider the default profiles first.
•
Then consider already defined non-default profiles.
•
Create a new SIP profile only if none of the default profiles match.
•
Avoid defining profiles per trunk.
Table 2-56 shows the settings for a SIP profile to be used for all SIP IP phones and SIP trunks to other
Unified CM clusters or SIP gateways.
Table 2-56
SIP Profile for SIP Phones and Standard Trunks
Setting
Value
Comment
Copy of Standard SIP Profile
Name
FQDN
Use Fully Qualified Domain Name in SIP Checked
Requests
Prevents IP address of Unified CM server from
showing up in SIP calling party information
sent by Unified CM.
Early Offer support for voice and video
calls
This is the recommended configuration for all
Unified CM trunks. Best Effort Early Offer
trunks never use MTPs to create an Early Offer
and, depending on the calling device, can
initiate an outbound SIP trunk call using either
Early Offer or Delayed Offer. In the context of
this design, outbound calls always use Early
Offer.
Best Effort (no MTP inserted)
Enable OPTIONS Ping to monitor
Checked
destination status for Trunks with Service
Type "None (Default)"
Allows monitoring of the reachability of SIP
trunk peers; applies to SIP trunks only.
Ping Interval for In-service and Partially
In-service Trunks (seconds)
10
One ping every 10 seconds, combined with a
retry count of 6, makes sure that SIP trunk
unavailability is detected within a minute.
Ping Interval for Out-of-service Trunks
(seconds)
60
If a trunk is out of service, then we do not have
to try to reach the peer as often.
Ping Retry Timer (milliseconds)
500
Ping Retry Count
6
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-65
Chapter 2
Call Control
Deployment Overview
SIP Trunk Security Profiles
Cisco CallManager Administration groups SIP trunk security-related settings – for example, device
security mode, digest authentication, and incoming/outgoing transport type settings – so you can apply
all configured settings to a SIP trunk when you choose the profile in the SIP Trunk Configuration
window.
Table 2-57 shows the default settings on the system generated SIP trunk security profile Non Secure SIP
Trunk Profile. This SIP trunk security profile is used for the SIP trunks to ISDN PSTN gateways, for
example.
Table 2-57
Non Secure SIP Trunk Profile SIP Trunk Security Profile Settings
Setting
Value
Name
Non Secure SIP Trunk Profile
Device Security Mode
Non Secure
Incoming Transport Type
TCP+UDP
Outgoing Transport Type
TCP
Enable Digest Authentication
Not Checked
Incoming Port
5060
Enable Application level authorization
Not Checked
Accept presence subscription
Not Checked
Accept out-of-dialog refer
Not Checked
Accept unsolicited notification
Not Checked
Accept replaces header
Not Checked
Transmit security status
Not Checked
Allow charging header
Not Checked
SIP V.150 Outbound SDP Offer Filtering
Use Default Filter
Table 2-58 shows the settings for a SIP Trunk Security Profile used for a SIP trunk to the IM and
Presence nodes, differing from the default settings in Table 2-57.
Table 2-58
SIP Trunk Security Profile for IM and Presence Trunk
Setting
Value
Comment
Name
IM and Presence
Meaningful name describing the use of
the SIP Trunk Security Profile.
Accept Presence Subscription
Checked
Accept Out-of-Dialog REFER
Checked
Accept Unsolicited Notification
Checked
Accept Replaces Header
Checked
Table 2-59 shows the settings on the SIP trunk security profile to be used for intercluster trunks to other
Unified CM clusters. On these trunks we want to accept presence subscriptions to enable intercluster
Busy Lamp Field (BLF) presence.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-66
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-59
SIP Trunk Security Profile for Intercluster Trunks
Setting
Value
Comment
Name
ICT
Name describing the use of the SIP Trunk
Security Profile.
Accept Presence Subscription
Checked
Transmit Security Status
Checked
SIP Trunk Connections
SIP trunks are the preferred way to set up connectivity between Unified CM clusters and between
Unified CM and other systems such as gateways, applications, and media resources. Depending on the
type of connected system, the parameters configured on each SIP trunk differ slightly. Table 2-60
summarizes the settings for a SIP trunk to a PSTN gateway in site RTP.
Table 2-60
SIP Trunk Settings for Trunk to ISDN Gateway in Site RTP
Setting
Value
Comment
Name
ST_RTP_PSTN_1
Prefix ST_ to avoid name collisions with other
devices stored in the same table internally. The
remainder of the name identifies the location
of the gateway and allows numbers for
multiple gateways.
Description
Some meaningful description
Device Pool
RTP_PSTN
Common device pool for all RTP PSTN
gateways. Allows sharing of site-specific
settings between all RTP gateways.
Media Resource Group List
<None>
Use the MRGL defined on the device pool.
AAR Group
Default
Same everywhere
PSTN Access
Checked
Run On All Active Unified CM Nodes
Checked
This settings is recommended on all SIP
trunks. This makes sure that outbound calls to
SIP do not require intra-cluster control
signaling between Unified CM call processing
subscribers.
Calling Search Space
DN
Inbound calls have +E.164 called party
numbers, and only local destinations can be
called from the PSTN. Hence, no access is
required to ESN numbers and intercluster
destinations.
AAR Calling Search Space
PSTNReroute
Inbound Calls
Outbound Calls
Use Device Pool Called Party
Transformation CSS
Checked
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-67
Chapter 2
Call Control
Deployment Overview
Table 2-60
SIP Trunk Settings for Trunk to ISDN Gateway in Site RTP (continued)
Setting
Value
Use Device Pool Calling Party
Transformation CSS
Checked
Comment
SIP Information
Destination
X.X.X.X
IP address of ISDN gateway
SIP Trunk Security Profile
Non Secure SIP Trunk Profile
Default SIP trunk security profile
SIP Profile
FQDN
The key here is that the inbound CSS provides access to local +E.164 destinations only. These include
voicemail pilots or other services that need to be reachable from the PSTN, but no access is required to
PSTN route patterns, dialing normalization translation patterns, ESNs, URIs, and intercluster
destinations.
Settings for SIP trunks to other Unified CM clusters differ somewhat from the settings on SIP trunks to
ISDN gateways. Table 2-61 summarizes these settings.
Table 2-61
SIP Trunk Settings for Intercluster Trunk to Other Unified CM Cluster
Setting
Value
Comment
Name
ST_UCM_EMEA
Prefix ST_ to avoid name collisions with other devices
stored in the same table internally. The remainder of the
name identifies the trunk's purpose.
Description
Some meaningful description
Device Pool
Trunks_and_Apps
Common device pool for central trunks (see Table 2-55)
Media Resource Group List
<None>
Use the MRGL defined on the device pool.
AAR Group
Default
Same everywhere
PSTN Access
Not checked
Run On All Active Unified CM
Nodes
Checked
This settings is recommended on all SIP trunks. This
makes sure that outbound calls to SIP do not require
intra-cluster control signaling between Unified CM call
processing subscribers.
ICTInbound
Incoming calls on trunks need to support +E.164, ESN,
and URI dialing. This special CSS supports all three
dialing habits but does not provide access to PSTN or
remote on-net destinations (see Table 2-26 in the
section on Special CSSs).
Inbound Calls
Calling Search Space
For applications requiring PSTN access, another
special class of service (CSS) is required to also provide
access to the partitions with PSTN access route patterns
(see Table 2-29 in the section on Route Patterns for
PSTN Access and Emergency Calls).
AAR Calling Search Space
PSTNReroute
Same CSS everywhere
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-68
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-61
SIP Trunk Settings for Intercluster Trunk to Other Unified CM Cluster (continued)
Setting
Value
Comment
Outbound Calls
Use Device Pool Called Party
Transformation CSS
Checked
Use Device Pool Calling Party
Transformation CSS
Checked
Calling and Connected Party
Info Format
Deliver URI and DN in
connected party, if available
On intercluster trunks to other Unified CM clusters,
blended identity with both numeric and URI
information should be delivered to the remote cluster. If
both types of identity exist, then based on the
capabilities of the called endpoint, the cluster
terminating the call can decide which piece of the
identity information can be displayed on the final called
party.
Destination
X.X.X.X
List IP addresses of all Unified CM call processing
subscribers of remote Unified CM cluster. The order of
the IP addresses is not relevant because outbound calls
are randomly distributed among the defined
destinations.
SIP Trunk Security Profile
ICT
See Table 2-59
SUBSCRIBE Calling Search
Space
ICTInbound
Subscriptions on +E.164, ESN, and URIs should be
accepted. For the definition of the CSS, see the section
on Special CSSs.
SIP Profile
FQDN
See Table 2-56
SIP Information
In contrast to the SIP trunk to a PSTN ISDN gateway, inbound calls from other Unified CM clusters in
addition to +E.164 numbers also need access to ESNs and URIs. However, to avoid routing loops and
transit-routing, intercluster trunks do not have access to intercluster destinations (partition
onNetRemote, see Table 2-13).
For the SIP trunk to the IM and Presence nodes, configure a SIP trunk between Unified CM and IM and
Presence. For this SIP trunk, configure the destination IP addresses of all IM and Presence nodes. Select
the SIP Trunk Security Profile that you just created for the IM and Presence Service. Also select the
Standard SIP Profile.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-69
Chapter 2
Call Control
Deployment Overview
Route Groups
All SIP trunks are assigned to route groups. Route groups combine trunks with common characteristics.
Table 2-62 shows the route group definition for the PSTN gateways in site RTP.
Table 2-62
Note
Route Group for RTP PSTN Gateways
Setting
Value
Comment
Route Group Name
RTP_PSTN
Meaningful name
Distribution Algorithm
Circular
We want to make sure to balance
the load over all gateways.
Route Group Members
ST_RTP_PSTN_1
ST_RTP_PSTN_2
ST_RTP_PSTN_3
Add all SIP trunks to all SIP
gateways in site RRP.
Route groups can be configured only after the SIP trunks have been created, and these can be added only
after the respective device pool have been configured. This means that at the time of creating the device
pool for PSTN gateways, route groups do not yet exist. Thus the configuration order is:
1.
Configure the device pool for the PSTN gateway without defining the LRG mapping in the device
pool.
2.
Configure SIP trunks.
3.
Create the route group.
4.
Go back to the device pool and add LRG mapping (if required).
For intercluster trunks to other Unified CM clusters, a route group per trunks also needs to be defined.
Table 2-63 shows an example of a route group for an intercluster trunks to a remote Unified CM cluster.
Table 2-63
Route Group for Intercluster Trunk to Other Unified CM Cluster
Setting
Value
Comment
Route Group Name
UCM_EMEA
Meaningful name; in this case, for the
route group holding only the intercluster
trunk to the EMEA Unified CM cluster.
Distribution Algorithm
Circular
Irrelevant as long as only one route group
member exists.
Route Group Members
ST_UCM_EMEA
SIP trunk to remote Unified CM cluster.
Similar trivial route groups must be created for each non-PSTN SIP trunk provisioned on Unified CM.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-70
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Specific Non-LRG Route Lists
The section on Route Lists Using Local Route Groups introduces route lists for PSTN access using local
route groups only. For non-PSTN trunks, specific route lists need to be created using the route groups
referring to these non-PSTN trunks. The reason for defining trivial route groups with only a single
member and trivial route lists with only a single non-LRG route group as member, is that route patterns
in Unified CM should never point to a trunk directly, because whenever a route pattern is changed in
Unified CM, then the device the route pattern is pointing to is reset, and pointing route patterns to a route
list instead of trunks makes sure that editing the route patterns will not reset the trunk itself but rather
the route list. Examples for such trunks include trunks to other Unified CM clusters and applications.
Table 2-64 shows the trivial route list for an intercluster trunk to another Unified CM cluster.
Table 2-64
Route List for Intercluster Trunk to Another Unified CM Cluster
Route List
Members
Description
RL_UCM_EMEA
UCM_EMEA
Only a single member: the actual trunk to the remote
Unified CM cluster. The leading RL makes sure to avoid
naming collisions with trunks. Internally route lists are
treated as devices, and the names of route lists cannot be
identical to names of SIP trunks, for example.
Similar trivial route lists have to be created for each non-PSTN SIP trunk provisioned on Unified CM.
Endpoint Provisioning
When provisioning a new endpoint, these minimum tasks are required:
•
Configure the Device
•
Configure the Line
•
Add the Device to Devices Controlled by the User
•
Configure the Line Association for Presence
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-71
Chapter 2
Call Control
Deployment Overview
Configure the Device
When adding a new endpoint to Unified CM, the design described in this document requires the settings
summarized in Table 2-65. Settings not mentioned here are either left as default or have to be configured
according to device-specific requirements:
Table 2-65
Endpoint Device Settings
Setting
Value
Description
Device Pool
RTPPhoneVideo
Site-specific device pool for endpoints (see
Table 2-53). In this case this is the device pool
for endpoints in site RTP with access to video
conferencing media resources.
Calling Search Space
USEmergency
Access to emergency routing in multi-national
environments is implemented on the device level
(see the section on Emergency Call
Considerations in Multi-National
Environments). If only one country (dialing
domain) such as the US needs to be supported,
then this CSS can be left as <None>.
AAR Calling Search Space
PSTNReroute
Same everywhere (see the section on Automated
Alternate Routing).
Media Resource Group List
<None>
Use device pool level settings.
AAR_Group
Default
Same everywhere (see the section on Automated
Alternate Routing).
Owner
Select "User"
If the device is a phones without user association
(for example a lobby phone), then select
"Anonymous (Public/Shared Space)" and do not
set the "Owner User ID"
Owner User ID
Select the user ID of the owner of
this phone.
Allow Control of Device from CTI
Checked
Device Information
Number Presentation Transformation
Caller ID For Calls From This
Phone
"Use Device Pool Calling Party
Transformation CSS (Caller ID For
Calls From This Phone)" checked
Remote Number
"Use Device Pool Calling Party
Transformation CSS (Device
Mobility Related Information)"
checked
Protocol Specific Information
SIP Profile
FQDN
See Table 2-56
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-72
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Configure the Line
On each endpoint, at least the first line needs to be provisioned. Table 2-66 summarizes the line settings
specific to the design described in this document.
Table 2-66
Line Settings
Setting
Value
Description
Directory Number
\+14085554146
Full +E.164 directory number matching the phone
number of the user this DN is provisioned for. The
leading + has to be escaped with \. If a non-DID is
provisioned, then the directory number is set to the
ESN (for example, 81405001).
Route Partition
DN
If a non-DID is provisioned, then the partition is
ESN.
Alerting Name
Aristotle Boyle
Full name of the user associated with the number. If
the number is not associated with a user, then
provision a meaningful name (for example, Bldg. 31
Lobby).
Directory Number Information
Allow Control of Device from CTI Checked
Directory Number Settings
Calling Search Space
SJCInternational
CSS defining the effective class of service for calls
from this line. The CSS is specific to site and class
of service (see the section on Classes of Service and
Calling Search Spaces (CSSs) for other CSSs).
BLF Presence Group
Standard Presence Group
Same for all lines
Number Mask
Leave mask empty
An empty mask creates the +E.164 alternate number
identical to the directory number configured above.
If a non-DID is provisioned, no +E.164 alternate
number is added because no PSTN address exists for
non-DIDs, by definition.
Add to Local Route Partition
Not checked
The +E.164 alternate number is not added to a local
route partition because the directory number itself
already is a +E.164 number
Advertise Globally via ILS
Not checked
The +E.164 alternate number is not advertised via
ILS. Instead, summary routes for each DID range
are advertised (see Table 2-70). The only reason to
create the +E.164 alternate number is to be able to
advertise this +E.164 alternate number as the GDPR
PSTN failover number for URIs associated with this
directory number.
+E.164 Alternate Number
PSTN Failover for Enterprise Alternate Number, +E.164 Alternate Number, and URI Dialing
Advertised Failover Number
+E.164 Number
The +E.164 number is advertised as GDPR PSTN. If
a non-DID is provisioned, then set to <None>.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-73
Chapter 2
Call Control
Deployment Overview
Table 2-66
Line Settings (continued)
Setting
Value
Description
Voice Mail
Not checked
If a non-DID is provisioned, then check this option.
AAR Destination Mask
+14085554XXX
This DID range mask makes sure that the alternate
PSTN destination for AAR is equal to the directory
number. If a non-DID is provisioned, then leave this
mask empty.
AAR Group
Default
Same everywhere
AAR Settings
Call Forward and Call Pickup Settings
Calling Search Space Activation
Policy
Use System Default
Forward All
"Voicemail" not checked
CSS might be set to a more restricted CSS
Calling Search Space:
SJCInternational
All other Forward settings other
than "Forward Unregistered
Internal" and "Forward
Unregistered External"
"Voicemail" checked
"Forward Unregistered Internal"
and "Forward Unregistered
External"
Destination: +14085554146
CSS might be set to a more restricted CSS
Calling Search Space:
SJCInternational
Calling Search Space:
PSTNReroute
Forward Unregistered implements an alternate route
through the PSTN in case the endpoint is
unregistered. This makes sense only for endpoints in
remote sites with local PSTN access for which an
alternate route through the PSTN can be established.
If a non-DID is provisioned or a DN for which
PSTN reroute does not make sense, then check
"Voicemail" and set the CSS to SJCInternational or
some other CSS that can reach the voicemail pilot.
Line 1 on Device
Display (Caller ID)
Aristotle Boyle
Full name of the user associated with the number. If
the number is not associated with a user then,
provision a meaningful name (for example, Bldg. 31
Lobby).
Line Text Label
4146
Makes sure that the last four digits of the directory
number are displayed next to the line button on the
phone. This setting exists only for lines on devices
supporting line text labels.
External Phone Number Mask
+14085554XXX
The external phone number mask is not referenced
anywhere in the provisioned dial plan and can be set
to anything. For phones on which the external phone
number mask determines the text in the first line on
the phone display, the mask can be set to something
that creates a meaningful label.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-74
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Add the Device to Devices Controlled by the User
For devices associated with users, after provisioning the device in the End User Configuration of the
respective user in the Device Information section in Unified CM Administration, make sure that the
device is associated with the user. The recommended way to achieve this is to select Device Association
and search for devices where the directory number matches the phone number of the user.
Configure the Line Association for Presence
To determine the presence state of a user, only the line appearances (per DN and device) explicitly
associated for presence are considered. To make sure that all line appearances of a user's directory
numbers are considered for presence, in the End User Configuration of the respective user in the section
on Device Information in Unified CM Administration, select Line Appearance Association for
Presence and associate all line appearances.
Verify the User's Primary Extension
To make sure that the user's directory URI synchronized from LDAP propagates to the directory number,
select the Primary Extension in the Directory Number Associations section in the End User
Configuration of the respective user in Unified CM Administration.
Jabber Provisioning
Service Discovery enables Jabber to establish configuration automatically. The Jabber client gets its
configuration through Unified CM User Discovery Service (UDS). It is the recommended configuration
and is preferred over the older manual configuration.
The services are configured through UC services. A Service profile specifies which UC services to use.
Each user is associated with a service profile.
Table 2-67 shows the UC services that can be made available to Jabber clients. Those services are
configured in User Management > User Settings > UC service.
Table 2-67
UC Services
UC Service Type
Comment
IM and Presence
Create an IM and Presence service for each IM and Presence node.
Directory
Create a Directory service for each active directory server. Do not select
"Use UDS for Contact Resolution" when integrating with LDAP directly.
When using UDS for Contact Resolution, the Unified CM user scalability
decreases.
CTI
Create a CTI service for each Unified CM running the CTI Manager service.
This is used for desk phone control mode. Load balance the CTI load across
all Unified CM call processing nodes.
Voicemail
Create a Voicemail service for each Unity Connection node.
Conferencing
Jabber can be integrated with Cisco WebEx Meetings Server or Cisco WebEx
Meeting Center. In this design, we cover the integration with Cisco WebEx
Meetings Server.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-75
Chapter 2
Call Control
Deployment Overview
Associate the UC services to a Service Profile. A Service Profile is then associated to each user. For
deployments with more than two Unified CM call processing subscribers, spread the CTI load equally
across all Unified CM call processing subscribers and ensure that the CTI scalability limit is not
exceeded on any single Unified CM call processing subscriber running the CTI Manager service. To
associate Jabber clients with another Unified CM call processing subscriber running the CTI Manager
service, configure another Service Profile with the relevant CTI UC service settings.
For users connected to the internal enterprise network (not using Cisco Collaboration Edge), directory
search Contact Sources can be provided through UDS or through LDAP. With LDAP, Enhanced
Directory Integration (EDI) for Windows desktops and Basic Directory Integration (BDI) for Mac, iOS,
and Android are available. BDI and EDI can co-exist. The Contact Source or directory can be configured
through the jabber-config.xml file or through the directory UC service which takes precedence. The
recommendation is to configure a jabber-config.xml file that is uploaded onto the Unified CM TFTP
server. The jabber-config.xml file is also used to enable URI dialing for Jabber clients. Example 2-5
shows a jabber-config.xml file to enable URI dialing for Jabber clients. This is the recommended
minimum. Additional configuration options can be added.
Example 2-5
jabber-config.xml File to Enable URI Dialing
<?xml version="1.0" encoding="utf-8"?>
<config version="1.0">
<Policies>
<EnableSIPURIDialling>true</EnableSIPURIDialling>
</Policies>
</config>
For more details, refer to the following documentation:
•
Configuration and Administration of IM and Presence on Cisco Unified Communications Manager
http://www.cisco.com/c/en/us/support/unified-communications/unified-communications-managercallmanager/products-installation-and-configuration-guides-list.html
•
Deployment and Installation Guide for Cisco Jabber
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/10_5/CJAB_BK_D6497E98_00_dep
loyment-installation-guide-ciscojabber.html
ILS Configuration for Multi-Cluster Deployments
When the Intercluster Lookup Service (ILS) is configured on multiple clusters, ILS updates Unified CM
with the current status of remote clusters in the ILS network.
The ILS cluster discovery service allows Unified CM to learn about remote clusters without the need for
an administrator to manually configure connections between each cluster.
The ILS cluster discovery service enables UDS-based service discovery for Jabber clients in
multi-cluster environments. In addition, ILS is the foundation for global dial plan replication (GDPR),
which allows the exchange of reachability information for both alphanumeric URIs and numeric
destinations between Unified CM clusters to enable deterministic intercluster routing for those
destinations.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-76
November 20, 2015
Chapter 2
Call Control
Deployment Overview
To create an ILS network of multiple Unified CM clusters, perform the following tasks:
•
Assign Unique Cluster IDs for Each Unified CM Cluster in the Network
•
Activate ILS on the First ILS Hub Cluster in the Network
•
Activate ILS on the Remaining ILS Clusters in the Network
•
Consider UDS Certificate Requirements
Assign Unique Cluster IDs for Each Unified CM Cluster in the Network
The cluster IDs defined in the Unified CM cluster enterprise parameters have to be unique. See Table 2-4
for details.
Activate ILS on the First ILS Hub Cluster in the Network
Forming an ILS network starts with activating ILS on the first Unified CM cluster. This done by
changing the role from Standalone Cluster to Hub Cluster in the ILS Configuration menu in Unified CM
Administration.
Table 2-68 shows the settings to be applied when activating ILS on the first Unified CM cluster.
Table 2-68
ILS Activation on First Unified CM Cluster
Setting
Value
Comment
Role
Hub Cluster
ILS is activated by changing the role from Standalone Cluster to
Hub Cluster.
Exchange Global Dial Plan
Replication Data with Remote
Clusters
Checked
Makes sure that URI and numeric reachability information is
exchanged with remote clusters.
Advertised Route String
us.route
The advertised route string is the location attribute tied to all
URI and numeric reachability information advertised by this
Unified CM cluster. Remote clusters trying to reach any of the
destinations advertised by this cluster will establish the route to
this destination by matching the learned SIP route string against
SIP route patterns provisioned on the remote cluster.
Synchronize Clusters Every
2
Setting the synchronization interval to a reasonably small
interval makes sure that changes are picked up by remote
clusters after a short period of time. The overhead of a short
synchronization interval is limited because GDPR uses an
incremental update algorithm that exchanges only delta
information if any changes occurred since the last update.
Use Password
Checked
Password based authentication is selected.
Password
<some password>
Choose a secure password. This password is shared among all
Unified CM clusters participating in the ILS network.
ILS Authentication
When activating ILS by changing the role from Standalone Cluster to Hub Cluster in Unified CM
Administration, an ILS Cluster Registration pop-up appears and asks you to input a Registration Server.
When activating ILS on the first Unified CM cluster, no registration server information is available, so
the input in that pop-up should be left empty.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-77
Chapter 2
Call Control
Deployment Overview
Activate ILS on the Remaining ILS Clusters in the Network
Adding more Unified CM clusters to the ILS network requires the same process as activating ILS on the
first Unified CM cluster: changing the role from Standalone Cluster to Hub Cluster in the ILS
Configuration menu in Unified CM Administration.
Table 2-69 shows the settings to apply when activating ILS on the remaining Unified CM clusters.
Table 2-69
ILS Activation on Additional Unified CM Clusters
Setting
Value
Comment
Role
Hub Cluster
ILS is activated by changing the role from Standalone Cluster to
Hub Cluster.
Exchange Global Dial Plan
Replication Data with Remote
Clusters
Checked
Makes sure that URI and numeric reachability information is
exchanged with remote clusters.
Advertised Route String
emea.route
Make sure that the SIP route string for each cluster is unique to
allow for deterministic routing based on these route strings.
The example here indicated that this is a Unified CM cluster
serving EMEA destinations.
Synchronize Clusters Every
2
Make sure to use the same synchronization interval on all
clusters for consistency.
Use Password
Checked
Password based authentication is selected.
Password
<some password>
Choose a secure password. This password is shared among all
Unified CM clusters participating in the ILS network.
ILS Authentication
Consider UDS Certificate Requirements
To enable UDS-based service discovery, the UDS process on each Unified CM cluster tries to establish
connectivity with the UDS processes running on remote Unified CM clusters to learn about the remote
clusters' UDS nodes. For this server-to-server communication, TLS connections between the
Unified CM clusters' nodes are established and the remote peers' certificates are validated during TLS
connection setup. To prevent this validation from failing, the Tomcat certificates of the Unified CM
publisher and call processing subscriber nodes of all Unified CM clusters must be exchanged.
Also, this server-to-server communication is one of the reasons why TLS Web Client Authentication
has to be in the X.509 extended key usage when issuing Tomcat certificates on an external CA (see
Table 2-3).
To exchange the Unified CM cluster publisher certificates, perform the following tasks:
•
On each Unified CM cluster in the Cisco Unified Operating System Administration, use Bulk
Certificate Management to export the cluster's Tomcat certificate to a central SFTP server.
•
After Tomcat certificates from all clusters have been exported, use the Consolidate option in Cisco
Unified Operating System Administration on one of the clusters to consolidate all Tomcat
certificates into one file.
•
On each Unified CM cluster in the Cisco Unified Operating System Administration, use Bulk
Certificate Management to import the consolidated file of all Tomcat certificates.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-78
November 20, 2015
Chapter 2
Call Control
Deployment Overview
This process makes sure that all Tomcat certificates of all Unified CM cluster nodes are imported in the
local certificate stores of all Unified CM clusters as Tomcat trust, so that the certificate validation
happening as part of TLS connection setup as part of the UDS communication between clusters does not
fail. The use of multi-server certificates greatly reduces the number of individual Tomcat certificates that
need to be exchanged.
GDPR Configuration (Multi-Cluster Only)
When Global Dial Plan Replication (GDPR) is enabled across an ILS network, remote clusters in an ILS
network share global dial plan data, including the following:
•
Directory URIs
•
+E.164 and ESN patterns
•
PSTN failover numbers
GDPR allows you to create a global dial plan, including intercluster dialing of directory URIs and
alternate numbers, that spans across an ILS network. GDPR allows you to quickly configure the global
dial plan across the ILS network without the need to configure each dial plan component on each cluster
separately.
Configuring GDPR requires the following steps in addition to activating ILS as described in the previous
section:
•
Advertise URIs
•
Configure Advertised Patterns
•
Configure Partitions for Learned Numbers and Patterns
•
Configure Intercluster Trunks
•
Configure SIP Route Patterns
Advertise URIs
In this document we assume that URIs for users are automatically provisioned based on the directory
URI synchronized for each user from the email attribute of the corporate directory (see Table 2-45) and
the primary extension configure for the user. By default the Advertise Globally via ILS option is set for
these URIs automatically created in partition Directory URI. Also make sure to set the Advertise
Globally via ILS option on all URIs you have provisioned in addition to the ones created automatically.
Configure Advertised Patterns
To keep the route plan small on remote clusters, in this design only summary patterns are advertised for
each +E.164 and ESN range hosted on each cluster. For the example cluster hosting the sites RTP, RCD,
and SJC, the patterns shown in Table 2-70 need to be configured as GDPR advertised patterns. For
information on the DID ranges and ESN ranges used in the example, refer to Table 2-10 and Table 2-11.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-79
Chapter 2
Call Control
Deployment Overview
Table 2-70
Patterns Advertised via GDPR
Pattern
Pattern Type
PSTN Failover Setting
Comment
+14085554XXX
+E.164 Number
Use Pattern as PSTN Failover Number Site SJC DID range
81404XXX
Enterprise Number
Apply Strip Digits and Prepend Digits ESN range of SJC DIDs. Strip digits
to Pattern and Use for PSTN Failover and prefix to transform from ESN to
PSTN failover number.
PSTN Failover Strip Digits: 4
PSTN Failover Prepend Digits:
+1408555
81405XXX
Enterprise Number
Don't use PSTN Failover
ESN range of SJC non-DIDs. No
PSTN failover possible.
+19195551XXX
+E.164 Number
Use Pattern as PSTN Failover Number Site RTP DID range
81911XXX
Enterprise Number
Apply Strip Digits and Prepend Digits ESN range of RTP DIDs. Strip digits
to Pattern and Use for PSTN Failover and prefix to transform from ESN to
PSTN failover number.
PSTN Failover Strip Digits: 4
PSTN Failover Prepend Digits:
+1919555
81912XXX
Enterprise Number
Don't use PSTN Failover
ESN range of SJC non-DIDs. No
PSTN failover possible.
+19725555XXX
+E.164 Number
Use Pattern as PSTN Failover Number Site RCD DID range
81975XXX
Enterprise Number
Apply Strip Digits and Prepend Digits ESN range of RCD DIDs. Strip
to Pattern and Use for PSTN Failover digits and prefix to transform from
ESN to PSTN failover number.
PSTN Failover Strip Digits: 4
PSTN Failover Prepend Digits:
+1972555
81976XXX
Enterprise Number
Don't use PSTN Failover
ESN range of RCD non-DIDs. No
PSTN failover possible.
8099XXXX
Enterprise Number
Don't use PSTN Failover
ESN ranges for conferences on this
cluster (see Table 2-11).
Advertising both the +E.164 range and the ESN range for each site makes sure that both formats can be
used as the intercluster dialing habit on the remote clusters learning this information.
Configure Partitions for Learned Numbers and Patterns
Numeric patterns (+E.164 and ESN) learned from remote clusters are added to the local route plan into
predefined partitions. The Partitions for Learned Numbers and Patterns menu in Unified CM
Administration allows you to define differentiated partitions for each type of learned information. In this
design we do not need this differentiation and simply configure GDPR to learn all remote numeric
patterns in a single partition, onNetRemote (see Table 2-13).
Table 2-71 summarizes the settings for the GDPR partitions.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-80
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Table 2-71
GDPR Partition Settings
Setting
Value
Partition for Enterprise
Alternate Numbers
onNetRemote
Partition for +E.164
Alternate Numbers
onNetRemote
Partition for Enterprise
Patterns
onNetRemote
Comment
"Mark Learned Numbers as Urgent" checked
Marked urgent to avoid
inter-digit timeout on +E.164
"Mark Learned Numbers as Urgent" checked
on-net intercluster calls.
"Mark Fixed Length Patterns as Urgent"
checked
"Mark Variable Length Patterns as Urgent"
unchecked
Partition for +E.164
Patterns
onNetRemote
"Mark Fixed Length Patterns as Urgent"
checked
Marked urgent to avoid
inter-digit timeout on +E.164
on-net intercluster calls.
"Mark Variable Length Patterns as Urgent"
unchecked
Configure Intercluster Trunks
The GDPR exchange only makes sure that all URI and numeric reachability information is exchanged
between Unified CM clusters and associated with a SIP route string as the location attribute. Sessions
between clusters need SIP trunks to be established. In this design we assume full-mesh SIP trunks
between all Unified CM clusters, with a maximum of three Unified CM clusters. The maximum of three
Unified CM clusters makes sure that the topology of the full mesh of SIP trunks is manageable. If more
than three Unified CM clusters are required, then adding Unified CM Session Management Edition
(SME) is recommended to simplify the topology to a hub-and-spoke topology with SME as the hub and
all other Unified CM clusters as spokes or leaf clusters.
Regular SIP intercluster trunks are used for GDPR routing. SIP trunk ST_UCM_EMEA, as with the
settings shown in Table 2-61, is an example of an intercluster trunk provisioned for GDPR routing.
Configure SIP Route Patterns
SIP route patterns tie together the SIP route strings learned via GDPR and the SIP trunk topology. Think
of it as if a GDPR route strings tells us "where" a learned URI or numeric pattern is located, and we need
route patterns matching on these route strings to tell how to get to this destination.
To achieve full GDPR reachability, we need to make sure that each SIP route string advertised via GDPR
can be routed according to the provisioned SIP route patterns. Table 2-72 summarizes the trunks, route
groups, route lists, and SIP route patterns that need to be provisioned to enable full intercluster GDPR
routing between two Unified CM clusters.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-81
Chapter 2
Call Control
Deployment Overview
Table 2-72
GDPR Routing with Two Unified CM Clusters
Component
US Cluster
EMEA Cluster
Comment
SIP Trunk
ST_UCM_EMEA
ST_UCM_US
SIP trunk on each cluster to the other
Unified CM cluster (see Table 2-61)
Route Group with above SIP
trunk as member
UCM_EMEA
UCM_US
Dedicated route group for the
intercluster trunk (see Table 2-63)
Route List with above route
group as member
RL_UCM_EMEA
RL_UCM_US
Dedicated non-LRG route list for the
intercluster trunk (see Table 2-64)
SIP Route String
us.route
emea.route
SIP route string advertised by the
Unified CM cluster
SIP Route Pattern pointing to
above route list
emea.route in partition
onNetRemote
us.route in partition
onNetRemote
Provisioned SIP route pattern matches
on the SIP route string advertised by
the other Unified CM cluster
Example GDPR Call Flow
With the above configuration, this section describes how a call would be routed if +14085554001 is
dialed on an endpoint with class of service "international" registered to the EMEA cluster in the above
example.
1.
The dialed digits (+14085554001) are matched against the dial plan on the EMEA cluster, using the
calling device’s CSS XXXInternational, where XXX represents a site code of a site provisioned on
the EMEA cluster. The actual site-specific dialing normalization is irrelevant here.
The important point is that CSS XXXInternational contains at least the following partitions (see
Table 2-18; again XXX represents a site code while XX represents some dialing domain identifier):
– DN
– Directory URI
– URI
– ESN
– onNetRemote
– XXXIntra
– XXtoE164
– XXPSTNNational
– PSTNInternational
– B2B_URI
– USEmergency
The dialed digits (+14085554001) in these partitions have three matches:
– +14085554XXX in partition onNetRemote learned from the US cluster with SIP route string
us.route (see Table 2-70)
– \+! in partition PSTNInternational (see Table 2-29)
– \+!# in partition PSTNInternational (see Table 2-29)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-82
November 20, 2015
Chapter 2
Call Control
Deployment Overview
2.
Because +14085554XXX in partition onNetRemote is inserted into the route plan as urgent pattern
(see Table 2-71) and this pattern at this point is the best match, digit collection is stopped
immediately and the call is routed based on this best match.
3.
+14085554XXX in partition onNetRemote is a GDPR learned pattern and is associated with SIP
route string us.route. Hence, us.route is matched against the configured SIP route patterns on the
EMEA cluster, again using the calling device's CSS XXXInternational.
The only match is SIP route pattern us.route in partition onNetRemote.
4.
The call on the EMEA cluster is extended to SIP trunk ST_UCM_EMEA, dereferencing the route
list RL_UCM_EMEA the matched SIP route pattern us.route points to and route group
RG_UCM_EMEA (see Table 2-72)
5.
On the US cluster, the inbound CSS ICTInbound of SIP trunk ST_UCM_EMEA (see Table 2-61) is
used to route the inbound call to destination +14085554001.
6.
CSS ICTInbound has these partitions:
– DN
– ESN
– URI
– Directory URI
In these partitions the only (potential) match is on a +E.164 directory number \+14085554001
(marked urgent) in partition DN. If this directory number exists, then the call is extended to all
associated devices.
Routing of remotely dialed ESN destinations follows the exact same flow, with the only exception being
that the final lookup on the US cluster using CSS ICTInbound in that case would find a match on an ESN
in partition ESN.
IM and Presence Intercluster
To create a fully meshed presence topology, each Cisco IM and Presence cluster requires a separate peer
relationship for each of the other Cisco IM and Presence clusters within the same domain. The address
configured in this intercluster peer is the IP address of the remote Unified CM cluster IM and Presence
publisher node.
The interface between each Cisco IM and Presence cluster is two-fold: an AXL/SOAP interface and a
signaling protocol interface (SIP or XMPP). The AXL/SOAP interface, between publisher-only servers
of an IM and Presence cluster, handles the synchronization of user information for home cluster
association, but it is not a full user synchronization. The signaling protocol interface (SIP or XMPP) is
a full mesh encompassing all servers within the deployment. It handles the subscription and notification
traffic, and it rewrites the host portion of the URI before forwarding if the user is detected to be on a
remote Cisco IM and Presence cluster within the same domain.
When Cisco IM and Presence is deployed in an intercluster environment, a presence user profile should
be determined. The presence user profile helps determine the scale and performance of an intercluster
presence deployment and the number of users that can be supported. The presence user profile helps
establish the number of contacts (or buddies) a typical user has, as well as whether those contacts are
mostly local cluster users or users of remote clusters.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-83
Chapter 2
Call Control
Deployment Overview
Survivable Remote Site Telephony (SRST) Deployment
Configure SRST at each remote site in order to provide call processing survivability in case the WAN to
the remote site fails. With SRST, if the WAN fails, phone calls can still be made within the remote site
or out to the PSTN.
Deployment
Deploy one Cisco Integrated Services Router (ISR) for each remote sites that you want to enable for
SRST.
Provisioning
To configure SRST, you must perform the configuration on both Unified CM and the SRST router.
On Unified CM:
•
Configure an SRST Reference for each remote site, and associate this SRST Reference in the device
pool of the remote phones.
•
Configure Call Forwarding Unregistered (CFUR) on the DNs of the remote phones to use the +E.164
number and the AAR CSS. In case the WAN fails, the call will use this information to get routed via
the PSTN.
On the SRST router:
•
Configure SRST on each remote branch router. Since our recommendation is to use SIP phones, use
the voice register global and voice register pool commands. Use the voice service voip/sip
command to bind the IP addresses of the source interface and enable the registrar capability.
Configure DHCP for the phones in the remote branch. The DHCP server may be configured on the
SRST router or on other network service resources.
•
If the WAN fails, the SIP phones will register with their +E.164 extensions. In order to allow users
to call other local users by their four-digit extensions, configure a voice translation profile that is
referenced as an incoming profile in the voice register pool configuration. This voice translation
profile transforms the called number from four digits to the complete +E.164 number.
•
Configure POTS dial-peers to allow local access to the PSTN in case the WAN is down. Configure
translation voice profiles in order to comply with the service provider’s PSTN dialing requirements.
For more details on dial-peer configuration, refer to the section that describes how to Deploy Cisco
Unified Border Element.
The SRST configuration in Example 2-6 is just a partial configuration to illustrate some of the concepts
discussed in the previous paragraphs. It does not cover the full SRST configuration. For instance,
configuration to reach the Cisco Unity Connection server in the main site is covered in the chapter on
Core Applications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-84
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Example 2-6
SRST Partial Configuration
voice service voip
allow-connections sip to sip
sip
bind control source-interface GigabitEthernet0/0.241
bind media source-interface GigabitEthernet0/0.241
registrar server
!
voice register global
mode srst
max-dn 100
max-pool 100
!
voice register pool 1
translation-profile incoming 4-digit-rtp
id network 10.0.94.0 mask 255.255.255.0
!
voice translation-rule 1
rule 1 /\(^1...\)$/ /+1919555\1/
!
voice translation-profile 4-digit-rtp
translate called 1
!
For more details on configuring SRST, refer to the Cisco Unified SCCP and SIP SRST System
Administrator Guide, available at
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cusrst/admin/sccp_sip_srst/configuration/g
uide/SCCP_and_SIP_SRST_Admin_Guide.html
Extension Mobility
Cisco Extension Mobility allows users to temporarily access their Cisco Unified IP Phone configuration
– such as line appearances, services, and speed dials – from other Cisco Unified IP Phones.
One or two Unified CM call processing nodes can actively handle Extension Mobility requests. The
benefits of adding a second Unified CM call processing node for Extension Mobility are resiliency and
increased capacity. In this scenario, a load balancer is required to send the requests to both Unified CM
nodes. Cisco IOS Server Load Balancing can be used, for example.
Extension Mobility Cross Cluster (EMCC) provides the ability to perform Extension Mobility logins
between clusters within an enterprise. This feature is not covered in this guide. For more details on
EMCC, refer to the Cisco Collaboration System 11.x SRND and the EMCC product documentation.
Deploying Extension Mobility
To deploy Extension Mobility, perform the following tasks:
•
Ensure that the Cisco Extension Mobility service is activated on one or two Unified CM call
processing servers.
•
Add an IP Phone Service for Extension Mobility. A secure IP Phone Services URL using HTTPS in
addition to a non-secure URL can be configured. The non-secure URL is
http://<IPAddress>:8080/emapp/ EMAppServlet?device=#DEVICENAME#
You can either make this service available to all phones in the cluster by selecting Enterprise
Subscription or make it available to selected phones by subscribing those phones to this service.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-85
Chapter 2
Call Control
Deployment Overview
•
For each user that will use Extension Mobility, create at least one Device Profile. Since a Device
Profile is tied to a specific user, the Device Profile is usually referred to as a User Device Profile. If
a Device Profile is not created for a user, that user will not be able to log in with extension mobility.
•
Associate the device profile to a user for extension mobility. If CTI is needed, also associate the
profile to be a CTI controlled device profile.
•
For each phone that can be used for users to log in, enable Extension Mobility. For Cisco DX Series
endpoints, also enable Multi-User (the phone will reset). For Cisco TelePresence endpoints using
the TC software (for instance, Cisco TelePresence EX and SX Series endpoints), ensure that the
TelePresence endpoints are not provisioned in Cisco TelePresence Management Suite (TMS),
otherwise the sign-in button will not be available on the endpoint.
•
On the DN configuration, configure the association of the appropriate user to the line. This allows
the DN to send presence information for that user if the line of that phone is in use. For example:
User B is using Jabber and is monitoring user A. User A logs into a phone with Extension
Mobility and has a User Device Profile with the DN associated to himself/herself. When user A
goes off-hook, this presence information will be reported on the Jabber client of user B.
For more details on Extension Mobility, refer to the Features and Services Guide for Cisco Unified
Communications Manager, available at
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmfeat/CUCM_BK_
F3AC1C0F_00_cucm-features-services-guide-100.html
Busy Line Field (BLF) Presence
The BLF Presence feature allows a user (watcher) to monitor the real-time status of another user at a
directory number or SIP URI from the device of the watcher. A watcher can monitor the status of the
user by using the following options:
•
BLF/SpeedDial buttons
•
Missed call, placed call, or received call lists in the directories window
•
Shared directories, such as the corporate directory
BLF Presence is not based in Cisco Unified IM and Presence.
Deploying BLF Presence
•
Enable the BLF for Call List enterprise parameter (see Table 2-4).
•
Configure the cluster-wide service parameters for BLF presence.
•
To use BLF presence group authorization, configure BLF presence groups and permissions.
•
Apply a BLF presence group to the directory number, SIP trunk, phone that is running SIP, phone
that is running SCCP, end user, and application user (for application users that are sending BLF
presence requests over the SIP trunk) in Cisco Unified Communications Manager Administration.
•
To allow BLF presence requests from a SIP trunk, select the Accept Presence Subscription option
in the SIP Trunk Security Profile Configuration window (see Table 2-59).
•
Configure the SUBSCRIBE calling search space and apply the calling search space to the phone,
trunk, or end user, if required.
•
For BLF/SpeedDial buttons on the phones, customize phone button templates for the
BLF/SpeedDial buttons or add them directly to the phones.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-86
November 20, 2015
Chapter 2
Call Control
Deployment Overview
Deploying Computer Telephony Integration (CTI)
•
Activate the CTI Manager service on the Unified CM call processing nodes that need the
CTI Manager service.
•
For redundancy, through the CTI application administration, select a primary and backup
Unified CM node running the CTI Manager service,
•
Download the TAPI client software for applications using TAPI.
•
If possible, for a given CTI-enabled endpoint, configure the same Unified CM call processing node
for CCM registration and for CTI Manager monitoring and control.
•
Ensure the CTI load is spread across all Unified CM nodes running the CTI Manager and that the
CTI capacity limits are not exceeded. For example, with Jabber clients, if two Unified CM call
processing pairs are required, spread the registration across the two pairs; also, if the Jabber clients
are configured with the ability to be in deskphone mode, spread the CTI Manager connectivity
across the two pairs. This can be achieved with multiple Service Profiles with different CTI profiles
associated. Ensure the number of Jabber clients in deskphone mode monitored and controlled by
each Unified CM running the CTI Manager service does not exceed the CTI capacity limit.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
2-87
Chapter 2
Call Control
Deployment Overview
Cisco Preferred Architecture for Enterprise Collaboration 11.0
2-88
November 20, 2015
CH A P T E R
3
Conferencing
Revised: November 20, 2015
This chapter describes the components and deployment of video and audio conferencing in an enterprise
deployment. The chapter describes the Architecture for conferencing and then outlines the major tasks
involved in the Conferencing Deployment Process.
Each major task of the Conferencing Deployment Process starts with an Overview section listing the
steps required for that task, followed by a section on the important Deployment Considerations for that
task, and then a section (or sections) detailing the deployment tasks listed in the Overview section.
What’s New in This Chapter
Table 3-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 3-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
Described in:
Revision Date
Cisco TelePresence Management Suite (TMS)
information has been moved to this chapter
(previously covered in the Conferencing chapter)
Role of Cisco TMS, page 3-6
November 20, 2015
Multiparty Licensing in Cisco TelePresence
Conductor for TelePresence Server license
management
Licensing, page 3-16
5. Deploy TelePresence Management Suite,
page 3-38
November 20, 2015
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-1
Chapter 3
Conferencing
Core Components
The core architecture contains these key conferencing elements:
•
Cisco TelePresence Server for audio and video conference resources
•
Cisco TelePresence Conductor for management of audio and video resources as well as
TelePresence Server resource licenses
•
Cisco TelePresence Management Suite (TMS) for conference provisioning, monitoring, and
scheduling
•
Cisco TelePresence Management Suite Extension for Microsoft Exchange (TMSXE) for interfacing
with Microsoft Exchange room and resource calendars
•
Cisco TelePresence Management Suite Provisioning Extension (TMSPE) for configuring Cisco
Collaboration Meeting Rooms (CMRs) as well as provisioning multiparty licenses for users
•
Cisco WebEx Software as a Service (SaaS) for scheduled audio and web conferences and hybrid
video and web conferences
In addition, Cisco TMS architecture includes these non-Cisco components:
•
Microsoft SQL database
•
Microsoft Active Directory
•
Microsoft Exchange or Microsoft Office 365
•
Network Load Balancer
•
Simplified, optimal user experience for conference participants
•
Flexible, extendable architecture that supports deployment of one or more permanent, scheduled,
and/or instant conference resources
•
Dynamic optimization of conference resources on the TelePresence Server for inbound calls
•
High availability of conference resources and processes
•
Resilience in the video network
•
A single tool for hosts to schedule participants and conference rooms for a meeting
•
Ability to integrate the WebEx and video participants into a single meeting without additional
end-user intervention
•
Multiparty licensing that enables full access to all conference resources and simplifies the
deployment process of the TelePresence Server
Key Benefits
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-2
November 20, 2015
Chapter 3
Conferencing
Conference Types
The conferencing solution supports the conference types and conferencing features listed in Table 3-2
and Table 3-3.
Table 3-2
Types of Conferences
Conference Type
Description
Instant conferences
Manually escalated from a point-to-point call hosted on Unified CM, to a
three-party call hosted on a conference bridge. (Also referred to as ad hoc
conference.) Instant conferences are not scheduled or arranged prior to the
conference.
Permanent conferences
Predefined addresses that allow conferencing without previous scheduling.
The conference host shares the address with other users, who can call in to
that address at any time. (Also referred to as meet-me, static, or rendezvous
conferences.) Permanent conferences covered in this chapter use Cisco
Personal Collaboration Meeting Rooms.
Scheduled conferences
Conferences booked via Cisco TMS and/or integration using Cisco TMS
with a start and end time, optionally with a predefined set of participants.
Cisco Personal
Collaboration Meeting
Rooms (CMR)
Permanent conferences that are provisioned from Cisco TMS with a portal
to allow users to manage items such as their conference name, layouts, and
PIN.
Cisco CMR Hybrid
Similar to scheduled conferences, but with a link to Cisco WebEx Meeting
Center to allow TelePresence and WebEx participants to join the same
meeting and share voice, video, and content.
Table 3-3
Alternative Solutions
Solution Type
Description
Cisco WebEx Meetings
Server
If cloud-based web and audio conferencing is not suitable, it is possible to
use the on-premises WebEx Meetings Server solution. This product does not
offer hybrid conferencing with TelePresence, but it offers a standalone
audio, video, and collaboration web conferencing platform.
Cisco CMR Cloud
Cisco CMR Cloud is an alternate conferencing deployment model that
negates the need for any on-premises conferencing resources or management
infrastructure. It supports standards-based video including TelePresence,
audio, and WebEx participants in a single call, all hosted in the cloud.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-3
Chapter 3
Conferencing
Architecture
Architecture
The conferencing architecture consists of TelePresence Conductor for TelePresence Server resource
management; TelePresence Management Suite (TMS) for resource provisioning, scheduling and
monitoring; and Unified CM for call processing. SIP call control is used exclusively in this architecture.
TelePresence Conductor manages the conference bridges for all types of conferences. Use SIP trunks to
connect the bridges to the TelePresence Conductor and to connect the TelePresence Conductor to
Unified CM. (Figure 3-1)
Unified CM communicates with TelePresence Conductor using XML Remote Procedure Call (RPC),
and it uses Conductor's application programming interface (API) over HTTP to control the conference
bridges. Cisco TMS also uses XML-RPC connections to link to the TelePresence Conductor for
provisioning and scheduled conference management. (Figure 3-1)
Architecture Overview
Site 1
Site 2
Unified CM
349553
Figure 3-1
Unified CM
Expressway-C
Expressway-E
Internet
TelePresence
Conductor
Expressway-E
Expressway-C
TelePresence
Conductor
Cisco TMS
MPLS WAN
TelePresence
Server Pool
Optional
dedicated
scheduled
TelePresence
Server Pool
SIP
HTTP(s)
Optional
TelePresence
Server Pool
dedicated
scheduled
TelePresence
Server Pool
In addition, TelePresence Conductor can centrally manage the licenses for all TelePresence Servers
under its control when Multiparty Licensing mode is enabled. In Multiparty Licensing mode, licenses
are not required in the TelePresence Servers, and TelePresence Conductor handles the license checking
at conference start.
The scheduling architecture consists of an active and a passive node for both Cisco TMS and TMSXE,
which are deployed behind a network load balancer. Cisco TMS and TMSPE are installed on the same
virtual machine while TMSXE must be installed on a separate virtual machine, as indicated in
Figure 3-2. The TMS servers are installed in the customer data center that also hosts the organization's
SQL deployment. All the server nodes function from an external Microsoft SQL database. Additionally,
endpoints, TelePresence Conductor, TelePresence Servers, and Unified CM are involved in a successful
scheduled conference. (Figure 3-2)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-4
November 20, 2015
Chapter 3
Conferencing
Architecture
Figure 3-2
High-Level View of the Scheduling Architecture
Role of the TelePresence Conductor
TelePresence Conductor manages the TelePresence Server resources for all types of conferences. It
selects which TelePresence Server to host a specific conference, and it balances the conference load
across the TelePresence Servers in the defined pools. Unified CM is unaware of the individual
TelePresence Servers in the network and communicates only with the TelePresence Conductor. When
Multiparty Licensing mode is enabled in TelePresence Conductor, it can centrally manage licenses for
all TelePresence Servers.
Using TelePresence Conductor for conferences and license management has several benefits, including:
•
Increased efficiency by sharing resources from TelePresence Servers for conferences
•
Better user experience with the advanced TelePresence Server features such as ActiveControl and
dynamic optimization of resources
•
Simpler deployment options through provisioned CMRs
•
Single deployment model for all types of conferences
•
Simplify TelePresence Server deployment process
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-5
Chapter 3
Conferencing
Architecture
TelePresence Conductor optimizes TelePresence Server resources dynamically when the Optimize
resources setting is enabled in the TelePresence Conductor conference template. This enforces
maximum resource usage of a participant based on the maximum receive bandwidth advertised by them
at conference join. This can reduce the amount of resources conference calls use and allow more
concurrent connections to take place. For more information, see the TelePresence Server release notes.
Role of TelePresence Servers
TelePresence Servers are conference bridges that operate in remotely managed mode and are grouped
into pools in TelePresence Conductor. TelePresence Conductor applies service preferences to prioritize
the pools for conferencing. The bridge pool can be shared between scheduled and non-scheduled
conferences or dedicated to either type of conference.
Role of Cisco TMS
Cisco TMS integrates the conference room endpoints, TelePresence Conductor, and connections to the
WebEx cloud in a manner that provides an end user with a unified experience for scheduled
conferencing. Unified CM maintains the configuration control for endpoints, and TMS is then able to
push the calendar to those endpoints. Administrators are able to set the parameters for the default
conference for their organization, and then individual conferences will be created according to this
template.
Some of the TMS features are not used in the Preferred Architecture – for example, phone books,
software management, and reporting functions.
Cisco TelePresence Management Suite Provisioning Extension (TMSPE) supports automated bulk
provisioning by administrators of personal Collaboration Meeting Rooms (CMRs) and a user portal for
individuals to define and manage their own personal CMRs. CMRs are used for non-scheduled
conferencing where specific endpoints are not identified, and the user simply dials in to the CMR
number. In addition, TMSPE provides an interface for Multiparty License provisioning.
Role of Cisco TMS Extensions for Microsoft Exchange
When end users schedule a meeting in Microsoft Outlook with multiple conference room resources, the
Exchange Web Services (EWS) feature of Exchange synchronizes that event into TMS as a scheduled
conference. This synchronization is bidirectional, allowing an administrator or support staff to update
meetings as well without the need to access the meeting organizer's Outlook event. All endpoint
resources within the organization that are intended to be in the conference must be listed on a single
Exchange meeting request.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-6
November 20, 2015
Chapter 3
Conferencing
Architecture
Deployment Overview
The standard deployment uses multiple Unified CM nodes for call control. The TelePresence Conductor
is connected to Unified CM with SIP trunks that manage TelePresence Servers to provide conference
resources. (Figure 3-3) TelePresence Servers are used to bridge calls, and Cisco TMS provides
conference management facilities and scheduling.
Figure 3-3
Standard Deployment
Unified CM
Expressway-C
TelePresence
Conductor
Internet
Cisco TMS
Oponal dedicated
scheduled TelePresence
Server Pool
SIP
Media+Content
HTTP(s)
349554
TelePresence
Server Pool
Expressway-E
The standard deployment has several TelePresence Servers behind TelePresence Conductor, combined
with Unified CM for call control and endpoint management, and Cisco TMS for conference
management. The same conferencing infrastructure can be used for both non-scheduled and scheduled
conferencing as well as CMR Hybrid services. WebEx provides scheduled audio and video web
conferencing. These elements together provide voice and video conferencing for the local enterprise.
Requirements and Recommendations
•
Early Offer is required for CMR Hybrid calls and for some third-party services such as Microsoft
Lync.
•
Early Offer messaging is recommended for all SIP trunks connected to Unified CM that carry
TelePresence calls.
•
All TelePresence Servers should be configured in remotely managed mode and placed behind
TelePresence Conductor as conferencing resources for all conference types.
•
Enable Multiparty Licensing in TelePresence Conductor for TelePresence Server resource license
management.
•
The MultiwayTM method of escalated conferencing is not recommended.
•
Audio conferencing on the TelePresence Server does not support join or leave tones.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-7
Chapter 3
Conferencing
Architecture
Conference Call Flows
Unified CM provides device registration and routing of voice and video calls between the connected
endpoints. Permanent, instant, and scheduled conference calls are carried over SIP trunks. XML-RPC
connections are configured on the Unified CM publisher and connect over HTTP between Unified CM
call processing subscriber nodes and TelePresence Conductor nodes.
Figure 3-4
Unified CM, and TelePresence Conductor SIP Trunks
Unified CM
Conductor node 1
Alias 1: Scheduled
Location 1:
(Scheduled/CMR
IP 10.x.x.1)
(Video Ad Hoc IP
10.x.x.2)
SIP Trunk
1:
Conductor
Node 1
(10.x.x.1)
Route Pattern 1: CMR
Route Pattern 2: CMR
Route Pattern 3: Scheduled
MRGL 1: Instant Video
Template 2:
Video Instant
SIP Trunk 3 and API
connection: Instant Video to
Conductor Node 1 (10.x.x.2)
Location 2: Audio
(Ad Hoc IP
10.x.x.5)
Template 3:
Audio Instant
SIP Trunk 5 and API
connection: Instant Audio to
Conductor Node 1 (10.x.x.5)
349555
MRGL 2: Instant Audio
CMR and scheduled conference calls are routed over the same trunk from Unified CM. In contrast,
instant conference calls route directly to a TelePresence Conductor template from the Unified CM that
created the conference, so multiple trunks may exist for instant conferences, one for each type. Each
trunk has an associated XML-RPC connection. Their originating Unified CM controls instant
conferences, so a SIP API trunk pair is required per instant conference type from each Unified CM
cluster that supports instant conferencing to the local TelePresence Conductor.
Instant call flows that are managed by Unified CM cannot be used to add participants to conferences
created by any other method, such as scheduled conferences. Other call flows cannot be used to add
participants to instant conferences. The instant call escalation method is supported only in an instant
conference that was created by it, and conferences generated by other methods cannot be extended by
the instant mechanism. This avoids any potential for chained conferences.
Note
Unified CM delivers instant conferences to different IP addresses than CMR and scheduled conferences
on TelePresence Conductor. Multiple Unified CM clusters can access the same IP address on
TelePresence Conductor. However, this document assumes that a TelePresence Conductor cluster is
dedicated to each Unified CM cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-8
November 20, 2015
Chapter 3
Conferencing
Architecture
Instant Conferences
Instant conferences are configured on the TelePresence Conductor, so the conference is never statically
defined on a single TelePresence Server. TelePresence Conductor load-balances the conferences across
the available TelePresence Servers in a pool, increasing conference resilience. Instant conferences
require a SIP trunk with an associated XML-RPC connection between Unified CM and each
TelePresence Conductor node. Unified CM routes the instant conference participants to the IP addresses
of these SIP trunks.
Permanent Conferences with Collaboration Meeting Rooms
Permanent conferences are deployed using Personal Collaboration Meeting Rooms (CMRs). Personal
CMRs provide a permanent-type conference that is created with Cisco TMSPE in conjunction with the
Conductor Provisioning API. Users can dial the conference alias at any time to start a meeting.
Individual end-users create their own CMRs through the Cisco TMSPE user portal, based on group-level
templates provisioned by their administrator. Each CMR created through the user portal has a
corresponding conferencing bundle entity (ConfBundle) on TelePresence Conductor, which is created
and managed through the Conductor Provisioning API and contains the data required to create a
conference for one or more users, including conference template information, a set of conference aliases,
a set of auto-dialed participants, and a conference name. ConfBundles are reported in the web UI as
"Collaboration meeting rooms." CMRs created using Cisco TMSPE cannot be modified through the
TelePresence Conductor web UI. Conversely, conference templates and aliases created using
TelePresence Conductor cannot be modified through Cisco TMSPE. CMR conferences require a SIP
trunk between Unified CM and each TelePresence Conductor node. Unified CM routes the CMR
conference participants to the IP addresses of these SIP trunks.
Configuration Information
•
For details about Cisco TMSPE settings, see the Cisco TelePresence Management Suite
Provisioning Extension with Cisco Unified CM Deployment Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-provisioningextension/model.html
•
For details about the Conductor Provisioning API, see Cisco TelePresence Conductor API Guide,
available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-conductor/products-programmin
g-reference-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-9
Chapter 3
Conferencing
Architecture
Scheduled Conferences
This solution supports scheduling of conferences through TelePresence Conductor. Scheduling is
performed with Cisco TMS. Scheduled conferences require a SIP trunk between Unified CM and each
TelePresence Conductor node. Unified CM routes the scheduled conference participants to the IP
addresses of these SIP trunks. These trunks are the same trunks used for CMR conferences.
Two deployments for scheduling TelePresence Server resources are possible when using TelePresence
Conductor: Conferencing resources can be dedicated for scheduled conferencing or they can be shared
resources for both scheduled and non-scheduled conferencing. Some advantages and disadvantages are
covered in Table 3-4.
•
Dedicated TelePresence Servers — Deploy one or more TelePresence Servers that are dedicated just
for scheduled conferences, with each TelePresence Server in a separate bridge pool and service
preference of its own (Figure 3-5). Optionally, a second bridge and pool combination can be used as
a backup.
Figure 3-5
•
Dedicated Scheduling TelePresence Server
Shared TelePresence Servers — Allow TelePresence Servers to be used for non-scheduled as well
as scheduled conferences (Figure 3-6). In this case, resource availability for scheduled conferences
cannot be guaranteed because the necessary resources might already be in use by non-scheduled
conferences. All TelePresence Servers can be configured into a single bridge pool if they are of
similar size.
Figure 3-6
Shared Scheduling TelePresence Server
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-10
November 20, 2015
Chapter 3
Conferencing
Architecture
Table 3-4
Type of
Resource
Dedicated versus Shared TelePresence Server Resources
Deployment Details
Dedicated Service preference: Dedicated
TelePresence Server pool for
scheduled conferences.
Single pool, with a single
TelePresence Server in the pool.
Pool marked to be used for
scheduling in the TelePresence
Conductor Service Preference. Pool
is reported to TMS in capacity
information requests.
Advantages
Disadvantages
By dedicating conferencing
resources to scheduled conferences,
there is no risk of non-scheduled
conferences using resources and,
provided that enough resources are
provisioned, causing scheduled
conferences to fail due to lack of
resource availability.
Takes up a TelePresence Server
exclusively for scheduling.
Non-scheduled conferences would
need to use a different TelePresence
Server.
Service Preferences can optionally
have a non-scheduled bridge pool
for high availability, which contains
additional dedicated TelePresence
Server resources. (For more
information see High Availability
for Conferencing, page 3-13.)
Shared
Service preference: Shared-use
TelePresence Servers for scheduled
and non-scheduled conferences.
One or more pools shared for
scheduled and non-scheduled
conferences.
One or more Service Preferences.
Each Service Preference has all
bridge pools enabled for scheduling
within TelePresence Conductor and
can contain multiple TelePresence
Server conference bridges. Service
Preferences can optionally have a
non-scheduled bridge pool for high
availability that contains additional
dedicated or shared TelePresence
Server resources. (For more
information see High Availability
for Conferencing, page 3-13.)
Inefficient use of conferencing
resources when users use more
non-scheduled conferencing over a
given period. More resources are
necessary to handle the fluctuation
in usage patterns.
Benefits of optimized resources are
negated because no non-scheduled
conferences can use the available
resources.
Cascaded conferencing does not
occur. And to avoid wasting
resources, cascading should be
disabled.
More efficient utilization of
resources. When users use more or
fewer scheduled resources, there is
no impact on the number of
resources left idle, as can happen
with dedicated resources that are not
used.
Cascaded conferencing is available
(if enabled).
Conference resources are not
guaranteed to be available for
scheduled conferences because
non-scheduled conferences could
use up all of the resources. Ensuring
that enough resources are provided
to service high utilization can
reduce this risk.
Targeted management of
TelePresence Server resources is
possible.
Non-scheduled conferences are able
to use resources available due to
resource optimization of scheduled
conferences where this occurs.
Over time, monitoring of use
patterns can identify the most
appropriate pool configuration.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-11
Chapter 3
Conferencing
Architecture
Tip
TelePresence Servers can be set up in the TelePresence Conductor to host instant conferences only, CMR
conferences only, scheduled conferences only, or all three. Using a single TelePresence Server pool can
minimize the number of TelePresence Servers needed because you can provision for the overall
maximum number of conference participants.
Multiway
Multiway is a method for instant conferencing, but is not used in this Enterprise Collaboration Preferred
Architecture. In Unified CM deployments as described in this document, instant conferences should be
initiated using the conference button on the device instead. Using both types of instant conferencing
simultaneously is not supported.
Third-Party Endpoints
Endpoints from other equipment providers can participate in instant, scheduled, and CMR conferences
using standard SIP. Only endpoints registered to Unified CM that support the conference button can
initiate an instant conference. Cisco Expressway or Cisco VCS can be used to interwork H.323 calls to
SIP, allowing H.323 endpoints to join conferences.
Cisco WebEx Software as a Service (SaaS)
Cisco WebEx Software as a Service (SaaS) is a cloud hosted solution that provides audio and video web
conferencing with rich content collaboration. We recommend using this service when hosting scheduled
audio conferences. It is also used to create CMR Hybrid conferences, as described in the next section.
Cisco CMR Hybrid
Cisco WebEx and TelePresence users can participate jointly in scheduled meetings or the users’ personal
Collaboration Meeting Rooms (CMRs). Both SIP and PSTN-based audio are supported for the audio
portion of the call between Cisco WebEx and the TelePresence Servers. (The audio connections between
WebEx participants and the WebEx conference can be PSTN audio, SIP audio, or computer telephony.)
Cisco WebEx Meetings Server
For some deployments, a cloud-based collaboration service might not be suitable. For these customers
we recommend using Cisco WebEx Meetings Server instead as an on-premises solution. This server does
not integrate with TelePresence the way the Software as a Service version of WebEx does, but instead
acts as a standalone audio, video, and collaboration web conferencing service. For installation
instructions, refer to the WebEx Meetings Server product documentation at
http://www.cisco.com/c/en/us/support/conferencing/webex-meetings-server/products-installationguides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-12
November 20, 2015
Chapter 3
Conferencing
Architecture
Collaboration Meeting Rooms (CMR) Cloud
Cisco CMR Cloud is an alternate conferencing deployment model that negates the need for any
on-premises conferencing resource or management infrastructure. CMR Cloud is a simple-to-use cloud
hosted meeting room solution that is offered as an add-on option to a Cisco WebEx Meeting Center
subscription, and it is delivered through the Cisco WebEx Cloud. The solution enables meetings in the
cloud that can scale to support up to 25 standards-based video endpoints and up to 500 video-enabled
and 500 audio-only WebEx Meeting Center users, with a total of up to 1,025 participants in a single
meeting. This guide does not cover deployment of CMR Cloud. For CMR Cloud deployment details,
refer to Cisco Collaboration Meeting Rooms (CMR) Cloud Enterprise Deployment Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/webex-meeting-center/products-installation-a
nd-configuration-guides-list.html
High Availability for Conferencing
High availability must be considered at several levels with the conferencing solution and is achieved in
different ways depending on the service being considered.
For both scheduled and non-scheduled conferences, high availability involves Unified CM, the
TelePresence Server, and TelePresence Conductor.
TelePresence Server High Availability
In the event of a TelePresence Server failure, the conference can take place on another TelePresence
Server as long as there is an available resource within the Service Preference in TelePresence Conductor.
The conference number remains identical, and therefore this is seamless as far as the end user is
concerned. However, if the TelePresence Server fails while hosting a live conference, users need to redial
the same number to join the conference on the new TelePresence Server.
TelePresence Conductor High Availability
A full-capacity standard TelePresence Conductor can be part of a cluster of up to three Conductor nodes.
Each node must be within 30 ms round trip delay to every other node. Calls can flow through any nodes
in the cluster. If a node becomes unavailable, the remaining TelePresence Conductor nodes can be used
to join conferences.
TelePresence Conductor clusters are used for redundancy; when the primary conductor fails, a secondary
or tertiary conductor is available to manage the current and future conferences. This redundancy works
seamlessly for instant and permanent conferencing. For scheduled conferencing, however, this
redundancy is not automatic but requires manual intervention to fail-over to a secondary or tertiary
TelePresence Conductor. The reason for this is that Cisco TMS recognizes only one TelePresence
Conductor node. If that cluster node should fail, Cisco TMS scheduling will be unavailable until that
node is brought back up or Cisco TMS is updated to communicate with a different TelePresence
Conductor node in the cluster.
Cisco TMS considers each alias configured on a TelePresence Conductor as a separate set of
TelePresence Server resources. If an alias has no available resources to schedule a call, then the next
aliases are considered in priority order. Where multiple TelePresence Conductors are configured (one
per TelePresence Conductor cluster), then these are also considered by Cisco TMS for scheduled
conferences. Cisco TMS uses the IP Zone configuration of the TelePresence Conductor and the
endpoints scheduled at the time of the booking to decide which TelePresence Conductor should be
preferred in the booking.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-13
Chapter 3
Conferencing
Architecture
TMS High Availability
High availability deployment of Cisco TMS includes: Two TMS front-end servers that also host the TMS
Provisioning Extension (TMSPE) application, two servers running TMSXE, a network load balancer,
and an external Microsoft SQL database (see Figure 3-2). TMS resiliency supports only two servers –
one active node and one passive node – and this model does not increase or decrease the capacity of the
TMS deployment. The network load balancer (NLB) is deployed in front of the TMS servers. Inbound
traffic to TMS goes through the NLB, which forwards it to the active node. Outbound traffic from TMS
is sent directly to the destination without going through the NLB. If the NLB detects a failure on the
existing active node, it automatically switches to the new active node without any user intervention.
This document assumes that the WebEx Cloud is used for scheduled audio conferences. WebEx Cloud
has built-in high availability and therefore has no additional resiliency considerations beyond normal
telephony and web connectivity. If Cisco WebEx Meetings Server is used instead, then high availability
must be considered for the servers, but this approach is not discussed in this document.
Security for Conferencing
The Preferred Architecture fully supports media and signaling encryption; but for simplicity, the solution
presented in this document implements non-secure SIP trunks between Unified CM and TelePresence
Conductor for all conferences. An exception to this is the solution requirement that API communications
between TelePresence Conductor and the TelePresence Server must be encrypted, and therefore HTTPS
must be used in this case. It is also a requirement for communications between Cisco Expressway and
the WebEx Cloud to use valid Certificate Authority signed certificates to enable encrypted media and
signaling.
Another level of security can be added to restrict access to the conferences themselves with PINs or
passwords. Any scheduled conference or CMR conference can have a PIN set so that all participants are
challenged to enter the PIN before being allowed to connect. With CMR Hybrid, a PIN can be used to
protect the TelePresence portion of the conference, and a password can be added or auto-generated for
the WebEx portion of the conference.
Scaling the Conferencing Solution
You can scale the conferencing solution primarily by increasing the number of available TelePresence
Servers.
The total number of TelePresence Servers is limited by the capacity of TelePresence Conductor. Each
full-capacity TelePresence Conductor (or each cluster) can manage up to 30 TelePresence Servers or
2,400 concurrent conference calls. Clustering does not increase the maximum number of TelePresence
Servers or concurrent calls that can be supported.
If a deployment grows beyond the capacity of a single TelePresence Conductor, it is possible to create a
new independent cluster and continue to add TelePresence Servers there.
Use an independent TelePresence Conductor cluster for each regional Unified CM cluster. For example,
if your deployment has three Unified CMs clusters, then you should also deploy three TelePresence
Conductor clusters, one in each region.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-14
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Conferencing Deployment Process
To deploy the conferencing solution, perform the following major tasks in the order listed here:
1. Plan the Conferencing Deployment
2. Deploy TelePresence Servers
3. Deploy TelePresence Conductor
4. Enable Unified CM for Scheduled and Non-Scheduled Conferences
5. Deploy TelePresence Management Suite
6. Deploy Cisco Collaboration Meeting Rooms
7. Deploy Collaboration Meeting Rooms (CMR) Hybrid
1. Plan the Conferencing Deployment
Before deploying the conferencing solution, plan for the following aspects:
Requirements
•
Provision IP addresses; each TelePresence Conductor node requires an IP address for itself and up
to 64 additional IP addresses, depending on the conference services deployed.
•
Order and install encryption keys on all TelePresence Servers.
•
CMR Hybrid has a number of requirements that should be understood in advance to ensure
everything that is required is in place. For example, an option key must be ordered for Cisco TMS,
and Cisco Expressway-E must have a publicly signed certificate from an appropriate Certificate
Authority and must trust the WebEx root certificate in order to allow CMR Hybrid to function.
Product Models
Cisco makes several different models of the TelePresence Conductor and TelePresence Server. It is
important to understand the differences between these models so you can choose the best option for your
deployment.
There are three models of TelePresence Conductor. Use the full-capacity version for enterprise
deployments because it supports up to 2,400 concurrent calls and up to three Conductor nodes in a
cluster.
Any TelePresence Server may be used for scheduled or non-scheduled conferences behind TelePresence
Conductor. TelePresence Servers on virtual machines are available in several capacities. If larger
capacities are required, the MSE 8000 chassis-based Multiparty Media 820 (MM820) blade can be used.
The MM820 supports two blades per cluster, which doubles the capacity of the MM820. A cluster
behaves as if it is a single device.
Any of these devices can be configured to run in remotely managed mode and therefore work with
TelePresence Conductor.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-15
Chapter 3
Conferencing
Conferencing Deployment Process
Licensing
Licenses must be installed on various products:
•
Cisco TMS must have enough device licenses installed for the deployment.
•
A full version of TelePresence Conductor comes with the required licenses installed.
•
TelePresence Conductor manages TelePresence Servers using Multiparty licensing.
Multiparty is a user-based licensing model that is centrally managed by TelePresence Conductor. It
comes with two variations: Personal and Shared. Personal Multiparty (PMP) is for specific named hosts
while Shared Multiparty (SMP) is for conference room systems or for sharing between users. Each
license entitles a user to host a conference with unlimited participants and up to 1080p video resolution.
Table 3-5 summarizes the features included in the Personal and Shared Multiparty licenses.
Table 3-5
Cisco Personal and Shared Multiparty License Features
Feature
Personal Multiparty
Shared Multiparty
Tied to a named host
Yes
No
Availability
Included in Cisco UWL
Professional
A la carte or discounted with
room system
Minimum order
25
1
Maximum conference size
Unrestricted, within the limit of available hardware capacity
Maximum resolution
1080p30 (full HD) video and content
Single or multiple screen endpoints
Rich media sessions for
business-to-business or
business-to-customer
Included
Included
Cisco TMS, TMSXE, and Skype for Included
Business and Lync Interoperability
Licenses
New customers buy with
Starter Pack
Support for instant, personal CMR,
and scheduled conferences
Yes
Yes
Multiparty licensing is the license model used in the Preferred Architecture. For more information on
Multiparty licenses, refer to Cisco Multiparty Licensing At-a-Glance, available at
http://www.cisco.com/c/dam/en/us/solutions/collateral/collaboration/pervasive-conferencing/at-aglance-c45-729835.pdf
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-16
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Cisco TelePresence Management Suite
Before beginning the installation and configuration process, you must decide on several items to align
with the specific structure and preferences of your organization. Additionally, some specific settings
must be used during the configuration process and should be gathered prior to beginning the install
process.
Microsoft SQL
Cisco TMS utilizes an external Microsoft SQL database to store all data regarding meetings, users, and
systems. During the installation process, TMS and associated software extensions create a number of
specific databases. The TMS application does not allow users to log into the web page if communication
is not currently active with the tmsng database. This dependency on constant communication with the
SQL database requires the SQL database to utilize Microsoft's methods for making the database resilient
as well. The databases will vary in size depending upon the deployment size and number of scheduling
events; but as a general guideline, 1 GB of initial storage will suffice for most organizations.
Table 3-6 lists the Microsoft SQL 2012 specifics required to support Cisco TMS, TMSXE, and TMSPE.
Table 3-6
Microsoft SQL 2012 Specifics Required to Support Cisco TMS, TMSXE, and TMSPE
Requirement
Parameter
SQL user account permissions for account
used by TMS
dbcreator and security admin roles
Authentication
SQL Server and Windows authentication (mixed mode)
Default language
English
Time zone
Must match the time zone on TMS server
Databases created
tmsng (CiscoTMS)
tmspe (CiscoTMSPEmain)
mspe_vmr (Cisco TMSPE Collaboration Meeting
Rooms)
tmspe_userportal (Cisco TMSPE self-service portal)
Resiliency model
Note
AlwaysOn Failover Cluster instances through
Windows Server Failover Clusters (WSFC)
While other modes of SQL resiliency are supported by TMS, any method besides AlwaysOn Failover
Cluster requires manual adjustments by the TMS administrator during an SQL outage situation.
Active Directory
Cisco TMS functions using many aspects of Microsoft Active Directory, and the server must be added
to the organization's domain,. All TMS users must be imported from and authenticated with Active
Directory.
During the configuration process, you must enter an AD Service account username and password for
TMS to import users. This is a read-only account, and TMS does not modify any information in Active
Directory. This account should have access to the highest level of the AD structure that enables all
subsequent end users to access its functionality. In organizations with multiple domains, the TMS user
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-17
Chapter 3
Conferencing
Conferencing Deployment Process
account must be associated with the top level domain. An additional service account is required for the
TMSXE application for end-user booking of Exchange resources. This should also be a read-only service
account, and end user credentials are used for the actual event booking. TMSXE user account permits
only the TMSXE application to authenticate and communicate with the Exchange Servers through
Exchange Web Services.
Additionally, identify existing, or create new, Groups with AD that will serve to synchronize TMS
administrators and end users with scheduling access to TMS.
Note
Local machine accounts on the TMS server should not be used because they are not duplicated between
front-end servers, and the user credentials would not be available if the other node became active.
Email Integration
TMS sends automated emails to users when they schedule meetings, with all connection information
included for the participants. During the installation process, you must enter the "from" address that end
users will see as the originating for these emails, so select an address such as
[email protected] or a similar address not currently used in your organization.
You will also need to enter the SMTP address of the outgoing mail server.
Zones
Cisco TMS uses a concept called zones to provide guidance to the scheduling engine on how to build the
calls and keep the traffic localized as much as possible. Endpoints, conferencing resources, and ISDN
gateways are all assigned to these zones. The zones define where to use which kind of network
connections. The Preferred Architecture is based upon all endpoints being able to use a single IP network
for connections, and ISDN would be used only for connecting outside of the organization. (See
Figure 3-7.)
Figure 3-7
Cisco TMS IP Zones
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-18
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
IP Zones
IP zones refer to areas of the network that share a common primary data center, and they are used
primarily to identify "local" conferencing resources. During the configuration process, add IP zones for
each location where conferencing resources will be placed. As shown in Figure 3-8, the USHQ
TelePresence Conductor is selected because most participants are connected from that zone.
Figure 3-8
Cisco TMS Uses IP Zones to Select Best TelePresence Conductor for a Conference
ISDN Zones
ISDN zones are similar to IP zones, but specific to any deployment of ISDN gateways in the
organization. If no ISDN functionality is needed, you still have to configure a single ISDN zone for the
entire enterprise during the installation.
Endpoint Naming Conventions
Endpoints are added to Cisco TMS for two reasons:
•
Correlation with Exchange resources for conference resource allocation
•
Enabling TMS to provide One Button to Push connection information on the endpoint user interface
As endpoints are added to TMS, use the same character string as the room or resource name in Exchange.
This provides uniformity and consistency to end users when system names appear in the call history and
fill the text of on-screen labels from conferencing resources.
An organized plan for how to use the folder structure of TMS Systems Navigator will also assist the
administrator in having a simplified interface.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-19
Chapter 3
Conferencing
Conferencing Deployment Process
Default Conference Parameters for Your Organization
These settings are customizable for each organization and should be used in accordance with your own
network considerations, meeting flows, and corporate culture. The default conference settings are used
for all meetings scheduled by end users through Outlook. For all possible settings of the default
conference, refer to the Cisco TelePresence Management Suite Administrator Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsmaintenance-guides-list.html
WebEx Site for CMR Hybrid
Be sure that you have the hostname and site name for your WebEx site. Then configure this WebEx site
for integration between the on-premises TelePresence conferencing infrastructure and the WebEx cloud.
For details, refer to Cisco Collaboration Meeting Rooms (CMR) Hybrid Configuration Guide, available
at
http://www.cisco.com/c/en/us/support/conferencing/collaboration-meeting-rooms-cmr/products-in
stallation-and-configuration-guides-list.html
CMR Provisioning
An understanding of how the organization plans to utilize Collaboration Meeting Rooms leads to an
understanding of the workflow that end users expect for meetings. Some organizations may choose to
leverage CMRs instead of scheduled resources for certain meeting types, especially in cases where
workers are in separate locations and not able to gather in a common conference room.
Location of Servers
Both the active and passive nodes for a redundant TMS deployment must be configured with the same
time zone within the server operating system. In addition, this must be the same time zone as the SQL
server. Support of TMS redundancy is limited to the same local network for both the active and passive
nodes, along with the SQL server.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-20
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
2. Deploy TelePresence Servers
This section describes the major tasks required to deploy TelePresence Servers and prepare them for use
with TelePresence Conductor. These TelePresence Servers can be used for scheduled and non-scheduled
conferences.
Overview
Deployment Tasks for TelePresence Servers:
1.
Install the media encryption feature key.
2.
Create a new API access user for TelePresence Conductor to use.
3.
Enable the HTTPS and Encrypted SIP (TLS) services, and disable H.323 services.
4.
Set SIP settings to Call Direct and use TLS, and disable H.323 gatekeeper registration.
5.
Set the server to remotely managed mode, if it has that option, and reboot.
Deployment Considerations
The physical location of a TelePresence Server is important to consider because media traffic flows
between it and each participant in the conference. To provide the best experience for participants,
centralize the location of the TelePresence Servers in each region where they will be deployed.
Set the TelePresence Servers to remotely managed mode, which is a system-wide setting that enables a
more advanced API and requires that API to be used for all operations. Remotely managed mode is the
only mode available on the Cisco TelePresence Server on Virtual Machine, while other variants of the
TelePresence Server can use either remotely managed mode or locally managed mode (which cannot be
used with TelePresence Conductor).
Caution
In remotely managed mode certain features are not available from the TelePresence Server interface, and
management of conferences and pre-configuration of endpoints are done at the TelePresence conductor
level instead. Changing the operating mode requires the TelePresence Server to be rebooted, and any
conferences configured on the TelePresence Server in locally managed mode are lost when the unit
reboots.
TelePresence Conductor manages the TelePresence Servers via an XML-RPC API. TelePresence
Conductor also routes SIP signaling to the TelePresence Servers via its Back-to-Back User Agent
(B2BUA).
The TelePresence Server has the ability to use a secure connection for communications. These security
features are enabled with the activation key. Encrypted communication between TelePresence Server and
TelePresence Conductor is mandatory. The media encryption key allows TelePresence Server to use
encrypted media via SRTP.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-21
Chapter 3
Conferencing
Conferencing Deployment Process
Instant, Permanent, and Scheduled Conferences
Figure 3-9
Instant Conference Call Flow
Figure 3-10
Permanent or Scheduled Conference Call Flow
Deployment Tasks for TelePresence Servers
First apply an activation key to all TelePresence Servers. This allows the use of encrypted signaling with
HTTPS and TLS. Then enable and configure the HTTPS and encrypted SIP (TLS) services in the
TelePresence Servers. If the deployment requires encrypted media, apply the media encryption feature
key.
To enable TelePresence Conductor to communicate with the TelePresence Server, create an API access
user account on the TelePresence Server that TelePresence Conductor uses for API authentication.
Disable all H.323 settings on the TelePresence Server, and enable call direct mode in SIP settings using
TLS for outbound transport. This is required because TelePresence Conductor uses SIP only.
Then set the TelePresence Server to remotely managed mode. This enables TelePresence Conductor to
communicate with the server. This task is not relevant for Cisco TelePresence Server on Virtual Machine
that always runs in remotely managed mode.
Summary
After completing the above tasks, TelePresence Servers will be ready to add to TelePresence Conductor.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-22
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
3. Deploy TelePresence Conductor
This section describes the major tasks required to deploy TelePresence Conductor for scheduled and
non-scheduled conferences.
Overview
Deployment Tasks Common to Instant and Scheduled Conferences on TelePresence Conductor:
1.
Enable Multiparty Licensing for TelePresence Servers in TelePresence Conductor.
2.
Create an API user in TelePresence Conductor.
3.
Create a shared bridge pool and add the TelePresence Servers to the bridge pool. In the case of a
dedicated model, create several bridge pools and add one TelePresence Server to each bridge
pool.
4.
Create a service preference and add the bridge pool(s) to the service preference.
5.
Assign one IP address to TelePresence Conductor for each conference type:
– Instant audio conferences
– Instant video conferences
– CMR and scheduled conferences
Repeat this process on each TelePresence Conductor node in the cluster. Each node requires a
unique set of IP addresses.
Deployment Tasks for Instant Conferences on TelePresence Conductor:
6.
To configure TelePresence Conductor for instant conferences, create a template for each
conference type:
– Instant audio template
– Instant video template
In video template, set Optimize resources to yes.
7.
Create a unique location for each instant conference template. Only one template can be assigned
per location:
– Instant audio location
– Instant video, CMR, and scheduled location
8.
Assign the relevant instant template to the relevant location, and assign an Ad hoc IP address to
each. Each Ad hoc IP address is used by Unified CM to communicate with TelePresence
Conductor via SIP and the API.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-23
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Scheduled Conferences on TelePresence Conductor:
9.
Edit the previously created instant video, CMR, and scheduled location. Change its type to Both
and assign it a Rendezvous IP address. The Rendezvous IP address is used by Unified CM to
communicate with TelePresence Conductor via SIP.
Using Unified CM call processing subscriber node IP addresses, add up to three trunk IP
addresses to the instant video, CMR, and scheduled location.
10. Edit the previously created bridge pool(s), and assign the location to the shared bridge pool. If
there is more than one pool, add the same location to every pool.
11. To configure TelePresence Conductor for scheduled conferences, create template:
– Scheduled 720p HD video template
Assign the service preference to the template. In the template, set Optimize resources to yes and
set Scheduled conference to yes.
12. The unique incoming alias for the scheduling template is created during Cisco TMS
configuration. Edit the service preference and ensure that the bridge pool has the Pools to use for
scheduling radio button selected. This should be set only on bridge pools that should report their
capacity to TelePresence Conductor.
Deployment Considerations
Note
Before configuring TelePresence Conductor, clear all alarms to allow the product to function.
To enable instant, CMR, and scheduled conferencing, the system administrator needs to complete the
configuration on TelePresence Conductor and Unified CM. These two products share the responsibility
for conference creation logic. While TelePresence Conductor maintains exclusive connectivity to the
TelePresence Servers, it acts similarly to an MCU as far as Unified CM is concerned, and it makes
decisions on conference placement based on requests from Unified CM.
TelePresence Conductor should be deployed regionally in a centralized manner so that each regional
Unified CM cluster has a TelePresence Conductor cluster associated with it that manages all the
TelePresence Servers in the region, as illustrated in Figure 3-1.
TelePresence Conductor should be deployed using its Back-to-Back User Agent (B2BUA). Unified CM
communicates with TelePresence Conductor using an XML-RPC API and SIP trunks, similar to the way
TelePresence Conductor communicates with the TelePresence Server. (Figure 3-11)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-24
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-11
API and SIP Trunk Connections Between Unified CM and TelePresence Conductor
Unified CM
Conductor node 1
Alias 1: Scheduled
Location 1
SIP Trunk
1:
Conductor
Node 1
Route Pattern 1: CMR
Route Pattern 2: CMR
Route Pattern 3: Scheduled
MRGL 1: Instant
SIP Trunk 2 and API connection:
Instant to Conductor Node 1
349556
Template 2:
Instant
Instant and Scheduled Conferences
TelePresence Conductor Internal Configuration Flow for Instant Conferences
Conference
template
Conference
bridge pool
Conference
bridge
TelePresence Conductor Internal Configuration Flow for Scheduled Conferences
Conference alias
Conference
template
Service
Preference
Conference
bridge pool
Conference bridge
C
Auto-dialed
participant
349563
Figure 3-13
Service
Preference
349562
Figure 3-12
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-25
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks Common to Instant and Scheduled Conferences on TelePresence Conductor
Resolve all alarms within TelePresence Conductor before starting configuration. Unresolved alarms
prevent TelePresence Conductor from functioning. Also change the root and administrator passwords,
and create an API user that Unified CM will use to authenticate in order to access the TelePresence
Conductor API. Enable Multiparty Licensing for TelePresence Servers in TelePresence Conductor.
Figure 3-14 shows in detail what elements must be configured within TelePresence Conductor for
scheduled and instant conferences that use the TelePresence Server pool.
Figure 3-14
TelePresence Conductor Configuration
Conductor node 1
Alias 1: Scheduled conferences: (8099[^@]*).*
Location 1: (Scheduled/CMR
IP 10.x.x.1) (Ad Hoc video IP
10.x.x.2)
Template 1: Scheduled video template
Template 2: Instant Video
Service Preference 1
349557
Bridge Pool 1
Each TelePresence Server in the deployment must be assigned to a bridge pool in TelePresence
Conductor. A TelePresence Server can belong to only one bridge pool. Bridge pools must reflect the
physical location of the TelePresence Server, and if a bridge pool contains multiple TelePresence
Servers, they should all be of a similar size. Each TelePresence Conductor is dedicated to a region;
therefore, in this document we assume that all TelePresence Servers are in the same physical location.
If there are multiple physical locations, you must configure a location and pool for each one in order to
maintain call admission control by Unified CM. As discussed previously, if you are using a dedicated
scheduling model, only a single TelePresence Server dedicated for scheduling should appear in a bridge
pool, whereas a shared model can have multiple TelePresence Servers in the bridge pool.
A service preference is a prioritized list of bridge pools set up through TelePresence Conductor, and it
defines the order for using pools if conference resources are limited. For any particular conference, the
administrator can determine the order of preference for the pools that TelePresence Conductor will
attempt to use to host that conference. If no TelePresence Servers in the first bridge pool can be used to
host a conference (for example, insufficient resources are available to meet the conference
requirements), TelePresence Conductor will check the second bridge pool in the list. The scheduled
conferences and instant conferences shown in Figure 3-14 all use the same service preference and
therefore use the same bridge pool. It is possible that each could use a different service preference and
therefore a different bridge pool, or that multiple bridge pools could be defined in a service preference.
A service preference can contain 1 to 30 conference bridge pools, and a single conference bridge pool
can be used in any number of service preferences.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-26
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
As with pools, all TelePresence Servers configured in a TelePresence Conductor service preference must
be in the same physical location to ensure that media is always sent to the same physical location and
therefore bandwidth usage is understood.
Each SIP trunk between Unified CM and TelePresence Conductor must use a unique IP address. The IP
addresses must correspond to the IP addresses configured in the locations within TelePresence
Conductor. A location may be dedicated to instant, CMR/scheduled, or both conference types. If both
conference types are enabled for a location, that location requires two IP addresses. (Figure 3-15)
Up to 64 IP addresses can be configured on TelePresence Conductor to accommodate many different
conference types and locations.
Note
Figure 3-15
Each TelePresence Conductor node must have a unique set of IP addresses.
TelePresence Conductor Location and Unified CM IP Addresses
Unified CM
Conductor node 1
Alias 1: Scheduled
Location 1:
(Scheduled/CMR
IP 10.x.x.1)
(Video Ad Hoc IP
10.x.x.2)
SIP Trunk 1:
Conductor
Node 1
(10.x.x.1)
Conductor node 2
Route Pattern 1: CMR
SIP Trunk 2:
Conductor
Node 2
(10.x.x.66)
Route Pattern 2: CMR
Location 1:
(Scheduled/CMR
IP 10.x.x.66)
(Video Ad Hoc IP
10.x.x.67)
Alias 1: Scheduled
Route Pattern 3: Scheduled
MRGL 1: Instant Video
Template 2:
Video Instant
SIP Trunk 3 and API
connection: Instant Video to
Conductor Node 1 (10.x.x.2)
SIP Trunk 4 and API
connection: Instant Video to
Conductor Node 2 (10.x.x.67)
Location 2: Audio
(Ad Hoc IP
10.x.x.5)
Template 2:
Video Instant
Location 2:
Audio (Ad Hoc IP
10.x.x.68)
SIP Trunk 5 and API
connection: Instant Audio to
Conductor Node 1 (10.x.x.5)
SIP Trunk 6 and API
connection: Instant Audio to
Conductor Node 2 (10.x.x.70)
Template 3:
Audio Instant
349558
MRGL 2: Instant Audio
Template 3:
Audio Instant
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-27
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Instant Conferences on TelePresence Conductor
Once IP addresses have been added to TelePresence Conductor, TelePresence Servers have been
assigned to bridge pools, and bridge pools have been added to service preferences, you can create the
first template for instant conferences. Each template should have the relevant quality settings to provide
correct resource usage by participants. For example, the audio template should be set to mono audio
only, with no video or content.
Figure 3-16 shows the elements that must be configured to enable instant video conferencing. As
illustrated in Figure 3-15, each type of instant service (video and audio) must have a unique location and
template.
Figure 3-16
TelePresence Conductor Instant Video Conference Location and Template
Conductor node 1
Location 1: (Scheduled/CMR
IP 10.x.x.1) (Ad Hoc video IP
10.x.x.2)
Template 2: Instant Video
Service Preference 1
349559
Bridge Pool 1
Create a unique location for each instant conference template. A single location may be used for both an
instant template and scheduled/CMR conferences. For instant conferences, the two most important
location configuration parameters are the instant conference template and the IP address dedicated to
instant conferences. Unified CM uses this IP address to send requests to TelePresence Conductor to
create an instant conference, and TelePresence Conductor uses the template to determine the maximum
quality for the created conference.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-28
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Scheduled Conferences on TelePresence Conductor
Scheduled conferences are enabled through a template that is configured to allow scheduling. Multiple
templates may be configured; for instance, it might be necessary to create a second template configured
for multi-screen systems. Each of these templates should have the relevant quality settings to provide
correct resource usage by participants.
Figure 3-17 shows the elements that must be configured to enable scheduled conferencing.
Figure 3-17
TelePresence Conductor Scheduled Template
TelePresence Conductor uses conference aliases to choose the relevant conference template for an
incoming call to a location. Aliases use Regex and can match based on the dialed number. The incoming
number range is limited by the Unified CM route pattern assigned to the SIP trunk using the
TelePresence Conductor Rendezvous IP address (configured later). Although Unified CM can point a
large range of numbers to the SIP trunk, TelePresence Conductor aliases may be used to divide this range
into smaller segments, each of which may use a different template. This is done by using Regex to match
only a portion of the number range for each alias.
Create a location within TelePresence Conductor for conferences. A single configured location may be
used for both an instant template and scheduled conferences. For scheduled conferences, the most
important location configuration parameter is the Rendezvous IP address. Unified CM uses this IP
address to send call signaling to TelePresence Conductor for CMR and scheduled calls. To facilitate
outbound dialing from TelePresence Conductor, add up to three trunk IP addresses to the location, using
Unified CM call processing subscriber node IP addresses that should receive these calls.
To route outbound calls to the correct SIP trunk, assign the relevant location to the bridge pool used for
CMR and scheduled conferences.
Summary
After you complete the deployment tasks outlined above, TelePresence Conductor will be ready to add
to Unified CM.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-29
Chapter 3
Conferencing
Conferencing Deployment Process
4. Enable Unified CM for Scheduled and Non-Scheduled Conferences
This section describes the major tasks required to enable Unified CM for scheduled and non-scheduled
conferences.
Overview
Deployment Tasks to Enable Unified CM for Instant Conferences:
1.
Create a new SIP profile named Standard SIP Profile for TelePresence Conductor.
2.
Create three SIP trunks and point each SIP trunk to the relevant IP address configured in the
TelePresence Conductor location for each type of instant conference:
– Instant audio SIP trunk
– Instant video SIP trunk
This step must be repeated for each TelePresence Conductor node. For example, if there are three
TelePresence Conductor nodes, there should be three sets of two SIP trunks configured, one set
of two for each TelePresence Conductor node.
3.
Create two conference bridges and add a SIP trunk (configured in task 2) to each. Each
conference bridge should contain the relevant trunk:
– Instant audio conference bridge
– Instant video conference bridge
Configure each conference bridge with the username and password created on TelePresence
Conductor for API usage.
This step must be repeated for each TelePresence Conductor node. For example, if there are three
TelePresence Conductor nodes, there should be three sets of two conference bridges configured,
one set of two for each TelePresence Conductor node.
4.
Create two media resource groups (MRGs):
– Instant audio MRG
– Instant video MRG
Add all conference bridges of the matching type (one per TelePresence Conductor node) to the
relevant MRG. If you are using three TelePresence Conductor nodes, then each MRG should have
three conference bridges in it, each pointing to the same instant template at the relevant IP address
on each node.
5.
Create two media resource group lists (MRGLs) and add one MRG to each:
– Instant audio MRGL
– Instant video MRGL
To allow an endpoint to use instant conferencing, assign the appropriate MRGL to the device pool
or the device itself.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-30
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks to Enable Unified CM for CMR and Scheduled Conferences:
6.
Create a SIP trunk and point it to the relevant IP address configured in the Rendezvous IP field
in the TelePresence Conductor location:
CMR and Scheduled conferences (ST_CONDUCTOR_CMR_SCHED)
This step must be repeated for each TelePresence Conductor node. For example, if there are three
TelePresence Conductor nodes, there should be three SIP trunks configured, one for each
TelePresence Conductor.
7.
Create a route group:
CMR and Scheduled route group (RG_CMR_SCHED)
Add all SIP trunks to the route group. If you are using three TelePresence Conductor nodes, then
the route group should have three SIP trunks in it, each pointing to the relevant IP address of each
TelePresence Conductor node.
8.
Create a route list and add the route group to it:
CMR and Scheduled route list (RL_CMR_SCHED)
9.
Create a route pattern that matches the scheduled alias configured in TelePresence Conductor
created earlier (8099[12]XXX). Further route patterns are required to configure CMR, and they
are discussed in section 6. Deploy Cisco Collaboration Meeting Rooms, page 3-54.
Deployment Considerations
Unified CM is the first point of logic that decides how to route a call and that chooses the TelePresence
Conductor template used for a conference based on its configuration. Unified CM has different
configuration procedures for instant and CMR or scheduled conferences because the mechanism for
joining each type of conference is different.
Note
The endpoint used to initiate an instant conference must have a conference button. Endpoints that do not
have a conference button can still be participants in an instant conference, but they must be added to the
conference by an endpoint that has a conference button.
Instant and Permanent Conferences
Figure 3-18
Unified CM Internal Configuration Flow for Instant Conferences
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-31
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-19
Unified CM Internal Configuration Flow for CMR and Scheduled Conferences
Deployment Tasks to Enable Unified CM for Instant Conferences
It is important to understand the relationship between the Unified CM configuration and the
TelePresence Conductor configuration. For this deployment two locations were configured in
TelePresence Conductor, and in each an Ad hoc IP address was added for instant conferences. Any calls
sent to one of these IP addresses uses the conference template configured with it in the location. To route
calls correctly, it is important to understand which SIP trunks in Unified CM should point to which IP
addresses configured within TelePresence Conductor.
Figure 3-20
Unified CM and TelePresence Conductor Instant Relationship
Unified CM
Conductor node 1
Location 1:
(Scheduled/CMR
IP 10.x.x.1) (Ad
Hoc video IP
10.x.x.2)
MRGL 1: Instant Video
SIP Trunk 3 and API
connection: Instant Video to
Conductor Node 1 (10.x.x.2)
Location 2: Audio
(Ad Hoc IP
10.x.x.5)
Template 3:
Audio Instant
MRGL 2: Instant Audio
SIP Trunk 5 and API
connection: Instant Audio to
Conductor Node 1 (10.x.x.5)
349560
Template 2:
Video Instant
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-32
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Each type of instant conference requires a unique SIP trunk and conference bridge configured in
Unified CM to communicate with TelePresence Conductor. Each SIP trunk can be used for only one
instant conference, and CMR or scheduled conferences require their own SIP trunks. Each TelePresence
Conductor node also requires a unique set of SIP trunks and conference bridges.
SIP trunks to TelePresence Conductor require a customized SIP profile in order to support calls in all
scenarios. To create the SIP profile, copy the Standard SIP Profile for TelePresence Conferencing and
name the copy Standard SIP Profile for TelePresence Conductor, then change the settings as indicated
in Table 3-7.
Table 3-7
Settings for SIP Profile
Setting
Value
Comment
Timer Invite Expires
(seconds)
30
Causes the trunk timer to expire at the same time as
TelePresence Conductor's timer
Early Offer support for
voice and video calls
Best Effort (no This is the recommended configuration for all Unified CM
MTP inserted) trunks. Best Effort Early Offer trunks never use MTPs to
create an Early Offer and, depending on the calling device,
may initiate an outbound SIP trunk call using either Early
Offer or Delayed Offer. In the context of this design,
outbound calls always use Early Offer.
SIP trunks inform Unified CM where to route SIP traffic. In the case of instant conferences, the SIP
trunks also inform Unified CM where to direct API requests, and they are used in the conference bridge
configuration. SIP trunks connected to TelePresence Conductor can be configured to be secure; but for
the purpose of this guide, they are assumed to be configured as non-secure.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-33
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-21
Unified CM Instant Configuration
Unified CM
Conductor node 1
Location 1: (Scheduled/CMR
IP 10.x.x.1) (Ad Hoc video IP
10.x.x.2)
Template 2: Video Instant
Service Preference 1
Bridge Pool 1
MRGL 1: Instant Video
MRG 1: Instant Video
Conference Bridge 1 instant video (conductor
node 1)
SIP Trunk 3 and HTTP API connection: Instant
Video to Conductor Node 1 (10.x.x.2)
Conference bridge 2: instant video
(conductor node 2)
349561
SIP Trunk 4 and API connection: Instant Video
to Conductor Node 2 (not shown) (10.x.x.67)
Conference bridge configuration provides two key pieces of information to Unified CM: the API
credentials to communicate with TelePresence Conductor and the destination address for that
communication. The username and password can be the same for each conference bridge that points to
TelePresence Conductor. These credentials should match those configured in the TelePresence
Conductor configuration. The SIP trunk configured in the conference bridge indicates to Unified CM
where to send HTTP API traffic. Configure each SIP trunk with the settings indicated in Table 3-8.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-34
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Table 3-8
SIP Trunk Settings for Instant Conferences
Setting
Value
Comment
Name
ST_CONDUCTOR_ADHOC_AUDIO1-1
Prefix "ST_" to avoid name collisions with
other devices stored in the same table
internally.
The remainder of the name identifies the
conference type and TelePresence
Conductor node that the trunk points to.
Description
Some meaningful description
Device Pool
Trunks_and_Apps
Common device pool for central trunks
Media Resource Group List
<None>
Use the MRGL defined on the device pool
AAR Group
Default
Same everywhere
Transmit UTF-8 for Calling
Party Name
Checked
This will allow the ASCII Alerting Name to
be transmitted to devices that support
UTF-8 characters
PSTN Access
Not checked
Run On All Active Unified CM
Nodes
Checked
This settings is recommended on all SIP
trunks. It makes sure that outbound calls to
SIP do not require intra-cluster control
signaling between Unified CM call
processing subscribers.
Calling Search Space
TelePresenceConferencing
As defined in the Call Control chapter
AAR Calling Search Space
PSTNReroute
Inbound Calls
Outbound Calls
Use Device Pool Called Party
Transformation CSS
Checked
Use Device Pool Calling Party
Transformation CSS
Checked
SIP Information
Destination
10.X.X.2
TelePresence Conductor audio Ad hoc IP
address
SIP Trunk Security Profile
Non Secure SIP Trunk Profile
Default SIP trunk security profile
SIP Profile
Standard SIP Profile for TelePresence
Conductor
Use the SIP profile created above
Once all conference bridges are configured, they can be added to media resource groups (MRG). Each
media resource group should represent one type of instant conference and should contain one conference
bridge from each TelePresence Conductor node, so that if communication with one TelePresence node
is not possible, then calls can be routed to another node.
Each media resource group can then be added to its own media resource group list (MRGL). The media
resource group list can be assigned to devices or the device pool in Unified CM and used when those
devices escalate a point-to-point call to a conference call using the conference button.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-35
Chapter 3
Conferencing
Conferencing Deployment Process
In total, two MRGLs should be configured: one for instant audio conferences and one for instant video
conferences. These two MRGLs should each point to a different location configured within TelePresence
Conductor and reference the instant template configured within the location.
Deployment Tasks to Enable Unified CM for CMR and Scheduled Conferences
CMR and scheduled conferences are configured on Unified CM in a similar way to instant conferences,
but they require a dial plan to be configured rather than media resources.
Figure 3-22
Unified CM and TelePresence Conductor CMR and Scheduled Relationship
First configure a SIP trunk to connect to TelePresence Conductor, using the relevant IP address
configured in the TelePresence Conductor locations created for your deployment. Each TelePresence
Conductor node requires a unique SIP trunk. Use the same SIP profile for CMR and scheduled
conferences that you created for instant conferences, with the settings indicated in Table 3-8.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-36
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-23
Unified CM CMR and Scheduled Configuration
After configuring all the SIP trunks, create a route group for each of them.
Add each route group for a particular conference type into a unique route list. There should be one route
list per TelePresence Conductor location. The route list is chosen when a call matches a route pattern
that points to it.
To route calls through the relevant SIP trunk to the relevant location within TelePresence Conductor,
configure a route pattern for the route list. The route pattern should match with the alias range configured
for the required template(s), as indicated in Table 3-9.
Table 3-9
Route Pattern for Scheduled Conference Route List
Pattern
Partition
Gateway or Route List
Description
8099[12]XXX
ESN
RL_CMR_SCHED
Pattern to match scheduled alias
range
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-37
Chapter 3
Conferencing
Conferencing Deployment Process
Summary
After you complete the deployment tasks outlined above, Unified CM should be able to communicate
with TelePresence Conductor.
5. Deploy TelePresence Management Suite
This section describes the deployment tasks for Cisco TMS for scheduled conferences using
TelePresence Conductor.
Overview
Cisco TMS can provide the following services within a conferencing deployment:
•
Performs scheduling and conference control functions for scheduled conferences
•
Enables the provisioning and monitoring of personal collaboration meeting rooms (CMRs) in
conjunction with TelePresence Conductor (See the section 6. Deploy Cisco Collaboration Meeting
Rooms.)
•
Manages and allocates resources for CMR Hybrid (See section 6. Deploy Cisco Collaboration
Meeting Rooms.)
Deployment Tasks for Cisco TMS High Availability:
1.
Install and configure Cisco TMS on active and passive nodes.
2.
Install and configure the network load balancer (NLB).
3.
Configure file sharing between active and passive node servers.
Deployment Tasks for Cisco TMS Basic Configuration:
4.
Configure ISDN and IP zones.
5.
Configure Active Directory integration, group structure, and users.
6.
Create the TMS System Navigator folder structure.
7.
Configure default conference setting.
Deployment Tasks for Cisco TMS for Scheduled Conferences:
8.
Integrate TelePresence Conductor with TMS.
9.
Integrate Unified CM with TMS.
10. Add conference room endpoints to TMS.
11. Install and configure TMS Extensions for Microsoft Exchange (TMSXE).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-38
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Cisco TMS High Availability
This section describes the tasks required to deploy Cisco TMS with high availability.
Install and Configure Cisco TMS on Active and Passive Nodes
Cisco TelePresence Management Suite (TMS) should be installed for redundant deployments according
to the guidelines in the Cisco TelePresence Management Suite Installation and Upgrade Guide, available
at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsinstallation-guides-list.html
•
Install the application on the primary server.
•
Point to the external SQL resource configured in the planning stage.
•
Make note of the encryption key.
•
Verify basic operation by logging into the web portal and enabling TMS redundancy.
•
Install the application on the second server using the encryption key from the first server, and using
the same SQL credentials as the first server.
Both servers will access the single SQL database that holds all conferencing and configuration data. In
the active and passive node configuration, a single encryption key and certificate are used for both
servers. Having this encryption key and certificate on each server allows for all communications from
end users to TMS, and from TMS to managed devices, to be done using secure protocols.
Install and Configure Network Load Balancer (NLB)
The specifics of the network load balancing configuration are left to the instructions of the load balancer
chosen by the customer. The following are functional requirements that must be configured:
•
Forward HTTP, HTTPS, and SNMP traffic to the active node.
•
Configure the network load balancer probe to the Probe URL within Cisco TMS.
•
Push all traffic to the active node.
The Cisco TMS server sends outbound communications directly to managed devices without routing that
traffic through the NLB. However, all return communications from managed devices and all web portal
requests must be routed through the NLB. The communication path permits end users and endpoints to
use a single address, regardless of which TMS server node is in active mode.
Configure TMS Network Settings to the FQDN of the TMS address configured on the network load
balancer. This setting within TMS will populate the address that the managed devices use to initiate
communications to TMS. By using a FQDN of tms.company.com that resolves to the load balancer, all
inbound traffic from endpoints or end user web clients will be directed through the NLB and resolve to
the active node. (See Figure 3-24.)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-39
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-24
NLB Directs Communications from Managed Devices to the Active TMS Node
Configure File Sharing Between Active and Passive Node Servers
While the SQL database is used for all operational data, some application specific files are stored within
the file structure of the host server. These customizable files are added by the TMS application and must
be synchronized between the two servers when using a redundant deployment. The files include software
and images that can be uploaded to Cisco TMS, and images created by Cisco TMS.
In a default installation the files are located at:
C:\Program Files\TANDBERG\TMS\Config\System\
C:\Program Files\TANDBERG\TMS\Data\GenericEndpoint\
C:\Program Files\TANDBERG\TMS\Data\SystemTemplate\
C:\Program Files\TANDBERG\TMS\wwwTMS\Data\CompanyLogo\
C:\Program Files\TANDBERG\TMS\wwwTMS\Data\ExternalSourceFiles\
C:\Program Files\TANDBERG\TMS\wwwTMS\Public\Data\SystemSoftware\
Use the Distributed File System (DFS) function within the Windows Server operating system to
complete this replication process between the two servers. DFS will keep these folds in sync between
the two servers when the "Full mesh" configuration is used.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-40
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Cisco TMS Basic Configuration
Perform the following additional configuration tasks during the installation of Cisco TMS to make the
deployment function as intended in the Preferred Architecture:
•
ISDN and IP Zones
•
Active Directory Integration, Group Structure, and Users
•
System Navigator Folder Structure
•
Default Conference Settings
•
Default Conference Settings
•
Modify Email Templates within TMS
ISDN and IP Zones
Configure additional IP zones for each location that will have conferencing resources.
Each location that has conferencing resources should be identified with a unique IP Zone.
Note
Be sure to populate the Prefer IP calls over ISDN to these IP Zones according to your network
configuration (see Figure 3-25). By default, all new IP Zones will "prefer" ISDN over IP to all other
existing IP Zones. Failure to make this selection could cause a failure in conference configuration by
TMS because TMS will not see any way to route calls between zones.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-41
Chapter 3
Conferencing
Conferencing Deployment Process
Figure 3-25
Configure IP Zones to Prefer IP Calls over ISDN
Configure any additional ISDN zones.
For each intended ISDN gateway, create an additional ISDN Zone in TMS. This will make endpoints use
your intended ISDN gateway for all scheduled calls, as defined in the Collaboration Edge chapter. Each
of your ISDN gateways will have a prefix for dialing externally, and that prefix must be configured into
TMS.
Active Directory Integration, Group Structure, and Users
Verify that all of the information is correctly entered for your Active Directory service account.
Note
Make sure all of your settings for AD connectivity are correct, and test the connection. Other AD
interfacing commands within TMS might not display errors, even if AD synchronization is not
functioning.
Build a group structure to match your organizational needs using Active Directory Groups.
Three different groups are created by default during the TMS installation:
•
Users
•
Video Unit Administrator
•
Site Administrator
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-42
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
These groups may be modified to meet customer needs, but they cannot be removed. By default, all
groups have the same access permissions as Site Administrator.
These default groups are limited to manual entry of users; therefore groups should be imported from
Active Directory, and existing Active Directory Groups should be used to manage end user access to
TMS functions. Be sure to consider groups for support desk personnel and technical administrators as
well as end users who schedule conferences.
For additional information about groups, see the Cisco TelePresence Management Suite Administrator
Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsmaintenance-guides-list.html
Using the Import from AD feature allows for a single point of end user job function management. When
employees are added or removed, or job functions change and organizational Active Directory groups
are modified, TMS permissions are automatically updated.
Once you have imported groups from Active Directory, assign appropriate permissions to each group.
On the screen that appears, simply uncheck any permissions that you do not want that group to have.
Failure to restrict these permissions can result in unintended configuration changes.
Also, be sure to select the appropriate default group for all users.
Note
Anyone accessing Cisco TMS will be added automatically to the Users group, and this cannot be
unselected. De-select any permissions that the administrator does not want everyone within the
organization to have.
Import Users
Once permissions are set for groups, import users using the Synchronize All Users with AD function.
Depending upon organization size and number of groups involved, the synchronization can take many
minutes to complete.
Note
Users will not appear in the list of users until they log into TMS for the first time.
System Navigator Folder Structure
The TMS System Navigator utilizes a folder structure to group devices logically for the administrator.
Build a folder structure to match your organization’s physical deployment. These folders are visible only
to the administrators, not to end users. Arrange the folders according to the logical flow for your
organization. For example, create a folder for each geography, and then create a sub-folder for the
infrastructure and another folder for conference room endpoints. Folders within the System Navigator
may contain endpoints and/or infrastructure devices that receive connection instructions from TMS.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-43
Chapter 3
Conferencing
Conferencing Deployment Process
Default Conference Settings
Before scheduling conferences, the administrator should understand the end user community usage
model as well as any endpoint limitations. Important Cisco TMS settings to consider include:
•
One Button to Push
•
Bandwidth
•
Add WebEx to all Conferences
•
Allow Participants to Join 5 minutes Early
One Button to Push
One Button to Push enables end users to see a calendar of the day’s meetings for a particular room and
to launch the connection to the conference. Cisco TMS gives users 72 hours worth of calendar
information per request.
Bandwidth
This setting is per endpoint. Adjust the bandwidth to the desired setting for your network. To allow for
HD main channel and maximum resolution of content, the default bandwidth for non-immersive systems
should be set to 2048 kbps. Any endpoint that has a lower setting for maximum bandwidth will join at
its maximum bandwidth.
Add WebEx to all Conferences
This setting should be selected to provide a full collaboration experience for each meeting. Select the
option to set the Method of User Access to WebEx (Username). This setting will cause the username
of the person scheduling the meeting to appear in the WebEx portion of the invitation, and it allows the
meeting to populate that end user's Jabber or WebEx mobile client agenda.
Allow Participants to Join 5 minutes Early
This setting should be selected to allow for slight variations of end-user time interfaces. Allowing users
to join prior to the exact time of the TMS server provides a more consistent end-user experience and
prevents end users from receiving an "unable to connect" message if they attempt to connect to a meeting
a few minutes before the meeting start time.
Modify Email Templates within TMS
Cisco TMS contains the templates used to notify conference organizers. However, Cisco TMSXE can
inject errors, warnings, and informational text into email messages sent by Cisco TMS. These messages
can be modified by the administrator. Avoid removing or changing text in curly brackets – for example,
{MEETING_TITLE}, {CONTACT_HOST}, and so forth – because these are variables that embed other
specific content from the scheduled event.
Look at all email templates to ensure that communications automatically generated by TMS align with
your intended procedures. Many of these templates might be rather simplistic and are intended to be
enhanced by individual organizations. The templates may be modified using any standard HTML editor.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-44
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Cisco TMS for Scheduled Conferences
For Cisco TMS to build scheduled conferences, you must add the needed components into TMS as
systems. Unified CM is added to TMS to allow the TMS scheduling mechanisms be aware of the call
control entity for all devices. TMS does not control any settings on Unified CM, but it does communicate
directly to conference room endpoints managed by Unified CM. (See Figure 3-26.)
Figure 3-26
Cisco TMS Communicates Directly with Unified CM Managed Endpoints
Integrate TelePresence Conductor with TMS
To allow Cisco TMS to perform scheduling and conference control for scheduled conferences, add one
TelePresence Conductor node from each TelePresence Conductor cluster. The TelePresence Servers
should then be added to Cisco TMS also.
Cisco TMS and TelePresence Conductor must be configured with similar aliases, and these are used by
Cisco TMS to determine where a scheduled call is placed. Conferences cannot exceed the size of any
single TelePresence Server if cascading is not enabled, which it would not be if you are using a dedicated
TelePresence Server deployment.
Add one TelePresence Conductor from each TelePresence Conductor cluster to Cisco TMS. Add them
to the appropriate folder and assign them the correct IP zone, using an administrator account configured
on the TelePresence Conductor. For each TelePresence Conductor configured in Cisco TMS, set the
parameters as listed in Table 3-10.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-45
Chapter 3
Conferencing
Conferencing Deployment Process
Table 3-10
Cisco TMS Parameter Settings for TelePresence Conductor
Setting
Value
Comment
IP Zone
Region IP zone
This setting tells Cisco TMS the physical location
of this device
Username
TMSadmin
This setting should match the username
configured on the TelePresence Conductor
Password
<password>
Usage Type
Other
After adding TelePresence Conductor, add each TelePresence Server to Cisco TMS in a way similar to
the above method for TelePresence Conductor. Once all TelePresence Servers are added, perform a
forced refresh on TelePresence Conductor and then on all the added TelePresence Servers.
As part of preparing to install the TelePresence Conductor for scheduled calls, you created conference
alias and identified a numeric range for the TelePresence Conductor to use as part of the dial plan and
designated in the SIP trunks. Table 3-11 lists the TelePresence Conductor dial plan parameter settings.
Table 3-11
TelePresence Conductor Dial Plan Settings
Parameter
Value
Numeric ID Base
This is the first number in the scheduled conferencing range of the
dial plan.
Numeric ID Step
Keep the default value of 1 to utilize every number in the range.
Numeric ID Quantity
Specify the number of digits allowed in the dial plan for this
TelePresence Conductor.
Register with Gatekeeper
This should be set to off because the Preferred Architecture uses SIP
connections, not H.323.
Leave all other settings as defaults, and save the configuration to add the TelePresence Conductor to
TMS.
Cisco TMS will populate the dial plan numbers provided in the previous steps into both E.164 aliases
and SIP URIs. However, the implementation of E.164 logic within TMS differs from its use elsewhere
in the Preferred Architecture. TMS associates an E.164 alias with H.323 communication only. It is
therefore necessary to adjust the integrated ticket system of TMS to ignore certain warnings for the
TelePresence Conductor.
Once the TelePresence Conductor has been added to TMS, adjust the Ticket Filters for this entry by
adding the filter for Gatekeeper Mode Off.
Create an alias in Cisco TMS under the TelePresence Conductor tab to use for scheduled calls. As shown
in Table 3-12, the lower settings are visible only after clicking Save because they are read-only.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-46
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Table 3-12
Cisco TMS Alias Settings for TelePresence Conductor
Setting
Value
Comment
Name
Scheduled meeting Give the alias a name; for example, Scheduled meeting.
Alias Pattern
8099%
The pattern can be fixed or can contain a variable, which is denoted by %. The alias
pattern must match the route pattern on Unified CM.
Note that the variable part of the alias will be generated by Cisco TMS from the
Numeric ID Base configured for the TelePresence Conductor in Systems >
Navigator > select the TelePresence Conductor > Extended Settings.
Priority
1
Give the alias a priority. The alias with the lowest number has the highest priority,
and it will be used first when Cisco TMS creates a conference. If that alias has no
available resources, the alias with the next highest number will be used, and so on.
The priority can be any number between 0 and 65535.
Description
Default scheduled
conference
Enter a description of this alias.
Prefer for
Multiscreen
No
Cisco TMS uses aliases with this field checked when selecting aliases for
conferences including immersive TelePresence systems. The alias with the highest
priority will be chosen first.
If all the immersive aliases are in use, a non-immersive alias will be used for the
conference
If checked, ensure that the TelePresence Conductor conference template that this
alias is configured to use has Allow multiscreen set to Yes.
Allow Booking
Yes
If No is selected, this alias will not be used by Cisco TMS in any bookings.
This setting could be used if you want to stop using a particular alias that has a
number of future bookings and therefore cannot be deleted. Disabling booking by
using this setting will enable the alias to be deleted once the final booking has taken
place.
Allow Booking
with WebEx
Yes
Set to Yes to allow this alias to be used in bookings including Cisco Collaboration
Meeting Rooms (CMR) Hybrid.
Max Participants
per Conference
N/A
When booking a conference with this alias, if more than this number of participants
is selected, it will not be possible to save the conference.
The number is a theoretical maximum; the actual number of possible participants in
a conference could be much lower, depending on how the associated TelePresence
Conductor conference templates are set up.
This field is populated only if there is a corresponding alias on the TelePresence
Conductor.
Max Screens per
Participant
N/A
Regular
Expression
N/A
The maximum number of screens per participant for this alias.
This field is populated only if there is a corresponding alias on the TelePresence
Conductor.
Service Preference N/A
The regular expression of the alias that must be configured on TelePresence
Conductor.
The Service Preference that this alias is linked to.
This field will display None if there is no corresponding alias on the TelePresence
Conductor.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-47
Chapter 3
Conferencing
Conferencing Deployment Process
Create the corresponding alias in TelePresence Conductor. First copy the regular expression generated
in Cisco TMS in the alias Regular Expression field under the TelePresence Conductor tab. In the case
shown in Table 3-12, the generated alias would be (8099[^@]*).*.
In TelePresence Conductor, create a new conference alias and configure it as shown in Table 3-13.
Table 3-13
TelePresence Conductor Alias
Setting
Value
Comment
Name
Default scheduled
meeting
Give the alias a name; for example, Scheduled meeting.
Incoming alias
(8099[^@]*).*
Paste the regular expression you copied from Cisco TMS.
Conference name
\1
Enter a regular expression (regex) replacement string that defines how the incoming
alias will be modified to result in the conference name; for example, \1.
Entering a static value here will not allow concurrent use of the same alias. Make
sure that if your alias pattern has a dynamic part, the regex string you enter here
reflects that.
Note that the TelePresence Conductor Conference name as defined by this field is
unrelated to the Conference Title in Cisco TMS.
Priority
1
Enter the priority for this conference alias. The priority is used when the alias that
has been dialed matches more than one conference alias. In such cases, the
conference alias with the highest priority (closest to 0) will be used.
Conference
template
Select one of the conference templates that you assigned for scheduling in the
Scheduled
TelePresence Conductor configuration section.
Personal
Multiparty 720p
HD video template
Role type
Participant
This setting determines the privileges that will be assigned to a caller dialing in to
the conference using this conference alias. The options that are available are
determined by the template that has been selected.
Allow conference
to be created
No
This setting determines whether participants dialing this conference alias can create
the conference. Scheduled conferences are always created by Cisco TMS and
therefore this setting should not be enabled.
Select the TelePresence Conductor within Cisco TMS and Force refresh of the device. Additional
information is then listed under Service Preferences within the TelePresence Conductor tab.
TelePresence Conductor reports the total capacity of a service preference to Cisco TMS. The Capacity
Adjustment setting allows you to specify what percentage of the total capacity will be available for
scheduling conferences with this Service Preference.
If you are using bridge pools that are reserved only for scheduling, do not change this setting. If,
however, instant and CMR conferences share the bridge pools being used for scheduling, setting the
percentage to less than 100% reserves capacity for non-scheduled conferences.
It is also possible to set the percentage higher than 100%. If users regularly book more capacity than they
use (for example, 10 dial-ins for a conference where only 5 are ever used), you should set the Capacity
Adjustment to 120% or higher.
To use the TelePresence Conductor for scheduled calls, you must edit TelePresence Conductor settings
within Cisco TMS. H.323 dialing should be disabled in both directions, Allow Booking should be
enabled, and SIP dialing should be enabled in both directions.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-48
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Previously within the alias in Cisco TMS, a wild card was configured, and the number range used in
place of this wild card must be configured so that the scheduled conference number range matches that
configured on Unified CM. Edit the Extended Settings of the TelePresence Conductor in Cisco TMS as
listed in Table 3-14. The numeric ID should match the route pattern configured for the trunk to
TelePresence Conductor from Unified CM.
Table 3-14
Extended Settings for TelePresence Conductor
Setting
Value
Comment
Numeric ID Base
1000
The first number Cisco TMS uses when creating
the variable part of the alias. The combination of
the non-variable part of the alias and this number
will give the dial string used by participants
dialing into the scheduled conference; for
example, 80991000.
Numeric ID Step
1
Cisco TMS will add this number to the Numeric
ID Base to avoid duplicated aliases. As
conferences finish, the alias will be made available
to new conferences.
Numeric ID Quantity
1999
The number of times Cisco TMS will increase the
number from the Numeric ID Base, using the
Numeric ID Step increment. This number should
be set so that the highest number does not exceed
the allocated range for scheduling: 80991000 to
80992999.
Conference Layout
Default View
Family
Set the default layout for all conferences.
Limit Ports to Number of
Scheduled Participants
On
Limit ports to the number of scheduled audio and
video participants for all conferences to the
number scheduled at time of conference booking.
No additional participants will be able to join
conferences.
It is important to configure Cisco TMS to use TelePresence Conductor for scheduling, otherwise
scheduling will fail. In Administrative Tools > Configuration > Conference Settings, edit the settings
as shown in Table 3-15.
Table 3-15
Cisco TMS Conference Settings
Setting
Value
Comment
Preferred MCU Type in Routing
Cisco TelePresence
Conductor
Prefers TelePresence Servers for
scheduling over other devices
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-49
Chapter 3
Conferencing
Conferencing Deployment Process
Integrate Unified CM with TMS
While Unified CM administers the conference room endpoints for all other aspects of configuration and
management, the Unified CM cluster must be added into TMS to allow for booking and connection
initiation. To add Unified CM to TMS, perform the following tasks:
•
Create an Application User for Cisco TMS within Unified CM
•
Add the Publisher for each Unified CM Cluster in Your Environment
Adding multiple Unified CM clusters requires adherence to the dial plan configuration outlined in the
Call Control chapter.
Create an Application User for Cisco TMS within Unified CM
This application user allows TMS to communicate with endpoints controlled by Unified CM. This user
must be assigned all of the conference room devices within Unified CM that will be scheduled. This user
must also be added to a user group just for Cisco TMS, with the following roles:
•
Standard AXL API Access
•
Standard CTI Enabled
•
Standard SERVICEABILITY
•
Standard CCM Admin Users
•
Standard RealtimeAndTraceCollection
For more information, refer to the Cisco Unified Communication Manager Configuration Guide for the
Cisco TelePresence System.
Add the Publisher for each Unified CM Cluster in Your Environment
Adding the Unified CM publisher to TMS makes TMS aware of the call control authority for its
endpoints. Without knowledge of Unified CM, the TMS scheduling engine cannot properly utilize the
full functionality of your deployment, and connection failures could occur.
Add the publisher by the same method used for other devices, by using the application user you created
in the above step for the user name and password when prompted by TMS.
Add Conference Room Endpoints to TMS
Rather than adding devices by IP address or DNS name, use the From List tab and then select
Unified CM. Select all the conference room TelePresence devices that you wish to have available
through the scheduling interfaces of TMS. Be sure to select the appropriate IP Zone for each endpoint.
This IP Zone will be used to select the best TelePresence Server available for the endpoints in any
conference. Make sure the DN for each endpoint in Unified CM complies with the E.164 guidelines
listed in the Call Control chapter.
Do not add personal TelePresence devices (for example, Cisco TelePresence DX Series endpoints) that
will not be scheduled through Exchange as resources to TMS.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-50
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Install and Configure TMS Extensions for Microsoft Exchange
Cisco TelePresence Management Suite Extension for Microsoft Exchange (Cisco TMSXE) is an
extension for Cisco TelePresence Management Suite that enables videoconference scheduling via
Microsoft Outlook, and it replicates Cisco TMS conferences to Outlook room calendars.
This software extension to TMS requires a license key to activate the functionality within TMS. This key
must be installed in TMS before installing the TMSXE software. For deployments with more than
50 scheduled endpoints, TMSXE must be installed on its own server or virtual machine instance.
Prerequisites
Before installing Cisco TMSXE, make sure both Outlook and Exchange are already set up so that users
are able to book meetings that include room mailboxes (see Figure 3-27). This integration is licensed
either by groups of endpoints or as an Application Integration license key. The correct key must be
procured and entered into TMS before proceeding with the installation. If both option keys are added,
only the Application Integration Package option will be used by Cisco TMS
Cisco TMSXE may use Microsoft Exchange Resources that are either on-premises, Office 365 hosted
deployments, or hybrid customer deployments. Consult the Microsoft Exchange administration and
deployment guides for any guidelines or recommendations that might apply to specific customer
environments.
Figure 3-27
Sample Flow for Scheduling a Conference by an End User
Once the per-system option key has been activated in Cisco TMS, the Allow Remote Bookings setting
determines whether each system is using a license. This setting allows the administrator to select which
endpoints are able to be booked by end users and consume one of the individual endpoint licenses. This
setting is void and hidden if the Application Integration Package option is used.
Before endpoints can be added to Cisco TMSXE, they must be represented by a room mailbox in
Exchange. To simplify TMSXE setup, we recommend using the endpoint's Cisco TMS display name as
the mailbox name (with any spaces removed). This provides commonality across all methods by which
end users would see the system name appear.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-51
Chapter 3
Conferencing
Conferencing Deployment Process
Special Notes About Privacy Features of Exchange:
All room mailboxes added to Cisco TMSXE must be configured to handle booking subjects and privacy
settings in the same way. This means that the following settings must be applied to either all or none of
the mailboxes:
•
Delete the subject
We recommend not using this feature so that support staff is able to identify a particular meeting in
the Conference Control Center. Also, this will allow the meeting title to appear on the One Button
to Push interface of capable endpoints.
•
Add the organizer's name to the subject
Use of this setting should be considered very carefully, and will depend upon organizational culture
and practices. Keep in mind that if one person schedules meetings for multiple groups, those
meetings will be listed by that scheduler's user name and not by the meeting subject, which might
be more beneficial. On the other hand, if meetings are scheduled by their respective hosts, then it
would be easy to identify "Bob's meeting" instead of remembering the specific meeting title. For
most organizations, we recommend not using this setting.
•
Remove the private flag on an accepted meeting
While the "private" flag is respected within the Outlook client, it is not supported by Cisco TMS,
and meeting subjects will be freely viewable:
– In Cisco TMS
– On endpoints that support the Meetings calendar, if other individuals also have use of a room
used for a meeting where the subject title should not be public within the organization. (For
example, if a "Merger meeting" for the chief executive is scheduled in a room also used by
lower-level employees who would not need to have knowledge of a pending merger, those
lower-level employees would be able to see the meeting on a room system calendar.)
– If a booking that has a "private" flag in Exchange has its participants or recurrence pattern
modified in Cisco TMS, the "private" flag will be removed when these changes are replicated
to Exchange.
Create TMSXE User
•
Create a TMSXE user in Active Directory and import that user into TMS.
•
In TMS, the user needs to be in a new or existing group with the following permissions enabled
under Booking:
– Read
– Update
– Book on Behalf of
– Approve Meeting
Install Certificates
Cisco TMSXE and TMS communicate using HTTPS. The certificate also allows for secure
communications between the TMSXE server and the Exchange environment. As with the TMS
application server, the same certificate is loaded on both the active and passive nodes of TMSXE, and
the certificate DNS entry points to the entry of the Network Load Balance address used for TMSXE.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-52
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Run Software Installer
•
Be sure to select TMS Booking Service to allow use of WebEx Productivity Tools for scheduling.
•
Select the appropriate redundancy option for active or passive nodes.
•
Complete the software installation on both active and passive nodes.
Once both the active and passive nodes have been installed, configure the Network Load Balancer with
the probe URL for each node.
Configure Cisco TMSXE
•
Cisco TMS Connection Information
Configure TMS connection information using the TMSXE account created in Active Directory to
allow the TMSXE application to communicate with the TMS application.
•
Configure Exchange Web Services
Configure Exchange Web Services (EWS) to allow TMSXE to communicate with the Exchange
servers for user and resource mailboxes. The credentials used for this connection are also the same
TMSXE credentials used elsewhere.
•
Align Exchange and TMS Resources
Align Exchange resources to TMS System IDs. This may be done individually or by using a .csv file
as outlined in the Cisco TelePresence Management Suite Extension for Microsoft Exchanged
Deployment Guide.
Use of WebEx Productivity Tools for End Users
To provide the best experience for end-user collaboration tool usage, deploy WebEx Productivity Tools
for all users. WebEx Productivity Tools for CMR Hybrid allow users to synchronously book and
configure:
•
CMR Hybrid meetings that include both WebEx and TelePresence
•
WebEx-only meetings
•
TelePresence-only meetings
The panel provides access to simple and advanced settings for both WebEx and TelePresence, including
the option to add call-in and call-out TelePresence participants and to allow WebEx participants to join
the meeting ahead of start time.
Note that all organizers must be set up with a WebEx user for Productivity Tools to work, even when
booking TelePresence-only meetings.
Detailed instructions on configuration and deployment of WebEx Productivity Tools with TelePresence
can be found in Cisco WebEx Site Administration User's Guide, which is available as web help and a
PDF file from your WebEx site.
Summary
After you complete the deployment tasks outlined above, Cisco TMS will be configured to communicate
with TelePresence Conductor for scheduled conferencing.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-53
Chapter 3
Conferencing
Conferencing Deployment Process
6. Deploy Cisco Collaboration Meeting Rooms
This section describes the major tasks required to deploy Cisco Collaboration Meeting Rooms (CMR).
Overview
Deployment Tasks for Unified CM for CMR:
1.
Configure an Early Offer SIP trunk between Unified CM and TelePresence Conductor. The SIP
trunk ST_CONDUCTOR_CMR_SCHED configured previously can be used here.
2.
Set up new route pattern(s) for CMR numeric alias that point to the route list containing the
relevant trunks. The route list RL_CMR_SCHED configured previously can be used here.
3.
Create an Imported Global Dial Plan Catalog with the Route String cmr.route, for example, and
use the Bulk Administration Tool (BAT) to import CMR SIP URIs into the global dial plan
catalog.
4.
Create a SIP route pattern with the global catalog's route string for CMR URI that points to the
route list (RL_CMR_SCHED) used in task 2.
Deployment Tasks for TelePresence Conductor for CMR:
5.
Configure one or more bridge pools and service preferences. Use either the same bridge pools
used for scheduling if using a shared scheduling model, or create new bridge pools dedicated to
non-scheduled conferences if using a dedicated model.
6.
Create an administrator account within TelePresence Conductor with read/write access level and
API access enabled.
Deployment Tasks for Cisco TMSPE for CMR:
7.
Install and activate Cisco TMSPE in Cisco TMS.
8.
Create the user groups Executive and Marketing, and import users from Active Directory who
belong to the corresponding AD groups.
9.
Add only a single TelePresence Conductor node from each cluster to TMSPE, using the
TelePresence Conductor setting option.
10. Create CMR templates that define the conference settings and conference alias, and change the
default settings as required. Also, assign multiparty licenses (PMP or SMP) to users within the
group in the CMR template.
11. Assign a CMR template to each user group that entitles the users to have CMRs.
Deployment Considerations
Cisco Collaboration Meeting Rooms (CMRs) are similar to permanent conferences created in the
TelePresence infrastructure that resides in the enterprise's data center. Each CMR has a unique set of
video addresses that a user can call into to start a meeting at any time, and the video addresses can be in
the format of numeric aliases or SIP URIs. Each CMR can be associated with an individual user and can
be created through the user's Cisco TelePresence Management Suite Provisioning Extension (TMSPE)
portal.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-54
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Cisco CMR provides an easy way for participants to join a conference using TelePresence, regardless of
where those participants are located. Everyone dials into the same virtual meeting room from their
laptop, telepresence room, desktop endpoint, or mobile device.
Deploying CMR involves the deployment of Unified CM, TelePresence Conductor, and Cisco TMSPE.
The following sections describe the high-level process for deploying each component for CMR.
Tip
Before starting CMR, decide on the format of the conference aliases (numeric or SIP URI).
Deployment Tasks for Unified CM for CMR
The main function of Unified CM is to handle call routing to and from TelePresence Conductor. Connect
Unified CM to TelePresence Conductor with a SIP trunk enabled for Early Offer. (Use the same trunk as
previously configured for scheduled conferences: ST_CONDUCTOR_CMR_SCHED.) When a user
dials the CMR conference alias, the call is sent to TelePresence Conductor via the SIP trunk. Similarly,
TelePresence Conductor can send calls to Unified CM through the SIP trunk for auto-dial participants.
The conference alias has two formats: SIP URI or numeric. The dial plan design should include the call
routing for both the numeric alias and SIP URI for CMR. For dial plan design details, refer to the Call
Control chapter.
Cisco Collaboration Meeting Rooms (CMR) can be created for each individual user, and the CMR
numeric alias can be based upon the user's DID number. Table 3-16 shows the CMR numeric alias ranges
for a deployment using the dial plan example from Call Control chapter.
Table 3-16
CMR Numeric Alias Ranges
Site
+E.164 DID Range
CMR Numeric Alias Range
SJC
+1 408 555 4XXX
8-004-4XXX
RTP
+1 919-555 1XXX
8-005-1XXX
RCD
+1 972 555 5XXX
8-006-5XXX
For numeric aliases, configure a route pattern for each site that routes to the TelePresence Conductor
route list for permanent conferences, as shown in Table 3-17.
Table 3-17
Route Patterns Configuration for CMR Numeric Alias
Pattern
Partition
Gateway or Route List
Description
80044XXX
ESN
RL_CMR_SCHED
Pattern to match SJC DID range
80051XXX
ESN
RL_CMR_SCHED
Pattern to match RTP DID range
80065XXX
ESN
RL_CMR_SCHED
Pattern to match RCD DID range
For SIP URIs for CMR, keep the domain part the same as the end user directory URI, and manipulate
the user part of the URI; for example, {username}[email protected] Using a single domain for both
directory and CMR URI dialing simplifies the dial plan design if CMRs are hosted in more than one
Conductor system or cluster. In addition, users need to enter only the user part of the URI to enter the
CMR, and Unified CM automatically appends the domain part to complete the dialing. This greatly
enhances the user experience.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-55
Chapter 3
Conferencing
Conferencing Deployment Process
To set up the call routing for the URIs, create an Imported Global Dial Plan Catalog with the Route String
cmr.route, for example. Then create a list of CMR SIP URIs for all users in the system (and whenever
new users are added to the system), and use the Bulk Administration Tool (BAT) to import the URIs into
the global dial plan catalog. After that, configure a Domain Routing SIP Route Pattern with the global
catalog's route string that routes to the TelePresence Conductor route list for permanent conferences, as
shown in Table 3-18.
Table 3-18
SIP Route Pattern Configuration for CMR URI
Pattern
Partition
Gateway or Route List
cmr.route
URI
RL_CMR_SCHED
Deployment Tasks for TelePresence Conductor for CMR
TelePresence Conductor should be configured with one or more bridge pools and service preferences.
All CMRs created through the Cisco TMSPE portal will be hosted in this TelePresence Conductor.
TelePresence Conductor and Unified CM are connected through an Early Offer SIP trunk. The bridge
pools and service preferences configured previously in TelePresence Conductor for scheduled
conferences can be reused for CMR if you are using a shared resource model. Otherwise, use the bridge
pools and service preferences configured previously in TelePresence Conductor for instant conferences
for CMR. In addition, create an administrator account with read/write access level and API access
enabled inside the TelePresence Conductor. Cisco TMSPE uses this administrator account to access
TelePresence Conductor for creating CMRs.
Tip
The Aliases and templates configured in TelePresence Conductor are not used by TMSPE; instead, the
aliases and templates are configured within TMSPE.
Deployment Tasks for Cisco TMSPE for CMR
Cisco TMSPE, together with Cisco TMS, provides a portal for users to create CMRs, and this requires
Cisco TMSPE to be installed and activated in Cisco TMS. Cisco TMSPE enables the administrator to
create or import users into one or more user groups that entitle the users to have CMRs. For example,
the user groups can match with the groups in Active Directory where the users are members, or the user
groups can match with an organization unit (OU) of Active Directory where the users reside. In
Cisco TMSPE, create the user groups Executive and Marketing, and import users from Active
Directory that belong to the corresponding AD groups. Table 3-19 lists the Active Directory search
filters for importing users into user groups. The TelePresence Conductor settings option within TMSPE
allows the administrator to specify which TelePresence Conductor will be used for the CMR deployment.
For each TelePresence Conductor cluster, the administrator must create only one record pointing to one
of the Conductor nodes. The administrator account created in TelePresence Conductor is used here to
configure the TelePresence Conductor settings.
Table 3-19
Search Filter for Importing Users into User Groups
User Group
Search Filter
Executive
(&(objectClass=user)(memberof=cn=executive, ou=enterprise, dc=ent-pa, dc=com))
Marketing
(&(objectClass=user)(memberof=cn=marketing, ou=enterprise, dc=ent-pa, dc=com))
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-56
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
A CMR template corresponds to a conference template and a conference alias on TelePresence
Conductor. The CMR template allows the administrator to specify the conference attributes (for
example, conference quality, content quality, conference PIN, and so forth), conference alias (SIP URI
and/or numeric alias), and TelePresence Conductor for CMR creation. Also, the CMR template allows
the administrator to assign multiparty licenses (PMP or SMP) to users within the group. Assign one
CMR template to each user group to enable users in that group to set up their own CMR through the
Cisco TMSPE portal.
When a user creates a CMR, Cisco TMSPE applies the settings that have been defined in the CMR
template associated with that user’s group, and it makes a provisioning API call to create the conference
on TelePresence Conductor. No further interaction is needed from the administrator.
Note
CMRs created by using Cisco TMSPE cannot be modified through the TelePresence Conductor web
interface. Conference templates and aliases created by using TelePresence Conductor cannot be
modified through Cisco TMSPE.
Summary
After you complete the deployment tasks outlined above, users can log in to their Cisco TMSPE portal
to create a CMR and generate the corresponding SIP URI and numeric alias. Users can then dial the SIP
URI or numeric alias to start the meeting.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-57
Chapter 3
Conferencing
Conferencing Deployment Process
7. Deploy Collaboration Meeting Rooms (CMR) Hybrid
This section describes the major tasks required to enable Cisco CMR Hybrid.
Overview
Deployment Tasks for TelePresence Conductor for CMR Hybrid:
1.
The previously configured TelePresence Conductor and alias for scheduled conferences can be
used for CMR Hybrid conferences.
Deployment Tasks for Unified CM for CMR Hybrid:
2.
Configure a SIP route pattern that matches the WebEx site and points to the Expressway-C route
list.
Deployment Tasks for Expressway for CMR Hybrid:
3.
Create a new DNS zone that uses TLS verify, forces encryption, and uses the TLS verify name
sip.webex.com.
4.
Create a search rule that matches any URI that contains the WebEx domain and removes any
appended characters.
Deployment Tasks for Cisco TMS for CMR Hybrid:
5.
Add the WebEx site to Cisco TMS.
6.
Configure the following attributes in the Cisco TMS user profiles of the users who are enabled to
use CMR Hybrid:
– WebEx username
– WebEx password (unless single sign-on is enabled)
– The WebEx site on which they have an account
Deployment Tasks for Cisco TMSXE for CMR Hybrid:
7.
Download and install the WebEx and TelePresence Integration to Outlook plug-in for relevant
users.
8.
Configure a WebEx scheduling Mailbox, such as [email protected], with the following
settings:
– Turn off the Calendar Attendant.
– Set AddNewRequestsTentatively to Disabled.
9.
Configure the WebEx scheduling mailbox inside TMSXE so that TMSXE monitors this mailbox
for CMR Hybrid bookings.
Deployment Tasks for Audio for CMR Hybrid:
10. Chose the best audio connection type for the deployment requirements, and enable the relevant
settings.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-58
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for WebEx Site Administration for CMR Hybrid:
11. Enable Cisco TelePresence Integration (Meeting Center only).
12. Configure the following additional settings:
– Cisco TMS booking service URL
– List Cisco TelePresence meetings on calendar
– Send invitation email to meeting host
– Display toll-free number to attendees
– Set the VoIP and video connection to Automatically encrypted UDP/TCP SSL.
– Set relevant audio settings based on the desired audio connectivity.
13. Assign the Meeting Center TelePresence session type to all users who use CMR Hybrid.
Deployment Considerations
Cisco CMR Hybrid provides the following key features:
•
Two-way video with up to 720p screen resolution between the WebEx application and telepresence
devices
•
Integrated audio and presentation sharing, including application and desktop content sharing
capability for all users in a meeting
•
Network-based recording of meetings, including content sharing, chat, and polling
•
Integrated conference scheduling using Cisco TelePresence Management Suite (Cisco TMS), which
enables users to easily schedule Cisco CMR Hybrid meetings
•
Secure call control and connectivity enabled by media encryption provided by Cisco Expressway-E
•
Management and conference resource allocation of TelePresence Servers provided by Cisco
TelePresence Conductor
•
Interoperability with third-party telepresence devices
Each user who will schedule Cisco CMR Hybrid meetings in Cisco TMS, must have a host account on
the WebEx site.
Tip
We recommend using WBS29 or later version of Cisco WebEx Meeting Center for CMR Hybrid
deployments.
CMR Hybrid can be deployed using either SIP audio or PSTN audio. It can be scheduled either by using
integration to Microsoft Outlook, using the Cisco Smart Scheduler, or using the Cisco WebEx
Scheduling Mailbox.
Deployment Tasks for TelePresence Conductor for CMR Hybrid
The previously configured TelePresence Conductor and alias for scheduled conferences can be used for
CMR Hybrid conferences.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-59
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Unified CM for CMR Hybrid
The previous configuration to enable Unified CM to communicate with Cisco Expressway and
TelePresence Conductor for scheduled conferences, is also valid to enable communication with CMR
Hybrid. One additional configuration is required to ensure calls made from TelePresence Conductor to
the WebEx site are routed correctly: configure a SIP route pattern that matches the WebEx site (for
example, yoursite.example.com) to route to the Expressway-C route list.
Deployment Tasks for Expressway for CMR Hybrid
Cisco Expressway-E must have a server certificate that is signed by specific Root Certificate Authorities
and that trusts both the DST Root CA certificate for the WebEx cloud and the CA certificate of the CA
that issued the server certificate. For a list of supported Root CAs, refer to the Cisco Collaboration
Meeting Rooms (CMR) Hybrid Configuration Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsinstallation-and-configuration-guides-list.html
Configure a new DNS zone on the Expressway-E that has TLS verify enabled and that uses
sip.webex.com as the TLS verify name. Configure a search rule to point to this DNS zone that matches
the WebEx domain.
Caution
Do not use static NAT with Expressway-E, due to a defect that will cause the media part of a call to fail.
If static NAT is required, refer to the recommended workarounds in the Cisco Collaboration Meeting
Rooms (CMR) Hybrid Configuration Guide.
Deployment Tasks for Cisco TMS for CMR Hybrid
To benefit from Cisco CMR Hybrid, connections must be made to the organization's WebEx site. Verify
that the settings in Table 3-20 have been made within TMS.
Table 3-20
TMS Settings for WebEx
Parameter
Value
Enable WebEx
Yes
Add WebEx to All Conferences
Yes
Get WebEx Username from Active Directory
Username (samAccountName)
WebEx Site
Configured per customer account
Default site for new users
Yes
Enable SSO
Yes
The settings in Table 3-20 allow TMS to communicate with the organization's WebEx site on behalf of
the end user during scheduling. By automatically adding WebEx to every conference, even if the
administrator needs to generate a meeting through methods other than WebEx Productivity Tools, a
WebEx link will be made available to end users. The SSO settings allow end users to use a single set of
credentials to access all collaboration services, because WebEx services are able to leverage AD
credentials for end users to access WebEx tools.
Add the WebEx site to Cisco TMS to initiate the connection to the site.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-60
November 20, 2015
Chapter 3
Conferencing
Conferencing Deployment Process
To schedule meetings using Cisco TMS, users must have a username and password that the server is
configured to trust. Users from Active Directory are trusted but must have the following information
stored in their Cisco TMS user profile:
•
WebEx username
•
WebEx password (unless single sign-on is enabled)
•
The WebEx site on which they have an account.
Deployment Tasks for Cisco TMSXE for CMR Hybrid
To allow all client types to use Cisco TMSXE to book meetings, enable the following two options for
scheduling CMR Hybrid conferences using Cisco TMSXE:
•
Using the WebEx Productivity Tools Plug-In for Microsoft Outlook
Users add WebEx to their meeting by using the WebEx Meeting Options panel in Microsoft Outlook.
•
Using WebEx Scheduling Mailbox
Users add WebEx to their meeting invitation directly from their email client by including a special
invitee: the WebEx mailbox.
The TMSXE booking service should be configured as normal.
Meeting organizers who want to schedule meetings using the WebEx and TelePresence Integration to
Outlook plug-in, must download and install the WebEx Productivity Tools with TelePresence from the
WebEx site.
To enable a WebEx scheduling Mailbox, create a new user mailbox in Microsoft Exchange that is used
as a scheduling participant whenever a meeting is enabled for CMR Hybrid. Turn off the Calendar
Attendant for this mailbox, and disable the AddNewRequestsTentatively setting to prevent new requests
from being marked as tentative. Also disable the AD User associated with the account.
Configure the new mailbox in TMSXE as the WebEx Scheduling Mailbox so that TMSXE knows which
account to monitor for CMR Hybrid bookings.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-61
Chapter 3
Conferencing
Conferencing Deployment Process
Deployment Tasks for Audio for CMR Hybrid
CMR Hybrid supports the following audio connection options, and the choice of method depends on
customer preference:
•
SIP audio:
– Configure the WebEx site in Cisco TMS to use SIP audio.
– Enable hybrid mode on the WebEx Site.
•
PSTN audio:
– Configure the WebEx Site in Cisco TMS to use PSTN audio.
– Enable hybrid mode on the WebEx site (optional).
– Configure PSTN calls to pass through a PSTN gateway to WebEx.
•
TSP audio:
– Configure the MACC Domain Index and Open TSP Meeting Room WebEx settings.
– Configure the TSP dial string.
– Configure how the conference is opened.
– Configure TSP audio for the meeting organizer.
Deployment Tasks for WebEx Site Administration for CMR Hybrid
Configure the WebEx Site to enable CMR Hybrid to function. The key settings are:
•
Allow Cisco WebEx OneTouch meetings (Meeting Center only)
•
Cisco TMS booking service URL
•
List Cisco TelePresence meetings on calendar
•
Send invitation email to meeting host
•
Display toll-free number to attendees
•
Set the VoIP and video connection to Automatically encrypted UDP/TCP SSL.
•
The relevant audio settings based on the desired audio connectivity
The Meeting Center TelePresence session type must be assigned the host accounts in the WebEx Site to
complete the setup. This can be done either by opening the Edit User screens for an individual user or
by selecting the appropriate session type for each user from the Edit User List screen.
Summary
After you complete the deployment tasks outlined above, CMR Hybrid should be ready for users to
create TelePresence and CMR Hybrid meetings.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-62
November 20, 2015
Chapter 3
Conferencing
Related Documentation
Related Documentation
•
Cisco Personal Multiparty At-A-Glance
http://www.cisco.com/c/dam/en/us/solutions/collateral/collaboration/pervasive-conferencing/at-aglance-c45-729835.pdf
•
Cisco TelePresence Management Suite (TMS) and CMR Hybrid deployment guides
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsinstallation-and-configuration-guides-list.html
•
Cisco TelePresence Conductor and Collaboration Meeting Rooms (CMR) Premises (optimized
conferencing) deployment guides
http://www.cisco.com/c/en/us/support/conferencing/telepresence-conductor/products-installation-a
nd-configuration-guides-list.html
•
Cisco TelePresence Conductor API guides
http://www.cisco.com/c/en/us/support/conferencing/telepresence-conductor/products-programmin
g-reference-guides-list.html
•
Cisco TelePresence Server release notes
http://www.cisco.com/c/en/us/support/conferencing/telepresence-server/products-release-notes-list
.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
3-63
Chapter 3
Conferencing
Related Documentation
Cisco Preferred Architecture for Enterprise Collaboration 11.0
3-64
November 20, 2015
CH A P T E R
4
Collaboration Edge
Revised: November 20, 2015
This chapter describes the Collaboration Edge preferred architecture, which includes a series of servers
and gateways defining access to services at the perimeter of a collaboration network. The Collaboration
Edge preferred architecture provides access to public networks, including the Internet and PSTN.
The chapter presents a detailed Architecture description of Collaboration Edge, followed by a
Deployment Overview section that describes how to deploy Cisco Expressway for Internet access and
Cisco Unified Border Element for PSTN access. The chapter also covers High Availability for
Collaboration Edge, Security for Collaboration Edge, and Scaling the Collaboration Edge Solution.
Then the section on the Collaboration Edge Deployment Process presents more detailed information on
deploying Cisco Expressway, Cisco Unified Border Element, Cisco voice gateways, and Cisco ISDN
video gateways.
What’s New in This Chapter
Table 4-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 4-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
Described in:
Revision Date
A number of minor changes to clarify some of the Various sections of this chapter
content
November 20, 2015
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-1
Chapter 4
Collaboration Edge
Architecture
Core Components
The core components of the Collaboration Edge architecture are:
•
Cisco Expressway-C and Expressway-E, for Internet connectivity and firewall traversal for voice
and video
•
Cisco Unified Border Element, for audio PSTN connectivity via IP trunks
•
PSTN voice gateway, for direct audio PSTN connectivity
•
ISDN video gateway, for direct video ISDN connectivity
•
Connect to customers and partners, independent of the technology they are implementing and the
public network they are using.
•
Provide for a resilient, flexible and extendable architecture.
•
Provide any hardware and software client with the ability to access any public network (Internet and
PSTN).
•
Provide secure VPN-less access to collaboration services for Cisco mobile and remote clients and
endpoints.
Key Benefits
Architecture
The architecture for Collaboration Edge interfaces with two major networks: Internet and PSTN.
Internet connectivity enables VPN-less Mobile and Remote Access (MRA) and business-to-business
communications. These services allow Jabber users and hardware video endpoints to access corporate
collaboration services securely outside the organization’s network boundaries, and they provide
business-to-business audio and video communications with external organizations.
Cisco Expressway-C and Expressway-E should be deployed as a pair and in almost all cases where a
firewall boundary needs to be traversed. Expressway-C sits in the internal network and Expressway-E in
the demilitarized zone (DMZ), one for each side of the firewall, in order to enable firewall traversal
capabilities. In addition, each Expressway-C and Expressway-E can be clustered. (See Figure 4-1.) In
most cases the firewall boundary crossed is an Internet connection, but it could also be a separate
corporate WiFi network for Bring Your Own Device (BYOD) connections.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-2
November 20, 2015
Chapter 4
Collaboration Edge
Architecture
Figure 4-1
High-Level View of the Architecture
PSTN connectivity enables audio and video communications to Telecom carrier networks. The PSTN
connection can be achieved in multiple ways:
•
Through an IP trunk to a Telecom carrier, usually for voice-only services. This connectivity is
provided by the Cisco Unified Border Element (CUBE) on an Integrated Service Router (ISR)
G2/G3 or Aggregation Services Routers (ASR). Cisco Unified Border Element should be deployed
in a central site where the Telecom carrier's network communicates with the enterprise network.
•
Through voice gateways. Gateways include analog and ISDN interfaces on a variety of router
platform, such as Cisco Integrated Service Routers (ISR) G2/G3. In this document only ISDN voice
interfaces are considered. Voice gateways should be deployed locally in the sites where a PSTN
connection is required
•
Through Cisco TelePresence ISDN Gateways 3241 or MSE 8321, which enable legacy H.320 video
access to PSTN. TelePresence ISDN gateways should be centralized anywhere an ISDN video
connection is required. Due to the nature and cost of TelePresence ISDN gateways, they can be
shared through multiple locations.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-3
Chapter 4
Collaboration Edge
Architecture
There are cost savings associated with deploying Internet communications for video calls (Expressway)
and IP PSTN connections for audio-only calls (CUBE). However, it is worth noting that:
•
Not all companies have enabled Internet communications for video systems (business-to-business).
If some of the partners and customers are using ISDN only for video communications, video
gateways are still recommended.
•
Although IP network reliability is increasing over time, network connectivity problems might
prevent remote sites from accessing centralized IP PSTN services. If such sites are heavily relying
on PSTN connectivity to run daily business, a local PSTN connection used as backup for the
centralized access is recommended.
The recommendations for PSTN are:
•
Centralize PSTN, which will help reducing operational costs and expenses.
•
Local PSTN connections maintained only for those sites highly relying on PSTN to run daily
business. In these cases, the number of ISDN channels should be reduced because they will be used
only in those situations where central PSTN access is not available. This would help save money by
reducing hardware costs and simplifying the management.
Based on the above considerations, IP trunk connections to the PSTN for voice, with local PSTN
breakout used as backup and Internet for video, satisfy the vast majority of connectivity requirements.
However, to provide fully connectivity, ISDN video gateways are also recommended to reach partners
and customers that are still not reachable on the Internet.
Cisco Collaboration Edge includes scenarios where users have access to the following options:
•
Mobile and Remote Access (MRA) for teleworkers and mobile connectivity
•
Business-to-business video communications between organizations
•
PSTN for cellphones and access to landlines
•
ISDN video access for communications to existing H.320 video systems
Under these scenarios any corporate user inside the company or on the Internet has access to PSTN voice
calls, ISDN video calls, and business-to-business communications as if they were inside the enterprise.
Services such as hold, transfer, and conference are also available in most cases. Independently from who
is calling whom, the Collaboration Edge solution enables interconnectivity between mobile and remote
access, business-to-business, PSTN voice, and video services.
Role of Expressway-C and Expressway-E for Internet Access
Use of the Internet for collaboration services continues to increase in popularity and is quickly replacing
existing legacy ISDN video systems. The two primary protocols leveraged for Internet based
collaboration services are SIP and H.323.
Moreover, the Internet is also used to connect remote and mobile users to voice, video, IM and presence,
and content sharing services without the use of a virtual private network (VPN).
Mobile and remote access, as well as business-to-business services, can be enabled as part of the same
Expressway-C and Expressway-E solution pair. Expressway-C is deployed inside the corporate network,
while Expressway-E is deployed in the DMZ.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-4
November 20, 2015
Chapter 4
Collaboration Edge
Architecture
The Expressway-C and Expressway-E pair performs the following functions:
•
Interworking — The capability to interconnect H.323-to-SIP calls for voice, video, and content
sharing.
•
Boundary communications services — While Expressway-C sits in the corporate network,
Expressway-E is in the enterprise DMZ and provides a distinct connection point for communication
services between the enterprise network and the Internet.
•
Security — The capability to provide authentication and encryption for both mobile and remote
access and business-to-business communications.
Mobile and remote access and business-to-business calls flow through Expressway-E and
Expressway-C, which handle both call signaling and media as well as other collaboration data flows,
including XMPP and HTTP.
Mobile and Remote Access
The mobile and remote access feature of the Cisco Expressway solution provides secure reverse proxy
firewall traversal connectivity, which enables remote users and their devices to access and consume
enterprise collaboration applications and services.
As shown in Figure 4-2, the Cisco Expressway solution encompasses two main components: the
Expressway-E node and the Expressway-C node. These two components work in combination with
Cisco Unified Communications Manager (Unified CM) to enable secure mobile and remote access. The
Expressway-E node provides the secure edge interface to mobile and remote devices.
Expressway-C creates a secure TLS connection with the Expressway-E node. The Expressway-C node
provides proxy registration to Unified CM for remote secure endpoint registration. The Expressway-C
node includes a back-to-back user agent (B2BUA), which provides media termination capabilities.
Figure 4-2 shows that both signaling and media traverse Expressway-C and Expressway-E for all mobile
and remote access calls.
Figure 4-2
B2BUA and Call Legs on Expressway
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-5
Chapter 4
Collaboration Edge
Architecture
Business-to-Business Communications
Expressway-C and Expressway-E are designed to work together to form a firewall traversal solution that
is the core component for business-to-business communications over the Internet.
Expressway-C sits on the inside (trusted side) of the enterprise network and serves the role of providing
a secure, trusted, and standards-based way of connecting to Expressway-E. It acts as a traversal client to
all devices behind it. This solves the problem for devices using a large number of media ports by
multiplexing all of the media to a very small number of ports opened for outbound communications. It
provides an authenticated and trusted connection from inside the enterprise to outside by sending a
keep-alive for the traversal zone from Expressway-C to Expressway-E. Additionally, it provides a single
point of contact for all Internet communications, thus minimizing the security risk. (See Figure 4-3.)
Figure 4-3
Expressway-C Multiplexing and Keep-Alive
Real-time and near real-time communication protocols such as SIP, H.323, and XMPP do not address
the need to communicate with devices that might be behind a firewall. Typical communications using
these protocols include the device IP address in the signaling and media, which becomes the payload of
the TCP and UDP packets, respectively. When these devices are on the same internally routable network,
they can successfully communicate directly with each other. The signaling IP address carried in the
payload of the TCP packet is routable back to the initiating device, and vice versa. However, when the
initiating device is on a different network behind a public or network edge firewall, two problems are
encountered. The first problem is that the receiving device, after decoding the packet, will respond to the
internal IP address carried in the payload. This IP address is typically a non-routable RFC 1918 address
and will never reach the return destination. The second problem encountered is that, even if the return
IP address is routable, the media (which is RTP/UDP) is blocked by the external firewall. This applies
to both business-to-business and mobile and remote access communications.
Expressway-E sits at the network edge in the DMZ. It serves the role of solving both the signaling and
media routing problems for SIP, H323, and XMPP, while maintaining standards interoperability. It
changes the appropriate headers and IP addresses to process the media and signaling on behalf of the
endpoints, devices, and application servers that are inside the network.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-6
November 20, 2015
Chapter 4
Collaboration Edge
Architecture
Instant Messaging and Presence Federation
Instant messaging and presence federation involves allowing users to send XMPP traffic through an
organization’s external firewall for chat and presence status information to and from users in another
organization.
Prior Cisco architectures involved using the Cisco Adaptive Security Appliance (ASA) firewall as a TLS
proxy and allowing inbound ports to be opened through the external firewall to directly access the
internal IM and Presence servers. This is still the recommended solution for SIP federation.
XMPP federation uses the same Expressway-C and Expressway-E paired architecture for a trusted
secure firewall traversal solution for XMPP traffic to and from external destinations. Expressway-E
provides a secure DMZ-based termination point for XMPP to the Internet. Expressway-C provides a
TLS-based authenticated secure connection to Expressway-E for firewall traversal, and as such does not
require any port to be opened on the firewall.
Expressway-C also provides an AXL API connection to the IM and Presence server. The AXL API sends
XMPP server-to-server information collected from Expressway-E to the IM and Presence database. This
provides the IM and Presence server with the necessary connection information to initiate a federated
connection to the other organization through Expressway-E without opening any other ports on the
firewall. XMPP federation allows voice and video escalation. The same organization might implement
both XMPP and SIP federation at the same time.
PSTN Access
This section describes the architecture for PSTN access using Cisco Unified Border Element as the
session border controller (SBC).
Role of the Cisco Unified Border Element
Voice connectivity using IP trunks to Telecom carriers, instead of traditional PSTN connections, is
increasing in popularity and gradually replacing existing TDM-based PSTN access. SIP is commonly
used as the access protocol for connectivity into provider networks, and today many Telecom carriers
offer a voice-only service to the PSTN through a session border controller such as Cisco Unified Border
Element. Session border controllers are SIP back-to-back user agents (B2BUAs) and are typically used
in flow-through mode, where both the voice media and SIP signaling for each call flow through the Cisco
Unified Border Element. (See Figure 4-4.)
Cisco Unified Border Element is a licensed Cisco IOS application available on a wide range of Cisco
router and gateway platforms, and it is the recommended platform to connect to the PSTN through a SIP
trunk to the Telecom carrier’s border element.
Cisco Unified Border Element enables enterprise voice networks based on Cisco Unified
Communications Manager (Unified CM) to connect to and interoperate with Telecom carriers through
SIP trunk services. Cisco Unified Border Element terminates and re-originates both signaling and media
streams to provide secure border interconnection services between IP networks. Using Cisco Unified
Border Element, customers can save on their current network services, simplify their network
architectures, and position their networks for ongoing enhancements in collaboration services.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-7
Chapter 4
Collaboration Edge
Architecture
Figure 4-4
Cisco Unified Border Element as B2BUA
Cisco Unified Border Element performs the following functions between the enterprise and Telecom
carrier networks:
•
Session control — The capability to offer flexible trunk routing, call admission control, resiliency,
and call accounting for the SIP sessions.
•
Interworking — The capability to offer media transcoding services for voice, and interoperability
between SIP Delayed Offer and Early Offer.
•
Demarcation — The capability to act as a distinct demarcation point between two networks for
address and port translation and to facilitate troubleshooting.
•
Security — The capability to intelligently allow or disallow real-time traffic between networks, and
to encrypt the real-time traffic as appropriate for the application.
Role of Voice Gateways
We recommend using TDM gateways to connect to the PSTN if centralized PSTN access is not available.
Cisco offers a full range of TDM gateways for analog and digital connections to the PSTN on ISR G2/G3
routers with appropriate interface cards enabling: low-density digital (BRI), high-density digital (T1, E1,
and T3), and analog (FXS, FXO, and E&M) interfaces.
For more information on voice gateways, refer to the Cisco 3900 Series, 2900 Series, and 1900 Series
Software Configuration Guide.
Role of Video ISDN Gateways
Video communications has a long history with ISDN. Videoconferencing first became commercially
viable with ISDN as the communications protocol. Because of this, there is still the need to communicate
inbound and outbound via ISDN with legacy video systems. The Cisco TelePresence ISDN Gateway
performs the role of converting ISDN to SIP, and vice versa, for videoconferencing calls. The Cisco
Preferred Architecture for Enterprise Collaboration includes ISDN gateway access trunked to
Unified CM for the purpose of communicating with legacy videoconferencing systems.
Although Cisco ISDN video gateways manage both H.323 and SIP, only SIP is considered in the
Preferred Architecture. While H.323 can still be used on networks based on the Cisco TelePresence
Video Communication Server (VCS), networks based on Cisco Unified Communications Manager
require SIP.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-8
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
More information on the Cisco TelePresence ISDN Gateway, refer to the documentation available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-isdn-gateway/tsd-products-suppo
rt-series-home.html
Deployment Overview
This section presents a general description of how to deploy Cisco Expressway for Internet connectivity
and Cisco Unified Border Element for PSTN access.
Deployment of Expressway-C and Expressway-E for Internet Connectivity
The standard deployment of the Cisco Collaboration Edge architecture involves deploying at least one
Expressway-C and Expressway-E pair for secure mobile device and remote VPN-less access back to
enterprise collaboration services.
Both Expressway-C and Expressway-E should be deployed in a cluster to provide better resiliency. The
number of servers for each cluster depends on the number of the concurrent proxied registrations to
Unified CM and the number of concurrent calls. While the first takes into consideration mobile and
remote users who register through Expressway to Unified CM, the second accounts for concurrent calls
for business-to-business and for mobile and remote access (MRA). (See the Sizing chapter for details.)
This service is provided to Jabber clients and Cisco TelePresence System endpoints (C, EX, MX, DX,
and SX Series models). Frequently, multiple pairs of Expressway-C and Expressway-E are deployed for
geographic coverage and scale, providing access to multiple instances of collaboration services.
GeoDNS should be used to balance remote client and endpoint access based on a variety of metrics from
the Internet service provider.
This same Expressway can be leveraged for business-to-business communications as well. When the
volume of calls exceeds the capacity of the Expressway cluster (600 concurrent calls for the Medium
OVA template or 2,000 for the Large OVA template), business-to-business and MRA services have to be
split on different boxes. See the Sizing chapter for further details.
When Expressway is used for both services, Unified CM is connected to Expressway-C through a SIP
trunk for unified business communications access over the Internet. Expressway-C sits on the trusted
side of the network, providing secure firewall traversal services to Expressway-E.
Based on the enterprise security policy, a number of different deployment models can be implemented.
In this document we focus on a DMZ deployment with a dual interface because it is the most common
and secure deployment model. For additional deployment models, refer to the Cisco Expressway Basic
Configuration Deployment Guide.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-9
Chapter 4
Collaboration Edge
Deployment Overview
Expressway-C and Expressway-E provide firewall traversal capabilities. Firewall traversal works as
follows:
1.
Expressway-E is the traversal server installed within the enterprise DMZ. Expressway-C is the
traversal client installed inside the enterprise network.
2.
Expressway-C initiates traversal connections outbound through the firewall to specific ports on
Expressway-E, with secure login credentials. If the firewall allows outbound connections, as it does
in the vast majority of cases, no additional ports are required to be opened in the enterprise firewall.
For ports details, refer to the Unified Communications Mobile and Remote Access via Cisco
Expressway Deployment Guide.
Mobile and remote access requires a separate traversal zones, called the Unified Communications
traversal zone. The Unified Communications traversal zone works with SIP and requires TLS and
media encryption, while the business-to-business traversal zone allows SIP and H.323 as voice and
video signaling protocols. The Unified Communications traversal zone also allows XMPP and
HTTPs, which are used to connect to IM and Presence servers and for provisioning purposes.
3.
Once the connection has been established, Expressway-C sends periodic keep-alive packets to
Expressway-E to maintain the connection.
4.
When Expressway-E receives an incoming call or other collaboration service request, it issues an
incoming request to Expressway-C.
5.
Expressway-C then routes the request to Unified CM or other collaboration service applications.
6.
The connection is established, and application traffic (including voice and video media) traverses
the firewall securely over an existing traversal connection.
In order for firewall traversal to work, a traversal client zone has to be configured on Expressway-C and
a traversal server zone has to be configured on Expressway-E. Figure 4-5 summarizes the firewall
traversal process.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-10
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
Figure 4-5
Expressway-C and Expressway-E Firewall Traversal Process
In the dual-interface deployment scenario, Expressway-E sits in the DMZ between two firewalls: the
Internet firewall provides for NAT services toward the Internet, and the intranet firewall provides access
to the corporate trusted network.
Expressway-E has two LAN interfaces: one toward the Internet firewall (also called the external
interface), and the other toward the intranet firewall (also called the internal interface).
There is no need for the external interface to be assigned a public IP address because the address can be
translated statically by NAT. In this case, the public IP address has to be configured on Expressway-E
itself.
Expressway-C has an embedded B2BUA to terminate mobile and remote access as well as
business-to-business calls. Expressway-E has an embedded B2BUA, used to terminate
business-to-business calls. Expressway-C and Expressway-E have other B2BUAs dedicated to different
services, such as Microsoft and H.323-to-SIP protocol interworking; however, the B2BUA term used in
this chapter identifies the B2BUA used only in mobile and remote access and business-to-business call
scenarios.
The B2BUA terminates collaboration application traffic. A connection from the Internet to
Expressway-C via Expressway-E is always encrypted for mobile and remote access, while the
connection between Expressway-C and the Unified Communications Manager endpoint can be
encrypted or not based on the configuration. A connection from the Internet for business-to-business
communications may or may not be encrypted, based on the configuration and dictated by the corporate
policies. Note that in this case the communication will be encrypted on the Internet only if the remote
business-to-business party supports encryption with public certificates. In all other cases, the video call
will be sent unencrypted. This document focuses on encryption between the Internet and Expressway-C
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-11
Chapter 4
Collaboration Edge
Deployment Overview
for mobile and remote access services only, while communications between Expressway-C and the
internal back-end servers and clients are sent unencrypted. Business-to-business encryption capabilities
are discussed further in the section on Security for Collaboration Edge.
Expressway-C proxies the registration of mobile and remote access Jabber clients or Cisco TelePresence
System endpoints to Unified CM, which lists them as registered devices with the IP address of
Expressway-C.
Figure 4-6 shows the deployment described above. The relevant IP addresses are shown in the figure.
Public IP addresses, which will vary based on location and Internet service provider, are shown with
letters instead of digits.
Expressway-E has two interfaces; the internal interface has IP address 172.16.20.20, while the external
interface has IP address 192.168.25.2. The external interface IP address is statically translated to
X.Y.W.Z. This address is also configured on Expressway-E. When Expressway-E sends an INVITE, it
creates the Session Description Protocol (SDP) message with the IP address set to the translated
interface address instead of using its own address, so that the called party can use the public routable
address instead of the private one.
Figure 4-6
NAT Interfaces on the Internet Firewall
When an endpoint on the Internet connects to Unified CM or other collaboration application through
Expressway, its IP address is first translated to a public IP address. On Expressway-E, the source IP
address is replaced by the address of the internal IP LAN interface of Expressway-E. When the packet
enters Expressway-C, Expressway-C replaces the source IP address of the packet with its own IP address
before forwarding the packet to the collaboration service applications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-12
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
In the other direction, when traffic from internal endpoints traverses the Expressway toward the Internet,
their source IP addresses are replaced by the Expressway-E external LAN interface address, which is
later statically translated by NAT on the Internet firewall. Source IP addresses of data devices are
dynamically translated to X.Y.W.K by using another interface of the Internet firewall.
For a PC with data and a communication application, such as Jabber and a browser, the Jabber
application address would be statically translated by NAT and the browser application address would be
dynamically translated by NAT.
Even if the static NAT translation occurs in the firewall, the packet source IP address is transformed
during its travel: it is translated to the IP address of Expressway-C when the packet goes from
Expressway-C to Expressway-E, and it is translated to the IP address of Expressway-E when the packet
goes from Expressway-E to the firewall. In the firewall, the packet is statically translated by NAT and
sent to the Internet.
Mobile and Remote Access
In the case of call control services, Expressway-C proxy registers the endpoint to Unified CM using its
own IP address, as shown in Figure 4-7.
Figure 4-7
NAT on the Life of a Packet
The address translation process shown in Figure 4-7 involves the following steps:
1.
The source IP address of the endpoint is translated by NAT at the router that gives access to the
Internet (192.168.1.10 to A.B.C.D.) if the endpoint does not have a public IP address.
2.
The packet arrives at Expressway-E.
3.
Expressway-E sends the packet to Expressway-C by using its own internal LAN interface address
(A.B.C.D to 172.16.20.20).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-13
Chapter 4
Collaboration Edge
Deployment Overview
4.
Expressway-C receives the packet and terminates the connection. It re-originates another connection
toward Unified CM by using its own IP address (172.16.20.20 to 10.10.10.20).
5.
The endpoint is registered on Unified CM with the IP address of Expressway-C (10.10.10.20).
Registering the device to Unified CM with the IP address of the Expressway-C has some inherent
benefits. For example, it is possible to limit the video bandwidth of remote devices when they are not
connected directly to the corporate network, and assign them a different value when they are
on-premises. Although we do not discuss it here, this can easily be achieved through the use of mobility
features on Unified CM, which allow for definition of specific policies based on the IP address range.
When an endpoint is registered through the Internet, it cannot be managed remotely by the Cisco
Collaboration architecture. This is because the endpoint IP address is dynamically translated and is
behind a firewall. If remote management is required, deploy the endpoint through a VPN.
VPN technologies are not part of this architecture, but can be added as required.
Mobile and remote access has to be enabled on Expressway-E and Expressway-C. Expressway-C can
then be configured to discover Unified CM and IM and Presence clusters by specifying the DNS name
of the Unified CM and IM and Presence publisher nodes.
Expressway-E, deployed in the DMZ, provides a trusted point of entry for Jabber clients and
TelePresence endpoints that use the mobile and remote access service. It also provides authentication,
provisioning, registration, calling services, IM and presence, voice messaging, and directory services for
remote Jabber clients and TelePresence endpoints, as well as business-to-business connectivity over the
Internet.
Expressway-C connects to Unified CM and IM and Presence clusters and Cisco Unity Connection using
HTTPs, SIP, and XMPP. (See Figure 4-8.)
Moreover, there are a number of cases where Jabber has to connect via HTTP to a specific server; for
example, for Visual Voicemail, Jabber Update Server, custom HTML tabs and icons, and directory photo
host. In these cases Jabber would connect directly to these servers without passing through Unified CM,
and Expressway-C would need an HTTP allow list that specifies which servers the Jabber client is
allowed to connect to.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-14
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
Figure 4-8
Expressway Connection to Unified CM, IM and Presence Service, and Unity Connection
Table 4-2 summarizes the protocols used by Expressway for mobile and remote access.
Table 4-2
Expressway Protocols for Mobile and Remote Access
Protocol
Security
Service
SIP
TLS
Session establishment – register, invite, and so forth
HTTPS
TLS
Login, provisioning, configuration, contact search, visual voicemail
XMPP
TLS
Instant messaging, presence
RTP
SRTP
Audio, video, content sharing, advanced control
When a Jabber or TelePresence endpoint user logs in, they specify their fully qualified name (for
example, [email protected]). The client queries the public DNS server for specific SRV records:
•
_cisco-uds._tcp.ent-pa.com, which is configured only on the corporate DNS server.
•
_collab-edge._tls.ent-pa.com, which is configured only on the public DNS server and resolves to the
public interfaces of the Expressway-E cluster. Note that this record always specifies TLS.
If the client is connected over the Internet, no answer will be provided by the public DNS server for
_cisco-uds, but the client will receive an answer for the _collab-edge SRV record.
The DNS server will then send the A-record for Expressway-E (or multiple records if Expressway-E is
clustered) to the client. Once the client knows the DNS name of Expressway-E, it can start the
provisioning and registration procedure.
While provisioning takes place by using HTTPs, registration uses SIP and XMPP.
Expressway-C has an HTTPs reverse proxy server feature to manage the provisioning process. A reverse
proxy is the opposite of the most common forward proxy server, also referred to as the proxy server.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-15
Chapter 4
Collaboration Edge
Deployment Overview
As shown in Figure 4-9, while a forward proxy server provides services information for on-premises
clients by hiding client details when connecting to Internet servers, a reverse proxy server provides
information for off-premises clients by hiding on-premises server information. Clients in the corporate
network, connecting through a forward proxy to an Internet server, know the identity of the server they
are connecting to, but the servers do not know the identity of the clients.
On the other side, clients on the Internet connecting through a reverse proxy do not know the identity of
the on-premises servers because they are connecting through the reverse proxy server, but the
on-premises servers know the identity of the clients they are connecting to. This information is then
returned to the client as though it originated from the on-premises servers themselves.
Expressway-C has a reverse proxy feature that provides provisioning, registration, and service details to
the clients on the Internet, on behalf of collaboration application servers such as Cisco Unified CM, IM
and Presence, and Unity Connection.
Figure 4-9
Forward Proxy vs. Reverse Proxy Server
Also consider that for services like Visual Voicemail, Jabber Update Server, custom HTML tabs and
icons, directory photo host, Expressway-C will allow these connections if these services are specified
under the HTTP allow list, which is a type of access list for HTTP services.
Provisioning and registration are multi-step processes that involve the client, Expressway-C,
Expressway-E, Unified CM, and IM and Presence server.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-16
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
The following is an overview of the major steps involved when a client registers through the
Collaboration Edge.
1.
Provisioning starts with the get_edge_config request issued from the client. For example:
https://expressway_e.ent-pa.com:8443/ZeW50LXBhLmNvbQ/get_edge_config?service_n
ame=_cisco-uds&service_name=_cuplogin
Along with the request, the client sends the credentials of the user (For example, username "user1",
password "user1"). The query is sent to Expressway-E, which forwards it to Expressway-C.
2.
Expressway-C performs a UDS query to Unified CM to determine the home cluster for user1. This
is essential for multi-cluster scenarios:
GET cucm.ent-pa.com:8443/cucm-uds/clusterUser?username=user1
3.
Once the home cluster is found, a response is sent to Expressway-C. This response includes all
servers in the cluster.
4.
Expressway-C asks the home cluster for provisioning information by making the following queries
for user1 on behalf of the client:
GET /cucm-uds/user/user1/devices retrieves the devices association list.
GET /cucm-uds/servers retrieves the list of servers for the cluster.
GET /cucm-uds/user/user1 retrieves the user and line configuration for user1.
In response to the queries, the TFTP servers are also returned.
Subsequent queries, such as http://us_cucm1.ent-pa.com:6970/SPDefault.cnf.xml, are TFTP queries
over HTTP. Thus, the provisioning process is done by queries to the UDS and to the TFTP server. As a
result of these queries, provisioning information is forwarded to the client, and the client is able to start
the registration process.
The registration process consists of two actions:
1.
IM and Presence login, which is achieved via XCP router functionality on Expressway-C. The XCP
router queries the IM and Presence clusters configured on Expressway-C in order to find the IM and
Presence cluster where the user is configured, and the Jabber client is able to login for IM and
Presence services.
2.
Unified CM registration using SIP REGISTER messages, which are proxied by the Expressway SIP
Proxy function.
Business-to-Business Communications
Business-to-business communications require the ability to look up the domains of remote organizations
for the purpose of URI routing. This is done by creating a DNS zone on Expressway-E. This zone should
be configured with the default settings. Both SIP and H.323 are set by default. This allows Expressway-E
to automatically re-initiate a DNS query using the other protocol not used by the initiating call, thereby
giving the call the best chance of success. Expressway-C and Expressway-E use the protocol that was
used to initiate the call, and they automatically try the other protocol when SIP-to-H.323 gateway
interworking is enabled on the Expressway.
SIP-to-H.323 interworking should be set to On for Expressway-E. If a call is receive as an H.323 call,
this allows Expressway-E to interwork the call to SIP and use native SIP for the rest of the call legs to
Unified CM. Likewise, an outbound call to an H.323 system will remain a SIP call until it reaches
Expressway-E, where it will be interworked to H.323.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-17
Chapter 4
Collaboration Edge
Deployment Overview
In order to receive business-to-business communications over the Internet, External SIP and H.323 DNS
records are required. These records allow other organization to resolve the domain of the URI to the
Expressway-E that is offering that call service. Cisco' s validated design included the SIP and SIPS SRV
records and the H.323cs SRV record for business-to-business communications. The H.323ls SRV record
is not necessary for Expressway-E because this record is used by an endpoint to find its gatekeeper for
registration.
Figure 4-10 shows the DNS process for resolving the domain of the URI, and Example 4-1 shows an
SRV lookup example.
Figure 4-10
URI Dialing with DNS
Example 4-1
SRV Record Examples for the Domain ent-pa.com
>nslookup
set type=srv
_sips._tcp.ent-pa.com
Non-authoritative answer:
_sips._tcp.ent-pa.comSRV service location
priority= 1
weight = 10
port
= 5061
srv hostname= expe.ent-pa.com.
For more information on configuring a DNS zone on Expressway-E, refer to the Cisco Expressway Basic
Configuration Deployment Guide.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-18
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
IP-based Dialing for Business-to-Business Calls
IP-based dialing is a feature well known and used in most scenarios, when dealing with H.323 endpoints.
The Cisco Collaboration Architecture uses SIP URIs and does not need IP-based dialing. However, when
interacting with endpoints in other organizations that are capable of making and receiving calls using IP
addresses only, the Cisco Collaboration Architecture allows IP-based dialing for both inbound and
outbound calls.
Outbound Calls
Outbound IP dialing is supported on Expressway-E and Expressway-C, but it does not have full native
support on Cisco Unified Communications Manager. However, it is possible to set up Unified CM to
have IP-based dialing, as described below.
Instead of dialing the IP address alone, users on Cisco Unified CM can dial a SIP URI-based IP address
as shown in this example: [email protected], where "@ip" is literal and could be replaced with "external",
"offsite" or other meaningful terms.
Unified CM will match a SIP route pattern configured to route the "ip" fictional domain to
Expressway-C. Expressway-C strips off the domain "@ip" and sends the call to the Expressway-E,
which is also configured for IP address dialing.
Calls to unknown IP addresses on Expressway -E should be set to Direct. Since IP-based address dialing
is mostly configured in H.323 endpoints when no call control is deployed, this allows Expressway-E to
send H.323 calls directly to an endpoint at a public IP address. The call will remain a SIP call until
interworked on Expressway-E, as shown in Figure 4-11.
There are other options to provide for IP address dialing. One option is to replace the "." used in the IP
address field with the symbol "*", as in the following example: "10*10*10*10". Cisco Unified
Communications Manager will match it against a route pattern, and Expressway will replace the "*" with
the "." using regular expression (regex) search rules.
Figure 4-11
Example of Outbound IP-based Dialing
Inbound Calls
IP-based inbound calls make use of a fallback alias configured in Expressway-E. When a user on the
Internet dials the IP address of the Expressway-E external LAN interface, Expressway-E receives the
call and sends the call to the alias configured in the fallback alias setting. As an example, if the fallback
alias is configured to send the call to conference number 80044123 or to the conference alias
[email protected], the inbound call will be sent to the TelePresence Server in charge of such
conferences.
If the static mapping between the IP address and the fallback alias is too limited, it is possible to set the
fallback alias to the pilot number of Cisco Unity Connection. In this way it is possible to use the Unity
Connection auto-attendant feature to specify the final destination through DTMF, or by speech
recognition if Unity Connection is enabled to support this feature.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-19
Chapter 4
Collaboration Edge
Deployment Overview
If Unity Connection is used as an auto-attendant feature for external endpoints dialing the IP address of
the Expressway-E, remember to set the Rerouting Calling Search Space on the Unified CM trunk
configuration for Unity Connection. Figure 4-12 shows the setup.
Figure 4-12
Example of Inbound IP-based Dialing
Deployment of External XMPP Federation through Expressway-C and
Expressway-E
XMPP federation utilizes the same type of traversal connection – Unified Communications traversal –
as does mobile and remote access. XMPP federation can be deployed as a standalone service. It can also
be deployed on the same Expressway-C and Expressway-E pair with mobile and remote access, utilizing
the same Unified Communications traversal link.
Perform the following typical tasks to deploy instant messaging and presence federation:
1.
Validated email addresses for federation.
XMPP federation through Expressway does not support translation of email addresses to XMPP
addresses. Translation of email addresses to Jabber IDs is a feature of the IM and Presence server
federation model. This feature is typically used to improve user experience and simplify
communication for XMPP federation when the email URI convention and JID URI convention are
different. When deploying XMPP federation through Expressway, the same goals of improved user
experience and simplified communications apply. We recommends setting the IM and Presence
domain to the same domain as the email domain. We also recommend using the LDAP sAMaccount
name for UserID, email address convention, and Jabber ID. In the overall collaboration architecture,
we recommend having a comprehensive and consistent strategy for URI convention that is
repeatable and scalable.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-20
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
2.
Ensure that the IM and Presence service is operational and has XMPP federation turned off.
XMPP federation on the IM and Presence server must be turned off so that it does not interfere with
the federation configured on the Expressway.
3.
Complete server certificate requirements.
Plan ahead when setting up certificates for Expressway-C and Expressway-E. If you plan to use chat
node aliases as a part of XMPP federation, the chat nodes alias FQDN must be included in the
subject alternate name (SAN) field of the certificate. Doing this ahead of time avoids having to
generate new certificates and possibly incurring greater expense for the public certificates on your
Expressway-Es.
4.
Configure the local domains for XMPP federation on Expressway-C.
5.
Configure Expressway-E for XMPP federation and security.
This step enables federation and the level of security desired for external federation. Authentication
is required and is set up via the dialback secret. Securing the communications via TLS is the
recommended configuration. Authorization of which foreign domains and external chat node aliases
are allowed or denied, is configured in this section as well.
6.
Configure how XMPP servers for federated domains and chat node aliases are located using either
DNS lookups or static routes.
The Expressway series supports federation via DNS SRV records and federation via static routes.
Static routes define a path to reach external domains without having to do a DNS query. Public
XMPP SRV records are used to resolve external domains that support federation. These records are
required for other organizations to reach your organization when deploying an open federation
model.
7.
Ensure that the correct firewall ports are open.
8.
Check the status of XMPP federation.
Deployment of Cisco Unified Border Element for PSTN Voice Connection
Through a SIP Trunk
Cisco Unified Border Element is the recommended session border controller for PSTN centralized
access. It is deployed as a demarcation point between the enterprise network and the Telecom carrier
network. It gives access to the IP PSTN through its external interface and to the enterprise network
through its internal interface. It enables centralized PSTN service and therefore has to be deployed where
the enterprise network connects to the Telecom carrier's network.
Because all remote sites leverage central PSTN connectivity, Cisco Unified Border Element has to be
highly redundant. If the PSTN central service is not available, only those offices with local PSTN access
would be able to make external calls. Therefore, we recommend deploying Cisco Unified Border
Element in pairs to provide redundancy.
Unified Border Element is a Cisco IOS feature set supported on the Cisco IOS Integrated Services
Router (ISR) and Aggregation Services Router (ASR) platforms. For information on how to choose the
correct platform, see the Sizing chapter.
Cisco Unified Border Element is a session border control that terminates sessions from Unified CM and
re-originates them toward the Telecom carrier network, and vice-versa. Note that in contrast to
Expressway-E, which is exposed on the Internet, Cisco Unified Border Element is deployed between
private networks: the corporate network and the carrier's network. From the carrier’s perspective, the
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-21
Chapter 4
Collaboration Edge
Deployment Overview
traffic to the centralized PSTN originates from the Cisco Unified Border Element external interface.
From the enterprise’s perspective, the traffic from the carrier originates from the internal Cisco Unified
Border Element interface. In this sense, the Cisco Unified Border Element performs topology hiding.
Deployment of Cisco Unified Border Element is different from that of the Expressway. While the former
gives access to the carrier network - a private, controlled and secured network - the latter gives access to
the Internet. For this reason, deployment of Cisco Unified Border Element does not require a DMZ.
For this Preferred Architecture, as shown in Figure 4-13, the Unified Border Element has a WAN
interface on the Telecom carrier network and a LAN interface on the enterprise network.
Figure 4-13
IP PSTN Architecture
Cisco Unified Border Element performs the following functions:
•
Topology hiding, as shown in Figure 4-14, including address and port translations. All traffic from
Unified CM is sent to the Unified Border Element internal interface, and all traffic from the Telecom
carrier soft-switch is sent to the Unified Border Element external interface. There is no direct
connection between them. Figure 4-14 details the trunking configuration on Cisco Unified CM and
the voice routes on the Unified Border Element.
•
Delayed Offer to Early Offer conversion, and vice versa
•
Media interworking — In-band and out-of-band DTMF support, DTMF conversion, fax passthrough
and T.38 fax relay, volume and gain control
•
Call admission control (CAC) — CAC can be performed by Unified Border Element based on
resource consumption such as CPU, memory, and call arrival spike detection. CAC can be
implemented at interface level or globally. While CAC configured on Unified CM is location-based,
CAC configured on the Unified Border Element is resource-based. Resources-based CAC is
recommended to avoid over-subscription of the Unified Border Element and for security reasons
(see the section on Security for Collaboration Edge).
•
Security capabilities, including RTP-to-SRTP interworking, SIP malformed packet detection,
non-dialog RTP packet drops, SIP listening port configuration, digest authentication, simultaneous
call limits, call rate limits, toll fraud protection, and a number of signaling and media encryption
options
•
Mid-call supplementary services, including hold, transfer, and conference
•
PPI/PAI/Privacy and RPID — Identity Header Interworking with Telecom carriers
•
Simultaneous connectivity to SIP trunks from multiple Telecom carriers
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-22
November 20, 2015
Chapter 4
Collaboration Edge
Deployment Overview
Figure 4-14
•
Conversion of multicast music on hold (MoH) to unicast MoH
•
Billing statistics and call detail record (CDR) collection
Trunking Considerations for Cisco Unified Border Element
PSTN Gateways
Legacy PSTN gateways are deployed in a distributed architecture, where each site has its own PSTN
connection. We recommend using Cisco Unified Border Element for centralized PSTN access, but PSTN
gateways can still be used as a backup for those sites heavily relying on external calls to run their daily
business.
In this case the number of concurrent ISDN channels can be much lower than the number of concurrent
calls to the centralized PSTN because they are used just in backup scenarios. As an example, if the
normal situation allows for 30 concurrent calls to the centralized PSTN, it would be possible to size the
backup ISDN gateway to support only two BRI channels, since they would be used in backup scenarios
only.
Cisco voice gateways support:
•
DTMF relay capabilities
•
Supplementary services support — Supplementary services are basic telephony functions such as
hold, transfer, and conferencing.
•
Fax passthrough and T.38 fax relay
PSTN gateways support many protocols (SCCP, MGCP, H.323, SIP). SIP is the recommended protocol
because it aligns with the overall Cisco collaboration solution and is the protocol of choice for new voice
and video products.
Voice gateway functionality is enabled on any Cisco ISR with appropriate PVDMs and service modules
or cards.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-23
Chapter 4
Collaboration Edge
Deployment Overview
Video ISDN Gateways
The Preferred Architecture for Enterprise Collaboration incorporates the standard deployment for Cisco
TelePresence ISDN Gateways with ISDN PRI trunks, and SIP trunks to Unified CM. The Cisco
TelePresence ISDN Gateways include the MSE 8321 gateway and the GW 3241 gateway. The
TelePresence ISDN Gateway is an optional item and is required only if there is a need to provide the
ability to send and receive calls from legacy ISDN videoconferencing systems.
Requirements and Recommendations
•
Use SIP instead of H.323 as the IP protocol for communicating with Unified CM.
•
Make the dial plan as simple as possible on the ISDN gateway, and perform all dial string
manipulations on Unified CM.
•
Leave the dial plan setup for last. The ISDN gateways block all calls by default until the dial plan
settings are configured. This secures the gateway until it is ready to be used.
•
Use of a * in front of the ISDN number as a prefix to route calls to the TelePresence ISDN gateway.
The * allows video ISDN calls to be differentiated from voice PSTN calls and does not conflict with
existing international numbering plans. This also minimizes changes to the user experience when
dialing. The Unified CM dial plan removes the * and routes the remaining digits through to the
TelePresence ISDN gateway. (See Figure 4-15.)
Figure 4-15
Video ISDN Gateway Dial Plan
Limitations and Restrictions for ISDN Video Gateways
•
Only the hold and resume features are supported during ISDN video calls.
•
Video call transfer is not supported.
•
ISDN calls into CMR Cloud are not supported.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-24
November 20, 2015
Chapter 4
Collaboration Edge
High Availability for Collaboration Edge
Limitations and Restrictions for Mobile and Remote Access
The following limitations and restrictions apply to mobile and remote access (MRA) connectivity:
•
CTI is not supported.
•
Jabber desktop phone control is not supported.
•
MRA does not support peer-to-peer file transfers using the IM and Presence Service or Jabber. MRA
supports only managed file transfer (MFT) with IM and Presence Service 10.5.2 (and later) and
Jabber 10.6 (and later) clients.
•
Jabber mobile features dial-via-office reverse (DVO-R), dual-mode handoff, and session persistency
are not supported.
•
One-Button-To-Push for TelePresence Conductor-based TelePresence is not supported.
•
TelePresence Conductor endpoint management capabilities are not supported.
Limitation and Restrictions for Cisco Unified Border Element
•
For Cisco ISR, the transport protocol can be TCP and UDP only. For Cisco ASR the transport
protocol can be TLS as well.
•
Transcoding, DTMF interworking, IVR, SIP-to-TLS and RTP-to-SRTP conversions, and fax and
modem features are preserved in failover scenarios. For Cisco ISRs, no DSP-related functions are
preserved.
High Availability for Collaboration Edge
High availability is a critical aspect of designing and deploying collaboration systems. Collaboration
Edge allows for redundancy, load-sharing, and call license sharing.
High Availability for Expressway-C and Expressway-E
We recommend deploying Expressway-C and Expressway-E in clusters. Each cluster can have up to six
Expressway nodes and a maximum of N+2 physical redundancy. All nodes are active in the cluster. For
details about cluster configuration, refer to the Cisco Expressway Cluster Creation and Maintenance
Deployment Guide.
Expressway clusters provide configuration redundancy.The first node configured in the cluster is the
publisher, while all other nodes are subscribers. Configuration is done in the publisher and automatically
replicated to the other nodes.
Expressway clusters provide call license sharing and resilience. All rich media sessions and TURN
licenses are shared equally across nodes in the cluster. Call licenses are contributed by the licenses
configured on each node.
Expressway-C and Expressway-E deployed as virtual machines support VMware VMotion. VMware
VMotion enables the live migration of running virtual machines from one physical server to another.
When moving the virtual machine, Expressway-C and Expressway-E servers will maintain actives calls
when handling signaling only or when handling both signaling and media. This provides high
availability for the Expressway nodes as well as call resilience across Cisco Unified Computing System
(UCS) hosts.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-25
Chapter 4
Collaboration Edge
High Availability for Collaboration Edge
The following rules apply to Expressway clustering:
•
Expressway-C and Expressway-E node types cannot be mixed in the same cluster.
•
All nodes in a cluster must have identical configurations for zones, authentication, and call policy.
•
Configuration changes should be made only on the master node, and this will overwrite the
configuration on the other peers in the cluster when replication occurs.
•
If a node becomes unavailable, the licenses it contributed to the cluster will become unavailable after
2 weeks.
•
Deploy an equal number of nodes in Expressway-C and Expressway-E clusters.
•
Deploy the same OVA template throughout the cluster.
•
All nodes in a cluster need to be within 30 ms maximum round-trip time to all other cluster nodes.
Clustering over the WAN is thus not recommended due to latency constraints.
•
You must use the same cluster preshared key for all nodes within the same cluster.
•
H.323 must be enabled on all nodes in a cluster for database replication. At the same time, if you
also want to block H.323 calls coming from the Internet, you can configure Expressway-E with
firewall rules to drop H.323 traffic on the external LAN interface.
•
If mobile and remote access and business-to-business communications are enabled on the same
Expressway-C and Expressway-E pairs, the SIP port number used on the SIP trunk between
Unified CM and Expressway-C needs to be changed from the default 5060 or 5061.
•
A DNS SRV record must be available for the cluster and must contain A or AAAA records for each
node of the cluster.
Since Expressway-C is deployed in the internal network and Expressway-E in the DMZ, Expressway-C
has to be connected to Expressway-E through a Unified Communications traversal zone for mobile and
remote access. Business-to-business calls require a separate traversal zone, which retains the name of
traversal client zone for Expressway-C and traversal server zone for Expressway-E. The traversal server,
traversal client, and Unified Communications traversal zones include all the nodes of Expressway-C and
Expressway-E, so that if one of the nodes is not reachable, another node of the cluster will be reached
instead.
As shown in Figure 4-16, Expressway-C connects to all servers of the Cisco Unified CM, IM and
Presence, and Unity Connection clusters, so high availability and redundancy are preserved across the
entire connection path.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-26
November 20, 2015
Chapter 4
Collaboration Edge
High Availability for Collaboration Edge
Figure 4-16
Expressway Services Connection
Figure 4-16 shows the high availability built into the Unified Communications traversal zone and into
mobile and remote access. However, the following description applies to both Unified Communications
traversal zones and standard (client and server) traversal zones.
The traversal client zone configured on Expressway-C should contain the fully qualified domain names
of all of the cluster nodes of the corresponding Expressway-E cluster. Likewise, the traversal server zone
should connect to all Expressway-C cluster nodes. This is achieved by including in the subject
alternative names of the Expressway-C certificate the FQDNs of the Expressway-C cluster nodes and by
setting the TLS verify subject name equal to the FQDN of the Expressway-C cluster. This creates a
mesh configuration of cluster nodes across the traversal zone and provides continuous and high
availability of the traversal zone until the last cluster node is unavailable.
Expressway-C connects to Unified CM via trunks for routing inbound and outbound
business-to-business calls. Unified CM also trunks to Expressway-C. For high availability, the fully
qualified domain names of each Expressway-C cluster node should be listed in the trunk configuration
on Unified CM. If Unified CM is clustered, the fully qualified domain name (FQDN) of each member
of the cluster should be listed in the neighbor zone profile of Expressway-C.
A meshed trunk configuration is created here as well. Unified CM will check the status of the nodes in
the trunk configuration via a SIP OPTIONS Ping. If a node is not available, Unified CM will take that
node out of service and will not route calls to it. Expressway-C will also check the status of the trunk
from Unified CM via a SIP OPTIONS Ping. Calls will be routed only to nodes that are shown as active
and available. This provides high availability for both sides of the trunk configuration.
DNS SRV records can add to availability of Expressway-E for inbound business-to-business traffic. For
high availability all nodes in the cluster should be listed with the same priority in the SRV record. This
allows all nodes to be returned in the DNS query. A DNS SRV record helps to minimize the time spent
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-27
Chapter 4
Collaboration Edge
High Availability for Collaboration Edge
by a client on lookups since a DNS response can contain all of the nodes listed in the SRV record. The
far-end server or far-end endpoint will typically cache the DNS response and will try all nodes returned
in the DNS query until a response is received. This provides the best chance for a successful call.
In addition, Expressway clusters support rich media license sharing across clusters. If a node is lost from
the cluster, its call licenses will continue to be shared for the next 2 weeks. Any one Expressway cannot
process any more rich media licenses than its physical capacity, even though it can carry more licenses
than its physical capacity.
High Availability for Cisco Unified Border Element
High availability for Cisco Unified Border Element can be achieved in more than one way. For the
Preferred Architecture, box-to-box redundancy with call preservation is recommended because it
provides both signaling and media call preservation if the Unified Border Element fails.
Unified Border Element servers are deployed in pairs, following the active/standby model. If the active
Unified Border Element goes down, the standby Unified Border Element is engaged and all active
sessions are transferred. This provides high availability for both signaling and media. (See Figure 4-17.)
Hot Standby Routing Protocol (HSRP) technology provides high network availability by routing IP
traffic from hosts on networks without relying on the availability of any single router. HSRP is used in
a group of routers for selecting an active router and a standby router. HSRP monitors both the inside and
outside interfaces; if any interface goes down, the whole device is considered down, and the standby
device becomes active and takes over the responsibilities of the active router.
Box-to-box redundancy uses the HSRP protocol to form an HSRP active/standby pair of routers. The
active and standby servers share the same virtual IP address and continually exchange status messages.
Unified Border Element session information is shared across the active/standby pair of routers, as seen
in Figure 4-17, where 172.16.0.1 and 10.10.10.10 are the virtual IP addresses of the Cisco Unified
Border Element pairs. This enables the standby router to immediately take over all Unified Border
Element call processing responsibilities if the active router goes out of service for planned or unplanned
reasons.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-28
November 20, 2015
Chapter 4
Collaboration Edge
High Availability for Collaboration Edge
Figure 4-17
Cisco Unified Border Element Box-to-Box Redundancy
High Availability for Voice Gateways
PSTN gateways directly connect via physical interfaces to the PSTN network. If a gateway goes down,
all communications with the PSTN are cleared. Mechanisms such as HSRP would not be of any benefit
in this case, as they would in the case of PSTN access through IP trunks to a Telecom carrier. Unlike the
Unified Border Element, a TDM-based PSTN gateway deployment is by nature distributed, although
there are cases where a centralized PSTN with gateway interconnection is deployed. Also, a PSTN voice
gateway manages a smaller amount of calls than a Unified Border Element does. Due to the nature of
PSTN, media preservation is not possible in this scenario.
However, it is possible to provide signaling resilience by configuring multiple gateways in the same
Unified CM route group, so that load balancing of calls will occur. If one of the gateways in the group
goes down, all calls will be dropped, but new calls will be established using one of the remaining
available gateways.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-29
Chapter 4
Collaboration Edge
Security for Collaboration Edge
Security for Collaboration Edge
This section explains how to implement security in the Collaboration Edge.
Security for Expressway-C and Expressway-E
Security on Expressway-C and Expressway-E can be further partitioned into network level and
application level. Network level security includes feature such as firewall rules and intrusion protection,
while application level security includes authorization, authentication, and encryption.
Network Level Protection
Network level protection on Expressway-C and Expressway-E consists of two main components:
firewall rules and intrusion protection.
Firewall rules enable the ability to:
•
Specify the source IP address subnet from which to allow or deny traffic.
•
Choose whether to drop or reject denied traffic.
•
Configure well known services such as SSH and HTTP/HTTPS, or specify customized rules based
on transport protocols and port ranges.
•
Configure different rules for the LAN 1 and LAN 2 interfaces on Expressway-E.
The Automated Intrusion Protection feature should be used to detect and block malicious traffic and to
help protect the Expressway from dictionary-based attempts to breach login security.
Automated Intrusion Protection works by parsing the system log files to detect repeated failures to
access specific service categories, such as SIP, SSH, and web/HTTPS. When the number of failures
within a specified time reaches the configured threshold, the source host IP address (the intruder) and
destination port are blocked for a specified period of time. The host address is automatically unblocked
after that time period so as not to lock out any genuine hosts that might have been temporarily
misconfigured.
Mobile and Remote Access
TLS, SRTP, HTTPS, and XMPP are the only configuration options between the client on the Internet and
Expressway-C for mobile and remote access.
The connection between Unified CM and Expressway-C may be encrypted and authenticated, depending
on the configuration. If Unified CM is in mixed-mode, we recommend end-to-end encryption of media
and signaling.
Security certificates are needed on these connections. Certificates provide the identity of servers and
clients and must be deployed on Expressway-C, Expressway-E, Unified CM, and the Unified CM IM
and Presence Service. The recommended configuration is to use a certificate authority (CA) to sign
certificates.
CAs can be private or public. Private CA deployments have the benefit of being cost-effective, but these
certificates are valid only inside the organization. Public CAs increase the security and are trusted by
every organization; thus, they are commonly used for communications between different companies.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-30
November 20, 2015
Chapter 4
Collaboration Edge
Security for Collaboration Edge
If Expressway-C and Expressway-E are used only for mobile and remote access, the company can
choose to deploy a private CA or to rely on a public one. However, if Expressway-C and Expressway-E
are also used for business-to-business communications, a certificate signed by public CA has to be
deployed on Expressway-E. In this case, Expressway-E certificates have to be signed by a public CA
such as VeriSign/Symantec, GeoTrust, GoDaddy, or others. If Expressway-E receives a
business-to-business call from an entity whose certificate is signed by a CA that is present in the Trusted
CA certificate list, the call is accepted. If the CA that has signed the certificate is not in the list, the call
will be rejected. It is therefore important to pre-populate Expressway-E with a trust list of major CA
certificates if the Expressway is enabled for business-to-business too.
For cost reduction, Expressway-C certificates may be signed by an internal CA not recognized outside
the company. In this case, it is important that the internal CA certificate be included in the Trusted CA
certificate list of Expressway-E in order for Expressway-C and Expressway-E to establish a connection.
Table 4-3 summarizes the public and private approach for certificate deployment.
Table 4-3
Public and Private Certification Authority And Certificates
Unified CM
IM and Presence Service
Expressway-C
Expressway-E
Certificate signed by
Internal CA
Internal CA
Internal CA
Public CA
Trust List includes
Internal CA certificate
Internal CA certificate
Internal CA and public
CA certificates
Internal CA and public
CA certificates
Business-to-Business Communications
Securing business-to-business communications include authentication, encryption, and authorization.
Business-to-business communications use an authenticated traversal link by default. The traversal link
can also benefit from the use of a Public Key Infrastructure (PKI) verified by a mutually authenticated
transport layer security (MTLS) connection between Expressway-C and Expressway-E. If the
business-to-business traversal link is deployed on the same Expressway-C and Expressway-E
infrastructure as mobile and remote access, make sure that the traversal zone uses the FQDNs of the
cluster nodes of Expressway-C and Expressway-E. This makes it straightforward to use certificates for
each server to validate the offered certificate against its certificate trust for the traversal connection.
Inbound calls can be differentiated by whether they are authenticated or unauthenticated. This
differentiation can be used to authorize access to protected resources. Unknown remote
business-to-business calls should be treated as unauthenticated and restricted from access to protected
resources such as IP voice and video gateways. This is accomplished by configuring Call Processing
Language (CPL) rules with regular expressions to block access to prefixes used for gateway access. (See
Figure 4-18.)
Figure 4-18
CPL Rules for Unauthenticated Callers
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-31
Chapter 4
Collaboration Edge
Security for Collaboration Edge
Signaling and media encryption is important for business-to-business calls, but it needs to be deployed
carefully so as not to restrict or limit the ability to receive calls. There is a variety of older SIP and H.323
systems that you may be communicating with that do not support signaling or media encryption.
Requirements and Recommendations
•
Set media encryption on the traversal client side (Expressway-C) of the business-to-business
traversal zone to best effort. This means encryption for calls will always be tried first and DMZ
traffic will be encrypted. It also allows fallback to unencrypted calls. If strong encryption policy is
required, set the media encryption to force encrypted.
•
Use TLS for signaling encryption for the SIP trunk between Unified CM and Expressway-C.
If mobile and remote access (MRA) is also deployed in the organization, both MRA to
business-to-business calls can potentially go out unencrypted. Best-effort media encryption means that
the outbound calls will be tried with encryption first.
Certificate settings for mobile and remote access and business-to-business call scenarios:
•
General requirements for certificates are that the fully qualified DNS name (FQDN) of
Expressway-C and Expressway-E must match the hostname in the certificate.
•
While business-to-business communication does not have any other requirements for certificates,
MRA has more. For a detailed explanation on how to set up certificates on Expressway for mobile
and remote access, refer to the Unified Communications Mobile and Remote Access via Cisco
Expressway Deployment Guide.
Security for Cisco Unified Border Element
Unlike Internet connections, PSTN connectivity over IP trunks is delivered through a private network
offered by the Telecom carrier. As such, it is a controlled network. Security deployed for the Internet
Edge is thus different from that deployed for IP PSTN access. Between the Cisco Unified Border
Element and the carrier, there are no firewalls; however, in specific cases, companies and Telecom
providers require the use of an enterprise DMZ.
Between the carrier and the enterprise network, the traffic is sent unencrypted. Depending on the
corporate policies, internal enterprise traffic can be encrypted or not. In such cases, the Unified Border
Element is able to perform TLS-to-TCP and SRTP-to-RTP conversion. Usage of the internal CA to sign
Unified Border Element certificates is recommended when multiple gateways are deployed.
Because the Unified Border Element is deployed without a firewall, it is protected at various layers. As
an example, it is possible to create an access control list to allow only the Telecom carrier's session
border control to initiate calls from the PSTN side, and to allow only Unified CM to initiate calls from
the internal network side.
The Unified Border Element is also protected against toll fraud and telephony denial of service (TDoS)
attacks. Large packet arrival rates can also be mitigated through call admission control mechanisms
based on CPU, memory, bandwidth utilization, and call arrival spike detection.
Security for Voice Gateways
PSTN gateways have an interface on the customer network and a second interface on the PSTN. They
are deployed inside the corporate network and they are not reachable from the Internet. The PSTN is
inherently secure; thus, there are no specific tools to use to protect the gateway, unless the gateway is
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-32
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
deployed on a router that also gives access to the Internet. In this case Cisco IOS features on the gateway
can be used to perform firewall and intrusion protection. In all other cases, no specific tools are required
to protect the gateway (for example, denial of service (DoS) prevention and so on).
However, it is always possible to encrypt media from the endpoint to the gateway. In such cases the
gateway will use TLS and SRTP. Use of CA-signed certificates is recommended in this case.
Security for Video ISDN Gateways
Video ISDN gateways have an IP interface on the customer network and another interface on the PSTN.
Two common security threats that need to be guarded against with gateways are toll fraud from
IP-to-ISDN and ISDN hairpinning of calls.
Basic CPL rules on Expressway-E can be used to block access to ISDN gateway resources from the
Internet. Calling search spaces should be used to block access from Unified CM registered devices.
Even though the entire dial plan and permissions are configured on Cisco Unified Communications
Manager, it is good security practice to use CPL rules on Expressway-E to block fraudulent attempts to
access voice and video gateways before they are routed to Unified Communications Manager.
Scaling the Collaboration Edge Solution
The number of Collaboration Edge clusters deployed does not depend on the number of call control
clusters, but rather on the number of connection points to the Internet. A customer with multiple
Unified CM and IM and Presence clusters, and multiple TelePresence Conductor clusters, will have a
single Internet Edge if that customer has a single Internet breakout point. The same environment might
have multiple PSTN hop-offs if the Telecom carrier offers more than one connection point to the PSTN
network. The same considerations apply for video ISDN access.
Scaling the Internet Edge Solution
When multiple Internet Edges are deployed, it is important to set routing rules properly in order to send
collaboration traffic to the nearest Internet Edge.
Mobile and Remote Access
If multiple Unified CM and IM and Presence clusters are deployed, every Expressway-C must discover
all Unified CM clusters. If Expressway-C discovers only some of the clusters, it will be able to proxy
registration only for those users belonging to the clusters that have already been discovered.
If a registration request is made from a client belonging to a Unified CM and IM an Presence cluster that
has not been discovered by Expressway-C, that client will not be able to log in. This is the reason why
it is important for each Expressway-C to discovers all Unified CM and IM and Presence clusters if users
are enabled for mobility, as shown in Figure 4-19.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-33
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Figure 4-19
Service Discovery of Multiple Unified CM and IM and Presence Clusters
When two or more Internet Edges are deployed, it is important to understand how to split the load
between them. If the Internet Edges are deployed in the same datacenter or in the same area, load
balancing can occur at the DNS SRV level. As an example, if the enterprise network includes three
Internet Edges used for mobile and remote access, each one consisting of a cluster of two Expressway-E
and Expressway-C nodes, the _collab-edge._tls.ent-pa.com will include all six Expressway-E records at
the same priority and weight. This distributes the registrations and calls equally across the various
Expressway-E and Expressway-C clusters.
Once a mobile-and-remote-access connected endpoint is registered through a specific Expressway
cluster pair, it will stay connected until the client is disconnected or it has been switched off.
However, if the Expressway clusters are deployed across geographical regions, some intelligent
mechanisms on top of the DNS SRV priority and weight record are needed to ensure that the endpoint
uses the nearest Expressway-E cluster.
As an example, if an enterprise has two Expressway cluster, one in the United States (US) and the other
in Europe (EMEA), it is desirable for users located in the US to be directed to the Expressway-E cluster
in the US while users in Europe are directed to the Expressway-E cluster in Europe. This is facilitated
by implementing GeoDNS services. GeoDNS services are cost effective and easy to configure. To show
how GeoDNS services work, the example below uses an Amazon Route 53 Geo DNS server. There are
many GeoDNS services available in the market, including Amazon Route 53, Edge Director,
GeoScaling, Max Mind GeoIP2, and others.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-34
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
With GeoDNS it is possible to route traffic based on different policies such as location (IP address
routing), latency (minimum latency), and others. Amazon Route 53 allows routing by both latency and
geographical location. We have chosen to configure latency-based routing, but the configuration steps
are identical for geographical location routing based on IP addresses.
With latency-based routing, a client in the same site might access different datacenters over time if
latency on the Internet changes. However, this does not happen instantly as soon as latency changes,
since it is measured as a mean value over a period of time. Spikes due to instant congestion of the Internet
are thus absorbed by the mean value.
In our scenario, two Internet Edge Expressway clusters are deployed, one in the US and one in Europe,
each composed of two Expressway-C and Expressway-E servers. If the measured latency between the
endpoint and the European Edge is less than the latency between the endpoint and the US Edge, the
endpoint will be directed to the European Edge for registration.
Although some GeoDNS providers support GeoDNS services on SRV records, many others allow
CNAME or A-records only. The recommendation is to implement GeoDNS services on SRV records.
The following example shows how to configure the Geo DNS if only CNAME is supported for Geo DNS
services.
Following this scenario, a single SRV record _collab-edge._tls.ent-pa.com is configured for mobile and
remote access. This record resolves into expe.ent-pa.com, a CNAME record, which is an alias that
resolves into the real A-records for that resource. There are two records for expe.ent-pa.com; the first
resolving into us-expe.ent-pa.com (DNS name for the US Edge) and the second resolves into
emea-expe.ent-pa.com (DNS name for the EMEA edge). A-records us.expe.ent-pa.com and
emea-expe.ent-pa.com resolve to the IP addresses of Expressway-E server nodes for US and Europe.
While _collab-edge._tls.ent-pa.com is configured for standard routing, expe.ent-pa.com records have a
routing policy set to "latency." As a result, the locations of the Expressway-E clusters have to be
specified. If the latency between the client and emea-expe.ent-pa.com is less than the latency between
the client and us-expe.ent-pa.com, the registration request will be sent to the European Expressway-E.
If for any reason latency changes over time and goes above the latency to the US, the us-expe.ent-pa.com
will be selected instead.
Both emea-expe.ent-pa.com and us-expe.ent-pa.com are A-records, and the Jabber client or
TelePresence Conductor system performs a subsequent query to emea-expe.ent-pa.com or
us-expe.ent-pa.com, based on the answer of the _collab-edge._tls.ent-pa.com SRV record. However,
since standard A-records cannot set priority and weight like SRV records can, another load-balancing
and redundancy mechanism is needed in order to specify which server of the Expressway-E cluster the
client has to connect to. This can be done by using a round-robin mechanism. As an example, two
emea-expe.ent-pa.com records are created, each one with the routing policy set to "weighted."
Specifying the same weight for the two records assures that an equal load-balancing process takes place
between the servers of the cluster. The first record resolves into multiple Expressway-E servers of the
same cluster (in this case, two servers). The second record resolves into the same set of servers, but in
reverse order.
Figure 4-20 shows the DNS record structure for GeoDNS with latency-based routing between regional
Expressway-E clusters and round-robin inside the same cluster. As shown in the figure, both records
emea-expe.ent-pa.com resolve into the same set of Expressway-E nodes, but in different orders. This
provides both redundancy and load balancing.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-35
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Figure 4-20
Route 53 DNS Record Structure for Latency-Based Routing
For each Expressway cluster node, an A-record has to be created, as shown in Figure 4-21.
Figure 4-21
DNS A-Records for Expressway Nodes
Each new Expressway location deployment will require a new CNAME record and as many A-records
as the number of nodes in the Expressway cluster. In addition, an A-record for each individual
Expressway-E node is also needed.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-36
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Business-to-Business Communications
Scalability for business-to-business communications can be addressed by adding multiple Expressway-C
and Expressway-E clusters, either in the same physical location or geographically dispersed.
When multiple Expressway-C and Expressway-E pairs are deployed, Unified CM can direct an outbound
call to the edge server that is nearest to the calling endpoint, thus minimizing internal WAN traffic.
Additionally, when utilizing multiple edge clusters, the Expressway-Cs should form a meshed trunk
configuration with the Unified CM clusters. This adds more scalability and resiliency by allowing
additional outbound traversal paths if the geographically located traversal is full or not available.
For large deployments it might be preferable to host business-to-business communications on
Expressway-C and Expressway-E pairs separate from mobile and remote access. This allows the server
resources to be dedicated to external Internet communications.
Considerations for Inbound Calls
DNS SRV records are used to determine which Expressway-E clusters are authorized for the SIP and
H.323 ent-pa.com domain. SRV records with the same weight and priority are used to balance calls
across Expressway-E cluster nodes.
When scaling inbound calls across multiple geographically dispersed Expressway-E clusters, load
balancing traffic becomes the primary consideration. Expressway-C and Expressway-E do not support
load balancing of SIP or H.323 traffic. Therefore load balancing of the response to the DNS query
becomes an important means of scaling the solution.
Much like with the mobile and remote access service, GeoDNS is used to direct different DNS responses
to the same queries. Different metrics such as network latency and geographical location should be used
to provide the correct Expressway-E cluster in the DNS response. Depending on the Internet service
provider providing the GeoDNS service, status monitoring of the Expressway-E servers should also be
included. This allows for a more efficient DNS response, for example, that does not include an
out-of-service Expressway-E.
GeoDNS is a very good method of providing the best edge, Expressway-E, for the other server or
endpoint to connect to, based on the metrics chosen by the customer. The response here is typically based
on the edge physically closest to the server making the query. The mechanism is the same as described
in the previous section, except that the SRV records are different. As an example, a SRV record for SIP
TLS would be: _sips._tcp.ent-pa.com. Figure 4-20 can be used in order to set up GeoDNS service, where
_collab-edge._tls.ent-pa.com is replaced by _sips._tcp.ent-pa.com
An alternative solution is designed to return the edge that is closest to the destination endpoint or device.
This requires finding or knowing where the destination endpoint is located and then returning the
appropriate edge. The benefit of this solution is to minimize the use of bandwidth on the customer
network by delivering the shortest internal path to the endpoint.
This can be achieved by configuring Expressway-E to direct the call to the Expressway-E in another
region if the called endpoint belongs to the other region.
As an example, consider two Expressway-C and Expressway-E clusters in EMEA, and another two
Expressway-C and Expressway-E clusters in APJC. The Unified CM inbound calling search space on
the Expressway-C trunk in EMEA will contain the partition of the EMEA phones but not the partition
of the APJC phones. Analogously the inbound calling search space on the Expressway-C trunk in APJC
will contain the partition of the APJC phones but not the partition of the EMEA phones. If a user on the
Internet in EMEA calls a corporate endpoint in APJC, the call will be sent by DNS to the EMEA
Expressway-E cluster, the default for business-to-business calls. The EMEA Expressway-E and
Expressway-C will try to send the call to the destination, but the inbound calling search space of the
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-37
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Expressway-C trunk will block the call. The EMEA Expressway-E will then forward the call to the APJC
Expressway-E. This time the call will be delivered to the destination because the inbound calling search
space of APJC Expressway-C contains the APJC endpoints partition.
In order to allow the Expressway-E in EMEA to remove itself from the signaling and media path, it is
important to make sure that there is no TCP-to-TLS or RTP-to-SRTP conversion on Expressway-E
EMEA clusters, and to make sure that the call signaling optimization parameter is set to on in all
Expressway-C and Expressway-E.
Because this is not a deterministic process, in the case of three or more Expressway edges the searching
mechanism would require too much time. Therefore, this configuration is recommended for no more
than two Expressway edges.
To scale to more that two edges, a different architecture called Directory Expressway can be deployed.
Directory Expressway architecture is not part of the Preferred Architecture.
Figure 4-22 shows the Expressway edge design that enables selection of the edge closest to the
destination endpoint.
Figure 4-22
Selection of the Expressway Cluster Closest to the Destination
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-38
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Considerations for Outbound Calls
Outbound calls should be directed to the Expressway-C that is nearest to the calling endpoint. This can
be achieved by using Cisco Unified CM mechanisms such as calling search spaces and partitions.
Figure 4-23 shows the Unified CM configuration.
Figure 4-23
Partitions and Calling Search Spaces Configured in Unified CM
The Unified CM Local Route Group feature helps scale this solution when multiple sites access two or
more Expressway-C clusters. This mechanism is also applied on ISDN gateways and Cisco Unified
Border Element, and it is further described in the next section. A full description of the configuration is
documented in the next two sections, since it also applies to Cisco Unified Border Element and voice
gateways.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-39
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Scaling the Cisco Unified Border Element
For session capacities per platform, see the Sizing chapter.
If more than one datacenter is deployed, Cisco Unified Border Element can be deployed in each
datacenter. This might happen for many reasons; for example, if it is required for a disaster recovery
architecture, as shown in Figure 4-24.
Figure 4-24
Multiple Cisco Unified Border Elements
All trunks to the Unified Border Element (usually two or three) can be inside the same route group. This
would provide load balancing between datacenters. If the active router in the datacenter breaks, active
calls will be preserved. If a datacenter becomes unreachable, call requests will be sent to the remaining
datacenters. In this case, active calls would be dropped and users would have to reestablish them
manually.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-40
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
As shown in Figure 4-25, if the enterprise voice network is spread across a wide area, more than one
session border controller (SBC) from the Telecom carrier is used. For each SBC, a Cisco Unified Border
Element might be deployed, based on the carrier's recommendations.
Figure 4-25
Multiple Cisco Unified Border Element Connected to Different SBCs
As an example, assume that another Unified Border Element is needed in the US besides the one already
deployed. A new trunk called Trunk_to_CUBE_US2 is added. Figure 4-26 shows the configuration
based on standard 1:1 mapping between calling search space and route pattern. This configuration has
some limitations because, as the number of Unified Border Elements increases, it has a big impact on
Unified CM resources. It is shown in Figure 4-26 in order to contrast this approach with the Local Route
Group approach shown in Figure 4-27.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-41
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Figure 4-26
Unified CM Configuration for Cisco Unified Border Element Connection
The same route pattern, \+!, is repeated for every physical destination, and it resides in different
partitions. The original partition PSTNInternational needs to be split into two, SJC_PSTNInternational
and RCD_PSTNInternational, and the route pattern \+! has to be deleted and moved into the two newly
created partitions. This approach works if the number of sites is not high, no more than two or three. A
much better approach is to use the Local Route Group concept, as shown in Figure 4-27.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-42
November 20, 2015
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Figure 4-27
Unified CM Configuration for Cisco Unified Border Element Connection by Using the Local Route Group
Approach
In this case, the device pool SCJPhone has LRG_PSTN1 set equal to the route group CUBE_US_PSTN1,
while device pool RCDPhone has LRG_PSTN1 set equal to the route group CUBE_US_PSTN2.
LRG_PSTN2 is set equal to CUBE_US_PSTN2 for SJC phones and equal to CUBE_US_PSTN1 for
RCD phones. This approach is recommended because new partitions and route patterns are not required,
and this approach is much more scalable than the approach shown in Figure 4-26.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-43
Chapter 4
Collaboration Edge
Scaling the Collaboration Edge Solution
Scaling the PSTN Solution
Distributed gateways providing local PSTN access are deployed in branch offices and used as backup
services.
If the number of branches is high, the route group and route list configuration construct within
Unified CM does not scale well. For this deployment we recommend using the Local Route Group
feature, so that route patterns to the PSTN do not have to be replicated for each site.
The configuration presented in the previous section is easily adapted to cover this scenario. What is
needed is to assign the device profile LRG_PSTN1 to route group CUBE_US_PSTN, and to assign
LRG_PSTN2 to the route group corresponding to the local gateway for that device pool, as shown in
Figure 4-28.
Figure 4-28
Configuration for Centralized PSTN Access with Local ISDN Gateways
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-44
November 20, 2015
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Scaling the Video ISDN Solution
Scaling the video ISDN solution is very similar to scaling the PSTN solution. If more than a few video
ISDN gateways are required, using local route groups in Unified CM is the recommended method for
routing calls out the PSTN. Having geographically dispersed ISDN gateways does aid in reducing toll
charges for both inbound and outbound calls.
Collaboration Edge Deployment Process
This section summarizes the Collaboration Edge deployment process. Each component of Collaboration
Edge is treated separately since each deployment may not require all access methods. As an example, a
company might have only PSTN. Another company might use PSTN as a local backup for IP PSTN at
specific local sites, have a Internet Edge deployment, and use ISDN video gateways to call those users
who are not enabled for business-to-business Internet calls.
The Collaboration Edge components should be deployed in the following order:
•
Deploy Expressway-C and Expressway-E
•
Deploy Cisco Unified Border Element
•
Deploy Cisco Voice Gateways
•
Deploy Cisco ISDN Video Gateways
Deploy Expressway-C and Expressway-E
This section provides an overview of the tasks required to install and deploy Expressway-C and
Expressway-E. The task should be performed in the following order:
1.
Download and deploy Expressway-C and Expressway-E OVA templates and install the Expressway
software. If the appliance model is used (Cisco Expressway CE500 or CE1000), there is no need to
download and install OVA templates and the Expressway software.
2.
Configure network interfaces and settings, including DNS and NTP, and system host name and
domain name. Expressway-E has two LAN interfaces. If the external interface IP address is to be
translated statically, the IP address of the translated interface has to be configured. Expressway-E
will use the public IP address in payload references.
3.
Configure clustering.
Deploy Mobile and Remote Access
1.
Enable mobile and remote access by setting the Unified Communications mode to Mobile and
remote access.
2.
Select the domains for which mobile and remote access is enabled. Turn on SIP registration and
provisioning on Unified CM, IM and Presence service on Unified CM, and XMPP federation if
inter-company federation.
3.
Upload the CA certificate to Expressway-C and Expressway-E. This is needed to discover
Unified CM and IM and Presence clusters if TLS verify mode is on (recommended). This way
Expressway-C will verify the identity of the cluster servers by checking the certificate.
4.
Discover Unified CM and IM and Presence servers by configuring the publisher for each cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-45
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Note
5.
Install certificates on both Expressway-C and Expressway-E. Both Expressway node types are able
to generate a Certificate Signing Request (CSR) which is then signed by a CA. If an internal CA is
use, the CSRs have to be signed by it. If Expressway-C and Expressway-E are also used for
business-to-business communications, a public CA has to sign the certificate of Expressway-E, as
mentioned previously. The signed certificates then need to be uploaded on Expressway-C and
Expressway-E.
6.
Configure a Unified Communication traversal zone between Expressway-C and Expressway-E, and
allow for proxy registration to Cisco Unified CM.
7.
To ensure that everything has been set up properly, check the Unified Communications status.
•
This configuration enables mobile and remote access. Business-to-business requires an additional
configuration.
•
The configuration above is done entirely on Expressway-C and Expressway-E.
•
These steps are required for TCP/RTP connection to Unified CM (TLS/SRTP is not shown).
Deploy Business-to-Business Communications
This section provides an overview of the additional steps necessary to setup business-to-business
communications.
1.
Configure the basic Layer 3 configuration, including NTP, DNS, and system name, on both
Expressway-C and Expressway-E.
2.
Set up NAT configuration on Expressway-E, including IP routes necessary for routing traffic.
3.
Ensure that the external firewall is set to block all traffic to Expressway-E before placing it in the
DMZ.
4.
Configure an administrative access policy, including local and/or remote authentication for both
Expressway-C and Expressway-E.
5.
Configure DNS A records in the appropriate DNS servers to be able to resolve the FQDN of each
server.
6.
Set up local authentication credentials in Expressway-E for the purpose of authenticating the
traversal client connection coming from Expressway-C.
7.
Set up the traversal server zone on Expressway-E for SIP only.
8.
Set interworking on Expressway-E to On. This allows Expressway-E to send and receive H.323 calls
and interwork them to SIP at the edge of the network, thus maintaining a single protocol inside the
enterprise.
9.
Set up the traversal client zone on Expressway-C for SIP only.
10. Use the FQDN of Expressway-E to enable the traversal link to allow for the possible use of PKI.
11. Configure the external DNS zone for outbound domain resolution for business-to-business
communications.
12. Place basic CPL rules in place on Expressway-E to restrict access to protected resources such as
video, voice, and IP PSTN gateways.
13. Set up domains for which Expressway-C and Expressway-E will have authorization.
14. Set up the dial plan on Expressway-C and Expressway-E with presearch transforms, search rules,
DNS search rules, and external IP address routing.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-46
November 20, 2015
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
15. Configure the SIP neighbor zone to Unified CM on Expressway-C.
16. Configure the SIP trunk on Unified CM to communicate with Expressway-C.
Deploy Cisco Unified Border Element
This section provides an overview of the process for deploying Cisco Unified Border Elements with
box-to-box redundancy. Box-to-box redundancy has to be configured on both Unified Border Element
routers, and the configuration is the same on both. It is possible to copy and paste the configuration from
the active to the standby Unified Border Element.
1.
Configure the network settings: the two Ethernet interfaces (one toward the LAN and the other
facing the WAN) on both active and standby Unified Border Elements, as well as IP routing.
2.
Enable the Unified Border Element on both routers for SIP-to-SIP calls, fax relay or passthrough,
calling ID treatments as privacy headers, and enforcement of Early Offer. We recommend enabling
this feature on Unified Border Element because Unified CM is configured for Best Effort Early
Offer only. Although in new deployments only Early Offer will be sent from endpoints, there might
be some cases involving old Cisco devices where Delayed Offer is sent instead. Even though these
cases are not covered in this document, it is good practice to enforce Early Offer on Cisco Unified
Border Element.
3.
Enable box-to-box redundancy, and configure HSRP globally and on both the LAN and WAN
interfaces for the active and standby routers.
4.
Configure the voice codecs preference (in case the voice codec can be negotiated and it is not
enforced by Unified CM or the Telecom carrier soft switch).
5.
Configure music on hold.
6.
Configure the dial-peers. Dial-peers are associated with call legs and can be matched inbound or
outbound. As an example, an inbound call from Unified CM will be matched by an inbound
dial-peer (corresponding to the inbound call leg). Another call leg will be generated by Cisco
Unified Border Element (CUBE) toward the session border controller (SBC) of the Telecom carrier,
and thus will be matched against another dial-peer. although the same dial-peer can match inbound
or outbound calls, we recommend having each dial-peer match a specific call leg. Following this
recommendation, there will be 4 distinct dial-peers: inbound dial-peer from Unified CM to CUBE,
outbound dial-peer from CUBE to SBC, inbound dial-peer from SBC to CUBE, and outbound
dial-peer from CUBE to Unified CM. Dial-peers can be matched against calling or called numbers
or patterns. A dial-peer can force a single codec or can negotiate the list of codecs configured in
step 4. The incoming called-number command makes a dial-peer inbound only.
Inbound dial-peers do not have an associated target, while outbound dial-peers have Unified CM or
the carrier's SBC defined as targets.
Since calls to external destinations match generic patterns, dial-peer configuration on Unified
Border Elements might lead to errors. As an example, in Figure 4-29 an outbound call matches both
dial-peer 201 and 101, and therefore the routing does not work properly.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-47
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Figure 4-29
Inbound and Outbound Dial-Peer Configuration on Cisco Unified Border Element
The variable T in Figure 4-30 indicates any numeric string of any length, since calls from
Unified CM might be sent to any destination in the world. A closest match might help, but when the
Unified Border Element is centralized and provides the service for multiple locations, it might not
be practical to list all the possible destinations in the "destination pattern" configuration. To
overcome this limitation, and in order to simplify the routing process and make it more responsive,
the following additional configuration is implemented:
a. Server groups in outbound dial-peers — If a server group is set as the destination in a dial-peer,
and a round-robin algorithm is selected, the Unified Border Element will share the load between
multiple servers:
voice class server-group 1
ipv4 172.16.10.240
ipv4 172.16.10.241
ipv4 172.16.10.242
ipv4 172.16.10.243
ipv4 172.16.10.244
hunt-scheme round-robin
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-48
November 20, 2015
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
b. SIP Out-of-Dialog OPTIONS Ping — It is possible to configure many parameters, such as the
ping interval when a server is up and running, and the interval when it is down (set to 30 and 60
seconds respectively in this example):
voice class sip-options-keepalive 171
transport tcp
sip-profile 100
down-interval 30
up-interval 60
retry 5
description Target Unified CM
This way, the outbound dial-peer to Unified CM will be as follows:
dial-peer voice 101 voip
description *Outbound WAN dial-peer. ToUnified CM
destination-pattern T
session protocol sipv2
session server-group 1
voice-class sip options-keepalive profile 171
codec g711ulaw
c. The outbound call leg to the Telecom carrier will be matched by an outbound dial-peer:
dial-peer voice 201 voip
description *Outbound WAN dial-peer. To
destination-pattern T
session target ipv4:10.10.1.61
codec g711ulaw
SP*
d. A leading "*" is sent by Unified CM on outbound calls (inbound calls from Unified Border
Element’s perspective), which enables the router to distinguish the direction of the call. This
character must be eliminated before the call goes out to the IP PSTN. Further, according to the
configured dial plan, the calling number has to be normalized with the "+". Rule 2 prefixes a
"+" and is applied to the calling number, while rule 1 replaces the leading "*" with "+". The
rules are applied to the called number. Two rules might be created for this, one for the called
number and one for the calling number. However, since the called number always matches the
first rule, and the calling number always matches the second rule, it is possible to use a single
voice translation rule. This is configured on the inbound dial-peer.
The outbound call leg (dial-peer) is bound to the inbound dial-peer via the dpg command, so
that if any call is received with a leading "*", it is sent to the dial-peer facing the SBC and not
to the one going to Cisco Unified CM:
voice class dpg 201
dial-peer 201
voice translation-rule 2
rule 1 /^\*/ /+/
rule 2 // /+/
voice translation-profile SIPtoE164
translate called 2
translate calling 2
dial-peer voice 100 voip
translation-profile outgoing SIPtoE164
incoming called-number *T
destination dpg 201
codec g711
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-49
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Dial-peer 200 needs also to be bound to dial-peer 101:
voice class dpg 101
dial-peer 101
dial-peer voice 200 voip
description *WAN dial-peer. From SP
incoming called-number T
destination dpg 101
codec g711ulaw
Figure 4-30 shows this configuration.
Figure 4-30
Dial-Peer Configuration for Cisco Unified Border Element
If the call leg comes from Unified CM, it will hit the Unified Border Element with a leading
"*", thus matching dial-peer 100. The call is then sent to dial-peer 200 by using the outbound
dial-peer group as an inbound dial-peer destination. Dial-peer 200 removes the leading "*" and
sends the call to the PSTN. Note that without this feature, dial-peer 201 would also be matched,
resulting in routing errors.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-50
November 20, 2015
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
If the call leg comes from the SBC, it might match dial-peers 201, 101, and 200. But since the
"incoming called-number" takes precedence over the "destination pattern," dial-peer 200 will
be matched; and since dial-peer 200 is linked to the dial-peer 101, the call is correctly routed to
the destination.
7.
Configure transcoding if required. Remember that transcoding requires dedicated hardware
resources (DSPs).
Perform the following configuration tasks on Unified CM:
1.
Configure a Best Effort Early Offer trunk for each Unified Border Element, as specified in the Call
Control chapter.
2.
Configure route group CUBE_US_PSTN and add the Unified Border Element trunk as a member.
3.
Configure local route group LRG_PSTN1.
4.
Configure a route list that includes the default local route group and the route group LRG_PSTN1.
5.
For each device pool set LRG_PSTN1 to CUBE_US_PSTN.
Deploy Cisco Voice Gateways
PSTN interfaces are available across a wide range of routers, such as Cisco ISR G2/G3 and ASR routers.
PSTN interfaces include analog, BRI, and PRI ISDN voice cards. Analog interfaces are used mostly to
connect fax machines and analog telephones.
Perform the following tasks to configure a PSTN gateway with ISDN voice interfaces:
1.
Configure network settings and routing on the router.
2.
Activate the ISDN interface.
3.
Set the ISDN parameters for user side, switch-type, framing, and linecode, based on the Telecom
carrier's requirements.
4.
Configure the dial-peers.
The dial-peer logic is the same as for the IP PSTN and Unified Border Element, but in this case besides
the "voip" dial-peers, a voice gateway also has "pots" dial-peers toward the PSTN.
If there are analog devices such as fax machines, they can be connected to the router through an analog
interface.
If the router is used only for analog fax interconnection and with the PSTN interfaces attached to another
router, T.38 fax-relay can be configured since it provides for better resiliency, especially if the path to
the PSTN gateway traverses the WAN.
The dial-peer configuration is different from IP PSTN and the Unified Border Element configuration.
Since the gateway is deployed within a specific location and serves phones for that location, the pattern
destination is well known, as for example +14085554XXX.
On the other side, an incoming PSTN call has an address that is composed of plan, type, and number.
Plan and type are not supported in SIP, and based on the Telecom carrier, the call can reach the gateway
with a different plan and type. As an example, for a call to E.164 destination 4961007739764 on a trunk
in Germany in the same area code 6100, the called party number in the outgoing ISDN SETUP message
could be sent as (plan/type/number) ISDN/national/61007739764, ISDN/subscriber/7739764, or
unknown/unknown/061007739764.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-51
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Based on the plan/type, the number changes, and thus the dial-peers might not match. For this reason it
is necessary to force the plan/type to unknown/unknown. This way the full E164 number will be released
to the destination. Dial-peer structure is described in detail in the Call Control chapter and is referenced
here for consistency.
For outbound dial-peers, this rule transforms any calling party number to plan “unknown” and type
“unknown”, and it transforms the called party number with the leading "*" to the +E.164 number.
voice translation-rule 1
rule 1 /^\*/ // type any unknown plan any unknown
rule 2 // // type any unknown plan any unknown
voice translation-profile ISDNunknown
translate called 1
translate calling 1
dial-peer voice 1 pots
translation-profile outgoing ISDNunknown
For inbound dial-peers, if the calling party information has a 10-digit number with type “national” (and
does not include the country code "1" for US), the call will be transformed correctly to the +E.164
number, prepending "+1". If it is "unknown" the following rules will not be matched.
If the called number comes from an international destination, and thus it has the country code and is in
the E.164 format, then rule 2 will add the leading "+".
However, since ISDN setup is hop-by-hop, we are not expecting to see many calls with type "national"
since the latest switch might force it to "national". In any case, these rules normalize the calling and
called party numbers correctly.
voice translation-rule 3
rule 1 /^\(.+\)$/ /+1\1/ type national unknown plan any unknown
rule 2 /^\(.+\)$/ /+\1/ type international unknown plan any unknown
voice translation-profile ISDNtoE164
translate called 3
translate calling 3
dial-peer voice 1 pots
translation-profile incoming ISDNtoE164
Figure 4-31 shows a dial-peer configuration for G.711 and the E1 PRI interface.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-52
November 20, 2015
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Figure 4-31
Dial-Peer Configuration for Voice Gateways
Perform the following configuration tasks on Unified CM:
1.
Configure a Best Effort Early Offer trunk for each gateway (Trunk_to_SiteID_GW, SiteID is a
variable that identifies the location).
2.
Configure route group LRG_PSTN1 and include the gateway trunk as member.
3.
Configure local route group LRG_PSTN1.
4.
Configure a route list that includes the default local route group and LRG_PSTN1.
5.
For each device pool, set LRG_PSTN1 to Trunk_to_SiteID_GW. This configuration assumes, as
recommended, that for each site there is a device pool SiteIDPhone.
By using the local route group configuration, it is easy to reconfigure PSTN access. As an example, it is
possible to use the Unified Border Element for centralized access to the PSTN and to use the local PSTN
connection as backup. In this case, the device pool would specify the Unified Border Element route
group as LRG_PSTN1, and LRG_PSTN2 will include the trunk to the local gateway
(Trunk_to_SiteID_GW).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
4-53
Chapter 4
Collaboration Edge
Collaboration Edge Deployment Process
Deploy Cisco ISDN Video Gateways
Deployment of a Cisco TelePresence ISDN GW 3241 or a Cisco TelePresence ISDN MSE 8321 is a
fairly straightforward process:
1.
Log into the web interface.
2.
Allocate port licenses. Each port license activates a PRI interface. Port licenses are configured on
the supervisor MSE 8050 for the 8321 ISDN gateway, and port licenses are configured on-box for
the ISDN GW 3241.
3.
Set up the ISDN interface. This is accomplished under Settings > ISDN. These settings are the
typical settings received from the service provider for the type and form of ISDN being delivered.
4.
Configure the ISDN ports. This is accomplished under Settings > ISDN ports. Directory number,
channel range, and channel search order are all configured here. The Enabled box must be checked
here for each port to enable the ISDN port for use.
5.
Configure call control. This is accomplished under Settings > SIP. These are the SIP settings on the
ISDN gateway that include the hostname and SIP domain used for Unified CM.
6.
Configure the dial plan. This is accomplished on two tabs under the dial plan heading: IP to ISDN
and ISDN to IP. Ensure that the incoming ISDN number range is translated correctly to the IP
number range on the ISDN to IP dial plan tab.
For more information on the gateway installation and initial configuration, refer to the Cisco
TelePresence ISDN Gateway installation and upgrade guides, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-isdn-gateway/products-installatio
n-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
4-54
November 20, 2015
CH A P T E R
5
Core Applications
Revised: November 20, 2015
This chapter describes the core applications included in the Preferred Architecture for Enterprise
Collaboration. While many additional applications from Cisco and our Ecosystem partners are available,
this chapter focuses on a subset of core applications that are necessary for most collaboration
environments. The Preferred Architecture is built with all of the available applications in mind to
simplify the deployment of these applications and avoid unnecessary configuration changes.
The main section of this chapter explains how to implement Unified Messaging with Cisco Unity
Connection. This section contains a description of the core architecture as well as details about the
deployment process.
The second section of this chapter describes Tools for Application Deployment, namely: Cisco Prime
Collaboration Deployment (PCD) and Cisco Prime License Manager (PLM). There is also a list of
Additional Applications at the end of this chapter.
What’s New in This Chapter
Table 5-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 5-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
Described in:
Revision Date
TelePresence Management Suite (TMS)
information has been moved to the Conferencing
chapter.
Role of Cisco TMS, page 3-6
November 20, 2015
5. Deploy TelePresence Management Suite,
page 3-38
Prerequisites
Before deploying the core applications for the Preferred Architecture, ensure that:
•
Cisco Unified Communications Manager (Unified CM) is deployed and functioning.
•
Microsoft Active Directory is installed, and the integration for each application is understood.
•
The Call Control chapter of this document is understood and implemented.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-1
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Unified Messaging Application
A core application of the Preferred Architecture is Cisco Unity Connection, which provides unified
messaging. (See the section on Unified Messaging with Cisco Unity Connection.)
Tools Used in a Collaboration Deployment
These software tools are useful to administrators in deploying the Enterprise Collaboration Preferred
Architecture:
•
Cisco Prime License Manager (PLM)
•
Cisco Prime Collaboration Deployment (PCD)
•
Unified messaging available on multiple end-user platforms
•
Eases deployment of new infrastructure components
•
A single tool to manage licenses for various products
Key Benefits
Unified Messaging with Cisco Unity Connection
Cisco Unity Connection enables unified messaging for the Cisco Preferred Architecture for Enterprise
Collaboration. This section provides the information and instructions for deploying Unity Connection
for voice messaging and unified messaging along with features such as single inbox and visual
voicemail. This section also covers networking between two Unity Connection clusters.
Core Components
The core architecture contains these elements:
•
Cisco Unified Communications Manager (Unified CM)
•
Cisco Unity Connection
•
Microsoft Exchange
•
Microsoft Active Directory
•
Users can access the voicemail system and retrieve their voice messages by using:
Key Benefits
– Cisco Unified IP Phones, TelePresence endpoints, Jabber, and mobile devices
– Web interface with PCs or Mac
– Email client applications such as Microsoft Outlook
•
Visual voicemail provides secure access to a visual display of voice messages on a Jabber client,
listed with sender name, date, and message duration.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-2
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Core Architecture
Centralized Messaging and Centralized Call Processing
As shown in Figure 5-1, with centralized messaging Unity Connection is located in the same site as the
Unified CM cluster. Remote branch sites located over the WAN from the central site rely on the
centralized Unity Connection for unified messaging services. Unity Connection integrates with
Unified CM using SIP for call control and RTP for the media path. Each Unity Connection cluster
consists of two server nodes providing high availability and redundancy.
Figure 5-1
Architecture Overview
Headquarters
Applications
Expressway-E
Microsoft
Active
Directory
Microsoft
Exchange
Mobile/Teleworker
DMZ
LDAP
Expressway-C
Mailbox
Synchronization
Integrated
Services Router
Directory
Synchronization
Publisher
Subscriber
Integrated/Aggregated
Services Router
Internet
Unity
Connection
Remote Site
Collaboration Edge
SIP Trunk
Unified
Communications
Manager
PSTN /
ISDN
Integrated
Services Router
Remote Site
349550
Call Control
IM and
Presence
MPLS WAN
Endpoints
At the remote branch site, Cisco Unified Survivable Remote Site Telephony (SRST) is installed as a
backup call agent, which is integrated with the central Unity Connection server. In the event of an IP
WAN outage, all the phones at the remote branch register with SRST, which is preconfigured to send all
the unanswered and busy calls to the central Unity Connection server via the PSTN.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-3
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Role of Unified CM
Unified CM provides call control capabilities and forwards calls to Unity Connection in the event that a
called phone is either busy or unanswered. If a user presses the message button on the phone or dials the
voicemail pilot number from an outside network, then Unified CM routes the call to Unity Connection.
Role of Unity Connection
In a centralized messaging deployment, Unity Connection provides users with the ability to store and
retrieve voicemails. Typically calls forwarded to Unity Connection are direct calls or are due to a called
extension that is either busy or unanswered. Message Waiting Indicator (MWI) is displayed on the
endpoint for any new messages stored for the user. With each call, the following call information is
typically passed between the phone system and Unity Connection:
•
The extension of the called party
•
The extension of the calling party (for internal calls) or the phone number of the calling party (if it
is an external call and the phone system supports caller ID)
•
The reason for the forward (the extension is busy, does not answer, or is set to forward all calls)
If the call is forwarded because the called party did not answer the call, Unity Connection plays the
called user’s standard greeting. If the call was forwarded because the called phone was busy, Unity
Connection plays the called user’s busy greeting.
Unity Connection handles direct calls differently than forwarded calls. When Unity Connection receives
a call, it first attempts to determine whether the caller is a user. It does this by identifying whether the
caller ID matches a user’s primary or alternate extension. If Unity Connection finds a match, it assumes
that a user is calling and it asks for that user’s voicemail PIN. If Unity Connection determines that the
caller ID is not associated with a user, then the call is sent to the opening greeting. An opening greeting
is the main greeting that outside callers hear when they reach the Unity Connection auto-attendant.
Role of Microsoft Exchange
Unity Connection is integrated with Microsoft Exchange to enable the Single Inbox feature. Single
Inbox in Unity Connection enables unified messaging and synchronizes voice messages between Unity
Connection and Microsoft Exchange.This enables users to retrieve voicemail using their email client.
This chapter focuses on Unified Messaging with Microsoft Exchange. Unity Connection can also be
integrated with IBM Lotus Sametime instant messaging application, allowing users to play their voice
messages using Lotus Sametime. For more information on this topic, refer to the Unity Connection
documentation available at
http://www.cisco.com/en/US/products/ps6509/index.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-4
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
High Availability for Unified Messaging
Figure 5-2 shows Unity Connection in an active/active pair, allowing the Unity Connection servers to be
installed in the same or separate buildings to provide high availability and redundancy. Both servers in
the active/active pair are running Unity Connection, both accept calls and HTTP requests, and both
servers store user information and messages. In the event that only one server in the clustered pair is
active, Unity Connection preserves the complete end-user functionality, including voice calls and HTTP
requests. However, Unity Connection port capacity for calls will be reduced by half, to that of a single
server.
Figure 5-2
Unity Connection Cluster
All user client and administrator sessions (for example, IMAP and Cisco Personal Communications
Assistant) and administration traffic (for example, Cisco Unity Connection Administration, the Bulk
Administration Tool, and backup operations) connect to the Unity Connection publisher server. If the
publisher server stops functioning, the user client and administrator sessions can connect to the Unity
Connection subscriber server.
This topology requires two separate Unified CM SIP trunks pointing to each Unity Connection server
node in the cluster. This configuration provides both high availability and redundancy. Unified CM
should be configured to route all calls to the Unity Connection subscriber node first. If the subscriber
server is unavailable or all the ports of the subscriber are busy, then calls are routed to the publisher node.
Given the SIP integration between Unified CM and Unity Connection, trunk selection is achieved via
Unified CM route pattern, route list, and route group constructs (see Figure 5-3). Both trunks are part of
the same route group and assigned to the same route list, and the trunks within the route group are
ordered using a top-down trunk distribution algorithm. This approach allows Unified CM to control the
preference of the Unity Connection server node selection during both normal and failover operation.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-5
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Figure 5-3
Unity Connection SIP Trunk Selection
Unity Connection supports using Single Inbox with Microsoft Exchange 2010 or Exchange 2013
Database Availability Groups (DAGs) for high availability. The DAGs are deployed according to
Microsoft recommendations. Unity Connection also supports connecting to a client access server (CAS)
array for high availability. This section does not cover Microsoft Exchange high availability deployment.
For more information about Exchange high availability deployments, refer to the Microsoft Exchange
product information available at http://www.microsoft.com/.
Licensing Requirements
The licenses for Unity Connection are managed by the Cisco Prime License Manager (PLM). To use the
licensed features on Unity Connection, the valid licenses for the features must be installed on the PLM
server and Unity Connection must communicate with the PLM server to obtain the license. The PLM
server provides centralized, simplified, and enterprise-wide management of user-based licensing.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-6
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Unified Messaging Requirements
•
Unity Connection supports Microsoft Exchange 2003, 2007, 2010, and 2013 Server for Single
Inbox. Unity Connection also supports interoperability with the Microsoft Business Productivity
Online Suite (BPOS) Dedicated Services and Microsoft Office 365 cloud-based exchange server.
•
Exchange servers and Active Directory domain controllers/global catalog servers (DC/GCs) can be
installed in any hardware virtualization environment supported by Microsoft. Refer to Microsoft
Exchange product information available at http://www.microsoft.com/ for more information about
supported hardware platforms.
•
The Microsoft Exchange message store can be stored in any storage area network configuration
supported by Microsoft. Refer to Microsoft Exchange product information available at
http://www.microsoft.com/ for more information about supported storage area network.
•
For every 50 voice messaging ports on each server, 7 Mbps of bandwidth is required between Unity
Connection and Microsoft Exchange for message synchronization.
•
The default Unity Connection configuration is sufficient for a maximum of 2,000 users and
80 milliseconds of round-trip latency between Unity Connection and the Exchange servers. For
more than 2,000 users and/or more than 80 milliseconds of latency, you can change the default
configuration. For more information, see the information on latency in the Design Guide for Cisco
Unity Connection, available at
http://www.cisco.com/c/en/us/support/unified-communications/unity-connection/products-implem
entation-design-guides-list.html
Scaling Unity Connection
A Unity Connection cluster consists of a maximum of two nodes, one publisher and one subscriber in an
active/active deployment. Under normal operation, call processing load balancing does not occur in an
active/active deployment. Unified CM is configured to route all calls to the Unity Connection subscriber
server first. If all ports are busy or if the subscriber server is unavailable, then calls are routed to the
publisher. When sizing Unity Connection, consider the following parameters:
•
Total number of current and future users.
•
Required Voice messaging storage capacity.
•
Number of voicemail ports supported with each platform.
For more information on Unity Connection scaling, see the Sizing chapter.
Cisco Unity Connection Deployment Process
Prerequisites
Before deploying the unified messaging architecture, ensure that:
•
Unified CM is installed and configured for call control (see the Call Control chapter).
•
Microsoft Exchange is installed and configured as an email server. For more information about
supported exchange versions, refer to the section on Unified Messaging Requirements.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-7
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Deployment Overview
For the purposes of this Preferred Architecture, we assume a centralized messaging deployment model
serving three sites in the US: SJC, RCD, and RTP. The deployment of centralized messaging starts with
the Unity Connection cluster installation followed by further provisioning and configuration. To deploy
centralized unified messaging with Cisco Unity Connection, perform the following tasks in the order
listed here:
1. Provision the Unity Connection Cluster
2. Configure Unified CM for Unity Connection Integration
3. Unity Connection Base Configuration
4. Enable Single Inbox
5. Enable Visual Voicemail
6. Voice Mail in SRST Mode
7. HTTPS Internetworking of Two Unity Connection Clusters
Note
Only non-default and other configuration field values are specified in this document. If a field
configuration value is not mentioned, then the default value should be assumed.
1. Provision the Unity Connection Cluster
When clustering Unity Connection server nodes, one server is designated as the publisher server in the
server pair while the other server is designated as the subscriber server.
Publisher
In Unity Connection only two servers are supported in a cluster for active/active high availability. The
publisher server is the first to be installed, and it publishes the database and message store, replicating
this information to the other subscriber server in the cluster.
Subscriber
Once the software is installed, the subscriber server node subscribes to the publisher to obtain a copy of
the database and message store.
Unity Connection Mailbox Stores
During installation, Unity Connection automatically creates:
•
A directory database for system configuration information (user data, templates, classes of service,
and so forth).
•
A mailbox store database for information on voice messages (who each message was sent to, when
it was sent, the location of the WAV file on the hard disk, and so forth).
•
An operating system directory for voice message WAV files.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-8
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Prerequisite for Unity Connection Cluster Deployment When the Servers Are to Be Installed in the Same Building
•
For inbound and outbound calls to Unity Connection, the TCP and UDP ports of the firewall must
be open as listed in the chapter on IP Communications Required by Cisco Unity Connection in the
Security Guide for Cisco Unity Connection.
•
For a cluster with two virtual machines, both must have the same virtual platform overlay.
•
The servers must not be separated by a firewall.
•
Both Unity Connection servers must be in the same time zone.
•
Both Unity Connection server nodes must integrate to the same phone system.
•
Both Unity Connection servers must have the same enabled features and configurations.
Prerequisite for Unity Connection Cluster Deployment When the Servers Are to Be Installed in Separate Buildings
•
For inbound and outbound calls to Unity Connection, the TCP and UDP ports of the firewall must
be open as listed in the chapter on IP Communications Required by Cisco Unity Connection in the
Security Guide for Cisco Unity Connection.
•
For a cluster with two virtual machines, both must have the same virtual platform overlay.
•
Both Unity Connection server nodes must integrate to the same phone system.
•
Both Unity Connection servers must have the same enabled features and configurations.
•
Depending on the number of voice messaging ports on each Unity Connection server node, the
connectivity between the server nodes must have the following guaranteed bandwidth with no
steady-state congestion:
– For every 50 voice messaging ports on each server, 7 Mbps of bandwidth is required.
– Maximum round-trip latency must be no more than 150 milliseconds (ms).
To Deploy Unity Connection Cluster
•
Determine which VMware Open Virtual Archive (OVA) template you want to deploy for the Unity
Connection node based on the maximum number of ports and the maximum number of users. Refer
the section on Scaling Unity Connection.
•
Add both the Unity Connection nodes as host A records in the enterprise domain name service
(DNS) server. For example, set the publisher Unity Connection hostname as US-CUC1.ent-pa.com
and the subscriber hostname as US-CUC2.ent-pa.com.
•
Determine the network parameters required for the installation:
– Time zone for the server
– Host name, IP address, network mask, and default gateway. Ensure that the hostname and IP
address match the previous DNS configuration.
– DNS IP addresses
– Network Time Protocol (NTP) server IP addresses
•
Download the above noted OVA file from the Cisco website.
•
Deploy the Unity Connection publisher server node using the VMware vSphere Client.
•
After installing the Unity Connection publisher, add the subscriber details in the cluster
configuration of the primary server.
•
Deploy the Unity Connection subscriber server node using the VMware vSphere Client.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-9
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Note
Optionally, the Unity Connection cluster can be deployed automatically using Cisco Prime
Collaboration Deployment. For details, see the section on Cisco Prime Collaboration Deployment
(PCD).
2. Configure Unified CM for Unity Connection Integration
Before Unity Connection communicates with Unified CM, certain tasks must be performed on
Unified CM. Unity Connection communicates to Unified CM over a SIP trunk. This section provides an
overview of the tasks required to integrate Unified CM with Unity Connection.
SIP Trunk Security Profile
As far as media and signaling encryption is concerned, this guide assumes they are not used and instead
non-secure SIP trunks are implemented between Unified CM and Unity Connection server nodes. Create
a new SIP Trunk Security Profile for Unity Connection with device security mode set to Non Secure.
Table 5-2 lists the SIP trunk security profile settings.
Table 5-2
SIP Trunk Security Profile Settings
Parameter
Value
Comments
Name
Unity Connection SIP
Trunk Security Profile
Enter the name of the security profile.
Description
Unity Connection SIP
Trunk Security Profile
Enter the description for profile.
Device Security Mode
Non Secure
Security mode for SIP trunk.
Accept out-of-dialog
refer
Checked
Ensures that Unified CM accepts incoming
non-INVITE, out-of-dialog refer messages that
come via the SIP trunk.
Accept unsolicited
notification
Checked
Ensures that Unified CM accepts incoming
non-INVITE, unsolicited notification messages
that come via the SIP trunk. This parameter must
be checked to accept MWI messages from Unity
Connection.
Accept replaces header
Checked
Ensures that Unified CM accepts new SIP dialogs,
which replace existing SIP dialogs. This allows
"REFER w/replaces" to be passed, which is used
for Cisco Unity Connection initiated supervised
transfers.
SIP Profile
Configure a SIP profile for the SIP trunk to Unity Connection. Copy the standard SIP profile and rename
it to Unity Connection SIP Profile. Select the checkbox Use Fully Qualified Domain Name in SIP
Requests to prevent the IP address of the Unified CM server from showing up in SIP calling party
information sent by Unified CM. Ensure that the checkbox Enable OPTIONS Ping to monitor
destination status for Trunks with Service Type "None (Default)" is checked so that the system
tracks the status of connectivity to the Unity Connection node.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-10
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
When the OPTIONS Ping is enabled, each node running the trunk's SIP daemon will periodically send
an OPTIONS Request to each of the trunk's destination IP addresses to determine its reachability and
will send calls only to reachable nodes. A destination address is considered to be "out of service" if it
fails to respond to an OPTIONS Request, if it sends a Service Unavailable (503) response or Request
Timeout (408) response, or if a TCP connection cannot be established. The overall trunk state is
considered to be "in service" when at least one node receives a response (other than a 408 or 503) from
a least one destination address. SIP trunk nodes can send OPTIONS Requests to the trunk's configured
destination IP addresses or to the resolved IP addresses of the trunk's DNS SRV entry. Enabling SIP
OPTIONS Ping is recommended for all SIP trunks because it allows Unified CM to track the trunk state
dynamically rather than determining trunk destination state on a per-node, per-call, and time-out basis.
SIP Trunk
Create two separate SIP trunks, one for each Unity Connection server node in the cluster. Table 5-3 lists
the SIP trunk settings.
Table 5-3
Parameter Settings for SIP Trunk to Unity Connection Server
Parameter
Value
Description
Name
US_CUC1_SIP_Trunk
Enter the unique name for SIP trunk to Unity
Connection.
Description
Unity Connection
Publisher
Enter the description for the SIP trunk.
Device Pool
Trunks_and_Apps
Enter the device pool for Unity Connection. (See
the Call Control chapter.)
Run On All Active
Unified CM Nodes
Checked
This ensures that outbound calls using the SIP
trunk do not require intra-cluster control signaling
between Unified CM call processing subscribers.
Call Routing Information – Inbound Calls
Calling Search Space
(CSS)
VoiceMail (Refer to the
Call Control chapter for
more about CSS
configuration.)
CSS assigned contains all the on-net destinations
such as DIDs, non-DID numbers, and URI
partitions. If the CSS does not include all these
partitions, then the MWI Unsolicited Notify
messages from Unity Connection will not reach
user phones.
Redirecting Diversion
Header Delivery Inbound
Checked
This ensures that the redirecting Information
Element, the first redirecting number, and the call
forward reason are sent and accepted as a part of
incoming messages. Unity Connection uses the
first redirecting number to answer the call.
Call Routing Information – Outbound Calls
Calling and Connected
Party Info Format
Deliver URI and DN in
connected party, if
available
This option determines whether Unified CM
inserts a directory number, a directory URI, or a
blended address that includes both the directory
number and directory URI, in the SIP identity
headers for outgoing SIP messages.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-11
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Table 5-3
Parameter Settings for SIP Trunk to Unity Connection Server (continued)
Parameter
Value
Description
Redirecting Diversion
Header Delivery Outbound
Checked
This ensures that the redirecting Information
Element, the first redirecting number, and the call
forward reason are sent and accepted as a part of
outgoing messages. Unity Connection uses the
first redirecting number to answer the call.
Destination Address
10.195.100.20
Enter the IP address of Unity Connection server.
SIP Trunk Security
Profile
Unity Connection SIP
Trunk Security Profile
See Table 5-2.
SIP Profile
Unity Connection SIP
Profile
See the SIP Profile section.
SIP Destination Information
Route Group
Create a separate route group RG_CUC for the Unity Connection cluster. The route group contains the
SIP trunks to the Unity Connection subscriber and publisher nodes. Ensure that the SIP trunk that
connects to the subscriber node (US_CUC2_SIP_Trunk) appears first in the list, followed by the
publisher node (US_CUC1_SIP_Trunk). The route group distribution algorithm should be set to the Top
Down trunk selection method. A route group configured with the Top Down distribution algorithm
ensures that the calls are always sent to the Unity Connection subscriber server node (US-CUC2) first.
If the Unity Connection subscriber server node is busy or unavailable, then the calls are sent to the
publisher server node (US-CUC1).
Route List
Create a separate route list RL_CUC for the Unity Connection cluster. The route list should contain only
the Unity Connection route group (RG_CUC) created previously. Ensure that the options Enable this
Route List and Run on all Active Unified CM Nodes are selected.
Route Pattern
Create a separate route pattern for the voicemail pilot number pointing to the Unity Connection route list
created above. This number must match the voicemail pilot number. Table 5-4 shows the route pattern
configuration example.
Table 5-4
Unity Connection Pilot Number-Route Pattern Example
Parameter
Value
Route Pattern
+14085554999
Route Partition
DN
Gateway/Route List
RL_CUC
Call Classification
OnNet
Provide Outside Dial Tone
Unchecked
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-12
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Voice Mail Pilot
The voicemail pilot number designates the directory number that users dial to access voice messages.
Unified CM automatically dials the voicemail pilot number when a user presses the Messages button on
an IP endpoint. A single voicemail pilot number is created for all three sites. Table 5-5 shows the
voicemail pilot configuration example.
Table 5-5
Voicemail Pilot Example
Parameter
Value
Voice Mail Pilot number
+14085554999
Calling Search Space
DN
Description
VM Pilot
Make this the default Voice Mail Pilot Checked
for the system
Voicemail users located at remote sites can check their messages from the PSTN by dialing the voicemail
access number from their own DID range. A separate translation pattern is created to translate the
voicemail PSTN access number to the voicemail pilot number. Table 6 shows the translation pattern
configuration for the voicemail pilot.
Table 5-6
Voicemail Pilot Translation Pattern Example
Parameter
Value
Translation Pattern
+19195551999
Partition
DN
Use Originators Calling Search Space Checked
Route Option
Route this pattern
Called Party Transformations
Called Party Transform Mask
+14085554999
Additional translation patterns would be created for other remote sites.
Voicemail Profile
A voicemail profile is assigned to each user's phone line on all endpoint devices and Extension Mobility
profiles. The profile enables users to press the Messages button on an endpoint for one-touch access to
the voicemail system. If Unity Connection is integrated with a single phone system, we recommend
using the default voicemail profile. During the initial provisioning of a line on an endpoint device, the
default voicemail profile (None) is assigned to the directory number. For the users who do not require
voicemail access, no voicemail profile is assigned to their endpoint lines. Table 5-7 shows the settings
for the voicemail profile configuration example.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-13
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Table 5-7
Voicemail Profile Example
Parameter
Value
Voice Mail Profile Name
Default
Description
VM Profile
Voice Mail Pilot
+14085554999/DN
Voice Mail Mask
Blank
Make this the default Voice Mail
Profile for the System
Checked
3. Unity Connection Base Configuration
Service Activation
•
After Unity Connection installation is complete, login to Cisco Unified Serviceability and activate
the DirSync service on the publisher server node.
•
Under Unified Serviceability, Navigate to Tools –> Control Centre-Feature Services. Verify that
the Cisco DirSync service is started on publisher server node.
•
Under Unity Connection Serviceability, Navigate to Tools –> Service Management. Verify the
status of services on the publisher and subscriber Unity Connection server nodes. Table 5-8 shows
the services status for this deployment.
Table 5-8
Unity Connection Services Status
Services
Unity Connection
Publisher (Primary)
Unity Connection
Subscriber (Secondary)
Status Only Services (Can be deactivated from OS command line interface)
All the Services in this category
Yes
Yes
Connection Conversation Manager
Yes
Yes
Connection Mailbox Sync
Yes
No
Connection Message Transfer Agent
Yes
No
Connection Mixer
Yes
Yes
Connection Notifier
Yes
No
Yes
Yes
Connection Branch Sync Service
No
No
Connection Digital Networking Replication Agent
No
No
All other remaining services in this category
(including Connection Jetty and Connection REST
Service)
Yes
Yes
Critical Services
Base Services
All the Services in this category
Optional Services
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-14
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Database Replication
After activating services on both publisher and subscriber Unity Connection server nodes, confirm that
the subscriber node can connect to the publisher node. Also check the database replication status using
the OS Command line interface (CLI) command show perf query class "Number of Replicates
Created and State of Replication" on both the nodes
Unified CM Integration
Each Unity Connection cluster is integrated with the co-located Unified CM cluster. This provides a
simple integration model with each Unity Connection cluster dedicated to a Unified CM cluster. While
SIP trunks are configured on the Unified CM for interconnectivity into the Unity Connection cluster,
voicemail ports are used for capacity and licensing purposes on the Unity Connection system. This
section discusses design considerations, capacity planning, and configuration settings of the voicemail
ports.
Voicemail Port Audio Codec Configuration
In Unity Connection, a call in any audio codec format that is supported by Unity Connection SIP
signaling will always be transcoded to PCM linear. From PCM linear, the recording is encoded in the
system-level recording audio codec system-wide setting in Unity Connection Administration. G.711
mu-law is the default.
In this section, we refer to the audio codec that is negotiated between the calling device and Unity
Connection as the line codec, and the audio codec that is set as the system-level recording audio codec
as the recording codec.
Supported line codecs (advertised codecs):
•
G.711 mu-law
•
G.711 a-law
•
G.722
•
G.729
•
iLBC
Supported recording codecs (system-level recording audio codecs):
•
PCM linear
•
G.711 mu-law (default)
•
G.711 a-law
•
G.729a
•
G.726
•
GSM 6.10
Because transcoding is inherent in every connection, there is little difference in system impact when the
line codec differs from the recording codec. For example, using G.729a as the line codec and G.711
mu-law as the recording codec does not place a significant additional load on the Unity Connection
server for transcoding. However, the iLBC or G.722 codecs require more computation to transcode, and
therefore they place a significant additional load on the Unity Connection server. Consequently, a Unity
Connection server can support only half as many G.722 or iLBC connections as it can G.711 mu-law
connections.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-15
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
For this example topology, the system recording codec is left at default (G.711 mu-law). The supported
line codes are set to G.729 and G.711 mu-law. Using this default configuration, the users located at the
same site of Unity Connection will use G711 mu-law. For the users located over the WAN from the
centralized Unity Connection servers, the selected line codec will be G.729.
Use of the G.722 or iLBC codec as line codecs or advertised codecs reduces the number of voice ports
that can be provisioned on the Cisco Unity Connection server. For more information on the number of
voice ports supported for each platform overlay when using G.722 or iLBC codecs, refer to the
documentation on Virtualization for Cisco Unity Connection.
Phone System Settings
Phone system integration enables communication between Unity Connection and Unified CM. We
recommend using default PhoneSystem if Unity Connection is integrated with single Unified CM
cluster. Table 5-9 shows the Phone System settings.
Table 5-9
Phone System Settings
Parameter
Value
Description
Phone System Name
PhoneSystem
PhoneSystem
Default TRAP Phone
System
Checked
Phone system enables TRAP connections so that
administrators and users without voicemail boxes can
record and playback through the phone in Unity
Connection web applications.
Call Loop Detection by Using Extension
Enable for Forwarded
Message Notification
Calls (by Using
Extension)
Checked
Unity Connection uses the extension to detect and reject
new-message notifications that are sent to a device
(such as a mobile phone) and that the device forwards
back to Unity Connection because the device did not
answer. If the call loop is not detected and rejected, the
call creates a new voice message for the user and
triggers Unity Connection to send a new-message
notification call to the device.
Checked
Unity Connection places outgoing calls (for example,
setting MWIs) as needed through the phone system.
Outgoing Call Restrictions
Enable outgoing calls
Port Group Settings
A port group is used to control the SIP communications between the Unified CM and Unity Connection
clusters. The port group allows the system to restrict and specify which Unified CM servers the Unity
Connection server will accept SIP messages from, and the order and preference that the Unity
Connection servers will use to route outbound calls to the Unified CM servers. The Unity Connection
servers are configured to mirror the Unified CM SIP routing design for Unity Connection, hence
outbound routing should be configured on Unity Connection servers to prefer the first available
Unified CM subscriber node. Table 5-10 provides the port group settings.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-16
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Table 5-10
Port Group Settings
Parameter
Value
Description
Display Name
PhoneSystem-1
Descriptive name for the Phone System
Integration Method
SIP
The method of integration that is used to connect
Unity Connection and Unified CM
Session Initiation Protocol (SIP) Settings
Register with SIP
Server
Checked
This ensures that Cisco Unity Connection is
registered with the SIP server.
Order 0
10.195.100.21
The SIP server configured for Order 0 will have
higher preference. Enter the IP address of the
primary Unified CM call processing node.
Order 1
10.195.100.20
The SIP server configured for Order 1 will have
lower preference. Enter the IP address of the
secondary Unified CM call processing node.
Port
5060
Enter the TCP port of the Unified CM server that
Unity Connection uses.
SIP Servers
Voice Messaging Port Sizing Considerations
Each Unity Connection server in a cluster must have voice messaging ports designated for the following
dial-in function in case either server has an outage:
•
Answer Calls
Further, each Unity Connection server must have voice messaging ports designated for the following
dial-out functions:
•
Sending message waiting indications (MWIs)
•
Performing message notifications
•
Allowing telephone record and playback (TRAP) connections
We recommend reserving 20% of the total number of voicemail ports on the system for message
notification, dial out MWI, and TRAP to reduce the possibility of call blocking on the ports for
answering calls versus ports dialing out.
Alternatively, the answer and dial-out port selection can be done using previous voicemail traffic reports.
Use the Port Usage Analyzer Tool to collect traffic for the last one or two weeks, then make adjustments
based on actual port traffic.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-17
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Port Settings
As discussed in the previous section, ports will be either incoming or outgoing ports. Table 5-11 shows
a voicemail port allocation configuration example, and Table 5-12 provides the configuration template
for answer port configuration.
Table 5-11
Voicemail Port Allocation Configuration Example
Cisco Unity Connection Server
Port Range
Function
US-CUC1
1-80
Answer
US-CUC2
1-80
Answer
US-CUC1
81-100
Dial-Out
US-CUC2
81-100
Dial-Out
Table 5-12
Voicemail Answer Port Configuration Example
Parameter
Value
Description
Enabled
Checked
Check the box to enable the phone system port.
Port Name
Auto Created
Unity Connection Automatically creates the port
name.
Phone System
PhoneSystem
Choose the appropriate Phone System.
Port Group
PhoneSystem-1
Choose the appropriate Port Group.
Server
US-CUC2/US-CUC1
Choose the Cisco Unity Connection subscriber
node first, and similarly add ports for the Unity
Connection publisher node.
Answer Call
Checked
This setting designates the port for answering the
call.
Perform Message
Notification
Unchecked
This setting designates the port for notifying users
of messages.
Send MWI Requests
Unchecked
This setting designates the port for sending MWI
on and off requests.
Allow TRAP
Connections
Unchecked
This setting designates the port for Telephony
Recording and Playback (TRAP) connections.
Phone System Port
Phone behavior
The configuration shown in the Table 5-12 should also be used to create voicemail dial out ports.
However, in the case of dial out ports, uncheck the Answer Call parameter and check the Perform
Message Notification, Send MWI Requests, and Allow TRAP Connection parameters instead.
Active Directory Integration
Unity Connection supports Microsoft Active Directory synchronization and authentication for Unity
Connection web applications, such as Cisco Personal Communications Assistant (PCA) for end users,
that rely on authentication against Active Directory. Likewise IMAP email applications that are used to
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-18
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
access Unity Connection voice messages are authenticated against the Active Directory. For telephone
user interface or voice user interface access to Unity Connection voice messages, numeric passwords
(PINs) are still authenticated against the Unity Connection database.
The administrator account must be created in the Active Directory that Unity Connection will use to
access the sub-tree specified in the user search base. We recommend using an account dedicated to Unity
Connection, with minimum permissions set to "read" all user objects in the search base and with a
password set to never expire.
Ensure that the Unified CM Mail ID field is synchronized with the Active Directory mail field. During
the integration process, this causes values in the LDAP mail field to appear in the Corporate Email
Address field in Unity Connection. Unity Connection uses Corporate Email Address in the Unified
Messaging account to enable Single Inbox.
Unity Connection integrates with Active Directory to enable importing of user information. Integrating
Unity Connection with an Active Directory provides several benefits:
•
User creation — Unity Connection users are created by importing data from the Active Directory.
•
Data synchronization — Unity Connection is configured to automatically synchronize user data in
the Unity Connection database with data in the Active Directory.
•
Single set of credentials — Configure Unity Connection to authenticate user names and passwords
for Unity Connection web applications against the Active Directory, so that users do not have to
maintain multiple application passwords.
Refer the Call Control chapter for Active Directory settings.
Unity Connection Partitions and CSS
All the users for this deployment are configured in the default calling search space (US-CUC1 Search
Space), which contains the default partition (US-CUC1 partition).
Restriction Tables
Unity Connection uses restriction tables to prevent the voicemail system from calling unauthorized
telephone numbers. These rules are normally configured to explicitly match either allowed or blocked
numbers. For this deployment, the Unity Connection system is not using restriction rules for call
blocking from the voicemail system but instead is using the SIP trunk incoming calling search space
(CSS) to prevent unauthorized calling from Unity Connection. The SIP trunk CSS is set to allow Unity
Connection to dial only on-net destinations. Table 5-13 lists the Default Transfer restriction table
settings.
Table 5-13
Restriction Table in Unity Connection
Order
Blocked
Pattern
0
Uncheck the check box
+*
1
Uncheck the check box
9+*
2
Uncheck the check box
91???????*
3
Uncheck the check box
9011???????*
4
Uncheck the check box
9???????????*
5
Uncheck the check box
900
6
Uncheck the check box
*
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-19
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Unity Connection contains four additional restriction tables for Default Fax, Default Outdial, Default
System Transfer, and User-defined and Automatically-Added Alternate Extensions. These restriction
tables can also be disabled using the settings mentioned in Table 5-13.
Class of Service
Class of service (CoS) defines limits and features for users of Unity Connection voice mail. Class of
service is typically defined in a User Template, which is then applied to the user's account when it is
created. For this deployment, the default Voice Mail User COS is associated with all users.
User Provisioning
Import the users into Unity Connection by using the user template from the Active Directory server. The
user template contains settings that are common to a group of users. Users inherit the common settings
from the user template when their account is created. Separate user templates should be created for each
site in the local time zone. Table 5-14 provides the user template settings.
Table 5-14
Voicemail User Template
Section
Field
Value
Basics
Alias
SJC_User_Template
Display Name
SJC_User_Template
Display Name Generation
First name, then last name
Phone System
PhoneSystem
Class of Service
Voice Mail User COS
Set for Self-enrollment at Next Login
Checked
List in Directory
Checked
Time Zone
(GMT-8:00)
America/Los_Angeles
Language
English(United States)
Generate SMTP Proxy Address from the
Corporate Email Address
Checked
User Must Change at Next Sign-In
Checked
Does Not Expire
Checked
Authentication Rule
Recommended Voice Mail
Authentication Rule
PIN
30071982
Password Settings - VM
Change Password-Voicemail
Basing new user settings on a template minimizes the number of settings to be modified on individual
user accounts, making the job of adding users quicker and less prone to error.
Note that any subsequent user template changes (after the creation of user accounts using the template)
are not applied to existing user accounts; that is, the common settings are picked up from the template
at user account creation time only. An individual user's settings can be changed after the template has
been used to create a Unity Connection account without affecting the template or other users.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-20
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
The web application password should not be changed here because Unity Connection is integrated with
LDAP and user authenticates from Active Directory. You have to give these PINs and passwords to users
so that they can sign in to the Unity Connection system telephone user interface (TUI) and to the Cisco
Personal Communications Assistant (PCA).
Select the options Allow Users to Use the Messaging Assistant and Allow Users to Use the Web Inbox
and RSS Feeds under Voice Mail User COS class of Service to allow users to access their web inbox
using Cisco PCA.
Import the users from LDAP using the template created above.
Unity Connection User Self Enrollment
End users must enroll as Unity Connection users. The Unity Connection administrator should provide
an ID (usually the user’s desk phone extension) and a temporary PIN (set during User Provisioning) for
each user. The first-time enrollment conversation is a set of prerecorded prompts that guide users to do
the following tasks:
•
Record user name.
•
Record a greeting that outside callers hear when the user does not answer the phone.
•
Change user PIN.
•
Choose whether to be listed in the directory. (When the user is listed in the directory, callers who do
not know the user’s extension can reach the user by spelling or saying user’s name.)
Unity Connection users can dial the voicemail pilot number from an IP endpoint within the organization
or from the outside network for the self-enrollment process. If the user is calling from an extension
number that is unknown to Unity Connection, either from within your organization or from outside, the
user must press * (star key) when Unity Connection answers to continue the self-enrollment process. If
the user hangs up before enrollment finishes, the first-time enrollment conversation plays again the next
time the user signs in to Unity Connection.
4. Enable Single Inbox
Single Inbox, one of the unified messaging features in Unity Connection, synchronizes voice messages
in Unity Connection and Microsoft Exchange mailboxes. When a user is enabled for a Single Inbox, all
Unity Connection voice messages that are sent to the user, including those sent from Unity Connection
ViewMail for Microsoft Outlook, are first stored in Unity Connection and immediately replicated to the
user's Exchange mailbox. This section explains configuration tasks required for integrating Unity
Connection with Microsoft Exchange 2013 and 2010 to enable Single Inbox.
Perquisites for Enabling Single Inbox with Unity Connection
•
Before enabling the Single Inbox feature, ensure that Microsoft Exchange is configured and users
can send and receive emails.
•
Microsoft Active Directory is required for Unified Messaging service account authentication.
•
Unity Connection users are imported and configured for basic voice messaging. See the section on
User Provisioning.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-21
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Unity Connection Certificate Management
When you install Cisco Unity Connection, local self-signed certificates are automatically created and
installed to secure communication between Cisco PCA and Unity Connection, and between IMAP email
clients and Unity Connection. This means that all the network traffic (including usernames, passwords,
other text data, and voice messages) between Cisco PCA and Unity Connection is automatically
encrypted, and the network traffic between IMAP email clients and Unity Connection is automatically
encrypted, if you enable encryption in the IMAP clients.
The other option is to use the certificate issued by the certificate authority (CA).In this case self-signed
certificates are replaced with certificates issued and signed by a trusted CA.For more information on this
process, refer to the section on Cisco Unified CM and IM and Presence Certificate Management.
Confirm the Exchange Authentication and SSL Settings for Unity Connection
Confirm that the Exchange server is configured for the desired web-based authentication mode (Basic,
Digest, or NT LAN Manager) and web-based protocol (HTTPS or HTTP).The authentication mode must
match on both Exchange and Unity Connection for them to communicate.
If you select the option to validate certificates signed by an external CA for Exchange servers and Active
Directory domain controllers, obtain and install the external CA signed certificate on both the Exchange
and domain controller servers.
Configure SMTP Proxy Addresses in Unity Connection
When Single Inbox is configured, Unity Connection uses SMTP proxy addresses to map the sender of a
message that is sent from Unity Connection ViewMail for Microsoft Outlook to the appropriate Unity
Connection user, and to map recipients to Unity Connection users.
For example, suppose an email client is configured to access Unity Connection with the email address
[email protected] This user records a voice message in ViewMail for Outlook and sends it to user
[email protected] Unity Connection then searches the list of SMTP proxy addresses for
[email protected] and [email protected] If these addresses are defined as SMTP proxy addresses for
the Unity Connection users ahall and aross respectively, Unity Connection delivers the message as a
voice message from the Unity Connection user aross to the Unity Connection user ahall.
The SMTP proxy address for the user is automatically created when you import the users via the user
template. In the user template, select the Generate SMTP Proxy Address from the Corporate Email
Address option for creating the SMTP proxy address. Refer to the section on User Provisioning for more
information.
Create Unified Messaging Services Account in Active Directory and Grant Permissions for Unity Connection
Single Inbox requires an Active Directory account (called the Unified Messaging Services account), and
the account must have the rights necessary for Unity Connection to perform operations on behalf of
users. Unity Connection accesses Exchange mailboxes using the Unified Messaging Services account.
When creating the Unified Messaging Services account, follow these guidelines:
•
Do not create an Exchange mailbox for the account.
•
Do not add the account to any administrator group.
•
Do not disable the account, otherwise Unity Connection cannot use it to access Exchange mailboxes
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-22
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Sign in to a server on which the Exchange Management Shell is installed and assign the
ApplicationImpersonation Management role to the Unified Messaging Services account for Unity
Connection using the following command:
new-ManagementRoleAssignment -Name: RoleName -Role:ApplicationImpersonation -User:'
Account '
Where:
•
RoleName is the name that you want to give the assignment; for example, Unity
ConnectionUMServicesAcct. The name that you enter for RoleName appears when you run the
command get-ManagementRoleAssignment.
•
Account is the name of the Unified Messaging Services account in domain\alias format.
SMTP Smart Host
Unity Connection relays the message to the user email address using SMTP Smart Host. When a Unity
Connection user receives a new message, Unity Connection can send a text notification to an email
address. With this type of notification, you can configure Unity Connection to include a link to
Cisco PCA in the body of the email message. Under the user configuration, navigate to the Edit
Notification Device page for the user and select the option to Include a Link to the Cisco Unity
Connection Web Inbox in Message Text. Table 5-15 lists the SMTP Smart Host configuration.
Table 5-15
SMTP Smart Host Details (System Settings > SMTP Configuration > Smart Host)
Parameter
Value
SmartHost
US-EXCH1.ent-pa.com
Unified Messaging Service
In Unity Connection Administration, expand Unified Messaging, then select Unified Messaging
Services.
•
Unified Messaging Services define the type of Microsoft Exchange and authentication method that
Unity Connection will use to communicate with Microsoft Exchange.
•
Configure Unified Messaging Services to communicate with a specific Exchange server using an
FQDN.
•
Configure the Unity Connection Unified Messaging Services for the same Web-based
Authentication Mode (Basic, Digest, or NT LAN Manager) and Web-Based Protocol (HTTPS or
HTTP) that is configured on Microsoft Exchange.
•
Enter the Active Directory account credentials created in the section Create Unified Messaging
Services Account in Active Directory and Grant Permissions for Unity Connection.
•
Select the options to Access Exchange Calendar and Contacts and Synchronize Connection and
Exchange Mailboxes (Single Inbox) to enable Unified Messaging features.
•
Self-signed certificates cannot be validated. If you want the Unity Connection server to validate SSL
certificates from Exchange, then use the public certificates from a certification authority (CA)
instead of self-signed certificates. Refer to the section on Unity Connection Certificate Management
for details.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-23
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Unified Messaging Account
In Unity Connection Administration, expand Users then select Users. On the Edit User Basics page, in
the Edit menu, select Unified Messaging Accounts.
•
When you create a user account, Unity Connection does not automatically create a unified
messaging account for that user. A unified messaging account can be created for one user or multiple
users. Use the Bulk Administration Tool (BAT) to create the unified messaging account for large
number of users.
•
Unified messaging requires that you enter the Exchange email address for each Unity Connection
user. On the Unified Messaging Account page, select Use Corporate Email Address: None
Specified to cause Unity Connection to use the corporate email address specified on the Edit User
Basics page as the Exchange email address.
•
In the Active Directory integration, the Unified CM Mail ID field is synchronized with the Active
Directory mail field. This causes values in the LDAP mail field to appear in the Corporate Email
Address field in Unity Connection.
For more information on creating unified messaging accounts for multiple users with the Bulk
Administration Tool, refer to the System Administration Guide for Unity Connection.
Voice Mail User COS
Edit the Voice Mail User Class of Service (Class of Service –> Voice Mail User COS) to enable the
user for Single Inbox. In the Licensed Features select the option to Allow Users to Access Voicemail
Using an IMAP Client and/or Single Inbox. Also select the option to Allow IMAP Users to Access
Message Bodies.
Install ViewMail for Outlook on User Workstations
Cisco ViewMail for Microsoft Outlook provides a visual interface from which users can send, listen to,
and manage their Unity Connection voice messages from within Outlook. Download Unity Connection
ViewMail for Microsoft Outlook from the Cisco website and install it on each user workstation. After
installing ViewMail, open the ViewMail settings or Options tab and associate an email account with a
Unity Connection server. Enter the user information and Unity Connection server details.
When using another email client to access Unity Connection voice messages in Exchange, or in cases
when ViewMail for Outlook is not installed, note the following:
•
The email client treats Unity Connection voice messages like emails with .wav file attachments.
•
When a user replies to or forwards a Unity Connection voice message, the reply or forward is treated
like an email, even if the user attaches a .wav file. Message routing is handled by Exchange, not by
Unity Connection, so the message is never sent to the Unity Connection mailbox for the recipient.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-24
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
5. Enable Visual Voicemail
Visual Voicemail provides access to Unity Connection directly from the voicemail tab on Jabber clients.
Users can view a list of voice messages and play messages from Jabber. Users can also delete voice
messages.
Unity Connection Configuration
•
Ensure that the Unity Connection users are imported and configured for basic voice messaging.
Refer to the section on User Provisioning.
•
Ensure that the Unity Connection Connection Jetty service and Connection REST Service are up
and running. Both services are activated during Service Activation under the Optional Services
category.
•
Ensure that Class of Service is enabled for voicemail access from the IMAP client. Refer the section
on Voice Mail User COS.
•
Edit the Unity Connection Voice Mail Class of Service (CoS) to allow users to use web inboxes.
Under the Features tab, select the option to Allow Users to Use Unified Client to Access
Voicemail.
•
Select the following options under the API settings (System Settings > Advanced):
– Allow Access to Secure Message Recordings through CUMI
– Display Message Header Information of Secure Messages through CUMI
– Allow Message Attachments through CUMI
Unified CM Configuration
Add a Voicemail UC service for each Unity Connection server node. Table 5-16 shows the voicemail
UC service configuration.
Table 5-16
Voicemail Service Settings (User Management > User Settings > UC Service)
Parameter
Value
Comments
Product Type
Unity Connection
Enter the product name of the voicemail system.
Name
us-cuc1
Enter the name of the voicemail service. Choose
the display name that will help to distinguish
between publisher and subscriber voicemail
services.
Description
us-cuc1
Enter the display name that will help to distinguish
between publisher and subscriber voicemail
services.
Host Name/IP address
us-cuc1.ent.pa.com
Enter the address of the voicemail service in either
IP address or FQDN format.
Port
443
Enter the port to connect with the voicemail
service.
Protocol
HTTPS
Select the protocol to route voice messages
securely.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-25
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Apply the Voicemail UC service created previously to the Standard Service Profile (User Management
–> User Settings –> Service Profile). Ensure that the Voicemail UC service created for Unity
Connection publisher (us-cuc1.ent.pa.com) is set to the primary profile and the Unity Connection
subscriber (us-cuc2.ent.pa.com) is set to the secondary profile. To synchronize credentials for the
voicemail service, select Unified CM - IM and Presence from the Credentials source for voicemail
service drop-down list.
6. Voice Mail in SRST Mode
With the centralized messaging deployment model, during a WAN outage the branch site’s Survivable
Remote Site Telephony (SRST) routes the unanswered and busy calls to the central Unity Connection.
Incoming calls that reach a busy signal, calls that are unanswered, and calls made by pressing the
message button are forwarded to Unity Connection. This configuration allows phone message buttons to
remain active. To enable this functionality, configure POTS dial peer access to Unity Connection through
PRI.
When calls are routed over the PSTN to Unity Connection, Redirected Dialed Number Information
Service (RDNIS) is critical. Incorrect RDNIS information can affect calls to voicemail that are rerouted
over the PSTN. If the RDNIS information is not correct, the call will not reach the voicemail box of the
dialed user but will instead receive the automated attendant prompt, and the caller might be asked to
reenter the extension number of the party they wish to reach. This behavior is primarily an issue when
the telephone carrier is unable to ensure RDNIS across the network. There are numerous reasons why
the carrier might not be able to ensure that RDNIS is properly sent. Check with your carrier to determine
whether it provides guaranteed RDNIS delivery end-to-end for your circuits.
Unified CM Configuration
Ensure that the settings mentioned in Table 5-17 are enabled in Unified CM configuration for the SIP
trunk to the central site PSTN gateway.
Table 5-17
Settings for the SIP Trunk to the PSTN gateway for Voicemail in SRST Mode
Parameter
Value
Comments
Call Routing Information – Inbound Calls
Redirecting Diversion
Header Delivery Inbound
Checked
This ensures that the redirecting Information Element, the
first redirecting number, and the call forward reason are
sent and accepted as a part of incoming messages. Unity
Connection uses the first redirecting number to answer the
call.
Call Routing Information – Outbound Calls
Redirecting Diversion
Header Delivery Outbound
Checked
This ensures that the redirecting Information Element, the
first redirecting number, and the call forward reason are
sent and accepted as a part of outgoing messages. Unity
Connection uses the first redirecting number to answer the
call
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-26
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Branch SRST Router Configuration
Configure the following command on the branch site SRST router to enable voicemail access over PRI.
!
!
dial-peer voice 10 pots
destination-pattern +14085554999
direct-inward-dial
port 1/0:15
!
!
voice register pool 1
call-forward b2bua busy +14085554999
call-forward b2bua noan +14085554999 timeout 12
!
!
7. HTTPS Internetworking of Two Unity Connection Clusters
Figure 5-4 shows HTTPS internetworking of two Unity Connection clusters. HTTPS networking
connects multiple Unity Connection clusters so that they can share directory information and exchange
of voice messages. You can join two or more Unity Connection servers or clusters to form a
well-connected network, referred to as a Unity Connection site. The servers that are joined to the sites
are referred to as locations. Within a site, each location uses HTTPS protocol to exchange directory
information and SMTP protocol to exchange voice messages with each other.
Within a site, Unity Connection locations automatically exchange directory information, so that a user
in one location can dial out to or address messages to a user in any other system by name or extension,
provided that the target user is reachable in the search scope of the originating user. The networked
systems function as though they share a single directory.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-27
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Figure 5-4
HTTPS Internetworking of Two Unity Connection Clusters
In HTTPS networking, Unity Connection clusters are joined together using a hub-and-spoke topology.
In this topology, all the directory information among the spokes is shared through the hub that connects
the spokes. The number of Unity Connection locations that can be connected in an HTTPS network and
the maximum number of users in HTTPS networking depend on the deployed OVA template. For more
information on the maximum number of supported locations and maximum directory size, refer to the
information on directory object limits in the System Requirements for Cisco Unity Connection.
In HTTPS networking, the directory replication is accomplished by means of a Feeder service and a
Reader service running on each location in the network. The Reader service periodically polls the remote
location for any directory changes since the last poll interval. The Feeder service checks the change
tracking database for directory changes and responds to poll requests with the necessary information.
In the HTTPS networking, when the publisher server of a cluster location is up and running, it is
responsible for the synchronization of directory information. However, if the publisher server is down,
the subscriber server takes the role of synchronizing directory information.
Depending upon the server of a cluster (publisher or subscriber) with which the directory
synchronization is being performed, the directory synchronization can be either of the following types:
•
Standard — Specifies that the directory synchronization is done by the publisher server with the
connected locations.
•
Alert — Specifies that the publisher server is unreachable and the subscriber server is responsible
for providing directory information to the connected locations. However, the subscriber server has
the directory information stored that was last synchronized with the publisher server when it was
running.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-28
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
In the event of a publisher failure, directory synchronization occurs in the Alert mode. During the Alert
mode, the connected nodes in the HTTPS network have limited access to directory synchronization with
the subscriber. The limited access means that the connected nodes can fetch only the directory
information that was last synchronized with the publisher when it was running. When the publisher
comes up, the nodes that are directly connected to the publisher synchronize the updated directory
information through the publisher. Therefore, the key benefit of the Alert mode is that the connected
nodes remain synchronized with the subscriber server even when the publisher is down.
The clusters that are networked together are directly accessible through TCP/IP port 25 (SMTP).In
addition, both locations must be able to route to each other via HTTP on port 8081 or HTTPS on
port 8444.
For the purposes of this deployment documentation, we assume there is HTTPS networking between US
and EMEA Unity Connection clusters. Table 5-18 shows the server node information of both clusters
that are joined using HTTPS networking.
Table 5-18
Unity Connection Cluster Details for HTTPS Networking
US Unity Connection Cluster
EMEA Unity Connection Cluster
Server
Hostname
IP address
Hostname
IP address
Publisher
US-CUC1
10.195.100.30
EMEA-CUC1
10.195.99.30
Subscriber
US-CUC2
10.195.100.31
EMEA-CUC2
10.195.99.31
To set up HTTPS networking between two Unity Connection clusters, perform the following tasks
described in this section.
Check the Display Name and SMTP Domain of Each Unity Connection Server
•
The Unity Connection server that you join to an HTTPS network must have a unique display name
and SMTP domain.
•
Before enabling HTTPS networking, verify the display name and SMTP domain of the Unity
Connection publisher server in the Networking –> Locations settings.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-29
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Create the HTTPS Network Between Unity Connection Clusters
•
To create an HTTPS network of Unity Connection servers, start by linking two clusters together by
creating an HTTPS link and then ensuring that the subscribers of each cluster are added for the
SMTP Access.
•
On each Unity Connection publisher, add a new HTTPS link. Table 5-19 shows the HTTPS Link
settings.
Table 5-19
HTTPS Link Settings (Networking > HTTP(s) Links)
Parameter
Value
Comments
Link to Cisco Unity Connection Remote Location
Publisher (IP
address/FQDN/Hostna
me)
emea-cuc1.ent-pa.com
Enter the IP address, fully qualified domain name
(FQDN), or hostname of the remote Unity
Connection publisher node.
Username
Name of admin user
Enter the Username of an administrator at the
location specified in the above publisher field. The
administrator user account must be assigned the
System Administrator role.
Password
Password of the admin
user
Enter the password for the administrator specified
in the Username field.
Use Secure Socket
Layer (SSL)
Checked
This option enables SSL to encrypt directory
synchronization traffic between the various
HTTPS locations.
Accept Self-Signed
Certificates
Check the check box
only if a self-signed
certificate is used
Check this check box to allow the local node in a
network to use a self-signed certificate to
negotiate SSL with this location. Uncheck this
check box to require the local node in a network to
use a certificate signed by a certificate authority
(CA).
Transfer Protocol
Configure SMTP Access for Cluster Subscriber Servers
In an HTTPS network that includes a Unity Connection cluster server pair, you can join only the
publisher server of the pair to the network. In order for all locations in the network to communicate
directly with the cluster subscriber server node when the subscriber is the primary server, all network
locations should be configured to allow SMTP connections from the subscriber server.
In this example we are adding the EMEA subscriber to the SMTP configuration of the US publisher, as
well as adding the US subscriber to the EMEA publisher SMTP configuration.
•
In the US cluster on the US publisher, add the EMEA subscriber to the SMTP configuration (System
Settings). In the Edit menu, select Search IP Address Access List. On the New IP Address page,
enter the IP address of an EMEA subscriber server (10.195.99.31 in this example). Ensure that the
Allow Connection option is selected.
•
Repeat the above steps on the EMEA cluster publisher, emea-cuc1.ent-pa.com, to add the US cluster
subscriber IP address.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-30
November 20, 2015
Chapter 5
Core Applications
Unified Messaging with Cisco Unity Connection
Replication Between the Locations
After creating the HTTPS network, verify that the complete database is replicated between the two
locations added to network. When initial replication begins, it can take a few minutes to a few hours for
the data to be fully replicated between all locations, depending on the size of your directory.
Open the HTTP(S) Link created in the above step, and check the following values:
•
Time of Last Synchronization
Indicates the time stamp of the last time the local reader service attempted to poll the remote location
feeder service for directory changes on the remote locations, regardless of whether a response was
received.
•
Time of Last Failure
Indicates the time stamp of the last time the local reader service encountered an error while
attempting to poll the remote location feeder service. If the value of this field is 0, or if the Time of
Last Synchronization value is later than the Time of Last Error value, replication is likely to be
progressing without problems.
•
Object Count
Indicates the number of users that the local Unity Connection location has synchronized from the
remote location.
Add Remote Location Partition to Local Unity Connection CSS
When you initially set up a network between locations, users that are provisioned on the US cluster will
not able to send voice messages to users on the EMEA cluster because the users in each location are in
separate partitions and separate user search spaces that do not contain the partitions of users in the other
locations.
•
Edit the us-cuc1 calling search space (CSS) configured for the US Unity Connection server to
include the EMEA location Unity Connection server partition emea-cuc1.
•
Edit the emea-cuc1 CSS configured for the EMEA Unity Connection server to include the US
location Unity Connection server partition us-cuc1.
Related Documentation
•
Voice Messaging chapter of the Cisco Collaboration System SRND
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/vmessage.ht
ml
•
Design Guide for Cisco Unity Connection
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/design/guide/11xcucdgx.ht
ml
•
HTTPS Networking Guide for Cisco Unity Connection
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/https_networking/guide/11
xcuchttpsnetx.html
•
Unified Messaging Guide for Cisco Unity Connection
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/unified_messaging/guide/1
1xcucumgx.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-31
Chapter 5
Core Applications
Tools for Application Deployment
Tools for Application Deployment
In addition to applications such as Unity Connection, described in this chapter, there are two useful tools
to help administrators deploy the Enterprise Collaboration Preferred Architecture:
•
Cisco Prime Collaboration Deployment — Assists the administrator by automating many of the
steps necessary to install Unified CM clusters with IM and Presence Servers and Unity Connection
clusters.
•
Cisco Prime License Manager — Is deployed as a standalone tool to provide the administrator with
a single management point for the various licenses used in a deployment.
Cisco Prime Collaboration Deployment (PCD)
Prime Collaboration Deployment (PCD) assists the administrator with the tasks of deploying new
clusters of Unified CM and IM and Presence servers and Unity Connection. The automation greatly
assists administrators by configuring all common settings in the nodes of the cluster.
PCD is a standalone application that must be installed on its own virtual machine prior to beginning any
other installation tasks. To install a new cluster using PCD:
1.
Deploy the host hardware and configure the ESXi.
2.
Download the necessary OVA template and Cisco ISO images for the target release.
3.
Deploy the recommended OVA template for your enterprise:
a. Create the virtual machines for each node on the ESXi hosts (one virtual machine for each node
to be installed).
b. Configure the network settings on the new virtual machines.
4.
Add the ESXi host to the PCD user interface.
5.
Create a new task within PCD for the type of cluster being created. Define the nodes to be installed
and their associated virtual machines.
Cisco PCD will then complete the process of installing the application on the virtual machines and will
provide an email notification to the administrator when the task is complete.
Cisco Prime License Manager (PLM)
Cisco Prime License Manager (PLM) provides simplified, enterprise-wide management of user-based
licensing, including license fulfillment. Cisco Prime License Manager handles licensing fulfillment,
supports allocation and reconciliation of licenses across supported products, and provides
enterprise-level reporting of usage and entitlement.
A single virtual machine is required for an enterprise, and the application should be backed up through
VMware tools. As a standalone instance of PLM, all nodes of the Preferred Architecture could be
effectively managed. Since this is not an end-user facing application and does not have any real-time
usage impacts, no clustering is required. Since one of the features of PLM is the ability to support
e-Fulfillment of additional licenses, this server must have access to the Internet to pull new license files.
In cases where PLM does not have access to the Internet, the system administrator can create a request
using the "Generate License Request…" option. The administrator submits the license request on the
Cisco License Registration website and receives an applicable license file by email. The administrator
then uploads this file to the system using the "Fulfill licenses from File…" option.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-32
November 20, 2015
Chapter 5
Core Applications
Additional Applications
Within the Preferred Architecture, the following products are supported by PLM:
•
Cisco Unified CM
•
Cisco Unity Connection
Key features of PLM that benefit the administrator:
•
License usage history
•
e-Fulfillment of new licenses
License Usage History
The ability for an administrator to track usage of collaboration portfolio licenses over time gives that
administrator better ability to plan for additional licenses when needed. In addition, this license usage
tool assists the administrator with remaining in compliance with all license usage rules.
An application is allowed 60 days of non-compliance, during which administrators can make changes if
there are insufficient licenses or if the PLM node has lost communication with the application node.
After 60 days of non-compliance, the Unified CM application(s) will no longer allow administrative
changes; however, the application(s) will continue to function (call control) with no loss of service. After
60 days of non-compliance, the Unity Connection application(s) will allow administrative changes, but
the application(s) will not continue to function (users will not have access to voice messaging).
e-Fulfillment of New Licenses
When the administrator needs to procure additional licenses, the e-Fulfillment tool within PLM
simplifies the number of steps required, and it imports the licenses into the appropriate product for use.
Additional Applications
There are many additional applications provided by Cisco and ecosystem partners that enhance a
collaboration environment. Table 5-20 is not intended to be all-inclusive, but it lists some frequently
referenced applications for customer deployments.
Table 5-20
Additional Cisco Applications for the Preferred Architecture
Application Name
Functions
Integration Method
Contact Center Enterprise
(CCE)
Enterprise contact centers operate on a
Provides internal and external customer
dedicated Unified CM cluster that is trunked
collaboration technologies, including agent
to the enterprise Unified CM cluster.
login, Interactive Voice Response (IVR) for
call vectoring, outbound connection methods,
and multi-channel agent interactions.
Contact Center Express
(CCX)
Provides dial-by-name and a subset of
Communicates through JTAPI to Unified CM.
Contact Center ideal for small contact centers
or internal use.
TelePresence Content Server Provides video, audio, and content recording Integrates with Unified CM via a SIP trunk
and enables recording for devices registered
(TCS)
functionality that can be included in
scheduled calls through a check-box in TMS to Unified CM.
or dialed, allowing any endpoint to easily be a
recording station.
Show and Share
Provides an internal stored video content
portal.
TCS automatically uploads content to Show
and Share. No other integration to call control
is required.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
5-33
Chapter 5
Core Applications
Additional Applications
Table 5-20
Additional Cisco Applications for the Preferred Architecture (continued)
Application Name
Functions
Integration Method
Prime Collaboration
Provisioning
Provides an administrative portal for "Day 2" Standalone software that communicates
operations.
through SSH and HTTPS interfaces of
infrastructure devices and endpoints.
Prime Collaboration
Assurance
Provides quality and fault detection services
for collaboration deployment administrator
Standalone software that communicates
through SSH and HTTPS interfaces of
infrastructure devices and endpoints
Prime Collaboration
Analytics
Provides up to one year of usage data for
usage and fault trend analysis by the
collaboration deployment administrator.
Deployed with Prime Collaboration
Assurance and utilizes data collected by that
application.
Attendant Console
Gives corporate operators or receptionists a
Standard version installs on the end user’s
desktop application to handle incoming calls. Windows computer and connects to
Unified CM.
Advanced version runs on a dedicated server,
and the end users log into the application.
MediaSense
Provides recording for both full-time and
selective recording scenarios in Unified CM.
Recording Profiles are configured in
Unified CM, and MediaSense is connected to
Unified CM and Cisco Unified Border
Element through SIP trunks.
Jabber Guest
Provides click-to-connect functionality for
business-to-consumer (B2C) collaboration.
Requires a dedicated Expressway-C and
Expressway-E pair, using a distinct domain
from the enterprise Expressway-C and
Expressway-E implementation used for
Mobile and Remote Access and
business-to-business video calls. Unified CM
has SIP trunks to this dedicated Expressway
pair.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
5-34
November 20, 2015
CH A P T E R
6
Bandwidth Management
Revised: November 20, 2015
This chapter describes the bandwidth management strategy for the Cisco Preferred Architecture (PA) for
Enterprise Collaboration.
Certain requirements might put your deployment outside the PA design guidelines and
recommendations, in which case you might have to use other documentation such as the Cisco
Collaboration SRND and related product documentation for a more customized architecture.
The first part of this chapter provides an architectural overview and introduces some fundamental design
concepts, while the second part covers deployment procedures. The Architecture section discusses topics
such as identification and classification, queuing and scheduling, provisioning and admission control,
using the hypothetical customer topology presented in the examples throughout this document. The next
portion of this chapter is the Bandwidth Management Deployment section. The deployment examples in
that section help you to understand the implementation of certain design decisions more clearly than an
abstract discussion of concepts can. The order of the topics in the Bandwidth Management Deployment
section follows the recommended order of configuration.
Note
This chapter is a new addition to the 11.0 release of this document. We recommend that you read this
entire chapter before attempting to implement bandwidth management for the Preferred Architecture for
Enterprise Collaboration.
Core Components
The Quality of Service (QoS) architecture contains these key components:
•
Cisco Unified Communications Manager
•
Cisco endpoints
•
Cisco Expressway
•
Cisco Unity Connection
•
Cisco TelePresence Server
•
Cisco TelePresence Conductor
•
Network infrastructure:
– Cisco routers
– Cisco switches
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-1
Chapter 6
Bandwidth Management
Figure 6-1 illustrates the design approach to QoS used in the Cisco PA for Enterprise Collaboration. This
approach consists of the following phases:
Figure 6-1
•
Identification and classification — Refers to concepts of trust and techniques for identifying
media and call signaling for endpoints and applications. It also includes the process of mapping the
identified traffic to the correct DSCP to provide the media and signaling with the correct per-hop
behavior end-to-end across the network.
•
Queuing and scheduling — Consists of general WAN queuing and scheduling, the various types of
queues, and recommendations for ensuring that collaboration media and signaling are correctly
queued on egress to the WAN.
•
Provisioning and admission control — Refers to provisioning the bandwidth in the network and
determining the maximum bit rate that groups of endpoints will utilize. This is also where call
admission control can be implemented in areas of the network where it is required.
•
Monitoring, troubleshooting, and optimization — Ensures the proper operation and management
of voice and video across the network. Cisco Prime Collaboration offers a suite of tools to perform
these functions. Monitoring, troubleshooting and optimization are not covered in the Preferred
Architectures but are part of the overall approach.
Architecture for Bandwidth Management
Management
WAN
EF
AF41
1
Identification
Classification
Queuing and
Scheduling
Provisioning
and
Admission
Control
Monitor
Troubleshoot
Optimize
349564
CS3
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-2
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Recommended Deployment
•
Identify media and SIP signaling traffic from the endpoints.
•
Classify and mark traffic at the access switch edge.
– Mark all audio with Expedited Forwarding class EF (includes all audio of voice-only and video
calls).
– Mark all critical desktop and room system video with an Assured Forwarding class of AF41.
– Mark all Jabber, mobile and remote access (MRA), and edge video with an Assured Forwarding
class of AF42.
– Mark all call signaling with CS3.
– Configure QoS on all media originating and terminating applications and MCUs across the
solution.
•
Apply simplified WAN edge policies for identifying, classifying, marking, and queuing
collaboration traffic:
– WAN edge ingress re-marking policy
– WAN edge egress queuing and scheduling policy
•
Group video endpoints into classes according to maximum video bit rate, to limit bandwidth
consumption based on endpoint type and usage within the solution.
•
Deploy Enhanced Locations Call Admission Control and limit video calling only in areas of the
network where bandwidth resources are restricted.
Key Benefits
This deployment of bandwidth management provides the following benefits:
•
Provides prescriptive recommendations to simplify deployment with a simplified QoS architecture
•
Makes more efficient use of network resources
•
Supports mobile and multi-media Collaboration devices
•
Takes into account "unmanaged" network segments (Internet)
•
Is "future-proof" because it facilitates introduction of new services, features, and endpoints
Architecture
Bandwidth management is about ensuring the best possible user experience end-to-end for all voice and
video endpoints, clients, and applications in the Collaboration solution. This chapter provides a holistic
approach to bandwidth management, incorporating an end-to-end Quality of Service (QoS) architecture
with call admission control and video rate adaptation and resiliency mechanisms to ensure the best
possible user experience for deploying pervasive video over managed and unmanaged networks.
This section starts with a discussion of collaboration media, the differences between audio and video,
and the impact this has on the network. Next this section outlines an end-to-end QoS architecture for
collaboration that includes: identification and classification of collaboration media and SIP signaling for
endpoints, clients, and applications; WAN queuing and scheduling; and bandwidth provisioning and
admission control. The next section on Bandwidth Management Deployment explains the steps involved
in implementing this architecture in both the collaboration and network architecture.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-3
Chapter 6
Bandwidth Management
Architecture
The Network Infrastructure chapter of the Collaboration SRND lays the foundation for QoS in the LAN
and WAN. If you are unfamiliar with the concepts of QoS, it is important to read that chapter to fully
understand the concepts discussed therein. This chapter assumes an understanding of QoS.
Note
Introduction
In this Preferred Architecture, usage of the Internet and cloud-based services such as WebEx are an
important aspect of the solution, which means that some of the Collaboration infrastructure is located
outside of the managed enterprise network and located in the cloud. The enterprise office connectivity
options also range from remote sites and mobile users connected over managed leased lines directly
connected to MPLS or other technologies, to being connected over the Internet through technologies
such as Dynamic Multipoint VPN (DMVPN), for example. Figure 6-2 illustrates the convergence of a
traditional on-premises Collaboration solution in a managed (capable of QoS) network with cloud
services and sites located over an unmanaged (not capable of QoS) network such as the Internet.
On-premises remote sites are connected over this managed network, where administrators can prioritize
collaboration media and signaling with QoS, while other remote sites and branches connect into the
enterprise over the Internet, where collaboration media and signaling cannot be prioritized or prioritized
only outbound from the site. Many different types of mobile users and teleworkers also connect over the
Internet into the on-premises solution. So the incorporation of the Internet as a source for connecting the
enterprise with remote sites, home and mobile users, as well as other businesses and consumers, has an
important impact on bandwidth management and user experience.
Figure 6-2
Managed versus Unmanaged Network
Call Control
On-premises
UC Services
Central
Site
Cloud Services
QoScapable
B2B
B2C
Managed
WAN
Internet
DMVPN
DM
MVP
Remote Sites
Rem
Home/Mobile Users
349565
MP
MPLS
PLS
VP
PN
N
VPN
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-4
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
This section presents a strategy for leveraging smart media techniques in Cisco video endpoints, building
an end-to-end QoS architecture, and using the latest design and deployment recommendations and best
practices for managing bandwidth to achieve the best user experience possible based on the network
resources available and the various types of networks that collaboration media traverse.
Collaboration Media
This section covers the characteristics of audio and video streams in real-time media as well as the smart
media techniques that Cisco video endpoints employ to ensure high fidelity video in the event of packet
loss, delay, and jitter.
Audio versus Video
Voice and video are often thought of as quite similar, and although they are both real-time protocol (RTP)
applications, the similarities stop there. Voice is generally considered well behaved because each packet
is a fixed size and fixed rate. Video frames are spread over multiple packets that travel as a group.
Because one lost packet can ruin a P-frame, and one bad P-frame can cause a persistent artifact, video
generally has a tighter loss requirement than audio. Video is asymmetrical. Voice can also be
asymmetrical but typically is not. Even on mute, an IP phone will send and receive the same size flow.
Video increases the average real-time packet size and has the capacity to quickly alter the traffic profile
of networks. Without planning, this could be detrimental to network performance. Figure 6-3 shows the
difference between a series of audio packets and video packets sent during a specific time interval.
Figure 6-3
Audio versus Video
Video Packets
Audio Packets
1400
1400
1000
1000
600
600
P-Frame
I-Frame
P-Frame
Audio
Samples
200
20 ms
Time
33 msec
349566
200
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-5
Chapter 6
Bandwidth Management
Architecture
As illustrated in Figure 6-3, the audio packets are the same size, sent at exactly the same time intervals,
and represent a very smooth stream. Video, on the other hand, sends a larger group of packets over fixed
intervals and can vary greatly from frame to frame. Figure 6-3 shows the difference in the number of
packets and packet sizes for an I-Frame compared to P-frames. This translates to a stream of media that
is very bursty in nature when compared to audio. This burstiness is illustrated in Figure 6-4, which shows
the bandwidth profile over time of an HD video stream. Note the large bursts when I-Frames are sent.
Figure 6-4
Bandwidth Usage: High-Definition Video Call
3500
I-Frames
3000
2000
1500
1000
500
0
Time (s)
349567
Bandwidth (kbps)
2500
Figure 6-4 shows an HD video call at 720p at 30 fps and 1920 kbps (1792 kbps video + 128 kbps audio).
The red line indicates the average bit rate for the duration of the call.
While audio and video are both transported over UDP and are sensitive to loss and delay, they are quite
different in their network requirements and profile. As shown in Figure 6-5, audio is a constant bit rate,
has a smaller footprint compared to video, and has a narrower operational range of 1:6 ratio when
comparing the lowest bit rate audio codec to one of the highest bit rate codecs. Video, on the other hand,
has a variable bit rate (is bursty), has a medium to large footprint when compared to audio, and has a
wide operational range of 1:40 (250p at 15 fps up to 1080p at 60 fps).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-6
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-5
Video Traffic Requirements and Profiles
AUDIO
Bandwidth:
Bandwidth
– Constant bitrate (smooth)
– Small footprint
– Narrow operational range (1:6)
Time
G.729 (24 kbps)
AAC-LD
A C LD (160 kbps)
AA
Delay-sensitive
Operational bandwidth
VIDEO
Loss-sensitive
Bandwidth:
Bandwidth
– Variable bitrate (bursty)
– Medium/large footprint
– Wide operational range (1:40)
240p15 (150 kbps)
1080p60 (6 Mbps)
Loss-sensitive
Delay-sensitive
Operational bandwidth
349568
Time
The main point here is that audio and video, while similar in transport and sensitivity to loss and delay,
are quite different in the methods employed to manage their bandwidth requirements in the network.
Also, while video is pertinent to a full collaboration experience, audio is critical. For example, during a
video call, if video is lost or distorted due to a network outage or some other network related event,
communication can continue provided that audio is not lost during that outage. This is a critical concept
in bandwidth management in the PA.
"Smart" Media Techniques (Media Resilience and Rate Adaptation)
When deploying video pervasively across an organization, administrators will inevitably encounter
insufficient bandwidth to handle the load of video required during the busy hour in some bottleneck areas
of the Wide Area Network (WAN). In light of this it is important to prioritize video correctly, to ensure
that audio is not affected by any video packet loss that may occur, and to ensure that certain types of
video can leverage video rate adaptation to manage the amount of bandwidth used during times of
congestion. The media resilience and rate adaptation techniques allow for an optimized video experience
in the face of congestion and packet loss over managed and unmanaged networks, but that is not all.
These techniques, when used as a strategy coupled with QoS, can offer the ability for an organization to
deploy video pervasively by allowing the endpoints to reduce their bit rate and thus their bandwidth
utilization during congestion and packet loss, while also allowing the endpoints to increase their bit rate
and thus bandwidth utilization during more idle times of the day outside of the busy hour, thereby
maximizing video quality.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-7
Chapter 6
Bandwidth Management
Architecture
Every Cisco video endpoint employs a number of smart media techniques to avoid network congestion,
recover from packet loss, and optimize network resources. The following smart media techniques are
some of the techniques employed by Cisco video endpoints:
•
Media resilience techniques
– Encoder pacing
– Gradual Decoder Refresh (GDR)
– Long-Term Reference Frame (LTRF) with Repair
– Forward Error Correction (FEC)
•
Rate adaptation
Media Resilience Techniques
Table 6-1 summarizes the media resilience techniques supported on various Cisco video endpoints.
Table 6-1
Media Resilience Support in Cisco Collaboration Video Endpoints
Video Endpoint or Bridge
Encoder
Pacing
Rate
Adaptation
FEC
LTRF Repair
Cisco IP Phone 8800 Series
Yes
No
No
No
Cisco Jabber
Yes
Yes
Yes
Yes
Cisco DX Series
Yes
Yes
No
No
Cisco TelePresence MX Series
Yes
Yes
Yes
Yes
Cisco TelePresence SX Series
Yes
Yes
Yes
Yes
Cisco TelePresence IX Series
No
No
No
No
Cisco TelePresence Server
Yes
Yes
Yes
Yes
Encoder Pacing
Encoder pacing is a simple technique used to spread the packets as evenly as possible in order to smooth
out the peaks of the bursts of bandwidth.
Gradual Decoder Refresh (GDR)
GDR is a method of gradually refreshing the picture over a number of frames, giving a smoother, less
bursty bit stream.
Long Term Reference Frame (LTRF)
A Long Term Reference Frame (LTRF) is a reference frame stored in the encoder and decoder, which
allows the video endpoints to recover more efficiently from packet loss with less bandwidth utilization
over the network path in order to resend lost frames.
Forward Error Correction (FEC)
Forward error correction (FEC) provides redundancy to the transmitted information by using a
predetermined algorithm. The redundancy allows the receiver to detect and correct a limited number of
errors occurring anywhere in the message, without the need to ask the sender for additional data. FEC
gives the receiver an ability to correct errors without needing a reverse channel (such as RTCP) to request
retransmission of data, but this advantage is at the cost of a fixed higher forward channel bandwidth
(more packets sent). FEC protects the most important data (typically the repair P-frames) to make sure
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-8
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
the receiver is receiving those frames. The endpoints do not use FEC on bandwidths lower than 768 kbps,
and there must also be at least 1.5% packet loss before FEC is introduced. Endpoints typically monitor
the effectiveness of FEC; and if FEC is not efficient, they make a decision not to do FEC.
Rate Adaptation
Rate adaptation or dynamic bit rate adjustments adapt the call rate to the variable bandwidth available,
down-speeding or up-speeding the video bit rate based on the packet loss condition. An endpoint will
reduce bit rate when it receives messages from the receiver indicating there is packet loss; and once the
packet loss has decreased, up-speeding of the bit rate will occur.
Opportunistic Video and Prioritized Audio
Opportunistic Video and Prioritized Audio is a concept and a QoS strategy combined. It consists of
defining a number of video endpoints that opportunistically utilize available video bandwidth. During
the busy hour these endpoints rate adapt or throttle down their bit rate to accommodate limited
bandwidth availability, all the while not impacting prioritized video. During the idle hour they utilize
available bandwidth to optimize video quality by increasing the video bit rate. Prioritized audio for both
audio-only and audio of video calls ensures that all audio is prioritized in the network and is thus not
impacted by any loss that can occur in the video queues. Prioritizing voice from all types of collaboration
media ensures that even during times of extreme congestion when video is experiencing packet loss and
adjusting to that loss, the audio streams are not experiencing packet loss and are allowing the user to
carry on an uninterrupted audio experience. Prioritizing audio from both voice-only and video calls is a
paradigm shift from the previous historic model where audio and video of video calls were always
marked with the same QoS. Opportunistic video with prioritized audio maintains an acceptable video
experience while simultaneously ensuring that voice media for voice-only and video calls is not
compromised. This of course applies to the managed network, since an unmanaged network such as the
Internet is not QoS enabled and thus provides no guarantees with regard to packet loss. Nevertheless, the
media resiliency and rate adaptation mechanisms also attempt to ensure that media over unmanaged
networks has the best possible quality in the face of packet loss, delay, and jitter.
QoS Architecture for Collaboration
Quality of Service (QoS) ensures reliable, high-quality voice and video by reducing delay, packet loss,
and jitter for media endpoints and applications. QoS provides a foundational network infrastructure
technology, which is required to support the transparent convergence of voice, video, and data networks.
With the increasing amount of interactive applications (particularly voice, video, and immersive
applications), real-time services are often required from the network. Because these resources are finite,
they must be managed efficiently and effectively. If the number of flows contending for such priority
resources were not limited, then as these resources become oversubscribed, the quality of all real-time
traffic flows would degrade, eventually to the point of futility. "Smart" media techniques, QoS, and
admission control ensure that real-time applications and their related media do not oversubscribe the
network and the bandwidth provisioned for those applications. These smart media techniques coupled
with QoS and, where needed, admission control, are a powerful set of tools used to protect real-time
media from non-real-time network traffic and to protect the network from over-subscription and the
potential loss of quality of experience for end users of voice and video applications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-9
Chapter 6
Bandwidth Management
Architecture
Identification and Classification
QoS Trust and Enforcement
The enforcement of QoS is crucial to any real-time audio, video, or immersive video experience. Without
the proper QoS treatment (classification, prioritization, and queuing) through the network, real-time
media can potentially incur excessive delay or packet loss, which compromises the quality of the
real-time media flow. In the QoS enforcement paradigm, the issue of trust and the trust boundary is
equally important. Trust is the permitting or the "trusting" of QoS marking (Layer 2 CoS or Layer 3 IP
DSCP) of the traffic by the endpoint or device, to allow the traffic to continue through the network. The
trust boundary is the place in the network where the trust occurs. It can occur at any place in the network;
however, we recommend enforcing trust at the network edge such as the LAN access ingress or the WAN
edge, or both, as is feasible and applicable.
There are three main categories of trust:
•
Untrusted — These devices include unsecure PCs, Macs, or hand-held mobile devices running
Jabber clients, IP phones, and smart desktop endpoints.
•
Trusted — These devices can include secure PCs and servers, video conferencing endpoints, analog
and video conferencing gateways, PSTN gateways, Cisco Unified Border Element, trusted
application servers, and other similar devices.
•
Conditionally trusted — These devices typically include endpoints that support Cisco Discovery
Protocol (CDP). Although Cisco TelePresence, IP Phone and Smart Desktop phones support CDP,
they are not conditionally trusted in the PA.
In the PA, trusted and untrusted switch ports are used but conditionally trusted ports are not used.
Conditional trust is not recommended in the PA for the following reasons:
•
Complexity across a variety of switches — Enabling conditional trust across a variety of switch
types can become complex. Some of the older switch types do not trust by default, while newer
switches do trust by default. Furthermore, the commands for enabling trust and the process of trust
enforcement are different across platforms.
•
Even more important is the lack of Layer 3 DSCP re-marking on PC ports of IP phones and smart
desktop endpoints. The endpoints re-mark only Layer 2 CoS. Because of this and the inability to
correctly re-mark PC traffic at the DSCP level, using access lists to re-mark IP phones and smart
desktop endpoints is a preferred method in the PA.
•
A single ACL that maps directly to all switch ports is easier to manage than specifying only a limited
number of ports for trust.
Figure 6-6 illustrates the types of trust used in the PA, and which devices are trusted and untrusted.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-10
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-6
Trust Boundaries in the Preferred Architecture
Trust Boundary
Jabber
Untrusted
Desktop Devices
(Jabber)
Untrusted IP
Phones and
Smart Desktop
Endpoints
Untrusted
Untrusted
TelePresence
Endpoints
Trust Boundary
Trusted
349569
Trusted
Servers and
Applications
Classification and Marking
This section discusses classification and marking for endpoints.
All Cisco endpoints derive their DSCP marking from Unified CM. Unified CM houses the QoS
configuration for endpoints in two places, in the Service Parameters for the CallManager service
(Clusterwide Parameters (System - QoS)) and in the SIP Profile (applicable only to SIP devices). The
SIP Profile configuration of QoS settings overrides the Service Parameter configuration. This allows
Unified CM administrators to set different QoS policies for groups of endpoints. Unified CM passes this
QoS configuration to the endpoints in a configuration file over TFTP during endpoint registration. This
configuration file contains the QoS parameters as well as a number of other endpoint specific
parameters. For QoS purposes there are two categories of video endpoints: TelePresence endpoints (any
endpoint with TelePresence in the phone type name) and all other non-TelePresence video endpoints
(referred to as "UC Video endpoints").
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-11
Chapter 6
Bandwidth Management
Architecture
Table 6-2 shows the Preferred Architecture endpoints and their classification.
Table 6-2
PA Video Endpoints
Endpoint
TelePresence Endpoint
UC Video Endpoint
Cisco IP Phone 8800 Series
X
Cisco Jabber
X
Cisco DX Series
X
Cisco TelePresence MX Series
X
Cisco TelePresence SX Series
X
Cisco TelePresence IX Series
X
Figure 6-7 illustrates how the two categories of Cisco video endpoints derive DSCP. These categories
apply only to QoS and call admission control (CAC).
Figure 6-7
How Cisco Endpoints Derive DSCP
Clusterwide Parameters (System – QoS)
DSCP for Audio Calls
DSCP for Video Calls
DSCP for Audio Portion of Video Calls
DSCP for TelePresence Calls
DSCP for Audio Portion of TelePresence Calls
…
SIP
Profile
Device
Registration
Config File
Unified CM
TelePresence
Endpoints
TelePresence Applicable
TelePresence
T
Applicab DSCP settings:
DSCP for Audio Calls
DSCP for TelePresence Calls
DSCP for Audio Portion of TelePresence Calls
UC Video
Endpoints
UC Video Applicable DSCP settings:
DSCP for Audio Calls
DSCP for Video Calls
DSCP for Audio Portion of Video Calls
349570
QoS
Service
Parameter
s
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-12
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
The configuration file is populated with the QoS parameters from the CallManager service parameters
or the SIP Profile, when configured, and sent to the endpoint upon registration. The endpoint then uses
the correct DSCP parameters for each type of media stream, depending on which category of endpoint
it is. Table 6-3 lists the DSCP parameters, the type of endpoint, and the type of call flow determining the
DSCP marking of the stream.
Table 6-3
DSCP for Basic Call Flows
DSCP Parameter
TelePresence Endpoint
UC Video Endpoint
Call Flow
DSCP for Audio Calls
X
X
Voice-only
DSCP for Video Calls
X
Video – Audio and video stream of a video
call, unless the endpoint supports the DSCP
for Audio Portion of Video Calls parameter
(see Table 6-4)
DSCP for Audio Portion of
Video Calls
X
Audio stream of a video call – Applicable only
to endpoints that support the parameter
DSCP for TelePresence
Calls
X
Immersive video – Audio and video stream of
an immersive video call, unless the endpoint
supports the DSCP for Audio Portion of
TelePresence Calls parameter (see Table 6-4)
DSCP for Audio Portion of
TelePresence Calls
X
Audio stream of a video call – Applicable only
to endpoints that support the parameter
Table 6-4
Endpoint Support for DSCP for Audio Portion of Video and TelePresence Calls
Video Endpoint
DSCP for Audio Portion of
Video Call
DSCP for Audio Portion of
TelePresence Call
IP Phone 8845 and 8865 Series
Yes
No
DX Series
Yes
No
TelePresence IX Series
No
Yes
TelePresence SX and MX Series
(CE 8.0 or later firmware)
No
Yes
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-13
Chapter 6
Bandwidth Management
Architecture
Trusted Core Devices and Applications
Like endpoints, devices and applications in the collaboration portfolio source and terminate media and
signaling streams. These trusted applications require the appropriate configuration on the application
itself as well as the switch to which the application is connected in order to transparently pass the QoS
marking of the media and signaling.
Core trusted devices and applications:
•
Cisco Unified Communications Manager and IM and Presence Service
•
Cisco Expressway
•
Cisco Unity Connection
•
Cisco TelePresence Server
•
Cisco TelePresence Conductor
•
Cisco IOS SIP Gateway and Cisco Unified Border Element
It is important to ensure that DSCP Trust is enabled on the switch ports to which these endpoints and
application servers are connected. QoS DSCP trust is typically enabled by default on all newer Cisco
switches; however, it is important to verify each switch platform to determine if this QoS trust is enabled,
since some platforms do not trust DSCP by default.
Endpoints and Clients
For the endpoints, the DSCP marking of packets on ingress into the switch needs to be re-marked using
network access control lists (ACLs) to ensure that collaboration media and SIP signaling are marked
appropriately and that other PC data traffic is marked to DSCP of Best Effort (DSCP 0) or as is
appropriate based on the QoS data policies set forth by the enterprise.
The method used here consists of mapping identifiable media and signaling streams based on specific
protocol ports, such as UDP and TCP ports, then making use of network access lists to remark QoS of
the signaling and media streams based on those protocol port ranges. This method applies to all Cisco
Jabber clients (Cisco Jabber for Windows, Cisco Jabber for Mac OS, Cisco Jabber for iPhone, Cisco
Jabber for iPad, and Cisco Jabber for Android) because they all behave similarly when allocating media
and signaling port ranges. Unlike Cisco Jabber clients, endpoints such as IP phones, 8800 Series IP and
video phones, and DX Series with PC ports require an additional measure of matching on DSCP as well
as UDP ports. The reason for this is that the IP phones and video endpoints use the same UDP port range
for both audio and video, and thus in order to differentiate audio and video, matching on both UDP port
range and DSCP allow for the proper identification of media traffic.
The concept is simple. An access list is used in the network access layer equipment (switch) to identify
the media and signaling streams based on UDP port ranges and DSCP matching, and then it is set to
re-mark them to the appropriate DSCP values. Although this technique is easy to implement and can be
widely deployed, it is however not a 100% secure method and this point should be noted. This PA
assumes that other security measures will be implemented to ensure the correct access to the network as
well as any securing of the operating systems (OS) on the PCs and Macs used for Jabber to impede user
tampering of OS related QoS settings.
Figure 6-8 illustrates the use of network access control lists (ACLs) to map identifiable media and
signaling streams to DSCP for Jabber clients.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-14
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-8
Endpoint Marking
SINGLE
ACL
UDP Ports
Re-mark
DSCP
3xxx
EF
5xxx
AF42
5060
5061
CS3
S3
Jabber
IP
P Phone / S
Smartt D
Des
Desktop
DSCP
TelePresence
lePresence Endpoin
Endpoints
Example 6-1
•
SWITCH
UDP Ports
EF
17xxx
AF41
17xxx
CS3
5060
5061
EF
AF41
CS3
349571
Match
Switch ACL-Based QoS Policy for Untrusted Endpoints in Figure 6-8:
Jabber clients
– Match UDP Port Range 3xxx –> Re-mark to DSCP EF
– Match UDP Port Range 5xxx –> Re-mark to DSCP AF42
– Match TCP Port 5060 or 5061 –> Re-mark to DSCP CS3
•
IP phones and video endpoints
– Match UDP Port Range 17xxx with DSCP EF –> Re-mark to DSCP EF
– Match UDP Port Range 17xxx with DSCP AF41 –> Re-mark to DSCP AF41
– Match TCP Port 5060 or 5061 –> Re-mark to DSCP CS3
•
Generic matching
– Matches the rest of the traffic and sets DSCP to 0 (Best Effort or BE) using a default class-map
Endpoints send and receive other data and signaling such as ICMP, DHCP, TFTP, BFCP, LDAP, XMPP,
FECC, CTI, and so forth. The QoS values for this traffic should follow the enterprise best practices for
each type of traffic. Without doing this step, all other traffic apart from media and SIP signaling will be
set to a DSCP of BE (DSCP 0) by the class-default in this configuration. We recommend either passing
through the traffic marking by matching on DSCP and then re-marking the DSCP to the same value, or
else using the TCP and UDP ports for each protocol that the endpoints use for communications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-15
Chapter 6
Bandwidth Management
Architecture
QoS for Cisco Jabber Clients
As discussed, this method involves classifying media and signaling by identifying the various streams
from the Jabber client based on IP address, protocol, and/or protocol port range. Once identified, the
signaling and media streams can be classified and re-marked with a corresponding DSCP. The protocol
port ranges are configured in Unified CM and are passed to the endpoint to use during device
registration. The network can then be configured via access control lists (ACLs) to classify traffic based
on IP address, protocol, and protocol port range, and then to re-mark the classified traffic with the
appropriate DSCP as discussed in the preceding section.
Cisco Jabber provides identifiable media streams based on UDP protocol port ranges and identifiable
signaling streams based on TCP protocol port ranges. In Unified CM, the signaling port for endpoints is
configured in the SIP Security Profile, while the media port range is configured in the SIP Profile of the
Unified CM administration pages.
For the media port range, all endpoints and clients use the SIP profile parameter Media Port Ranges to
derive the UDP ports used for media. By default, media port ranges are configured with Common Port
Range for Audio and Video. When Jabber clients receive this port range in their configuration file, they
split the port range in half and use the lower half for the audio streams of both voice and video calls and
the upper half for the video streams of video calls. This is illustrated in Figure 6-9.
Media and Signaling Port Range – Common
1
2
4000-4999
Registration
Lower Half
for Audio
Config File
Unified CM
SEP[MAC_addr].cnf.xml
Media Port Range UDP
3000-4999
SIP Signaling Port TCP
5060
Upper Half
for Video
JJabber
bb Cli
Clients
Jabber splits
media range
in half
3000-3999
SIP
Signaling
TCP 5060
349572
Figure 6-9
Jabber can also use the Media Port Ranges > Separate Port Range for Audio and Video configuration.
In this configuration the Unified CM administrator can specify a non-contiguous audio and video port
range, as illustrated in Figure 6-10.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-16
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-10
Media and Signaling Port Range – Separate
1
2
Registration
Audio
Config File
Unified CM
SEP[MAC_addr].cnf.xml
Media Port Range UDP
3000-3999
Video
5000-5999
JJabber
bb Cli
Clients
Jabber uses
separate media
ranges from
UCM
3000-3999
SIP
Signaling
TCP 5060
Video Port Range UDP
349573
5000-5999
SIP Signaling Port TCP
5060
Caution
Security Alert: If you use identifiable media streams for QoS classification at the network level, the
trust model does not extend to the application itself. Apart from prioritizing streams from the intended
application, other applications could potentially be configured to use the same identification criteria
(media port range) and marking, and therefore achieve network prioritization. Because this unintended
traffic would not be accounted for in call admission control or in the provisioning of the network, severe
overall impact to real-time conversations could occur. It is for this reason that it is a good practice to
define restricted port ranges whenever possible to identify the media streams.
When utilizing this technique, it is important to ensure that the audio portion of these video calls that
will be re-marked to the audio traffic class (EF), and the video portions that will be re-marked to the
video traffic class (AF4), are provisioned in the network accordingly. Figure 6-11 is an example of
placing audio traffic into a Priority Queue (PQ) and video traffic into a Class Based Weighted Fair Queue
(CBWFQ). The combination of PQ and CBWFQ is often referred to as low latency queuing (LLQ). Note
that, because it is not possible to use port ranges in Cisco Jabber endpoints to differentiate the audio
portion of voice-only calls from the audio portion of video calls, all audio using this technique will be
re-marked to EF. It is important to provision the PQ adequately to support voice-only calls and the audio
portion of video calls. An example of such provisioning is illustrated in Figure 6-11. For more
information on the design and deployment recommendations for provisioning queuing and scheduling
in the network, see the WAN Queuing and Scheduling section.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-17
Chapter 6
Bandwidth Management
Architecture
Provisioning Jabber QoS in the Network
Audio of Voice Only Call 1
Audio of Voice Only Call 2
Audio of Video Call 2
Video of Video Call 1
Video of Video Call 2
EF
EF
AF42
AF42
PQ
CBWFQ
other queues
BW Assigned to LLQ Classes
Audio of Video Call 1
EF
EF
349574
Figure 6-11
According to RFC 3551, when RTCP is enabled on the endpoints, it uses the next higher odd port. For
example, a device that establishes an RTP stream on port 3500 would send RTCP for that same stream
on port 3501. This function of RTCP is also true with all Jabber clients. RTCP is common in most call
flows and is typically used for statistical information about the streams and to synchronize audio and
video in video calls to ensure proper lip-sync. In most cases, video and RTCP can be enabled or disabled
on the endpoint itself or in the common phone profile settings.
Utilizing the Network for Classification and Marking
Based on the identifiable media and signaling streams created by the endpoints, common network QoS
tools can be used to create traffic classes and to re-mark packets according to those classes.
These QoS mechanisms can be applied at different layers, such as the access layer (access switch), which
is closest to the endpoint and the router level in the distribution, core, or services WAN edge. Regardless
of where classification and re-marking occurs, we recommend using DSCP to ensure end-to-end per-hop
behaviors.
As previously mentioned, Cisco Unified CM allows the port range utilized by SIP endpoints to be
configured in the SIP Profile. As a general rule, a port range of a minimum of 100 ports (for example,
3000 to 3099) is sufficient for most scenarios. A smaller range could be configured as long as there are
enough ports for the various audio, video, and associated RTCP ports (RTCP runs over the odd ports in
the range), as well as ensuring against port conflict with other applications on the operating system of
the device that may be using these ports since this could cause port collisions.
Access Layer (Layer 2 Definitions)
When utilizing the access layer to classify traffic, the classification occurs at the ingress of traffic into
the network, thus allowing the flows to be identified as they enter. In environments where QoS policies
are applied not only in the WAN but also within the LAN, all upstream components can rely on traffic
markings when processing. Classification at the ingress allows different methods to be utilized based on
different types of endpoints.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-18
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Configuring QoS policies in the access layer of the network could result in a significant amount of
devices that require configuration, which can create additional operational overhead. The QoS policy
configurations should be standardized across the various switches of the access layer through templates.
You can use configuration deployment tools to relieve the burden of manual configuration. The PA
simplifies this process by using a single group of ACLs that can be used across the various switching
platforms.
Distribution/Core/Services WAN Edge (Layer 3 Definitions)
Another location where QoS marking can take place is at the Layer 3 routed boundary. In a campus
network Layer 3 could be in the access, distribution, core, or services WAN edge layers. The
recommendation is to classify and re-mark at the access layer, then trust through the distribution and core
of the network, and finally re-classify and re-mark at the WAN edge if and when needed. For smaller
networks such as branch offices where there are no Layer 3 switching components deployed, QoS
marking can be applied at the WAN edge router. At Layer 3, QoS policies are applied to the Layer 3
routing interfaces. In most campus networks these would be VLAN interfaces, but they could also be
Fast Ethernet or Gigabit Ethernet interfaces. Figure 6-12 illustrates the areas of the network where the
various types of trust are applied in relation to the places in the network – access, distribution, core, or
WAN edge.
Figure 6-12
Trust and Enforcement – Places in the Network
SX, MX, and IX Series Endpoints
Access
Distribution
Core
Immersive and Room
System endpoints
WAN Edge
Cisco IOS SIP
Gateway
SRST Gateway
IP Phones, Jabber,, and DX Serie
Series
Endpoints
Unified BE
IP Phones
Jabber
Trusted Devices
Smart Desktop
Mac/PC
Unified CM
M
IInstant Messaging
And Presence
Unity
Connection
Expressway
TelePresence
Servers
349575
Fully Trusted
Untrusted
Cisco IOS Router Re-marking
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-19
Chapter 6
Bandwidth Management
Architecture
Endpoint Identification and Classification Considerations and Recommendations
Summary of design and deployment considerations and recommendations:
•
Use DSCP markings whenever possible because these are IP layer end-to-end, more granular, and
more extensible than Layer 2 markings.
•
Mark as close to the endpoint as possible, preferably at the LAN switch level.
•
When trying to minimize the number of media ports used by the Cisco Jabber client, a minimum
range of 100 ports is recommended. This is to ensure that there are enough ports for all of the
streams, such as RTCP, RTP for audio and video, BFCP, and RTP for secondary video for desktop
sharing sessions, as well as to avoid any overlap with other applications on the same computer.
•
Ensure a QoS policy includes other pertinent collaboration traffic to be re-marked, otherwise a value
of 0 (Best Effort, or BE) will be placed on all remaining traffic.
WAN Queuing and Scheduling
As discussed in the Identification and Classification section, Unified CM has the ability to differentiate
the video endpoint types as well as the their media streams. This provides the network administrator the
ability to treat the video from different endpoints differently in the network. The recommended approach
in the PA is to use AF42 DSCP markings for Jabber clients and AF41 for all smart desktop, room system,
and immersive video endpoints. These values are in line with RFC 4594.
PA Queuing and Scheduling Approach (Single Video Queue)
A single rate-based queue with multiple DSCPs with differing drop probabilities is used in the PA for
managing multiple types of video across an integrated collaboration media and data network. In this
approach to scheduling video traffic in the WAN, the single video queue is configured with two AF4 drop
probabilities using AF41 and AF42, where AF42 has a higher drop precedence or probability than AF41.
The premise behind a single video queue with this service class with hierarchical drop precedence is that,
when one class of video is not using the bandwidth within the queue, the rest of the queue bandwidth is
available for the other class of video. This approach dedicates bandwidth reserved for video to be
available only to the video queue during times of congestion. Other approaches such as dual rate-based
video queues sub-optimally allocate excess video bandwidth from one queue to all queues on the
interface equally.
Although different strategies for optimized video bandwidth utilization can be designed based on this
single video queue with hierarchical DSCP drop probabilities, the PA approach is illustrated in
Figure 6-13.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-20
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-13
Single Video Queue Approach
AF41 WRED thresholds
(i.e., drop AF41 last)
EF
EF
Audio of Jabber Call
EF
Video of Video Call
AF41
Video of Jabber Call
AF42
Video
CBWFQ
BW Assigned to LLQ Classes
EF
other queues
Audio of Video Call
PQ
AF42 WRED thresholds
(i.e., drop AF42 first)
349576
Audio of IP Phone
In Figure 6-13 the audio of a voice call is marked as EF and placed into a Priority Queue (PQ) with a
strict policer on how much bandwidth the PQ can allocate to this traffic. Video calls are separated into
two classes, AF41 for prioritized video and AF42 for opportunistic or Jabber video. Using a CBWFQ
with Weighted Random Early Detection (WRED), the administrator can adjust the drop precedence of
AF42 over AF41, thus ensuring that during times of congestion when the queue is filling up, AF42
packets are dropped from the queue at a higher probability than AF41. See the WAN Quality of Service
section in the Network Infrastructure chapter of the Collaboration SRND for more details on the function
of WRED.
The above example illustrates how an administrator using a single CBWFQ with DSCP-based WRED
for all video can protect one type of video (TelePresence video) from packet loss during periods of
congestion over another type of video (desktop). With this "single video queue approach," unlike the
"dual video queue approach," when one type of video is not using bandwidth in the queue, the other type
of video gains full access to the entire queue bandwidth if and when needed. This is a significant
improvement when deploying pervasive video.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-21
Chapter 6
Bandwidth Management
Architecture
Achieving this holistically across the entire solution depends on a number of conditions. Below is a list
of conditions required to achieve marking all audio to a DSCP of EF:
•
The customer equipment (CE) or service provider (SP) owned WAN equipment must support AF4
QoS containing both AF41 and AF42 QoS markings as well as Weighted Random Early Detection
(WRED).
•
Enhanced Locations Call Admission Control (ELCAC) can be implemented in conjunction with
marking all audio as EF. ELCAC relies on the correct DSCP setting in order to ensure the protection
of the queues that voice and video CAC pools represent. Changing the DSCP of audio streams of
the video calls requires updating how ELCAC deducts bandwidth for video calls. This can be done
by setting the service parameter Deduct Audio Bandwidth from Audio Pool for Video Call, under
the Call Admission Control section of the CallManager service, to True. This parameter can be set
to true or false:
– True (recommended) — Cisco Unified CM splits the audio and video bandwidth allocations for
video calls into separate pools. The bandwidth allocation for the audio portion of a video call is
deducted from the audio pool, while the video portion of a video call is deducted from the video
pool.
– False (default)— Cisco Unified CM applies the legacy behavior, which is to deduct the audio
and video bandwidth allocations of video call from the video pool. This is the default setting.
Opportunistic Video
When video is deployed pervasively across the organization, bandwidth constraints typically determine
the video resolution that can be achieved during the busiest hour of the day based on the bandwidth
available and the number of video calls during that busy hour. To address this challenge, the PA has
targeted a group of endpoints whose video is treated opportunistically by the network by using a single
video queue with DSCP-based WRED coupled with a strategy for identification and classification of the
Jabber clients’ collaboration media.
Opportunistic video is achieving the best video quality based on the WAN bandwidth resources available
at any given time. To achieve this, a number of requirements must be met:
•
Select a group of video endpoints to be opportunistic. In the case of the PA, Jabber clients are used
as the opportunistic video endpoints.
•
Ensure the WAN is configured with a single video queue using DSCP-based WRED with AF4 DSCP
class servicing with drop precedence of AF41 and AF42. (While AF43 could be used, only two
DSCP values are necessary in the PA.)
•
Identify and classify the video of opportunistic endpoints with AF42.
•
Identify and classify all other video endpoints with AF41.
Provisioning and Admission Control
Provisioning bandwidth and ensuring the correct bit rate is negotiated between various groups of
endpoints are important aspects of bandwidth management. In a Unified CM environment, bit rate is
negotiated through Unified CM, which uses a concept of regions to set maximum audio and maximum
video bit rates for any given call flow. This section focuses on the maximum bit rate for video and
TelePresence calls.
Unified CM locations (see Enhanced Locations Call Admission Control) work in conjunction with
regions to define the characteristics of a call flow. Regions define the type of compression or bit rate
(8 kbps or G.729, 64 kbps or G.722/G.711, and so forth) that is used between any two devices. Location
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-22
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
links define the amount of available bandwidth for the path between devices. Each device and trunk in
the system is assigned to both a region (by means of a device pool) and a location (by means of a device
pool or by direct configuration on the device itself):
•
Regions allow the bandwidth of video calls to be set. The audio limit on the region can result in
filtering out codecs with higher bit rates. However, for video calls, the video limit constrains the
quality (resolution and transmission rate) of the video.
•
Locations define the amount of total bandwidth available for all calls on that link. When a call is
made on a link, the regional value for that call must be subtracted from the total bandwidth allowed
for that link.
Building a region matrix to manage maximum video bit rate (video resolution) for groups of devices can
assist in ensuring that certain groups of devices do not over-saturate the network bandwidth. The
following guidelines apply to creating a region matrix:
•
Group devices into maximum video bit rate categories.
•
The smaller the number of groups, the easier it is to calculate bandwidth requirements.
•
Consider the default region settings to simplify the matrix and provide intra-region and inter-region
defaults.
•
Use a single audio codec across the entire organization, both LAN and WAN, to simplify the region
matrices.
For more information about region settings, see the section on Enhanced Locations Call Admission
Control.
Table 6-5 lists an example of a maximum video session bit rate region matrix for three groups of devices.
Note
Table 6-5 is only an example of how to group devices and what maximum bit rate might be suggested
for a general resolution between the groups of devices.
Table 6-5
Example Group Region Matrix for Three Groups of Devices
Endpoint Groupings
Video_1.5MB
Video_2.5MB
Video_20MB
Video_1.5MB
1,500 kbps
1,500 kbps
1,500 kbps
Video_2.5MB
1,500 kbps
2,500 kbps
2,500 kbps
Video_20MB
1,500 kbps
2,500 kbps
20,000 kbps
For the example in Table 6-5, the three groups are:
•
Video_1.5MB
These devices would typically be the largest group of deployed video capable endpoints and thus
would benefit from the opportunistic video approach. Classified as opportunistic video, they can go
up to a maximum of 1,500 kbps (720p @ 30 fps) and will rate-adapt downward based on packet loss.
•
Video_2.5MB
These devices would be room systems such as the Cisco TelePresence MX or SX Series as well as
smart desktop endpoints such as the Cisco DX Series. At 2,500 kbps maximum video bit rate, these
endpoints would typically be capable of 720p @ 30 fps.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-23
Chapter 6
Bandwidth Management
Architecture
•
Video_20MB
This class is for the larger Cisco TelePresence IX Series endpoints as well as TelePresence Servers
and MCUs (Cisco Conductor SIP trunk) set to a maximum of 20 Mbps to allow for endpoints
capable of it to run at 1080p @ 60 fps. (The IX Series, for example, requires 18 MB to do 1080p @
60 fps on three screens). Single-screen systems use much less bandwidth, but this group would be
for devices utilizing their maximum bit rate capacity.
To simplify the configuration of the regions, it is important to standardize on one audio codec to be used
throughout the entire organization. The first consideration is to decide whether to have a lower bit rate
codec for audio calls between sites. Historically as part of managing bandwidth, enterprises have used a
lower bit rate codec such as G.729 over the WAN while using a higher bit rate, wider band codec such
as G.722 for calls within the LAN or MAN. Typically when deploying video at 1 to 2.5 MB per call,
audio (even at 80 kbps per call) consumes so much less bandwidth that many enterprises have moved to
using a higher bit rate, better quality codec such as G.722 across the entire organization (LAN and
WAN). This decision has an impact on the region matrix and whether per-site regions are required or not.
The concept here is that if inter-region audio or video bit rates are to be different, then per-site regions
will be required. This augments the configuration of regions to the number of sites (N) multiplied by the
number of video groups (X):
Number of regions required on average = N∗X
If audio bit rates will be the same across the WAN and LAN, then only the regions for the video groups
are required (X).
Enhanced Locations Call Admission Control
The call admission control function is an important component of a Collaboration system, especially
when multiple sites are connected through an IP WAN and limited bandwidth resources are available for
audio and video calls.
Call Admission Control Architecture
Unified CM Enhanced Locations Call Admission Control
Cisco Unified CM provides Enhanced Locations Call Admission Control (ELCAC) to support complex
WAN topologies as well as distributed deployments of Unified CM for call admission control where
multiple clusters manage devices in the same physical sites using the same WAN up-links.
To support more complex WAN topologies, Unified CM implements a location-based network modeling
functionality. This provides Unified CM with the ability to support multi-hop WAN connections between
calling and called parties. This network modeling functionality has also been incrementally enhanced to
support multi-cluster distributed Unified CM deployments. This allows each cluster to "share" locations
by enabling the clusters to communicate with one another to reserve, release, and adjust allocated
bandwidth for the same locations across clusters.
Network Modeling with Locations, Links, and Weights
Enhanced Locations CAC is a model-based static CAC mechanism. ELCAC involves using the
administration interface in Unified CM to configure locations and links to model the "routed WAN
network" in an attempt to represent how the WAN network topology routes media between groups of
endpoints for end-to-end audio and video calls. Although Unified CM provides configuration and
serviceability interfaces in order to model the network, it is still a "static" CAC mechanism that does not
take into account network failures and network protocol rerouting. Therefore, the model needs to be
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-24
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
updated when the WAN network topology changes or bandwidth allocations across the WAN are
increased or decreased. Enhanced Locations CAC is also call oriented, and bandwidth deductions are
per-call not per-stream, so asymmetric media flows where the bit-rate is higher in one direction than in
the other will always deduct for the highest bit rate bi-directionally. In addition, unidirectional media
flows will be deducted as if they were bidirectional media flows.
Enhanced Locations CAC incorporates the following configuration components to allow the
administrator to build the network model using locations and links:
•
Locations — A location represents a LAN. It could contain endpoints or simply serve as a transit
location between links for WAN network modeling. For example, an MPLS provider could be
represented by a location.
•
Links — Links interconnect locations and are used to define bandwidth available between locations.
Links logically represent the WAN link and are configured in the Location user interface (UI).
•
Weights — A weight provides the relative priority of a link in forming the effective path between
any pair of locations. The effective path is the path used by Unified CM for the bandwidth
calculations, and it has the least cumulative weight of all possible paths. Weights are used on links
to provide a "cost" for the "effective path" and are pertinent only when there is more than one path
between any two locations.
•
Path — A path is a sequence of links and intermediate locations connecting a pair of locations.
Unified CM calculates least-cost paths (lowest cumulative weight) from each location to all other
locations and builds a map of the various paths. Only one "effective path" is used between any pair
of locations.
•
Effective Path — The effective path is the path with the least cumulative weight and is the bandwidth
accounting path that is always used between any two locations.
•
Bandwidth Allocation — Is the amount of bandwidth allocated in the model for each type of traffic:
audio, video, and immersive video (TelePresence).
•
Location Bandwidth Manager (LBM) — Is the active service in Unified CM that assembles a
network model from configured location and link data in one or more clusters. It determines the
effective paths between pairs of locations, determines whether to admit calls between a pair of
locations based on the availability of bandwidth for each type of call, and deducts (reserves)
bandwidth for the duration of each call that is admitted.
•
Location Bandwidth Manager Hub — Is a Location Bandwidth Manager (LBM) service that has
been designated to participate directly in intercluster replication of fixed locations, links data, and
dynamic bandwidth allocation data. LBMs assigned to an LBM hub group discover each other
through their common connections and form a fully-meshed intercluster replication network. Other
LBM services in a cluster with an LBM hub participate indirectly in intercluster replication through
the LBM hubs in their cluster.
Locations, Links, and Weight
Unified CM uses the concept of locations to represent a physical site and to create an association with
media devices such as endpoints, voice messaging ports, trunks, gateways, and so forth, through direct
configuration on the device itself, through a device pool, or even through device mobility. Locations
logically represent the Local Area Network (LAN). Unified CM also uses a configuration parameter
called links to interconnect locations and to define bandwidth available between locations. Links
logically represent the Wide Area Network (WAN). This section describes locations and links and how
they are used (see Figure 6-14).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-25
Chapter 6
Bandwidth Management
Architecture
The location configuration itself consists of three main parts: links, intra-location bandwidth parameters,
and RSVP locations settings. The intra-location bandwidth parameters are set to unlimited by default
and should remain that way because there is little or no reason to limit bandwidth within a location
(LAN). The RSVP locations settings are not considered here for Enhanced Location CAC because they
apply only to RSVP implementations.
The link bandwidth parameters allow the administrator to characterize the provisioned bandwidth for
audio, video, and immersive calls between "adjacent locations" (that is, locations that have a link
configured between them). This feature offers the administrator the ability to create a string of location
pairings in order to model a multi-hop WAN network.
Figure 6-14
Locations and Links
BETWEEN
Location A
Location B
Link A < > B
BW
Audio
Allocated
1500k
Video
3000k
Immersive
5000k
Links Provide
Bandwidth Accounting
Between Locations
And Interconnect
Locations
LocA
LocB
LocC
LocD
349577
Linking Locations
Weight is configurable on the link and provides the ability to force a specific path choice when multiple
paths between two locations are available. When multiple paths are configured, only one will be selected
based on the cumulative weight, and this path is referred to as the effective path. This weight is static
and the effective path does not change dynamically. When two paths have equal weight, one path is
randomly chosen; therefore it is important to ensure that only one path exists or has the least cumulative
weight to ensure that it is the effective path for the Location Bandwidth Manager (LBM). This is
especially important in multi-cluster environments.
When you configure a device in Unified CM, the device can be assigned to a location. A location can be
configured with links to other locations in order to build a topology. The locations configured in
Unified CM are virtual locations and not real, physical locations. As mentioned, Unified CM has no
knowledge of the actual physical topology of the network. Therefore, any changes to the physical
network must be made manually in Unified CM to map the real underlying network topology with the
Unified CM locations model. If a device is moved from one physical location to another, the system
administrator must either perform a manual update on its location configuration or implement the device
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-26
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
mobility feature so that Unified CM can correctly calculate bandwidth allocations for calls to and from
that device. Each device is in location Hub_None by default. Location Hub_None is an example location
that typically serves as a hub linking two or more locations, and it is configured by default with unlimited
intra-location bandwidth allocations for audio, video, and immersive bandwidth.
Unified CM allows the administrator to define separate voice, video, and immersive video bandwidth
pools for each link between locations. In the PA, only voice and video bandwidth pools are used.
Typically the link between locations is set to a finite number of kilobits per second (kbps) to match the
provisioned amount of bandwidth available for audio and video in the WAN links between physical sites.
Some WANs do not require any limitations because they are over-provisioned for the expected amount
of traffic. If the bandwidth values are set to a finite number of kilobits per second (kbps), Unified CM
will track all calls within the location and all calls that use the location as a transit location (a location
that is in the calculation path but is not the originating or terminating location in the path).
The following devices must be configured in a location:
•
Endpoints
•
Conference bridges
•
Gateways
•
SIP trunks
•
Music on hold (MoH) servers
•
Annunciator (via device pool)
Table 6-6 lists the amount of bandwidth requested for various call speeds. For all audio (both audio-only
calls as well as audio of a video call), Unified CM counts the media bit rates plus the IP and UDP
overhead. For example, a G.711 or G.722 audio call consumes 80 kbps (64 kbps bit rate + 16 kbps for
IP/UDP headers) deducted from the audio bandwidth allocation of the location and link. For a video call,
Unified CM counts only the payload (no IP/UDP header overhead) for video streams, but the audio
portion is calculated with IP and UDP overhead. For example, for a video call at a bit rate of 384 kbps
where audio is set to use a 64 kbps bit rate, Unified CM will allocate 320 kbps from the video bandwidth
allocation and take 64 kbps for the audio and add the 16 kbps for IP/UDP headers to derive 80 kbps for
the audio pool deduction. For the same call where the audio is set to use a 8 kbps bit rate, Unified CM
will allocate 376 kbps from the video bandwidth allocation and take 8 kbps for the audio and add the
16 kbps for IP/UDP headers to derive 24 kbps for the audio pool deduction.
Table 6-6
Amount of Bandwidth Requested by the Locations and Links Bandwidth Deduction Algorithm in the PA
Configuration1
Call Speed (Session Bit Rate)
Audio Pool Bandwidth
Video Pool Bandwidth
G.711 or G.722 audio call (64 kbps)
80 kbps
N/A
G.729 audio call (8 kbps)
24 kbps
N/A
512 kbps video call with G.729 audio (8 kbps)
24 kbps
504 kbps
512 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
448 kbps
768 kbps video call with G.729 audio (8 kbps)
24 kbps
760 kbps
768 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
704 kbps
1,024 kbps video call with G.729 audio (8 kbps)
24 kbps
1,016 kbps
1,024 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
960 kbps
1. Only 8 kbps and 64 kbps are used in these examples, but the same principle also applies to other audio bit rate codecs. The audio bit rate (payload only)
is subtracted the video bit rate to get the adjusted video bit rate value.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-27
Chapter 6
Bandwidth Management
Architecture
For example, assume that the link configuration for the location Branch 1 to Hub_None allocates
256 kbps of available audio bandwidth and 1,024 kbps of available video bandwidth. In this case the path
from Branch 1 to Hub_None can support up to three G.711 audio calls (at 80 kbps per call) or ten G.729
audio calls (at 24 kbps per call), or any combination of both that does not exceed 256 kbps. The link
between locations can also support different numbers of video calls, depending on the video and audio
codecs being used (for example, one video call requesting 1,024 kbps of bandwidth or two video calls
with each requesting 512 kbps of bandwidth).
When a call is placed from one location to the other, Unified CM deducts the appropriate amount of
bandwidth from the effective path of locations and links from one location to another. When the call has
completed, Unified CM returns the bandwidth to those same links over the effective path. If there is not
enough bandwidth at any one of the links over the path, the call is denied by Unified CM and the caller
receives the network busy tone. If the calling device is an IP phone with a display, that device also
displays the message "Not Enough Bandwidth."
When an inter-location call is denied by call admission control, Unified CM can automatically reroute
the call to the destination through the PSTN connection by means of the Automated Alternate Routing
(AAR) feature (see Automated Alternate Routing, page 2-49).
Note
AAR is invoked only when Enhanced Locations Call Admission Control denies the call due to a lack of
network bandwidth along the effective path. In such cases, the calls are redirected to the target specified
in the Call Forward No Answer field of the called device. AAR is not invoked when the IP WAN is
unavailable or other connectivity issues cause the called device to become unregistered with
Unified CM.
Also, AAR is applicable only to intra-cluster endpoint-to-endpoint calls. For all inter-cluster calls that
fail CAC, the route groups are used to try different SIP routing paths.
Video devices can be enabled to Retry Video Call as Audio if a video call between devices fails CAC.
This option is configured on the video endpoint or SIP trunk configuration page in Unified CM and is
applicable to video endpoints or trunks placing calls. For some video endpoints, Retry Video Call as
Audio is enabled by default and not configurable on the endpoint.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-28
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Locations, Links, and Region Settings
Location links work in conjunction with regions to define the characteristics of a call over the effective
path of locations and links. Regions define the type of compression or bit rate (8 kbps or G.729, 64 kbps
for G.722 or G.711, and so forth) that is used between devices, and location links define the amount of
available bandwidth for the effective path between devices. You assign each device in the system to both
a region (by means of a device pool) and a location (by means of a device pool or by direct configuration
on the device itself).
You can configure locations in Unified CM to define:
•
Physical sites (for example, a branch office) or transit sites (for example, an MPLS cloud) — A
location represents a LAN. It could contain endpoints or simply serve as a transit location between
links for WAN network modeling.
•
Link bandwidth between adjacent locations — Links interconnect locations and are used to define
bandwidth available between locations. Links logically represent the WAN link between physical
sites.
– Audio Bandwidth — The amount of bandwidth that is available in the WAN link for voice and
fax calls being made from devices in the location to the configured adjacent location.
Unified CM uses this bandwidth value for Enhanced Locations Call Admission Control.
– Video Bandwidth — The amount of video bandwidth that is available in the WAN link for video
calls being made from devices in the location to the configured adjacent location. Unified CM
uses this bandwidth value for Enhanced Locations Call Admission Control.
– Immersive Video Bandwidth — Not used in the PA configuration.
You can configure regions in Unified CM to define:
•
The maximum audio bit rate
•
The maximum session bit rate for video calls (includes audio)
•
The maximum session bit rate for immersive video calls (includes audio) — Not used in the PA
configuration.
•
Audio codec preference lists
Location Bandwidth Manager
The Location Bandwidth Manager (LBM) is a Unified CM Feature Service managed from the
serviceability web pages and is responsible for all of the Enhanced Locations CAC bandwidth functions.
The LBM should be configured to run on each subscriber node in the cluster that is also running the
Cisco CallManager service.
The LBM performs the following functions:
•
Assembles topology of locations and links
•
Calculates the effective paths across the topology
•
Services bandwidth requests from the Cisco CallManager service (Unified CM call control)
•
Replicates the bandwidth information to other LBMs (see Figure 6-15)
•
Provides configured and dynamic information to serviceability
•
Updates Location Real-Time Monitoring Tool (RTMT) counters
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-29
Chapter 6
Bandwidth Management
Architecture
Figure 6-15
LBM Local Replication Network
UCM
Bandwidth
Req/Res
LBM
UCM
UCM
Bandwidth
Req/Res
Bandwidth
Req/Res
LBM
LBM
LBM
Full Mesh
Replication
LBM
UCM
349578
Bandwidth
Req/Res
By default the CallManager service communicates with the local LBM service.
Deducting All Audio from the Voice Pool
This PA utilizes a new Unified CM 11.x feature that allows the administrator to deduct the audio
bandwidth of video calls from the voice pool. Because ELCAC relies on the correct DSCP setting in
order to ensure the protection of the queues that voice and video CAC pools represent, changing how
Unified CM deducts bandwidth from the video pool requires the DSCP of audio streams of the video
calls to be marked the same as the audio streams of audio-only calls.
In Unified CM this feature is enabled by setting the service parameter Deduct Audio Bandwidth from
Audio Pool for Video Call to True under the Call Admission Control section of the CallManager
service. False is the default setting, and by default Unified CM deducts both audio and video streams of
video calls from the video pool.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-30
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Multi-Cluster Considerations
This section covers the following topics:
•
Intercluster ELCAC
•
LBM Hub Replication Network
•
Common Locations (Shared Locations) and Links
•
Shadow Location
•
Location and Link Management Cluster
Intercluster ELCAC
Intercluster Enhanced Locations CAC extends the concept of network modeling across multiple clusters.
In intercluster Enhanced Locations CAC, each cluster manages its locally configured topology of
locations and links and then propagates this local topology to other remote clusters that are part of the
LBM intercluster replication network. Upon receiving a remote cluster's topology, the LBM assembles
this into its own local topology and creates a global topology. Through this process the global topology
is then identical across all clusters, providing each cluster a global view of enterprise network topology
for end-to-end CAC. Figure 6-16 illustrates the concept of a global topology with a simplistic
hub-and-spoke network topology as an example.
Figure 6-16
Example of a Global Topology for a Simple Hub-and-Spoke Network
Global Topology
Locations
Hub_none
Links
Loc_11 Loc_12
12
Loc_22
L
2 L
Loc_23
2
Loc_21
2
LBM intercluster
replication
Loc_11 Loc_12
Cluster 1
Local Topology
Cluster 2
Hub_none
L
2 L
Loc_23
2
21 Loc_22
Loc_21
Cluster 2
Local Topology
349579
Cluster 1
Hub_none
_none
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-31
Chapter 6
Bandwidth Management
Architecture
Figure 6-16 shows two clusters, Cluster 1 and Cluster 2, each with a locally configured hub-and-spoke
network topology. Cluster 1 has configured Hub_None with links to Loc_11 and Loc_12, while Cluster 2
has configured Hub_None with links to Loc_21, Loc_22, and Loc_23. When intercluster Enhanced
Locations CAC is enabled, Cluster 1 sends its local topology to Cluster 2, as does Cluster 2 to Cluster 1.
After each cluster obtains a copy of the remote cluster's topology, each cluster overlays the remote
cluster's topology over its own. The overlay is accomplished through common locations, which are
locations that are configured with the same name. Because both Cluster 1 and Cluster 2 have the
common location Hub_None with the same name, each cluster will overlay the other's network topology
with Hub_None as a common location, thus creating a global topology where Hub_None is the hub and
Loc_11, Loc_12, Loc_21, Loc_22 and Loc_23 are all spoke locations. This is an example of a simple
network topology, but more complex topologies would be processed in the same way.
LBM Hub Replication Network
The intercluster LBM replication network is a separate replication network of designated LBMs called
LBM hubs. LBM hubs create a separate full mesh with one another and replicate their local cluster's
topology to other remote clusters. Each cluster effectively receives the topologies from every other
remote cluster in order to create a global topology. The designated LBMs for the intercluster replication
network are called LBM hubs. The LBMs that replicate only within a cluster are called LBM spokes. The
LBM hubs are designated in configuration through the LBM intercluster replication group. The LBM
role assignment for any LBM in a cluster can also be changed to a hub or spoke role in the intercluster
replication group configuration. (For further information on the LBM hub group configuration, refer to
the Cisco Unified Communications Manager product documentation available at
http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html.)
In the LBM intercluster replication group, there is also a concept of bootstrap LBM. Bootstrap LBMs
are LBM hubs that provide all other LBM hubs with the connectivity details required to create the
full-mesh hub replication network. Bootstrap LBM is a role that any LBM hub can have. If all LBM hubs
point to a single LBM hub, that single LBM hub will tell all other LBM hubs how to connect to one
another. Each replication group can reference up to three bootstrap LBMs.
Once the LBM hub group is configured on each cluster, the designated LBM hubs will create the
full-mesh intercluster replication network. Figure 6-17 illustrates an intercluster replication network
configuration with LBM hub groups set up between three clusters (Cluster 1, Cluster 2, and Cluster 3)
to form the intercluster replication network.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-32
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-17
Example Intercluster Replication Network for Three Clusters
Cluster 1
Intercluster Replication Group
LBM Hub
Servers
UCM_11
UCM_12
LBM Hub
HUB
LBM Bootstrap
Servers
UCM_11
LBM Spoke
UCM_21
LBM
UCM_31
HUB
Cluster 2
HUB
Cluster 3
Intercluster Replication Group
Intercluster Replication Group
UCM_23
LBM Bootstrap
Servers
UCM_11
UCM_12
LBM Hub
Servers
LBM Hub
Servers
UCM_21
UCM_31
LBM Bootstrap
Servers
UCM_11
UCM_12
UCM_33
UCM_21
UCM_31
LBM
HUB
HUB
LBM
LBM
HUB
HUB
LBM
UCM_22
Cluster 2 LBM
Replication Network
UCM_32
Intercluster LBM
Replication Network
UCM_34
Cluster 3 LBM
Replication Network
349580
UCM_24
In Figure 6-17, two LBMs from each cluster have been designated as the LBM hubs for their cluster.
This provides redundancy for the LBM hub role. These LBM hubs form the intercluster LBM replication
network. The bootstrap LBMs configured in each LBM intercluster replication group are designated as
UCM_11 and UCM_12. These two LBM hubs from Cluster 1 serve as points of contact or bootstrap
LBMs for the entire intercluster LBM replication network. UCM_21 and UCM_31 in Cluster 2 and
Cluster 3, respectively, serve as backup bootstrap LBM hubs when the primaries are not available (that
is, when Cluster 1 is not available). Establishing the intercluster LBM replication network means that
each LBM hub in each cluster connects to UCM_11, replicates its local topology, and gets the remote
topology. They also get the connectivity information for the other clusters from UCM_11, connect to the
other remote clusters, and replicate their topologies. This creates the full-mesh replication network. If
UCM_11 is unavailable, the LBM hubs will connect to UCM_12. If Cluster 2 LBM hubs are unavailable,
Cluster 2 and Cluster 3 LBM hubs will connect to UCM_31, and Cluster 3 LBM hubs will connect to
UCM_21.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-33
Chapter 6
Bandwidth Management
Architecture
The LBM has the following roles with respect to the LBM intercluster replication network:
•
LBM hubs (local LBMs)
– Communicate directly to other remote hubs as part of the intercluster LBM replication network
•
LBM spokes (local LBMs)
– Communicate directly to local LBM hubs in the cluster and indirectly to the remote LBM hubs
through the local LBM hubs
•
Bootstrap LBMs
– LBM hubs responsible for interconnecting all clusters' LBM hubs in the replication network
– Can be any LBM hub(s) in the network
– Can indicate up to three bootstrap LBM hubs per LBM intercluster replication group
•
LBM hub replication network — Bandwidth deduction and adjustment messages
– LBM optimizes the LBM messages by choosing a sender and receiver from each cluster
LBM hubs can also be configured to encrypt their communications. This allows intercluster ELCAC to
be deployed in environments where it is critical to encrypt traffic between clusters because the links
between clusters might reside over unprotected networks. For further information on configuring
encrypted signaling between LBM hubs, refer to the Cisco Unified Communications Manager product
documentation available at
http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html
Common Locations (Shared Locations) and Links
Common locations are locations that are named the same across clusters. Common locations play a key
role in how the LBM creates the global topology and how it associates a single location across multiple
clusters. A location with the same name between two or more clusters is considered the same location
and thus is a shared location across those clusters. If a location is meant to be shared between multiple
clusters, it must have exactly the same name. After replication, the LBM will check for configuration
discrepancies across locations and links. Any discrepancy in bandwidth value or weight between
common locations and links can be seen in serviceability, and the LBM calculates the locations and link
paths with the most restrictive values for bandwidth and the lowest value (least cost) for weight.
Common locations and links can be configured across clusters for a number of different reasons. You
might have a number of clusters that manage devices in the same physical site and use the same WAN
up-links, and therefore the same location needs to be configured on each cluster in order to associate that
location to the local devices on each cluster. You might also have clusters that manage their own
topology, yet those topologies interconnect at specific locations and you will have to configure those
locations as common locations across each cluster so that, when the global topology is being created, the
clusters have the common interconnecting locations and links on each cluster to link each remote
topology together effectively. Figure 6-18 illustrates linking topologies together and shows the common
topology that each cluster shares.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-34
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-18
Using Common Locations and Links to Create a Global Topology
Cluster 1 Locations
Cluster 1
Topology
Cluster 2 Locations
DC
Cluster 3 Locations
Loc_11
Common Locations
Local Configuration
Cluster 1
Links
Global Topology
DC
Loc_11
Cluster 2
Regional 1
Cluster 2
Topology
Cluster 3
Regional 2
DC
DC
Regional 1
Loc_21 L
22
Loc_22
Loc_31
L
31 Loc_32
L
3
Cluster 3
Topology
Loc_33
L
33
Regional 2
Replicated Locations
Topology
Loc_21 Loc_22
L
22
Local Configuration
Loc_33
L
33
Local Configuration
349581
Loc_31
L
31 Loc_32
L
3
In Figure 6-18, Cluster 2 has devices in locations Regional 1, Loc_21, and Loc_22, but it requires
configuring DC and a link from Regional 1 to DC in order to link to the rest of the global topology.
Cluster 3 is similar, with devices in Regional 2 and Loc_31, Loc_32, and Loc_33, and it requires
configuring DC and a link from DC to Regional 2 to map into the global topology. Cluster 1 has devices
in Loc_11 only, and it requires configuring DC and a link to DC from Loc_11 to map into Cluster 2 and
Cluster 3 topologies.
The key to topology mapping from cluster to cluster is to ensure that at least one cluster has a common
location with another cluster so that the topologies interconnect accordingly.
Shadow Location
The shadow location is used to enable a SIP trunk to pass Enhanced Locations CAC information such as
location name, among other things, required for Enhanced Locations CAC to function between clusters.
In order to pass this location information across clusters, the SIP intercluster trunk (ICT) must be
assigned to the shadow location. The shadow location cannot have a link to other locations, and therefore
no bandwidth can be reserved between the shadow location and other locations. Any device other than
a SIP ICT that is assigned to the shadow location will be treated as if it was associated to Hub_None.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-35
Chapter 6
Bandwidth Management
Architecture
Location and Link Management Cluster
In order to avoid configuration overhead and duplicated configuration across clusters that share a large
number of locations, a Location and Link Management Cluster can be configured to manage all locations
and links in the global topology. All other clusters uniquely configure the locations that they require for
location-to-device association and do not configure links or any bandwidth values other than unlimited.
The Location and Link Management Cluster is a design concept and is simply any cluster that is
configured with the entire global topology of locations and links, while all other clusters in the LBM
replication network are configured only with locations set to unlimited bandwidth values and without
configured links. When intercluster Enhanced Locations CAC is enabled and the LBM replication
network is configured, all clusters replicate their view of the network. The designated Location and Link
Management Cluster has the entire global topology with locations, links, and bandwidth values; and
once those values are replicated, all clusters use those values because they are the most restrictive. This
design alleviates configuration overhead in deployments where a large number of common locations are
required across multiple clusters.
Recommendations
Location and Link Management Cluster:
•
One cluster should be chosen as the management cluster (the cluster chosen to manage
administratively locations and links).
•
The management cluster should be configured with the following:
– All locations within the enterprise will be configured in this cluster.
– All bandwidth values and weights for all locations and links will be managed in this cluster.
All other clusters in the enterprise:
•
All other clusters in the enterprise should configure only the locations required for association to
devices but should not configure the links between locations. This link information will come from
the management cluster when intercluster Enhanced Locations CAC is enabled. By default there is
always a link configured between a newly added location and hub_none. This link should be
removed if hub_none is either not used or is not correct in the topology being built.
•
When intercluster Enhanced Locations CAC is enabled, all of the locations and links will be
replicated from the management cluster.
LBM will always use the lowest, most restrictive bandwidth and lowest weight value after replication.
Benefits
•
Manages enterprise CAC topology from a single cluster.
•
Alleviates location and link configuration overhead when clusters share a large number of common
locations.
•
Alleviates configuration mistakes in locations and links across clusters.
•
Other clusters in the enterprise require the configuration only of locations needed for
location-to-device and endpoint association.
•
Provides a single cluster for monitoring of the global locations topology.
Figure 6-19 illustrates a Location and Link Management Cluster for three clusters.
Note
As mentioned, any cluster can act as the Location and Link Management Cluster. In Figure 6-19,
Cluster 1 is the Location and Link Management Cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-36
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-19
Example of Cluster 1 as a Location and Link Management Cluster
Cluster 1 Topology
DC
Loc_11
Regional 1
Cluster 1 Locations
Regional 2
Cluster 2 Locations
Cluster 3 Locations
Loc_21 L
Loc_22
22
Loc_31
L
31 Loc_32
L
3
Loc_33
L
33
Common Locations
Cluster 1
Local Configuration
Links
Global Topology
DC
Loc_11
Cluster 2
Regional 1
Cluster 2
Topology
Cluster 3
Regional 2
DC
DC
Regional 1
Loc_21 Loc_22
L
22
Loc_31
L
31 L
Loc_32
3
Cluster 3
Topology
Loc_33
L
33
Regional 2
Replicated Locations
Topology
Loc_21 L
Loc_22
22
Local Configuration
Loc_33
L
33
Local Configuration
349582
Loc_31
L
31 Loc_32
L
3
In Figure 6-19 there are three clusters, each with devices in only a regional and remote locations.
Cluster 1 has the entire global topology configured with locations and links, and intercluster LBM
replication is enabled among all three clusters. None of the clusters in this example share locations,
although all of the locations are common locations because Cluster 1 has configured the entire location
and link topology. Note that Cluster 2 and Cluster 3 configure only the locations that they require to
associate to devices and endpoints, while Cluster 1 has the entire global topology configured. After
intercluster replication, all clusters will have the global topology with locations and links.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-37
Chapter 6
Bandwidth Management
Architecture
Design Considerations for Call Admission Control
This section describes how to apply the call admission control mechanisms to various IP WAN
topologies. Unified CM Enhanced Locations CAC network modeling support, together with intercluster
enhanced locations, can support most of the network topologies in any Unified CM deployment model.
Enhanced Locations CAC is still a statically defined mechanism that does not query the network, and
therefore the administrator still has to provision Unified CM accordingly whenever network changes
affect admission control. This is where a network-aware mechanism such as RSVP can fill that gap and
provide support for dynamic changes in the network, such as when network failures occur and media
streams take different paths in the network. This is often the case in designs with load-balanced dual or
multi-homed WAN up-links or unequally sized primary and backup WAN up-links.
To learn how Enhanced Locations CAC functions, and for more design and deployment details of
Enhanced Locations CAC, see the Enhanced Locations Call Admission Control information in the
Bandwidth Management chapter of the Cisco Collaboration SRND.
This section explores a few typical topologies and explains how Enhanced Locations CAC can be
designed to manage them.
Dual Data Center Design
Figure 6-20 illustrates a simple dual data center WAN network design where each remote site has a
single WAN up-link to each data center. The data centers are interconnected by a high-speed WAN
connection that is over-provisioned for data traffic.
Figure 6-20
Dual Data Center WAN Network
Dual Data Center
Routed WAN Network
L1
DC2
L2
L3
L4
349583
DC1
Typically these WAN up-links from the remote sites to the data centers are load-balanced or in a
primary/backup configuration, and there are limited ways for a static CAC mechanism to handle these
scenarios. Although you could configure this multi-path topology in Enhanced Locations CAC, only one
path would be calculated as the effective path and would remain statically so until the weight metric was
changed. A better way to support this type of network topology is to configure the two data centers as
one data center or hub location in Enhanced Locations CAC and configure a single link to each remote
site location. Figure 6-21 illustrates an Enhanced Locations CAC locations and links overlay.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-38
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-21
Enhanced Locations CAC Topology Model for Dual Data Centers
Dual Data Center
ELCAC Topology Model
Hub_None
DC1
DC2
L1
L2
L3
L4
Location 1
Location 2
Location 3
Location 4
349584
Single link per
location to
hub_none
protecting the
lowest
capacity link
Design Recommendations
The following design recommendations for dual data centers with remote dual or more links to remote
locations, apply to both load-balanced and primary/backup WAN designs:
•
A single location (Hub_None) represents both data centers.
•
A single link between the remote locations and Hub_None protects the remote site up-links from
over-subscription during normal conditions or failure of the highest bandwidth capacity links.
•
The capacity of link bandwidth allocation between the remote site and Hub_None should be equal
to the lowest bandwidth capacity for the applicable Unified Communications media for a single link.
For example, if each WAN up-link can support 2 Mbps of audio traffic marked EF, then the link
audio bandwidth value should be no more than 2 Mbps to support a failure condition or equal-cost
path routing.
MPLS Clouds
When designing for Multiprotocol Label Switching (MPLS) any-to-any connectivity type clouds in the
Enhanced Locations CAC network model, a single location can serve as the MPLS cloud. This location
will not have any devices associated to it, but all of the locations that have up-links to this cloud will
have links configured to the location representing the cloud. In this way the MPLS cloud serves as a
transit location for interconnecting multiple variable-sized bandwidth WAN up-links to other remote
locations.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-39
Chapter 6
Bandwidth Management
Architecture
Design Recommendations
•
The MPLS cloud should be configured as a location that does not contain any endpoints but is used
as a hub to interconnect locations.
•
The MPLS cloud serves as a transit location for interconnecting multiple variable-sized bandwidth
WAN up-links to other remote locations.
•
Remote sites with connectivity to dual MPLS clouds should treat those connections as a single link
and size to the lowest capacity of the links in order to avoid over-subscription during network failure
conditions.
Call Admission Control Design Recommendations for Video Deployments
Admission control and QoS are complementary and in most cases co-dependent. Current Cisco product
offerings such as audio and video endpoints, voice and video gateways, voice messaging, and
conferencing all support native QoS packet marking based on IP Differentiated Services Code Point (IP
DSCP). Note, however, that Jabber for Windows clients specifically do not follow the same native
marking ability that other clients do, because the Windows operating system requires the use of Group
Policy Objects (GPO) using application, IP addresses, and UDP/TCP port ranges to mark traffic with
DSCP from the operating system itself. Group Policy Objects are very similar in function to network
access lists in their ability to mark traffic.
QoS is critical to admission control because without it the network has no way of prioritizing the media
to ensure that admitted traffic gets the network resources it requires above that of non-admitted or other
traffic classifications. Unified CM's CallManager service parameters for QoS as well as the SIP Profile
settings provide five main QoS settings that are applicable to endpoint media classification. Table 6-7
shows the five main DSCP parameters along with their default and recommended values and Per Hop
Behavior (PHB) equivalents.
Table 6-7
QoS Settings for Endpoint Media Classification
Cisco CallManager Service Parameters
Clusterwide Parameters (System - QoS)
Default Values
Recommended Values
DSCP
PHB
DSCP
PHB
DSCP for Audio Calls
46
EF
46
EF
DSCP for Video Calls
34
AF41
34
AF41
DSCP for Audio Portion of Video Calls
34
AF41
46
EF
DSCP for TelePresence Calls
32
CS4
34
AF41
DSCP for Audio Portion of TelePresence Calls
32
CS4
46
EF
The DSCP for Audio Calls setting is used for any device that makes an audio-only call. The DSCP for
Video Calls setting is used for the audio and video traffic of any device that is classified as "desktop."
DSCP for TelePresence Calls is used for the audio and video traffic of any device that is classified as
"immersive." The DSCP for Audio Portion of Video Calls and DSCP for Audio Portion of
TelePresence Calls differentiate only the audio portion of video calls, dependent on the classified video
call.
Enhanced Locations CAC Design Considerations and Recommendations
The following design recommendation applies to video solutions that employ Enhanced Locations CAC:
•
Intercluster SIP trunks should be associated with the shadow location.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-40
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Design Recommendations for Cisco Expressway Deployments with Enhanced Locations CAC
In the Cisco Expressway mobile and remote access (MRA) solution, endpoints supporting the feature
can register to Unified CM through a Cisco Expressway deployment without the use of a VPN. Cisco
Expressway-C and Expressway-E servers are deployed, each with redundancy for high availability.
Expressway-E is placed in the DMZ between the firewall to the Internet (outside) and the firewall to the
enterprise (inside), while Expressway-C is placed inside the enterprise. Figure 6-22 illustrates this
deployment. It also illustrates the following media flows:
Figure 6-22
•
For Internet-based endpoints calling one another, the media is routed through Cisco Expressway E
and Expressway C back out to the Internet, as is illustrated between endpoints B and C in
Figure 6-22.
•
For Internet-based endpoints calling internal endpoints, the media flows through Expressway-E and
Expressway-C, as is illustrated between endpoints A and C in Figure 6-22.
Deployment of Cisco Expressway Mobile and Remote Access (MRA)
B
Inside firewall
wall
anet)
(Intranet)
2
DMZ
Outside firew
firewall
wall
(Internet))
1
Collaboration
Servicess
IInternet
ntternett
C
Unifi
Unified
CM
Expressway-C
E
xpressway-C
CE
Expressway-E
xpressway-E
E
SIGNALING
Cisco WebEx
A
349585
MEDIA
A
Enhanced Locations CAC for Cisco Expressway deployments requires the use of a feature in
Unified CM called Device Mobility. Enabling Device Mobility on the endpoints allows Unified CM to
know when the device is registered through Cisco Expressway or when it is registered from within the
enterprise. Device Mobility also enables Unified CM to provide admission control for the device as it
roams between the enterprise and the Internet. Device Mobility is able to do this by knowing that, when
the endpoints register to Unified CM with the IP address of Expressway-C, Unified CM will associate
the applicable Internet location. However, when the endpoint is registered with any other IP address,
Unified CM will use the enterprise location that is configured directly on the device (or from the device
pool directly configured on the device). It is important to note that Device Mobility does not have to be
deployed across the entire enterprise for this function to work. Configuration of Device Mobility in
Unified CM is required only for the Expressway IP addresses, and the feature is enabled only on the
devices that require the function (that is to say, those devices registering through the Internet).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-41
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Bandwidth Management Deployment
This section describes how to deploy bandwidth management for the PA. It explores all aspects discussed
previously in this chapter, including identification and classification, WAN queuing and scheduling,
provisioning, resource control, and bandwidth allocation guidelines for each site type.
Deployment Overview
The Preferred Architecture example in this section is a large enterprise with users across a large
geographic area and with a headquarters site where the data center sits as well as multiple large, small,
and micro sized branches with roughly 500, 50, 15, and 5 users in each branch type, respectively. To
simplify the illustration of the network, these categories of sites (headquarters, large, small, and micro)
are used as a template to size bandwidth considerations for each site that has a similar size user base and
endpoint density. Figure 6-23 illustrates this with numbers of users and endpoints at each type of site.
The enterprise in this example has deployed Jabber with video to ensure that users have access to a video
terminal for conferencing. The TelePresence video conferencing resources are located in the data center
at the Headquarters Site. IP phones are for voice-only communications. Video endpoints are Jabber
clients, collaboration desktop endpoints (DX Series), and room-based endpoints (MX Series and
SX Series). The Headquarters Site has an immersive TelePresence unit such as the IX Series.
The IT department is tasked with determining the bandwidth requirements for the WAN edge for each
type of site. Each section below lists the requirements and illustrates a methodology for applying QoS,
determining bandwidth and queuing requirements, and determining admission control requirements.
Figure 6-23
Preferred Architecture for Enterprise Collaboration
Unified CM
Multipoint
Video (TS)
Central
Site
500 users:
500 Jabber clients
300 IP phones
30 video endpoints
(room + desktop)
1 Immersive TelePresence
(IX Series)
2 TelePresence Servers
Expressway
B2B
Cloud
Services
Serv
r ices
s
Mobile
Users
Internet
Int
MPLS VPN
50 users:
15 users:
5 users:
15 Jabber clients
10 IP phones
2 video endpoints
(room)
5 Jabber clients
3 IP phones
1 video endpoint
Large Branch
S
Small Branch
Micro Branch
349586
50 Jabber clients
30 IP phones
1 Immersive
TelePresence
(IX Series)
6 video endpoints
(room + desktop)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-42
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Deployment of bandwidth management for the Enterprise Collaboration Preferred Architecture involves
the following major tasks:
•
Identification and Classification
– Access Layer Endpoint Identification and Classification
– Application Server QoS
– WAN Edge Identification and Classification
– WAN Edge Queuing and Scheduling
•
Provisioning and Admission Control
– Enhanced Locations CAC
– Deploy Device Mobility for Mobile and Remote Access (MRA)
– Bandwidth Allocation Guidelines
Identification and Classification
In this phase the QoS requirements are established across the enterprise. The topics covered in this
section include:
•
Access Layer Endpoint Identification and Classification
– Endpoints: Jabber
– Endpoints: Desktop and TelePresence
•
Application Server QoS
•
WAN Edge Identification and Classification
•
WAN Edge Queuing and Scheduling
This phase of the deployment involves the following high-level steps:
1.
Configure endpoints in Unified CM with QoS for Jabber clients and desktop and telepresence
endpoints.
2.
Deploy an access layer policy for endpoint identification and classification for untrusted endpoints.
3.
Configure application server QoS for media and SIP signaling.
4.
Deploy a WAN Edge ingress marking policy for collaboration media and SIP signaling.
5.
Deploy a WAN Edge egress queuing policy for collaboration media and SIP signaling.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-43
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Access Layer Endpoint Identification and Classification
In this section endpoint QoS and media port ranges are configured in the network and in Unified CM.
Endpoints: Jabber
Jabber endpoints are untrusted and typically sit in the data VLAN. Specific UDP port ranges are used to
re-mark signaling and media at the access layer switch. In this case Unified CM is configured with a SIP
Profile specifically for all Jabber clients to use the Separate Media and Signaling Port Range value of
3000 to 3999 for audio and 5000 to 5999 for video. The SIP signaling port of 5060 is used for SIP
signaling and 5061 for secure SIP signaling. The SIP signaling port is configured in the SIP Security
Profile in Unified CM. This is illustrated in Figure 6-24.
Figure 6-24
Jabber Endpoint QoS
Match
DSCP
UDP Ports
3xxx
ACL
EF
5xxx
AF42
5060
5061
CS3
349587
Jabber clients
and desktop):
((mobile
ob e a
The administrator creates an ACL for the access switches for the data VLAN to re-mark UDP ports to
the following DSCP values:
•
Audio: UDP ports 3000 to 3999 marked as EF
•
Video: UDP ports 5000 to 5999 marked as AF42
•
Signaling: TCP ports 5060 to 5061 marked as CS3
Jabber classification summary:
•
Audio streams of all Jabber calls (voice-only and video) are marked as EF
•
Video streams of Jabber video calls are marked as AF42
For the Jabber endpoints, we also recommend changing the default QoS values in the Jabber SIP Profile.
This is to ensure that, if for any reason the QoS is "trusted" via a wireless router or any other network
component, then the correct "trusted" values are the same as they would be for the re-marked value.
Therefore, the QoS parameters in the SIP Profile should be set as listed in Table 6-8, and the UDP port
ranges should be set as listed in Table 6-9.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-44
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Table 6-8
QoS Parameter Settings in SIP Profile for Jabber Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
AF42
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
Table 6-9
UDP Port Settings for Jabber Endpoints
Media Port Ranges > Separate Port Range for Audio and Video
Value
Audio start port
3000
Audio stop port
3999
Video start port
5000
Video stop port
5999
The settings in Table 6-8 ensure that audio of Jabber clients is set to EF, and the video will be set to AF42
if for any reason the traffic goes through a trusted path and is not re-marked via UDP port range at the
access switch. This is simply to ensure a consistent configuration across Jabber endpoints.
For Jabber on mobile devices, we recommend copying the Standard SIP Profile for Mobile Device
when building a new SIP profile for these devices, because the default standard SIP profile for mobile
devices includes recommended timer values for maintaining Jabber registration on Android and
Apple iOS devices. These timers are required for any SIP profile assigned to dual-mode and tablet Jabber
client devices.
Note
Jabber for Mac, iPad, iPhone, and Android all natively mark DSCP by the OS. Jabber for Windows,
however, requires Group Policy Objects to re-mark DSCP by the OS. Without Group Policy Objects,
Jabber for Windows will mark all traffic with a DSCP of 0. This is why specific port ranges are used for
Jabber and without matching on DSCP.
Endpoints: Desktop and TelePresence
IP phones, smart desktop, and TelePresence endpoints also rely on an access layer switch ACL to
re-mark traffic. Specific UDP port ranges and DSCP are used to re-mark signaling and media at the
access layer switch. In this case Unified CM is configured with a SIP Profile specifically for all IP
phones, smart desktop, and TelePresence endpoints to use the common Media and Signaling Port Range
value of 17000 to 17999 for audio and video. The SIP signaling port of 5060 is used for SIP signaling
and 5061 for secure SIP signaling. The SIP signaling port is configured in the SIP Security Profile in
Unified CM. This is illustrated in Figure 6-25.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-45
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-25
Desktop and TelePresence Endpoint QoS
Match
Remark
UDP Ports
DSCP
EF
17xxx
EF
AF41
17xxx
AF41
CS3
5060
5061
DSCP
ACL
CS3
SWITCH
TelePresence
T
Te
lePresence Endpoints
349588
IP Phone / Smart Desktop
The administrator creates an ACL for the access switch ports to re-mark UDP ports to the following
DSCP values:
•
Audio: UDP ports 17000 to 17999 with DSCP of EF to be re-marked as EF
•
Video: UDP ports 17000 to 17999 with DSCP of AF41 to be re-marked as AF41
•
Signaling: TCP ports 5060 to 5061 marked as CS3
Desktop and TelePresence endpoint classification summary:
•
Audio streams of all desktop and TelePresence endpoint calls (voice-only and video) are marked EF.
•
Video streams of desktop and TelePresence endpoint video calls are marked AF41.
For the desktop and TelePresence endpoints, the default QoS values must be changed in the SIP Profile
and set as shown in Table 6-10, and the UDP port ranges should be set as listed in Table 6-11.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-46
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Table 6-10
QoS Parameters in SIP Profile for Desktop and TelePresence Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
No change
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
Table 6-11
UDP Port Settings for Desktop and TelePresence Endpoints
Media Port Ranges > Common Port Range for Audio and Video
Value
Media start port
17000
Media stop port
17999
Example Switch ACL-Based QoS Policy for Endpoint Switch Ports
Desktop and TelePresence endpoints:
•
Match UDP port range 17xxx with DSCP EF –> Re-mark to DSCP EF
•
Match UDP port range 17xxx with DSCP AF41 –> Re-mark to DSCP AF41
•
Match TCP ports 5060 to 5061 –> Re-mark to DSCP CS3
Jabber clients
•
Match UDP port range 3xxx –> Re-mark to DSCP EF
•
Match UDP port range 5xxx –> Re-mark to DSCP AF42
•
Match TCP ports 5060 to 5061 –> Re-mark to DSCP CS3
Generic matching
•
Note
Matches the rest of the traffic and sets DSCP to 0 (Best Effort or BE) using a default class-map
The following is an example access control list based on the Cisco Common Classification Policy
Language (C3PL).
! This section configures the ACLs to match the UDP port ranges and DSCP.
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 5000 5999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061
permit tcp any range 5060 5061 any
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-47
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
! This section configures the classes that match on the ACLs above.
class-map match-any VOICE
match access-group name QOS_VOICE
class-map match-any PRIORITIZED_VIDEO
match access-group name QOS_PRIORITIZED_VIDEO
class-map match-any JABBER_VIDEO
match access-group name QOS_JABBER_VIDEO
class-map match-any SIGNALING
match access-group name QOS_SIGNALING
! This section configures the policy-map matching the classes configured above and sets
DSCP for voice, video, and SIP signaling on ingress. Note that the class-default sets
everything that does not match the above to a DSCP of 0 (BE).
policy-map INGRESS_MARKING
class VOICE
set dscp ef
class PRIORITIZED_VIDEO
set dscp af41
class JABBER_VIDEO
set dscp af42
class SIGNALING
set dscp cs3
class class-default
set dscp 0
! This section applies the policy-map to the interface.
Switch (config-if)# service-policy input INGRESS-MARKING
As mentioned, endpoints send and receive other data and signaling such as ICMP, DHCP, TFTP, BFCP,
LDAP, XMPP, FECC, CTI, and so forth. The QoS values for this traffic should follow the enterprise’s
best practices for each type of traffic. Without doing this step, all other traffic apart from media and SIP
signaling will be set to a DSCP of BE (DSCP 0) by the class-default in this configuration. We
recommend either passing through the traffic marking by matching on DSCP and then re-marking the
DSCP to the same value, or else using the TCP and UDP ports for each protocol that the endpoints use
for communications.
The following example illustrates this. A class-map is created to match on a DSCP of AF21 which is
transactional data, and the policy sets that data to AF21, effectively re-marking the DSCP to the same
value. This is simply an example of matching on a DSCP to re-mark to the same DSCP:
class-map match-any TRANSACTIONAL-DATA
match dscp af21
policy-map INGRESS_MARKING
….
class TRANSACTIONAL-DATA
set dscp af21
TCP and UDP port ranges can also be used. For more information on the TCP and UDP ports used for
communication between the endpoints and Unified CM, see the Cisco Unified Communications
Manager TCP and UDP Port Usage information in the System Configuration Guide for Cisco Unified
Communications Manager, available at
http://www.cisco.com/c/en/us/support/unified-communications/unified-communications-managercallmanager/products-installation-and-configuration-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-48
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Also see the endpoints administration guides or the Jabber planning guide to determine the various
protocols and ports used for other endpoint traffic. Some examples of these documents include:
•
Cisco DX Series Administration Guide, available at
http://www.cisco.com/c/en/us/support/collaboration-endpoints/desktop-collaboration-experience-d
x600-series/products-maintenance-guides-list.html
•
Cisco Jabber Planning Guide, available at
http://www.cisco.com/c/en/us/support/unified-communications/jabber-android/products-installatio
n-guides-list.html
Application Server QoS
Configure QoS on all media originating and terminating applications and MCUs across the solution. This
section covers non-default configuration on all application servers in the PA. It is also equally important
to ensure that the switch ports to which the application servers are connected trust the QoS set by the
servers. Some switches such as the Cisco Catalyst 3850 Series trust the QoS by default, so verify the
switch configuration to ensure that the switch port is trusted by default or enable QoS trust.
QoS settings for the various application servers:
•
Cisco Unified CM (endpoint)
System > Service Parameters > Select Publisher > Select Cisco CallManager Service >
Clusterwide Parameters (System - QOS) > Change the QoS values from their defaults and set
them as indicated in Table 6-12.
Table 6-12
QoS Parameter Settings for Unified CM Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
No change
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
•
Cisco Unity Connection
System settings > Advanced > Telephony
– Default = Audio (46 / EF), Video (46 / EF), Signaling (24 / CS3)
– Change Video to 34 / AF41
•
Cisco TelePresence Conductor and TelePresence Server
– Leave defaults
•
Cisco Expressway
System > Quality of Service
– Sets QoS for all media and signaling to a single DSCP
– Default = 0
– Change to: 36 / AF42
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-49
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
WAN Edge Identification and Classification
At the WAN edge on ingress from the enterprise to the service provider, it is expected that the packets
that arrive with a specific DSCP value because the collaboration traffic have been re-marked at the access
layer switch. On ingress it is important to re-mark any traffic at the WAN edge that could not be
re-marked at the access layer, as a failsafe in case any traffic from the access switches was trusted
through the LAN. While QoS is important in the LAN, it is paramount in the WAN; and as routers
assume a trust on ingress traffic, it is important to configure the correct QoS policy that aligns with the
business requirements and user experience. The WAN edge re-marking is always done on the ingress
interface into the router, while the queuing and scheduling is done on the egress interface. The following
example walks through the WAN ingress QoS policy as well as the egress queuing policy. Figure 6-26
through Figure 6-31 illustrate the configuration and the re-marking process.
In Figure 6-26 the packets from endpoints are identified and classified with the appropriate DSCP
marking via a trusted port or via an ACL. Because there are typically areas of the switched access
network that either cannot be configured with the correct QoS policies or re-mark collaboration traffic
to Best Effort DSCP (BE), the WAN ingress policy is a good place for a catch-all policy to readdress
what the access layer might have missed before the traffic heads into the WAN.
Figure 6-26
Example Router Ingress QoS Policy Process – 1
Jabber clients
DSCP
IP Phone / Smart
S
Desktop
EF
Ingress
Policy
1
AF42
TelePresence
T
Te
lePresence Endpoints
SWITCH
CS3
349589
AF41
Figure 6-27 through Figure 6-29 illustrate the policy matching criteria and DSCP re-marking. The
illustrations show the following steps:
1.
In step 1, packets arrive at the router ingress interface, which is configured with an input service
policy.
2.
In step 2, the policy-map is configured with four classes of traffic to set the appropriate DSCP (voice
= EF; prioritized-video = AF41; Jabber-video = AF42; signaling = CS3).
3.
In step 3, each one of these classes matches a class-map of the same name configured with
match-any criterion. This match-any criterion means that the process will start top-down, and the
first matching criterion will be executed to set the DSCP according to each class in the policy-map
statements.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-50
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-27
Example Router Ingress QoS Policy Process – 2
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video, and SIP Signaling
on ingress
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349590
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-51
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
4.
Figure 6-28
In step 4, the first match statement in the class-map is match dscp. If the traffic matches the DSCP,
then DSCP is set again to the same value that was matched and as is configured in the policy-map
statements. In this case the router is simply matching on DSCP and resetting the DSCP to the same
value.
Example Router Ingress QoS Policy Process – 3
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
4
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349591
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video and SIP Signaling on
ingress
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-52
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
5.
Figure 6-29
In step 5, if DSCP was not matched, then the next line in the class-map statement is parsed, which
is the ACL that matches the UDP ports set in Unified CM for the Jabber clients in the Identification
and Classification section. When the ACL criteria are met (protocol, port range, and/or DSCP), then
the traffic is set as is configured in the corresponding policy-map statements.
Example Router Ingress QoS Policy Process – 4
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
5
Note
4
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
Egress
Policy
6
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349592
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video and SIP Signaling on
ingress
This is an example QoS ingress marking policy based on the Cisco Common Classification Policy
Language (C3PL). Refer to your specific router configuration guide for any updated C3PL commands
and for information on how to configure a similar policy on a Cisco router supporting C3PL.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-53
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
6.
In step 6, the traffic goes to an outbound interface to be queued and scheduled by an output service
policy that has three queues created: a Priority Queue called VOICE, a CBWFQ called VIDEO, and
another CBWFQ called SIGNALING. This is illustrated in Figure 6-30 through Figure 6-31. This
highlights the fact that the egress queuing policy is based only on DSCP as network marking
occurring at the access switch and/or on ingress into the WAN router ingress interface. This is an
example simply to illustrate the matching criteria and queues, and it does not contain the WRED
functionality. For information on WRED, see the WAN Edge Queuing and Scheduling section.
Figure 6-30
Example Router Egress Queuing Policy Process – 1
DSCP
Egress
Policy
7
EF
6
WAN
AF42
AF41
7.
Figure 6-31
349593
CS3
In step 7, the traffic is matched against the class-map match statements. All traffic marked EF goes
to the VOICE PQ, AF41 and AF42 traffic goes to the VIDEO CBWFQ, and CS3 traffic goes to the
SIGNALING CBWFQ.
Example Router Egress Queuing Policy Process – 2
! This section applies the policy-map to the Interface
Egress
Policy
6
Router (config-if)# service-policy output EGRESS-QUEUING
! Attaches service policy to interface
! This section configures the bandwidth for
collab media and SIP signaling traffic
class VOICE
priority percent 10
! Provisions 10% LLQ to VOICE class
class VIDEO
bandwidth percent 30
! Provisions 30% CBWFQ to VIDEO class
class SIGNALING
bandwidth percent 2
! Provisions 2% CBWFQ to SIGNALING class
…
7
! This section applies the policy-map
class-map match-all VOICE
match dscp ef
class-map match-any VIDEO
match dscp af41
match dscp af42
class-map match-all SIGNALING
match dscp cs3
349594
policy-map EGRESS-QUEUING
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-54
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Note
This is an example egress queuing policy based on the Cisco Common Classification Policy Language
(C3PL). Refer to your specific router configuration guide for any updated C3PL commands and for
information on how to configure a similar policy on a Cisco router supporting C3PL.
Example Configuration of Egress Queuing
! This section applies the policy-map classes to match media and signaling QoS.
class-map match-any VIDEO
match dscp af41
match dscp af42
class-map match-any VOICE
match dscp ef
class-map match-any SIGNALING
match dscp cs3
! This section configures the bandwidth for Collaboration media and SIP signaling traffic.
policy-map EGRESS-QUEUING
class VOICE
priority percent 10
class VIDEO
bandwidth percent 30
fair-queue
class SIGNALING
bandwidth percent 2
…
! This section applies the policy-map to the interface.
Router (config-if)# service-policy output EGRESS-QUEUING
! Attaches service policy to interface
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-55
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
WAN Edge Queuing and Scheduling
This section covers the interface queuing. Figure 6-32 illustrates the voice PQ, video CBWFQ, and
WRED thresholds used for the CBWFQ.
Figure 6-32
Queuing and Scheduling Collaboration Media
AF41 WRED thresholds
(i.e., drop AF41 last)
EF
EF
Audio of Jabber Call
EF
Video of Video Call
AF41
Video of Jabber Call
AF42
AF42 WRED thresholds
(i.e., drop AF42 first)
•
All audio from all endpoints marked EF is mapped to the PQ.
•
Video calls and Jabber share the same CBWFQ.
Video
CBWFQ
BW Assigned to LLQ Classes
EF
other queues
Audio of Video Call
PQ
349576
Audio of IP Phone
– EF for audio streams of video calls from endpoints
– AF41 for video streams of video calls from endpoints
– EF for audio streams of all calls from Jabber clients
– AF42 for video streams of video calls from Jabber clients
•
WRED is configured on the video queue.
– Minimum to maximum thresholds for AF42: approximately 10% to 30% of queue limit
– Minimum to maximum thresholds for AF41: approximately 45% to 100% of queue limit
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-56
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Weighted Random Early Detection (WRED) threshold minimum and maximum values are configured in
the Video CBWFQ. To illustrate how the WRED thresholds are configured, assume that the interface had
been configured with a queue depth of 256 packets. Then following the guidelines above, the WRED
minimum and maximum thresholds for AF42 and AF41 would be configured as illustrated in
Figure 6-33.
Figure 6-33
Threshold Example for Video CBWFQ with WRED
Drop Probability
100%
~
~
policy-map WAN-EDGE
class VIDEO
bandwidth percent 40
random-detect dscp-based
random-detect dscp 34 120 256 50
random-detect dscp 36 20 90 20
~
mark-probability-denominator
5%
AF42
WRED
mark
probability
2%
AF41
(100/denom)
20
90
120
Queue Occupancy (packets)
WRED
max threshold
256
349595
WRED
min threshold
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-57
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Recommended WRED Thresholds
Figure 6-34 lists the WRED thresholds for each traffic class (AF41 and AF42) and the recommended
mark probability denominators that have been tested for various link speeds. These are just examples,
and testing and customization are expected based on the amount of traffic in each traffic class and the
aggressiveness required in the WRED drop probability during the busy hour.
Recommended WRED Thresholds by Link Speed
WAN Link Speed
622 Mbps
(OC12)
155 Mbps
(OC3)
34-44 Mbps
(E3/DS3)
10 Mbps
5 Mbps
min-threshold
240
180
120
60
60
max-threshold
512
384
256
128
128
mark-probabilitydenominator
50
50
50
50
50
min-threshold
40
30
20
15
15
max-threshold
180
135
90
40
40
mark-probabilitydenominator
20
20
20
20
20
Video queue bandwidth %
43
53
55
40
30
WRED Values
AF41
AF42
349596
Figure 6-34
The following example configuration is for WRED in the video Class-Based Weighted Fair Queue
(CBWFQ) of a DS3 link (44 Mbps).
policy-map EGRESS-QUEUING
class VOICE
priority percent 10
class VIDEO
bandwidth percent 30
random-detect dscp-based
random-detect dscp 34 120 256 50
random-detect dscp 36 20 90 20
fair-queue
class SIGNALING
bandwidth percent 2
Note
The WRED values might have o be customized for the specific environment. For example, if there is a
much larger amount of AF42 traffic than AF41 traffic, then it makes sense to adjust the WRED threshold
variables to suit those cases. Tweaking the variables and monitoring levels of drop is always the best way
to achieve the desired results.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-58
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Provisioning and Admission Control
This section addresses admission control and provisioning bandwidth to the queues for each site type. It
covers the following topics:
•
Enhanced Locations CAC
– Region Configuration
– Deploy Enhanced Locations Call Admission Control
•
Deploy Device Mobility for Mobile and Remote Access (MRA)
•
Bandwidth Allocation Guidelines
This phase of the deployment involves the following high-level steps:
1.
Configure Enhanced Locations CAC.
2.
Configure a region matrix for maximum video bit rate groups.
3.
Deploy Device Mobility for mobile and remote access (MRA) endpoints.
4.
Follow bandwidth allocation guidelines.
Enhanced Locations CAC
Admission control is not used in this case to manage the video bandwidth but instead to manage the
audio traffic to ensure that the Priority Queue (PQ) is not over-subscribed. In this specific example the
Voice pool in Enhanced Locations CAC admits the audio for both the voice-only calls and the video
calls.
In Unified CM this feature is enabled by setting the service parameter Deduct Audio Bandwidth from
Audio Pool for Video Call to True under the Call Admission Control section of the CallManager
service. False is the default setting, and by default Unified CM deducts both audio and video streams of
video calls from the video pool. This parameter changes that behavior and is key to the QoS alterations
in the Preferred Architecture.
Figure 6-35 illustrates the various call flows, their corresponding audio and video streams, and queues
to which queue they are directed.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-59
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-35
Provisioning and Admission Control
Admission Control
Voice
Voi
Vo
ice
Queue
Q
u eu e
Video
Queue
WAN
Link
other
queues
voice-only call
EF
AF42
349597
AF41
The following conditions apply to the example in Figure 6-35:
•
The Priority Queue is provisioned for all calls from endpoints and is protected by admission control
(E-LCAC voice BW pool).
•
The Video queue is over-provisioned for room-based video systems:
– Ratios are applied to desktop video endpoint usage.
– Jabber video calls can use any bandwidth unused by video room systems.
– During congestion, video streams of Jabber calls are subject to WRED drops and dynamically
reduce video bit rate.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-60
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Region Configuration
Group video endpoints into classes of maximum video bit rate to limit bandwidth consumption based on
endpoint type and usage within the solution. Three regions are required in total (see Table 6-13), and
three device pools are required per site. This applies to a configuration where a single audio codec of
G.722 is used across the entire organization, both LAN and WAN. Otherwise three regions per site are
also required. See the considerations for regions in the Architecture section.
Table 6-13
Example Region Matrix for Three Groups
Endpoint Groupings
Video_1.5MB
Video_2.5MB
Video_20MB
Video_1.5MB
1,500 kbps
1,500 kbps
1,500 kbps
Video_2.5MB
1,500 kbps
2,500 kbps
2,500 kbps
Video_20MB
1,500 kbps
2,500 kbps
20,000 kbps
Deploy Enhanced Locations Call Admission Control
Limit video calling based only in areas of the network where bandwidth resources are restricted beyond
AF41 marked traffic; otherwise, video bandwidth in the Location links should be unlimited.
•
Enable LBM services on every node where the Cisco CallManager service is enabled.
•
Configure locations.
– On the locations and links management cluster, configure all locations and links in the
organization.
– On all other clusters (subordinate to a locations and links management cluster), configure only
locations and remove any links to/from the locations.
•
Add locations to each device pool. The devices that must be configured in a location either directly
or via a device pool include:
– IP phones (via device pool)
– Conference bridges (via device pool)
– Gateways (via device pool)
– SIP trunks (via device pool)
– Music on hold (MoH) servers (directly)
– Annunciator (via device pool)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-61
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Intercluster Configuration
•
Configure the LBM hub group
– Used to assign LBMs to the hub role
– Used to define three remote hub members that replicate hub contact information for all of the
hubs in the LBM hub replication network
An LBM is a hub when it is assigned to an LBM hub group.
An LBM is a spoke when it is not assigned to an LBM hub group.
– Name: Cluster1_LBM_Hub_1
– Bootstrap Servers: <names or IP addresses of bootstrap servers> (see the LBM Hub Replication
Network section)
– Select up to two LBMs in the cluster to serve as hubs.
•
Recommendations for location configuration when intercluster ELCAC is implemented:
– A cluster requires the location to be configured locally for location-to-device pool association.
– Each cluster should have locations configured with the immediately neighboring locations of
other clusters, so that each cluster's topology can inter-connect and create a single global
topology. This does not apply to Location and Link Management Cluster deployments.
– Discrepancies of bandwidth limits and weights on common locations and links are resolved by
using the lowest bandwidth and weight values.
– Naming locations consistently across clusters is critical. Follow the practice: "Same location,
same name; different location, different name."
– The Hub_none location should be renamed to be unique in each cluster. If Hub_none is left as
default on all clusters, then it will be treated as the same location, which may or may not be
desired, depending on the locations design being configured (see the Enhanced Locations Call
Admission Control section).
– Cluster-ID should be configured and must be unique on each cluster for serviceability reports
to be usable.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-62
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Deploy Device Mobility for Mobile and Remote Access (MRA)
Configure Device Mobility
Figure 6-36 illustrates an overview of the device mobility configuration. Although this is a minimum
configuration requirement for Device Mobility for ELCAC to function for Internet-based devices,
Device Mobility can be configured to support mobility for these same endpoints within the enterprise.
See the Cisco Collaboration SRND for more information on Device Mobility for devices within the
enterprise.
Figure 6-36
Device Mobility Configuration and Location Association
Device
Mobility Info
Device Pool
Location
RTP_EXP_DP
RTP
RCD_EXP_DP
RCD
SJC_EXP_DP
SJC
RTP_EXP1_DMI
10.10.20.50/32
RTP_EXP2_DMI
10.10.20.51/32
RCD_EXP1_DMI
10.10.30.50/32
RCD_EXP2_DMI
10.10.30.51/32
SJC_EXP1_DMI
10.10.40.50/32
349598
SJC_EXP2_DMI
10.10.40.51/32
Figure 6-36 shows a simplified version of device mobility for the example deployment of ELCAC. The
IP addresses of the Expressway-C servers are configured in the device mobility information. In this
example there is a redundant pair of Expressway-C servers for each of the three sites: RTP, BLD, and
SJC. RTP_EXP1_DMI and RTP_EXP2_DMI are configured respectively with the server IP addresses of
the RTP Expressway-C servers. These two are associated to a new device pool called RTP_EXP_DP,
which has the location RTP configured on it. Each site is configured similarly. With this configuration,
when any device enabled for device mobility registers to Unified CM with the IP address that
corresponds to the device mobility information in RTP_EXP1_DMI or RTP_EXP2_DMI, it will be
associated with the RTP_EXP_DP device pool and thus with the RTP location.
With the above configuration, when an Internet-based device registers through the Expressway to
Unified CM, it will register with the IP address of Expressway-C. Unified CM then uses the IP address
configured in the device mobility information and associates the device pool and thus the Internet
location associated to this device pool. This process is illustrated in Figure 6-37.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-63
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-37
Association of Device Pool and Location Based on Expressway IP Address
1. Register me with
10.10.20.50
3. Here is your
configuration
IP Subnet
Device Mobility
Info
Device Pool
Location
10.10.20.50
RTP_EXP1_DMI
RTP_EXP_DP
RTP
10.10.30.50
RCD_EXP1_DMI
RCD_EXP_DP
RCD
10.10.40.50
SJC_EXP1_DMI
SJC_EXP_DP
SJC
349599
2. Device in RTP
In Figure 6-37. the client registers with Unified CM through the Expressway in RTP. Because the
signaling is translated at the Expressway-C in RTP, the device registers with the IP address of that
Expressway-C. The device pool RTP_EXP_DP is associated to the device based on this IP address. The
RTP_EXP_DP pool is configured with the RTP location, and therefore that location is associated to the
device. Thus, when devices register to the Expressway, they get the correct location association through
device mobility. When the endpoint relocates to the enterprise, it will return to its static location
configuration. Also, if the endpoint relocates to another Expressway in SJC, for example, it will get the
correct location association through device mobility.
Configure Device Mobility Information (DMI) for Expressway-Cs:
•
Create two DMIs per Expressway-C group (two Expressway-C nodes in a pair).
•
Add the IP address of the Expressway-C node in a subnet with a mask of 32 bits (this matches the
IP address exactly).
•
Add the site device pool to respective DMIs. This is the device pool of the site where the Expressway
pairs are located, which should contain the correct region and location.
Example for one DMI:
Name: SJC_EXP1_DMI
Subnet: 10.10.40.50
Mask: 32
Selected Device Pool: SJC_Video_1.5MB
Enable devices for device mobility. The bulk administration tool (BAT) can and should be used to
facilitate this step.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-64
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Bandwidth Allocation Guidelines
The bandwidth allocations in Figure 6-38 are unique guidelines based on this example enterprise. They
provide some guidance on percentages of available bandwidth for different common classes of
Collaboration traffic.
Figure 6-38
Bandwidth Allocation Guidelines
WAN Link Speed
622 Mbps
(OC12)
155 Mbps
(OC3)
34-44 Mbps
(E3/DS3)
10 Mbps
5 Mbps
<2 Mbps
(T1/E1)
Control (%)
1
1
1
1
2
10
Voice (%)
10
10
10
20
25
30
Video (%)
43
53
55
40
30
--
Signalling (%)
2
2
2
2
2
5
Scavenger (%)
1
1
1
1
1
1
Default (%)
43
33
31
36
40
54
349600
Class
Figure 6-39 through Figure 6-42 illustrate each site (Central, Large Branch, Small Branch, Micro
Branch) and the link bandwidth provisioned for each class based on the number of users and available
bandwidth for each class. Keep in mind that these values are based on bandwidth calculated for Layer 3
and above. Therefore, the values do not include the Layer 2 overhead, which is dependent on the link
type (Ethernet, Frame-relay, MPLS, and so forth). See the Network Infrastructure chapter of the
Collaboration SRND for more information on L2 overhead. Also note that the audio portion of
bandwidth for the video calls is deducted from the voice pool, so the voice queue is provisioned to
include the audio bandwidth of both voice-only and video calls.
Note
The calculations in the following examples use the maximum bandwidth for the number of endpoints
and then multiply that value by a percentage to account for active calls. For example, for 30 video
endpoints (30 calls possible) at 20% active video call rate, the calculation would be:
1.2 Mbps * 30 calls * 0.2 = 7.2 Mbps.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-65
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-39
Central Site
500 users:
500 Jabber clients
300 IP phones
30 video endpoints
(room + desktop)
1 Immersive TelePresence
Endpoint (IX Series)
2 Telepresence Servers
Voice
10 Mbps
Video
55 Mbps
100
Mbps
voice
10%
Default
31 Mbps
349601
video
55%
WAN
Link
Central Site Link (100 Mbps) Bandwidth Calculation
As illustrated in Figure 6-39, the Central Site has the following bandwidth requirements:
•
Voice queue (PQ): 10 Mbps (L3 bandwidth)
125 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
125 ∗ 80 kbps = 10 Mbps
•
Video queue: 55 Mbps (L3 bandwidth)
– Immersive video endpoint (IX Series): 3 Mbps ∗ 1 call = 3 Mbps
– Video endpoints: 1.2 Mbps ∗ 30 calls ∗ 0.2 = 7.2 Mbps
– TelePresence Servers: 1.5 Mbps ∗ 40 calls ∗ 0.5 = 30 Mbps
– 55 Mbps – (3 Mbps + 7.2 Mbps + 30 Mbps) = 14.8 Mbps for Jabber media
11 Jabber video calls @ 720p, or 18 @ 576p, or 50 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-66
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-40
Large Branch
50 users:
50 Jabber clients
30 IP phones
1 Immersive TelePresence
Endpoint (IX Series)
6 video endpoints
(room + desktop)
Voice
3.4 Mbps
Video
18.7 Mbps
34
Mbps
voice
10%
Default
10.5 Mbps
349602
video
55%
WAN
Link
Large Branch Link (34 Mbps) Bandwidth Calculation
As illustrated in Figure 6-40, the Large Branch site has the following bandwidth requirements:
•
Voice queue (PQ): 3.4 Mbps (L3 bandwidth)
42 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
42 ∗ 80 kbps = 3.360 Mbps
•
Video queue: 18.7 Mbps (L3 bandwidth)
– Immersive video endpoint (IX Series): 3 Mbps ∗ 1 call = 3 Mbps
– Video endpoints: 1.2 Mbps ∗ 6 calls = 7.2 Mbps
– 18.7 Mbps – (3 Mbps + 7.2 Mbps) = 8.5 Mbps for Jabber media
6 Jabber video calls @ 720p, or 10 @ 576p, or 36 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-67
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-41
Small Branch
15 users:
Voice
2 Mbps
15 Jabber clients
10 IP phones
2 video endpoints
(room)
Video
4 Mbps
WAN
Link
10
Mbps
Default
3.6 Mbps
video
40%
349603
voice
20%
Small Branch Link (10 Mbps) Bandwidth Calculation
As illustrated in Figure 6-41, the Small Branch site has the following bandwidth requirements:
•
Voice queue (PQ): 2 Mbps (L3 bandwidth)
25 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
25 ∗ 80 kbps = 2 Mbps
•
Video queue: 4 Mbps (L3 bandwidth)
– Video endpoints: 1.2 Mbps * 2 calls = 2.4 Mbps
– 4 Mbps – 2.4 Mbps = 1.6 Mbps for Jabber media
1 Jabber video call @ 720p, or 2 @ 576p, or 5 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-68
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Micro Branch
5 users:
5 Jabber clients
3 IP phones
1 video endpoint
Inte
Internet
e
DMVPN
Tunnel
QoS-enabled
Router
Voice
1.25 Mbps
Video
1.5 Mbps
WAN
Link
5
Mbps
Default
2 Mbps
Broadband
Modem/Router
voice
25%
video
30%
349604
Figure 6-42
Micro Branch Broadband Internet Connectivity (5 Mbps) Bandwidth Calculation
As illustrated in Figure 6-42, the Micro Branch site has the following bandwidth requirements:
•
Broadband Internet connectivity + DMVPN to central site
•
Configure interface of VPN router to match broadband up-link speed
•
Enable QoS on VPN router to prevent bufferbloat from TCP flows
•
Asymmetric download/upload broadband: consider limiting transmit bit rate on video endpoint
•
Bandwidth calculation will ultimately depend on the broadband bandwidth available and should
follow the same recommendations as in the Small Branch site link for provisioning.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-69
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Large Branch with Constrained WAN Link (Enhanced Locations CAC Enabled for Video)
In specific branch sites with lower-speed WAN links, over-provisioning the video queue is not feasible.
ELCAC can be applied to these location links for video to ensure that video calls do not over-subscribe
the link bandwidth. This template requires using site-specific region configuration to limit maximum
bandwidth used by video endpoints and Jabber clients. Also keep in mind that device mobility is required
if Jabber users roam across sites.
Figure 6-43
Large Branch with Constrained WAN Link (Enhanced Locations CAC Enabled for
Video)
50 users:
Voice
2 Mbps
50 Jabber clients
30 IP phones
4 video endpoints
(room + desktop)
Video
4 Mbps
WAN
Link
10
Mbps
Default
3.6 Mbps
video
40%
349605
voice
20%
As illustrated in Figure 6-43, a Large Branch site with a constrained WAN link (10 Mbps) has the
following bandwidth requirements:
•
Voice queue (PQ): 2 Mbps (L3 bandwidth)
25 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
25 ∗ 80 kbps = 2 Mbps
•
Video queue: 4 Mbps (L3 bandwidth)
– Possible usage:
1 call @ 720p (1,220 kbps) + 3 calls @ 576p (810 kbps) = 3,650 kbps
Or 2 calls @ 576p (768 kbps) + 5 calls @ 288p (320 kbps) = 3136 kbps
– Unified CM Location link bandwidth for video calls: 3.7 Mbps (L3 bandwidth)
– Leaves room for L2 overhead
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-70
November 20, 2015
CH A P T E R
7
Sizing
Revised: November 20, 2015
Sizing the components of the Preferred Architecture for Enterprise Collaboration solution is an
important part of the overall solution design.
For a given deployment, the goal of the sizing process is to determine:
•
The type of platform to be used for each Cisco Collaboration product. Most products are deployed
with virtualization only, but some products such as the Cisco TelePresence Server can also be
deployed as an appliance or blade, depending on the requirements.
•
The specifications and number of instances to be deployed for each Cisco Collaboration product.
For the products that are deployed with virtualization, this corresponds to the selection of the virtual
machine hardware specification defined in the Open Virtual Archive (OVA) template and the number
of virtual machines. For the products that are not deployed with virtualization, this corresponds to
the type and number of appliances or blades.
Sizing can be a complex exercise because of numerous parameters to take into considerations. In order
to simplify the sizing exercise, this chapter provides some sizing examples with corresponding
assumptions. We will refer to these sizing examples as simplified sizing deployments. If the requirements
of your particular deployment are within those assumptions, then you can use the simplified sizing
deployments in this document as a reference. If not, then the normal sizing calculations have to be
performed as described in the Sizing chapter of the Cisco Collaboration SRND and product
documentation available at http://www.cisco.com/go/ucsrnd.
Once the sizing is done for the products that are deployed with virtualization, determine how to place
the virtual machines on Cisco Unified Computing System (UCS) servers, and consider the co-residency
rules. Ultimately, this virtual machine placement process determines how many UCS servers are
required for the solution.
This chapter explains sizing for all modules that are covered in this document, namely: Call Control,
Conferencing, Collaboration Edge, and Core Applications. This chapter also covers Virtual Machine
Placement and Platforms.
For products that are deployed as virtual machines, this document does not provide details on the virtual
machine OVA template specification. For that information, refer to the documentation on Unified
Communications in a Virtualized Environment, available at http://www.cisco.com/go/uc-virtualized.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-1
Chapter 7
Sizing
Call Control
What’s New in This Chapter
Table 7-1 lists the topics that are new in this chapter or that have changed significantly from previous
releases of this document.
Table 7-1
New or Changed Information Since the Previous Release of This Document
New or Revised Topic
Described in:
Revision Date
Locations and regions
Unified CM Assumptions, page 7-3
November 20, 2015
Recommended TelePresence Server platforms and TelePresence Server Platform Sizing, page 7-8
capacities
November 20, 2015
Cisco Expressway sizing
November 20, 2015
Cisco Expressway Sizing, page 7-10
Call Control
As discussed in the Call Control chapter, the Cisco Unified Communications Manager (Unified CM) and
IM and Presence Service are provided through a Unified CM cluster and an IM and Presence cluster.
A Cisco Unified CM cluster consists of one publisher node, two dedicated TFTP servers, and one or
multiple call processing node pairs. The number of call processing pairs depends on the size of the
deployment and is discussed later in this section. The call processing nodes are deployed in pairs for 1:1
redundancy.
IM and Presence nodes are also deployed in pairs. The number of IM and Presence pairs also depends
on the size of the deployment, and this will be discussed later in this section. The IM and Presence nodes
are deployed in pairs for 1:1 redundancy.
Unified CM Sizing
For Unified CM, the simplified sizing guidance covers deployments with up to 10,000 users and 10,000
devices. Unified CM supports more users and more devices under different assumptions or by adding
more call processing pairs, but this is outside the scope of the simplified sizing guidance provided in this
chapter. Table 7-2 describes the simplified sizing deployments. The assumptions made for those
deployments are documented below this table. If the number of users or endpoints in your deployment
is outside of the values in Table 7-2, or if the requirements of your specific deployment fall outside of
the assumptions, do not use these simplified sizing deployments, but rather perform the normal sizing
procedure documented in the Sizing chapter of the Cisco Collaboration SRND available at
http://www.cisco.com/go/ucsrnd and in the product documentation available at
http://www.cisco.com/c/en/us/support/unified-communications/unified-communications-manager-call
manager/tsd-products-support-series-home.html.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-2
November 20, 2015
Chapter 7
Sizing
Call Control
Table 7-2
Unified CM Simplified Sizing Deployments
Deployment Size
Unified CM Nodes to be Deployed
(7.5k-User OVA Template Used for Each Unified CM Node)
Up to 5,000 users or
devices
5 nodes:
Between 5,000 and
10,000 users or devices
7 nodes:
1 Publisher, 2 TFTP, 1 call processing pair (2 call processing subscribers)
1 Publisher, 2 TFTP, 2 call processing pairs (4 call processing subscribers)
Table 7-2 sizes deployments based on the maximum number of users and devices, whichever number is
greater. For example, in a deployment with 5,000 users and an average of two devices per user (for
example, each user has a desk phone and a Jabber client in softphone mode), the 7-node deployment is
required because there are 10,000 devices in total.
The 7.5k-user virtual machine configuration (OVA template) is used in these simplified sizing
deployments in order to optimize the overall resources consumed on the UCS server. This OVA template
requires a full UC performance CPU platform such as the Cisco Business Edition 7000; and it is not
supported on the Business Edition 6000, for example. For more information on those OVA virtual
machine configuration templates and on the platform requirements, refer to the documentation at
www.cisco.com/go/uc-virtualized.
A Unified CM call processing pair deployed with the 7.5k-user OVA template could support up to 7,500
users under some conditions. But in this design, we use some assumptions that put an additional load on
Unified CM; for instance, we assume that each user can be configured with a Remote Destination Profile
for Single Number Reach, each user can use Extension Mobility, each endpoint can be CTI controlled,
some shared lines are configured, mobile and remote access is enabled, and so forth. Therefore the
capacity per Unified CM call processing pair is reduced, as shown in Table 7-2. The following
description provides more information on the assumptions used in this simplified sizing model.
Unified CM Assumptions
The following assumptions apply to the two simplified sizing deployments listed in Table 7-2:
•
Average of up to 4 busy hour call attempts (BHCA, the number of call attempts during the busy hour)
per user.
•
Average of up to 2 DNs per device.
•
Up to 500 shared lines per call processing subscriber pair, each line being shared with an average of
up to 3 devices.
•
Jabber clients registering to Unified CM (softphone mode) must be counted against the device limit.
•
Up to 3,000 partitions; 6,000 calling search spaces (CSSs); and 12,000 translation patterns per
cluster.
•
Per Unified CM cluster, up to 1,000 route patterns; 1,000 route lists; and 2,100 route groups. Per
Unified CM call processing pair, up to 100 hunt pilots, 100 hunt lists, 50 circular/sequential line
groups with an average of 5 members per line group, and 50 broadcast line groups with an average
of 10 members per line group.
•
Up to 500 CTI ports and 100 CTI route points per Unified CM call processing pair.
•
GDPR/ILS is enabled when multiple Unified CM clusters are deployed.
•
Extension Mobility (EM) — All users can use EM, but no Extension Mobility Cross Cluster
(EMCC) users.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-3
Chapter 7
Sizing
Call Control
•
Unified CM media resources — Unified CM software conference bridges (software CFBs) and
Unified CM media termination points (MTPs) should not be used in this design. Instead, use
TelePresence Servers and Cisco IOS-based MTP, respectively.
•
Average of up to one remote destination or mobility identity per mobility user. For example, in a
deployment with 5,000 users, there can be up to 5,000 remote destinations or mobility identities.
•
Up to 40,000 users synchronized with active directory (but only up to 5,000 or 10,000 active users
would place or receive calls, depending on the simplified sizing deployment selected in Table 7-2).
•
Up to 1,500 concurrent active calls (conferencing and non-conferencing sessions) per Unified CM
call processing pair. For example, if all calls are conference calls and if the average number of
participants in a conference is 10, then this design assumes up to 150 conference calls per
Unified CM call processing pair.
•
Up to 15 calls per second (cps) per Unified CM call processing pair
•
The Contact Source for Jabber is not based on Unified CM User Data Service (UDS) in this design,
but rather Basic Directory Integration (BDI) or Enhanced Directory Integration (EDI). If
Unified CM UDS is configured for the Contact Source, the maximum number of users per
Unified CM call processing pair is reduced to 3,750.
•
Up to 2,500 concurrent mobile and remote access endpoints per Unified CM call processing pair.
Other capacity limits that are applicable to the Cisco Collaboration solution and that are documented in
the Cisco Collaboration SRND and product documentation, also apply. For example:
•
Computer Telephony Integration (CTI) — All devices can be enabled for CTI, with up to 5 lines per
device and 5 J/TAPI applications monitoring the same CTI device.
•
Annunciator – 48 per Unified CM call processing pair. Music on hold (MoH) – 250 concurrent MoH
sessions per call processing pair. For a larger number of annunciators or concurrent MoH sessions,
deploy standalone Unified CM subscribers as MoH servers.
•
Gateway – Up to 2,100 per cluster.
•
Locations and regions — When adding regions, select Use System Default for the Audio Codec
Preference List and Audio and Session Bit Rate values. Changing these values for individual regions
from the default has an impact on server initialization and publisher upgrade times. Hence, with a
total of 2,000 regions you can modify up to 200 regions to use non-default values. With a total of
1,000 or fewer regions, you can modify up to 500 of them to use non-default values. A maximum of
2,000 locations is supported, and they do not have usage limitations like regions do.
•
Extension Mobility (EM) – Up to 250 EM users per Unified CM call processing node, or 375 per
cluster across two active call processing nodes.
IM and Presence Sizing
For IM and Presence, simplified sizing guidance covers deployments with up to 15,000 users. The IM
and Presence Service supports more users by adding IM and Presence node pairs, but this is outside of
the simplified sizing guidance provided in this chapter. Table 7-3 describes the simplified sizing
deployments. Again, if the number of users in your deployment is outside of the values in Table 7-3, do
not use these simplified sizing deployments, but rather perform the normal sizing procedure documented
in the Sizing chapter of the Cisco Collaboration SRND and product documentation.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-4
November 20, 2015
Chapter 7
Sizing
Conferencing
Table 7-3
IM and Presence Simplified Sizing Deployments
Deployment Size
IM and Presence Nodes to be Deployed
Less than 2,000 users
One IM and Presence pair using the 2k-user OVA template
Between 2,000 and 5,000 users
One IM and Presence pair using the 5k-user OVA template
Between 5,000 and 15,000 users
One IM and Presence pair using the 15k-user OVA template
These OVA virtual machine configuration templates require a full UC performance CPU platform such
as the Cisco Business Edition 7000. For more information on those OVA virtual machine configuration
templates and on the platform requirements, refer to the documentation available at
www.cisco.com/go/uc-virtualized.
The two IM and Presence nodes are deployed as a pair in order to provide redundancy if one of the nodes
fails.
SRST Sizing
The number of phones and DNs supported on a Cisco Integrated Services Router (ISR) in Survivable
Remote Site Telephony (SRST) mode depends on the platform. Table 7-4 provides capacity examples
for only three platforms. For information on other SRST platforms, including information on the
required amount of DRAM and flash memory, refer to the SRST documentation available at
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cusrst/requirements/guide/srs10spc.html
Table 7-4
SRST Sizing Examples
Platform
Maximum Number of Phones
Maximum Number of DNs
Cisco 2901 Integrated Service Routers
35
200
Cisco 3925 Integrated Service Routers
730
1,000
Cisco 4451-X Integrated Service Routers 1,500
2,500
Conferencing
Sizing a deployment for conferencing is primarily an exercise in deciding how many concurrent
connections are required to TelePresence Servers. Considerations include:
•
Geographical location — Each region served by Unified CM should have dedicated conferencing
resources. For example, there could be one central location for the US where Unified CM,
TelePresence Servers, and other servers are installed, and one central location for EMEA.
•
Preference for TelePresence Server platforms — Virtualized or non-virtualized
•
TelePresence Server platform capacities
•
TelePresence Conductor platform capacities
•
Type of conferencing — Audio and/or video; scheduled and/or non-scheduled
•
Conference video resolution — Higher quality conferences use more resources.
•
Large conference requirements — For example, all-hands meetings
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-5
Chapter 7
Sizing
Conferencing
Conference resources are generally dedicated to a region in order to keep as much of the conference
media on the regional network; therefore, sizing can be considered on a region-by-region basis.
Conference Port Usage Guidelines
Audio and video conference sizing depends heavily on specific details about the customer, their user
base, and their conferencing habits. The guidelines in this section can be used as a basis for sizing a
conferencing deployment, but user-to-port ratios will vary greatly depending on the deployment
environment and the requirements of the organization.
Table 7-5 shows suggested ratios to start planning conference resource requirements. These numbers
vary depending on the capabilities of deployed endpoints, availability of alternative audio conferencing
such as Cisco WebEx, and users' comfort level in creating and joining conferences. As a starting point,
the following formulas can be used to calculate port requirements:
•
Audio ports = 50 + (<number of users> / 9)
•
Video ports = 8 + (<number of users> / 15)
Table 7-5
Recommended Number of Conference Ports
Number of Users
Number of Audio Ports
Number of Video Ports
1,000
161
75
1,750
244
125
3,000
383
208
5,000
605
342
10,000
1,161
675
The numbers in Table 7-5 can be used for either scheduled or non-scheduled conferencing. It is expected
that, for scheduled meetings, customers can use existing usage data to draw more definite conclusions
about concurrent meeting usage.
Understanding what type of meetings a customer expects to take place will help further refine the
number of ports required. The total number of ports can be calculated with the formula:
Total ports = <Average number of participants in a meeting> ∗ <Concurrent meetings>
For example, with 3,000 users, Table 7-5 suggests 208 ports. This can, for instance, correspond to an
average of 3 participants per meeting and 69 concurrent meetings, or an average of 6 participants per
meeting and 34 concurrent meetings. By assessing the suggested port numbers in this manner, it is easier
to determine whether the total number of ports is likely to be sufficient for the deployment.
Another important point to consider is what the maximum meeting size is likely to be. In most cases the
largest meeting is an all-hands meeting type. For instance, if a customer has 1,000 users but has a
requirement to join 96 systems in an all-hands TelePresence conference, this would override the 75 port
suggestion.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-6
November 20, 2015
Chapter 7
Sizing
Conferencing
Screen Licenses and Port Capacity
Video resolution determines the quality of users' video experience and the number of video connections
that a Cisco TelePresence Server can support. For optimal experiences, we recommend enabling high
definition (HD) video calls at a minimum resolution of 720p and 30 frames per second (fps). Depending
on the budget and capability of an organization's endpoints and network, HD video calls might not
always be possible. Table 7-6 shows TelePresence Server port capacity based on video quality, assuming
the video streaming rate is 30 fps. The number of audio ports per screen license is not shown and is equal
to 52, with a maximum of 200 audio ports supported per TelePresence Server.
Table 7-6
TelePresence Server Port Capacity Based on Video Quality
Screen Licenses1
1080p Ports2
720p Ports3
480p Ports3
360p Ports3
1
1
2
3
4
5
5
10
15
20
10
10
20
30
40
20
20
40
60
80
48
48
96
144
192
1. The number of screen licenses that can be deployed on a TelePresence Server depends on the platform.
2. Assumes a separate content channel sharing at a maximum of 720p resolution and 15 fps.
3. Assumes a separate content channel sharing at a maximum of 720p resolution and 5 fps.
Note
With Cisco TelePresence Conductor and TelePresence Server, a single conference resource can host
multiple simultaneous conferences with different resolution limits. There is no need to dedicate a
TelePresence Server to a single resolution.
As can be seen from Table 7-6, the desired video quality has a direct effect on the amount of resources
consumed on a TelePresence Server and, as a result, a direct impact on the number of TelePresence
Servers required for the deployment.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-7
Chapter 7
Sizing
Conferencing
TelePresence Server Platform Sizing
Cisco TelePresence Server is available in several different models and platforms with differing
conference support and scalability. Table 7-7 lists the recommended TelePresence Server platforms for
enterprise deployments, along with some of their associated port capacities. For more details, for
information on other TelePresence Server platforms, or for information on other video and data channel
resolutions, refer to the Cisco TelePresence Data Sheet, available at
http://www.cisco.com/c/en/us/products/conferencing/telepresence-server/datasheet-listing.html
Table 7-7
TelePresence Server Platforms and Capacities
TelePresence Server
Platform1
Cluster
Support
HD 1080p Port
Capacity2
HD 720p Port
Capacity3
SD 480p Port
Capacity3
SD 360p Port
Capacity3
Multiparty Media 410v
No
27
54
81
108
Multiparty Media 820v
Yes, up to two
blades can be
clustered.
30 per blade.
60 per blade.
90 per blade.
120 per blade.
Up to 60 per
cluster.
Up to 120 per
cluster.
Up to 180 per
cluster.
Up to 240 per
cluster.
1. TelePresence Servers support a maximum of 200 audio connections for any standalone deployment or cluster and with any audio codec.
2. Assumes content sharing at 720p resolution and 15 frames per second (fps).
3. Assumes content sharing at 720p resolution and 5 frames per second (fps).
There are other considerations to keep in mind too. For example, a TelePresence Server supports a
maximum of 200 calls on any standalone server or cluster, with up to 104 calls in each conference.
TelePresence Conductor Sizing
The total number of TelePresence Servers for non-scheduled conferences is limited by the capacity of
TelePresence Conductor. Table 7-8 lists TelePresence Conductor capacities.
Table 7-8
TelePresence Conductor Capacities
OVA Template
Total Number of
TelePresence Servers
Total Number of Concurrent Participants
Across All TelePresence Servers
Small OVA template
30
50
Large OVA template or appliance
30
2,400
Clustering provides only high availability; it does not increase the maximum number of conference
bridges or concurrent calls that can be supported.
If a deployment grows beyond the capacity of a single TelePresence Conductor cluster, it is possible to
create additional independent TelePresence Conductor clusters and continue to add TelePresence Servers
there.
An independent TelePresence Conductor cluster should be used per regional Unified CM cluster. Using
the topology example in this document (see the Call Control chapter), there would be one TelePresence
Conductor cluster for the US Unified CM cluster and another one for the EMEA Unified CM Cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-8
November 20, 2015
Chapter 7
Sizing
Conferencing
Cisco TelePresence Management Suite (TMS)
We recommend two simplified sizing deployments for Cisco TMS, illustrated in Table 7-9. There are
other possible TMS deployments, but they are not covered in this guide. For instance, the single server
deployment that has all TMS, TMSPE, TMSXE, and Microsoft SQL components residing in the same
virtual machine is not described here because it does not provide redundancy.
The two deployments in Table 7-9 provide high availability. The redundant node is deployed for
resiliency, not for scalability. A load balancer providing a single virtual IP address for the primary and
backup nodes is also required.
Table 7-9
Cisco TMS Simplified Deployments and Capacities
Deployment Model
Deployment
Regular Deployment
2 nodes total:
(1 vCPU OVA template) each with TMS,
TMSPE, and TMSXE
Additional servers for
Microsoft SQL
Cisco TMS
Cisco TMSXE
< 200 controlled systems
(endpoints added to TMS
for scheduling)
< 50 endpoints
< 1,000
bookable in
Collaboration
Microsoft Exchange Meeting Rooms
(CMRs)
< 100 concurrent
participants
Cisco TMSPE
< 50 concurrent ongoing
scheduled conferences
Large Deployment
4 nodes total:
(4 vCPU OVA template) 2 each with both TMS
and TMSPE; and 2 with
TMSXE only
Additional servers for
Microsoft SQL
< 5,000 controlled systems < 1,800 endpoints
< 48,000
(endpoints added to TMS
bookable in
Collaboration
for scheduling)
Microsoft Exchange Meeting Rooms
(CMRs)
< 1,800 concurrent
participants
< 250 concurrent ongoing
scheduled conferences
Other factors that influence Cisco TMS performance and scaling include:
•
The number of users accessing the Cisco TMS web interface.
•
Concurrency of scheduled or monitored conferences.
•
Simultaneous usage of the Cisco TMS Booking API (TMSBA) by multiple extensions or custom
clients. Booking throughput is shared by all scheduling interfaces, including the Cisco TMS New
Conference page.
For more information on sizing Cisco TMS, refer to the Cisco TelePresence Management Suite
Installation and Upgrade Guide, available at
http://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/productsinstallation-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-9
Chapter 7
Sizing
Collaboration Edge
Collaboration Edge
This section covers sizing of Cisco Expressway and Cisco Unified Border Element, two key components
of the Collaboration Edge.
Cisco Expressway Sizing
Table 7-10 shows the maximum capacity that a single Expressway node can handle at any point of time.
The Expressway nodes are clustered together to provide redundancy and larger scalability. The cluster
configurations that are recommended and that are covered in this document consist of clusters of 2, 3, or
6 nodes. Table 7-11 shows the cluster capacity for those recommended deployments. It is important to
note that all of the deployment models account for redundancy. With a cluster of 2 or 3 nodes, one node
can fail without impacting the cluster capacity (N+1 redundancy). With a full cluster of 6 nodes, two
nodes can fail without impacting the cluster capacity (N+2 redundancy).
In order to better understand the relationship between the cluster capacity and the level of redundancy,
the following example analyses the video capacity during normal operations and after a failover, using
the medium OVA template:
The maximum video call capacity per node is 100 sessions. In a 3-node cluster in a non-resilient
deployment, the video call cluster capacity is 300, but it would be reduced by one-third if one node
fails. In order to provide resiliency and maintain the cluster capacity if one of the three nodes fails,
the recommended high-available 3-node cluster capacity is limited to 200 video sessions. During
normal operations, video calls are load-balanced across the cluster, with each node handling
approximately 66 video calls. If one node fails, the remaining nodes can then handle all 200 video
sessions because each node can handle 100 video sessions, and therefore the cluster capacity is
maintained.
Table 7-10
Expressway Node Capacity
OVA Template
Mobile and Remote
Access Proxy
Video Calls Capacity Audio-Only Calls
Registrations per Node1 per Node
Capacity per Node
Virtual machine with medium
OVA template or Cisco
Expressway CE1100
Appliance with 1 Gb small
form-factor pluggable (SFP)
transceivers
2,500
100
200
Virtual machine with large
OVA template or Cisco
Expressway CE1100
Appliance with 10 Gb small
form-factor pluggable (SFP)
transceivers
2,500
500
1,000
1. Proxy registration considerations apply only to mobile and remote access, not to business-to-business communications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-10
November 20, 2015
Chapter 7
Sizing
Collaboration Edge
Table 7-11
Cisco Expressway Simplified Sizing Deployments and Associated Cluster Capacity
Deployment Model
Expressway Cluster
Deployment
Redundancy
Model
Mobile and Remote Access Video Calls
Proxy Registrations per
Capacity per
Cluster1
Cluster
Audio-Only
Calls Capacity
per Cluster
Virtual machine with medium OVA template or Cisco Expressway CE1100 Appliance with 1 Gb SFP
Deployment 1
2 nodes
N+1
2,500
100
200
Deployment 2
3 nodes
N+1
5,000
200
400
Deployment 3
6 nodes
N+2
10,000
400
800
Virtual machine with large OVA template or Cisco Expressway CE1100 Appliance with 10 Gb SFP
Deployment 4
2 nodes
N+1
2,500
500
1,000
Deployment 5
3 nodes
N+1
5,000
1,000
2,000
Deployment 6
6 nodes
N+2
10,000
2,000
4,000
1. Proxy registration considerations apply only to mobile and remote access, not to business-to-business communications.
Note
The large OVA template is supported only with limited hardware. Refer to the documentation at
http://www.cisco.com/go/uc-virtualized for more information.
The following assumptions are used for the Expressway simplified sizing deployments in Table 7-11:
•
All video calls are encrypted. The average call rate across all the video calls is 768 kbps. For
example, half of the video calls could be at 384 kbps and the other half at 1152 kbps.
•
All audio calls are encrypted, and the average bandwidth across all audio calls is 64 kbps.
•
For virtual machines using the medium OVA template or Cisco Expressway CE1100 Appliance with
1 Gb small form-factor pluggable (SFP) transceiver, the call rate is up to 5 calls per second (cps) per
node.
•
For virtual machines using the large OVA template or Cisco Expressway CE1100 Appliance with
10 Gb small form-factor pluggable (SFP) transceiver, the call rate is up to 10 calls per second (cps)
per node.
The following guidelines apply when clustering Cisco Expressway:
•
Expressway clusters support up to 6 nodes (cluster capacity up to 4 times the node capacity).
•
Expressway-E and Expressway-C nodes cluster separately; an Expressway-E cluster consists of
Expressway-E nodes only, and an Expressway-C cluster consists of Expressway-C nodes only.
•
Expressway peers should be deployed in equal numbers across Expressway-E and Expressway-C
clusters. For example, a three-node Expressway-E cluster should be deployed with a three-node
Expressway-C cluster.
•
The capacity of all nodes across and within each Expressway-E and Expressway-C cluster pair must
be the same. For example, an Expressway-E node using the large OVA template must not be
deployed if the nodes in the Expressway-E cluster or in the corresponding Expressway-C cluster are
using the medium OVA template.
•
An Expressway-E and Expressway-C cluster pair can be formed by a combination of nodes running
on an appliance or running as a virtual machine, as long as the node capacity is the same across all
nodes.
•
Multiple Expressway-E and Expressway-C clusters may be deployed to increase capacity.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-11
Chapter 7
Sizing
Collaboration Edge
For more information on Expressway, refer to the Cisco Expressway Administrator Guide, available at
http://www.cisco.com/c/en/us/support/unified-communications/expressway-series/products-mainte
nance-guides-list.html
Cisco Expressway Sizing Example
A company has 6,000 users, and on average 1,000 users are traveling at any given time. 80% of the
mobile users require mobile and remote access at any given time. In this case, Expressway has to be sized
to allow for 800 concurrent registrations (80% of 1,000).
Moreover, 10% of the mobile users are in a call at the same time. 5% of these users are calling through
Expressway, while the remaining 5% are calling through the cellular network, so that the number of
concurrent calls to the Expressway is 40 (5% of 800).
In the corporate network, 1% of the users are on a business-to-business calls at the same time. This
accounts for an additional 50 calls (1% of (6,000 – 1,000)).
In this case we need to size the cluster to support 800 concurrent registrations and 90 concurrent calls
(40+50).
Table 7-10 shows that a medium OVA template supports up to 100 concurrent calls and 2,500 concurrent
registrations. We can therefore deploy an Expressway-C cluster consisting of two nodes using the
medium OVA template, and an Expressway-E cluster also consisting of two nodes using the medium
OVA template. Each Expressway server node can manage the whole amount of 800 registrations and
90 calls at the same time, as shown by Deployment 1 in Table 7-11. Clustering is needed because, if one
of the two Expressway nodes goes down, the other node can handle the whole amount of traffic. Under
normal conditions, calls and registrations are load-balanced between the two nodes of the Expressway-C
and Expressway-E clusters.
After some time, the business-to-business calls in this example increase from 1% to 3%. We now need
to account for 190 concurrent calls (40+150) instead of 90. The maximum that a medium OVA template
can handle is 100 calls, so we need to deploy a larger cluster in this case. Table 7-11 shows that
Deployment 2 can account for 200 concurrent calls even in case of a server failure. Therefore, the
administrator in this example decides to add another medium OVA node to the Expressway-C and
Expressway-E clusters, for a total of 3 nodes per cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-12
November 20, 2015
Chapter 7
Sizing
Collaboration Edge
Cisco Unified Border Element Sizing
Cisco Unified Border Element is supported on a wide range of Cisco routing platforms, including
platforms such as the Cisco 2900, 3900, and 4400 Series Integrated Services Routers (ISR) and the Cisco
1000 Series Aggregation Service Routers (ASR). Cisco Unified Border Element also provides
redundancy on the following platforms:
•
The Cisco ISR platforms, which can provide box-to-box redundancy with both signaling and media
preservation for active calls.
•
The Cisco ASR platforms, which can provide box-to-box or in-box redundancy with media and
signaling preservation (stateful failover) for active calls.
Table 7-12 provides capacity examples for a few platforms. For information on other platforms and for
more detailed, information including required amount of DRAM and flash memory, refer to the Cisco
Unified Border Element Data Sheet and the Cisco Unified Border Element and Gatekeeper Ordering
Guide, both available at
http://www.cisco.com/c/en/us/products/unified-communications/unified-border-element/datasheetlisting.html
Table 7-12
Cisco Unified Border Element Capacity Examples
Platform
Maximum SIP Trunk Sessions
Cisco 2901 Integrated Service Router
100
Cisco 3925 Integrated Service Router
800
Cisco 4451-X Integrated Service Router
6,000
Cisco 1004 and 1006 Aggregation Services Routers
16,000
Cisco Unified Border Element Sizing Example
A company has 8,000 users. During the busiest hour, 10% of them are in a call at the same time. 8% of
these users are calling external destinations, while the remaining users are engaged in internal calls. The
Telecom carrier and the enterprise have agreed that G.711 can be used on all calls, therefore no
transcoding is needed. For this deployment, 640 SIP sessions (8% of 8,000) are needed. Table 7-12
shows that a Cisco 3925 ISR can support up to 800 sessions. Thus, for this example two Cisco 3925 ISRs
with Cisco Unified Border Element software are selected, one active and one standby to provide
redundancy.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-13
Chapter 7
Sizing
Core Applications
Core Applications
This section covers sizing for Cisco Unity Connection.
Cisco Unity Connection
As discussed in the section on the Cisco Unity Connection Deployment Process, the recommended Unity
Connection deployment in this design consists of one publisher and one subscriber in active/active mode.
This guide covers three simplified sizing deployments for Unity Connection, depending on the number
of users. These deployments are shown in Table 7-13. There are other possible deployments with Unity
Connection, but they are not covered in this guide. Refer to the Cisco Collaboration SRND and product
documentation for information on the other possible deployments.
Table 7-13
Cisco Unity Connection Simplified Sizing Deployments
Deployment Size
Unity Connection Nodes to be Deployed for Active/Active
1,000 users
One Unity Connection pair using 1k-user OVA template
1,000 to 5,000 users
One Unity Connection pair using 5k-user OVA template
5,000 to 10,000 users
One Unity Connection pair using 10k-user OVA template
Cisco Unity Connection Assumptions
The OVA template limits should not be exceeded. For example, with the 5k-user OVA template, there is
a limit of 200 ports with G.711 or 50 ports with G.722. For more information on the OVA template
limits, refer to:
•
Cisco Unity Connection virtualization information at
http://docwiki.cisco.com/wiki/Virtualization_for_Cisco_Unity_Connection
•
Cisco Unity Connection product documentation available at
http://www.cisco.com/c/en/us/support/unified-communications/unity-connection-version-10-x/mo
del.html
It is also important to consider the amount of storage required to store voice mail. The message storage
depends on the size of the virtual disk. For example, the approximate message storage using the G.711
codec is 137k minutes with the 5k-user OVA template, which is defined with one vDisk of 200 GB. Note
that with the 10k-user OVA template, different vDisk sizes are available to address different message
storage requirements. For more information, refer to the Cisco Unity Connection Supported Platforms
List.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-14
November 20, 2015
Chapter 7
Sizing
Virtual Machine Placement and Platforms
Virtual Machine Placement and Platforms
With Cisco Collaboration products that are deployed with virtualization, after sizing the deployment, the
next step is to determine how to place the virtual machines together on the Cisco Unified Computing
System (UCS) servers, which will ultimately determine how many UCS servers are required for the
solution. This process is performed with the Collaboration Virtual Machine Placement Tool (VMPT),
which requires a cisco.com login and which is available at http://www.cisco.com/go/vmpt.
Figure 7-1 shows an example of using VMPT for a deployment with 5,000 users. This example assumes
that Cisco Business Edition 7000M is deployed. It does not include the TelePresence servers, which
could be deployed, for example, with the Multiparty Media 410v or Multiparty Media 820v platforms.
Virtual Machine Placement Example Using VMPT
349552
Figure 7-1
In general, in addition to using VMPT, it is a good practice to validate the virtual machine placement by
ensuring that the deployment meets all the co-residency requirements documented at
http://docwiki.cisco.com/wiki/Unified_Communications_Virtualization_Sizing_Guidelines#Appli
cation_Co-residency_Support_Policy
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
7-15
Chapter 7
Sizing
Virtual Machine Placement and Platforms
The main placement and co-residency rules are:
•
No over-subscription — All virtual machines require a one-to-one mapping between virtual
hardware and physical hardware. For example, with the CPU there must be a one-to-one mapping
between virtual hardware and physical hardware, even when hyper-threading is enabled.
•
VMware latency sensitivity, available with vSphere 5.5 and later versions, should be set to High for
the Unity Connection virtual machines. If not, one spare physical core must be reserved for the ESXi
scheduler on each ESXi host where Unity Connection is installed.
•
Most of the applications discussed in this guide support co-residency with third-party applications,
which means they can be installed on the same UCS server. However, it is important to understand
that, with co-residency of third-party applications, the third-party applications must follow the same
rules as Cisco collaboration applications. For example, once a third-party application is installed on
the same host as a Cisco collaboration application, CPU over-subscription is not supported with that
third-party application, a physical core needs to be reserved for the ESXi scheduler when deploying
Unity Connection, and so forth. With Cisco Business Edition platforms, the ESXi license also
dictates some of the co-residency options. For example, with the Cisco UC Virtualization
Hypervisor/Foundation, there is a limit on the number of third-party applications that can be
co-resident.
Redundancy Consideration
Even though the hardware platforms can be highly redundant, it is good practice to plan for hardware
redundancy. For example, do not deploy the primary and backup application virtual machines on the
same UCS server, as shown in the example in Figure 7-1. Instead, deploy primary and backup virtual
machines on different servers to provide redundancy in case a host fails.
Platforms
For the products that are deployed with virtualization, Cisco Business Edition 7000 can be an excellent
solution. It is easy to order and easy to deploy. It includes the Cisco UCS server hardware and a
hypervisor license. VMware vSphere Hypervisor (ESXi) is pre-installed. Business Edition 7000 is also
pre-loaded with the Cisco Collaboration software set and some of the Cisco Collaboration applications
are also pre-installed.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
7-16
November 20, 2015
A P P E N D I X
A
Product List
Revised: November 20, 2015
This product list identifies the Cisco products in the Preferred Architecture for Enterprise Collaboration,
along with their recommended software versions.
Table A-1
Products and Software Versions for Enterprise Collaboration 11.x Preferred Architecture
Recommended
Software Version
Product
Product Description
Cisco Unified Communications Manager and
IM and Presence Service
Call control, instant messaging, and presence
services
11.0(1)
Cisco Unity Connection
Voicemail services
11.0(1)
Cisco Expressway-C and Expressway-E
Mobile and remote access and
business-to-business communications
X8.6
Cisco Prime License Manager
Single management point for licensing
11.0(1)
Cisco Prime Collaboration Deployment
Installs Unified CM cluster with IM and
Presence Service and Unity Connection cluster
11.0(1)
Cisco TelePresence Conductor
Video conferencing resource management
4.0
Cisco TelePresence Server
Audio and video conferencing resources
4.2
Cisco ISR and ASR
PSTN gateway, SRST, and external connectivity IOS 15.5(2)T for ISR
to the Internet
IOS XE 3.15 for ASR
Cisco IP Phone 7811
General office use, single-line phone
10.3(1)
Cisco IP Phone 8800 Series
General office use
10.3(1)
Cisco Unified IP Conference Phone 8831
IP conference phone
10.3(1)
Cisco Jabber
Soft client with integrated voice, video,
voicemail, and instant messaging and presence
functionality for mobile devices and personal
computers
Jabber 11.0
Cisco DX Series
Personal TelePresence endpoint for the desktop
10.2(4)
Cisco TelePresence MX Series
TelePresence multipurpose room endpoint
CE 8.01
Cisco TelePresence SX Series
Integrator Series TelePresence endpoint
CE 8.01
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
A-1
Appendix A
Table A-1
Product List
Products and Software Versions for Enterprise Collaboration 11.x Preferred Architecture (continued)
Product
Product Description
Recommended
Software Version
Cisco TelePresence IX Series
Immersive TelePresence room system
IX 8.1
Cisco TelePresence Management Suite (TMS)
Scheduling, web conferencing integration, and
other advanced video features
15.0
1. MX Series and SX Series endpoints require the forthcoming release of CE 8.0 firmware. The release of this firmware load is expected by the end of 2015.
This firmware load is required for the functionality described in the Bandwidth Management chapter, and specifically for the QoS markings set by the
endpoint. If firmware load CE 8.0 is not used, then the QoS settings for the MX Series and SX Series endpoints will not function as described in the
Bandwidth Management chapter.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
A-2
November 20, 2015
