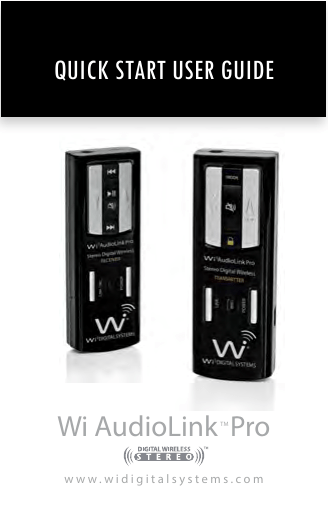

QUICK START USER GUIDE Wi AudioLink Pro

QUICK START USER GUIDE Wi AudioLink Pro

QUICK START USER GUIDE

w w w . w i d i g i t a l s y s t e m s . c o m

Charging

1. Plug the AC Charger into a power socket.

2. Connect the USB Y-Split power cable to

the USB port on the AC Charger.

3. Connect one of the two mini USB connectors

into the transmitter USB port.

4. Connect the second mini USB connector into

the receiver USB port.

5. The Power/Status LED will turn to solid

Red ON.

6. When charging is complete the Red LED

will turn OFF.

7. Remove the charging cable and the AC

Charger and store in the carrying case.

The battery will last 4 to 6 hours of

continuous operation.

AC Charger

USB Connector

USB Port

LINK

POWER

USB Port

Mini USB

Connector

Pairing

(Only If Needed)

1. First turn ON the transmitter (Tx) and the

receiver (Rx) units by pressing and k

of the units for 2 seconds. v

2. p

transmitter (Tx) for 3 seconds. The Power/

Status LED on the transmitter will start fast

flashing. The transmitter is now in a Pairing

mode and ready to search for the receiver.

3. z

receiver (Rx) for 3 seconds. The Power/

Status LED on the receiver will start fast

flashing. The receiver is now in a Pairing

mode and ready to be found by the

transmitter.

4. Once the transmitter links with the receiver

the Power/Status LED on both devices will

turn to solid Green.

(Rx) (Tx) r z v p k

Transmitter Connection

1. Connect the 1/8” stereo male end of the

cable into the “Audio Input” jack on the

transmitter.

2. Route the audio cable beneath the belt clip

as shown to prevent accidental disconnection

of the cable.

3. Connect the 1/4” mono male end of the cable

into the electric guitar. Use the 1/4” stereo

cable for digital piano, keyboard or electronic

drums connection.

4. Power up the transmitter by pressing and v

5.

Please refer to the “Transmitter Button Function Matrix” r

6. Attach the transmitter to your belt.

Alternatively the receiver can be

placed next to the musical instrument.

Audio Cable

Audio Input Jack

Musical Instrument

Belt Clip

Electric Guitar input

1/4” Mono to 1/8” Stereo Cable

1/4” mono male connector

(R) (L/MONO) r

(Tx) k

Receiver Connection

PLEASE PROTECT YOUR EARS! Prolonged use of headphones or In-Ear personal monitors at high volumes may affect your hearing capacity or may result in noise induced hearing loss (NHL).

1. Connect the 1/8” stereo end of the cable into

the “Audio Input” jack on the receiver.

2. Route the audio cable beneath the belt clip

as shown to prevent accidental disconnection

of the cable.

3. Connect the 1/4” male end of the cable to the

sound system, mixer or foot pedal. Use the

L/MONO and R jacks on your gear when

using the system in stereo.

4. Power up the receiver by pressing and v

5. Attach the receiver to your belt. Alternatively

the receiver can be placed next to the mixer,

amp, foot pedal or stomp box.

Audio Output

Jack

1/4” Y-Split to 1/8” Stereo Cable

POWER

(Rx) v

QUICK START USER GUIDE

TM

The Sound of Digital Wireless Innovation

© 2013 Wi Digital Systems, Inc. All rights reserved. Stylized Wi logo is a registered trademark of Wi Digital Systems, Inc. in the United States and may be a registered trademark in other countries. Wi, Digital Wireless Stereo logos and Wi AudioLink, Wi Sure-Ears, Wi Micro-In-Ear are trademarks of Wi Digital

Systems, Inc. All other trademarks included herein are the property of their respective owners. US and Foreign Patents Pending.

(Design and specifications subject to change without notice).

w w w . w i d i g i t a l s y s t e m s . c o m

Wi Transmitter

1. Audio IN Jack

2. Power ON/OFF

3. Power/Status LED

4. Volume UP

5. Volume Down

6. Mute

7. Link/Pairing

8. Lock

9. Operation Mode

10. USB Audio

Interface &

Charging Port

11. Belt Clip j r o n q p l m k

11 s

Transmitter Button Function

Function Button Hold LED Status

Power ON/OFF

POWER

2 sec Solid Green

Pairing Mode

LINK

3 sec Fast Green Flash

Volume UP Click

Volume Down

Mute ON/OFF 1.5sec

Solid Green & Blue

Lock Keypad 2 sec Solid Green Only

Unlock Keypad Click Solid Green & Blue

Flashes

Mono Preamp MODE

2 sec Solid Green & Slow

Blue LED Flashes

Mono Line-In MODE 2 sec Solid Green & Fast

Blue LED Flashes

Stereo Line-In MODE

2 sec Solid Green & Two

Blue LED Flashes

Transmitter LED Indicator

Function LED Status

Searching For Receiver

Linked to Receiver

Lock Keypad

Low Battery l

Flashing Red

Charging With Power OFF l

Charging With Power ON l

Solid Red & Green

Charging Complete l

Red OFF

Wi Receiver

1. Audio OUT Jack

2. Power ON/OFF

3. Power/Status LED

4. Volume UP

5. Volume Down

6. Link/MIC

7. Next Track

8. Previous Track

9. Mute/ Play/Pause

10.USB Charging Port

11. Belt Clip u

|

} y

{ z w x v

11

~

*Functions are activated when Transmitter is connected to a USB Port

Receiver Button Function

Function Button Hold LED Status

Power ON/OFF

POWER

2 sec Solid Green

Pairing Mode

LINK 3 sec

Fast Green Flash

MIC On/Off

MIC

Click 2 Blue LED Flashes

/ Solid Green LED

Volume UP Click

Volume Down

Mute ON/OFF

1.5 sec

Solid Green & Blue

Play/Pause * Click

Next Track *

Click

Prev Track * Click

Receiver LED Indicator

Function LED Status

Linked to Transmitter w w

Low Battery Solid Green &

Flashing Red

Charging With Power OFF w

Charging With Power ON w

Solid Red & Green

Charging Complete
