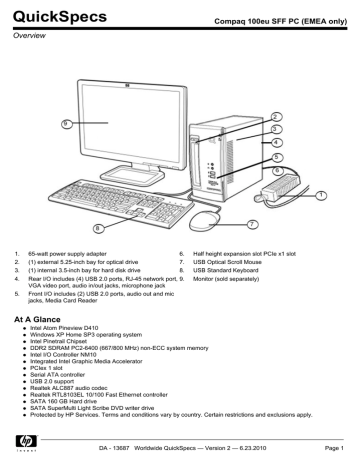

QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Overview
1.
2.
3.
4.
5.
65-watt power supply adapter
(1) external 5.25-inch bay for optical drive
(1) internal 3.5-inch bay for hard disk drive
Rear I/O includes (4) USB 2.0 ports, RJ-45 network port,
VGA video port, audio in/out jacks, microphone jack
Front I/O includes (2) USB 2.0 ports, audio out and mic
jacks, Media Card Reader
6.
7.
8.
9.
Half height expansion slot PCIe x1 slot
USB Optical Scroll Mouse
USB Standard Keyboard
Monitor (sold separately)
At A Glance
Intel Atom Pineview D410
Windows XP Home SP3 operating system
Intel Pinetrail Chipset
DDR2 SDRAM PC2-6400 (667/800 MHz) non-ECC system memory
Intel I/O Controller NM10
Integrated Intel Graphic Media Accelerator
PCIex 1 slot
Serial ATA controller
USB 2.0 support
Realtek ALC887 audio codec
Realtek RTL8103EL 10/100 Fast Ethernet controller
SATA 160 GB Hard drive
SATA SuperMulti Light Scribe DVD writer drive
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 1
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Standard Features and Configurable Components (availability may vary by country)
Operating Systems and Preinstalled
Application Software Supported
(availability varies by
region)
Windows XP Home SP3*
Genuine Windows Vista Business 32**
Windows XP Professional
Genuine Windows 7 Home Premium Edition 32*
Genuine Windows 7 Home Basic Edition 32*
Genuine Windows 7 Starter*
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality.
See: http://www.microsoft.com/windows/windows-7/ for details.
+ Windows 7 Professional disk may also be included for future upgrade if desired. To qualify for
this downgrade an end user must be a business (including governmental or educational
institutions) and is expected to order annually at least 25 customer systems with the same custom
image.
2007 Microsoft Office Ready PC
PDF Complete
CyberLink Power2Go
CyberLink LabelPrint
LightScribe Runtime
Internet Explorer 8
Internet Explorer Home Page
Microsoft Windows Live Toolbar
Hard Drives
160-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
System Memory
1-GB DDR2 Synch DRAM 800-MHz Non-ECC (1 x 1GB)
Optical Drive
SATA SuperMulti LightScribe DVD Writer Drive
Input Devices
Keyboard
USB Standard Keyboard
Mouse
USB Optical Scroll Mouse
Audio
Realtek ALC887 High Definition audio codec
3D audio compliant and HD Audio compatible
Communication
Integrated Realtek RTL8103EL 10/100 Ethernet Controller
Graphics
Integrated Intel Graphics Media Accelerator
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 2
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
Base Unit
One (1) drive bays and one PCI ex1 expansion slot
92 x 92 x 25 mm chassis fan
System board with Intel Pineview CPU and NM10 Chipset, Intel GMA graphic controller,
Realtek RTL8103EL 10/100 Fast Ethernet controller, Realtek ALC887 AUDIO codec, (1)
PCI ex1 slot, 2 DDR2 SO- DIMM memory slots, (2) Serial ATA data connectors
PSU Adapter & Power cord
Slots
PCI ex1
Memory Expansion
One (1) half-height PCI ex 1 slot
Two (2) DDR2 SO-DIMM slots (4 GB maximum memory support)
Bays
External
One (1) 5.25"
USB Support
EHCI high-speed USB 2.0 controller
Two (2) front ports; Four (4) rear ports, Two (2) internal ports on system board
Interfaces
One (1) analog VGA video port
One (1) rear line in; one (1) rear line out; one (1) rear mic in, (1) front mic in, (1) front headphone
out
One (1) RJ45 network port
Weight & Dimensions
Chassis Dimensions
(H x D x W)
Packaged Dimensions
(L x H x W)
System Weight
Shipping Weight
9.21 x 10.54 x 4.41 in
234 x 260 x 112 mm
19.48 x 12.99 x 8.50 in
495 x 330 x 216 mm
22.4 lb (10.2 kg)
30.8 lb (14.0 kg)
Technology and
Features
Memory Type
PC2-6400 DDR2 SO- DRAM (800 MHz) non-ECC
Up to 4-GB maximum system memory supported
Serial ATA
Hard Drive Interfaces
Supported
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 3
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
Chassis
Front Panel
Cooling Solutions
Supported
Slots Supported
Front I/O
Rear I/O
Drive Bays
Internal Speaker
Security
Power Supply
Power button
Power On LED
HDD Activity LED
Active heatsink (variable speed)
Chassis fan
One (1) half-height expansion slot
Two (2) USB 2.0 ports
Four (4) USB 2.0 ports, one (1) RJ45, three (3) Audio (line in, line out,
mic)
One (1) 5-1/4" external
N/A
Padlock loop
Kensington Lock Support
65-watt AC Power Adapter
Unit Environment and General Unit Operating Guidelines
Operating Conditions
Keep the computer away from excessive moisture, direct moisture and the extremes of heat
and cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that
they are subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the
computer. Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Temperature Range
Operating
32° to 104° F (0° to 40° C)
Non-operating
-22° to 149° F (-30° to 65° C)
Relative Humidity
Operating
10% to 90% (non-condensing at ambient)
Non-operating
5% to 95% (non-condensing at ambient)
Maximum Altitude
Operating
10,000 ft (3048 m)
(unpressurized)
Non-operating
30,000 ft (9000 m)
NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m)
above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper
limit may be limited by the type and number of options installed.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 4
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
System Board
Processor
Chipset
Super I/O
Front Side Bus
Frequency
Memory
Intel Atom Pineview D410
Intel I/O Controller Hub NM10
Intel I/O ITE 8758E1
667MHz
DDR2 S0-DIMM
2 x DIMM slots
Clock Generator
SLG84516BTTR
Integrated Graphics
Intel Graphics Media Accelerator (GMA)
Audio
Realtek ALC887 HD Audio compatible codec with two channel audio 3D
audio
LOM
Realtek RTL8103EL 10/100 Fast Ethernet controller
Storage
Two Serial ATA interfaces (hard drive and optical drive)
Expansion Slots
1 x PCI ex 1 slot
BIOS
SPI EEPROM
Industrial Standard
USB 2.0
Rear Side I/O Ports
4 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x D-sub 15 pin analog VGA port
3 x audio ports
On Board I/O Interfaces1 x Front panel connector, Switch, LED (ON/Flash/OFF)
1 x Fan headers for chassis, with voltage/fan speed control
1 x header to support 2 USB 2.0 ports at front side
1 x header to support 2 front (Headphone/Mic) audio ports
1 x header to support USB media reader
Board Size
PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)
Additional Features
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S3, S4 and S5
ACPI status
Hardware monitor capability
Network Interface
Power Supply
Integrated Realtek
Hardware Highlights
RTL8103EL 10/100 Fast Features
Ethernet Controller
PCIe x1 interface
10-Mbps and 100-Mbps operation
Crossover detection and auto-correction
Wake-on-Lan and remote Wake-up (Wakeon-LAN supported from S3, S4
65 Watt Power Adapter
90 to 140VAC, or 180 to 264VAC operating voltage range
100 to 127VAC, or 200 to 240VAC rated voltage range
50-60 Hz rated line frequency
47-63 Hz operating line frequency range
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 5
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
Power Conservation
'Energy Saver'
System Environmental
Specs
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
~2 watt power consumption in ES mode - suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
Eup Lot 6 - less than 1W with BIOS setup option (Max power savings)
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
Ambient Air
Operating
32° to 104°F (0° to 40°C) at sea level with an
Temperature
altitude de-rating of 1.0°C per every 1000 ft
(300 m) above sea level to a maximum of
8000 ft (2500 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
Storage
Humidity
Altitude
Shock
Vibration
-22° to 149°F (-30° to 65°C) Maximum rate of change: 410°F/Hr
(210°C/Hr).
Operating
10% to 90% relative humidity (Rh), 86°F
(30°C) maximum wet bulb temperature, noncondensing.
Storage
10% to 95% relative humidity (Rh), 101.66°F
(38.7°C) maximum wet bulb temperature,
non-condensing.
Operating
0 to 10,000 feet (0 to 3048 meters) - This
value may be limited by the type and number
of options installed. Maximum allowable
altitude change rate is 1,000 ft/min (304.8
m/min).
Non-Operating
0 to 30,000 feet (0 to 9,144 meters) Maximum allowable altitude change rate is
1200 ft/min (365.76 m/min).
Listed are the levels of shock the product can withstand with NO
damage being incurred. The values represent peak input acceleration
during a 2 to 3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
Non-Operating
35G's (Half-sine Shock)
35G's (Trapezoidal Shock)
Listed are the levels of vibration the product can withstand with NO
damage being incurred. The values represent a flat random vibration
input acceleration profile across the given frequency range.
Operating
Random vibration at [email protected]²/Hz,
[email protected]²/Hz, [email protected]²/Hz,
[email protected]²/Hz
5Hz to 300Hz, (0.25G's nominal).
Non-Operating
Random vibration at 0.008G²/Hz,
10Hz to 500Hz, (2 Grms nominal).
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 6
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
Service and Support
On-site WarrantyNote 1: One year warranty delivers one year of on-site, next business-dayNote 2
service for parts and labor and includes free telephone supportNote 3 24 x 7. Global coverageNote 2
ensures that any product purchased in one country and transferred to another non-restricted
country will remain fully covered under the original warranty and service offering. One-year onsite
and labor are not available in all countries.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
Other warranty variations may be offered in your region.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an
authorized HP third-party provider, and is not available in certain countries. Global service
response times are based on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 7
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Memory
DDR SYNCH DRAM NON-ECC MEMORY
The Intel Pinetrail chipset supports non-ECC DDR2 PC2-6400 (800-MHz). Memory upgrades are accomplished by adding
single or dual DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in
to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel
symmetric performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default
to the slowest DIMM.
STANDARD MEMORY
1-GB, 2-GB, 3-GB or 4-GB DDR2 SYNCH DRAM
OPTIONAL MEMORY UPGRADES
Supports up to 4 GB of DDR2 SYNCH DRAM. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be
available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
DIMM Size
1-GB
2-GB (dual-channel symmetric)
3-GB
3-GB
4-GB (dual-channel symmetric)
Slot 1
1-GB
1-GB
1-GB
2-GB
2-GB
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Slot 2
1-GB
2-GB
1-GB
2-GB
Page 8
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Storage
1. Optical Drive
2. 3.5" Serial ATA Hard Drive
3. USB Ports
4. Audio
5. Media Card Reader
Maximum Quantity Supported
1
1
2
5
1
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Controller
SATA
SATA
Internal USB 2.0
Realtek
Page 9
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Audio
Integrated Realtek
ALC887 Audio
Type
HD Audio compatible
codec
Sampling
Audio Jacks
Power Support
Other
Integrated
Yes
5:1 channel
Supports 48/96 KHz
Mic-In
Line-In
Line-Out / Headphone Out
Digital: 3.3V
Analog: 5V
Meets performance requirements for audio on PC99/2001 systems
High-performance DACs with 97dB SNR(A-Weighting)
ADCs with 90dB NR(A-Weighting)
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 10
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Communications
Integrated Realtek
Controller
8103E
RTL8103EL 10/100 Fast Memory
N/A
Ethernet Controller
Data rates supported 2.5GHz data rate with X1 link width
Compliance
IEEE802.3, IEEE 802.3u, IEEE 802.3ab
Bus architecture
PCIexpress 1.1
Data transfer mode
Half/Full Duplex Operation
Hardware certifications MS NDIS5, IPv4, Ipv6, TCP, UDP
Boot ROM support
EEPROM, 1Kb, 2Kb
Network transfer rate 10/100Mbps over CAT.5
10Mbps over CAT.3
Dimensions
9mm x 9mm
Management
ACPI rev 2.0, PM rev 1.1, ASPM v1.0a
capabilities
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 11
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Graphics
Integrated Intel
Graphic Media
Accelerator (GMA)
3D/2D Controller
DX9 Graphics Processor
VGA Controller
Single Display with Integrated DAC
Bus Type
PCIex16
RAMDAC
300 MHz RAMDAC
Memory
Up to 256MB of System Memory
Controller Clock Speed Internal 400MHz
Maximum Color Depth 1600 x 900
Maximum Vertical
75Hz
Refresh Rate
Multi-display Support No
Graphics/Video API
OpenGL 1.4
Support
Resolutions
Resolution
Maximum Refresh Rate (Hz)
Supported1
Analog Connection
Digital Connection
640 X 480
75,73,70
60,59
800 x 600
75,72
60
1024 x 768
75, 70
60
1152 x 864
75
60
1280 x 720
75
60
1280 x 768
75
60
1600 x 900
1 Modes listed are supported with a single active display. The supported mode list for multiple active displays is a subset of
this list. Not all modes will support video playback and some supported modes may use software MC (motion compensation)
rather than hardware MC. Not all modes will support 3D acceleration depending on the system configuration (e.g., resolution
selected, size of frame buffer, number of installed memory modules, etc.).
NOTE: Other resolutions and refresh rates may be selectable but are not recommended.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 12
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Input Devices
USB Standard
Keyboard
Physical
characteristics
Electrical
Mechanical
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H) 18.14 x 1.07 x 6.02 in (46.1 x 2.74 x15.3 cm)
Weight
1.3lb(0.6 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
ESD
CE level 4, 12.5-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B
computing device
Microsoft PC 99 - 2001 Functionally compliant
Languages
40 available
Keycaps
Silm design
Switch actuation
60-g nominal peak force with tactile feedback
Switch life
10 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling
N/A
mechanisms
Cable length
1.5 m
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
50-dBA maximum sound pressure level
Environmental
Operating temperature 50° to 122° F (10° to 50° C)
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity20% to 80% (non-condensing at ambient)
Operating shock
40g,six surfaces
Non-operating shock 80g,six surfaces
Operating vibration
2-g peak acceleration
Non-operating
4-g peak acceleration
vibration
Drop (out of box)
30 in (76 cm) on carpet, 5-drop sequence
Drop (in box)
30 in (76 cm) on rigid surface, 10-drop
sequence
Approvals
ULcUL, FCC, CE, TUV/Bauart, VCCI, BSMI, C-Tick, KCC
Ergonomic compliance N/A
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 13
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Input Devices
USB 2-Button Optical
Scroll Mouse
Scroll Wheel
Maximum Rotation
Speed
Switch Type
Switch Life
Environmental
Electrical
24
48 rats/sec
wheel
Button - 1,000,000
Wheel - 200,000 times
Operating Temperature32° to 104° F (0° to 40° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Temperature
Operating Humidity
10% to 90% (non-condensing at ambient)
Non-operating
20% to 80% (non-condensing at ambient)
Humidity
Operating Shock
40 g, six surfaces
Non-operating Shock 80 g, six surfaces
Operating Vibration
2-g peak acceleration
Non-operating
4-g peak acceleration
Vibration
Operating Voltage
Power Consumption
MTBF
ESD
4.35V-5.25V DC
<100mA
> 150,000 hrs
IEC-61000-4-2 criteria B, Contact discharge:
+/- 4kV, Air discharge: +/- 8kV
EMI-RFI
FCC Class B
PC98
PC 99 Compliant
Mechanical
Resolution
500±10% DPI
Tracking Speed
25 cm/sec
Acceleration
0.5mm
Switch Actuation
0.6N (60gf)
Switch Life
Button - 1,000,000
Wheel - 200,000 times
Cable Length
1.8m
PC98-99
PC99 compliant
Regulatory Approvals ULcUL, FCC, CE, TUV/GS, VCCI, BSMI, C-Tick, MIC
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 14
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Hard Drives
Serial ATA Hard Drives 160 GB
(7200 rpm)
Capacity
Height
Width
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Up to 3 Gb/s
Rate (Maximum)
Buffer
8 MB
Seek Time (typical
Single Track
2.0 ms
reads, includes controller Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
7,200 rpm
Logical Blocks
312,581,808
Operating Temperature41° to 131° F (5° to 55° C)
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 15
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Optical Storage
HP SATA SuperMulti
Height
5.25-inch, half-height, tray-load
LightScribe DVD Writer Orientation
Either horizontal or vertical
Drive
Interface type
SATA/ATAPI
Disc capacity
8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
2.6 lb (1.2 kg)
Write speeds
DVD-RAM
Up to 12X
DVD+R
Up to 16X
DVD+RW
Up to 8X
DVD+R DL
Up to 8X
DVD-R DL
Up to 8X
DVD-R
Up to 16X
DVD-RW
Up to 6X
CD-R
Up to 48X
CD-RW
Up to 32X
Read speeds
DVD-RAM
Up to 12X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
DVD-ROM DL
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
CD-RW
Random
Up to 8X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
Access times
DVD: < 140 ms (typical), CD: < 125 ms
(typical reads, including
(typical)
setting)
Full Stroke
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Power
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
Environmental
Temperature
41° to 122° F (5° to 50° C)
(all conditions
Relative Humidity
10% to 90%
non-condensing)
Maximum Wet Bulb
86° F (30° C)
Temperature
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 16
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Environmental Data
Eco-Label
Certifications and
declarations
Energy Consumption
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
This product has received or is in the process of being certified to the following approvals and may
be labeled with one or more of these marks:
US ENERGY STAR ®
IT ECO declaration
EPEAT Silver where HP registers commercial desktop products. See http://www.epeat.net
for registration status in your country.
115 VAC
230 VAC
100 VAC
21.290 W
21.288 W
21.398 W
1.381 W
1.420 W
1.385 W
0.902 W
0.940 W
0.903 W
115 VAC
230 VAC
100 VAC
73 BTU/hr
73 BTU/hr
73 BTU/hr
5 BTU/hr
5 BTU/hr
5 BTU/hr
3 BTU/hr
3 BTU/hr
3 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk (random
writes)
Batteries
Sound Power
(LWAd, bels)
3.4
3.54
Sound Pressure
(LpAm, decibels)
24.1
33.1
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Li Ion
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS)
directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver where HP
registers commercial desktop products. See http://www.epeat.net for registration status in
your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 90% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated 980 g
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 17
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Environmental Data
RoHS Compliance
Material Usage
Packaging
End-of-life
Management and
Recycling
Internal:
Polystyrene 1202 g
Polyethylene Low density foam 40 g
The Corrugated packaging material is made from 80% recycled content.
The Polystyrene packaging material is made from 80% recycled content.
The Polyethylene Low density foam packaging material is made from 80% recycled content.
Hewlett-Packard is committed to compliance with all applicable environmental laws and
regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive.
HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive
on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to
levels below legal limits) for all HP electronic products subject to the RoHS Directive, except
where it is widely recognized that there is no technically feasible alternative (as indicated by an
exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer
to the HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled
or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has
been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic
areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your
nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 18
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Technical Specifications - Environmental Data
Hewlett-Packard
Corporate
Environmental
Information
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, and Windows Vista are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Intel, Core 2 Quad, Core 2 Duo, Pentium and Celeron are
registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered
trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be
trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
