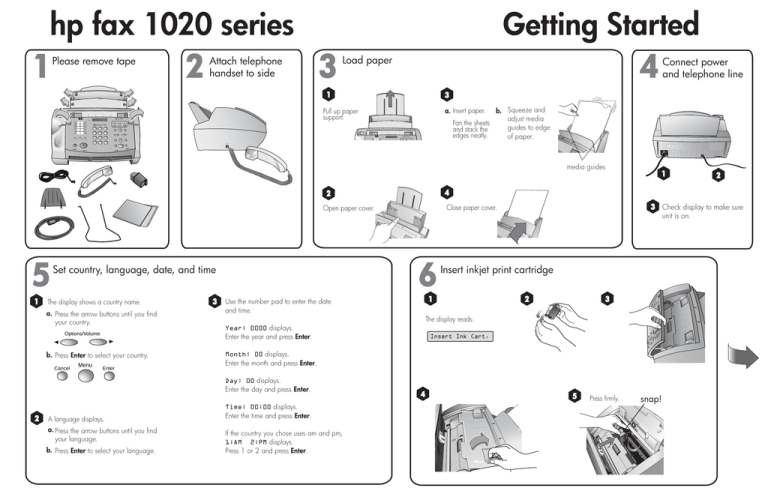

hp fax 1020 series
1
2
3
Please remove tape
Attach telephone
handset to side
Getting Started
4
Load paper
Connect power
and telephone line
1
3
b. Squeeze and
adjust media
Fan the sheets
guides to edge
and stack the
edges neatly.
of paper.
a. Insert paper.
Pull up paper
support.
LINE
media guides
1
The display shows a country name.
a. Press the arrow buttons until you find
your country.
Options/Volume
b. Press Enter to select your country.
Cancel
Menu
Enter
3
6
A language displays.
a. Press the arrow buttons until you find
your language.
b. Press Enter to select your language.
Insert inkjet print cartridge
1
Use the number pad to enter the date
and time.
3
2
The display reads:
Year: 0000 displays.
Enter the year and press Enter.
Insert Ink Cart.
Month: 00 displays.
Enter the month and press Enter.
Day: 00 displays.
Enter the day and press Enter.
2
3 Check display to make sure
unit is on.
Close paper cover.
Open paper cover.
5
Time: 00:00 displays.
Enter the time and press Enter.
If the country you chose uses am and pm,
1:AM 2:PM displays.
Press 1 or 2 and press Enter.
2
4
2
Set country, language, date, and time
1
4
5
Press firmly.
snap!
7
Attach document support
8
Attach document catcher
Using the menus
1
1
Cancel
Entering letters and numbers
Menu
To enter a letter, number or punctuation, press the corresponding button
repeatedly until the desired character appears. Characters will display
in the order shown by each button.
Enter
*'
Options/Volume
!)7)
g
Menu
4
Enter
2
Cancel
Options/Volume
9
Enter your name and fax number*
10
To select a menu option or to save an entry,
press the Enter button.
5. Press Enter.
Your Name will display.
1. Press Menu.
1:Fax Functions will display.
2. Press 4.
4:Basic Setup will display.
6. Enter your name and press Enter.
Your Fax No. will display.
2. Press 2.
2:Print Report will display.
3. Press Enter.
1:Date & Time will display.
7. Enter your fax number and
press Enter.
3. Press Enter.
1:Last Transact will display.
4. Press 2.
2:Fax Header will display.
8. Press Cancel repeatedly to exit
the menus.
4. Press 5.
5:Menu Settings will display.
11
C8580-90103 (Rev. B)
Printed in South Korea, China, or the European Union
Set the answer mode
Answer
Mode
TAM/
FAX
FAX
TEL
Press Answer Mode until the desired option is lit.
TEL
Use this setting for it to always answer
as a telephone. You must manually
receive faxes by pressing Start/Copy
when you hear fax tones.
FAX
Use this setting for it to always answer
as a fax machine. Go to Step 12.
6. Look at the report to check your name and
fax number.
Hewlett-Packard Company
*C8580-90103* ©All 2001
rights reserved.
6
WXYZ
,-./012
9
Space
0
!"
h
#
3456789:;
< 0)
&' /8/
When the correct letter appears, wait a moment for the cursor to move
to the next space, then press the number corresponding to the next
character.
To scroll through options, use the left and
right arrow buttons.
5. Press Enter to print the menu setings.
*required by law in most countries
*
A<BCDEFG>@HI?JKLM
NOPQRSTUVWXYZ[\M
]^_`abcdef
To exit the menu, press Cancel repeatedly.
You will see the date and time display
when you are out of the menu.
Verify your fax header
1. Press Menu.
1:Fax Functions will display.
Symbols
8
3
MNO
TUV
#$%&'()*+
7
Make sure catcher curves upward.
5
To enter the menus, press the Menu button.
PQRS
2
2
JKL
GHI
#0* >?@
DEF
ABC
1
Redial/Pause
TAM/
FAX
Use this setting to use the integrated
answering machine. Go to Step 12.
12
Receiving faxes
Unless you selected TEL as the
answer mode, you need to read the
chapter in the User Guide titled
"Setting Up to Receive Faxes" to finish
setting up your fax machine.
