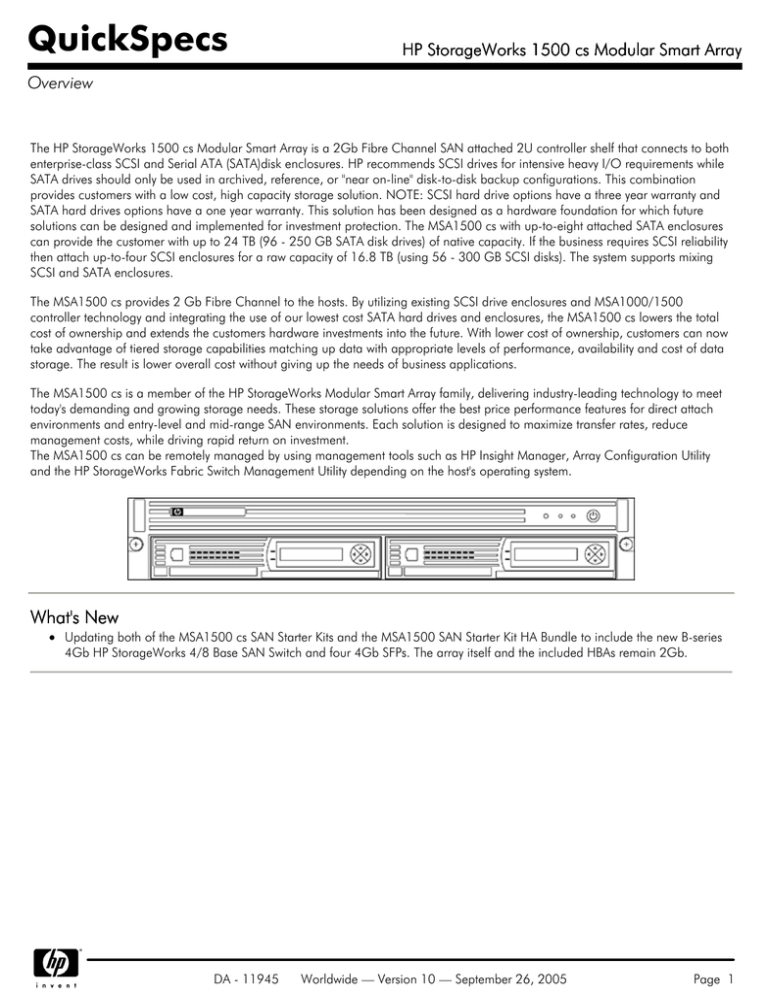

QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Overview
The HP StorageWorks 1500 cs Modular Smart Array is a 2Gb Fibre Channel SAN attached 2U controller shelf that connects to both
enterprise-class SCSI and Serial ATA (SATA)disk enclosures. HP recommends SCSI drives for intensive heavy I/O requirements while
SATA drives should only be used in archived, reference, or "near on-line" disk-to-disk backup configurations. This combination
provides customers with a low cost, high capacity storage solution. NOTE: SCSI hard drive options have a three year warranty and
SATA hard drives options have a one year warranty. This solution has been designed as a hardware foundation for which future
solutions can be designed and implemented for investment protection. The MSA1500 cs with up-to-eight attached SATA enclosures
can provide the customer with up to 24 TB (96 - 250 GB SATA disk drives) of native capacity. If the business requires SCSI reliability
then attach up-to-four SCSI enclosures for a raw capacity of 16.8 TB (using 56 - 300 GB SCSI disks). The system supports mixing
SCSI and SATA enclosures.
The MSA1500 cs provides 2 Gb Fibre Channel to the hosts. By utilizing existing SCSI drive enclosures and MSA1000/1500
controller technology and integrating the use of our lowest cost SATA hard drives and enclosures, the MSA1500 cs lowers the total
cost of ownership and extends the customers hardware investments into the future. With lower cost of ownership, customers can now
take advantage of tiered storage capabilities matching up data with appropriate levels of performance, availability and cost of data
storage. The result is lower overall cost without giving up the needs of business applications.
The MSA1500 cs is a member of the HP StorageWorks Modular Smart Array family, delivering industry-leading technology to meet
today's demanding and growing storage needs. These storage solutions offer the best price performance features for direct attach
environments and entry-level and mid-range SAN environments. Each solution is designed to maximize transfer rates, reduce
management costs, while driving rapid return on investment.
The MSA1500 cs can be remotely managed by using management tools such as HP Insight Manager, Array Configuration Utility
and the HP StorageWorks Fabric Switch Management Utility depending on the host's operating system.
What's New
Updating both of the MSA1500 cs SAN Starter Kits and the MSA1500 SAN Starter Kit HA Bundle to include the new B-series
4Gb HP StorageWorks 4/8 Base SAN Switch and four 4Gb SFPs. The array itself and the included HBAs remain 2Gb.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 1
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Overview
Models
HP StorageWorks
1500 cs Modular Smart
Array
MSA1500 cs 2U Fibre Channel SAN Attach Controller Shelf
MSA1500 2U Fibre Channel SAN Attach Controller Shelf, with one MSA20 SATA
drive enclosure
NOTE: For Americas, Asia Pacific, and Japan.
MSA1500 2U Fibre Channel SAN Attach Controller Shelf, with one MSA30 SCSI drive
enclosure
NOTE: For Americas, Asia Pacific, and Japan only.
MSA1500 SAN SCSI Starter Kit (Windows, NetWare or Linux compatible)
NOTE: Includes (1) MSA1500 (1) MSA30 SCSI drive enclosure (1) 4/8 Base SAN
Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables.
MSA1500 SAN SATA Starter Kit (Windows, NetWare or Linux compatible)
NOTE: Includes (1) MSA1500 (1) MSA20 SATA drive enclosure (1) 4/8 Base SAN
Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables.
NOTE: For Americas, Asia Pacific, and Japan.
MSA1500 SAN Starter Kit HA Bundle for Windows, NetWare or Linux (for SAN Starter
Kits)
NOTE: Includes (1) redundant controller; (1) FC I/O module; (1) 4/8 Base SAN
Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables. Designed as upgrades
for the MSA1500 SAN Starter Kits. Software is needed to enable path failover. This
can be Industry Standard (MPIO for Windows, QLogic for Linux) or HP Secure Path
(available for all three OSs)
AA986A
AD509A
AD510A
AE327A
AE326A
AE328A
Key Features
Ability to mix primary (SCSI) and near-online (SATA) storage behind the same SAN controller for easy to install tiered storage
solutions.
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG)) - Highest level of fault tolerance, allocates two sets of
parity data across drives and allows simultaneous write operations, this level of fault tolerance can withstand two simultaneous
drive failures without downtime or data loss.
2 Gb/1 Gb Fibre connection to host - Supports both 1 Gb and 2 Gb Fibre Channel fabrics to ensure your investment in 1 Gb
infrastructure is protected. Also works with the new 4Gb switches and HBAs at 2Gb speed.
High performance controller(s) built on DAS to SAN (DtS) architecture.
Scalable to eight SATA enclosures for 24 TB or four SCSI enclosures for 16.8 TB of storage capacity with 4- dual channel
SCSI I/O cards.
Ability to hot plug disk enclosures to the controller shelf.
Hot plug expansion and replacement support - Hot plug expansion and replacement of hard drives, redundant controllers, for
simple, fast installation and maintenance. Fans and power supplies are also hot plug replaceable.
Key solution certified for backup and restore, file retention and compliance, replication, write once read many for disk, media
and broadcasting, medical, clustering and archiving. See page 6 for expanded list.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 2
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Overview
Customer Benefits
Capability of building an enterprise-class SAN with SCSI reliability by attaching up-to-four MSA30 SCSI-drive enclosures for a
native capacity of 16.8 TB (using 56 - 300 GB SCSI disks)
Low cost, high capacity - For less than $.01 per/MB customers can obtain up to 24 TB of capacity (eight SATA enclosures)
using up to 96 - 250 GB SATA disk drives.
Flexibility - Can choose SATA configuration for secondary storage of data, and/or SCSI configuration for primary storage,
mixing of both technologies behind the same controller is supported but limited to separate SCSI I/O modules.
Ability to utilize a tiered storage approach as data values decrease, choosing the right disk technology for your data storage.
Investment Protection - the ability to upgrade from the MSA1000 to the MSA1500 cs. Remove the controllers from the
MSA1000 and place them into the controller bays in the MSA1500 cs and upgrade the firmware. (Requires purchase of one
MSA1500 FC I/O Module per moved controller)
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 3
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Family Comparison
Capacity (Maximum)
SCSI Interface
Controller Cache
Direct or SAN
Maximum Drives
MTBF (drives)
Integrated Interconnect
Options
Use for Storage
MSA1500 cs
MSA1000
MSA500
16.8 TB SCSI 24 TB SATA
12.6 TB SCSI
4.2 TB SCSI
Ultra 3, Ultra 320
Ultra 2, Ultra 3, Ultra 320
Ultra 2, Ultra 3, Ultra 320
256 MB, upgradeable to 512 MB 256 MB, upgradeable to 512 MB 256 MB, upgradeable to 512 MB
Direct or SAN Attach - Fibre
Direct or SAN Attach - Fibre
Direct Attach - SCSI
56 SCSI 96 SATA or mixed
42 SCSI
14 SCSI
1.5M w/ SCSI @ 100%
1.5M @ 100%
1.5M @ 100%
500,000 w/ SATA @ 20%
No
Yes, optional 8-port Switch
No
or 3-port Hub
Primary Storage with SCSI,
Primary Storage
Primary Storage
Secondary with SATA
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 4
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Product Highlights
Product Technology
Modular Chassis - The modular design of the MSA1500 controller shelf supports up to eight SATA
enclosures on 4 dual channel SCSI I/O cards, or 4 single channel SCSI enclosures, redundant
controllers, 2 Gb Fibre Channel I/O modules, fans and power supplies.
Scalability - up to 16.8 TB storage capacity utilizing 56 SCSI hard drives and four MSA30 SCSI
enclosures or up to 24 TB storage capacity utilizing 96 SATA hard drives and eight MSA20 SATA
enclosures.
Performance - The MSA1500 cs and its components have been designed using the latest in standard 2
Gb interconnects and Fibre Channel technology. Performance tests indicate a transmission rate of up to
30,000 IOPs and bandwidth of up to 200 MB per second.
Fault Tolerance - RAID 6 with HP's Advanced Data Guarding technology (RAID ADG). This is the highest
level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write
operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime
or data loss.
DtS Architecture - DtS (Direct Attach to SAN) architecture is an exclusive MSA1000 and MSA1500 cs
feature that provides a quick and easy way to migrate stored data on SCSI disks protected by most Smart
Array controllers to a MSA1000 or MSA1500 cs storage system.
Pre-Failure Warranty - Enclosures and hard drives attached to an MSA1500 cs and monitored under
Insight Manager are supported by a Pre-Failure (replacement) Warranty.
NOTE: Pre-Failure Warranty allows for the replacement of designated SCSI drives in an HP
StorageWorks disk enclosure before they actually fail when using Insight Manger.
NOTE: Some operating systems may not support all of these features.
Integrated Configuration and Management Tools - The MSA1500 cs utilizes a standard, integrated set of
management and utility software. These tools consistently lower the cost of ownership by reducing
training and technical expertise necessary to install and maintain the MSA1500 cs.
Hot Plug Expansion and Replacement Support - The MSA1500 cs supports hot plug expansion and
replacement of redundant controllers, fans, power supplies, Serial ATA and SCSI disk enclosures, and
I/O cards for simple, fast installation and maintenance.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 5
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Software Components
Overview
The MSA1500 cs utilize a single, consistent set of utility software for storage and RAID management,
setup, configuration and troubleshooting. This consistency reduces the cost of ownership by reducing the
training and technical expertise necessary to install and maintain your HP storage solution. Not all
operating systems allow use of all of these tools.
Array Configuration Utility
(OS dependent)
Provides a graphical view of HP drive array configurations
Easy to use Wizards for configuration
ACU supports on-line configuration
Web Based ACU supports On-Line, Remote Web Based and Off-line configuration
Selective Storage
Presentation (SSP)
Built-in to the controller firmware and controlled via ACU
Allows setting of access rights to the MSA1500 cs storage by hosts
Access control can be set up to a logical volume level using the Array Controller Utility
Insight Manager
Powerful storage, server and server option management tool
Monitor storage from a remote central location
Browser based, provides full access from anywhere on the Intranet, eliminating the need for a
dedicated Insight Manager management console
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 6
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Compatibility
HP's extensive compatibility testing program assures that your HP StorageWorks MSA1500 cs works with leading servers, operating
systems, and backup applications - and not just those sold by HP. The MSA1500 cs works seamlessly in many environments, making
them especially suitable if you have a mixed system environment. For the latest list of servers, workstations, operating systems, and
backup software that supports the MSA1500 cs, check the Modular Smart Array compatibility pages on our web site at:
http://www.hp.com/go/MSA1500cs.
HP Server Compatibility The HP StorageWorks MSA1500 cs supported on the following servers:
Supports most 32-bit ProLiant servers including BL20P G2, BL20P G3, BL25P, BL30P, BL35P, BL40P,
DL145. DL360, DL360 G2, DL360 G3, DL360 G4, DL380, DL380 G2, DL380 G3, DL380 G4,
DL385, DL560, DL580, DL580 G2, DL580 G3, DL585, DL740, DL760, DL760 G2, ML330, ML330
G2, ML330 G3, ML350, ML350 G2, ML350 G3, ML350 G4, ML370, ML370 G2, ML370 G3, ML370
G4, ML530, ML530 G2, ML570, ML570 G2, ML750.
(See HBA and Switch FC components for various support limitations)
Supports most 64-bit Integrity including Integrity Superdome rx1600, rx1620, rx2600, rx2620, rx4610,
rx4640, rx5670, rx7620, rx8620, rx8800, rx9610 and PA-RISC servers A180, A180C, A400, A500,
rp2400, rp2430, rp2450, rp2470, rp5400, rp5430, rp5450, rp5470, rp3410, rp3440_1, rp4440_1,
rp7400, rp7410, rp7420_1, rp8400, rp8420_1, SD16000, SD-32/64/128, SD32000, SD64000.
NOTE: Certification of new ProLiant & Integrity server models is ongoing. Not all OSes are supported on
all models. Supports most multi-vendor industry standard 32-bit Intel-based (x86) and Opteron servers.
OS Support
Microsoft Windows Enterprise Edition 2003 (32 & 64-bit)
Microsoft Windows Standard Edition 2003 (32 & 64-bit)
Microsoft Windows 2000 Server Edition (32 & 64-bit)
Microsoft Windows 2000 Advanced Server (sp4) (32 & 64-bit)
HP-UX 11.11, and 11.23 (single controller in homogeneous environments only, see below)
Red Hat Linux Enterprise Advanced Server 2.1 and Enterprise Linux 3.0 (32 & 64-bit) & 4.0 (32-bit
& 64-bit )SuSE Linux SLES8 and SLES9 (32 & 64-bit )
Netware v5.1 and 6.5
The optional second controller can be used with all listed operating systems except HP-UX as a passive,
fail-over device. Presently HP-UX is only supported in a single controller configuration.
Please refer to compatibility matrix at http://www.hp.com/go/msa1500cs for complete configuration
support.
HP-UX support
(specific guidelines)
The MSA1000 for HP-UX supports single controller configurations only. HP-UX support is of a
homogeneous nature. Command Line Interface (CLI) is used for configuration and Event Monitoring
Service (EMS) for monitoring. Root/Boot/Dump/Swap/Install is also supported. PV Links is supported for
multi (HBA) path / single controller (2 HBAs) configurations. HP-UX support is now enabled with the
standard firmware that ships with the MSA1000.
Command Line Interface (CLI) is used for configuration and Event Monitoring Service (EMS) for
monitoring.
Root/Boot/Dump/Swap/Install is also supported.
PV Links is supported for multi (HBA) path / single controller (2 HBAs) configurations.
Fabric, hub and direct Connect are supported
HP-UX 11.11 & 11.23, PA-RISC and Itanium
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 7
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Compatibility
Solution
Offerings/Software
Certifications
Clustering
Backup and Restore
Media and Broadcasting
File Retention and
Compliance
HSM
Database Archiving
Medical Imaging
Management
Replication
Polyserve - Matrix Server for Windows
Microsoft Cluster Server
SteelEye LifeKeeper for Linux Certification
Netware Clustering (SCSI Only)
HP Data Protector
VERITAS Backup Exec and NetBackup
Legato NetWorker for Windows
Computer Associates BrightStor Enterprise Backup
ADIC StorNext for Windows, Linux
KOM Networks KOMworx
NOTE: Supports Write Once Read Many (WORM) on disk.
HP File System Extender
CommVault QiNetix Data Migrator
Princeton Softech Archive for Servers
Bycast StorageGRID
HP Storage Mirroring for Windows
HP Virtual Replicator for Windows
Other
Microsoft Virtual Server
VMware
Please refer to Solutions at http://www.hp.com/go/msa1500cs for more information.
Optional Software
HP OpenView Storage
Virtual Replicator
Storage Virtual Replicator combines a rich set of innovative capabilities that enhances and simplifies
storage management for Windows Server 2003 and Windows 2000 environments. Through
virtualization, online volume growth, snapshot and management features, the software complements the
capabilities within the operating system. HP OpenView Storage Virtual Replicator enables simplification
of storage configuration, management, scalability and enhanced availability with e-mail notification for
event customization, enhanced pool deletion that enables deletion of pool or disk containing snapshots,
enhanced policy descriptions for easier identification. Support is for Windows 2000 and Windows Server
2003.
Virtualization - multiple storage arrays can be consolidated into a pool of disk space for individual
or clustered systems to use. Multiple virtual disks, up to 2 terabyte in size, can be created from a
pool for users and their applications. Existing storage units with production data can be imported
into a pool. The data partition is preserved as a virtual disk and unused capacity is added to the
pool.
Online volume growth - Enables easy, non-disruptive growth with zero downtime. Allows a system
administrator to grow an existing volume on virtual disks and Windows 2000 basic disk. The
system will remain online, and the data on the volume will remain intact.
Snapshots - Instant, point-in-time snapshots for backup, online restore, testing or data mining.
Enable instant creation of multipurpose virtual replicas of production data without the requirement
of a physical copy Snapshots identical to ordinary physical disks, with both read and write
capability. Snapshots can remain online for restore operations, testing, and data mining. Full
interoperability with the Windows Server 2003 Volume Shadow-copy Service (VSS).
E-mail notification - customization of events for servers under your span of control.
Enhanced pool deletion - delete a pool that contains snapshots and virtual disks or delete a
virtual disk that contains snapshots with the DELTREE command.
Interoperability with OpenView Storage Mirroring
Enhanced policy descriptions - the policy key descriptions have been updated for easier
identification. Please refer to the Optional Software section of this document or visit
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 8
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Compatibility
http://www.hp.com/go/MSA1500cs for additional details.
HP StorageWorks Secure HP StorageWorks Secure Path is a family of high availability multi-pathing software products providing
Path
continuous data access from the HP RAID Array to host servers running the Windows Server 2003,
Windows 2000, and Linux operating systems.
Redundant hardware, advanced RAID technology and Secure Path's automated failover capability are
used to enhance fault tolerance and availability. Secure Path effectively eliminates controllers, disk drives,
interconnect hardware and host bus adapters as single points of failure in the storage subsystem.
The attachment of non-Secure Path (single HBA) servers to a MSA1500 cs with dual controllers that has
servers with Secure Path (dual HBA) attached is supported where the operating system is Windows or
Netware. Users must realize that in event of a controller fail-over (failure of active controller) the single
path servers will lose access to their data on the MSA1500 cs.
NOTE: If Secure Path for Linux is used on any node attached to an MSA1500 cs, all nodes must also
have Secure Path installed, regardless of operating systems.
NOTE: refer to http://www.hp.com/go/securepath for the latest Secure Path parameters.
Key Features
Maintains connections to storage
Monitors I/O paths and alerts on significant events
Used in Stand alone Configurations, Cluster Configurations, and SAN
configurations
MSA1500 Clustering
Clustering is rapidly gaining in popularity as users desire a high level of data availability. Many of the old
cluster restrictions that were the product of both hardware and operating systems have been overcome.
While there still remain configuration limits, the result is a new high degree of flexibility both in number of
clusters, mixing clusters with single nodes, and the integration of dissimilar operating systems. Initially
Windows, HP-UX and Linux clusters can be attached to an MSA1500 having both SCSI and SATA drives,
while NetWare clusters currently only support SCSI drives. This is only a restriction in a NetWare clustered
environment.
For example you may mix three Microsoft (Windows Server 2003, or Windows 2000) clusters and other
individual servers, even doing so in a heterogeneous server operating system environment. Windows
Server 2003 allows a single cluster of up to eight nodes.
Single-path (single controller, non-Secure Path) NetWare clustering has been successfully tested up to a
12-node cluster. NetWare clusters employing Secure Path (dual controller, dual HBAs) are limited to six
nodes. Multiple NetWare clusters (and single servers) may have concurrent access with no limitation
inherent to the MSA1500 cs. Likewise up to a 16-node Linux cluster (single controller, non-Secure Path)
utilizing SteelEye LifeKeeper for Linux clustering software has been tested and is supported. Refer to
http://www.hp.com/go/securepath for any restriction with Secure Path.
The MSA1500 cs has the ability to be configured with thirty-two LUNs. A configuration of twenty attached
servers has been tested and is supported. More commonly, users have had an average of four to eight
nodes. This can be any combination of hosts or clusters with different operating systems (while holding
fast to the guidelines and limits described in the above paragraphs. Performance within these guidelines
is heavily dependent on the actual number of end users and types of applications being employed.
For more information, click on the link: http://www.hp.com/enterprise/highavailability/index.html.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 9
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Compatibility
HP ProLiant Cluster
HA/F200 for Entry Level
SAN
The ProLiant Cluster F200 for the Entry Level SAN is designed to assist in simplifying the configuration of
cluster solutions that provide high levels of data and applications availability in the Microsoft Windows
Operating System environment through clustering to provide no-single-point-of-failure. The ProLiant
Cluster F200 for the Entry Level SAN supports a two-node cluster based on Microsoft Windows 2000
Advanced Server and two to eight-nodes cluster based on Microsoft Windows Server 2003 Enterprise
Edition operating system, the StorageWorks 1000 Modular Smart Array (MSA1000) and MSA1500 cs, or
Raid Array RA4100 and ProLiant Servers. This solution also supports StorageWorks Secure Path
management software.
ProLiant Cluster HA/F200 for the Entry Level SAN
364026-B21
ProLiant Cluster HA/F200 for the Entry Level SAN (Japan)
364026-291
HP ProLiant Cluster Starter The ProLiant Cluster Starter Kit is a ProLiant cluster "How-to-Guide" that includes documentation for
Kit
ProLiant Clusters that use StorageWorks MSA1000, MSA1500 cs, RA4100, EVA5000, EVA3000,
MA8000, and EMA12000. The kit also includes multimedia with animation to illustrate the actual
components required to build a Fibre Channel Cluster and two 30-day trial licenses of OpenView
Storage Mirroring.
NOTE: This kit does not include Secure Path Software.
HP ProLiant Cluster Starter Kit
364023-B21
HP ProLiant Cluster Kit
The ProLiant Cluster Kit with OpenView Storage Mirroring is designed to assist in simplifying the
with OpenView Mirroring configuration of cluster solutions for customers that require a cost effective disaster recovery alternative.
(Host based)
This solution provides high levels of data and application availability in the Microsoft Windows
Operating System environment through clustering to provide no-single-point-of-failure. The ProLiant
Cluster Kit with OpenView Storage Mirroring supports a two-node cluster based on Microsoft Windows
2000 Advanced Server and two to eight-nodes cluster based on Microsoft Windows Server 2003
Enterprise Edition operating system, the StorageWorks Modular Smart Array (MSA1000 & MSA1500 cs
with MSA20 or MSA30 attached) and ProLiant Servers. This solution also provides replication capabilities
to make one or more copies of the cluster data. Replication can take place between a cluster and
standalone configuration or between two clusters.
HP ProLiant Cluster Kit with OpenView Mirroring
364025-B21
HP OpenView Storage
Mirroring
(Host based)
HP OpenView Storage Mirroring is designed to take small-medium enterprises beyond periodic backup
to provide continuous data protection with minimal data loss and immediate recovery from any disaster
or system outage. Utilizing patented STAR technology, OV Storage Mirroring captures byte-level changes
as they happen and replicates those changes to one or more target servers at any location in the exact
sequence sent by the source. Advanced features put you in control of bandwidth usage, queue data
changes for replication during off-peak hours, enable e-mail, pager or wireless notification when
changes occur and scales organically to meet the need of your environment. OV Storage Mirroring is the
core component to the following solutions: disaster recovery, remote availability, centralized backup,
serverless backup, data distribution, mining and server/storage migration.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 10
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Compatibility
Supports Microsoft Windows 2000/2003 servers
One-to-one failover/fail back solution for MS-Exchange, MS-SQL and Oracle providing automatic
failover and near instantaneous access to replicated data or use replicated data or rebuild your
local server.
Server Groups - enables the "grouping" of servers on the management console (GUI) allowing
focus on only those servers under your span of control
Continuous, asynchronous byte-level replication with intelligent data compression captures
changes as they occur, ensures sequence of data mirrored on target, and provides userconfigurable compression levels to ensure efficient usage of network resources.
One-to-many and many-to-one host configurations allowing multiple production servers to use the
same target server
For more information visit: http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP ProLiant Clusters for
NetWare
HP supports a broad range of solutions for NetWare Cluster services including configurations featuring
the MSA1500 cs and optionally with HP StorageWorks Secure Path. These solutions provide high
availability and maximum resource utilization for NetWare environments from small file sharing
implementations to enterprise business computing. Single-path (single controller, non-Secure Path)
NetWare clusters of up to 12-nodes have been successfully tested. Presently 2-node NetWare clusters
with Secure Path have been tested and approved with larger NetWare cluster testing planned. Multiple
NetWare clusters are allowed.
NOTE: SCSI Disk Technology Only.
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path for NetWare parameters.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 11
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configure to Order Program Information
HP introduces the new Configure to Order program on a limited basis. It is not yet available in all areas. The MSA1500 cs and its
options may or may not be factory installed in a rack with add-on controllers, switches, hubs, MSA20 enclosures, MSA30 enclosures
and hard drives. The MSA1500 cs may be integrated with 64-bit Integrity and PA-RISC servers or ProLiant or as standalone storage.
Configure to Order
Products Approved for CTO
Part Number
1500 cs Modular Smart Array
AA986A
NOTE: 0D1 will appear after this part number on your sales order when factory
integration is indicated.
HP MSA1000 Controller 256 cache ALL
218231-B22
NOTE: 0D1 will appear after this part number on your sales order when factory
integration is indicated.
256 MB Cache Upgrade
254786-B21
NOTE: 0D1 will appear after this part number on your sales order when factory
integration is indicated.
MSA1500 cs Fibre Channel I/O Module
AA987A
NOTE: 0D1 will appear after this part number on your sales order when factory
integration is indicated.
MSA1500 cs Dual Channel SCSI I/O Module
AA988A
NOTE: 0D1 will appear after this part number on your sales order when factory
integration is indicated.
NO CTO Available
MSA1500cs 2U Fibre Channel SAN Attach Controller Shelf, with SATA
MSA1500cs 2U Fibre Channel SAN Attach Controller Shelf, with SCSI
MSA1500 cs upgrade shelf
DA - 11945
Worldwide — Version 10 — September 26, 2005
AD509A
AD510A
AD511A
Page 12
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year Limited Warranty for MSA1500, Fibre Channel Cables and SFP Transceivers
3 years parts exchange
1 year labor
1 year on-site
Next business day response
Options for the MSA1500 carry their own warranty. Refer to HP's Limited Warranty Statement for further
details. In countries where available, your HP Limited Warranty includes Customer Self Repair warranty
services. Please refer to HP's Limited Warranty Statement for further details:
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
NOTE: The warranty of the hard drive options purchased with the MSA1500 cs product is different for
SCSI hard drives versus SATA hard drives. SCSI hard drive options have a three year warranty and SATA
hard drives options have a one year warranty.
Reference HP's communication for further details: http://www.hp.com go to search, enter CN0089W
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years
HP Care Pack Information
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user
customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
NOTE: Refer to Step 6 "Choose HP Care Pack Services" in the Configuration Information section below
for all Service, Warranty Plans, Installation and Startup Services available for the MSA1500
For additional information on Product Services and HP Care Pack, as well as orderable part numbers,
please refer to the URL: http://www.hp.com/hps/carepack/.
If you have specific questions about availability or how to obtain services contact your local HP
representative. Contact information for your local area can be found at:
http://welcome.hp.com/country/us/en/contact_us.html
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 13
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Software Product Services Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination
with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your
product service to meet the needs of your organization. Basic warranty on products can be uplifted from
day one to ensure you receive the service you need when you need it.
HP warrants only that the software media will be free of physical defects for a period of ninety (90) days
Warranty and Support
from delivery.
The following services are offered as HP Care Pack Services at the time of software product order:
Secure Path Software
Services
Hardware Product
Services
Software Technical Support 24 x 7 (1 and 3 years) is available 24 hours per day, Monday through
Sunday, including holidays (includes phone-in software technical support 24 x 7 and software
product and documentation updates).
Installation Service (software installation) and Installation and Startup Service (software installation,
configuration, startup testing and knowledge transfer).
HP Care Pack services must be ordered with the product and are prepaid.
For tailored support contracts based on personalized statement of work contact your local support
center via http://www.HP.com/support.
Software product services included with Secure Path: One year of Software Technical Support 24 x
7 HP Care Pack Services (includes phone-in software technical support 24 x 7 and software
product and documentation updates).
HP Care Pack services are available to upgrade the one year of Software Technical Support 24 x
7 included with the Secure Path product to 3 full years.
Installation service (software installation).
For additional software product services information for HP Care Pack services, as well as orderable part
numbers, please refer to the URLs listed below:
All storage services: http://www.hp.com/hps/storage/.
All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html.
Software Support HP Care Pack Services: http://www.hp.com/hps/carepack/software/cp_storage.html.
Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html.
If you have specific service questions contact your local HP representative. Contact information for your
local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html
Maintenance releases, bug fixes and software patches are available at:
http://welcome.hp.com/country/us/en/support.html.
Installation services that include basic installation and Array Installation and Startup
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage or warranty extension
RAID setup and performance consulting via statement of work
Migration service consulting via statement of work
Environmental, Mission Critical Services
For product services information for HP Care Pack services, as well as orderable part numbers, please
refer to the URLs listed below:
All storage services: http://www.hp.com/hps/storage/.
All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html.
Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html.
If you have specific service questions contact your local HP representative. Contact information for your
local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 14
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Array Installation and
Startup Services
The HP Installation and startup for HP StorageWorks Disk Arrays service package provides installation
and configuration of HP StorageWorks Disk Array products. Service highlights include:
Installation and Startup provides, installation, LUN Disk Design and configuration of the MSA 1500
which includes
Service Planning
Service Deployment
Installation Verification Testing (IVT) required for this service
Customer Orientation session
Service Deployment includes the deployment of the MSA disc array into a new or pre-existing SAN
which may consist of switch, hub or SCSI bridge technology. Installation includes the
customization of up to four host servers, eight host bus adapters (hba's) and up to four high
availability software licenses.
SAN Solution Service
SAN Solution Service covers your entry-level disk array solution with:
Comprehensive SAN implementation strategy and planning
Hardware and software installation and configuration
Integration of the installed disk array in your SAN environment
Firmware verification
SAN testing
Solution handover to your staff
The Array Installation and Startup service is a pre-requisite for the SAN Solution Service.
For more information about he SAN solution service, please visit:
http://www.hp.com/hps/storage/ns_san.html
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 15
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Kit Contents
Model Name
MSA1500 cs
Contents' Description
MSA1500 controller shelf, 1-controller, 1- FC module, 1- SFP transceiver, 1- dual
channel SCSI I/O card, 2- power cables, redundant fans, redundant power supplies,
universal rack-mounting kit, MSA1500 support CD and documentation, serial cable.
NOTE: Fibre Channel cables, disk enclosures and hard drives are ordered separately.
MSA1500 cs with one
1- MSA1500 controller shelf base configuration, and 1-MSA20 SATA disk enclosure
SATA drive enclosure
base configuration.
NOTE: For Americas, Asia Pacific, and Japan.
MSA1500 cs with one
1- MSA1500 controller shelf base configuration, and 1-MSA30 single-channel SCSI
SCSI drive enclosure
disk enclosure base configuration.
NOTE: For Americas, Asia Pacific, and Japan.
MSA1500 SAN SCSI
(Windows, NetWare or Linux compatible)
Starter Kit
NOTE: Includes (1) MSA1500 (1) MSA30 SCSI drive enclosure (1) 4/8 Base SAN
Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables.
MSA1500 SAN SATA
(Windows, NetWare or Linux compatible)
Starter Kit
NOTE: Includes (1) MSA1500 (1) MSA20 SATA drive enclosure (1) 4/8 Base SAN
Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables.
NOTE: For Americas, Asia Pacific, and Japan only.
MSA1500 SAN Starter Kit (Windows, NetWare or Linux compatible)
HA Bundle
NOTE: Includes (1) redundant controller; (1) FC I/O module; (1) 4/8 Base SAN
(for both SCSI and SATA Switch (4) 4Gb SFP transceivers (2) FCA2214 HBAs + cables. User will need to
SAN Starter Kits)
employ either Secure Path, QLogic failover, or Windows MPIO for path failover
implementation, not included. NetWare requires Secure Path.
MSA1500 cs upgrade
MSA1500 controller shelf, 1- dual channel SCSI I/O card, 2- power cables,
shelf
redundant fans, redundant power supplies, universal rack-mounting kit, MSA1500
support CD and documentation, serial cable.
NOTE: This MSA1500 cs upgrade shelf does not include a controller or a Fibre
Channel I/O Module. It is intended for those customers who wish to upgrade from
their MSA1000 to the MSA1500 cs. For each controller added to this shelf, one Fibre
Channel I/O module (PN AA987A) is required.
NOTE: When upgrading to the MSA1500 cs, there is no space for the MSA1000
embedded switch or hub.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Part Number
AA986A
AD509A
AD510A
AE327A
AE326A
AE328A
AD511A
Page 16
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
Step 1 - "Product" - Base Configuration
Select one:
Model Name
MSA1500 cs
Model Description:
MSA1500 controller shelf, 1-controller, 1- FC module, 1- SFP transceiver, 1- dual
channel SCSI I/O card, 2- power cables, redundant fans, redundant power supplies,
universal rack-mounting kit, MSA1500 cs support CD and documentation, serial
cable.
Part Number
AA986A
Step 2 - Required Options (Must Choose Serial ATA or SCSI)
Select each required option with quantities specified. *NOTE:
NOTE: SATA drives are designed for archival or reference data. They should
not be used in a heavy or intense I/O environment. Those situations require the use of enterprise-class SCSI drives.
Description with Parts Shipped:
Quantity
Part Number
Dual Channel SCSI I/O Module (1 ships with base unit, 3 more can be added)
Up to 4
AA988A
MSA20 - Serial ATA enclosure, SCSI cable, redundant fans and power supplies, power cable
Up to 8
335921-B21
160 GB Serial ATA hard drive, universal carrier
Up to 12 per
349238-B21
MSA20 enclosure
250 GB Serial ATA hard drive, universal carrier
Up to 12 per
349239-B21
MSA20 enclosure
MSA30 - Dual Channel SCSI enclosure, SCSI cable, redundant fans and power supplies,
Up to 2
302970-B21
power cable
MSA30 - Single Channel SCSI enclosure, SCSI cable, redundant fans and power supplies,
Up to 4
302969-B21
power cable
72.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per
286714-B22
MSA30 enclosure
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per
286716-B22
MSA30 enclosure
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per
350964-B22
MSA30 enclosure
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per
286776-B22
MSA30 enclosure
72.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per
286778-B22
MSA30 enclosure
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per
347708-B22
MSA30 enclosure
NOTE: Two SATA disk enclosures can be attached to one SCSI I/O module. Only one SCSI disk enclosure can be attached to a
SCSI I/O module.
NOTE: It is recommended that the same hard drive capacity (ex. All 250 GB SATA in SATA enclosure or all 146 GB SCSI in SCSI
enclosure) be installed in a disk enclosure.
NOTE: All Ultra320 Universal Hard Drives are backward compatible to U2 or U3 speeds.
NOTE: For complete compatibility information, refer to the Compatibility table located at http://www.hp.com/go/msa1500cs
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 17
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
Must choose optional Power Cord for Non-U.S. Configurations
Quantity
Part Number
Power Cord, 110/220 VAC, US/Canada/Mexico
2
227099-001
NOTE: Shipped standard with all units.
Power Cord, 220/240 VAC, (US/Canada/Mexico)
2
227099-002
Power Cord, (Australia/China/New Zealand)
2
227098-011
Power Cord, (Central Europe)
2
157215-021
Power Cord, (United Kingdom/Hong Kong)
2
157216-031
Power Cord, (Switzerland)
2
157219-111
Power Cord, (Italy)
2
157217-061
Power Cord, (Denmark)
2
157218-081
Power Cord, (Japan)
2
139867-006
Power Cord, (South East Asia/India)
2
157220-AR1
NOTE: Redundant configurations require two Host Bus Adapters per server, an additional controller and fibre channel I/O module,
and Secure Path software for each server.
Step 3 – Choose Redundant MSA1500 System Options
Description
Quantity
Part Number
MSA Controller
1
218231-B22
NOTE: The MSA1500 utilizes the MSA1000 controller with specific firmware
256 MB Cache Modules for Controller (one additional for each controller)
2
254786-B21
NOTE: The MSA1500 and MSA1000 utilize the same Cache Modules
MSA1500 Fibre Channel I/O module
1
AA987A
HP StorageWorks Secure Path or an industry standard path failover solution such as Windows
MPIO or QLogic Failover for Linux (appropriate for the operating system)
NOTE: Redundant configurations require two Host Bus Adapters per server, an additional controller and fibre channel I/O module,
redundant switches and cables, and Secure Path software or Industry Standard failover depending on the operating system for each
server.
Step 4 – Choose Supported Options For 2 Gb Infrastructure
Select each required option with quantities specified.
Description with Parts Shipped:
4 Gb SFP SW Transceiver Kit
4 Gb Fibre Channel
Fabric "B-Series" family of HP StorageWorks 4/8 Base SAN Switch 8 port 4Gb/s switch with zero e-ports
switches
HP StorageWorks 4/8 SAN Switch 4Gb/s with full fabric
HP StorageWorks 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch Power Pack
DA - 11945
Worldwide — Version 10 — September 26, 2005
Part Number
A7446A
A7984A
A8000A
A7985A
A7987A
Page 18
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
2 Gb Fibre Channel
2 Gb SFP SW Transceiver Kit
Fabric "B-Series" family of HP StorageWorks SAN Switch 2/8V
switches
HP StorageWorks SAN Switch 2/8V Power Pack
HP StorageWorks SAN Switch 2/16V
HP StorageWorks SAN Switch 2/16N
HP StorageWorks SAN Switch 2/16N Power Pack
HP StorageWorks SAN Switch 2/32 Power Pack Upgrade
HP StorageWorks SAN Switch 2/16
2 Gb Fibre Channel
HP StorageWorks Edge Switch 2/32
Fabric "M-Series" family of NOTE: 16 active ports with SFPs
switches
8-FlexPort upgrade for Edge 2/32
HP StorageWorks Edge Switch 2/24
NOTE: 8 ports active with SFPs
8-FlexPort upgrade for Edge 2/24
HP StorageWorks Edge Switch 2/12
NOTE: 4 ports active with SFPs
4-FlexPort upgrade for edge 2/24
2 Gb Fibre Channel
Cisco MDS 9506 Multilayer Director w/0SFPs
Fabric "C-Series" family of Cisco MDS 9509 Multilayer Director w/0 SFPs
switches
Cisco MDS 9216 Multilayer Fabric Switch w/16 SFPs
Cisco MDS 9216A Multilayer Fabric Switch
Cisco MDS 9216i Multilayer Fabric Switch
Cisco MDS 9120 Fabric Switch w/0 SFPs
Cisco MDS 9140 Fabric Switch w/0 SFPs
Optical Transceivers, Small Form Factor Pluggable, Short Wave
2 Gb Fibre Channel
HBAs
FCA2214 Host Adapter (Linux, Microsoft 32-bit, Netware)
FCA2214DC Host Adapter (Linux, Microsoft OS 32-bit, Netware) dual channel
Windows 32-bit single channel PCI-X (Windows Server 2003, W2K)
Windows 32-bit dual channel PCI-X (Windows Server 2003, W2K)
Host Adapter for Windows Server 2003 64-bit, Integrity servers
Host adapter PCI-X Dual channel for HP-UX and Linux, Integrity servers
HP-UX HBA: PCI 2GB Fibre Channel Adapter
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-T
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-SX
2Gb PCI-e for 32-bit Windows
Host Adapter for Windows Server 2003 64-bit, Integrity servers, single channel 2 Gb
PCI-X
Host Adapter for Windows Server 2003 64-bit, Integrity servers, dual channel 2 Gb
PCI-X
Host adapter Q2300 64-bit PCI-X for Linux, Integrity servers
DA - 11945
Worldwide — Version 10 — September 26, 2005
221470-B21
AA979A
AA980A
AA978A
AA990A
AA977A
313448-B21
322118-B21
286810-B21
302660-B21
316095-B21
316096-B21
348406-B21
348407-B21
A7471A
A7462A
A7473A
A7557A
A7557A
A7426A
A7427A
A7428A
281541-B21
321835-B21
A7388A
A7387A
AB232A
A6826A
A6795A
A9784A
A9782A
A7560A
AB467A
AB466A
A7538A
Page 19
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
4 Gb Fibre Channel
HBAs
HP StorageWorks FC2142SR HBA 4Gb PCI-e for Windows, Linux
HP StorageWorks FC2242SR DC HBA 4Gb PCI-e for Windows, Linux
A8002A
A8003A
Fibre Channel cables for Use 2 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O Module
2 Gb Infrastructure
to FCA2101 HBA(s)
2 m LC-LC Multi-Mode Fibre Channel Cable
5 m LC-LC Multi-Mode Fibre Channel Cable
15 m LC-LC Multi-Mode Fibre Channel Cable
30 m LC-LC Multi-Mode Fibre Channel Cable
50 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
Fibre Channel Cables for Use 1 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O Module
1 Gb Fabric Switches and and FCA2101 HBA(s) to 1 Gb Fabric Switches or hubs.
Hub
2 m LC-SC Multi-Mode Fibre Channel Cable
5 m LC-SC Multi-Mode Fibre Channel Cable
15 m LC-SC Multi-Mode Fibre Channel Cable
30 m LC-SC Multi-Mode Fibre Channel Cable
50 m LC-SC Multi-Mode Fibre Channel Cable
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
Step 5 – Choose Rack Options
Select each required option with quantities specified.
10647 (47U) Rack Cabinet - Pallet
10647 (47U) Rack Cabinet - Crated
10642 (42U) Rack Cabinet - Pallet
10642 (42U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment
installed
10642 (42U) Rack Cabinet - Crated
10636 (36U) Rack Cabinet - Pallet
10636 (36U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment
installed
10636 (36U) Rack Cabinet - Crated
10622 (22U) Rack Cabinet - Pallet
10622 (22U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment
installed.
10622 (22U) Rack Cabinet - Crated
S10614 (14U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment
installed.
10842 (800 mm wide, 42U) Rack Cabinet - Pallet
DA - 11945
Worldwide — Version 10 — September 26, 2005
245160-B21
245160-B23
245161-B21
245161-B22
245161-B23
245162-B21
245162-B22
245162-B23
245163-B21
245163-B22
245163-B23
292302-B22
257415-B21
Page 20
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
10842 (800 mm wide, 42U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment
installed.
Rail Kit for mounting in a M-Series rack
42U EVA cab 60Hz
36U EVA cab 60Hz
22U EVA cab 60Hz
42U EVA cab 50 Hz
36U EVA cab 50 Hz
22U EVA cab 50 Hz
HP9000 Std Rack System E25
HP Rack System/E, 33U, quartz color
HP Rack System/E, 33U, graphite color
HP Rack System/E, 41U, quartz color
HP Rack System/E, 41U, graphite color
MSA1500 cs to PDU
2.5m (8.2') 10A, IEC C 13 to IEC C14 PDU Jumper Cable (1 per pack)
3.0m (9.8') 10A, IEC C 13 to IEC C14 PDU Jumper Cable (1 per pack)
1.4m (4.5') 10A, IEC C 13 to IEC C14 PDU Jumper Cable (1 per pack)
257415-B22
313877-B21
338042-B21
338044-B21
338046-B21
338043-B21
338045-B21
338047-B21
A4900A
A4901A
A4901D
A4902A
A4902D
142257-002
142257-003
142257-006
Step 6– Choose HP Care Pack Services
Hardware Product
Services
1 Yr 4hr 24x7/Onsite
1 Yr 4hr 13x5/Onsite
1 Yr 6 hr CTR
3 Yr next Day/Onsite
3 Yr 4hr 13x5 /Onsite
3 Yr 4hr 24x7 /Onsite
3 Yr 6 hr CTR
Hardware Installation
Installation and Startup
Flexible Care Pack Part Numbers:
1 Yr 4hr 13x5 Hardware
1 Yr 4h 24x7 Hardware
1 Yr 6 hr CTR
1 Yr Support Plus
1 Yr Support Plus 24
1 Yr Proactive 24
1 Year Critical Services
3 yr Next Day
3 Yr 4hr 13x5 Hardware
3 Yr 4hr 24x7 Hardware
3YR 6hr CTR
3Yr Support Plus
DA - 11945
Worldwide — Version 10 — September 26, 2005
UA774A/E
UA775A/E
UA776A/E
UB950A/E
UB951A/E
UB952A/E
UB953A/E
U4368A/E
UA868A/E
HA103A1
HA104A1
HA105A1
HA109A1
HA110A1
HA111A1
HA112A1
HA101A3
HA103A3
HA104A3
HA105A3
HA109A3
Page 21
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Configuration Information
3 Yr Support Plus 24
3 Yr Proactive 24
3 Year Critical Services
4 year Next Day
4 Yr 4hr 13x5 Hardware
4 Yr 4h 24x7 Hardware
4 Yr 6 hr CTR
4 Yr Support Plus
4 Yr Support Plus 24
4 Yr Proactive 24
4 Year Critical Services
5 Yr Support Plus
5 Yr Support Plus 24
5 Yr Proactive 24
5 Year Critical Services
Hardware Installation
Installation and Startup Service
DA - 11945
Worldwide — Version 10 — September 26, 2005
HA110A3
HA111A3
HA112A3
HA101A4
HA103A4
HA104A4
HA105A4
HA109A4
HA110A4
HA111A4
HA112A4
HA109A5
HA110A5
HA111A5
HA112A5
HA113A3
HA114A1
Page 22
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Related Options
Storage Virtual Replicator 1 System LTU
v4.1.1
3 System LTU
(Microsoft operating
5 System LTU
systems)
10 System LTU
Base Media and Documentation Kit (license required)
1 System LTU upgrade:
3 System LTU upgrade:
5 System LTU upgrade:
10 System LTU upgrade:
1 System LTU upgrade Japan
Secure Path v4.0C (SP1)
for Windows Workgroup
Edition (including
Windows Server
2003/32-bit and 64-bit)
Secure Path v4.0C for Windows Workgroup one license
Secure Path v4.0C for Windows Workgroup Edition five licenses
Secure Path v4.0C for Windows Workgroup Edition 10 licenses
Secure Path v4.0C for Windows Workgroup Edition 25 licenses
Secure Path v4.0C for Windows Workgroup Edition 50 licenses
Secure Path v4.0C for Windows Workgroup Edition Upgrade License
Secure Path v4.0C for Windows Workgroup Edition for ProLiant BL line 8 licenses
NOTE: At present 64-bit Windows with Secure Path can operate in a homogenous
configuration of multiple (up to 5) 2-node clusters.
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Windows.
Secure Path v3.0C for
Secure Path v3.0C for Linux Workgroup Edition one license
Linux Workgroup Edition Secure Path v3.0C for Linux Workgroup Edition five licenses
Secure Path v3.0C for Linux Workgroup Edition 10 licenses
Secure Path v3.0C for Linux Workgroup Edition 25 licenses
Secure Path v3.0C for Linux Workgroup Edition 50 licenses
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Linux
T3593A
T3598A
T3597A
T3594A
T3591A
T3599A
T3604A
T3603A
T3600A
T3615A
213076-B26
231316-B26
231317-B26
231318-B26
231319-B26
261715-B24
325634-B23
T3581A
T3582A
T3584A
T3585A
T3586A
Qlogic Failover Driver for Provides a no cost multi-path solution for Linux when using specific QLogic Host Bus Adapters
Linux
For more information visit http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
or http://www.qlogic.com
Windows MPIO Failover
Driver
Provides a single multi-path solution for Windows
Microsoft Windows 2000 and Windows Server 2003 (32bit and 64bit) operating systems
DSM driver is required from HP for operation and configuration:
For more information visit http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
or http://www.microsoft.com
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 23
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Technical Specifications
1500 cs Modular Smart
Array
LED Indicators on Front
(4)
System heartbeat
System UID
Power On/Standby
Fault detected in enclosure
LED Indicators on Rear
System UID
Panel (7)
SCSI Module Power indicator (1 per SCSI I/O module)
SCSI Activity (1 per SCSI I/O module)
Fibre Channel I/O card status (1 per Fibre I/O module)
Fibre channel link status (2 per Fibre I/O module)
Power supply status (1 per power supply)
Fan Module status (1 per fan module)
Interface
Ultra3 SCSI to Hard Drives
2 Gb Fibre Channel to Hosts
Maximum Number of
96 SATA hard drives in 8 MSA20 SATA enclosure or 56 SCSI hard drives in
Drives
4 MSA30 enclosures
Temperature Range
50° to 95° F (10° to 35° C) up to 8000'
Operating
-22° to 122° F (-30° to 50° C)
Relative Humidity
10% to 90%
Operating
Up to 95%
Non-operating
Input Power Requirements Rated Input Voltage
100 to 240 VAC
47 to 63 Hz
Rated Input Frequency
6.4A Max, 1A typical
Rated Input Current
400W Max, 95W typical
Input Power (max)
The supply will handle 90Vrms - 254 Vrms (100 - 240 V, +6%, -10%)
Frequency is 47 - 63 Hz
NOTE: Input Power and Heat Dissipation specifications are maximum values
and apply to worst-case conditions at full rated power supply load. The
power/heat dissipation for your installation will vary depending on the
equipment configuration.
MSA1500 Controller
Shelf
2U Rack Form Factor
Dimensions (H x W x D)
Shipping Packaging
Weight
Dimensions (L x W x D)
SCSI I/O Module
(Positioned in shelf)
Shipping Packaging
Fibre Channel I/O
Module
(Positioned in shelf)
DA - 11945
Shipping Packaging
Weight (Gross)
Dimensions (H x W x D)
Weight
Dimensions (H x W x D)
Weight (Gross)
Dimensions (H x W x D)
Weight
Dimensions (H x W x D)
Weight (Gross)
Worldwide — Version 10 — September 26, 2005
3.46 x 19.06 x
24.32
55 lbs
32.50 x 11.25 x
34.06
68 lbs
3.2 x.92 x 14.62
1.01 lbs
19.88 x 9.06 x 2.76
1.93 lbs
3.2 x .92 x 14.62
.96lbs
19.88 x 9.0 6 x 2.76
1.87lbs
Page 24
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Technical Specifications
User Interface
Electrical Interface
Protocol Support
SCSI Ports
Maximum Capacity
Logical Drives (LUN)
Maximum Logical Drive
size
Modular SAN Array 1000 User Interface
Controller
Controller display with Status Indicators (2) and push buttons (4) on front of
controller
LVD (Low Voltage Differential)
Wide Ultra3 SCSI
2-ports per SCSI I/O card, up to 4 cards total
24 TB with 96- 250 GB SATA HDD, or 16.8 TB with 56-300 GB SCSI HDD
Up to 32 Logical Drives
2.0 TB
Controller Display with Status Indicators (2) and Push Buttons (4)
Status Indicators on front of Controller (16)
Electrical Interface
Protocol Support
RAID Support
LVD (Low Voltage Differential)
Wide Ultra3 SCSI (160 MB/s per channel)
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG)
RAID 5 (Distributed Data Guarding)
RAID 1 + 0 (Mirroring + Stripping)
RAID 0 (Stripping)
Cache Memory
Up to 512 MB Read/Write (256 MB modules). If redundant controllers are
used they must have equally configured cache
ECC protection, battery-backed, and removable
Standard as of November 19, 2002: 256 MB cache memory (single
module)
Cache Batteries
Up to three days of redundant battery life, removable for easy replacement
Upgradeable Firmware
2 MB flashable ROM
Disk Drive and Enclosure HP Ultra 320, Ultra3, and Ultra2 SCSI 1-inch Universal drives
Protocol Support
15.5 x 12.0 x 3.25
Packaging
Dimensions (L x W x D)
2.5 lb
Weight (Gross)
Modular SAN Array Fibre Connector Type
Channel I/O Module
Number of Fibre Channel
Ports
Bandwidth
Operation Modes
Protocols Supported
Packaging
DA - 11945
LC
One 2 Gb Fibre Channel Port using removable Small-Form-FactorPluggable Transceiver (SFP)
200 MB/s
Fibre Channel Class 2 and 3 connectionless service
Fibre Channel
19.88 x 9.06 x 2.76
Dimensions (L x W x D)
1.87 lbs
Weight (Gross)
Worldwide — Version 10 — September 26, 2005
Page 25
QuickSpecs
HP StorageWorks 1500 cs Modular Smart Array
Technical Specifications
Multi-Mode Fibre
Channel Cables Kits
(218960-B21)
Cable Type
Available Cable Lengths
Packaging
LC-LC (2 Gb to 2 Gb connections) and LC-SC (2 Gb to 1 Gb connections)
50 Micron multi-mode Fiber
6.5 ft, 16.4 ft, and 49.2 ft (2 m, 5 m, and 15 m)
11.5 x 9 x 1.5 in (29.2 x 22.8 x 3.8 cm)
Dimensions (L x W x D)
0.75 to 1 lb (0.34 to 0.45 kg)
Weight (Gross)
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11945
Worldwide — Version 10 — September 26, 2005
Page 26
Download PDF

advertising
