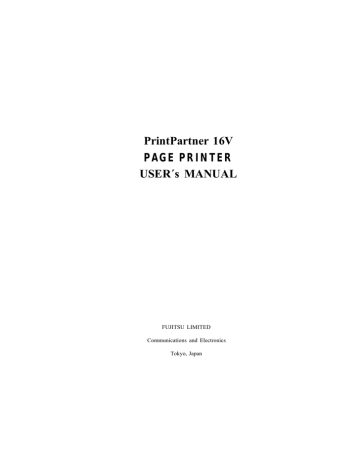

PrintPartner 16V
PAGE PRINTER
USER´s MANUAL
FUJITSU LIMITED
Communications and Electronics
Tokyo, Japan
Notice to American
Users
Federal Communications Commission
Radio Frequency Interference Statement
Notice: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
l
l
l
l
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
FCC warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Notes
l
l
l
Testing of this equipment was performed on model number M33101 AS01.
The use of a non-shielded interface cable with the referenced device is prohibited.
The length of the parallel interface cable must be 3 meters (10 feet) or less. The
length of the serial interface cable must be 15 meters (50 feet) or less.
The length of the power cord must be 3 meters (10 feet) or less.
laser Safety Information
This printer has been designed and manufactured according to FDA regulations
“title 21, CFR, chapter I, subchapter J, based on the Radiation Control for Health
and Safety Act of 1968”, and is classified as class 1 laser product.
Warning: Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Notice to Canadian
Users
This class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Réglement sur
le materiel brouilleur du Canada.
Notice to German
Users
Notice to Japanese
Users
User’s Manual
FM- 1
In case that the interface board, Ethernet C, is installed, this equipment complies
with EMI regulations as follows:
Notice to American
Users
Federal Communications Commission
Radio Frequency Interference Statement
Notice: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Notes
l
l
The use of a non-shielded interface cable with the referenced device is rohibited.
The length of the parallel interface cable must be 3 meters (10 feet) or l ess. The
length of the Ethernet interface cable must be 100 meters (328 feet) or less for type
l0BASE-2 and 185 meters (607 feet) or less for type I0BASE-T.
The length of the power cord must be 3 meters (10 feet) or less.
laser Safety Information
This printer has been designed and manufactured according to FDA regulations
“title 21, CFR, chapter I, subchapter J, based on the Radiation Controll for Healt
and Safety Act of 1968”, and is classified as class 1 laser product.
Warning: Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Notice to Canadian
Users
This class A digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les exigences du Réglement sur
le matériel brouilleur du Canada.
Notice to German
Users
Bescheinigung des Herstellets/Importeurs
Notice to European
and Oceanian Users
Warning: This is a product which meets Class A of EN55022 and AS/NZS3548.
In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
Hiermit wird bescheinigt, daß der/die/das
l Maschinenlärminformationsverordnung
3. GSGV, 18.01.1991: Der höchste
Schalldruckpegel beträgt 70 dB (A)o d er weniger gemfß EN27779-1991.
Notice to Japanese
Users
FM-2
User’s Manual
As an International E NERGY STAR Partner, Fujitsu Limited has
determined that this product meets the International E NERGY S TAR
Office Equipment Program for energy efficiency.
The International E NERGY S TAR Office Equipment Program is an
international program that promotes energy saving through the use
of computers and other office equipments. The program backs the
development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which
business proprietors can participate voluntarily. The targeted
products are office equipment such as computers, displays, printers,
facsimiles, and copiers. Their standards and logos are uniform among
participating nations.
This product sold in Europe conforms to the standards in accordance
with EC Directives. The copy of “Declaration of Conformity” is
attached in the next page.
User’s Manual
FM-3
(This page is intentionally blanked.)
FM-4
User’s Manual
The contents of this manual may be revised without prior notice and
without obligation to incorporate changes and improvements into units
already shipped.
Fujitsu has made every effort to ensure that the information included here
is complete and accurate at the time of publication. The company assumes
no liability for errors and omissions.
Copyright © 1997 FUJITSU LIMITED
Printed in Japan. All rights reserved. No part of this manual may be
reproduced or translated, stored in a database or retrieval system, or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written
permission of Fujitsu Limited.
C145-E227-01EN, December 1997
Trademark Acknowledgment
Fujitsu is a registered trademark of
Fujitsu Limited. The following
companies own the other trademarks
used in this manual:
Adobe Systems, Inc.: PostScript
Apple Computer, Inc.: AppleTalk,
LocalTalk, Macintosh, TrueType
AT&T: UNIX
Centronics Data Computer
Corporation: Centronics
Hewlett-Packard Corporation: HewlettPackard, LaserJet, LaserJet 5, PCL
User’s Manual
International Business Machines
Corporation: IBM, IBM PC/AT, IBM
PS/2, PC-DOS
Microsoft Corporation: Microsoft, MSDOS, Windows
Lexmark International Inc.: MarkVision
Miles, Inc.: Intellifont
Novell, Inc.: Netware
Pipeline Associates, Inc.: PowerPage
Xerox Corporation: 4024, Ethernet,
Xerox
FM-5
Precautions
Read this section and remember these instructions to ensure your safety and
your printer’s correct performance. Follow the cautions and notices labeled
on the printer or marked with icons in the manual. Save this manual for
future reference.
Use only the power cord furnished with the printer and a properly grounded
outlet. Do not use an extension power cord.
l Confirm that the rated voltage of your printer matches the voltage of your
power outlet. The maximum wattage of the printer is 650 watts.
l Turn off the printer and disconnect the power cord before beginning
maintenance operations.
l Disconnect the power cord from the outlet whenever you are not using the
printer for an extended period of time.
l Disconnect the power cord from the outlet whenever thunder storms are
nearby. Leaving the power cord connected may allow damage to the printer
or other property.
l Do not put the printer in direct sunlight, near a heater, or near water. Leave
adequate space around the printer.
l Do not touch any connector contacts and corona wires. This could cause
electrostatic damage to the printer.
l Do not touch the heat roller and motors if you have been printing recently.
These parts may be hot.
l Do not touch or scratch the green drum surface, and do not expose it to light
for more than three minutes.
l Use only a shielded interface cable of 3 meters (10 feet) or less for the parallel
interface, 15 meters (50 feet) or less for the serial interface, 100 meters (328
feet) or less for Ethernet interface 10BASE-T connection, and 185 meters
(607 feet) or less for the Ethernet interface 10BASE- connection.
l Be sure the printer is turned off before connecting the interface.
l Do not turn the printer off while it is printing.
l Do not disassemble or remove any components unless instructed in the
maintenance procedures.
l Keep the print unit upright when removing or installing it.
l Do not apply excessive pressure on the corona wire when cleaning it.
l Do not use alcohol or other cleaning solutions on the drum surface or on any
interior parts of the printer.
l Clear paper jams quickly, especially when they occur in the heat roller unit.
l Do not drop small objects, such as paper clips, into the printer.
l Do not set page margins off the physically printable page area.
l Turn off the printer and disconnect the power cord immediately if an
abnormal condition occurs: for instance, if the rinter smokes, prints
abnormally, becomes wet, or falls. Then consult your dealer.
l
FM-6
User’s Manual
Contents
Preface
Chapter 1
Manual and Software Set
Operating Environments
Conventions
Control Panel
Changing Message Language
v
vi
vii
vii
viii
Getting Started
1-1
Getting Acquainted
Getting Ready
Picking a Suitable Location
Unpacking and Checking Your Printer
Setting Up
Preparing the Print Unit and Installing the Toner Bottle
Loading Paper and Installing the Paper Tray
Installing the Multi-function Feeder
Connecting the Power Cord
Connecting the Printer to Your Computer
About Interfacing
Connecting to the Parallel Port
Connecting to the Serial Port
Connecting the Serial Interface Cable
Verifying Serial Parameter Settings
Printing a Test Page Offline
Selecting an Emulation
Installing a Printer Driver
Get to Know Your Printer Driver
Printer Drivers Supplied by the CD-ROM
Printer Drivers Supplied by the Floppy Disk
Standard Printer Driver for Windows 3.1/3.11
Standard Printer Driver for Windows 95
User´s Manual
v
1-1
1-1
1-4
1-5
l-7
1-7
1-10
1-13
1-14
1-15
1-15
1-16
1-17
1-17
1-18
1-20
1-21
l-22
1-23
l-23
l-23
l-24
l-24
i
Contents
Installing Other Sofware
PPMENU
Lexmark’s MarkVision™
Printing Your First Document
Adjusting Print Density
If Something Goes Wrong
Where To Go From Here
Chapter 2
l-26
l-26
l-27
l-28
1-29
1-30
1-31
Printing and Paper Handling
2-1
Control Panel Tutorial
The Control Panel
Indicators
Message Display
Buttons
Control Panel Functions
Changing Message Language
Printing Data Remaining in the Buffer
Clearing an Error Condition to Continue Printing
Clearing the Buffer and Reinitializing the Printer
Selecting the Self Test Menu
Selecting the Font Print Menu
Selecting Paper Tray, MFF, or Manual Paper Feed
Setting MFF Paper Size
Selecting Menu Option and Resetting Menu
Menu Functions
Menu Structure and How to Use Control Panel Buttons
Submenus, Items, and Options
Menu Items
Handling Paper
Paper Types and Sizes
General Tips
Preprinted Sheets
Transparencies
Envelopes
Labels
Changing the Paper Tray Size
Using the Multi-function Feeder
ii
2-1
2-1
2-2
2-3
2-3
2-5
2-5
2-5
2-5
2-6
2-6
2-8
2-10
2-11
2-12
2-12
2-12
2-13
2-16
2-21
2-21
2-23
2-24
2-24
2-25
2-26
2-26
2-28
User´s Manual
Contents
Feeding Paper Manually
Using Manual Feed Slot of the Multi-function Feeder
Using Manual Feed Slot Built in the Printer
Setting Up the Rear Stacker
Printing on Nonstandard Size Paper and on Envelopes
Considerations on Paper Size
Page Orientation
Chapter 3
Chapter 4
User’ s Manual
2-30
2-30
2-31
2-32
2-33
2-33
2-34
Enhancing and Customizing the Printer
3-1
Adding RAM
Installing an Alternate Emulation
Installing an Interface Expansion Board
Installing an Interface Board
Connecting to the LocalTalk Port
Connecting the LocalTalk Interface Cable
Selecting the LocalTalk Interface
LocalTalk Specifications
Connecting to the Ethernet Port..
Connecting the Ethernet Interface Cable
Selecting the Ethernet Interface
Ethernet Specifications
Adding Paper Sources
Paper Feeder
Changing the Paper Tray Size
Different Paper Tray Sizes
Adding Duplex Unit
3-1
3-3
3-5
3-5
3-6
3-6
3-6
3-6
3-7
3-7
3-8
3-8
3-8
3-8
3-10
3-13
3-13
Maintenance
4-1
Preventive Maintenance
Periodic Routine Maintenance
Replacing the Toner Bottle and Cleaner Pad..
Replacing the Print Unit and Internal Cleaning
Removing the Print Unit
Cleaning the Paper Path
Cleaning the Corona Wire
Cleaning the Paper Guide before the Corona Wire..
Installing the New Print Unit
Resetting the Print Unit Counter
Cleaning the Precharger Wire
Repacking the Printer
4-1
4-2
4-2
4-7
4-8
4-10
4-10
4-11
4-12
4-15
4-17
4-18
iii
Contents
Chapter 5
Appendix A
Appendix B
Appendix C
Solving Problems
Clearing Paper Jams
Operational Problems
Print Quality Problems
Error Indications
Action-required Status Indications
Printer Status Indications
Warning Messages
5-1
5-1
5-10
5-11
5-13
5-16
5-17
5-18
Font Samples
PCL Mode
FPS Mode
A-l
A-1
A-3
Supplies and Accessories
Supplies
Accessories
B-1
B-1
B-l
Specifications
C-l
Glossary
GL-1
Index
IN-l
Fujitsu Off ices
iv
Inside back cover
User’s Manual
Preface
Thank you for purchasing the Fujitsu PrintPartner 16DV/ADV Page
Printer. The PrintPartner 16DV/ADV is a 16-ppm, 600-dpi, laser
printer with triple interface consisting of Centronics parallel (type B
connector), Centronics parallel (type C connector), and RS-232C
serial (DB9 connector). It is compatible with the HP LaserJet 5
printers. The PrintPartner 16ADV or the PrintPartner 16DV with
an option is also compatible with PostScript level 2 printers by using
the PowerPage© Level 2 interpreter.
Options available for both 16DV and 16ADV are:
l
1-, 2-, 4-, 8-, l6-, and 32-megabyte memory expansion cards
l
Interface expansion boards: LocalTalk and Ethernet C
l
Paper trays (trays 1 and 2): A4, A5, letter, legal, and executive sizes
l
Paper feeder: Base mechanism plus paper tray (tray 2)
l
Duplex unit: Two-sided printing mechanism
Options available for 16DV only are:
Manual and
Software Set
l
FPS card: PostScript level 2
l
Multi-function feeder
The PrintPartner l6DV/ADV has a single user’s manual. This user’s
manual provides a summary of everything for from non-technical
users unfamiliar with page printers to highly experienced technical
users.
The PrintPartner l6DV/ADV comes with a software set (a CDROM and a floppy disk) to supply you with the following items of
printer control software.
l
User’s Manual
Printer Drivers for Windows 3.x, 95, NT 3.51, and NT 4.0, which
provide the computer’s operating system with the programs that
control this printer.
V
l
l
l
MarkVision ™ for Windows
utility programs, which allow
(status, statistics, or features)
on your computer display to
95/NT 4.0, printer management
you to easily understand the printer
and displays the printer control panel
remotely operate the printer.
Network Printer Utility for Windows 3.x, which allows you to
remotely change or confirm settings of Ethernet C board of the
printer or locally check the printer.
PPMENU for Windows 3.x and 95, printer remote setup utility
program, which allows you to easily customize and program your
printer to your computer and software environments, using your
computer keyboard and display
The CD-ROM contains all items of the software but the floppy disk
contains printer drivers for Windows 3.1/3.11 and Windows 95
only.
Operating
Environments
To run a Printer Driver, you need an IBM PC/AT or PS/2 computer
or compatible running MS-Windows 3.1/3.11, MS-Windows 95,
MS-Windows NT 3.51, or MS-Windows NT 4.0.
To run MarkVision™ , you need an IBM PC/AT or PS/2 computer
or compatible running MS-Windows 95 or MS-Windows NT 4.0,
with at least 9MB of memory available on a hard disk, a CD-ROM
drive or a 3.5” double-sided high density (2HD) floppy disk drive,
and a VGA (640 x 480 dots) or higher resolution display.
To run the Network Printer Utility, you need an IBM PC/AT or PS/
2 computer or compatible running MS-Windows 3.1/3.11, with at
least 5MB of memory available on a hard disk, a CD-ROM drive or
a 3.5” double-sided high density (2HD) floppy disk drive, and a
VGA (640 x 480 dots) or higher resolution display.
To run PPMENU, you need an IBM PC/AT or PS/2 computer or
compatible running MS-DOS, with at least 1MB of memory
available on a hard disk, a CD-ROM drive or a 3.5” double-sided
high density (2HD) floppy disk drive, and a VGA (640 x 480 dots)
display. You must also be using PC-DOS version 5.02, MS-DOS
version 3.3, or higher version.
vi
User’s Manual
Conventions
Icons draw your attention to advisory messages, as illustrated below.
A line precedes and follows the message to show where the message
begins and ends.
Caution:
Ignoring this information could result in personal injury.
Notice:
Ignoring this information could result in loss of data or harm to your
equipment.
Important:
These notes contain remarks, tips, and other useful supplementary
information.
Control Panel
T he printer’s control panel incorporates two rows of buttons, with
each button having one or two labels (see below). The physical
button is beneath the rectangular section of no-labeled space. The
top label represents the basic function, which is activated by a touch
of the button. The bottom label represents the second function,
which is activated when you release the button after holding it down
more than five seconds.
Basic functions
Physical buttons
Second functions
Basic functions
Physical buttons
Second functions
User’s Manual
vii
The control panel has a character display of 16 columns x 2 lines.
In text, the names of the control panel buttons appear as all capital
letters inside a box like
and control panel display messages
appear in a fixed-spacing font like READY. Button names or messages
occupying two lines are expressed in a single line shown below.
Buttons:
READY TONER LOW & PAD
Display messages:
The asterisk in the display column indicates that the displayed
option is currently selected in the selected menu.
Changing Message language
You can select a language used for control panel messages. Selectable
languages are English, French, German, Italian, Spanish, and
Swedish.
To select a language, follow these steps:
1. Turning the printer on while pressing
The message C . P. LANGUAGE
initialization.
ENGLISH appears after printer
2. Press the + or - button until the desired language appears.
Press the
button.
The asterisk appears after the language, indicating the language is
selected.
3. Save the selection.
Pressing the
button saves the new setting and returns the
printer to the ready state. The printer will display the selected
language for messages.
Viii
User’s Manual
Getting Started
This chapter provides complete setup instructions in the following
sections:
l
l
l
l
Getting
Acquainted
User’s Manual
Getting Acquainted. Learning the printer’s main parts and its paper
paths.
Getting Ready. Choosing a suitable location and unpacking the
printer.
Setting Up. Assembling the printer.
Connecting the Printer. Selecting an interface and connecting to the
computer.
l
Installing a Printer Driver and other sofware.
l
Printing Your First Document.
l
Where to Go from Here.
The illustrations on the following pages identify the main parts of
the printer and two routes of paper feeding. These parts are referred
to throughout the manual, so take some time to become familiar
with them.
1-1
Getting Acquainted
Stacker-full sensor
Top cover
(Paper stacker)
Control panel
Upper door
Paper guides
for manual feeding
Multi-function feeder
(MFF) for 16ADV only
Slide cover
(Font/emulation card slot
and RAM card slots inside)
Front cover
(opened)
Paper guides
for stack feedeig
Multi-function feeder
cable
Paper tray
F i g u r e l - l Front and right side view
Rear stacker
Interface board
Centronics parallel
interface connector
(IEEE1284 type-C)
Power switch
Centronics parallel
interface connector
(IEEE1284 type-B)
Power cord
connector
Figure 1-2 Rear and left side view
1-2
User´s Manual
Getting Acquainted
Print density dial
Figure 1-3 Interior view
The path from the paper tray to the top cover is for ordinary paper.
The straight path from the manual feed slot or optional multifunction feeder to the rear stacker is for transparencies and envelopes.
Figure 1-4 Paper paths
User’s Manual
1-3
Getting´ Ready
Getting Ready
This section will help you:
l
Choose a suitable location for the printer
l
Inventory the parts of the printer as you unpack it
Picking a Suitable location
The first step is to pick a suitable location for your printer. For peak
performance and usability, follow these guidelines:
l
l
l
l
1-4
Place the printer on a
sturdy, level surface.
Choose a room that is well
ventilated and free of
excessive dust. Leave space
on either side of the printer
for proper ventilation.
To avoid exposing the
printer to extremes of
temperature, do not put the
printer in direct sunlight or
near a heater. Ideal room
temperature is from 10°C
to 35°C (50°F to 35°F).
Humidity should be
between 20% and 80% RH
(no condensation).
Use a grounded AC power
outlet. Do not use a threepronged adapter in an
ungrounded outlet.
User´s Manual
Getting Ready
Use only the power cord
furnished with the printer.
Do not use an extension
cord.
Do not touch any
connector contacts and
corona wires to avoid
possible electrostatic
damage to the printer.
Do not use a circuit shared
with equipment that causes
electrical noise, such as
motors.
Do not use a circuit shared
with equipment that uses a
lot of power, such as a
copier or a coffee maker.
Unpacking and Checking Your Printer
As you unpack the printer, check each item carefully for damage. If
you find damage, notify your dealer. Check also that you have
received all the items shown below.
This printer comes with everything you need except an interface
cable. If you do not yet have a cable, you must purchase one before
you can connect the printer to your computer.
Important:
Save the original carton and packing materials in case you need to
store or transport your printer.
User’s Manual
1-5
Getting Ready
Printer
Paper size
Cleaning
brush
Software set
(printer drivers and
other software)
l
l
l
User’s
An interface cable is not a standard accessory. Please purchase
an appropriate cable according to the interface you intend to
use.
The power cord may differ slightly from this figure depending
on the country where you purchased the printer.
The software set consists of:
- CD-ROM labeled PrintPartner Software
- Floppy disk labeled Printer Drivers for Windows 95 and
3.1/3.11 (English version only)
Figure l-5 Printer inventory
1- 6
User’s Manual
Setting Up
Setting Up
This section describes how to assemble the printer and connect the
power cord after choosing a suitable location for the printer and
checking that you received all the parts.
Preparing the Print Unit and Installing the Toner Bottle
This printer is shipped with the print unit mounted and protective
materials attached. Be sure to remove the two protective materials
from the print unit. This operation is possible with the print unit
mounted. First prepare and install the following two components:
l
Print unit (photoconductor drum, developing unit, etc.)
l
Toner bottle
The toner bottle first installed after you purchase the printer or a
new print unit will last about 2500 printed pages under the
condition of 5% coverage on A4 paper. The succeeding toner bottles
last about 5000 printed pages each.
Notice:
Do not touch any connector contacts and corona wires to avoid
possible electrostatic damage to the printer.
Be careful with the print unit’s drum (the green surface). The drum
is easily damaged by contamination or by exposure to light for more
than three minutes. Follow these guidelines:
l
l
l
User’s Manual
Never touch or scratch the drum surface.
When the print unit is not in the printer, store it in a dark place or
cover it with a clean sheet of paper.
When the print unit is in the printer, keep the printer top cover
closed. If you must work inside the printer for more than three
minutes, remove the print unit with the toner bottle mounted and
store it in a dark place.
1-7
Setting Up
To prepare the print unit and install the toner bottle, follow these
steps:
1. Open the upper door. Lift
the milled portions at the
Front left and right of the
upper door to open it.
2. Remove the protective
materials from the print
unit. Remove protective
sheet 1 Pull clear tape 2
until its blue end is visible
and remove it. Remove two
restraint cushions 3
3. Remove the toner bottle
from its bag.
4. Shake the toner bottle by
moving it back and forth
in a horizontal motion
several times.
5. Remove the plastic seal
from the toner bottle.
Gently pull off the seal
being careful not to spill
toner. Handle to seal
carefully to avoid staining
your hands or clothes.
Projecting guide
1- 8
User’s Manual
Setting Up
6. Install toner bottle. Slide
both projecting guides of
the toner bottle into the
grooves of the print unit.
Notice:
If you have installed the toner bottle, do not remove it from the print
unit until it is empty. This could causes toner to spill into the
printer.
7 Lock the toner bottle.
Push the toner bottle
forward until it clicks into
place. (The bottle stands
nearly upright when
installed correctly.)
8. Close the printer’s upper
door. Press down firmly on
the front portion of the
upper door and make sure
the upper door is locked
completely.
User´s Manual
1-9
Setting Up
loading Paper and Installing the Paper Tray
This printer has a single paper tray that is preset for letter size (8.5 x
11.0 inches) paper for U.S. customers and to A4 size (210 x 297
mm) paper for European customers. (You can adjust the paper tray
to a different size paper. See Chapter 2. You can purchase an
optional paper tray. See Chapter 3 and Appendix B.) You should
load about 50 sheets of copier paper to test the printer.
1. Pull the paper tray out of
the printer.
2. Prepare the paper tray.
Remove restraint card board
1 and tapes securing the
rear paper guide. Check
green indicator 2 is
positioned according to the
tray size label (*).
3. Lock the pressure plate. If
the front of the pressure
plate is raised, push it down
until the pressure plate
clicks into place.
4. Widen the side guides.
While bending both side
guides inward 1, p u s h
their inner PUSH marks
outward 2 .
1-10
User’s Manual
Setting Up
5. Prepare a paper stack.
Prepare paper of the size
indicated by the size label
(*). Fan the paper stack
both ways to prevent sheets
from sticking together.
Notice:
Put the paper stack in the paper tray with the printing side faced down.
If paper is curled, remove the curl.
6. Load the paper. Place the
front portion of the paper
stack on the tray and slide it
backwards so that the stack
is placed under the two
stoppers. Gather the edges
of the stack together to
ensure correct positioning
of paper in the tray.
Make sure the stack does
not exceed the limit mark.
7. Adjust the side guides.
Push the outer PUSH mark
of either side guide to the
width of paper. Align the
rear edges of the paper
stack.
Bad placement
Good placement
User’s Manual
1-11
Setting Up
Arrange paper edges. Rock
the paper tray to gather the
edges of the stack together
to ensure correct
positioning of paper in the
tray.
Install the paper tray.
Align the sides of the tray
with the guide grooves of
the tray slot (the left groove
is engraved with a arrow)
and firmly slide the tray all
the way into the slot.
Notice:
You cannot install the paper tray with the pressure plate raised.
10. Remove the adhesive tape
which secures the rear
stacker. Open the rear
stacker and make sure the
paper guide is pushed down
in the locked position.
Close the rear stacker.
Notice:
If the paper guide is not in the locked position, the printer will not
work.
1-12
User’s Manual
Setting Up
Installing the Multi-function Feeder
The multi-function feeder (MFF) is useful to print a lot of envelopes
or transparencies. The MFF is optional for 16DV printers. It can
hold and deliver 100 sheets of 0.09 mm thick paper or 30 envelopes.
Note that the printer works if the MFF is not installed.
Notice:
When using paper, do not leave the paper in the multi-function
feeder for long time. It may cause waving of paper and dropouts in
printing.
Because the MFF does not have a mechanism that detects the
physical size of paper in use, you must inform the printer of the
paper size. Use the MFF paper size menu to select a paper size which
equals the size of paper loaded in the MFF.
To install the multi-function feeder, follow these steps:
Notice:
Be sure that the printer is turned off before installing or removing
the multi-function feeder.
1. Open the front cover.
User’s Manual
1-13
Setting Up
2. Fasten the feeder to the
printer. Insert the left and
right supports and hooks of
the multi-function feeder
into the corresponding
openings at the front of the
printer so that the hooks
catch the pins firmly.
Arrow
mark
3. Connect the feeder cable.
Connect the feeder cable to
the connector at the right
side of the printer. Orient
the arrow mark of the
cable’s connector right.
Notice:
To avoid paper jams or other feeding errors, make sure that each of
the left and right hooks securely hangs on the pin.
Connecting the Power Cord
This printer comes equipped with one of the two voltage ratings:
l
120 VAC (such as for the USA)
l
220 to 240 VAC (such as for Europe)
The manufacturer’s nameplate on the back of the printer indicates
this rating. Confirm that the rated voltage of your printer matches
the voltage of your power outlet.
1. Check that the printer is
turned off. The “O”marked side of the switch
should be depressed.
2. Plug the female end of the
power cord into the
connector on the left back
of the printer.
1-14
User’s Manual
Connecting the Printer to Your Computer
3. Plug the male end into a
wall outlet.
Caution:
For your safety, use only a properly grounded outlet. To avoid
possible electromagnetic interference or power supply problems, do
not use an extension cord.
Connecting the
Printer to Your
Computer
This section explains how to connect the printer to your computer
via the parallel or serial interface.
Notice:
The following restrictions apply to interface cables:
l
l
l
To comply with regulations for radio frequency emissions, use only
shielded cable for computer-to-printer communications.
The length of the parallel interface cable must be 3 meters (10 feet)
or less.
The length of the serial interface cable must be 15 meters (50 feet)
or less.
About Interfacing
You can connect the printer to your computer using a standard
parallel or serial interface. Generally use the parallel interface or the
serial interface. However, if your computer is used as a network
printer, use the optional LocalTalk or Ethernet interface.
User’s Manual
1-15
Connecting the Printer to Your Computer
l
l
l
Parallel (Centronics) or serial (RS-232C)
Use a serial interface if the printer is not near the computer. Many
computers have both parallel and serial interface ports. Serial
communication can operate up to 15 meters (50 feet). Parallel
communication is normally limited to 3 meters (10 feet).
LocalTalk (option)
Use the LocalTalk interface if the printer is connected to a
Macintosh network.
Ethernet C (option)
Use Ethernet C if the printer is used in a NetWare or TCP/IP
corresponding.
Whichever interface you use, the printer automatically detects the
interface that the computer is using.
For these options refer to Chapter 3.
Connecting to the Parallel Port
This printer does not come with a parallel interface cable. You can
use the following two types of Centronics interface cables (sold
separately) for this purpose. Your dealer can advise you on the cable
you require.
l
l
Centronics cable with IEEE 1284 type B connector at the printer
side
Centronics cable with IEEE1284 type C connector (half size) at the
printer side
Notice:
Be sure the printer is turned off be f ore connecting the interface.
Do not touch any connector contacts or corona wires to avoid
possible electrostatic damage to the printer.
I-16
User´s Manual
Connecting the Printer to Your Computer
To make the connection,
plug the cable connector
into the parallel interface
port on the back of the
printer. Secure the
connector with the wire
clips. Plug the other
connector into your
computer’s parallel port.
Consult your computer
documentation if you need
help.
Connecting to the Serial Port
Connecting to the serial port involves the following tasks:
l
Connect the interface cable to the printer and your computer.
l
Print out the status report to check the serial parameter settings.
Connecting the Serial Interface Cable
To connect to the serial interface port, you need a cable correctly
wired for this printer and your computer. The cable must also have
the proper connectors. Your dealer or technical support person can
supply you with the proper cable.
The serial interface of this printer requires a null-modem cable with a
male D-SUB 9-pin connector at the printer side. Refer to your
computer documentation for the type of connector required by its
serial port.
Notice:
Be sure that the printer is turned off before connecting the interface
cable.
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer.
User’s Manual
1-17
Connecting the Printer to Your Computer
To make the connection,
plug the cable connector
into the serial interface port
at the back right of the
printer. Secure the
connector by tightening the
screws in the connector
hood. Plug the other
connector into your
computer’s serial port.
Consult your computer
documentation if you need
help.
screws
Verifying Serial Parameter Settings
Next, you must make sure the serial parameter settings are the same
between the computer and the printer. Consult your computer and
software documentation to determine the settings your computer
uses. Then compare these to the printer’s settings in the following
table.
Item
Parameter setting (printer side)
Baud rate
Data bits
Stop bits
Parity
Pacing (protocol)
DTR polarity
ROBUST (XON/XOFF)
Printer port
9600 (fixed)
8 (fixed)
1 (fixed)
None (fixed)
DTR (default)
HI (default)
On (default)
COM 1 (default)
If the settings match, the installation is complete. If the interface
parameters of the printer and the computer do not match, the
message display indicates COMM.ERROR. The printer may not
respond at all or it may print wrong characters. Change the settings
in one of the two ways:
1-18
Users Manual
Connecting the Printer to Your Computer
l
l
Change options of the serial menu in setup mode.
Set permanent defaults in your computer to match the printer’s
defaults.
On an IBM PC or compatible computer running MS-DOS, you can
set permanent defaults by placing the following commands in your
AUTOEXEC.BAT file:
MODE COM 1:9600,N,8,1,P
MODE LPTl:=COMl:
Also make sure that the file MODE.COM is in your boot directory.
Then whenever you boot your computer, the computer will print
through the serial port using the printer’s settings.
Important:
For information on DOS files and commands, consult your DOS
manual or the manual supplied with your computer.
Note that you may also be able to specify serial parameters through
your software programs. Some software programs allow you to
specify the printer port and serial settings from within the program.
Consult the documentation supplied with the software.
User’s Manual
1-19
Printing a Test Page Offline
Printing a Test Page Offline
The printer has a status report function which prints a page
summarizing printer option settings and showing samples of resident
fonts. Use this function to check the printer performance offline.
1. Turn the printer on. The
printer initializes the
mechanism and then enters
the ready state. The message
display indicates
<<<INITIALIZE>>>,
WARMING UP, then READY.
2. Print a test page offline.
Press the
button to
put the printer offline (the
ONLINE indicator turns
off). Press the
button for more than five
seconds. The message
display indicates PC L
CONFIG PAGE. Press the
button to start
printing.
The message display
indicates SE L F TEST and
the DATA indicator flashes.
A status report page is
printed.
Check that the printing is
successful.
Notice:
For PP16DV with the FPS card (option) installed or for PPl6ADV,
you can select FPS CONFIG PAGE by pressing the + or - button
while the message display indicates PCL CONFIG PAGE
1-20
User’s Manual
Selecting an Emulation
Selecting an
Emulation
The PrintPartner 16ADV has two emulations (PCL and FPS) as a
standard feature, but the PrintPartner 16DV has PCL as standard
and FPS as optional. You can use these emulations to connect your
printer to different computers. PCL emulates HP LaserJet 5 printers
and FPS emulates PostScript Level 2 compatible printers by the
PowerPage© Level 2 interpreter.
When
active
select
menu
the printer has both emulations, it automatically selects the
emulation with default settings. To specify an emulation,
the emulation using the control panel. Use the Personality
of the Config menu as shown below.
1. Enter setup mode. Press the
button to put the
printer offline (the
ONLINE indicator turns
off). Then, press the
button briefly six times.
The message display
indicates SETUP MENU
CONFIG MENU.
POWER
ONLINE
DATA
ERROR
2. Select the Personality
menu. Press the
button briefly. The message
display indicates
PERSONALITY AUTO*.
POWER
ONLINE
DATA
ERROR
3. Select emulation. Press the
button briefly. The
option AUTO changes to
PCL, PS, then back to
AUTO. Press the
button when the desired
option is displayed.
The selected emulation is selected (an asterisk is followed). Once you
change the emulation, the other menus automatically change to
reflect the options and functions of the new emulation. For details of
the setup menu, see Chapter 2.
User’s Manual
1-21
Installing a Printer Driver
Installing a
Printer Driver
Now that you connected your printer to the parallel port of the
computer, you are ready to install a Windows printer driver into
your computer. The Windows printer driver is essential for
controlling your printer in Microsoft Windows environments.
Several printer drivers are contained in the attached software set
consisting of a CD-ROM and a floppy disk.
Printer drivers in the CD-ROM are:
l
Standard drivers for Windows 3.1/3.11
l
FPS drivers for Windows 3.1/3.11
l
Standard drivers for Windows 95
l
FPS drivers for Windows 95
l
Standard driver for Windows NT 3.51
l
FPS driver for Windows NT 3.51
l
Standard driver for Windows NT 4.0
l
FPS driver for Windows NT 4.0
Printer drivers in the floppy disk are:
l
Standard drivers for Windows 3.1/3.11
l
Standard drivers for Windows 95
Standard drivers are to be installed when your printer is used as a
PCL printer and FPS drivers are to be installed when your printer is
used as a PostScript printer.
When you are using Windows 95 or Windows NT 4.0, it is
recommended that you should install a printer driver using
MarkVision ™ because the printer driver is reinforced with
MarkVision ™ features such as remotely changing settings of a
network printer and checking status of a network printer. For
MarkVision™ , see the next section.
To install a printer driver in Windows 95, note the following:
l
l
1-22
When you install the printer driver, the original OS (CD-ROM or
floppy disks) is required during installation.
When MarkVision ™ for Windows 95 may be already installed,
select a printer name followed by (MV) in the Printers window.
When MarkVision™ is not installed, select a printer name not
followed by (MV).
User´s Manual
Installing a Printer Driver
Get to Know Your Printer Driver
The Printer Driver has two functions:
1. it automatically translates formatting choices, such as tab settings
or boldface type, into commands the printer understands.
2. it allows you to set up the printer according to your needs.
If you encounter problems with this installation, confirm that your
configuration corresponds to the minimum requirements listed on
page vi at the start of this manual. If the configuration corresponds
to these requirements and troubles persist, contact your dealer for
assistance.
When running application programs under Windows, you select the
printer type in the application program itself before you print a
document.
Notice:
If you encounter conflicts with other already installed external drivers
that use bidirectional communication on the Centronics port or with
drivers of other dedicated Windows printers used in parallel with this
printer (conflicts like the failure to establish communication between
the Printer Driver and the printer), remove these from Windows and
reinstall the PrintPartner 16DV/ADV Printer Driver.
Printer Drivers Supplied by the CD-ROM
To install printer drivers contained in the CD-ROM, see the booklet
“Quick Start” enclosed in the CD-ROM envelope.
Printer Drivers Supplied by the Floppy Disk
To install the Windows 3.1/3.11 or 95 Printer Standard Drivers
contained in the floppy disk, follow these steps:
User´s Manual
1-23
Installing a Printer Driver
Standard Printer Driver for Windows 3.1/3.11
1. Start Windows.
2. Insert the PrintPartner 16DV/ADV Printer Driver disk into the
3.5 inch floppy disk drive of your computer.
3. From the Windows Program Manager, select the “File” menu and
choose the “Run” command.
4. Type “A:\Install” or “B:\Install” and press the “Enter” key.
The following
l PrintPartner
l PrintPartner
l PrintPartner
l PrintPartner
l PrintPartner
l PrintPartner
printer drivers can be installed:
12V (PCL6)
12V (PCL5e)
16DV (PCL6)
16DV (PCL5e)
16ADV (PCL6)
16ADV (PCL5e)
PCL6: PCL6 printer language emulation
PCL5e: PCL5e printer language emulation
5. From here, follow the prompts displayed by the install program.
Standard Printer Driver for Windows 95
The Windows printer driver can be installed by either of the
following two methods. The former, plug and play printer
detection, applies when Windows 95 is started with the printer
ready. The latter, set-up from Printers folder, applies when the
printer is on after Windows 95 has been started.
Plug and Play Printer Detection
1. Windows 95 automatically detects the printer at installation time
or during the boot process.
2. Plug and Play detection code will prompt the user for the
appropriate files, if they are not already resident in the Windows
directory, by displaying the “New Hardware Found” dialog box.
1-24
User’s Manual
Installing a Printer Driver
3. From the “New Hardware Found” dialog box, click “Cancel”.
4. Click the “Start” button and click “Run...“.
5. Type “A:\Install” and click “OK”.
The following
PrintPartner
PrintPartner
PrintPartner
PrintPartner
PrintPartner
• PrintPartner
l
l
l
l
l
printer drivers can be installed:
12V (PCL6)
12V (PCL5e)
l6DV (PCL6)
16DV (PCL5e)
16ADV (PCL6)
16ADV (PCL5e)
PCL6: PCL6 printer language emulation
PCL5e: PCL5e printer language emulation
6. From here, follow the prompts displayed by the install program.
Install from “Start” Button
1. Click the “Start” button and click “Run...“.
2. Type “A:\Install” and click “OK”.
The following
PrintPartner
PrintPartner
PrintPartner
PrintPartner
PrintPartner
PrintPartner
l
l
l
l
l
l
printer drivers can be installed:
12V (PCL6)
12V (PCL5e)
16DV (PCL6)
16DV (PCL5e)
16ADV (PCL6)
16ADV (PCL5)
PCL6: PCL6 printer language emulation
PCL5e: PCL5e printer language emulation
3. From here, follow the prompts displayed by the install program.
The Fujitsu PrintPartner 16DV/ADV Windows 95 Standard Printer
Driver is now installed.
For further details, see the driver’s Readme file.
User’s Manual
1-25
Installing Other Software
Installing Other
Software
This section provides information about the two kinds of printer
management software contained in the CD-ROM supplied with this
printer. The topics are:
l
l
PPMENU Enables you to remotely control or configure your
printer’s features from your computer’s screen.
Mark Vision™ :Monitors printer status (status is displayed with text
and graphics), displays optional printer’s features, and cooperates
with printer drivers. It also describes the printer control panel
function by which MarkVision™ allows you to remotely operate
your printer from the printer control panel displayed on your
computer’s screen.
Note that PPMENU is available in Windows 3.1/3.11 or Windows
95 environments and MarkVisionr™ is available in Windows 95 or
Windows NT4.0 environments.
PPMENU
Generally, the printer driver controls the printer. You can also
control the printer using the remote setup utility program called
PPMENU, stored in the attached CD-ROM.
PPMENU allows you to easily change your printer’s features directly
from your computer. You use it to configure your printer to suit the
requirements of your computer, software, and documents to be
printed.
The parameters you can change using PPMENU affect page layout,
font, and printer control. If your software programs have printer
drivers, those printer drivers control the parameters for you.
Therefore, it may not be necessary to change the settings using
PPMENU.
PPMENU needs to be installed only if you will print from DOS or
DOS based applications.
To install PPMENU, see the booklet “Quick Start” enclosed in the
CD-ROM envelope.
For more details and the latest modifications, refer to the
“ReadMe. txt” file concerning PPMENU.
1-26
User’s Manual
Installing Other Software
Lexmark’s MarkVision™
MarkVision ™ by Lexmark is an integrated software for managing
printers, contained in the CD-ROM. It has the following main
functions:
l
l
l
Monitoring the printer
Displaying the printer status and features (including options) and
statistics
Providing the printer control panel on the computer’s screen
(Remote control panel)
These functions are most effective and valuable for remote printers in
network environments.
MarkVision™ is automatically activated when an abnormal
condition occurs in the printer. It operates in Windows 95
environments only.
The remote control panel is quite a nice function that enables you to
easily and remotely operate the printer even if your printer is set up
remotely. MarkVision ™ displays the printer control panel on the
computer’s screen and gives you the exactly same functions as
available with the control panel of the printer. You can perform a
function by clicking a button on the computer’s screen without
pushing a button of the printer’s control panel.
To install MarkVision™ , see the booklet “Quick Start” enclosed in
the CD-ROM envelope.
For more details and the latest modifications, refer to the
“ReadMe. txt” file concerning MarkVision™ .
User’s Manual
1-27
Printing Your First Document
Printing Your First
Document
Your printer should be set up and connected to your computer. This
section explains how to test your installation setup by printing a trial
document from an application program under Windows. To test the
printer alone, without your computer, you can use the status report
printing which does not require the use of a computer. See Printing
a Status Repor in Chapter
t 2.
Turn on your printer and observe the initialization sequence. If no
RAM (extra memory) cards have been installed, the sequence lasts
about one minute, during which the following events occur:
l
l
l
The printer conducts a number of self-checks.
The main motor rotates to check mechanical functions and clean
the drum.
The message display indicates READY, indicating the printer is
ready for printing.
The following procedures show you how to print your trial
document.
To print a trial document, follow these steps:
1. Start Windows and a Windows application.
2 . Open your trial document.
Select an existing or start a new document. Choose a small
document for the first trial.
3. Select PP16DV/ADV as the document printer.
In most programs, you make the selection in a print menu.
Consult your program documentation for the exact procedure.
4. If desired, change the font(s) in the document to one of the
fonts offered by your application.
5. Check the printer.
Look in the main window of the Print Manager to make sure the
printer is activated.
1-28
User’s Manual
Printing Your First Document
6. Print your document.
Start the program. The default paper size is fixed to A4 (for
Europe) or Letter (for the USA). However, you can print a
document on a different size of paper using the manual feed slot
which you can choose in the Printer Driver’s main window.
Adjusting Print Density
If you feel that the printout is too light or too dark, adjust the print
density by turning the print density dial. It is located inside the top
cover above the control panel. Turning the dial clockwise darkens
the print. A counterclockwise adjustment lightens the print. After
making the adjustment, close the top cover, print your trial
document again, and check the results.
Print density dial
If you see a problem with the printed pages other than print density,
see Chapter 5 for possible causes and solutions.
If your document printed successfully, skip the next subsection If
Something Goes Wrong.
User’s Manual
1-29
Printing Your First Document
If Something Goes Wrong
This section briefly discusses the most common problems you might
encounter. For more complete troubleshooting information, see
Chapter 5. Chapter 5 also describes all printer error and status
indicators.
Problem
Remedy
No response by printer Ensure that:
l
The printer is turned on and online. The
ONLINE indicator should be lit.
l The cable from the computer to the
printer is properly connected at both
ends.
l
Your software program has sent the print
data to the printer. Many programs have
a printer control function that shows
print
No printout; DATA
indicator on
The printer has received data from the
computer but has not printed the page. To
print the page, put the printer offline by
pressing
Unreadable printout
1-30
briefly then press
Possible causes and solutions are:
l
A wrong printer driver is selected. Select
the PrintPartner 16DV/ADV printer
driver as the document printer.
l The document contains unknown
printer commands. Remove any setup
strings or embedded commands, or print
the document with a Text only or ASCII
text print option.
User’s Manual
Where To Go From Here
Where To Go
From Here
To help you enhance or customize the printer, the user’s manual
contains the following additional information:
l
To get information on how to use the control panel and on
handling various types of paper, see Chapter 2.
l
To customize printer defaults, see Chapter 2.
l
To install additional memory, see Chapter 3.
l
To install an additional interface, see Chapter 3.
l
To install an additional paper tray, see Chapter 3.
l
To install a duplex unit, see Chapter 3.
The FPS card and the multi-function feeder are optional for the
PrintPartner 16DV.
l
l
User’s Manual
To install an FPS card, see Chapter 3.
To install a multi-function feeder, see the previous section in this
chapter.
l-31
1-32
User´s Manual
Printing and Paper Handling
This chapter provides information you may need for day-to-day
printing. The topics are:
l
Control panel tutorial
The tutorial describes the indicators, message display, and buttons.
It includes an example of how to use the control panel.
l
Control panel functions
This section describes the functions by buttons.
l
Menu functions
This section describes how to use the control panel for customizing
printer defaults.
l
Handling paper
This section describes how to print on various types of paper.
Control Panel
Tutorial
This section introduces the printer’s control panel, beginning with a
description of the indicators, message display, and buttons. The
tutorial describes the use of the buttons in some detail and follows
with an example.
The Control Panel
The control panel consists of four indicators, a message display, and
eight buttons. The physical buttons are beneath the LCD display.
The top row of labels represents basic functions. The bottom row of
labels represents secondary functions. See later in this section for a
list of functions.
User’s Manual
2-1
Control Panel Tutorial
Figure 3-1 Control panel
Indicators
The control panel has four labeled LED indicators across the top.
Indicator
Meaning
POWER
Indicates printer power is on.
ONLINE
Indicates the printer is online and ready to print.
DATA
Flashes when data is being sent from your computer.
Lights steadily to indicate the printer’s buffer contains
unprocessed data.
ERROR
2-2
Indicates a printer error has occurred. Details are
indicated by the message display.
User’s Manual
Control Panel Tutorial
Message Display (LCD)
The message display uses a liquid-crystal display representing status
and errors by two lines of sixteen characters. In operating mode, it
may show:
•
What the printer is doing
•
Whether the printer is ready to print
•
When paper should be added
•
When paper should be manually inserted
•
When the toner bottle needs to be replaced
•
When the print unit needs to be replaced
•
An error message condition such as paper jam
Important:
A “Ready” message means the printer has no data to print without
any errors and the
button is not pressed.
the printer detected an error or the
button was pressed in the
Ready state.
Error messages inform you of conditions requiring your attention,
such as TRA Y n PAPER OUT,COVER OPE N n, or PAPER JA M n.
They also warn you of hardware problems, such as FUSE R FAILURE
or BD CYCLE ERROR. The TONER LOW & PA D message informs
you that the toner bottle needs replacement. See Chapter 5 for a
complete list of messages and explanations.
In tray select mode or MFF paper size mode, the message display
shows the selected tray or the selected paper size respectively. In
menu mode, the message display shows menu items and option
selections. These modes are explained later in this chapter.
Buttons
One or two functions are assigned to a button. To use the functions
represented by the top labels, simply press the button. To use the
functions represented by the bottom labels, press and hold down the
button for five or more seconds. The following tables summarizes the
functions.
User’s Manual
2-3
Control Panel Tutorial
Pressing the button briefly
Except for the
button, the following buttons are also valid
when the printer is offline.
Button (top label)
Function
READY
FORM FEED
CONT.
TRAY SELECT
Switches the printer between online and offline.
Performs a form feed to print the remaining data.
Clears a recoverable error and continues printing.
Puts the printer in tray select mode which allows
you to select the paper tray to be used.
MENU
Puts the printer in setup mode.
ENTER
Selects the displayed option as the printer default.
This button and the two buttons below are valid
in setup, tray select, or MFF paper size mode.
+
Displays the next option.
Displays the previous option.
Pressing and holding down the button for five or more seconds
The following buttons are also valid when the printer is offline.
2- 4
Button (bottom label)
Function
RESET
Clears the buffer of any print data and puts the
printer through its initialization sequence.
RESET MENU
Besides the above reset function, resets all printer
operation options to their factory default values
except interface settings (parallel menu, serial
menu, and network menu).
MFF PAPER SIZE
Puts the printer in MFF paper size mode, which
allows you to select the paper size to be used.
SELF TEST
Selects the self test menu, which lists printer
operation options currently selected.
PRINT FONT
Selects the print font menu, which lists the fonts
currently available.
User’s Manual
Control Panel Functions
Control Panel
Functions
Changing Message language
You can select a language used for control panel messages. Selectable
languages are English, French, German, Italian, Spanish, and Swedish.
To select a language, follow these steps:
1. Turning the printer on while pressing
The message C . P . LANGUAGE
initialization.
ENGLISH appears after printer
2. Press the + or - button until the desired language appears.
Press the
button.
The asterisk appears after the language, indicating the language is
selected.
3. Save the selection.
Pressing the
button saves the new setting and returns the
printer to the ready state. The printer will display the selected
language for messages.
Printing Data Remaining in the Buffer
Pressing
tells the printer to advance to the next page.
The practical effect is to print any data remaining in the buffer. For
example, the buffer might contain data from an interrupted print
job. When the buffer contains residual data, the control panel DATA
indicator is steadily lit.
Clearing an Error Condition to Continue Printing
When a recoverable error occurred, pressing
clears the error
condition and continues printing. For example, you can resume
printing after adding paper in response to a TRAY1 PAPER OUT
message. You can use
to ignore a message such as LOAD
TRAY1 A4. For example, you might want to print a page with A4size format on a letter-size sheet.
also allows you to override
the INSERT A4 prompt when feeding paper manually. By pressing
the printer prints from tray1 (MFF) instead.
User’s Manual
2-5
Control Panel Functions
Clearing the Buffer and Reinitializing the Printer
Pressing and holding down
for five or more seconds clears the
print buffer and tells the printer to initialize itself. You might use
this function if you cancel a print job in the middle and want to clear
the printer and start over. In this case, permanently downloaded
fonts are removed by the initialization process. You must download
the fonts again.
Selecting the Self Test Menu
Pressing
puts the printer into the self test menu which
allows you to print a status report which lists printer operation
options currently selected in the selected emulation.
To select the self test menu and print a status report, follow these
steps:
1. Make sure that the message display indicates READY with the
ONLINE and DATA indicators off.
2. Press the
button for five or more seconds.
The message changes to PCL PAGE CONFIG START.
3. Select a desired emulation. (PrintPartner l6ADVonly)
Press the + or - buttons until the desired emulation appears.
4. Start printing.
Press the
button. The message display indicates SELF
TEST and the DATA indicator flashes, then a status report page is
printed.
2-6
User’s Manual
Control Panel Functions
--- STATUS REPORT -COPIES
PAPER
ORIENTATION
FORMLINES
MANUAL FEED
SMOTHING
: 001
:A4
: PORTRAIT
:064LINES
:OFF
:ON
PAGE PROTECT
RESOLUTION
I/O TIMEOUT
: AUTO
:600 DPI
: 15sec.
AUTO CONT
ECONOMY MODE
THICK PAPER
I/O BUFFER
NPAP BUFFER SIZE
PUWER SAVE
RESET CONFIG
:OFF
:OFF
:OFF
:16KBYTES
: AUTO
: 15min.
: MEMORY RESET
PARALLEL I/F CONF :GURATION
ACKNOWLEDGE
:ACK WIDTH 1
BIDIRECTION MODE
:ON
NPAP MODE
: OFF
SELECTED FONT
FONT SOURCE
FONT NUMBER
PITCH
SYMBOLSET
:I(Internal)
: 0000
: 10.00
: ROMAN8
COURIER
: REGULAR
TOP OFFSET
LEFT OFFSET
A4 PRINT WIDTH
AUTO CR
AUTO LF
:0.0 mm
:0.0 mm
:NORMAL
:LF=LF
:CR=CR
AVAILABLE PERSONALITIES
RESIOENT
OPTION
:PCL
:PCLXL
:NONE
OPTION FONT
: NONE
MEMORY (RAM)
:4096KBYTES
F I RMWARE
FONT
ENGINE FIRWARE
:Ver 0,0
Lev004-00
:Ver 01.00 Lev002
: Ver 0.0 Lev01
---
SELF TEST
Page Printer
TYPEFACE LIST ---
Figure 3-2 Status report (PCL emulation)
User’s Manual
2-7
Control Penel functions
Selecting the Font Print Menu
Pressing
puts the printer into the print font menu which
allows you to list the fonts available in the selected emulation.
To select the print font menu and print the font list, follow these
steps:
1. Make sure that the message display indicates READY with the
ONLINE and DATA indicators off.
2. Press the
button for five or more seconds.
The message changes to PCL FONT LIST START.
3. Select a desired emulation.
Press the + or - buttons until the desired emulation appears.
4. Start printing.
Press the
button. The message display indicates PRINT
FONT and the DATA indicator flashes, then a font report page is
printed.
2-8
User´s Manual
Control Panel Functions
Figure 3-3 Font report-first page (PCL emulation)
User’s Manual
2-9
Control Panel Functions
Selecting Paper Tray, MFF, or Manual Paper Feed
Pressing
puts the printer in tray select mode which allows
you to select paper sources to be used. The paper sources are tray 1, tray
2 (if installed), MFF (if installed), and manual feed slot. When a paper
source runs out of paper, the printer switches it for another one. When
the manual feed slot is selected, other paper sources are made invalid.
To select a paper source, follow these steps:
1. Make sure that the message display indicates READY with the
ONLINE and DATA indicators off.
2. Press the
button briefly.
The message changes to TRAY
that tray 1 is selected.
TRAYl*. The asterisk means
3. Select or deselect a paper source.
This step is valid when tray 2 (option) or MFF (standard) is
installed. Pressing the
button in this condition makes the
asterisk disappear. Tray 1 is deselected. Pressing the
button again makes the asterisk reappear. Tray 1 is selected.
4. Select or deselect other paper sources.
Press the + or - buttons briefly to display another paper source.
Use the
button in the same way as described above.
5. Save the selections.
Press
ready state.
2-10
button to save the new settings and return to the
User’s Manual
Control Panel Functions
Setting MFF Paper Size
Pressing
puts the printer in MFF paper size mode
which allows you to inform the controller of the physical paper size
used in the MFF. You must select the size of paper currently loaded
in the MFF. This menu is available when the MFF is installed.
To select a paper size, follow these steps:
1. Make sure that the message display indicates READY with the
ONLINE and DATA indicators off.
2. Press the
button for five or more seconds.
A4*. The asterisk
The message changes to MFF PAPER
means that A4 size is selected for the MFF.
3. Select a desired paper size.
Press the + or - buttons until the desired paper size appears.
Press the
button. The asterisk appears and the paper size is
selected.
4. Save the selection.
Press the
ready state.
User’s Manual
button to save the new setting and return to the
2-11
Menu Functions
Selecting Menu Option
and Resetting Menu
Pressing
briefly puts the printer in menu mode which allows
you to set up the printer, for example, selecting a paper size,
changing a font, and adjusting serial interface parameters. You can
select options from the menu by using the four buttons,
-, and
Pressing
for five or more seconds in menu mode resets
all parameters to the factory default values except interface settings
(parallel menu, serial menu, and network menu).
The following section briefly explains the menu mode and its operation.
Menu Functions
The menu mode allows you to change your printer’s defaults using
the four buttons on the control panel. You can use the control
panel’s menu mode to configure your printer to suit the
requirements of your computer, software, and documents.
Menu Structure and How to Use Control Panel Buttons
The menu mode is structured as a tree consisting of submenus,
items, and options. The following example shows a small portion of
the tree and illustrates how the four buttons work.
In the example:
Submenus are PAGE FORMAT MENU and QUALITY MENU. Items
are COPIES,PAPER, and SMOOTHING. Options are 001,002,
LETTER,LEGAL,ON, and OFF.
selects menu mode when the printer is ready and offline.
Once the printer is in menu mode,
selects the first submenu
and moves you right to the next submenu. If you are on the last
submenu, pressing
returns you to the first submenu.
When a submenu is selected,
selects the first item of the
submenu. Once the first item is selected,
moves you right to
the next item, regardless of an option selected. If you are on the last
item, pressing
returns you to the first item.
2-12
User’s Manual
Menu Functions
Use + and - to move up and down the options list.
When an item is displayed,
selects that option (adds an
asterisk after the option indicating that the option is stored in RAM).
Submenus, Items, and Options
The following table shows all of submenus and items and summary
of options displayed on the message display in menu mode. The
display initially shows the factory default option followed by an
asterisk (underlined in the table).
User’s Manual
2-13
Menu Functions
Submenu (bold)/ ltem Options
Page format menu
Copies
Paper/Envelope
Orientation
Form lines
Page protect
Duplex mode
Bind
Quality menu
Smoothing (*4)
Resolution
Economy mode
Thick paper
PCL font menu
Font source
Font number
Pitch size (*6)
Point size (*7)
Symbol set
2-14
001, 002, 003, . . . , 999 (pages)
A4, A5, Letter, Legal, Executive (*l)
COMl0, Monarch, C5, DL, B5
Portrait, Landscape
005, 006, 007, . . . ,060, . . . , 128 (lines/page) (*2)
Auto, On
Off, On (*3)
Long edge, Short edge (*3)
O n , Off
600, 300 (dpi)
off, O n
Internal, soft, SIMM (*5)
000, 001, 002, 003, . . . , N (depending on the font
source, max. 999)
0.44, 0.45, 0.46, . . . , 99.99 (characters/inch)
4.00, 4.25, 4.50, 4.75, 5.00, . . . , 999.75 (point)
Roman8, ISOLl, ISOL2, ISOL5, PC8, PC8-DN,
PC850, PC852, PC8TK, . . . , WingDings
PCL menu (*8)
Top offset
Left offset
A4 print width
-25.0, -24.9, -24.8, ..., 00.0 ,..., +24.9, +25.0 (mm)
-25.0, -24.9, -24.8, ..., 00.0 ,..., +24.9, +25.0 (mm)
Normal, 80 columns/line
FPS menu (“9)
Jam recovery
Print FPS errors
Job timeout
Wait timeout
Manual timeout
Banding mode
off O n
On , Off
0, 10, 11, 12, . . . , 298, 299, 300 (0: no check)
0, 10, 11, 12, . . . , 298, 299, 300 (0: no check)
0, 10, 11, 12, . . . , 40, . . . , 298, 299, 300 (0: no check)
Auto, Off, On (*10)
Config menu
Personality
Auto continue
I/O timeout (*l1)
I/O buffers
Power save
Auto PCL, PS (*9)
Off ,On
5, 6, 7, . . . , 15, . . . , 298, 299, 300 (seconds)
Auto, 32K, 64K, 128K, 256K (bytes)
On after 15 min, 30 min, 60 min, 120 min, Off
User’s Manual
Menu Functions
Submenu (bold)/ltem
Options
Parallel menu
Acknowledge (*12) Model, Mode2, Mode3
Bi-direction
O n , off
A u t o On, Off
NPAP mode
Serial menu (*13)
Baud rate
Pacing
DTR polarity
ROBUST XON
1200,2400,4800,9600, 19200, 38400, 57600
DTR, Xon/Xoff
Hi, Low
on, Off
Network menu (*14)
Auto On
NPAP mode
No,Yes
Bootp
###. ###. ###. ### (### = 0, 1, 2, . . . .255) (*15)
IP address
###. ###. ###. ### (### = 0, 1, 2, . . . .255) (*15)
IP netmask
###. ###. ###. ### (### = 0, 1, 2, . . . .255) (*15)
IP gateway
Clear warning
<Clear warning>
*1
Shows the printing component to be replaced.
Print unit
Default is Letter or A4. For example, Letter for U.S. customers
and A4 for European customers. To print on legal-size paper,
banding mode must be on or the total RAM capacity must be
12M bytes or more (optional 8MB or more).
*2 This is for Letter and portrait. It automatically changes
depending on paper size and page orientation.
*3 Valid when a duplex unit is installed
*4 Makes the contours of objects appear smoother than normally
possible with the printers standard resolution.
*5 Displayed when soft fonts are downloaded or a font SIMM card
is installed
* 6 Displayed when the selected font is a scalable and fixed-spacing
one. The default depends on a selected font.
*7 Displayed when the selected font is a scalable and proportionalspacing one. The default depends on a selected font.
*8 Effective when PCL jobs are being executed. These values are
used as defaults of top and left offset specifications in PCL mode.
*9 Displayed when the FPS (standard for 16ADV and option for
16DV) is selected for personality
User’s Manual
2-15
Menu Items
*l0 If the total capacity of memory is 11M bytes or less and banding
mode is off, the resolution is automatically set to 300 dpi and
Legal size paper cannot be used. To print Legal size paper or
print in 600 dpi, change “banding mode” to on. To print on
Legal size paper with banding mode off, install additional
memory cards of 8M bytes or more regardless of 300 or 600 dpi.
*11 This is essential for sharing the printer among multiple
computers.
*12 This is for the parallel interface.
*13 Displayed when a serial interface board is installed
*I4 Displayed when a network interface board is installed
*15 Consists of four parameters. The one followed by < can be
changed.
Menu Items
The following briefly explains each item of the menu mode.
Page format menu
Copies
Paper/Envelope
Orientation
Form lines
Page protect
Duplex mode
Binding
2-16
The number of copies the printer prints from
each page
A paper size or envelope size to be used by the
printer
A printing direction
The number of lines printed per page
Whether a block of printer memory is reserved
exclusively for text and graphics data,
especially for printing dense text or complex
graphics, to prevent memory overflow errors.
However, it reduces the amount of printer
memory available for downloadable fonts.
Two-sided printing mode
Where an extra area for fastening pages is
located, short or long edge of a page
User’s Manual
Menu Items
Quality menu
Smoothing
Whether the edge smoothness technology is
applied (improves resolution to 1200 dpi class)
Resolution
The number of dots printed per inch
Economy mode
Thick paper
Toner saving mode
Mode for printing thick paper. Be sure to turn
this off whenever you are using paper of
ordinary thickness.
PCL font menu
Font source
Font number
Where the printer finds the font
The internal number of a font to be selected
Pitch size
Character width (characters per inch)
Point size
Character height (multiple of l/72 inch)
Symbol set
A set of characters used in a font, consisting of
the standard letters, numbers, and
punctuation. It differs in the accented
characters, line drawing characters, and special
symbols by languages.
PCL menu
Top offset
Distance by which the page is virtually shifted
from the top edge of physical paper in PCL
emulation
Left offset
Distance by which the page is virtually shifted
from the left edge of physical paper in PCL
emulation
A4 print width
Normal
80 columns/line
User’s Manual
Setting the width of the printable area for A4
paper size
PCL6 compatible
Expands the width of the printable area so that
80 characters of a IO-pitch font can be printed
within a line. This setting is available only for
A4 paper size in portrait orientation.
2-17
Menu Items
FPS menu
Jam recovery
Whether the jammed page is reprinted
Print FPS errors
Whether an error report is printed out
Job timeout
Wait timeout
Manual timeout
Banding mode
Auto
2-18
Time interval to be allotted between jobs
Time interval to be allotted for waiting a job
end
Time interval to be allotted for manual
insertion
Switching printing control (band/full page)
Auto mode (standard setting). Automatically
switches the following two models depending
on the total RAM capacity.
l 11MB or less (standard 4MB + optional
7MB or less): virtual memory model
(equivalent to banding mode on)
l 12MB or more (standard 4MB + optional
8MB or more): speed model (equivalent to
banding mode off)
Off
Speed model. Attaches importance to speedup
of printing control, thus processing all pages
per job. Print density depends on the RAM
capacuy.
l 300 dpi when total RAM capacity is 4M to
11M bytes (standard 4MB + optional 7MB or
less)
l 600 dpi when total RAM capacity is 12M
bytes or more (standard 4MB + optional 8MB
or more).
Note:
l To print at 600 dpi when total RAM
capacity is 4M to 11M bytes (standard 4MB +
optional 7MB or less), set banding mode on.
l To print on legal-size paper, expand the total
RAM capacity to 12M bytes or more (optional
8MB or more) even in printing at 300 dpi or
set banding mode on.
On
(Virtual) memory model. Attaches importance
to reliable printing rather than speedup, thus
processing data per page.
User’s Manual
Menu Items
Config menu
Personality
Auto continue
I/O timeout
Selecting an emulation (personality) without a
PJL command which clearly specifies the
emulation
Automatic control of continuing recoverable
errors
Time interval allowed for switching the
interface
I/O buffers
Size of interface buffer
Power save
Setting the time interval during which the
printer remains idle state before entering sleep
mode after printing last
On after I5
On after 30
On after 60
On after 120
min
min
min
min
Off
Power save mode on. The printer enters sleep
mode after remaining idle state for ## minutes
after printing last.
Power save mode off. (Even in this mode, the
printer enters sleep mode after remaining idle
state for 180 minutes.)
Parallel menu
Acknowledge
Model
Mode2
Mode3
Bi-direction
NPAP mode
The pulse width of the ACK signal
0.5 µs
1.0 µs
4.0 µs
Bi-directional Centronics interface mode
Whether the NPAP commands are used.
When using MarkVision™ , the NPAP mode
must be Auto or On.
Serial menu
Baud rate
Pacing
DTR polarity
ROBUST XON
User’s Manual
Data transfer speed on the serial interface
Protocol of the serial interface
Level of the DTR signal in the DTR protocol
ROBUST mode in the Xon/Xoff protocol
2-19
Menu Items
Network menu
NPAP mode
Whether the NPAP commands are used.
When using MarkVision, the NPAP mode
must be Auto or On.
BootP
Whether the TCP/IP protocol that enables a
workstation to find its IP address is enabled or
disabled for the network adapter
IP address
A unique address of the printer in the TCP/IP
network environment
IP netmask
Bit mask that logically subdivides the network,
specifying a local network portion of the IP
address
IP gateway
A unique address of the equipment for the
gateway to outside of the enclosed
environment
Clear warning
<Clear warning> print unit
2-20
Clearing the print unit counter
User’s Manual
Handling Paper
Handling Paper
Discusses paper selection and paper handling:
l
l
Types and sizes of paper you can use with this printer, including
envelopes and transparencies
Ensuring that both the software program and the printer have
compatible paper size settings
l
Tips on handling print media
l
Adjusting the paper tray to fit a different paper size
l
Feeding paper manually
Paper Types and Sizes
This printer can print on a variety of common office papers in
addition to standard photocopier bond. Bond paper can range in
basic weight from 60 to 70 g/m2 (16 to 24 pound) for the paper tray
and from 60 to 105 g/m 2 (16 to 28 pound) for the manual feed slot.
Smooth paper produces the best print quality, but textured papers
usually provide satisfactory results.
The following descriptions also apply to an optional paper tray.
Notice:
When you use thick paper, follow these guidelines:
When you are using thick paper or special paper and find improper
adhering of toner to the paper, turn the thick paper mode on using
the control panel. This mode is invalid for envelopes,
transparencies, and labels.
Turn the mode off when you print on regular paper. Printing
regular paper with this mode on may cause a decrease in print
quality or reliability of the printer.
l
l
User’s Manual
2-21
Handling Paper
This printer can print on a wide range of paper sizes, but the size is
limited when using paper trays.
When using a paper tray, the size is:
l
Paper size (physical)
Dimensions
A4 (European letter size)
A5
Letter (US letter size)
Legal (US legal size)
Executive
210 x 297 mm
148 x 210 mm
8.5 x 11 in
8.5 x 14 in
7.25 x 10.5 in
l
l
When using the manual feed slot, the size is:
100 mm wide x 148 mm long (3.94 x 5.81 inches)
Minimum:
216 mm wide x 360 mm long (8.5 x 14.13 inches)
Maximum:
When using the MFF (option for PrintPartner 16DV), the size is:
Paper size (physical)
Dimensions
A4
210 x 297 mm
148 x 210 mm
8.5 x 11 inches
8.5 x 14 inches
7.25 x 10.5 inches
4 l/8 x 9.5 inches
37/8 x 7.5 inches
162 x 229 mm
ll0x220mm
176x250mm
A5
Letter
Legal
Executive
Envelope COM- 10
Envelope Monarch
Envelope C5
Envelope DL
Envelope B 5
Notice:
When printing on legal-size paper in the FPS emulation, set the one
of the following:
Add RAM extension cards of 8M bytes or more (12M bytes or
more in total)
Select “banding mode on” (memory mode) in the FPS menu.
l
l
If a print job stops halfway with a certain error message printed, the
same measures above often recover the error.
2-22
User’s Manual
Handling Paper
Although this printer can print on any sheet within the limits stated
above, printing area and margin calculations are based on several
paper sizes as shown in the table below. Use the control panel to
change the supported paper size.
Paper size (logical)
Dimensions
A4
A5
Letter
Legal
Executive
Envelope COM-10
Envelope Monarch
Envelope C5
Envelope DL
Envelope B 5
210 x 297 mm
148 x 210 mm
8.5 x 11 inches
8.5 x 14 inches
7.25 x 10.5 inches
4 l/8 x 9.5 inches
3 7/8 x 7.5 inches
162x229mm
ll0X220mm
176X250mm
When the PCL emulation is used and if the physical paper size (tray
size or MFF paper size) is different from the logical paper size (value
specified by setup menu of paper size), a paper mismatch error
occurs.
General Tips
Observe the following tips when handling print media.
l
Do not use paper that is wrinkled or curled.
l
Do not use paper with staples or metal parts.
l
l
User’s Manual
When printing both sides of sheets, we recommend you to use an
optional duplex unit. If your printer has no duplex unit, use the
manual feed slot and remove curls after first printing. Use paper in
60 to 90 g/m2 (16 to 24 pound) weight for the duplex unit and 6 0
to 105 g/m2 (16 to 28 pound) weight for the manual feed slot.
Paper thinner than this weight may be wrinkled thus causing
decrease in print quality.
Two-sided printing is not allowed for transparencies, envelopes,
and labels even if your printer has the duplex unit.
2-23
Handling Paper
Preprinted Sheets
In general, you can safely print on preprinted sheets such as letterhead.
However, letterhead with thermographic (raised) printing, embossing,
or foil stamping may not work well. The forces used to create these
effects (heat and/or pressure) are also used in the printer’s fuser unit.
For this reason, the fuser unit may damage the preprinted image.
Load preprinted paper with the printed side facing down in the paper
tray. When using the manual feed slot, place paper with the printed
side facing up. For printing in portrait orientation, the letterhead
should be at the front of the tray. For landscape orientation, it should
be at the right of the tray. For more information on printing in
different orientations, see the later section of this chapter.
Transparencies
This printer can print on overhead transparency material.
l
We recommend you to set up the rear stacker (or that of the duplex
unit when your printer has the duplex unit) so that transparencies
are ejected straight out the back to minimize curl.
The capacity of the rear stacker is about 20 sheets.
l
l
l
l
2-24
Use materials specially designed for laser printers or photocopiers.
Always feed transparency material from the multi-function feeder
(MFF; standard for 16ADV and option for 16DV). Use the
manual feed slot of the printer if the MFF is removed.
To remove curls from printed transparency materials, use correct
frames or put a weight on them until they lay flat.
Be sure to fan the transparency stack to prevent sheets from
sticking together.
User’s Manual
Handling Paper
Envelopes
This printer prints well on envelopes if you carefully follow these
guidelines:
• Use envelopes made of paper in 75 to 105 g/m2 (20 to 28 pound)
weight. Printing with envelopes made of paper thinner than this
weight may produce wrinkles thus causing decrease in print quality.
• Be sure to set up the rear stacker (or that of the duplex unit when
your printer has the duplex unit) so that envelopes are ejected
straight out the back to minimize curl.
The capacity of the rear stacker is about 20 sheets.
• Use the envelope sizes shown in the preceding table.
• To avoid damage to the printer, never use envelopes with clasps,
snaps, windows, or synthetic materials.
• Feed from the multi-function feeder (MFF; standard for 16ADV
and option for 16DV). Use the manual feed slot of the printer if
the MFF is removed.
• Feed the envelopes with the gummed side of the flaps facing
downward.
• Do not use “encapsulated” adhesives, which seal by pressure alone.
• To avoid jamming, restrict the minimum paper weight to 64 g/m2
( 17 pound).
• To avoid creasing along the edges, use high-quality envelopes with
stiff edges.
• To avoid uneven printing, do not attempt to print on the gummed
overlap areas.
• Be sure to feed or load the envelopes with the envelope centered
against the manual feed slot. Use the guide of the paper sizes.
• Before attempting large-scale printing on envelopes, consult with
your stationery dealer. Also, test the envelopes carefully for
consistent, trouble-free printing.
User’s Manual
2-25
Handling Paper
Labels
This printer prints well on labels if you carefully follow these guidelines:
l
l
l
Be careful to use labels under normal operating conditions. Labels
are sensitive to temperature and humidity.
Use the rear stacker (or that of the duplex unit when your printer
has the duplex unit) so that labels are ejected straight out the back
to minimize curl.
Use only labels without backing sheets exposed in the printable
area. Labels mounted separately on a backing sheet tend to slip,
resulting in crocked print.
Backingsheet is
exposed.
Backing sheet
is not
exposed.
Not acceptable
l
Acceptable
Test-print labels before using them. If jamming problems occur
and continue, try a different type of label.
Changing the Paper Tray Size
The paper tray can be adjusted to one of the three paper sizes: A4,
A5, LTR (Letter), and EXE (Executive). If the paper tray is preset
for one of these paper sizes at purchase, however, you cannot adjust
it to the Legal size. To change the size, follow these steps:
Rear guide,
Remove the paper tray
from the printer.
Refer to the illustration for
the parts you adjust when
changing the size of the
tray.
’ Label
2-26
indicator
User’s Manual
Handling Paper
2. Change the setting of the
paper size indicator. Lift
the right end of the
indicator and slide it to the
desired position, that is,
adjust the triangle mark to
A4, A5, LTR, or EXE
engraved on the tray.
3. Remove the rear paper
guide from the tray. Push
the two catches inward to
release the pins from the
holes and remove the rear
paper guide from the tray.
4 . Attach the rear paper guide
to the correct position.
Refer to the label or
engraving on the tray to
locate the holes of the
desired paper size.
Push the two catches
inward to put the three
projections into the bottom
holes then the two pins into
the side holes.
User´s Manual
2-27
Handling Paper
5. Ad here the correct paper
label.
6. Load paper and check that
the paper fits the tray. Adjust
the both side guides to the
width of paper.
7. Return the paper tray. Slide
the tray back into the printer.
Notice:
Select the correct paper size on the print menu of your application
program, or a paper mismatch error will occur.
Using the Multi-function Feeder
The multifunction feeder is standard for PrintPartner 16ADV but
option for PrintPartner 16DV.
1. Adjust the left and right
paper guides. The guides are
separately provided for the
manual feed path and the
paper stack path.
2. Fan the paper stack. When
loading paper, be sure to fan
the paper stack to prevent
sheets from sticking together.
2-28
User´s Manual
Handling Paper
3. Set the physical paper size
of the MFF. Use the MFF
paper size menu to select
the size of paper loaded in
the MFF. See the early
section in this chapter.
You can use the printer with the multi-function feeder removed.
This causes no influence on printer operation.
To remove the multi-function feeder, follow these steps:
Notice:
Be sure that the printer is turned off before installing or removing
the multi-function feeder.
1. Disconnect the feeder cable
and push the two levers at
the bottom of the feeder
upwards to unlock the two
hooks.
2. Then, lift the feeder aslant
toward you to remove it.
User’s Manual
2-29
Handling Paper
Feeding Paper Manually
This printer allows you to feed sheets manually one by one. Use the
manual feed slot to print a document on a different type of paper
without unloading your regular paper from the paper tray. You also
use manual feed for printing envelopes, overhead transparencies, and
labels.
The manual feed slot is built in the printer. It is also provided in the
multi-function feeder which is standard for the PrintPartner 16ADV
but optional for the PrintPartner 16DV. The procedure is the same.
To use the manual feed slot, first select MANUAL FEED ON using the
tray select mode of the control panel. Next, start your software
program to print a file. Then follow these steps:
Using Manual Feed Slot of the Multi-Function Feeder
1. Adjust the paper guides.
Position the left and right
upper guides to the width
of the sheet. (Lower two
guides are for paper stack.)
2. Place the sheet with print
side face up. When the
printer is ready to print, it
displays the message
INSERT SIZE to prompt
you to prepare a sheet of
paper. Insert the sheet until
it is stopped by the feed
rollers. Insufficient insertion
prevents paper from being
fed or causes skewed
feeding.
Release the paper once it begins to feed automatically. If your file has
additional pages, the printer prompts you for another sheet.
2-30
Users Manual
Handling Paper
Using Manual Feed Slot Built in the Printer
Follow these steps:
1. Open the front cover. Pull
the depression at the top of
the cover. (For the
PrintPartner 16ADV,
remove the multi-function
feeder from the printer.)
2. Adjust the paper guides.
Position the left and right
guides to the width of the
sheet.
3. Place the sheet with print
side face up. When the
printer is ready to print, it
displays the message Insert
size to prompt you to
prepare a sheet of paper.
Insert the sheet until it is
stopped by the feed rollers.
Insufficient insertion
prevents paper from being
fed or causes skewed
feeding.
Release the paper once it begins to feed automatically. If your file has
additional pages, the printer prompts you for another sheet.
User’s Manual
2-31
Handling Paper
Setting Up the Rear Stacker
This printer has a rear stacker that allows you to eject sheets straight
out the back to minimize curl. Use the rear stacker to print
envelopes, overhead transparencies, and labels. For the rear stacker of
an optional duplex unit, refer to its manual.
To use the rear stacker, follow these steps:
1. Open the rear stacker. Pull
the projections at the top of
the stacker.
2. Remove the paper support
from inside the stacker.
3. Set the paper support in
position. Insert the two
ends of the paper support
into the mounting grooves
of the rear stacker.
2-32
User’s Manual
Handling Paper
Printing on Nonstandard Size Paper and on Envelopes
Most of the control over printing on nonstandard size paper must
come from your software program. Programs handle page size
specifications in many different ways.
This section provides tips on feeding and using non standard paper
with your Fujitsu printer.
Considerations on Paper Size
The following considerations apply:
l
l
For envelopes and other nonstandard paper sizes, use the manual
feed slot.
Using the control panel, select a paper size that is equal to or larger
than the physical size of the nonstandard size paper. Otherwise,
part of the printed image may be cut off
Selecting a paper size larger than the physical paper may result in
data running off the edges of the paper. This can affect print quality
and shorten the life of the print unit. To avoid this problem, adjust
the page setup in your program so the print data falls within the
limits of the physical page and center the paper in the manual feed
slot.
User’s Manual
2-33
Handling Paper
Page Orientation
Figure 3-4 illustrates the two orientations and shows the relationship
between the loaded paper and the resulting printout. This
relationship is important if you want to print on letterhead. In
portrait orientation, place the letterhead toward you and face down
in the paper tray. In landscape orientation, place the letterhead
against the right frame of the tray and face down.
Letter
Head
Figure 3-4 Portrait and landscape orientation
When using the manual feed slot, place the paper with its letterhead
facing up. In portrait orientation, insert the paper with its letterhead
away from you. In landscape orientation, insert the paper with its
letterhead on the right hand side.
Some software programs allow you to print both portrait and
landscape information on a single page. The function that allows you
to do this is usually called something like “text rotation.” Consult
your software documentation for information.
2-34
User´s Manual
Enhancing and Customizing the Printer
This chapter explains the following ways to enhance or customize
your printer:
l
Add RAM up to a total of 64 megabytes except the resident RAM.
l
Add an additional interface to the parallel and serial interfaces.
l
Add a different size of paper tray.
l
Add a paper feeder as the second paper source.
l
Add a duplex unit as the two-sided printing mechanism.
For adding a multi-function feeder to the PrintPartner 16DV, see
Chapter 1.
You can order these options separately. See Appendix B for ordering
information. Contact your dealer for information on other new
options that may be available.
The following gives you brief information and installation
instructions for each option.
Notice:
Be sure that the printer is turned off before installing an option.
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer.
Adding RAM
You may need to expand RAM to process more data for either of the
following reasons:
l
You commonly download several fonts when printing a job
l
You print files with complex graphics
l
User’s Manual
You print on legal-size paper in speed mode with banding mode off
in FPS emulation (standard for 16ADV and option for 16DV)
3-1
Adding RAM
You can install two memory expansion cards. The expansion card
can have 1, 2,4,8,16, or 32 megabytes of RAM. Together with the
printer’s resident memory of 4 megabytes, these expansion options
offer a range of RAM from 4 to 68 megabytes.
(8MB card)
Insert with cut
facing down and
to the right
To install the RAM card, first make sure the printer is turned off and
follow these steps:
1. Open the upper door and
right side cover of the
printer. You will see a small
cover on the metal plate.
Remove the fastening screw
and the cover. You can now
see three connectors (upper
two ivory ones for RAM
cards).
2. Orient the RAM card.
Hold the card with the cut
corner down and facing
right and insert the card
aslant into connector.
3-2
User’s Manual
Installing an Alternate Emulation
Notice:
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer.
3. Install the RAM card.
Push its top edge
downwards so that holes of
the card align with locating
pins of the connector and
the card is secured by
retaining chps.
Important:
When installing two RAM cards, first install the lower one, and then
the upper one.
Turn power on. If necessary, change buffer memory assignment
(page protect or jam recovery) using the control panel.
To remove an unsealed
RAM card push out the
retaining clips. When, the
card slants outwards pull
the card to remove.
Installing an
Alternate
Emulation
Alternate emulations are offered with emulation cards. You can use
these emulations to connect your printer to different computers. The
FPS emulation (PostScript Level 2 compatible) is available. It is
standard for the PrintPartner 16ADV but optional for the
PrintPartner 16DV.
The installation procedure is the same as that for the RAM card
except that the FPS emulation card uses the bottom connector.
User’s Manual
3-3
Installing an Alternate Emulation
To install the FPS emulation card, follow these steps:
1. If RAM cards are already installed, remove them.
2. Insert the emulation card into the bottom black connector.
3. Reinstall the RAM cards.
Use the bottom
black connector
With default settings, the printer automatically selects the active
emulation. To specify an emulation steadily, select the emulation
using the control panel. Use the Personality item of the Config
menu.
Once you change the emulation, the other menus change to reflect
the options and functions of the new emulation. Procedures for
working in the menus remain the same as for the PCL emulation.
3-4
User’s Manual
Installing an Interface Expansion Board
Installing an
Interface
Expansion Board
The printer’s standard interfaces are parallel (Centronics x 2) and
serial (RS-232C x 1). The currently available optional interfaces are
LocalTalk and Ethernet. If the location of your printer is distant
from the computer, you can use the LocalTalk port or Ethernet port
of the computer to connect your printer. Fujitsu offers the optional
LocalTalk board and Ethernet board C for these purposes.
Notice:
When sharing the printer among multiple computers, setting the I/O
time-out short may cause a printing problem.
Ethernet interface board
LocalTalk interface board
Installing an Interface Board
I
Remove
the cover
1. To install an interface
board, first make sure the
or-inter is turned off.
Remove the interface board
slot cover from the back
right of the printer.
2. Hold the board with the
parts mounting side left.
Slide the board into the
empty interface slot using
the guides, and push it until
it stops. Secure the board by
the two screws supplied
with it.
User’s Manual
3-5
Installing an Interface Expansion Board
Connecting to the LocalTalk Port
To connect to the LocalTalk port, simply connect the interface cable
between the printer and your computer.
Connecting the LocalTalk Interface Cable
To connect to the LocalTalk interface port, you need a cable
correctly wired for this printer and your computer. The cable must
also have the proper connectors. Your dealer or technical support
person can supply you with the proper cable.
For example, the LocalTalk Locking Connector Kit-DIN-8 (Apple
product) is available. Also refer to your computer documentation for
the type of connector required by its LocalTalk port.
Notice:
Be sure that the printer is turned off before connecting the interface
cable.
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer.
To make the connection, firmly plug the cable connector into the
LocalTalk interface port on the back right of the printer. Plug the
other connector into your computer’s LocalTalk port. Consult your
computer documentation if you need help.
Selecting the LocalTalk Interface
The printer’s standard interfaces are parallel and serial. While the
LocalTalk interface board is installed, the printer automatically
detects that the computer is using the LocalTalk interface.
LocalTalk Specifications
The table below shows the physical specifications of the LocalTalk
interface.
3-6
User’s Manual
Installing an Interface Expansion Board
Specification
Description
The span of a single LocalTalk network
Number of devices on a single LocalTalk network
Speed of data transmission
Protocol
Max. 300 meters
Max. 32 devices
230. 4K bits/second
8 bit packet
Connecting to the Ethernet Port
The Ethernet interface board has two connectors, l0BASE- and
10BASE-T. The 10BASE-2 connector is for a coaxial cable, bus
connection. The l0BASE-2 connector is for a twisted-pair cable, star
connection. Either will do.
Connecting to the Ethernet port involves the following three tasks:
l
l
l
Check the type of cables your network uses.
Select the l0BASE-2 or l0BASE-T connector of the interface
board according to the connector type of your cable.
Connect the interface cable to the printer and a network port.
Connecting the Ethernet Interface Cable
To connect to the Ethernet interface port, you need a cable correctly
wired for your network. The cable must also have the proper
connectors. Your dealer or technical support person can supply you
with the proper cable.
For example, C66L-2810-0111 and C66L-1240-0002 (Fujitsu
products) are available for l0BASE-T and 10BASE-2 ports
respectively. Also refer to your network documentation for the type
of connector required by its Ethernet port.
Notice:
Be sure that the printer is turned off before connecting the interface cable.
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer. For the same reason, do not remove the protective
cover from the l0BASE-2 port which is not in use because you use the
l0BASE-T port.
User’s Manual
3-7
Adding Paper Sources
The procedure below applies to the 10BASE-2 port.
To make the connection, firmly plug the cable connector into the
Ethernet interface port on the back right of the printer. Secure the
connector by turning the connector hood. Plug the other connector
into a networks Ethernet port. Consult your computer
documentation if you need help.
Selecting the Ethernet Interface
The printer’s standard interfaces are parallel and serial. While the
Ethernet interface board is installed, the printer automatically detects
that the computer is using the Ethernet interface.
Ethernet Specifications
The table below shows the physical specifications of the Ethernet
interface.
Specification
Description
The span of l0BASE-2
Max. 185 meters
(coaxial, bus connection)
Max. 100 meters
(twisted-pair, star connection)
10M bits/second
The span of l0BASE-T
Speed of data transmission
Adding Paper
Sources
Paper Feeder
If you switch paper sizes frequently, you may want to add a second
paper source. Or you may simply wait to increase the paper capacity
of your printer. You can easily do this by installing an optional paper
feeder which consists of a base frame and a paper tray. The paper tray
in the paper feeder is identified as tray 2 and the one in the basic
configuration is identified as tray 1.
The paper types and sizes used by tray 2 are the same as those for the
standard paper tray. The capacity is 500 sheets of 0.09 mm thick
paper, twice that of the standard paper tray.
3-8
User’s Manual
Adding Paper Sources
To install the paper feeder, follow these steps:
1. Turn off the printer and
disconnect the power cord.
Make sure the lock lever is
set to the open side. Push
down the lever at the left
side of the paper feeder.
Lock
lever
2. Mount the printer on the
paper feeder. Grip the
bottom left and right sides
of the printer to lift the
printer and place it on the
paper feeder. When placing
the printer on the paper
feeder, be sure you insert
the two guide pins of the
paper feeder into the two
positioning holes at the
bottom of the printer.
3. Set the lock lever to the
lock side. Pull up the lever.
Notice:
Be careful not to drop the printer on the paper feeder.
Do not touch any connector contacts to avoid possible electrostatic
damage to the printer and paper feeder.
For paper loading, refer to Loading Paper and Installing the Paper
Tray in Chapter 1. For paper sizes and types as well as tips on
handling paper, refer to Handing Paper in Chapter 2.
User’s Manual
3-9
Adding Paper Sources
Changing the Paper Tray Size
The paper tray can be adjusted to one of the four paper sizes: A4, A5,
LTR (Letter), and EXE (Executive). If the paper tray is preset for
one of these paper sizes at purchase, however, you cannot adjust it to
the Legal size. To change the size, follow these steps:
Remove the paper tray
from the printer.
Refer to the illustration for
the parts you adjust when
changing the size of the
tray.
2. Change the setting of the
paper size indicator. Lift
the right end of the
indicator and slide it to the
desired position, that is,
adjust the triangle mark to
A4, A5, LTR, or EXE
engraved on the tray.
A5 B5 EXE LTR A4 LGL
3-10
User's Manual
Adding Paper Sources
3. Remove the three paper
guides from the tray.
Unlock the guides as
follows:
Left and right guides:
Press the two catches
inward.
Rear guide:
Push the end of the left or
right frame outward and
release the pin of the guide
from the hole, then release
the other pin.
4. Attach the paper guides to
the correct positions.
Locate the mounting holes
of the desired paper size by
referring to the label or
engraving on the tray.
Left and right guides:
Put the two catches into the
holes.
User’s Manual
3-11
Adding Paper Sources
Rear guide:
Mount the guides in reverse
order of the removal.
5. Adhere the correct paper
size label.
6. Load paper and check that
the paper fits the tray.
7. Return the paper tray.
Slide the tray back into the
printer.
Notice:
Select the correct paper size on the print menu of your application
program, or a paper mismatch error occurs.
3-12
User’s Manual
Adding Duplex Unit
Different Paper Tray Sizes
The printer or paper feeder is shipped with a fixed size of paper tray.
For example, it is the letter size for the USA and the A4 size for
Europe. You can add different sizes of paper trays as shown in the
following table. To install the paper tray,-refer to Loading Paper and
Installing the Paper Tray in Chapter 1.
A
Adding Duplex
Unit
User’s Manual
Paper size
Dimensions
Letter (US letter size)
Legal (US legal size)
Executive
A4 (European letter size)
A5
8.5 x 11 inches
8.5 x 14 inches
7.25 x 10.5 inches
210 x 297 mm
148 x 210 mm
The duplex unit allows the printer to print data both sides of a sheet
of paper. It can provide an extra margin for binding as specified by
software.
3-13
Adding Duplex Unit
To print data using the duplex unit with the printer in the FPS
emulation, the total capacity of printer’s RAMS must be 10M bytes
or more. Insufficient capacity restricts some functions.
To install and use the duplex unit, refer to its User’s Manual.
Caution:
To avoid possible personal injury or harm to your equipment,
cooperate with another person in assembling or disassembling the
printer, duplex unit, multi-function feeder, and paper feeder (if
installed). Do not lift or move the printer as equipped with other
units.
Notice:
Be sure to keep the rear opening of the duplex unit away from a wall
or another equipment so as to open the rear unit for clearing paper
jam or not to block the reverse operation of paper that comes out
and in the opening during two-sided printing.
With the optional paper feeder (tray 2), the duplex unit must be
installed between the printer and the paper tray.
Duplex unit
3-14
User´s Manual
Maintenance
This chapter covers preventive maintenance, periodic routine
maintenance, and repacking the printer for shipment or storage.
Notice:
Before performing any maintenance, be sure that the printer is turned off.
During maintenance procedures, do not touch any connector contacts to
avoid possible electrostatic damage to the printer.
When performing maintenance, do not disassemble or remove any
components unless specifically directed in the procedures.
Preventive
Maintenance
The following guidelines can help to ensure trouble-free operation:
l
l
l
l
l
l
l
User’s Manual
Follow the guidelines in Chapter 1 when selecting a location for your
printer.
To minimize paper jams, store paper under favorable conditions. Do
not expose paper to high humidity or moisture, which can cause wavy
edges. Do not store paper in direct sunlight or allow it to become very
dry, which can impart an electrostatic charge. Store paper flat, not on
edge.
If you must open the printer’s upper door for more than three minutes,
remove the print unit with the toner bottle mounted and store it in a
dark place. Exposure of the photoconductor drum to light for more
than three minutes can cause damage.
Make sure small objects such as paper clips do not drop into the printer.
When the message display indicates REPLACE PARTS, print status
report or display a <CLEAR WARNING> message in menu mode to
confirm the cause of the message. For the procedures, see Chapter 2.
Replace the toner bottle as soon as possible to prevent any dust from
entering the print unit from the opening.
Shake the toner bottle before installation.
4-1
Periodic Routine Maintenance
Periodic Routine
Maintenance
Table 5-l lists the printer’s periodic routine maintenance and
indicates when this maintenance should be performed.
Table 5-1 Periodic Routine Maintenance
Maintenance
When to perform
Replace toner bottle and
cleaner pad
When the message display indicates
TONER LOW & PAD or TONER EMPTY,
or when printing is too light
Replace print unit
When print quality is bad, even after
replacing or cleaning other parts
When the message display indicates
<CLEAR WARNING> PRINT UNIT
(Replace the print unit at the next
replacement of the toner bottle)
Clean corona wire
When replacing the print unit or toner
bottle, when printout shows vertical
white lines, or when printing is too light
Clean paper path
When replacing the print unit or toner
bottle, after clearing a paper jam, or
when printouts show toner smudging
Clean precharger wire
When print density is uneven or when
printing shows black vertical lines
Replacing the Toner Bottle and Cleaner Pad
The toner bottle is designed to last approximately 5000 printed pages
under the condition of 5% coverage on A4 paper or last about one
year after unpacking. The first toner bottle may print about 2500
pages under the same condition.
Replace the toner bottle and the cleaner pad at the same time when
the message display indicates TONER LOW & PAD or TONER
EMPTY or when printing becomes lighter than you find satisfactory.
After the toner low condition occurs, you can only print about 20
more pages. Under the toner empty condition (no toner), the
printer will not work.
4-2
User´s Manual
Periodic Routine Maintenance
Important:
Whenever you replace the toner bottle, clean the corona wire and the
precharger wire to prevent a degradation in print quality.
You can continue to print after the toner low status if the print
quality is still satisfactory. However, you must at least prepare a new
toner bottle.
To replace the toner bottle, follow these steps:
1. Open the upper door.
2. Tap the toner bottle. Tap
the toner case to drop any
remaining toner from toner
bottle into print unit. This
avoids the remaining toner
from being spilt inside the
printer during replacement.
3. Unlock and remove the
old toner bottle. Pull the
top of the toner bottle
toward you to swing bottle
from the upright position to
the removable position.
Gently remove the bottle. If
necessary, clean toner
around the toner hopper
entry of the print unit.
Notice:
Be careful not to allow dust or foreign matter into the toner hopper.
User’s Manual
4-3
Periodic Routine Maintenance
4. Remove the toner bottle
from its envelope.
5. Fully shake the toner
bottle.
6. Remove the plastic seal
from the toner bottle. Pull
off the seal as gently as
possible to avoid spilling
toner. Handle the seal
carefully to prevent staining
your handles or clothes.
Projecting guided
7. Install the toner bottle.
Slide both projecting guides
of the toner bottle along the
grooves of the print unit.
4-4
User’s Manual
Periodic Routine Maintenance
8. Lock the toner bottle.
Push the toner bottle
backward until it clicks into
place.
9. Close the upper door.
Notice:
Do not remove the toner bottle from the print unit until all the
toner has been used in order to avoid scattering toner inside the
printer.
To replace the cleaner pad, follow these steps:
1. Open the cover. Push the
engraved portion on the
stacker to unlock the cover.
2. Lift the front of the cover
to open the cover.
User’s Manual
4-5
Periodic Routine Maintenance
3. Unlock the cleaner. Push
down the handle of the
cleaner and push forward it
to unlock the cleaner.
4. Remove the cleaner. Slide
the cleaner to the left and
take its right end out of the
opening, and then the left
end.
5. Remove the cleaner pad
from the cleaner. Push the
lock lever to unlock the
cleaner pad.
Cleaner
Cleaner pad \
\
6. Slide the cleaner pad to
the right and separate it
from the cleaner.
4-6
User’s Manual
Periodic Routine Maintenance
7. Mount a new cleaner pad
on the cleaner. Put the new
cleaner pad on the cleaner
and slide the cleaner pad
into the locked position.
8. Install the cleaner in the
printer. Grasp the handle
of the cleaner and put the
left end of the cleaner into
the opening, and then the
right end.
9. Lock the cleaner. Push
down the top of the handle
and pull it towards you to
lock the cleaner.
10. Close the cover.
Replacing the Print Unit and Internal Cleaning
The print unit life is designed to last about 40,000 pages of 5%
coverage continuous printing on A4 paper or about one year after
unpacking, whichever comes first. The print unit life depends on
print coverage, paper type, and operating and/or storage conditions.
The print unit life ends when background smudge, ghosting, or
dropouts occurs. Avoid unnecessary high coverage printing to
maintain the print unit performance.
User’s Manual
4-7
Periodic Routine Maintenance
For the print unit life, this printer indicates the near end of life only.
The printer message display begins indicating REPLACE PARTS
when the print unit can print 3000 to 5000 more pages left. Prepare
a new print unit if you notice this indication.
Even if the print unit reaches its near-end-of-life, use the print unit
until its toner runs out (the message display indicates TONER
EMPTY) for economy. After replacing the print unit, be sure to reset
the print unit counter by using the control panel. For control panel
operations, see the end of this section.
Replacing the print unit involves replacing the toner bottle. It is
better to perform the following set of procedures when replacing the
print unit:
l
Remove the old print unit together with the toner bottle.
l
Clean the paper path.
l
Clean the corona wire.
l
Install the new print unit, then the new toner bottle.
Notice:
Do not return the toner remaining in the old print unit to the toner
bottle to reuse the toner for the new print unit. It may cause a
printing trouble because such toner contains harmful foreign matters
like paper particles. Be sure to replace the old print unit with the
toner bottle mounted.
The following sections describe these procedures in the order listed.
Removing the Print Unit
Perform this procedure in the following cases:
l
l
To replace the print unit
To store the print unit in a clean, dark place when working inside
the printer for more than three minutes
Caution:
For safety, turn off the printer and disconnect the power cord before
beginning.
4-8
User'sManual
Periodic Routine Maintenance
To remove the print unit, follow these steps:
1. Open the upper door.
2. Raise the green handles of
the print unit.
3. Remove the print unit.
Pull the green handles at a
45” angle toward the front
of the printer. This will
disengage the print unit,
allowing easy removal.
When the print unit begins
to move, gently lift it up
and out.
If you want to reuse the
print unit, be careful not to
scratch the green surface of
the drum against the printer
or its parts.
Notice:
If you want to re-use the print unit, do not touch or scratch the
green drum surface after removing the print unit.
To avoid spilling toner, be
sure to keep the print unit
upright and keep the toner
bottle mounted on the print
unit.
User’s Manual
4-9
Periodic Routine Maintenance
Cleaning the Paper Path
Clean the paper path:
l
When replacing the print unit
l
After clearing a paper jam
l
When printouts show toner smudging
Notice:
If the print unit is still installed, complete this procedure quickly.
You should avoid exposing the photoconductor drum to light for
more than three minutes.
If you think you need more time, remove the print unit and store it
in a clean, dark place. To remove the unit, see the preceding section
Removing the Print Unit.
Open the upper door and
remove the print unit. Be
careful not to damage the
green drum surface. Look
for spilled toner on the
inside of the printer. Use a
damp cloth to remove any
toner stains.
Cleaning the Corona Wire
The corona wire is located in the metallic housing (chrome frame)
on the base frame inside the printer.
Perform this procedure:
l
When replacing the print unit
l
When the printout shows vertical white lines or printing is too light
Notice:
You should avoid exposing the photoconductor drum to light for
more than three minutes.
Be careful not to break the corona wire.
4-10
User’s Manual
Periodic Routine Maintenance
Use the cleaning brush supplied with the printer. This L-shaped tool
has two cleaning pads: one for the corona wire and the other for the
precharger wire inside the print unit. Use the pad on the shorter
branch engraved “T”.
Remove the print unit and
store it in a dark, level,
steady place. Be careful not
to damage the green drum
surface. Using the tool as
shown in this figure, clean
the corona wire. Fit the
positioning cut onto the wire
housing frame and gently
move the tool left and right
two or three times along the
length of the wire to remove
any dirt or other substance.
Be careful not to break or
otherwise damage the wire.
After you have cleaned the printer, install the print unit and close the
upper door.
Cleaning the Paper Guide before the Corona Wire
Perform this procedure when printouts show small spots of toner
smudging especially near the top edge of paper.
Open the upper door and
remove the print unit. Be
careful not to damage the
green drum surface. Look
for dust on the paper guide
before the corona wire. Use
a clean, lint free cloth to
gently remove any dust
from the entire surface of
the paper guide.
User’s Manual
4-11
Periodic Routine Maintenance
Installing the New Print Unit
Notice:
To avoid exposing the photoconductor drum to light or
contamination, follow these guidelines:
l
l
Do not remove the print unit from its envelope until you are ready
to install it.
Complete the procedure as quickly as possible to avoid exposing
the drum to light for more than three minutes.
To avoid damaging the drum:
l
l
Be sure to remove the plastic sheets after installing the print unit.
Operating the printer without removing the sheets will make the
print unit unusable.
Never touch or scratch the green drum surface.
Print unit
Green d
l
Be careful not to allow dust or foreign matters into the toner
hopper.
To install the new print unit, follow these steps:
1. Remove the print unit
from its envelope. Place the
unit on a level, steady place.
2. Remove the protective
materials from the print
unit. Remove protective
sheet 1 Pull narrow clear
tape 2 until its blue end is
visible and remove it.
4-12
User’s Manual
Periodic Routine Maintenance
3. Lower the print unit into
the printer. Grasp the print
unit by its green handles
with the green drum surface
facing you.
First, slide the print unit
straight down the ends of
the drum shaft along the
grooves on the sides of the
printer. Then, slide the
print unit at a 45 degree
angle toward back of the
printer.
When handling the print
unit, never allow its green
surface to touch anything,
since it can be easily
scratched.
User’s Manual
4-13
Periodic Routine Maintenance
4. Seat the print unit in
place. Press down gently on
the left and right portions
marked PUSH until the
guide pins at both sides of
the print unit are positioned
at the round marks (labeled
in the grooves).
Notice:
If you do not proceed to the next step immediately, close the
printer’s top cover to protect the photoconductor drum from light.
After you have installed the print unit, install a new toner bottle. See
Replacing the Toner Bottle described previously in this chapter.
Close the printer’s upper door. Press down the top cover until it
clicks shut. Reconnect the power cord and turn on the printer.
4-14
User’s Manual
Periodic Routine Maintenance
Resetting the Print Unit Counter
Perform this operation whenever you have replaced the print unit, or
the printer continues displaying the warning message REPLACE
PARTS.
To reset the print unit counter, follow these steps:
1. Make sure the printer is
offline. If necessary, press
the
button to put
the printer offline. The
ONLINE indicator is off
with the REPLACE PARTS
massage displayed.
2. Press the
button to
put the printer in menu
mode.
The message changes to
SETUP MENU PAGE
FORMAT MENU.
3. Press the
button
repeatedly until the lower
message changes to CLEAR
WARNING.
User’s Manual
4-15
Periodic Routine Maintenance
4. Press the
button to
select this function.
The message changes to
<CLEAR WARNING>
PRINT UNIT *. The
asterisk means that the print
unit is expired.
5. Press the
button
again to perform the
function. The asterisk
disappears from the
message, indicating the
counter is reset.
6. Press the
button to
return the printer online.
The ONLINE indicator
lights up without the
REPLACE PARTS massage.
Important:
After the reset operation, check the status report to make sure that
the Warning Message is cleared.
4-16
User’s Manual
Periodic Routine Maintenance
Cleaning the Precharger Wire
T he precharger wire is on the print unit. Normally you should not
need to clean this wire. However, the following conditions may
indicate that the wire needs cleaning:
l
l
Your printed pages have dark vertical lines, or the print density is
uneven.
Cleaning the corona wire does not solve the problem.
Use the cleaning brush supplied with the printer. This L-shaped tool
has two cleaning pads: one for the precharger wire and the other for
the corona wire inside the printer. Use the pad on the longer branch
engraved “I?“. To clean the precharger wire, follow these steps:
1. Open the upper door of
the printer.
2. Remove the print unit
from the printer. Place the
unit on a level, steady place.
3. Clean the wire. To clean
the wire, position the tool
as shown in the figure, then
gently slide it left and right
two or three times along the
length of the wire to remove
any toner or other particles.
Be careful not to break or
otherwise damage the wire.
Notice:
User’s Manual
l
Avoid exposing the drum to light for more than three minutes.
l
Do not touch or scratch the drum surface.
4-17
Repacking the Printer
Repacking the
Printer
If you need to ship your printer or store it for an extended time,
protect it by packing it in its original carton.
Store the print unit separately from the printer. Do not remove the
toner bottle from the print unit. Cover the photoconductive drum
to avoid exposing the drum to light, wrap the print unit and toner
bottle with a protective material, and store it in a safe place.
To protect the printer from moisture, place it in the plastic bag it
was shipped in. Seal the bag with tape.
Place the printer in its carton using the original packing materials to
brace and protect the printer. The illustration shows the position of
the printer components within the carton.
PrintPartner 16DV
4-18
User’s Manual
Repacking the Printer
PrintPartner 16ADV
Repack as shown
User’s Manual
4-19
4-20
User’s Manual
Solving Problems
Although this printer is designed to be highly reliable, you may
occasionally experience problems. The most common problems are
paper jamming and poor print quality. This chapter helps you to
identify the cause of the problem and suggests solutions. For detailed
procedures, see Chapter 4, Maintenance.
This chapter is divided into five sections:
l
l
l
l
l
Clearing Paper Jams. This section explains how to locate and clear
paper jams.
Operational Problems. Start here if the printer doesn’t function
properly. You may save yourself a service call.
Print Quality Problems. Check here if the printed pages don’t look
as they should.
Error Indications. The printer has self-diagnostic tests for a variety
of hardware and interface problems. If a test indicates a problem,
the printer displays it on the control panel. This section explains
these error conditions.
Printer Status Indications. These statuses are not error conditions.
Most of them require no action by you. However, explanations are
included here for your information.
Notice:
During solution of a problem, do not touch any connector contacts
to avoid possible electrostatic damage to the printer.
Clearing Paper
Jams
User‘s Manual
T he printer has sensors to detect paper jams. If a jam occurs, the
printer displays it on the message display. The message is PAPER
JAM n (n: 0 to 4 indicating the jam location). Because the paper
path is short and simple, you should have no problem locating the
jam.
5-l
Clearing Paper Jams
To clear a paper jam, follow these steps:
Notice:
Clear paper jams quickly to avoid problems with the fuser unit.
Do not touch or scratch the green drum surface when clearing the
paper jam.
Be careful not to expose the drum to light for more than three
minutes.
Take special care when removing a jam from the transfer corona unit
to avoid damage to the corona wire.
1. Check the error message
PAPER JAMn n indicates
the position where the sheet
has jammed. Follow the
instructions shown below
after step 3.
n = 4 appears when your
printer is equipped with an
optional duplex unit.
2. Open the upper door.
3. Remove the print unit.
For detailed procedures and
advisory notes, see the
section Removing the
Print Unit in Chapter 4.
5-2
User’s Manual
Clearing Paper Jams
4a. Pull out the tray and raise
the left and right levers of
the feed roller.
Remove the sheet. Pull the
jammed sheet gently not so
as to remain pieces of paper
in the printer.
After removing the sheet,
return the two levers to
their original positions (pull
the levers down toward
you).
Notice:
Leaving the levers raised causes damage to the levers when the
print unit is installed and pressed down.
Caution:
Do not touch the heat roller. This hot area may burn your hand. See
the label attached to the upper door.
User’s Manual
5-3
Clearing Paper Jams
4c. Open the rear stacker at
the back of the printer.
Draw out the paper guide.
First push up the top edge
of the paper guide and then
pull out the paper guide.
Caution:
Do not use the lever to pull out the paper guide. The lever or the
paper guide may be damaged.
5-4
User’s Manual
Clearing Paper Jams
Remove the sheet. Pull the
jammed sheet gently not so
as to remain pieces of paper
in the printer.
Caution:
Do not touch the heat roller. This hot area may burn your hand. See
the label attached to the upper door.
Return the paper guide to
the original position. Raise
the top edge of the paper
guide and push down it to
lock the paper guide in
position.
Notice:
If the paper guide is not in the locked position, the printer will not
work.
When your printer is equipped with an optional duplex unit, do not
close the rear unit of the duplex unit with the paper guide of the
printer drawn out. It may break the paper guide.
User’s Manual
5-5
Clearing Paper Jams
Close the rear stacker.
The following procedure is when your printer is equipped with an
optional duplex unit. Be familiar with the paper paths in duplex
printing.
Duplex unit
4d.Remove paper tray 1 then
open the front door of the
duplex unit. Pull out tray 1
and grasp center of the
front door to unlock the
door.
Pull the door towards you
to open it.
5-6
User’s Manual
Clearing Paper Jams
Remove the sheet. Pull the
jammed sheet gently not so
as to remain pieces of paper
in the printer.
After removing the sheet,
close the front door..
Open the rear unit of the
duplex unit. Push down the
lock lever of the rear unit
and pull the door gently
towards you.
Notice:
Do not open the rear unit forcibly to avoid damage to the hinge of
the duplex unit.
Remove the sheet. Pull the
jammed sheet gently not so
as to remain pieces of paper
in the printer or duplex
unit.
If necessary, draw out the
paper guide of the printer.
The left illustration shows
the case of a jam in path ©.
User’s Manual
5-7
Clearing Paper Jams
The left illustration shows
the case of a jam in path 0.
Close the rear unit. After
removing the sheet, close
the rear unit until its lock
latches. Be sure to return
the paper guide to the
original position if it is
drawn out.
Notice:
Do not close the rear unit of the duplex unit with the paper guide of
the printer drawn out. It may break the paper guide.
Caution:
Be careful that your fingers or hair is not caught between the printer
and the duplex unit when closing the rear unit.
5. Clean the inside of the
printer. Look for spilled
toner inside the printer.
Clean away any toner with
a damp cloth.
5-8
User’s Manual
Clearing Paper Jams
6. Install the print unit.
Grasp the print unit by its
green handles with the
green drum surface facing
you.
First, slide straight down
the ends of the drum shaft
along the grooves on the
sides of the printer. Then,
slide the print unit at a 45
degree angle towards the
back of the printer.
Press down gently on the
left and right portions
marked PUSH until the
print unit snaps into
position.
7. Close the upper door.
Before closing the door,
make sure the print unit is
seated properly. Press down
the door until it clicks into
place.
User’s Manual
5-9
Operational Problems
The table below contains advice on dealing with repeated paper feed
problems.
Problem
Causes and solutions
Paper does not feed cleanly
from paper tray
Top edge of paper stack may be
deformed (wavy or bent sheets). Try
turning the paper stack around.
Paper stack may not be aligned
properly. Pull out the tray,
straighten the paper stack against the
paper guides, and re-insert the tray.
Too many sheets in the paper stack.
Make sure the stack is level with or
below the limit mark on the left
paper guide.
The paper pressure plate may not be
released. Pull out the tray and insert
the tray again until it clicks up.
Operational
Problems
5-10
Problem
Solutions
No power when you turn on
the printer
Check that the power cord is
plugged in at both ends and that the
power outlet has power.
Printer does not initialize
Close the upper door completely.
Push down (lock) the paper guide
(inside the rear stacker) in position.
Printer initializes, but does
not online
Install a print unit.
Insert the paper tray all the way.
Printer initializes, but the
settings are wrong
Use the control panel to select the
desired settings.
User´s Manual
Print Quality Problems
Print Quality
Problems
The most common cause of poor print quality is the dirty corona
wire or precharger wire. A rare cause is the expired fuser unit. The
figures below show the typical appearances.
Due to dirty corona wire
Too light
White vertical line
IF
Due to dirty precharger wire
Toner stains (back)
Black vertical line
Ghost printing
F
Due to both
Smudging
Due to expired fuser unit
Blurred black vertical line
User’s Manual
5-11
Print Quality Problems
5-12
Problem
Solutions
Printing is too light
Turn the print density dial
clockwise.
Check to see if your paper is wet.
Remove the print unit and rock it
to distribute the toner evenly.
Clean the corona wire.
Printing is too dark
Turn the print density dial
counterclockwise.
Page is black
Clean the precharger wire.
Replace the print unit.
Page is blank
Clean the corona wire.
Replace the print unit.
Vertical density is uneven
Clean the corona wire.
Clean the precharger wire.
Vertical white lines appear
Remove the print unit and rock it
to distribute the toner evenly, or
replace the print unit.
Clean the corona wire.
Vertical clear black lines appear
Clean the precharger wire.
Vertical blurred black lines
appear
Clean the precharger wire.
Contact your dealer if the fuser
unit is damaged.
Ghost printing
Print several pages if this problem
occurs after a paper jam.
Clean the corona wire.
Check to see if your paper is wet.
Contact your dealer if the fuser
unit is damaged.
User’s Manual
Error Indications
Error Indications
User’s Manual
Problem
Solutions
Pages have toner stains or
smudging
If this problem occurs after a paper
jam, print several pages.
Clean the paper path.
Clean the paper guide before the
corona wire.
Clean the corona wire.
Replace the cleaner pad.
If the fuser unit is damaged,
contact your dealer.
Toner insufficientlv adheres
to or easily comes off paper
when you are printing thick
or special paper.
Turn the thick paper mode on
using the control panel.
Vertical lines appear in
solid black printing, stains
appear in the back of a
page, or paper is wrinkled
or curled.
Check if the thick paper mode is
on by using the control panel; if
the mode is on, turn it off.
I
Errors refer to a problem or condition which requires you to take
action. The printer shows errors by using the ERROR indicator and
the message display of the control panel. The following table lists the
error indications, explains causes, and suggests solutions.
Message
Causes and solutions
BD CYCLE ERROR
Cause: Malfunction in the laser unit
Solution: If the error recurs, consult
your dealer for service.
COMM.ERROR
Cause: Communication error
Solution: Press the
button and
select the correct settings of the serial
interface using the control panel setup
mode.
5-13
Error Indications
Message
Causes and solutions
COVER OPEN 1
Cause: Incomplete closing of upper door
Solution: Close the upper door.
Note: See caution following in this table.
COVER OPEN 2
Cause: Incomplete locking of paper guide
inside the rear stacker
Solution: Lock the paper guide.
Note: See caution following in this table.
COVER OPEN 3
Cause: Incomplete closing of rear unit of
the optional duplex unit
Solution: Close the rear unit of the duplex
unit.
FUSER FAILURE
Cause: Malfunction in the fuser unit
Solution: If the error recurs, consult your
dealer for service.
INVALID SIMM
Cause: Incorrect SIMM card installed
Solution: Press the
JOB TIMEOUT
Cause: FPS job timeout (This error occurs
when the FPS emulation is active.)
Solution: Press the
5-14
button.
button.
LOAD MFF size
LOAD TRAYn size
Cause: Paper mismatch occurred.
Solution: Set the specified tray to the
correct paper size specified.
MANUAL TIMEOUT
Cause: Paper was not inserted into the
manual feed slot in the prescribed time.
(This error occurs when the FPS emulation
is active.)
Solution: Press the
button.
MEMORY OVER FLOW
Cause: Memory overflow error
Solution: Press the
button.
MFF NOT INSTALL
Cause: No MFF installed
Solution: Install the MFF.
User’s Manual
Error Indications
User’s Manual
Message
Causes and solutions
MOTOR FAILURE n
Cause: Malfunction in the feed motor, etc.
Solution: If the error recurs, consult your
dealer for service.
NO PROCESS UNIT
Cause: No print unit is installed.
Solution: Install the print unit.
OVERRUN ERROR
Cause: Incomplete in extracting
compressed data
Solution: Press the
button.
PAPER JAMn
Cause: Paper jam in the specified position
Solution: Clear the jammed paper from
the following area:
0: Pick roller, 1: Entry to paper path
2: Paper path, 3: Ejection from paper path
4: Duplex unit
PS ERROR mn
Cause: A PostScript error
Solution: If the error recurs, consult your
dealer for service.
Source PAPER OUT
Cause: Paper out in the specified paper
source
Solution: Supply paper.
STACKER FULL
Cause: Paper stacker full
Solution: Remove paper from the paper
stacker.
SYSTEM ERROR n
Cause: A system error on the controller
board
Solution: If the error recurs, consult your
dealer for service.
TRAYn MISS SET
Cause: Paper tray installed incorrectly
Solution: Install the paper tray.
TONER EMPTY
Cause: Toner runs out.
Solution: Replace toner bottle and heat
roller cleaner.
5-15
Action-required Status Indications
Action-required
Status
Indications
These conditions, not errors, require you to take action. The
following table lists the message indications, explains causes, and
suggests solutions.
Message
Causes and solutions
INSERT size
Cause: Printer is ready for paper.
Solution: Put paper into manual feed slot.
READY
TONER LOW & PAD
Cause: Toner runs short.
Solution: Prepare new toner bottle and
heat roller cleaner.
READY
REPLACE PARTS
Cause: Print unit is near end.
Solutions: Replace print unit.
Note: Enter menu mode and select Clear
Warning. After replacement, be sure to
press
to perform Clear Warning.
Important:
If the upper door is not firmly closed or the paper guide is not in the
locked position, the printer does not work.
5-16
User’s Manual
Printer Status Indications
Printer Status
Indications
User’s Manual
Printer statuses refer to conditions which generally require no action
by you. The following table lists the printer statuses and explains
their meaning. It does not include messages in menu mode.
Message
Meaning
FORM FEED
The printer displays this message when you
press
with the DATA indicator
off. The printer is printing data remaining
in buffer.
<<<INITIALIZE>>>
The printer is initializing. This message
appears whenever you turn on the printer,
close the upper door, or lock the paper
guide.
MENU RESET
The printer displays this message when you
press
for five or more seconds.
This reset returns parameter settings in the
menu to their factory defaults except for
interface settings as well as clears error
latches, buffered data, and temporary soft
fonts.
PRINT FONT
The printer displays this message when you
press
for five or more seconds
then press
The printer is printing
the font report.
READY
The printer is ready to print.
RESET
The printer displays this message when you
press
for five or more seconds. This
reset clears error latches, buffered data, and
temporary soft fonts.
SELF TEST
The printer displays this message when you
press
five or more seconds
then press
The printer is printing
the status report.
WARMING UP
The printer is warming up to its operating
temperature.
5-17
Warning Messages
Warning
Messages
This printer counts the number of the printed sheets to estimate the
life of the consumables (print unit). The printer indicates the
following warning message when and after the count reaches a
predetermined value.
READY
REPLACE PARTS
When the warning message is indicated, press the
button to
put the printer offline and press the
button to enter menu
mode. The Clear Warning message appears, indicating the expired
unit by an asterisk. When the print unit is expired, the message is:
<CLEAR WARNING>
PRINT UNIT*
However, depending on the print quality, you may not have to
replace print unit because you may suit be satisfied with the print
quality.
5-18
User’s Manual
Font Samples
This appendix provides samples of the fonts resident in this printer.
Resident fonts are provided separately for two emulation modes:
PCL mode
FPS mode
l
l
PCL Mode
Bitmapped Font
Line Printer
Scalable Fonts
User’s Manual
A-1
PC1 Mode
A-2
User’s Manual
FPS Mode
FPS Mode
User’s Manual
A-3
A-4
User’s Manual
Supplies and Accessories
This appendix provides ordering information on supplies required
for periodic maintenance as well as optional accessories.
Contact your dealer to order or obtain additional information about
the supplies and accessories listed here.
Supplies
Part name (order number) Description
The “toner bottle” contains two toner
Toner bottle
(CA02758-C300) bottles.
The “cleaner pad” contains two cleaner
Cleaner pad
(CA04040-C720) pads.
Toner kit
(CA04040-C730)
The toner kit contains two toner bottles
and two cleaner pads.
The print unit consists of a photoconductor
Print unit
( C A 0 4 0 4 0 - C 6 7 1 ) d rum, a developing unit, and a drum
cleaner in a single module.
Accessories
Part name (order number)
Description
Memory expansion cards (*1)
Allows RAM expansion by one
of the following:
1 megabyte
2 megabytes
4 megabytes
8 megabytes
16 megabytes
32 megabytes
(CAO2417-C851)
(CA02417-C852)
(CA02417-C854)
(CAO2417-C858)
(CA02758-C856)
(CA04040-C853)
User’s Manual
B-1
Accessories
Part name (order number)
Description
LocalTalk board 2
(CA04040-C826)
Ethernet board C
(CAO4040-C832)
(CAO4040-C833)
AppleTalk compatible
FPS card
(CA0429 1 -C82 1)
PostScript level 2 compatible
emulation for PrintPartner 16DV
Paper trays
(CAO4040-C7Ox)
Adjustable for a different size
550 sheets (for tray 1)
1: A4, 2: Letter, 3: Legal
500 sheets (for tray 2)
1: A4, 2: Letter, 3: Legal
4: Executive, 6: A5
(CAO2758-C73x)
NetWare & TCP/IP corresponding
For USA and UK
For Europe
Paper feeders
(CA02758-C75x)
European/Asian spec
USA spec
Canadian spec
Feeder unit with/without a paper
tray adjustable for a different size
0: No tray, 5: A4 size tray
1: No tray, 6: Letter size tray
2: No tray, 7: Letter size tray
Duplex unit
(CA04291-C750)
(CA0429 l-C75 1)
(CAO4291-C751)
Two-sided printing mechanism
For Europe
For USA
For Canada
*l We recommend the installation of additional memory cards
of 8MB or more when you:
use the FPS emulation and
select banding mode off (speed mode) and
print on legal size paper regardless of 300 or 600 dpi or
print large image d ata
l
l
l
If you cannot get memory cards, select On for the banding
mode in the FPS menu in menu mode using the control
panel.
B-2
User’s Manual
Specifications
User’s Manual
Specification
Description
Printing technology
Semiconductor laser + electrophotography
Emulations
Standard: Hewlett-Packard LaserJet 5 (PCLG)
PostScript level-2 compatible
Switching: Automatic or by the control panel
Dimensions
Width:
Depth:
376.5 mm (14.8 inches)
385 mm (15.2 inches)
640 mm (25.2 inches) with MFF
Height: 289 mm (11.4 inches)
Weight: 17 kg (37.5 pounds)
18 kg (39.7 pounds) with MFF
* MFF is standard for PrintPartner 16ADV but
option for PrintPartner 16DV. MFF includes
paper support wire.
Power requirements
120 VAC ,50 or 60 Hz (USA)
220 to 240 VAC , 50 or 60 Hz (Europe)
Consumption:Maximum 650 W
(full option) Average during operating
500 W or less
30 W or less during sleep mode
Environmental
requirements
Temperature: l0 o to 35°C (50° to 95°F)
during operating
0° to 40°C (32° to 104°F)
during storage
20% to 80% relative humidity
Humidity:
(non-condensing) during
operating and storage
Maximum wet bulb 29°C (84°F)
C-1
Specifications
Specification
Description
Acoustic noise
Sound pressure level (front, bystander position)
Printing:
48 dBA without duplex unit
51 dBA with duplex unit
Sleep mode: Background noise level
Declared noise emissions in accordance
with IS09296 and IS07779
Safety and EMC
certification or
compliance
Safety: Models
Meets or complies with
M33101AS01/02 UL 1950
CSA C22.2 No. 950
21 CFR 1040.10, Class I
M33101BS01/02 EN 60950
EN 60825, Class 1
EMC: Models
Performance
M33101AS01/02
FCC
(Class
DOC,
(Class
M33101BS01/02
EN 55022, Class B
(Class A for Ethernet)
EN 50082-l
Part 15B, Class B
A for Ethernet)
Class B
A for Ethernet)
Print resolution: 600 dots per inch
Smoothing:
Equivalent to 1200 dpi
Printing speed: For character printing on A4
size paper from first tray
16 pages per minute
Warm-up time: At 25°C (77°F)
65 seconds or less
Recommended 5000 pages per month (up to
35,000 pages per month)
duty cycle:
Toner bottle
life:
Print unit life:
C-2
Meets or complies with
5000 pages at 5% coverage
continuous printing
40,000 pages at 5% coverage
continuous printing
User’s Manual
Specifications
Specification
Description
Computer interface
Standard: Parallel (Centronics), conforming
to IEEE 1284 (Compatible,
Nibble, and ECP modes)
Serial (RS-232C)
Optional: LocalTalk (AppleTalk compatible)
Ethernet C (NetWare & TCP/IP
corresponding)
Switching: Automatic sensing
Controller
Processor: NKK R4645 (125 MHz)
RAM:
4MB
SIMM:
1, 2,4, 8, 16, or 32 MB, 2 slots
provided
Fonts
Resident: PCL mode, 115 fonts available
Bitmapped (1 font)
Line Printer
Scalable (114fints)
Courier, Morrison, Taurus,
Coronet, EF Clarendon, EF
Clarendon, Lyra, Antique Olive,
Garamond, Mauritius, Leos, ,
Nimbus Sans, Nimbus Roman,
Letter Gothic, Aries, Libra, EF
Bodoni, Bodoni, Cooper Black,
Century Schoolbook, Clarendon,
Saturn, Dorado, Goudy OS , EF
Grandera, Gemini, EF Rivero,
Cassiopeia, Saturn Mono,
Dingbats, Symbol, Sorts
FPS mode, 35 fonts available
Courier, Helvetica, Helvetica
Narrow, Times, Symbol,
Palatino, New Century
Schoolbook, Avant Garde,
Bookman, Zapf Chancery, Zapf
Dingbats
Soft fonts: Available from independent vendors
User’s Manual
C-3
Specifications
Description
Specification
Paper
Type Single sheet photocopy paper (equivalent to
Xerox 4024), bond paper, overhead
transparencies (equivalent to 3M 731), and
envelopes. See Chapter 2 for more information.
Size
Tray:
A4 (210 x 297 mm)
A5 (148 x 210 mm)
Letter (8.5 x 11 inches)
Legal (8.5 x 14 inches)
Executive (7.25 x 10.5 inches)
Manual
feed slot
and MFF:
Minimum:
100 mm wide x 148 mm long
(3.94 x 5.81 inches)
Maximum:
216 mm wide x 360 mm long
(8.5 x 14.13 inches)
Weight 60 to 90 g/m² (16 to 24 pound bond) in tray
Input
60 to 105g/ m² (16 to 28 pound bond) in
manual feed slot
550 sheets of 0.09 mm thick paper
Tray 1:
Manual feed slot: 1 sheet
Output
Tray 2:
500 sheets of 0.09 mm thick paper
MFF:
100 sheets of 0.09 mm thick paper
or 30 envelopes
Face down
Stacker:
(top cover) 250 sheets of 0.09 mm thick paper
(possible to decrease depending on
paper types and paper curl
conditions)
Rear stacker: Face up
20 sheets of 0.09 mm thick paper
Rear stacker: Face up
(duplex unit) 20 sheets of 0.09 mm thick paper
* MFF is standard for PrintPartner 16ADV but optional for
PrintPartner 16DV. Tray 2 and the duplex unit are optional
for both models.
C-4
User’s Manual
Glossary
Application software
A program that performs a particular task on a computer. Examples
are word processing, spreadsheet, and database programs.
Baud
The speed of data transmission measured in bits per second. Baud
rates apply to data transmission through the printer’s serial interface.
Baud is also called baud rate.
For example, 1200 baud is approximately equal to 120 characters per
second.
Bit
A binary digit, or bit, is the smallest unit of information in a
computer’s memory. A bit can have the value 0 or 1, which
represents the OFF and ON state in a computer’s memory. Eight
bits equals one byte.
Bit map
An image representation in which each point in the image is
separately defined. For monochrome images, each point is defined by
a single unit of information. For color images, each point is defined
by several units of information, representing the different color
elements.
The characters produced by a dot matrix printer are a kind of bit
map. Each character image is created by defining the points in the
dot matrix as either on or off.
Example:
User’s Manual
GL-1
Glossary
Bitmapped font
A font in which the character images are defined by bit maps. With
bitmapped fonts, a separate set of definitions is required for each
point size. For example, Times 10 point and Times 12 point are
considered separate fonts. See also Scalable font.
Configuration
A combination of settings that allows your computer and printer to
work together. Some of the necessary settings are in the computer or
application software, while other settings are in the printer. For
example, the interface setting must be set the same in both the
computer and the printer.
Corona wire
A fine wire in the printer that gives a positive charge to the paper.
This charge causes the toner on the drum to transfer to the paper.
Default
A setting automatically used when you or your application software
do not make a selection. The settings in effect when you turn on or
reset the printer are called power-on defaults. See also Factory default.
Density
The darkness of the image as it appears on the page. If the density is
too dark, the small white areas inside letters and numbers will be
filled in. If the density is too light, pinholes appear in black areas.
Print density can be adjusted with the print density dial.
Downloadable font
A font that is transferred (downloaded) to the printer’s memory
when or before it is needed. Before they are transferred,
downloadable fonts are stored on font cards, floppy disks, or the
computer’s hard disk. Downloadable fonts are also called soft fonts.
Emulation
The ability of one printer to understand the command set of another
printer. Emulations may be built into a printer’s memory or may be
supplied on optional plug-in emulation cards or cartridges.
GL-2
User’s Manual
Glossary
Ethernet
A communication hardware for a high-speed network: developed by
Xerox Corporation.
Factory default
The settings that are programmed into a printer at the factory. The
printer uses these settings unless they are replaced by user selected
settings entered from the control panel or through application
software.
Flow control
See Serial protocol.
Font
A complete set of characters and symbols in one size, typeface, and
style. Size refers to the character height, and is usually measured in
points (l/72 inch). Typeface refers to the character design, such as
Courier, Times, or Helvetica. Style refers to the character
appearance, such as Italic or Bold. Typical examples of fonts are 12point Courier Bold, and lo-point Times Italic.
Fuser unit
One of the internal parts of a page printer. The fuser unit bonds the
toner to the paper. It consists of a heat roller and a pressure roller
that the paper passes under after toner has been applied.
Hex dump
A special printout used for troubleshooting. A hex dump shows all
data sent by the computer to the printer, including control
characters. The data in a hex dump is expressed in hexadecimal
format.
Initialization
Resets the printer to its power-on defaults. Initialization clears the
print buffer of any data and places the printer online. See also Reset.
User’s Manual
GL-3
Glossary
Interface
The means by which information is transferred from one part of a
system to another. For example, the cable between the printer and
the computer is an interface.
IS0 symbol set
IS0 stands for “International Organization for Stanardization”. An
IS0 symbol set contains special international characters that replace
the following twelve ASCII characters:
and
IS0 symbols sets are available for most European languages,
Chinese, and Japanese.
LocalTalk
A protocol for an easy AppleTalk that connects devices and
computers in a Macintosh system, developed by Apple Computer.
Margin
The space at the edges of a page in which no printing occurs. There
are four margins: left, right, top, and bottom. In application
software, margins are usually expressed in inches, centimeters, or
points. In printer commands, left and right margins are specified as
columns, while top and bottom margins are specified as lines.
Page printers have a minimum margin, typically of about .2 inch (5
mm), on all four sides, called the nonprint margin. No printing
occurs in this margin. If the application sofware specifies a margin
of 0, actual printing begins at the edge of the nonprint margin. See
also Printable area.
MarkVision
A printer management integrated software which monitors printer
status, displays optional printer’s features, spools print data, and
cooperates with printer drivers. It also displays the virtual printer
control panel to allow remote operation of printers.
Orientation
The direction of print on a page. Printing such that the shorter edges
of the paper are at the top and bottom is called portrait orientation.
GL-4
User’s Manual
Glossary
Printing such that the longer edges of the paper are at the top and
bottom is called landscape orientation.
Example:
Page description language
A set of codes that describe the placement of text and graphics on a
page. Page Control Language (PCL), the language used by HP
LaserJet printers, and Postscript are examples of page description
languages.
Page protect
A printer feature that reserves a block of printer memory exclusively
for text and graphics data. Page protect prevents memory overflow
errors when printing very dense text or complex graphics. However,
page protect also reduces the amount of printer memory available for
downloadable fonts.
Parallel interface
A connection between the computer and printer in which data is
transferred simultaneously through multiple wires. A parallel
interface is faster than a serial interface, but the distance over which
it can send data is limited. The Centronics interface is a type of
parallel interface. See also Serial interface.
Photoconductive drum
The part inside a page printer on which the image is created before it
is transferred to the paper.
Postscript
See Page description language.
User’s Manual
GL-5
Glossary
Precharger wire
A fine wire in the printer’s process cartridge that imparts an electrical
charge to the photoconductive drum. The charge makes the drum
sensitive to light.
Printable area
The area of the physical page in which the printer is able to print.
Page printers have a nonprint margin, typically about .2 inch (5 mm)
wide, at each edge of the paper. The printable area is the space
within these margins. See also Margin.
Example:
Printer driver
A set of instructions in application software that translates formatting
choices into printer commands. When installing the application, the
user identifies the type of printer being used so the application knows
which printer driver to use.
Print unit
A maintenance package consisting of the photoconductive drum,
developing unit, toner, and drum cleaner.
Reset
Clears the print buffer and places the printer online. Unlike
initialization, reset leaves the currently selected settings in effect.
That is, reset does not restore the power-on defaults. See also
Initialization.
GL-6
User’s Manual
Glossary
Resolution
The fineness of the printing. Resolution depends on the number of
dots per inch. High resolution (with more dots) is finer and more
precise than low resolution, which is coarser with rougher edges.
Scalable font
A font capable of printing in any point size. Scalable fonts are stored
on the computer’s hard disk. Each font consists of character
templates that are used by the accompanying font utility software to
create the characters in the desired point size.
Some font utilities create a complete set of characters in the desired
size and send the complete set to the printer. Other utilities create
and send only the individual characters as they are needed, which
conserves printer memory.
Serial interface
A connection between the computer and printer in which data is
transmitted sequentially over a single wire. A serial interface is slower
than a parallel interface, but it can send data over a much greater
distance. The RS-232C interface is a type of serial interface. See ah
Parallel interface.
Serial protocol
A set of rules used by the computer and the printer to regulate the
flow of data between them.
Symbol set
The set of characters used in a font. Most symbol sets contain
standard letters, numbers, and punctuation. Symbol sets differ in the
accented characters, line drawing characters, and special symbols they
contain. ASCII, Roman-8 and PC-8 and examples of symbol sets.
Symbol sets are also called character sets, which is the term usually
used with dot matrix printer fonts. See also ASCII character set; IS0
symbol set.
User’s Manual
GL-7
Toner
Electrically charged carbon particles that adhere to charged areas on
the photoconductive drum to produce an image pattern. The carbon
pattern is transferred to the paper and melted by the fuser unit to
form a permanent image on the paper.
Transfer unit
The part inside a page printer that transfers the image from the
photoconductive drum to the paper.
GL-8
User’s Manual
Index
AC power conditions 1-4 to 1-5
Accessories, ordering information B-l
Adjusting print density l-34
AUTOEXEC.BAT file 1-19
Bitmapped fonts, resident
available fonts C-3
samples of A-l
Button functions 2-3 to 2-4
Cable, interface l - 1 5 , 1 - 1 7 , 3 - 6 , 3 - 7
Cautionary notes
electrostatic damage l-5, 1-7, 1-16, 1-17,
3-1, 3-3, 3-6, 3-7, 3-9, 4-l, 5-l
paper jams 5-2
printing off the physical page 2-33
print unit
exposing to light l-7, 4-l
removing protective sheets l-7, 4-12
touching drum l-7,4-12,4-17
turning upside down 4-9
CD-ROM, attached v
Centronics interface
See Parallel interface
Changing the paper tray size
optional tray 3-10
standard tray 2-26
User’s Manual
Cleaner and cleaner pad 4-5
Cleaner pad, ordering information B-l
Connecting power cord 1-14
Connecting printer to computer l-l 5 to l-l 7
CONT. button 2-42-5
Control panel
buttons 2-3 to 2-4
indicators 2-2
Controller specifications C-2
Conventions used in this manual vii
Corona wire
cleaning procedure 4-10
when to clean 4-2, 5-10
Dark printout
See Print density adjustment
DATA indicator 2-2
Density
See Print density dial; Print quality problems
Double-side printing 2-34
Duplex unit 3-13
Emulation, selecting l-21
ENTER button 2-4, 2-10, 2-l1 2-12, 2-13
Envelopes 2-25
Error indications 5-11 to 5-13
ERROR indicator 2-2
Ethernet interface 3-7
Floppy disk, attached v
Font samples, resident A-l to A-3
Font specifications C-3
IN-1
Index
FORM FEED button 2-4, 2-5
FPS emulation, installing 3-3
Front panel
See Control panel
Fuser unit
error condition 5-10
when to replace 5-12
HP LaserJet 5 v
Humidity limitations l-4, C - l
Indicators 2-2
Installation
FPS emulation 3-3
interface boards 3-4 to 3-8
multi-function feeder 1-13 to 1-14
paper feeder 3-8
print unit l-7
printer driver l-22
RAM card 3-l to 3-3
toner bottle l-7
Interface
Ethernet 3-9 to 3-10
LocalTalk 3-7 to 3-8
parallel l-l6
serial 1-17 to 1-19
types and merits 1-15, 1-16
Inventory of printer l-6
Labels 2-26
Landscape orientation
See Orientation: page
Language of message display
LaserJet 5
See HP Laserjet 5
IN-2
2-5
Letterhead 2-24, 2-34
Light printout
See Print density adjustment
LocalTalk interface 3-6
Location of printer l-4
Loading paper l-10
Maintenance
periodic routine 4-2 to 4-17
cleaning corona wire 4-10
cleaning paper path 4-10
cleaning precharger wire 4-17
replacing cleaner pad
4-5
replacing print unit 4-7 to 4-16
replacing toner bottle 4-2 to 4-5
when to perform 4-2
preventive 4-l
Manual feed
selecting 2-l0
using 2-30 to 2-31
MarkVision
installation l-27
operating environments vi
Memory expansion cards
installation procedure 3-l to 3-3
ordering information B-l
MENU button 2-4, 2-5, 2-12
Menu mode
functions 2-l2 to 2-l6
items 2-16
structure and how to use buttons 2-12
submenus, items, options 2-13
Message display 2-3
Message language 2-5, viii
MFF PAPER SIZE button 2-4,2-l1
Minus (-) button 2-4, 2-10, 2-l1, 2-12, 2-13
MODE.COM file 1-19
User’s Manual
Index
loading paper l-10 to 1-11
ordering information B-2
maximum number of sheets c - 4
selecting 2-l0
Parallel interface l-l5 to l-16
Parts of printer l - l
Periodic routine maintenance 4-2 to 4-17
2-2
ONLINE indicator
Plus (+) button 2-4, 2-10, 2-11, 2-12, 2-13
Operating environments vi
Portrait orientation
Operational problems 5-8
See Orientation: page
Options v
Power cord connection procedure 1-14 to l-l5
Ordering information B-l to B-2
POWER indicator 2-2
Orientation, page 2-34
PPMENU
installation l-26
operating environments vi
Precharger wire
Page orientation 2-34
cleaning procedure 4-17
Paper
when to clean 4-2, 5-10
feeding manually 2-30 to 2-31
Preprinted sheets 2-24
loading in tray l-10 to l-11
Preventive maintenance 4-l
maximum and minimum sizes 2-22
Print density adjustment 1-29
printing on nonstandard sizes 2-33 to 2-34 Print density dial, when to adjust 5-10
sizes and types 2-21 to 2-26
PRINT FONT button 2-4,2-8
specifications c - 4
Print font menu 2-8 to 2-9
Paper feeder 3-8
Print quality problems 5-9 to 5-l1
Paper guide before corona wire, cleaning 4-l 1
Print unit
Paper jams
cautionary notes
avoiding 5-8
exposing to light 1-7, 4-l
clearing 5-l to 5-7
removing protective sheets 4-12
Paper margin 2-23
touching drum l-7, 4-9, 4-12, 4-17
Paper path
turning upside down 4-9
cleaning procedure 4-10
counter resetting 4-l5
ordinary and straight l-3
installation procedure l-7 to 1-9,
when to clean 4-2, 5-10
4-12 to 4-14
Paper size of MFF, setting 2-l 1
ordering information B - l
Paper source, selecting 2-10
procedure to remove 4-8 to 4-9
Paper trays
when to replace 4-2, 5-10
changing the paper tray size
optional tray 3-10
standard tray 2-26
different size of 3-13
Multi-function feeder (MFF)
installing 1-13 to 1-14
selecting 2-l0
setting paper size 2 - 1 1
User’s Manual
IN-3
Index
Printer
connecting to computer 1-15 to 1-19
nomenclature l-l to l-3
operational problems 5-8
repacking 4-l8
resetting 2-4, 2-6
Printer drivers
installation l-22 to l-25
operating environment vi
Printer status indications 5-l5
Printing
a test page offline l-20
feeding sheets manually 2-30 to 2-31
on letterhead 2-24, 2-34
on nonstandard size papers and envelopes
2-33
on transparency material 2-24 to 2-25
supported paper types and sizes
2-21 to 2-25, C-4
Printing a trial document with a printer driver
l-28
Printing area 2-23
Printing performance C-2
Problems
error indications 5-11 to 5-13
operational 5-8
paper jams 5-l to 5-7
print quality 5-9
when printing a trial document l-30
Ready, definition of 2-3
Rear stacker setting up 2-34
Repacking the printer 4-l8
RESET button 2-4, 2-6
RESET MENU button 2-4, 2-12
Resetting
the print unit counter 4-15
the printer 2-6
Resident fonts, samples of A-l to A-3
IN-4
RS-232C serial interface
See Serial interface
Scalable fonts, resident
available fonts C-3
samples of A-l to A-3
SELF TEST button 2-4, 2-6
Self test menu 2-6 to 2-7
Serial interface
how to connect 1-17 to 1-19
parameter setting 1-18 to 1-19
Setting up
printer in menu mode 2-12
rear stacker 2-32
Software set v, 1-6, l-22
Specifications
c-1 to c-4
Status indication 5-14, 5-l5
Status report
Action required 5-l5
No action required 5-l3
Supplies, ordering information B-l
Temperature limitations 1-4, C-l
Toner bottle
installation procedure l-7 to l-9
ordering information B - l
replacement procedure 4-2 to 4-5
Transparencies 2-24
TRAY SELECT button 2-4, 2-10
Two-sided printing 2-34
Warning messages
5-l6
User´s Manual
Fujitsu Offices
Please send your comments on this manual or on Fujitsu products to
the following addresses:
FUJITSU AUSTRALIA LIMITED
475 Victoria Avenue, Chatswood
N.S.W., 2067, AUSTRALIA
TEL: (61-2) 410-4555
FAX: (61-2) 411-8603
FUJITSU ITALIA S.p.A.
Via Nazario Sauro, 38
20099 Sesto S, Giovanni (Ml), ITALY
TEL: (39-2) 26294-l
FAX: (39-2) 26294-201
FUJITSU CANADA INC.
2800 Matheson Boulevard East
