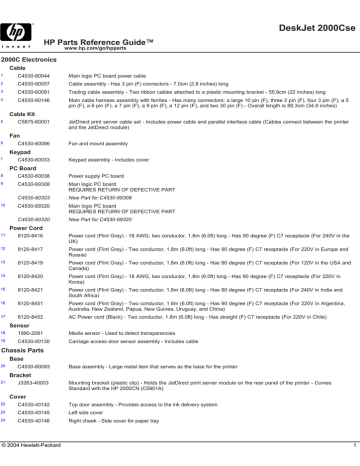

DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
2000C Electronics
Cable
1
C4530-60044
Main logic PC board power cable
2
C4530-60057
Cable assembly - Has 3 pin (F) connectors - 7.0cm (2.8 inches) long
3
C4530-60091
Trailing cable assembly - Two ribbon cables attached to a plastic mounting bracket - 55.9cm (22 inches) long
4
C4530-60146
Main cable harness assembly with ferrites - Has many connectors: a large 10 pin (F), three 2 pin (F), four 3 pin (F), a 5
pin (F), a 6 pin (F), a 7 pin (F), a 9 pin (F), a 12 pin (F), and two 30 pin (F) - Overall length is 88.3cm (34.8 inches)
Cable Kit
5
C5875-60001
JetDirect print server cable set - Includes power cable and parallel interface cable (Cables connect between the printer
and the JetDirect module)
Fan
6
C4530-60096
Fan and mount assembly
Keypad
7
C4530-60033
Keypad assembly - Includes cover
PC Board
8
C4530-60038
Power supply PC board
9
C4530-69308
Main logic PC board
REQUIRES RETURN OF DEFECTIVE PART
10
C4530-60303
New Part for C4530-69308
C4530-69320
Main logic PC board
REQUIRES RETURN OF DEFECTIVE PART
C4530-60320
New Part for C4530-69320
Power Cord
11
8120-8416
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 240V in the
UK)
12
8120-8417
Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in Europe and
Russia)
13
8120-8419
Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 120V in the USA and
Canada)
14
8120-8420
Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in
Korea)
15
8120-8421
Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 240V in India and
South Africa)
16
8120-8451
Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in Argentina,
Australia, New Zealand, Papua, New Guinea, Uruguay, and China)
17
8120-8452
AC Power cord (Black) - Two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in Chile)
Sensor
18
1990-2081
Media sensor - Used to detect transparencies
19
C4530-60130
Carriage access door sensor assembly - Includes cable
Chassis Parts
Base
20
C4530-60093
Base assembly - Large metal item that serves as the base for the printer
Bracket
21
J3263-40003
Mounting bracket (plastic clip) - Holds the JetDirect print server module on the rear panel of the printer - Comes
Standard with the HP 2000CN (C5901A)
Cover
22
C4530-40142
Top door assembly - Provides access to the ink delivery system
23
C4530-40145
Left side cover
24
C4530-40146
Right cheek - Side cover for paper tray
© 2004 Hewlett-Packard
1
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Chassis Parts
Cover
25
C4530-40148
Rear cover
26
C4530-40254
IDS skirt
Door
27
C4530-40149
Service station access door
28
C4530-60314
Access door assembly - Includes the ink cartridge door, print head door, and hinge spring - Mounts on the right top side
of the printer
Foot
C4530-40279
Rubber bumper foot
Label
30
C4530-80071
Indicator label (Shows which cartridges and printheads to use)
NO LONGER SUPPLIED
C4530-60314
New Part for C4530-80071
Tray
31
C4530-60253
Input/output tray assembly - Includes extended paper output tray assembly and the structure that the tray rests on
32
C4530-60259
Extended paper output tray assembly (output deck) - Includes extended tray with width adjuster - Slides in the retainer
slots on the front top of the printer - Replaces the standard tray
33
C4601-69002
Accessory paper tray/feeder assembly - Holds 250 sheets of paper
REQUIRES RETURN OF DEFECTIVE PART
C4601-67002
New Part for C4601-69002
Electronic Accessories
Cable (Interface)
5063-1256
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2950A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256
New Part for C2950A
C2951A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
Cable Kit
40
C5875-60001
JetDirect print server cable set - Includes power cable and parallel interface cable (Cables connect between the printer
and the JetDirect module)
Tray
41
42
C4601-69002
Accessory paper tray/feeder assembly - Holds 250 sheets of paper
REQUIRES RETURN OF DEFECTIVE PART
C4601-67002
New Part for C4601-69002
C4601A
HP 2000C Accessory paper input tray - Holds 250 sheets of paper
NO LONGER SUPPLIED
Optional Interfaces
Interface (Module)
43
J3263-69001
External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and
LAN network - Does NOT include power module - Comes Standard with the C5901A HP 2000CN
REQUIRES RETURN OF DEFECTIVE PART
J3263-61001
New Part for J3263-69001
© 2004 Hewlett-Packard
2
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Interfaces
Interface (Module)
J4101-61011
External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and
LAN network - Does NOT include power module - (J4101A, J4101B)
Interface (Product)
J2591A
External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2)
connectors
NO LONGER SUPPLIED
Module
J2591-69001
External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors
J3264-69001
External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and 3 parallel (DB-25) output
connectors
REQUIRES RETURN OF DEFECTIVE PART
J3264-61001
New Part for J3264-69001
J3265-69001
External JetDirect LAN interface module with EtherTwist (10Base-T and ThinLAN) (10BASE-2) input connectors and 3
parallel (DB-25) output connectors
REQUIRES RETURN OF DEFECTIVE PART
J3265-61001
New Part for J3265-69001
J4102-69011
External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J4102A, J4102B)
REQUIRES RETURN OF DEFECTIVE PART
J4102-61011
New Part for J4102-69011
Module (Product)
J4101B
External JetDirect LAN interface module with EtherTwist (10Base-T/Base-TX) connector
J4102B
External JetDirect LAN interface module with EtherTwist (10Base-T) connector
Power Module
0950-3348
Wall mount power supply module (MEI-AH ED12006) - 110-127VAC input, 57-63Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United States and Canada) - For models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,
J4101A/B, J4102A/B
0950-3349
Wall mount power supply module (MEI-AH ED12007) - 230VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (for
use in Europe and Israel)
0950-3350
Wall mount power supply module (MEI-AH ED12008) - 220-240VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United Kingdom) - For JetDirect/infrared interfaces J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
0950-3351
Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in South Korea) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
0950-3352
Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in Japan) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,
J4101A/B, J4102A/B
0950-3354
Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in South Africa) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
9100-5176
Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA
(Hong Kong) - For JetDirect Modules and Infrared Interface Models J2590/91/93/94A, J2964A, J3258A/B,
J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3350
New Part for 9100-5176
Other Accessories
Bracket
59
J3263-40003
© 2004 Hewlett-Packard
Mounting bracket (plastic clip) - Holds the JetDirect print server module on the rear panel of the printer - Comes
Standard with the HP 2000CN (C5901A)
3
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Cartridge
60
C4840A
No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for USA)
NO LONGER SUPPLIED
C4844A
New Part for C4840A
61
C4840AA
No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Asia/Pacific)
NO LONGER SUPPLIED
62
C4840AE
No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Europe)
NO LONGER SUPPLIED
63
C4840AL
No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Latin America)
NO LONGER SUPPLIED
64
C4844A
No. 10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density
(USA)
65
C4844AA
No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Asia/Pacific)
66
C4844AE
No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Europe)
67
C4844AL
No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Latin America)
68
C4841A
No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for USA)
69
C4841AA
No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Asia/Pacific)
70
C4841AE
No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Europe)
71
C4841AL
No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Latin America)
72
C4843A
No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for USA)
73
C4843AA
No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Asia/Pacific)
74
C4843AE
No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Europe)
75
C4843AL
No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Latin America)
76
C4842A
No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for USA)
77
C4842AA
No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Asia/Pacific)
78
C4842AE
No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Europe)
79
C4842AL
No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Latin America)
Cleaning Supplies
C4530-67910
Paper pick-up roller cleaning kit
Manual
C4530-60274
HP 2000C family service manual on CD-ROM (Version 1.1, English, HP Internal version)
C4530-60275
HP 2000C family service manual on CD-ROM (Version 1.1, English)
© 2004 Hewlett-Packard
4
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Manual/Software
C5900-60004
HP 2000Cse printer user's manual/software kit (English) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers
C5901-60037
HP 2000CN printer user's manual/software kit (English) - Includes the user's manual, Network Configuration guide, HP
JetDirect Print Server Software, 'Printing Essentials' CD-ROM, and printer drivers
C5901-60038
HP 2000CN printer user's manual/software kit (French) - Includes the user's manual, 'Printing Essentials' CD-ROM, and
printer drivers
C5901-60039
HP 2000CN printer user's manual/software kit (Portuguese) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers
C5901-60040
HP 2000CN printer user's manual/software kit (Spanish) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers
Printhead
88
C4800A
No.10 black ink printhead assembly - Approximate life expectancy is 12,000 pages minimum at 5% printing density
89
C4801A
No.10 cyan ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color printing
density
90
C4802A
No.10 magenta ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color
printing density
91
C4803A
No.10 yellow ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color
printing density
Return Kit
5183-5269
Return kit with box and instructions - For returning defective TIJ 3.0 printheads covered under the CREW program
Other Internal Parts
Absorber
93
C4530-80070
94
C4530-80078
Absorber (Wick)
95
C4530-80100
Absorber
Absorber
Bracket
96
C4530-00117
Bracket (curtain) - Metal support installed near center of base
Cover
97
C4530-00018
PC board cover/ground bracket
98
C4530-20075
Power supply PC board cover
Fan
99
C4530-60096
Fan and mount assembly
Filter
100
C4530-80037
Air filter
Guide
101
C4530-40352
Guide - Installed under the service station
Ink Delivery System
102
C4530-67812
Ink Delivery System - Carries ink from ink supply station to ink cartridges
Ink Supply Station
103
C4530-67817
Ink supply station assembly
Service Station
104
C4530-67803
Print cartridge service station assembly - Includes motor, cap assembly, and wipers
Paper and Other Media
© 2004 Hewlett-Packard
5
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Film (Transparency)
C3832A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C3835A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C6053A
Premium InkJet rapid-dry tranparencies - A4 size (21.0cm x 29.7cm) - 50 sheets per package
NO LONGER SUPPLIED
C3828A
Premium InkJet transparency film - A size (8.5 x 11-inches) - 20 sheets per package
C3834A
Premium InkJet transparency film - A size (8.5 x 11-inches) - 50 sheets per package
C6051A
Premium InkJet rapid-dry tranparencies - A size (8.5 x 11-inches) - 50 sheets per package
NO LONGER SUPPLIED
Greeting Card Kit
C6587AN
Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original
pieces of art
NO LONGER SUPPLIED
Iron-On Transfers
C6050A
Iron-on T-shirt transfers - A4 size (21.0cm x 29.7cm) - 10 sheets per package
C6049A
Iron-on T-shirt transfers - A size (8.5 x 11-inches) - 10 sheets per package
Paper
C6828A
Greeting card paper pack (White) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes
C6042A
Greeting card paper pack (White) - A4 size (21.0cm x 29.7cm) - Includes 20 sheets and 20 envelopes - Not
Recommended for Use in the 250 Sheet Accessory Paper Tray
C1812A
Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes - Not recommended
for use in the 250 sheet accessory paper tray
Paper (Banner)
C1820A
Banner paper - A size (8.5 x 11-inches) - 24 lb - Perforated for easy separation - 100 sheets per pack
Paper (Glossy)
C3833A
Premium glossy InkJet paper - A size (8.5 x 11-inches) - 10 sheets per package
C6044A
Glossy greeting cards - A size (8.5 x 11-inches) - 10 scored glossy cards and envelopes
C7020A
Scored tri-fold glossy brochure paper - B size (11 x 17-inches)
C6817A
Professional glossy InkJet brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches) - 50 sheets per box
Paper (InkJet Photo)
C6983A
Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C7007A
Photo quality InkJet paper - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets per package
Paper (InkJet)
51634Z
InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C1825A
Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 500 sheets per package
C1853A
Premium InkJet heavyweight paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets per package
51634Y
InkJet non-glossy LX paper - A size (8.5 x 11-inches) - 200 sheets per package
C1824A
Bright white InkJet paper - A size (8.5 x 11-inches) - 500 sheets per package
C5976A
Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package
C5976B
Bright white InkJet paper - A size (8.5 x 11-inches) - 250 sheets per package
Paper (Matte)
C7018A
Matte greeting cards (White) - Half fold - A size (8.5 x 11-inches)
C6955A
Professional and flyer paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
Paper (Photo)
C1846A
Photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C6831A
Premium plus glossy InkJet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package
© 2004 Hewlett-Packard
6
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Paper (Photo)
C6944A
Premium plus glossy InkJet photographic paper - 10.2cm (4in) x 15.2cm (6in) - 20 sheets per package
C6950A
Premium Plus matte inkjet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package
C6979A
Premium glossy photo paper (fast dry time) - A size (8.5 x 11-inches) - 50 sheets per package
C7013A
Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C6040A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Europe, Brazil, and Argentina)
C6057A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 20 sheets per package
NO LONGER SUPPLIED
C6039A
Premium glossy photo paper (Fast dry time) - A size (8.5 x 11-inches) - 15 sheets per package
C6055A
Deluxe glossy photo paper - A size (8.5 x 11-inches) - 20 sheets per pack - For use with DeskJet KIE-logo printers
C6039A
New Part for C6055A
Paper (Textured)
C7019A
Textured greeting card - White half fold - A size (8.5 inches x 11 inches)
Stickers
C6822A
Round re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) round stickers with 3M 'Post-it' adhesive - A size (8.5
x 11-inches) - 10 sheets per package with nine stickers per sheet
C6823A
Square re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) square stickers with 3M 'Post-it' adhesive - A size
(8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet
Print Mechanism Parts
Arm
146
C4530-40261
Carriage access door sensor arm
Belt
147
C4530-40238
Carriage belt
Bracket
148
C4530-40260
Carriage access door sensor housing / bracket
Cable
149
C4530-60057
Cable assembly - Has 3 pin (F) connectors - 7.0cm (2.8 inches) long
150
C4530-60091
Trailing cable assembly - Two ribbon cables attached to a plastic mounting bracket - 55.9cm (22 inches) long
Carriage
151
C4530-60086
Carriage assembly - Includes trailing cable assembly
Gear
152
C4530-40206
LFA gear cluster (Dual gear)
Gear Assembly
153
C4530-60287
Gear assembly - Numerous gears in a single assembly - Installed on side of paper path module
Idler Assembly
154
C4530-60136
Idler pulley assembly - Holds right end of carriage belt
Ink Supply Station
155
C4530-67817
Ink supply station assembly
Latch
156
C4530-67807
Cartridge latch assembly - Holds cartridges in the carriage
Motor
157
C4530-60002
Carriage motor assembly
158
C4530-60004
Paper advance motor
© 2004 Hewlett-Packard
7
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Parts
Paper Path Module
159
C4530-67810
Paper path module - Large assembly that contains all parts related to paper feed and paper advance mechanisms
Plate
160
C4530-00112
Carriage Plate - Large metal structure where Carriage and Carriage Motor will be mounted
Preloader
161
C4530-60092
Pre-loader assembly - Mounted to bottom of carriage base
Print Mechanism
162
C4530-69801
Print mechanism core - Includes carriage base assembly, carriage plate assembly, carriage shaft, carriage belt, paper
path module, base assembly - Does not include other items such as service station or ink supply station
Retainer
163
C4530-00091
Carriage shaft retainer - Metal spring which holds carriage shaft in place
164
C4530-40288
Carriage belt retainer
165
C4530-40290
Encoder retainer (snubber)
Sensor
166
1990-2081
Media sensor - Used to detect transparencies
167
C4530-60043
Edge sensor assembly - Includes cable
168
C4530-60130
Carriage access door sensor assembly - Includes cable
Shaft
169
C4530-20042
Carriage shaft - Guides printer carriage
Slide
170
C4530-40293
Carriage base slider
Spring
171
C4530-00033
Encoder strip spring
172
C4530-00105
Carriage belt spring
Strip
173
C4530-80004
Encoder strip - Used to determine carriage position
Service Station Parts
Cap
174
C4530-60121
Cartridge cap - Keeps cartridges from drying out when carriage is parked in the service station
Reservoir
175
C4530-67806
Reservoir assembly - Stores excess black ink
Service Station
176
C4530-67803
Print cartridge service station assembly - Includes motor, cap assembly, and wipers
Spring
177
C4530-00045
Service station cap spring
178
C4530-00096
Bucket spring for service station assembly
Transfer Assembly
179
C4530-67804
Transfer assembly - Transfers excess black ink to the ink reservoir
Wiper
180
C4530-60059
Color wiper - Cleans ink and debris from print nozzles
181
C4530-60060
Black wiper - Cleans ink and debris from print nozzle
© 2004 Hewlett-Packard
8
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Main Assembly Locator
22
|
24
_
88, 89, 90, 91
/
88, 89, 90, 91
/
88, 89, 90, 91
/
88, 89, 90, 91
/
\
23
7
21, 59
|
_
5, 40
|
/
25
60, 61, 62, 63, 64,
65, 66,60,
67,61,
68,62,
69,63, 64,
70, 71,65,
72,66,
73,67,
74,68, 69,
60,
62, 63, 64,
75, 76,70,
77,
78,72,
7961,
/ 71,
73, 74,
65, 66, 67, 68, 69,
75, 76, 77,
/ 78,
60,7961, 62, 63, 64,
70, 71, 72, 73, 74,
65, 66, 67, 68, 69,
75, 76, 77,
/ 78, 79
70, 71, 72, 73, 74,
75, 76, 77,
/ 78, 79
_
43
\
28, 30
\
27
/
26
\
33, 41, 42
/
32
© 2004 Hewlett-Packard
\
11, 12, 13, 14, 15,
16, 17
9
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Carriage Base Assembly
_
151
/
156
/
170
/
3, 150
|
161
© 2004 Hewlett-Packard
10
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Carriage Plate Assembly
_
163
_
163
/
154
165
/
/
160
157
_
|
171
19, 168
\
_
146
© 2004 Hewlett-Packard
148
_
11
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Ink Cartridge Assemblies
_ 60, 61, 62, 63, 64,
65, 66, 67
_
_
_
© 2004 Hewlett-Packard
68, 69, 70, 71
72, 73, 74, 75
76, 77, 78, 79
12
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Ink Supply Station Assembly
_
103, 155
\
2, 149
© 2004 Hewlett-Packard
13
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Input/Output Tray Assembly
_
31
\
32
© 2004 Hewlett-Packard
14
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Main Logic Board, Power Supply Board, Fan Assembly
9, 10
|
_
1
8
/
98
_
/
97
/
100
_
© 2004 Hewlett-Packard
6, 99
15
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Path Module
_
159
167
/
153
_
|
152
|
158
\
18, 166
© 2004 Hewlett-Packard
16
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism (Core)
_
162
173
\
172
| 172
/
\
151
\
169
\
147
\
164
\
159
\
20
© 2004 Hewlett-Packard
17
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism (Overall)
96
_
102
\
162
\
_
_
4
93
/
20
\
104, 176
_
\
31
103, 155
/
101
_
94
\
95
© 2004 Hewlett-Packard
18
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Printhead Assemblies
_
_
_
_
© 2004 Hewlett-Packard
88
89
90
91
19
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Service Station Assembly
_
104, 176
181
/
/
177
/
174
/
177
/
180
179
_
/
178
|
175
© 2004 Hewlett-Packard
20
DeskJet 2000Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
© 2004 Hewlett-Packard
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
