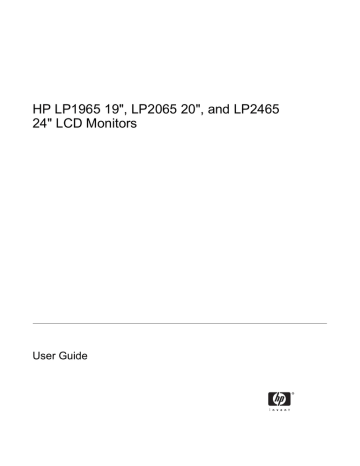

HP LP1965 19", LP2065 20", and LP2465
24" LCD Monitors
User Guide
© 2005–2006 Hewlett-Packard
Development Company, L.P.
Microsoft, Windows, and the Windows logo
are trademarks of Microsoft Corporation in
the U.S. and other countries.
All other product names mentioned herein
may be trademarks of their respective
companies.
Hewlett-Packard Company shall not be
liable for technical or editorial errors or
omissions contained herein or for
incidental or consequential damages in
connection with the furnishing,
performance, or use of this material. The
information in this document is provided
“as is” without warranty of any kind,
including, but not limited to, the implied
warranties of merchantability and fitness
for a particular purpose, and is subject to
change without notice. The warranties for
Hewlett-Packard products are set forth in
the express limited warranty statements
accompanying such products. Nothing
herein should be construed as constituting
an additional warranty.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
Third Edition (November 2006)
Document Part Number: 397376-003
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen
display menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result
in bodily harm or loss of life.
CAUTION Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE Text set off in this manner provides important supplemental information.
ENWW
iii
iv
About This Guide
ENWW
Table of contents
1 Product Features
HP LP1965, LP2065, and LP2465 Models ........................................................................................... 1
2 Safety and Maintenance Guidelines
Important Safety Information ................................................................................................................. 3
Maintenance Guidelines ........................................................................................................................4
Cleaning the Monitor ............................................................................................................. 4
Shipping the Monitor .............................................................................................................4
3 Setting Up the Monitor
Installing the Monitor Pedestal Base ..................................................................................................... 5
Rear Components .................................................................................................................................. 6
Selecting the Signal Connectors and Cables ........................................................................................ 7
Connecting the Monitor ......................................................................................................................... 8
Adjusting the Monitor ...........................................................................................................................10
Turning on the Monitor ........................................................................................................................ 12
Connecting USB Devices .................................................................................................................... 13
Using the Accessory Rails ................................................................................................................... 14
Removing the Monitor Pedestal Base ................................................................................................. 14
Mounting the Monitor .......................................................................................................... 15
Locating the Rating Labels ..................................................................................................................17
4 Operating the Monitor
Software and Utilities ...........................................................................................................................19
The Information File ............................................................................................................19
The Image Color Matching File ........................................................................................... 19
Installing the .INF and .ICM Files ........................................................................................................ 20
Installing from the CD ......................................................................................................... 20
Downloading from the Worldwide Web .............................................................................. 20
Using the Auto-Adjustment Function ...................................................................................................21
Front Panel Controls ............................................................................................................................ 22
Adjusting the Monitor Settings ............................................................................................................. 23
Using the On-Screen Display Menu ................................................................................... 23
OSD Menu Selections ........................................................................................24
Optimizing Digital Conversion ............................................................................ 28
Using the HP Display Assistant Utility ................................................................................ 28
Identifying Monitor Conditions ............................................................................................................. 29
Sleep Timer Mode ............................................................................................................................... 29
HP Display LiteSaver ........................................................................................................................... 30
ENWW
v
Installing the HP Display LiteSaver Software ..................................................................... 30
sRGB Support ...................................................................................................................................... 31
Changing the Color Temperature ....................................................................................... 31
Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP .................... 32
Appendix A Troubleshooting
Solving Common Problems .................................................................................................................33
Using the Worldwide Web ................................................................................................................... 34
Preparing to Call Technical Support .................................................................................................... 34
Appendix B Technical Specifications
LP1965 Model ...................................................................................................................................... 37
LP2065 Model ...................................................................................................................................... 38
LP2465 Model ...................................................................................................................................... 39
Recognizing Preset Display Resolutions ............................................................................................. 40
Entering User Modes ...........................................................................................................................42
Energy Saver Feature ......................................................................................................................... 42
Appendix C Agency Regulatory Notices
Federal Communications Commission Notice .................................................................................... 43
Modifications .......................................................................................................................43
Cables .................................................................................................................................43
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 43
Canadian Notice ..................................................................................................................................44
Avis Canadien ...................................................................................................................................... 44
European Union Regulatory Notice .....................................................................................................44
German Ergonomics Notice ................................................................................................................ 45
Japanese Notice ..................................................................................................................................45
Korean Notice ......................................................................................................................................45
Power Cord Set Requirements ............................................................................................................ 45
Japanese Power Cord Requirements ................................................................................. 46
Product Environmental Notices ........................................................................................................... 46
Materials Disposal ............................................................................................................... 46
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 46
Restriction of Hazardous Substances (RoHS) ................................................................... 46
Appendix D LCD Monitor Quality and Pixel Policy
vi
ENWW
1
Product Features
HP LP1965, LP2065, and LP2465 Models
The flat panel monitors have an active matrix, thin-film transistor (TFT), liquid crystal display (LCD).
The monitor features include:
ENWW
●
LP1965 model, large 19-inch (48.3 cm) viewable area display with 1280 × 1024 resolution, plus
full-screen support for lower resolutions
●
LP2065 model, large 20.1-inch (51 cm) viewable area display with 1600 × 1200 resolution, plus
full-screen support for lower resolutions
●
LP2465 model, large 24-inch (61 cm) viewable area display with 1920 × 1200 resolution, plus
full-screen support for lower resolutions
●
Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
●
Pivot capability to rotate display to portrait mode
●
Tilt, swivel, and height adjustment capabilities
●
Removable stand with quick release mechanism and VESA 100 mm mounting holes for flexible
mounting solutions
●
Video inputs support DVI analog and digital signal inputs
●
Two DVI-I to VGA signal cables and two DVI-D signal cables included (LP2065 and LP2465
models)
●
One DVI-I to VGA signal cable and one DVI-D signal cable included (LP1965 model only)
●
USB 2.0 hub with one upstream (connects to the computer) and four downstream (connects to
USB devices) ports
●
USB cable included to connect the monitor's USB hub to the USB connector on the computer
●
Accessory rail on monitor to accept optional mounted devices, such as an HP speaker bar
●
Plug and play capability if supported by the system.
●
On-Screen Display (OSD) adjustments in English, Dutch, French, German, Italian, Japanese,
and Spanish for ease of setup and screen optimization
●
Software and documentation CD that includes HP Display Assistant, Pivot Pro software, monitor
driver software, and product documentation
●
Energy saver feature to meet requirements for reduced power consumption
HP LP1965, LP2065, and LP2465 Models
1
2
●
AssetControl
●
Compliant with the following regulated specifications:
●
European Union CE Directives
●
Swedish MPR II 1990
●
Swedish TCO Requirements
Chapter 1 Product Features
ENWW
2
Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the Power Cord Set Requirements section in Appendix C.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety
feature.
• Plug the power cord in a grounded (earth) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one
may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging
from the electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides
important electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and/or on the documentation CD, if one is included with the monitor.
CAUTION For the protection of the monitor, as well as the computer, connect all power
cords for the computer and its peripheral devices (such as a monitor, printer, scanner) to
some form of surge protection device such as a power strip or Uninterruptible Power Supply
(UPS). Not all power strips provide surge protection; the power strips must be specifically
labeled as having this ability. Use a power strip whose manufacturer offers a Damage
Replacement Policy so you can replace the equipment, if surge protection fails.
ENWW
Important Safety Information
3
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
●
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
●
Use only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
●
Be sure the total ampere rating of the products connected to the outlet does not exceed the
current rating of the electrical outlet, and the total ampere rating of the products connected to
the cord does not exceed the rating of the cord. Look on the power label to determine the
ampere rating (AMPS or A) for each device.
●
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
●
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
●
Slots and openings in the cabinet are provided for ventilation. These openings must not be
blocked or covered. Never push objects of any kind into cabinet slots or other openings.
●
Do not drop the monitor or place it on an unstable surface.
●
Do not allow anything to rest on the power cord. Do not walk on the cord.
●
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
●
When removing the monitor base, you must lay the monitor face down on a soft area to prevent
it from getting scratched, defaced, or broken.
Cleaning the Monitor
1.
Turn off the monitor and the computer.
2.
Unplug the monitor from the wall outlet.
3.
Clean the monitor plastics with a clean cloth dampened with water.
4.
Clean the monitor screen with an antistatic screen cleaner.
CAUTION Do not use benzene, thinner, ammonia, or any other volatile substances to clean
the monitor or the screen. These chemicals may damage the cabinet finish as well as the
screen.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.
4
Chapter 2 Safety and Maintenance Guidelines
ENWW
3
Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
NOTE Be sure the master power switch, located on the rear panel of the monitor, is in the off
position. The master power switch turns off all power to the monitor.
Installing the Monitor Pedestal Base
NOTE Do not install the pedestal base if the monitor will be used on a wall, swing arm, or
other mounting fixture; instead see the section on Mounting the Monitor in this chapter.
1.
Using both hands, position the monitor over the pedestal base.
CAUTION Do not touch the surface of the LCD panel. Pressure on the panel may
cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the
screen will not recover to its normal condition.
2.
Press down firmly on the monitor to lock the pedestal base in place. When the base locks, it will
make a clicking sound.
Figure 3-1 Inserting the Monitor into the Pedestal Base
NOTE Be sure the pedestal base is securely locked before continuing with the setup.
ENWW
Installing the Monitor Pedestal Base
5
Rear Components
Figure 3-2 Rear Components
Component
6
Function
1
Cable Lock Provision
Provides slot for use with cable security locks.
2
Master Power Switch
Turns off all power to the monitor.
3
AC Power Connector
Connects the AC power cord to the monitor.
4
DVI-I Connectors
Connects the DVI-I to VGA signal cable or DVI-D signal
cable to the monitor.
5
USB Upstream
Connector
Connects the monitor USB hub to a host USB port/hub.
6
USB Downstream
Connectors
Connects optional USB devices to the monitor.
7
USB Downstream
Connectors (side panel)
Connects optional USB devices to the monitor.
Chapter 3 Setting Up the Monitor
ENWW
Selecting the Signal Connectors and Cables
The monitor features two DVI-I connectors capable of supporting either analog or digital input.
The video mode supported by the DVI-I connector is determined by the video cable used.
●
For digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal cable to a
DVI-I connector on the monitor and the other end to the DVI connector on the computer.
●
For analog operation, use the DVI-I to VGA signal cable provided. Connect the DVI-I to VGA
signal cable to a DVI-I connector on the monitor and the other end to the VGA connector on the
computer.
The monitor will automatically determine which inputs have valid video signals. The inputs can be
selected through the On-Screen Display (OSD) feature by pressing the Input Select button on the
front panel.
Figure 3-3 Connecting the DVI-I to VGA Signal Cable
Figure 3-4 Connecting the DVI-D Signal Cable
ENWW
Selecting the Signal Connectors and Cables
7
Connecting the Monitor
1.
Place the monitor in a convenient, well-ventilated location near the computer.
2.
Connect one end of the USB hub cable to the USB connector on the rear panel of the computer,
and the other end to the upstream USB connector on the monitor.
Figure 3-5 Connecting the USB Cable
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important
safety feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible
at all times.
• Disconnect power from the equipment by unplugging the power cord from the electrical
outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no
one may accidentally step on or trip over them. Do not pull on a cord or cable. When
unplugging from the electrical outlet, grasp the cord by the plug.
8
Chapter 3 Setting Up the Monitor
ENWW
3.
Connect one end of the power cable to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.
Figure 3-6 Connecting the Power Cable
4.
Place the cables through the cable management channel on the back of the monitor base.
Figure 3-7 Using the Cable Management Feature
ENWW
Connecting the Monitor
9
Adjusting the Monitor
1.
Tilt the monitor's panel forward or backward to set it to a comfortable eye level.
Figure 3-8 Tilting the Monitor
NOTE The 24" model has a tilt range of -5 to +25 degrees.
2.
Swivel the monitor to the left or right for the best viewing angle.
Figure 3-9 Swiveling the Monitor
10
Chapter 3 Setting Up the Monitor
ENWW
3.
Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing
position.
WARNING! A lock-down/release button on the front of the column prevents the display
head of the 19" model from sliding up when the monitor is lifted. If the display head is
locked in the lowest height position:
a. Make sure that the monitor is safely positioned on a stable surface.
b. Gently push down on the display head.
c. While pushing down the display head, press the lock-down/release button on the front
of the column.
d. Guide the display head up to the desired height.
Figure 3-10 Adjusting the Height (LP2065 and LP2465 models)
NOTE
ENWW
The 19" model has a height adjustment range of 100 mm.
Adjusting the Monitor
11
4.
Pivot the monitor from landscape to portrait orientation viewing to adapt to your application.
Figure 3-11 Pivoting the Monitor
NOTE The 20" model (shown above) pivots counter-clockwise; the 19" and 24" models
pivot clockwise.
To view information on the screen in portrait mode, you will need to install the Pivot Pro
software included on the software and documentation CD.
Turning on the Monitor
1.
Press the power switch to turn on the computer.
2.
Press the master power switch on the rear of the monitor.
3.
Press the power button on the front of the monitor.
CAUTION Burn-in image damage may occur on monitors that display the same static image
on screen for a prolonged period of time.* To avoid burn-in image damage on the monitor
screen, you should always activate a screen saver application or turn off the monitor when it is
not in use for a prolonged period of time. Image retention is a condition that may occur on all
LCD screens.
* A prolonged period of time is 12 consecutive hours of non-use.
12
Chapter 3 Setting Up the Monitor
ENWW
Connecting USB Devices
The monitor provides four USB connectors, two on the side panel and two on the rear panel, used to
connect devices such as a digital camera, USB keyboard, or USB mouse.
NOTE You must connect the USB hub cable from the monitor to the computer to enable the
USB 2.0 ports on the monitor. Refer to Step 2 in Connecting the Monitor.
Figure 3-12 Connecting USB Devices
ENWW
Connecting USB Devices
13
Using the Accessory Rails
The monitor features accessory rails on the rear that may be used to mount optional devices, such
as the HP speaker bar, to attach to the LCD. Refer to the documentation included with the optional
device for detailed mounting instructions.
Figure 3-13 Using the Accessory Rails Feature
Removing the Monitor Pedestal Base
You can remove the monitor panel from the pedestal base to mount the panel on a wall, a swing
arm, or other mounting fixture.
This monitor has a Quick Release mechanism that allows you to easily remove and replace the
monitor panel to the pedestal base.
CAUTION Before beginning to disassemble the monitor, be sure the monitor is turned off
and the power and signal cables are both disconnected. If the monitor has a connected audio
cable, disconnect it.
14
1.
Disconnect and remove the signal and power cables from the back of the monitor.
2.
Slide the quick release latch (1) on the pedestal base to the side (either right or left).
Chapter 3 Setting Up the Monitor
ENWW
3.
Pull up on the monitor display head (2) to remove it from the base.
Figure 3-14 Removing the Monitor from the Pedestal Base
Mounting the Monitor
The HP Quick Release can be removed from the pedestal base and installed to a mounting fixture. It
allows you to quickly and securely attach the monitor panel to the mounting fixture.
1.
Remove the monitor panel from the pedestal base. Refer to Removing the Monitor Pedestal
Base steps in the previous section.
CAUTION This monitor supports the VESA industry standard 100 mm mounting holes.
To attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm
long screws are required (not provided with the monitor). Longer screws should not be
used because they may damage the monitor. It is important to verify that the
manufacturer’s mounting solution is compliant with the VESA standard and is rated to
support the weight of the monitor display panel. For best performance, it is important to
use the power and video cables provided with the monitor.
2.
Remove the Quick Release from the pedestal base by removing the four screws.
Figure 3-15 Removing the HP Quick Release from the Pedestal Base
ENWW
Removing the Monitor Pedestal Base
15
3.
Mount the Quick Release to a swing arm or other mounting fixture using the four screws
removed from the Quick Release in the previous step.
Figure 3-16 Installing the Quick Release
CAUTION The Quick Release can also be installed directly to a wall to mount the
monitor panel. It is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are
mounting to a wall, HP recommends that you consult with a qualified engineering,
architectural, or construction professional to determine the appropriate type and quantity
of mounting fasteners required for your application and to ensure that the mounting
solution is properly installed to support applied loads.
4.
Insert the monitor panel into the Quick Release, and then press down firmly on the monitor to
lock it in place. When the Quick Release locks, it will make a clicking sound.
Figure 3-17 Inserting the Monitor Panel into the Quick Release
16
Chapter 3 Setting Up the Monitor
ENWW
Locating the Rating Labels
The rating labels on the monitor provide the spare part number, product number, and serial number.
You may need these numbers when contacting HP about the monitor model. The rating labels are
located on the rear panel of the monitor display head.
Figure 3-18 Locating the Rating Labels
ENWW
Locating the Rating Labels
17
18
Chapter 3 Setting Up the Monitor
ENWW
4
Operating the Monitor
Software and Utilities
The CD that comes with the monitor contains files you can install on the computer:
●
an .INF (Information) file
●
an .ICM (Image Color Matching) file
●
auto-adjustment pattern utility
●
additional software for the monitor model
Adobe Reader is supplied on this CD and can be installed from the menu.
NOTE If the monitor does not include a CD, the .INF and .ICM files can be downloaded from
the HP monitors support Web site. See Downloading from the Worldwide Web in this chapter.
The Information File
The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure
monitor compatibility with the computer’s graphics adapter.
This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly
without installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s
graphic card is VESA DDC2–compliant and that the monitor connects directly to the graphics card.
Plug and Play does not work through separate BNC type connectors or through distribution buffers/
boxes.
The Image Color Matching File
The .ICM files are data files that are used in conjunction with graphics programs to provide
consistent color matching from monitor screen to printer, or from scanner to monitor screen.
The .ICM file contains a monitor color system profile. This file is activated from within graphics
programs that support this feature.
NOTE The ICM color profile is written in accordance with the International Color Consortium
(ICC) Profile Format specification.
ENWW
Software and Utilities
19
Installing the .INF and .ICM Files
After you determine that you need to update, you can install the .INF and .ICM files from the CD or
download them.
Installing from the CD
To install the .INF and .ICM files on the computer from the CD:
1.
Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2.
View the Monitor Driver Software Readme file.
3.
Select Install Monitor Driver Software.
4.
Follow the on-screen instructions.
5.
After the software has been installed, restart Windows.
6.
Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.
NOTE You may need to install the digitally signed monitor .INF and .ICM files manually from
the CD in the event of an installation error. Refer to the Monitor Driver Software Readme file
on the CD.
Downloading from the Worldwide Web
To download the latest version of .INF and .ICM files from the HP monitors support Web site:
20
1.
Refer to http://www.hp.com/support and select the country region.
2.
Follow the links for the monitor to the support page and download page.
3.
Ensure the system meets the requirements.
4.
Download the software by following the instructions.
Chapter 4 Operating the Monitor
ENWW
Using the Auto-Adjustment Function
You can optimize the screen performance for the VGA (analog) input by using the -/Auto button on
the monitor and the auto-adjustment pattern software utility on the CD provided.
Do not use this procedure if the monitor is using a DVI input. If the monitor is using a VGA (analog)
input, this procedure can correct the following image quality conditions:
●
Fuzzy or unclear focus
●
Ghosting, streaking or shadowing effects
●
Faint vertical bars
●
Thin, horizontal scrolling lines
●
An off-center picture
To use the auto-adjustment feature:
ENWW
1.
Allow the monitor to warm up for 20 minutes before adjusting.
2.
Press the -/Auto button on the monitor front panel.
●
You can also press the Menu/Select button, then select Auto-Adjustment from the OSD
Main Menu. Refer to Adjusting the Monitor Settings in this chapter.
●
If the result is not satisfactory, continue with the procedure.
3.
Insert the CD in the disc drive. The CD menu is displayed.
4.
Select Open Auto-Adjustment Software . The setup test pattern is displayed.
5.
Press the -/Auto button on the monitor front panel to produce a stable, centered image.
6.
Press the ESC key or any other key on the keyboard to exit the test pattern.
Using the Auto-Adjustment Function
21
Front Panel Controls
Table 4-1 Monitor Front Panel Controls
Control
Function
1
Menu/Select
Opens, selects or exits the OSD menu.
2
– (Minus)/Auto
●
Navigates backward through the OSD menu and
decreases adjustment levels.
●
When the OSD menu is inactive, activates the auto
adjustment feature to optimize the screen image.
3
+ (Plus)
Navigates forward through the OSD menu and increases
adjustment levels.
4
Input Select
Selects the video input (DVI-I #1 or DVI-I #2).
5
Power LED
Fully powered = Green.
Sleep mode = Amber.
Sleep Timer mode = Flashing Amber.
6
22
Power
Chapter 4 Operating the Monitor
Turns the monitor on or off.
ENWW
Adjusting the Monitor Settings
The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP
Display Assistant utility.
Using the On-Screen Display Menu
Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences.
To access the OSD, do the following:
1.
If the monitor is not already on, press the Power button to turn on the monitor.
2.
To access the OSD Menu, press the Menu/Select button on the monitor’s front panel.
3.
To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to
scroll up, or the – (Minus)/Auto button to scroll in reverse.
4.
To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your
selection, then press the Menu/Select button to select that function.
5.
Adjust the item using the + or – buttons on the front panel to adjust the scale.
6.
After adjusting the function, select Save and Return, or Cancel if you don’t want to save the
setting, then select Exit from the Main Menu.
NOTE If the buttons remain untouched for 10 seconds while displaying a menu, new
adjustments will be discarded and the settings will revert to previous settings and exit the
menu.
ENWW
Adjusting the Monitor Settings
23
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional
descriptions. After changing an OSD menu item, and if the menu screen has these options, you may
choose to:
●
Cancel—to return to the previous menu level.
●
Save and Return—to save all changes and return to the OSD Main Menu screen. This Save
and Return option is only active if you change a menu item.
●
Reset—to change back to the previous setting.
Table 4-2 OSD Menu
Icon
Main Menu
Submenu
Brightness
Contrast
Adjusts the brightness level of the screen. The factory default
range is 50 or 90, depending on the model.
Adjustable scale
Image Control
Adjusts the contrast level of the screen. The factory default
range is 80.
Adjusts the screen image.
Auto Adjustment
Automatically adjusts the screen image.
Horizontal Position
Adjusts the position of the screen image left and right.
Vertical Position
Adjusts the position of the screen image up and down.
Custom Scaling (not
available on LP1965
model) Selects the method on how displayed information on the monitor will be formatted. Select: ●
Fill to Screen—image fills the entire screen and may look
distorted or elongated because of non-proportional scaling
of height and width
●
Fill to Aspect Ratio—image is sized to fit the screen and
maintains proportional image
●
One-to-one—disables video scaling, displays an image
that is smaller in size than the monitor’s capability and
centers the image on the screen in the active viewing area
Sharpness (not
available on LP1965
model)
Adjusts the screen image to look sharper or soft.
Clock
Minimizes any vertical bars or strips visible on the screen
background. Adjusting the Clock will also change the horizontal
screen image.
Clock Phase
Adjusts the focus of the display. This adjustment allows you to
remove any horizontal noise and clear or sharpen the image of
characters.
Color
24
Description
Chapter 4 Operating the Monitor
NOTE If the one-to-one custom scaling menu is
selected, scaling is disabled and the sharpness feature
will also be disabled.
Selects the screen color. The factory default is 6500K or
Custom Color, depending on the model.
ENWW
Table 4-2 OSD Menu (continued)
Icon
Main Menu
Submenu
Description
9300 K
Changes to slightly blueish white.
6500 K
Changes to slightly reddish white.
Custom Color
Selects and adjusts your own color scales:
sRGB
●
R—sets your own red color levels
●
G—sets your own green color levels
●
B—sets your own blue color levels
Sets your screen colors to adapt to the color standards used in
the image technology industry.
Language
Selects the language in which the OSD menu is displayed. The
factory default is English.
Management
Selects the power management features of the monitor.
Power Saver
Enables the power saving feature. Select:
●
On
●
Off
The factory default is On.
Power On Recall
Restores power to the monitor following an unexpected removal
of power. Select:
●
On
●
Off
The factory default is On.
Mode Display
Displays the resolution, refresh rate and frequency information
on the screen each time the OSD Main Menu is accessed.
Select:
●
On
●
Off
The factory default is On or Off, depending on the model.
Power-On Status
Display
Displays the operating status of the monitor each time the
monitor is powered on. Select the location to display the status
to:
●
Top
●
Middle
●
Bottom
●
Off
The factory default is On or Off, depending on the model.
ENWW
Adjusting the Monitor Settings
25
Table 4-2 OSD Menu (continued)
Icon
Main Menu
Submenu
Description
DDC/CI Support
Allows the computer to control some OSD menu features such
as brightness, contrast and color temperature. Set to:
●
On
●
Off
The factory default is On.
Sleep Timer
OSD Control
●
Set Current Time—sets the current time in hours and
minutes
●
Set Sleep Time—sets the time you want to place the
monitor in sleep mode
●
Set on Time—sets the time you want the monitor to wake
up from sleep mode
●
Timer—sets the Sleep Timer feature On or Off. The default
setting is Off
●
Sleep Now—immediately sets the monitor to enter sleep
mode
Adjusts the position of the OSD menu on the screen.
Horizontal Position
Changes the viewing position of the OSD menu to the left or
right area of the screen. The factory default range is 50.
Vertical Position
Changes the viewing position of the OSD menu to the top or
bottom area of the screen. The factory default range is 50.
OSD Timeout
Sets the time duration in seconds that the OSD is visible after
the last button is pressed. The factory default is 30 seconds.
OSD Transparency
Adjust to view the background information through the OSD.
Information
Selects and displays important information about the monitor.
Current Settings
Provides the current input video mode.
Recommended Settings
Provides the recommended resolution mode and refresh rate
for the monitor.
Serial Number
Reports the serial number of the monitor. The serial number is
needed if contacting HP technical support.
Version
Reports the firmware version of the monitor.
Backlight hours
Reports the total hours of backlight operation.
Video Input
Control
26
Provides the timer adjustment menu options:
Selects the default or primary video input signal when the
monitor is connected to two active and valid video sources. The
monitor will automatically determine the video format. The
default input selection is DVI.
DVI-I#1
Selects DVI-I 1 input. This input accepts either analog or digital
signals.
DVI–I#2
Selects DVI-I 2 input. This input accepts either analog or digital
signals.
Chapter 4 Operating the Monitor
ENWW
Table 4-2 OSD Menu (continued)
Icon
ENWW
Main Menu
Submenu
Description
Disable Input AutoSwitching
Keeps the monitor's video input selection at it's current setting.
This menu selection is visible if the video input control is set to
Enable Input Auto-switching.
Enable Input AutoSwitching
Automatically returns the monitor's video input to the default
auto-switching mode. This menu selection is visible if the video
input control is set to Disable Input Auto-switching.
Factory Reset
Returns all OSD menu settings and Power-On Status Display
(for LP2465 model) settings to the factory default setting,
except the Language and Power-On Status Display (for LP1965
and LP2065 models) settings.
Exit
Exits the OSD menu screen.
Adjusting the Monitor Settings
27
Optimizing Digital Conversion
This monitor contains advanced circuitry that allows the flat panel screen to function like a standard
monitor. Two controls in the on-screen display can be adjusted to improve image performance: Clock
and Clock Phase.
NOTE The Clock and Clock Phase controls are adjustable only when using an analog input.
These controls are not adjustable for digital inputs.
The Clock must first be set correctly since the Clock Phase settings are dependent on the
main Clock setting. Use these controls only when the auto-adjustment function does not
provide a satisfactory image.
●
Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the
screen background.
●
Clock Phase—Increases/decreases the value to minimize video distortion or video jitter.
NOTE When using the controls, you will obtain the best results by using the auto-adjustment
pattern software utility provided on the CD.
When adjusting the Clock and Clock Phase values, if the monitor images become distorted,
continue adjusting the values until the distortion disappears. To restore the factory settings,
select Yes from the Factory Reset menu in the on-screen display.
Using the HP Display Assistant Utility
HP Display Assistant, included on the software and documentation CD, is a software utility that
guides you through the tuning process with easy to understand instructions and background patterns
designed for each monitor control. It provides:
●
Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the
best overall image quality.
●
Software control of the monitor image and color settings to eliminate dependence on the
monitor’s front panel buttons and On-Screen Display (OSD) menu.
●
Defined preset display settings for each individual user in a multi-user environment.
●
Multiple preset display settings for a single user based on content and ambient lighting.
●
Asset Management and Power Management capabilities that include remote control for
individual or a group of displays on the domain from a centralized console application.
The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred
method of use is Wizard mode, which takes you through a step-by-step process to accurately
calibrate the monitor. This method relies on a sequence of steps that will obtain the best display
results when completed.
NOTE Refer to the HP Display Assistant user guide for additional information about the
software.
28
Chapter 4 Operating the Monitor
ENWW
Identifying Monitor Conditions
Special messages will appear on the monitor screen when identifying the following monitor conditions:
●
Input Signal Out of Range—Change resolution setting to 1280 × 1024 – 60Hz (LP1965 19"
model), 1600 × 1200 - 60Hz (LP2065 20" model), or 1920 × 1200 - 60 Hz (LP2465 24" model)—
Indicates the monitor does not support the input signal because the resolution and/or refresh
rate are set higher than the monitor supports.
●
No Input Signal—Indicates the monitor is not receiving a video signal from the PC on the
monitor video input connector. Check to determine if the PC or input signal source is off or in the
power saving mode.
●
Multiple Inputs are Active—Use the OSD to select the desired video input—Indicates the
monitor is connected to two video inputs. The monitor is trying to display both inputs, but after
10 seconds the monitor uses the default signal input.
●
Auto Adjustment is in Progress—Indicates the auto-adjustment function is active.
●
Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.
●
Check Video Cable—Indicates the video cable is not properly connected to the computer.
●
OSD Lock—The OSD can be enabled or disabled by pressing and holding the Menu button on
the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lock-Out
displays for ten seconds.
●
If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.
●
If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.
Sleep Timer Mode
The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to
power on and off at the same time every day. This also extends the life of the backlight bulbs in the
monitor. The Sleep Timer has five settings:
●
Set Current Time
●
Set Sleep Time
●
Set On Time
●
Timer: On/Off
●
Sleep Now
To set the timer:
ENWW
1.
Press the Menu button on the monitor front panel to display the Advanced Menu.
2.
Scroll down and highlight Management.
3.
Press the Menu button to select Management.
4.
Scroll down and highlight and select Sleep Timer > Set Current Time.
Identifying Monitor Conditions
29
NOTE You must set the current local time before you reset the time for Sleep Time or
On Time. Note that the time is displayed in a 24–hour clock format. For example, 1:15
p.m. is displayed as 13 hours 15 minutes.
5.
Press the Menu button once to enter the adjustment mode for hours.
6.
Press the - (Minus) or + (Plus) button to adjust the hour.
7.
Press the Menu button again to enter the time for minutes.
8.
Press the - (Minus) or + (Plus) button to adjust the minutes.
9.
Press the Menu button to lock in the time chosen.
10. After setting the current time, the highlight automatically skips to Set Sleep Time hours. Repeat
steps 6 through 9 to set Sleep Time.
11. If you do not want to set Sleep Time, press the Menu button twice, then select Save and
Return to exit the menu.
12. After setting Sleep Time, the highlight automatically skips to Set On Time hours. Repeat steps
6 through 9 to set On Time.
13. Set the Timer mode to On to activate the Sleep Timer settings.
14. When you are finished, select Save and Return to exit the menu.
The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode
until the next On Time activates or a monitor button is pressed.
HP Display LiteSaver
HP Display LiteSaver is a software application, available on the CD, that increases monitor life and
saves energy. It allows you to place the monitor into its low power sleep mode at predefined times by
shutting down or reducing power to most internal circuits. This helps protect the LCD panel against
image retention. Image retention can occur when the monitor is left on while displaying the same
image for an extended period of time, leaving a shadow of the image on the screen.
Installing the HP Display LiteSaver Software
1.
Insert the CD in the computer CD-ROM Drive. The CD menu is displayed.
2.
Select Install HP Display LiteSaver Software.
3.
After installing the software, click the HP Display LiteSaver icon in the Windows system tray or
right-click the icon and select Configure from the pop-up menu.
4.
Select the following options to configure the HP Display LiteSaver features:
Table 4-3 HP Display LiteSaver Configuration Options
30
Select This Option
To Do This
Enable Display LiteSaver
Enables the HP Display LiteSaver functions; deselect to disable the HP Display
LiteSaver.
Chapter 4 Operating the Monitor
ENWW
Table 4-3 HP Display LiteSaver Configuration Options (continued)
Select This Option
To Do This
Display Off
Sets the time when the monitor automatically turns off. This does not affect
screen saver operation, which has priority over the HP Display LiteSaver.
Display On
Sets the time when the monitor automatically turns on. This does not affect
screen saver operation, which has priority over the HP Display LiteSaver.
Activity Extension
Sets the time in minutes before the monitor turns off if there is any keyboard or
mouse activity after the Display Off time is reached. If the keyboard or mouse is
used, then HP Display LiteSaver waits until the set amount of time before turning
the display off again. Set to 0 to disable. If disabled, the monitor will turn off as
soon as the Display Off time is reached, regardless of keyboard or mouse activity.
Show 1 minute Display Off Notice
Displays a popup message in the system tray 1 minute before the monitor is
turned off by HP Display LiteSaver.
Status
Shows the time until the monitor is next due to be turned off by HP Display
LiteSaver.
OK
Stores the current settings and minimizes HP Display LiteSaver to the System
Tray.
Cancel
Restores the previous settings and minimizes HP Display LiteSaver to the
System Tray. HP Display LiteSaver will continue to run.
Help
Opens the online help file.
Exit
Exits and closes the HP Display LiteSaver. It will no longer control the monitor
power until it is next run.
View HP Display LiteSaver Readme on the CD for additional information on how to configure HP
Display LiteSaver.
sRGB Support
The monitor is designed to support sRGB for color management, which adapts to the color standards
used in the image technology industry.
To take advantage of the sRGB support, you will need to change the monitor’s color temperature to
sRGB and install the sRGB color profile (ICM) file.
NOTE The sRGB color temperature preset will improve the color accuracy of sRGB images
on the computer monitor, but some color variation may still occur.
Changing the Color Temperature
ENWW
1.
Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.
2.
Select Advanced Menu to access all options in the Main Menu.
3.
Select Color to display the Color Temperature menu.
4.
Select sRGB.
5.
Select Save and Return to exit the menu.
sRGB Support
31
Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP
NOTE To complete the following procedure, you must be logged in as an administrator or a
member of the administrator’s group. If the computer is connected to a network, network
policy settings may prevent you from completing this procedure. The sRGB ICM file does not
support Windows 95 and Windows NT operating systems.
32
1.
Click the Display icon in the Control Panel.
2.
In the Display Properties windows, select the Settings tab, then click the Advanced button.
3.
Select the Color Management tab, then click the Add button to open the Add Profile
Association dialog box.
4.
Select the sRGB Color Space Profile.icm file, then click the Add button
5.
To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select
sRGB Color Space Profile, then click Set as Default button.
6.
Click Apply or OK.
Chapter 4 Operating the Monitor
ENWW
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the
recommended solutions.
ENWW
Problem
Possible Cause
Solution
Screen is blank.
Power cord is disconnected.
Connect the power cord.
Power switch on front panel of the
monitor is turned off.
Press the front panel power button.
Master power switch on rear panel
of the monitor is turned Off.
Turn the master power switch to On.
Video cable is improperly
connected.
Connect the video cable properly. Refer to Chapter 3,
Setting Up the Monitor for more information.
Screen blanking is active.
Press any key on the keyboard or move the mouse to
inactivate the screen blanking utility.
Image appears blurred,
indistinct, or too dark.
Brightness and contrast are too
low.
Press the —/Auto button on the front panel. If this does
not correct the image, press the Menu button to open the
Basic OSD Menu, and adjust the brightness and contrast
scales as needed.
Image is not centered
Position may need adjustment.
Press the Menu button to access the OSD menu. Select
Image Control/Horizontal Position or Vertical Position to
adjust the horizontal or vertical position of the image.
Check Video Cable is
displayed on screen.
Monitor video cable is
disconnected.
Connect the DVI-D signal cable to the DVI-I connector
on the computer, or the VGA to DVI-I cable to the DVI-I
connector on the computer. Be sure that the computer
power is off while connecting the video cable.
Out of Range. Set
Video resolution and/or refresh
Monitor to 1280 × 1024
rate are set higher than what the
@ 60Hz is displayed on
monitor supports.
screen. (LP1965 19" model)
Restart the computer and enter Safe Mode. Change the
settings to a supported setting (see Table B-4 LP1965
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
Out of Range. Set
Video resolution and/or refresh
Monitor to 1600 × 1200
rate are set higher than what the
@ 60Hz is displayed on
monitor supports.
screen. (LP2065 20" model)
Restart the computer and enter Safe Mode. Change the
settings to a supported setting (see Table B-5 LP2065
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
Out of Range. Set
Video resolution and/or refresh
Monitor to 1920 × 1200
rate are set higher than what the
@ 60Hz is displayed on
monitor supports.
screen. (LP2465 24" model)
Restart the computer and enter Safe Mode. Change the
settings to a supported setting (see Table B-6 LP2465
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
Solving Common Problems
33
Problem
Possible Cause
Solution
HP Display LiteSaver
doesn't turn off the monitor
screen.
The Activity Extension time has
not elapsed.
The default Activity Extension value is set to 10 minutes.
The HP Display LiteSaver will wait to detect no input or
movement from the keyboard or mouse for 10
consecutive minutes after the Display Off time has
passed, before the monitor enters into low-power mode.
For example, if the Display Off time is set to 5 minutes
from the current time and the Activity Extension is set to
10 minutes, the HP Display LiteSaver will not actually
turn off the display until 10 minutes of inactivity has
elapsed, even though the Display Off time is 5 minutes
from now.
The HP Display LiteSaver may not
be compatible with the computer
system. Some notebook
computers are not compatible and
the monitor power can not be
controlled.
Confirm that the HP Display LiteSaver is compatible with
the system.
1.
Right-click on the HP Display LiteSaver icon in the
system tray.
2.
Select Power Off Display from the menu.
The monitor screen should turn off if the system is
compatible. To turn the monitor back on, wait 5 seconds
and move the mouse.
NOTE If the monitor did not turn off, then the
computer graphics driver is not compatible with
the HP Display LiteSaver software.
The monitor is off but it did
not seem to enter into a
low-power sleep mode.
The monitor's power saving
control is disabled.
Check the monitor's OSD menu setting for power saving
enable/disable controls. The control should be set to
enable to allow the monitor to enter into low-power
modes.
Using the Worldwide Web
For the online access to technical support information, self-solve tools, online assistance, community
forums of IT experts, broad mutlivendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support
Preparing to Call Technical Support
If you cannot solve a problem using the trouble shooting tips in this section, you may need to call
technical support. Have the following information available when you call:
34
●
The monitor
●
Monitor model number
●
Serial number for the monitor
●
Purchase date on invoice
●
Conditions under which the problem occurred
●
Error messages received
Appendix A Troubleshooting
ENWW
ENWW
●
Hardware configuration
●
Hardware and software you are using
Preparing to Call Technical Support
35
36
Appendix A Troubleshooting
ENWW
B
Technical Specifications
NOTE All performance specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's component
manufacturers' typical level specifications for performance and actual performance may vary
either higher or lower.
LP1965 Model
Table B-1 LP1965 Model Specifications
Display
19 inches
48.3 cm
Type
TFT LCD
Viewable Image Size
19–inch diagonal
Tilt
-5 to 30°
Swivel
-45 to 45°
Maximum Weight (Unpacked)
17.2 lbs.
7.8 kg
14.85 inches
377.16 mm
8.78 inches
223.00 mm
15.90 inches
403.90 mm
48.3 cm
Dimensions (include base)
Height
Depth
Width
Maximum Graphic Resolution
1280 × 1024 (75 Hz) analog input
1280 × 1024 (75 Hz) digital input
Text Mode
720 × 400
Dot Pitch
0.294 (H) × 0.294 (W) mm
Horizontal Frequency
24 to 83 kHz
Vertical Refresh Rate
48 to 76 Hz
Environmental Requirements Temperature
ENWW
Operating Temperature
41 to 95° F
5 to 35° C
Storage Temperature
-4 to 140° F
-20 to +60° C
Relative Humidity
20 to 80%
LP1965 Model
37
Table B-1 LP1965 Model Specifications (continued)
Power Source
100 — 240 VAC, 50/60 Hz
Altitude:
0 to 12,000 feet
0 to 3657.6 m
0 to 40,000 feet
0 to 12192 m
Operating
Storage
Power Consumption (maximum)
<55 watts
Input Terminal
Two DVI-I connectors with cables included.
LP2065 Model
Table B-2 LP2065 Model Specifications
Display
20.1 inches
51 cm
Type
TFT LCD
Viewable Image Size
20–inch diagonal
Tilt
-5 to 30°
Swivel
-45 to 45°
Maximum Weight (Unpacked)
20.3 lbs.
9.2 kg
16.7 inches
425.0 mm
8.7 inches
220.0 mm
17.4 inches
443.0 mm
51 cm
Dimensions (include base)
Height
Depth
Width
Maximum Graphic Resolution
1600 × 1200 (75 Hz) analog input
1600 × 1200 (60 Hz) digital input
Text Mode
720 × 400
Dot Pitch
0.258 (H) × 0.258 (W) mm
Horizontal Frequency
30 to 94 kHz
Vertical Refresh Rate
48 to 85 Hz
Environmental Requirements Temperature
Operating Temperature
41 to 95° F
5 to 35° C
Storage Temperature
-4 to 140° F
-20 to +60° C
Relative Humidity
20 to 80%
Power Source
100 — 240 VAC, 50/60 Hz
Altitude:
0 to 12,000 feet
0 to 3657.6 m
0 to 40,000 feet
0 to 12192 m
Operating
Storage
38
Appendix B Technical Specifications
ENWW
Table B-2 LP2065 Model Specifications (continued)
Power Consumption (maximum)
<75 watts
Input Terminal
Two DVI-I connectors with cables included.
LP2465 Model
Table B-3 LP2465 Model Specifications
Display
24.1 inches
61 cm
Type
TFT LCD
Viewable Image Size
24–inch diagonal
Tilt
-5 to 25°
Swivel
-45 to 45°
Maximum Weight (Unpacked)
23.4 lbs.
10.6 kg
17.3 inches
440.0 mm
9.1 inches
232.0 mm
22.0 inches
558.4 mm
61 cm
Dimensions (include base)
Height
Depth
Width
Maximum Graphic Resolution
1920 × 1200 (60Hz) analog input
1920 × 1200 (60Hz) digital input
Text Mode
720 × 400
Dot Pitch
0.270 (H) × 0.270 (W) mm
Horizontal Frequency
30 to 94 kHz
Vertical Refresh Rate
48 to 85 Hz
Environmental Requirements Temperature
Operating Temperature
41 to 95° F
5 to 35° C
Storage Temperature
-4 to 140° F
-20 to +60° C
Relative Humidity
20 to 80%
Power Source
100 — 240 VAC, 50–60 Hz
Altitude:
0 to 12,000 feet
0 to 3657.6 m
0 to 40,000 feet
0 to 12192 m
Operating
Storage
ENWW
Power Consumption (maximum)
<110 watts
Input Terminal
Two DVI-I connectors with cables included.
LP2465 Model
39
Recognizing Preset Display Resolutions
The display resolutions listed below are the most commonly used modes and are set as factory
defaults. This monitor automatically recognized these preset modes and they will appear properly
sized and centered on the screen.
Table B-4 LP1965 Model Factory Preset Modes
Preset
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
640 × 480
31.5
60.0
2
640 × 480
37.9
73.0
3
640 × 480
37.5
75.0
4
720 × 400
31.5
70.0
5
800 × 600
37.9
60.0
6
800 × 600
48.1
72.0
7
800 × 600
46.9
75.0
8
832 × 624
49.7
75.0
9
1024 × 768
48.4
60.0
10
1024 × 768
56.5
70.0
11
1024 × 768
60.0
75.0
12
1152 × 870
68.7
75.0
13
1152 × 900
71.7
76.0
14
1280 × 1024
64.0
60.0
15
1280 × 1024
80.0
75.0
Table B-5 LP2065 Model Factory Preset Modes
40
Preset
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
640 × 480
31.5
59.9
2
640 × 480
37.5
75.0
3
640 × 480
43.3
85.0
4
720 × 400
31.5
70.1
5
800 × 600
37.9
60.3
6
800 × 600
53.7
85.1
7
832 × 624
49.7
74.6
8
1024 × 768
48.4
60.0
9
1024 × 768
60.0
75.0
10
1024 × 768
68.7
85.0
Appendix B Technical Specifications
ENWW
Table B-5 LP2065 Model Factory Preset Modes (continued)
11
1152 × 870
68.7
75.1
12
1152 × 900
61.8
66.0
13
1280 × 960
60.0
60.0
14
1280 × 1024
64.0
60.0
15
1280 × 1024
80.0
75.0
16
1280 × 1024
91.2
85.0
17
1600 × 1200
75.0
60.0
*18
1600 × 1200
93.8
75.0
* For analog inputs only.
Table B-6 LP2465 Model Factory Preset Modes
ENWW
Preset
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
640 × 480
31.5
59.9
2
640 × 480
37.5
75.0
3
720 × 400
31.5
70.1
4
800 × 624
37.9
60.3
5
800 × 600
46.9
75.0
6
832 × 624
49.7
74.6
7
1024 × 768
48.4
60.0
8
1024 × 768
60.0
75.0
9
1024 × 768
68.7
85.0
10
1152 × 720
44.9
60.0
11
1152 × 870
68.7
75.1
12
1152 × 900
61.8
66.0
13
1280 × 768
47.4
60.0
14
1280 × 960
60.0
60.0
15
1280 × 1024
64.0
60.0
16
1280 × 1024
80.0
75.0
17
1280 × 1024
91.2
85.0
18
1600 × 1200
61.7
60.0
19
1600 × 1200
75.0
60.0
*20
1600 × 1200
93.8
75.0
21
1680 × 1050
65.3
60.1
22
1920 × 108
67.2
60.0
Recognizing Preset Display Resolutions
41
Table B-6 LP2465 Model Factory Preset Modes (continued)
23
1920 × 1200
74.0
60.0
*24
1920 × 1200
74.6
60.0
*For analog inputs only.
Entering User Modes
The video controller signal may occasionally call for a mode that is not preset if:
●
You are not using a standard graphics adapter.
●
You are not using a preset mode.
It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen
display. Your changes can be made to any or all of these modes and saved in memory. The monitor
automatically stores the new setting, then recognized the new mode just as it does a preset mode. In
addition to the 15 factory preset modes for the LP1965 model, the 18 factory present modes for the
LP2065 model, and the 24 factory preset modes for the LP2465 model, there are four user modes
that can be entered and stored.
Energy Saver Feature
When the monitor is in its normal operating mode, the monitor uses less than 37 watts (LP1965
model) of power or 55 watts of power (LP2065 and LP2465 models) and the Power light is green.
The monitor also supports a reduced power state. The reduced power state will be entered into if the
monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon
detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and
the power light is turned amber. When the monitor is in the reduced power state, the monitor will
utilize less than 2 watts of power. There is a brief warm up period before the monitor will return to its
normal operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called
power management features).
NOTE The above power saver feature only works when connected to computers that have
energy saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to
enter into the reduced poser state at a predetermined time. When the monitor's Energy Saver utility
causes the monitor to enter the reduced power state, the power light blinks amber.
42
Appendix B Technical Specifications
ENWW
C
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and the receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett Packard Company may void the user's authority to operate
the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector
hoods to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for Products Marked with the
FCC Logo (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
ENWW
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may cause
undesired operation.
Federal Communications Commission Notice
43
For questions regarding the product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-HP-INVENT (1-800 474-6836)
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Regulatory Notice
This product complies with the following EU Directives:
●
Low Voltage Directive 73/23/EEC
●
EMC Directive 89/336/EEC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard
for this product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom
products and EU harmonized Telecom
products (e.g. Bluetooth)
44
This marking is valide for EU nonharmonized Telecom products.
Appendix C Agency Regulatory Notices
ENWW
*Notified body number (used only if
applicable — refer to the product label).
German Ergonomics Notice
HP products which bear the “GS” approval mark, when forming part of a system comprising HP
brand computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable
ergonomic requirements. The installation guides included with the products provide configuration
information.
Japanese Notice
Korean Notice
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the
monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for
use in the country where you purchased the equipment.
If you need to obtain a power cord for a different country, you should purchase a power cord that is
approved for use in that country.
The power cord must be rated for the product and for the voltage and current marked on the
product's electrical ratings label. The voltage and current rating of the cord should be greater than
the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire
must be a minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8
m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an
authorized HP service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed
upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point
where the cord exits from the product.
ENWW
German Ergonomics Notice
45
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION Do not use the power cord received with this product on any other products.
Product Environmental Notices
Materials Disposal
This HP product contains mercury in the fluorescent lamp in the display LCD that might require
special handling at end-of-life.
Disposal of this material can be regulated because of environmental considerations. For disposal or
recycling information, contact the local authorities or the Electronic Industries Alliance (EIA)
http://www.eiae.org.
Disposal of Waste Equipment by Users in Private Household in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling or waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact the local city office, the household waste disposal service or
the shop where you purchased the product.
Restriction of Hazardous Substances (RoHS)
A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic products
offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit
http://www.hp.com/go/jisc0950.
46
Appendix C Agency Regulatory Notices
ENWW
D
LCD Monitor Quality and Pixel Policy
The TFT monitor uses high-precision technology, manufactured according to HP standards, to
guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that
appear as small bright or dark spots. This is common to all LCD displays used in products supplied
by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more
defective pixels or sub-pixels.
●
A pixel consists of one red, one green, and one blue sub-pixel.
●
A defective whole pixel is always turned on (a bright spot on a dark background), or it is always
off (a dark spot on a bright background). The first is the more visible of the two.
●
A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and
only visible on a specific background.
The HP display does not have more than:
●
3 bright dots.
●
5 dark dots.
●
5 total bright and dark dots.
●
No more than two adjacent (less than 2.5 mm edge-to-edge) defective pixels.
To locate defective pixels, the monitor should be viewed under normal operating conditions, in
normal operating mode at a supported resolution and refresh rate, from a distance of approximately
50 cm (20 in).
HP expects that, over time, the industry will continue to improve its ability to produce LCDs with
fewer cosmetic imperfections and HP will adjust guidelines as improvements are made.
ENWW
47
48
Appendix D LCD Monitor Quality and Pixel Policy
ENWW
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
