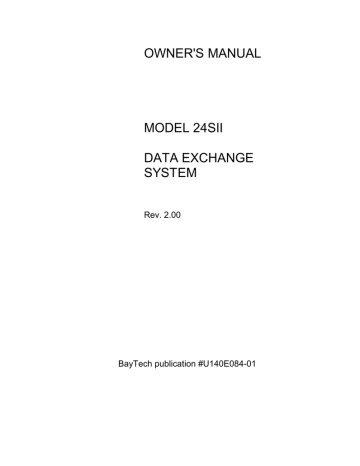

OWNER'S MANUAL
MODEL 24SII
DATA EXCHANGE
SYSTEM
Rev. 2.00
BayTech publication #U140E084-01
Thank you for selecting a BayTech Model 24SII Data Exchange
System.
The data provided in this Owner's Manual explains the various ways
you can operate your unit and configure it to your computer system.
We suggest that you read this manual carefully before attempting to
install the Model 24SII and that you place special emphasis on correct
cabling and configuration. If you have any problems with your
installation, please contact a BayTech applications engineer for
assistance toll-free at 1-800-523-2702.
BayTech also manufactures data communications devices that
provide port sharing and expansion, networking, port contention,
buffered and non-buffered printer sharing; modems and multiplexers.
If you would like information on any of these models, please contact
BayTech Customer Service. A brief description of other BayTech
products is included in the back of this owner's manual.
We welcome any comments you may have about our products and
hope you will continue to look to BayTech for your data
communications needs.
NOTE: The information contained in this document is subject to
change without notice.
Copyright 1992 by Bay Technical Associates, Inc.
LaserShare, Print Master, Telplex, and Tranx are registered
trademarks of Bay Technical Associates, Inc.
IBM, IBM PC, IBM PC/AT, IBM PC/XT are products and registered
trademarks of International Business Machines Corporation.
Hewlett-Packard LaserJet and Draftmaster I Plotter are products and
registered trademarks of the Hewlett-Packard Company.
WordPerfect is a product of WordPerfect, Inc.
WordStar is a registered trademark of MicroPro International Corp.
Windows is a registered trademark of Microsoft Corp.
All products or company names are trademarks of their respective
holders.
TABLE OF CONTENTS
1
GENERAL INFORMATION.............................................. 1
2
SPECIFICATIONS ........................................................... 5
3
QUICK START............................................................... 10
4
INSTALLATION ............................................................. 12
4.1
4.2
4.3
4.4
4.5
4.6
4.7
5
UNPACKING .......................................................
BAYTECH SOFTWARE UTILITY DISKETTE .....
POWER...............................................................
CABLING PRELIMINARIES ................................
FACTORY DEFAULT CONFIGURATION ..........
CONFIGURATION PROCEDURE ......................
PC SET-UP .........................................................
12
12
14
14
15
16
23
CABLING ....................................................................... 25
5.1
5.2
5.3
5.4
PARALLEL PORTS............................................. 25
I/O MODULES M24SII-V01 AND M24SII-V03:
EIA-232 SERIAL PORTS WITH DB-25 MALE
DTE CONNECTORS........................................... 27
I/O MODULE M24SII-V04:
EIA-232 SERIAL PORTS WITH DB-25 FEMALE DCE
CONNECTORS................................................... 30
I/O MODULE M24SII-V06A: EIA-232 SERIAL
PORTS WITH RJ-45 MODULAR CONNECTORS 33
5.5
I/O MODULE M24SII-V07:
EIA-232/EIA-422 SERIAL PORTS WITH
RJ-45/RJ-11 MODULAR CONNECTORS ........... 35
5.5.1 8-WIRE CONDUCTOR OPERATION....... 36
5.5.2 4-WIRE CONDUCTOR OPERATION....... 38
5.5.2.1
5.5.2.2
5.5.2.3
5.5.2.4
6
EIA-232 PORTS USING
BIDIRECTIONAL PRINTER
SHARING MODE ................ 38
EIA-232 PORTS USING
UNIDIRECTIONAL PRINTER
SHARING MODE ................ 39
EIA-422 PORTS USING
BIDIRECTIONAL PRINTER
SHARING MODE ................ 41
EIA-422 PORTS USING
UNIDIRECTIONAL PRINTER
SHARING MODE ................ 42
USER-PROGRAMMABLE FEATURES ......................... 46
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
6.10
PORT LOGICAL NAME ......................................
PORT DESIGNATION.........................................
NUMBER OF PRINTERS (M24SII-V02 HIGH
SPEED PARALLEL MODULE ONLY).................
PORT SELECT CODE ........................................
PORT SELECT MODE........................................
SERIAL PORT CONFIGURATION......................
INPUT INACTIVITY TIMEOUT............................
FORM FEED .......................................................
I.D. PAGE MESSAGE .........................................
DEFAULT PRINTER ASSIGNMENT...................
46
46
47
47
48
49
49
50
50
50
7
OPERATION.................................................................. 51
7.1
COMPUTER-TO-PERIPHERAL OPERATION.... 51
7.1.1 SHARING A SINGLE PERIPHERAL ........
7.1.2 CONTENDING FOR MULTIPLE
PERIPHERALS ........................................
7.1.3 SPECIFIED SHARING OF MULTIPLE
PERIPHERALS ........................................
7.1.4 BEGINNING AND ENDING A PRINT JOB
7.1.5 BUFFERING OF PRINT DATA.................
7.1.6 BUFFER CLEARING ................................
7.1.7 MINIMUM SIZE PRINT JOB.....................
7.2
51
52
53
54
55
57
57
COMPUTER-TO-COMPUTER OPERATIONS ... 57
7.2.1 INITIATING A COMPUTER-TOCOMPUTER CONNECTION .................... 57
7.2.2 FILE TRANSFER...................................... 58
7.2.3 MODEM SHARING................................... 59
7.3
DATA FLOW CONTROL..................................... 61
7.3.1 HARDWARE HANDSHAKING ................. 61
7.3.2 XON/XOFF HANDSHAKING .................... 62
7.4
7.5
8
APPLICATION NOTE.......................................... 64
HP 3000 OPTION................................................ 65
CONFIGURATION ......................................................... 66
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
MAIN CONFIGURATION MENU.........................
STATUS ..............................................................
PROGRAM PORT LOGICAL NAME ...................
SET PORT DESIGNATION.................................
SET NUMBER OF PRINTERS (M24SII-V02
HIGH SPEED PARALLEL MODULE)..................
PROGRAM PORT SELECT CODE.....................
SET PORT SELECT MODE................................
SET SERIAL PORT CONFIGURATION..............
SET INPUT INACTIVITY TIMEOUT....................
69
71
73
75
77
78
79
80
85
8.10
8.11
8.12
8.13
8.14
8.15
8.16
ENABLE/DISABLE FORM FEED MODE ............
PROGRAM I.D. PAGE MESSAGE......................
ENABLE/DISABLE I.D. PAGE MESSAGE..........
SELECT PRINT SCHEDULE FOR I.D. PAGE ....
PROGRAM DEFAULT PRINTER ASSIGNMENT
PROGRAM MODULE PRINTER SHARING
MODE..................................................................
EXIT ....................................................................
87
89
90
92
94
96
96
9
MAINTENANCE ............................................................. 97
10
REPACKING FOR SHIPPING ....................................... 97
11
TECHNICAL SUPPORT ................................................ 98
12
FEDERAL COMMUNICATIONS COMMISSION RADIO
FREQUENCY INTERFACE STATEMENT..................... 99
APPENDIX A
CABLING TO MODEL 24SII................................................... 100
A.1
A.2
A.3
A.4
A.5
A.6
A.7
BETWEEN M24SII-V03 I/O MODULE AND IBM
PC OR PS/2 (DB-25)......................................... 100
BETWEEN M24SII-V03 I/O MODULE AND
IBM AT (DE-9)................................................... 102
BETWEEN M24SII-V03 I/O MODULE AND
HEWLETT PACKARD LASERJET ................... 104
BETWEEN MODEL 24SII AND ANY
CENTRONICS PRINTER.................................. 106
MODULAR CABLING USING M24SII-V06A I/O
MODULE ........................................................... 107
M24SII-V07 I/O MODULE - EIA-422/EIA-232
PROTOCOL SELECTION................................. 110
MODULAR CABLING USING M24SII-V07 I/O
MODULE ........................................................... 111
A.7.1 RJ-45 (8-WIRE) CABLING ..................... 111
A.7.2 RJ-11 (4-WIRE) CABLING USING EIA-232
PROTOCOL AND BIDIRECTIONAL
PRINTER SHARING MODE................... 112
A.7.3 RJ-11 (4-WIRE) CABLING USING EIA-232
PROTOCOL AND UNIDIRECTIONAL
PRINTER SHARING MODE................... 114
A.7.4 RJ-11 (4-WIRE) CABLING USING EIA-422
PROTOCOL ........................................... 116
APPENDIX B
MODEL 24SII MODULE INSTALLATION............................... 117
B.1
B.2
MODEL 24SII I/O MODULE INSTALLATION.... 117
MODEL 24SII MEMORY MODULE
INSTALLATION................................................. 119
APPENDIX C
BUFFER EXPANSION/EPROM UPGRADE........................... 121
C.1
C.2
C.3
C.4
C.5
M24SII-M01 BUFFER EXPANSION ZIP
MODULE INSTALLATION ................................ 121
M24SII-M02 BUFFER EXPANSION SIMM
INSTALLATION................................................. 123
MODEL 24SII MAIN BOARD EPROM UPGRADE 125
MODEL 24SII MEMORY MODULE EPROM
UPGRADE......................................................... 126
MODEL 24SII I/O MODULE EPROM UPGRADE 127
APPENDIX D
MECHANICAL LAYOUTS....................................................... 129
D.1
D.2
D.3
D.4
D.5
D.6
D.7
D.8
MODEL 24SII FRONT PANEL ..........................
MODEL 24SII UNIT ASSEMBLY ......................
MODEL 24SII MAIN BOARD ............................
M24SII-M01 MEMORY BOARD ASSEMBLY....
M24SII-M02 MEMORY BOARD ASSEMBLY....
I/O MODULE: 4 PARALLEL PORTS
(BAYTECH P/N M24SII-V02) ............................
I/O MODULE: 4 HIGH SPEED SERIAL PORTS
(BAYTECH P/N M24SII-V03/V06/V08) .............
I/O MODULE: 4 HIGH SPEED SERIAL PORTS
(BAYTECH P/N M24SII-V07) ............................
129
130
131
132
133
134
135
136
APPENDIX E
TROUBLESHOOTING............................................................ 137
APPENDIX F
INDEX..................................................................................... 143
The BayTech Model 24SII Data Exchange System (DES) is a high
performance peripheral sharing solution offering versatile and flexible
connectivity between computers and various peripheral devices.
Computers may share plotters, modems, and laser printers, as well as
access other computers to share data bases and transfer files. Cost
effectiveness is thus achieved through resource sharing among
multiple users.
Figure 1 below shows a Model 24SII DES with twenty-four ports
installed. This application shows eight local PCs, a remote PC using
the BayTech Tran-x LPT-460 high speed parallel/serial converter, and
a file server from a LAN sharing a plotter, HP LaserJet Series II
printer, HP Laserjet Series IIISI printer, and a BayTech BX2448 2400
bps modem.
Figure 1
Each port offers high speed data communication with unidirectional
serial throughput up to 460k bits per second (bps) and parallel speeds
exceeding 60k characters per second (cps). The Model 24SII
controller board is used primarily as a data communications bus with
throughput capability up to 5.5M bps. The controller board allows
direct communication with the connected modules or routes data to
the memory module for print spooling. The dynamically allocated
buffer is available from 1MB up to 16MB.
Other features of the Model 24SII DES include:
1)
High-speed data transfer to handle faster computers and
software;
2)
Networking between pairs of computers or computers and
other devices such as modems, bar code readers, etc.;
3)
Optimum flexibility: You select the right combination of serial
and parallel ports to meet your needs when ordering, and set
any port (other than Port 1 of Module 1) as a computer port or
a printer port;
4)
Expandability so the system can grow with you;
5)
Compatibility with virtually all computers, printers, plotters,
modems and other peripherals;
6)
RJ-11/RJ-45 modular connectors on the serial ports are
optionally available to provide ease in cabling using four
or eight conductors.
7)
IBM compatible software to allow for peripheral selection from
within Windows or graphics programs.
The Model 24SII's generous built-in buffer also saves valuable
computer time by spooling data until the printer or plotter can receive
it, keeping your users and computers working full time instead of
waiting. The spooling buffer on the Model 24SII DES can range from
0 MB to 16MB in 1MB or 4MB increments. The buffer is field
upgradable. For printer and plotter sharing applications, you must
have a minimum of 1MB installed on the initial purchase.
You may program the following features to meet the requirements of
your application: the Port Designation (computer or printer) for each
port, the individual Serial Port Configuration (baud rate, word size,
stop bits, parity, and XON/XOFF), the Printer Sharing Mode (high
speed serial modules only), the 4-Wire/8-Wire Operation (M24SII-V07
high speed serial module only), the Port Logical Names, the Input
Inactivity Timeout, the Port Select Code, the Port Select Mode, the
Form Feed Mode, the I.D. Page Message, and the Default Printer
Assignment. Programming of these features is easily accomplished
via the menu-driven configuration mode, and all changes are saved
permanently in non-volatile memory. BayTech provides terminal
emulation software for this purpose.
The number of ports on the Model 24SII DES can range from four to
twenty-four in multiples of four. The actual number of ports is
determined by the number of I/O modules installed. Each I/O module
has four (4) ports. The Model 24SII DES can have a maximum of six
(6) modules installed. You may install additional I/O modules after
initial purchase to increase the number of ports on your Model 24SII
DES.
We will refer to individual ports on the Model 24SII DES by module
number and port number. The module number for an individual port
may range from 1 to 6. The port number for an individual port may
range from 1 to 4, with Port 1 being the top port. For example, we
refer to the master configuration port as Port 1 of Module 1. Module 1
inserts to the slot marked "Module 1" on the top of the back panel.
BayTech sells a high speed serial module for the Model 24SII DES
which supports EIA-422 protocol (M24SII-V07). This allows for long
cable distances using RJ-11 (4-wire) or RJ-45 (8-wire) modular
cabling. Use of the BayTech Tran-x LPT-460 or PS-02 high speed
parallel/serial converter products will allow your PC to transmit data at
460k bps using cable lengths up to 1000 feet. The same set up will
allow your cable distance to be up to 4000 feet if your Tran-x card is
configured to transmit data at 115k bps.
Figure 2 shows a PC with the Tran-x LPT-460 card and a PC with the
Tran-x PS-02 external module connecting to the M24SII-V07 module
via modular cabling.
Figure 2
BASE UNIT: Supports 24 ports of communication at up to 5.5M
bps total throughput speeds.
I/O Modules: Four ports per module. Maximum 6 modules
per unit. Must have a minimum of 4 serial ports per unit.
Maximum Input Power Rating: 115 VAC, 50/60 Hz, .3A;
Opt 230 VAC, 50/60 Hz, .2A
Power Supply: +5VDC, 1.5A; +12VDC, 0.2A; -12VDC,
0.2A available.
Power Requirement: 115 VAC, 50/60 Hz, .3A; Optional 230
VAC, 50/60 Hz, .2A.
Single Channel Bus Speed: 5.5M bps.
Configuration memory: 8KB non-volatile memory holds
power-up default information.
Expansion slots: 6 external; 2 internal.
Edge connecters:20 pin; 6 total, one for each external
expansion slot.
26-Pin headers: Two for installation of internal memory or
internal modem modules.
Environment: 0 to 55C temperature; 5% to 95% humidity.
Dimensions: 16¾"w x 10"d x 3½"h.
Weight: 9½ lbs. with 6 modules installed; 8 lbs. with no I/O
modules installed.
Indicators: 1 green power LED; 24 red port activity LEDs.
Mounting: Desk-top; rack-mount optional.
Warranty: One year on parts and labor.
MEMORY BOARD: 1 board standard - no memory installed.
Expandable to 16MB by one megabyte or four megabyte
increments.
FACTORY POWER-UP DEFAULT CONFIGURATIONS:
Serial ports:
Baud rate: 9600.
Word size: 8 bits.
Parity: None.
XON/XOFF: Off.
Printer sharing mode (high speed serial modules
only): Bidirectional.
4-Wire/8-Wire Operation (M24SII-V07 high speed
serial module only): 8-wire.
Logical Name: Device A to D on each module.
Input Inactivity Timeout: 20 seconds.
Port Designation: Port 2 of Module 1- printer port; all other
ports - computer ports.
Default Printer Assignment: 0 for all computer ports
(contention mode).
Port Select Code: $SELECT.
Printer Select Mode: Anytime.
Form Feed Mode: Disabled.
I.D. Page Message: "This print job is for:".
I.D. Page Message Schedule: Before each print job.
I.D. Page Message Enable: Off.
Minimum Size Print Job: 3 characters.
USER-PROGRAMMABLE CONFIGURATIONS:
Easy to configure using on-screen menu. Choices are saved in
non-volatile memory to become the new power-up default
configuration.
Configurable Through any Serial Computer Port:
Baud rate for bidirectional transfer (high speed serial
modules only)*: 300, 600, 1200, 2400, 4800, 9600,
19200, 38400, 115.2k.
Baud rate for unidirectional transfer (high speed serial
modules only)*: 9600, 115.2k, 230.4k, 460.8k.
* Option configurable per port.
Printer Sharing Mode (high speed serial modules only):
(per module) Unidirectional or bidirectional.
4-Wire/8-Wire Operation (M24SII-V07 high speed serial
module only: 4-wire or 8-wire.
Word size*: 7 or 8 bits.
Parity*: Even, odd or none.
Stop bits*: 1 or 2.
XON/XOFF*: Enabled or disabled individually for transmit
and receive in bidirectional mode.
Input Inactivity Timeout*: 0 to 200 seconds.
Port Logical Name*: Maximum 16 characters.
Port Select Mode*: Mode A = Port selection anytime while
printing; Mode B = Port selection at beginning of
printing.
Form Feed Mode*: No form feed; Form feed at beginning of
printing only; Form feed at end of printing only; Form
feed at both beginning and end of printing.
I.D. Page Enable: on or off.
Default Printer Assignment: Can be any module and port
number of a printer port.
* Option configurable per port. Users connected to any module
other than Module 1 may configure these options for their
module only.
Configurable Through Host Port Only:
Port Select Code: 1 to 8 ASCII characters.
Port Designation: Computer port or printer port.
Number of Printers (M24SII-V02 high speed parallel
module only): 0 to 4.
I.D. Page Message: Maximum 40 characters.
I.D. Page Message schedule: Beginning of printing or end of
printing.
MODULES
4 PORT HIGH SPEED SERIAL EIA-232 DES
Interface: Asynchronous EIA-232, -12v mark, +12v space.
Full duplex.
Connectors: Available in DB-25 male DTE (BayTech part
#M24SII-V03), DB-25 female DCE (BayTech part
#M24SII-V04 or RJ-45 (Baytech part #M24SII-V06A).
Handshaking bidirectional: CTS/DTR; selectable
XON/XOFF.
Handshaking unidirectional: CTS/DTR.
Flow Control Buffer: 1k character input/output.
Speed bidirectional transfer: 300, 600, 1200, 2400, 4800,
9600, 19200, 38400, 115.2k.
Speed unidirectional transfer: 9600, 115.2k, 230.4k, or
460.8k.
Power Consumption: +5VDC. 150mA; +12VDC, 25mA;
-12VDC, 25mA.
Dimensions: 3.3"h x 2.4"w.
4 PORT HIGH SPEED SERIAL EIA-422 DES
Interface: Asynchronous EIA-422 or EIA-232 (hardware
selectable), full duplex.
Connectors: RJ-45 (8-wire) with built-in RJ-11 (4-wire)
(BayTech part #M24SII-V07).
Handshaking bidirectional: HSO/HSI (EIA-422) or CTS/DTR
(EIA-232) handshaking lines; selectable XON/XOFF.
Handshaking unidirectional: HSO/HSI (EIA-422) or
CTS/DTR (EIA-232).
Flow Control Buffer: 1k character input/output.
Speed bidirectional transfer: 300, 600, 1200, 2400, 4800,
9600, 19200, 38400, 115.2k.
Speed unidirectional transfer: 9600, 115.2k, 230.4k, 460.8k.
Power Consumption: +5VDC. 150mA; +12VDC, 25mA;
-12VDC, 25mA.
Dimensions: 3.3"h x 2.4"w.
4 PORT HIGH SPEED PARALLEL DES
Interface: Centronics protocol.
Connectors: DB-25 female (BayTech part #M24SII-V02).
Handshaking: BUSY (pin 11); ACK (pin 10) -out only.
Flow Control Buffer: 1k character input/output.
Speed: 60k cps output; 58k cps input.
Dimensions: 3.3"h x 2.4"w.
This section provides basic installation instructions for persons
knowledgeable in the area of computer equipment installation. In this
section, we assume that the Model 24SII DES has never been
configured (i.e., all settings are factory default values). We will refer
to specific sections in this manual for more in-depth instructions on
installation, operation, and configuration. Please use the following
procedure:
Step
Instructions/Application Questions
Action/Special Instructions
1
Determine how many and what type of
modules are installed on the Model 24SII
DES. Identify which modules are serial
and which modules are parallel. Serial
modules are labeled as "232" or "422"
and parallel modules are labeled as
"PAR" on the back.
Proceed to Step 2.
2
Determine which ports on the Model
24SII DES your devices will be
connected to (parallel or serial). Also
determine the necessary Port
Designations on the Model 24SII DES
(computer or printer). Computers and
modems connect to ports designated as
computer ports. Printers and plotters
connect to ports designated as printer
ports.
Proceed to Step 3.
3
Does your application call for printer or
plotter sharing between multiple
computers and just one printer or plotter?
If no, proceed to Step 5.
Will your single printer or plotter connect
to the Model 24SII DES in serial?
If no, proceed to Step 6.
4
If yes, proceed to Step 4.
If yes, there is no need to reconfigure any
Port Designations on the Model 24SII
DES. You will connect your serial printer
or plotter to Port 2 of Module 1. Proceed
to Step 7.
5
For multiple printer/plotter applications,
you will need to access configuration
mode and change the Port Designation
of the ports to which your printers and/or
plotters will connect from computer ports
to printer ports.
6
If your application calls for multiple
computers sharing just one parallel
Port 2 of Module 1 is the factory
designated printer port. This is a serial
port. If you have any serial printers or
plotters, you may connect one of them to
this port. If you do not have a serial
printer or plotter, you will need to
reconfigure the Port Designation for Port
2 of Module 1 to a computer port.
Proceed to Step 7.
Proceed to Step 7.
Step
Instructions/Application Questions
Action/Special Instructions
printer or plotter, you must reconfigure
the Port Designation of a parallel port on
the Model 24SII DES to be a printer port.
Additionally you must reconfigure the
Port Designation for Port 2 of Module 1
to a computer port.
Will you be connecting any serial devices
that will communicate with serial
parameters different than 9600 baud, 8
data bits, 1 stop bit, no parity, and
XON/XOFF handshaking disabled (e.g.,
2400 bps external modem)?
If yes, proceed to Step 9.
Do you have to reconfigure any Port
Designations on the Model 24SII DES
(see Steps 4, 5, or 6).
If yes, proceed to Step 9.
9
If you need to reconfigure the Model
24SII DES with respect to Port
Designation and/or Serial Port
Configuration, you will need to access
configuration mode to make the
appropriate changes.
Please see Section 4.6 for instructions
and then proceed to Step 10.
10
Proceed with cabling your devices to the
appropriate ports on the Model 24SII
DES.
See Section 5 for more cabling
information and Appendix A for
recommended cabling pin outs. Proceed
to Step 11.
11
If you will be using the BayTech software
to select between peripherals, please
see the README file created by running
the INSTALL program. Please see
Section 4.2 for instructions.
Proceed to Step 12.
12
If using IBM compatible PCs, see
Section 4.7 for hints on PC set-up.
If you have any questions, please call a
BayTech Applications Engineer at 1-800523-2702.
7
8
If no, proceed to Step 8.
If no, proceed to Step 10.
The information contained in this section is provided as an overview
and guide to configuration and set-up of the Model 24SII DES. The
appropriate sections of the manual should be referred to for more indepth information pertaining to a specific function or for alternative
methods.
After opening the box, check the packing list that comes with the
Model 24SII DES to ensure that you have received all components. At
a minimum you should have received the unit, this manual and any
applicable addendums, and a software utility diskette. Also check the
unit to make certain that it did not incur damage during shipping. If
items are missing or damage did occur, please contact BayTech
technical support at 800-523-2702.
BayTech provides utility software to assist you in configuring the
Model 24SII DES. There are three peripheral selection programs
included to provide easy device selection from text mode, graphics
mode, or Windows.
IMPORTANT: Copy the BayTech original diskette onto a blank
diskette and store the original in a safe place. Read your operating
system's manual for copying instructions.
The software utility diskette provided with your Model 24SII DES
comes with an automatic installation program called INSTALL. You
must use this program to extract the compressed files associated with
your unit. INSTALL automatically copies and expands the hidden
files.
To run INSTALL, use the following procedure:
1.
Insert the software utility diskette into drive A (or drive B) and
from the prompt type INSTALL followed by ENTER.
2.
A menu titled "Drive & Directory Definitions" will appear on your
screen. This menu will display the Source Drive, Destination
Drive, and Destination Directory. The Source Drive is the
floppy drive where the diskette is inserted (default is drive A).
The Destination Drive is the drive where the expanded files will
copied to (default is drive C). The Destination Directory is the
directory where the files will copied to (default is BAYTECH). If
the default parameters do not match your application, you may
either use the TAB key or a mouse to change fields and type in
the desired parameters. Once you have entered the
appropriate values, select "OK".
3.
A menu will appear on your screen titled "Series Definition".
This menu will contain choices for the type of BayTech product
you have purchased. Highlight "Model 24 Series" with the
arrow keys or mouse followed by "OK".
4.
A menu titled "Printer Selection Programs" will appear on your
screen. You are given three selections: RAMEXEC, RAMTSR,
and WNDEXEC. Choose RAMEXEC if your PC runs nonWindows programs that do not operate in graphics mode.
Choose RAMTSR if your PC runs non-Windows programs
which operate in graphics mode. Choose WNDEXEC if your
PC runs under WINDOWS. Once you have selected the
appropriate printer selection program, choose the "OK"
selection.
5.
When INSTALL is finished, you may review the instructions for
the relevant files by referring to the README file copied to the
destination subdirectory. To view the README file on your
screen, enter the command TYPE README from your
subdirectory prompt. To print this file, enter the command
COPY README LPT1: from your subdirectory prompt.
The standard Model 24SII DES requires 115 VAC, 50/60 Hz. power
and comes with a three-prong power cord. Do not attempt to operate
the unit with a two-prong socket or adaptor. 230 VAC, 50/60 Hz. is
optional.
The Model 24SII DES powers-up when you press the power switch,
located on the front of the unit, to "ON". A green LED on the front
panel will illuminate when power is applied.
CAUTION: Power should be turned off anytime cables are to be
installed or removed. Make sure the power is turned off and the unit is
unplugged before removing the cover and attempting to make any
internal changes.
Before you proceed with cabling, determine which type of I/O modules
you have installed on the Model 24SII. The module type is marked on
the top of the module panel. Parallel ports have DB-25 female
connectors. Serial ports have either DB-25 male DTE, DB-25 female
DCE, or RJ-45 modular connectors. Next, determine what device will
be connected to each available port, whether the device will be
connected to a serial or parallel port, and whether the device will
connect to a computer port or printer port. Finally, you should obtain
the correct cables to connect your equipment to the Model 24SII.
NOTE: Any port (except Port 1 of Module 1) may be designated as a
computer port or a printer port. However, if computer-to-computer
communication will be required, the computers that will be
communicating must both be connected to serial ports to allow full
duplex communication. Printers and plotters are connected via cable
to user-assigned printer ports on the Model 24SII DES. Computers
and modems are connected via cable to user-assigned computer
ports.
NOTE: If you are interfacing your equipment to the M24SII-V07 I/O
module, determine if you will use 4-wire or 8-wire cabling.
Refer to Section 5 and Appendix A to ensure you have all the correct
cables to fully connect your system.
Connect the proper serial cable between COMx (where x = 1, 2, 3, or
4) of a PC, or dumb terminal, to Port 1 of Module 1 (the master
configuration port). All other cables can be connected after the system
is configured (see Section 8).
From the factory, the Model 24SII Data Exchange System is set up
with Port 1 of Module 1 (serial) designated as a computer port. Port 1
of Module 1 is the master configuration port and must always be a
serial port. Several parameter settings are set only through this port.
Port 2 of Module 1 (serial) is factory-designated as a printer port. All
other installed ports are factory-designated as computer ports. You
may designate in the configuration mode which ports are computer
ports and which are printer ports if required.
Other factory-default settings are:
Input Inactivity Timeout: 20 seconds
Port Select Code: $SELECT
Port Select Mode: Mode A (printer selection anytime while
printing).
Form Feed Mode: disabled
I.D. Page Message: disabled
Port Logical Name(s): set as Device A, Device B, etc.
Default Printer Assignment: 0 for all computer ports
(contention mode).
Serial ports power-up from the factory at:
9600 baud rate
8 bit word size
1 stop bit
no parity
XON/XOFF disabled
Printer sharing mode: Bidirectional.
4-Wire/8-Wire Operation (M24SII-V07 high speed
serial module only): 8-wire.
If your application does not match the factory setup of the Model 24SII
DES, you must first reconfigure the Model 24SII DES by entering the
configuration mode (see Section 8). For example, if your application
calls for printer sharing between more than one printer or if you are
sharing a single parallel printer, you must reconfigure the Model
24SII's Port Designation. If your application does match, you may
connect all required cables, apply power, and begin using your Model
24SII Data Exchange System.
If your application requires that you reconfigure the Model 24SII DES
different from the factory default configuration, determine which
parameters must be changed (i.e., baud rate, word size, Port
Designation, etc.). All features of the Model 24SII DES are configured
one module (four ports) at a time using a serial terminal or PC
connected to the master configuration port (Port 1 of Module 1).
The configuration mode of the Model 24SII DES is menu-driven. The
configuration menus are accessed by sending a three-character
sequence to the master configuration port. The three-character
sequence consists of Control-T, Capital C, followed by the desired
module number (1 to 6).
For example, if you wish to configure Module 1, you would send the
following: <Control-T>C1
If using an IBM PC or compatible to configure the Model 24SII DES,
first make a copy of the BayTech supplied support software disk and
store the original in a safe place. (Refer to your DOS manual for copy
instructions). You will be using the TERM program created by running
the INSTALL program (see Section 4.2) to change the default
configuration of the Model 24SII DES. Any terminal emulation
program supplied by another manufacturer may also be used. Make
sure your PC is connected to Port 1 of Module 1 with the appropriate
serial cable. Use the following procedure:
1.
From the BAYTECH subdirectory prompt enter:
a:\term
The program will respond with an identification block
and then a configuration menu for the PC COM port.
'
!#
!"
$
(
%!
%!
&!
&&
)
&%
You are now in the terminal emulation mode with full
duplex communication. Any characters you type from
the keyboard will be transmitted out of the PC COM port
to the Model 24SII DES. They will not appear on the
CRT screen. Any characters received from the Model
24SII DES by the PC COM port will be displayed on the
CRT screen.
2.
Ensure the displayed PC Configuration is correct. If not,
enter ALT-C to change. For example, if you have your
serial cable physically connected to COM2 on your PC,
first type ALT-C followed by the up arrow key and then
ENTER to have the TERM program switch to COM2.
3.
Refer to the upper right hand corner of the screen for
Handshaking line status. RTS, CTS, DSR, and DTR
should all be HIGH. The DCD line is not looked at by the
terminal emulation program therefore its status can be
ignored. If these signals are not high at this point, check
to ensure the correct cable is connected.
4.
Ensure that all red LEDs on the front of the Model 24SII
DES are off (all ports off-line), and that the green 'power
on' LED is illuminated.
You may now configure the Model 24SII DES from the
PC keyboard.
NOTE: Keyboard entries must be CAPITAL
LETTERS. Put your keyboard in the CAPS LOCK
mode.
5.
Depress function key: F1 followed by the module
number that you wish to configure (1 to 6).
NOTE: The F1 key in TERM sends the character
sequence Control-T (14 Hex) followed by the ASCII
capital C character (43 Hex).
The main configuration menu for the selected module will appear.
From this point on, configuration of the Model 24SII DES will be
accomplished by following the plain-English menus that will prompt
you. Enter the letter corresponding to the desired operation. Refer to
the chart provided on the following page for assistance.
NOTE: Once F1 and the desired module number are sent, the LEDs
for Port 1 and the ports for the selected module on the front of the
Model 24SII DES will illuminate and will remain illuminated while you
are in configuration mode. If only two LEDs illuminate, if no LEDs
illuminate, or if no menus appear, this indicates that an incorrect
character sequence has been received. If this occurs, wait for all red
LEDs to go out and re-send F1 followed by the desired module
number (1 to 6).
Refer to Section 8 for in-depth instructions on configuration options.
Model 24SII DES CONFIGURATION GUIDE
Menu Options
Factory
Default
User Options
Notes
Status
n/a
n/a
Use to review the status of
the current configuration of
the Model 24SII DES.
Program Port
Logical Name
Device A
Device B
Device C
.....etc.
Max of 16 characters
These are the Device
Names that print after the
I.D. Page Message, if
enabled.
Set Port
Designation
Port 2 =
printer
All others =
computer
Make logical names easily
identifiable by users, i.e.
"Main IBM", "Jill PC", "Laser
Pntr"
Port 1 of Module 1 must
always be configured as a
computer port. All ports
may be designated as
computer ports.
Printers should be
connected to ports
designated as printer ports.
You may wish to use these
same Logical Names when
running the PC SETUP
program.
When the Port Designation
is changed for any port,
the printer assignment on
all computer ports
automatically resets to
zero, putting the
computers in the
contention mode.
Plotters should be
connected to ports
designated as printer ports.
Modems should be
connected to ports
designated as computer
ports.
Program Port
Select Code
$SELECT
Max of 8 ASCII characters.
Non-printable characters
are acceptable, but they will
not appear in the status
menu.
Ensure the Port Select
Code is made up of unique
characters to prevent
changing printers in the
middle of a print job.
Set Port Select
Mode
Anytime
(A) Anytime: Model 24SII
DES will change printers
before the end of the
specified timeout period if a
Port Select Code is
recognized.
Anytime: Required for LAN
File Servers.
Set Serial Port
Configuration
Baud Rate:
9600
(B) Beginning: Model 24SII
DES will change printers
only at the beginning of a
print job.
Beginning: Prevents
recognition of the Port
Select Code if it appears in
the middle of a document,
i.e. some graphics
programs may use
$SELECT to perform
some other function.
Baud Rate: 300, 600, 1200,
2400, 4800, 9600, 19200,
38400, 115.2k, 230.4k,
The Model 24SII DES will
automatically translate
between devices using
Model 24SII DES CONFIGURATION GUIDE
Menu Options
Factory
Default
User Options
Notes
Word Size: 8
460.8k
Word Size: 7 or 8 bits
different serial protocols
and will do serial/parallel
conversions.
Stop Bits: 1
Stop Bits: 1 or 2
Parity: none
Parity: even, odd, none
XON/XOFF
Xmit: off
XON/XOFF
Recv: off
Printer
Sharing Mode:
bidirectional
4-Wire/8-Wire
Operation: 8wire
Set Input
Inactivity
Timeout
20 seconds
XON/XOFF: enabled or
disabled individually for
transmit and receive
Printer Sharing Mode may
be unidirectional or
bidirectional
4-Wire/8-Wire Operation
may be set to 4-wire or 8wire
0 to 200 seconds
XON/XOFF for Xmit should
always be set to OFF
when sending graphics or
binary data.
Programmable for high
speed serial modules only.
Max baud rate using
bidirectional is 115.2K bps,
max baud rate using
unidirectional is 460.8K
bps.
Programmable for the
M24SII-V07 high speed
module only.
A long timeout setting for a
PC will prevent other PCs
from accessing the port it
is connected to, while
allowing the connected PC
to send numerous print
jobs. If you do not want to
wait a long time between
various users print jobs, it
is suggested that you send
a disconnect code at the
end of the print job to
override the timeout.
A longer timeout may be
required when sending
large text files, graphics
files, or downloading fonts.
A zero will disable the
Input Inactivity Timeout
and the end of a print job
will occur only when codes
are manually entered and
sent from the connected
PC.
WARNING: Do not set
timeout to zero seconds
when Port Select Mode B
Model 24SII DES CONFIGURATION GUIDE
Menu Options
Factory
Default
User Options
Notes
(beginning) has been
selected. Mode B
recognizes the end of a
print job only by inactivity
timeout periods. It will not
recognize manual
disconnect codes.
Enable/Disable
Form Feed
Mode
Beginning: off
Beginning: on or off
Ending: off
Ending: on or off
Program I.D.
Page Message
"This Print Job
is for :"
Max 80 characters.
ex. "PLEASE ROUTE THIS
PRINT JOB TO:"
Printer commands to
increase the font size used
for this page may be
entered as part of the 80
characters and will not
appear on the printed page.
Used if you wish to have
the Model 24SII DES
automatically sent a form
feed character before
and/or after each print job.
Helpful when sending
DOS print jobs to an HP
Laserjet printer.
The same message is sent
for each device if I.D.
Page Message is enabled
for that port. It will
automatically be followed
with the logical port name
of the PC sending the print
job.
Enable/Disable
I.D. Page
Message
off
on or off
Select Print
Schedule for
I.D. Page
Before print
job
Before print job or after print
job
These should all be set the
same (beginning or end)
for ports where I.D. Page
Message is enabled to
make it easier to
determine whose print job
it is.
Default Printer
Assignment
0-0
(contention
mode) for all
computer
ports.
You may configure the
Default Printer Assignment
to be any module and port
number of a port defined as
a printer port.
Any print job sent without a
port select sequence after
power-up will automatically
be routed to the default
printer.
This section is intended to provide instructions on how to set up your
PC to work with the Model 24SII DES with respect to the BayTech
software (if you intend to use it) and special considerations to keep in
mind when connecting your PC to the Model 24SII DES in parallel or
in serial.
If you intend to use the RAMEXEC (text mode) or RAMTSR (graphics
mode) hot key program to select between multiple peripherals, you
should have both the RAMEXEC and SETUP or the RAMTSR and
SETUPCFG files copied onto the hard drive of your PC.
NOTE: If you have a working copy of RAMEXEC (or RAMTSR) from
a PC that has already configured RAMEXEC (or RAMTSR) for your
application (i.e., added all the appropriate peripheral device
selections), there is no need to copy the SETUP (or SETUPCFG) file
to the new PC. SETUP (or SETUPCFG) is required only if you want
to make changes to your current version of RAMEXEC (or RAMTSR).
You would typically add RAMEXEC (or RAMTSR) to your PC's
AUTOEXEC.BAT file. The RAMEXEC (or RAMTSR) command
should be located after the PATH command and before any DOS
shell commands. If you copy the BayTech software onto a
subdirectory, the subdirectory must be included in your PATH
command.
When connecting your PC in serial to the Model 24SII DES, you
would typically reroute the parallel output to the serial port via the
DOS MODE command:
C:> MODE LPTx: = COMy
(where x=1, 2 or 3; y=1 or 2).
This command should be part of your AUTOEXEC.BAT program.
You will also need to change the serial port configuration of your PC
COM port to match that of the Model 24SII's Serial Port Configuration.
If you will be using the Model 24SII's factory default Serial Port
Configuration (9600 baud, 8 data bits, 1 stop bit, and no parity), this is
accomplished via the following DOS command:
Mode COMx: 9600,n,8,1,P
where x is the number of the appropriate com port. This command
should be part of your AUTOEXEC.BAT program.
EXAMPLE: Suppose you are connecting your PC's COM1 port to the
Model 24SII DES in serial and you intend to use the RAMEXEC hot
key software which has been copied to a subdirectory called
BAYTECH. Your AUTOEXEC.BAT program would need contain the
following:
.
.
PATH=C:\...;C:\BAYTECH
MODE LPT1: =COM1:
MODE COM1: 9600,N,8,1,P
RAMEXEC
.
.
The vertical dots before the PATH command and after the RAMEXEC
command represent other commands that may be part of your
AUTOEXEC.BAT file. The horizontal dots shown in the PATH
command represent other subdirectories that may be part of the
PATH command.
NOTE: The DOS MODE command will support a maximum baud rate
of 9600 bps. BayTech supplies a program, SMODE.EXE, which
allows you to set your PC com port for serial speeds up to 115,200
bps. Please see Section 4.2 for instructions to obtain the SMODE
command from the supplied utility diskette. The instructions for
SMODE are contained in the README file created by running the
INSTALL program.
If you are connecting your PC to the Model 24SII DES in serial and
are not going to use the BayTech software, you would not need to
modify your PATH command or include the RAMEXEC command in
the AUTOEXEC.BAT file.
If you are connecting your PC in parallel and intend to use the
BayTech software, you would not include either MODE command in
the AUTOEXEC.BAT file (unless you are using your com port for
another application outside the Model 24SII DES).
If you are connecting your PC in parallel and are not going to use the
BayTech software, there is no need to modify your AUTOEXEC.BAT
file. Just print normally after you cable the PC to the Model 24SII
DES and configure the Model 24SII DES (if required).
Parallel ports on the Model 24SII DES have DB-25 female
connectors. A straight, DB-25 male-to-male cable is required
between each IBM PC computer (or compatible) and the parallel ports
on the Model 24SII DES.
CAUTION: Some standard EIA-232 DB-25 cables may have Pin 1
grounded to connector shell. Since there is a strobe line on Pin 1 in
Centronics protocol, this ground must be removed if the cable is used
between an IBM PC and the Model 24SII DES in parallel.
A DB-25 male to Centronics cable is required between each printer
having a Centronics connector and the Model 24SII DES (same as
IBM PC to Centronics cable).
NOTE: BayTech will guarantee parallel data transmission for cable
lengths up to 15 feet. If you require a longer distance, it is suggested
that you either use parallel line drivers (such as Tran-x), extended
distance parallel cables, or consider a serial connection.
The pin assignment for the DB-25 connector is similar to the IBM PC
parallel connector and uses the following signals for communication:
DB-25 STANDARD CENTRONICS TTL LEVELS
BayTech Cable part # MC25S010
PIN #
SIGNAL
1
- Strobe
2
+Data Bit 0
3
+ Data Bit 1
4
+ Data Bit 2
5
+ Data Bit 3
6
+ Data Bit 4
7
+ Data Bit 5
8
+ Data Bit 6
9
+ Data Bit 7
10
- Acknowledge
11
+ Busy
12
+ P. End (out of paper)
13
+ Select
14
- Auto Feed
15
- Error
16
- Initialize Printer
17
- Select Input
18-25
Ground
! "#$ IMPORTANT: Determine whether the devices which will connect to
the Model 24SII DES are DTE (Data Terminal Equipment) or DCE
(Data Communication Equipment). The following devices are
generally DTE: terminals, printers, computers like the IBM PC. The
following devices are DCE: modems and some computers.
If your device transmits data on Pin 2 or receives data on Pin 3, it is
DTE. If your device receives data on Pin 2 and transmits data on Pin
3, it is DCE. However, to verify the interface requirements, please
refer to the Owner's Manual for your device.
The serial ports on the M24SII-V03 I/O module has DB-25 male DTE
connectors and use the following signals for communication:
DTE PORT SIGNALS
PIN#
EIA-232
DIRECTION
DESCRIPTION
1
PGND
----
Protective ground
2
TX
Output
Data out
3
RX
Input
Data in
4
RTS
Output
+ Voltage when Model 24SII DES powersup
5
CTS
Input
Model 24SII DES transmit enabled when
+12V. Internally enabled if no wire
connected.
7
SGND
----
Signal ground
20
DTR
Output
- Voltage when Model 24SII DES print
buffer full.
If you are interfacing a DCE device to the Model 24SII DES (DTE),
you must use a one-to-one or straight cable as shown in Figure 3 on
the following page. If you are interfacing a DTE device to the Model
24SII DES (DTE), you must use a crossed cable as shown in Figure 4
on the following page.
When using XON/XOFF protocol, it may be desirable to use cables
with only Tx, Rx and GND connected. Input handshaking lines are
enabled if nothing is connected allowing the system to operate with
only Tx, Rx and GND connected.
CAUTION: Do not attempt to use a serial cable on a parallel port.
Since an EIA-232 serial port usually carries a potential of +12 and -12
volts, plugging a serial cable from that port into a parallel port may
cause damage to the parallel port.
MODEL 24 - DTE
DCE DEVICE
FEMALE DB-25
MALE DB-25
1
PGND
2
TXD
3
RXD
4
RTS
5
CTS
7
SGND
20
DTR
>
<
>
<
>
PGND
1
TXD
2
RXD
3
RTS
4
CTS
5
SGND
7
DTR
20
Figure 1-DTE Model 24 to DCE Device
MODEL 24 - DTE
DTE DEVICE
FEMALE DB-25
1
FEMALE DB-25
PGND
PGND
2
TXD
3
RXD
4
RTS
5
CTS
6
DSR
7
SGND
20
DTR
<
>
<
>
<
>
1
TXD
2
RXD
3
RTS
4
CTS
5
DSR
6
SGND
DTR
7
20
Figure 2-DTE Model 24 to DTE Device
NOTE: Please refer to Appendix A for recommended cabling
diagrams between the Model 24SII DES and various computers and
printers.
! "#$
IMPORTANT: Before you proceed with cabling, you must know
whether the devices to which you will connect the Model 24SII DES
are DTE (Data Terminal Equipment) or DCE (Data Communication
Equipment). The following devices are generally DTE: terminals,
printers, computers like the IBM PC. The following devices are DCE:
modems and some computers.
If your device transmits data on Pin 2 or receives data on Pin 3, it is
DTE. If your device receives data on Pin 2 and transmits data on Pin
3, it is DCE. However, to verify the interface requirements, please
refer to the Owner's Manual for your device.
The serial ports on the M24SII-V04 I/O module has DB-25 female
DCE connectors and use the following signals for communication:
DCE PORT SIGNALS
PIN#
EIA-232
DIRECTION
DESCRIPTION
1
PGND
----
Protective ground
2
TX
Input
Data in
3
RX
Output
Data out
4
RTS
Input
Internally enabled if no wire connected
(normally not used).
5
CTS
Output
-12V when DCE device's buffer is full.
6
DSR
Output
+12V when DCE device powers-up.
7
SGND
----
Signal ground
20
DTR
Input
Transmit enabled when +12 V.
If you are interfacing a DTE device to the Model 24SII DES (DCE),
you must use a one-to-one or straight cable as shown in Figure 5 on
the following page. If you are interfacing a DCE device to the Model
24SII DES (DCE), you must use a crossed cable as shown in Figure 6
on the following page.
When using XON/XOFF protocol, it may be desirable to use cables
with only Tx, Rx and GND connected. On the serial ports of a
BayTech Model 24SII DES, input handshaking lines are enabled if
nothing is connected, allowing the system to operate with only Tx, Rx
and GND connected.
CAUTION: Do not attempt to use a serial cable on a parallel port.
Since an EIA-232 serial port usually carries a potential of +12 and -12
volts, plugging a serial cable from that port into a parallel port may
cause damage to the parallel port.
NOTE: Please refer to Appendix A for recommended cabling
diagrams between the Model 24SII DES and various computers and
printers.
! "# "#$
% IMPORTANT: Before you proceed with cabling, you must know
whether the devices to which you will connect the Model 24SII DES
are DTE (Data Terminal Equipment) or DCE (Data Communication
Equipment). The following devices are generally DTE: terminals,
printers, computers like the IBM PC. The following devices are DCE:
modems and some computers.
The M24SII-V05 and M24SII-V06A I/O modules have RJ-45 modular
connectors. Most serial computers, modems, and printers do not
have RJ-45 modular connectors. Therefore, adapters are required to
convert from either DB-25 or DE-9 connectors to modular connectors.
BayTech has a complete line of RJ-45 adapters and cables that will
make your installation quick and trouble free. Please see Appendix
A.5 for adapter pin outs as well as recommended cabling.
The M24SII-V05 and M24SII-V06A I/O modules use the following
signals for communication:
RJ-45 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-232
DIRECTION
DESCRIPTION
1
DTR
Output
Handshake Out, enable/disable the receiving of
characters
2
GND
----
Signal Ground
3
RTS
Output
Handshake Out, Normally +10V
4
TX
Output
Transmit Data
5
RX
Input
Receive Data
6
DSR
Input
Handshake In, not used
7
GND
----
Signal Ground
8
CTS
Input
Handshake In, enable/disable the transmission of
characters
NOTE: Please confirm that you have the M24SII-V06A module.
Check the top of the module for the part number. If you have an
M24SII-V06 module (i.e., no A suffix), please call a BayTech
Applications Engineer for the correct pin/signal definition and the
correct adapter information.
Figure 7 and Figure 8 are drawings of a RJ-45 receptacle and plug.
The pin number assignments are given.
Figure 7: RJ-45 Receptacle
Figure 8: RJ-45 Plug
! "#$
! % !% NOTE: Ports on the M24SII-V07 module may be individually
configured to communicate with either EIA-232 or EIA-422 (default)
protocol via jumper setting. In addition, you may program individual
ports to use either 8-wire (RJ-45 - default) or 4-wire (RJ-11) cabling.
The type of cabling required for ports on this module is determined by
the Protocol, 4-Wire/8-Wire Operation, and Printer Sharing Mode
(unidirectional or bidirectional) you are using. Please see Appendix
A.6 for instructions to configure the Protocol on individual ports and
Section 8.8.1 for instructions to program 4-Wire/8-Wire Operation and
set Printer Sharing Mode.
IMPORTANT: Before you proceed with cabling your equipment to
this module, you must verify that your equipment supports either EIA232 or EIA-422 protocol. In addition, you must know the connector
type and the pin/signal definitions for your equipment.
Ports on the M24SII-V07 module have RJ-45 (8-wire) connectors
which also accept RJ-11 (4-wire) connectors. Most serial computers,
modems, and printers do not have RJ-45/RJ-11 modular connectors.
Therefore, adapters are required to convert from either DB-25 or DE-9
connectors to modular connectors. BayTech has a complete line of
RJ-45/RJ-11 adapters and cables that will make your installation quick
and trouble free. Please see Appendix A.7 for adapter pinouts as well
as recommended cabling. Figure 7 and Figure 8 on Page 34 are
drawings of an RJ-45 receptacle and plug.
There are several possible pin/signal definitions depending upon how
you have configured the 4-Wire/8-Wire Operation (8-wire or 4-wire),
Printer Sharing Mode (unidirectional or bidirectional), and the Protocol
(EIA-232 or EIA-422).
If you will be using 8-wire Operation, please see see Section 5.5.1.
If you will be using 4-wire Operation, please use the reference chart
below to determine the applicable sections based on your application.
4-WIRE OPERATION OPTIONS
Printer Sharing Mode
Protocol
Application
See Section:
Bidirectional
1
X
2
X
Unidirectional
EIA-422
X
5.5.2.1
X
3
X
4
X
EIA-232
X
5.5.2.2
5.5.2.3
X
5.5.2.4
& NOTE: This configuration will support hardware or XON/XOFF
handshaking and bidirectional Printer Sharing Mode.
Ports on the M24SII-V07 I/O module using 8-wire Operation utilize the
following pins and signals for communication:
RJ-45 PIN-OUT INFORMATION
PIN
SIGNAL
232/422
DIRECTION
DESCRIPTION
1
DTR/HSO
Output
Handshake Out, enable/disable the receiving of
characters
2
GND/GND
----
Signal Ground
3
NC/TX+
Output
No connection/Transmit Data (+)
4
TX/TX-
Output
Transmit Data/Transmit Data (-)
5
RX/RX-
Input
Receive Data/Receive Data (+)
6
GND/RX+
----/Input
Signal Ground/Receive Data (+)
7
GND/GND
----
Signal Ground
8
CTS/HSI
Input
Handshake In, enable/disable the transmitting of
characters
If you are connecting an EIA-232 device to the M24SII-V07 module
using 8-wire Operation, please see Appendix A.5 for device adapter
pinouts and recommended cabling.
When connecting an EIA-422 device to the M24SII-V07 module using
8-wire Operation, the cable required to connect the two devices must
have TX+ wired to RX+ (and vice versa), TX- wired to RX- (and vice
versa), HSO wired to HSI (and vice versa), and have the signal
grounds connected. Please Figure 9.
M24SII-V07 (EIA-422, 8-wire)
RJ-45
Equipment
Connections
1
2
3
4
5
6
7
8
HSI
GND
RX+
RXTXTX+
GND
HSO
HSO
GND
TX+
TXRXRX+
GND
HSI
Figure 9: M24SII-V07 EIA-422 (8-wire) Connection
If you are connecting an EIA-422 device other than another BayTech
product, you must refer to the operator's manual for your equipment to
determine which pins are defined as TX+, TX-, RX+, RX-, HSI, HSO,
and signal ground (common).
If you are connecting another BayTech product (such as Tran-x) using
EIA-422 protocol and 8-wire Operation, please refer to Appendix
A.7.1 for the recommended cable pinout.
NOTE: Ports using this configuration will support XON/XOFF
handshaking only. You must enable XON/XOFF handshaking in
configuration mode for these ports (see Section 8.8.1) and on the
equipment that will connect to these ports.
Ports on the M24SII-V07 module using EIA-232 Protocol, 4-wire
Operation, and bidirectional Printer Sharing Mode utilize the following
pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-232
DIRECTION
DESCRIPTION
1
NC
----
No connection
2
TX
Output
Transmit Data
3
RX
Input
Receive Data
4
GND
----
Signal Ground
If you are connecting a device to a port on the M24SII-V07 module
using EIA-232 Protocol, 4-wire Operation, and bidirectional Printer
Sharing Mode, please see Appendix A.7.2 for device adapter pinouts
and recommended cabling.
COMPUTER PORTS
NOTE: Computer ports using this configuration will support hardware
handshaking only. You must ensure hardware handshaking is
supported by the equipment that will connect to these ports.
Computer ports on the M24SII-V07 module using EIA-232 Protocol, 4wire Operation, and unidirectional Printer Sharing Mode utilize the
following pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-232
DIRECTION
DESCRIPTION
1
NC
----
No connection
2
DTR
Output
Handshake Out,
enable/disable the receiving
of characters
3
RX
Input
Receive Data
4
GND
----
Signal Ground
If you are connecting a device to a computer port on the M24SII-V07
module using EIA-232 Protocol, 4-wire Operation, and unidirectional
Printer Sharing Mode, please see Appendix A.7.3 for adapter pinouts
and recommended cabling.
PRINTER PORTS
NOTE: Printer ports using this configuration will support hardware
handshaking only. You must ensure hardware handshaking is
supported by the equipment that will connect to these ports.
Printer ports on the M24SII-V07 module using EIA-232 Protocol, 4wire Operation, and unidirectional Printer Sharing Mode utilize the
following pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-232
DIRECTION
DESCRIPTION
1
NC
----
No connection
2
TX
Output
Transmit Data
3
CTS
Input
Handshake In,
enable/disable the
transmission of characters
4
GND
----
Signal Ground
If you are connecting a device to a printer port on the M24SII-V07
module using EIA-232 Protocol, 4-wire Operation, and unidirectional
Printer Sharing Mode, please see Appendix A.7.3 for adapter pinouts
and recommended cabling.
NOTE: Ports using this configuration will support XON/XOFF
handshaking only. You must enable XON/XOFF handshaking in
configuration mode for these ports (see Section 8.8.1) and on the
equipment that will connect to these ports.
Ports on the M24SII-V07 module using EIA-422 Protocol, 4-wire
Operation, and bidirectional Printer Sharing Mode use the following
pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-422
DIRECTION
DESCRIPTION
1
TX+
Output
Transmit Data (+)
2
TX-
Output
Transmit Data (-)
3
RX-
Input
Receive Data (-)
4
RX+
Input
Receive Data (+)
When connecting an EIA-422 device to the M24SII-V07 module using
4-wire Operation and bidirectional Printer Sharing Mode, the cable
required to connect the two devices must have TX+ wired to RX+ (and
vice versa) and TX- wired to RX- (and vice versa). Please see Figure
10 below.
M24SII-V07 Port
(EIA-422, 4-wire, bidirectional)
RJ-11
Equipment
Connections
RJ-11
1
2
3
4
RX+
RXTXTX+
TX+
TXRXRX+
Figure 10: M24SII-V07 EIA-422 (4-wire) Connection
If you are connecting a device other than another BayTech product,
you must refer to the operator's manual for your equipment to
determine which pins are defined as TX+, TX-, RX+, and RX-.
If you are using 4-wire Operation and bidirectional Printer Sharing
Mode and connecting to another BayTech product (such as Tran-x),
please refer to Appendix A.7.4 for the recommended cable pinout.
COMPUTER PORTS
NOTE: Computer ports using this configuration will support hardware
handshaking only. You must ensure hardware handshaking is
supported by the equipment that will connect to these ports.
Computer ports on the M24SII-V07 module using EIA-422 Protocol, 4wire Operation, and unidirectional Printer Sharing Mode utilize the
following pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-422
DIRECTION
DESCRIPTION
1
HSO+
Output
Handshake Out (+)
2
HSO-
Output
Handshake Out (-)
3
RX-
Input
Receive Data (-)
4
RX+
Input
Receive Data (+)
When connecting an EIA-422 device to a computer port on the
M24SII-V07 I/O module using 4-wire Operation and unidirectional
Printer Sharing Mode, the cable required to connect the two devices
must have RX+ wired to TX+, and RX- wired to TX-, HSO+ wired to
HSI+, and HSO- wired to HSI-. Please see Figure 11 below.
M24SII-V07 Computer Port
(EIA-422, 4-wire, unidirectional)
RJ-11
1
2
3
4
HSO+
HSORXRX+
Equipment
Connections
RJ-11
HSI+
HSITXTX+
Figure 11: M24SII-V07 EIA-422 (4-wire) Connection
If you are connecting a device other than another BayTech product,
you must refer to the operator's manual for your equipment to
determine which pins are defined as TX+, TX-, HSI+, and HSI-.
NOTE: If your EIA-422 device has only one input hardware
handshake line (i.e., no HSI+ and HSI-), connect this single
handshake line to HSO- on the M24SII-V07 module (Pin 5).
If you are connecting a computer port on the M24SII-V07 module to
another BayTech product (such as the Tran-x LPT-460 or PS-02)
using 4-wire Operation and unidirectional Printer Sharing Mode,
please refer to Appendix A.7.4 for the recommended cable pinout.
PRINTER PORTS
NOTE: Printer ports using this configuration will support hardware
handshaking only. You must ensure hardware handshaking is
supported by the equipment that will connect to these ports.
Printer ports on the M24SII-V07 module using EIA-422 Protocol, 4wire Operation, and unidirectional Printer Sharing Mode utilize the
following pins and signals for communication:
RJ-11 PIN-OUT INFORMATION
PIN
SIGNAL
EIA-422
DIRECTION
DESCRIPTION
1
TX+
Output
Transmit Data (+)
2
TX-
Output
Transmit Data (-)
3
HSI-
Input
Handshake In (-)
4
HSI+
Input
Handshake In (+)
When connecting an EIA-422 device to a printer port on the M24SIIV07 I/O module using 4-wire Operation and unidirectional Printer
Sharing Mode, the cable required to connect the two devices must
have TX+ wired to RX+, and TX- wired to RX-, HSI+ wired to HSO+,
and HSI- wired to HSO-. Please see Figure 12 below.
M24SII-V07 Printer Port
(EIA-422, 4-wire, unidirectional)
RJ-11
1
2
3
4
TX+
TXHSIHSI+
Equipment
Connections
RJ-11
RX+
RXHSOHSO+
Figure 12: M24SII-V07 EIA-422 (4-wire) Connection
If you are connecting a device other than another BayTech product,
you must refer to the operator's manual for your equipment to
determine which pins are defined as RX+, RX-, HSO+, and HSO-.
NOTE: If your EIA-422 device has only one output hardware
handshake line (i.e., no HSO+ and HSO-), connect this single
handshake line to HSI- on the M24SII-V07 module (Pin 5).
If you are connecting a printer port on the M24SII-V07 module to
another BayTech product (such as the Tran-x SP-01 or SP-02) using
4-wire Operation and unidirectional Printer Sharing Mode, please refer
to Appendix A.7.4 for the recommended cable pinout.
The Port Logical Name is simply an aid to identifying which device is
connected to which port. It is used in the configuration menus and the
I.D. Page Message. It has no function other than identification.
Factory default is Device A for Port 1, Device B for Port2.....
Device X for Port 24.
The Model 24SII DES may have a total number of ports ranging from
4 to 24, in multiples of 4. Any of these ports (parallel or serial) except
Port 1 of Module 1 may be configured to have a Port Designation of
computer or printer. Port 1 of Module 1 must be a computer port.
Therefore, the Port Designation for this port cannot be changed. The
Model 24SII DES will automatically convert data from serial-to-parallel
and parallel-to-serial.
NOTE: The Port Designation does not allow you to change ports from
parallel to serial or vice versa. The communication protocol of the
ports (parallel or serial) is determined by the type(s) of modules you
have installed.
NOTE: If computer-to-computer communication is required, the
designated ports for these computers must be serial ports. If a port is
to be used for a plotter, it should be designated as a printer port. If a
port is to be used for a modem, it should be designated as a computer
port.
Factory default configuration is Port 1 of Module 1 (serial) a
computer port, Port 2 of Module 1 (serial) a printer port, and all
remaining ports (serial and/or parallel) computer ports.
' "#
(
You may configure the number of printer ports on the M24SII-V02
parallel module to be 0 to 4. If you will be connecting any printers to
this module, the printers would physically connect to the higher
numbered ports. For example, if you will be connecting 2 parallel
printers to a M24SII-V02 high speed parallel module, you would
attach the printers to Port 3 and Port 4 of that module.
Factory default configuration for Number of Printers is 0.
To select a specific port in multiple printer applications or when
computer-to-computer communications is desired, the computer
sends the Port Select Code (which consists of any ASCII character
string up to eight characters), the desired module number (1 to 6), the
desired port number (1 to 4), and a terminating character: 0D Hex
(Enter/Return) or 0A Hex (Line Feed). We will refer to this entire
string of characters as the port select sequence.
For example, if you are using the factory default Port Select Code
($SELECT) and you wish to select a printer connected to Port 2 of
Module 4, you would need to send the following port select sequence:
$SELECT42<Enter/Return> or $SELECT42<Line Feed>.
The port select sequence is trapped by the Model 24SII DES if valid
and not passed to the selected peripheral or computer.
The port select sequence may be sent as a separate ASCII file
preceding the print job, via DOS batch file(s), as part of a printer
initialization string, or by using the RAMEXEC hot key software.
If the computer is communicating with 7 bit word size with parity
enabled, the 8th or parity bit is masked from the Port Select Code
before it is examined, allowing you to send the Port Select Code with
odd or even parity.
Factory default is $SELECT.
In multiple printer applications, you may select printer ports either
anytime while printing or before the print job only. Mode A is a
general-purpose mode and allows the computer to select a printer
anytime while printing by sending a new port select sequence. Mode
B allows the computer to select the printer at the beginning of printing
only. In Mode B, the Model 24SII DES will recognize any port select
sequence in the first 16 characters of the print job only. After the first
16 characters of the print job have been received, the Input Inactivity
Timeout period must elapse before the Model 24SII DES will
recognize another port select sequence.
Computer-to-computer communication is not affected by the Port
Select Mode.
Factory default is Mode A: printer selection anytime while
printing.
The Model 24SII DES will translate for serial devices using different
configurations. This allows you to mix-and-match devices having
different configurations. You may set the baud rate, word size, stop
bits, parity and XON/XOFF (transmit and receive) for each individual
serial port. For high speed serial modules, you may also program the
printer sharing mode to either bidirectional or unidirectional. You may
program the 4-Wire/8-Wire Operation on the M24SII-V07 high speed
serial module to be 4-wire (RJ-11) or 8-wire (RJ-45).
Factory-default configuration on all serial ports is 9600 baud rate,
8 bit word size, 1 stop bit, no parity, and XON/XOFF disabled.
The default printer sharing mode for high speed serial modules
is bidirectional. The default 4-Wire/8-Wire Operation for the
M24SII-V07 module is 8-wire.
"
The Input Inactivity Timeout allows the Model 24SII DES to
disconnect a computer port which has sent a print job when no
characters are received from the computer for the specified timeout
period. The input inactivity timeout is effective only for
computer-to-peripheral communication. For computer-to-computer
communication, the timeout does not apply, and disconnect occurs
only manually.
If the buffer of the Model 24SII DES is filled to capacity, the unit will
drop the DTR line or send an XOFF to the computer, causing the
computer to stop sending characters until the buffer can accept more
data. In this case, the time that the computer is not sending
characters is not counted as part of the Input Inactivity Timeout.
Factory default is 20 seconds.
&
The Model 24SII DES has four Form Feed Modes allowing you to
determine when form feed occurs at the printers you are selecting: at
the beginning of printing, at the end of printing, or both. This feature
is useful when sending DOS files to a laser printer.
Factory default is no form feed.
)
You can print a programmable message and the Logical Name of the
source computer on a separate sheet of paper before or after printing
any other data. You can enable or disable the I.D. Page Message and
whether you want it to print before or after the print job. This page
prints in addition to the form feed. The I.D. Page Message is useful
for identifying various users' print jobs in the event you have several
people printing to the same printer frequently, such as in a classroom
environment.
Factory default is: "This print job is for:", with the I.D. message
disabled.
#
Individual computer ports may be configured to have print jobs sent to
a specific default printer port automatically. The Default Printer
Assignment consists of the module number (1 to 6) and the port
number (1 to 4) that the printer is physically connected to on the
Model 24SII DES. The Default Printer Assignment may be set to 0 for
contention mode in which case all print jobs sent from the particular
computer will be sent to the first available printer.
Any print job sent without a port select sequence preceding it will
automatically go to the default printer port upon initial power-up.
Factory default is 0 for contention mode.
The Model 24SII Data Exchange System allows peripheral (printer,
plotter) sharing, specific peripheral selection or peripheral contention,
and buffering of print data. The Model 24SII DES will let several users
automatically share one printer. In multiple printer applications, it will
let users contend for the next available printer on a
first-come-first-served basis or select a specific printer. Data is stored
in the buffer of the Model 24SII DES and is sent to the printer as the
printer can receive it.
From the factory, the Model 24SII DES is preset to allow multiple
computers to share one printer. If this configuration does not
correspond to your application, you should make the necessary
changes to the Port Designations by accessing the configuration
mode of the Model 24SII DES (see Section 8). For a description of
the various changes that may be made by accessing the configuration
mode please see Section 6.
It is highly recommended that printers or plotters connected to the
Model 24SII DES be plugged in and turned on at all times while there
is activity occurring on the Model 24SII DES; however printers need
not be in the "on line" mode at all times.
In applications where several users are sharing one peripheral
(printer, plotter, etc.), printer sharing is automatic. The user performs
his normal print operation; there are no codes to send. Data is
automatically sent to the printer. The Model 24SII DES can receive
print jobs simultaneously from all computers and will pass print jobs to
the printer in the same order in which they were received in the buffer.
In multiple printer applications, the Model 24SII DES gives you the
capability of sending print jobs to the first available printer (contention
mode). You may put the Model 24SII DES into contention mode by
changing the Default Printer Assignment to 0-0 for the individual
computer port(s) while in configuration mode (see Sections 6.10 and
8.14). The data is sent to the Model 24SII's buffer and passed to the
next available printer on a first-come-first-serve basis.
If your computer is connected to a port configured to default to a
specific printer upon power-up (i.e., non-zero Default Printer
Assignment), you may have the Model 24SII DES send a print job to
the first available printer by sending the Port Select Code (default is
$SELECT) followed by 00 and a terminating character (Enter/Return
or Line Feed) prior to sending the print job. Subsequent print jobs will
be routed to the first available printer until either another port select
sequence is sent, power is cycled on the Model 24SII DES, or you
enter the configuration mode.
The Port Select Code, 00 (zero-zero) and terminating character are
trapped if they are valid and not passed to the printer.
A computer connected to a port configured for contention mode upon
power-up (i.e., Default Printer Assignment of 0-0) may select a
specific printer by sending the Port Select Code followed by desired
module number (1 to 6), the desired printer port number (1 to 4), and
a terminating character. Subsequent print jobs will go to the selected
printer until either another port select sequence is sent, power is
cycled on the Model 24SII DES, or you enter the configuration mode.
The port select sequence may be sent by manually inserting it into an
ASCII print file, via DOS batch file, as part of a printer initialization
string, or by using BayTech's RAMEXEC program will send it for you
when you strike designated hot keys.
The Model 24SII DES powers-up from the factory in contention mode.
To select a specific peripheral in multiple printer/plotter applications,
the computer sends a port select sequence which consists of the
user-defined Port Select Code (factory default is: $SELECT), the
module number the printer is connected to (1 to 6), followed by the
desired printer port number on that module (1 to 4) and a terminating
character: 0D Hex (Enter/Return) or 0A Hex (Line Feed). The port
select sequence is trapped if valid and not passed to the printer.
For example, if you wish to select a printer which is connected to Port
2 of Module 2, you would send the following port select sequence:
$SELECT22<Enter/Return> or $SELECT22<Line Feed>.
All print jobs sent after you have selected a specific peripheral port will
be routed to that peripheral port until another peripheral port is
selected.
There are two modes for sending the Port Select Code. In Port
Select Mode A (printer selection anytime while printing), the Model
24SII DES looks for the Port Select Code anytime. If no Port Select
Code is received, the data will be routed to the last selected
peripheral port or to the default peripheral port (if the unit has just
been powered up).
In Port Select Mode B (printer selection at beginning of printing), the
Model 24SII DES looks for the Port Select Code in the first 16
characters received. If the first characters of the Port Select Code are
not received within 16 characters, the data will be routed to the default
printer port. If the first characters of the Port Select Code are received
within 16 characters and a valid port select sequence is subsequently
received, the data will be routed to the selected printer port.
The port select sequence may be sent as a separate ASCII file
preceding the print job, via DOS batch files, as part of a printer
initialization string, or by using the utility software.
%
A print job starts when the Model 24SII DES receives 3 or more
characters from a computer.
In Port Select Mode A (printer selection anytime), a print job is ended
when no characters are received by the Model 24SII DES from the
computer for the specified input inactivity timeout period or when the
computer sends a manual disconnect sequence.
In Port Select Mode A, when the Input Inactivity Timeout is set to 0
(zero) seconds, a print job is ended only under the following
conditions:
1)
Manual Disconnect: Port Select Code followed by a terminating
character (Enter/Return or Line Feed).
2)
Clear Buffer Command: Port Select Code followed by CLR and
a terminating character (see Section 7.1.6).
3)
Sending another Port Select Sequence: Port Select Code
followed by a module number, a port number, and a
terminating character. This will also start the next print job.
In Port Select Mode B (printer selection at beginning of printing), a
print job is ended only when no characters are received by the Model
24SII DES from the computer for the specified Input Inactivity Timeout
period only.
CAUTION: The Input Inactivity Timeout should not be set to 0 (zero)
seconds (disabled) in Port Select Mode B. Mode B operation cannot
recognize a manual disconnect or clear buffer command until the
current print job is ended via the inactivity timeout period.
If the buffer of the Model 24SII DES is filled to capacity, the unit will
drop the DTR line or send an XOFF to the computer, causing the
computer to stop sending characters until the buffer can accept more
data. In this case, the time that the computer is not sending
characters is not counted as part of the Input Inactivity Timeout.
When a user makes a request to print, the data is sent to the Model
24SII DES and stored in the spooling buffer (standard 1MB, optional
up to 16MB). All users may simultaneously input data to this
dynamically allocated buffer. Therefore, the entire buffer could be
occupied by data from one user, if only one is active, or the buffer
could be simultaneously distributed to all users, maximizing buffer
utilization.
Print jobs are buffered and put into a queue in the same order in
which they were sent to the Model 24SII DES. These print jobs are
then sent to the printer in the same order in which they were queued.
When a computer port LED illuminates, this indicates a connection
between the computer on that port and the buffer of the Model 24SII
DES. When a printer port LED illuminates, this indicates the buffer of
the Model 24SII DES has connected to the printer on that port.
If a computer wishes to clear the buffer, the computer sends the Port
Select Code followed by CLR and a terminating character
(Enter/Return or Line Feed) to the Model 24SII DES.
This command will only affect print jobs originated by that particular
computer. Print jobs in the buffer from other computers are not
affected. The clear buffer command will clear print jobs currently
queued in the buffer and also a print job in process, if one is printing.
NOTE: This command will not clear a printer's buffer of data already
passed to it from the Model 24SII DES.
The clear buffer command is operable in both Port Select Mode A or
Mode B. However, in Port Select Mode B, the Model 24SII DES is
transparent after the first 16 characters are received, therefore the
computer must wait for the Input Inactivity Timeout to occur before
sending the clear buffer command.
The clear buffer command may be sent as a separate ASCII file
preceding the print job, via DOS batch files, as part of a printer
initialization string, or by using the utility software.
*%
Each print job must be a minimum of three (3) characters. The Input
Inactivity Timeout interval is not valid until after three characters are
received by the Model 24SII DES.
If less than three characters are received within the inactivity timeout
interval (default is 20 seconds) after the first character(s) is received,
the character(s) will be discarded.
The Model 24SII Data Exchange System allows pairs of computers
(or computers and other devices such as modems, scales, data
collection equipment, etc.) to communicate while other computers are
sending data to the print buffer and the Model 24SII DES is sending
data to printers. Full duplex communication allows file transfer with
many popular communications software packages.
NOTE: Computer-to-computer communication can occur only if both
ports communicating are serial. Parallel ports allow one-way
communication only and will not provide full duplex communication.
Computers that will be operating with computer-to-computer
communication must both be connected to ports designated as serial
ports. For high speed serial modules, the printer sharing mode must
be bidirectional.
If two serial computers wish to communicate, either computer sends
to the Model 24SII DES the Port Select Code followed by the other
computer's module number and port number, and a terminating
character: 0D Hex (Enter/Return) or 0A Hex (Line Feed).
If the requested computer is free, the two computers are connected
with full duplex communication, and an On Line message is sent by
the Model 24SII DES to the computer requesting the connection.
If the requested computer is busy, the computer requesting
connection receives a Busy message from the Model 24SII DES.
To disconnect, either connected computer first delays two seconds
and then sends the Port Select Code followed by a terminating
character: 0D Hex (Enter/Return) or 0A Hex (Line Feed). You must
wait another two seconds after sending the disconnect sequence,
before sending any other data such as a print job or Port Select Code.
Do not send both Enter/Return and Line Feed as the terminating
character. The Model 24SII DES looks for either Enter/Return or Line
Feed as the terminating character, but not both. If you send both
Enter/Return and Line Feed as part of the disconnect sequence, the
Model 24SII DES will not recognize the disconnect sequence unless
there is a two second delay between Enter/Return and Line Feed.
If there is not a two second delay prior to sending the disconnect
sequence and a two second delay after sending the disconnect
sequence, the entire disconnect sequence will become invalid and will
be passed through to the other computer device. The timing between
characters in the Port Select Code should not exceed one second,
otherwise the Port Select Code will become invalid and the characters
will be passed through to the device connected to the other computer
port.
The Model 24SII DES will respond to a valid disconnect sequence by
sending an Off Line message to the user requesting the disconnect.
File transfer can be achieved with a computer-to-computer connection
through the Model 24SII DES as long as the communicating
computers are each running a third-party communications software
package. Note that both computers must be serial.
Following is a partial list of software packages that support file
transfer: CrossTalk, PC Talk XVI, and Mirror.
Note that to effectively achieve file transfer, both computers should be
using the same protocol, e.g., Kermit, Q-Modem, or X-Modem.
The port select sequence should be sent from within your
communications package by using a macro or manually typing it out
so you can see the On Line or Busy message.
NOTE: Using RAMEXEC to select another computer port is not
suggested. This is because RAMEXEC does not provide full duplex
communication so you cannot see the On Line or Busy message if
you attempt to use RAMEXEC to determine whether or not you got
connection to the other computer port.
Modem sharing can be achieved with a computer-to-computer
connection through the Model 24SII DES.
Make the connection to the modem port by sending the Port Select
Code, the module number (1 to 6) and port number (1 to 4) the
modem is connected to followed by a Enter/Return or line feed
character. The model 24 will respond with an On Line message if the
modem is available or a Busy message if the modem is currently
connected to another computer port. Proceed with your normal
modem communications once you receive the On Line message from
the Model 24SII DES.
It is suggested that the computer make the connection to the modem
port on the Model 24SII DES from within your desired modem
package. You must be in a full duplex mode within your modem
package. You must also configure your modem package to
communicate with the same serial port parameters that your computer
normally uses to print with (i.e., baud rate, etc.).
A common mistake is to configure your communications package to
match your modem's serial parameters (baud rate, word size, etc.)
and not the Model 24SII's serial parameters. Keep in mind that you
are physically connected to the Model 24SII DES, not the modem.
The Model 24SII DES will do any necessary serial parameter
conversions between the computer and the modem.
For example, suppose you want to communicate with a 2400 baud
modem connected to Port 2 of Module 2 and your PC is connected to
a computer port set at the Model 24SII's factory default serial
configuration (9600 baud, 8 data bit, 1 stop bit, no parity, and
XON/XOFF disabled). Port 2 of module 2 would need to be
configured to communicate at 2400 baud to match the baud rate of
the modem. However, you would configure your modem
communications package to communicate at 9600 baud to match the
baud rate of the computer port on the Model 24SII DES you are
connected to. You are now ready to make the connection to the
modem port through the Model 24SII DES.
NOTE: The Model 24SII DES does not pass hardware flow control
lines through the unit. If your modem package requires a change of
state in either the Data Carrier Detect or Ring Indicator signal lines, it
is suggested that you use the results codes option on both the
modem and your modem package when communicating through the
Model 24SII DES. Please refer to your technical documentation on
both your modem and your modem package on how to enable and
use the results codes.
NOTE: Your external modem should be programmed to have the
autobaud detect feature disabled. This is done by issuing the AT\J0
command for Hayes compatible modems.
Once you have finished your modem session, you must send the
disconnect sequence (i.e., the Port Select Code followed by
Enter/Return or Line Feed) to disconnect from the modem port and
allow other users access to the modem port.
BETWEEN COMPUTER AND PERIPHERAL THROUGH MODEL
24SII
When a computer transmits data to a peripheral device through a
computer port on the Model 24SII DES, the data is received and
stored in the spooling buffer (standard 1MB; optional up to 16MB)
which in turn retransmits it to a peripheral device through a printer
port. During transmission, when the buffer fills, the Model 24SII DES
will make the computer port's DTR (Data Terminal Ready) line low
(negative voltage), signaling the transmitting computer that it cannot
accept more data.
When the Model 24SII DES retransmits the data to the peripheral
device through a printer port, and the peripheral device cannot receive
any more data, the Model 24SII DES will expect to see a low on the
CTS (Clear-to-Send) line. When the peripheral device can receive
more data, the Model 24SII DES will expect to see a high on the CTS
line.
When the buffer of the Model 24SII DES can receive more data, the
Model 24SII DES will make the transmitting computer port's DTR line
high (positive voltage).
In the reverse direction (peripheral-to-Model 24SII DES-to computer),
handshaking is the same, but the spooling buffer is not utilized.
BETWEEN COMPUTER AND COMPUTER THROUGH MODEL
24SII
When Computer A transmits data to Computer B through the Model
24SII DES, the data is received from Computer A and stored in a
512-character buffer which in turn retransmits it to Computer B. When
the buffer fills, the Model 24SII DES will make the DTR line low to
Computer A, signaling Computer A that it cannot accept more data.
When the Model 24SII DES retransmits the data to Computer B, the
Model 24SII DES will expect to see a high on the CTS line. When
Computer B cannot receive any more data, the Model 24SII DES will
expect to see a low on the CTS line.
When the buffer of the Model 24SII DES can receive more data, the
Model 24SII DES will make the DTR line high to Computer A.
+!+
NOTE: The Model 24SII DES permits XON/XOFF to be enabled or
disabled by port independently in the receive and transmit directions.
The description of handshaking functions below considers XON/XOFF
to be enabled in both directions. If XON/XOFF is disabled in one
direction, that direction will support hardware handshaking as
described in Section 7.3.1.
BETWEEN COMPUTER AND PERIPHERAL THROUGH MODEL
24SII
When a computer transmits data to a peripheral device through a
computer port on the Model 24SII DES, the data is received and
stored in the spooling buffer (standard 1MB; optional up to 16MB)
which in turn retransmits it to a peripheral device through a printer
port. During transmission, when the buffer fills, the Model 24SII DES
will send an XOFF, signaling the transmitting computer that it cannot
accept more data.
When the Model 24SII DES retransmits the data to the peripheral
device through a printer port, and the peripheral device cannot receive
any more data, the Model 24SII DES will expect to see a low on the
CTS (Clear-to-Send) line or receive an XOFF. When the peripheral
device can receive more data, the Model 24SII DES will expect to see
a high on the CTS line or receive an XON.
When the buffer of the Model 24SII DES can receive more data, the
Model 24SII DES will send an XON to the transmitting computer.
In the reverse direction (Peripheral-to-Model 24SII DES-to Computer),
handshaking is the same, but the spooling buffer is not utilized.
BETWEEN COMPUTER AND COMPUTER THROUGH MODEL
24SII
When Computer A transmits data to Computer B through the Model
24SII DES, the data is received from Computer A and stored in a
512-character buffer which in turn retransmits it to Computer B. When
the buffer fills, the Model 24SII DES will send an XOFF to Computer
A, signaling Computer A that it cannot accept more data.
When the Model 24SII DES retransmits the data to Computer B, the
Model 24SII DES will expect to see a high on the CTS line or receive
an XON. When Computer B cannot receive any more data, the Model
24SII DES will expect to see a low on the CTS line or receive an
XOFF.
When the buffer of the Model 24SII DES can receive more data, the
Model 24SII DES will send an XON to Computer A.
NOTE: For computers sending binary data and using XON/XOFF
handshaking, the input flow control (Recv) should be enabled and the
output flow control (Xmit) should be disabled. This will allow any XON
or XOFF character sent in the binary string to be passed through the
Model 24SII DES to the receiving device.
You may wish to write your own program for sending the port select
sequence to the Model 24SII DES instead of manually inserting it or
utilizing the hot keys provided in BayTech's supplied support software
program.
A simple procedure when using word processing programs is to
create an ASCII file for each printer which contains the Port Select
Code, the device module number (1 to 6), the device port number,
and the terminating character. This file could be named PRINTER1.
When you wish to select a particular device, you simply print this file
followed by the actual print file.
Another method is to make the port select sequence the first
characters of the text. These characters will be trapped by the Model
24SII DES and will not be sent to the printer. This method will work
only if the text of the print file is sent in an ASCII format.
You may also use a DOS batch file to send a port select sequence.
The DOS command typically used is the ECHO command. An
example of the ECHO command used to select a printer connected to
Port 2 of Module 2 using the default Port Select Code is as follows:
ECHO $PRINTER22>LPT1:.
This command should be entered in all capitals with only one space
between ECHO and the $. Please refer to you DOS manual for
instructions on creating DOS batch files.
Programs such as Word Perfect and WordStar typically send a printer
initialization string before any data. The port select sequence may
also be embedded in this string to select a printer. For example,
Word Perfect allows you to edit the printer definition file for a specific
printer by using the PTR command. The port select sequence for the
Model 24SII DES would typically be inserted prior to any escape
codes for the printer. Please see the documentation for your
application package(s) for more information on editing printer
initialization strings.
###
If you have a HP 3000 mini computer, you should contact a BayTech
sales representative to order option #26. When the HP 3000 sends an
HP LaserJet inquiry command, the Model 24SII DES will then respond
with the required ASCII 0 (30 hex).
This option is compatible with all other computer systems.
&
Configuration changes for the entire Model 24SII DES are made
through the master configuration port which is Port 1 of Module 1. Port
1 of Module 1 must always be a serial port to allow configuration to
occur. The master configuration port has access to the configuration
of all ports on the Model 24SII DES and can program all options of the
configuration mode one module at a time.
A serial computer connected to a port other than Port 1 of Module 1
may access configuration mode and configure ports on its module
only. However, configuration changes are limited; several options Port Designation, Port Select Code, I.D. Page Message, and I.D.
Page Printing Schedule - may be made only through the master
configuration port.
Before the master configuration port can access the configuration
mode, all ports on the Model 24SII DES must be inactive (i.e. all red
LEDs must be off) and there can be no print jobs in the buffer. Once
the master configuration port has accessed the configuration mode,
the LEDs for Port 1 of Module 1 and the LEDs for the selected module
will illuminate and will remain illuminated while configuration is
occurring. All devices connected to the selected module for
configuration will be unable to communicate with the Model 24SII DES
while configuration of that module is occurring.
Before a computer not connected to the master configuration port can
access configuration mode, the LEDs for its module must be out (i.e.,
no activity on the module) and there can be no print jobs in the buffer
for any port on that module. Once the computer has accessed
configuration mode for its module, the LEDs for that module will
illuminate. All devices connected to the module will be unable to
communicate with the Model 24SII DES while configuration for the
module is occurring.
NOTE: Parallel computer ports may not be used for configuration, as
communication is only one-way.
To access the configuration mode of the Model 24SII DES, use the
following procedure:
1.
Connect a dumb terminal (or a PC running a terminal
emulation program) to the master configuration port
(Port 1 of Module 1) or to any serial computer port.
Configure your terminal's serial parameters to match
those of the Model 24SII DES. From the factory, all
serial ports on the Model 24SII DES are factory set at
9600 baud rate, 8 word size, 1 stop bit, no parity, and
XON/XOFF disabled.
If you do not have a dumb terminal or a terminal
emulation program, BayTech supplies a utility diskette
which includes software to put an IBM PC or compatible
into a terminal mode. See Section 4.2 for instructions to
obtain the software (TERM.EXE) and Section 4.6 for
instructions to use TERM for configuration.
2.
Send from this device to the Model 24SII DES port being
used for configuration the following control characters:
ASCII Control-T (14 Hex), ASCII capital C (43 Hex),
and the desired module number (1 to 6).
For example, if your terminal is connected to Port 1 of Module
1 and you wish to configure a port on Module 1, you would
send the following: <Control-T>C1.
NOTE: A serial computer connected to a port other than Port 1 of
Module 1 cannot access configuration mode for its module while the
master configuration port is configuring a module.
NOTE: If a computer attempts to configure a feature that is only
accessible to the master configuration port, Port 1 of Module 1, the
computer will be sent this message by the Model 24SII DES:
This Option is accessible via Port 1, Module 1 ONLY.
Strike any Key to continue
NOTE: If a computer port other than the master configuration port
attempts to access configuration mode of a module that it is not
connected to, the Model 24SII DES will ignore the configuration
request and create a print job consisting of Control-T, C, and the
module number.
CAUTION: If you have a M24SII-V07 installed as Module 1, do not
configure Port 1 of this module for any baud rate higher than 115,200
or you will locked out of configuration mode and unable to program
the various features of the Model 24SII.
&
OPTION ACCESSIBILITY: Through any serial computer port.
The Model 24SII DES will respond to the receiving of Control-T,
capital C, and the desired module number with an identification block
and a menu of the configuration options available, similar to the
following:
Copyright (c) Bay Technical Associates, 1992
Model 24SII Data Exchange System Rev. 2.02
Total memory 1M
This Module is 1
Status.......................................1
Program Port Logical Name....................2
Set Port Designation.........................3
Program Port Select Code.....................4
Set Port Select Mode.........................5
Set Serial Port Configuration................6
Set Input Inactivity Timeout.................7
Enable/Disable Form Feed Mode................8
Program I.D. Page Message....................9
Enable/Disable I.D. Page Message.............A
Select Print Schedule for I.D. Page..........B
Program Default Printer Assignment...........C
Program Module Printer Sharing Mode..........D
Exit Configuration...........................X
For illustration purposes, we will show the configuration menus for
Module 1 which are typical of the configuration menus generated by
other modules.
NOTE: Menu selection is case sensitive. It is recommended that your
keyboard be in the CAPS LOCK position.
NOTE: If you have configured a module and exited from
configuration mode for that module, you must wait for the Model 24SII
DES to reset before attempting to access configuration mode for
another module. It takes the Model 24SII DES 5 to 10 seconds to
reset after exiting configuration mode for a module. The LEDs on the
front panel will illuminate while the Model 24SII DES is resetting. Wait
for the LEDs to go out before attempting to configure another module.
NOTE: If you happen to be configuring a M24SII-V02 high speed
parallel module, the main configuration menu is different from the one
shown on the previous page.
The Model 24SII DES will respond to the receiving of Control-T,
capital C, and the M24SII-V02 module number with the following
menu:
Copyright (c) Bay Technical Associates, 1992
Model 24SII Data Exchange System Rev. 2.02
Total memory 1M
This Module is 1
Status.......................................1
Program Port Logical Name....................2
Set Number of Printers.......................3
Program Port Select Code.....................4
Set Port Select Mode.........................5
Set Input Inactivity Timeout.................6
Enable/Disable Form Feed Mode................7
Program I.D. Page Message....................8
Enable/Disable I.D. Page Message.............9
Select Print Schedule for I.D. Page..........A
Program Default Printer Assignment...........B
Exit Configuration...........................X
We will make special notes at the beginning of certain configuration
subsections if that subsection does not apply to the M24SII-V02 high
speed parallel module or if that subsection pertains exclusively to this
module.
&
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "1" (Status), you may
review the status of the current configuration of the Model 24SII DES.
The Model 24SII DES will respond with:
Enter Request :1
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Strike any Key to Continue, or X to Exit
------------------------------------------| Port | Logical Name
| Form feed | I.D.|
|
|
(Computer)
|Begin| End | Page|
------------------------------------------|
1 |Device A
| Off | Off | Off |
|
3 |Device C
| Off | Off | Off |
|
4 |Device D
| Off | Off | Off |
------------------------------------------Strike any Key to Continue, or X to Exit
-----------------------------------------| Port | Logical Name
|Timeout| Port |
|
|
(Computer)
|in sec |Sel Mode|
-----------------------------------------|
1 |Device A
|
20 |Anytime |
|
3 |Device C
|
20 |Anytime |
|
4 |Device D
|
20 |Anytime |
-----------------------------------------Strike any Key to Continue, or X to Exit
----------------------------------| Port | Logical Name
|I.D. Page|
|
|
(Printer)
|Schedule |
----------------------------------|
2 |Device B
| Before |
----------------------------------Strike any Key to Continue, or X to Exit
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
1 |
9600| 8
|
1 |None | Off | Off |
|
2 |
9600| 8
|
1 |None | Off | Off |
|
3 |
9600| 8
|
1 |None | Off | Off |
|
4 |
9600| 8
|
1 |None | Off | Off |
--------------------------------------------------
Strike any Key to Continue, or X to Exit
Port Select Code is
I.D. Page Message is
This Job is from
:$SELECT
:
Strike any Key to Continue, or X to Exit
Copyright (c) Bay Technical Associates, 1992
Model 24SII Data Exchange System Rev. 2.02
Total memory
1M
This Module is 1
Status.......................................1
Program Port Logical Name....................2
Set Port Designation.........................3
Program Port Select Code.....................4
Set Port Select Mode.........................5
Set Serial Port Configuration................6
Set Input Inactivity Timeout.................7
Enable/Disable Form Feed Mode................8
Program I.D. Page Message....................9
Enable/Disable I.D. Page Message.............A
Select Print Schedule for I.D. Page..........B
Program Default Printer Assignment...........C
Exit Configuration...........................X
Enter Request :
You may now make whatever changes are necessary by responding
to the above menu. The Exit function will return you to the Operations
Mode.
&
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "2" (Program Port Logical
Name), you may enter a logical or identifying name for each device
connected to the selected module. These Logical Names appear in
the configuration menus and also in the I.D. Page Message if it is
enabled.
The Model 24SII DES will respond with:
Enter Request :2
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You should now enter the port number of the device for which you
wish to program a new Logical Name and then strike the Enter key.
For example, if you entered "1" and Enter for Port 1, the Model 24SII
DES will respond with:
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
-------------------------------------------------Enter Logical Name (Max. 8 Characters) :
You may now enter the new Logical Name for the device connected to
this port. A maximum of 8 characters may be entered. If less than 8
characters are entered, the entry must be followed by striking the
Enter key.
For example, if you entered MAIN IBM, the Model 24SII DES will
respond with an updated menu and a prompt to continue or exit:
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |MAIN IBM
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You may now program a new Logical Name for another port, if
desired, by entering that port number or exit by striking the Enter key.
The Model 24SII DES will save the new Logical Name(s) permanently
in non-volatile memory and will subsequently power-up with the new
name(s) in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
NOTE: This section does not pertain to the M24SII-V02 high speed
parallel module.
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "3" (Set Port Designation),
you may designate any port on the selected module as a computer
port or a printer port.
Plotters should be connected to ports designated as printer ports.
Modems should be connected to ports designated as computer ports.
A minimum of one port per Model 24SII DES unit must always be
designated as a computer port. If Module 1 is occupied by an
M24SII-V03, M24SII-V04, M24SII-V06A, M24SII-V07, or M24SII-V08
high speed serial module, Port 1 of Module 1 cannot be configured to
be a printer port.
The Model 24SII DES will respond with:
Enter Request :3
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
Enter the number of the port that you wish to designate a computer
port or a printer port and then strike the Enter key. For example, if you
entered "4" and Enter for Port 4, the Model 24SII DES will respond
with:
Port Is Assigned as a ( Computer) Port
Enter P or C to Change, Enter When Done :
You may now designate the port by entering "P" for printer port or "C"
for computer port. Enter may be sent for no change. For example, if
you entered "P", the Model 24SII DES will respond with:
Port is designated as a ( Printer ) Port
Enter P for Printer, C for Computer, ENTER for no change :
When you strike the Enter key for no change, the Model 24SII DES
will respond with a reconfigured status menu, similar to:
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Printer |1-4 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You may now designate another port or exit by striking the Enter key.
The Model 24SII DES will save the new Port Designations
permanently in non-volatile memory and will subsequently power-up
with the new Port Designations in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1) and display the following message:
Change your devices to match new configuration
This reminds you to connect the proper device to a newly configured
computer or printer port. Computers and modems connect to
computer ports. Printers and plotters connect to printer ports.
&
' "#
(
NOTE: This section pertains only to the M24SII-V02 high speed
parallel module.
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter Request: message at the end of the main
configuration menu for the M24SII-V02 high speed parallel module
(see Section 8.1) with "3" (Set Number of Printers), you may set the
Number of Printers you wish to have on the selected high speed
parallel module.
The Model 24SII DES will respond with:
Number of Printers is....................0
Enter Number of Printers (1 to 4)........:
Enter the desired Number of Printers.
NOTE: The higher numbered ports on the M24SII-V02 high speed
parallel module are reserved as printer ports. For example, if you
wish to define 2 printers on this module, enter "2" in response to the
prompt above. Physically connect the printers to Port 3 and Port 4 of
this module number.
The Model 24SII DES will return to the main configuration menu for
the M24SII-V02 high speed parallel module (see Section 8.1) and
display the following message:
Change your devices to match new configuration
This reminds you to connect the proper device to a newly configured
computer or printer port. Computers and modems connect to
computer ports. Printers and plotters connect to printer ports.
&
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "4" (Program Port Select
Code), you may change the Port Select Code to a user-defined code.
This Port Select Code consists of any ASCII character string (1 to 8
characters).
The Model 24SII DES will respond with the following:
Enter Request :4
Port Select Code is: $SELECT
Enter Port Select Code (Max. 8 characters)
or ENTER for no change :
Enter the new Port Select Code. If less than 8 characters are entered,
you must follow entry by striking the Enter key.
NOTE: Non-printable characters are acceptable, but they will not
appear in the Status menu.
For example, if you entered #PORT, the Model 24SII DES will
respond with:
Port Select Code is: #PORT
Enter Port Select Code (Max. 8 characters)
or ENTER for no change :
If no additional change is desired, strike the Enter key to exit.
The Model 24SII DES will save the new Port Select Code
permanently in non-volatile memory and will subsequently power-up
with that code in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration mode (see Section 8.1) with "5" (Set Port Select Mode),
you may change the method of selecting ports.
The Model 24SII DES will respond with:
Enter Request :5
-----------------------------------------| Port | Logical Name
|Timeout| Port |
|
|
(Computer)
|in sec |Sel Mode|
-----------------------------------------|
1 |Device A
|
20 |Anytime |
|
3 |Device C
|
20 |Anytime |
|
4 |Device D
|
20 |Anytime |
------------------------------------------
Enter Port Number (ENTER=Exit) :Enter the number of the port on
which the Port Select Mode is to be changed and then strike the Enter
key. For example, if you entered "3" and Enter for Port 3, the Model
24SII DES will respond with:
Port Select Mode is ( Anytime ) while printing
Enter A for Anytime, B for Beginning, ENTER for no change :
Enter the Port Select Mode that you wish. For example, if you entered
"B" for Beginning, the Model 24SII DES will respond with:
Port Select Mode is ( Beginning ) of printing only
Enter A for Anytime, B for Beginning, ENTER for no change :
If no other change is required, strike the Enter key for no change, and
the Model 24SII DES will respond with an updated menu and a
prompt to continue or exit:
-----------------------------------------| Port | Logical Name
|Timeout| Port |
|
|
(Computer)
|in sec |Sel Mode|
-----------------------------------------|
1 |Device A
|
20 |Anytime |
|
3 |Device C
|
20 |Begin
|
|
4 |Device D
|
20 |Anytime |
-----------------------------------------Enter
Port Number (ENTER=Exit) :
You may now proceed to set the Port Select Mode for another port, or
exit by striking the Enter key. The Model 24SII DES will save the new
Port Select Mode permanently in non-volatile memory and will
subsequently power-up with the new Port Select Mode in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&&
NOTE: This section does not pertain to the M24SII-V02 high speed
parallel module since there are no serial ports on this module.
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "6" (Set Serial Port
Configuration), you may change the serial configuration of each serial
port on the selected module, i.e. baud rate, word size, stop bits, parity,
and XON/XOFF handshaking (Transmit and Receive). High speed
serial modules also allow you to program the Printer Sharing Mode.
The M24SII-V07 high speed serial module will allow you to program
the 4-Wire/8-Wire Operation.
Each port is configured individually. This allows the user to mix-andmatch devices of different configurations without the need to
reconfigure the devices. It also allows the Model 24SII DES to
translate for devices using different configurations.
CAUTION: If you have a M24SII-V07 installed as Module 1, do not
configure Port 1 of this module for any baud rate higher than 115,200
or you will locked out of configuration mode and unable to program
the various features of the Model 24SII.
The Model 24SII DES will respond with:
Enter Request :6
Bidirectional
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
1 |
9600| 8
|
1 |None | Off | Off |
|
2 |
9600| 8
|
1 |None | Off | Off |
|
3 |
9600| 8
|
1 |None | Off | Off |
|
4 |
9600| 8
|
1 |None | Off | Off |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You should enter the number of the port that you wish to reconfigure,
and then strike the Enter key. For example, if you sent "2" and Enter,
the Model 24SII DES will respond with the current status of Port 2 and
a menu of the available options:
Bidirectional
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
2 |
9600| 8
|
1 |None | Off | Off |
-------------------------------------------------Exit/Save......1 Set Stop Bits.....4
Set Baud Rate..2 Set Parity........5
Set Word Size..3 Set XON/XOFF......6
Enter Request :
You may now reconfigure Port 2 by selecting the appropriate option
(1-6) from the menu.
NOTE: The M24SII-V07 module will also show Set 4-Wire/8-Wire as
item number 7.
/The following baud rates are supported for the two different printer
sharing modes:
Bidirectional: 300, 600, 1200, 2400, 4800, 9600, 19200,
38400, and 115.2k
Unidirectional: 9600, 115.2k, 230.4k, and 460.8k.
For example, to change the baud rate to 115.2K baud, send character
"2" (Set baud rate). The Model 24SII DES will respond with this menu
(when using bidirectional printer sharing mode):
1 for
2 for
3 for
4 for
5 for
6 for
7 for
8 for
9 for
Enter
300
600
1200
2400
4800
9600
19200
38400
115.2K
Request :
Send "9" for 115.2K baud rate, and the Model 24SII DES will respond
with the reconfigured status of the port, the option menu, and the
prompt:
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
2 | 115.2K| 8
|
1 |None | Off | Off |
-------------------------------------------------Exit/Save......1 Set Stop Bits.....4
Set Baud Rate..2 Set Parity........5
Set Word Size..3 Set XON/XOFF......6
Enter Request :
You may now select other options from the menu to reconfigure Port
2. For example, to set XON/XOFF, send character "6" (Set
XON/XOFF) in response to the prompt.
NOTE: XON/XOFF flow control may be enabled in both the transmit
and receive directions for bidirectional printer sharing mode.
XON/XOFF may be enabled in the receive direction only for
unidirectional printer sharing mode.
The Model 24SII DES will respond with:
Stop/Restart Output upon Receiving of XON/XOFF ? (Y/N):
XON/XOFF Sent Based on buffer Full/Empty Condition ? (Y/N):
The first question addresses XON/XOFF flow control in the transmit
data direction. The second question addresses XON/XOFF flow
control in the receive data direction. You should then enter "Y" to
enable XON/XOFF or "N" to disable XON/XOFF in the respective
directions. For example, if you entered "N" in response to the transmit
direction and "Y" in response to the receive direction, the Model 24SII
DES will respond with:
Bidirectional
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
2 | 38400| 8
|
1 |None | Off | On
|
-------------------------------------------------Exit/Save......1 Set Stop Bits.....4
Set Baud Rate..2 Set Parity........5
Set Word Size..3 Set XON/XOFF......6
Enter Request :
If there are no other changes for this port, send "1" (Exit/Save), and
the Model 24SII DES will respond with:
Bidirectional
--------------------------------------------------| Port | Baud | Word | Stop |Parity| Xon / Xoff |
|
| Rate | Size | Bits |
| Xmit | Recv |
--------------------------------------------------|
1 |
9600| 8
|
1 |None | Off | Off |
|
2 | 38400| 8
|
1 |None | Off | On
|
|
3 |
9600| 8
|
1 |None | Off | Off |
|
4 |
9600| 8
|
1 |None | Off | Off |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You may now reconfigure another port, or exit by striking the Enter
key. The Model 24SII DES will now return to the main configuration
menu with a message at the end as follows:
Copyright (c) Bay Technical Associates, 1990
Model 24SII Data Exchange System Rev. 2.02
Total memory
1M
This Module is 1
Status.......................................1
Program Port Logical Name....................2
Set Port Designation.........................3
Program Port Select Code.....................4
Set Port Select Mode.........................5
Set Serial Port Configuration................6
Set Input Inactivity Timeout.................7
Enable/Disable Form Feed Mode................8
Program I.D. Page Message....................9
Enable/Disable I.D. Page Message.............A
Select Print Schedule for I.D. Page..........B
Program Default Printer Assignment...........C
Exit Configuration...........................X
Change you devices to match new configuration
This message reminds you to change the serial configuration of the
devices connected to the reconfigured ports to match the new
configuration of the Model 24SII DES.
The new configuration will become effective after you have exited
configuration mode for the appropriate module and the Model 24SII
DES has reset.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&)
"
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "7" for any serial module or
"6" for the M24SII-V02 high speed parallel module (Set Input Inactivity
Timeout), you may set the disconnect timeout. The Model 24SII DES
will automatically disconnect the computer and printer if no characters
are received from the computer for the specified timeout period.
The Model 24SII DES will respond with:
Enter Request :7
-----------------------------------------| Port | Logical Name
|Timeout| Port |
|
|
(Computer)
|in sec |Sel Mode|
-----------------------------------------|
1 |Device A
|
20 |Anytime |
|
3 |Device C
|
20 |Anytime |
|
4 |Device D
|
20 |Anytime |
------------------------------------------
Enter
Port Number (ENTER=Exit) :
Enter the number of the computer port for which you wish to set the
Input Inactivity Timeout and then strike the Enter key. For example, if
you entered "3" and Enter, the Model 24SII DES will respond with:
-----------------------------------------| Port | Logical Name
|Timeout| Port |
|
|
(Computer)
|in sec |Sel Mode|
-----------------------------------------|
3 |Device C
|
20 |Anytime |
------------------------------------------
Input Inactivity Timeout is 20 Seconds
Enter NeIw Value (0 to 200), or ENTER for no change :
Enter the number of timeout seconds that you wish from 0 to 200,
followed by Enter.
If 0 (zero) is entered, the Input Inactivity Timeout will be disabled, and
the end of a print job will occur only when the computer sends the
Port Select Code followed by a printer port number.
* * * CAUTION! * * *
Do not set the Input Inactivity Timeout to zero seconds when Port
Select Mode B has been selected. Mode B recognizes the end of
a print job only by the Input Inactivity Timeout. It does not
recognize the manual disconnect where the computer sends the
Port Select Code and a port number.
For example, if you entered "100" for 100 seconds, the Model 24SII
DES will respond with:
Input Inactivity Timeout is 100 Seconds
Enter New Value (0 to 200), or ENTER for no change :
If no other change is required, strike the Enter key. The Model 24SII
DES will respond with the reconfigured status and the prompt. You
may now set the timeout for another computer port, or exit by striking
the Enter key. The Model 24SII DES will save the new Input Inactivity
Timeout(s) permanently in non-volatile memory and will subsequently
power-up with the new timeout period(s) in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&#
!
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with "8" for any serial module or
"7" for the M24SII-V02 high speed parallel module (Enable/Disable
Form Feed Mode), you may enable form feed and select when form
feed occurs, or disable form feed.
The Model 24SII DES will respond with:
Enter Request :8
------------------------------------------| Port | Logical Name
| Form feed | I.D.|
|
|
(Computer)
|Begin| End | Page|
------------------------------------------|
1 |Device A
| Off | Off | Off |
|
3 |Device C
| Off | Off | Off |
|
4 |Device D
| Off | Off | Off |
-------------------------------------------
Enter
Port Number (ENTER=Exit) :
Enter the number of the port for which you wish to set the Form Feed
Mode and then strike the Enter key. For example, if you entered "3"
for Port 3 and Enter, the Model 24SII DES will respond with:
Form Feed at the Beginning of Printing is (OFF)
Enter 1 for ON, 2 for OFF, ENTER for no change :
You should then enter "1" if you wish to enable form feed at the
beginning of printing, "2" if you wish to disable form feed at the
beginning of printing, or strike the Enter key if no change from the
present condition is required. For example, if you entered "1", the
Model 24SII DES will respond with:
Form Feed at the Beginning of Printing is (ON)
Enter 1 for ON, 2 for OFF, ENTER for no change :
If no additional change is required, strike the Enter key for no change,
and the Model 24SII DES will respond with:
Form Feed at the End of Printing is ( Off )
Enter 1 for ON, 2 for OFF , ENTER for no change :
You should follow the same procedure as above to enable or disable
form feed at the end of printing. For example, if you strike the Enter
key for no change, the Model 24SII DES will respond with:
------------------------------------------| Port | Logical Name
| Form feed | I.D.|
|
|
(Computer)
|Begin| End | Page|
------------------------------------------|
1 |Device A
| Off | Off | Off |
|
3 |Device C
| On | Off | Off |
|
4 |Device D
| Off | Off | Off |
-------------------------------------------
Enter
Port Number (ENTER=Exit) :
You may now set the Form Feed Mode for another port, or exit by
striking the Enter key. The Model 24SII DES will save the new form
feed settings permanently in non-volatile memory.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter request: message at the end of the main
configuration menu (see Section 8.1) with "9" for any serial module or
"8" for the M24SII-V02 high speed parallel module (Program I.D. Page
Message), you may program the content of this identifying message.
The Model 24SII DES will respond with:
Enter Request :9
I.D. Page Message is :
This Print Job is from :
Enter C to change, or ENTER for no change :
If you desire to make a change, enter "C". The Model 24SII DES will
respond with:
Enter I.D Page Message (Max. 40 characters)
Control-C to terminate or no change :
Enter the new message, followed by Control-C. Note that the
message will print on paper exactly as it is placed on the CRT screen.
The message may appear on one line or several lines. If several lines
are desired, each line must be ended by Enter and Line Feed (^J).
For example, if you entered THIS IS THE NEW MESSAGE, the Model
24SII DES will respond with:
I.D. Page Message is :THIS IS THE NEW MESSAGE
Enter C to change, or ENTER for no change :
If no change in the message is desired, strike the Enter key, and the
current message will be retained. The Model 24SII DES will save the
new I.D. Page Message permanently in non-volatile memory and will
subsequently power-up with that message in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
!
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with capital "A" for any serial
module or "9" for the M24SII-V02 high speed parallel module
(Enable/Disable I.D. Page Message), you may enable or disable the
I.D. Page Message to print by individual port.
The Model 24SII DES will respond with:
Enter Request :A
------------------------------------------| Port | Logical Name
| Form feed | I.D.|
|
|
(Computer)
|Begin| End | Page|
------------------------------------------|
1 |Device A
| Off | Off | Off |
|
3 |Device C
| Off | Off | Off |
|
4 |Device D
| Off | Off | Off |
------------------------------------------Enter
Port Number (ENTER=Exit) :
Enter the number of the computer port for which you wish to enable or
disable the I.D. Page Message and then strike the Enter key. For
example, if you entered "3" and Enter for Port 3, the Model 24SII DES
will respond with:
I.D. Page Message Switch is ( Off )
Enter 1 for ON, 2 for OFF , ENTER for no change :
You should enter "1" to enable the I.D. Page Message to print, "2" to
disable the I.D. Page Message, or strike the Enter key if no change in
the present condition is required. For example, if you entered "1" to
enable the I.D. Page Message, the Model 24SII DES will respond
with:
I.D. Page Message Switch is ( On )
Enter 1 for ON, 2 for OFF , ENTER for no change :
If no further change is required for Port 1, strike the Enter key, and the
Model 24SII DES will respond with:
------------------------------------------| Port | Logical Name
| Form feed | I.D.|
|
|
(Computer)
|Begin| End | Page|
------------------------------------------|
1 |Device A
| Off | Off | Off |
|
3 |Device C
| Off | Off | On |
|
4 |Device D
| Off | Off | Off |
-------------------------------------------
Enter
Port Number (ENTER=Exit) :
You may now enter another port number, or exit by striking the Enter
key. The Model 24SII DES will save the enabling or disabling of the
I.D. Page Message permanently in non-volatile memory and will
subsequently power-up with the new setting in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with capital "B" for any serial
module or capital "A" for the M24SII-V02 high speed parallel module
(Select Print Schedule for I.D. Page), you may schedule the I.D. Page
Message to print before or after a print job. This scheduling is done at
the printer port.
For example, if you have Port 3 and Port 4 designated as printer
ports, the Model 24SII DES will respond with:
Enter Request :B
----------------------------------| Port | Logical Name
|I.D. Page|
|
|
(Printer)
|Schedule |
----------------------------------|
3 |Device A
| Before |
|
4 |Device B
| Before |
----------------------------------Enter
Port Number (ENTER=Exit) :
Enter the number of the printer port for which you wish to change the
I.D. Page Message print schedule and then strike the Enter key. For
example, if you entered "3" and Enter for Port 3, the Model 24SII DES
will respond with:
I.D. Page is to be Print ( BEFORE ) the Print Job
Enter A for After, B for Before, ENTER for no change :
Enter "A" if you wish the I.D. Page Message to print after the print job,
or "B" if you wish the I.D. Page Message to print before the print job.
You can also strike the Enter key for no change. For example, if you
entered "A", the Model 24SII DES will respond with:
I.D. Page is to be Print ( AFTER ) the Print Job
Enter A for After, B for Before, ENTER for no change :
If no further change is required for Port 2, strike the Enter key. The
Model 24SII DES will respond with the reconfigured status and the
prompt:
----------------------------------| Port | Logical Name
|I.D. Page|
|
|
(Printer)
|Schedule |
----------------------------------|
3 |Device A
| After
|
|
4 |Device B
| Before |
----------------------------------Enter
Port Number (ENTER=Exit) :
You may now reconfigure another printer port, or exit by striking the
Enter key. The Model 24SII DES will save the new I.D. Page Message
print schedule permanently in non-volatile memory and subsequently
power-up with the new schedule in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
OPTION ACCESSIBILITY: Through any serial computer port.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with capital "C" for any serial
module or capital "B" for the M24SII-V02 high speed parallel module
(Program Default Printer Assignment), you may configure Default
Printer Assignment for each individual computer port. The Default
Printer Assignment consists of the module number and port number
the desired printer is connected to. After initial power-up, if a
particular computer sends a print job without a port select sequence,
the print job will automatically be routed to the default printer
module/port.
NOTE: The Default Printer Assignment for printer ports will be the
module number and port number the printer is connected to on the
Model 24SII DES.
The Model 24SII DES will respond with:
Enter Request :C
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer | 0 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
Enter the number of the computer port for which you wish to change
the Default Printer Assignment. For example, if you enter "3" for Port
3, the Model 24SII DES will respond with:
Default Module is
0
Enter New Value (0 to 6), or ENTER for no change :
Enter the module number of the desired printer. For example, if the
desired printer is connected to Module 6, enter "6" in response to the
prompt.
The Model 24SII DES will respond with:
Default Port is
2
Enter New Value (1 to 4), or ENTER for no change :
Enter the port number of Module 6 that the desired printer is
connected to. For example, if the desired printer is connected to Port
1 of Module 6, enter "1" in response to the prompt. The Model 24SII
DES will respond with:
-------------------------------------------------| Port | Logical Name
| Port |
Port
|Prnt|
|
|
| Type | Desig
|Assn|
-------------------------------------------------|
1 |Device A
| Serial | Computer | 0 |
|
2 |Device B
| Serial | Printer |1-2 |
|
3 |Device C
| Serial | Computer |6-1 |
|
4 |Device D
| Serial | Computer | 0 |
-------------------------------------------------Enter
Port Number (ENTER=Exit) :
You may now reconfigure another computer port, or exit by striking
the Enter key. The Model 24SII DES will save the new Default Printer
Assignment(s) permanently in non-volatile memory and subsequently
power-up with the new assignment(s) in effect.
The Model 24SII DES will now return to the main configuration menu
(see Section 8.1).
&
OPTION ACCESSIBILITY: Through Port 1 of Module 1 only.
By responding to the Enter Request: message at the end of the main
configuration menu (see Section 8.1) with capital "D" for any serial
module (Program Module Printer Sharing Mode), you may configure
the Printer Sharing Mode for desired module. Bidirectional printer
sharing mode is used if your application involves transferring files
between computers and/or modem sharing. The maximum baud rate
allowed for a module using bidirectional printer sharing mode is
115,200 bps. Unidirectional printer sharing mode is used if your
application involves printer/plotter sharing only. The maximum baud
rate allowed for a module using unidirectional printer sharing mode is
460,000 bps.
The Model 24SII will respond with:
Printer Sharing Mode is (Bidirectional)
Unidirectional and Bidirectional will be set for all four ports.
Changing from on to the other will default all ports to 9600 baud
Enter 1 for Unidirectional, 2 for Bidirectional, or ENTER for no change:
Enter the number corresponding to your desired Printer Sharing
Mode.
IMPORTANT: Whenever you change the printer sharing mode for
any high speed serial module, the baud rate for all four ports will be
set to 9600 bps.
&
+
To exit the configuration mode, send capital X in response to the
prompt at the end of the main configuration menu, and the Model
24SII DES will return to the operating mode.
)
Since there are no adjustments and no moving parts in the Model
24SII DES, preventative maintenance is unnecessary.
If you find it necessary to return the Model 24SII DES to the factory
for warranty work or factory-set changes, follow the procedure listed
under Section 10 for repacking.
Before you ship your unit, please call BayTech to get a Return
Authorization number. BayTech cannot accept warranty or no-charge
returns without this number.
Ship your unit to the address listed in Section 11, - Technical Support.
#
If you need to repack your unit for shipping, please choose a heavy
cardboard box for packing. Surround your unit with sufficient
insulation (a minimum of 2-inches) to withstand the rigors of transport.
Be sure to seal the box securely with strapping or packing tape.
Masking tape or cellophane tape is not recommended.
If you are returning your unit for warranty work or repair, please call
BayTech to get a Return Authorization number. Please put the Return
Authorization number on the outside of the cardboard box. BayTech
cannot accept no-charge returns without this number.
In the event that you have problems with the Model 24SII DES,
BayTech has a staff of applications engineers on duty to assist you
from 7 am to 6 pm (CST or CDT), Monday through Friday.
When you call BayTech Tech Support, please have the following
information available to help the applications engineers answer your
questions more accurately and more quickly:
1.
Identify which modules you are using and have the serial
number (located on the back of the unit) handy.
2.
Identify what computers, printers or other peripherals you have
connected to Model 24SII DES.
3.
Identify any special equipment you are using (for example,
in-line spoolers, networks, software drivers, etc.).
4.
Identify what cables you are using, what the lengths of the
cables are, and who sold you the cables.
5.
Identify any special options you may have ordered with your
Model 24SII DES.
6.
Identify the software packages you are using.
7.
If possible, have a print-out of the Model 24SII's configuration
status ready when you call.
Always call BayTech before dismantling your equipment or
before returning the Model 24SII DES to BayTech for repair.
Bay Technical Associates, Inc.
P.O. Box 387, 200 N. Second Street
Bay Saint Louis, Mississippi 39520-1000 U.S.A.
Phone: 228-467-8231 or 800-523-2702
Fax: 228-467-4551
Web Site: baytechdcd.com
,
This equipment generates and uses radio frequency energy and, if not
installed and used properly (that is, in strict accordance with the
manufacturer's instructions) may cause interference to radio and
television reception. The equipment has been type tested and found
to comply within the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC
rules, which are designed to provide reasonable protection against
such interference in a residential installation. However, there is no
guarantee that interference to radio or television reception will not
occur in a particular installation. If this equipment does cause
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures.
1.
Reorient the receiving antenna.
2.
Relocate the computer equipment with respect to the receiver.
3.
Move the computer away from the receiver.
4.
Plug the computer into a different outlet so that computer and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions.
The Federal Communications Commission has prepared a booklet
entitled "How to Identify and Resolve Radio - TV Interference
Problems" which may be helpful to you. This booklet (stock
#004-000-00345-4) may be purchased from the Superintendent of
Documents, U.S. Government Printing Office, Washington, D.C.
20402.
+
MODEL 24 DTE
PC
FEMALE DB-25
FEMALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
4
RTS
RTS
4
5
CTS
CTS
5
6
DSR
DSR
6
7
SGND
SGND
7
8
DCD
DCD
8
20
DTR
DTR
20
MODEL 24 DTE
PC
FEMALE DB-25
FEMALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
RTS
4
CTS
5
DSR
6
SGND
7
7
SGND
DCD
DTR
8
20
MODEL 24 DTE
PC
FEMALE DB-25
FEMALE DB-25
TXD
2
CTS
5
DSR
6
SGND
7
RXD
3
SGND
7
8
DCD
DTR
20
DTR
20
MODEL 24 DTE
PC
FEMALE DB-25
FEMALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
RTS
4
CTS
5
DSR
6
SGND
7
DCD
8
5
7
20
CTS
SGND
DTR
DTR
20
MODEL 24 DTE
AT
FEMALE DB-25
FEMALE DB-9
DCD
1
2
TXD
RXD
2
3
RXD
TXD
3
4
RTS
DTR
4
5
CTS
SGND
5
DSR
6
RTS
7
CTS
8
7
20
SGND
DTR
MODEL 24 DTE
AT
FEMALE DB-9
FEMALE DB-25
DCD
1
2
TXD
RXD
2
3
RXD
TXD
3
DTR
4
SGND
5
DSR
6
RTS
7
CTS
8
7
SGND
MODEL 24 DTE
AT
FEMALE DB-9
FEMALE DB-25
3
7
20
RXD
DCD
1
TXD
3
DTR
4
SGND
5
DSR
6
CTS
8
SGND
DTR
MODEL 24 DTE
FEMALE DB-25
DCD
1
2
TXD
RXD
2
3
RXD
TXD
3
DTR
4
SGND
5
DSR
6
CTS
8
5
7
20
AT
FEMALE DE-9
CTS
SGND
DTR
! " #
MODEL 24 DTE
HP LASERJET
FEMALE DB-25
MALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
4
RTS
RTS
4
5
CTS
CTS
5
6
DSR
DSR
6
7
SGND
SGND
7
20
DTR
DTR
20
MODEL 24 DTE
HP LASERJET
FEMALE DB-25
MALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
RTS
4
CTS
5
DSR
6
SGND
7
7
SGND
MODEL 24 DTE
HP LASERJET
FEMALE DB-25
MALE DB-25
2
TXD
TXD
2
3
RXD
RXD
3
RTS
4
CTS
5
DSR
6
SGND
7
5
7
CTS
SGND
DTR
20
MINIMUM CABLING USING HARDWARE HANDSHAKING
A.4 BETWEEN MODEL 24SII AND ANY CENTRONICS
PRINTER
CENTRONICS PRINTER
MODEL 24
36 - PIN
MALE DB-25
1
STROBE
2
DATA 0
1
2
3
DATA 1
3
4
DATA 2
4
5
DATA 3
5
6
DATA 4
6
7
DATA 5
7
8
DATA 6
8
9
DATA 7
9
10
ACKNOWLEDGE
11
BUSY
10
11
12
PAPER OUT
12
13
SELECT
13
14
AUTO FEED/OV
14
15
ERROR
16
INIT PRINTER
17
SELECT INPUT/OV
36
18
OV
19
19
OV
20
OV
21
OV
22
22
OV
23
23
OV
24
24
OV
25
25
OV
26
32
31
20
21
A.5 MODULAR CABLING USING M24SII-V06A I/O
MODULE
COMPUTER INTERFACE
To interface your computers or terminals to the Model 24SII using
EIA-232 protocol, refer to the RJ-45 adapter drawings below. Refer to
Figure 13 if your computers or terminals have DB-25 male connectors
(most IBM XT and PS/2 type computers). Refer to Figure 14 if your
computers have DE-9 male connectors (IBM AT type computers).
1
BLUE
2
ORANGE
3
BLACK
4
RED
5
GREEN
6
YELLOW
7
BROWN
8
GRAY
2
TX
3
RX
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
RJ-45
20
FEMALE DB-25
DTR
Figure 13 !"# $ %!&&"'() *+ +, + !" $ %!&&"'(. *+ +, +-
RJ-45
1
BLUE
2
ORANGE
3
BLACK
4
RED
5
GREEN
6
YELLOW
7
BROWN
8
1
DCD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
GRAY
FEMALE DE-9
Figure 14 / !"# $ %!&&"'() *+ +, + / !" $ %!&&"'(. *+ +, +-
PRINTER/PLOTTER INTERFACE
To interface your EIA-232 serial printers or plotters to the Model 24SII
refer to Figure 15.
1
RJ-45
BLUE
2
ORANGE
3
BLACK
4
RED
5
GREEN
6
YELLOW
7
BROWN
8
GRAY
2
TX
3
RX
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
20
MALE DB-25
DTR
Figure 15 % !"# $ %!&&"'() *+ +, + % !" $ %!&&"'(. *+ +, +-
MODEM INTERFACE
To interface your asynchronous modem to the Model 24SII refer to
Figure 16.
1
BLUE
2
ORANGE
3
BLACK
4
RED
5
GREEN
6
YELLOW
7
BROWN
8
GRAY
2
RJ-45
N.C.
TX
3
RX
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
20
MALE DB-25
DTR
Figure 16 %
% !%0"# $ %!&&"'() *+ +, + % !%0" $ %!&&"'(. *+ +, +-
IMPORTANT: When modular connectors are used as shown in
Figures 13 - 16 above, crossed RJ-45 cables are required. The RJ-45
cable, between the Print Master and your connected equipment must
be crossed. See the cable diagram below.
RJ-45
RJ-45
PIN
PIN
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Figure 17 ++ "! 1
(23(#( *#( $-
A.6 M24SII-V07 MODULE: EIA-422/EIA-232
PROTOCOL SELECTION AND EXTERNAL
POWER
You may configure individual ports on the M24SII-V07 module to
communicate with either EIA-422 (default) or EIA-232 protocol.
Protocol selection is accomplished via jumper setting. You may also
enable external power for individual ports to supply power to the Tranx SP-01 or SP-02 via jumper setting. If you need to reconfigure any of
the ports on this module type, please use the following instructions.
1.
IMPORTANT: If the M24SII-V07 module is installed in the
Model 24SII chassis, remove power from the Model 24SII by
positioning the on/off switch to the OFF position and
unplugging the power cord. Remove the module by
unscrewing the two straight slot screws securing it to the back
panel and pulling the module out.
2.
Refer to Appendix D.8 and locate the four nine-position jumper
locations for protocol selection and the four three-position
jumper locations for external power. The jumper locations are
marked on the solder side of the connector board for protocol
selection and external power respectively as JP1 and JP5 for
Port 1, JP2 and JP6 for Port 2, JP3 and JP7 for Port 3, and
JP4 and JP8 for Port 4.
3.
Each port is configurable for EIA-422 or EIA-232 protocol by
installing a six-positon jumper to either the 422 or 232 position
as marked on the connector board. The center row of holes for
each port will be occupied by three of the pins on the jumper
and the row of holes for either EIA-422 or EIA-232 will be
occupied by the other three pins of this jumper.
4.
External power is enabled for each port by installing a twoposition jumper to the +12 position (as marked on the
connector board) and the center position of the jumper
location.
A.7 MODULAR CABLING USING M24SII-V07
I/O MODULE
A.7.1
RJ-45 (8-WIRE) CABLING
NOTE: If you have configured a port on the M24SII-V07 I/O module
to use EIA-232 Protocol and 8-wire Operation, please refer to
Appendix A.5 for recommended adapter/cabling information.
If you have configured a port on the M24SII-V07 module to use EIA422 Protocol, 8-wire Operation, and you are not connecting this port
to another BayTech product, please see Figure 9 in Section 5.5.1 for
a recommended cabling diagram.
If you are connecting another BayTech device (such as Tran-x) to a
port on the M24SII-V07 module as described, an RJ-45 crossed cable
is required to connect the two devices as shown in Figure 18 below.
RJ-45
RJ-45
PIN
PIN
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Figure 18 ++ "! 1
(23(#( *#( $-
NOTE: Before connecting a Tran-x device to the M24SII-V07 module
using this configuration, you must make sure the Tran-x has been
configured to use 8-wire Operation. Please see the Tran-x Operator's
Manual for instructions.
A.7.2
RJ-11 (4-WIRE) CABLING USING
EIA-232 PROTOCOL AND
BIDIRECTIONAL PRINTER
SHARING MODE
COMPUTER INTERFACE
To interface your computers or terminals to the M24SII-V07 module
using 4-wire and bidirectional operation, refer to the RJ-11 adapter
drawings below. Refer to Figure 19 if your computers or terminals
have DB-25 male connectors (most IBM XT and PS/2 type
computers). Refer to Figure 20 if your computers have DE-9 male
connectors (IBM AT type computers).
Figure 19: PC, PS/2 Computer/Terminal Adapter
BayTech Part No. 25FRJ11PC-X
Figure 20: AT Computer Adapter
BayTech Part No. 9FRJ11PC-X
PRINTER/PLOTTER INTERFACE
To interface your EIA-232 printers or plotters to the M24SII-V07
module using 4-wire and bidirectional operation, refer to the adapter
drawing show in Figure 21.
FIGURE 21: Printer/Plotter Adapter
BayTech Part No. 25MRJ11PR-X
IMPORTANT When modular adapters are used as shown in Figures
19 - 21 above, crossed RJ-11 cables are required. See the cable
diagram below.
FIGURE 22: Crossed RJ-11 Cable
BayTech Part No. RJ04X010 (10 feet)
A.7.3
RJ-11 (4-WIRE) CABLING USING EIA232 PROTOCOL AND UNIDIRECTIONAL
PRINTER SHARING MODE
COMPUTER INTERFACE
To interface your computers or terminals to the M24SII-V07 module
using 4-wire and unidirectional operation, refer to the RJ-11 adapter
drawings below. Refer to Figure 23 if your computers or terminals
have DB-25 male connectors (most IBM XT and PS/2 type
computers). Refer to Figure 24 if your computers have DE-9 male
connectors (IBM AT type computers).
PRINTER/PLOTTER INTERFACE
To interface your EIA-232 printers or plotters to the M24SII-V07
module using 4-wire and unidirectional operation, refer to the adapter
drawing show in Figure 25.
IMPORTANT When modular adapters are used as shown in Figures
19 - 21 above, crossed RJ-11 cables are required. See the cable
diagram below.
A.7.4
RJ-11 (4-WIRE) CABLING USING
EIA-422 PROTOCOL
NOTE: This section assumes you are connecting either a BayTech
Tran-x converter or another BayTech device using EIA-422 protocol
and 4-wire operation.
When a port on the M24SII-V07 module is configured to use EIA-422
protocol and 4-wire Operation, RJ-11 crossed cables are required.
See the cable diagram below.
There are special considerations depending on whether you are using
bidirectional or unidirectional Printer Sharing Mode.
If you are using bidirectional Printer Sharing Mode and are connecting
to a BayTech Tran-x device, you must enable XON/XOFF flow control
on the M24SII-V07 module and on the Tran-x product.
If you are using unidirectional Printer Sharing Mode and are
connecting a computer port on the M24SII-V07 module to either the
Tran-x LPT-460 or PS-02, you must configure the Tran-x to use
hardware flow control. If you are using unidirectional Printer Sharing
Mode and are connecting a printer port on the M24SII-V07 module to
either the Tran-x SP-01 or SP-02, you must configure the Tran-x to
use hardware flow control.
APPENDIX B
MODEL 24SII MODULE INSTALLATION
B.1 MODEL 24SII I/O MODULE
INSTALLATION
Each I/O module provided by BayTech includes one of the following
L-shaped modules:
(*
&+#
+
%$#
,!--./
# #000 #
&. '0
,!--./
# 0 1-2. &%1 #
&. '0
,!--./
# 0 1-2. &1 #
&. '0
,!--./
2
# 0 1-2. '0 #
3.
,!--./
# 0 1-2. '0 #
3.
,!--./
# 0 + 0# #
&. '0
You will need the following equipment:
1 x straight-slot screwdriver
1 x phillips-head screwdriver
1.
IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF and also remove
power cord from socket.
2.
I/O modules must be installed in sequence from left to right
(facing rear of unit). There can be no empty slots between
modules. For example, if I/O modules are currently installed in
the first three module slots, the new module must be installed
in the 4th module slot. The module slots are labeled on the top
panel as "Module 1", "Module 2", ..., "Module 6".
NOTE: Module 1 must be a serial module (i.e., Module 1 may
be occupied by any module part number other than M24SIIV02).
3.
Remove the flat aluminum plate covering the slots into which
the new module will be installed by loosening the 2 straight slot
screws and then removing the plate from the rear panel.
Save the aluminum plate in the event you have to remove the
module in the future.
4.
Install the new module by sliding the horizontal card edges
along the grooves inside the module slot. Each I/O module has
a card-edge connector that fits into a receptacle inside the
Model 24SII. Apply a moderate amount of pressure to the
connector board of the I/O module until you feel the card edge
connector slip into the receptacle inside. You will not be able
to mount back plate of the I/O module to the chassis if the I/O
module is not installed all the way.
5.
Mount the back plate of the I/O module to the Model 24SII's
chassis by tightening the 2 straight slot screws on the back
plate.
6.
Apply power to the unit by plugging in the power cord and
depressing the power switch located on the front of the unit to
ON.
B.2 MODEL 24SII MEMORY MODULE
INSTALLATION
Each memory module provided by BayTech includes one of the
following modules: M24SII-M01 (0 to 4MB) or M24SII-M02 (0 to
16MB).
You will need the following equipment:
1 x phillips-head screwdriver
1 x 3/8 in. nut driver or socket
1.
IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF and also remove
power cord from socket.
2.
Using the phillips-head screwdriver, remove the 4 phillips-head
screws holding the top cover of the unit. After screws are
removed, lift off cover.
3.
Determine which type of memory module you are installing.
The 4MB memory module (part no. M24SII-M01) allows you to
upgrade the total memory to 4MB using 1MB zig zag in-line
packages (ZIPs). The 16MB memory module (part no. M24SIIM02) provides buffer expansion up to 16MB using either 1MB x
8 or 4MB x 8 single in-line memory modules (SIMMs).
4.
Determine the location where the new memory module will
install into. Refer to Appendix D.2. This mechanical layout
shows the location where the M24SII-M01 memory module
installs into which is marked 11. If you are installing the
M24SII-M02 memory module, the location where it installs into
is adjacent to the location shown for the M24SII-M01 and is not
marked on the drawing.
CAUTION: You must install the new memory module into the
appropriate location to assure proper operation. You may only
have one type of memory module installed.
5.
Remove the four nuts on the appropriate location with the nut
driver or socket and place the nuts in a safe place.
6.
Install the new memory module into the appropriate location by
matching the four holes on the module with the bolts on the
bottom panel. The ribbon cable should face away from the
LEDs on the front panel. Secure the memory module in place
with the four nuts by tightening them with the nut driver or
socket.
7.
Plug the ribbon cable onto the appropriate J-connector on the
main board.
8.
If you need to install any additional memory onto the memory
module, please refer to Appendix C.1 for the M24SII-M01
memory module or Appendix C.2 for the M24SII-M02 memory
module. If not, replace the top panel. The installation is now
complete.
APPENDIX C
BUFFER EXPANSION/EPROM UPGRADE
C.1 M24SII-M01 BUFFER EXPANSION ZIP
MODULE INSTALLATION
Each one megabyte memory expansion upgrade kit provided by
BayTech includes two memory expansion chips (DRAM ICs) which
come in a zig zag in-line package (ZIP).
You will need the following equipment:
1 x phillips-head screwdriver.
1. IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF. Also remove power
cord from the AC outlet.
2. Using the phillips-head screwdriver, remove the 4 phillips-head
screws holding the top cover of the unit. After screws are removed,
lift off cover.
3. With LED side of the unit facing you, look down into the unit and
locate the 8 memory expansion module sockets. These zig zag
sockets are marked U301, U302,..., to U308 (see Appendix D.4).
Note that two or more of these sockets already have memory chips
installed.
4. The new memory expansion chips must be installed in the
following order: the first megabyte DRAM ICs occupy sockets
U301 and U302, the second megabyte DRAM ICs occupy
sockets U303 and U304, the third megabyte DRAM ICs occupy
sockets U305 and U306, and the fourth megabyte DRAM ICs
occupy sockets U307 and U308.
WARNING: If you install the DRAM ICs in any order other than
described above, the Model 24SII will not recognize the memory
expansion.
5. Locate the diagonal notch on the DRAM IC. This notch must
face the transformer when installed in the appropriate socket.
WARNING: If the DRAM ICs are installed in backwards, they will
be damaged and become inoperable.
6. Line up the pins of each DRAM IC with the 20 holes in the
socket. Hold the DRAM IC straight up so that pins are
perpendicular to the holes. Push down on the DRAM IC until it
is firmly seated in the holes. Be careful not to bend pins or miss
holes.
7. If a DRAM IC needs to be removed, pull straight up and away
from the holes. Be careful not to bend pins.
8. Once memory expansion has been completed, replace the
cover of the unit and the 4 phillips-head screws that hold it.
Apply power to the unit. The upgrade is now complete.
9. To verify memory upgrade, enter the configuration mode (see
Section 8 of the owner's manual.). The installed memory will be
displayed in the main configuration menu.
C.2 M24SII-M02 BUFFER EXPANSION
SIMM INSTALLATION
Each memory expansion upgrade kit provided by BayTech includes
either a 1MB x 8 or 4MB x 8 SIMM (single in-line memory module).
You may also use third party SIMMs. The total buffer size may range
from 0MB to 16MB with a minimum of 1MB required for operation.
Please use the following instructions when installing memory
expansion SIMMs.
You will need a phillips-head screwdriver.
1. IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF. Also remove
power cord from socket.
2. Using the phillips-head screwdriver, remove the four
phillips-head screws holding the top cover of the unit. After
screws are removed, lift off cover.
3. With LED side of the unit facing you, look down into the unit
and locate the memory board. The memory board has four
sockets for memory expansion. These straight-line sockets are
marked U15, U16, U17 and U18 (refer to Appendix D.5 M24SII-M02 Memory Board Assembly). Note that one or more
of these sockets may already have a memory module installed.
4. U15 must always be occupied by either a 1MB or 4MB SIMM.
Any new memory expansion module(s) may be installed in any
of the remaining sockets (i.e., U16, U17, or U18) and need not
be installed in any specific order.
5. Hold the memory expansion module in your hand so that the
card edge connector is facing down.
IMPORTANT: On the memory expansion module, Pin 1 is marked.
Pin 1 should be positioned to the left of the unit (with LEDs facing
you).
WARNING: If module is plugged in backwards, it will be damaged and
become inoperable.
6. Line up the connector of the memory expansion module with
the socket. Push down on the memory expansion module until
it is firmly seated in the socket.
7. If a memory expansion module needs to be removed, pull
straight up and away from the socket.
8. Once memory expansion has been completed, replace the
cover of the unit and the 4 phillips-head screws that hold it.
Apply power to the unit. The upgrade is now complete.
9. To verify memory upgrade, enter the configuration mode (see
Section 8). The installed memory will be displayed in the main
configuration menu.
C.3 MODEL 24SII MAIN BOARD EPROM
UPGRADE
The materials you will receive with your upgrade kit are:
One EPROM (chip with label)
The materials you will need to supply are:
Phillips-head screwdriver
IC DIP extractor or a pair of curved needle-nose pliers
1. IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF. Also remove power
cord from the AC outlet.
2. Remove the cover of the unit by unscrewing the 4 screws located
on the top panel with the phillips-head screwdriver.
3. With the front of the unit (LED side) facing away from you, locate
socket U2 (see Appendix D.3 - Main Board Mechanical Layout).
4. Remove existing EPROM from socket U2 with IC extractor or
needle-nose pliers. Gradually loosen each side of the chip,
alternating pliers from side to side, so as not to bend chip pins. Pull
loosened EPROM all the way out.
5. Install new EPROM into socket U2. The EPROM is notched; the
notch on the EPROM will point towards the right of the unit. When
installing the new chips, be careful not to bend any of the pins.
Also make sure all pins fit their sockets.
6. Replace the cover; the upgrade is now complete.
C.4 MODEL 24SII MEMORY MODULE
EPROM UPGRADE
The materials you will receive with your upgrade kit are:
1 EPROM (chip with label). This Chip will be marked to identify which
memory module type they install into.
The materials you will need to supply are:
Phillips-head screwdriver
IC DIP extractor or a pair of curved needle-nose pliers
1. IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF. Also remove power
cord from the AC outlet.
2. Using the phillips-head screwdriver, remove the 4 phillips-head
screws holding the top cover of the unit. After screws are removed,
lift off cover.
3. If upgrading the M24SII-M01 memory module, locate socket U102
on the module (see Appendix D.4). If upgrading the M24SII-M02
memory module, locate socket U2 on the module (see Appendix
D.5).
4. Remove existing EPROM from the appropriate socket with IC
extractor or needle-nose pliers. Gradually loosen each side of the
chip, alternating pliers from side to side, so as not to bend chip
pins. Pull loosened EPROM all the way out.
5. Install new EPROM into the appropriate socket. The EPROM is
notched; the notch on the EPROM should line up with the notch on
the socket. When installing the new chip, be careful not to bend
any of the pins. Make sure none of the pins miss their socket. Also
make certain that you install the correct EPROM into the
appropriate memory module.
6. Replace the cover; the upgrade is now complete.
C.5 MODEL 24SII I/O MODULE EPROM
UPGRADE
The materials you will receive with your upgrade kit are:
EPROM(s) (chip(s) with label). Chips will be marked to identify which
module type they install into. The upgrade requires one new
EPROM per I/O module. You will receive the correct quantity of
EPROMs for the number of I/O modules installed that need to be
upgraded. Please refer to the following table to determine which
EPROM each module type requires
BayTech Part Number
Module Type
EPROM Label Marking
M24SII-V02
4 Port high speed
parallel, DB-25F
M24SII
DES-4AHS
M24SII-V03
4 Port high speed serial
EIA-232, DB-25M, DTE
M24SII
DES-4CHS
M24SII-V06A
4 Port high speed serial
EIA-232, RJ-45
M24SII
DES-4CHS
M24SII-V07
4 Port high speed serial
EIA-422, RJ-45
M24SII
DES-4CHS
M24SII-V08
4 Port high speed serial
current loop, DB-25M
M24SII
DES-4CHS
The materials you will need to supply are:
Straight-slot screwdriver
IC DIP extractor or a pair of curved needle-nose pliers
1. IMPORTANT: Remove power from the unit by depressing the
power switch on the front of the unit to OFF. Also remove power
cord from the AC outlet.
2. Remove the appropriate I/O module by loosening the 2 straightslot screws that connect the back panel of the I/O module to the
chassis and then pulling the module out.
3. If upgrading a serial module, locate socket U3 on the appropriate
I/O module (see Appendix D.7). If upgrading the M24SII-V02
parallel module, locate socket U6 on the module (see Appendix
D.6).
4. Remove existing EPROM from the appropriate socket with IC
extractor or needle-nose pliers. Gradually loosen each side of the
chip, alternating pliers from side to side, so as not to bend chip
pins. Pull loosened EPROM all the way out.
5. Install new EPROM into the appropriate socket. The EPROM is
notched; the notch on the EPROM should line up with the notch on
the socket. When installing the new chips, be careful not to bend
any of the pins. Make sure none of the pins miss their sockets.
Also make certain that you install the correct EPROM into the
appropriate I/O module.
6. If more than one I/O module is installed into the Model 24SII,
locate the appropriate socket on those modules and follow the
procedures listed above under steps 2 through 5. Again, refer to
the label on the EPROMs to verify that you are installing the
correct EPROM into the module.
7. Re-install the module(s) as described in Appendix B.1 and apply
power to the unit. The upgrade is now complete.
Before you begin operations, check the Model 24SII's configuration
status to make certain it matches your application. If configuration
changes (baud rates, handshaking, etc.) are required, you must make
these changes in the configuration mode. See Section 8 for complete
instructions.
APPENDIX D
MECHANICAL LAYOUTS
D.1 MODEL 24SII FRONT PANEL
D.2 MODEL 24SII UNIT ASSEMBLY
D.3 MODEL 24SII MAIN BOARD
D.4 M24SII-M01 MEMORY BOARD
ASSEMBLY
D.5 M24SII-M02 MEMORY BOARD
ASSEMBLY
D.6 I/O MODULE M24SII-V02: 4 PARALLEL
PORTS
D.7 I/O MODULES M24SII-V03/V06/V08:
4 HIGH SPEED SERIAL PORTS (MAIN
BOARD)
D.8 I/O MODULE M24SII-V07:
4 HIGH SPEED SERIAL PORTS
(CONNECTOR BOARD)
APPENDIX E
TROUBLESHOOTING
Please check this troubleshooting guide before calling BayTech
Tech Support.
NOTE: This troubleshooting guide is geared towards the IBM PC, AT,
XT family and compatibles.
PROBLEM
SYMPTOM
CAUSE
SOLUTION
Data does not
print
Power LED
does not
illuminate
Unit is not
turned on
Put switch on
A/C power
cord is not
plugged in
Plug power cord into proper A/C power
outlet
Fuse blown
Unplug A/C power cord and check
internal fuse. If blown, replace with same
type and rating of fuse
On power-up,
all LEDs come
on and stay on
Model 24SII
DES failure
Call BayTech technical support
No port LEDs
illuminate
PC serial
cable
Check cabling between PC and Model
24SII DES. Check handshaking lines
using TERM program. All lines (except
DCD which is not used) should be high.
If lines are high, turn Model 24SII DES
off. You should notice CTS and DSR
lines go low. If they do not go low, there
is a good chance you have an error in
your cable. Typing characters from
TERM should illuminate PC LED on
Model 24SII DES.
PC com port
Check installation procedures for PC's
serial port. COM1 must generate an
interrupt on IRQ4 (COM2 on IRQ3).
Also, check any jumpers for defining port
configuration which should be jumpered
for DTE, not DCE.
PC parallel
cable
Check cable's continuity and pin
configuration.
Model 24SII
DES is
connected to
a nondesignated
COM port
Make sure Model 24SII DES is
connected to a designated PC COM
port. Check using TERM program. Turn
Model 24SII DES off, and you should
not see CTS/DSR lines toggle if you are
on a non-designated COM port.
PC is
connected to
Enter Model 24SII DES configuration
mode and in the Status menu, check the
Data does not
print
(continued)
No port LEDs
illuminate
(continued)
PROBLEM
SYMPTOM
CAUSE
SOLUTION
Model 24SII
DES port
which is
configured as
a printer port
Port Designation.
LPTx not
rerouted to
COMx port for
PC serial
communicatio
n
Reroute COM port through DOS as
follows:
MODE LPTx:=COMy (x=1, 2 or 3; y=1 or
2).
Model 24SII
DES is in
configuration
mode (all
LEDs will be
illuminated)
Exit configuration mode or recycle
power.
Printer cable
Correct parallel or serial cable between
Model 24SII DES and printer
Model 24SII
DES serial
computer port
does not
match the
configuration
of the PC
Enter Model 24SII DES configuration
mode and match to the PC the baud
rate, word size, stop bits, parity, and
handshaking.
Model 24SII
DES serial
printer port
does not
match the
configuration
of the printer
Enter Model SII configuration mode and
match to the printer baud rate, word
size, stop bits, parity, and handshaking.
Printer port
LED stays on
Printer is offline
Make sure printer is on-line.
HP LaserJet
gives "Error 22"
message
Error in serial
printer cable
(no data flow
control)
Check flow control between M24SII and
printer. A way to check is to force an
error condition at the printer (i.e. remove
paper tray from laser printer or turn offline with power still applied). Send print
job to printer. If printer LED goes off, you
can conclude no handshaking was done.
Check pin 20 of peripheral to pin 5 of
Model 24SII DES and/or pin 11 on
parallel ports for continuity by using an
ohm meter to check resistance from end
to end.
PC and Printer
port LEDs
illuminate
Data does not
print
(continued)
HP LaserJet
gives "Error 40"
message
Model 24SII
DES serial
printer port
does not
match the
configuration
Enter Model SII configuration mode and
set the printer port's baud rate to match
the printer's baud rate or enter
LaserJet's configuration mode and
program the printer's baud rate to match
the Model SII.
PROBLEM
SYMPTOM
CAUSE
SOLUTION
HP LaserJet
gives "Error 40"
message
Serial printer
cable or
Model 24SII
DES losing
power during
transmission
to printer
The HP LaserJet will give this message
when its DSR line (Pin 6) goes from
positive to negative or zero volts. Verify
that Pin 6 on the printer side of the serial
cable is either connected or jumpered as
shown in Appendix A.3. Also verify
M24SII's AC power source.
Control-T
followed by
capital C (or F1
in TERM
program) sent
in dumb
terminal mode
does not invoke
configuration
menus
Cable
Use correct serial cable between PC and
Model 24SII DES. Check handshaking
lines in TERM program.
Port
configuration
Match baud rate, word size, stop bits,
parity and handshaking lines between
Model 24SII DES and PC. This can be
done using TERM program.
Port selection
Ensure PC COM port is connected to
configuration port of Model 24SII DES.
Software
Use dumb terminal or a PC running a
terminal emulation program (TERM
supplied by BayTech, or another
program such as CrossTalk).
User activity
Wait until current activity between PC
and printer is completed. There should
be no red LEDs illuminated when trying
to enter the configuration mode.
Bad PC COM
port
Try a different COM port or PC.
PC serial card
uses IRQ4
instead of
IRQ3
Reconfigure serial card, use a different
serial card, or different terminal
emulation program.
Incorrect
cable type (no
data flow
control)
Check manual for correct pin-outs
between PC and Model 24SII DES, and
between Model 24SII DES and printer.
Check handshaking. A way to check is
to force an error condition at the printer
(i.e. remove paper tray from laser printer
or turn off-line with power still applied).
Send print job to printer. If printer LED
goes off, you can conclude no
handshaking was done. On serial ports,
check Model 24SII DES configuration to
match handshaking (i.e. you must be
using CTS/DTR or XON/XOFF for both
Model 24SII DES and printer). Also
of the printer
Cannot
configure
Model 24SII
DES
Cannot
configure
Model 24SII
DES
(continued)
Prints
Garbage
Port LEDs are
illuminated
when trying to
access
configuration
mode
Missing
Characters
PROBLEM
SYMPTOM
CAUSE
SOLUTION
check pin 20 of peripheral to pin 5 of
Model 24SII DES and/or pin 11 on
parallel ports for continuity by using an
ohm meter to check resistance from end
to end.
Random
Garbage
Characters
Cannot select
printer
Incorrect LEDs
illuminate when
sending print
job
Some sort of
Port Select
code prints on
document when
using
RAMEXEC
Cannot select
Printer during
print job
RAMEXEC
Have to reboot
Parallel cable
length
Parallel cable should not exceed 15 feet.
Use shorter length or higher-quality
cable.
Configuration
problem
Check baud rate, word size, stop bits
and parity on serial ports. It is best to be
at 8 word size and no parity. BayTech
does not recommend a configuration of
7 word size with odd or even parity.
Serial Port
Configuration
In Model 24SII DES configuration mode,
match baud rates, word size, stop bits,
parity and handshaking with the conned
device
Cable length
If serial cable, length should not exceed
150 feet. If parallel cable, length should
not exceed 15 feet.
Port selection
Port Select Code may be going out on
wrong port; e.g. Port Select Code is
going out LPT1 and Model 24SII DES is
connected to COM1. Also make sure
selected port is designated as a printer
port and not as a computer port.
Improper Port
Select
Sequence
Match Port Select Code you are sending
to Port Select Code specified in
configuration mode. Check case of Port
Select Code (upper or lower). Also,
remove any spaces between Port Select
Code and port number.
You are in
Port Select
Mode B with
zero (0)
timeout
Switch to Port Select Mode A or enter a
timeout value, both via configuration
mode.
Port Select
Code in
SETUP does
not match
Port Select
Code
configured in
Model 24SII
DES
Match the Port Select Codes exactly.
You are using
Port Select
Mode B (port
selection at
beginning of
print job only)
Switch to Port Select Mode A in
configuration (port selection anytime
while sending) or wait for computer LED
to go out before selecting printer.
LPTx not
Reroute LPTx using the following DOS
PROBLEM
SYMPTOM
CAUSE
SOLUTION
hangs up PC
when
executed
PC
rerouted for
serial
communicatio
n
command:
MODE LPTx:=COMy (x=1, 2 or 3; y=1 or
2).
Floating
condition on
DSR or CTS
lines (i.e.,
cable
problem)
Using TERM program, check
handshaking line. Power down Model
24SII DES. If DSR, DCD and CTS lines
do not go low, cable wiring needs to be
checked
Print job
switches
printers in the
middle of a
print job
Timeout
period too
short
Increase Input Inactivity Timeout period
via configuration mode
Print job
switches
printers in the
middle of a
print job
(continued)
Characters
used in Port
Select Code
are too
common and
may
inadvertently
appear
somewhere in
the print job
Change Port Select Code to a unique
character sequence.
Print jobs
intermix
Timeout
period is too
short
Increase Input Inactivity Timeout period
via configuration mode.
Timeout is set
to zero (0)
Increase Input Inactivity Timeout period
via configuration mode.
Port selected
is designated
as a computer
port (e.g.,
computer-tomodem
connection)
Send the disconnect sequence which
consists of the Port Select Code
followed by a terminating character: OD
Hex (enter/return) or OA Hex (line feed).
Printer port is
not connected
or is
connected to
a powereddown printer.
Data is being
routed to a
powereddown printer
and is lost
(going into the
bit bucket)
Make sure printer is plugged in, turned
on, and in the "off line" mode. This
"pulls" the DTR line low and enables
transmission to the Model 24SII DES.
Or, Model 24SII DES could be in
contention mode, and when first printer
is busy, print job is routed to the next
available printer which is turned off or is
not connected. It is highly recommended
that printers connected to the Model
24SII DES be plugged in and turned on
at all times; however, printers need not
be in the "on-line" mode.
Mismatch in
serial
configuration
Configure the modem communications
software to communicate at the same
serial parameters (baud rate, etc.) that
Model 24SII
DES does not
timeout
LEDs do no go
out
Print jobs are
lost when
multiple users
are sending
print jobs
Unable to dial
out of external
modem after
Modem gives
no indication of
dialing out
PROBLEM
connection is
made
SYMPTOM
CAUSE
SOLUTION
between
modem
communicatio
n software
and Model
24SII DES
the computer normally uses to print with.
APPENDIX F
INDEX
4-wire 3, 4, 6-8, 15, 16, 20, 35, 36, 38-45, 49, 80, 81, 112-116
8-wire 3, 4, 6-8, 15, 16, 20, 35-37, 49, 80, 81, 111
A
Adapters 33, 35, 113, 115
Applications 2, 3, 11, 34, 47, 48, 51-53, 98
Applications 98
ASCII 7, 18, 19, 47, 52, 54, 56, 64, 65, 67, 78
ASCII character string 47, 78
Asynchronous 8, 108
Autobaud detect 60
Autoexec 23-25
B
Baud rate 3, 6, 16, 17, 20, 49, 59, 60, 67, 68, 80-83, 96, 138,
139, 140, 142
Bidirectional 6-8, 16, 20, 35, 36, 38, 41, 42, 49, 57, 81-83, 96,
112, 113, 116
Bit bucket 142
Buffer 2, 3, 8, 9, 27, 30, 49, 51, 52, 54-57, 61-64, 66, 83, 119,
121, 123
Buffer clearing 56
Buffer expansion 119, 121, 123
buffering of print data 51, 55
Busy message 57-59
C
Cabling 2, 4, 11, 14, 15, 25, 29, 30, 32, 33, 35, 37-40, 100, 107,
111, 112, 114, 116, 137
Case sensitive 69
CDT 98
Centronics 9, 25, 26, 106
Clear buffer command 54-56
Clear-to-Send 61, 63
CLR 54, 56
Communications Software 57, 58, 142
Computer port 2, 6, 7, 11, 14, 15, 19, 39, 43, 46, 49, 52, 55, 58,
59-61, 63, 67-69, 71, 73, 75, 76, 79, 80, 85-87, 90, 94, 95,
116, 138, 141, 142
Computer-to-computer 14, 46-49, 57-59
Computer-to-computer communication 14, 46, 48, 49, 57
Computer-to-computer connection 57-59
Computer-to-peripheral 49, 51
Computer-to-peripheral communication 49
COMX 15, 24, 138
Configuration mode 3, 11, 15, 16, 18, 38, 41, 51, 52, 66-69, 79,
81, 84, 96, 122, 124, 128, 138-142
Configuration port 3, 15, 16, 66-68, 139
Connectors 2, 8, 9, 14, 25, 27, 30, 33, 35, 104, 107, 109, 112,
114
Contending 52
Contention mode 6, 15, 19, 22, 50, 52, 53, 142
Control characters 67
Control-C 89
Control-T 16, 18, 67-70, 139
CrossTalk 58, 139
CRT 17, 89
CST 98
CTS 8, 17, 18, 27, 30, 33, 36, 40, 61-63, 137, 138, 140, 141
Current loop 117, 127
D
Data Communication Equipment 27, 30, 33
Data flow control 61, 139, 140
Data Terminal Equipment 27, 30, 33
Data Terminal Ready 61
Data transfer 2
DB-25 8, 9, 14, 25-27, 30, 33, 35, 100, 104, 107, 112, 114, 117
DCD 17, 18, 137, 141
DCE 8, 14, 27, 28, 30, 31, 33, 117, 137
DE-9 33, 35, 102, 107, 112, 114
Default printer 3, 6, 7, 15, 22, 49, 50, 52, 53, 69, 70, 72, 84, 94,
95
Default printer assignment 3, 6, 7, 15, 22, 50, 52, 69, 70, 72, 84,
94, 95
Dimensions 5, 8, 9
Disconnect code 21
Diskette 12, 13, 67
DOS 17, 21, 23, 24, 47, 50, 52, 54, 56, 64, 65, 138, 141
Draftmaster 3
DSR 17, 18, 30, 33, 137-139, 141
DTE 8, 14, 27, 28, 30, 31, 33, 117, 127, 137
DTR 8, 17, 18, 27, 30, 33, 36, 39, 49, 55, 61, 62, 140, 142
Dumb terminal mode 139
Duplex 8, 14, 17, 57, 59
Dynamically allocated buffer 2, 55
E
EIA-232 8, 25, 27, 28, 30, 31, 33, 35-40, 104, 107, 108, 110, 111,
112-115, 117, 127
EIA-422 4, 8, 35-37, 41-45, 110, 111, 116, 117, 127
Emulation 3, 17, 18, 67, 139, 140
Ending a print job 54
Environment 5, 50
Eprom 121, 125-128
Error condition 139, 140
Expansion slots 5
F
Factory-default settings 15
FAX 98
Federal communications commission 99
File transfer 57, 58
Floating condition 141
Flow control buffer 8, 9
Form feed mode 3, 6, 7, 15, 21, 69, 70, 72, 84, 87, 88
Full duplex communication 14, 17, 57, 59
G,H
GND 28, 31, 33, 36-40
Handshake In 33, 36, 40, 44
Handshake Out 33, 36, 39, 42
Handshaking 8, 9, 11, 17, 18, 28, 31, 36, 38-42, 44, 61-64, 80,
128, 137-141
Hewlett Packard 104
HP 3000 option 65
HSI 8, 36, 37, 43-45
HSO 8, 36, 37, 42-45
I
I.D. page message 3, 6, 7, 15, 19, 22, 46, 50, 66, 69, 70, 72, 73,
84, 89-93
I.D. page printing schedule 66
I/O module 3, 15, 27, 30, 33, 35, 36, 43, 44, 107, 111, 117, 118,
127, 128, 134, 136
IBM 3, 2, 11, 17, 19, 25-27, 30, 33, 67, 74, 100, 102, 107, 112,
114, 137
IC 122, 125-128
In-line spoolers 98
Indicators 5
Input Flow Control 64
Input inactivity timeout 3, 6, 7, 15, 21, 48, 49, 54-56, 69, 70, 72,
84-86, 142
Intermix 142
J,K,L
Jumper 35, 110
Kermit 58
L-shaped 117
Laser 1, 19, 50, 139, 140
Laserjet 3, 1, 21, 65, 104, 139
LED 5, 14, 18, 55, 121, 123, 125, 137-141
Logical name 6, 7, 15, 19, 46, 50, 69-76, 79, 80, 84, 85, 87, 88,
90-95
LPT 1, 4, 43, 116
LPTx 23, 138, 141, C
M
Main board eprom upgrade 125
Main board mechanical layout 125
Main configuration menu 18, 69-71, 73-78, 80, 84-96, 122, 124
Main configuration mode 79
Maintenance 97
Manual disconnect 21, 54, 55, 86
Master configuration port 3, 15, 16, 66-68
Maximum input power rating 5
MB 3
Memory board 5, 123, 132, 133
Memory expansion module 121, 123, 124
MicroPro 3
Minimum size print job 6, 56
Mirror 58
Missing characters 140
Modem 1, 5, 11, 46, 58-60, 96, 108, 142
Modem sharing 59, 96
Modular connectors 2, 14, 33, 35, 109
Module number 3, 16, 18, 47, 50, 52-54, 57, 59, 64, 67-70, 77,
94, 95
Mounting 5
N,O,P
Non-printable characters 19, 78
Non-volatile memory 3, 5, 6, 74, 76, 78, 80, 86, 88, 89, 91, 93, 95
Off Line message 58
Ohm meter 139, 140
On Line message 57, 59
Option accessibility 69, 71, 73, 75, 77-80, 85, 87, 89, 90, 92, 94,
96
Output flow control 64
Parallel-to-serial 46
Parity 3, 6, 7, 11, 16, 17, 20, 24, 48, 49, 60, 67, 72, 80-83, 138,
139, 140
PC COM port 17, 24, 137-140
PC Talk XVI 58
Peripheral-to-model 61, 63
Pin assignment 26
Plotter 3, 1, 3, 10, 11, 46, 51, 53, 96, 104, 108, 113, 115
Port designation 3, 6, 7, 11, 16, 19, 46, 66, 69, 72, 75, 84, 138
Port logical name(s) 15
Port number 3, 22, 47, 50, 52-54, 57, 59, 64, 73-76, 79-81, 83,
85, 86-88, 90-95, 141
Port Select Code 3, 6, 7, 15, 19, 20, 47, 48, 52-54, 56-60, 64, 66,
69, 70, 72, 78, 84, 86, 141, 142, C, 142
Port Select Mode 3, 7, 15, 20, 21, 48, 53-56, 69, 70, 72, 79, 80,
84, 86, 141
Port select sequence 22, 47, 48, 50, 52-54, 58, 64, 65, 94, 141
Port selection 7, 139, 141
Power consumption 8, 9
Power cord 14, 110, 117-119, 121, 123, 125-127, 137
Power supply 5
Power switch 14, 117-119, 121, 123, 125-127
Print schedule 22, 69, 70, 72, 84, 92, 93
Printer assignment 3, 6, 7, 15, 19, 22, 50, 52, 69, 70, 72, 84, 94,
95
Printer port 2, 6, 7, 11, 14, 15, 22, 40, 44-46, 50, 52, 53, 55, 61,
63, 75-77, 86, 92, 93, 116, 138, 139, 141, 142
Printer sharing mode 3, 6, 7, 16, 20, 35, 36, 38-45, 49, 57, 69, 80,
82, 96, 112, 114, 116
Protective ground 27, 30
Protocol 4, 9, 25, 28, 31, 35-42, 44, 46, 58, 107, 110-112, 114,
116
Q,R
Q-Modem 58
Queued 55, 56
Rack-mount 5
Radio and television reception 99
Radio frequency 99
Ramexec 13, 23, 24, 47, 52, 59, 141
Readme 11, 13
Results codes 60
Return authorization 97
Ribbon cable 120
RJ-11 2, 4, 8, 35, 38-44, 49, 112-116
RJ-45 2, 4, 8, 14, 33-37, 49, 107, 109, 111, 117, 127
RTS 17, 18, 27, 30, 33
RX 27, 28, 30, 31, 33, 36-39, 41-44
RX+ 36, 37, 41-44
RX- 36, 37, 41-44
S
Serial number 98
Serial port configuration 3, 11, 20, 24, 49, 69, 72, 80, 84, 140
Serial-to-parallel 46
Shielded 99
Single channel bus speed 5
Software drivers 98
Specifications 5, 99
Spooling 2, 3, 55, 61, 63
Status 18, 19, 69-72, 76, 78, 81, 82, 84, 86, 93, 98, 128, 138
Stop bits 3, 7, 17, 20, 49, 80-83, 138, 139, C, 140
Strobe line 25
Support software program 64
T
Technical Support 12, 97, 98, 137
Television reception 99
Telex 98
Temperature 5
Term 17, 18, 67, 137-139, 141
Terminal 3, 15-18, 27, 30, 33, 61, 67, 139, 140
Terminal emulation program 17, 18, 67, 139, 140
Terminating character 47, 52-54, 56-58, 64, 142
Timeout 3, 6, 7, 15, 20, 21, 48, 49, 54-56, 69-72, 79, 80, 84, 85,
86, 141, 142
Tran-x 1, 4, 25, 37, 42, 43, 45, 110, 111, 116
Troubleshooting 137
TX 27, 28, 30, 31, 33, 36-38, 40-44
TX+ 36, 37, 41-44
TX- 36, 37, 41-44
U,V
Unidirectional 2, 6-8, 20, 35, 36, 39, 40, 42-45, 49, 82, 96, 114,
115, 116
Upgrade 119, 121-128
User-defined 53, 78
User-programmable 6, 46
VAC 5, 14
Voltage 27, 61
Volts 28, 31, 139
W
Warranty 5, 97
Weight 5
Word Perfect 65
Word processing programs 64
Word size 3, 6, 7, 16, 17, 20, 48, 49, 59, 67, 80-83, 138-140
WordStar 3, 65
X,Y,Z
X-Modem 58
XMIT 20, 64, 72, 81-83
XON/XOFF 3, 6-8, 11, 16, 20, 28, 31, 36, 38, 41, 49, 60, 62, 64,
67, 80-83, 116, 140
XON/XOFF handshaking 11, 36, 38, 41, 62, 64, 80
OTHER BAYTECH PRODUCTS
Print Master 700 Series printer controllers are made in several
different configurations satisfying various interface requirements.
Each unit allows computers to share, select and/or contend for
printers easily and economically, without switching cables. The
internal buffering system allows simultaneous, high-speed input from
all connected computers and output to all printers. Models come in
six, eight, and ten port sizes. All have a 1 MB, dynamically allocated
buffer that may be expanded to 2 MB. The 706A and 708A all parallel
port models feature super fast throughput (up to 33,000 characters
per second) and an expandable buffer size up to 4 MB.
Print Master II 800 Series peripheral sharing devices connect
between your computers, printers, plotters, modems and other
peripherals. These models allow any of your computers to access
any of your peripherals -- and talk to other computers so files can be
transferred and data shared. Plus, a built-in buffer spools output data
until your peripherals can receive it, freeing your computers to go on
to other tasks. Models come in four, eight, and ten port sizes plus all
have 256KB buffer. Eight and ten port models have an expandable
buffer up to 1.2 MB.
Model 24SII DES Data Exchange System is the fastest peripheral
sharing solution available with throughput speeds up to 60,000
characters per second. The total number of ports may be expanded
from 4 to 24 ports using 4-port I/O modules. Any port can be
configured as an input or output port. The standard 1.0 MB buffer can
be increased to 16 MB by user installed memory packages. Plus,
using popular communications software, this unit allows for computer
to computer high speed data transfer as well as modem sharing.
LaserShare is an intelligent printer controller that allows up to four or
eight computers to send data to a single HP LaserJet Series II, IID, III,
IIID, Brother HL8e* and HL8v*, or Wang LDP8 laser printer.
LaserShare connects directly into the optional I/O slot of the laser
printer. Power is taken directly from the laser printer so there is no
need for a power cord. LaserShare can accept data from all ports
simultaneous and is printed on a first-in first-out basis. All LaserShare
models come standard with a buffer that can range from 256K to 4.0
MB. LaserShare 4C comes with four EIA-232C serial ports,
LaserShare 8C comes with eight serial ports, LaserShare 4E comes
with two parallel and two serial ports, and LaserShare 4A comes with
four parallel ports.
* The LaserShare device for the Brother HL8e and HL8v is referred
to as LaserShare 4CB. This device is available with four (4) serial
computer ports and a fixed buffer size of 256KB.
Tran-x high speed parallel/serial converter products allow you to
extend parallel cables to 1000+ feet and allow your network server,
graphics workstation, or PC to send/receive data at speeds up to
46,000 characters per second. You can use the Tran-x Series with
BayTech Model 24SII or LaserShare for the fastest long distance
peripheral sharing solution available anywhere. Modular cabling
provides simplicity in connections between remote devices. Tran-x
LPT-460 card plugs directly into your PC expansion slot. Tran-x PS02 connects to your PC's parallel port. Tran-x SP-01 connects to the
Centronics connector of a parallel printer. Tran-x PS-02 connects to
the DB-25 parallel port of the BayTech 700 Series Print Master or 800
Series Print Master II peripheral sharing units.
"500H" Series and the Model 24SII DAC Data Acquisition and
Control units connect between one host computer and multiple
peripheral devices. These models are often used in industrial
process-control environments (e.g., for allowing control of multiple
numerical or assembly-line machines), in exchanging data between
point-of-sale devices, or for operating a number of laboratory
instruments or business machines from a central computer. They are
especially effective in adapting small low-cost personal computers to
these applications. Each unit features six modes of operation which
may be easily configured to your application. The 500H series
models are available with either 5 or 9 ports. The Model 24SII DAC
unit is expandable from 4 to 24 ports in 4-port modular increments.
Telplex Models TX104 and TX108 are asynchronous statistical
multiplexers which multiplex and demultiplex four or eight
communications channels over a single channel. This single channel
is typically a telephone line or cable. The TX24 will multiplex and
demultiplex up to twenty channels. Programmable features include
serial port parameters (baud rate, word size, etc.), data flow control,
user-programmable strings to be sent to an external modem, and
remote diagnostics/configuration capability. These units must be
purchased in pairs.
Telplex Model TX104M is an asynchronous statistical multiplexer with
built-in modem. Four individual communications channels are
multiplexed into a single dial-up or leased telephone line, cutting
phone line costs to a minimum. The TX104M features a V.22 bis
internal modem which provides reliable communication at speeds up
to 4800 bps. With V.42 bis protocol, the TX104M provides error
correction and Classes 2-4 data compression. Compatible with most
computers, printers, or peripherals, the TX104M ensures rapid
throughput, and offers a variety of user-programmable features in
order to meet your specific application requirements.
Telplex Model TX108M is an asynchronous statistical multiplexer with
built-in modem. Eight individual communications channels are
multiplexed into a single dial-up or leased telephone line, cutting
phone line costs to a minimum. The TX108M features a V.32 internal
modem with MNP Class-4, which provides reliable communication at
speeds up to 9600 bps.
Telplex Model BX9600 is an external asynchronous 9600 bps
modem. The BX9600 features V.32 full duplex communication,
automatic or manual dialing and answering, call progress detection of
dial tones and busy signals, pulse or tone dialing, and a variety of
other convenient features. The BX9600 interfaces easily to statistical
multiplexers and other peripheral sharing devices to allow multiple
users to share the modem. And its MNP Class 4 error correction
ensures that the BX9600 provides accurate transmission.
The BX2448 is a V.22 bis external modem which uses deal-up or
leased telephone lines and comes equipped with many advantageous
features, such as MNP Class 5 data compression, which enables data
transmission at speeds to 4800 bps and, MNP Classes 2 - 4 error
correction. A wide selection of user-programmable features allows
you to customize the modem to your own individual application
situation.
500 SERIES MULTIPORT CONTROLLERS
Included in the 500 Series line of multiport controllers are units
intended for the following applications:
Port Expansion (A-Series): Allows a single serial port on a
computer to individually access up to 17 peripheral devices with full
duplex communication.
Single Port Contention (DQ-Series): Allows up to 17 terminals to
contend for a single port on a computer system.
Multiple Port Contention (B-Series): Allows either 6, 8 or 12
terminals to contend for either 3, 4 or 6 computer ports respectively.
Networking (F-Series): Networks either 5 or 9 ports together, i.e.,
allows any port to connect to any other port on the multiport controller.
These also have host port control which allows a host computer
system to make and/or break any connection between two ports on
the multiport controller.
Broadcasting (G-Series): Will simultaneously broadcast whatever
data is received on the host port out to either 4 or 8 peripheral devices
while sending data from a single selected peripheral device back to
the host device. This unit is also capable of operating in a port
expansion mode such as the A-Series.
Auto T-Switch (T-Series): Allows a group of up to 6 terminals to
switch between two computer systems.
NOTE: All ports on the 500 Series are standard with EIA-232 ports.
EIA-422 and Current Loop ports are optionally available.
If you have questions concerning any of BayTech's products, please
feel free to call a BayTech Applications Engineer at either (800)5232702 or (601)467-8231.
NOTES
NOTES
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
