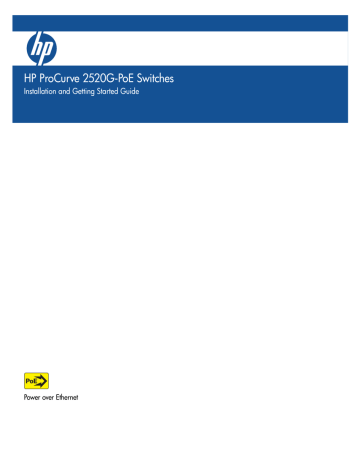

HP ProCurve 2520G-PoE Switches
Installation and Getting Started Guide
Power over Ethernet
HP ProCurve 2520G-PoE Switches
Installation and Getting Started Guide
© Copyright 2009 Hewlett-Packard Development
Company, L.P.
Publication Number
5992-4975
October 2009
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not
be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
The information contained herein is subject to change
without notice. The only warranties for HP products and
services are set forth in the express warranty statements
accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or
omissions contained herein.
Applicable Products
HP ProCurve 2520G-8-PoE Switch
HP ProCurve 2520G-24-PoE Switch
Disclaimer
(J9298A)
(J9299A)
Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished
by Hewlett-Packard.
Warranty
See the Software License, Warranty and Support booklet
included with the product.
A copy of the specific warranty terms applicable to your
Hewlett-Packard products and replacement parts can be
obtained from your HP Sales and Service Office or
authorized dealer.
Safety
Before installing and operating these products, please read
the “Installation Precautions” in chapter 2, “Installing the
Switch”, and the safety statements in appendix B, “Safety
and EMC Regulatory Statements”.
Hewlett-Packard Company
8000 Foothills Boulevard, m/s 5551
Roseville, California 95747-5551
www.hp.com/go/procurve
Contents
1 Introducing the Switch
Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . 1-7
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Save Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
2 Installing the Switch
Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Rack Mounting the Switch 2520G-24-PoE . . . . . . . . . . . . . . . . . . . 2-9
Rack Mounting the Switch 2520G-8-PoE . . . . . . . . . . . . . . . . . . . 2-11
Wall or Under-Table Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Using a Kensington Security Cable . . . . . . . . . . . . . . . . . . . . . . . . 2-15
4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-15
5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
iii
6. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the mini-GBICs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . .
2-18
2-18
2-19
2-19
7. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-20
Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
As a Desktop Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-22
As a Segment Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-23
Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
3 Configuring the Switch
Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5
Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
4 Troubleshooting
Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
LED patterns for General Switch Troubleshooting . . . . . . . . . . . . . . . 4-4
LED Patterns for PoE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Testing Switch-to-Device Network Communications . . . . . . . . . . . . 4-11
Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 4-11
Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 4-12
Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
iv
HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
A Specifications
Switch Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
BTU Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Cabling and Technology Information Specifications . . . . . . . . . . . . . . . . A-4
Technology Distance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
Straight-through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . A-10
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . A-11
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
B Safety and EMC Regulatory Statements
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
v
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10
D Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1
Index
vi
1
Introducing the Switch
The HP ProCurve 2520G-PoE Switches are multiport switches that can be used
to build high-performance switched workgroup networks. These switches are
store-and-forward devices that offer low latency for high-speed networking.
The 2520G-PoE switches also support Power over Ethernet (PoE)
technologies.
HP ProCurve 2520G-8-PoE Switch (J9298A)
HP ProCurve 2520G-24-PoE Switch (J9299A)
Throughout this manual, these switches will be referred to as the Switch
2520G-8-PoE and the Switch 2520G-24-PoE.
■
The Switch 2520G-8-PoE has 8 auto-sensing 10/100/1000Base-T RJ-45
ports with two Gigabit Uplink dual-personality ports (ports 9 and 10).
■
The Switch 2520G-24-PoE has 24 auto-sensing 10/100/1000Base-T RJ-45
ports, four of which are dual-personality ports (ports 21 through 24).
■
Power-over-Ethernet or PoE power - Both 2520G-PoE switches
support PoE technology, which allows IP telephones, wireless LAN
Access Points and other appliances to receive power as well as data over
existing LAN cabling, without needing to modify the existing Ethernet
infrastructure. The Switch 2520G-24-PoE is designed with an internal PoE
power supply capable of providing 195 watts of PoE power (67 watts on
the Switch 2520G-8-PoE). Each Switch port can provide up to 15.4 watts
(or 7.5 watts if all ports are used) of PoE power to connected devices. For
further information regarding PoE power, see the PoE Planning and
Implementation Guide, which is on the ProCurve Web site at
www.hp.com/go/procurve/manuals.
1-1
Introducing the Switch
Dual-personality ports use either the 10/100/1000Base-T RJ-45 connector, or a
supported ProCurve mini-GBIC (Small Form Factor Pluggable (SFP)) for
fiber-optic connection. By default, the RJ-45 connectors are enabled.
These switches can be directly connected to computers, printers, and servers
to provide dedicated bandwidth to those devices, and you can build a switched
network infrastructure by connecting the switch to hubs, other switches, or
routers. In addition, the 2520G-PoE switches offer full network management
capabilities.
Using ProCurve mini-GBICs, these products support optional network
connectivity with the following speeds and technologies:
Table 1-1.
Optional Network Connectivity, Speeds and Technologies
Transceiver FormFactor and
Connector
Speed
Technology
Cabling1
SFP ("mini-GBIC")
Connector
100-FX
Fiber (multimode)
LC
100-BX
Fiber (single mode)
LC
1000-SX
Fiber (multimode)
LC
1000-LX
Fiber (multimode or single mode)
LC
1000-LH
Fiber (single mode)
LC
1000-BX
Fiber (single mode)
LC
100 Mbps
1 Gbps
1
For supported transceivers, see www.hp.com/go/procurve/faqs. HP ProCurve MiniGBICs and SFPs have links to a list of supported products (first question in the "General
product information" category).
For technical details of cabling and technologies see “Cabling and Technology Information Specifications” in the appendix A.
1-2
Introducing the Switch
Front of the Switch
Front of the Switch
Power,
Fault, and
Locator
LEDs
Console
Port
Power, Fault,
and Locator
LEDs
Console
Port
Test and Status
LEDs
Reset and Clear
buttons
Switch port LEDs
LED Mode select button
and indicator LEDs
PoE, Fan and Test
Status LEDs
Reset and Clear
buttons
10/100/1000Base-T RJ-45 ports1
Switch port LEDs
LED Mode select button
and indicator LEDs
HP ProCurve 2520G-8-PoE Switch (J9298A)
Dual-personality ports
(1000Base-T2 and mini-GBIC)
HP ProCurve 2520G-24-PoE Switch (J9299A)
10/100/1000Base-T RJ-45 ports1
Dual-personality ports
(1000Base-T2 and Mini-GBIC)
1
All 10/100/1000Base-T RJ-45 ports have the Auto-MDIX feature.
2
Dual-personality ports, either RJ-45 10/100/1000Base-T ports or Mini-GBIC (SFP) slots.
Network Ports
■
8, or 24 auto-sensing 10/100/1000Base-T ports.
All these ports have the “Auto-MDIX” feature, which means that you can
use either straight-through or crossover twisted-pair cables to connect
any network devices to the switch.
■
Two, or four dual-personality ports for either 10/100/1000Base-T RJ-45
uplinks, or mini-GBIC (SFP) slots for fiber uplinks.
1-3
Introducing the Switch
Front of the Switch
LEDs
On the 2520G-PoE switches, there are three groupings of LEDs:
■
switch status LEDs (Table 1-2)
■
port LEDs (Table 1-3)
■
Port LED Mode indicator LEDs (near the selector button) (Table 1-4)
Table 1-2.
Switch LEDs
State
Meaning
Power
(green)
On
The internal power supply is working properly.
Off
No power connection. The switch is NOT receiving power.
Fault
(orange)
Off
The normal state; indicates there are no fault conditions on the switch.
Flashing2
A fault has occurred with a component on the switch. The Status LED for
the component with the fault will flash simultaneously.
On
On briefly after the switch is powered on or reset, at the beginning of
switch self test. If this LED is on for a prolonged time, the switch has
encountered a fatal hardware failure, or has failed its self test. See
chapter 4, “Troubleshooting” for more information.
Locator
(blue)
On
Flashing
Off
The Locator LED is used to locate a specific switch in an area full of
switches. The LED can be set to be on solid or flash for a specified number
of minutes (1-1440). The default is 30 minutes. Use the command
“chassislocate”.
PoE
(green/orange)
On green
Normal operation. The switch is ready to supply PoE power
Flashing
orange2
One or more ports has experienced a fault condition for PoE delivery. The
Fault LED will be flashing simultaneously. If it is a self test failure, the Test
LED will be flashing simultaneously. When the switch is put in PoE LED
Mode, the Mode LED for the port with the problem will also be flashing
simultaneously.
Flashing
orange1
One or more ports has an alert condition for PoE delivery, for example, an
oversubscription condition (not enough PoE power available). Only this
LED will be flashing, the Fault LED is off. When the switch is put in PoE
LED Mode, the Mode LEDs for the ports with the alert condition will also
be flashing.
On green
The cooling fan is operating normally.
Flashing
orange2
The cooling fan has failed. The switch Fault LED will be flashing
simultaneously.
Fan
(green/orange)
(Switch 2520G24-PoE only)
1-4
Switch Status LEDs
Introducing the Switch
Front of the Switch
Switch LEDs
State
Meaning
Test
(green/orange)
Off
The normal operational state; the switch is not undergoing self test.
On green
The switch self test and initialization are in progress after the switch has
been power cycled or reset. The switch is not operational until this LED
goes off. The Test LED also comes on briefly when you “hot swap” a miniGBIC into the switch; the mini-GBIC is tested when it is hot swapped.
Flashing
orange2
A component of the switch has failed its self test. The switch Fault LED,
Test LED, and the failed component LED will flash simultaneously.
1
The flashing behavior is an on/off cycle once every 0.8 seconds approximately, a fast flash.
2
The flashing behavior is an on/off cycle once every 1.6 seconds approximately, a slow flash.
1-5
Introducing the Switch
Front of the Switch
Port LEDs
The port LEDs provide information about the individual switch ports.
Table 1-3.
Switch LEDs
Port LEDs
State
Meaning
On
The port is enabled and receiving a link indication from the connected
device. In PoE mode, indicates that the port is configured to enable PoE
power delivery to the connected device.
Off
One of these condition exists:
• no active network cable is connected to the port
• the port is not receiving link beat or sufficient light
• the port has been disabled through the switch console, the Web
browser interface, ProCurve Manager, or other network management
tool.
• In PoE mode, indicates that the port is configured such that PoE power
delivery is disabled.
• Save power mode is enabled.
Flashing1
The port has failed self test. The switch Fault, and Self Test LEDs will flash
simultaneously.
Port LEDs
Link2
(green)
Mode (green)2
Depending on the mode selected, displays the following:
• network activity information
• connection duplex mode
• connection speed information
• PoE power delivery status
See “LED Mode Select Button and Indicator LEDs:” below for more information.
Mini-GBIC LEDs
Link2
Flashing
green
One of the following conditions exist:
• the mini-GBIC is not supported by the current software
• the mini-GBIC is not a genuine ProCurve Mini-GBIC and is not
supported
• the mini-GBIC is an “A” version in a switch that requires a “B” version
or later.
Link and Mode2
(green)
On for 2
seconds
Both the Link and Mode LED turn on solid for 2 seconds and then go to
normal operation. This indicates the mini-GBIC has been recognized by
the switch.
1 The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.
2 These LEDs are turned off when Save Power mode is enabled. If Save Power mode is enabled and the
LEDs are turned off, they can be turned on temporarily through the LED Mode button.
1-6
Introducing the Switch
Front of the Switch
LED Mode Select Button and Indicator LEDs
To optimize the amount of information that can be displayed for each of the
switch ports in the limited space available, the 2520G-PoE switches use
multiple-display LEDs for each port.
Link LED
The 2520G-PoE switches, have two
LEDs per port. The Link status is
always shown by the Link LED. The
operation of the Mode LED is
controlled by the LED Mode select
button, and the current setting is
indicated by the LED Mode indicator
LEDs near the button. Press the
button to step from one view mode
to the next. The default view is
Activity (Act).
Table 1-4.
Mode LED
LED Mode select button
and indicator LEDs
Multiple-Display Port LEDs
Switch LEDs
Mode
Meaning
Port Mode
indicator LEDs
(4 green LEDs)
Act
Indicates the Port LEDs are displaying network activity information.
FDx
Indicates the Port LEDs are lit for ports that are in full-duplex mode.
Spd
Indicates the Port LEDs are displaying the connection speed at which each
port is operating:
• if the Port LED is off, the port is operating at 10 Mbps.
• if the Port LED is flashing, the port is operating at 100 Mbps.
• if the Port LED is on continuously, the port is operating at 1000 Mbps.
PoE
Indicates the Port LEDs are lit for ports that are providing PoE power to the
connected device.
When Save Power mode is enabled and all port LEDs are off, press the LED
Mode select button to turn the port LEDs on. Press the LED Mode select button
again to step through each view mode. Press the LED Mode select button after
the PoE view mode to turn LEDs off.
If the port LEDs are left on when Save Power mode is enabled, they turn off
automatically after 10 minutes.
1-7
Introducing the Switch
Front of the Switch
Reset Button
This button is for:
■
Resetting the switch - When the switch is powered on. This action clears
any temporary error conditions that may have occurred and executes the
switch self test.
■
Restoring Factory Default Configuration - When pressed with the
Clear button in a specific pattern, any configuration changes you may have
made through the switch console, the Web browser interface, and SNMP
management are removed, and the factory default configuration is
restored to the switch. For the specific method to restore the factory
default configuration, see “Restoring the Factory Default Configuration”
on page 4-12 of this manual.
Clear Button
This button is used for:
■
Deleting Passwords - When pressed by itself for at least one second, the
button deletes any switch console access passwords that you may have
configured. Use this feature if you have misplaced the password and need
console access. This button is provided as a convenience, however if you
are concerned with the security of the switch configuration and operation,
you should make sure the switch is installed in a secure location. This
button can be disabled by a CLI command.
■
Restoring Factory Default Configuration - See Reset Button above.
Console Port
This port is used to connect a console to a 2520G-PoE Switch by using the
RJ-45 to DB9 cable, supplied with the switch. This connection is described
under “7. (Optional) Connect a Console to the Switch” on page 2-20 in
chapter 2, “Installing the Switch.” The console can be a PC or workstation
running a VT-100 terminal emulator, or a VT-100 terminal.
1-8
Introducing the Switch
Back of the Switch
Back of the Switch
HP ProCurve 2520G-8-PoE Switch (J9298A)
DC power connector
HP ProCurve 2520G-24-PoE Switch (J9299A)
AC power connector
Power Connector
The Switch 2520G-24-PoE does not have a power switch; it is powered on
when connected to an active AC power source. The switch automatically
adjusts to any voltage between 100-127 and 200-240 volts and either 50 or
60 Hz. There are no voltage range settings required.
The Switch 2520G-8-PoE also does not have a power switch. It is powered on
when the external AC/DC power adapter is connected to the switch and to a
power source. The external AC/DC power adapter supplies 48 volts DC to the
switch and automatically adjusts to any AC voltage between 100-240 volts and
either 50 or 60 Hz. No voltage range settings are required.
1-9
Introducing the Switch
Switch Features
Switch Features
The features of the 2520G-PoE switches include:
1-10
■
8, or 24 auto-sensing 10/100/1000Base-T RJ-45 ports with Auto-MDIX.
■
Two, or four dual-personality uplink ports (1000Base-T RJ-45 or miniGBIC).
■
Power over Ethernet (PoE) operation—the switches are IEEE 802.3af
compliant and provide up to 15.4W per port to power IP phones, wireless
access points, Web cameras, and more. For more information, see the PoE
Planning and Implementation Guide, which is on the ProCurve Web site
at www.hp.com/go/procurve/manuals.
■
The switches support some pre-standard PoE devices. However, the use
of a cross-over cable may be required.
■
Plug-and-play networking—all ports are enabled—just connect the
network cables to active network devices and your switched network is
operational.
■
Auto-MDIX on all twisted-pair ports, meaning that all twisted-pair
connections can be made using straight-through cables. Cross-over cables
are not required, although they will also work.
■
Automatic learning of the hardware addresses in each switch’s 8000address forwarding table, (with configurable address aging value).
■
Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45
ports when connected to other auto-negotiating devices.
■
a “Save Power” mode option that keeps port LEDs turned off except for
when the LED Mode select button is pressed.
■
an automatic low-power mode for ports when a link is not present.
■
Easy management of the switches through several available interfaces:
• console interface—a full featured, easy to use, VT-100 terminal
interface that is especially good for out-of-band switch management
or for Telnet access to the switch.
• Web browser interface—an easy to use built-in graphical interface
that can be accessed from common Web browsers.
• ProCurve Manager—an SNMP-based, graphical network
management tool that you can use to manage your entire network.
■
Support for the Spanning Tree Protocol to eliminate network loops
■
Support for up to 256 IEEE 802.1Q-compliant VLANs so you can divide
the attached end nodes into logical groupings that fit your business needs.
■
Download of new switch software for product enhancements or bug fixes.
Introducing the Switch
Switch Features
■
Variable speed fans ensure quiet operation on the Switch 2520G-24-PoE.
■
Support for many advanced features to enhance network performance—
for a description, see the Management and Configuration Guide, which
is on the ProCurve Web site at www.hp.com/go/procurve/manuals. (You may
want to bookmark this Web page for easy access in the future.)
Save Power Mode
A Save Power mode feature can be configured through the console. Save
Power mode can be used to turn off port LEDs unless the LED Mode button
is pressed. In addition, it can configure the LAN ports to operate at low power
if a link is not detected.
1-11
2
Installing the Switch
This chapter provides installation information for the 2520G-PoE switches.
Included Parts
The 2520G-PoE switches have the following components:
■
Documentation kit
•
•
•
•
Read Me First
Switch Quick Setup Guide
Safety and Regulatory information
Software License, Warranty, and Support information
■
Console port serial cable (DB-9 to RJ-45)
■
Accessory kits:
Switch 2520G-24-PoE
Switch 2520G-8-PoE
Kit number 5069-6535
Contains:
• two mounting brackets
• eight 8-mm M4 screws to attach the
mounting brackets to the switch
• four 5/8-inch number 12-24 screws to
attach the switch to a rack
• four rubber feet
Kit number 5070-6881
Contains:
• two mounting brackets 1
• four 8-mm M4 screws to attach the
mounting brackets to the switch
• four rubber feet
• cable tie for power cord
1 For wall mounting the Switch 2520G-8-PoE. For rack mounting, an optional bracket kit,
5070-6570, is available. Visit www.hp.com/go/procurve-parts.
2-1
Installing the Switch
Included Parts
■
Switch 2520G-24-PoE AC power cords, one of the following:
Australia/New Zealand
China
Continental Europe
Denmark
India
Israel
Japan
South Africa
Switzerland
Thailand
Taiwan
United Kingdom/Hong Kong/Singapore
United States/Canada/Mexico
■
Japan Power
Cord Warning
2-2
8121-0833
8120-8377
8120-6802
8120-6806
8121-0772
8120-6799
8120-6804
8120-6808
8120-6807
8121-0667
8121-0964
8120-8709
8120-6805
Switch 2520G-8-PoE external AC/DC power adapters and power cords,
one of the following:
External AC/DC Power Adapter
All countries/regions
5070-6082
Power Cords for AC/DC Power Adapter
Australia
China
Continental Europe
Denmark
India
Israel
Japan
South Africa
Switzerland
Thailand
United Kingdom/Hong Kong/Singapore
United States/Canada/Mexico
8121-0838
8121-0910
8120-8861
8120-8930
8121-0564
8121-1035
8121-0875
8120-8929
8121-0908
8121-0673
8121-0909
8121-0921
Installing the Switch
Included Parts
Installation Precautions
WARNING
■
The rack or cabinet should be adequately secured to prevent it
from becoming unstable and/or falling over.
Devices installed in a rack or cabinet should be mounted as low as
possible, with the heaviest devices at the bottom and progressively
lighter devices installed above.
Cautions
■
Wall-mount the Switch 2520G-8-PoE with network ports facing up
(away from the floor). Do not wall-mount the switch with the
network ports facing down (toward the floor) or ventilation ducts
facing up or down.
■
Use only the AC/DC power adapter supplied with the Switch 2520G-8-PoE
for connection to an AC power source.
■
Ensure the power source circuits are properly grounded, then use the
power cord supplied with the switch to connect it to the power source.
■
If your installation requires a different power cord than the one supplied
with the switch, ensure the cord is adequately sized for the switch’s
current requirements. In addition, be sure to use a power cord displaying
the mark of the safety agency that defines the regulations for power cords
in your country. The mark is your assurance that the power cord can be
used safely with the switch. If the supplied power cord does not fit,
contact ProCurve Networking support.
■
When installing the switch, the AC outlet should be near the switch and
should be easily accessible in case the switch must be powered off.
■
Ensure the switch does not overload the power circuits, wiring, and overcurrent protection. To determine the possibility of overloading the supply
circuits, add together the ampere ratings of all devices installed on the
same circuit as the switch and compare the total with the rating limit for
the circuit. Maximum ampere ratings are usually printed on the devices
near the AC power connectors.
■
Do not install the switch in an environment where the operating ambient
temperature might exceed 50°C (122°F). This includes a fully-enclosed
rack. Ensure the air flow around the sides and back of the switch is not
restricted. Leave at least 7.6 cm (3 inches) for cooling.
■
Ensure all port covers are installed when the port is not in use.
2-3
Installing the Switch
Installation Procedures
Installation Procedures
These steps summarize your switch installation. The rest of this chapter
provides details on these steps.
1.
Prepare the installation site (page 2-5). Make sure the physical
environment into which you will be installing the switch is properly
prepared, including having the correct network cabling ready to connect
to the switch and having an appropriate location for the switch. See page
2-3 for some installation precautions.
2.
Verify the switch passes self test (page 2-6). Plug the switch into a
power source and observe that the LEDs on the switch’s front panel
indicate correct switch operation.
3.
Mount the switch (page 2-8). The 2520G-PoE switches can be mounted
in a 19-inch telco rack, in an equipment cabinet, on a wall, or on a
horizontal surface.
4.
Connect power to the switch (page 2-15). Once the switch is mounted,
plug it into the main power source.
5.
Connect the network devices (page 2-17). Using the appropriate
network cables, connect the network devices to the switch ports.
6.
(Optional) Install mini-GBICs (page 2-18). The switch has two or four
slots for installing mini-GBICs. Depending on where you install the switch,
it may be easier to install the mini-GBICs first. Mini-GBICs can be hot
swapped—they can be installed or removed while the switch is powered
on.
7.
(Optional) Connect a console to the switch (page 2-20). You may
wish to modify the switch’s configuration, for example, to configure an IP
address so it can be managed using a Web browser, from an SNMP
network management station, or through a Telnet session. Configuration
changes can be made by using the included console cable to connect a PC
to the switch’s console port.
At this point, your switch is fully installed. See the rest of this chapter if you
need more detailed information on any of these installation steps.
2-4
Installing the Switch
Installation Procedures
1. Prepare the Installation Site
■
Cabling Infrastructure - Ensure the cabling infrastructure meets the
necessary network specifications. See appendix A, “Cabling and
Technology Information Specifications” for more information:
■
Installation Location - Before installing the switch, plan its location and
orientation relative to other devices and equipment:
•
In the front of the switch, leave at least 7.6 cm (3 inches) of space for
the twisted-pair and fiber-optic cabling.
•
In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space
for the power cord.
•
On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling.
2-5
Installing the Switch
Installation Procedures
2. Verify the Switch Passes Self Test
Before mounting the switch in its network location, you should first verify it
is working properly by plugging it into a power source and verifying it passes
its self test.
1.
For the Switch 2520G-24-PoE, connect the power cord supplied with the
switch to the power connector on the back of the switch, and then into a
properly grounded electrical outlet.
For the Switch 2520G-8-PoE, connect the AC/DC adapter’s power cord to
the power connector on the back of the switch, and then plug the AC/DC
power adapter into a nearby properly grounded electrical outlet.
Switch 2520G-24-PoE
Connect power cord to
the power connector
Switch 2520G-8-PoE
Connect AC/DC power adapter to the
switch and an AC power outlet
Figure 2-1. Connecting the power cord
Note
2-6
The Switch 2520G-24-PoE does not have a power switch. It is powered on
when the power cord is connected to the switch and to a power source. For
safety, the power outlet should be located near the switch installation.
Installing the Switch
Installation Procedures
The switch automatically adjusts to any voltage between 100-127 or 200-240
volts and either 50 or 60 Hz. There are no voltage range settings required.
The Switch 2520G-8-PoE also does not have a power switch. It is powered on
when the external AC/DC power adapter is connected to the switch and the
adapter power cord to a power source. The external AC/DC power adapter
automatically adjusts to any voltage between 100-240 volts and either 50 or
60 Hz.
If your installation requires a different power cord than the one supplied with
the switch, be sure the cord is adequately sized for the switch’s current
requirements. In addition, be sure to use a power cord displaying the mark of
the safety agency that defines the regulations for power cords in your country.
The mark is your assurance that the power cord can be used safely with the
switch. If the supplied power cord does not fit, contact ProCurve Networking
support.
Caution
Use only the AC/DC power adapter and power cord (if applicable), supplied
with the Switch 2520G-8-PoE. Use of other adapters or power cords, including
those that came with other ProCurve Networking products, may result in
damage to the equipment.
2.
Check the LEDs on the switch as described below.
Power, Fault, and
Locator LEDs
Switch port LEDs
Self Test LED
Figure 2-2. Checking the LEDs
When the switch is powered on, it performs its diagnostic self test. Self test
takes approximately 50 seconds to complete.
2-7
Installing the Switch
Installation Procedures
LED Behavior
During the self test:
•
Initially, all the switch and port LEDs are on. Most of the LEDs go off
and then may come on again during phases of the self test.
•
For the duration of the self test, the Test LED stays on.
When the self test completes successfully:
•
The Power, PoE and Fan (Switch 2520G-24-PoE only) LEDs remain on.
•
The Fault, Locator and Test LEDs stay off.
•
The Act LED remains on indicating the default port LED mode.
•
The port LEDs on the front of the switch go into their normal operational mode:
– If the ports are connected to active network devices, the Link
LEDs stay on and the Mode LEDs behave according to the mode
selected. In the default mode (Act), the Mode LEDs should be
blinking indicating port activity.
– If the ports are not connected to active network devices, the Link
and Mode LEDs will stay off.
If the LED display is different than what is described above, especially if
the Fault and Test LEDs stay on for more than 60 seconds or they start
flashing, the self test has not completed correctly. Refer to chapter 4,
“Troubleshooting” for diagnostic help.
3. Mount the Switch
After the switch passes self test, it is ready to be mounted in a stable location.
The switch can be mounted in these ways:
■
■
■
in a rack or cabinet
on a horizontal surface
on a wall
Rack or Cabinet Mounting
The Switch 2520G-24-PoE is designed to be mounted in any EIA-standard 19inch telco rack or communication equipment cabinet. The Switch 2520G-8PoE can also be rack mounted using the optional bracket kit, 5070-6570 (not
included).
Note that the mounting brackets have multiple mounting holes and can be
rotated allowing for a wide variety of mounting options. Secure the rack in
accordance with the manufacture’s safety guidelines.
2-8
Installing the Switch
Installation Procedures
WARNING
For safe operation, please read the mounting precautions on
page 2-3, before mounting a switch.
Equipment
Cabinet
Note
The 12-24 screws supplied with the switch are the correct threading for
standard EIA/TIA open 19-inch racks. If installing the switch in an equipment
cabinet such as a server cabinet, use the clips and screws that came with the
cabinet in place of the 12-24 screws that are supplied with the switch.
Rack Mounting the Switch 2520G-24-PoE
1.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
Figure 2-3. Attaching mounting brackets
WARNING
For safe reliable installation, only use the screws provided in the
accessory kit to attach the mounting brackets to the switch.
Note
The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so that its front face is flush with the face of the rack, or mounting it
in a more balanced position.
2-9
Installing the Switch
Installation Procedures
2.
Hold the switch with attached brackets up to the rack and move it
vertically until rack holes line up with the bracket holes, then insert and
tighten the four number 12-24 screws holding the brackets to the rack.
Install 12-24
screws
Figure 2-4. Mounting in a rack
2-10
Installing the Switch
Installation Procedures
Rack Mounting the Switch 2520G-8-PoE
Note
Requires optional mounting bracket kit (not included).
1.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
8 mm
M4 screws
Figure 2-5. Attaching mounting brackets
Note
The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so that its front face is flush with the face of the rack, or mounting it
in a more balanced position.
WARNING
For safe reliable installation, only use the screws provided in the
accessory kit to attach the mounting brackets to the switch.
2-11
Installing the Switch
Installation Procedures
2.
Hold the switch with attached brackets up to the rack and move it
vertically until rack holes line up with the bracket holes, then insert and
tighten the four number 12-24 screws holding the brackets to the rack.
Install 12-24
screws
Figure 2-6. Mounting in a rack
2-12
Installing the Switch
Installation Procedures
Wall or Under-Table Mounting
You can mount the switch on a wall with either the front or rear panel facing
up.
WARNING
For safe operation, do not install the switch with side ventilation or
fan ducts facing up or down.
For the Switch 2520G-8-PoE, the network ports must be facing up. Do
not mount the switch with ports facing down.
Caution
The switch should be mounted only to a wall or wood surface that is at least
1/2-inch (12.7 mm) plywood or its equivalent.
1.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
2.
Attach the switch to the wall or wood surface with two 5/8-inch number
12 wood screws (not included).
RJ-45 Ports
Wall
5/8-inch
wood screws
Figure 2-7. Wall Mounting the Switch 2520G-24-PoE
2-13
Installing the Switch
Installation Procedures
RJ-45 Ports
Wall
5/8-inch
wood screws
Figure 2-8. Wall Mounting the Switch 2520G-8-PoE
Horizontal Surface Mounting
Place the switch on a table or other horizontal surface. The switch comes with
rubber feet in the accessory kit that can be used to help keep the switch from
sliding on the surface.
Attach the rubber feet to the four corners on the bottom of the switch within
the embossed angled lines. Use a sturdy surface in an uncluttered area. You
may want to secure the networking cables and switch power cord to the table
leg or other part of the surface structure to help prevent tripping over the
cords.
Caution
2-14
Ensure the air flow is not restricted around the sides and back of the switch.
Installing the Switch
Installation Procedures
Figure 2-9. Horizontal Surface Mounting
Using a Kensington Security Cable
To prevent unauthorized removal of the Switch 2520G-8-PoE, you can use a
Kensington Slim MicroSaver security cable (not included) to attach the switch
to an immovable object.
Figure 2-10. Using a Security Cable
4. Connect the Switch to a Power Source
1.
For the Switch 2520G-24-PoE, plug the included power cord into the
switch’s power connector and into a nearby AC power source.
For the Switch 2520G-8-PoE, plug the AC/DC adapter’s power cord into
the switch, and then plug the AC/DC power adapter into a nearby AC
power source.
2-15
Installing the Switch
Installation Procedures
2.
Re-check the LEDs during self test. See “LED Behavior” on page 2-8.
Figure 2-11. Connecting the power cord on the Switch 2520G-24-PoE
3.
For the Switch 2520G-8-PoE, use the included cable tie to secure the
power cord to the switch.
cable tie
Figure 2-12. Securing the power cord on the Switch 2520G-8-PoE
2-16
Installing the Switch
Installation Procedures
5. Connect the Network Cables
Connect the network cables, described under “Cabling Infrastructure” (page
2-5), from the network devices or your patch panels to the fixed RJ-45 ports
on the switch or to any mini-GBICs you have installed in the switch.
Using the RJ-45 Connectors
To connect:
Push the RJ-45 plug into the RJ-45
port until the tab on the plug clicks
into place. When power is on for the
switch and for the connected device,
the Link LED for the port should
light to confirm a powered-on device
(for example, an end node) is at the
other end of the cable.
If the Link LED does not go on when
the network cable is connected to
the port, see “Diagnosing with the
LEDs” in chapter 4,
“Troubleshooting”.
To disconnect:
Press the small tab on the plug and
pull the plug out of the port.
RJ-45 connector
Unshielded twisted-pair cable:
• Category 3, 4, or 5 for 10 Mbps ports
• Category 5 or better for 100 Mbps ports
• Category 5e or better for 1000 Mbps ports
Maximum distance: 100 meters
Figure 2-13. Connecting network cables
2-17
Installing the Switch
Installation Procedures
6. Installing or Removing mini-GBICs
You can install or remove a mini-GBIC from a mini-GBIC slot without having
to power off the switch. Use only HP ProCurve mini-GBICs.
Caution
Hot swapping transceivers is supported. You can install or remove a
transceiver with the switch powered on, a reset will not occur. However, rapid
hotswaps are not recommended. Wait a few seconds for the Mode LED to turn
on (during initialization), and then turn off.
Notes
■
The mini-GBIC slots are shared with 10/100/1000Base-T RJ-45 ports. When
a mini-GBIC is installed in a slot, the associated RJ-45 port is disabled and
cannot be used.
■
Ensure the network cable is NOT connected when you install or remove
a mini-GBIC.
Caution
Use only supported genuine HP ProCurve mini-GBICs with your switch. NonProCurve mini-GBICs are not supported, and their use may result in product
malfunction. Should you require additional HP ProCurve mini-GBICs, contact
your ProCurve Networking Sales and Service Office or authorized dealer.
Installing the mini-GBICs:
Remove the protective plastic cover and retain it for later use. Hold the miniGBIC by its sides and gently insert it into either of the slots on the switch until
the mini-GBIC clicks into place.
WARNING
2-18
The HP ProCurve mini-GBICs are Class 1 laser devices. Avoid direct
eye exposure to the beam coming from the transmit port.
Installing the Switch
Installation Procedures
Figure 2-14. Installing a mini-GBIC (SFP)
Removing the mini-GBICs
Note
You should disconnect the network cable from the mini-GBIC before removing
it from the switch.
Depending on when you purchased your ProCurve mini-GBIC, it may have
either of three different release mechanisms: a plastic tab on the bottom of
the mini-GBIC, a plastic collar around the mini-GBIC, or a wire bail.
To remove the mini-GBICs that have the plastic tab or plastic collar, push the
tab or collar toward the switch until you see the mini-GBIC release from the
switch (you can see it move outward slightly), and then pull it from the slot.
To remove the mini-GBICs that have the wire bail, lower the bail until it is
approximately horizontal, and then using the bail, pull the mini-GBIC from the
slot.
Replace the protective plastic cover on the mini-GBIC.
Connecting Cables to mini-GBICs
If you have any mini-GBICs installed in the switch, the type of network
connections you will need to use depends on the type of mini-GBICs you have
installed. See the table on page 1-2, and appendix A, “Specifications”, for the
mini-GBIC cabling information.
2-19
Installing the Switch
Installation Procedures
For mini-GBIC ports, and in general for all the switch ports, when a network
cable from an active network device is connected to the port, the port LED
for that port should go on. If the port LED does not go on when the network
cable is connected to the port, see “Diagnosing with the LEDs” in chapter 4,
“Troubleshooting”.
7. (Optional) Connect a Console to the Switch
The 2520G-PoE switches have a full-featured, easy to use console interface
for performing switch management tasks including the following:
■
monitor switch and port status and observe network activity statistics
■
modify the switch’s configuration to optimize switch performance,
enhance network traffic control, and improve network security
■
read the event log and access diagnostic tools to help in troubleshooting
■
download new software to the switch
■
add passwords to control access to the switch from the console, Web
browser interface, and network management stations
The console can be accessed through these methods:
■
Out-of-band: The 2520G-PoE switches come with a serial cable for
connecting a PC or VT-100 terminal, to be used as a console, directly to
the switch.
■
In-Band: Access the console using Telnet from a PC or UNIX station on
the network, and a VT-100 terminal emulator. This method requires that
you first configure the switch with an IP address and subnet mask by using
either out-of-band console access or through DHCP/Bootp. For more
information on IP addressing and on starting a Telnet session, see
chapter 3, “Configuring the Switch”, in the Management and
Configuration Guide, which is on the ProCurve Web site at www.hp.com/
go/procurve/manuals.
The 2520G-PoE switches can simultaneously support one out-of-band console
session through the Console Port and in-band Telnet console sessions.
Terminal Configuration
To connect a console to the switch, configure the PC terminal emulator as a
DEC VT-100 (ANSI) terminal or use a VT-100 terminal, and configure either
one to operate with these settings:
2-20
■
any baud rate from 1200 to 115200 (the switch senses the speed)
■
8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff
■
for the Windows Terminal program, also disable (uncheck) the “Use
Function, Arrow, and Ctrl Keys for Windows” option
Installing the Switch
Installation Procedures
■
for the Hilgraeve HyperTerminal program, select the “Terminal keys”
option for the “Function, arrow, and ctrl keys act as” parameter
If you want to operate the console using a different configuration, make sure
you change the settings on both the terminal and on the switch so they are
compatible. Change the switch settings first, then change the terminal
settings, then reboot the switch and reestablish the console session.
Direct Console Access
To connect a console to the
switch, follow these steps:
1.
2.
3.
Connect the PC or terminal
to the switch’s Console Port
using the console cable
included with the switch.
(If your PC or terminal has
a 25-pin serial connector,
first attach a 9-pin to 25-pin
straight-through adapter at
one end of the console
cable.)
Turn on the terminal or PC’s
power and, if using a PC,
start the PC terminal
program.
Console port
Console cable supplied
with the switch
Connect to a PC
running a terminal
emulator program, or
a VT-100 terminal
Figure 2-15. Connecting the console cable
Press [Enter] two or three times and you will see the copyright page and
the message “Press any key to continue”. Press a key, and you will then
see the switch console command (CLI) prompt, for example:
ProCurve_2520G-24-PoE#
If you want to continue with console management of the switch at this time,
see chapter 3, “Getting Started With Switch Configuration” for some basic
configuration steps. For more detailed information, refer to the Management
and Configuration Guide, which is on the ProCurve Web site at www.hp.com/
go/procurve/manuals.
2-21
Installing the Switch
Sample Network Topologies
Sample Network Topologies
This section shows a few sample network topologies for implementing the
2520G-PoE switches. For more topology information, see the ProCurve
networking products Web site, www.hp.com/go/procurve.
As a Desktop Switch Implementing PoE
Server with
Gigabit
Ethernet NIC
Switch 2520G-24-PoE
Category 5e twisted-pair
straight-through or
crossover cable for 1000
Mbps connection to server
Twisted-pair
straight-through
or crossover
cables
Figure 2-16. Basic desktop configuration
The 2520G-PoE switches are designed to be used as desktop switches to which
end nodes, printers and other peripherals, and servers are directly connected,
as shown in the above illustration. The switches can also supply PoE power
to end devices such as IP telephones.
2-22
Installing the Switch
Sample Network Topologies
As shown in the above illustration, the IP telephones can be connected in line,
that is, between the switch and the end device, in this case a PC. The IP
telephones have two ports, one in and one out. Therefore the phone receives
voice and power from the switch and the PC can send and receive data through
the phone to the switch.
The end node devices are connected to the switch by straight-through or
crossover twisted-pair cables. Either cable type can be used because of the
Auto-MDIX feature on the 2520G-PoE switches.
As a Segment Switch Implementing PoE
Server
Switch 2510G-24
Gigabit
fiber-optic cable
uplink
Gigabit
fiber-optic cable
uplink
Switch 2520G-8-PoE
Switch 2520G-24-PoE
Twisted-pair straightthrough or crossover cables
Figure 2-17. Segment network configuration with PoE switches
2-23
Installing the Switch
Sample Network Topologies
The 2520G-PoE switches also work well as segment switches. That is, with
their high performance, they can be used for interconnecting network
segments—simply connect the network devices that form those segments to
the 2520G-PoE switches.
In the illustration above, 2520G-PoE switches with PCs, printers, and local
servers attached, are both connected to a non-PoE switch. The devices
attached to the two 2520G-PoE switches can now communicate with each
other through the non-PoE switch. They can also all communicate with the
server that is connected to a 1000Base-T port on the Switch 2520G-24-PoE.
As shown in the illustration above, the IP telephones have been inserted in
between the Switch 2520G-24-PoE and the PCs, and wireless access points
(WAPs) have been connected to the Switch 2520G-24-PoE and a Switch 2520G8-PoE. Both the telephones and WAPs will receive PoE power from each of
the switches. Only devices directly connected to PoE switches can receive
PoE power. Devices connected to the non-PoE switch cannot receive PoE
power.
Because the 2520G-PoE switches have the Auto-MDIX feature, the
connections between the switches and end nodes or servers can be through
category 5 straight-through or crossover twisted-pair cable. Category 3 or 4
cable can also be used if the connection is 10 Mbps only. In all cases, the device
ports must be configured to auto negotiate the link characteristics for this
feature to work.
The connections between the switches are through fiber-optic cabling
connected to Gigabit transceivers. All the devices on these network segments
can access other network resources that are connected elsewhere on the
network. Always remember when connecting fiber-optics that all components
match in specification.
2-24
Installing the Switch
Sample Network Topologies
Stacking the Switch
The 2520G-PoE switches can be connected together, through standard
network connections, and managed through a single IP address. Up to 16
switches can be connected together in such a “virtual stack”.
You identify a 2520G-PoE Switch as the “Commander” and give that switch an
IP address. Up to 15 other switches in the network can then easily be
configured as Members of the stack and managed through the Commander’s
IP address. The management includes Telnet access and Web browser
interface access to the Commander and to each Member switch through the
Commander.
For more information on stacking your switch, see the Management and
Configuration Guide, which is on the ProCurve Web site at www.hp.com/go/
procurve/manuals.
2-25
3
Configuring the Switch
This chapter is a guide for using the console Switch Setup screen to quickly
assign an IP (Internet Protocol) address and subnet mask to the switch, set a
Manager password, and, optionally, configure other basic features.
For more information on using the switch console and the Web browser
interface, please see the Management and Configuration Guide, which is on
the ProCurve Web site at www.hp.com/go/procurve/manuals.
Recommended Minimal Configuration
In the factory default configuration, the switch has no IP (Internet Protocol)
address and subnet mask, and no passwords. In this state, it can be managed
only through a direct console connection. To manage the switch through inband (networked) access, you should configure the switch with an IP address
and subnet mask compatible with your network. Also, you should configure
a Manager password to control access privileges from the console and Web
browser interface. Other parameters in the Switch Setup screen can be left at
their default settings or you can configure them with values you enter.
Many other features can be configured through the switch’s console interface,
to optimize the switch’s performance, to enhance your control of the network
traffic, and to improve network security. Once an IP address has been
configured on the switch, these features can be accessed more conveniently
through a remote Telnet session, through the switch’s Web browser interface,
and from an SNMP network management station running a network
management program. For a listing of switch features available with and
without an IP address, refer to “How IP Addressing Affects Switch Operation”
in the Management and Configuration Guide.
For more information on IP addressing, refer to “IP Configuration” in the
Management and Configuration Guide.
Note
By default, the switch is configured to acquire an IP address configuration
from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual
method described in this chapter, see “DHCP/Bootp Operation” in the
Management and Configuration Guide.
3-1
Configuring the Switch
Recommended Minimal Configuration
Using the Console Setup Screen
The quickest and easiest way to minimally configure the switch for
management and password protection in your network is to use a direct
console connection to the switch, start a console session, and access the
Switch Setup screen.
1.
Using the method described in the preceding section, connect a terminal
device to the switch and display the switch console command line
interface (CLI) prompt (the default display).
The CLI prompt appears, for example:
ProCurve_2520G-24-PoE#
2.
At the prompt, enter the setup command to display the Switch Setup
screen. The following illustration shows the Setup screen with the default
settings.
Figure 3-1. Example console setup screen
3.
Use the [Tab] key to select the Manager Password field and enter a manager
password of up to 16 printable ASCII characters.
4.
[Tab] to the IP Config (DHCP/Bootp) field and use the Space bar to select the
Manual option.
3-2
5.
[Tab] to the IP Address field and enter the IP address that is compatible with
your network.
6.
[Tab] to the Subnet Mask field and enter the subnet mask used for your
network.
7.
Press [Enter], then [S] (for Save).
Configuring the Switch
Recommended Minimal Configuration
Here is some information on the fields in the Setup screen. For more
information on these fields, see the Management and Configuration Guide:
Parameter
Default
System Name
blank
Optional; up to 25 characters, including spaces
System Contact
blank
Optional; up to 48 characters, including spaces
Manager Password
blank
Recommended; up to 16 characters (no blank spaces)
Logon Default
CLI
The default setting selects the command line interface for console access.
The alternative is the menu interface.
Time Zone
0 (none)
Optional; 1440 to -1440. The number of minutes your location is to the West (-)
or East (+) of GMT.
Community Name
public
Default setting recommended.
Spanning Tree Enabled
No
Default setting recommended unless STP is already running on your network
or the switch will be used in complex network topologies.
Default Gateway
blank
Optional; Enter the IP address of the next-hop gateway node if network traffic
needs to be able to reach off-subnet destinations.
Time Sync Method
None
Optional; The protocol the switch uses to acquire a time signal. The options
are SNTP and TimeP.
TimeP Mode
Disabled
Optional; The method the switch uses to acquire the TimeP server address.
IP Config (DHCP/Bootp)
DHCP/Bootp
Set to Manual unless a DHCP/Bootp server is used on your network to
configure IP addressing.
IP Address
xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address
compatible with your network.
Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in
your network. For more information on IP addressing, see the Management and Configuration Guide.
Subnet Mask
xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask
compatible with your network.
Where to Go From Here
The above procedure configures your switch with a Manager password, IP
address, and subnet mask. As a result, with the proper network connections,
you can now manage the switch from a PC equipped with Telnet, and/or a Web
browser interface.
Some basic information on managing your switch is included in the next
section. For more information on the console, Web browser, and SNMP
management interfaces and all the features that can be configured on the
2520G-PoE switches, see the Management and Configuration Guide.
3-3
Configuring the Switch
Recommended Minimal Configuration
To Recover from a Lost Manager Password: If you cannot start a
console session at the manager level because of a lost Manager password, you
can clear all passwords and user names by getting physical access to the
switch and pressing and holding the Clear button for a full second.
3-4
Configuring the Switch
Using the IP Address for Remote Switch Management
Using the IP Address for Remote Switch
Management
With your switch, you can use the switch’s IP address to manage the switch
from any PC that is on the same subnet as the switch. You can use either a
Telnet session or a standard Web browser to manage the switch.
Starting a Telnet Session
To access the switch through a Telnet session, follow these steps:
1.
Make sure the switch is configured with an IP address and that the switch
is reachable from the PC that is running the Telnet session (for example,
by using a Ping command to the switch’s IP address).
2.
Start the Telnet program on a PC that is on the same subnet as the switch
and connect to the switch’s IP address.
3.
You will see the copyright page and the message “Press any key to
continue”. Press a key, and you will then see the switch console command
(CLI) prompt, for example:
ProCurve_2520G-24-PoE#
Enter help or ? to see a list of commands that can be executed at the
prompt. Entering any command followed by help provides more detailed
context help information about the command. Entering any command
followed by ? displays a list of options that are available at that point in
the command entry.
Starting a Web Browser Session
The 2520G-PoE switches can be managed through a graphical interface that
you can access from any PC or workstation on the network by running your
Web browser and typing in the switch’s IP address as the URL. No additional
software installation is required to make this interface available; it is included
in the switch’s onboard software.
For more information on using the Web browser interface, please see the
Management and Configuration Guide.
An extensive help system is also available for the Web browser interface. To
access the Help system, access to the Internet is required. Otherwise, the Help
files must be downloaded to a local management server.
3-5
4
Troubleshooting
This chapter describes how to troubleshoot your ProCurve 2520G-PoE
Switches. This document describes troubleshooting mostly from a hardware
perspective. You can perform more in-depth troubleshooting on these devices
using the software tools available with the switches, including the fullfeatured console interface, the built-in Web browser interface, and ProCurve
Manager, the SNMP-based network management tool. For more information,
see the chapter “Troubleshooting” in the Management and Configuration
Guide, which is on the ProCurve Web site at www.hp.com/go/procurve/manuals.
This chapter describes the following:
■
basic troubleshooting tips (page 4-1)
■
diagnosing with the LEDs (page 4-4)
■
proactive networking tools (page 4-9)
■
hardware diagnostic tests (page 4-10)
■
restoring the factory default configuration (page 4-12)
■
downloading new software to the 2520G-PoE switches (page 4-13)
■
HP Customer Support Services (page 4-13)
Basic Troubleshooting Tips
Most problems are caused by the following situations. Check for these items
first when starting your troubleshooting:
■
Connecting to devices that have a fixed full-duplex configuration.
The RJ-45 ports are configured as “Auto”. That is, when connecting to
attached devices, the switch operates in one of two ways to determine the
link speed and the communication mode (half duplex or full duplex):
•
If the connected device is also configured to Auto, the switch will
automatically negotiate both link speed and communication mode.
•
If the connected device has a fixed configuration, for example 100
Mbps, at half or full duplex, the switch will automatically sense the
link speed, but will default to a communication mode of half duplex.
4-1
Troubleshooting
Basic Troubleshooting Tips
Caution
Because the 2520G-PoE switches behave in this way (in compliance with
the IEEE 802.3 standard), if a device connected to the switch has a fixed
configuration at full duplex, the device will not connect correctly to the
switch. The result will be high error rates and very inefficient communications between the switch and the device.
Ensure all devices connected to the 2520G-PoE switches are configured
to auto negotiate, or are configured to connect at half duplex (all hubs are
configured this way, for example).
■
Faulty or loose cables. Look for loose or obviously faulty connections.
If the cables appear to be OK, make sure the connections are snug. If that
does not correct the problem, try a different cable.
■
Non-standard cables. Non-standard and miswired cables may cause
network collisions and other network problems, and can seriously impair
network performance. Use a new correctly-wired cable or compare your
cable to the cable in appendix A, “Cabling and Technology Information
Specifications” for pinouts and correct cable wiring. A category 5 cable
tester is a recommended tool for every 100Base-TX and 1000Base-T
network installation.
■
Improper Network Topologies. It is important to make sure you have
a valid network topology. Common topology faults include excessive
cable length and excessive repeater delays between end nodes. If you have
network problems after recent changes to the network, change back to
the previous topology. If you no longer experience the problems, the new
topology is probably at fault. Sample topologies are shown at the end of
chapter 2 in this book, and some topology configuration guidelines can
be found online at the ProCurve Web site, www.hp.com/go/procurve.
In addition, you should make sure that your network topology contains
no data path loops. Between any two end nodes, there should be only
one active cabling path at any time. Data path loops will cause broadcast
storms that will severely impact your network performance.
For your Switch, if you wish to build redundant paths between important
nodes in your network to provide some fault tolerance, you should enable
Spanning Tree Protocol support on the switch. This ensures that only
one of the redundant paths is active at any time, thus avoiding data path
loops. Spanning Tree can be enabled through the switch console or the
Web browser interface.
The 2520G-PoE switches also support Trunking, which allows multiple
network cables to be used for a single network connection without
causing a data path loop. For more information on Spanning Tree and
Trunking, see the Management and Configuration Guide, which is on
the ProCurve Web site at www.hp.com/go/procurve/manuals.
4-2
Troubleshooting
Basic Troubleshooting Tips
■
Check the port configuration. A port on your switch may not be
operating as you expect because it has been put into a “blocking” state by
Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking).
(Note that the normal operation of the Spanning Tree, GVRP, and LACP
features may put the port in a blocking state.) Or, the port just may have
been configured as disabled through software.
Use the switch console to determine the port’s configuration and verify
that there is not an improper or undesired configuration of any of the
switch features that may be affecting the port. For more information, see
the Management and Configuration Guide.
For more information on possible network problems and their solutions, refer
to the technical note “Troubleshooting LAN Performance and Intermittent
Connectivity Problems”, which can be found on the ProCurve Web site,
www.hp.com/go/procurve, in the Reference Library section, A-Z Index.
4-3
Troubleshooting
Diagnosing with the LEDs
Diagnosing with the LEDs
Table 4-1 shows LED patterns on the switch that indicate problem conditions
for general switch operation troubleshooting.
Table 4-2 shows LED patterns that indicate problem conditions for PoE
troubleshooting.
LED patterns for General Switch Troubleshooting
1.
Check in the table for the LED pattern you see on your switch.
2.
Refer to the corresponding diagnostic tip on the next few pages.
Table 4-1.
LED Error Indicators
LED Pattern Indicating Problems
Power
Fault
Test
Fan
Port Link LED
Diagnostic
Tips
Off with
power cord
plugged in
1
1
1
1
➊
1
1
➋
On
1
Prolonged On Prolonged On
On
Flashing2
Flashing2
1
1
➌
On
Flashing2
Off
Flashing2
1
➍
On
Flashing2
Flashing2
1
Flashing2
➎
On
Off
Off
1
Off with cable
connected
➏
On
Off
Off
1
On, but the port is not
communicating
➐
This LED is not important for the diagnosis.
2 The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.
4-4
Troubleshooting
Diagnosing with the LEDs
Diagnostic Tips:
Tip
Problem
Solution
➊
The switch is not
plugged into an
active AC power
source, or the
switch’s power
supply may have
failed.
1. Verify the power cord is plugged into an active power source and to the switch. Make
sure these connections are snug.
2. Try power cycling the switch by unplugging and plugging the power cord back in.
3. If the Power LED is still not on, verify the AC power source works by plugging another
device into the outlet. Or try plugging the switch into a different outlet or try a different
power cord.
If the power source and power cord are OK and this condition persists, the switch power
supply may have failed. Call your ProCurve Networking authorized network reseller, or
use the electronic support services from HP to get assistance. See the Software License,
Warranty and Support booklet for more information.
➋
A switch
hardware failure
has occurred. All
the LEDs will stay
on indefinitely.
Try power cycling the switch. If the fault indication reoccurs, the switch may have failed.
Call your ProCurve Networking authorized network reseller, or use the electronic support
services from HP to get assistance. See the Software License, Warranty and Support
booklet for more information.
➌
The switch has
experienced a
software failure
during self test.
1. Try resetting the switch by pressing the Reset button on the front of the switch, or by
power cycling the switch.
2. If the fault indication reoccurs, attach a console to the switch (as indicated in
chapter 2) and configure it to operate at 9600 baud. Then, reset the switch. Messages
should appear on the console screen and in the console log identifying the error
condition. You can view the console log at that point by selecting it from the console
Main Menu or by typing “Show log” at the Manager command prompt (#).
If necessary to resolve the problem, contact your ProCurve Networking authorized
network reseller, or use the electronic support services from HP to get assistance. See
the Software License, Warranty and Support booklet for more information.
➍
One of the switch
cooling fans may
have failed.
(2520G-24-PoE
Switch only)
Try disconnecting power from the switch and wait a few moments. Then reconnect the
power to the switch and check the LEDs again. If the error indication reoccurs, one of the
fans has failed. In switches with multiple fans the switch may continue to operate under
this condition if the ambient temperature does not exceed normal room temperature, but
for best operation, the switch should be replaced. Contact your ProCurve Networking
authorized network reseller, or use the electronic support services from HP to get
assistance. See the Software License, Warranty and Support booklet for more information.
➎
The network port
for which the LED
is flashing has
experienced a
self test or
initialization
failure.
Try power cycling the switch. If the fault indication reoccurs, the switch port may have
failed. Call your ProCurve Networking authorized network reseller, or use the electronic
support services from HP to get assistance. See the Software License, Warranty and
Support booklet for more information.
If the port is a mini-GBIC, verify that it is one of the mini-GBICs supported by the switch.
Unsupported mini-GBICs will be identified with this fault condition. The supported
mini-GBICs are listed in Chapter 2, “Installing the Switch” on page 2-18. The
mini-GBICs are also tested when they are “hot-swapped”—installed or changed while
the switch is powered on.
To verify the port has failed, remove and reinstall the mini-GBIC without powering off the
switch. If the port fault indication reoccurs, you will have to replace the mini-GBIC. Check
the event log to see why the mini-GBIC failed.
continued on the next page
4-5
Troubleshooting
Diagnosing with the LEDs
Tip
Problem
Solution
➏
The network
connection is not
working
properly.
Try the following procedures:
• For the indicated port, verify that both ends of the cabling, at the switch and the
connected device, are connected properly.
• Verify the connected device and switch are both powered on and operating correctly.
• Verify you have used the correct cable type for the connection:
– For twisted-pair connections to the fixed 10/100 or 10/100/1000 ports, if the port is
configured to “Auto” (auto negotiate), either straight-through or crossover cables
can be used because of the switch’s “Auto-MDIX” feature and the Auto MDI/MDIX feature of the 10/100/1000-T port.
Note: If the switch port configuration is changed to one of the fixed configuration
options (for example, 100 Mbps/Full Duplex), then the port operates as MDI-X only
and you must use the correct type of cable for the connection. In general, for
connecting an end node (MDI port) to the switch, use straight-through cable; for
connecting to MDI-X ports on hubs, other switches, and routers, use crossover
cable.
•
•
•
•
•
4-6
– For fiber-optic connections, verify the transmit port on the switch is connected to
the receive port on the connected device, and the switch receive port is connected
to the transmit port on the connected device.
For the dual-personality 10/100/1000-T ports, be sure a mini-GBIC is not installed in the
associated slot.
For 1000Base-T connections, verify the network cabling complies with the IEEE 802.3ab
standard. The cable should be installed according to the ANSI/TIA/EIA-568-A-5
specifications. Cable testing should comply with the stated limitations for Attenuation,
Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT),
Multiple Disturber ELFEXT, and Return Loss.
The cable verification process must include all patch cables from any end devices,
including the switch, to any patch panels in the cabling path.
Verify the port has not been disabled through a switch configuration change. You can
use the console interface, or, if you have configured an IP address on the switch, use
the Web browser interface to determine the state of the port and re-enable the port if
necessary.
Verify the switch port configuration matches the configuration of the attached device.
For example, if the switch port is configured as “Auto”, the port on the attached device
also MUST be configured as “Auto”. Depending on the port type, twisted-pair or fiberoptic, if the configurations don’t match, the results could be a very unreliable
connection, or no link at all.
If the other procedures don’t resolve the problem, try using a different port or a different
cable.
Troubleshooting
Diagnosing with the LEDs
Tip
Problem
Solution
➐
The port may be
improperly
configured, or
the port may be in
a “blocking”
state by the
normal operation
of the Spanning
Tree, LACP, or
IGMP features.
Use the switch console to see if the port is part of a dynamic trunk (through the LACP
feature) or to see if Spanning Tree is enabled on the switch, and to see if the port may
have been put into a “blocking” state by those features. The show lacp command displays
the port status for the LACP feature; the show spanning-tree command displays the port
status for Spanning Tree.
Also check the Port Status screen using the show interfaces command to see if the port
has been configured as “disabled”.
Other switch features that may affect the port operation include VLANs and IGMP. Use
the switch console to see how the port is configured for these features.
For software troubleshooting tips, see the chapter “Troubleshooting” in the Management
and Configuration Guide, which is on the ProCurve Web site at www.hp.com/go/
procurve/manuals.
Ensure also, that the device at the other end of the connection is indicating a good link
to the switch. If it is not, the problem may be with the cabling between the devices or the
connectors on the cable.
4-7
Troubleshooting
Diagnosing with the LEDs
LED Patterns for PoE Troubleshooting
If the PoE Status LED is flashing, that indicates a problem with the delivery
of PoE power out one or more switch ports. Press the LED Mode button to
put the switch into PoE mode and the port LEDs will show which ports are
experiencing the problem. The following tables identify the specific problems
that are shown by the LEDs.
1.
Check in the table for the LED pattern you see on your switch.
2.
Refer to the corresponding diagnostic tip.
Table 4-2.
LED Error Indicators
LED Pattern Indicating Problems
Fault
PoE Status
Port Link
Port Mode
Diagnostic
Tips
Off
Fast Flash
Orange
Slow Flash
Green
Off
➊
Slow Flash
Slow Flash
Orange
Slow Flash
Green
Off
➋
Diagnostic Tips:
Tip
4-8
Problem
Solution
➊
PoE oversubscription
condition. All available
PoE power is already
taken by higher-priority
ports.
If possible add additional PoE power, or redefine port
priorities.
➋
PoE hardware fault. A
switch hardware
component that is
involved with PoE power
delivery has failed.
The switch must be replaced.
Troubleshooting
Proactive Networking
Proactive Networking
The ProCurve 2520G-PoE Switches have built-in management capabilities that
proactively help you manage your network including:
■
finding and helping you fix the most common network error conditions
(for example, faulty network cabling, and non-standard network
topologies)
■
informing you of the problem with clear, easy-to-understand messages
■
recommending network configuration changes to enhance the
performance of your network
The following interfaces provide tests, indicators, and an event log that can
be used to monitor the switch and its network connections and to help you
take advantage of these proactive networking features:
■
A graphical Web browser interface you can use to manage your switch
from a PC running a supported Web browser, for example Microsoft
Internet Explorer, and Netscape Communicator.
■
A full-featured easy-to-use console interface you can access by connecting
a standard terminal or PC running a terminal emulator to the switch’s
console port. The cable to make that connection is provided with your
switch. The console interface is also accessible through a Telnet
connection.
For more information on using these software tools to diagnose and manage
your switch, see the “Troubleshooting” chapter in the Management and
Configuration Guide, which is on the ProCurve Web site at www.hp.com/go/
procurve/manuals.
4-9
Troubleshooting
Hardware Diagnostic Tests
Hardware Diagnostic Tests
Testing the Switch by Resetting It
If you believe the switch is not operating correctly, you can reset the switch
to test its circuitry and operating code. To reset a switch, either:
■
unplug and plug in the power cord (power cycling)
■
press the Reset button on the front of the switch
Power cycling the switch and pressing the Reset button both cause the switch
to perform its power-on self test. These reset processes also cause any
network traffic counters to be reset to zero, and cause the System Up Time
timer to reset to zero.
Checking the Switch LEDs
The self test passes if the Fault and Self Test LEDs on the front of the switch
go off after approximately 50 seconds. If these LEDs stay on longer than 60
seconds or begin flashing, there may be a problem with the switch.
See “Diagnosing with the LEDs” on page 4-4 for information on interpreting
the LED patterns.
Checking Console Messages
Useful diagnostic messages may be displayed on the console screen when the
switch is reset. As described in chapter 2 under step 7, Connect a Console to
the Switch connect a PC running a VT-100 terminal emulator program or a
standard VT-100 terminal to the switch’s Console Port and configure it to run
at 9600 baud, and with the other terminal communication settings shown on
“Configuring the Switch”. Then, when you reset the switch, note the messages that
are displayed. Additionally, you can check the switch event log, which can be
accessed from the console using the show log command, or from the console
Main Menu after entering the Menu command.
4-10
Troubleshooting
Hardware Diagnostic Tests
Testing Twisted-Pair Cabling
Network cables that fail to provide a link or provide an unreliable link between
the switch and the connected network device may not be compatible with the
IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T standards. The twistedpair cables attached to the switch must be compatible with the appropriate
standards. To verify your cable is compatible with these standards, use a
qualified cable test device.
Testing Switch-to-Device Network Communications
You can perform the following communication tests to verify the network is
operating correctly between the switch and any connected device that can
respond correctly to the communication test.
■
Link Test—a physical layer test that sends IEEE 802.2 test packets to any
device identified by its MAC address
■
Ping Test—a network layer test used on IP networks that sends test
packets to any device identified by its IP address
These tests can be performed through the switch console interface from a
terminal connected to the switch or through a Telnet connection, or from the
switch’s Web browser interface. For more information, see the Management
and Configuration Guide, which is on the ProCurve Web site at www.hp.com/
go/procurve/manuals.
Testing End-to-End Network Communications
Both the switch and the cabling can be tested by running an end-to-end
communications test—a test that sends known data from one network device
to another through the switch. For example, if you have two PCs on the
network that have LAN adapters between which you can run a link-level test
or Ping test through the switch, you can use this test to verify that the entire
communication path between the two PCs is functioning correctly. See your
LAN adapter documentation for more information on running a link test or
Ping test.
4-11
Troubleshooting
Restoring the Factory Default Configuration
Restoring the Factory Default
Configuration
As part of your troubleshooting process on the Switch, it may become
necessary to return the switch configuration to the factory default settings.
This clears any passwords, clears the console event log, resets the network
counters to zero, performs a complete self test, and reboots the switch into
its factory default configuration including deleting the IP address, if one is
configured.
Note
This process removes all switch configuration changes that you have made
from the factory default settings. This includes, for example, configuration of
VLANs, Spanning Tree, trunks, and stacking. Returning the configuration of
these features to their factory default settings (usually disabling them) may
result in network connectivity issues.
If the switch has a valid configuration, and you are restoring the factory default
settings for a reason other than configuration problems, you should save the
switch configuration prior to performing the factory default reset. Then, after
the reset and resolution of the original problem, you can restore the saved
configuration to the switch. For both the save and restore processes, you can
use the console copy command. For more information on this command, see
the Management and Configuration Guide, which is on the ProCurve Web
site at www.hp.com/go/procurve/manuals.
You can restore the factory default configuration either on the switch itself,
or through the switch console.
To execute the factory default reset on the switch, perform these steps:
1.
Using pointed objects, simultaneously press both the Reset and Clear
buttons on the front of the switch. The power and fault lights come on.
2.
Continue to press the Clear button while releasing the Reset button.
3.
When the Self Test LED begins to flash, release the Clear button.
The switch will then complete its self test and begin operating with its
configuration restored to the factory default settings.
To restore the factory default configuration using the console, execute the
erase startup-config command from the console command prompt.
4-12
Troubleshooting
Downloading New Switch Software
Downloading New Switch Software
When product enhancements occur for the 2520G-PoE switches, new
software can be downloaded to the switch through several methods, for
product enhancements and new features. For more information, see the
Management and Configuration Guide.
The new switch software would be available on the ProCurve Web site,
www.hp.com/go/procurve/software.
HP Customer Support Services
If you are still having trouble with your switch, Hewlett-Packard offers support
24 hours a day, seven days a week through the use of a number of automated
electronic services. See the Software License, Warranty and Support booklet
that came with your switch for information on how to use these services to
get technical support. The ProCurve Web site, www.hp.com/go/procurve also
provides up-to-date support information.
Additionally, your HP-authorized network reseller can provide you with
assistance, both with services that they offer and with services offered by HP.
Before Calling Support
Before calling your networking dealer or HP Support, to make the support
process most efficient, you first should retrieve the following information:
Information Item
Information Location
• product identification, including mini-GBICs
the front of the switch and on
labels on the mini-GBICs
• details about the switch’s status including the
software (OS) version, a copy of the switch
configuration, a copy of the switch Event Log, and a
copy of the switch status and counters information
switch console: show tech
command
• copy of your network topology map, including
network addresses assigned to the relevant devices
your network records
4-13
A
Specifications
Switch Specifications
Physical
Width
Depth
Height
Weight
2520G-8-PoE (J9298A)
25.4 cm (10 in)
16.5 cm (6.5 in)
4.4 cm (1.73 in)
0.91 kg (2.01 lbs)
2520G-24-PoE (J9299A)
44.3 cm (17.4 in)
25.1 cm (9.88 in)
4.4 cm (1.73 in)
3.27 kg (7.21 lbs)
Electrical
AC voltage
Maximum current
Frequency range
2520G-8-PoE (J9298A)1
100-240 volts
1.5A
50/60 Hz
2520G-24-PoE (J9299A)2
100-127 volts
200-240 volts
3.3A
50/60 Hz
1
Requires a connection to an external power adapter module 5070-6082.
2 The switch automatically adjusts to any voltage between 100-127 or 200-240
volts and either 50 or 60 Hz.
Environmental
Operating
Non-Operating
0°C to 45°C (32°F to 113°F)
0°C to 50°C (32°F to 122°F)
-40°C to 70°C (-40°F to 158°F)
-40°C to 70°C (-40°F to 158°F)
Relative humidity
(non-condensing)
15% to 95% at 40°C (104°F)
15% to 95% at 65°C (149°F)
Maximum altitude
3.0 Km (10,000 ft)*
4.57 Km (15,000 ft)
Temperature
2520G-8-PoE
2520G-24-PoE
* The operating maximum altitude should not exceed that of any accessory being connected
to any 2520G-PoE Switch.
A-1
Specifications
Switch Specifications
BTU Ratings
Switch Model
Combined BTU1
2520G-8-PoE
89
2520G-24-PoE
223
1
Includes switch and maximum number of PoE powered devices
connected to the switch at 15.4 watts.
Acoustics
2520G-8-PoE (J9298A) No fans.
2520G-24-PoE (J9299A)
Geraeuschemission LpA=28.3 dB am fiktiven Arbeitsplatz nach DIN
45635 T.19
Noise Emission LpA=28.3 dB at virtual workspace according to DIN
45635 T.19
Safety
Complies with:
A-2
■
EN 60950-1:2001 + A11:2004
■
IEC 60950-1:2001
■
EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1
Specifications
Standards
Standards
Table A-1.
Technology Standards and Safety Compliance
Laser safety information
Technology
Compatible with these IEEE
standards
10-T
IEEE 802.3 10BASE-T,
100-TX
IEEE 802.3u 100BASE-TX,
1000-T
IEEE 802.3ab 1000BASE-T
100-FX
IEEE 802.3u 100BASE-FX
EN/IEC
standard
compliance
SFP
("mini-GBIC") Lasers
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
100-BX
IEEE 802.3ah 100BASE-BX10
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
1000-SX
IEEE 802.3z 1000BASE-SX
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
1000-LX
IEEE 802.3z 1000BASE-LX
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
1000-LH
(not an IEEE standard)
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
1000-BX
IEEE 802.3ah 1000BASE-BX10
EN/IEC 60825
Class 1 Laser Product
Laser Klasse 1
A-3
Specifications
Cabling and Technology Information Specifications
Cabling and Technology Information
Specifications
Table A-2.
Cabling Specifications
10 Mbps Operation
Category 3, 4 or 5, 100-ohm unshielded twisted-pair (UTP) or
shielded twisted-pair (STP) cable, complying with IEEE 802.3
10BASE-T specifications.
100 Mbps Operation
Category 5, 100-ohm UTP or STP cable, complying with IEEE
802.3u 100BASE-TX specifications.
1000 Mbps Operation
Category 5, 100-ohm 4-pair UTP or STP cable, complying with IEEE
802.3ab 1000BASE-T specifications—Category 5e or better is
recommended. See Note on 1000BASE-T Cable Requirements
below.
Twisted-pair copper
Multimode fiber
62.5/125 μm or 50/125 μm (core/cladding) diameter, low metal
content, graded index fiber-optic cables, complying with the
ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards
respectively.1
Single mode fiber
9/125 μm (core/cladding) diameter, low metal content fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
1 A mode conditioning patch cord may be needed for some Gigabit-LX installations.
See “Mode Conditioning Patch Cord” on page A-6 for more information.
Note on 1000BASE-T Cable Requirements. The Category 5 networking
cables that work for 100BASE-TX connections should also work for
1000BASE-T, as long as all four-pairs are connected. But, for the most robust
connections, you should use cabling that complies with the Category 5e
specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/
TIA/EIA-568-A-5).
Because of the increased speed provided by 1000BASE-T (Gigabit-T), network
cable quality is more important than for either 10BASE-T or 100BASE-TX.
Cabling plants being used to carry 1000BASE-T networking must comply with
the IEEE 802.3ab standards. In particular, the cabling must pass tests for
Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT).
Additionally, unlike the cables for 100BASE-TX, the 1000BASE-T cables must
pass tests for Equal-Level Far-End Crosstalk (ELFEXT) and Return Loss.
When testing your cabling, be sure to include the patch cables that connect
the switch and other end devices to the patch panels on your site. The patch
cables are frequently overlooked when testing cable and they must also
comply with the cabling standards.
A-4
Specifications
Cabling and Technology Information Specifications
Technology Distance Specifications
Table A-3.
Technology Distance Specifications
Technology
Supported cable type
Multimode fiber
modal bandwidth
Supported distances
100-FX
multimode fiber
any
up to 2,000 meters
100-BX
single mode fiber
N/A
0.5 - 10,000 meters
1000-T
twisted-pair copper
N/A
up to 100 meters
1000-SX
multimode fiber
160 MHz*km
2 - 220 meters
200 MHz*km
2 - 275 meters
400 MHz*km
2 - 500 meters
500 MHz*km
2 - 550 meters
400 MHz*km
2 - 550 meters
500 MHz*km
2 - 550 meters
single mode fiber
N/A
2 - 10,000 meters
1000-LH
single mode fiber
N/A
10 - 70,000 meters1
1000-BX
single mode fiber
N/A
0.5 - 10,000 meters
1000-LX
multimode fiber
1
For distances less than 20km, a 10dB attenuator must be used. For distances between 20km and 40km, a 5dB attenuator
must be used. Attenuators can be purchased from most cable vendors.
A-5
Specifications
Mode Conditioning Patch Cord
Mode Conditioning Patch Cord
The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port. Multimode cable has a design
characteristic called “Differential Mode Delay”, which requires the
transmission signals be “conditioned” to compensate for the cable design and
thus prevent resulting transmission errors.
Under certain circumstances, depending on the cable used and the lengths of
the cable runs, an external Mode Conditioning Patch Cord may need to be
installed between the Gigabit-LX and the multimode network cable to provide
the transmission conditioning. If you experience a high number of
transmission errors on those ports, usually CRC or FCS errors, you may need
to install one of these patch cords between the fiber-optic port in your switch
and your multimode fiber-optic network cabling, at both ends of the network
link.
The patch cord consists of a short length of single mode fiber cable coupled
to graded-index multimode fiber cable on the transmit side, and only
multimode cable on the receive side. The section of single mode fiber is
connected in such a way that it minimizes the effects of the differential mode
delay in the multimode cable.
Note
Most of the time, if you are using good quality graded-index multimode fiber
cable that adheres to the standards listed in Appendix B, there should not be
a need to use mode conditioning patch cords in your network. This is
especially true if the fiber runs in your network are relatively short.
Installing the Patch Cord
As shown in the illustration below, connect the patch cord to the ProCurve
transceiver with the section of single mode fiber plugged in to the Tx
(transmit) port. Then, connect the other end of the patch cord to your network
cabling patch panel, or directly to the network multimode fiber.
If you connect the patch cord directly to the network cabling, you may need
to install a female-to-female adapter to allow the cables to be connected
together.
A-6
To network
multimode
cabling
The multimode cable in the patch cord
must match the characteristics of your
network cable
Tx
Gigabit-LX port
Rx
Specifications
Mode Conditioning Patch Cord
Mode Conditioning
Patch Cord
Single mode section plugs into Tx
port on Gigabit-LX Transceiver or
Gigabit-LX mini-GBIC
Figure A-1. Example: Connecting a Mode Conditioning Patch Cord for Gigabit-LX
Make sure you purchase a patch cord that has appropriate connectors on each
end, and has multimode fibers that match the characteristics of the multimode
fiber in your network. Most important, the core diameter of the multimode
patch cord must match the core diameter of the multimode cable
infrastructure (either 50 or 62.5 microns).
A-7
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Twisted-Pair Cable/Connector Pin-Outs
The Auto-MDIX Feature: In the default configuration, “Auto”, the fixed 10/
100/1000Base-T ports on the 2520G-PoE switches all automatically detect the
type of port on the connected device and operate as either an MDI or
MDI-X port, whichever is appropriate. So for any connection, a straightthrough twisted-pair cable can be used—you no longer have to use crossover
cables, although crossover cables can also be used for any of the connections.
(The 10/100/1000-T ports support the IEEE 802.3ab standard, which includes
the “Auto-MDIX” feature.)
If you connect a 2520G-PoE switch twisted-pair port to another switch or hub,
which typically have MDI-X ports, the 2520G-PoE switch port automatically
operates as an MDI port. If you connect it to an end node, such as a server or
PC, which typically have MDI ports, the 2520G-PoE switch port operates as
an MDI-X port. In all cases, you can use standard straight-through cables or
crossover cables.
If you happen to use a correctly wired crossover cable, though, the switch will
still be able to automatically detect the MDI/MDI-X operation and link
correctly to the connected device.
Note
Using Fixed Configurations. If the port configuration is changed to any of
the fixed configurations though, for example 100 Mbps/full duplex, the port
operates as MDI-X only and the correct cable type must be used: for
connections to MDI ports, such as end nodes, use a straight-through cable; for
connections to MDI-X ports, such as on hubs and other switches, use a
crossover cable.
Other Wiring Rules:
A-8
■
All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be
twisted through the entire length of the cable. The wiring sequence must
conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin
Assignments” later in this appendix for a listing of the signals used on each
pin.
■
For 1000Base-T connections, all four pairs of wires in the cable must be
available for data transmission.
■
For 10 Mbps connections to the ports, you can use Category 3, 4, or 5
unshielded twisted-pair cable, as supported by the IEEE 802.3 Type
10Base-T standard.
Specifications
Twisted-Pair Cable/Connector Pin-Outs
■
For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP or
STP cable only, as supported by the IEEE 802.3u Type 100Base-TX
standard.
■
For 1000 Mbps connections, 100-ohm Category 5e or better cabling is
recommended.
■
To provide Power over Ethernet to the access point, all 4 pairs must be
connected for any network cable attached to this port; the cable must
meet ISO/DIS 11801 Class D requirements and IEEE 802.3af requirements.
A-9
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections
Because of the Auto-MDIX operation of the 10/100 ports on the switch, for all
network connections, to PCs, servers or other end nodes, or to hubs or other
switches, you can use straight-through cables.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and straight-through cables
must be then used for connections to PC NICs and other MDI ports.
Cable Diagram
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
A-10
Switch End (MDI-X)
Computer, Transceiver, or
Other End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
1
2
3
6
transmit +
transmit receive +
receive -
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection
The Auto-MDIX operation of the 10/100 ports on the switch also allows you to
use crossover cables for all network connections, to PCs, servers or other end
nodes, or to hubs or other switches.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and crossover cables must be
then used for connections to hubs or switches or other MDI-X network
devices.
Cable Diagram
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
Pin Assignments
Switch End (MDI-X)
Hub or Switch Port, or Other
MDI-X Port End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
6
3
2
1
transmit transmit +
receive receive +
A-11
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000Base-T connections require that all four pairs of wires be connected.
Cable Diagram
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000Base-T operation, all four pairs of wires are used for both transmit
and receive.
A-12
B
Safety and EMC Regulatory Statements
Safety Information
!
Documentation reference symbol. If the product is marked with this
symbol, refer to the product documentation to get more information
about the product.
WARNING
A WARNING in the manual denotes a hazard that can cause injury
or death.
Caution
A Caution in the manual denotes a hazard that can damage equipment.
Do not proceed beyond a WARNING or Caution notice until you
have understood the hazardous conditions and have taken appropriate steps.
Grounding
These are safety class I products and have protective earthing terminals. There
must be an uninterruptible safety earth ground from the main power source
to the product's input wiring terminals, power cord, or supplied power cord
set. Whenever it is likely that the protection has been impaired, disconnect
the power cord until the ground has been restored.
For LAN cable grounding:
■
If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.
■
LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power
grid). Handle exposed metal components of the network with caution.
Servicing
There are no user-serviceable parts inside these products. Any servicing,
adjustment, maintenance, or repair must be performed only by service-trained
personnel.
These products do not have a power switch; they are powered on when the
power cord is plugged in.
B-1
Safety and EMC Regulatory Statements
Informations concernant la sécurité
Informations concernant la sécurité
!
Symbole de référence à la documentation. Si le produit est marqué de
ce symbole, reportez-vous à la documentation du produit afin d'obtenir
des informations plus détaillées.
WARNING
Dans la documentation, un WARNING indique un danger susceptible
d'entraîner des dommages corporels ou la mort.
Caution
Un texte de mise en garde intitulé Caution indique un danger susceptible de causer des dommages à l'équipement.
Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant
d'avoir bien compris les conditions présentant un danger et pris les
mesures appropriées.
Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source
d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux
bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement
fourni avec le produit. Lorsque cette protection semble avoir été endommagée,
débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.
Mise à la terre du câble de réseau local:
■
si votre réseau local s'étend sur une zone desservie par plus d'un système de
distribution de puissance, assurez-vous que les prises de terre de sécurité
soient convenablement interconnectées.
■
Les câbles de réseaux locaux peuvent occasionnellement être soumis à des
surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants
métalliques du réseau avec précautions.
Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.
Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un
personnel qualifié.
Cet appareil ne comporte pas de commutateur principal; la mise sous tension est
effectuée par branchement du cordon d'alimentation.
B-2
Safety and EMC Regulatory Statements
Hinweise zur Sicherheit
Hinweise zur Sicherheit
!
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
WARNING
Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die
Verletzungen oder sogar Todesfälle verursachen kann.
Caution
Caution in der Dokumentation symbolisiert eine Gefahr, die dis Gerät
beschädigen kann.
Fahren Sie nach dem Hinweis WARNING oder Caution erst fort,
nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.
Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung
von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem
mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß
der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose
herausziehen, bis die Erdung wiederhergestellt ist.
Für LAN-Kabelerdung:
■
Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die
Sicherheitserdungen fest untereinander verbunden sind.
■
LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem
Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter
Metallbestandteile des Netzwerkes Vorsicht walten lassen.
Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.
Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels
eingeschaltet.
B-3
Safety and EMC Regulatory Statements
Considerazioni sulla sicurezza
Considerazioni sulla sicurezza
!
Simbolo di riferimento alla documentazione. Se il prodotto è
contrassegnato da questo simbolo, fare riferimento alla documentazione sul prodotto per ulteriori informazioni su di esso.
WARNING
La dicitura WARNINGdenota un pericolo che può causare lesioni o
morte.
Caution
La dicituraCaution denota un pericolo che può danneggiare le attrezzature.
Non procedere oltre un avviso di WARNING o di Cautionprima di aver
compreso le condizioni di rischio e aver provveduto alle misure del
caso.
Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo
di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non
interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata,
al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.
Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo
d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.
Per la messa a terra dei cavi LAN:
■
se la vostra LAN copre un'area servita da più di un sistema di distribuzione
elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati
fra loro;
■
i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni
transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo
della rete.
Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi
lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.
Questo apparato non possiede un commutatore principale; si mette scotto tensione
all'inserirsi il cavo d'alimentazione.
B-4
Safety and EMC Regulatory Statements
Consideraciones sobre seguridad
Consideraciones sobre seguridad
!
Símbolo de referencia a la documentación. Si el producto va
marcado con este símbolo, consultar la documentación del
producto a fin de obtener mayor información sobre el producto.
WARNING
Una WARNING en la documentación señala un riesgo que podría
resultar en lesiones o la muerte.
Caution
Una Caution en la documentación señala un riesgo que podría
resultar en averías al equipo.
No proseguir después de un símbolo de WARNING o Caution hasta
no haber entendido las condiciones peligrosas y haber tomado las
medidas apropiadas.
Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por
una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde
la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato,
el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la
probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el
cable de alimentación hasta haberse subsanado el problema.
Puesta a tierra del cable de la red local (LAN):
■
Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una
red de distribución de electricidad, cerciorarse de que las puestas a tierra
estén conectadas entre sí de modo seguro.
■
Es posible que los cables de la LAN se vean sometidos de vez en cuando a
voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red
de energía eléctrica). Manejar con precaución los componentes de metal de
la LAN que estén al descubierto.
Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.
Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.
Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable
de alimentación.
B-5
Safety and EMC Regulatory Statements
Safety Information (Japan)
Safety Information (Japan)
Japan Power
Cord Warning
B-6
Safety and EMC Regulatory Statements
Safety Information (China)
Safety Information (China)
B-7
Safety and EMC Regulatory Statements
EMC Regulatory Statements
EMC Regulatory Statements
U.S.A.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause interference to
radio communications. Operation of this equipment in a residential area may
cause interference in which case the user will be required to correct the
interference at his own expense.
Canada
This product complies with Class A Canadian EMC requirements.
Australia/New Zealand
This product complies with Australia/New Zealand EMC Class A
requirements.
Japan
VCCI Class A
B-8
Safety and EMC Regulatory Statements
EMC Regulatory Statements
Korea
Taiwan
B-9
Safety and EMC Regulatory Statements
EMC Regulatory Statements
European Community
B-10
Safety and EMC Regulatory Statements
EMC Regulatory Statements
B-11
D
Recycle Statements
Waste Electrical and Electronic
Equipment (WEEE) Statements
Disposal of Waste Equipment by Users in Private Household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with
your other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním
domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné
místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu
pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní
prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na
příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v
obchodě, kde jste produkt zakoupili.
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må
bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret
udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret
elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse
med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en
måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret
udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte
produktet.
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi
kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu
oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei,
majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.
D-1
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.
Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.
Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja paikoista,
joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec
les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les
déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques
et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste
des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront
recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations
sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités
locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous
avez acheté ce produit.
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den
normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert
eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu,
wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen
Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben
Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή
Ένωση
Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την
ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και
ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των
φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την
ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να
παραδώσετε τον άχρηστο εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό
γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το
προϊόν.
Készülékek magánháztartásban történő selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A
vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és
elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori
begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint
biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.
A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az
illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.
D-2
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere
smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed
elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di
proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta
delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il
quale è stato acquistato il prodotto.
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās
mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar
citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos
punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.
Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un
garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.
Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas
pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio
atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir
elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos
padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių
sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos
atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje
įsigijote gaminį.
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij
het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte
apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.
Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden
behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het
milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel
waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur
kunt aanbieden voor recycling.
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach
domowych w Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych
pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka
i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do
recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem,
w którym zakupiono produkt.
D-3
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado
no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico),
encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse
tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma
forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais
que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço
de coleta de lixo ou com a loja em que o produto foi adquirido.
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým
odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je
určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia
sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných
miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť
zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme
prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv
način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se
obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la
Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios
generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos
en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado
selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a
conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja
el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos
eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de
eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och
gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten
för att få mer information om var du kan lämna ditt avfall för återvinning.
D-4
Index
Numerics
10/100Base-TX ports
location on switch … 1-3
1000Base-BX … A-5
fiber-optic cable specifications … A-5
1000Base-LH … A-5
fiber-optic cable specifications … A-5
1000Base-T
1000Base-T
fiber-optic cable specifications … A-5
A
AC power connector
location on back of switch … 1-9
acoustic specifications … A-2
auto MDI/MDI-X operation … A-10, A-12
HP Auto-MDIX feature … A-8
B
back of switch
description … 1-9
power connector … 1-9
backbone switch
topology with … 2-25
basic switch configuration
IP address … 3-2
manager password … 3-2
subnet mask … 3-2
Switch Setup screen … 3-2
basic troubleshooting tips … 4-1
Bootp
automatic switch configuration … 3-1
for in-band access … 2-20
BTU ratings … A-2
buttons
Clear button … 1-8
Reset button … 1-8
cables
connecting cables to switch ports … 2-17
effects of non-standard cables … 4-2
infrastructure requirements … 2-5
serial, for direct console connection … 2-21
cables, twisted pair
category 3, 4, 5 … A-8
cross-over cable pin-out … A-11
MDI-X to MDI connections … A-10, A-12
MDI-X to MDI-X connections … A-11
pin-outs … A-10, A-12
straight-through cable pin-out … A-10, A-12
switch-to-computer connection … A-10, A-12
switch-to-switch or hub connection … A-11
cables, twisted-pair
HP Auto-MDIX feature … A-8
wiring rules … A-8
cables, twisted-pair connector pin-outs … A-8
cabling infrastructure … 2-5
Clear button
deleting passwords … 1-8
description … 1-8
location on switch … 1-3, 1-8
restoring factory default configuration … 1-8,
4-12
to delete password protection … 3-4
CLI prompt, console
displaying … 2-21
configuration
checking when troubleshooting … 4-3
DHCP/Bootp … 3-1
IP address … 3-2
IP address, manually … 3-2
manager password … 3-2
restoring factory defaults … 1-8, 4-12
subnet mask … 3-2
Switch Setup screen … 3-2
connecting the switch to a power source … 2-15
C
cabinet
mounting the switch in … 2-8
Index – 1
console
checking messages during
troubleshooting … 4-10
displaying the CLI prompt … 2-21
features … 2-20
how to connect in-band … 2-20
how to connect out-of-band … 2-20
serial cable connection … 2-21
Switch Setup screen … 3-2
Telnet access … 3-5
terminal configuration … 2-20
console port
definition … 1-8
location on switch … 1-3
cross-over cable
pin-out … A-11
D
deleting passwords … 1-8
description
back of switch … 1-9
front of switch … 1-3
LEDs … 1-4
switch … 1-1
desktop switch
sample topology … 2-22
DHCP
automatic switch configuration … 3-1
for in-band access … 2-20
diagnostic tests … 4-10
checking the console messages … 4-10
checking the LEDs … 4-10
end-to-end connectivity … 4-11
testing the switch only … 4-10
testing twisted-pair cabling … 4-11
downloading new switch software … 4-13
E
electrical specifications, switch … A-1
EMC regulatory statements … B-8
environmental specifications
BTU ratings … A-2
environmental specifications, switch … A-1
2 – Index
F
factory default configuration, restoring … 1-8, 4-12
Fan Status LED … 1-4
Fault LED … 1-4
behavior during self test … 2-8
behaviors … 1-4
flashing definition … 1-5–1-6
location on switch … 1-3
showing error conditions … 4-4
features
console … 2-20
switch … 1-10
fiber-optic cables
1000Base-BX … A-5
1000Base-LH … A-5
1000Base-T … A-5
flashing LEDs
error indications … 4-4
front of switch … 1-3
10/100Base-TX ports … 1-3
Clear button … 1-8
description … 1-3
LEDs … 1-4
network ports … 1-3
Reset button … 1-8
full-duplex fixed configuration
effects on network connections … 4-1
H
horizontal surface
mounting switch on … 2-14
HP Auto-MDIX
feature description … A-8
I
in-band … 3-1
in-band console access
types of … 2-20
included parts … 2-1
installation
connecting the switch to a power source … 2-15
horizontal surface mounting … 2-14
location considerations … 2-5
network cable requirements … 2-5
precautions … 2-3
rack or cabinet mounting … 2-8
site preparation … 2-5
wall mounting … 2-13
IP address
configuring … 3-2
IP telephones … 2-23
L
LEDs
behavior during self test … 2-8
checking during troubleshooting … 4-10
descriptions of … 1-4
error indications … 4-4
Fan Status … 1-4
Fault … 1-4
behavior during self test … 2-8
showing error conditions … 4-4
flashing definition … 1-5–1-6
location on switch … 1-3
on switch … 1-4
port
description … 1-6
Power … 1-4
behavior during self test … 2-8
Self Test … 1-5
behavior during self test … 2-8
link test … 4-11
location for the switch, considerations … 2-5
M
MDI-X to MDI network cable … A-10, A-12
MDI-X to MDI-X network cable … A-11
mini-GBICs
slot, location on switch … 1-3
mounting the switch
in a rack or cabinet … 2-8
precautions … 2-3
on a horizontal surface … 2-14
on a wall … 2-13
precautions … 2-13
Multiple-Display Port LEDs … 1-7
N
network cables
HP Auto-MDIX feature … A-8
required types … 2-5
twisted-pair connector pin-outs … A-8
twisted-pair, wiring rules … A-8
network devices
connecting to the switch … 2-17
network ports
connecting to … 2-17
location on switch … 1-3
types of … 1-3
non-standard network cables, effects … 4-2
O
out-of-band console access … 3-5
P
parts, included with the switch … 2-1
password
configuring … 3-2
passwords
deleting with the Clear button … 3-4
if you lose the password … 3-4
passwords, deleting … 1-8
physical specifications, switch … A-1
Ping test … 4-11
pin-outs
twisted-pair cables … A-8
PoE LED patterns … 4-8
PoE troubleshooting … 4-8
port configuration
checking when troubleshooting … 4-3
port LEDs
description … 1-6
normal operation … 2-8
ports
10/100Base-TX, location on switch … 1-3
connecting to … 2-17
console … 2-20
HP Auto-MDIX feature … A-8
network connections … 2-17
power connector … 1-9
Index – 3
Power LED … 1-4
behavior during self test … 2-8
behaviors … 1-4
location on switch … 1-3
power source
connecting the switch to … 2-15
Power-over-Ethernet
PoE power … 1-1
precautions
mounting the switch … 2-3
power requirements … 2-3
preparing the installation site … 2-5
Proactive Network tools
diagnostics with … 4-9
R
rack
mounting precautions … 2-3
mounting the switch in … 2-8
recycle statements … D-1
regulatory statements … B-8
Reset button
description … 1-8
location on switch … 1-3, 1-8
restoring factory default configuration … 4-12
resetting the switch
factory default reset … 4-12
location of Reset button … 1-8
troubleshooting procedure … 4-10
S
safety and regulatory statements … B-1
safety specifications … A-2
segment switch
sample topology … 2-23
self test
Fault LED behavior … 2-8
LED behavior during … 2-8
Power LED behavior … 2-8
Self Test LED … 1-5
behavior during factory default reset … 4-12
behavior during self test … 2-8
serial cable
for direct console connection … 2-21
SFP ports … 1-2
4 – Index
slots for mini-GBICs
location on switch … 1-3
specifications
acoustic … A-2
electrical … A-1
environmental … A-1
physical … A-1
safety … A-2
straight-through cable
pin-out … A-10, A-12
subnet mask
configuring … 3-2
switch
connecting to a power source … 2-15
description … 1-1
downloading new software … 4-13
electrical specifications … A-1
environmental specifications … A-1
features … 1-10
front panel description … 1-3
included parts … 2-1
LED descriptions … 1-4
mounting in a rack or cabinet … 2-8
mounting on a wall … 2-13
mounting on horizontal surface … 2-14
physical specifications … A-1
switch operation
verifying after installation … 2-6
Switch Setup screen … 3-2
configuring a subnet mask … 3-2
configuring an IP address … 3-2
field descriptions … 3-3
T
Telnet access to the console … 3-5
terminal configuration … 2-20
testing
checking the console messages … 4-10
checking the LEDs … 4-10
diagnostic tests … 4-10
end-to-end communications … 4-11
link test … 4-11
Ping test … 4-11
switch operation … 4-10
switch-to-device communications … 4-11
twisted-pair cabling … 4-11
tips for troubleshooting … 4-1
topologies
effects of improper topology … 4-2
samples of … 2-22
troubleshooting … 4-1
basic tips … 4-1
checking port configuration … 4-3
checking the console messages … 4-10
checking the LEDs … 4-10
common network problems … 4-1
connecting to fixed full-duplex devices … 4-1
diagnostic tests … 4-10
effects of improper topology … 4-2
effects of non-standard cables … 4-2
link test … 4-11
Ping test … 4-11
Proactive Network tools … 4-9
restoring factory default configuration … 4-12
testing connections to other devices … 4-11
testing end-to-end communications … 4-11
testing the switch … 4-10
testing the twisted-pair cables … 4-11
twisted-pair cable
cross-over cable pin-out … A-11
pin-outs … A-8, A-10, A-12
straight-through cable pin-out … A-10, A-12
switch-to-computer connection … A-10, A-12
switch-to-switch or hub connection … A-11
testing … 4-11
twisted-pair ports
HP Auto-MDIX feature … A-8
V
VT-100 terminal
serial cable connection for … 2-21
W
wall
mounting switch on … 2-13
wiring rules for twisted-pair cables … A-8
Index – 5
ProCurve 5400zl Switches
Installation and Getting Startd Guide
Technology for better business outcomes
To learn more, visit www.hp.com/go/procurve/
© Copyright 2009 Hewlett-Packard Development Company, L.P. The information
contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty.
HP will not be liable for technical or editorial errors or omissions contained herein.
Printed in China
October 2009
Manual Part Number
5992-4975
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
