QuickSpecs
HP ProLiant BL25p Server Blade
Overview

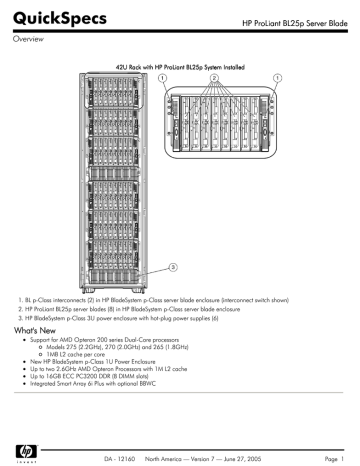

42U Rack with HP ProLiant BL25p System Installed
1. BL p-Class interconnects (2) in HP BladeSystem p-Class server blade enclosure (interconnect switch shown)
2. HP ProLiant BL25p server blades (8) in HP BladeSystem p-Class server blade enclosure
3. HP BladeSystem p-Class 3U power enclosure with hot-plug power supplies (6)
What's New
Support for AMD Opteron 200 series Dual-Core processors
Models 275 (2.2GHz), 270 (2.0GHz) and 265 (1.8GHz)
1MB L2 cache per core
New HP BladeSystem p-Class 1U Power Enclosure
Up to two 2.6GHz AMD Opteron Processors with 1M L2 cache
Up to 16GB ECC PC3200 DDR (8 DIMM slots)
Integrated Smart Array 6i Plus with optional BBWC
DA - 12160
North America — Version 7 — June 27, 2005
Page 1
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
At A Glance
Performance dual processor server blade designed with enterprise availability
HP ProLiant BL25p server blade includes:
AMD Opteron 200 series single and dual-core processors (dual capability)
Models 275 (2.2GHz), 270 (2.0GHz), 265 (1.8GHz), 252 (2.6GHz) and 250 (2.4GHz)
HP ProLiant BL25p Dual Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
AMD 8131 and 8111 Chipsets
1024-MB or 2048-MB PC3200 Registered ECC 400MHz DDR memory, (2 x 1 Interleaved Memory), expandable to 16 GB
Five total network adapters:
Four PCI-X Gigabit Server NICs (embedded) with WOL and PXE (two single-port NC7781 and one dual-port NC7782)
Plus one additional 10/100 NIC dedicated to iLO Management
Smart Array 6i (integrated on system board Controller with optional battery-backed write cache)
Wide Ultra320 SCSI Drive Cage standard supports up to two 1" Wide Ultra320 hot plug hard drives
Integrated Lights-Out (iLO) Advanced Management (ASIC on motherboard)
Plugs vertically into 6U enclosure, 8 BL25p server blades per enclosure
Cisco Gigabit Ethernet Switch Module (CGESM) option for Gigabit Ethernet network adapter consolidation.
Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and
Common Procedures guides
HP BladeSystem p-Class Server Blade Enclosure:
Server blades and interconnects blind mate into server blade enclosures for network connection and power
Server blade enclosure is 6U and holds up to 8 HP ProLiant BL25p server blades and 2 interconnects
Types of interconnects available: GbE Interconnect Switches, GbE2 and CGESM Interconnect Switches with optional
Fibre Channel pass through, Patch Panels or Patch Panel 2 with Fibre Channel pass through
HP BladeSystem p-Class Power Enclosures:
Use BL p-Class sizing tool to determine power based on your configuration
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls.
BL p-Class power enclosure provides shared, external, redundant power
Choose the HP BladeSystem p-Class 3U power enclosure or the HP BladeSystem p-Class 1U power enclosure
Choose single-phase or three-phase power
HP BladeSystem power enclosures with power supplies are not needed if using facility -48VDC ± 10%, in this case
purchase facility DC option kit
HP BladeSystem p-Class Power Distribution (only required with the 3U power enclosure):
Distributes power from the power enclosure to the server blade enclosures
Four power distribution choices:
BL p-Class scalable bus bar
BL p-Class mini bus bar
BL p-Class power bus box
Dual power input kit for mini bus bar (required for support of two power enclosures)
HP ProLiant BL25p server blade, and p-Class server blade enclosure, interconnects and power enclosure protected by a
limited three year warranty with optional service uplifts available
NOTE: Power requirements for a HP BladeSystem p-Class-: 200V - 240V AC, 30 amp or facility DC -48V ± 10%.
DA - 12160
North America — Version 7 — June 27, 2005
Page 2
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
HP ProLiant BL25p Server Blade
+
HP BladeSystem p-Class Server Blade Enclosure
+
DA - 12160
North America — Version 7 — June 27, 2005
Page 3
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
OR
Patch Panel (shown) or
Patch Panel 2
GbE Interconnect Switch (shown) or GbE2 Interconnect Switch or
CGESM Interconnect Switch (fiber or copper-based)
BL p-Class Interconnects
+
BL p-Class power enclosures and power supplies
OR
HP BladeSystem p-Class 1U power enclosure and power supplies
OR
Facility DC
DA - 12160
North America — Version 7 — June 27, 2005
Page 4
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
OR
OR
Mini bus bar
Bus boxes
Scalable bus bar
Dual power input kit for mini bus bar
HP BladeSystem p-Class power distribution (only required with the 3U power enclosure)
Configuration Steps
For a complete configuration of the HP ProLiant BL25p server blade, do the following:
1. Select desired model, configuration and quantity of HP ProLiant BL25p server blades.
PLUS
2. Decide how many HP BladeSystem p-Class Server Blade Enclosures to purchase (each enclosure can hold up to 8 HP ProLiant
BL25p server blades):
HP BladeSystem p-Class server blade enclosure with enhanced backplane components with 8 Rapid Deployment Pack
licenses (281404-B22)
Or
HP BladeSystem p-Class server blade enclosure with enhanced backplane components with 8 Rapid Deployment Pack trial
(243564-B22)
Or
HP BladeSystem p-Class server blade enclosure with enhanced backplane components with 8 HP BladeSystem Management
Suite licenses (380625-B22) - includes: a single copy of Systems Insight Manager (SIM) and 8 licenses for each of the
following products: Rapid Deployment Pack (RDP), Performance Management Pack (PMP) and the Vulnerability and Patch
Management Pack (VPM)
NOTE: HP BladeSystem p-Class Enhanced Server Blade enclosures may be required depending on which HP ProLiant BL25p
server blade model is selected.
NOTE: The HP BL25p server blade does not currently support PMP. Future support is planned.
Or
DA - 12160
North America — Version 7 — June 27, 2005
Page 5
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
HP BladeSystem p-Class Server Blade Enclosure Upgrade Kit (option)(354100-B21)
NOTE: Server Blade Enclosure Upgrade Kit (354100-B21) contains enhanced backplane components and enables a field
upgrade of a blade enclosure to support BL p-class blades and provide a single, physical iLO port for the enclosure.
PLUS
3. Select an Interconnect Kit. Each Interconnect Kit contains a pair of interconnects except the Cisco GESM which contains a
single Switch per kit. One pair of interconnects is required with each blade enclosure:
RJ-45 Patch Panel 2 with Fibre Channel pass through (required for Fibre Channel connectivity on HP ProLiant BL20p G3
when using the patch panel interconnect) (306465-B21)
Or
RJ-45 Patch Panel (230766-B21)
Or
Quantity (2) Cisco Gigabit Switch Module for HP BladeSystem p-Class Interconnect Kit (with 16 10/100/1000 T/TX/T
downlink ports, 2 RJ-45 10/100/1000 T/TX/T uplink ports, and 4 SFP ports) (378926-B21), with or without any combination
of up to 4 10/100/1000 T/TX/T RJ-45 SFP Module (378928-B21) or 1000BASE SX Fiber SFP Module (378929-B21), with
or without ProLiant BL p-Class Storage Connectivity Kit (with 16 Fibre Channel connectors) (321745 -B21) (required for
ProLiant BLXXp server blade Fibre Channel connectivity when using the CGESM Interconnect Switch)
Or
Quantity (2) Cisco Gigabit Switch Module for HP BladeSystem p-Class Interconnect Kit (with 16 10/100/1000 T/TX/T
downlink ports, 2 RJ-45 10/100/1000 T/TX/T uplink ports, and 4 SFP ports populated with 2 10/100/1000 T/TX/T SFP
modules) (378927-B21), with or without optional ProLiant BL p-Class Storage Connectivity Kit (with 16 Fibre Channel
connectors) (321745 -B21) (required for ProLiant BLXXp server blade Fibre Channel connectivity when using the CGESM
Interconnect Switch)
Or
BL p-Class C-GbE2 Interconnect Kit (with 16 10/100/1000 T/TX/T downlink ports, 6 RJ-45 10/100/1000 T/TX/T uplink
ports ) (283192-B21), with or without optional ProLiant BL p-Class Storage Connectivity Kit (with 16 Fibre Channel
connectors) (321745 -B21) (required for ProLiant BLXXp server blade Fibre Channel connectivity when using the GbE2
Interconnect Switch)
Or
BL p-Class F-GbE2 Interconnect (with 16 10/100/1000 T/TX/T downlink ports, 4 LC 1000 SX and 2 RJ-45 10/100/1000
T/TX/T uplink ports) (283193-B21), with or without optional ProLiant BL p-Class Storage Connectivity Kit (with 16 Fibre
Channel connectors) (321745 -B21) (required for BLXXp server blade Fibre Channel connectivity when using the GbE2
Interconnect Switch)
Or
BL p-Class C-GbE Interconnect Kit (with 4 RJ-45 10/100/1000 T/TX/T uplink ports and 16 RJ-45 10/100 T/TX downlink
ports (249655-B21)
Or
BL p-Class F-GbE Interconnect Kit (with 4 LC 1000 SX uplink ports and 16 RJ-45 10/100 T/TX downlink ports) (279720-B21)
PLUS
4. Select a HP BladeSystem p-Class power enclosure and power supplies based on configuration. Use p-Class sizing tool to help
determine power configuration: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls.
NOTE: Power enclosures and supplies are not needed if using facility DC (-48V ± 10%).
Single phase 3U power enclosure with four power supplies (Single-phase 3U power enclosure holds a max of four power
supplies) (239162-001)
Or
Three-phase 3U power enclosure with six power supplies (Three-phase 3U power enclosure holds a max of six power
supplies) (230769-001)
NOTE: 3U Power enclosures and supplies can also be purchased separately see options list
Or
1U power enclosure with six power supplies (378284-B21)
Or
DA - 12160
North America — Version 7 — June 27, 2005
Page 6
QuickSpecs
HP ProLiant BL25p Server Blade
Overview
1U power enclosure with two power supplies (380314-B21)
NOTE: Additional power supplies can also be purchased separately - see options list below.
PLUS
5. Select power distribution (only required with 3U power enclosures):
Scalable bus bar - Supports up to 5 server blade enclosures* (240560-B21)
Or
Mini bus bar - Supports up to 3 server blade enclosures* (240559-B21)
Or
Power Bus Box - Supports only 1 server blade enclosure* (240562-B21)
Dual Power Input Kit for Mini Bus Bar - required for support of two power enclosures. (364565-B21)
Or
HP Modular Distribution Unit 40 Amp (P/N 252663-D75)**
Or
HP Modular Distribution Unit 24 Amp (P/N 252663-D74)**
*NOTE:
NOTE: Maximum depends upon power input
**NOTE:
NOTE: The Modular Distribution Unit Kits excludes the extension bars as they are not required with the HP BladeSystem pclass 1U power enclosure.
DA - 12160
North America — Version 7 — June 27, 2005
Page 7
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Server Blade)
Processors
AMD Opteron Model 252 processor 2.6 GHz/1 GHz - 1MB (single-core)
AMD Opteron Model 250 processor 2.4 GHz/800 MHz - 1MB (single-core)
AMD Opteron Model 265 processor 1.8GHz/1 GHz (dual-core)
AMD Opteron Model 270 processor 2.0GHz/1 GHz (dual-core)
AMD Opteron Model 275 processor 2.2GHz/1 GHz (dual-core)
Upgradeability
Upgradeable to dual processing.
Cache Memory
1-MB Level 2 Cache per core
Chipset
AMD 8131 and 8111 chipsets
Memory
Standard
1024 MB or 2048 MB of 2-way interleaved PC3200 DDR SDRAM running at
400MHz (depending on model)
Maximum
16 GB
NOTE: Memory must be installed in pairs.
Network Adapter
Five network adapters total:
Four PCI-X Gigabit NICs (embedded) with WOL and PXE (two single-port NC7781 and one dual-port
NC7782)
One 10/100 iLO NIC dedicated to management
NOTE: Must use a HP BladeSystem p-class server blade enclosure with enhanced backplane to utilize all
four NIC's (281404-B22, 243564-B22 or 380625-B22).
Manageability
Integrated Lights-Out (iLO) Management Advanced (ASIC on the System Board)
Internal Storage
Hard Drives
None ship standard
Maximum Internal Storage 600 GB (internal drive cage) (2 x 300 GB Wide Ultra320, 1" drive
DA - 12160
North America — Version 7 — June 27, 2005
Page 8
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Server Blade)
Fiber Channel on the
The following items are needed to connect the HP ProLiant BL25p server blade to the SAN:
HP ProLiant BL25p server 1. HP ProLiant BL25/45p Dual-port Fibre Channel Adapter plugs into the Server Blades
blade
The HP ProLiant BL25/45p dual-port Fibre Channel Adapter is compatible with the new HP
ProLiant BL25p and BL45p server blades (it cannot be used with a HP ProLiant BL20p, HP ProLiant
BL30p, HP ProLiant BL35p or HP ProLiant BL40p server blades)
Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre Channel
connection to each server blade
Supports up to 2 Gb/s Fibre Channel equipment
Uses the QLogic chipset
Includes two small form factor pluggable transceivers with LC connectors for installation into the
Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity Kit)
The HP ProLiant BL25p Dual-port Fibre Channel Adapter Option Kit must be ordered separately.
and
2A. BL p-Class Patch Panel 2 (with Fibre Channel pass through) interconnect option
Allows pass through of both Ethernet and Fibre Channel signals
Ethernet signals exit out the rear of the RJ-45 Patch Panel G2; Fibre Channel signals exit out the
front of the RJ-45 Patch Panel G2
8 Fibre Channel small form factor pluggable (SPF) transceiver slots on the front of each RJ-45
patch panel 2 (16 Fibre Channel connections per server blade enclosure); for insertion of SPF
transceivers included with the HP ProLiant BL25p Dual-port Fibre Channel kit
or
2B. BL p-Class C-GbE2 or F-GbE2 or CGESM Interconnect Kit plus the optional Storage Connectivity Kit
Allows LAN signal consolidation and pass through of BL20p G3 Fibre Channel signals
Both LAN Ethernet signals and SAN Fibre Channel signals exit out the rear of the GbE2 or
CGESM Interconnect Switch (with the Storage Connectivity Kit option) via dedicated modular
interconnect modules
8 Fibre Channel small form factor pluggable (SPF) transceiver slots on the back of each GbE2
Interconnect Switch (16 Fibre Channel SPF slots per server blade enclosure)
SPF transceivers are included with the HP ProLiant BL25p Dual-port Fibre Channel Adapter kit
and
3. Compatible SAN
Optimized for StorageWorks arrays: HSG80 (MA8000, EMA12000, EMA16000); EVA5000;
EVA3000; XP48, XP128, XP512, XP1024; HP StorageWorks Modular Smart Array 1000 and
1500
Compatible with select 3rd party SANs (please see blade storage page for more details
http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html)
Expansion Slots
No PCI slots all features are integrated
I/O cable connectors:
(2)USB ports, (1) video port, (1) iLO port and (1) kernel debug port
(2) I/O cables ship with every server blade enclosure
Tested USB devices (keyboard, mouse, floppy) are listed in the "Options" section of this QuickSpecs
DA - 12160
North America — Version 7 — June 27, 2005
Page 9
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Server Blade Enclosure and Interconnects)
HP BladeSystem p-Class Server Blade Enclosures and ProLiant BL p-Class Interconnects
HP BladeSystem
p-Class Server Blade
Enclosures
6U (10.5-inch), 19-inch wide
Holds up to 8 HP ProLiant BL25p servers blades
10 bays per server blade enclosure 8 bays for server blades
2 outside bays for interconnect modules (RJ-45 Patch Panel, RJ-45 Patch Panel 2, GbE Interconnect
Switch, GbE2 Interconnect Switch or CGESM Interconnect Switch)
Server blades blind mate into the server blade enclosure backplane for power and data connections
NOTE: HP BladeSystem p-Class Enhanced Server Blade enclosures might be required depending on
which HP ProLiant BL25p server blade model is selected.
http://www.hp.com/go/bladesystem/enclosure/compatibility
NOTE: Server Blade Enclosure Upgrade Kit (354100-B21) contains enhanced backplane components
and enables a field upgrade of a blade enclosure to support specific HP ProLiant BL25p server blade
models and provide a single, physical iLO port for the enclosure.
Server blade management module attached to the back of each HP BladeSystem p-Class 6U server
blade enclosure to report events all servers and provide asset and inventory information
HP BladeSystem
p-Class Power
Requirements
Redundant 200V - 240V AC, 30 amp single-phase
Redundant 208V 30amp 3-phase 4 wire
Redundant -48VDC ± 10%
ProLiant BL p-Class
Interconnect Switch
Option
Provides up to a 32 to 1 server networking cable reduction per server enclosure depending on the mix of
HP ProLiant BL20p, HP ProLiant BL25p, HP ProLiant BL30p, HP ProLiant BL35p, HP ProLiant BL40p and
HP ProLiant BL45p server blades. Each interconnect switch (two per enclosure) reduces up to sixteen
internal server network (NIC) ports to six external ports (four on a modular rear mounting interconnect
(Every HP BladeSystem p- module and two on the switch front panel). This provides a total of twelve external ports per server blade
Class server blade
enclosure. Only one to all twelve external ports may be used per server blade enclosure.
enclosure requires two
The Cisco Gigabit Ethernet Switch Module (CGESM) Interconnect Kits are for applications that require
interconnect switches OR network adapter consolidation to 1000 Mbps (Gigabit Ethernet) in a Cisco infrastructure. The CGESM
two RJ-45 patch panels) supports the same and HP ProLiant BL25p Fibre Channel pass-through as the GbE2.
The Cisco Gigabit Ethernet Switch Module Interconnect kit includes one CGESM Interconnect
Switch or one CGESM with four (4) RJ-45 10/100/1000 T/TX/T Small Form Factor Pluggable
(SFP) Modules
Quantity 2 Cisco Gigabit Ethernet Switch Module Interconnect kits provide two CGESM
Interconnect Switches providing any combination of up to twelve (12) RJ-45 10/100/1000 T/TX/T
or Fiber SX external ports per server blade enclosure.
The optional ProLiant BL p-Class Storage Connectivity Kit (321745 -B21) is required for HP
ProLiant BL25p Fibre Channel pass-through when using either the CGESM Interconnect Kit.
DA - 12160
North America — Version 7 — June 27, 2005
Page 10
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Server Blade Enclosure and Interconnects)
The GbE2 Interconnect Kits (C-GbE2 and F-GbE2) are for applications that require network adapter
consolidation to 1000 Mbps (Gigabit Ethernet) and HP ProLiant BL25p Fibre Channel pass-through.
The ProLiant BL p-Class F-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches and
two QuadSX Interconnect Modules that provide eight (8) LC 1000 SX and four (4) RJ-45
10/100/1000 T/TX/T external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches and
two QuadT2 Interconnect Modules that provide twelve (12) RJ-45 10/100/1000 T/TX/T external
ports per server blade enclosure.
The optional ProLiant BL p-Class Storage Connectivity Kit (321745 -B21) is required for HP ProLiant
BL25p Fibre Channel pass-through when using either the C-GbE2 or F-GbE2 Interconnect Kit.
The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter
consolidation to 100 Mbps (Fast Ethernet).
The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches and two
DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ-45 10/100 T/TX
external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches and two
QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and eight (8) RJ45 10/100 T/TX external ports per server blade enclosure.
Also included (per Interconnect Switch):
One (1) RS-232 DB-9 front panel out-of-band management port
Redundant crosslink ports connecting the two interconnect switches
Redundant power inputs and on-board redundant fans
Hot-plug and hot- remove with configuration retention and no need to cable/re-cable
Power ON, management, and per port status and speed LED indicators
Reset/power momentary push-button switch
HP ProLiant BL Interconnect Switch Management Utilities and User Documentation CD
Fully pre-configured for rapid deployment and immediate operation
The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter
consolidation to 100 Mbps (Fast Ethernet).
The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches and two
DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ-45 10/100 T/TX
external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches and two
QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and eight (8) RJ45 10/100 T/TX external ports per server blade enclosure.
ProLiant BL Interconnect Switch Management System and Utilities:
Full featured web-based and scriptable command line (CLI) interfaces, password protected multi-level
user accounts, Telnet, SNMP, BootP client, port mirroring, port-based VLANs and VLAN tagging,
EtherChannel compatible multi-port trunking, network time protocol, spanning tree protocol,
broadcast/multicast storm control, flow control, human readable/writeable configuration file, TFTP
client, IP address security restrictions, auto-MDI/MDIX, auto-negotiation and auto-sensing of speed and
duplex mode, and more.
DA - 12160
North America — Version 7 — June 27, 2005
Page 11
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Server Blade Enclosure and Interconnects)
ProLiant BL p-Class
Storage Connectivity Kit
Option
(Supports two CGESM or
GbE2 switches per kit)
The Storage Connectivity Kit is used if HP ProLiant BL25p Fibre Channel signal pass-through is desired
when using the CGESM or GbE2 Interconnect Switch. Therefore, both LAN cable consolidation and SAN
connectivity is possible using a single interconnect option. Order one Storage Connectivity Kit per server
blade enclosure for Fibre Channel pass through.
The Storage Connectivity Kit includes two OctalFC Interconnect Modules that provide sixteen open
transceiver slots for the pluggable small form factor transceivers that come with each HP ProLiant
BL25/45p Dual port Fibre Channel Adapter. The Storage Connectivity Kit supports up to eight HP
ProLiant BL25p server blades (for a total of sixteen Fibre Channel signals).
ProLiant BL p-Class
RJ-45 Patch Panel
(Two patch panels per kit)
(Every BL p-Class server
blade enclosure requires
two Interconnect switches
OR two RJ-45 patch
panels)
6U (10.5-inch), Plugs into HP BladeSystem p-Class 6U server blade enclosures
ProLiant BL p-Class RJ-45
Patch Panel 2 (with Fibre
Channel pass through)
(Two patch panels per kit)
(Every BL p-Class server
blade enclosure requires
two Interconnect switches
OR two RJ-45 patch
panels)
NOTE: The Patch Panel 2
or a Switch Interconnect
Kit is required for SAN
connectivity on the HP
ProLiant BL25p server
blade
6U (10.5-inch), Plugs into HP BladeSystem p-Class 6U server blade enclosures
Used to pass NIC signals from all server blades in server blade enclosure out as RJ-45 connections also
used to pass Fibre Channel signals for SAN connectivity
Supports Gigabit Ethernet network adapters
16 RJ-45 connectors on the back of each RJ-45 patch panel 2 (32 RJ-45 connections per server blade
enclosure)
Fibre Channel signals travel from a HP ProLiant BL25p server blade with a
Fibre Channel,
pass through
Dual-Port Fibre Channel Adapter through p-Class server blade enclosure
backplane. The Fibre Channel signals are terminated through the RJ-45
Patch Panel 2 in the interconnect bays. To provide redundancy each server
blade has two Fibre Channel signals and one Fibre Channel signal
terminates through the right RJ-45 Patch Panel 2, one Fibre Channel signal
travels terminates through the left RJ-45 Patch Panel 2.
8 Fibre Channel small form factor pluggable (SPF) transceiver slots on the
front of each RJ-45 patch panel 2 (16 Fibre Channel connections per server
blade enclosure); for insertion of SPF transceivers included with the Dual-port
Fibre Channel Adapter
Required Network
Cabling
10Base-T
Used to pass NIC signals from all server blades in server blade enclosure out as RJ-45 connections
Supports Gigabit Ethernet network adapters
16 RJ-45 connectors on the back of each BL p-Class 6U RJ-45 Patch Panel (32 RJ-45 connections per
server blade enclosure)
Categories 3, 4 or 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)
100Base-TX
Category 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)
1000Base-T
Category 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)
1000Base-SX
50/125 µm Multimode Fiber, 400 MHz/Km (500 meters)
50/125 µm Multimode Fiber, 500 MHz/Km (550 meters)
62.5/125 µm Multimode Fiber, 160 MHz/Km (220 meters)
62.5/125 µm Multimode Fiber, 200 MHz/Km (275 meters)
NOTE: For cabling information, refer to the Web site at:
http://www.compaq.com/products/servers.
DA - 12160
North America — Version 7 — June 27, 2005
Page 12
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Power System and Rack Information)
HP BladeSystem
p-Class Power System
and Rack Information
NOTE: To determine power configuration please refer to the HP BladeSystem p-Class Overview and
Planning Whitepaper and sizing tool at http://h18000.www1.hp.com/products/servers/proliant-bl/pclass/20p/index.html.
HP BladeSystem
p-Class 3U Power
Enclosure
3U (5.25-inch), 19-inch wide, 29-inch deep (0.48-meter wide, 0.74-meter deep), Dual input single
phase and three phase models available.
HP BladeSystem p-Class 3U power enclosure provides external, shared hot-plug power. Each threephase power enclosure houses up to six hot-plug power supplies each single-phase power enclosures
hold up to four hot-plug power supplies to power the BL p-Class server blades and interconnects
Please use the sizing utility to determine the power needed for each configuration
http://www.hp.com/go/bladesystem/powercalculator.
Power enclosures and power supplies are not needed if using facility DC (-48V DC ± 10%). If using
facility DC, only Facility DC Power Connection kit part number (240563-B21) is needed.
HP BladeSystem
p-Class 1U Power
Enclosure
1U (1.75-inch), 19-inch wide, 29-inch deep (0.48-meter wide, 0.74-meter deep), Multi-input single
phase or three phase operation.
HP BladeSystem p-Class 1U power enclosure provides external, hot-plug power. Each 1U power
enclosure houses up to six hot-plug power supplies to power up to one server blade enclosure, fully
populated with BL p-Class server blades and interconnects.
Please use the sizing utility to determine the power needed for each configuration
http://www.hp.com/go/bladesystem/powercalculator.
NOTE: Power enclosures and power supplies are not needed if using facility DC (-48V DC ± 10%). If
using facility DC, only Facility DC Power Connection kit part number (240563-B21) is needed.
HP BladeSystem
In the HP BladeSystem p-Class infrastructure, redundant -48 VDC power (from the power enclosures or
p-Class Power
facility DC power) is distributed from the power enclosures to the server blade enclosures through the bus
Distribution (only required bar system. Hinges attach the HP BladeSystem bus bars to the rails in a rack. The bus bars swing open
with 3U power
from the center to enable easy rear access to the server blades and network cables. Power is distributed
enclosures)
redundantly through independent A- and B-sided bus bars.
Three different power distribution solutions are available depending on the maximum number of server
blade enclosures planned for the rack:
HP BladeSystem p-Class scalable bus bar
HP BladeSystem p-Class mini bus bar
HP BladeSystem p-Class power bus box
NOTE: To support a full 42U rack of HP ProLiant BL25p server blades (6 server blade enclosures), two
mini bus bars are needed.
DA - 12160
North America — Version 7 — June 27, 2005
Page 13
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features (Power System and Rack Information)
Power Enclosures Supported
Scalable Bus Bar
Mini Bus Bar
Power Bus Box
1 or 2
1 or 2
1
Server Blade Enclosures
Supported
up to 5
up to 3
1
Max. Rack Space Occupied
36U
21U
9U
Dual power input kit for mini bus
bar option (364565-B21)
required to support two power
enclosures.
NOTE: To support a full 42U rack
of BL p-Class server blades, use
two stacked pairs of mini bus bars.
Required Power Source
Two 30amp redundant power feeds per power enclosure
Connectors
-NEMA receptacles
1-phase L6-30, 250v, 30A 3-wire
3-phase L15-30, 250V, 30A, 4-wire
Optimized for power cabling from bottom and network cabling from top
DA - 12160
North America — Version 7 — June 27, 2005
Page 14
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
ProLiant Essentials
ProLiant Essentials Rapid
Foundation Pack
Deployment Pack
Software for the ProLiant
BL Server Blades
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the Altiris Deployment Solution
and ProLiant Integration Module featuring ProLiant server pre-configured
events for OS installation, and optimized software drivers, firmware and
management agents. Every RDP CD includes 10-node trial licenses for
evaluation purposes. RDP requires a license for each server deployed and is
available for purchase with blade servers. For more information, visit
http://www.hp.com/servers/rdp.
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) help maximize system uptime and
performance and reduce system maintenance costs by providing proactive
notification of problems before those problems result in unplanned downtime
or reduced productivity. HP SIM is easy to set up to work with the Insight
Management Agents, integrated Light-Out and Remote Insight Light-Out
Edition, and Version Control Agents to deliver robust fault, configuration,
and asset management as well as remote administration. With HP Systems
Insight Manager customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP9000 systems; and
plug-ins for storage, client, printer, and power management as well as server
rapid deployment, performance management, and workload management.
For more details on HP Systems Insight Manager visit
http://www.hp.com/go/hpsim.
Management Agents
The Management Agents form the foundation for HP's Intelligent
Manageability strategy. They provide direct, browser-based access to indepth instrumentation built into HP servers, workstations, desktops, and
portables, and send alerts to HP Systems Insight Manager and other
enterprise management applications in case of subsystem or environmental
failures. For additional information about the Management Agents and other
management products from HP, please visit the management Web site at
http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides software and driver change
notifications for ProLiant products. Sign up at
http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support
software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your
ProLiant server and options, available in the RDP CD, SmartStart or
downloadable from Software and Drivers download pages, linked from the
SmartStart website at http://www.hp.com/go/support.
Insight Diagnostics Online The most advanced configuration analysis, reporting and troubleshooting
Edition
utilities used by HP and at your fingertips, available in SmartStart.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL:
http://www.hp.com/servers/proliantessentials
DA - 12160
North America — Version 7 — June 27, 2005
Page 15
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
Optional ProLiant
Essentials Value Packs
Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to
address specific business problems and needs:
Workload Management Pack - provides easier management of complex environments, improving
overall server utilization and enabling Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant Server.
Performance Management Pack - a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and attached options enabling
users to better utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages
and steers traffic to the optimum route based on network conditions.
Vulnerability and Patch management Pack - identifies and remediates software security
vulnerabilities due to missing patches as well operating system configurations that can be
exploited by viruses, worms and other blended threats.
Virtual Machine Management Pack - provides central management and control of virtual
machines from Microsoft and VMware. Integrated approach provides the ability to manage both
physical and virtual resources from a single management console.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer
to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product
QuickSpecs for more information.
SmartStart
SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and
consistent server configurations. SmartStart 7.30 and later can now deploy all HP ProLiant BL25p server
blades, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for
your blade server, redeem the coupon that is included with your Blade server or order your copy from
the SmartStart web site. For more information, please visit the SmartStart Web site at
http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20
OS Support:
Single-Core
Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux 3
Red Hat Enterprise Linux 4
SuSE Linux Enterprise Server 8
SuSE Linux Enterprise Server 9
NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS
Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see:
http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web
site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
2.4 GHz and 2.6 GHz
models
DA - 12160
North America — Version 7 — June 27, 2005
Page 16
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
OS Support:
Dual-Core
1.8 GHz, 2.0 GHz and
2.2 GHz models
Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition (licensed by processor socket)
Windows Server 2003, Enterprise Edition (licensed by processor socket)
Red Hat Enterprise Linux 3 Update 5
Red Hat Enterprise Linux 4 Update 2
SuSE Linux Enterprise Server 9 SP1
NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS
Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see:
http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web
site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
Intelligent Manageability Integrated Lights-Out Advanced (iLO)
Virtual Text and Graphical Remote Console *
Virtual CD-ROM*
Virtual Floppy *
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges
Automatic Server Recovery-2 (ASR-2)
Insight Manager 7
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)
Interconnect Switch Management System and Utilities (Interconnect Switch option)
Integrated Management Log (IML)
Off-Line Backup Processor capability
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Network adapter teaming set-up utility
* Advanced features such as Graphical Remote Console and Virtual Floppy are included with the BL pClass server.
DA - 12160
North America — Version 7 — June 27, 2005
Page 17
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
Availability
Power redundancy: Redundant AC feeds into power enclosures, redundant DC feeds from power
enclosure to server blade enclosures,
N + N redundant power supplies
Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two hot-plug SCSI hard drive bays and integrated RAID (Smart Array 6i Plus) on every server blade
(Battery-backed write cache is optional.)
Redundant ROM on each server blade
ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load
balancing)
Interconnects Switch Availability
Hot-plug and hot- remove with configuration retention and no need to cable/re-cable
Two network connections per server blade bay (four NICs total) routed to two redundant
interconnect switches
Redundant Ethernet inter-switch communication with two sets of redundant Ethernet uplink ports
per each interconnect switch
Redundant front panel ports per each interconnect switch for diagnostics, management, and
additional uplinks
Redundant serial ports
Compatibility with PVST+ (CGESM or GbE2 switch) and 802.1D Spanning tree protocol support
for loop-free path redundancy
Static IEEE 802.3ad (EtherChannel compatible) trunking with automatic port load balancing and
failover
Redundant configuration files and operating system firmware images in memory (GbE2 switch)
Redundant fans per each interconnect switch
Redundant 1+1 power to each interconnect switch
Support for ProLiant network adapter teaming
Redundant configurable community strings and SNMP trap manager hosts
Redundant configurable syslog server, DNS server, and default gateways (GbE2 switch)
Security
Power-on password
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
Interconnect switch multilevel user names and passwords, management interface time out period setting,
SSH*, SCP secure copy protocol*, port-based IEEE 802.1Q tagged VLANs, RADIUS user authentication
and authorization*, and IP address restriction
* CGESM and GbE2 Interconnect Switch only
DA - 12160
North America — Version 7 — June 27, 2005
Page 18
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
Minimum Rack
Requirements
Mounts in ProLiant, and Telco racks and Third Party racks that meet the following criteria:
Compatible with 19-inch Standard EIA rail sets
EIA rail-to-rail depth is 29 - 30"
Cabinet depth must be at least 36-inch deep overall (Additional min. 3.5-inch clearance from
rear RETMA rail to rear door, inclusive in the 36-inch overall depth)
Ample room for top and bottom cable egress (approximately 8 square inches for full rack
configuration with patch panel)
Must be capable of supporting 1600 lb (for full rack configuration)
Perforated front and rear doors to accommodate front-to-back cooling
Must have 65% open perforation on server blade enclosure doors to support airflow requirements
Optimized for use with the HP 10000 Series racks
NOTE: If using Compaq 7000 Series rack, Rack Extension Kit and High Air Flow Rack Door options are
required.
Rack Airflow
Requirements
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD
provided with the server, or to the server documentation located in the Support section at the following
URL: http://www.hp.com/servers/bl25p.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging and custom packaging. HP products supported through Factory Express include: a wide array of
servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSA1000, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and
configurable network switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to http://www.hp.com/go/factory-express.
DA - 12160
North America — Version 7 — June 27, 2005
Page 19
QuickSpecs
HP ProLiant BL25p Server Blade
Standard Features
Service and Support
Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of
hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide
network of resellers and service providers. In addition 90-day's getting started software telephone support
may be covered under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services.
NOTE: Sever Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Enclosure and Interconnects Limited Warranty includes 3 year Parts, 3 year Labor,
3-year on-site support.
Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and
VMWare-based IT solutions helping to deliver high level of application availability. Response times
range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution
HP Care Pack services for ProLiant BL p-Class server blades, cover the server blade and the HP
BladeSystem p-Class blade enclosure that the server blade is installed in as well as interconnects, power
enclosure with power supplies and power distribution.
NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or
resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us
at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available
at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 12160
North America — Version 7 — June 27, 2005
Page 20
QuickSpecs
HP ProLiant BL25p Server Blade
Models
ProLiant BL25p 1.8GHz- Processor(s)
1MB,DC 1GB (1P)
392443-B21
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
ProLiant BL25p 2.0GHz- Processor(s)
1MB, DC 2GB (2P)
392441-B21
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
ProLiant BL25p 2.2GHz- Processor(s)
1MB, DC 2GB (2P)
392439-B21
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
DA - 12160
(1) AMD Opteron Model 265 dual-core 1.8 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
1024-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (2x512 MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
(2) AMD Opteron Model 270 dual-core 2.0 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
2048-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (4x512 MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
(2) AMD Opteron Model 275 dual-core 2.2 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
2048-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (4x512 MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
North America — Version 7 — June 27, 2005
Page 21
QuickSpecs
HP ProLiant BL25p Server Blade
Models
ProLiant BL25p 2.4GHz- Processor(s)
1MB, 1GB (1P)
374797-B21
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
ProLiant BL25p 2.6GHz- Processor(s)
1MB, 1GB (1P)
374798-B21
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
ProLiant BL25p 2.6Ghz1MB, 2GB (2P)
374799-B21
Processor(s)
Cache Memory
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
DA - 12160
(1) AMD Opteron Model 250 single-core 2.4 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
1024-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (2x512MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
(1) AMD Opteron Model 252 single-core 2.6 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
1024-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (2x512MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
(2) AMD Opteron Model 252 single-core 2.6 GHz standard (up to 2
supported)
1-MB Level 2 cache per core
2048-MB (Standard) to 16-GB (Maximum) of 2-way interleaved capable
PC3200 DDR SDRAM running at 400MHz (4x512MB)
Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)
None ship standard
Up to 600-GB maximum (with optional hard drives)
None
Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure
North America — Version 7 — June 27, 2005
Page 22
QuickSpecs
HP ProLiant BL25p Server Blade
Configuration Information Factory Integrated Models
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
Step 1: Base Server Blade Configuration
Models
HP ProLiant BL25p CTO Blade
Configurable Model ships with:
One additional 10/100 NIC dedicated to iLO Management Four Gigabit NICs
(embedded) with WOL and PXE
NOTE: Two can be upgraded to multifunction network adapters)
One additional 10/100 NIC dedicated to iLO Management
382731-405
Step 2: Choose Required Options (one of the following from each list unless otherwise
noted):
Processors
Memory
Communications
HP BL25p 0265 1.8GHz DC FIO Base
HP BL25p 0270 2.0GHz DC FIO Base
HP BL25p 0275 2.2GHz DC FIO Base
HP BL25p O252 2.6GHz SC FIO Base
HP BL25p O250 2.4GHz SC FIO Base
For dual processor configurations choose one of the above FIO choices, plus one of
the matching option kits below:
HP BL25p Opteron 2.2GHz-1M DC Processor Option Kit
HP BL25p Opteron 2.0GHz-1M DC Processor Option Kit
HP BL25p Opteron 1.8GHz-1M DC Processor Option Kit
HP BL25p Opteron 2.6GHz-1M SC Processor Option Kit
HP BL25p Opteron 2.4GHz-1M SC Processor Option Kit
NOTE: Two-way memory interleaving is enabled when an identical pair of DIMMs is
installed.
1GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
NOTE: Must install in pairs
2GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
4GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
NOTE: Must install in pairs
HP ProLiant BL25/35/45p NIC Mezz FIO Base
392444-L21
392442-L21
392440-L21
381588-L21
381587-L21
392440-B21
392442-B21
392444-B21
381588-B21
381587-B21
376638-B21
376639-B21
379300-B21
382850-B21
Step 3: Choose Additional Factory Integratable Options
Fibre Channel Options
FC Adapter Card BL25p/45p
381881-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, including server blade enclosure with enhanced backplanes, interconnect options and power
subsystem options, please refer to the "Options" section below.
DA - 12160
North America — Version 7 — June 27, 2005
Page 23
QuickSpecs
HP ProLiant BL25p Server Blade
Options
ProLiant Essentials
Value Pack Software
ProLiant Essentials Vulnerability and Patch Management Pack, 1 Server + 10Desktop
Bundle License
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
ProLiant Essentials Vulnerability and Patch Management Pack, 10-Server License
ProLiant Essentials Vulnerability and Patch Management Pack, Flexible-Quantity
License
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking License for
New Servers
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking License for
Installed servers
ProLiant Essentials Server Migration Pack, 25-Server License
ProLiant Essentials Server Migration Pack, 50-Server License
ProLiant Essentials Server Migration Pack, 100-Server License
ProLiant Essentials Server Migration Pack, 10-Server License
NOTE: This license allows 10 servers to be migrated from a physical server to 10
virtual machines. Or this license can be used to migrate 10 virtual machines from one
virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware
ESX or Microsoft Virtual Server 2005.
ProLiant Essentials Server Migration Pack, Single-Server License
ProLiant Essentials Server Migration Pack, Flexible-Quantity License
ProLiant Essentials Server Migration Pack, Tracking license
ProLiant Essentials Virtual Machine Management Pack, SINGLE LIC IP CCAOWGR
ProLiant Essentials Virtual Machine Management Pack, FLEX LIC IP CCAO-WGR
ProLiant Essentials Virtual Machine Management Pack, TRACKING LIC IP CCAOWGR
ProLiant Essentials Intelligent Networking Pack, Single Server License
NOTE: For use with a single server. Contains one license with a unique license
activation key and documentation.
ProLiant Essentials Intelligent Networking Pack, Flexible License
NOTE: For use with multiple servers. This part number can be used to purchase
multiple licenses with a single activation key. The quantity ordered for this part number
will be the quantity of licenses included in the kit in the form of a corresponding
activation key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with the activation key, and
documentation.
ProLiant Essentials Intelligent Networking Pack, Tracking License
NOTE: For use with signed and implemented Activation Key Agreements only.
Purchase of this part number entitles the customer to deploy additional licenses of the
product under the terms of the existing Activation Key Agreement.
NOTE: Nothing is delivered in conjunction with the purchase of this part number. Visit
http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license
activation key and documentation.
DA - 12160
North America — Version 7 — June 27, 2005
389941-B21
371645-B21
372029-B21
371646-B21
371647-B21
378372-B21
391674-B21
391675-B21
391676-B21
390739-B21
375345-B21
375346-B21
375347-B21
372214-B21
372215-B21
372216-B21
372906-B21
372950-B21
372951-B21
306696-B21
Page 24
QuickSpecs
HP ProLiant BL25p Server Blade
Options
ProLiant Essentials Performance Management Pack, 10-Server License
NOTE: For use with up to 10 servers. Contains 10 licenses with one unique license
activation key and documentation.
ProLiant Essentials Performance Management Pack, Flexible-Quantity License
NOTE: For use with multiple servers. This part number can be used to purchase
multiple licenses with a single activation key. The quantity ordered of this part number
will be the quantity of licenses included in the kit in the form of a corresponding
activation key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with activation key, and documentation.
ProLiant Essentials Performance Management Pack, Tracking license
NOTE: For use with signed and implemented Activation Key Agreements only.
Purchase of this part number entitles the customer to deploy additional licenses of the
product under the terms of the existing Activation Key Agreement.
NOTE: Nothing is delivered in conjunction with the purchase of this part number. Visit
http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
Rapid Deployment Pack, 10 User, V1.x
NOTE: This license allows 10 servers to be managed and deployed via the
Deployment Server.
NOTE: Not necessary if you purchase the server blade enclosure with 8 Rapid
Deployment Pack licenses 281404-B21.
NOTE: Rapid Deployment pack is now available in Linux only environments.
NOTE: This license allows 10 servers to be managed and deployed via the
Deployment Server.
NOTE: Not necessary if you purchase the server blade enclosure with 8 Rapid
Deployment Pack licenses 281404-B21.
NOTE: Rapid Deployment pack is now available in Linux only environments.
Rapid Deployment Pack, 1 User, V1.x
NOTE: This license allows 1 server to be managed and deployed via the Deployment
Server.
NOTE: Not necessary if you purchase the server blade enclosure with 8 Rapid
Deployment Pack licenses 281404-B21.
NOTE: Rapid Deployment pack is now available in Linux only environments.
NOTE: This license allows 1 server to be managed and deployed via the Deployment
Server.
NOTE: Not necessary if you purchase the server blade enclosure with 8 Rapid
Deployment Pack licenses 281404-B21.
NOTE: Rapid Deployment pack is now available in Linux only environments.
Flexible Quantity License Kit
License-Only - for use with a Master License Agreement
ProLiant Essentials Workload Management Pack (Featuring Resource Partitioning
Manager version 2.0)
NOTE: For more information regarding ProLiant Essentials Software, please see the
following URL: http://hp.com/servers/proliantessentials.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to URL http://hp.com/servers/proliantessentials or the various
ProLiant Essentials Value Pack product QuickSpecs for more information.
DA - 12160
North America — Version 7 — June 27, 2005
374055-B21
306697-B21
306698-B21
269817-B21
267196-B21
302127-B21
302128-B21
303284-B21
Page 25
QuickSpecs
HP ProLiant BL25p Server Blade
Options
Processor
HP BL25p Opteron 2.2GHz-1M DC Processor Option Kit
HP BL25p Opteron 2.0GHz-1M DC Processor Option Kit
HP BL25p Opteron 1.8GHz-1M DC Processor Option Kit
HP BL25p Opteron 2.6GHz-1M SC Processor Option Kit
HP BL25p Opteron 2.4GHz-1M SC Processor Option Kit
392440-B21
392442-B21
392444-B21
381588-B21
381587-B21
Memory
(SDRAM DIMMs)
4GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
2GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
1GB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
379300-B21
376639-B21
376638-B21
Hard Drives
Ultra320 SCSI – Universal Hot Plug
Storage Controllers
300-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 15,000 rpm U320 Universal Hard Drive (1")
146.8-GB 15,000 rpm U320 Universal Hard Drive (1")
36.4-GB 15,000 rpm U320 Universal Hard Drive (1")
350964-B22
286716-B22
286714-B22
286778-B22
347708-B22
286776-B22
128MB Battery Backed Write Cache Enabler Option Kit
NOTE: Please see the following Controller QuickSpecs for Technical Specifications
such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak
Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support,
and additional information:
http://h18000.www1.hp.com/products/quickspecs/12030_na/12030_na.HTML
(Smart Array 6i)
346914-B21
ProLiant BL25/45p Fibre Dual port Fibre Channel Adapter (2-Gb) for HP ProLiant BL25p server blade (shared
Channel
with the HP ProLiant BL45p server blade)
Adapter
NOTE: When using this card, the Patch Panel 2, CGESM, or GbE2 Interconnect
Switch (with Storage Connectivity Kit) must be used to provide the Fibre Channel pass
through.
NOTE: The BL30p/35p and BL20p dual-port Fibre Channel adapters are not
compatible with the HP ProLiant BL25p server blade.
DA - 12160
North America — Version 7 — June 27, 2005
381881-B21
Page 26
QuickSpecs
HP ProLiant BL25p Server Blade
Options
HP BladeSystem
p-Class Server Blade
Enclosures
HP BladeSystem
p-Class Interconnects
HP BladeSystem p-Class Server Blade Enclosure with enhanced backplane
components and the HP BladeSystem Management Suite
NOTE: Includes a HP BladeSystem p-Class Server Blade Enclosure with enhanced
backplane components, a single copy of Systems Insight Manager (SIM) and 8
licenses for each of the following products: Rapid Deployment Pack (RDP),
Performance Management Pack (PMP) and the Vulnerability and Patch Management
Pack (VPM).
NOTE: The HP ProLiant BL25p server blade does not currently support PMP. Future
support is planned.
HP BladeSystem p-Class Server Blade Enclosure with enhanced backplane
components (ProLiant Essentials Rapid Deployment Pack Trial)
HP BladeSystem p-Class Server Blade Enclosure with enhanced backplane
components (8 ProLiant Essentials Rapid Deployment Licenses)
NOTE: HP BladeSystem p-Class Enhanced Server Blade Enclosures with enhanced
backplane components may be required depending on which HP ProLiant BL25p
server blade model is selected.
For additional information regarding Blade Enclosure Compatibility, please visit the
following URL: http://www.hp.com/go/bladesystem/enclosure/compatibility
HP BladeSystem p-Class Server Blade Enclosure Upgrade Kit (option)
NOTE: Server Blade Enclosure Upgrade Kit (354100-B21) contains enhanced
backplane components and enables a field upgrade of a blade enclosure to support
BL p-class blades and provide a single, physical iLO port for the enclosure.
380625-B22
ProLiant BL p-Class RJ-45 Patch Panel 2 with Fibre pass-through (pair) (required for
FC connectivity)
NOTE: Only one interconnect kit required per server blade enclosure.
306465-B21
ProLiant BL p-Class RJ-45 Patch Panel (pair)
NOTE: Only one interconnect kit required per server blade enclosure.
ProLiant BL p-Class C-GbE2 Interconnect Kit (with pair of GbE2 Interconnect Switches
and two QuadT2 Interconnect Modules)
NOTE: Only one interconnect kit required per server blade enclosure.
ProLiant BL p-Class F-GbE2 Interconnect Kit (with pair of GbE2 Interconnect Switches
and two QuadSX Interconnect Modules)
NOTE: Only one interconnect kit required per server blade enclosure.
Cisco Gigabit Ethernet Switch Module for HP BladeSystem p-Class Interconnect Kit
Base Unit only
NOTE: Two CGESM interconnect kits required per server blade enclosure.
Cisco Gigabit Ethernet Switch Module for HP BladeSystem p-Class Interconnect Kit
Base Unit (populated with two RJ-45 10/100/1000 T/TX/T Small Form Factor
Pluggable (SFP) Modules
NOTE: Two CGESM interconnect kits required per server blade enclosure.
Cisco RJ-45 10/100/1000 T/TX/T SFP Module
Cisco Fiber SX SFP Module
ProLiant BL p-Class Storage Connectivity Kit (with pair of OctalFC Interconnect
Modules and two Fibre Channel signal conditioning cards)
230766-B21
DA - 12160
North America — Version 7 — June 27, 2005
243564-B22
281404-B22
354100-B21
283192-B21
283193-B21
378926-B21
378927-B21
378928-B21
378929-B21
321745-B21
Page 27
QuickSpecs
HP ProLiant BL25p Server Blade
Options
NOTE: Required for BL20P G3 Fibre Channel signal pass through when using the
CGESM or GbE2 Interconnect Switch.
NOTE: Only one Storage Connectivity Kit required per each GbE2 Interconnect Kit.
NOTE: Only one Storage Connectivity Kit required for (2) CGESM Interconnect Kit.
ProLiant BL p-Class C-GbE Interconnect Kit (with pair of GbE Interconnect Switches
and two QuadT Interconnect Modules)
NOTE: Only one interconnect kit required per server blade enclosure.
NOTE: The GbE Interconnect Switch supports server NIC speeds to 100 Mbps. It is
recommended that a patch panel or GbE2 Interconnect Switch option be used if
server NIC speeds to 1000 Mbps are required.
NOTE: To meet applicable radio frequency (RF) emission limits, the sidewall panels
on the ends of any individual rack or a series of coupled racks and the front and rear
doors must be installed in any racks containing more than one ProLiant BL p-Class
GbE Interconnect Kit.
ProLiant BL p-Class F-GbE Interconnect Kit (with pair of GbE Interconnect Switches
and two DualTSX Interconnect Modules)
NOTE: Only one interconnect kit required per server blade enclosure.
NOTE: The GbE Interconnect Switch supports server NIC speeds to 100 Mbps. It is
recommended that a patch panel option be used if server NIC speeds to 1000 Mbps
are required.
NOTE: To meet applicable radio frequency (RF) emission limits, the sidewall panels
on the ends of any individual rack or a series of coupled racks and the front and rear
doors must be installed in any racks containing more than one ProLiant BL p-Class
GbE Interconnect Kit.
HP BladeSystem p-Class
Power Options
NOTE: Use p-Class sizing tool to help determine power configuration:
http://h30099.www3.hp.com/configurator/powercalcs.asp
Single Phase 3U Power Enclosure with 4 power supplies
(Single Phase 3U Power Enclosure holds a maximum of 4 power supplies; no need to
order additional power supplies with this option kit)
3 Phase 3U Power Enclosure with 6 power supplies
(3 Phase 3U Power Enclosure holds a maximum of 6 power supplies; no need to
order additional power supplies with this option kit)
Single Phase 3U Power Enclosure (empty)
(Holds up to 4 power supplies; power supplies are not included in this kit)
3 Phase 3U Power Enclosure (empty)
(Holds up to 6 power supplies; power supplies are not included in this kit)
Single 3U Power Supply
1U Power Enclosure with six power supplies
1U Power Enclosure with two power supplies
Single 1U Power Supply
Facility DC Power Connection
DA - 12160
North America — Version 7 — June 27, 2005
249655-B21
279720-B21
239162-001
230769-001
231710-001
231709-001
239161-B21
378284-B21
380314-B21
380312-B21
240563-B21
Page 28
QuickSpecs
HP ProLiant BL25p Server Blade
Options
Power Distribution (only
required with 3U power
enclosures)
HP BladeSystem p-Class Scalable Bus Bar
HP BladeSystem p-Class Mini Bus Bar
HP BladeSystem p-Class Bus Power Box
Dual Power Input Kit for Mini Bus Bar
HP Modular Distribution Unit 40 Amp
HP Modular Distribution Unit 24 Amp
NOTE: The Modular Distribution Unit Kits excludes the extension bars as they are not
required with the HP BladeSystem p-class 1U power enclosure.
HP BladeSystem Power Extension Kit
NOTE: This kit is specifically for HP BladeSystem p-Class customers who want to
upgrade their standard server blade enclosures to enhanced server blade enclosures
and would like to install an additional, redundant 3U power enclosure above the
server blade enclosures rather than below them. The option kit consists of two
extension cable assemblies - one for each side (A and B).
SAN Switches
Brocade 4GB SAN Switch, Base
Brocade 4GB SAN Switch, full fabric
Brocade 4GB SAN Switch, power pack
McDATA 4Gb SAN Switch
Other Options
HP BladeSystem p-Class Diagnostic Station
NOTE: The Diagnostic Station allows access to the ProLiant BL20p server blade and
the BL p-Class interconnect switch outside of the server enclosure. The option provides
power and a data interface so that "offline" upgrade and diagnostic functions may be
performed.
HP BladeSystem p-Class Power Enclosure Shipping Bracket Option Kit
NOTE: Used to secure one power enclosure in a rack when moving
Tape Libraries
240560-B21
240559-B21
240562-B21
364565-B21
252663-D75
252663-D74
381686-B21
A7533A
A7534A
A7535A
A8001A
230743-B21
365044-B21
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
MSL6030, 1 drive, 30 slots, Ultrium 960
MSL6030, 2 drive, 30 slots, Ultrium 960
MSL6030, 1 drive, 30 slots, Ultrium 960, with embedded FC router
MSL6030, 2 drive, 30 slots, Ultrium 960, with embedded FC router
MSL6060, 2 drive, 60 slots, Ultrium 960
MSL6060, 2 drive, 60 slots, Ultrium 960, with embedded FC router
SDLT 600 technology
MSL6026, 1 drive, 26 slots, SDLT 600
MSL6026, 2 drive, 26 slots, SDLT 600
MSL6026, 1 drive, 26 slots, SDLT 600, with embedded FC router
MSL6026, 2 drive, 26 slots, SDLT 600, with embedded FC router
MSL6052, 2 drive, 52 slots, SDLT 600
MSL6052, 2 drive, 52 slots, SDLT 600, with embedded FC router
Ultrium 460 technology
DA - 12160
North America — Version 7 — June 27, 2005
AD606A
AD607A
AD608A
AD609A
AD610A
AD611A
AD582A
AD583A
AD584A
AD585A
AD587A
AD588A
Page 29
QuickSpecs
HP ProLiant BL25p Server Blade
Options
MSL6030, 1 drive, 30 slots, Ultrium 460
MSL6030, 2 drive, 30 slots, Ultrium 460
MSL6030, 1 drive, 30 slots, Ultrium 460, with embedded FC router
MSL6030, 2 drive, 30 slots, Ultrium 460, with embedded FC router
MSL6060, 2 drive, 60 slot Ultrium 460, with embedded FC router
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at
http://www.hp.com/go/ebs
HP StorageWorks MSL5026S2 Tape Library
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router
NOTE: Please reference the MSL5026S2 Tape Library QuickSpecs at
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at
http://www.hp.com/go/ebs
HP StorageWorks MSL5052S2 Tape Library
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM with embedded FC router
NOTE: Please reference the MSL5052S2 Tape Library QuickSpecs at
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at
http:/www.hp.com/go/ebs
HP StorageWorks ESL E-Series Tape Libraries
ESL Extended 712e Tape Library, 0 drive, 712 LTO slots
ESL Extended 630e Tape Library, 0 drive, 630 SDLT slots
ESL Extended 322e Tape Library, 0 drive, 322 LTO slots
ESL Extended 286e Tape Library, 0 drive, 286 SDLT slots
ESL E-Series Ultrium 960 drive kit
ESL E-Series Ultrium 460 drive kit
ESL E-Series Ultrium 460-FC drive kit
ESL E-Series SDLT 320 drive kit
ESL E-Series e2400-FC 2G Interface Controller
NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at
http://www.hp.com/go/ebs.
DA - 12160
North America — Version 7 — June 27, 2005
AD598A
AD599A
AD600A
AD601A
AD604A
293472-B22
293472-B23
293472-B24
293472-B25
293474-B21
293474-B24
AA934B
AA935B
AA939B
AA940B
AD595A
AA937A
AA941A
AA936A
AA928A
Page 30
QuickSpecs
HP ProLiant BL25p Server Blade
Options
Ultra Density Optical
Jukeboxes
1000ux, 2 drive, 32 slot jukebox
1900ux, 4 drive, 64 slot jukebox
1900ux, 4 mixed drive, 64 slot jukebox
2300ux, 2 drive, 76 slot jukebox
3800ux, 4 drive, 128 slot jukebox
3800ux, 6 drive, 128 slot jukebox
7100ux, 4 drive, 238 slot jukebox
7100ux, 6 drive, 238 slot jukebox
7100ux, 10 drive, 238 slot jukebox
7100ux, 6 mixed drive, 238 slot jukebox
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at
http://www.hp.com/go/optical for additional information needed to create a
complete solution.
Magneto-Optical
Jukeboxes
HP StorageWorks 9.1 GB Mid-range Optical Jukeboxes
AA965A
AA966A
AA968A
AA967A
AA969A
AA970A
AA973A
AA971A
AA972A
AA974A
300mx, 2 drive, 32 slot jukebox
600mx, 4 drive, 64 slot jukebox
C1150M
C1160M
700mx, 2 drive, 76 slot jukebox
C1170M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at
http://www.hp.com/go/optical for additional information needed to create a
complete solution
HP StorageWorks 9.1 GB High-end Optical Jukeboxes
1200mx, 4 drive, up to 128 slots
C1104M
1200mx, 6 drive, up to 128 slots
C1105M
2200mx, 4 drive, up to 238 slots
C1111M
2200mx, 6 drive, up to 238 slots
C1107M
2200mx, 10 drive, up to 238 slots
C1110M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at
http://www.hp.com/go/optical for additional information needed to create a
complete solution.
DA - 12160
North America — Version 7 — June 27, 2005
Page 31
QuickSpecs
HP ProLiant BL25p Server Blade
Options
HP StorageWorks
Modular Smart Array
1000
HP StorageWorks Modular Smart Array 1000
Modular Smart Array 1000 Controller
Modular Smart Array Fibre Channel I/O Module
Modular Smart Array hub 2/3
HP StorageWorks Modular Smart Array 1000
NOTE: Please see the StorageWorks Modular Smart Array 1000 QuickSpecs for
additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML
201723-B22
218231-B22
218960-B21
286763-B21
201723-B22
HP StorageWorks
Modular Smart Array
1500
HP StorageWorks Modular Smart Array 1500
NOTE: Please see the StorageWorks Modular Smart Array 1500 QuickSpecs for
additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11945_na/11945_na.HTML
AA986A
Cluster Options
HP Serviceguard for Linux License A.11.15 for SUSE SLES 8 / UnitedLinux 1.0 and
Red Hat EL 3 (single license version)
HP Serviceguard for Linux ProLiant Cluster A.11.15 for SUSE SLES 8 / UnitedLinux 1.0
and Red Hat EL 3 (2 node license cluster kit).
NOTE: For additional information regarding the HP Serviceguard for Linux License,
please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html
307754-B26
305199-B26
USB Options
USB 1.44-MB External Diskette Drive (Carbonite)
USB 2-Button Optical Mouse (Carbonite)
USB Optical Scroll Mouse (Carbonite)
256MB HP Drive Key II (USB 2.0)
HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack - Unassembled
358254-B21
Rack Options for Rack
5000 Series
Stabilizer Kit for 5642 Rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
Baying Kit for 5642 Rack (Graphite Carbon)
NOTE: The baying kit is used to join two or more HP 5642 racks.
374493-B21
DA - 12160
North America — Version 7 — June 27, 2005
DC141B
DC172B
DD441B
PH657A
374499-B21
Page 32
QuickSpecs
HP ProLiant BL25p Server Blade
Options
Rack 10000 Series
(Graphite Metallic)
Rack Options for HP
Rack 10000 Series
Rack, HP Infrastructure 42U (HV)
Rack, HP Infrastructure 42U (LV)
HP Rack 10842 (42U) - Pallet
HP Rack 10842 (42U) - Shock Pallet
HP S10614 (14U) Rack Cabinet - Shock Pallet
HP Rack 10647 (47U) Cabinet - Pallet
HP Rack 10647 (47U) Cabinet - Crated
HP Rack 10642 (42U) Cabinet - Pallet
HP Rack 10642 (42U) Cabinet - Shock Pallet
HP Rack 10642 (42U) Cabinet - Crated
HP Rack 10636 (36U) Cabinet - Pallet
HP Rack 10636 (36U) Cabinet - Shock Pallet
379005-001
379006-001
257415-B21
257415-B22
292302-B22
245160-B21
245160-B23
245161-B21
245161-B22
245161-B23
245162-B21
245162-B22
HP Rack 10636 (36U) Cabinet - Crate
HP Rack 10622 (22U) Cabinet - Pallet
HP Rack 10622 (22U) Cabinet - Shock Pallet
HP Rack 10622 (22U) Cabinet - Crated
NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels)
-B23 (crated) used for air shipments of empty racks
Not all HP equipment is qualified to be shipped in the Rack 10000 series.
NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as
height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rackoptions/index.html
245162-B23
245163-B21
245163-B22
245163-B23
HP Light kit for 10000 series rack
HP Plinth kit for 10000 series rack
42U Side Panel – Graphite Metallic
36U Side Panel – Graphite Metallic
47U Side Panel – Graphite Metallic
NOTE: For additional information regarding Rack Options, please see the following
URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rackoptions/index.html.
TFT5600 Rack Keyboard Monitor
TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://h18004.www1.hp.com/products/monitors/
1U Rack Keyboard & Drawer (Carbon)
NOTE: For additional information regarding Rack Options, please see the following
URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rackoptions/index.html.
361589-B21
251960-B21
246099-B21
246102-B21
255486-B21
DA - 12160
North America — Version 7 — June 27, 2005
221546-001
348373-B21
257054-001
Page 33
QuickSpecs
HP ProLiant BL25p Server Blade
Options
HP KVM Switch Options
IP Console Switch Box (KVM/IP), 1 x 1 x 16
IP Console Switch Box (KVM/IP) , 3 x 1 x 16
Serial Interface adapter - 1 Pack with power supply
Interface adapter - USB 1.0 (single pack)
CAT5e Cable 3', 4 pack
CAT5e Cable 6', 8 pack
CAT5e Cable 12', 8 pack
CAT5e Cable 20', 4 pack
CAT5e Cable 40', 1 pack
NOTE: For additional information regarding HP KVM Switches and options, please
see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/rackoptions/list.html/#console
262585-B21
262586-B21
373035-B21
336047-B21
263474-B21
263474-B22
263474-B23
263474-B24
263474-B25
Rack Options for Telco
Racks
ProLiant BL p-Class Bus Bar Telco Rack Kit
ProLiant BL p-Class Enclosure Telco Rack Kit
245249-B21
266076-B21
Service and Support
NOTE: The HP Care Pack services for ProLiant BL p-Class server blades, cover the
Offerings (HP Care Pack server blade and the p-Class blade enclosure that the server blade is installed in as
Services)
well as interconnects, power enclosure with power supplies and power distribution.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years
UA203A
UA203E
UA204A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UA204E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
UA205A
UA205E
UA206A
UA206E
DA - 12160
North America — Version 7 — June 27, 2005
Page 34
QuickSpecs
HP ProLiant BL25p Server Blade
Options
Installation & Start-up Services
ProLiant BL p-Class Blade Server Hardware Installation
ProLiant BL p-Class Blade Server Hardware Installation, Electronic
ProLiant BL p-Class Enclosure and Server Blade Hardware Installation
ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic
Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment Pack
on a Customer supplied server designated as a Deployment Server. Includes the
deployment of a single server. This new server will be deployed using either one of the
pre-configured scripts or an image. In addition, the service will provide for the capture
and storage of the configuration of the newly deployed server and orientation on
product usage. To be delivered during standard office ours, standard office days.
Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment Pack
on a Customer supplied server designated as a Deployment Server. Includes the
deployment of a single server. This new server will be deployed using either one of the
pre-configured scripts or an image. In addition, the service will provide for the capture
and storage of the configuration of the newly deployed server and orientation on
product usage. To be delivered during standard office ours, standard office days.
Electronic.
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of
Rapid Deployment Pack (Basic)
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of
Rapid Deployment Pack (Basic) (Electronic)
Provides for the Installation and Start-up of System Insight Manager
Provides for the Installation and Start-up of System Insight Manager (Electronic)
Provides for the Installation and Start-up of System Insight Manager Agents
Provides for the Installation and Start-up of System Insight Manager (Electronic)
NOTE: For more information, customer/resellers can contact
http://www.hp.com/hps/carepack/services/
Software Operating Environment Care Packs
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident
(Electronic)
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident
(Electronic)
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident
(Electronic)
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident (Electronic)
DA - 12160
North America — Version 7 — June 27, 2005
UA219A
UA219E
U4971A
U4971E
U5683A
U5683E
UA042A
UA042E
UA041A
UA041E
UA040A
UA040E
U8169A
U8169E
U3402A
U3402E
U9615A
U9615E
U8222A
U8222E
Page 35
QuickSpecs
HP ProLiant BL25p Server Blade
Memory
HP ProLiant BL25p Server Blade (2P Models)
Standard Memory
2048-MB PC3200 Registered DDR SDRAM DIMM installed (4 x 512MB SDRAM DIMM)
Standard Memory Plus Optional Memory
Up to 10240-MB of DDR SDRAM DIMM memory is available with the installation of optional DDR SDRAM DIMM memory
expansion kits.
Standard Memory Replaced with Optional Memory
Up to 16384-MB of DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional
SDRAM DDR DIMM memory expansion kits.
Memory
Standard
Optional
Maximum
2048 MB
10240 MB
16384 MB
Slot
1
2
3
4
5
6
7
8
512 MB
512 MB
Empty
Empty
512 MB
512 MB
Empty
Empty
2048 MB 2048 MB 512 MB
512 MB
2048 MB 2048 MB 512 MB
512 MB
2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB
Following are memory options available from HP:
4096MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
2048MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
1024MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
379300-B21
376639-B21
376638-B21
HP ProLiant BL25p Server Blade (1P Model)
Standard Memory
1024-MB PC3200 400MHz Registered DDR SDRAM DIMM installed
Standard Memory Plus Optional Memory
Up to 5120-MB of DDR SDRAM DIMM memory is available with the installation of optional DDR SDRAM DIMM memory expansion
kits.
Standard Memory Replaced with Optional Memory
Up to 8192-MB of DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional
DDR SDRAM DIMM memory expansion kits.
Memory
Standard
Optional
Maximum
1024 MB
5120 MB
8192 MB
Slot
1
2
3
4
5
512 MB
512 MB
Empty
Empty
Empty
2048 MB 2048 MB 512 MB
512 MB
Empty
2048 MB 2048 MB 2048 MB 2048 MB Empty
6
Empty
Empty
Empty
Following are memory options available from HP:
4096MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
2048MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
1024MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
DA - 12160
North America — Version 7 — June 27, 2005
7
Empty
Empty
Empty
8
Empty
Empty
Empty
379300-B21
376639-B21
376638-B21
Page 36
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
HP BladeSystem
p-Class Server Blade
Enclosure
Dimensions
Height
10.5 in (26.67 cm)
Width
17.60 in (44.70 cm)
Depth
28.86 in (73.30 cm)
Input Specifications
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Rated input current
62.5 A at -48 VDC
Rated input Power
3000 W
Individual Server Blade
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Bay Ratings
Rated input current
6.25 A at -48 VDC
Rated input Power
300 W
Temperature Range
Operating
50° to 95° F (10° to 35° C)
Non-Operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
Operating
20% to 80%
(non-condensing)
Non-Operating
5% to 95%
Wet Bulb Temperature
Operating
82.4° F (28° C)
Non-Operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
HP BladeSystem
Dimensions
p-Class Server Blade
Enclosure with enhanced
backplane components
Input Specifications
Height
10.5 in (26.67 cm)
Width
17.60 in (44.70 cm)
Depth
28.86 in (73.30 cm)
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Rated input current
125 A at -48 VDC
Rated input Power
6000 W
Individual Server Blade
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Bay Ratings
Rated input current
14.6 A at -48 VDC
Rated input Power
700 W
Temperature Range
Operating
50° to 95° F (10° to 35° C)
Non-Operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
Operating
20% to 80%
(non-condensing)
Non-Operating
5% to 95%
Wet Bulb Temperature
Operating
82.4° F (28° C)
Non-Operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
DA - 12160
North America — Version 7 — June 27, 2005
Page 37
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Operating and
Performance
Specifications for RJ-45
Patch Panel 2 with Fiber
Channel pass through
Dimensions
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
Capability
IEEE 802.2, 802.3, 802.3u
Network Transfer Rate
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex) 100 Mbps
100 Base-TX (full-duplex) 200 Mbps
1000 Base-TX (full-duplex) 1000 Mbps
Fiber Channel SAN
Velio VC1070 re-timer
Auto-rate negotiate between 2G and 1G
Connector
Network
RJ-45 in the back.
Fiber Channel SAN
Pluggable SFP optical slot in the front.
Cable Support
10 Base-TX
Categories 3, 4, or 5 UTP (2 or 4 pair);
up to 328 ft (100 m)
100 Base-TX
Category 5 UTP (2 pair); up to 328 ft/100 m
1000 Base-TX
Category 5E (4 pair); up to 328 ft (100 m)
Fiber Channel
SFP optical cable
EMI
FCC Class A
ICES-003 Class A
AS/NZS 3548 Class A
VCCI Class A
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for RJ-45
Patch Panel
Dimensions
Capability
Network Transfer Rate
Connector
Cable Support
Power Requirements
Temperature Range
DA - 12160
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
IEEE 802.2, 802.3, 802.3u
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex) 100 Mbps
100 Base-TX (full-duplex) 200 Mbps
1000 Base-TX (full-duplex) 1000 Mbps
Network
RJ-45 in the back
10 Base-TX
Categories 3, 4, or 5 UTP (2 or 4 pair);
up to 328 ft (100 m)
100 Base-TX
Category 5 UTP (2 pair); up to 328 ft (100 m)
1000 Base-TX
Category 5E (4 pair); up to 328 ft (100 m)
200 mA at + 5V DC; 500 mA at -48V
Operating
50° to 95° F (10° to 35° C)
Non-operating
-22° to 140° F (-30° to 60° C)
North America — Version 7 — June 27, 2005
Page 38
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Relative Humidity
(non-condensing)
Operating
20% to 80%
Non-operating
5% to 95%
Wet Bulb Temperature
Operating
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and
Dimensions
Performance
Specifications for ProLiant
BL p-Class GbE
Weight
Interconnect Switch
Performance
Forwarding Mode
MAC Addresses
Forwarding Table
Age Time
Memory
Compliance
Network Transfer Rate
Connector
DA - 12160
Height
Width
Depth
10.405 in (26.43 cm)
1.535 in (3.899 cm)
27.697 in (70.35 cm)
11.5 lb/5.2 kg per interconnect switch
9.6 Gbps external port bandwidth per server blade enclosure (full duplex)
Forwarding rate 0.15 million pps per 10/100 port, 1.5 million pps per
gigabit port, (64-byte packets)
Non-blocking, full-wire speed for all connections
Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support
Store and forward
8,191 per interconnect switch; MAC address based filtering and MAC
address packet priority configuring
Maximum age: 1 to 1,000,000 seconds; default: 300 seconds
32MB Main, 6MB flash and 16MB packet buffer per interconnect switch
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE only), 802.1D,
802.1p, 802.3ac, 802.3ad (Static), and 802.1Q
SNMP v1 (RFC 1157) and RMON v1 (RFC 1757) groups 1, 2, 3, and 9
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface Group MIB (RFC
2863), Ethernet MIB (RFC 1643), 802.1Q Extended Bridge MIB (RFC
2674), Entity MIB (RFC 2037), SNMP Trap Convention (RFC 1215), Bridge
Trap (RFC 1493), Remote Monitoring Traps (RFC 1757), and HP Enterprise
Switch MIBs and Environmental Traps
IGMP v1 (RFC 1112), IGMP v2 (RFC 2236), SNTP (RFC 1361), Telnet (RFC
854), TFTP client (RFC 783), BootP client, (RFC 2132), DHCP client, (RFC
2131) and ZModem,
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex) 100 Mbps
100 Base-TX (full-duplex) 200 Mbps
1000 Base-TX (half and
2000 Mbps
full-duplex)
1000 Base-SX (full-duplex) 2000 Mbps
12 RJ-45, 2 DB-9 (C-GbE Interconnect Kit)
4 LC fiber, 8 RJ-45, 2 DB-9 (F-GbE Interconnect Kit)
North America — Version 7 — June 27, 2005
Page 39
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Cable Support
Safety
Power Requirements
Temperature Range
Relative Humidity
(non-condensing)
Wet Bulb Temperature
FCC Class A
ICES-003 Class A
AS/NZS 3548 Class A
VCCI Class A
UL/CUL Listed Accessory
CE
-48VDC: 1050 mA, 50 W maximum (per interconnect switch)
Operating
50° to 95° F (10° to 35° C)
Non-operating
-22° to 140° F (-30° to 60° C)
Operating
20% to 80%
Non-operating
5% to 95%
Operating
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for GbE2
Interconnect Switch
Dimensions
Weight
Performance
Forwarding Mode
MAC Addresses
Forwarding Table
Age Time
Memory
Compliance
DA - 12160
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
12.0 lb/5.4 kg per interconnect switch
24 Gbps External port bandwidth per server blade enclosure (full duplex)
Forwarding rate 1.5 million pps per gigabit port (64-byte packets)
Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support
Store and forward
2,048 per interconnect switch
Maximum age: 1 to 65535 seconds; default: 300 seconds
128MB Main, 32MB flash and 2MB packet buffer per interconnect switch
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE2 only), 802.1D,
802.3ac, 802.3ad (Static), and 802.1Q
SNMP v1 (RFC 1157), MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface
Group MIB (RFC 2863), Ethernet MIB (RFC 1643), 802.1Q Extended Bridge
MIB , Entity MIB (RFC 2037), RADIUS Authentication MIB, 802.3-2002 MIB,
SNMP Trap Convention (RFC 1215), Bridge Trap (RFC 1493), Remote
Monitoring Traps (RFC 1757) and HP Enterprise Switch MIBs and
Environmental Traps
RADIUS (RFC 2138), Telnet (RFC 854), TFTP client (RFC 783), SSH v1.5,
SCP v1.5, NTP v2 (RFC 1119), BootP client (RFC 2132), and XModem
North America — Version 7 — June 27, 2005
Page 40
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Network Transfer
Rate
Connector
EMI
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex) 100 Mbps
100 Base-TX (full-duplex) 200 Mbps
1000 Base-TX (half and
2000 Mbps
full-duplex)
1000 Base-SX (full-duplex) 2000 Mbps
12 RJ-45, 2 DB-9 (C-GbE2 Interconnect Kit)
8 LC fiber, 4 RJ-45, 2 DB-9 (F-GbE2 Interconnect Kit)
FCC Class A
ICES-003 Class A
AS/NZS 3548 Class A
VCCI Class A
Safety
UL/CUL Listed Accessory
CE
Power
48VDC: 2040 mA, 98 W maximum (per interconnect switch without Storage
Requirements
Connectivity Kit)
48VDC: 2355 mA, 113 W maximum (per interconnect switch with Storage
Connectivity Kit)
Temperature
Operating
50° to 95° F (10° to 35° C)
Range
Non-operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
Operating
20% to 80%
(non-condensing)
Non-operating
5% to 95%
Wet Bulb
Operating
82.4° F (28° C)
Temperature
Non-operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F/1° C per 1,000 ft/304.8 m. No direct
sunlight. Upper operating limit is 10,000 ft/3,048 m or 70Kpa/10.1 psia. Upper non-operating limit is
30,000 ft/9,144 m or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F/45° C. Altitude maximum for storage is 70 KPa.
Operating and
Dimensions
Performance
Specifications for CGESM
Interconnect Switch
Weight
Performance
Forwarding Mode
MAC Addresses
Memory
DA - 12160
Height
10.405 in (26.43 cm)
Width
1.6 in (4.06 cm)
Depth
28 in (71.12 cm)
11.5 lb/5.2 kg per interconnect switch
28 Gbps Maximum Forwarding Bandwidth. 38.7mpps Maximum
Forwarding Rate (64 Byte Packets)
9018Bytes Jumbo Frames MTU
Non-blocking architecture. Wire Speed Performance on all ports
Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support
Store and forward
8000 MAC/physical address Table Size
128MB DRAM Memory. 16MB Flash Memory
North America — Version 7 — June 27, 2005
Page 41
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Compliance
Network Transfer
Rate
Connector
EMI
Safety
Power
Requirements
Temperature
Range
DA - 12160
IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x full
duplex on 10BASE-T, 100BASE-TX, and, IEEE 802.1D Spanning-Tree
Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.3
10BASE-T specification, IEEE 802.3u 100BASE-TX specification, IEEE
802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X specification
RMON I and II standards, SNMPv1, SNMPv2c, and SNMPv3
(RFC1493) , CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIGMAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB,
CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IGMP-FILTER-MIB,
CISCO-IMAGE-MIB, CISCO IP-STAT-MIB, CISCO-MAC-NOTIFICATIONMIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB,
CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONSMIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLERELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB,
ENTITY-MIB, ETHERLIKE-MIB, IF-MIB (in and out counters for VLANs are not
supported), IGMP-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASHMIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCOSYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, RFC1213-MIB (per
the agent capabilities specified in the, CISCO-RFC1213-CAPABILITY.my),
RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB,
SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB,
SNMPv2-MIB, TCP-MIB, UDP-MIB
1000BASE-T ports, 1000BASE-X (SFP), 1000BASE-SX
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex) 100 Mbps
100 Base-TX (full-duplex) 200 Mbps
1000 Base-TX (half and
2000 Mbps
full-duplex)
1000 Base-SX (full-duplex) 2000 Mbps
4 SFP, 2 RJ-45 10/100/1000 T/TX/T, 1 DB-9
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
CNS 13438 Class A MIC
CD
MIC
AS/NZS 3548 Class A CE
VCCI Class A
UL to UL 60950, Third Edition
C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
TUV/GS to EN 60950:2000
CB to IEC 60950 with all country deviations
NOM to NOM-019-SCFI
CE Marking
-48VDC: 1050 mA, 125 W maximum (per interconnect switch)
Operating
Non-operating
50° to 95° F (10° to 35° C)
-22° to 140° F (-30° to 60° C)
North America — Version 7 — June 27, 2005
Page 42
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Relative Humidity
(non-condensing)
Operating
20% to 80%
Non-operating
5% to 95%
Wet Bulb
Operating
82.4° F (28° C)
Temperature
Non-operating
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F/1° C per 1,000 ft/304.8 m. No direct
sunlight. Upper operating limit is 10,000 ft/3,048 m or 70Kpa/10.1 psia. Upper non-operating limit is
30,000 ft/9,144 m or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F/45° C. Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for
Power Enclosures
Dimensions
Weights
Input Requirements
Output Voltage
Specifications
Ambient Temperature
Range (See NOTE)
NOTE
Single-Phase Model
5.25 in (13.34 cm)
27.15 in (68.96 cm)
Three-Phase Model
5.25 in (13.34 cm)
27.15 in (68.96 cm)
Depth
No Hot-Plug
Power Supplies
All Hot-Plug
Power Supplies
Rated input voltage
17.60 in (44.7 cm)
47.5 lb (21.55 kg)
17.60 in (44.7 cm)
47.5 lb (21.55 kg)
99.5 lb (45.13 kg)
125.5 lb (56.93 kg)
200 VAC to 240 VAC
Rated input frequency
Rated input current
per side
Rated input power
per side
Power cord
50 Hz to 60 Hz
24A
200 VAC to 240 VAC
line to line
50 Hz to 60 Hz
24A per phase
5760 W
9976 W
Operating
1 NEMA L6-30P per
side
-48.8 VDC to -54 VDC
99A
4298 W
4158 W at 208 VAC
50° to 95° F
(10° to 35° C)
-22° to 140° F
(-30° to 60° C)
20% to 80%
1 NEMA L15-30 per
side
-48.8 VDC to -54 VDC
170A
8310 W
7202 W at 208 VAC
50° to 95° F
(10° to 35° C)
-22° to 140° F
(-30° to 60° C)
20% to 80%
Non-operating
5% to 95%
5% to 95%
Height
Width
Rated output voltage
Rated output current
Rated output power
Nominal power
Operating
Shipping
Relative humidity,
non-condensing
(See NOTE)
NOTE
Wet Bulb
Temperature
Operating
82.4° F (28° C)
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
101.7° F (38.7° C)
NOTE: Operating temperature has an altitude derating of 34° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
DA - 12160
North America — Version 7 — June 27, 2005
Page 43
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Operating and
Performance
Specifications for
Power Distribution
Devices
Power
Enclosures or facility DC
feeds Supported
(3U each)
Server blade enclosures
supported
(6U each)
Total rack height of
supported enclosures
Dimensions
Height
Width
Depth
Weight
Rated Operating
Voltage
Max Total Power
Supported
Total Max Input Current
At Minimum Voltage
Total Max Input Current
At Nominal Voltage
Power Bus Box
1
Mini Bus Bar
1
Scalable Bus Bar
2
1
3
5
9U
21U
36U
5.1 in (12.95 cm)
3.6 in (9.14 cm) each
3.25 in (8.26 cm)
3.62 lb (1.64 kg)
-43.2 VDC to -54 VDC
19.45 in (49.40 cm)
19.74 in (50.14 cm)
2.2 in (5.59 cm)
13.2 lb (5.9 kg)
-43.2 VDC to -54 VDC
48.57 in (123.37 cm)
19.74 in (50.14 cm)
2.2 in (5.59 cm)
26 lb (11.79 kg)
-43.2 VDC to -54 VDC
3000 W
9000 W
15000 W
69.44 A at -43.2VDC
208.32 A at -43.2 VDC 347.2 A at -43.2 VDC
(equivalent of 175A per
feed)
187.5 A at -48 VDC
312.5 A at -48 VDC
(equivalent of 175A per
feed)
70A
210A
62.5 A at -48VDC
Max Current Per Power
70A
Feed
149° F (65° C)
149° F (65° C)
149° F (65° C)
Max Local Ambient
Temperature
NOTE: All systems support redundant A & B feeds. Scalable bus bar supports dual A and dual B feeds.
Operating and
Performance
Specifications for
Facility DC
Voltage
Nominal input voltage
Operating voltage range
Max Input voltage slew
rate
Redundant feed voltages*
(A & B)
Ripple/Noise
Overshoot
Voltage transients
DA - 12160
-48 VDC
-48VDC ± 10% or -43.2 VDC to -52.8 VDC
0.5V/uS
*A and B feeds must differ by no more than
5VDC during steady state operation
480 mV PARD**
Must remain within regulation limits on all feeds
during startup or shutdown
Must not exceed -60 VDC
North America — Version 7 — June 27, 2005
Page 44
QuickSpecs
HP ProLiant BL25p Server Blade
Technical Specifications
Current
In-rush current
Input over-current
Max steady state input
62.5A per server blade enclosure installed at current
48VDC
Max steady state current
per feed/total
Power bus boxes
70 A/70A
Mini bus bars
210 A/210A
Scalable bus bars 210 A/350A or equivalent of 175A per feed*
Must support up to 2X the maximum operating current per server blade
enclosure (125 A) for up to 1.0 mS
Customer provided fusing for facility DC feeds that protects the system from
catastrophic over-current within 20 uS. Fuse should sustain all in-rush and
operating currents.
1A/uS
Max Input Current Slew
Rate
3000W per server blade enclosure
Max Rated Power
Connections and Cables Compaq provided facility DC cable connection kit:
The facility DC connection kit supports the connection of up to four 48VDC, RETURN pairs and ground
The power cable assemblies consist of 1/0AWG, color-coded, flexible cable
rated at 105° C, terminated with bus mating connectors at one end and
unterminated at the other end. The cable length provided enables the
customer to route to a fuse panel within or adjacent to the rack.
NOTE: *All systems support redundant A and B feeds. Scalable bus bars support dual A and dual B
feeds.
** Periodic and random noise (PARD). Maximum allowable peak-to-peak ripple and noise (as measured
at the load on any output channel). The ripple and noise is measured over a 20 Hz to 100 MHz
frequency band. A resistive load (non-electronic) is used for this measurement. Each output is by-passed
to return by a 10uF tantalum capacitor with an ESR less than 100 milli-Ohms in parallel with a 0.47 uF
ceramic capacitor, at the point of load. The load cable is 12 feet of twisted wire capable of carrying the
current. The printed wiring board assembly is installed in its enclosure for this measurement, or the
measurement leads are properly shielded with Earth grounds applied to the insert.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 12160
North America — Version 7 — June 27, 2005
Page 45
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
