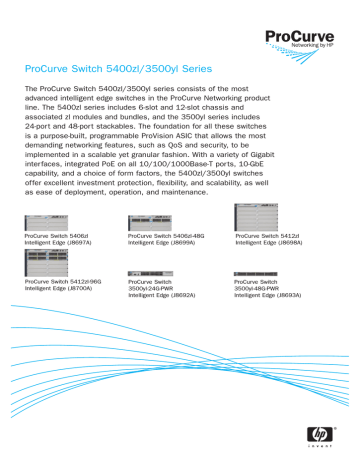

ProCurve Switch 5400zl/3500yl Series
The ProCurve Switch 5400zl/3500yl series consists of the most
advanced intelligent edge switches in the ProCurve Networking product
line. The 5400zl series includes 6-slot and 12-slot chassis and
associated zl modules and bundles, and the 3500yl series includes
24-port and 48-port stackables. The foundation for all these switches
is a purpose-built, programmable ProVision ASIC that allows the most
demanding networking features, such as QoS and security, to be
implemented in a scalable yet granular fashion. With a variety of Gigabit
interfaces, integrated PoE on all 10/100/1000Base-T ports, 10-GbE
capability, and a choice of form factors, the 5400zl/3500yl switches
offer excellent investment protection, flexibility, and scalability, as well
as ease of deployment, operation, and maintenance.
ProCurve Switch 5406zl
Intelligent Edge (J8697A)
ProCurve Switch 5406zl-48G
Intelligent Edge (J8699A)
ProCurve Switch 5412zl
Intelligent Edge (J8698A)
ProCurve Switch 5412zl-96G
Intelligent Edge (J8700A)
ProCurve Switch
3500yl-24G-PWR
Intelligent Edge (J8692A)
ProCurve Switch
3500yl-48G-PWR
Intelligent Edge (J8693A)
ProCurve Switch 5400zl/3500yl Series
Features and benefits
Industry-leading warranty
• Management simplicity: ProCurve-common
networking features and CLI implementation
(common across ProCurve zl and yl switches)
Connectivity
NEW
IPv6:
– IPv6 Host: the switches can be managed and
deployed at the edge of IPv6 networks
Management
Remote intelligent mirroring: mirrors
selected ingress/egress traffic based on ACL,
port, MAC address, or VLAN to a local or remote
8200zl/6200yl/5400zl/3500yl switch anywhere
on the network
NEW
• RMON, XRMON, and sFlow v5: provide
advanced monitoring and reporting
capabilities for statistics, history, alarms, and
events
• IEEE 802.1AB Link Layer Discovery Protocol
(LLDP): automated device discovery protocol for
easy mapping by network management
applications
• Command authorization: leverages RADIUS
to link a custom list of CLI commands to
individual network administrator’s login;
also provides an audit trail
– MLD Snooping: forwards IPv6 multicast
traffic to the appropriate interface; prevents
IPv6 multicast traffic from flooding the
network
– IPv6 ready: the switch hardware can support
IPv6 QoS, ACL, routing, tunneling, and
security; these features will be available
when enabled via software update in followon releases
• IEEE 802.3af Power over Ethernet: provides up
to 15.4 W per port to IEEE 802.3af compliant
PoE powered devices such as IP phones,
wireless access points, and security cameras
• Friendly port names: allow assignment of
descriptive names to ports
• Pre-standard PoE support: detects and
provides power to pre-standard PoE devices;
see list of supported devices in the product FAQ
at www.procurve.com
• Dual flash images: provides independent
primary and secondary OS files for backup
while upgrading
• Jumbo frames: on Gigabit and 10-Gigabit
ports, allow high-performance remote backup
and disaster-recovery services
• Multiple configuration files: multiple config
files can be stored to the flash image
• Auto-MDIX: automatically adjusts for straightthrough or crossover cables on all 10/100/1000
ports
• Uni-Directional Link Detection (UDLD):
monitors a link between two switches and
blocks the ports on both ends of the link if the
link goes down at any point between the two
devices
♦ For as long as you own the product, with next-business-day advance
replacement (available in most countries). For details, refer to the
ProCurve Software Licence, Warranty and Support booklet at
www.procurve.eu/warranty
2
– Dual Stack (IPv4/IPv6): provides transition
mechanism from IPv4 to IPv6; supports
connectivity for both protocols
Performance
• 5400zl/3500yl architecture: 115 to 692 Gbps
crossbar switching fabric provides intra- and
inter-module switching with 36 to 428 million
pps throughput on the purpose-built ProVision
ASICs
ProCurve Switch 5400zl/3500yl Series
• Selectable queue configurations: increase
performance by selecting the number of
queues and associated memory buffering that
best meet the requirements of your network
applications
Resiliency and high availability
• Virtual Router Redundancy Protocol (requires
Premium License): VRRP allows groups of two
routers to dynamically back each other up to
create highly available routed environments
• IEEE 802.1s Multiple Spanning Tree Protocol:
provides high link availability in multiple
VLAN environments by allowing multiple
spanning trees; encompasses IEEE 802.1D
Spanning Tree Protocol and IEEE 802.1w Rapid
Spanning Tree Protocol
• IEEE 802.3ad Link Aggregation Control
Protocol (LACP) and ProCurve trunking:
support up to 36 trunks, each with up to 8 links
(ports) per trunk; trunking across modules is
supported
• Hot-swappable modules (5400zl series):
permits modules, mini-GBICs, and power
supplies in a redundant power supply
configuration to be added or swapped without
interrupting the network
• Optional redundant power supply (5400zl
series): provides uninterrupted power and
allows hot-swapping of the redundant power
supplies when installed
• Sparing simplicity: ProCurve zl-common
accessories (interface modules, power supplies)
Layer 2 switching
IEEE 802.1ad Q-in-Q (requires Premium
License): increases the scalability of Ethernet
network by providing a hierarchical structure;
connects multiple LANs on high-speed campus
or metro network
NEW
• ProCurve switch meshing: dynamically loadbalances across multiple active redundant links
to increase available aggregate bandwidth
• VLAN support and tagging: supports the
IEEE 802.1Q standard and 2,048 VLANs
simultaneously
• IEEE 802.1v protocol VLANs: isolate select
non-IPv4 protocols automatically into their
own VLANs
• GARP VLAN Registration Protocol: allows
automatic learning and dynamic assignment
of VLANs
Layer 3 services
• UDP helper function: UDP broadcasts can be
directed across router interfaces to specific IP
unicast or subnet broadcast addresses and
prevent server spoofing for UDP services such
as DHCP
• Loopback interface address: defines an
address in RIP and OSPF that can always be
reachable, improving diagnostic capability
Layer 3 routing
• Static IP routing: provides manually
configured routing
• RIP: provides RIPv1 and RIPv2 routing at media
speed
• OSPF (requires Premium License): includes
host-based ECMP to provide link
redundancy/scalable bandwidth and NSSA
Security
USB Secure Autorun* (requires ProCurve
Manager Plus): deploys, diagnoses, and
updates switch using USB flash drive; works
with secure credential to prevent tampering
NEW
• Switch CPU protection: provides automatic
protection against malicious network traffic
trying to shut down the switch
∗ Availability targeted for the second quarter of 2008.
3
ProCurve Switch 5400zl/3500yl Series
Features and benefits
(continued)
• Virus throttling: detects traffic patterns typical
of WORM-type viruses and either throttles or
entirely prevents the ability of the virus to
spread across the routed VLANs or bridged
interfaces, without requiring external
appliances
• ICMP throttling: defeats ICMP denial-ofservice attacks by enabling any switch port to
automatically throttle ICMP traffic
• Multiple user authentication methods:
– IEEE 802.1X: industry-standard way of user
authentication using an IEEE 802.1X
supplicant on the client in conjunction with a
RADIUS server
– Web-based authentication: authenticates
from Web browser for clients that do not
support 802.1X supplicant; customized
remediation can be processed on an external
Web server
– MAC-based authentication: client is
authenticated with the RADIUS server based
on client’s MAC address
• Authentication flexibility:
– Multiple IEEE 802.1X users per port:
provides authentication of multiple IEEE
802.1X users per port; prevents user
“piggybacking” on another user’s IEEE 802.1X
authentication
– Concurrent IEEE 802.1X and Web or MAC
authentication schemes per port: switch
port will accept any of IEEE 802.1X and either
Web or MAC authentications
• Access control lists (ACLs): provide filtering
based on the IP field, source/destination IP
address/subnet, and source/destination
TCP/UDP port number on a per-VLAN or perport basis
4
• Identity-driven ACL: enables implementation
of a highly granular and flexible access security
policy specific to each authenticated network
user
• DHCP protection: blocks DHCP packets from
unauthorized DHCP servers, preventing denialof-service attacks
• BPDU port protection: blocks Bridge Protocol
Data Units (BPDU) on ports that do not require
BPDUs, preventing forged BPDU attacks
• Dynamic IP lockdown: works with DHCP
protection to block traffic from unauthorized
host, preventing IP source address spoofing
• Dynamic ARP protection: blocks ARP
broadcasts from unauthorized hosts,
preventing eavesdropping or theft of network
data
STP Root Guard: protects root bridge from
malicious attack or configuration mistakes
NEW
• Detection of malicious attacks: monitors 10
types of network traffic and sends a warning
when an anomaly that potentially can be
caused by malicious attacks is detected
• Port security: allows access only to specified
MAC addresses, which can be learned or
specified by the administrator
• MAC address lockout: prevents configured
particular MAC addresses from connecting to
the network
• Source-port filtering: allows only specified
ports to communicate with each other
• TACACS+: eases switch management security
administration by using a password
authentication server
• Secure Shell (SSHv2): encrypts all transmitted
data for secure, remote command-line
interface (CLI) access over IP networks
• Secure Sockets Layer (SSL): encrypts all HTTP
traffic, allowing secure access to the browserbased management GUI in the switch
ProCurve Switch 5400zl/3500yl Series
• Secure FTP: allows secure file transfer to/from
the switch; protects against unwanted file
downloads or unauthorized copying of switch
configuration file
• Secure management access: all access
methods—CLI, GUI, or MIB—are securely
encrypted through SSHv2, SSL, and/or SNMPv3
• Switch management logon security:
can require either RADIUS or TACACS+
authentication for secure switch CLI logon
• Security banner: displays a customized
security policy when users log in to the switch
Convergence
• IP multicast routing (Premium License):
includes PIM Sparse and Dense modes to route
IP multicast traffic
• IP multicast snooping (data-driven IGMP):
automatically prevents flooding of IP multicast
traffic
• LLDP-MED (Media Endpoint Discovery):
a standard extension of LLDP that stores values
for parameters such as QoS and VLAN to
automatically configure network devices such
as IP phones
RADIUS VLAN for voice: uses standard
RADIUS attribute and LLDP to automatically
configure VLAN for IP phones
NEW
PoE allocations: supports multiple methods
(automatic, 802.3af class, LLDP-MED, or user
specified) to allocate PoE power for optimal
energy saving
NEW
Quality of Service (QoS)
• Bandwidth shaping:
– Port-based rate limiting: per-port
ingress/egress enforced maximum
bandwidth
– Classified-based rate limiting: use ACL to
enforce maximum bandwidth for ingress
traffic on each port
– Guaranteed minimum: per-port, per-queue
egress-based guaranteed minimum
bandwidth
• Class of Service (CoS): sets the IEEE 802.1p
priority tag based on IP address, IP Type of
Service (ToS), L3 protocol, TCP/UDP port
number, source port, and DiffServ
Services
ProCurve Switch 3500yl-24G-PWR Intelligent
Edge
• 3-year, 4-hour onsite, 13x5 coverage for
hardware (U2855E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware (U2856E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware, 24x7 software phone support
(U6304E)
• 3-year, 24x7 software phone support, software
updates (UE262E)
• Installation with minimum configuration,
system-based pricing (U4826E)
• Installation with HP-provided configuration,
system-based pricing (U4830E)
• Layer 4 prioritization: enables prioritization
based on TCP/UDP port numbers
• Traffic prioritization: allows real-time traffic
classification into 8 priority levels mapped to
8 queues
5
ProCurve Switch 5400zl/3500yl Series
Services (continued)
ProCurve Switch 3500yl-48G-PWR Intelligent
Edge
• 3-year, 4-hour onsite, 13x5 coverage for
hardware (H4496E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware (H2893E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware, 24x7 software phone support
(U6319E)
• 3-year, 24x7 software phone support, software
updates (UE264E)
• Installation with minimum configuration,
system-based pricing (U4826E)
• Installation with HP-provided configuration,
system-based pricing (U4830E)
ProCurve Switch 5406zl Intelligent Edge
ProCurve Switch 5406zl-48G Intelligent Edge
• 3-year, 4-hour onsite, 13x5 coverage for
hardware (UE250E)
• 3-year, 4-hour onsite, 13x5 coverage for
hardware (H4496E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware (UE251E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware (H2893E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware, 24x7 software phone support
(U6319E)
6
• 3-year, 4-hour onsite, 24x7 coverage for
hardware, 24x7 software phone support
(UE252E)
• 3-year, 24x7 software phone support, software
updates (UF786E)
• Installation with minimum configuration,
system-based pricing (U4828E)
• Installation with HP-provided configuration,
system-based pricing (U4832E)
ProCurve Switch 5412zl Intelligent Edge
ProCurve Switch 5412zl-96G Intelligent Edge
• 3-year, 4-hour onsite, 13x5 coverage for
hardware (UE253E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware (UE254E)
• 3-year, 4-hour onsite, 24x7 coverage for
hardware, 24x7 software phone support
(UE255E)
• 3-year, 24x7 software phone support, software
updates (UF788E)
• Installation with minimum configuration,
system-based pricing (U4828E)
• Installation with HP-provided configuration,
system-based pricing (U4832E)
Check www.procurve.eu/services for part
numbers and service-level descriptions.
For details about services and response times in
your area, please contact your local HP sales
office.
ProCurve Switch 5400zl/3500yl Series
Specifications
ProCurve Switch 5406zl Intelligent Edge (J8697A)
ProCurve Switch 5406zl-48G Intelligent Edge (J8699A)
Included accessories
N/A
2 ProCurve Switch zl 24-Port 10/100/1000 PoE Modules (J8702A)
1 ProCurve Switch zl 875W Power Supply (J8712A)
Ports
6 open module slots
4 open module slots
48 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T) with PoE
Media type: IEEE Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
1 RS-232C DB-9 console port
Supports a maximum of 144 auto-sensing 10/100/1000 ports with PoE or
16 10-GbE ports or 96 mini-GBICs, or a combination
1 RS-232C DB-9 console port
Supports a maximum of 144 auto-sensing 10/100/1000 ports or
24 10-GbE ports or 144 mini-GBICs, or a combination
Power supplies
2 open power-supply slots
Includes 1 x J8712A
1 open power-supply slot
Physical characteristics
Dimensions (D x W x H)
Weight
45.09 x 44.45 x 17.53 cm (17.75 x 17.5 x 6.9 in.) (4U height)
10.68 kg (23.55 lb.)
45.09 x 44.45 x 17.53 cm (17.75 x 17.5 x 6.9 in.) (4U height)
15.54 kg (34.26 lb.)
ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB
compact flash, 256 MB DDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash,
256 MB DDR SDRAM
Memory and processor
Gigabit module
10G module
Management module
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
Latency
1000 Mb
10 Gbps
Throughput
Routing/Switching capacity
Switch fabric speed
Routing table size
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 214 million pps
288 Gbps
346 Gbps
10,000 entries
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 214 million pps
288 Gbps
346 Gbps
10,000 entries
0°C to 55°C (32°F to 131°F); 0°C to 40°C with J8705A, J8706A, or
J8707A modules installed
15% to 95% @ 55°C (131°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 95% @ 65°C (149°F), non-condensing
0°C to 55°C (32°F to 131°F); 0°C to 40°C with J8705A, J8706A, or
J8707A modules installed
15% to 95% @ 55°C (131°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 95% @ 65°C (149°F), non-condensing
Up to 4.6 km (15,000 ft.)
Power: 57 dB; pressure: 40.2 dB
ISO 7779, ISO 9296
Up to 4.6 km (15,000 ft.)
Power: 57 dB; pressure: 40.2 dB
ISO 7779, ISO 9296
Chassis ships without power supplies. Two power-supply slots available;
two different power supplies available. See power-supply products for
additional specifications.
2,584 kJ/hr (2,450 BTU/hr) (max non-PoE)
3,903 kJ/hr (3,700 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
50/60 Hz
Power supplies must be ordered separately. One J8712A or J8713A can
power the J8697A chassis.
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
One J8712A installed. One open power-supply slot available; two different
power supplies available. See power-supply products for additional
specifications.
2,584 kJ/hr (2,450 BTU/hr) (max non-PoE)
3,903 kJ/hr (3,700 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
50/60 Hz
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage
relative humidity
Altitude
Acoustic
Electrical characteristics
Description
Maximum heat dissipation
Voltage
Frequency
Notes
Safety
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity
EN
ESD
Radiated
EFT/Burst
Surge
Conducted
Power frequency magnetic field
Voltage dips and interruptions
Harmonics
Flicker
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
7
ProCurve Switch 5400zl/3500yl Series
Specifications
(continued)
ProCurve Switch 5406zl-48G Intelligent Edge (J8699A)
ProCurve Switch 5406zl Intelligent Edge (J8697A)
Management
ProCurve Manager Plus; ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management
(serial RS-232C)
Notes
When using mini-GBICs with this product, mini-GBICs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C)
are required.
Standards and protocols
(applies to both products)
Device management
RFC 1591 DNS (client)
HTML and telnet management
General protocols
IEEE 802.1ad Q-in-Q (Premium License)
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP)
v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP (Premium License)
RFC 4675 RADIUS VLAN & Priority
UDLD (Uni-directional Link Detection)
8
IP multicast
RFC 2362 PIM Sparse Mode (Premium License)
RFC 3376 IGMPv3 (host joins only)
RFC 3973 PIM Dense Mode (Premium License)
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address
Auto-configuration
RFC 2463 ICMPv6
RFC 2710 Multicast Listener Discovery (MLD)
for IPv6
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 (host joins only)
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4541 IGMP & MLD Snooping Switch
MIBs
RFC 1213
RFC 1493
RFC 1724
RFC 1850
RFC 2021
RFC 2096
RFC 2613
RFC 2618
RFC 2620
MIB II
Bridge MIB
RIPv2 MIB
OSPFv2 MIB
RMONv2 MIB
IP Forwarding Table MIB
SMON MIB
RADIUS Client MIB
RADIUS Accounting MIB
RFC
RFC
RFC
RFC
RFC
RFC
RFC
2665
2668
2674
2737
2787
2863
2925
Ethernet-Like-MIB
802.3 MAU MIB
802.1p and IEEE 802.1Q Bridge MIB
Entity MIB (Version 2)
VRRP MIB
The Interfaces Group MIB
Ping MIB
Network management
IEEE 802.1AB Link Layer Discovery Protocol
(LLDP)
RFC 2819 Four groups of RMON: 1 (statistics),
2 (history), 3 (alarm), and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3
XRMON
OSPF
RFC 2328 OSPFv2 (Premium License)
RFC 3101 OSPF NSSA
QoS/Cos
RFC 2474 DiffServ Precedence, including
8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv1/SSHv2 Secure Shell
ProCurve Switch 5400zl/3500yl Series
Specifications
ProCurve Switch 5412zl Intelligent Edge (J8698A)
ProCurve Switch 5412zl-96G Intelligent Edge (J8700A)
Included accessories
N/A
4 ProCurve Switch zl 24-Port 10/100/1000 PoE Modules (J8702A)
2 ProCurve Switch zl 875W Power Supplies (J8712A)
Ports
12 open module slots
8 open module slots
96 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T) with PoE
Media type: IEEE Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
1 RS-232C DB-9 console port
Supports a maximum of 288 auto-sensing 10/100/1000 ports with PoE or
32 10-GbE ports or 192 mini-GBICs, or a combination
1 RS-232C DB-9 console port
Supports a maximum of 288 auto-sensing 10/100/1000 ports or
48 10-GbE ports or 288 mini-GBICs, or a combination
Power supplies
4 open power-supply slots
Includes 2 x J8712A
2 open power-supply slots
Physical characteristics
Dimensions (D x W x H)
Weight
45.09 x 44.45 x 30.73 cm (17.75 x 17.5 x 12.1 in.) (7U height)
15.85 kg (34.94 lb.)
45.09 x 44.45 x 30.73 cm (17.75 x 17.5 x 12.1 in.) (7U height)
26.31 kg (58 lb.)
ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact
flash, 256 MB DDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM
Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash,
256 MB DDR SDRAM
Memory and processor
Gigabit module
10G module
Management module
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
Latency
1000 Mb
10 Gbps
Throughput
Routing/Switching capacity
Switch fabric speed
Routing table size
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 428 million pps
576 Gbps
692 Gbps
10,000 entries
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 428 million pps
576 Gbps
692 Gbps
10,000 entries
0°C to 55°C (32°F to 131°F); 0°C to 40°C with J8705A, J8706A, or
J8707A modules installed
15% to 95% @ 55°C (131°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 95% @ 65°C (149°F), non-condensing
0°C to 55°C (32°F to 131°F); 0°C to 40°C with J8705A, J8706A, or
J8707A modules installed
15% to 95% @ 55°C (131°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 95% @ 65°C (149°F), non-condensing
Up to 4.6 km (15,000 ft.)
Power: 64 dB; pressure: 57.5 dB
ISO 7779, ISO 9296
Up to 4.6 km. (15,000 ft)
Power: 64 dB; pressure: 57.5 dB
ISO 7779, ISO 9296
Chassis ships without power supplies. Four power-supply slots
available; two different power supplies available. See power-supply
products for additional specifications.
5,169 kJ/hr (4,900 BTU/hr) (max non-PoE)
7,807 kJ/hr (7,400 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
50/60 Hz
Power supplies must be ordered separately. A combination of two
power supplies either J8712A or J8713A is required to power the
J8698A chassis.
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
Two J8712A installed. Two open power-supply slots available; two different
power supplies available. See power-supply products for additional
specifications.
5,169 kJ/hr (4,900 BTU/hr) (max non-PoE)
7,807 kJ/hr (7,400 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
50/60 Hz
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage
relative humidity
Altitude
Acoustic
Electrical characteristics
Description
Maximum heat dissipation
Voltage
Frequency
Notes
Safety
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity
EN
ESD
Radiated
EFT/Burst
Surge
Conducted
Power frequency magnetic field
Voltage dips and interruptions
Harmonics
Flicker
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction,
25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction,
25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
9
ProCurve Switch 5400zl/3500yl Series
Specifications
(continued)
ProCurve Switch 5412zl Intelligent Edge (J8698A)
ProCurve Manager Plus; ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management
(serial RS-232C)
Notes
When using mini-GBICs with this product, mini-GBICs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C)
are required.
Standards and protocols
(applies to both products)
Device management
RFC 1591 DNS (client)
HTML and telnet management
General protocols
IEEE 802.1ad Q-in-Q (Premium License)
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP)
v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP (Premium License)
RFC 4675 RADIUS VLAN & Priority
UDLD (Uni-directional Link Detection)
10
ProCurve Switch 5412zl-96G Intelligent Edge (J8700A)
Management
IP multicast
RFC 2362 PIM Sparse Mode (Premium License)
RFC 3376 IGMPv3 (host joins only)
RFC 3973 PIM Dense Mode (Premium License)
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address
Auto-configuration
RFC 2463 ICMPv6
RFC 2710 Multicast Listener Discovery (MLD)
for IPv6
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 (host joins only)
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4541 IGMP & MLD Snooping Switch
MIBs
RFC 1213
RFC 1493
RFC 1724
RFC 1850
RFC 2021
RFC 2096
RFC 2613
RFC 2618
RFC 2620
MIB II
Bridge MIB
RIPv2 MIB
OSPFv2 MIB
RMONv2 MIB
IP Forwarding Table MIB
SMON MIB
RADIUS Client MIB
RADIUS Accounting MIB
RFC
RFC
RFC
RFC
RFC
RFC
RFC
2665
2668
2674
2737
2787
2863
2925
Ethernet-Like-MIB
802.3 MAU MIB
802.1p and IEEE 802.1Q Bridge MIB
Entity MIB (Version 2)
VRRP MIB
The Interfaces Group MIB
Ping MIB
Network management
IEEE 802.1AB Link Layer Discovery Protocol
(LLDP)
RFC 2819 Four groups of RMON: 1 (statistics),
2 (history), 3 (alarm), and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3
XRMON
OSPF
RFC 2328 OSPFv2 (Premium License)
RFC 3101 OSPF NSSA
QoS/Cos
RFC 2474 DiffServ Precedence, including
8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv1/SSHv2 Secure Shell
ProCurve Switch 5400zl/3500yl Series
Specifications
Ports
Physical characteristics
Dimensions (D x W x H)
Weight
Memory and processor
10G module
Management module
ProCurve Switch 3500yl-24G-PWR Intelligent Edge (J8692A)
ProCurve Switch 3500yl-48G-PWR Intelligent Edge (J8693A)
1 open module slot
20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
Media type: Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
1 RS-232C DB-9 console port
4 dual-personality ports—each port can be used as either an RJ-45
10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type
100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) with PoE or
an open mini-GBIC slot (for use with mini-GBIC transceivers)
Supports a maximum of 4 10-GbE ports
1 open module slot
44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
Media type: Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
1 RS-232C DB-9 console port
4 dual-personality ports—each port can be used as either an RJ-45
10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type
100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) with PoE or an
open mini-GBIC slot (for use with mini-GBIC transceivers)
Supports a maximum of 4 10-GbE ports
39.2 x 44.3 x 4.4 cm (15.43 x 17.44 x 1.73 in.) (1U height)
6.4 kg (14.11 lb.)
43.0 x 44.3 x 4.4 cm (16.93 x 17.44 x 1.73 in.) (1U height)
7.3 kg (16.09 lb.)
ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz,
4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM
ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz,
4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
Latency
1000 Mb
10 Gbps
Throughput
Routing/Switching capacity
Switch fabric speed
Routing table size
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 74 million pps
101 Gbps
115 Gbps
10,000 entries
<3.7 µs (FIFO 64-byte packets)
<2.1 µs (FIFO 64-byte packets)
Up to 110 million pps
148 Gbps
173 Gbps
10,000 entries
0° to 55°C (32°F to 131°F); 32°F to 40°C (104°F) when used with
any X2 10-GbE
15% to 95% at 40°C (104°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 90% at 65°C (149°F), non-condensing
0° to 55°C (32°F to 131°F); 32°F to 40°C (104°F) when used with
any X2 10-GbE
15% to 95% at 40°C (104°F), non-condensing
–40°C to 70°C (–40°F to 158°F)
15% to 95% at 65°C (149°F), non-condensing
Up to 4.6 km (15,000 ft.)
Power: 52.7 dB; pressure: 44.8 dB
ISO 7779, ISO 9296
Up to 4.6 km (15,000 ft.)
Power: 55.1 dB; pressure: 45.3 dB
ISO 7779, ISO 9296
Voltage
Current
Power consumption
Frequency
Notes
The switch automatically adjusts to any voltage between 100–127 and
200–240 volts and either 50 or 60 Hz
706 kJ/hr (670 BTU/hr) (max non-PoE)
991 kJ/hr (940 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
10.0 A/5.0 A
723 W
50/60 Hz
Maximum power draw if not using any PoE power is 200 W
(1.8 A @ 110 V, 0.9 A @ 220V); full load switch only heat spec listed
above subtracts heat dissipated in external PoE powered devices.
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
The switch automatically adjusts to any voltage between 100–127 and
200–240 volts and either 50 or 60 Hz
854 kJ/hr (810 BTU/hr) (max non-PoE)
1,149 kJ/hr (1,090 BTU/hr) (max using PoE)
100–127 VAC/200–240 VAC
10.0 A/5.0 A
759 W
50/60 Hz
Maximum power draw if not using any PoE power is 200 W
(1.8 A @ 110 V, 0.9 A @ 220V).
Heat dissipation does not include heat dissipated by the PoE powered
devices themselves.
Safety
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity
EN
ESD
Radiated
EFT/Burst
Surge
Conducted
Power frequency magnetic field
Voltage dips and interruptions
Harmonics
Flicker
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage
relative humidity
Altitude
Acoustic
Electrical characteristics
Description
Maximum heat dissipation
EN 55024, CISPR 24
IEC 61000-4-2; 4 kV CD, 8 kV AD
IEC 61000-4-3; 3 V/m
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC 61000-4-5; 1 kV/2 kV AC
IEC 61000-4-6; 3 V
IEC 61000-4-8; 1 A/m, 50 or 60 Hz
IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
11
ProCurve Switch 5400zl/3500yl Series
Specifications
(continued)
ProCurve Switch 3500yl-24G-PWR Intelligent Edge (J8692A)
ProCurve Manager Plus; ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management
(serial RS-232C)
Notes
When using mini-GBICs with this product, mini-GBICs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C)
are required.
J8177B Gigabit 1000Base-T mini-GBIC is not supported on the 3500yl series switches.
Standards and protocols
(applies to both products)
Device management
RFC 1591 DNS (client)
HTML and telnet management
General protocols
IEEE 802.1ad Q-in-Q (Premium License)
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP)
v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP (Premium License)
RFC 4675 RADIUS VLAN & Priority
UDLD (Uni-directional Link Detection)
12
ProCurve Switch 3500yl-48G-PWR Intelligent Edge (J8693A)
Management
IP multicast
RFC 2362 PIM Sparse Mode (Premium License)
RFC 3376 IGMPv3 (host joins only)
RFC 3973 PIM Dense Mode (Premium License)
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address
Auto-configuration
RFC 2463 ICMPv6
RFC 2710 Multicast Listener Discovery (MLD)
for IPv6
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 (host joins only)
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4541 IGMP & MLD Snooping Switch
MIBs
RFC 1213
RFC 1493
RFC 1724
RFC 1850
RFC 2021
RFC 2096
RFC 2613
RFC 2618
RFC 2620
MIB II
Bridge MIB
RIPv2 MIB
OSPFv2 MIB
RMONv2 MIB
IP Forwarding Table MIB
SMON MIB
RADIUS Client MIB
RADIUS Accounting MIB
RFC
RFC
RFC
RFC
RFC
RFC
RFC
2665
2668
2674
2737
2787
2863
2925
Ethernet-Like-MIB
802.3 MAU MIB
802.1p and IEEE 802.1Q Bridge MIB
Entity MIB (Version 2)
VRRP MIB
The Interfaces Group MIB
Ping MIB
Network management
IEEE 802.1AB Link Layer Discovery Protocol
(LLDP)
RFC 2819 Four groups of RMON: 1 (statistics),
2 (history), 3 (alarm), and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3
XRMON
OSPF
RFC 2328 OSPFv2 (Premium License)
RFC 3101 OSPF NSSA
QoS/Cos
RFC 2474 DiffServ Precedence, including
8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv1/SSHv2 Secure Shell
ProCurve Switch 5400zl/3500yl Series Modules
zl Modules
ProCurve Switch zl 4-Port 10-GbE X2 Module
(J8707A)
ProCurve Switch zl 24-Port 10/100/1000 PoE Module
(J8702A)
4-port 10-GbE X2 module for zl series switches
24-port 10/100/1000 PoE module for zl series switches
Ports
4 open 10-GbE X2 transceiver slots
Ports
24 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T;
IEEE 802.3u Type 100Base-TX; IEEE 802.3ab Type 1000Base-T)
Media type: IEEE Auto-MDI/MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
Physical characteristics
Dimensions (D x W x H): 26.16 x 20.65 x 4.45 cm
(10.3 x 8.13 x 1.75 in.)
Weight: 0.79 kg (1.74 lb.)
Environment
Operating temperature: 0°C to 40°C (32°F to 104°F)
Physical characteristics
Dimensions (D x W x H): 26.16 x 20.65 x 4.45 cm
(10.3 x 8.13 x 1.75 in.)
Weight: 0.98 kg (2.16 lb.)
Notes
When installed in a zl chassis, the J8707A module limits the operating
temperature range of the chassis to 0°C to 40°C (32°F to 104°F).
Cabling
Type:
• 1000Base-T: Category 5 (5E or better recommended), 100 Ω differential
4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP)
balanced, complying with IEEE 802.3ab 1000Base-T
ProCurve Switch zl 20-Port 10/100/1000 + 4-Port
Mini-GBIC Module (J8705A)
ProCurve Switch zl 4-Port 10-GbE CX4 Module
(J8708A)
20-port 10/100/1000 PoE + 4-port mini-GBIC module for zl series
switches
4-port 10-GbE CX4 module for zl series switches
Ports
4 open mini-GBIC (SFP) slots
20 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T;
IEEE 802.3u type 100Base-TX; IEEE 802.3ab Type 1000Base-T)
Media type: IEEE Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
Physical characteristics
Dimensions (D x W x H): 26.16 x 20.65 x 4.45 cm
(10.3 x 8.13 x 1.75 in.)
Weight: 1 kg (2.2 lb.)
Notes
When using mini-GBICs with this product, mini-GBICs with revision “B” or
later (product number ends with the letter “B” or later, e.g., J4858B,
J4859C) are required.
When installed in a zl chassis, the J8705A module limits the operating
temperature range of the chassis to 0°C to 40°C (32°F to 104°F).
Ports
4 CX-4 10-GbE ports (IEEE 802.3ak Type 10Gbase-CX4)
Duplex: full only
Physical characteristics
Dimensions (D x W x H): 26.16 x 20.65 x 4.45 cm
(10.3 x 8.13 x 1.75 in.)
Weight: 0.79 kg (1.74 lb.)
Environment
Operating temperature: 0°C to 55°C (32°F to 131°F)
Cabling
Maximum distance:
15 m using CX4 cable
300 m using optical media converters and multimode fiber cable
Notes
Use CX4 10-GbE cable (0.5 m–15 m) or ProCurve 10-GbE CX4 Media
Converter (J8439A).
No CX4 cables are included with this module.
Services for accessories are covered under the product in which they are installed.
13
ProCurve Switch 5400zl/3500yl Series Modules
zl Modules (continued)
yl Modules
ProCurve Switch zl 24-Port Mini-GBIC Module
(J8706A)
ProCurve Switch yl 10-GbE 2-Port CX4 + 2-Port X2
Module (J8694A)
24-port mini-GBIC module for zl series switches
10-GbE module with two fixed CX4 ports and two X2 slots for ProCurve
Switch 3500yl series and Switch 6200yl-24G-mGBIC
Ports
24 open mini-GBIC (SFP) slots
Physical characteristics
Dimensions (D x W x H): 26.16 x 20.65 x 4.45 cm
(10.3 x 8.13 x 1.75 in.)
Weight: 0.91 kg (2.01 lb.)
Notes
When using mini-GBICs with this product, mini-GBICs with revision “B” or
later (product number ends with the letter “B” or later, e.g., J4858B,
J4859C) are required.
When installed in a zl chassis, the J8706A module limits the operating
temperature range of the chassis to 0°C to 40°C (32°F to 104°F).
Ports
2 open 10-GbE X2 transceiver slots
2 10-GbE ports (IEEE 802.3ak Type 10Gbase-CX4)
Duplex: full only
Physical characteristics
Dimensions (D x W x H): 19.7 x 19.1 x 36.3 cm (7.76 x 7.52 x 14.29 in.)
Weight: 0.7 kg (1.54 lb.)
Environment
Operating temperature: 0°C to 55°C (32°F to 131°F)
Operating relative humidity: 15% to 95%, non-condensing
Non-operating/Storage temperature: –40°C to 70°C (–40°F to 158°F)
Non-operating/Storage relative humidity: 15% to 90%, non-condensing
Cabling
Maximum distance:
CX4: 15 m using CX4 cable or 300 m using media converter with ribbon MMF
Notes
Only the two fixed CX4 ports on this module support ProCurve 10-GbE CX4
Media Converter (J8439A).
Operating temperature is 0°C to 40°C (32°F to 104°F) if any X2 10-GbE
optic or transceiver is inserted in any X2 slot.
One 0.5 m CX4 cable is included.
Licenses
Premium License for Switch 3500 Series (J8993A)
Premium License for Switch 5400 Series (J8994A)
License to enable OSPFv2, PIM Dense mode, PIM Sparse mode, VRRP,
and QinQ in the ProCurve 3500yl switch.
License to enable OSPFv2, PIM Dense mode, PIM Sparse mode, VRRP,
and QinQ in the ProCurve 5400zl switch.
Notes
The following features are included in this license:
Notes
The following features are included in this license:
•
•
•
•
•
•
•
•
•
•
OSPFv2
PIM Dense mode
PIM Sparse mode
VRRP
QinQ (IEEE 802.1ad)
OSPFv2
PIM Dense mode
PIM Sparse mode
VRRP
QinQ (IEEE 802.1ad)
Services for accessories are covered under the product in which they are installed.
14
ProCurve Switch 5400zl/3500yl Series Modules
Power Supplies
ProCurve Switch zl 1500W Power Supply (J8713A)
ProCurve Switch zl 875W Power Supply (J8712A)
High-power 1500 W power supply for zl series switches. Supplies 900 W
for PoE power plus 600 W for switch power. 200–240 V only.
Standard 875 W power supply for zl series switches. Supplies 273 W for
PoE power plus 600 W for switch power.
Physical characteristics
Dimensions (D x W x H): 15.37 x 18.92 x 12.95 cm
(6.05 x 7.45 x 5.1 in.)
Weight: 3.4 kg (7.5 lb.)
Physical characteristics
Dimensions (D x W x H): 15.37 x 18.92 x 12.95 cm
(6.05 x 7.45 x 5.1 in.)
Weight: 3.2 kg (7.05 lb.)
Environment
Operating temperature: 0°C to 55°C (32°F to 131°F)
Operating relative humidity: 15% to 95%, non-condensing
Non-operating/Storage temperature: –40°C to 70°C (–40°F to 158°F)
Non-operating/Storage relative humidity: 15% to 95%, non-condensing
Altitude: up to 3 km (10,000 ft.)
Environment
Operating temperature: 0°C to 55°C (32°F to 131°F)
Operating relative humidity: 15% to 95%, non-condensing
Non-operating/Storage temperature: –40°C to 70°C (–40°F to 158°F)
Non-operating/Storage relative humidity: 15% to 95%, non-condensing
Altitude: up to 3 km (10,000 ft.)
Electrical characteristics
Voltage: 200–240 VAC
Current: 10 A
Frequency: 50/60 Hz
Power consumption: 1800 W
Electrical characteristics
Voltage: 100–127 VAC/200–240 VAC
Current: 12 A/5.7 A
Frequency: 50/60 Hz
Power consumption: 1050 W
Notes
200–240 V only. Installation of the J8713A reduces the chassis altitude
specification to 3677 m (10,000 ft.).
J8713A supplies 600 W chassis power and 900 W PoE power.
See the Ordering Guide for more details on power supply selection for PoE
power. Units shipped to North America include a NEMA L6-20P twist lock
power cord. Non-locking NEMA 6-20P optionally available—see the
Ordering Guide for more details.
When used in the J8714A power shelf, the following specs apply (at
full load):
• Heat dissipation: 475 kJ/hr (450 BTU/hr) @ 220 V
• Maximum current: 5.1 A @ 220 V
Notes
J8712A supplies 600 W chassis power and 273 W PoE power.
One J8712A can power the J8697A chassis.
Two J8712A supplies are required to power the J8698A chassis.
See the Ordering Guide for more details on power supply selection for
PoE power.
When used in the J8714A power shelf, the following specs apply (at
full load):
• Heat dissipation: 263 kJ/hr (250 BTU/hr) @ 110 V, 222 kJ/hr
(210 BTU/hr) @ 220 V
• Maximum current: 3.2 A @ 110 V, 1.7 A @ 220 V
NEW
ProCurve 620 Redundant/External Power Supply
(J8696A)
NEW
ProCurve Switch zl Power Supply Shelf (J8714A)
Provides redundant system power and/or extra PoE power for up to two
switches simultaneously
A rack-mountable chassis with two slots for Switch zl power supplies to
supply additional PoE power to a zl switch beyond what can be provided by
the switch internal power supplies alone
Ports
2 RPS ports; 195 W available per port
2 EPS ports; 398 W available per port
Ports
2 EPS ports
PoE power available depends on power supplies installed
Physical characteristics
Dimensions (D x W x H): 39.12 x 44.2 x 4.39 cm
(15.4 x 17.4 x 1.73 in.) 1U height
Weight: 6.89 kg (15.2 lb.)
Physical characteristics
Dimensions (D x W x H): 24.71 x 44.3 x 13.2 cm
(9.73 x 17.44 x 5.2 in.) (3U height)
Weight: 4.2 kg (9.26 lb.) (no power supplies installed)
Electrical characteristics
Maximum heat dissipation: 422 kJ/hr (400 BTU/hr) for the actual 620
itself. PoE-powered device heat dissipation assumed to be outside the
620.
Voltage: 100–127 VAC/200–240 VAC
Current: 16 A/8 A
Power consumption: 1440 W
RPS power: 390 W
PoE power: 796 W
RPS: 12 V
PoE: –50 V
Frequency: 50/60 Hz
Note: Above figures are for max. RPS and PoE power being supplied to 2
switches simultaneously. 200–240 V power cords shipped with the 620
have a wall plug rated as close to 13 A as specific country standards
allow.
Environment
Operating temperature: 0°C to 55°C (32°F to 131°F)
Operating relative humidity: 15% to 95% at 40°C (104°F), non-condensing
Non-operating/Storage temperature: –40°C to 70°C (–40°F to 158°F)
Non-operating/Storage relative humidity: 15% to 95% at 40°C (104°F),
non-condensing
Altitude: up to 3 km (10,000 ft.)
Acoustic: power: 52.9 dB, pressure: 42.9 dB
Notes
The ProCurve 620 supports the ProCurve 2900 series (RPS), 3500yl
series (RPS/PoE), and 6200yl (RPS) switches.
The ProCurve 5400zl switches are not supported.
The ProCurve 620 includes 4 2-meter RPS/EPS cables. These cables can
be used to carry either RPS or PoE power to the switch being powered.
Electrical characteristics
Description: Power draw and heat dissipation for the power shelf are
dependent on the power supplies installed.
Note: For heat dissipation and power requirements of the power shelf, find
and add together these figures for the 1 or 2 power supplies actually
installed.
Notes
The ProCurve Switch zl Power Supply Shelf has two slots for zl power
supplies. It supplies PoE power only to zl switches. For yl switches, see
the ProCurve 620 Redundant/External Power Supply.
Power shelf depth includes 1.9 cm (0.75 in.) due to the power supply
handles.
Power supplies not included.
Services for accessories are covered under the product in which they are installed.
15
ProCurve Switch 5400zl/3500yl Series Modules
Additional accessories
For more information
ProCurve Wireless Edge Services zl Module
(J9051A)
To learn more about ProCurve
Networking, please visit
www.procurve.eu
ProCurve Redundant Wireless Services zl
Module (J9052A)
ProCurve Gigabit-SX-LC Mini-GBIC (J4858C)
ProCurve Gigabit-LX-LC Mini-GBIC (J4859C)
ProCurve Gigabit-LH-LC Mini-GBIC (J4860C)
ProCurve Gigabit 1000Base-T Mini-GBIC
(J8177B)*
ProCurve 100-FX SFP-LC Transceiver (J9054B)
ProCurve 10-GbE X2-SC SR Optic (J8436A)
ProCurve 10-GbE X2-SC LR Optic (J8437A)
ProCurve 10-GbE X2-SC ER Optic (J8438A)
ProCurve 10-GbE CX4 Media Converter (J8439A)
ProCurve 10-GbE X2-CX4 Transceiver (J8440B)
ProCurve Identity Driven Manager 2.2 base
product—500-user license (J9012A)
ProCurve Manager Plus 2.2 unlimited-device
license (J9059A)
* Not supported on dual-personality ports on 3500yl series.
© 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ARM is a registered trademark of ARM Limited.
4AA1-6637EEE, January 2008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
