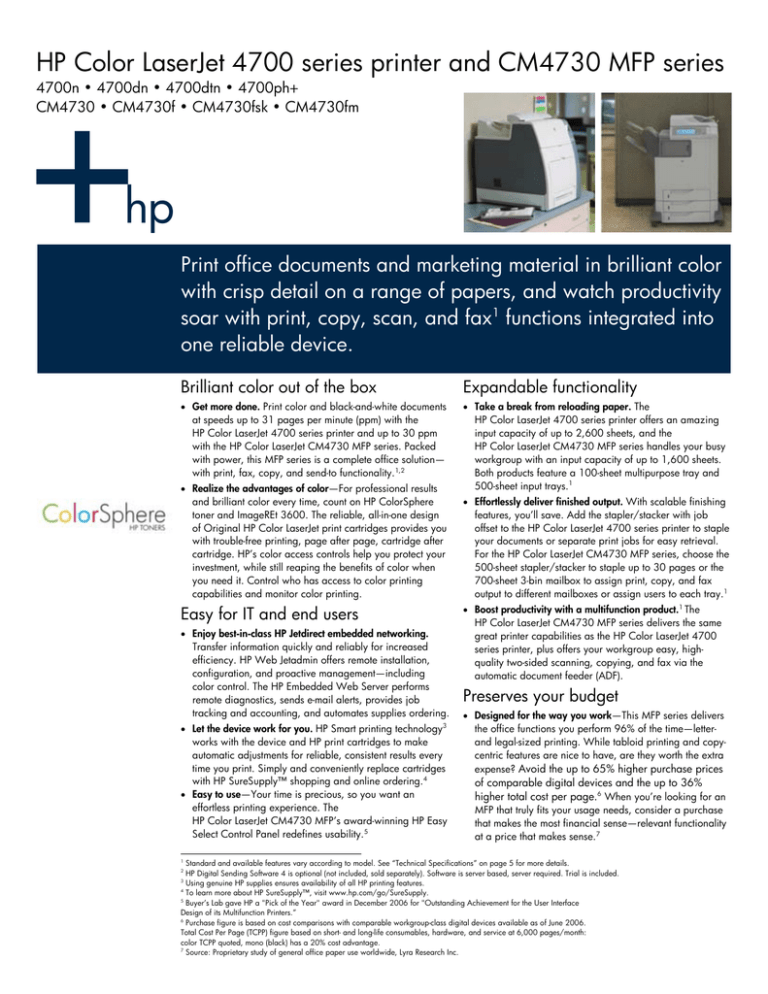

HP Color LaserJet 4700 series printer and CM4730 MFP series
4700n • 4700dn • 4700dtn • 4700ph+
CM4730 • CM4730f • CM4730fsk • CM4730fm
hp
Print office documents and marketing material in brilliant color
with crisp detail on a range of papers, and watch productivity
soar with print, copy, scan, and fax1 functions integrated into
one reliable device.
Brilliant color out of the box
Expandable functionality
• Get more done. Print color and black-and-white documents
at speeds up to 31 pages per minute (ppm) with the
HP Color LaserJet 4700 series printer and up to 30 ppm
with the HP Color LaserJet CM4730 MFP series. Packed
with power, this MFP series is a complete office solution—
with print, fax, copy, and send-to functionality.1,2
• Take a break from reloading paper. The
HP Color LaserJet 4700 series printer offers an amazing
input capacity of up to 2,600 sheets, and the
HP Color LaserJet CM4730 MFP series handles your busy
workgroup with an input capacity of up to 1,600 sheets.
Both products feature a 100-sheet multipurpose tray and
500-sheet input trays.1
• Realize the advantages of color—For professional results
and brilliant color every time, count on HP ColorSphere
toner and ImageREt 3600. The reliable, all-in-one design
of Original HP Color LaserJet print cartridges provides you
with trouble-free printing, page after page, cartridge after
cartridge. HP’s color access controls help you protect your
investment, while still reaping the benefits of color when
you need it. Control who has access to color printing
capabilities and monitor color printing.
Easy for IT and end users
• Enjoy best-in-class HP Jetdirect embedded networking.
Transfer information quickly and reliably for increased
efficiency. HP Web Jetadmin offers remote installation,
configuration, and proactive management—including
color control. The HP Embedded Web Server performs
remote diagnostics, sends e-mail alerts, provides job
tracking and accounting, and automates supplies ordering.
• Let the device work for you. HP Smart printing technology3
works with the device and HP print cartridges to make
automatic adjustments for reliable, consistent results every
time you print. Simply and conveniently replace cartridges
with HP SureSupply™ shopping and online ordering.4
• Easy to use—Your time is precious, so you want an
effortless printing experience. The
HP Color LaserJet CM4730 MFP’s award-winning HP Easy
Select Control Panel redefines usability.5
• Effortlessly deliver finished output. With scalable finishing
features, you’ll save. Add the stapler/stacker with job
offset to the HP Color LaserJet 4700 series printer to staple
your documents or separate print jobs for easy retrieval.
For the HP Color LaserJet CM4730 MFP series, choose the
500-sheet stapler/stacker to staple up to 30 pages or the
700-sheet 3-bin mailbox to assign print, copy, and fax
output to different mailboxes or assign users to each tray.1
• Boost productivity with a multifunction product.1 The
HP Color LaserJet CM4730 MFP series delivers the same
great printer capabilities as the HP Color LaserJet 4700
series printer, plus offers your workgroup easy, highquality two-sided scanning, copying, and fax via the
automatic document feeder (ADF).
Preserves your budget
• Designed for the way you work—This MFP series delivers
the office functions you perform 96% of the time—letterand legal-sized printing. While tabloid printing and copycentric features are nice to have, are they worth the extra
expense? Avoid the up to 65% higher purchase prices
of comparable digital devices and the up to 36%
higher total cost per page.6 When you’re looking for an
MFP that truly fits your usage needs, consider a purchase
that makes the most financial sense—relevant functionality
at a price that makes sense.7
Standard and available features vary according to model. See “Technical Specifications” on page 5 for more details.
HP Digital Sending Software 4 is optional (not included, sold separately). Software is server based, server required. Trial is included.
Using genuine HP supplies ensures availability of all HP printing features.
4
To learn more about HP SureSupply™, visit www.hp.com/go/SureSupply.
5
Buyer’s Lab gave HP a "Pick of the Year" award in December 2006 for "Outstanding Achievement for the User Interface
Design of its Multifunction Printers.”
6
Purchase figure is based on cost comparisons with comparable workgroup-class digital devices available as of June 2006.
Total Cost Per Page (TCPP) figure based on short- and long-life consumables, hardware, and service at 6,000 pages/month:
color TCPP quoted, mono (black) has a 20% cost advantage.
7
Source: Proprietary study of general office paper use worldwide, Lyra Research Inc.
1
2
3
HP Color LaserJet 4700 series printer
1
750-sheet stapler/stacker
with job offset staples up to
30 sheets for instant reports
or presentations
2
Automatic two-sided printing
at full engine speed
3
100-sheet multipurpose tray
handles heavy custom media
up to 58 lb bond
(220 g/m2)
4
5
6
HP Color LaserJet 4700ph+ printer shown
1
Five universal 500-sheet
input trays support paper up
to 32 lb bond (120 g/m2)
Control panel simultaneously
displays up to four lines of
text and animated graphics
Front door allows convenient
access to all four HP print
cartridges and supplies
7
40 GB HP high-performance
embedded hard disk
8
544 MB total memory
quickly and easily handles
complex print jobs
9
Hi-Speed USB 2.0 port
10 Host USB accessory port
2
5
9
6
10
7
11
12
8
3
13
4
11 Bidirectional IEEE-1284-C
parallel port
12 HP Jetdirect Fast Ethernet
embedded print server
13 Two open EIO slots
Right side view
Front view
Series at a glance
HP Color LaserJet 4700n printer
(Q7492A)
• 100-sheet multipurpose tray and
500-sheet input tray 2 for a 600-sheet
capacity
• 500-sheet output bin
• 128 MB RAM
• One empty DIMM slot and two empty
flash memory slots
• HP Jetdirect Fast Ethernet embedded
print server
• Two open EIO slots
HP Color LaserJet 4700dn printer
(Q7493A)
HP Color LaserJet 4700dtn printer
(Q7494A)
HP Color LaserJet 4700n plus:
HP Color LaserJet 4700n plus:
HP Color LaserJet 4700n plus:
• Additional 128 MB RAM for 256
• Two additional 500-sheet input trays
• Four additional 500-sheet input trays
MB total memory
• Automatic two-sided printing
for a1,600-sheet capacity
• Additional 128 MB RAM for
256 MB total memory
• Automatic two-sided printing
• Printer stand
HP Color LaserJet 4700ph+ printer
(Q7495A)
for a 2,600-sheet capacity
• 750-sheet stapler/stacker with job
offset in place of the 500-sheet
output bin
• 40 GB HP high-performance
embedded hard disk
• Additional 384 MB RAM for
512 MB total memory
• Automatic two-sided printing
• Printer stand
HP Color LaserJet CM4730 MFP series
1
HP Easy Select Control Panel
provides effortless interaction
with the MFP
2
50-sheet ADF scanner
processes two sided documents
at full speed
3
100-sheet multipurpose tray
handles heavy custom media
up to 58 lb bond (220 g/m2)
4
Side door allows convenient
access to four, all-in-one HP
print cartridges
5
700-sheet, 3-bin mailbox
allows you to sort by user,
print, copy, or fax jobs
6
Full-speed, automatic two-sided
printing
7
Three adjustable 500-sheet
input trays support paper up to
32 lb bond (120 g/m2)
8
1
2
3
4
5
8
9
6
Foreign interface harness for
third-party paper-handling
solutions
9
Hi-Speed USB 2.0 ports
10
IEEE-1284 C parallel port
11
HP Jetdirect Fast Ethernet
embedded print server
12
RJ-11 fax port
13
One open EIO slot to add even
more functionality, including
Apple networking
14
448 MB total memory quickly
and easily handles complex
print jobs
15
40 GB HP high-performance
embedded hard disk
10
12
13
11
14
15
7
HP Color LaserJet
CM4730fm MFP front view
HP Color LaserJet
CM4730fm MFP rear view
Series at a glance
CM4730
CM4730f
CM4730fsk
CM4730fm
100-sheet multipurpose tray
√
√
√
√
Three 500-sheet input trays
√
√
√
√
500-sheet output bin
√
√
not available
not available
448 MB
448 MB
448 MB
448 MB
HP Jetdirect Fast Ethernet print server
√
√
√
√
Built-in automatic two-sided printing
√
√
√
√
40 GB high performance hard drive
√
√
√
√
HP LaserJet MFP Analog Fax Accessory 300
optional
√
√
√
500-sheet stapler stacker
optional
optional
√
not available
700-sheet, 3-bin mailbox
optional
optional
not available
√
Memory
Get the best-in-class color laser solution that meets your
workgroup’s demanding performance and print quality needs.
Vivid color and powerful performance
Intelligent printing
If you want brilliant print quality that exceeds your
expectations every time you print, but you don’t want to
make a lot of adjustments or sacrifice fast printing speed and
flexible features, then these devices offer just what you’ve
been looking for. For vibrant color documents and
expandable paper-handling capabilities, choose the
HP Color LaserJet 4700 series printer, with an input capacity
of up to 2,600 sheets as well as finished output with the
optional 750-sheet stapler/stacker with job offset.8
Designed with office workgroups in mind, the product is
simple to install, use, and maintain.
The HP Color LaserJet CM4730 MFP series expands on the
performance and output quality of the
HP Color LaserJet 4700 series printer by offering the ability
to copy, scan, fax, and digitally send documents to e-mail or
network folder. (You cannot upgrade the printer to include
these features.) The MFP also offers a standard input
capacity of up to 1,600 sheets and a choice of paperhandling output solutions with the 700-sheet, 3-bin mailbox
or the 500-sheet, stapler/stacker.8
In-house color marketing
Print short-run color documents in-house, quickly and
affordably. When you print materials in-house, you have
control over the process: you ensure that printing is effective,
efficient, and affordable, and that any private company
information stays safe. Printing frequently updated materials
on-demand, such as promotional material or brochures,
means that you can make changes at a moments notice and
never waste printed material due to obsolete information.
You also save the time and cost of inventory management.
Companies ranging from small to large report that HP’s
affordable, best-in-class color solutions deliver money to their
bottom line. Some ways, such as improving your image and
adding impact to marketing publications, are indirect, while
others are direct and measurable, such as productivity gains
and tangible cost savings with in-house color printing.
HP ColorSphere toner
With HP ColorSphere toner, your prints will shine with
uniform gloss and a dynamic range of color. The toner
features gloss levels that are significantly improved over
previous HP color toners when printing on glossy paper.
Improved melting and fusing technologies work in sync with
the toner to enable superior toner release and flow. The
result is brilliant, intense colors and excellent photo quality
output for your business documents.
HP’s color toner enables a finer range of colors because
each toner particle conforms to an extremely consistent size
and shape. This consistency allows particles to be placed on
the page with the precision needed to produce a wide range
of colors with the most subtle differences in shading.
HP ColorSphere toner is also designed to enable faster
printing time. The toner particles are chemically grown
around an optimally sized wax core, producing particle sizes
that are designed to work with HP's fusing technology for
faster printing without sacrificing quality.
8
9
• Integrate documents into workflows with the
HP Color LaserJet CM4730 MFP series. Optional
HP Digital Sending Software 4 facilitates document
workflow and enhances business communications by
enabling Optical Character Recognition (OCR), and
sending to shared network folders and fax services,
including LAN fax, Internet fax, and Windows® fax
services.
• HP completely redefines the term usability with the
HP Color LaserJet CM4730 MFP’s radically simple,
award-winning HP Easy Select Control Panel. Take
advantage of your MFP’s complete feature set with an
intuitive interface that clearly displays all available
applications. The HP Color LaserJet 4700 series printer
control panel offers complete, timely information about the
printer and print jobs. Designed for quick and easy
troubleshooting, the control panel displays up to four lines
of text and animated graphics simultaneously.
• An always-on, internal clock improves product availability
for both the HP Color LaserJet CM4730 MFP series and
HP Color LaserJet 4700 series printer. Once configured,
the product can be configured to automatically wake up
from sleep mode so that it is ready to work when you are.
HP color management tools
The HP color access control solution makes color printing and
copying more affordable than ever by helping you control
who uses color and when they use it:
• Control color copying. Color copy lockout allows IT
administrators to password-protect the
HP Color LaserJet CM4730 MFP series as a black-andwhite-only copier, so you can control when and how color
is used in your workgroup.
• Assign color access to specific users or workgroups. Use
either your printer’s embedded Web server or HP Web
Jetadmin’s fleet configuration capability to designate who
has access to color printing. That way, people who truly
need color—such as your sales team and marketing
department—can use it.
• Assign color access by application. Designate certain
applications for printing color and others for printing
black-and-white to ensure that users only print color on
their most important print jobs and that other printouts—
such as Web pages—are always black-and-white.
• Shut down color completely or temporarily disable color
capability. Disable color printing on shared printers—
locking out all individuals and workgroups—so you can
save your color resources for special projects or seasonal
needs. HP Web Jetadmin’s Print Driver Pre-configuration
Plug-in lets IT Administrators set users’ print settings to
control color printing by print queue.
• Track color use by job, by user, and by device. HP Web
Jetadmin’s Report Generation Plug-in generates real-time
and periodic usage reports that make it easy to track color
use by job, by user, and by device. Plus, it allows you to
easily allocate costs to individual departments.9
Standard and available features vary according to model. See “Technical Specifications” on page 5 for more details.
Billing solutions are an optional feature available at an additional cost through HP’s solution partners.
Technical specifications
4700n (Q7492A)
Print and copy speed10
First page out, printing
Print resolution
Features
Copying
Faxing
Scanning
Digital sending
Processor
Memory, standard
Available memory slots
Memory, maximum
Hard disk
Maximum monthly duty cycle11
Recommended monthly
volume12
Media
Paper handling
Two-sided printing
Output
Sizes
Weights
Types
Connectivity
Interfaces
Network connectivity
Fax interface
Languages
Fonts
Client operating systems
Network operating systems13
Network protocols
supported13
Dimensions (w by d by h)
Weight
What’s in the box
Also includes
Environmental ranges
Operating temperature
Relative humidity
Altitude
Acoustics
Power
Pressure (bystander)
Required input voltage15
Power consumption15
Active, printing
Active, scanning
Ready
Standby
PowerSave
Off
Typical Electricity
Consumption (TEC)
Power certifications
EMC
Safety
Telecom
Warranty
HP SureSupply™ enabled
4700dn (Q7493A)
4700dtn (Q7494A)
4700ph+ (Q7695A)
CM4730 MFP
(CB480A)
CM4730f MFP
(CB481A)
CM4730fsk MFP (CB482A) CM4730fm MFP (CB483A)
Up to 31 ppm
Less than 10 seconds letter, Ready; less than 16.5 seconds letter, PowerSave
Up to 31 ppm, letter (color and black-and-white); Up to 30 ppm, legal (black-and-white)
Less than 10 seconds letter, Ready;
Less than 12 seconds letter, Ready;
less than 17.5 seconds letter, PowerSave
less than 25 seconds letter, PowerSave
600 by 600 dpi, with HP ImageREt 3600
Not available
Not available
Up to 999 copies; reduce or enlarge from 25 to 400% (from scanner glass), 25 to 200% (from ADF)
Optional via fax
Fax speed: up to 33.6 kbps; JBIG compression, fax forwarding, fax polling,
accessory
broadcasting to up to 100 locations, speed dial (up to 100 numbers), auto fax
reduction, and auto redialing supported
Not available
Color flatbed scanner or ADF; up to 600 by 600 dpi 30 bit (flatbed), up to 600 by 300 dpi 30 bit (ADF);
scan input modes: copy, e-mail, fax, secondary e-mail, folder, workflow
Not available
Via optional HP Digital Sending Software: secondary e-mail, send-to-folder, send-to-workflow,
authentication, digital fax (send-to-LAN, Windows 2000, Internet); formats: PDF, JPEG, TIFF, MTIFF
533 MHz RISC
160 MB total
288 MB total
544 MB total
448 MB: 384 MB RAM and 64 MB fixed memory
Expandable via one available DIMM slot for memory and two available flash memory card slots for font
Expandable via 256 DIMMS, two available flash memory slots for font cards or third party solutions
cards or third party solutions
544 MB RAM
512 MB RAM
Optional 20 GB HP high-performance via EIO slot
40 GB HP high-performance
100,000 pages
175,000 pages
3,000 to 10,000 pages
5,000 to 9,000 pages
100-sheet multipurpose tray
100-sheet multipurpose
500-sheet input trays 2, 3, 4 for a total of 1,600 sheets
tray, 500-sheet trays 2,
50-sheet ADF
3, 4, 5, 6 for a total of
2,600 sheets
Manual
Standard automatic two-sided printing
500-sheet face-down output bin
750-sheet stapler/
500-sheet face-down output bin
500-sheet
700-sheet 3-bin mailbox
stacker with job offset
stapler/stacker
Multipurpose tray: 3 by 5 in (76 by 127 mm) to 8.5 by 14 in (216 by 356 mm); letter, legal, statement,
Multipurpose tray: 3 by 5 in (76 by 127 mm) to 8.5 by 14 in (216 by 356 mm); letter, legal, executive,
executive, envelopes (No. 10, commercial); 500-sheet input trays: 5.8 by 8.3 in (148 by 210 mm) to 8.5
16k, envelopes (No. 10, commercial,); 500-sheet input trays: 5.8 by 8.3 in (148 by 210 mm) to 8.5 by
by 14 in (216 by 356 mm); letter, legal, executive; custom sizes not supported for automatic two-sided
14 in (216 by 356 mm); letter, legal, executive, custom sizes not supported for automatic two-sided
printing, optional 3-bin mailbox, and stapling with the optional stapler/stacker
printing, optional 3-bin mailbox, and stapling with the optional stapler/stacker
Multipurpose tray: 16 to 58 lb bond (60 to 220 g/m2); Automatic two-sided printing, 500-sheet input trays,
Multipurpose tray: 16 to 60 lb bond (60 to 220 g/m2); Automatic two-sided printing unit, 500-sheet input
2
optional 3-bin mailbox, stapling with the optional stapler/stacker: 16 to 32 lb bond (60 to 120 g/m )
trays, optional 3-bin mailbox, optional stapler/stacker: 16 to 32 lb bond (60 to 120 g/m2)
Paper (plain, preprinted, letterhead, prepunched, bond, recycled, color, light, intermediate, heavy, extra heavy, rough, glossy, heavy glossy, tough), transparencies, labels, envelopes, card stock
100-sheet multipurpose tray, 500-sheet tray 2 for a
total of 600 sheets
100-sheet multipurpose
tray, 500-sheet trays 2,
3, 4 for a total of 1,600
sheets
Bidirectional IEEE-1284-C parallel port, Hi-Speed USB 2.0 port, two open EIO slots, foreign interface for
Bidirectional IEEE-1284-C parallel port, Hi-Speed USB 2.0 port, one open EIO slot, foreign interface
third party solutions, Host USB accessory port
harness, Host USB accessory port
HP Jetdirect Fast Ethernet embedded print server
Not available
Optional
RJ-11 fax port
HP PCL6, HP PCL5c, HP postscript level 3 emulation, direct PDF printing (v 1.4), PML (Printer Management Language)
93 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation; additional font solutions
80 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation; additional font solutions
available via flash memory
available via flash memory
Windows 98, 2000, Me, XP Home, XP Professional, Server 2003; Mac OS 9.x and higher; Mac OS X
Windows Vista™ x86, Vista x64, 2000, XP x86, Windows Server 2003 x86, Windows Server 2003
10.1 or higher; optional: OS/2, UNIX®, HP OpenVMS
x64, XP x64; Mac OS X v10.2, v10.3, v10.4 or later
Microsoft Windows Vista Compatible, Vista Premium, XP, Server 2003, XP, 2003 64-bit, XP 64-bit, 2000
Via the HP Jetdirect print server: Windows 98, 2000, Me, XP Home, XP Professional, XP 64-bit, Server
(IPv6 only supported on Windows 2003 and Windows XP; IPsec on IPv4 only on Windows 2003 and
2003; Novell NetWare 3.2, 4.2, 5.x, 6.x (NDPS); Mac OS 8.6 or higher; Red Hat Linux 6.x, 7.x; SuSE
Windows XP); Novell 5.1 and later; Mac OS X v10.2, v10.3, v10.4 or later; Red Hat Linux 7.x and
Linux 6.x; HP-UX 10.20, 11.x; Solaris 2.5x, 2.6, 7, 8 (SPARC systems only); IBM AIX 3.2.5 or higher;
later; SuSE Linux 8.x and later; HP-UX 10.20, 11.x, 11.i; Solaris 2.5 and later (SPARC systems only); IBM
MPE-iX; Citrix MetaFrame; Windows Terminal Services; optional: OS/2, UNIX, HP OpenVMS
AIX 3.2.5 and later; MPE-iX; Citrix MetaFrame Server; Windows Terminal Services
Via the HP Jetdirect print server: TCP/IP (IP Direct Mode; may require software from the NOS vendor or 3rd
IPv6: DHCPv6, HTTP, HTTPS, Port 9100, IP Direct Mode, LPD, IPP, MLDv6, ICMPv6, Apple Bonjour
party vendor: LPD, FTP, IPP), IPX/SPX, DLC/LLC, AppleTalk, Auto-IP, Apple Rendezvous compatible, NDS,
Compatible, FTP, WS-Discovery; IPv4: FTP, IPP2, Auto-IP, Apple Bonjour Compatible, Telnet, SLP,
Bindery, NCP, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP v 1, v 2c and v 3, HTTP
IGMPv2, BOOTP/DHCP, WINS, SNMPv1/v2c/v3, TFTP, HTTP, HTTPS, Port 9100, LPD, IP Direct Mode;
Other: IPX/SPX, AppleTalk, NetWare NDS, Bindery, NDPS, iPrint
20.5 by 23.5 by
20.5 by 23.5 by
24.8 by 28.2 by
24.8 by 28.2 by
31 by 25.2 by 45.4 in
43.5 by 25.2 by 45.4 in
22.9 in (521 by 598
24.7 in (521 by 598
39.8 in (630 by 715
54.2 in (630 by 715
(788 by 639 by 1153 mm)
(1106 by 639 by 1153 mm)
by 582 mm)
by 628.6 mm)
by 1010.6 mm)
by 1375.5 mm)
105.1 lb (47.7 kg)
107.8 lb (48.9 kg)
230 lb (104.3 kg)
288 lb (130.5 kg)
273 lb (124 kg)
298 lb (136 kg)
MFP; HP Jetdirect Fast Ethernet embedded print server; power cord; IEEE 1284-C parallel cable; software
Printer, HP Jetdirect Fast Ethernet embedded print server, power cable, software drivers and documentation
drivers and documentation on CD; in-box documentation: Getting Started Guide; full capacity 12,000-page
on CD, in-box documentation: Getting Started Guide, full-capacity 11,000-page black and 10,000-page
black, cyan, magenta, and yellow HP Color LaserJet print cartridges14 with HP ColorSphere toner; 100cyan, magenta, and yellow HP Color LaserJet print cartridges14 with HP ColorSphere Toner, one 100-sheet
multipurpose tray, one 500 sheet input tray
sheet multipurpose tray; 500-sheet input trays 2, 3, 4; 50-sheet ADF
4700n plus: Automatic
4700dn plus: Printer
4700dtn plus: 40 GB
CM4730 plus:
CM4730f plus: 500CM4730fsk plus:
two-sided printing
stand
embedded hard drive,
HP LaserJet MFP Analog
sheet stapler/stacker
700-sheet, 3-bin
accessory
stapler/stacker with job
Fax Accessory 300, phone
mailbox
offset
cord, Fax Install Guide
Operating: 50° to 86° F (10° to 30° C); recommended: 62.6° to 77° F (17° to 25° C)
Operating: 10 to 80 %; recommended: 30 to 70 %
0 to 7500 ft (0 to 2300 m)
Operating: 59° to 86° F (15° to 30° C); recommended: 63° to 77° F (17° to 25° C)
Operating: 10 to 70 %; recommended: 20 to 60 %
0 to 8530 ft (0 to 2600 m)
Active: 6.7 B(A); Ready: 7.7 B(A)
Active: 50 dB(A), standby: 31 d(B)A
110 to 127 V (±10%), 50/60 Hz (±2 Hz); 220 to 240 V (±10%), 50/60 Hz (±2 Hz)
Active: 6.8 B(A), copying; 6.3 B(A), printing; Ready: inaudible
Active: 52 dB(A), copying; 50 dB(A), printing; Ready: inaudible
110 to 127 VAC (±10%), 50/60 Hz (±2 Hz)
567 watts
591 watts
55 watts
17 watts
63 watts
623 watts
720 watts
760 watts
85 watts
66 watts
18 watts
0.3 watts
6.522kWh/Week
ENERGY STAR® qualified models; see: http://www.hp.com/go/energystar
26 watts
0.42 watts
7.731 kWh/Week
ENERGY STAR® qualified models; see: http://www.hp.com/go/energystar
CISPR 22:2005 / EN 55022:2006 Class A, EN 61000-3-2:2000, EN 61000-3-3:1995, EN
CISPR 22: 1997/EN 55022: 1998 Class B; EN 61000-3-2: 1995/A14; EN 61000-3-3: 1995; EN
55024:1998, FCC Title 47 CFR, Part 15 Class A / ICES-003, Issue 4 / GB9254-1998, GB17625.155024: 1998; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 3/GB9254-1998, GB17625.1-1998;
2003, EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC and carries the CEEMC Directive 89/336/EEC, the Low Voltage Directive 73/23/EEC, and carries the CE-Marking
Marking accordingly
accordingly
Argentina (TUV S Mark-Rs.92/98/Ds.1009/98), Australia (AS/NZ 3260), Canada (cUL-CAN/CSA
Canada (cUL-CAN/CSA C22.2 No.60950-1-03), USA (UL-UL 60950-1; FDA-21 CFR Chapter 1
C22.2 No.60950-00), Mexico (NOM NYCE-NOM 019 SCFI), USA (UL-UL 60950; FDA-21 CFR Chapter 1
Subchapter J for lasers). Class 1 Laser/LED Product.)
Subchapter J for lasers); Class 1 Laser/LED Product
Not available
TBR-21:1998; EG 201 121:1998, FCC Part 68, Industry Canada CS03
One-year, next day, on-site limited hardware warranty with phone and e-mail support
One-year, next day, on-site limited warranty
To learn more about HP SureSupply™, please visit www.hp.com/go/SureSupply
Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or
groups.
12
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
13
Not all protocol and operating system combinations are supported. For more information, go to: www.hp.com/support/net_printing.
14
All print cartridge page yields are based at five percent page coverage. Declared yield value in accordance with ISO/IEC 19752. For more information, visit www.hp.com/go/pageyield.
15
Values subject to change. See www.hp.com/support/clj4700 or www.hp.com/support/clj4730 for current information. Power reported is the highest value measured using all standard voltages.
10
11
Ordering information
HP Color LaserJet 4700 series printer
Number
HP Color LaserJet CM4730 MFP series
Number
HP
HP
HP
HP
Q7492A
Q7493A
Q7494A
Q7495A
HP
HP
HP
HP
CB480A
CB481A
CB482A
CB483A
Color
Color
Color
Color
LaserJet 4700n printer
LaserJet 4700dn printer
LaserJet 4700dtn printer
LaserJet 4700ph+ printer
Accessories
500-sheet paper input feeder
750-sheet stapler/stacker with job offset16
Printer stand
Q5950A
Q5951A
Q5952A
Q5953A
Connectivity accessories
HP Jetdirect 625n Gigabit Ethernet internal print server
HP Jetdirect 635n IPv6/IPsec and Gigabit Ethernet internal print server
HP Jetdirect ew2400 802.11g Wireless & Fast Ethernet external print
server (USB Hi-Speed)
HP Jetdirect en3700 Fast Ethernet external print server (USB Hi-Speed)
HP bt1300 Bluetooth® Wireless Printer Adapter
J7960G
J7961G
J7951G
J7942G
J6072G
Memory and storage
20 GB HP high-performance EIO hard disk
128 MB 200-Pin DDR DIMM
256 MB 200-Pin DDR DIMM
512 MB 200-Pin DDR DIMM
U3795E
H3113E
H2872E
Paper
North America: www.hp.com/go/everydaypapers
Contact HP via phone: USA: 1-800-477-5010
Third-party solutions
www.hp.com/go/gsc
HP
HP
HP
HP
HP
HP
HP
Jetdirect
Jetdirect
Jetdirect
Jetdirect
Jetdirect
Jetdirect
Jetdirect
en1700 USB 2.0 Print Server
en3700 USB 2.0 Print Server (print only)
ew2400 wireless USB 2.0 Print Server (print only)
510x Parallel Print Server (print only)
300x Parallel Print Server (print only)
635n EIO Print Server
630n EIO Print Server
128 MB 200-Pin DDR DIMM
256 MB 200-Pin DDR DIMM
512 MB 200-Pin DDR DIMM
Parallel cable, 3-meter IEEE 1284 (a to c)
Parallel cable, 10-meter IEEE 1284 (a to c)
J7988G
J7942G
J7951G
J7983G
J3263G
J7961G
J7997G
Q7721A
Q7722A
Q7723A
C2946A
C2947A
Supplies
Staple cartridge (5,000 staples) for stapler/stacker
ADF replacement Mylar sheets
ADF maintenance kit
110 volt image fuser
220 volt image fuser
110 volt image transfer kit
C8091A
Q6496A
Q5997A
Q7502A
Q7503A
Q7504A
Service and support
3-year, warranty service, 4-hour response, standard business hours (9x5)
3-year, warranty service, 4-hour response, extended business hours
(13x5)
3-year, next business day response
Networked hardware installation and configuration
Paper
North America: www.hp.com/go/everydaypapers
Contact HP via phone: 1-800-477-5010
Third-party solutions
www.hp.com/go/gsc
Compatible with HP Color LaserJet 4700dn, 4700dtn, and 4700ph+ printer models only.
17
All print cartridge page yields are based at five percent page coverage. Declared yield value in
accordance with ISO/IEC 19752. For more information, visit www.hp.com/go/pageyield.
16
© Copyright 2005-2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
The Bluetooth trademarks are owned by its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR and the ENERGY STAR
logo are registered U.S marks. Linux is a U.S. registered trademark of Linus Torvalds. Microsoft, Windows, Windows NT and Windows XP are
registered trademarks of Microsoft Corporation. RED HAT READY™ Logo and RED HAT CERTIFIED PARTNER™ Logo are trademarks of Red Hat,
Inc. Microsoft, Windows, and Windows XP are U.S. registered trademarks of Microsoft Corporation. UNIX is a registered trademark of The Open
Group. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Printed in U.S.A.
For more information visit our website at www.hp.com
4AA1-1150ENUC, Rev. 1.2, 05/2007
Q6460A
Q6461A
Q6462A
Q6463A
Connectivity accessories
Cables
Service and support
3-year warranty service, 4-hour response, standard business hours (9x5)
3-year next business day response
Networked hardware installation and configuration
Black Print Cartridge (12,000 pages)
Cyan Print Cartridge (12,000 pages)
Yellow Print Cartridge (12,000 pages)
Magenta Print Cartridge (12,000 pages)
C2946A
C2947A
C6518A
C8091A
Q7502A
Q7503A
Q7504A
Q7521A
Q7523A
Q3701A
T1936AA
T1943AA
HP Color LaserJet Print Cartridges with HP ColorSphere Toner17
Memory and storage
Supplies
Staple cartridge (5,000 staples) for stapler/stacker with job offset
110 volt image fuser
220 volt image fuser
110 volt image transfer kit
500-sheet stapler/stacker
700-sheet, 3-bin mailbox
HP LaserJet MFP Analog Fax Accessory 300
HP Digital Sending Software 4
HP AutoStore
J6073A
Q7721A
Q7722A
Q7723A
Cables
Parallel cable, 3-meter IEEE 1284 (a to c)
Parallel cable, 10-meter IEEE 1284 (a to c)
HP USB cable, 1.83-meter (a-b)
LaserJet CM4730 MFP
LaserJet CM4730f MFP
LaserJet CM4730fsk MFP
LaserJet CM4730fm MFP
Accessories and software
Q7499A
Q7003A
Q7501A
HP Color LaserJet Print Cartridges with HP ColorSphere Toner17
Black Print Cartridge (11,000 pages)
Cyan Print Cartridge (10,000 pages)
Yellow Print Cartridge (10,000 pages)
Magenta Print Cartridge (10,000 pages)
Color
Color
Color
Color
HC116E
HC119E
HC113E
U2010E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
