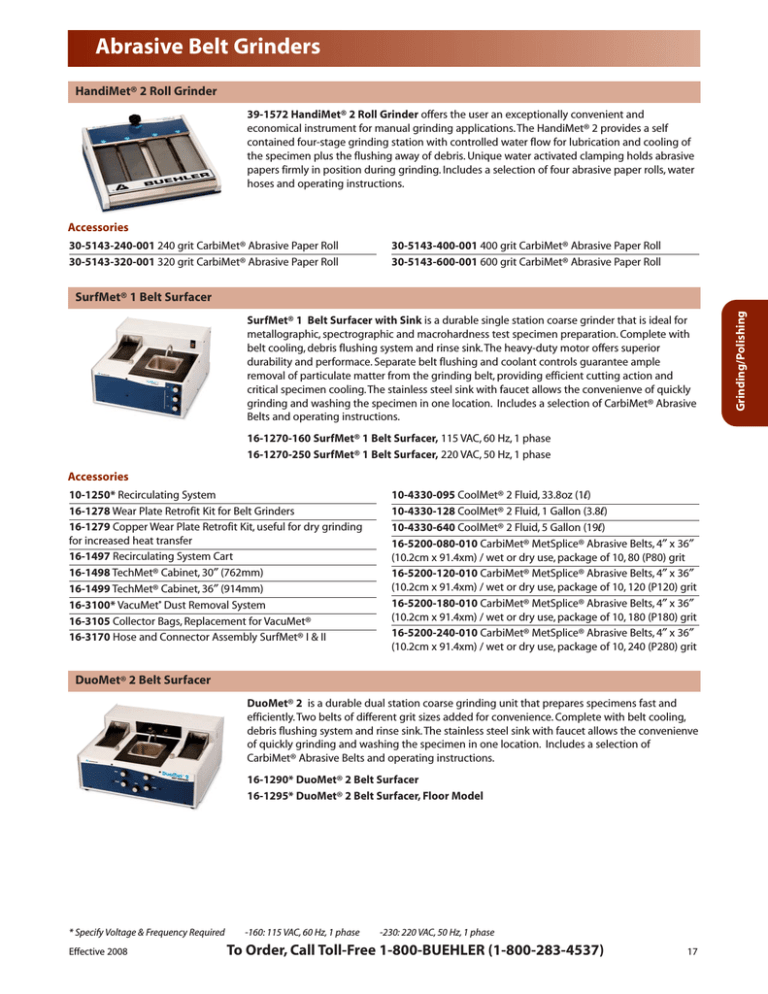

Abrasive Belt Grinders
HandiMet® 2 Roll Grinder
39-1572 HandiMet® 2 Roll Grinder offers the user an exceptionally convenient and
economical instrument for manual grinding applications. The HandiMet® 2 provides a self
contained four-stage grinding station with controlled water flow for lubrication and cooling of
the specimen plus the flushing away of debris. Unique water activated clamping holds abrasive
papers firmly in position during grinding. Includes a selection of four abrasive paper rolls, water
hoses and operating instructions.
Accessories
30-5143-240-001 240 grit CarbiMet® Abrasive Paper Roll
30-5143-320-001 320 grit CarbiMet® Abrasive Paper Roll
30-5143-400-001 400 grit CarbiMet® Abrasive Paper Roll
30-5143-600-001 600 grit CarbiMet® Abrasive Paper Roll
SurfMet® 1 Belt Surfacer with Sink is a durable single station coarse grinder that is ideal for
metallographic, spectrographic and macrohardness test specimen preparation. Complete with
belt cooling, debris flushing system and rinse sink. The heavy-duty motor offers superior
durability and performace. Separate belt flushing and coolant controls guarantee ample
removal of particulate matter from the grinding belt, providing efficient cutting action and
critical specimen cooling. The stainless steel sink with faucet allows the convenienve of quickly
grinding and washing the specimen in one location. Includes a selection of CarbiMet® Abrasive
Belts and operating instructions.
16-1270-160 SurfMet® 1 Belt Surfacer, 115 VAC, 60 Hz, 1 phase
16-1270-250 SurfMet® 1 Belt Surfacer, 220 VAC, 50 Hz, 1 phase
Accessories
10-1250* Recirculating System
16-1278 Wear Plate Retrofit Kit for Belt Grinders
16-1279 Copper Wear Plate Retrofit Kit, useful for dry grinding
for increased heat transfer
16-1497 Recirculating System Cart
16-1498 TechMet® Cabinet, 30″ (762mm)
16-1499 TechMet® Cabinet, 36″ (914mm)
16-3100* VacuMet® Dust Removal System
16-3105 Collector Bags, Replacement for VacuMet®
16-3170 Hose and Connector Assembly SurfMet® I & II
10-4330-095 CoolMet® 2 Fluid, 33.8oz (1l)
10-4330-128 CoolMet® 2 Fluid, 1 Gallon (3.8l)
10-4330-640 CoolMet® 2 Fluid, 5 Gallon (19l)
16-5200-080-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 80 (P80) grit
16-5200-120-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 120 (P120) grit
16-5200-180-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 180 (P180) grit
16-5200-240-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 240 (P280) grit
DuoMet® 2 Belt Surfacer
DuoMet® 2 is a durable dual station coarse grinding unit that prepares specimens fast and
efficiently. Two belts of different grit sizes added for convenience. Complete with belt cooling,
debris flushing system and rinse sink. The stainless steel sink with faucet allows the convenienve
of quickly grinding and washing the specimen in one location. Includes a selection of
CarbiMet® Abrasive Belts and operating instructions.
16-1290* DuoMet® 2 Belt Surfacer
16-1295* DuoMet® 2 Belt Surfacer, Floor Model
* Specify Voltage & Frequency Required
Effective 2008
-160: 115 VAC, 60 Hz, 1 phase
-230: 220 VAC, 50 Hz, 1 phase
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
17
Grinding/Polishing
SurfMet® 1 Belt Surfacer
In-Table/Tabletop & Flush Mount Grinder-Polishers
DuoMet® 2 Belt Surfacer
Accessories
10-1250* Recirculating System
16-1497 Recirculating System Cart
16-1498 TechMet® Cabinet, 30″ (762mm)
16-1499 TechMet® Cabinet, 36″ (914mm)
16-3100* VacuMet® Dust Removal System
16-3180 Hose and Connector Assembly DuoMet® II
16-5200-080-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 80 (P80) grit
16-5200-120-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 120 (P120) grit
16-5200-180-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 180 (P180) grit
16-5200-240-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10, 240 (P280) grit
SuperMet® Coarse Grinder
The SuperMet® Grinder is a heavy-duty rotary coarse grinder with rapid material removal rates
designed to planar grind specimen surfaces. The SuperMet® Grinder comes with a balanced 12″
(305mm) bronze wheel powered by an 1800 rpm, 3 Hp (2.2 kW) motor, and a selection of
abrasive discs. It is offered in a 30″ (762mm) or 36″ (914mm) table height, or without a table,
which can be custom flush mounted.
15-1230-260 SuperMet® Grinder, 30″ (762mm) height, 220 VAC, 60 Hz, 3 phase
15-1230-460 SuperMet® Grinder, 30″ (762mm) height, 440 VAC, 60 Hz, 3 phase
15-1231-260 SuperMet® Grinder, 36″ (914mm) height, 220 VAC, 60 Hz, 3 phase
15-1231-460 SuperMet® Grinder, 36″ (914mm) height, 440 VAC, 60 Hz, 3 phase
15-1232-260 SuperMet® Grinder, Flush Mount (w/o table), 220 VAC, 60 Hz, 3 phase
15-1232-460 SuperMet® Grinder, Flush Mount (w/o table), 440 VAC, 60 Hz, 3 phase
Accessories
15-5112-060-100 CarbiMet®, 60 Grit, Pack of 100
15-5112-120-100 CarbiMet®, 120 Grit, Pack of 100
15-5112-180-100 CarbiMet®, 180 Grit, Pack of 100
MiniMet® 1000 Grinder-Polisher
MiniMet® 1000 is designed for low volume laboratories preparing single specimens. This
semi-automatic grinder-polisher prepares a wide variety of materials using the three self
contained preparation bowls and easy-to-use touch panel controls. Its space saving design
employs a patented geometric action that combines the advantages of hand-lapping as well as
mechanical polishing. This motion provides a random polishing action, eliminating any induced
polishing artifacts. Comes complete with 3 polishing bowls, 3 glass discs, a small quantity of
consumables and operating instructions. CE marked.
69-1100 MiniMet® 1000, 80-264 VAC, 50/60 Hz, 1 phase
Accessories
69-1111 Caged Specimen Holder, for 1″ (25mm) or 14″ (32mm)
Mounted Specimens
69-1112 Caged Specimen Holder, for 12″ (38mm) Mounts
69-1500 Polishing Bowls, 1 each Black, White, Blue, 4″ (100mm)
Diameter
69-1502 Storage Caddie for MiniMet® Bowls, Set of 3
69-1510 Replacement Glass Discs, Set of 3
69-1550 MiniMet® Alignment Fixture, With 3 Drill Bits
69-1552 Set of Three Drill Bits (Replacement)
69-1560 MiniMet® Precision Thinning Attachment
69-1561 Glass Specimen Supports
69-1562 Glass Circular Slides, .496″ (13mm) Diameter,
(50 Pieces)
18
69-1566 MiniMet® 1000 Precision Thinning Attachment
69-1567 Glass Disc, 2.145″ (55mm) Diameter, (5 Pieces)
69-1570 MiniMet® Electro-mechanical Attachment
69-1575 Electro-mechanical Accessories
69-1580 MiniMet® Thin Section Attachment includes 3 bowls,
glass and section holder
69-1581 Thin Section Bowls, 1 each Black, White, Blue,
4w″ (121mm) Diameter
69-1582 Thin Section Glass Platens, Replacement,
4″ (100mm) diameter
69-1583 MiniMet® Thin Section Slide Holder
69-1590 MiniMet® Wafer Polishing Attachment
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
Effective 2008
In-Table/Tabletop & Flush Mount Grinder-Polishers
MiniMet® 1000 Grinder-Polisher
69-1111 & 69-1112 Caged Sample
Holder
69-1566 MiniMet® Precision Thinning
Attachment
69-1580 Thin Section Attachment
MetaServ® 3000 Grinder-Polisher
NEW
The MetaServ 3000® Grinder-Polishers are reliable and economical. Features include variable
platen speed from 50 to 500 rpm, corrosion resistant molded base, bright LED power indicator,
adjustable water flow nozzle and universal input voltage. Available in both single and dual
platens. Designed for use with 8″ (203mm), 10″ (254mm) or 12″ (305mm) platens. All are
upgradeable to semi-automatic preparation systems with the addition of the Vector® LC Power
Head. All MetaServ 3000 Grinder-Polishers include aluminum platen(s), splash ring(s), bowl
cover(s), paper holding band(s), cloth clamp(s), electrical power cord and operating instructions.
CE marked.
95-2900 MetaServ® 3000 Grinder-Polisher, 8″ (203mm)
95-2910 MetaServ® 3000 Grinder-Polisher, 10″ (254mm)
95-2920 MetaServ® 3000 Grinder-Polisher, 12″ (305mm)
95-2930 MetaServ® 3000 Grinder-Polisher, Dual, 8″ (203mm)
95-2940 MetaServ® 3000 Grinder-Polisher, Dual, 10″ (254mm)
Accessories
30-2008 Paper Holding Band, 8″ (203mm)
40-0500 Aluminum Platen, 10″ (254mm)
40-2058 Cloth Clamp, 8″ (203mm)
40-4061 Aluminum Platen, 8″ (203mm)
46-2012 Cloth Clamp, 12″ (305mm)
46-2013 Paper Holding Band, 12″ (305mm)
49-1777 Aluminum Platen, 12″ (305mm)
95-2825 Paper Holding Band, 10″ (254mm)
95-2826 Cloth Clamp, 10″ (254mm)
60-1996-115 Vector® LC Power Head, 115 VAC, 60 Hz, 1 Phase
60-1996-230 Vector® LC Power Head, 230 VAC, 50 Hz, 1 Phase
Alpha and Beta Grinder-Polishers
Alpha and Beta Grinder-Polishers are affordable, manual grinder-polishers offered in either
single or dual platen versions; both can be used with either an 8″ (203mm) or 10″ (254mm)
platen. The Alpha grinder-polisher offers the convenience of a basic two-speed grinder-polisher
(180/360 rpm). The Beta grinder-polisher offers the versatility of variable wheel speed (30-600
rpm). Both the Alpha and Beta feature rugged, quiet operation, heavy-duty mineral cast bases
and a w Hp (690 W) motor for long-lasting service. The Alpha and Beta grinder-polishers can be
upgraded to semi-automatic operation with the addition of the Vector® Power Head. Platens sold
separately. CE marked.
49-5500-115 Alpha Grinder-Polisher, Single Platen, 115 VAC, 50/60Hz 1 phase
49-5500-230 Alpha Grinder-Polisher, Single Platen, 230 VAC, 50/60Hz 1 phase
49-5502-115 Alpha Grinder-Polisher, Dual Platen, 115 VAC, 50/60Hz 1 phase
49-5502-230 Alpha Grinder-Polisher, Dual Platen, 230 VAC, 50/60Hz 1 phase
49-5100-115 Beta Grinder-Polisher, Single Platen, 115 VAC, 50/60Hz 1 phase
49-5100-230 Beta Grinder-Polisher, Single Platen, 230 VAC, 50/60Hz 1 phase
49-5102-115 Beta Grinder-Polisher, Dual Platen, 115 VAC, 50/60Hz 1 phase
49-5102-230 Beta Grinder-Polisher, Dual Platen, 230 VAC, 50/60Hz 1 phase
Effective 2008
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
19
Grinding/Polishing
69-1502 Storage Caddie for MiniMet®
Bowls, Set of 3
In-Table/Tabletop & Flush Mount Grinder-Polishers
Accessories
30-2008 Paper Holding Band, 8″ (203mm)
40-0500 Aluminum Platen, 10″ (254mm) Diameter
40-2058 Cloth Clamp, Screw, 8″ (203mm) Wheel
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
40-4061 Aluminum Platen, 8″ (203mm)
40-4062 Bronze Platen, 8″ (203mm)
40-4063 Precision Lapped Aluminum Platen, 8″ (203mm)
41-2739-208-001 Apex® B Plate, 8″ (203mm)
41-2739-210-001 Apex® B Plate, 10″ (254mm)
41-2739-608-001 Apex® M Magnetic Disc, 8″ (203mm)
41-2739-610-001 Apex® M Magnetic Disc, 10″ (254mm)
41-2740-308-001 8″ (203mm) ApexHercules® H
(for Materials ≥ HRC20 HV236)
41-2740-310-001 10″ (254mm) ApexHercules® H
(for Materials ≥ HRC20 HV236)
41-2740-408-001 8″ (203mm) ApexHercules® S
(for Materials < HRC20 HV236)
41-2740-410-001 10″ (254mm) ApexHercules® S
(for Materials < HRC20 HV236)
60-3022 Bowl Cover
Vector® Power Head
60-1990 Vector® Power Head when paired with any Alpha or Beta base unit, the Vector®
Power Head will increase specimen production and repeatability. The Vector Power Head has
convenient touch pad controls with LED display of Head Direction, Run/Stop, Dispenser, Time,
Units of Force and Water. Capacity is 1-4 specimens in Single mode and up to 6 specimens in
Central mode. (Specimen holders sold separately.) CE marked.
Accessories
40-2800 PriMer® 3000 Modular Dispensing System
40-2834 Tri Satellite Adapter
40-2810 PriMet® Modular Dispensing Satellite
60-2482 Specimen Holder, Barrel, 6 x 1″ (25mm) for 8″ (203mm)
Systems
60-2483 Specimen Holder, Barrel, 6 x 14″ (32mm) for 8″ (203mm)
Systems
60-2484 Specimen Holder, Barrel, 3 x 14″ (32mm) for 8″ (203mm)
Systems
60-2485 Specimen Holder, Barrel, 3 x 12″ (38mm) for 8″ (203mm)
Systems
60-2486 Specimen Holder, Barrel, 6 x 30mm for 8″ (203mm)
Systems
60-2487 Specimen Holder, Barrel, 6 x 40mm for 8″ (203mm)
Systems
NEW
60-2499 Adapter for Lift Lock
60-3001 Vector® Single Force Specimen Holders, 4 x 1″ (25mm)
60-3002 Vector® Single Force Specimen Holders, 4 x 14″ (32mm)
60-3003 Vector® Single Force Specimen Holders, 4 x 12″ (38mm)
60-3004 Vector® Single Force Specimen Holders, 4 x 25mm
60-3005 Vector® Single Force Specimen Holders, 4 x 30mm
60-3006 Vector® Single Force Specimen Holders, 4 x 40mm
60-3007 Vector® Retaining Rings (Set of 12 Assorted Sizes)
60-3024 Gravity Feed Lubricator for Vector® LC and Vector® Power
Head
60-3025 Lubricator Stand, Holds 3 Gravity Feed Lubricators
60-3050 Single Force Specimen Holder, 25 x 75mm Glass Slide
Vector® LC Power Head
60-1996* Vector® LC Power Head upgrades the Alpha/Beta or MetaServ 3000 family of
manual grinders to semi-automatic systems, increasing specimen consistency. This affordable
unit has basic features and simple to operate controls. Single pressure application allows for the
preparation of one to four specimens at a time and includes an integrated drip lubricator and
splash guard. The Vector® LC is used primarily for lower volume applications. (Specimen holders
sold separately.) CE marked.
* Specify Voltage & Frequency Required
20
-115: 115 VAC
-230: 230 VAC
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
Effective 2008
In-Table/Tabletop & Flush Mount Grinder-Polishers
Vector® LC Power Head
Accessories
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
40-2834 Tri Satellite Adapter
60-2499 Lift Lock Adapter
60-3001 Vector® Single Force Specimen Holders, 4 x 1″ (25mm)
60-3002 Vector® Single Force Specimen Holders, 4 x 1¼″ (32mm)
60-3003 Vector® Single Force Specimen Holders, 4 x 1½″ (38mm)
60-3004 Vector® Single Force Specimen Holders, 4 x 25mm
60-3005 Vector® Single Force Specimen Holders, 4 x 30mm
60-3006 Vector® Single Force Specimen Holders, 4 x 40mm
60-3007 Vector® Retaining Rings (Set of 12 Assorted Sizes)
The PoliMet® 1000 series of high torque, variable speed grinder-polishers are designed to be
flush mounted into a table for hand preparation of a wide variety of materials. They offer speeds
of 100 to 1200 rpm, for aggressive grinding and polishing and are available in 8″ (203mm) and
12″ (305mm) models. Selected 8″ (203mm) models are available with and without sinks.
All models include appropriate bronze platen and mechanical brake. These sturdy grinderpolishers are easily mounted in Buehler TechMet® tables or your own laboratory countertops.
CE marked.
47-2890* PoliMet® 1000 Grinder-Polisher, 12″ (305mm), flush
47-2890T* PoliMet® 1000 Grinder-Polisher, 12″ (305mm), table
47-2895* PoliMet® 1000 Grinder-Polisher, 8″ (203mm), flush
47-2895T* PoliMet® 1000 Grinder-Polisher, 8″ (203mm), table
47-2896* PoliMet® 1000 Grinder-Polisher, 8″ (203mm), flush without sink
47-2896T* PoliMet® 1000 Grinder-Polisher, 8″ (203mm), table, without sink
Accessories
40-4048 Bronze Platen, 8″ (203mm) Plain
46-4032 Bronze Platen, 12″ (305mm) Plain
EcoMet® 3000 Grinder-Polisher
EcoMet® 3000 is an 8″ (203mm) tabletop grinder-polisher with variable speed selection from
10-500 rpm in 10 rpm increments. Impact resistant cabinet, bowl flush and pop-up faucet adds
to the convenience of this compact and versatile unit. This unit comes complete with aluminum
platen, splash guard with removable cover, plus a sampling of SiC grinding papers and
polishing cloths. CE marked.
49-1760 EcoMet® 3000 Variable Speed Grinder-Polisher, 8″ (203mm)
49-1760DI EcoMet® 3000 Variable Speed Grinder-Polisher D/I Water, 8″ (203mm)
49-1760SS EcoMet® 3000 Grinder-Polisher, 8″ (203mm), With Low Speed Gearbox,
Speed range 1-50rpm in 1rpm increments
49-3300 EcoMet® 3000 Grinder-Polisher, 8″ (203mm), Flush Mounted
49-3300SS EcoMet® 3000 Grinder-Polisher, 8″ (203mm), Flush Mounted, With Low Speed
Gearbox, Speed range 1-50rpm in 1rpm increments
Accessories
30-2008 Paper Holding Band, 8″ (203mm)
40-2058 Cloth Clamp, Screw, 8″ (203mm) Platen
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
40-2834 Tri Satellite Adapter
40-2704 Cable for Dispensing System
40-4061 Aluminum Platen, 8″ (203mm)
* Specify Voltage & Frequency Required
Effective 2008
-160: 115 VAC, 60 Hz
40-4062 Bronze Platen, 8″ (203mm)
40-4063 Precision Lapped Aluminum Platen, 8″ (203mm)
41-2739-208-001 Apex® B Plate, 8″ (203mm)
41-2739-608-001 Apex® M Magnetic Disc, 8″ (203mm)
41-2740-308-001 8″ ApexHercules® H (for Materials ≥ HRC20
HV236)
41-2740-408-001 8″ ApexHercules® S (for Materials < HRC20
HV236)
-250: 220 VAC, 50 Hz
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
21
Grinding/Polishing
PoliMet® 1000
In-Table/Tabletop & Flush Mount Grinder-Polishers
EcoMet® 4000 Grinder-Polisher
EcoMet® 4000 is a variable speed 12″ (305mm) grinder-polisher that delivers the power you
need for either manual or semi-automatic specimen preparation applications. This tabletop
machine utilizes a heavy-duty 1 Hp (740W) DC motor to provide variable speeds from 10 to
500rpm in 10rpm increments. Unit comes complete with aluminum platen, splash guard with
removable cover, plus a sampling of SiC grinding papers and polishing cloths. CE marked.
49-1780 EcoMet® 4000 Variable Speed Grinder-Polisher, 12″ (305mm)
49-1780DI EcoMet® 4000 Grinder-Polisher, DI Water, 12″ (305mm)
49-1780S1 EcoMet® 4000 Variable Speed Grinder-Polisher, 12″ (305mm), Low Speed
(1-50rpm)
49-3330 EcoMet® 4000 Grinder-Polisher, 12″ (305mm), Flush Mount
Accessories
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
41-2739-212-001 Apex® B Plate, 12″ (305mm)
41-2739-612-001 Apex® M Magnetic Disc, 12″ (305mm)
41-2740-312-001 12″ (305mm) ApexHercules® H (for materials ≥
HRC20 HV236)
41-2740-412-001 12″ (305mm) ApexHercules® S (for materials
<HRC20 HV236)
46-2012 Cloth Clamp Screw, 12″ (305mm)
46-2013 Paper Holding Band, 12″ (305mm)
49-1777 Aluminum Platen, 12″ (305mm)
49-1778 Bronze Platen, 12″ (305mm)
49-1779 Precision Lapped Aluminum Platen, 12″ (305mm)
EcoMet® Twin Variable Speed Grinder-Polisher
EcoMet® Twin Variable Speed Grinder-Polisher is a dual platen 8″ (203mm) table-top
grinder-polisher with variable speed selection from 10-350 rpm in 10 rpm increments. Impact
resistant cabinet, bowl flush and pop-up faucets add to the convenience of this compact and
versatile unit. This unit comes complete with aluminum platens, splash guards, removable
covers, and a sampling of SiC grinding papers and polishing cloths. CE marked.
49-1890 EcoMet® Twin Variable Speed Grinder-Polisher, 8″ (203mm)
Accessories
30-2008 Paper Holding Band, 8″ (203mm)
40-2058 Cloth Clamp, Screw, 8″ (203mm) Wheel
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
40-4061 Aluminum Platen, 8″ (203mm)
40-4062 Bronze Platen, 8″ (203mm)
40-4063 Precision Lapped Aluminum Platen, 8″ (203mm)
41-2739-208-001 Apex® B Plate, 8″ (203mm)
41-2739-608-001 Apex® M Magnetic Disc, 8″ (203mm)
41-2740-308-001 8″ (203mm) ApexHercules® H
(for materials ≥ HRC20 HV236)
41-2740-408-001 8″ (203mm) ApexHercules® S
(for materials <HRC20 HV236)
AutoMet® 2000 & 3000 Power Heads
Increase specimen production and consistency by adding an AutoMet® 2000 or 3000 to any
EcoMet® base unit converting them into a central force semi-automatic preparation system.
Both AutoMet’s are microprocessor controlled using a systems approach, important for
productivity and reproducibilty. The front facia panels feature a LED display, controlling such
variables as time, force, head direction, platen speed and fluid dispensing. The AutoMet® 3000
moves to the next level of automation by adding nonvolatile 99 method memory with 9 steps
per method programmability. Specimen holders sold separately. CE marked.
60-1970 AutoMet® 2000 Power Head
60-1980 AutoMet® 3000 Microprocessor Power Head
22
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
Effective 2008
In-Table/Tabletop & Flush Mount Grinder-Polishers
AutoMet® 2000 & 3000 Power Heads
Accessories
40-2800 PriMet® 3000 Modular Dispensing System
60-2482 Specimen Holder, Barrel, 6 x 1″ and 25mm for 8″ (203mm)
Systems
60-2483 Specimen Holder, Barrel, 6 x 14″ (32mm) for 8″ (203mm)
Systems
60-2484 Specimen Holder, Barrel, 3 x 14″ (32mm) for 8″ (203mm)
Systems
60-2485 Specimen Holder, Barrel, 3 x 12″ (38mm) for 8″ (203mm)
Systems
60-2486 Specimen Holder, Barrel, 6 x 30mm for 8″ (203mm) System
60-2487 Specimen Holder, Barrel, 3 x 40mm for 8″ (203mm) Systems
60-2499 Drive Adapter, for use with Lift-Type Chuck - Barrel Holders
60-5296 Specimen Holder, Teardrop, 5 x 2″ for 12″ (305mm) Systems
60-5297 Specimen Holder, Rectangle, 5 x 55mm x 30mm for 12″
(305mm) Systems
60-5298 Specimen Holder, Rectangle, 3 x 70mm x 40mm for 12″
(305mm) Systems
60-5299 Specimen Holder, Barrel, 5 x 2″ for 12″ (305mm) Systems
PowerPro® 5000 Variable Speed Specimen Preparation System, is a high performance
system with Central and Single force application options, accepts both 10″ (254mm) and 12″
(305mm) platens, semi-automatic, with a powerful 2 Hp (1500Watt) motor. The system is programmable via an LCD with 25 proven Buehler Sum-Met™ methods for a variety of materials,
plus available programming space for 25 modified Buehler methods or 25 user methods. This
technically advanced system is the first tabletop machine of its kind to prepare specimens
using the Zaxis™ Macro Material Removal System, available with the PowerPro Series. Zaxis is a
unique feature that allows the operator to remove material by desired depth. Conventional
time-based methodology is available. Additional features include automatic force calculation
based on number of specimens and specimen size. Dual head speeds and variable base speeds
are all standard on all PowerPro Systems. CE marked.
49-6000 PowerPro® 5000 Variable Speed Preparation System, standard with Zaxis™ Macro
Material Removal System
49-6001 PowerPro® 5000 Variable Speed Grinder-Polisher System is the same as the
49-6000 except without Zaxis™ Macro Material Removal System
PowerPro® 4000 Variable Speed Grinder-Polisher System is the same as the PowerPro 5000 with these exceptions: standard
without preprogrammed Buehler Sum-Met methods and automatic force calculation. Additionally, the PowerPro® 4000 stores the last
operating parameters for both grinding and polishing. Just press Grind, set your operating parameters and unless changed, your
grinding parameters are stored to be used again and again. Just like Grind, choose your Polishing parameters and the last settings will
be retained by the PowerPro 4000.
49-6113 PowerPro® 4000 Variable Speed Grinder-Polisher System, standard with Zaxis™ Macro Material Removal System
49-6050 PowerPro® 4000 Variable Speed Grinder-Polisher System is the same as the 49-6113 except without Zaxis™ Macro
Material Removal System
PowerPro® 3000 Variable Speed Grinder-Polisher System is the same powerful system as its other family members the PowerPro®
5000 and the PowerPro® 4000. The one feature that sets this machine apart is that it operates in Central force application only.
49-6114 PowerPro® 3000 Variable Speed Grinder-Polisher System is standard with Zaxis™ Macro Material Removal System and
Central force application only.
49-6100 PowerPro® 3000 Variable Speed Grinder-Polisher System is the same as the 49-6114 except without Zaxis™ Macro
Material Removal System
PowerPro® 5000 Plus Systems come complete with all the features of the PowerPro® 5000, plus all the other accessories to begin
your work. This includes (1) 10″ or 12″ platen, (1) Apex® Quick-Change Magnetic System, (1) PriMet® 3000 Modular Dispensing
System, (2) PriMet® Satellites, your selection of (1) Specimen Holder, (1) Apex® DGD Diamond Grinding Disc or Apex® DGD Color Disc,
all cables and connectors, and enough consumables, tailored to fit your needs and keep you running for weeks.
49-6115 PowerPro® 5000 Plus System (Primarily for Central force applications)
49-6116 PowerPro® 5000 Plus System (Primarily for Single force applications)
49-6110 Zaxis™ Macro Material Removal System for 49-6001, 49-6050, 49-6100. This after delivery purchase must be Factory
installed at Buehler’s, Lake Bluff location.
Effective 2008
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
23
Grinding/Polishing
PowerPro® 3000, 4000 & 5000 Variable Speed Grinder-Polishers Systems
In-Table/Tabletop & Flush Mount Grinder-Polishers
PowerPro® 3000, 4000 & 5000 Variable Speed Grinder-Polishers Systems
Accessories
40-2800 PriMet® 3000 Modular Dispensing System
40-2810 PriMet® Modular Dispensing Satellite
60-5252 Specimen Holder, Teardrop, 9 x 14″, for 12″ (305mm)
Systems
40-2707 Cable (9 pin) for Connection of PowerPro® 5000 to
PriMet® 3000
60-5253 Specimen Holder, Teardrop, 6 x 12″, for 12″ (305mm)
Systems
40-3825 Lube Bottle
60-5266 Specimen Holder, Clamp, 12 x 25mm
40-0500 Aluminum Platen, 10″ (254mm)
60-5267 Specimen Holder, Clamp, 10 x 30mm
49-1777 Aluminum Platen, 12″ (305mm)
60-5268 Specimen Holder, Clamp, 8 x 40mm
49-6111 Water Recirculation System
60-5269 Specimen Holder, Clamp, 3 x 50mm
49-8002 Drive Adapter for Specimen Holders, Central Force
60-5270 Specimen Holder, Rectangular, 3 x 3″ x 1.375″
(76mm x 35mm)
49-8007 Drive Adapter for Wirtz old style Specimen Holders
60-2100 Single Specimen Holder, 6 x 2″ (50mm) Cavities
60-2102 Distance Ring, 6, 30mm
60-2103 Distance Ring, 6, 14″ (32mm)
60-2104 Distance Ring, 6, 12″ (38mm)
60-5274 Specimen Holder, Blank, for 12″ (305mm) Systems
60-5281 Specimen Holder, Round, Barrel, 10 x 1″ and 25mm, for
12″ (305mm) Systems
60-5282 Specimen Holder, Round, Barrel, 10 x 14″ (32mm), for
12″ (305mm) Systems
60-5283 Specimen Holder, Round, 6 x 12″ (38mm), for 12″
(305mm) Systems
60-2105 Distance Ring, 6, 40mm
60-2106 Distance Ring, 6, 1″ (25mm)
60-5287 Specimen Holder, Round, Barrel, 10 x 30mm, for 12″
(305mm) Systems
60-2410 Specimen Loading Fixture
60-2412 Specimen Loading Plate, reversible for 10″ & 12″
holders
60-3013 Specimen Holder, Round Barrel, 1″ Diameter,
6 Specimens, for 10″ (254mm) Systems
60-3014 Specimen Holder, Round Barrel, 14″ Diameter,
6 Specimens, for 10″ (254mm) Systems
60-3015 Specimen Holder, Round Barrel, 12″ Diameter,
3 Specimens, for 10″ (254mm) Systems
60-3016 Specimen Holder, Round Barrel, 30mm Diameter,
6 Specimens, for 10″ (254mm) Systems
60-3017 Specimen Holder, Round Barrel, 40mm Diameter,
3 Specimens, for 10″ (254mm) Systems
60-5288 Specimen Holder, Round, Barrel, 6 x 40mm, for 12″
(305mm) Systems
60-5289 Specimen Holder, Round, Barrel, 3 x 2″ (50mm), for 12″
(305mm) Systems
60-5296 Specimen Holder Teardrop, 5 x 2″ (50mm) for 12″
(305mm) Systems
60-5297 Specimen Holder, Rectangular, 5 x 55mm x 30mm for
12″ (305mm) Systems
60-5298 Specimen Holder, Rectangular, 2 x 70mm x 40mm for
12″ (305mm) Systems
60-5299 Specimen Holder, Round, Barrel, 5 x 2″ (50mm) for 12″
(305mm) Systems
60-3018 Blank Specimen Holder for 10″ (254mm) Systems
60-5251 Specimen Holder, Teardrop, 10 x 1″, for 12″ (305mm)
Systems
BuehlerVanguard® 2000 Fully Automatic Preparation System
63-2000 BuehlerVanguard® 2000 Fully Automatic Preparation System is a microprocessor
controlled fully automatic specimen preparation system. This table-top system combines the
function of a semi-automatic grinder-polisher, a dispensing system, an ultrasonic cleaner, and a
specimen dryer into one compact affordable system. The BuehlerVanguard® 2000 will prepare
repeatably and consistently up to 6 specimens at a time, using either Single or Central force
application in combination with a microprocessor containing a 50 method memory for
specimen preparation methods. This microprocessor allows the user to select from 6
preinstalled proven Buehler methods and up to 44 methods defined by the user. CE marked.
24
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
Effective 2008
In-Table/Tabletop & Flush Mount Grinder-Polishers
BuehlerVanguard® 2000 Fully Automatic Preparation System
40-3824 Plastic Dispensing Bottles, set of 7
48-8282 TechMet® Table Without Cabinet, 54″ x 36″ (13.7cm x
91.5cm)
60-2410 Specimen Loading Fixture
60-2411 Specimen Loading Plate, 8″ (203mm)
60-2482 Specimen Holder, Barrel, 6 x 1″ and 25mm, for 8″ (203mm)
Systems
60-2483 Specimen Holder, Barrel, 6 x 1¼″ (32mm), for 8″ (203mm)
Systems
60-2484 Specimen Holder, Barrel, 3 x 1¼″ (32mm), for 8″ (203mm)
Systems
60-2485 Specimen Holder, Barrel, 3 x 1½″ (38mm), for 8″ (203mm)
Systems
60-2486 Specimen Holder, Barrel, 6 x 30mm, for 8″ (203mm) Systems
60-2487 Specimen Holder, Barrel, 6 x 40mm, for 8″ (203mm) Systems
60-2499 Drive Adapter, for use with Lift-type Chuck - Barrel Holders
63-1001 Aluminum Platen for BuehlerVanguard® Systems, 8″
(203mm)
63-1002 Specimen Holder, Single Force, 6 x 1″ and 25mm Mounts
63-1003 Specimen Holder, Sinlge Force, 6 x 1¼″ (32mm) Mounts
63-1004 Specimen Holder, Single Force, 3 x 1½″ (38mm) Mounts
63-1005 Specimen Holder, Single Force, 6 x 25mm Mounts
63-1006 Specimen Holder, Single Force, 6 x 30mm Mounts
63-1007 Specimen Holder, Single Force, 3 x 40mm Mounts
63-1008 BuehlerVanguard® 2000 Apex® Platen
63-1022 Distance Rings, Central Force, 6 x 1″ (25mm)
63-1023 Distance Rings, Central Force, 6 x 1¼″ (32mm) and 30mm
Specimens
63-1024 Distance Rings, Central Force, 3 x 1½″ (38mm) and 40mm
Specimens
Accessories for Grinder-Polishers
30-2008 Paper Holding Band, for
8″ (203mm) Diameter Platens.
46-2013 Paper Holding Band, for 12″
(305mm) Diameter Platens.
95-2825 Paper Holding Band, for 10″
(254mm) Diameter Platens.
40-2058 Cloth Clamp, for 8″ (203mm)
Platen. 46-2012 Cloth Clamp, for 12″
(305mm) Platen.
95-2826 Cloth Clamp, for 10″ (254mm)
Platen.
49-8002 Drive Adapter for Phoenix®
4000 and PowerPro Systems Type
Specimen Holders, One Required for
Each Holder
60-2100 Single Force Specimen
Holder Plate, With Six 2″ (50mm)
Cavities. Use distance rings for smaller
size specimens.
60-2409 Specimen Holder, for 8″
(203mm) Grinder-Polisher,
Rectangular 1″ x 1¼″ (25mm x 32mm)
Size Specimens, 4 Specimens
60-2422 Specimen Holder, for 8″
(203mm) Grinder-Polisher, Teardrop
(Recommended for Extremely Hard
Materials), 1¼″ (32mm) Size
Specimens, 6 Specimens
60-2482 Specimen Holder, for 8″
(203mm) Grinder-Polisher, Barrel, 1″
(25mm) Size Specimens, 6 Specimens
60-2483 Specimen Holder, for 8″
(203mm) Grinder-Polisher, Barrel, 1¼″
(32mm) Size Specimens, 6 Specimens
60-2484 Specimen Holder, for 8″
(203mm) Grinder/Polisher, Barrel, 1¼″
(32mm) Size Specimens, 3 Specimens
60-2485 Specimen Holder, for 8″
(203mm) Grinder/Polisher, Barrel, 1½″
(38mm) Size Specimens, 3 Specimens
60-2499 Lift-Lock Drive Adapter, for
Central Force Specimen Holders on
AutoMet® and Vector® Power Heads
60-3001 Single Force Specimen
Holder with Retaining Rings, 4 x 1″
(25mm) Specimens
Effective 2008
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
25
Grinding/Polishing
Accessories
Accessories for Grinder-Polishers
26
60-3002 Single Force Specimen
Holder with Retaining Rings, 4 x 1¼″
(32mm) Specimens
60-3003 Single Force Specimen
Holder with Retaining Rings, 4 x 1½″
(38mm) Specimens
60-3004 Single Force Specimen
Holder with Retaining Rings, 4 x
25mm Specimens
60-3005 Single Force Specimen
Holder with Retaining Rings, 4 x
30mm Specimens
60-3006 Single Force Specimen
Holder with Retaining Rings, 40mm
Specimens
60-3024 Gravity Feed Lubricator, for
Vector® LC and Vector® Power Heads
60-3050 Glass Slide Holder, 25 x
75mm, for Vector® Power Heads,
Single Force
60-5245 Specimen Holder, for 12″
(305mm) Grinder/Polisher,
Rectangular, 2″ x 1.375″ (35mm) Size
Specimens, 5 Specimens
60-5252 Specimen Holder, for 12″
(305mm) Grinder/Polisher, Teardrop,
(recommeded for extremely hard materials) 1¼″ (32mm) Size Specimens, 9
Specimens
60-5253 Specimen Holder for 12″″
2″
(305mm) systems, Teardrop style, 12
(32mm), 6 specimens
60-5254 Specimen Holder, for 12″
(305mm) Grinder-Polisher, Blank.
60-2408 Specimen Holder, for 8″
(203mm) Grinder-Polisher, Blank.
60-5266 Specimen Holder for 12″″
(305mm) systems, Clamp style,
1″″ (25mm), 12 specimens
60-5281 Specimen Holder, for 12″″
(305mm) systems, barrel, 1″ and
25mm Size Specimens, 10 Specimens
60-5282 Specimen Holder, for 12″″
(305mm) systems, barrel, 1¼″ (32mm)
Size Specimens, 10 Specimens
60-5283 Specimen Holder, for 12″″
(305mm) systems, barrel, 1½″ (38mm)
Size Specimens, 6 Specimens
60-5287 Specimen Holder, for 12″″
(305mm) systems, barrel, 30mm Size
Specimens, 10 Specimens
60-5288 Specimen Holder, for 12″″
(305mm) systems, barrel, 40mm Size
Specimens, 6 Specimens
60-8015 Specimen Holder for 12″″
(305mm) systems, stainless steel
60-8083 Metallurgical Precision
Grinding Fixture for 1.5″″ (40mm)
specimen sizes; 60-8084 1″″ (25mm)
insert; 60-8085 1.1875″″ (30mm)
insert; 60-8086 1.25″″ (32mm) insert
60-8087 Histolic Precision Grinding
Fixture may be used for a variety of
applications; semiconductor, bone,
thin sections.
To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537)
Effective 2008
Download PDF

advertising
