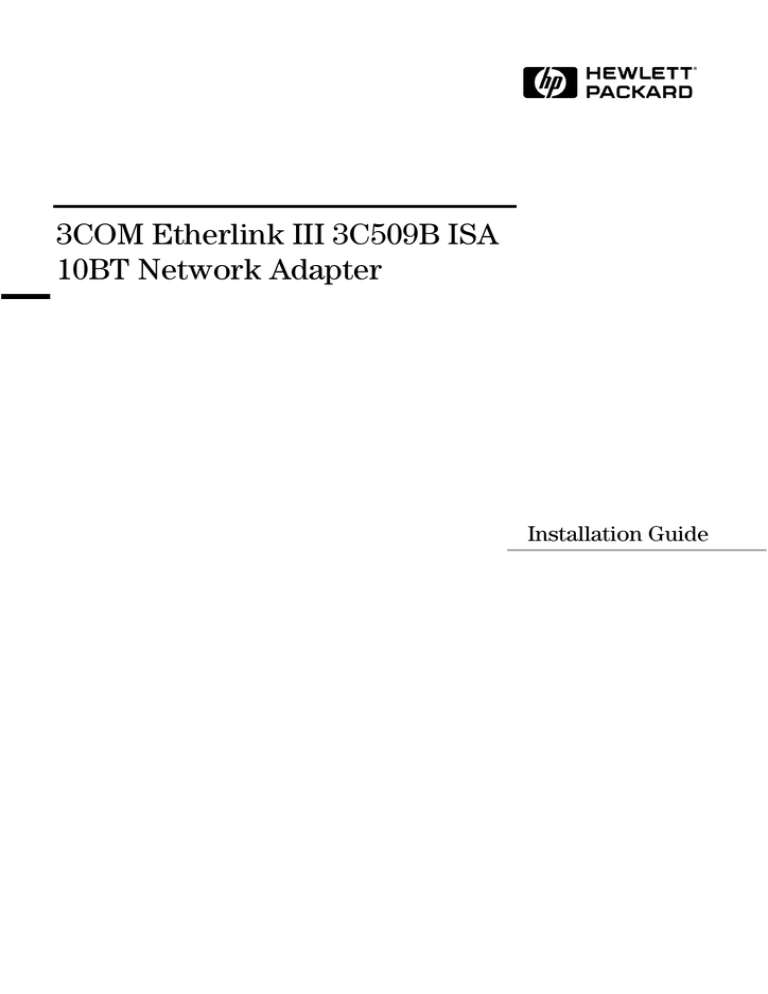

3COM Etherlink III 3C509B ISA
10BT Network Adapter
Installation Guide
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use
of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent
of Hewlett-Packard Company.
Microsoft®, Windows® and MS-DOS® are registered trademarks of Microsoft
Corporation.
MMXTM is a trademark of Intel Corporation.
Pentium® is a registered trademark of Intel Corporation.
Hewlett-Packard France
Commercial Desktop Computing Division
38053 Grenoble Cedex 9
France
©1999 Hewlett Packard Company
General information to read before installing
General information to read before installing
• On all systems : Before installing LAN card, go into Bios setup and set PnP
OS field to NO.
• How to change LAN card configuration if needed (Advanced users only)
This is a general advisory on how to forcibly modify resources for ISA and PCI network
cards.
ISA cards:
• For ISA network adapters, start the configuration tool provided in driver
kit (See install documentation)
• Under CMOS setup, go to Advanced > PnP/PCI ISA IRQ Resource Exclusion > reserve an IRQ for the adapter.
PCI cards:
• For PCI network adapters, go to CMOS setup > Advanced > PnP/PCI ISA
IRQ Resource Exclusion > reserve the IRQ for Legacy ISA.
ISA cards can’t use IRQ9
• IRQ 9 is reported as being used by ACPI during POST. This is due to ISA’s
inability to share IRQs.
• Using a different IRQ (e.g. 5, 7, 10, and 11) will work. For this:
1 Install the NIC then power up the system.
2 Press F2 to go to CMOS setup.
3 Set PnP OS to NO and reserve IRQ 5, 7, 10, or 11 (explained in installation
section)
4 Save the configuration settings and boot to the applicable OS.
5 Follow installation steps.
Sound conflict under Win 95 on VLi8 only
• On VLi8, LAN cards cause an IRQ conflict with the embedded sound device under Win95.
• To solve the problem: Reserve IRQ 5 and sett PNP OS to no. For this:
1 Install the NIC then power up the system
General information to read before installing
2 Press F2 to go to CMOS setup.
3 Set PNP OS to NO and reserve IRQ 5.
4 Save settings and boot to applicable OS.
1 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows 95 SR2.5
1 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows 95
SR2.5
Connecting to a
Requirements
Windows NT 3.51 Server
• HP Vectra with Windows 95 SR2.5.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows 95 SR2.5 media.
• Microsoft Windows NT 3.51 Server system that supports NetBEUI,
NWLink IPX/SPX Compatible Transport and NWLink NetBIOS network
protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
5
210
Vectra VEi7
03
210
Vectra VEi8
07
210
Procedure
1 Power on the system and start Windows 95SR2.5.
2 From the 3COM 3C509B driver disk, run PREINSTL.EXE.
3 Shutdown and power down the system. With the HP Vectra turned off,
install the 3COM 3C509B network adapter into an ISA slot.
4 Connect network cable media to the 3COM 3C509B network adapter.
5 Power on the system and press “SHIFT-<F5>” to boot to Windows 95
command prompt.
6 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
7 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
8 If changes are required, save those changes and exit.
1 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 3.51 Server
9 Remove the 3COM 3C509B driver disk and reboot the system to Windows
95SR2.5.
10 Windows 95SR2.5 will automatically recognize the 3COM 3C509B
network adapter as “3Com 3C509B EtherLink III”.
11 Insert the 3COM 3C509B driver disk in the floppy drive and click on
“Next” from the Update Device Driver Wizard dialog box.
12 When Windows 95 detects the updated driver, “3Com EtherLink III ISA
(3C509b-TP) in PnP mode”, click on “Finish”.
13 During the Update Device Driver process, point to the appropriate file
locations (i.e. drivers disk or Windows 95 CD) to install the necessary
files. Keep newer files when a file being copied is older than the file
currently on your computer.
14 Click on “OK” when the system prompts for the computer and workgroup
names.
15 Enter the Computer Name, Workgroup, and Computer Description in the
appropriate spaces and click on “Close” (Contact your network
administrator if you do not have the required information).
NOTE
According to 3COM, click on “OK” to ignore the error message indicating
“Error enumerating cards. The NIC specific DLL TCAUM509 did not find any
NICs present.”
16 Click on “YES” to restart the system when prompted.
17 Right-click on the “Network Neighborhood” icon and select “Properties”.
18 Accept the default Network Protocols and the Primary Network Logon
(Client for Microsoft Networks) as seen below and click on “OK”. (If you
do not have the required information, contact your network
administrator)
19 Client for Microsoft Networks
Client for Microsoft Networks
3Com EtherLink III ISA (3C509b-TPO) in PnP mode
3Com TCAATDI Diagnostic TDI
IPX/SPX-compatible Protocol
NetBEUI
20 Click on “OK” to accept the configuration.
21 When prompted, specify the path to your Windows 95 files.
22 Click on “Yes” when prompted to restart the system.
2 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows 95 SR2.5
2 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows 95
SR2.5
Connecting to a
Requirements
Windows NT 4.0 Server
• HP Vectra with Windows 95 SR2.5.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and drivers
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows 95 SR2.5 media.
• Microsoft Windows NT 4.0 Server system that supports NetBEUI, NWLink
IPX/SPX Compatible Transport and NWLink NetBIOS network protocols.
• Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
210
Vectra VEi7
03
210
Vectra VEi8
07
210
Procedure
1 Power on the system and start Windows 95SR2.5.
2 From the 3COM 3C509B driver disk, run PREINSTL.EXE.
3 Shutdown and power down the system. With the HP Vectra turned off,
install the 3COM 3C509B network adapter into an ISA slot.
4 Connect network cable media to the 3COM 3C509B network adapter.
5 Power on the system and press “SHIFT-<F5>” to boot to Windows 95
command prompt.
6 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
7 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
8 If changes are required, save those changes and exit.
9 Remove the 3COM 3C509B driver disk and reboot the system to Windows
95SR2.5.
2 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 4.0 Server
10 Windows 95SR2.5 will automatically recognize the 3COM 3C509B
network adapter as “3Com 3C509B EtherLink III”.
11 Insert the 3COM 3C509B driver disk in the floppy drive and click on
“Next” from the Update Device Driver Wizard dialog box.
12 When Windows 95 detects the updated driver, “3Com EtherLink III ISA
(3C509b-TP) in PnP mode”, click on “Finish”.
13 During the Update Device Driver process, point to the appropriate file
locations (i.e. drivers disk or Windows 95 CD) to install the necessary
files. Keep newer files when a file being copied is older than the file
currently on your computer.
14 Click on “OK” when the system prompts for the computer and workgroup
names.
15 Enter the Computer Name, Workgroup, and Computer Description in the
appropriate spaces and click on “Close” (Contact your network
administrator if you do not have the required information).
16 Note: According to 3COM, click on “OK” to ignore the error message
indicating “Error enumerating cards. The NIC specific DLL TCAUM509
did not find any NICs present.”
17 Click on “YES” to restart the system when prompted.
18 Right-click on the “Network Neighborhood” icon and select “Properties”.
19 Accept the default Network Protocols and the Primary Network Logon
(Client for Microsoft Networks) as seen below and click on “OK”. (If you
do not have the required information, contact your network
administrator)
20 Client for Microsoft Networks
Client for Microsoft Networks
3Com EtherLink III ISA (3C509b-TPO) in PnP mode
3Com TCAATDI Diagnostic TDI
IPX/SPX-compatible Protocol
NetBEUI
21 Click on “OK” to accept the configuration.
22 When prompted, specify the path to your Windows 95 files.
23 Click on “Yes” when prompted to restart the system.
3 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows 95 SR2.5
3 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows 95
SR2.5
Connecting to a NetWare Requirements
3.12 Server
• HP Vectra with Windows 95 SR2.5.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and drivers
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows 95 SR2.5 media.
• Novell NetWare 3.12 Server that supports IPX network protocol.
• Novell Client for Windows 95 v2.5 installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
5
210
Vectra VEi7
03
210
Vectra VEi8
07
210
Procedure
1 Power on the system and start Windows 95SR2.5.
2 From the 3COM 3C509B driver disk, run PREINSTL.EXE.
3 Shutdown and power down the system. With the HP Vectra turned off,
install the 3COM 3C509B network adapter into an ISA slot.
4 Connect network cable media to the 3COM 3C509B network adapter.
5 Power on the system and press “SHIFT-<F5>” to boot to Windows 95
command prompt.
6 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
7 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
8 If changes are required, save those changes and exit.
3 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a NetWare 3.12 Server
9 Remove the 3COM 3C509B driver disk and reboot the system to Windows
95SR2.5.
10 Windows 95SR2.5 will automatically recognize the 3COM 3C509B
network adapter as “3Com 3C509B EtherLink III”.
11 Insert the 3COM 3C509B driver disk in the floppy drive and click on
“Next” from the Update Device Driver Wizard dialog box.
12 When Windows 95 detects the updated driver, “3Com EtherLink III ISA
(3C509b-TP) in PnP mode”, click on “Finish”.
13 During the Update Device Driver process, point to the appropriate file
locations (i.e. drivers disk or Windows 95 CD) to install the necessary
files. Keep newer files when a file being copied is older than the file
currently on your computer.
14 Click on “OK” when the system prompts for the computer and workgroup
names.
15 Enter the Computer Name, Workgroup, and Computer Description in the
appropriate spaces and click on “Close” (Contact your network
administrator if you do not have the required information).
NOTE
According to 3COM, click on “OK” to ignore the error message indicating
“Error enumerating cards. The NIC specific DLL TCAUM509 did not find any
NICs present.”
16 Click on “YES” to restart the system when prompted.
17 From the location of the “Novell Client for Windows 95 v.2.5” installation
files, execute “Setup.exe”.
18 Click on “Yes” to accept the License Agreement.
19 Select “Custom” installation and click on “Next”.
20 Select “Bindery (NetWare 3.x)” and click on “Next”.
21 Click on “Install” to start the installation.
22 Click on “Yes” to set the Preferred Server. (If you do not have the
required information, contact your network administrator).
23 Click on “Reboot” to complete the installation.
24 Right-click on the “Network Neighborhood” icon and select “Properties”.
25 Accept the default Network Protocols and the Primary Network Logon to
(Novell NetWare Client) as seen below and click on “OK”. (If you do not
have the required information, contact your network administrator)
3 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a NetWare 3.12 Server
26 Novell NetWare Client
Novell NetWare Client
3COM Etherlink III Bus-Master PCI Ethernet Adapter
IPX 32-bit Protocol for the Novell NetWare Client
IPX/SPX-compatible Protocol
NetBEUI
27 When prompted, specify the path to your Windows 95 files.
28 Click on “Yes” when prompted to restart the system.
4 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows 95 SR2.5
4 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows 95
SR2.5
Connecting to a NetWare Requirements
4.11 Server
• HP Vectra with Windows 95 SR2.5.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and drivers
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows 95 SR2.5 media.
• Novell NetWare 4.11 Server that supports IPX network protocol.
• Novell Client for Windows 95 v2.5 installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
210
Vectra VEi7
03
210
Vectra VEi8
07
210
Procedure
1 Power on the system and start Windows 95SR2.5.
2 From the 3COM 3C509B driver disk, run PREINSTL.EXE.
3 Shutdown and power down the system. With the HP Vectra turned off,
install the 3COM 3C509B network adapter into an ISA slot.
4 Connect network cable media to the 3COM 3C509B network adapter.
5 Power on the system and press SHIFT-<F5> to boot to Windows 95
command prompt.
6 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
7 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
8 If changes are required, save those changes and exit.
4 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a NetWare 4.11 Server
9 Remove the 3COM 3C509B driver disk and reboot the system to Windows
95SR2.5.
10 Windows 95SR2.5 will automatically recognize the 3COM 3C509B
network adapter as “3Com 3C509B EtherLink III”.
11 Insert the 3COM 3C509B driver disk in the floppy drive and click on
“Next” from the Update Device Driver Wizard dialog box.
12 When Windows 95 detects the updated driver, “3Com EtherLink III ISA
(3C509b-TP) in PnP mode”, click on “Finish”.
13 During the Update Device Driver process, point to the appropriate file
locations (i.e. drivers disk or Windows 95 CD) to install the necessary
files. Keep newer files when a file being copied is older than the file
currently on your computer.
14 Click on “OK” when the system prompts for the computer and workgroup
names.
15 Enter the Computer Name, Workgroup, and Computer Description in the
appropriate spaces and click on “Close” (Contact your network
administrator if you do not have the required information).
NOTE
According to 3COM, click on “OK” to ignore the error message indicating
“Error enumerating cards. The NIC specific DLL TCAUM509 did not find any
NICs present.”
16 Click on “YES” to restart the system when prompted.
17 From the location of the “Novell Client for Windows 95 v.2.5” installation
files, execute “Setup.exe”.
18 Click on “Yes” to accept the License Agreement.
19 Select “Custom” installation and click on “Next”.
20 Select “NDS (NetWare 4.x or higher) and click on “Next”.
21 Click on “Install” to start the installation.
22 Click on “Yes” to set the Preferred Tree, Server, etc. (If you do not have
the required information, contact your network administrator).
23 Click on “Reboot” to complete the installation.
24 Right-click on the “Network Neighborhood” icon and select “Properties”.
25 Accept the default Network Protocols and the Primary Network Logon to
(Novell NetWare Client) as seen below and click on “OK”. (If you do not
have the required information, contact your network administrator).
4 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a NetWare 4.11 Server
26 Novell NetWare Client
Novell NetWare Client
3COM Etherlink III Bus-Master PCI Ethernet Adapter
IPX 32-bit Protocol for the Novell NetWare Client
IPX/SPX-compatible Protocol
NetBEUI
27 When prompted, specify the path to your Windows 95 files.
28 Click on “Yes” when prompted to restart the system.
5 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 4.0 Workstation
5 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
4.0 Workstation
Connecting to a
Requirements
Windows NT 3.51 Server
• HP Vectra with Windows NT 4.0 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND4.SYS, version 5.26.40
• Microsoft Windows NT 4.0 Workstation media.
• Microsoft Windows NT 4.0 Service Pack 4 media.
• Microsoft Windows NT 3.51 Server system that supports NetBEUI,
NWLink IPX/SPX Compatible Transport and NWLink NetBIOS network
protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
5
300
Vectra VEi7
5
300
Vectra VEi8
5
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
5 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 3.51 Server
8 Log onto Windows NT4 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Right-click on the “Network Neighborhood” icon and select “Properties”.
10 Click on “Yes” when prompted to install Windows NT Networking.
11 Select “Wired to the network” and click on “Next”.
12 Click on the “Select from list…” button and then the “Have Disk…”
button.
13 Insert the 3COM 3C509B driver disk in the floppy drive.
14 Set the path to “A:\” in the dialog-box and click on “OK”.
15 Choose by highlighting the “3Com EtherLink (3c509) ISA Adapter” and
click on “OK”.
16 With “3Com EtherLink (3c509) ISA Adapter”listed in the “Network
Adapters” window, click on “Next”.
17 Select the applicable network protocols and click on ”Next” (Contact your
network administrator if you do not have the required information).
18 At the “Network Services:” prompt, accept default settings and click on
“Next”.
19 Click on “Next” to continue the network card installation.
20 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT4 Workstation CD) in the dialog box and click on “Continue”.
21 Select ISA for the BUS Type and click on “OK”.
22 The 3COM Installation Wizard will start. This wizard configures the
network adapter.
Select Custom Installation and click on “Next”.
Set adapter resources according to values noted above and click on
“Next”.
Perform NIC Test and click on “Next” if the adapter is operating correctly.
Perform Network Connection Test and click on “Next” if connectivity is
verified.
Do not configure Dynamic Access feature and click on “Next”.
Do not save setting for a future NIC installation and click on “Next”.
Click on “Finish” to complete the installation.
23 Set the path to “A:\” in the dialog box and click on “Continue”.
24 At the “Show Bindings for:” prompt, accept the default settings and click
on “Next”.
25 Click on “Next” to start the network.
5 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 3.51 Server
26 Specify your Computer Name, Workgroup or Domain (Contact your
network administrator if you do not have the required information) and
click on “Next”.
27 Click on “Finish” to complete the installation.
28 Remove the 3Com driver disk from the floppy drive and select “Yes” at the
prompt to shut down and restart your computer for the new settings to
take effect.
29 Log onto Windows NT4 Workstation with administrator privileges.
30 Install the Windows NT4 Service Pack 4 application to correct the error
messages in the Event Viewer.
31 Install the Hewlett-Packard Soft-Power Down application once the
Service Pack 4 has been installed.
6 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 4.0 Workstation
6 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
4.0 Workstation
Connecting to a
Requirements
Windows NT 4.0 Server
• HP Vectra with Windows NT 4.0 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND4.SYS, version 5.26.40
• Microsoft Windows NT 4.0 Workstation media.
• Microsoft Windows NT 4.0 Service Pack 4 media.
• Microsoft Windows NT 4.0 Server system that supports NetBEUI, NWLink
IPX/SPX Compatible Transport and NWLink NetBIOS network protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
6 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 4.0 Server
8 Log onto Windows NT4 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Right-click on the “Network Neighborhood” icon and select “Properties”.
10 Click on “Yes” when prompted to install Windows NT Networking.
11 Select “Wired to the network” and click on “Next”.
12 Click on the “Select from list…” button and then the “Have Disk…”
button.
13 Insert the 3COM 3C509B driver disk in the floppy drive.
14 Set the path to “A:\” in the dialog-box and click on “OK”.
15 Choose by highlighting the “3Com EtherLink (3c509) ISA Adapter” and
click on “OK”.
16 With “3Com EtherLink (3c509) ISA Adapter”listed in the “Network
Adapters” window, click on “Next”.
17 Select the applicable network protocols and click on ”Next” (Contact your
network administrator if you do not have the required information).
18 At the “Network Services:” prompt, accept default settings and click on
“Next”.
19 Click on “Next” to continue the network card installation.
20 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT4 Workstation CD) in the dialog box and click on “Continue”.
21 Select ISA for the BUS Type and click on “OK”.
22 The 3COM Installation Wizard will start. This wizard configures the
network adapter.
Select Custom Installation and click on “Next”.
Set adapter resources according to values noted above and click on
“Next”.
Perform NIC Test and click on “Next” if the adapter is operating correctly.
Perform Network Connection Test and click on “Next” if connectivity is
verified.
Do not configure Dynamic Access feature and click on “Next”.
Do not save setting for a future NIC installation and click on “Next”.
Click on “Finish” to complete the installation.
23 Set the path to “A:\” in the dialog box and click on “Continue”.
24 At the “Show Bindings for:” prompt, accept the default settings and click
on “Next”.
25 Click on “Next” to start the network.
6 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 4.0 Server
26 Specify your Computer Name, Workgroup or Domain (Contact your
network administrator if you do not have the required information) and
click on “Next”.
27 Click on “Finish” to complete the installation.
28 Remove the 3Com driver disk from the floppy drive and select “Yes” at the
prompt to shut down and restart your computer for the new settings to
take effect.
29 Log onto Windows NT4 Workstation with administrator privileges.
30 Install the Windows NT4 Service Pack 4 application to correct the error
messages in the Event Viewer.
31 Install the Hewlett-Packard Soft-Power Down application once the
Service Pack 4 has been installed.
7 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 4.0 Workstation
7 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
4.0 Workstation
Connecting to a Novell
NetWare 3.12 Server
Requirements
• HP Vectra with Windows NT 4.0 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND4.SYS, version 5.26.40
• Microsoft Windows NT 4.0 Workstation media.
• Microsoft Windows NT 4.0 Service Pack 4 media.
• Novell NetWare 3.12 Server that supports IPX network protocol.
• Novell IntranetWare Client for Windows NT v4.11b installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
7 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 3.12 Server
8 Log onto Windows NT4 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Right-click on the “Network Neighborhood” icon and select “Properties”.
10 Click on “Yes” when prompted to install Windows NT Networking.
11 Select “Wired to the network” and click on “Next”.
12 Click on the “Select from list…” button and then the “Have Disk…”
button.
13 Insert the 3COM 3C509B driver disk in the floppy drive.
14 Set the path to “A:\” in the dialog-box and click on “OK”.
15 Choose by highlighting the “3Com EtherLink (3c509) ISA Adapter” and
click on “OK”.
16 With “3Com EtherLink (3c509) ISA Adapter”listed in the “Network
Adapters” window, click on “Next”.
17 Select the applicable network protocols and click on ”Next” (Contact your
network administrator if you do not have the required information).
18 At the “Network Services:” prompt, accept default settings and click on
“Next”.
19 Click on “Next” to continue the network card installation.
20 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT4 Workstation CD) in the dialog box and click on “Continue”.
21 Select ISA for the BUS Type and click on “OK”.
22 The 3COM Installation Wizard will start. This wizard configures the
network adapter.
Select Custom Installation and click on “Next”.
Set adapter resources according to values noted above and click on
“Next”.
Perform NIC Test and click on “Next” if the adapter is operating correctly.
Perform Network Connection Test and click on “Next” if connectivity is
verified.
Do not configure Dynamic Access feature and click on “Next”.
Do not save setting for a future NIC installation and click on “Next”.
Click on “Finish” to complete the installation.
23 Set the path to “A:\” in the dialog box and click on “Continue”.
24 At the “Show Bindings for:” prompt, accept the default settings and click
on “Next”.
25 Click on “Next” to start the network.
7 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 3.12 Server
26 Specify your Computer Name, Workgroup or Domain (Contact your
network administrator if you do not have the required information) and
click on “Next”.
27 Click on “Finish” to complete the installation.
28 Remove the 3Com driver disk from the floppy drive and select “Yes” at the
prompt to shut down and restart your computer for the new settings to
take effect.
29 Log onto Windows NT4 Workstation with administrator privileges.
30 From the location of the “Novell IntranetWare Client v.4.11b” installation
files, execute “Setupnw.exe”.
31 Click on “Continue” to continue with the Novell IntranetWare Client
installation.
32 Click on “Yes” to agree to the Software License Agreement to begin
installation.
33 Click on the “Reboot” button at the completion of the Novell NetWare
Client installation to restart the machine for changes to take effect.
34 Click on the “IntranetWare” tab of the Novell IntranetWare Client Services
Login screen.
35 Select “Bindery Login” and specify the Server Name (Contact your
network administrator if you do not have the required information).
36 Click on the “Login” tab and specify your Name and Password to login.
37 Install the Windows NT4 Service Pack 4 application to correct the error
messages in the Event Viewer.
38 Install the Hewlett-Packard Soft Power Down application once the
Service Pack 4 has been installed.
8 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 4.0 Workstation
8 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
4.0 Workstation
Connecting to a Novell
NetWare 4.11 Server
Requirements
• HP Vectra with Windows NT 4.0 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND4.SYS, version 5.26.40
• Microsoft Windows NT 4.0 Workstation media.
• Microsoft Windows NT 4.0 Service Pack 4 media.
• Novell NetWare 4.11 server that supports IPX network protocol.
• Novell IntranetWare Client for Windows NT v4.11b installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
8 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 4.11 Server
8 Log onto Windows NT4 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Right-click on the “Network Neighborhood” icon and select “Properties”.
10 Click on “Yes” when prompted to install Windows NT Networking.
11 Select “Wired to the network” and click on “Next”.
12 Click on the “Select from list…” button and then the “Have Disk…”
button.
13 Insert the 3COM 3C509B driver disk in the floppy drive.
14 Set the path to “A:\” in the dialog-box and click on “OK”.
15 Choose by highlighting the “3Com EtherLink (3c509) ISA Adapter” and
click on “OK”.
16 With “3Com EtherLink (3c509) ISA Adapter”listed in the “Network
Adapters” window, click on “Next”.
17 Select the applicable network protocols and click on ”Next” (Contact your
network administrator if you do not have the required information).
18 At the “Network Services:” prompt, accept default settings and click on
“Next”.
19 Click on “Next” to continue the network card installation.
20 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT4 Workstation CD) in the dialog box and click on “Continue”.
21 Select ISA for the BUS Type and click on “OK”.
22 The 3COM Installation Wizard will start. This wizard configures the
network adapter.
Select Custom Installation and click on “Next”.
Set adapter resources according to values noted above and click on
“Next”.
Perform NIC Test and click on “Next” if the adapter is operating correctly.
Perform Network Connection Test and click on “Next” if connectivity is
verified.
Do not configure Dynamic Access feature and click on “Next”.
Do not save setting for a future NIC installation and click on “Next”.
Click on “Finish” to complete the installation.
23 Set the path to “A:\” in the dialog box and click on “Continue”.
24 At the “Show Bindings for:” prompt, accept the default settings and click
on “Next”.
25 Click on “Next” to start the network.
8 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 4.11 Server
26 Specify your Computer Name, Workgroup or Domain (Contact your
network administrator if you do not have the required information) and
click on “Next”.
27 Click on “Finish” to complete the installation.
28 Remove the 3Com driver disk from the floppy drive and select “Yes” at the
prompt to shut down and restart your computer for the new settings to
take effect.
29 Log onto Windows NT4 Workstation with administrator privileges.
30 From the location of the “Novell IntranetWare Client v.4.11b” installation
files, execute “Setupnw.exe”.
31 Click on “Continue” to continue with the Novell IntranetWare Client
installation.
32 Click on “Yes” to agree to the Software License Agreement to begin
installation.
33 Click on the “Reboot” button at the completion of the Novell NetWare
Client installation to restart the machine for changes to take effect.
34 Click on the “IntranetWare” tab of the Novell IntranetWare Client Services
Login screen.
35 Select “NDS Login” and specify the Preferred Server Name (Contact your
network administrator if you do not have the required information).
36 Click on the “Login” tab and specify your Name and Password to login.
37 Install the Windows NT4 Service Pack 4 application to correct the error
messages in the Event Viewer.
38 Install the Hewlett-Packard Soft Power Down application once the
Service Pack 4 has been installed.
9 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 3.51 Workstation
9 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
3.51 Workstation
Connecting to a
Requirements
Windows NT 3.51 Server
• HP Vectra with Windows NT 3.51 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows NT 3.51 Workstation media.
• Microsoft Windows NT 3.51 Service Pack 5.
• Microsoft Windows NT 3.51 Server system that supports NetBEUI,
NWLink IPX/SPX Compatible Transport and NWLink NetBIOS network
protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
10
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509B driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
9 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 3.51 Server
8 Log onto Windows NT3.51 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Open the “Network” icon in the “Control Panel” program group.
10 Click on “YES” in the “Network Settings” dialog box to install Windows NT
Networking.
11 Insert the Windows NT 3.51Workstation CD in the CD-ROM drive.
12 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT 3.51 CD) in the dialog-box of the Windows NT Setup window
and click on “Continue”.
13 Click on the “Do Not Detect” button from the “Network Adapter Card
Detection” window, and click on the “Continue” button in the following
“Network Adapter Card Detection” window.
14 From the “Drop Down List”, scroll down and select “<Other> Requires
disk from manufacturer”, then click on “Continue”.
15 Set the path to “A:\” in the “Insert Disk” dialog box, and then insert the
3COM driver disk in the floppy drive and click “OK”.
16 Select “3COM Etherlink (3c509) ISA Adapter” in the “Select OEM
Option” dialog box, and click “OK”.
17 Select ISA for the BUS Type and click on “OK”.
18 Choose the appropriate network protocols by clicking the check boxes in
the “Windows NT Setup” dialog box and click on the “Continue” button
(Contact your network administrator if you do not have the required
information).
19 Press “OK” to continue from “Network Settings” dialog box.
20 If applicable, press “OK” to continue from “NWLink IPX/SPX Protocol
Configuration” dialog box.
21 At the “Domain/Workgroup Settings” dialog box, click on “OK” to accept
the default “Workgroup” as your workgroup name.
22 To complete the installation, remove the floppy disk, and click on “Restart
computer” in the “Windows NT Workstation Networking Setup” dialog
box.
23 Install the Windows NT3.51 Service Pack 5 application.
10 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 3.51 Workstation
10 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
3.51 Workstation
Connecting to a
Requirements
Windows NT 4.0 Server
• HP Vectra with Windows NT3.51 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows NT 3.51 Workstation media.
• Microsoft Windows NT 3.51 Service Pack 5.
• Microsoft Windows NT 4.0 Server system that supports NetBEUI, NWLink
IPX/SPX Compatible Transport and NWLink NetBIOS network protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
10
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
10 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 4.0 Server
8 Log onto Windows NT3.51 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Open the “Network” icon in the “Control Panel” program group.
10 Click on “YES” in the “Network Settings” dialog box to install Windows NT
Networking.
11 Insert the Windows NT 3.51Workstation CD in the CD-ROM drive.
12 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT 3.51 CD) in the dialog-box of the Windows NT Setup window
and click on “Continue”.
13 Click on the “Do Not Detect” button from the “Network Adapter Card
Detection” window, and click on the “Continue” button in the following
“Network Adapter Card Detection” window.
14 From the “Drop Down List”, scroll down and select “<Other> Requires
disk from manufacturer”, then click on “Continue”.
15 Set the path to “A:\” in the “Insert Disk” dialog box, and then insert the
3COM driver disk in the floppy drive and click “OK”.
16 Select “3COM Etherlink (3c509) ISA Adapter” in the “Select OEM
Option” dialog box, and click “OK”.
17 Select ISA for the BUS Type and click on “OK”.
18 Choose the appropriate network protocols by clicking the check boxes in
the “Windows NT Setup” dialog box and click on the “Continue” button
(Contact your network administrator if you do not have the required
information).
19 Press “OK” to continue form “Network Settings” dialog box.
20 If applicable, press “OK” to continue form “NWLink IPX/SPX Protocol
Configuration” dialog box.
21 At the “Domain/Workgroup Settings” dialog box, click on “OK” to accept
the default “Workgroup” as your workgroup name.
22 To complete the installation, remove the floppy disk, and click on “Restart
computer” in the “Windows NT Workstation Networking Setup” dialog
box.
23 Install the Windows NT3.51 Service Pack 5 application.
11 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows NT 3.51 Workstation
11 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows NT
3.51 Workstation
Connecting to a Novell
NetWare 4.11 Server
Requirements
• HP Vectra with Windows NT 3.51 Workstation.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3ND3.SYS, version 5.26.31
• Microsoft Windows NT 3.51 Workstation media.
• Microsoft Windows NT 3.51 Service Pack 5.
• Novell NetWare 4.11 Server system that supports IPX network protocol.
• Novell IntranetWare Client for Windows NT v4.11b installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
10
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the machine and boot to a DOS bootable disk.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and reboot the system to Windows
NT.
11 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 4.11 Server
8 Log onto Windows NT3.51 Workstation with administrator privileges
(Contact your network administrator if you do not have the required
information).
9 Open the “Network” icon in the “Control Panel” program group.
10 Click on “YES” in the “Network Settings” dialog box to install Windows NT
Networking.
11 Insert the Windows NT 3.51Workstation CD in the CD-ROM drive.
12 Set the path to “D:\I386” (D:\ represents the CD-ROM drive with the
Windows NT 3.51 CD) in the dialog-box of the Windows NT Setup window
and click on “Continue”.
13 Click on the “Do Not Detect” button from the “Network Adapter Card
Detection” window, and click on the “Continue” button in the following
“Network Adapter Card Detection” window.
14 From the “Drop Down List”, scroll down and select “<Other> Requires
disk from manufacturer”, then click on “Continue”.
15 Set the path to “A:\” in the “Insert Disk” dialog box, and then insert the
3COM driver disk in the floppy drive and click “OK”.
16 Select “3COM Etherlink (3c509) ISA Adapter” in the “Select OEM Option”
dialog box. Click “OK”.
17 Select ISA for the BUS Type and click on “OK”.
18 Choose the appropriate network protocols by clicking the check boxes in
the “Windows NT Setup” dialog box and click on the “Continue” button
(Contact your network administrator if you do not have the required
information).
19 Press “OK” to continue form “Network Settings” dialog box.
20 If applicable, press “OK” to continue from “NWLink IPX/SPX Protocol
Configuration” dialog box.
21 At the “Domain/Workgroup Settings” dialog box, click on “OK” to accept
the default “Workgroup” as your workgroup name.
22 To complete the installation, remove the floppy disk, and click on “Restart
computer” in the “Windows NT Workstation Networking Setup” dialog
box.
23 From the location of the “Novell IntranetWare Client v.4.11b” install files,
execute Setupnw.exe”.
24 Click on the “Continue” button to proceed with the installation of the
Novell IntranetWare Client.
25 Click on “Yes” to agree to the Software License Agreement to begin
installation.
11 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 4.11 Server
26 Click on the “Reboot” button to restart the machine for the changes to
take effect.
27 Install the Windows NT3.51 Service Pack 5 application.
12 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows for Workgroups 3.11
12 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows for
Workgroups 3.11
Connecting to a
Requirements
Windows NT 4.0 Server
• HP Vectra with MS-DOS and MS-Windows for Workgroups 3.11.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: ELNK3.386, version 1.05.
• Microsoft Windows for Workgroups 3.11 media.
• Microsoft Windows NT 4.0 Server system that supports NetBEUI, NWLink
IPX/SPX Compatible Transport and NWLink NetBIOS network protocols.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
300
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the system and boot to MS-DOS.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and restart the system.
8 After Windows loads, open the “NETWORK” Program Group, and doubleclick on “Network Setup”.
9 Click on the “Networks” button in the “Network Setup” dialog box.
12 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Windows NT 4.0 Server
10 Click on the “Install Microsoft Windows Network:” option, and click “OK”.
11 Click on the “Drivers” button from the “Network Setup” dialog box, and
click on “Add Adapter”.
12 Click “OK” to accept the default choice of “Unlisted or Updated Network
Adapter”.
13 Type the path “A:\WFW311” in the “Install Driver” dialog box, and then
insert the 3COM 3C509B driver disk into the floppy drive, and click “OK”.
14 Select “3COM EtherLink III (3C5X9)” in the “Unlisted or Updated
Network Adapter” dialog box, and click “OK”.
15 Accept the applicable network protocols, and then click on “CLOSE”.
(Contact your network administrator if you do not have the required
information).
16 At the “Network Setup” dialog box, click on “OK”.
17 Specify your User Name, Workgroup, and Computer Name in “Microsoft
Windows Network Names” dialog box, and click on “OK”. (Contact your
network administrator if you do not have the required information).
18 At the “Network Setup” dialog box, click on “OK”.
19 To complete the installation, remove the 3COM 3C509B driver disk from
the floppy drive and click on “Restart Computer” button in the “Windows
Setup” dialog box.
13 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Microsoft Windows for Workgroups 3.11
13 Installing the 3COM EtherLink III 3C509B ISA 10BT
Network Adapter
Microsoft Windows for
Workgroups 3.11
Connecting to a Novell
NetWare 4.11 Server
Requirements
• HP Vectra with DOS and MS-Windows for Workgroups 3.11.
• 3COM EtherLink III 3C509B-TP ISA 10BT network adapter and driver
disk version 6.0.
• Driver File: 3C5X9.COM version 2.05.
• Microsoft Windows for Workgroups 3.11 media.
• Novell NetWare 4.11 Server system that supports IPX network protocol.
• NetWare Client for DOS and MS Windows v1.21 installation media.
Device Configuration
Device Configuration
Interrupt
I/O Address
Vectra Vli8
05
210
Vectra VEi7
05
300
Vectra VEi8
05
300
Procedure
1 With the HP Vectra turned off, install the 3COM 3C509B network adapter
into an ISA slot.
2 Connect network cable media to the 3COM 3C509B network adapter.
3 Power on the system and boot to MS-DOS.
4 Insert the 3COM 3C509 driver disk and execute “3C5X9CFG.EXE”.
5 Select “CONFIGURE NIC” and verify the resource settings listed above
under the heading “Device Configuration”.
6 If changes are required, save those changes and exit.
7 Remove the 3COM 3C509B driver disk and restart the system.
8 From the location of the “NetWare Client for DOS and Windows v1.21”
installation files, execute “Install.exe”.
13 Installing the 3COM EtherLink III 3C509B ISA 10BT Network Adapter
Connecting to a Novell NetWare 4.11 Server
9 Select option 5 “Select the driver for your network board” and press
“Enter”.
10 Select “OTHER DRIVERS”from the Network Board selection.
11 Insert the 3COM 3C509B driver disk into the floppy drive.
12 Type the path “A:\NWCLIENT” when prompted and press “Enter”.
13 Select “3Com EtherLink III Parallel Tasking Family” and hit “Enter”.
14 Accept the default network board settings and press “F10” to save it.
15 Select option 6 “Highlight here and press <Enter> to install” and press
“Enter” to begin installation.
16 When the installation is finished, remove the 3COM 3C509B driver disk
from the floppy drive and press <CTR><ALT><DEL> to restart the
system.
17 You may login to a server from the DOS prompt or load Windows for
Workgroup v3.11 and use the “NetWare User Tools” from the NetWare
Tools folder to login to a server. (If you do not have the required
information, contact your network administrator).
Download PDF

advertising
