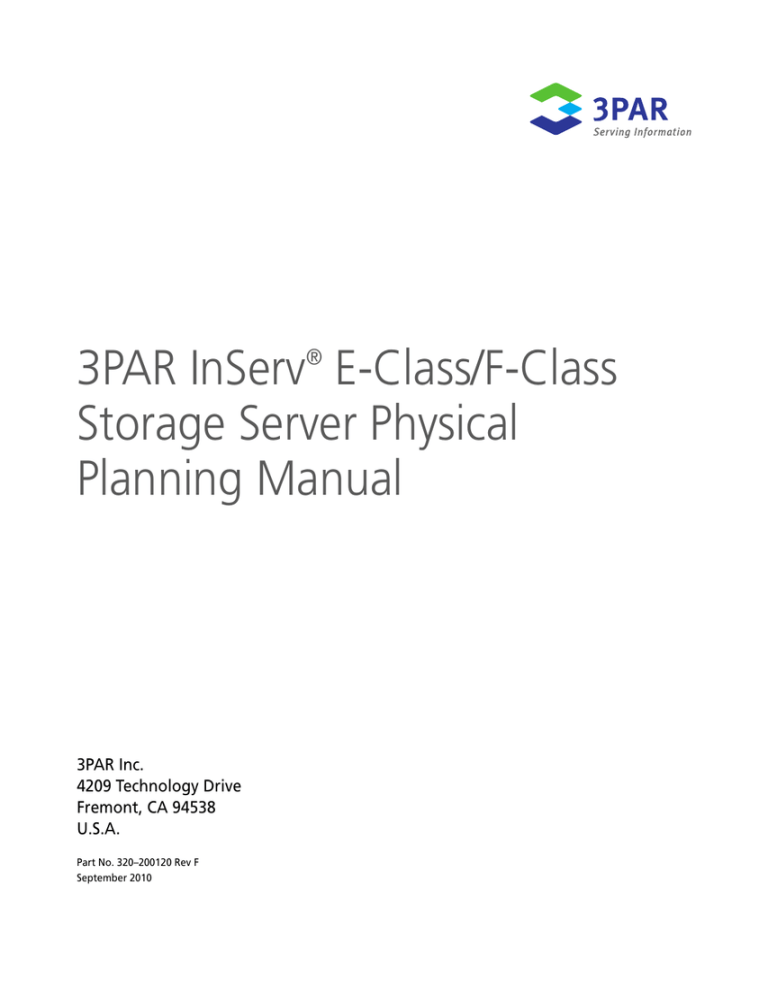

3PAR InServ® E-Class/F-Class
Storage Server Physical
Planning Manual
3PAR Inc.
4209 Technology Drive
Fremont, CA 94538
U.S.A.
Part No. 320–200120 Rev F
September 2010
Revision Notice
This is the sixth release of this manual. A complete revision history is provided at the end of this manual.
Changes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy, 3PAR Inc. assumes no liability resulting from errors or omissions in
this document or from the use of the information contained herein.
3PAR reserves the right to make changes in the product design without reservation and without notification to its users.
Updates to the Documentation at 3PAR Central
Any updates to this document, or to other 3PAR technical documents, can be found by logging in to 3PAR Central’s Document
Control System from 3PAR’s Support page at http://support.3PAR.com
3PAR Technical Support and Services
Contact your local service provider for technical support and services at: http://www.3PAR.com/services.html.
Sales and Ordering Information
For sales and ordering information, contact:
3PAR Inc. 4209 Technology Drive
Fremont, CA 94538 USA
Telephone: 510–413–5999
Fax: 510–413–5699
E-mail: salesinfo@3PAR.com
Reader Comments and Suggestions
Please e-mail your comments and suggestions about this document to ReaderComments@3PAR.com.
Copyrights
© 2009, 2010 3PAR Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of
3PAR Inc., 4209 Technology Drive, Fremont, CA 94538. The users may print one copy for personal use. Production of multiple copies or
copies for sale is strictly prohibited.
Trademarks
3PAR, InServ, InForm, InSpire and Serving Information are registered trademarks of 3PAR Inc.
AIX is a registered trademark of the IBM Corporation.
Cygwin is a trademark of Red Hat, Inc.
HP-UX is a registered trademark of the Hewlett-Packard Company.
Linux is a registered trademark of Linus Torvalds.
Microsoft, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation.
NEMA is a registered trademark of National Electrical Manufacturers Association.
Panasonic is a registered trademark of Matsushita Electric Industrial Co., Inc.
SecureCRT is a registered trademark of VanDyke Software, Inc.
Sun, Solaris, and Java are trademarks of Sun Microsystems, Inc.
UL is a registered trademark of Underwriters Laboratories Inc.
UNIX is a registered trademark of The Open Group.
WinZip is a registered trademark of WinZip Computing, Inc.
All other trademarks and registered trademarks are owned by their respective owners.
Federal Communications Commission Radio Frequency Interference Statement
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is subjected to the following two conditions (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Japanese Compliance Statement
This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology
Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the
use may be required to take corrective actions.
European Compliance Statement:
This product complies with CENELEC EN55022 Class A and EN55024:1998/A1:2001 specifications for Information Technology
Equipment (ITE).
WARNING: This is a Class A product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate measures.
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table of Contents
1 Introduction
1.1 Audience
1.2
1.2 Related Documentation
1.2
1.3 Organization
1.3
1.4 Typographical Conventions
1.4
1.5 Advisories
1.5
2 System Components and Specifications
2.1 Introduction
2.1
2.2 3PAR InServ Storage Server Components
2.2
2.3 Physical Dimensions
2.5
2.4 System Capacity
2.8
2.5 Power and Heat Specifications
2.10
2.6 Environmental Specifications
2.16
2.7 Cable Specifications
2.18
3 General Site Planning
3.1 Introduction
3.1
3.2 General Planning
3.2
3.2.1
Customer Responsibilities
3.2
Table of Contents
v
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.2.2
Planning for Installation
3.3
3.2.3
Preparing a Pre-Installation Site Planning Guide
3.4
3.3 Shipping and Acclimatization Requirements
3.5
3.3.1
Shipping Requirements
3.5
3.3.2
InServ Storage Server Cabinet Shipping Containers
3.6
3.3.3
Acclimatization
3.4 Administering Management Workstations
3.11
3.11
4 Structural/Environmental Considerations
4.1 Introduction
4.2
4.2 General Information
4.2
4.3 Establishing the Proper Foundation
4.3
4.3.1
Benefits of Raised Floors
4.3
4.3.2
Raised Floor Requirements
4.4
4.3.3
Weight and Pressure Loads
4.6
4.3.4
Tile Cutout Specifications
4.7
4.3.5
Anchoring Dimensions for InServ Storage Servers
4.8
4.3.6
Additional Flooring Recommendations
4.10
4.3.7
Hot-Aisle/Cold-Aisle Cooling Layout
4.11
4.4 Providing for Service Access
4.12
4.5 Meeting Environmental Conditions
4.14
4.5.1
Maintaining the Optimal Temperature
4.15
4.5.2
Air Supply and Flow
4.17
4.5.3
Air Cleanliness
4.17
4.5.4
Minimizing Vibration
4.18
5 Power Requirements
vi
Table of Contents
5.1 Introduction
5.2
5.2 Powering InServ Storage Servers
5.2
5.2.1
Power Distribution Units (PDUs)
5.5
5.2.2
Power Cord Connections
5.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.3 Electrical Requirements and Limitations
5.3.1
Power and Heat Dissipation
5.3.2
Voltage Requirements
5.7
5.7
5.11
5.4 Power Quality
5.12
5.5 Voltage and Frequency Tolerance
5.13
5.6 Voltage Spikes
5.13
5.7 Electrostatic Discharge
5.13
5.8 Branch Circuits
5.14
5.9 Emergency Power Control
5.14
5.10 Redundant Power
5.14
6 Network, Cabling and Connectivity
6.1 Introduction
6.2
6.2 Planning Network Access
6.2
6.2.1
Supported Network Topologies
6.3 Adapter Connections for the E-Class/F-Class Controller Nodes
6.2
6.6
6.3.1
E-Class Controller Node
6.7
6.3.2
F-Class Controller Node
6.8
6.3.3
Controller Node Slot Loading Order
6.9
6.3.4
Drive Chassis Connections
6.11
6.3.5
Host Connections
6.11
6.4 TCP/IP Port Assignments
6.12
6.5 Required Cables
6.17
6.6 External Cable Connections
6.18
6.7 Internal Cable Connections
6.20
6.8 Cable Routing Options
6.21
6.9 Service Processor Connections
6.22
6.9.1
Connecting the Service Processor
6.24
Table of Contents
vii
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7 Third-Party Rack Mounting
7.1 Introduction
7.1
7.2 Third Party Rack Mounting Considerations
7.2
7.3 Dimensional Requirements
7.2
7.3.1
Rack Space Considerations
7.6
7.3.2
RETMA Rail Spacing
7.7
7.3.3
Maintaining Minimum Clearances
7.8
7.4 Rack Mounting Kits
A
IX
RH
viii
Table of Contents
7.10
7.4.1
Two-Post Shelf Kit
7.10
7.4.2
Four-Post Shelf Kit
7.11
7.5 Redundant Power Requirements
7.12
Agency Compliance Statements
A.1
Safety Precautions
A.2
A.2
Safety Agency Compliance Notices
A.2
A.2.1
System Placement and Security
A.2
A.2.2
Battery Replacement and Disposal
A.5
A.2.3
Controller Nodes
A.8
A.2.4
Drive Chassis
A.13
A.3
3PAR Power Cables
A.16
A.4
Energy Consumption Efficiency
A.16
Index
Revision History
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1
Introduction
In this chapter
1.1 Audience
1.2
1.2 Related Documentation
1.2
1.3 Organization
1.3
1.4 Typographical Conventions
1.4
1.5 Advisories
1.5
This manual provides information that is useful for planning and preparing for the installation
of 3PAR InServ® Storage Servers. Use this document in conjunction with the 3PAR Systems
Assurance and Pre-Installation Site Planning Guide that details specific system configuration
and installation information for your storage system and operating site.
Physical planning and preparation are essential to a successful installation. If you have
concerns or issues not specifically addressed in this manual or your systems planning document,
contact your local 3PAR Sales Representative or 3PAR Sales Engineer.
Introduction
1.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1.1 Audience
The information in this manual is intended for use by 3PAR customers, in conjunction with the
advice and assistance of a 3PAR Sales Representative or Systems Engineer, for the purpose of
planning an InServ Storage Server installation. The installation of 3PAR equipment is to be
completed by qualified technicians who are authorized by 3PAR to install InServ Storage
Servers and their hardware components. Authorized technicians include 3PAR Field Engineers,
Value Added Resellers (VARs), and authorized third-party field technicians.
1.2 Related Documentation
The following documents also provide information related to InServ Storage Servers and the
InForm® Operating System that might be useful in preparing to install, configure and operate
the equipment.
Table 1-1. Related Documentation
For information about…
Read the…
InServ Storage Server concepts and
3PAR InForm OS Concepts Guide
terminology
Using the InForm Management
3PAR InForm Management Console
Console’s user interface to configure
On-Line Help
and administer InServ Storage Servers
Using the InForm Command Line
3PAR InForm OS CLI Administrator’s
Interface (CLI) to configure and
Manual
administer InServ Storage Servers
CLI commands and their usage
InForm OS Command Line Interface
Reference
1.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1.3 Organization
This manual is organized as follows:
◆
Chapter 1, Introduction (this chapter), provides an overview of this manual, including
information on audience, document conventions, and related documentation.
◆
Chapter 2, System Components and Specifications, provides detailed system
specifications for the InServ Storage Servers. This chapter also serves as a quick
reference for relevant specifications that are described in more detail in other chapters
of the manual.
◆
Chapter 3, General Site Planning, provides recommendations on site planning and
preparations for the installation of an InServ Storage Server.
◆
Chapter 4, Structural/Environmental Considerations, provides information on the
structural requirements and environmental conditions that are recommended for an
InServ Storage Server installation.
◆
Chapter 5, Power Requirements, provides information on the power requirements and
backup facilities.
◆
Chapter 6, Network, Cabling and Connectivity, provides information on network
topologies, cabling and connections between the storage server, the network, and host
computers.
◆
Chapter 7, Third-Party Rack Mounting, provides details for installing InServ Storage
Server components in third-party racks.
◆
Appendix A, Agency Compliance Statements, contains safety precautions and agency
compliance notices for InServ Storage Servers and their components.
This manual also contains an index and a revision history for your reference.
1.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1.4 Typographical Conventions
The following typographical conventions are used in this guide:
Typeface
Meaning
Example
ABCDabcd
Used for dialog box
Enter your system name in the
elements such as titles and
Value box and click OK.
button labels.
ABCDabcd
and screen output, and for
Found < 12 > 73G disks.
Enter cli at the Windows
text you are to enter.
command prompt.
Used to contrast your input
cli% removevv VV1
with system output.
Removing vv VV1.
ABCDabcd
Used for variables in file
[root@(systemID-
ABCDabcd
names, paths, and screen
output, and variables in user
nodeID)root]
To continue Enter your
input.
system name ==>
ABCDabcd
Used for file names, paths,
systemname
1.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1.5 Advisories
Before installing an InServ Storage Server, consult Appendix A, Agency Compliance
Statements, to obtain important safety information.
To avoid injury to people or damage to data and equipment, be sure to observe the cautions
and warnings in this guide.
Always be careful when operating any electrical equipment.
The following alerts appear throughout this guide:
NOTE: Notes are reminders, tips, or suggestions that supplement the information
included in this guide.
CAUTION: Cautions alert you to actions that can cause damage to equipment,
software, or data.
WARNING: Warnings alert you to actions that can cause an injury to a person or
irreversible damage to data or the operating system.
1.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
1.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2
System Components and
Specifications
In this chapter
2.1 Introduction
2.1
2.2 3PAR InServ Storage Server Components
2.2
2.3 Physical Dimensions
2.5
2.4 System Capacity
2.8
2.5 Power and Heat Specifications
2.10
2.6 Environmental Specifications
2.16
2.7 Cable Specifications
2.18
2.1 Introduction
This chapter provides detailed system specifications for the 3PAR InServ E-Class and F-Class
Storage Servers and serves as a quick reference for other relevant specifications that are
described in more detail in other chapters of this manual.
System Components and Specifications
2.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.2 3PAR InServ Storage Server Components
3PAR Utility Storage systems are based on the 3PAR InSpire architecture, a cluster-based
approach that incorporates sophisticated data management and fault tolerance technologies
that can meet the storage needs of smaller sites and can easily be scaled for global
organizations.
The 3PAR InServ E-Class and F-Class Storage Servers are comprised of the following
components:
■
Controller Nodes are high-performance, data movement engines that provide the
caching capabilities and manage the flow of data in a storage server. The E200 and F200
Storage Servers use two controller nodes while the F400 uses either a two or four node
configuration. It should be noted that the E-Class uses an earlier model of controller node
than the F-Class.
■
3PAR Storage Server Backplane works in conjunction with the controller nodes to route
data. This passive, full-mesh backplane enables high-bandwidth and low-latency internal
pathing that supersedes bus-, switch-, and even InfiniBand-based architectures.
■
Drive Chassis houses the drive cages that, in turn, contain the drive bays. Each drive bay
can accommodate a single drive magazine. These are intelligent, compact, extremely dense
storage units, where each is capable of holding a large numbers of hard disk drives in a
small rack space (EIA-standard rack units).
■
Fibre Channel Adapters and FCAL modules provide high speed routing of data and
enable granular connectivity to hosts and to the drive chassis.
■
Storage Server Service Processor provides the remote error detection and reporting
capabilities that support diagnostic and maintenance activities involving InServ Storage
Servers. In general, one service processor is required per InServ Storage Server.
NOTE: The E-Class components can be housed in either a 1 meter or 2 meter
cabinet while the F-Class components are only available in a 2 meter cabinet.
For details on third-party rack configurations, see Chapter 7, Third-Party Rack
Mounting.
2.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Figure 2-1 and Figure 2-2 on page 2.4 show the front and rear views of a fully populated 2M
(40U) 3PAR cabinet with the various components installed:
Drive Chassis
E200 Node Chassis
(Controller Nodes Located Behind Bezel)
Service Processor
Power Distribution
Units (PDUs)
0396_L_R1
Figure 2-1. The Front of an E200 InServ Storage Server (in a 2 Meter Rack)
2.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Drive Chassis
Power Supplies (4x)
Controller Node
Power Supplies (4x)
Controller
Nodes (4x)
Service Processor
Empty 1U Space
Power Distribution Units
(PDUs) (4x)
(Rear View)
0698_L_R2
Figure 2-2. The Rear View of an F400 Storage Server with 4 Controller Nodes
2.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.3 Physical Dimensions
Table 2-1 lists the physical dimensions for the E-Class and F-Class InServ Storage Server
components. These specifications are subject to change without notice.
Table 2-1. E-Class and F-Class InServ Storage Server Physical Dimensions
Physical Dimensions for InServ Storage Server Components
1-Meter Cabinet (Only available for the E200)
Dimensions (width x height x depth)
23.8 x 41.25 x 36 in.
60.5 x 104.8 x 91.4
cm
Service Clearance
30 in. (76.2 cm), front and back
Weight (not populated)
250 lbs.
113.4 kg
Maximum Weight (fully populated)
682 lbs.
309.4 kg
Maximum Weight per Caster
171 lbs.
77.3 kg
23.8 x 76.4 x 36 in.
60.5 x 194.1 x 91.4
2-Meter Cabinet
Dimensions (width x height x depth)
cm
Service Clearance
30 in. (76.2 cm), front and back
Weight (not populated)
475 lbs.
215.5 kg
(E200 fully populated)
1,189 lbs.
539.3 kg
(F200 fully populated)
1,361 lbs.
617.3 kg
(F400 fully populated)
1,289 lbs.
584.7 kg
Maximum Weight per leveling foot
340.4 lbs.
154.4 kg
Maximum Weight
2.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-1. E-Class and F-Class InServ Storage Server Physical Dimensions (continued)
Physical Dimensions for InServ Storage Server Components
Maximum Load per leveling Foot
111 lbs/sq. in.
50.5 kg/sq. cm
E200 Controller Node Chassis (Base Configuration)
Dimensions: (width x height x
19 x 6.85 x 22 in.
48.3 x 17.4 x 55.9 cm
90 lbs.
40.8 kg
depth)
4 RMU (4U)
Weight:
E200 with 2 Controller Nodes (fully
populated)
F200 Controller Node Chassis (Base Configuration)
Dimensions: (width x height x
19 x 6.85 x 22 in.
48.3 x 17.4 x 55.9 cm
92 lbs.
41.7 kg
depth)
4 RMU (4U)
Weight:
F200 with 2 Controller Nodes (fully
populated)
F400 Controller Node Chassis (Base Configuration)
Dimensions: (width x height x
depth)
8 RMU (8U)
2.6
19 x 13.85x 22 in.
48.3 x 35.2 x 55.9 cm
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-1. E-Class and F-Class InServ Storage Server Physical Dimensions (continued)
Physical Dimensions for InServ Storage Server Components
Weight: 4 Controller Nodes (fully
160 lbs.
72.6 kg
19 x 5.12 x 22 in.
48.3 x 13 x 55.9 cm
78 lbs.
35.4 kg
16.9 x 1.63 x 15 in.
42.9 x 4.27 x 38.1 cm
Weight
13.2 lbs.
6.0 kg
Supermicro II
16.8 x 1.7 x 22.6 in.
42.6 x 4.3 x 57.4 cm
28 lbs.
12.7 kg
populated)
Drive Chassis
Dimensions (width x height x depth)
(3U)
Weight (fully populated)
Supermicro Service Processor
Supermicro
Dimensions (width x height x depth)
(Requires 2U)
Dimensions (width x height x depth)
(Requires 2U)
Weight
2.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.4 System Capacity
Table 2-2 lists system capacity specifications for the E-Class/F-Class Storage Servers.
Table 2-2. System Capacity for E-Class/F-Class Storage Servers
Feature
E200
F200
F400 (4 Node)*
Number of
2
2
2-4
Control Cache
4GB
8GB
16GB
Data Cache
4 or 8GBs
12GB
24GB
Host Ports*
8 Fibre Channel
8 Fibre Channel
16 Fibre Channel
(FC) ports built-in
(FC) ports built-in
(FC) ports built-in
(4 are required for
(4 are required
(8 are required
drive connectivity),
for drive
for drive
Optional: 8 FC
connectivity),
connectivity),
ports (2 FC 2-port
Optional: 8 FC
Optional: 16 FC
HBAs per node) or
ports (2 FC 2-port
ports (2 FC 2-port
4 iSCSI ports (1 2-
HBAs per node)
HBAs per node)
port HBA per
or 8 iSCSI ports (2
or 16 iSCSI ports
node), Gigabit
2-port HBAs per
(2 2-port HBAs
Ethernet (GbE)
node), 2 Gigabit
per node), 4
HBA for Remote
Ethernet (GbE)
Gigabit Ethernet
Copy
ports built-in for
(GbE) ports built-
Remote Copy
in for Remote
controller nodes
Copy
Number of drives*
16 - 128
16 - 192
32 - 384
Maximum raw
2.3 - 96TB
2.3 - 128TB
4.6 - 384TB
RAID 0, 6, 10, 50
RAID 0, 6, 10, 50
RAID 0, 6, 10, 50
capacity *
RAID levels
2.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-2. System Capacity for E-Class/F-Class Storage Servers (continued)
Feature
E200
F200
F400 (4 Node)*
RAID 5 data to
2:1, 8:1
2:1, 8:1
2:1, 8:1
6:2, 14:2
6:2, 14:2
6:2, 14:2
Drive capacities
146 15K FC, 300
50 SSD, 146 15K
50 SSD, 146 15K
(GB’s approx.)†
15K FC, 400 FC, 450
FC, 300 15K FC,
FC, 300 15K FC,
15K FC, 1TB NL
400 FC, 450 15K
400 FC, 450 15K
FC, 600 FC, 1TB
FC, 600 FC, 1TB
NL
NL
2-8
2-12
4-24
Energy
0.146 for a host-
0.182 for either a
0.365 for a
consumption
maximized E200
host or storage
storage
efficiency**
configuration
maximized F200
maximized F400
using 750 GB
using 300 15K GB
using 146 15K GB
drives.
drives.
drives.
parity ratios
RAID 6 data to
parity ratios
Number of drive
chassis‡
* The F400 can also be configured with 2 controller nodes, in which case, the cache, host ports, number of
drives and raw capacity would be like those described for the F200.
† Levels, ratios, and capacities all mixable within the same storage server. 1 GB=1,000,000,000 bytes.
‡ A single drive chassis holds up to 16 drives in 3U of space within an EIA-standard rack.
**Japan Green Law statement of compliance: The energy consumption efficiency value has been
calculated per requirements for Category-G Magnetic Disk Drive Units by dividing the power
consumption, measured according to the definition in the Law Concerning the Rational Use of Energy,
by the storage capacity defined in the Energy Conservation Law.
2.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.5 Power and Heat Specifications
Table 2-3 describes electrical current requirements and heat dissipation for the E-Class/F-Class
Storage Servers.
Table 2-3. Power and Heat Specifications
1 Meter Cabinet (Only available for the E200)
Max. Watts per Cabinet (fully
2,880
populated)
Max. BTUs/hour per cabinet
9,825
(fully populated)
Input Voltage (VAC)
(200 - 240)
Frequency (Hz)
(50 - 60), 1-phase 50/60
Circuit Breaker Max
30 amps per PDU (de-rated to
24 amps)
Power Connectors (provided)
2.10
(2) L6-30P for 1+1 redundancy
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-3. Power and Heat Specifications (continued)
2 Meter Cabinet
Max. Watts per Cabinet (fully
*
5,580
populated)
Max. BTUs/hour per cabinet
19,040[[[update]]]
(fully populated)
Input Voltage (VAC)
(200 - 240)
Frequency (Hz)
(50 - 60), 1-phase
Circuit Breaker Max
30 amps per PDU (de-rated to
24 amps)
Power Connectors (provided)
(4) L6-30P for 1+1 rdnt.
2.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-3. Power and Heat Specifications (continued)
E200 Controller Node Chassis
Watts
730
BTUs/hour (fully populated)
2491 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
IEC-320 for 1+1 redundancy.
(2 for 1 Meter and 4 for 2
Meter)
F200 Controller Node Chassis
(Dual Node)
Watts
730
BTUs/hour (fully populated)
2491 BTUs/hr
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 for 1+1
redundancy.
2.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-3. Power and Heat Specifications (continued)
F400 Controller Node Chassis
(Quad Node)
Watts
1460
BTUs/hour (fully populated)
4,982 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 for 1+1
redundancy.
2.13
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-3. Power and Heat Specifications (continued)
Drive Chassis
Watts
525
BTUs/hour (fully populated)
1,792 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
48 - 62 Hz
Power Receptacle
(2) IEC-320 with 1+1 rdnt.
Drives (F-Class Only)†
Transactional‡
Idle
Watts
8
4
BTUs/hour
26
14
Watts
57
41
BTUs/hour
194
140
Watts
68
49
BTUs/hour
232
167
Watts
70
57
BTUs/hour
237
195
4 x 50 GB SSD Drives
4 x 146 GB FC Drives
4 x 300 GB FC Drives
4 x 600 GB FC Drives
2.14
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-3. Power and Heat Specifications (continued)
4 x 1 TB NL Drives
Watts
47
32
BTUs/hour
160
109
Service Processor
Supermicro
260
Watts
Supermicro
1370 BTUs/hr.
BTUs/hour (fully populated)
Supermicro II
280
Watts
Supermicro II
955 BTUs/hr.
BTUs/hour (fully populated)
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 with 1+1 rdnt.
* Represents a fully populated F400 with 4 nodes.
† Up to 10 drive magazines (40 drives) per drive chassis.
‡ Under maximum load.
NOTE: See Chapter 5, Power Requirements for complete details.
2.15
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.6 Environmental Specifications
Table 2-4 lists the environmental specification for the E-Class/F-Class Storage Servers.
Table 2-4. Environmental Specifications for InServ Storage Servers
Specification
Value
Altitude
Operating
0–10,000 ft. (3,048 m)
Nonoperating
0–40,000 ft. (12,192 m)
Ambient temperature
Operating
50–104°F/10–40°C
0–3,000 ft. (914.4 m)
50–95°F/10–35°C
3,000–10,000 ft. (3048 m)
Non operating
0–158°F/70°C
0–40,000 ft. (0–12,192 m)
Temperature gradient
2.16
Operating
59°F/15°C/hr
Non operating
68°F/20°C/hr
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 2-4. Environmental Specifications for InServ Storage Servers (continued)
Specification
Value
Relative humidity
20–80 percent non-condensing, maximum gradient
10 percent per hour
Vibration
Controller Chassis:
0.1g 5-100Hz swept sine per GR-63-CORE R4-56
Drive Chassis:
0.21g, 5-500Hz
Shock
Controller Chassis:
10g, 11ms half sine
Drive Chassis:
5g, 10ms half sine
NOTE: See Chapter 4, Structural/Environmental Considerations for complete
details.
2.17
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
2.7 Cable Specifications
Table 2-5 identifies the types of cables commonly required for storage server installation.
Table 2-5. Required Cables (Customer Responsibility)
Cable Type
Connector Type
Ethernet (Category 5)
RJ-45
3 cables with 2 static IPs
Multimode Fibre Channel
LC-LC
(See Table 2-6 for diameter
specification)
Modem
RJ-45
Table 2-6 provides cable limitations for fibre channel host connectivity.
Table 2-6. Cable Limitations for Fibre Channel Host Connectivity
Cable Size
Speed
Cable Length Limit
62.5 micron
2 Gbps
100 meters
62.5 micron
4 Gbps
70 meters
50 micron
2 Gbps
300 meters
50 micron
4 Gbps
150 meters
NOTE: See Chapter 6, Network, Cabling and Connectivity for complete details.
2.18
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3
General Site Planning
In this chapter
3.1 Introduction
3.1
3.2 General Planning
3.2
3.2.1 Customer Responsibilities
3.2
3.2.2 Planning for Installation
3.3
3.2.3 Preparing a Pre-Installation Site Planning Guide
3.4
3.3 Shipping and Acclimatization Requirements
3.5
3.3.1 Shipping Requirements
3.5
3.3.2 InServ Storage Server Cabinet Shipping Containers
3.6
3.3.3 Acclimatization
3.4 Administering Management Workstations
3.11
3.11
General Site Planning
3.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.1 Introduction
This chapter provides general recommendations for physical planning and site preparation for
installation and operation of the 3PAR InServ E-Class/F-Class Storage Servers.
3.2 General Planning
Successful installation of 3PAR InServ Storage Servers requires careful planning and supervision
in collaboration with authorized 3PAR representatives. Proper planning will help provide for a
more efficient installation and greater reliability, availability, and serviceability.
3.2.1 Customer Responsibilities
When planning and preparing for the installation of 3PAR InServ Storage Servers at a customer
site, the customer assumes the following responsibilities:
■
Providing suitable space for unpacking, installing and operating the servers.
■
Maintaining the proper environmental conditions for the servers.
■
Providing adequate power facilities for the servers.
■
Supplying the network connections and external cabling required by the servers.
■
Enabling the appropriate 3PAR remote support strategy.
The customer is responsible for providing a suitable space and environment for the installation
of the InServ Storage Servers. All pre-installation activities should be scheduled and completed
before the equipment is delivered.
Electronic equipment has special packing for shipping and receives special handling during
transportation; the manufacturing environment and packing for shipping are the
responsibilities of 3PAR. It is the customer's responsibility to ensure that space is available for
unpacking and installing the new equipment upon delivery.
For optimal performance at a specific location, 3PAR InServ Storage Servers require controlled
environmental conditions that can best be facilitated through raised flooring and under-floor
air conditioning. It is the customer's responsibility to monitor this environment to ensure
continued conformance with the recommended environmental specifications. Refer to
Chapter 4, Structural/Environmental Considerations for specific information concerning server
room environments.
3.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Adequate power is necessary for the reliable functioning of electronic equipment and for the
safety of the customer's installation. The customer is responsible for procuring, installing, and
maintaining adequate power to the equipment. Refer to Chapter 5, Power Requirements for
input electrical power and grounding requirements.
To facilitate remote support, a telephone connection to the 3PAR can be established through
the service processor. Refer to Chapter 6, Network, Cabling and Connectivity for more
information.
3.2.2 Planning for Installation
The following are suggested site planning considerations to be completed prior to the delivery
and installation of the selected 3PAR InServ Storage Server:
■
Prepare a preliminary layout of the subsystem installation.
■
Review the power and the heating, ventilation, and air-conditioning (HVAC) requirements.
■
Order any additional support equipment indicated by the power and HVAC review.
■
Work with the appropriate 3PAR representative to ensure that all system units in the
specified configuration and all cables of the required length have been ordered.
■
Make a final layout of the installation and review the layout with your 3PAR
representative.
■
Select key personnel and arrange for training with your 3PAR representative.
■
Verify that electrical service wiring has been installed at the server’s predetermined
location. Refer to the respective product specifications for detailed requirements.
■
Verify that any additional support equipment is properly installed and operational.
At installation time, the 3PAR representative will supervise the delivery and unpacking of the
equipment.
NOTE: No part of the installation, from unloading the crated server from the
delivery vehicle to unpacking and placement, should be performed without the
supervision of a 3PAR representative. This is a fundamental requirement for the
safety of both the equipment and personnel.
3.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.2.3 Preparing a Pre-Installation Site Planning Guide
Prior to installation, the customer will complete a systems planning document such as the 3PAR
Systems Assurance and Pre-Site Planning Guide in cooperation with the local 3PAR Sales
Representative or 3PAR Systems Engineer.
The systems planning guide is a working document that contains the following information:
■
Contact information for customer personnel and for 3PAR technical sales, support, and
service personnel.
■
Implementation project plan.
■
Configuration information for the InServ Storage Server to be installed, including system
configuration diagrams.
3.4
■
Shipping and delivery details and requirements.
■
Management workstation, service processor, and network information.
■
Description of the customer environment.
■
Volume and RAID level planning information.
■
Customer training project plan.
■
Additional notes and comments regarding installation.
■
Current support matrix.
■
System technical specifications.
■
Systems Acceptance Certificate.
■
Customer Services installation checklist.
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.3 Shipping and Acclimatization Requirements
Safe transport of InServ Storage Servers requires the appropriate shipping containers. A
separate crate holds each storage server cabinet while drive magazine shipping containers
hold a maximum of thirty drive magazines each.
3.3.1 Shipping Requirements
3PAR recommends shipping all InServ Storage Server components through surface transport. In
the event that air transportation is necessary, a large cargo aircraft is required to accommodate
the crate height of 83 in. (210.8 cm).
In addition, the following shipping requirements must be met:
■
The storage server crate must remain upright at all times. Tip-N-Tell indicators on the crates
record mishandling during transport.
■
During transport, the storage server crate must be strapped in place with a minimum of
two straps at all times. In addition, a restraining bar is strongly recommended.
■
Drive magazine containers must be wrapped with at least two overlapping padded
blankets and strapped in place during transport.
■
Non-operating environmental specifications must be observed during transport. System
components must not exceed the non-operating altitude, temperature, temperature
gradient, and relative humidity ranges listed in Table 4-5 on page 4.14.
NOTE: Shipment of the InServ Storage Server components for third-party racks
usually contains between 10-15 boxes on a pallet. Depending on the number of
drive chassis and drives, there may be more boxes. Each box will have a label
identifying the contents. See Chapter 7, Third-Party Rack Mounting for details on
installing 3PAR InServ Storage Server components in third-party cabinets.
3.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.3.2 InServ Storage Server Cabinet Shipping Containers
A separate crate holds each storage server cabinet while drive magazine shipping containers
hold a maximum of 16 drive magazines each. The drive magazines are shipped in a separate
container. Shipping container measurements are as follows:
■
Wooden cabinet crate (one per 2M rack cabinet): Height: 83 in. (210.8 cm) x Width: 42 in.
(106.7 cm) x Depth: 51 in. (129.5 cm)
Approximate shipping weight: 1172 lbs. (531.6 kg)
■
Wooden cabinet crate (one per 1M rack cabinet): 52 5/8 in. (133.7 cm) x 34 in. (86.4 cm) x
46 in. (116.8 cm) (International)
Approximate shipping weight in 1M wooden crate: 860 lbs. (390 kg)
■
Corrugated cabinet crate (one per 1M rack cabinet): 51 3/8 in. (130.5 cm) x 32 1/2 in.
(82.6 cm) x 44 1/4 in. (112.4 cm) (Domestic)
Approximate shipping weight in 1M corrugated crate: 805 lbs. (365 kg)
■
Drive magazine container (one per 16 drive magazines):
38 in. (96.5 cm) x 34 in. (86.4 cm) x 28 in. (71 cm)1
Approximate shipping weight: 78 lbs. (35 kg)
1 For systems shipped internationally and for systems with fewer than sixteen drive magazines, magazines are
shipped in boxes that hold three magazines each.
3.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
When the equipment arrives, you must make sure that there is enough room to unload and
unpack the server. The specific amount of space you will need to unpack the server is based on
the dimensions of the container, the ramp, and the room required to access the server so that it
can be moved to its placement destination. You will need to reserve enough space to
accommodate the crate, the ramp, and the storage server as depicted in the Figure 3-1:
Extra room (approximate 2-3 ft.) required to access rear hatch on Type 1 containers
Shipping
Container
Ramp
InServ
Storage
Server
|<--------- 51” -------------*------- 78“ ---------------*------- 36” ----------> = 165” minimum
Figure 3-1. Total Area Required for Unpacking an InServ Server
NOTE: See Chapter 4, Structural/Environmental Considerations Providing for
Service Access on page 4.12 for more information on placing the storage servers
and reserving room for service access.
3.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.3.2.1 Cabinet Shipping Container (2 Meter)
Measurements for the shipping container are as follows:
■
Cabinet crate (one per cabinet): Height: 83 in. (210.8 cm) x Width: 42 in. (106.7 cm) x Depth:
51 in. (129.5 cm)
■
Open ramp length: 78 in. (193 cm)
■
Approximate shipping weight: 2000 lbs. (907 kg)
Figure 3-2 shows the front view of the shipping container:
(Front)
0625_L_R1
Figure 3-2. Front View of the 2 Meter Cabinet Shipping Container
3.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
The equipment is removed from the front of the container by pulling on two straps that wrap
around the cabinet.
Figure 3-3 shows the front view of the container with the ramp down and the straps exposed:
Straps
0624_L_R1
Figure 3-3. Front View of 2 Meter Container with Ramp Down
3.3.2.2 1 Meter Shipping Container
Measurements for the 1 Meter shipping container are as follows:
■
Corrugated cabinet crate (one per 1M rack cabinet): 51 3/8 in. (130.5 cm) x 32 1/2 in.
(82.6 cm) x 44 1/4 in. (112.4 cm) (Domestic)
Approximate shipping weight in 1M corrugated crate: 805 lbs. (365 kg)
3.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
■
Wooden cabinet crate (one per 1M rack cabinet): 52 5/8 in. (133.7 cm) x 34 in. (86.4 cm) x
46 in. (116.8 cm) (International)
Approximate shipping weight in 1M wooden crate: 860 lbs. (390 kg)
Figure 3-4 shows the front view of the 1 meter shipping container with the ramp down:
Bolt (2x)
Bottom Edge of
Crate Panel
Front of Panel
Rotary Latch (4x)
0019_L_R1
Figure 3-4. Front View of 1 Meter Wooden Shipping Container with Ramp Down
3.10
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.3.3 Acclimatization
InServ Storage Servers shipped or stored at extreme temperatures may require time to adjust
to operating temperatures before start-up. The maximum acceptable rate of temperature
change for a non-operating system is 18 °F/hr (10°C/hr). The storage server requires time to
acclimatize to new environmental conditions before being powered on. During that time, it is
possible to proceed with the physical installation of the storage server; however, the storage
server may need at least 24 hours to acclimatize to a new environment prior to completing the
full system installation. If condensation is present even after the 24 hour acclimatization
period, it is necessary to wait until all condensation has evaporated before completing the
power-on sequence.
3.4 Administering Management Workstations
For ease in administering the storage server, you can install the InForm Administration Tools on
one or more management workstations.
Refer to the configuration matrix for the supported operating environments for storage
system management software as well as the InForm OS Administrator’s Guide and the InForm
OS Command Line Interface Reference for additional system requirements before installing
management software.
3.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
3.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4
Structural/Environmental
Considerations
In this chapter
4.1 Introduction
4.2
4.3 Establishing the Proper Foundation
4.3
4.3.1 Benefits of Raised Floors
4.3
4.3.2 Raised Floor Requirements
4.4
4.3.3 Weight and Pressure Loads
4.6
4.3.4 Tile Cutout Specifications
4.7
4.3.5 Anchoring Dimensions for InServ Storage Servers
4.8
4.3.6 Additional Flooring Recommendations
4.10
4.3.7 Hot-Aisle/Cold-Aisle Cooling Layout
4.11
4.4 Providing for Service Access
4.12
4.5 Meeting Environmental Conditions
4.14
4.5.1 Maintaining the Optimal Temperature
4.15
4.5.2 Air Supply and Flow
4.17
4.5.3 Air Cleanliness
4.17
4.5.4 Minimizing Vibration
4.18
Structural/Environmental Considerations
4.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.1 Introduction
This chapter discusses the placement, housing and environmental considerations for 3PAR
InServ E-Class/F-Class Storage Servers.
NOTE: The measurements and specifications described in this chapter are specific
for 3PAR InServ Storage Servers, but the generic information is useful when
planning installations that utilize 3PAR components in third-party racks. See
Chapter 7, Third-Party Rack Mounting for further details.
4.2 General Information
You should consider the following when choosing or designing your facilities for 3PAR InServ
Storage Servers:
■
Equipment location and layout that allows efficient use, easy maintenance, and future
expansion.
■
Facility construction that provides a suitable operating environment, sufficient power and
adequate protection from fire, contamination, or other hazards.
■
Suitable temperatures and appropriate air quality that is free from environmental
contaminants.
It is the responsibility of the customer site to maintain the room environment according to the
recommended specifications. Environmental conditions for the room and under the floor must
be maintained within the acceptable limits to prevent any adverse impact on performance and
reliability. The installation environment should be monitored on a regular basis to ensure
continued conformance to recommended environmental specifications. You may request
assistance from a 3PAR representative to help in analyzing the site location and environment
to make appropriate recommendations.
4.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.3 Establishing the Proper Foundation
As with any electronic equipment that generates heat, the 3PAR InServ Storage Servers must
be housed in a cool environment. Common techniques for maintaining an optimal operating
environment generally incorporate the use of raised flooring and alternating hot and cold
aisle layouts.
4.3.1 Benefits of Raised Floors
While not required, InServ Storage Servers can be installed on raised floors with under the
floor air cooling. Raised floors will allow cables to be located safely beneath the floor. If the
facility does not have raised floors and under the floor air cooling, temperature and airflow
must be in compliance with the recommended specifications.
The raised floor system should consist of removable panels or panels on a stringer grid system,
supported by adjustable steel pedestal assemblies. The raised floor can be constructed of steel,
aluminum, or fire-retardant wood. The purpose of the raised floor system is to:
■
Permit space between floors to supply cooled air to the equipment.
■
Support the total weight of the system and service area loading.
■
Protect interconnecting cables and power receptacles.
■
Allow for future layout changes with minimum cost.
■
Provide safety for personnel.
4.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.3.2 Raised Floor Requirements
There are additional structural considerations when installing InServ Storage Servers in
environments with raised flooring.
NOTE: This section considers a standard raised floor construction that consists of
the following: 24 in. (61 cm) square or 24 in. (61 cm) X 36 in. (91.5 cm) panels,
steel or aluminum stringers, and pedestal supports attached to an underlying
concrete slab or steel deck.
Prior to installation, verify that the raised floor at the operating site meets the specifications
described in Table 4-1.
Table 4-1. Raised Floor Specifications
Specification
Value
Flatness tolerance
Per 10 ft (3 m) span
Less than 0.06 in. (1.5 mm)
Overall
Less than 0.10 in. (2.5 mm)
Deflection
Dynamic
Less than 0.15 in. (3.8 mm)
Permanent
Less than 0.02 in. (0.5 mm)
Pedestal assembly load
4.4
Axial
At least 5,000 lb (2,268 kg)
Side
At least 30 ft-lb (40.7 N-m)
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Placing each storage server cabinet across two floor tiles is strongly recommended. It is also
strongly recommended that a vented floor tile be placed in front of each cabinet. Figure 4-1
shows two storage servers side-by-side, each resting across two floor tiles.
Vented Tiles
0206_L_R1
Figure 4-1. Adjacent Cabinets Placed Across Two Floor Panels Each (Recommended)
When necessary, a storage server can also rest across four floor tiles, with two adjacent storage
servers resting partially on the same tiles so that they use a total of six tiles, as shown in
Figure 4-2. Again, it is strongly recommended to have vented tiles in the front.
Vented Tiles
0207_L_R1
Figure 4-2. Storage Servers Resting Partially on the Same Floor Panels
However, before placing a cabinet on floor tiles shared with other cabinets or equipment, first
verify that the floor panels can tolerate the weight and pressure loads. Maximum weight and
pressure loads for storage servers are provided in Table 4-2 on page 4.6.
4.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
When placing cabinets with their weight shared by the same panels as shown in Figure 4-2 on
page 4.5, verify that each panel can tolerate the maximum weight per panel, calculated as
follows:
weight cabinet x + weight cabinet y
2
where cabinet x and cabinet y are cabinets or equipment resting partially on the same floor
panel.
4.3.3 Weight and Pressure Loads
Depending on the configuration, an InServ Storage Server can weigh up to 2,000 lb (907 kg).
Figure 4-2 provides maximum weights and pressure loads per leveling foot for 3PAR cabinets.
Use these values to approximate the structural support required by a storage server cabinet.
Table 4-2. Maximum Weights and Pressure Loads
4.6
Cabinet
Maximum
Maximum Weight Per
Maximum Load
Size
Weight
Leveling Foot
Per Leveling Foot
no levelers
1M
682 lbs.
170.5 lbs.
(20U)
(309.3 kg)
(77.3 kg)
2M (40U)
1,069 lbs.
267.25 lbs.
87.4 lb/sq in.
(484.8 kg)
(121.2 kg)
(39.4 kg/sq cm)
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.3.4 Tile Cutout Specifications
Figure 4-3 defines the recommended tile cutout specifications for 3PAR storage server cabinets.
24 in. (61 cm)
Floor Tile
24 x 24 in.
(61 x 61 cm)
24 in. (61 cm)
23.8 in. (60.5 cm)
8.5 in.
(21.6 cm)
Cabinet Rear
13 in.
(33 cm)
Storage
Server
Cabinet
23.8 x 36 in.
(60.5 x 91.4 cm)
7 in.
(17.8 cm)
24 in. (61 cm)
Cabinet
Cable
Routing
Opening
6 in.
(15.2 cm)
Power
Cable
Cutout
8 x 6 in.
(20.3 x 15.2 cm)
8 in.
(20.3 cm)
4 in.
(10.2 cm)
Vented Floor Tile
Cabinet Front
Cabinet Footprint
Cabinet Cabling Cutout
Vented Floor Tile
Floor Tile Cutout
Floor Tile
0208_L_R2
Figure 4-3. Tile Cutout Specifications
WARNING: To prevent potential collapse, loaded floor panels that have cutouts
to facilitate cable routing may require additional reinforcement.
4.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.3.5 Anchoring Dimensions for InServ Storage Servers
Some installations may want to anchor InServ Storage Servers to the floor for better stability,
especially in seismically active locations. While 3PAR does not supply, or specifically recommend
any particular anchoring solution, there are several third-party anchoring kits that can be
procured for this purpose. Figure 4-4, Figure 4-5 and Figure 4-6 provide the required
dimensions for the base of the InServ Storage Server cabinet:
Caster (4X)
Leveler Foot (4X)
All Dimensions in Millimeters
0737_L_R1
Figure 4-4. Front View Dimensions for the InServ Storage Server
Caster (4X)
Leveler Foot (4X)
All Dimensions in Millimeters
0747_L_R1
Figure 4-5. Side View Dimensions for the InServ Storage Server
4.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Leveler Foot (4X)
Caster (4X)
All Dimensions in Millimeters
0736_L_R1
Figure 4-6. Bottom View Dimensions for the InServ Storage Server
4.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.3.6 Additional Flooring Recommendations
Consider the following recommendations for raised floor installations:
■
The flooring should be high enough to allow under the floor routing of cables and
specified airflow to system air intakes. The recommended minimum floor clearance is
30.5 cm (12 in). An additional 3 in. (7.6 cm) should be allowed for cables and connectors. A
floor clearance of 18 in. (46 cm) is recommended for new construction.
Additional panel support may be required to restore the structural integrity of a raised
floor panel that has been cut for air opening, cable entry, and so on. Raised floors without
stringers may also require lateral support to prevent floor tile movement.
The finished floor-to-ceiling height should be a minimum of 8 ft. (2.44 m).
■
The subfloor must have adequate drainage to prevent flooding and trapping of water
beneath the raised floor. Cement should be sealed to prevent the formation of particulates.
■
To avoid an electrical hazard when using a metallic floor, no metal or conductive material
should be exposed to the walking surface.
■
Sharp edges must be eliminated on all floor cutouts where cables pass. For wood or similar
core material, all cut edges must be covered with metal or plastic clips or grommets so that
none of the core is exposed (see NFPA 75 requirements).
■
Asphalt tiles are not recommended because they produce dust that may cause equipment
malfunction.
■
Carpeting is not recommended because it produces and holds dust, and can contribute to
the buildup of electrostatic charges on people and equipment.
■
Most raised floors are composed of 24 in. (Domestic/American Standard) or 60 cm
(International/Metric) square floor tiles. The maximum panel size should not exceed 24 by
36 in. (Domestic/American Standard) or 60 by 90 cm (International/Metric). The panels
should have a flame spread rating of 15 or better when tested according to the American
Society for Testing and Materials (ASTM) Standard E 84.
■
The floor covering can contribute to a buildup of high static electrical charge. To minimize
static charge:
◆
Provide a conductive path to ground from the metallic raised floor structure through
the metallic supporting structure or separately from each tile.
◆
Ensure the maximum resistance for floor surface material is 20 gigohms, measured
between the floor surface and building ground.
4.10
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
◆
The resistance between adjacent tiles should not be less than 150 kilohms when
measured between any points on the floor, spaced 36 in. (91.5 cm) apart.
◆
Maintenance of antistatic floor covering should be performed according to supplier's
recommendations.
4.3.7 Hot-Aisle/Cold-Aisle Cooling Layout
Air flows through the InServ Storage Servers from the front to the rear, so when installing
multiple servers in the same room, consider facing each pair of servers in a front to rear
configuration. This allows cool air to be circulated through the rows in the front of the servers
and exhausted through rows in back. This is referred to as a hot-aisle/cold-aisle layout and
eliminates the direct transfer of hot exhaust air from one server into the intake air of another
as shown in Figure 4-7.
Cold Aisle
(Systems
Front-to-Front)
Hot Aisle
(Systems
Back-to-Back)
HVAC
Cold Aisle
(Systems
Front-to-Front)
Perforated
Tiles
Floor
Perforated
Tiles
0061_T_R1
Figure 4-7. Hot-Aisle/Cold-Aisle Layout
Form rows of racks or cabinets perpendicular to air conditioners. This formation facilitates an
unobstructed flow of heated air down the aisles to the air conditioner return ducts. Heated air
must not be forced to travel over or between the cabinets to get to the air conditioner return
ducts. Doing so could heat the air in the cold aisles. Ensure that any free-standing equipment
does not allow air to flow between the hot and cold aisles.
4.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A cold aisle has perforated floor tiles or grates that enable cold air to rise from the raised floor
whereas the hot aisle has no tiles or grates so that hot air and cold air do not mix. Seal cable
cutouts in both hot aisles and cold aisles to increase under the floor pressure and to eliminate
cold or hot air redirection. To further optimize the airflow in hot and cold aisles, install
blanking panels at the front of all unused cabinet spaces so that hot air does not recirculate to
the system’s cold air inlet.
4.4 Providing for Service Access
3PAR InServ Storage Server cabinets feature locking rear doors and removable side panels and
fascias to improve access while installing, cabling, and servicing components. Storage server
cabinets can be housed in two sizes (Table 4-3).
Table 4-3. Storage Server Cabinet Dimensions
Cabinet
Height
Depth
Width
1M (20U)
41.25 in. (104.78 cm)
23.8 in. (60.5 cm)
36 in. (91.4 cm)
2M (40U)
76.4 in. (194 cm)
23.8 in. (60.5 cm)
36 in. (91.4 cm)
NOTE: The 3PAR InServ E200, F200 and F400 Storage Servers can also be
optionally installed in non-3PAR, third-party racks. See Chapter 7, Third-Party
Rack Mounting for details.
4.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
When establishing an operating site for an InServ storage server, provide for adequate access
to cabinets by following the access area recommendations in Table 4-4.
Table 4-4. Access Area for InServ Storage Servers
Cabinet Surface
Access Area During Operation
Front
30 in (76.2 cm)
Rear
30 in (76.2 cm)
NOTE: InServ Storage Servers have On/Off switches located at the rear of the
system. It is necessary to maintain access to the rear circuit breakers.
NOTE: 3PAR cabinets do not require side access during operation. However,
during installation, it is a good practice to allow 3 ft (91.4 cm) on one side of the
cabinet in case it becomes necessary to remove a side panel. For instance, access
through a side panel may be required for overhead power cable routing.
4.13
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.5 Meeting Environmental Conditions
For the 3PAR InServ Storage Servers, it is recommended that you maintain a controlled
environment that requires a high degree of cleanliness, close control of temperature and
humidity, and infrequent personnel access.
3PAR also recommends the installation site meet the specifications detailed in GR-63-CORE for
office vibration.
CAUTION: The storage server operating environment must be free from
continuous vibration and from dust and other environmental contaminants.
In addition, the operating site must comply with the environmental specifications in Table 4-5
on page 4.14:
Table 4-5. Environmental Specifications for InServ Storage Servers
Specification
Value
Altitude
Operating
0–10,000 ft (3,048 m)
Nonoperating
0–40,000 ft (12,192 m)
Ambient temperature
Operating
50–104°F/10–40°C
0–3,000 ft. (914.4 m)
50–95°F/10–35°C
3,000–10,000 ft. (3,048 m)
Nonoperating
0–158°F/70° C
0–40,000 ft. (0–12,192 m)
4.14
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 4-5. Environmental Specifications for InServ Storage Servers (continued)
Specification
Value
Temperature gradient
Operating
59°F/15°C/hr
Nonoperating
68°F/20°C/hr
Relative humidity
20–80 percent non-condensing, maximum gradient
10 percent per hour
Vibration
Controller Chassis:
0.1g 5-100Hz swept sine per GR-63-CORE R4-56
Drive Chassis:
0.21g 5-500Hz
Shock
Controller Chassis:
10g, 11ms half sine
Drive Chassis:
5g, 10ms half sine
4.5.1 Maintaining the Optimal Temperature
The level of cooling required for the 3PAR InServ Storage Servers is quite different from the airconditioning used in offices. Comfort air-conditioning systems are designed for the lower heat
and higher moisture generated by the human body. In contrast, equipment has high heat
output that is moisture-free (sensible heat). In comfort systems, sensible heat normally
produces 60 to 70 percent of the load, whereas the dry heat of electronic equipment produces
a sensible heat ratio of over 95 percent.
Prior to installation, verify that the operating site is equipped with a cooling system that can
support all thermal emissions. Use the maximum thermal emissions of storage server
components listed in Table 4-6 on page 4.16 to estimate the cooling requirements for an InServ
Storage Server based on a specific system configuration.
Proper site layout is critical to ensure the ambient temperature near the intake of the system
does not rise beyond the system specifications. Exceeding the maximum ambient temperature
4.15
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
for any period negatively affects the system’s reliability and performance, and continued
operation for extended periods under such conditions might actually cause the system to shut
down.
CAUTION: Heated air from nearby equipment should not exhaust into the front
of the InServ Storage Server.
Table 4-6. Thermal Emissions for InServ Storage Server Components
Component (Fully Populated)
E200 Controller Node (pair)*
Maximum Thermal Emissions
1,481 BTU/hr
(373.2 Kcal/hr)
F200 Controller Node (pair)
1,481 BTU/hr
(373.2 Kcal/hr)
F400 Controller Node (quad)
2,962 BTU/hr
(746.4 Kcal/hr)
Drive chassis (single)
1,451 BTU/hr
(365.6 Kcal/hr)
Drive chassis (pair)
2,901 BTU/hr
(731.1 Kcal/hr)
* Controller nodes can only be installed in pairs.
The InServ Storage Servers can tolerate temperature and humidity fluctuations if the specified
guidelines are understood and followed. Exposure to conditions outside the specified ranges
may damage the system or its components.
Before a server is powered on, the air entering the subsystem must be clean and within the
ranges specified for temperatures and humidity. The room humidity must be kept sufficiently
low to prevent condensation on or within the subsystem, and must never exceed the limit
specified in the subsystem environmental requirements tables, including transients. The server
must never be exposed to conditions that could cause internal condensation to occur within
the subsystem.
4.16
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
The air-conditioning units should have controls monitoring under the floor output that
respond to 2° F (1° C) and 5 percent relative humidity. Humidification is normally required to
replace moisture removed during the cooling process. The relative humidity for a subsystem
equipment room should be set at 40 percent. This level is sufficient to suppress
electromagnetic charge buildup, and low enough to avoid the risk of corrosion and
condensation. To avoid air contamination from the humidifier, water treatment may be
necessary in areas with high mineral content.
4.5.2 Air Supply and Flow
The air flow capacity of the facility where the InServ Storage Servers are installed needs to be
sufficient to remove the heat generated by the equipment. In addition, the air handlers must
provide the airflow volume required by the units being cooled. To ensure this airflow, the
facility must have a positive under the floor air pressure (if the facility has raised floors). When
conditions within the computer room are changed (new units are added, the computer system
is moved) airflow checks should be made.
The amount of outside (make-up) air should be kept to the minimum needed to create a slight
positive pressure within the room, and should not exceed industry recommendations of
0.3 cubic meter/minute (10 cubic feet/minute) per person stationed in the equipment room.
While recommendations for outside air in comfort air-conditioning are 10 to 15 percent of the
airflow, the computer room environment is cleaner and operates more efficiently if outside air
is kept below 1 percent of the airflow. Cooling/heating and humidification needs are reduced,
and a minimum of contaminated building air is introduced into the installation area.
4.5.3 Air Cleanliness
Air contaminants can cause equipment malfunction and can damage InServ Storage Servers. It
is essential that steps be taken to prevent air contaminants, such as metal particles, solvent
vapors, corrosive gases, soot, airborne fibers, or salt, from entering or being generated within
the server room environment.
A high-efficiency air filter should be employed on each air inlet for outside air to stop dust at
the point of entry to the installation site. Special additional filtering is necessary where the
environment is exposed to salt air, corrosive gases, or unusual dust/dirt conditions. Electronic
equipment is sensitive to air contaminants such as:
■
Excessive amounts of soot particles.
■
Condensate particulates such as carbonates.
■
Concrete particulates from unsealed concrete.
4.17
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
■
Metal flakes or filings, such as those produced by sawing, filing, or drilling.
■
Floor-cleaning solutions with high ammonia content. Deteriorating/decomposing building
materials, including floor tiles, fabrics, sheetrock, insulation, and acoustical tiles.
■
Pollutants generated by any servicing performed in and around the computer room.
■
Paper chaff, dust, and toners from printers within the computer room.
■
Processing chemicals from reproduction equipment such as microfiche processors.
In electronic equipment, contaminants cause connector contact and motor-bearing
degradation. They also cause electrical leakage, shorting paths between integrated circuit
leads and between printed wiring traces on printed circuit boards.
Air supplied to and circulated within the server room and under the floor plenums should
ideally pass through mechanical or electrostatic filters. HVAC ducts and plenums and subfloor
areas, including cable raceway openings where used, should be kept clean. All unused cables,
hardware, and debris should be removed from the under the floor area to avoid becoming
dust/dirt traps or potential sources of rust.
During major changes in the server room environment, special considerations must be taken
into account whenever any drilling, sawing, welding, brazing, etc., is performed.
Precautions should be taken to prevent material particles (concrete or metal particles, etc.)
from becoming airborne. 3PAR InServ Servers should be powered down during construction
that requires any drilling, sawing, welding, brazing, etc. In addition, all debris must be
removed before powering up the server(s). Maximum concentrations of corrosive gases and
solvent vapors must also be considered.
4.18
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.5.4 Minimizing Vibration
The E-Class/F-Class Controller Chassis have been tested to operate without damage to the
system when subjected to continuous vibration per GR-63-CORE R4-56, and the storage array
has also been tested to operate error-free when subjected to continuous vibration not
exceeding 0.21grms from 5 to 500Hz.
These levels represent vibration typically encountered in a data center environment. Disk
drives, however, are particularly sensitive to vibration, and an environment with excessive
vibration can negatively affect system performance and reliability. To minimize vibration, rack
mounting above two meters is not recommended. Additionally, the rack to which the E-Class/FClass enclosures are attached should be load rated to match the equipment it houses and
should be secured to the ground and stabilized. Stacking enclosures one on top of another like
consumer Hi-Fi equipment should be avoided, as well as placing the enclosures near generators
or other large, rotating machinery.
4.19
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
4.20
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5
Power Requirements
In this chapter
5.1 Introduction
5.2
5.2 Powering InServ Storage Servers
5.2
5.2.1 Power Distribution Units (PDUs)
5.5
5.2.2 Power Cord Connections
5.6
5.3 Electrical Requirements and Limitations
5.3.1 Power and Heat Dissipation
5.3.2 Voltage Requirements
5.7
5.7
5.11
5.4 Power Quality
5.12
5.5 Voltage and Frequency Tolerance
5.13
5.6 Voltage Spikes
5.13
5.7 Electrostatic Discharge
5.13
5.8 Branch Circuits
5.14
5.9 Emergency Power Control
5.14
5.10 Redundant Power
5.14
Power Requirements
5.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.1 Introduction
This chapter defines the general power requirements for the 3PAR E-Class/F-Class InServ
Storage Servers.
5.2 Powering InServ Storage Servers
The cabinets used to house the InServ Storage Server components are divided into power
domains where each contains a drive cage or controller node and two dedicated power
supplies. Drive cages and controller nodes depend on these two power supplies, located at the
rear of the system, to supply power from the Power Distribution Units (PDUs) that are located
at the bottom of the cabinet.
5.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Drive Chassis
Power Supplies (2x)
Controller Node
Power Supplies (2x)
Service Processor
Power Distribution Units
(PDUs) (4x)
(Rear View)
00707_L_R1
Figure 5-1. Power Supplies Within the Power Domains
3PAR cabinets contain four (PDUs) and each requires service from a dedicated single-phase
200-240 VAC, 30-A grounded electrical circuit. However, for optimal reliability and data
accessibility, 3PAR recommends a redundant AC configuration that uses independent sources
to provide a dedicated, grounded electrical circuit to each PDU as shown in the following
configuration:
5.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Customer Power A1
3PAR PDU - 0
3PAR PDU - 1
Customer Power A2
Customer Power B1
3PAR PDU - 2
3PAR PDU - 3
Customer Power B2
0732_L_R1
NOTE: If a storage server cabinet has only one Node Chassis and up to four Drive
Chassis (i.e., it does not have components installed in the top four bays (bays 0–3),
or the highest 16U of the cabinet), the two upper PDUs (PDU 0 and PDU1) are not
used to power the system and need not be connected. Redundant power is still
supplied to the lower bays in the cabinet through PDU 2 and PDU 3.
Storage server PDUs are equipped with NEMA® L6–30 or IEC 60309 connectors, depending on
the region. The appropriate receptacles or adapters are necessary at the operating site to
accommodate these connectors.
NOTE: For details on power requirements for third-party racks, see Chapter 7,
Third-Party Rack Mounting.
5.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.2.1 Power Distribution Units (PDUs)
For each cabinet, the four Power Distribution Units (PDUs) occupy the lowest chassis bay in the
cabinet.
Figure Figure 5-2 shows the four PDUs at the bottom of a 3PAR cabinet.
PDUs
0
1
2
3
0216_L_R2
Figure 5-2. Power Distribution Units
Each PDU has two power banks, each with a separate circuit breaker, to be used exclusively for
storage server components (Figure 5-3).
Power Bank 1
Power Bank 2
0221_L_R1
Figure 5-3. Power Banks in the PDU
WARNING: To avoid possible injury, damage to storage server equipment, and
potential loss of data, do not use the surplus power outlets in the storage server
PDUs. Never use outlets in the PDUs to power components that do not belong to
the storage server or to power storage server components that reside in other
cabinets.
5.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.2.2 Power Cord Connections
3PAR InServ Storage Servers arrive with all internal power cords configured and connected.
The AC cords connect two power supplies at the rear of the controller nodes and drive chassis
to the PDUs at the bottom of the cabinet. The length of the power cord is 10 feet. The power
cords can be routed through the lower access opening at the bottom of the cabinet or the
upper access opening at the top of the cabinet (Figure 5-4). The side panels are removable for
easier cabling access.
Upper Access
Opening
Lower Access
Opening
(Front)
0014_L_R3
Figure 5-4. Power Cord Routing Options
NOTE: When routing the power cords through the bottom of the 2 meter
cabinet, the cord extends 9.5 to 10 feet away from the cabinet. If routing the cord
from the top, approximately 4 feet of the cord is usable.
5.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.3 Electrical Requirements and Limitations
Before physically installing an InServ Storage Server, verify that the operating site has the
necessary electrical circuitry. Each InServ Storage Server will require 4 (200 - 240) Volt, 30 Amp
outlets or 2 outlets for 1 Meter cabinets or if only the bottom half of the 2 Meter cabinet is
occupied. For proper redundant power protection, power should be supplied from two or
more power sources.
3PAR recommends the installation site conform to the electrical specifications detailed in ANSI/
TIA-942-2005 Annex G5, specifically:
■
Use of K-rated isolation transformers, typically 480:208V/120 volt step-down transformers,
will minimize any common mode noise between electrical ground and neutral. The voltage
delta between power ground and signal ground will also be reduced. Isolation
transformers should be located as close to the load as possible.
■
Appropriate capacity Transient Voltage Surge Suppression (TVSS) devices should be
installed at each level of the facility electrical distribution system. Each distribution panel
should have its own dedicated TVSS. This multi-tiered approach has proven to be effective
at reducing electrical transients.
■
The installation site should have a comprehensive building ground system. A properly
grounded building perimeter loop should be provided and the building steel should be
bonded to the system at every other column. This building ground system should be
directly bonded to all major power distribution equipment, including all switchgear,
generators, UPS systems, transformers, etc., as well as to the telecommunications systems
and lightning protection system.
■
Installation of a UL Master-Labeled lightning protection system is recommended.
5.3.1 Power and Heat Dissipation
Use the approximate current requirements for storage server components listed in Table 5-1 to
estimate the current requirements for a specific system configuration.
Table 5-1. Power and Heat Specifications
1 Meter Cabinet (Only available for the E200)
Max. Watts per Cabinet (fully populated)
2,880
5.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 5-1. Power and Heat Specifications (continued)
Max. BTUs/hour per cabinet (fully
9,825
populated)
Input Voltage (VAC)
(200 - 240)
Frequency (Hz)
(50 - 60), 1-phase 50/60
Circuit Breaker Max
30 amps per PDU (de-rated to 24 amps)
Power Connectors (provided)
(2) L6-30P for 1+1 redundancy
2 Meter Cabinet
Max. Watts per Cabinet (fully populated)
*5,580
Max. BTUs/hour per cabinet (fully
19,040
populated)
Input Voltage (VAC)
(200 - 240)
Frequency (Hz)
(50 - 60), 1-phase
Circuit Breaker Max
30 amps per PDU (de-rated to 24 amps)
Power Connectors (provided)
(4) L6-30P for 1+1 rdnt.
E200 Controller Node Chassis
Watts
730
BTUs/hour (fully populated)
2491 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
IEC-320 for 1+1 redundancy. (2 for 1
Meter and 4 for 2 Meter)
F200 Controller Node Chassis (Dual Node)
5.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 5-1. Power and Heat Specifications (continued)
Watts
730
BTUs/hour (fully populated)
2491 BTUs/hr
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 for 1+1 redundancy.
F400 Controller Node Chassis (Quad Node)
Watts
1460
BTUs/hour (fully populated)
4,982 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 for 1+1 redundancy.
Drive Chassis
Watts
525
BTUs/hour (fully populated)
1,792 BTUs/hr.
Input Voltage
100-240 VAC
Frequency
48 - 62 Hz
Power Receptacle
(2) IEC-320 with 1+1 rdnt.
Service Processor
Supermicro
260
Watts
5.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 5-1. Power and Heat Specifications (continued)
Supermicro
1370 BTUs/hr.
BTUs/hour (fully populated)
Supermicro II
280
Watts
Supermicro II
955 BTUs/hr.
BTUs/hour (fully populated)
Input Voltage
100-240 VAC
Frequency
50-60 Hz
Power Receptacle
(2) IEC-320 with 1+1 rdnt.
* Represents a fully populated F400 with 4 nodes.
5.10
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.3.2 Voltage Requirements
The following are the voltage requirements for the InServ E-Class/F-Class Storage Servers:
■
200-240 VAC
■
50-60 Hz
Table 5-2 lists current requirements for storage server components depending on voltage.
NOTE: All calculations in Table 5-2 are based on fully populated components; for
example, a fully populated E200/F200 drive chassis contains 16 disks.
Specifications are not provided for partially populated drive chassis because
different drives and magazine types have varying current requirements and can
be installed in a variety of different combinations. Therefore, only the maximum,
fully loaded configuration is sited.
Table 5-2. Current Requirements for Storage Server Components
Current at
Component
220 VAC (A)
Controller node (pair)
1.8
Drive chassis (single)
2.0
Drive chassis (pair)*
4.0
1M power distribution unit (PDU)†
13.1
2M power distribution unit (PDU)‡
21.3
* E-Class/F-Class Storage Servers require a minimum of two drive chassis; however, additional drive chassis can be
installed individually.
† This total represents the maximum output of a PDU when fully populated.
‡ This total represents the maximum output of a PDU when fully populated.
5.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 5-3 lists total current limitations for storage server systems depending on voltage. The
total current drawn by all components installed in a single cabinet must not exceed these
totals.
Table 5-3. Total Current Limitations Per System
Current at
Current at
Current at
200 VAC (A)
220 VAC (A)
240 VAC (A)
14.4
13.1
12.0
23.4
21.3
19.5
Maximum current
per
1M cabinet
(2 PDUs)
Maximum current
per
2M cabinet
(4 PDUs)
5.4 Power Quality
NOTE: The total system peak inrush current on system startup can vary depending
on the system configuration but is mitigated through a staggered (sequenced)
drive spin-up and by distributing the load equally unless there is a failure on a
given line.
The quality of the input power is critical to the performance and reliability of 3PAR InServ
Storage Servers. Variations in the input power can cause a power failure or malfunction. Many
of the causes of transient signals and noise on commercial power lines are difficult to locate or
are beyond the customer’s control. To reduce the impact of the irregularities, some form of
power conditioning may be needed. Please consult your electrician for assistance.
5.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.5 Voltage and Frequency Tolerance
Steady state voltage must be maintained within 10 percent of the normal rated voltage,
measured (under load) at the power input terminal of the specified server. The frequency must
be maintained at (50-60 Hz), 1 phase 50/60 +2 percent, -4 percent.
When there is a possibility of brownouts or other marginal voltage conditions, installing a
voltage monitor may be advisable.
5.6 Voltage Spikes
The 3PAR InServ Storage Servers are tested to comply with the EN 61000-45 standard.
Installing a lightning protection device on the server room power source is recommended
when the following conditions exist:
■
The primary power is supplied by an overhead power service.
■
The utility company installs lightning protectors on the primary power source.
■
The area is subject to electrical storms or an equivalent type of power surge.
5.7 Electrostatic Discharge
The InServ Storage Servers are susceptible to failure due to Electrostatic Discharge (ESD).
Electrostatic charges can accumulate on people and furniture because of direct contact with
floor coverings or movement while in contact with furniture coverings. Discharge of static
electricity to a metal surface on server cabinets can interfere with the system’s operation and
cause discomfort to anyone who comes in contact with it.
Some factors that contribute to electrostatic discharge are:
■
High-resistance floor covering.
■
Carpeting without anti-static properties.
■
Low humidity (less than 20%).
The InServ Storage Servers are tested to comply with the EN 61000-45 standard.
5.13
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.8 Branch Circuits
The individual panel branch circuits should be protected by suitable circuit breakers properly
rated according to manufacturer specifications and applicable codes. Each circuit breaker
should be labeled to identify the branch circuit it is controlling. The receptacle should also be
labeled. Plan on a circuit breaker maximum of 30 A per PDU (de-rated to 24 A).
5.9 Emergency Power Control
As a safety precaution, you might consider providing emergency power-off controls for
disconnecting the main service wiring that supplies the InServ Storage Servers. Install these
controls at a convenient place for the operators and next to the main exit doors of the room
after checking local electrical codes for further guidelines.
5.10 Redundant Power
The E-Class/F-Class controllers and storage arrays are designed to continue operating even
when AC power is lost to one of its supplies. For this feature to operate properly, each power
supply line cord within an enclosure must be attached to a separate branch circuit, each
controlled and protected by its own circuit breaker. Multiple outlets in a power distribution
unit or power strip do not constitute a separate branch circuit.
Additionally, each line cord must be plugged into an outlet that is capable of supporting the
entire load of its enclosure.
CAUTION: In site planning, it is critical that special consideration is given to this
requirement. Failure to do so might result in the overloading of the branch circuit
if a power supply failed, which could shut down the server components and cause
similar failures in all the equipment connected to that branch circuit.
Table 5-4 lists the maximum current draw per outlet as a function of common line voltages.
The maximum load means the total load for the enclosure. When both power supplies are
working, each supply takes half the power load. In the event of a power failure, the working
supply takes the entire load.
5.14
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Table 5-4. Maximum Current Draw Per Outlet Requirements for Storage Server Components
Maximum Load (A)
Line Voltage
Controller Chassis
Drive Chassis
Service Processor
110
3.6
4.5
3.5
208
1.8
2.2
1.7
230
1.6
2.0
1.5
(VAC)
InServ Storage Servers with 3PAR cabinets support redundant power within the system
through the use of redundant PDUs and redundant power supplies.
To support redundant power:
■
The power supplies in each power domain must connect to separate PDUs.
■
Each PDU in the system must connect to an independent AC circuit.
As shown in Figure 5-5 and Figure 5-6, power domains within the storage server are
distributed between the upper and lower halves of the cabinet.
5.15
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Upper Power
Domain
Lower Power
Domain
(Front View)
0726_L_R1
Figure 5-5. Front View of the Power Domains Within the
Controller Nodes and Drive Chassis
5.16
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Upper Power
Domain
Lower Power
Domain
(Rear View)
0728_L_R1
Figure 5-6. Rear View of the Power Domains Within the
Controller Nodes and Drive Chassis
NOTE: The Rear for the E200 and F200 are the same except for the arrangement
of ports on each of the different controller nodes. The F400 has four controller
nodes.
5.17
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Figure 5-7 and Figure 5-8 illustrate standard redundant power configurations for a fully loaded
E200 Storage Server housed in a 2M rack and 1M rack. PDUs are numbered 0 through 4 with
each PDU receptacle numbered 0 through 7. The service processor and chassis PDU Cord
number corresponds with a PDU and receptacle number. For example, PDU 2 and outlet 6 is
expressed as 2.6.
PDU
Cord #
PDU
Cord #
The PDU (X) and PDU Outlet (Y)
correspond to the PDU Cord
Number (X.Y) connected to the
chassis components.
PDU Number
Y
PDU Cord Number
X.Y
Rail
RU
#
Top Cable Routing Access
35
0.0
Drive Chassis 7
0.1
Drive Chassis 6
X
PDU Outlet
Bay
#
0
1.6
32
1.0
Drive Chassis 5
1.1
Drive Chassis 4
2.0
E200 Node Chassis
1.7
1
0.6
2
29
26
0.7
3
3.5
4
23
19
2.1
Drive Chassis 0
2.2
Drive Chassis 1
3.6
5
3.7
16
6
13
3.0
Drive Chassis 2
3.1
3.2
0
0
0
0
1
1
1
1
2
2
2
2
2.6
7
Drive Chassis 3
2.7
8
Service Processor
1U Empty Space
n/a
9
10
11
12
13
14
3
3
3
3
PDU 0
PDU 1
PDU 2
PDU 3
4
4
4
4
5
5
5
5
6
6
6
6
7
7
7
7
10
7
6
5
4
3
2
1
0150_L_R6
Figure 5-7. Redundant Power Configuration E200 (2M)
5.18
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
PDU
Cord #
The PDU (X) and PDU Outlet (Y)
correspond to the PDU Cord
Number (X.Y) connected to the
chassis components.
PDU Number
PDU
Cord #
Bay
#
1.5
1
E200 Node Chassis
0.0
Rail
RU
#
17
0.1
Drive Chassis 0
0.2
Drive Chassis 1
1.6
2
14
X
PDU Outlet
Y
PDU Cord Number
X.Y
1.7
3
11
0
0
1.0
Drive Chassis 2
1.1
1.2
1
1
2
2
0.6
4
Drive Chassis 3
0.7
5
Service Processor
1U Empty Space
n/a
6
3
3
PDU 0
PDU 1
4
4
5
5
6
6
7
7
7
8
9
8
5
4
3
2
1
0390_L_R4
Figure 5-8. Redundant Power Configuration E200 (1M)
5.19
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Figure 5-9 and Figure 5-10 illustrate standard redundant power configuration for a fully
loaded F200 and F400 Storage Server housed in a 2M rack. PDUs are numbered 0 through 4
with each PDU receptacle numbered 0 through 7. The service processor and chassis PDU Cord
number corresponds with a PDU and receptacle number. For example, PDU 2 and outlet 6 is
expressed as 2.6.
PDU
Cord #
The PDU (X) and PDU Outlet (Y)
correspond to the PDU Cord
Number (X.Y) connected to the
chassis components.
PDU Number
PDU Outlet
Y
PDU Cord Number
X.Y
Bay
#
0.0
Drive Chassis 9
1.5
0
0.1
Drive Chassis 8
1.6
1
1.7
2
0.2
Drive Chassis 7
1.0
Drive Chassis 6
X
PDU
Cord #
Rail
RU
#
38
35
32
1.1
Drive Chassis 5
1.2
Drive Chassis 4
2.0
F200 Node Chassis
0.5
3
0.6
4
29
26
0.7
5
3.5
6
23
19
2.1
Drive Chassis 0
2.2
Drive Chassis 1
3.6
7
3.7
16
8
13
3.0
Drive Chassis 2
3.1
3.2
0
0
0
0
1
1
1
1
2
2
2
2
2.6
9
Drive Chassis 3
2.7
10
Service Processor
1U Empty Space
n/a
3
3
3
3
PDU 0
PDU 1
PDU 2
PDU 3
4
4
4
4
5
5
5
5
6
6
6
6
11
7
7
7
7
12
13
14
15
10
7
6
5
4
3
2
1
0751_L_R2
Figure 5-9. Redundant Power Configuration F200 (2M)
5.20
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
PDU
Cord #
Y
PDU Cord Number
X.Y
39
Drive Chassis 7
0.0
1.6
0
36
0.1
Drive Chassis 6
1.7
1
1.0
Drive Chassis 5
0.6
2
X
PDU Outlet
Rail
RU
#
Bay
#
Top Cable Routing Access
The PDU (X) and PDU Outlet (Y)
correspond to the PDU Cord
Number (X.Y) connected to the
chassis components.
PDU Number
PDU
Cord #
Drive Chassis 4
1.1
2.0
33
0.7
3
3.5
4
30
27
23
F400 Node Chassis
5
3.6
2.1
19
2.2
Drive Chassis 0
3.7
6
3.0
Drive Chassis 1
2.5
7
3.1
Drive Chassis 2
2.6
8
3.2
Drive Chassis 3
2.7
9
3.3
Service Processor
1U Empty Space
n/a
0
0
0
0
1
1
1
1
2
2
2
2
3
3
3
3
PDU 0
PDU 1
PDU 2
PDU 3
16
13
4
4
4
4
5
5
5
5
6
6
6
6
10
7
6
5
4
3
2
10
7
7
7
7
11
12
13
14
1
0750_L_R2
Figure 5-10. Redundant Power Configuration F400 (2M)
NOTE: If a storage server cabinet does not have components installed in the top
four bays (bays 0–3, or the highest 18U of the cabinet), the two upper PDUs (PDU
0 and PDU1) are not used to power the system and need not be connected.
Redundant power is still supplied to the lower bays in the cabinet through PDU 2
and PDU 3. To provide proper redundancy, connect PDUs 0 and 2 to one source
and PDUs 1 and 3 to a different source.
5.21
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
5.22
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6
Network, Cabling and
Connectivity
In this chapter
6.1 Introduction
6.2
6.2 Planning Network Access
6.2
6.2.1 Supported Network Topologies
6.2
6.3 Adapter Connections for the E-Class/F-Class Controller Nodes
6.6
6.3.1 E-Class Controller Node
6.7
6.3.2 F-Class Controller Node
6.8
6.3.3 Controller Node Slot Loading Order
6.9
6.3.4 Drive Chassis Connections
6.11
6.3.5 Host Connections
6.11
6.4 TCP/IP Port Assignments
6.12
6.5 Required Cables
6.17
6.6 External Cable Connections
6.18
6.7 Internal Cable Connections
6.20
6.8 Cable Routing Options
6.21
6.9 Service Processor Connections
6.22
Network, Cabling and Connectivity
6.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.9.1 Connecting the Service Processor
6.24
6.1 Introduction
This chapter provides information on determining the best network configuration for the
3PAR InServ Storage Server components being installed at your site, necessary connections and
cable routing options.
NOTE: The information that follows assumes an established network and
discusses how to connect an InServ Storage Server to that network.
6.2 Planning Network Access
External Ethernet, Fibre Channel, and optional modem cable connections are completed at the
time of installation. The customer site will require two static IPs and a telephone
communication line if modem communications will be relied on for service purposes.
These external connections are necessary to:
■
Establish direct connections from the controller nodes to the host computer or computers.
■
Connect the storage server to the network, enabling storage system management through
the InForm Management Console and CLI.
■
Enable access to storage server equipment from a service processor.
■
Enable 3PAR Customer Services personnel to locally and remotely monitor and service the
storage server.
NOTE: All networking equipment, including all necessary switches, hubs, and
cables are to be provided by the customer unless otherwise indicated.
6.2.1 Supported Network Topologies
Several different network topologies can be used to connect the storage system to the local
area network, depending on operating site policies and requirements. Currently, the three
major supported topologies are shared, split, and private. However, other possible network
configurations might be available. To learn more, ask your sales and support representative.
6.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
NOTE: To provide redundancy and to permit online software upgrades, both
controller nodes in a single horizontal node pair (for example, nodes 0 and 1,
nodes 2 and 3, and so on) must maintain connections to the internal customer
network.
6.2.1.1 Shared Network
With a shared network topology, the storage server and service processor share the internal
customer network (Figure 6-1).
Ethernet Connection
Storage Server
Host
Fibre Channel Connection
Management Workstation
Service Processor (CLI and InForm Management Console Access)
Firewall
Internet
Internal Customer Network
0203_L_R4
Figure 6-1. Storage Server and Service Processor on the Customer Network
(Shared Topology)
A shared topology requires:
◆
A static IP address and system name for the storage server.
◆
Two Ethernet connections from a switch or hub to the storage server controller nodes.
◆
A static IP address for the service processor.
◆
One Ethernet connection from a switch or hub to the service processor.
◆
At least one management station on the network segment.
6.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.2.1.2 Split Network
With a split network topology, the storage server is on the internal customer network, but the
storage server communicates with the service processor on a dedicated private network
segment (Figure 6-2).
Ethernet Connection
Storage Server
Host
Fibre Channel Connection
Management Workstation
(Optional)
Service
Management Workstation
Processor
(CLI and InForm Management Console Access)
Dedicated
Private
Network
Segment
Firewall
Internet
Internal Customer Network
0204_L_R4
Figure 6-2. Storage Server on the Local Area Network with the
Service Processor on a Private Segment (Split Topology)
NOTE: A split network topology with redundancy is only supported on systems
with four controller nodes such as the F400 Storage Server.
A split topology requires:
◆
Two static IP addresses and a system name for the storage server.
One IP address is for the LAN and the other IP address is for the private network
segment. Only one interface per network is active at any one time.
◆
Two Ethernet connections from a switch or hub to the storage server controller nodes.1
1 For an InServ with 2 nodes, it is only possible to create one Ethernet connection from a switch or hub to a
storage server controller node and one Ethernet connection from the private network segment to a controller
node. This configuration does not support redundancy.
6.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
◆
Two Ethernet connections from the private network segment to the storage server
controller nodes. 1
◆
One Ethernet connection from the private segment to the service processor.
◆
A static IP address for the service processor.
6.2.1.3 Private Network
With a private network topology, the storage server and the service processor sit on the same
private network segment on the customer local area network. All management workstations
used to administer the system must also sit on the same private network segment (Figure 6-3).
Ethernet Connection
Storage Server
Host
Fibre Channel Connection
Service Processor
Management Workstation
(CLI and InForm Management Console Access)
Firewall
Dedicated Private Network Segment
Internet
Internal Customer Network
0205_L_R4
Figure 6-3. Storage Server and Service Processor on a Private Segment (Private Topology)
A private topology requires:
◆
A static IP address for the storage server.
◆
A static IP address for the Service Processor.
◆
Two Ethernet connections from the storage server to a private network segment.
◆
One Ethernet connection from the service processor to the private network segment.
6.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
◆
At least one management station on the private network segment.
NOTE: It is strongly recommended that the private network segment also have a
management station to communicate with the service processor.
NOTE: When implementing Remote Copy interfaces, the service processor should
not be assigned to the same subnet.
6.3 Adapter Connections for the E-Class/F-Class Controller Nodes
There are two different types of controller nodes: one is used on the E-Class and the other is
used on F-Class servers. See E-Class Controller Node on page 6.7 and F-Class Controller Node on
page 6.8 for details.
InServ Storage Servers support the following types of modules:
■
Gigabit Ethernet adapters. For the E-Class controller node, Remote Copy using Ethernet
requires one pair of Gigabit Ethernet adapters in the primary storage server and another
pair of Gigabit Ethernet adapters in a secondary or target storage server. When required,
Gigabit Ethernet adapters should be installed in controller slot 2 for the E-Class. If
controller slot 2 on the E-Class is already used for host connections, use slot 1. The F-Class
controller node has two built-in Gigabit Ethernet ports.
■
iSCSI adapters. A PCI Host Bus Adapter (HBA) with iSCSI ports connects controller nodes to
hosts. The F-Class supports 2, 2-port iSCSI adapters per node.
■
Fibre Channel SFPs (Adapter). These adapters are used to connect to the customer FC switch
and/or hosts and connect controller nodes to drive chassis within the system. They can also
be used for Remote Copy operations. The number of ports available for the host
connection will vary based on the model and configuration. Each InServ node contains a
minimum of four Fibre Channel SFP’s; for the E-Class, there are two in PCI slot 0 for drive
chassis connections, and two in slot 3 for host or drive connections. The F-Class nodes have
the four SFP’s in slot 2.
6.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.3.1 E-Class Controller Node
As shown in Figure 6-4, for the E200 node, there are two onboard controller slots
(slots 0 and 3), which hold two Fibre Channel SFPs each.
In addition, there are two controller slots (slots 1 and 2) to hold a maximum of two adapters
each.
Controller Slot 0
SFP 1 SFP 2
GigE/Fibre
Channel/iSCSI
Port 2
GigE/Fibre
Channel/iSCSI
Port 1
Controller Slot 3
GigE/Fibre
Channel/iSCSI
Adapters in
PCI Slots 1 and 2
SFP 1 SFP 2
Ethernet Port
Maintenance Port
0201_L_R3
Figure 6-4. Controller Node Ports for the E200
6.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.3.2 F-Class Controller Node
As shown in Figure 6-5, for the F-Class node, there is one onboard controller slot (slot 2), which
holds four Fibre Channel SFPs.
In addition, there are two controller slots (slots 0 and 1) to hold a maximum of two PCI
adapters each for dual-port Fibre Channel and iSCSI connections.
Slot 0
Slot 1
Slot 2
FC / iSCSI
FC / iSCSI
FC
Ethernet
Port (E0)
GigE
Ethernet
Port (E1)
GigE
0681_L_R2
Figure 6-5. Controller Node Ports for the F-Class
A Fibre Channel or iSCSI adapter in slot 0 or 1 has two ports. PCI adapters assume the numbers
of the PCI slots they occupy. In dual-port adapters, ports are numbered 1 and 2, from top to
bottom. A Fibre Channel adapter in slot 2 has four ports, numbered 1 through 4 from right to
left.
6.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.3.3 Controller Node Slot Loading Order
Table 6-1 shows the controller slot loading order for the E-Class and F-Class controller nodes:
Table 6-1. Controller Node Slot Ordering
Usage
Controller Slot Loading Order
E-Class Controller Node
Drive Chassis Connections
0, 1 or 3
Host Connections
3, 2 or 1
Remote Copy
2, 1
iSCSI Connections
2, 1
F-Class Controller Node
Drive Chassis Connections
2*, 0, 1
Host Connections
2†, 1, 0
Remote Copy (RCFC)
1, 0
(RCIP uses the on-board GigE).
iSCSI Connections
1, 0
* Slot 2 can accommodate 4 drive connections or can be split to support both drive and host connections.
† Slot 2 can be used for host connections where half of slot 2 (ports 1/2) are used for drives and the other
half (ports 3/4) are used for hosts.
6.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.3.3.1 Slotting Rules
When configuring an F-Class with FC adapters, there are two possible configurations around
the embedded ports and FC adapter assignments:
■
Case A (if you plan on adding more FC host ports (or iSCSI, or RC over FC):
Slot 2
Slot
Slot
0
1
Disk
Host
Port
4
Port
3
Port
1
Port
2
Disk
Host
Figure 6-6. Slot 2 Configured for Greater Host Connectivity
■
◆
2 embedded FC ports for Host, 2 embedded FC ports for Disk (on a per node basis).
◆
1 x 2-port adapter for Disk per node.
Case B (If you plan on adding more disks over time (which require additional disk adapters):
Slot 2
Slot
Slot
0
1
Disk
Host
Port
4
Port
3
Disk
Port
1
Port
2
Disk
Figure 6-7. Slot 2 Configured for Greater Disk Connectivity
6.10
◆
0 embedded FC ports for Host, 4 FC embedded ports for Disk (on a per node basis).
◆
1 x 2-port adapter for Host per node.
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.3.4 Drive Chassis Connections
The following guidelines should be followed for drive chassis connections:
E-Class Control Node:
■
Fibre Channel ports in controller slot 0 are typically reserved for drive chassis connections.
■
The optimal Fibre Channel slot loading order for drive chassis connections is slot 0, slot 1
and slot 3.
F-Class Controller Node:
■
Fibre Channel ports 1 and 2 in controller slot 2 are typically reserved for drive chassis
connections.
■
The optimal Fibre Channel slot loading order for drive chassis connections is slot 2, slot 0,
then slot 1.
6.3.5 Host Connections
The following guidelines should be followed for host connections:
E-Class Controller Node:
■
Fibre Channel ports in PCI bus 1 (those occupying controller slot 3) are typically reserved for
external connection to host computers.
F-Class Controller Node:
■
Fibre Channel ports 3 and 4 in slot 2 are typically reserved for external connection to host
computers.
6.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.4 TCP/IP Port Assignments
Table 6-2 describes the TCP/IP port assignments for communication between various
components:
Table 6-2. TCP/IP Port Assignments
Port
Usage
22: The Secure Shell
Used for InServ monitoring and
(SSH) Protocol
configuration through SSH
Flow of Traffic
connections by the following
components:
■
3PAR Service Processor
3rd Party SSH Client <--> 3PAR
Service Processor
■
3PAR InForm CLI Client
3rd Party SSH Client <--> 3PAR
InServ CLI Client
■
3PAR Connection Portal
3PAR Connection Portal <-->
3PAR Service Processor
80: World Wide Web
Used by the following component
HTTP
to communicate using the HTTP
protocol:
■
3PAR Service Processor
3PAR Service Processor -->
WWW
161: SNMP
Used for InServ monitoring and
configuration by third-party SNMP
Manager applications by the
following component:
■
3PAR SNMP Agent
3rd Party SNMP Manager <-->
InServ SNMP agent
6.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Port
Usage
162: SNMPTRAP
Used by the 3PAR SNMP agent to
Flow of Traffic
send unsolicited alerts as SNMPv2c
traps for 3rd party SNMP Manager
applications by the following
components:
■
3PAR SNMP Agent
3rd Party SNMP Manager <-3PAR InServ SNMP agent
427: Service Location
Used by the 3PAR CIM API to
Protocol (SLP)
provide CIM Server location
information by the following
component:
■
3PAR CIM Server
3rd Party CIM Client <--> 3PAR
InServ CIM Server
5781: 3PAR Event
Passes unsolicited events from the
Reporting Service
InServ and is used by the following
component:
■
3PAR Service Processor
Service Processor <--> InServ
Event Service
(This port was used for IMC events
prior to OS version 2.3.1)
6.13
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Port
Usage
5782: 3PAR
Used for InServ monitoring and
Management Service
configuration over an unsecured
(unsecured)
channel by the following
Flow of Traffic
components:
■
■
3PAR InForm Management
3PAR IMC <--> 3PAR InServ CLI
Console
Server
3PAR InForm CLI
3PAR CLI <--> 3PAR InServ CLI
Server
■
3PAR Recovery Manager
Recovery Manager <--> 3PAR
InServ CLI Server
■
3PAR System Reporter
3PAR System Reporter <-->
3PAR InServ CLI Server
■
3PAR Service Processor
3PAR Service Processor --> 3PAR
InServ CLI Server
(Port 2540 used prior to 2.2.4)
6.14
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Port
Usage
5783: 3PAR
Used for InServ monitoring and
Management Service
configuration over a secured
with SSL (secured)
channel by the following
Flow of Traffic
components:
■
■
3PAR InForm Management
3PAR IMC <--> 3PAR InServ CLI
Console
Server
3PAR InForm CLI
3PAR CLI <--> 3PAR InServ CLI
Server
■
3PAR Recovery Manager
Recovery Manager <--> 3PAR
InServ CLI Server
■
3PAR System Reporter
3PAR System Reporter <-->
3PAR InServ CLI Server
■
3PAR Service Processor
3PAR Service Processor --> 3PAR
InServ CLI Server
(Port 2550 was used prior to 2.2.4)
5785: 3PAR InForm
Used by the Remote Copy service
Remote Copy
to receive remote replication
storage data sent by the Remote
Copy service from another InServ
Storage Array.
■
3PAR Remote Copy
3PAR Remote Copy on InServ <3PAR Remote Copy on InServ
(Ports 3490/3491 used for 2.2.2 and
(A dynamic port is allocated for
prior -- ports 3491/3492 used for
sending data from the RC
2.2.3 and 2.2.4)
Service on the InServ)
6.15
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Port
Usage
5988: WBEM CIM-XML
Used for InServ monitoring and
(HTTP) (unsecured)
configuration over an unsecured
Flow of Traffic
channel by the following
component:
■
3PAR CIM Server
3rd Party CIM Client <--> 3PAR
InServ CIM Server
5989: WBEMCIM-XML
Used for InServ monitoring and
(HTTPS) (secured)
configuration over a secured
channel by the following
component:
■
3PAR CIM Server
3rd Party CIM Client <--> 3PAR
InServ CIM Server
NOTE: If configured to do so, the InServ is capable of communication with a
customer defined host via UDP port 514 (syslog).
6.16
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.5 Required Cables
The quantities and lengths of the cables required for storage server installation vary according
to the specific storage server and network configuration. Fibre Channel cables are used
externally to connect the controller node to the customer switch or host (in the case of a
directly connected host). Fibre Channel cables are used internally to connect the controller
node to the drive chassis (inter-cabinet or cabinet to cabinet).
The Fibre Channel cables provided by 3PAR have a custom strain relief feature to help maintain
the proper bend radius of the cables. For this reason, 3PAR requires that you use only Fibre
Channel cables provided by 3PAR. However, 3PAR does not provide any networking cables or
equipment such as Ethernet and modem cables.
Table 6-3 identifies the types of cables commonly required for storage server installation.
Table 6-3. Required Cables (Customer Responsibility)
Cable Type
Ethernet
Connector Type
RJ-45
(Category 5) 3 cables with 2 static IPs
Multimode Fibre Channel
LC-LC
(See Table 6-5 on page 6.19 for diameter
specification)
Modem
RJ-45
6.17
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.6 External Cable Connections
Table 6-4 includes specific guidelines for connecting the controller nodes to the network and
to host computers. Refer to Supported Network Topologies on page 6.2 for descriptions of the
supported network topologies.
Table 6-4. External Controller Node Connections
Connection Type
Minimum Configuration
Recommended
Configuration
Ethernet
Connection from the
See Supported Network
Ethernet switch or hub to
Topologies on page 6.2
two controller nodes
Fibre Channel
Connection from a host
Separate connections
computer to one
from host computers to
controller node
each node, with
connections distributed
evenly across all nodes*
Maintenance
None
Varies according to
system and network
configuration
* To provide redundancy and to permit online software upgrades, both controller nodes in a single
horizontal node pair (for example, nodes 0 and 1, nodes 2 and 3, and so on) must maintain connections
to each host server.
6.18
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
■
Each controller node supports one Ethernet connection to a switch or hub. Separate
connections from the Ethernet switch or hub to at least two controller nodes are required
to support redundancy.
With redundancy, one IP address is shared between the two connections and only one
network connection is active at a time. If the active network connection fails, the IP address
is automatically moved to the surviving network connection.
■
At a minimum, the storage server requires one Fibre Channel (or iSCSI) connection from a
host computer to a controller node. However, separate connections from each host
computer to each of the controller nodes in the storage server, with connections
distributed evenly across all nodes, are recommended.
Table 6-5 shows the maximum supported Fibre Channel cable length based on the cable size
and port speed.
Table 6-5. Cable Limitations for Fibre Channel Host Connectivity
Cable Size
Speed
Cable Length Limit
62.5 micron
2 Gbps
100 meters
62.5 micron
4 Gbps
70 meters
50 micron
2 Gbps
300 meters
50 micron
4 Gbps
150 meters
6.19
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.7 Internal Cable Connections
For storage servers housed in single cabinets, internal system Fibre Channel cabling is complete
upon arrival. For multiple-cabinet configurations, the installation technician completes
connections between the controller node cabinet and the drive chassis cabinet or cabinets.
NOTE: For important exceptions to the cabling rules and guidelines described in
this section, see the InForm OS Administrator’s Guide.
NOTE: For Ethernet and Fibre Channel cables that connect the storage server to
the network and hosts, reserve approximately 7 feet (2 meters) of each cable for
internal routing within the storage server cabinet. Measure the distance between
the two cabinets and add 14 feet (4 meters) to determine the total length of cable
required.
Table 6-6 shows the typical 3PAR Fibre Channel cable lengths required for a given type of
connection:
Table 6-6. Fibre Channel Cable Usage Guidelines
Cable Length
2m
drive chassis to controller node connections in the same cabinet.
10 m
cabling between cabinets. Always round up to the nearest size.
50 m
100 m
6.20
Used for...
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.8 Cable Routing Options
Typical storage server cabinets have both upper and lower access openings available for Fibre
Channel cable routing Figure 6-8.
Upper Access
Opening
Lower Access
Opening
0016_L_R2
Figure 6-8. Cable Routing for a typical 2 Meter Cabinet
NOTE: For Ethernet, iSCSI and Fibre Channel cables that connect the storage
server to the customer network or hosts, approximately 7 feet (2 meters) of each
cable must be reserved for internal routing within the storage server cabinet.
6.21
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.9 Service Processor Connections
The Service Processor provides remote error detection and reporting and supports diagnostic
and maintenance activities for InServ Storage Servers (Figure 6-9 or Figure 6-10).
Eth-1 (Int)
Eth-0 (Ext)
0638_L_R1
Figure 6-9. Supermicro Service Processor with Ethernet Ports
Eth-1 (Int)
Eth-0 (Ext)
0806_L_R1
Figure 6-10. Supermicro II Service Processor with Ethernet Ports
In general, one service processor is required per InServ Storage Server. Each storage server
installed at an operating site includes a service processor that is installed in the same cabinet as
the storage server controller nodes. The data collected by the service processor is used by 3PAR
to maintain, troubleshoot, and upgrade the 3PAR equipment on the customer site. To perform
these activities, the service processor must communicate with 3PAR Central or a local service
provider. The connection between the service processor and 3PAR Central or a local service
provider can be made using the customer network and the Internet, or through a
point-to-point connection using a modem.
Connections that use the customer network pass through the customer’s firewall while
connections that use a modem bypass the customer’s firewall. When a designated
management workstation sits on the same network as the service processor (as described in
Supported Network Topologies on page 6.2) and is configured to access the service processor,
the customer has the option of blocking external communications at any time.
6.22
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
NOTE: When the service processor connects by modem, the customer is
responsible for supplying an analog phone line.
Table 6-7 summarizes the connectivity options for both data transfer and remote operations.
Data transfer involves external communications between the service processor and 3PAR or
another connection portal. Remote operations include problem solving and diagnostics
performed from a remote location. 3PAR recommends that both data transfer and remote
operations take place through the customer network when possible.
Table 6-7. Service Processor Connectivity Options
Connection Type
Software Update
Data Transfer / Remote
Method
Notes
Ops
Network / Network
Network / Modem
Remote update
This is the preferred method of
capability
service processor connectivity.
Locally by CD
Lower bandwidth inbound
inhibits large file transfers.
Network / Blocked
Locally by CD
Remote operations are not
allowed.
Modem / Modem
Locally by CD
Lower bandwidth of modem
connection inhibits large file
transfers. Dumps must be
transferred manually by FTP.
Modem / Blocked
Locally by CD
Remote operations are not
allowed.
6.23
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
6.9.1 Connecting the Service Processor
The service processor uses customer-supplied connections, as outlined in Supported Network
Topologies on page 6.2. Table 6-8 provides general guidelines for completing these external
connections.
Table 6-8. Service Processor Connections
Connection type
Configuration
Ethernet
For service processor: connection from the RJ-45
connector in the eth 0 port at the rear of the service
processor to an Ethernet hub or switch (Figure 6-8).
Modem (optional)
Connection from the line serial port at the rear of the
service processor to an RJ-11 modular telephone
outlet.
6.24
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7
Third-Party Rack Mounting
In this chapter
7.1 Introduction
7.1
7.2 Third Party Rack Mounting Considerations
7.2
7.3 Dimensional Requirements
7.2
7.3.1 Rack Space Considerations
7.6
7.3.2 RETMA Rail Spacing
7.7
7.3.3 Maintaining Minimum Clearances
7.8
7.4 Rack Mounting Kits
7.10
7.4.1 Two-Post Shelf Kit
7.10
7.4.2 Four-Post Shelf Kit
7.11
7.5 Redundant Power Requirements
7.12
7.1 Introduction
This chapter describes the available options and necessary requirements for installing 3PAR
InServ Storage Server components in third-party racks.
Third-Party Rack Mounting
7.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.2 Third Party Rack Mounting Considerations
Some installations may want to use third-party cabinets to house the InServ Storage Server
components supplied by 3PAR. You can choose to use a Two Post Cabinet or a Four Post
Cabinet providing that they meet the mounting requirements described in this chapter. The
cabinets must also be equipped with the appropriate power units (PDUs or power receptacles)
and have access to an adequate power source that provides the recommended level of
redundancy.
For sites choosing to mount 3PAR InServ Storage Server components in third-party racks, the
following equipment is supplied:
■
Node Chassis
■
Drive Chassis
■
Service Processor
■
3PAR provides each of the following power cord connectors for the node and drive chassis
to accommodate a particular rack configuration:
◆
2 x 6FT, IEC-320-C14 TO IEC-320C13, ROHS
◆
2 x 6FT, NEMA 5-15 P TO IEC-320-C13, ROHS
NOTE: For physical dimensions and power/heat specifications for 3PAR InServ
Storage Server components, see Chapter 2, System Components and
Specifications. For general information on placement and recommended
conditions for InServ Storage Server components see Chapter 3, General Site
Planning and Chapter 4, Structural/Environmental Considerations.
7.3 Dimensional Requirements
Figure 7-1 on page 7.3 and Figure 7-2 on page 7.4 show the required dimensions for the InServ
E200/F200 and F400 Node Chassis and drive cage.
7.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
17.677
21.390
(All Measurements in Inches)
.834 Max
19.000
13.772 (F400)
6.886 (E200/F200)
0511_L_R1
Figure 7-1. Required Dimensions for the InServ E200/F200 and the F400 Node Chassis
7.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
17.650
21.390
(All Measurements in Inches)
19.000
5.066
0512_L_R1
Figure 7-2. Required Dimensions for the DC3 Drive Chassis
7.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
If you are installing the 3PAR equipment in a Four Post Cabinet, it must meet the minimum and
maximum specifications shown in Figure 7-3.
Cabinet Post (4)
Internal Rail
Minimum: 22 Inches
Maximum: 39 Inches
Cabinet Wall
Maximum: 18.50 Inches
Minimum: 17.75 Inches
Top View of Cabinet
0521_L_R1
Figure 7-3. Required Width and Depth Dimensions for a Four-Post Cabinet
NOTE: When installing 3PAR equipment in a Four Post Cabinet, there must not be
any obstructions to the installation of the rails and the chassis, and there must be
a clear path between the front and rear vertical (RETMA) rails.
7.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.3.1 Rack Space Considerations
3PAR highly recommends installing node-chassis and all drive chassis in contiguous rack space.
This is especially true for the initial installation as it ensures Fibre Channel cables will reach and
provides consistency for servicing and installation. When adding additional drive chassis at a
later date, it is desirable to place them with the initial chassis, but it is not required.
While planning the site configuration, it is also important to note that the racks must
minimally accommodate equipment totalling 12U in height for the E200/F200 (16U for the
F400) with the primary dimensions shown in Figure 7-1 on page 7.3 and Figure 7-2 on page 7.4.
Your site configuration should also state which block of contiguous space within the rack you
would like the 3PAR equipment installed, such as the top, bottom or middle. Part of this
determination should be based on where your host cables are sourced. Figure 7-4 shows the
preferred configuration.
Drive Chassis 7
Drive Chassis 6
Drive Chassis 5
Drive Chassis 6
Drive Chassis 4
Drive Chassis 5
Drive Chassis 3
Drive Chassis 4
Drive Chassis 2
Drive Chassis 3
Drive Chassis 1
Drive Chassis 2
Drive Chassis 0
3U
F400 Controller Node
8U
Service Processor
2U
Drive Chassis 1
3U
Drive Chassis 0
4U
E200/F200 Controller Node
2U
Service Processor
0456_L_R2
Figure 7-4. Recommended Third-Party Rack Configuration
Build the rack from bottom to top. Begin with the service processor and then the controller
node and drive chassis. The service processor is 1U in height. An additional 1U of space is
allocated above or below the service processor to allow room for servicing
7.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.3.2 RETMA Rail Spacing
The Radio Electronics Television Manufacturers Association (RETMA) railing is a standard of
rack spacing. An E200 and F200 node chassis requires 4U of spacing and an F400 requires 8U of
space. The drive chassis requires 3U of spacing. The actual physical height of a service processor
is 1U, but it requires 2U of spacing in the rack for servicing. See Figure 7-5 for the RETMA rack
spacing diagram.
■
One Rack Unit (RU or U) is 1.75 inch (44.45 mm) and contains three holes spaced by 1/4 inch.
■
The space between a rack unit is 1/8 inch.
5
4
3
1/8
Inch
1/4
Inch
1/8
Inch
3
1RU/1U
1.75 Inch
(44.45mm)
3
1/4
Inch
2
Square Hole
Round Hole
1
0457_L_R1
Figure 7-5. Spacing Dimensions of RETMA Rails
7.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.3.3 Maintaining Minimum Clearances
Proper clearances should be maintained for all third-party rack mounted installations to allow
for proper ventilation, cabling and access for maintenance.
Table 7-1 shows the minimum clearance that should be maintained for third-party rack
installations:
Table 7-1. Minimum Clearances for Third-Party Racks
Minimum Clearances
Service
Front: 30 in. (76.2 cm)
Rear: 30 in. (76.2 cm) x 19" (50.8 cm) unobstructed clearance directly
behind the chassis. See Chapter 4 Providing for Service Access on
page 4.12.
Sides: n/a
Ventilation
Front: 12 in. (30.5 cm)
Rear: 12 in. (30.5 cm)
Sides: n/a
Neither vented floor tiles nor raised flooring are required.
Doors: Cabinet doors must be at least 1.5 in. (3.81 cm) away from the
front and rear of the enclosures and be perforated with a minimum
50 percent open pattern across the entire surface.
Cabling
Front: n/a
Rear: 30 in. (76.2
cm) total clearance
Sides: n/a
7.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Figure 7-6 shows the minimum clearances that should be reserved for the 2 post and 4 post
rack system.
30 Inches plus depth
of cabinet to chassis
Unobstructed
Service Area
30 Inches
Unobstructed
Service Area
Front
Node/Drive
Chassis
Node/Drive
Chassis
Top View
of Cabinets
Rear
Unobstructed
Service Area
Unobstructed
Service Area
30 Inches plus depth
of cabinet to chassis
30 Inches
Two-Post
Storage Rack
Four-Post
Storage Cabinet
0458_L_R2
Figure 7-6. Minimum Clearances for 2 and 4 Post Racks
7.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.4 Rack Mounting Kits
There are two different rack-mounting kits available to accommodate different styles of racks.
The specific type and features of the rack dictates the necessary mounting kit. Use Table 7-2 to
determine the appropriate mounting kits for the type of rack you are planning to use.
Table 7-2. Matching Mounting Racks and Kits
Rack-Mounting
Kit
Rack Type
Two-Post Open
Controller
Drive Chassis
Service Processor
960-0134
960-0134
Rail Kit, model F960-
Rack for E200/
0138-50-R5
F200/F400
Four-Post Racks
960-0131
960-0130
Rail Kit, model F960-
and Rack Cabinets
(4U version)
(3U version)
0138-50-R5
for E200/F200/
F400
7.4.1 Two-Post Shelf Kit
The two-post shelf kit allows for the E-Class/F-Class components to either be center or flush
mounted depending on the style of two-post rack. Center mounting is preferred, but is
required for free standing two-post racks. Flush mounting is permitted in two-post racks that
have been reinforced with wall supports.
Each enclosure requires its own mounting kit. Stacking one enclosure on top of another is not
permitted.
7.4.1.1 Center Mounting
With center mounting, two shelves are mounted on the front and back of the posts, with
adjustable mounting ears installed based on the front-to-rear depth of the posts. The
equipment is then secured to the mounting ears using screws.
7.10
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.4.1.2 Flush Mounting
Flush-mount shelves are mounted on the back of the posts. The equipment is placed on the
shelf and secured to the front of the rack posts using screws appropriate for your particular
rack. Flush mounting is permitted in two-post racks that have been reinforced with wall
supports.
7.4.2 Four-Post Shelf Kit
The four-post shelf kits allow the E-Class/F-Class components to be mounted in a variety of
four-post racks and rack cabinets. The shelves can either be front-and-rear mounted
(preferred) or side mounted depending on the style of rack. Each enclosure requires its own
mounting kit. Stacking one enclosure on top of another is not permitted.
7.4.2.1 Front and Rear Mounting
Four-post shelves are mounted to the front and rear rails of a four-post rack. Each side requires
two shelf halves and the corresponding mounting hardware. The shelf halves are expandable
to fit racks of different depths. Front shelf halves have left and right pieces, while the rear
shelf half can be used on either side of the rack. The E200 and F200 controllers use a 4U shelf
kit (the F400 uses an 8U kit), and drive chassis use a 3U shelf kit. For service processor
mounting, refer to the instructions included with the 3PAR Service Processor rail kit.
When both the left and right side installation is complete, the equipment can be placed on the
shelves and secured to the RETMA (Radio Electronics Television Manufacturers Association)
rails. The following figure shows the spacing standard of RETMA rails.
7.4.2.2 Side Mounting
Though front-and-rear mounting is preferred when possible, the four-post shelves can be
mounted to side rails which have RETMA-spaced #10-32 tapped holes. Each side requires two
shelf halves and the corresponding mounting hardware. The shelf halves are expandable to fit
racks of different depths. Front shelf halves have left and right pieces, while the rear shelf half
can be used on either side of the rack. The E200 and F200 controllers use a 4U shelf kit (the
F400 uses an 8U kit), and drive chassis use a 3U shelf kit. For service processor mounting, refer
to the instructions included with the 3PAR Service Processor rail kit.
Once the proper location is determined, each shelf half is mounted to the side rails of the rack.
The shelf halves are secured to the rack and to each other using pan head screws. When both
the left and right sides are complete, the equipment is placed on the shelves and secured to
the front rails.
7.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
7.5 Redundant Power Requirements
Each InServ Storage Server component is supplied with redundant power supplies. The
controller nodes and drive chassis are designed to continue operating even when AC power is
lost to one of its supplies. For this feature to operate properly, each power supply line cord
within an enclosure must be attached to a separate branch circuit, each controlled and
protected by its own circuit breaker. Multiple outlets in a power distribution unit or power
strip do not constitute a separate branch circuit.
Additionally, each line cord must be plugged into an outlet that is capable of supporting the
entire load of its enclosure.
CAUTION: In site planning, it is critical that special consideration is given to this
requirement. Failure to do so might result in the overloading of the branch circuit
if a power supply failed, which could shut down the storage server and cause
similar failures in all the equipment connected to that branch circuit.
CAUTION: AC line cords should be securely attached to the customer PDU's/
outlets with cord-retention mechanisms to prevent accidental disconnection
during service activities. 3PAR provides cord retention mechanisms on 3PAR
power supplies but does not supply retention devices for connection to the
customer PDU's or outlets.
NOTE: See Chapter 5, Power Requirements for completed details on power
requirements.
7.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A
Agency Compliance
Statements
In this appendix
A.1 Safety Precautions
A.2
A.2 Safety Agency Compliance Notices
A.2
A.2.1 System Placement and Security
A.2
A.2.2 Battery Replacement and Disposal
A.5
A.2.3 Controller Nodes
A.8
A.2.4 Drive Chassis
A.13
A.3 3PAR Power Cables
A.16
A.4 Energy Consumption Efficiency
A.16
This appendix contains safety precautions and agency compliance notices for InServ Storage
Servers and their components.
Agency Compliance Statements
A.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A.1 Safety Precautions
To be safe and to protect system data and equipment, always follow the instructions in this
manual when installing, maintaining, troubleshooting, and upgrading InServ Storage Servers
and their components.
In addition, please take the following precautions:
■
Follow all instructions, warnings, and cautions printed on individual storage server
components. Those instructions take precedence over statements made in this guide.
■
Before installing a storage server, verify that the voltage and frequency of the power
sources at the operating sites match the voltage and frequency indicated on the system’s
electrical rating label.
A.2 Safety Agency Compliance Notices
InServ Storage Servers comply with UL® 1950 and IEC 60950 safety standards for ITE
equipment. For your safety, observe the notices that follow.
A.2.1 System Placement and Security
Install and maintain storage servers and their components in a restricted access location,
limiting access to storage server equipment, software, and documentation. Each power supply
cord is to be connected to separate 30A branch circuits.
WARNING: Install this unit in a restricted access location.
ACHTUNG: Diese Einheit darf nicht frei zugänglich installiert werden.
AVERTISSEMENT: Installer cette unité dans un endroit restreint d'accès.
A.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
WAARSCHUWING: Deze eenheid dient te worden geïnstalleerd op een beperkt
toegankelijke locatie.
ADVERTENCIA: Está unidad deberá ser instalada en una área de acceso
restringido.
A.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
For storage servers with 3PAR cabinets, secure the system by locking the rear doors on all
cabinets.
WARNING: Hazardous energy is located behind the rear access door of the
storage server cabinet.
ACHTUNG: Hinter der rückwärtigen Zugangstür des Storage-Server-Schranks
liegen gefährliche Spannungen an.
AVERTISSEMENT: Énergie dangereuse située derrière la porte d'accès arrière du
coffret de serveur de stockage.
WAARSCHUWING: Achter de toegangsdeur van de opslagserverkast aan de
achterzijde ontstaat gevaarlijke energie.
ADVERTENCIA: Energía peligrosa esta localizada detrás de la puerta de acceso
trasera del gabinete del servidor de almacenamiento.
A.4
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A.2.2 Battery Replacement and Disposal
Storage server controller nodes contain 3-V lithium coin batteries. These batteries require
periodic replacement.
WARNING: There is danger of an explosion if the lithium coin battery inside the
controller node is incorrectly replaced. Replace the coin battery only with the
same or equivalent type recommended by the manufacturer.
ACHTUNG: Bei unsachgemäßem Austausch der Lithium-Knopfbatterie im
Steuerknoten besteht Explosionsgefahr. Die Knopfbatterie darf nur durch eine
gleiche bzw. vom Hersteller empfohlene gleichwertige Batterie ersetzt werden.
AVERTISSEMENT: Il y a un danger d'explosion si la batterie de lithium à
l'intérieur du contrôleur est incorrectement positionnée. Remplacez la batterie
seulement avec le même type ou équivalent recommandé par le fabricant.
WAARSCHUWING: Er bestaat kans op explosies als de lithium muntbatterij in de
controller node niet op de juiste wijze wordt vervangen. Vervang de muntbatterij
alleen door een type dat equivalent is aan het type dat door de fabrikant wordt
aanbevolen.
A.5
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
ADVERTENCIA: Existe el peligro de explosión si la batería de litio dentro del
controlador del nodo es reemplazada incorrectamente. Reemplacela solamente
con una batería del mismo tipo o con una de tipo equivalente recomendado por
el fabricante.
CAUTION: Dispose of used batteries according to the manufacturer’s instructions.
A.6
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
VORSICHT: Gebrauchte Batterien nur gemäß Herstelleranweisung entsorgen.
ATTENTION: Débarrassez-vous des batteries use selon les instructions de
fabricant.
WAARSCHUWING: Verwijder gebruikte batterijen volgens de instructies van de
fabrikant.
PRECAUCION: Deseche baterías usadas de acuerdo a las instrucciones del
fabricante.
A.7
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A.2.3 Controller Nodes
For controller nodes installed in cabinets not provided by 3PAR, observe the following
precautions:
WARNING: Install this unit in a restricted access location.
ACHTUNG: Diese Einheit darf nicht frei zugänglich installiert werden.
AVERTISSEMENT: Installer cette unité dans un endroit restreint d'accès.
WAARSCHUWING: Deze eenheid dient te worden geïnstalleerd op een beperkt
toegankelijke locatie.
ADVERTENCIA: Está unidad deberá ser instalada en una área de acceso
restringido.
A.8
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
WARNING: Hazardous energy located on rear connectors.
ACHTUNG: An den rückwärtigen Anschlüssen liegen gefährliche Spannungen an.
AVERTISSEMENT: Énergie dangereuse située sur les connecteurs arrière.
WAARSCHUWING: Gevaarlijke energievelden achter de aansluitingen aan de
achterzijde.
A.9
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
ADVERTENCIA: Energía peligrosa localizada en los conectores traseros.
WARNING: There is danger of an explosion if the lithium coin battery inside the
controller node is incorrectly replaced. Replace the coin battery only with the
same or equivalent type recommended by the manufacturer.
ACHTUNG: Bei unsachgemäßem Austausch der Lithium-Knopfbatterie im
Steuerknoten besteht Explosionsgefahr. Die Knopfbatterie darf nur durch eine
gleiche bzw. vom Hersteller empfohlene gleichwertige Batterie ersetzt werden.
A.10
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
AVERTISSEMENT: Il y a un danger d'explosion si la batterie de lithium à
l'intérieur du contrôleur est incorrectement positionnée. Remplacez la batterie
seulement avec le même type ou équivalent recommandé par le fabricant.
WAARSCHUWING: Er bestaat kans op explosies als de lithium muntbatterij in de
controller node niet op de juiste wijze wordt vervangen. Vervang de muntbatterij
alleen door een type dat equivalent is aan het type dat door de fabrikant wordt
aanbevolen.
ADVERTENCIA: Existe el peligro de explosión si la batería de litio dentro del
controlador del nodo es reemplazada incorrectamente. Reemplacela solamente
con una batería del mismo tipo o con una de tipo equivalente recomendado por
el fabricante.
A.11
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
CAUTION: Dispose of used batteries according to the manufacturer’s instructions.
VORSICHT: Gebrauchte Batterien nur gemäß Herstelleranweisung entsorgen.
ATTENTION: Débarrassez-vous des batteries use selon les instructions de
fabricant.
WAARSCHUWING: Verwijder gebruikte batterijen volgens de instructies van de
fabrikant.
PRECAUCION: Deseche baterías usadas de acuerdo a las instrucciones del
fabricante.
A.12
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A.2.4 Drive Chassis
For drive chassis installed in cabinets not provided by 3PAR, observe the following precautions:
WARNING: Install this unit in a restricted access location.
ACHTUNG: Diese Einheit darf nicht frei zugänglich installiert werden.
AVERTISSEMENT: Installer cette unité dans un endroit restreint d'accès.
WAARSCHUWING: Deze eenheid dient te worden geïnstalleerd op een beperkt
toegankelijke locatie.
ADVERTENCIA: Está unidad deberá ser instalada en una área de acceso
restringido.
A.13
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
WARNING: There is danger of an explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
ACHTUNG: Bei unsachgemäßem Austausch der Batterie besteht
Explosionsgefahr. Sie darf nur durch eine gleiche bzw. vom Hersteller empfohlene
gleichwertige Batterie ersetzt werden.
AVERTISSEMENT: Il y a un danger d'explosion si la batterie est incorrectement
positionnée. Remplacez la batterie seulement avec le même type ou équivalent
recommandé par le fabricant.
A.14
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
WAARSCHUWING: Er bestaat kans op een explosie als de batterij niet op de
juiste wijze wordt vervangen. Alleen te vervangen door een type dat equivalent is
aan het type dat door de fabrikant wordt aanbevolen.
ADVERTENCIA: Existe el peligro de explosión si la batería es reemplazada
incorrectamente. Reemplácela solamente con una batería del mismo tipo o un
tipo equivalente recomendado por el fabricante.
A.15
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
A.3 3PAR Power Cables
English Compliance Statement
All power cables provided by 3PAR are for exclusive use for 3PAR products.
Japanese Compliance Statement
A.4 Energy Consumption Efficiency
Energy consumption efficiency*= 0.146
* Japan Green Law statement of compliance: The energy consumption efficiency value has
been calculated per requirements for Category-G Magnetic Disk Drive Units by dividing the
power consumption, measured according to the definition in the Law Concerning the Rational
Use of Energy, by the storage capacity defined in the Energy Conservation Law. The efficiency
value is based on a host-maximized E200 configuration using 750GB NL drives.
A.16
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Index
A
access recommendations, physical 4.13
altitude requirements and specifications 2.16, 4.14
audience, for this manual 1.2
authorized technicians, list of 1.2
B
batteries
explosion warning for A.5
lithium, replacement and disposal of A.5
C
cabinets
controller nodes, current requirements 5.11
drive chassis
current requirements 5.11
non-3PAR, controller node warnings A.8
numbering in
PDUs 5.5
cables
included with servers 6.17
components, server
numbering of 5.3
controller node chassis
current requirements 5.15
controller nodes
cooling requirements 4.16
non-3PAR cabinets, warnings for A.8
cooling requirements for InServ systems 4.15
cords. See power cords
D
documentation, related 1.2
documents, systems planning 3.4
drive chassis
current requirements 5.11
non-3PAR cabinets, warning for A.16
E
E200/F200 server
front view 2.3
electrical requirements 5.4, 5.7
Ethernet
cabling included with server 2.18, 6.17
connections
external, configuration of 6.24
necessary for 6.2
F
Fibre Channel
cables
included with server 2.18, 6.17
connections
Ethernet necessary for 6.2
external, configuration of 6.18
flooring, raised
examples of 4.5
specifications for 4.4
Index
IX.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
structural requirements 4.4 to 4.6
H
humidity specifications for servers 2.17, 4.15
cooling 4.15
electrical 5.4
structural 4.5
RETMA 7.7
spacing, definition 7.7
revision history RH.1
M
modem cables included with server 2.18, 6.17
modem connection configuration 6.24
N
NEMA L6-30 receptacle connectors 5.4
notes, about 4.12
notes, cautions, and warnings, explanation 1.5
numbering
power supplies 5.2
P
PDUs. See power distribution units (PDUs)
Power 5.5
power configuration
valid, example of 5.18
power distribution units (PDUs)
redundancy of 5.15
requirements for 5.3
power requirements
for servers 5.15
power supplies
location of 5.2
preinstallation planning 3.4
systems planning document 3.4
R
Radio Electronics Television Manufacturers
Association 7.7
rail spacing 7.7
raised flooring
examples of 4.5
specifications for 4.4
structural requirements 4.4 to 4.6
redundant power 5.15
requirements for 5.15
valid configuration 5.18
related documentation 1.2
requirements
access 4.12
IX.2
Index
S
safety agency compliance notices A.2
safety precautions A.2
security, of servers A.2
serial connections
external, configuration of 6.18
service processor
connecting 6.24
site requirements for server installation 4.16
storage servers
access recommendations, physical 4.13
components
numbering of 5.3
current requirements 5.15
lithium battery replacement A.5
placement and security A.2
redundant power 5.15
requirements
cooling 4.15
current 5.15
electrical 5.4
installation site 4.16
security of A.2
weight and loads for 4.6
structural requirements, system 4.5
systems planning document 3.4
T
temperature specifications for servers 2.16, 4.14
TUV compliance A.2
U
UL® compliance A.2
V
vibration specifications for servers 4.14
voltage and frequency verification A.2
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
W
weight and load for server 4.6
Index
IX.3
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
IX.4
Index
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
Revision History
Release Level
Revision Summary
320-200120 Rev A
First version of this manual to accommodate physical planning for
March 2009
the 3PAR InServ E-Class and F-Class Storage Servers and third-party
rack installations.
320-200120 Rev B
Second version of this manual with updated specifications and
May 2009
additional information based on field requirements.
320-200120 Rev C
Third version of this manual with addition of slot order rules and
October 2009
TCP/IP port table.
320-200120 Rev D
Fourth version of this manual with support for a new service
February 2010
processor.
320-200120 Rev E
Fifth version of this manual with support for Solid State Drives (SSD).
April 2010
320-200120 Rev F
Sixth release of this manual provides new electrical and
September 2010
environmental specifications.
Revision History
RH.1
3PAR InServ E-Class/F-Class Storage Server Physical Planning Manual
RH.2
