HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs

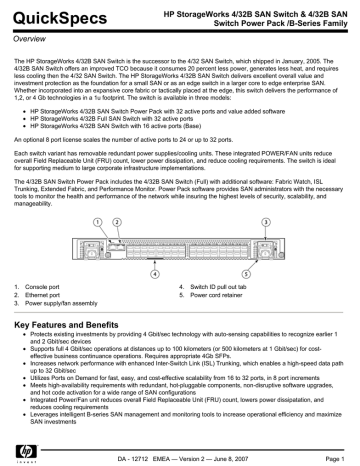

Overview
The HP StorageWorks 4/32B SAN Switch is the successor to the 4/32 SAN Switch, which shipped in January, 2005. The
4/32B SAN Switch offers an improved TCO because it consumes 20 percent less power, generates less heat, and requires
less cooling then the 4/32 SAN Switch. The HP StorageWorks 4/32B SAN Switch delivers excellent overall value and
investment protection as the foundation for a small SAN or as an edge switch in a larger core to edge enterprise SAN.
Whether incorporated into an expansive core fabric or tactically placed at the edge, this switch delivers the performance of
1,2, or 4 Gb technologies in a 1u footprint. The switch is available in three models:
HP StorageWorks 4/32B SAN Switch Power Pack with 32 active ports and value added software
HP StorageWorks 4/32B Full SAN Switch with 32 active ports
HP StorageWorks 4/32B SAN Switch with 16 active ports (Base)
An optional 8 port license scales the number of active ports to 24 or up to 32 ports.
Each switch variant has removable redundant power supplies/cooling units. These integrated POWER/FAN units reduce
overall Field Replaceable Unit (FRU) count, lower power dissipation, and reduce cooling requirements. The switch is ideal
for supporting medium to large corporate infrastructure implementations.
The 4/32B SAN Switch Power Pack includes the 4/32B SAN Switch (Full) with additional software: Fabric Watch, ISL
Trunking, Extended Fabric, and Performance Monitor. Power Pack software provides SAN administrators with the necessary
tools to monitor the health and performance of the network while insuring the highest levels of security, scalability, and
manageability.
1. Console port
2. Ethernet port
3. Power supply/fan assembly
4. Switch ID pull out tab
5. Power cord retainer
Key Features and Benefits
Protects existing investments by providing 4 Gbit/sec technology with auto-sensing capabilities to recognize earlier 1
and 2 Gbit/sec devices
Supports full 4 Gbit/sec operations at distances up to 100 kilometers (or 500 kilometers at 1 Gbit/sec) for costeffective business continuance operations. Requires appropriate 4Gb SFPs.
Increases network performance with enhanced Inter-Switch Link (ISL) Trunking, which enables a high-speed data path
up to 32 Gbit/sec
Utilizes Ports on Demand for fast, easy, and cost-effective scalability from 16 to 32 ports, in 8 port increments
Meets high-availability requirements with redundant, hot-pluggable components, non-disruptive software upgrades,
and hot code activation for a wide range of SAN configurations
Integrated Power/Fan unit reduces overall Field Replaceable Unit (FRU) count, lowers power dissipatation, and
reduces cooling requirements
Leverages intelligent B-series SAN management and monitoring tools to increase operational efficiency and maximize
SAN investments
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 1
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Models
HP StorageWorks
4/32B SAN Switch
Models
HP StorageWorks 4/32B SAN Switch Power Pack
HP StorageWorks 4/32B Full SAN Switch with 32 active ports
HP StorageWorks 4/32B SAN Switch with 16 active ports
DA - 12712 EMEA — Version 2 — June 8, 2007
AG758A
AG757A
AG756A
Page 2
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Product Highlights
4/32B SAN Switch
Simplifies enterprise SAN deployment by combining higher edge switch port density with
exceptional scalability, performance and reliability
Delivers 16, 24, or 32-ports in a 1U enclosure
Meets enterprise level availability requirements with redundant, hot pluggable components,
no-single-points-of-failure within the switch
Provides 1 Gb, 2 Gb, and 4Gb/s* performance
Employs optional Inter-Switch Link (ISL) Trunking to provide a high-speed data path
between switches which enables a high speed data path between 4Gb/s switches up to 32
Gbit/sec
* Full 4Gb/s end to end storage performance requires 4 Gb/s HBAs, 4Gb/s controllers, and 4Gb/s
switches. 4Gb/s ISL performance can be obtained between two 4Gb/s switches.
Configuration Support http://h18000.www1.hp.com/products/storageworks/san/documentation.html
High-availability
features
Integrated redundant, hot swappable cooling fans and power supplies
Enhanced Fault Detection Logic
Parity protection on all data paths and system memory
Advanced Fabric
Services
Hardware and Software Enforced Zoning
Frame Filtering
Built-in Web browser management tools
Cabinet Support
22U, 36U, and 42U; 5000, 9000 and 10,000 series StorageWorks Cabinets are supported
25U, 33U, and 41U HP system/e cabs
Software Components, Standard, Base Models
Frame Filtering
An ASIC based capability that enables new applications and features. The switch has the ability to
"view" the first 64 bytes of the Fibre Channel frame. At this time, Frame Filtering enables
advanced capabilities such as Advanced Zoning and Advanced Performance Monitoring.
Advanced Zoning
WWN Zoning and Access Control are enforced by hardware that provides the same simple
administration previously enforced only with software. Administrators can organize a physical
fabric into logical groups and prevent unauthorized access by devices outside the Zone.
Web Tools
WebTools is an intuitive and easy-to-use graphical interface that enables organizations to monitor
and manage SAN fabrics. Tasks can be performed through a Java-capable Web browser from a
standard laptop, desktop PC or workstation from any location within the enterprise.
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 3
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs
Product Highlights
Software Components, Optional
4/32B SAN Switch
Power Pack Software
Bundle
The Power Pack Software Bundle for 4/32B SAN Switch includes the following:
Fabric Watch
Fabric Watch enables each switch to monitor the SAN for potential faults and automatically alert
network managers to problems before they become failures. Fabric Watch tracks a variety of SAN
fabric elements, events, and counters. Monitoring fabric-wide events, ports, SFPs, and
environmental parameters permits early fault detection and isolation as well as performance
measurement. Each switch in the SAN needs its own Fabric Watch license.
Fabric Watch
Advanced Performance Monitor
Extended Fabric
ISL Trunking
Advanced Performance This enabling technology helps administrators monitor and watch specific fabric metrics from a SID
Monitor
(Source ID) to a DID (Destination ID), so they can fine-tune and scale the fabric more efficiently.
Plus, Advanced Performance Monitoring includes the ability for early warning detection of hot
spots within the fabric, a powerful tool for maintaining overall balanced performance.
Extended Fabric
Extends all of the scalability, reliability, and performance benefits of Fibre Channel Storage Area
Networks (SANs) beyond the native 10 km distance specified by the Fibre Channel standard.
ISL Trunking
For high performance enhanced Trunking, this optional license logically groups up to four E-ports
to provide a high bandwidth trunk between two switches. Each 4Gb switch needs its own license.
The switch operating system views the trunk as a single, high bandwidth resource (up to 32Gb)
when routing connections between 4G switches. Connections are load-balanced across the
individual links, which comprise the logical trunk group.
Fabric Manager
Fabric Manager is a highly scalable, Java-based application that manages multiple switches and
multiple fabrics (up to eight) in real time, helping SAN administrators with SAN configuration,
monitoring, dynamic provisioning, and daily management. SAN administrators gain rapid access to
critical SAN information across multiple personality fabrics, including both Fabric OS SANs and
enhanced Secure Fabric OS SANs.
Secure Fabric OS
Secure Fabric OS™ is available only on the B-Series platform and is the only solution that
provides protection for both management access and switch-to-switch authentication. This
comprehensive security solution for SAN fabrics provides policy-based security protection for more
predictable change management, assured configuration integrity and reduced risk of downtime.
Secure Fabric OS protects the network by using the strongest, enterprise-class security methods
available, including digital certificates and digital signatures, multiple levels of password protection,
strong password encryption and Public Key Infrastructure (PKI)-based authentication, and 128-bit
encryption of the switch's private key used for digital signatures. With its flexible design, Secure
Fabric OS enables organizations to customize SAN security to meet specific policy requirements.
In addition, Secure Fabric OS works in conjunction with Advanced Zoning to further secure access
to the SAN, simplify storage management, and reduce provisioning time.
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 4
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Service and Support, HP Care Pack, and Warranty Information
Warranty
(1-1-1) Hardware Warranty; 1-year parts; 1-year on-site (standard business hours, next business
day response) and 1-year labor.
NOTE: The hardware warranty covers firmware and embedded non-saleable software. For
extended hardware installation and maintenance information, click the link below:
http://www.hp.com/hps/carepack/services/.
NOTE: Certain restrictions and exclusions apply. Consult the Customer Support Center for details.
Hardware or Software product installation is not included in the warranty, but is available and
highly recommended.
HP Service & Warranty HP Service & Warranty Support Additional Warranty protection and/or HP Installation packages
Support
can be purchased.
NOTE: Certain restrictions and exclusions apply. Consult the Customer Support Center for details.
HP provides a one-year, hardware limited warranty, fully supported by a worldwide network of
resellers and service providers. The first year of Rights to New License Version and standard
business day, standard business hours telephone support is included with the purchase of an HP
Power Pack. In order to continue to receive telephone support and Rights to New License Version
after the first year, the purchase of a software support contract or Care Pack is required.
In addition, available service offerings include a full range of HP Care Pack packaged hardware
and software services:
Installation
Extended coverage hours and enhanced response times
System management and performance services
For more information on warranty and support options, please visit our Web site at:
http://www.hp.com/hps/tech/storage/supp/.
Software Product
Services
Software Warranty - HP warrants only that the software media will be free of physical defects for
a period of ninety (90) days from delivery.
EXCLUSIVE REMEDY -The entire liability of HP and its suppliers and your exclusive remedy for
software that does not conform to this Limited Warranty shall be the repair or replacement of the
defective media. This warranty and remedy are subject to your returning the defective media
during the warranty period to HP in the country in which you obtained the software.
NOTE: Certain restrictions and exclusions apply. Consult the Customer Support Center for details.
Stand-alone Telephone Support
Rights to new version
Media and documentation updates
Hardware or Software product installation is not included in the warranty, but is available and
highly recommended.
Hardware Product
Services
Installation services
On-site Maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 5
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services Service offerings include a full range of Customer HP Care Pack services for both hardware and
Warranty Upgrade
software services:
Options
Response - Upgrade on-site response from next business day to same day 4-hours
Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Additional Warranty protection and/or HP Installation packages can be purchased.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for
details
HP Care Pack
Information
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but
the commencement date will be the same as the Warranty Start Date (delivery date to end
user customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional HP Care Pack (hardware & software) information, as well as orderable part
numbers, please refer to the URL listed below:
http://www.hp.com/hps/carepack/services/
Additional Services
Installation service; SAN Solution service; SAN-Environmental Support service; SAN Architecture
service; Proactive 24
For more information on these and other service options, please contact any of our worldwide
sales offices or visit our Web site at: http://www.hp.com/hps/support
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 6
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Family Information
Features
4/8 SAN
4/16 SAN
SAN Switch
4/32B SAN
4/64 SAN
SAN Director
Switch Base Switch and 4/32 and SAN Switch and
Switch and
2/128 and
and 4/8 SAN
4/16 SAN
Switch 4/32
4/32B SAN
4/64 SAN Director 2/128
Switch
Switch Power Power Pack Switch Power Switch Power Power Pack
Pack
Pack
Pack
Targeted
Workgroups, Workgroups, Workgroups, Workgroups, Workgroups, Data Centers
Environment Departments Departments Departments Departments Departments
Port
4Gbit/sec
4Gbit/sec
4Gbit/sec
4Gbit/sec
4Gbit/sec
2 Gbit/sec
Bandwidth
Aggregate
64 Gbit/sec 128 Gbit/sec
128-256
128-256
256 Gbit/sec 512 Gbit/sec
device
end-to-end
end-to-end
Gbit/sec end- Gbit/sec end- end-to-end
end-to-end
bandwith
to-end
to-end
OS Support
NOTE: Please Refer to SAN Design Guide pointer
http://www.hp.com/go/SANdesign or http://www.hp.com/go/SANdesignguide
Storage
MA8000
MA8000
MA8000
MA8000
MA8000
MA8000
system
EMA12000/
EMA12000/
EMA12000/
EMA12000/
EMA12000/
EMA12000/
support
EMA16000
EMA16000
EMA16000
EMA16000
EMA16000
EMA16000
EVA, XP, VA, EVA, XP, VA, EVA, XP, VA, EVA, XP, VA, EVA, XP, VA, EVA, XP, VA,
MSA
MSA
MSA
MSA
MSA
MSA
Ports
16 SFP
16 SFP
16 SFP Base 16 SFP Base 32 SFP Base 32 SFP Base
32 Total
32 Total
64 Total
128 Total
Cascading
Yes
Yes
Yes
Yes
Yes
Yes
support
Advanced
Optional
Included with Included with Included with Included with Included with
Trunking
Upgrade
Power Pack or Power Pack or Power Pack or Power Pack or Power Pack or
Optional
Optional
Optional
Optional
Optional
Upgrade
Upgrade
Upgrade
Upgrade
Upgrade
Form factor
1U
1U
1U
1U
2U
14U
Zoning
Yes (Included) Yes (Included) Yes (Included) Yes (Included) Yes (Included) Yes (Included)
Software
Hot plug,
No
No
Yes
Yes
Yes
Yes
redundant
(Integrated
power
with power
supplies
supplies)
Hot plug fans
No
No
Yes
Yes (integrated
Yes
Yes
with fans)
Enterprise
Yes
Yes
Yes
Yes
Yes
Yes
Backup
Solution
(EBS) support
DA - 12712 EMEA — Version 2 — June 8, 2007
4/256 SAN
Director and
4/256 Power
Pack
Data Centers
Up to
4Gbit/sec
2.176Tbit/sec
MA8000
EMA12000/
EMA16000
EVA , XP, VA,
MSA
256 Total
Yes
Included with
Power Pack or
Optional
Upgrade
14U
Yes (Included)
Yes
Yes
Yes
Page 7
QuickSpecs
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
Family Information
Features
Brocade 4Gb SAN Brocade 4Gb SAN MSA SAN Switch
HP 400 MultiB-Series MultiSwitch for HP pSwitch for HP c2/8 (embedded
protocol Router
protocol Router
Class
Class
switch)
Blade
BladeSystem
BladeSystem
Targeted
Workgroups,
Workgroups,
Workgroups,
Workgroups,
Data Centers
Environment
Departments
Departments
Departments
Departments
Port Bandwidth
4 Gbit/sec
4 Gbit/sec
2 Gbit/sec
4 Gbit/sec Ethernet: 4 Gbit/sec Ethernet:
1 Gbit/sec
1 Gbit/sec
Aggregate device 48 Gbit/sec end-to- 192 Gbit/sec end-to- 32 Gbit/sec end-to128 Gbit/sec
N/A
bandwith
end
end
end
OS Support
NOTE: Please Refer to SAN Design Guide pointer
http://www.hp.com/go/SANdesign or http://www.hp.com/go/SANdesignguide
Storage system
MSA, EVA, XP
MSA, EVA, XP
MSA 1000
MSA, EVA, XP
MSA, EVA, XP
support
Ports
4 external / 8
4 or 8 external / 8 or
7 external / 1
18 ports: 16 FC and 18 ports: 16 FC and
internal
16 internal
internal
2 Gigabit Ethernet 2 Gigabit Ethernet
Cascading
Yes
Yes
Yes
Yes
Yes
support
Advanced
Optional Upgrade Optional Upgrade Optional Upgrade Optional Upgrade Optional Upgrade to
Trunking
chassis
Form factor
Embedded
Embedded
Embedded
1U
Blade in Director
Zoning Software
Yes (Included)
Yes (Included)
Yes (Included)
Yes (Included)
Yes (Included)
Hot plug,
Yes, in
Yes, in
No
No
Yes, in director
redundant power
BladeSystem
BladeSystem
chassis
supplies
Enclosure
Enclosure
Hot plug fans
Yes, in
Yes, in
No
No
Yes, in director
BladeSystem
BladeSystem
chassis
Enclosure
Enclosure
Enterprise Backup
Yes
Yes
Yes
Yes
Yes
Solution (EBS)
support
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 8
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs
Configuration Information
Step 1 – Base Configuration
Select one:
Model
4/32B SAN Switch
Power Pack
Model Description
4/32B SAN Switch with 32 active ports; rackmount kit; accessory kit (enterprise
safety and regulatory information, installation guide, rack-mounting instructions),
power cords, Advanced Fabric OS, Advanced Web Tools, Advanced Zoning,
Fabric Watch, Advanced Performance Monitor, Extended Fabric, ISL Trunking.
Includes serial cable
4/32B Full SAN Switch 4/32B Full SAN Switch with 32 active port; rackmount kit; accessory kit
(enterprise safety and regulatory information, installation guide, rack-mounting
instructions), power cords, Advanced Fabric OS, Advanced Web Tools and
Advanced Zoning. Includes serial cable
4/32B SAN Switch Base 4/32B SAN Switch with 16 active ports; rackmount kit; accessory kit (enterprise
safety and regulatory information, installation guide, rack-mounting instructions),
power cords, Advanced Fabric OS, Advanced Web Tools and Advanced Zoning.
Includes serial cable
8 port upgrade license 8 port upgrade license for 4/32 SAN Switch (base model)
Part Number
AG758A
AG757A
AG756A
T3677A
Step 2 – Options
Select each type of required options with quantities specified:
Model Description
4 Gb Transceivers
4Gb shortwave transceiver- Single
Distance
2 Gb Transceivers
2 Gb optical cables
4Gb performance: 150 meters between devices
2Gb performance: 300 meters between devices
1Gb performance: 500 meters between devices
4Gb Long Wave transceiver - 10km (Availability in 3Q06)
Short Wave, 300 m, 2X, FC
Long Wave - 10 km
Long Wave - 35 km
LC-LC for between two 2 Gb or 4Gb devices
2 m LC-LC Multi-Mode Fibre Channel Cable
5 m LC-LC Multi-Mode Fibre Channel Cable
15 m LC-LC Multi-Mode Fibre Channel Cable
30 m LC-LC Multi-Mode Fibre Channel Cable
50 m LC-LC Multi-Mode Fibre Channel Cable
LC-SC for between a 1 Gb and a 2 Gb device
2 m LC-SC Multi-Mode Fibre Channel Cable
5 m LC-SC Multi-Mode Fibre Channel Cable
15 m LC-SC Multi-Mode Fibre Channel Cable
30 m LC-SC Multi-Mode Fibre Channel Cable
50 m LC-SC Multi-Mode Fibre Channel Cable
DA - 12712 EMEA — Version 2 — June 8, 2007
Quantity
1
Part Number
A7446B
1
1
1
1
AE493A
A6515A
A6516A
300836-B21
1
1
1
1
1
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
1
1
1
1
1
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
Page 9
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs
Configuration Information
Step 3 – Optional Software
Software for 4/32B SAN Fabric Manager , v5.x Base Edition (10 domains)
Switch
Fabric Manager, v5.x Enterprise Edition
Fabric Manager, v4 to v5 Enterprise License Upgrade
Fabric Manager, v4 to v5 Base License Upgrade
Fabric Manager, v5 base to v5 enterprise upgrade license
Power Pack Software Bundle
NOTE: The Power Pack Software Bundle kit includes Fabric Watch, ISL
Trunking, Extended Fabric, and Advanced Performance Monitor.
Extended Fabric
Fabric Watch
Advanced Performance Monitor
ISL Trunking
Secure Fabric OS
Fibre Channel
Standards And
Revisions
T4270A
T4269A
T4272A
T4271A
T4273A
313448-B21
313458-B21
313454-B21
313450-B21
313452-B21
332925-B21
For Fabric OS 5.2.0 and later, running on associated hardware, Brocade conforms to the
Following Fibre Channel Standards:
FC-AL-2 INCITS 332: 1999
FC-GS-5 ANSI INCITS 427:2006 (Final stages of approval, includes the Following.)
FC-GS-4 ANSI INCITS 387: 2004
FC-IFR revision 1
FC-SW-4 INCITS 418:2006 (includes the following)
FC-SW-3 INCITS 384: 2004
FC-VI INCITS 357: 2002
FC-TAPE INCITS TR-24: 1999
FC-DA INCITS TR-36: 2004 (includes the following)
FC-FLA INCITS TR-20: 1998
FC-PLDA INCIT S TR-19: 1998
FC-MI-2 ANSI/INCITS TR-39-2005
FC-PI INCITS 352: 2002
FC-PI-2 INCITS 404: 2005
FC-FS-2 ANSI/INCITS 424:2006 (includes the following)
FC-FS INCITS 373: 2003
FC-LS revision 1.51 (under development)
FC-BB-3 INCITS 414: 2006 (includes the following)
FC-BB-2 INCITS 372: 2003
FC-SB-3 INCITS 374: 2003 (replaces FC-SB ANSI X3.271: 1996; FC-SB-2
INCITS 374: 2001)
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 10
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs
Technical Specifications
System Architecture
Management
Mechanicals
Fibre Channel ports
Scalability
32 ports, universal (E, F, and FL)
Full fabric architecture:
http://h18006.www1.hp.com/products/storageworks/
san/documentation.html
Certified maximum
Refer to SAN Design Guide for current configuration information:
http://h18006.www1.hp.com/products/storageworks/
san/documentation.html
Interoperability
SAN Switch 8, SAN Switch 16, SAN Switch 8-EL, SAN Switch 16-EL,
SAN Switch 2/8v, SAN Switch 2/16v, SAN Switch 2/16N, SAN Switch
2/16, SAN Switch 2/1-EL, Core Switch 2/64, SAN Switch 2/32, SAN
Director 2/128; 4/256 SAN Director; SAN Switch 4/32; 4/64 SAN Switch;
4/8 SAN Switch; 4/16 SAN Switch; Brocade 4Gb SAN Switch for HP pClass BladeSystem; Brocade 4Gb SAN Switch for HP c-Class
BladeSystem; MSA SAN Switch 2/8; HP 400 MP-Router; and HP MPRouter
Performance
1.063 Gbit/sec line speed (full duplex); 2.125 Gbit/sec line speed (full
duplex); 4.25 Gbit/sec line speed (full duplex); auto-sensing of 1
Gbit/sec, 2 Gbit/sec, and 4 Gbit/sec port speeds; optionally
programmable to fixed port speed; speed matching between 1, 2, and 4
Gbit/sec ports
ISL Trunking
Up to eight 4.25 Gbit/sec ports per ISL trunk; up to 32 Gbit/sec per ISL
trunk
Aggregate bandwidth 256 Gbit/sec end to end
Fabric latency
<0.8 µsec with no contention, cut-through routing at 4 Gbit/sec
Maximum frame size
2112-byte payload
Classes of service
Class 2, Class 3, Class F (inter-switch frames)
Port types
FL_Port, F_Port, and E_Port; self-discovery based on switch type
(U_Port)
Data traffic types
Fabric switches supporting unicast and broadcast
Media types
Small Form-factor Pluggable (SFP) media; short-wave up to 500 meters
(1640 feet); long-wave up to 10 kilometers (6.2 miles); extended longwave up to 40km (24.8 mi). Distance depends on fiber optic cable and
port speed.
Fabric services
Simple Name Server; Registered State Change Notification (RSCN),
Advanced Zoning; WEB TOOLS. Optional fabric services include: Fabric
Watch; Extended Fabrics; ISL Trunking; Advanced Performance
Monitoring.
Options
SFP media
Management software Telnet; RADIUS,SNMP (FE MIB, FC Management MIB); Advanced WEB
supported
TOOLS (optional); Fabric Manager (optional)
Management access
10/100 Ethernet port (RJ-45); Serial port (RS-232); in-band through
Management Server
Diagnostics
POST and embedded online/offline diagnostics
Enclosure
Back-to-front airflow (non-Fibre Channel port side to Fibre Channel port
side). Power from front. 1.0U, 19-inch EIA compliant
Size
Width: 42.87 cm (16.88 in)
Height: 4.35 cm (1.71 in)
Depth: 26.4 cm (10.39 in)
System Weight
4.2 kg (9.3 lb) with dual power supplies, no SFP
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 11
HP StorageWorks 4/32B SAN Switch & 4/32B SAN
Switch Power Pack /B-Series Family
QuickSpecs
Technical Specifications
Environment
Temperature
Humidity
Altitude
Shock
Vibration
Airflow
Power
High speed
Low speed (65%)
Maximum output
System power
consumption
Nominal input voltage
Input line frequency
Minimum input voltage
Maximum input voltage
BTU rating (80%
efficiency)
Inrush current
Operating: 0° to 40° C (32° to 104° F)
Non-operating: -25° to 70° C (-13° to 158° F)
Operating: 10 to 85 percent non-condensing at 40°C (104°F)
Operating: Up to 3000 meters (9842 feet)
Storage: Up to 12 kilometers (39,370 feet)
Operating: 20 g, 6 ms half-sine
Non-operating: Half sine, 33G 11ms. 3/eg Axis
Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz
Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz
20.8 CFM (cu. ft./min)
15.4 CFM
70 Watts
70 Watts max, 60 Watts typical
90- 264 VAC, Universal
47 - 63 Hz
90 VAC
264 VAC
240 BTU/hr
Maximum of 15 amps for period between 10-150 ms at 50° C (122° F)
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
DA - 12712 EMEA — Version 2 — June 8, 2007
Page 12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
