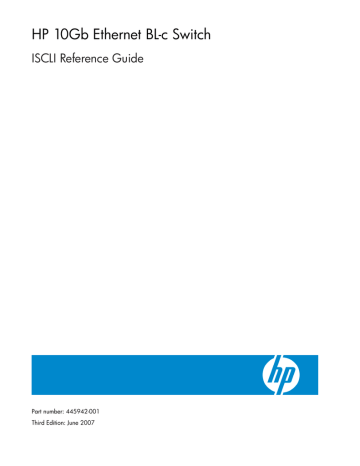

HP 10Gb Ethernet BL-c Switch
ISCLI Reference Guide
Part number: 445942-001
Third Edition: June 2007
Legal notices
© 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft®, Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation.
SunOS™ and Solaris™ are trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
Cisco® is a registered trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.
2
Contents
Contents
ISCLI reference
Introduction ........................................................................................................................................... 9
Additional references ............................................................................................................................. 9
Connecting to the switch ......................................................................................................................... 9
Establishing a console connection ..................................................................................................... 10
Setting an IP address ....................................................................................................................... 10
Establishing a Telnet connection........................................................................................................ 11
Establishing an SSH connection ........................................................................................................ 11
Accessing the switch............................................................................................................................. 12
Idle timeout ......................................................................................................................................... 13
Typographical conventions.................................................................................................................... 14
ISCLI basics
Introduction ......................................................................................................................................... 15
Accessing the ISCLI .............................................................................................................................. 15
ISCLI Command Modes ........................................................................................................................ 15
Global commands................................................................................................................................ 17
Command line interface shortcuts ........................................................................................................... 18
Command abbreviation ................................................................................................................... 18
Tab completion ............................................................................................................................... 18
Information Commands
Introduction ......................................................................................................................................... 19
System Information commands ............................................................................................................... 20
SNMPv3 Information commands ....................................................................................................... 21
SNMPv3 USM User Table information .......................................................................................... 22
SNMPv3 View Table information ................................................................................................. 22
SNMPv3 Access Table information............................................................................................... 23
SNMPv3 Group Table information ............................................................................................... 24
SNMPv3 Community Table information......................................................................................... 24
SNMPv3 Target Address Table information ................................................................................... 25
SNMPv3 Target Parameters Table information ............................................................................... 25
SNMPv3 Notify Table information................................................................................................ 26
SNMPv3 dump ............................................................................................................................... 27
System information ............................................................................................................................... 28
Show recent syslog messages ................................................................................................................ 29
System user information ........................................................................................................................ 30
Layer 2 information .............................................................................................................................. 31
FDB information commands .............................................................................................................. 32
Show all FDB information............................................................................................................ 33
Clearing entries from the forwarding database .............................................................................. 33
Link Aggregation Control Protocol information .................................................................................... 33
LACP dump .................................................................................................................................... 34
802.1x information ......................................................................................................................... 35
Spanning Tree information ............................................................................................................... 37
Rapid Spanning Tree and Multiple Spanning Tree information .............................................................. 39
3
Contents
Common Internal Spanning Tree information ...................................................................................... 41
Trunk group information................................................................................................................... 43
VLAN information ........................................................................................................................... 44
Layer 3 information .............................................................................................................................. 45
Route information ............................................................................................................................ 46
Show all IP Route information ........................................................................................................... 46
ARP information .............................................................................................................................. 48
Show all ARP entry information .................................................................................................... 48
ARP address list information ........................................................................................................ 49
OSPF information............................................................................................................................ 49
OSPF general information ........................................................................................................... 50
OSPF interface information.......................................................................................................... 50
OSPF Database information ........................................................................................................ 51
OSPF route codes information ..................................................................................................... 52
Routing Information Protocol ............................................................................................................. 53
RIP Routes information ................................................................................................................ 53
RIP user configuration ................................................................................................................. 53
IP information ................................................................................................................................. 54
IGMP multicast group information ..................................................................................................... 55
IGMP group information ............................................................................................................. 55
IGMP multicast router information ................................................................................................ 56
VRRP information ............................................................................................................................ 57
802.1p information.............................................................................................................................. 58
ACL information................................................................................................................................... 59
RMON Information .............................................................................................................................. 60
RMON history information ............................................................................................................... 60
RMON alarm information ................................................................................................................ 61
RMON event information ................................................................................................................. 62
Link status information........................................................................................................................... 63
Port information ................................................................................................................................... 64
Logical Port to GEA Port mapping .......................................................................................................... 65
Fiber Port SFP status ............................................................................................................................. 65
Uplink Failure Detection information ....................................................................................................... 66
Information dump................................................................................................................................. 66
Statistics Commands
Introduction ......................................................................................................................................... 67
Port Statistics ....................................................................................................................................... 68
802.1x statistics.............................................................................................................................. 69
Bridging statistics ............................................................................................................................ 71
Ethernet statistics ............................................................................................................................. 72
Interface statistics ............................................................................................................................ 74
Internet Protocol (IP) statistics ............................................................................................................ 76
Link statistics ................................................................................................................................... 76
Layer 2 statistics................................................................................................................................... 77
FDB statistics................................................................................................................................... 77
LACP statistics................................................................................................................................. 78
Layer 3 statistics................................................................................................................................... 79
IP statistics...................................................................................................................................... 80
Route statistics ................................................................................................................................ 81
ARP statistics .................................................................................................................................. 82
DNS statistics ................................................................................................................................. 82
4
Contents
ICMP statistics ................................................................................................................................ 83
TCP statistics................................................................................................................................... 84
UDP statistics .................................................................................................................................. 86
IGMP Multicast Group statistics......................................................................................................... 86
OSPF statistics ..................................................................................................................................... 87
OSPF global statistics ...................................................................................................................... 88
VRRP statistics ...................................................................................................................................... 91
RIP statistics .................................................................................................................................... 92
GEA Layer 3 statistics ...................................................................................................................... 92
GEA Layer 3 statistics ...................................................................................................................... 92
Management Processor statistics ............................................................................................................ 93
Packet statistics ............................................................................................................................... 93
TCP statistics................................................................................................................................... 94
UDP statistics .................................................................................................................................. 95
CPU statistics .................................................................................................................................. 95
ACL statistics .................................................................................................................................. 95
SNMP statistics ............................................................................................................................... 96
NTP statistics .................................................................................................................................. 98
Uplink Failure Detection statistics ....................................................................................................... 99
Statistics dump.............................................................................................................................. 100
Configuration Commands
Introduction ....................................................................................................................................... 101
Viewing and saving changes............................................................................................................... 101
Saving the configuration ..................................................................................................................... 101
System configuration .......................................................................................................................... 102
System host log configuration ......................................................................................................... 103
Secure Shell Server configuration .................................................................................................... 105
RADIUS server configuration........................................................................................................... 106
TACACS+ server configuration ....................................................................................................... 107
NTP server configuration ................................................................................................................ 109
System SNMP configuration ........................................................................................................... 110
SNMPv3 configuration .................................................................................................................. 111
User Security Model configuration................................................................................................... 113
SNMPv3 View configuration .......................................................................................................... 114
View-based Access Control Model configuration ............................................................................... 114
SNMPv3 Group configuration ........................................................................................................ 115
SNMPv3 Community Table configuration ......................................................................................... 116
SNMPv3 Target Address Table configuration.................................................................................... 116
SNMPv3 Target Parameters Table configuration................................................................................ 117
SNMPv3 Notify Table configuration ................................................................................................ 118
System Access configuration........................................................................................................... 119
Management Networks configuration .............................................................................................. 119
User Access Control configuration ................................................................................................... 120
User ID configuration..................................................................................................................... 120
HTTPS Access configuration............................................................................................................ 122
Port configuration............................................................................................................................... 123
Temporarily disabling a port........................................................................................................... 124
Port link configuration .................................................................................................................... 124
ACL Port configuration ................................................................................................................... 125
Layer 2 configuration ......................................................................................................................... 126
802.1x configuration .................................................................................................................... 126
802.1x Global configuration..................................................................................................... 127
5
Contents
802.1x Port configuration ......................................................................................................... 128
Rapid Spanning Tree Protocol / Multiple Spanning Tree Protocol configuration.................................... 129
Common Internal Spanning Tree configuration.................................................................................. 131
CIST bridge configuration ......................................................................................................... 131
CIST port configuration ............................................................................................................. 132
Spanning Tree configuration........................................................................................................... 134
Bridge Spanning Tree configuration ........................................................................................... 135
Spanning Tree port configuration ............................................................................................... 136
Forwarding Database configuration ................................................................................................ 137
Static FDB configuration............................................................................................................ 137
Trunk configuration........................................................................................................................ 138
Layer 2 IP Trunk Hash configuration................................................................................................. 139
Link Aggregation Control Protocol configuration................................................................................ 140
LACP Port configuration ............................................................................................................ 140
VLAN configuration....................................................................................................................... 141
Layer 3 configuration ......................................................................................................................... 142
IP interface configuration................................................................................................................ 142
Default Gateway configuration ....................................................................................................... 143
IP Static Route configuration ........................................................................................................... 144
Address Resolution Protocol configuration ........................................................................................ 144
Static ARP configuration............................................................................................................ 145
IP Forwarding configuration ........................................................................................................... 146
Network Filter configuration ........................................................................................................... 146
Route Map configuration................................................................................................................ 147
IP Access List configuration ............................................................................................................. 148
Routing Information Protocol configuration........................................................................................ 148
RIP Interface configuration......................................................................................................... 149
RIP Route Redistribution configuration ......................................................................................... 150
Open Shortest Path First configuration.............................................................................................. 151
OSFP Area Index configuration.................................................................................................. 152
OSPF Summary Range configuration .......................................................................................... 153
OSPF Interface configuration ..................................................................................................... 154
OSPF Virtual Link configuration.................................................................................................. 155
OSPF Host Entry configuration ................................................................................................... 156
OSPF Route Redistribution configuration...................................................................................... 156
OSPF MD5 Key configuration.................................................................................................... 157
IGMP configuration ....................................................................................................................... 157
IGMP Snooping configuration ................................................................................................... 157
IGMPv3 Snooping configuration ................................................................................................ 158
IGMP static multicast router configuration.................................................................................... 160
IGMP filtering configuration ...................................................................................................... 160
IGMP filter definition ................................................................................................................ 161
IGMP filtering port configuration ................................................................................................ 161
Domain Name System configuration................................................................................................ 162
Bootstrap Protocol Relay configuration ............................................................................................. 162
Virtual Router Redundancy Protocol configuration.............................................................................. 163
VRRP Virtual Router configuration ............................................................................................... 164
VRRP Virtual Router Priority Tracking configuration ....................................................................... 165
VRRP Virtual Router Group configuration ..................................................................................... 166
VRRP Virtual Router Group Priority Tracking configuration ............................................................. 167
VRRP Interface configuration...................................................................................................... 168
VRRP Tracking configuration...................................................................................................... 168
Quality of Service configuration........................................................................................................... 170
QoS 802.1p configuration............................................................................................................. 170
6
Contents
Access Control configuration ............................................................................................................... 171
Access Control List configuration ..................................................................................................... 171
ACL Ethernet Filter configuration ..................................................................................................... 171
ACL IP Version 4 Filter configuration................................................................................................ 172
ACL TCP/UDP Filter configuration ................................................................................................... 173
ACL Packet Format configuration..................................................................................................... 174
ACL Metering configuration............................................................................................................ 174
ACL Re-mark configuration ............................................................................................................. 175
ACL Re-mark In-Profile configuration ................................................................................................ 175
Re-Mark Update User Priority configuration ...................................................................................... 176
ACL Re-mark Out-of-Profile configuration .......................................................................................... 176
ACL Group configuration ............................................................................................................... 177
Remote Monitoring configuration ......................................................................................................... 178
RMON history configuration........................................................................................................... 178
RMON event configuration............................................................................................................. 179
RMON alarm configuration ............................................................................................................ 180
Port mirroring .................................................................................................................................... 181
Port-based port mirroring................................................................................................................ 182
Uplink Failure Detection configuration................................................................................................... 182
Failure Detection Pair configuration ................................................................................................. 183
Link to Monitor configuration .......................................................................................................... 183
Link to Disable configuration........................................................................................................... 184
Configuration Dump ........................................................................................................................... 184
Saving the active switch configuration .................................................................................................. 185
Restoring the active switch configuration ............................................................................................... 185
Operations Commands
Introduction ....................................................................................................................................... 186
Operations-level port options ............................................................................................................... 186
Operations-level port 802.1x options .............................................................................................. 187
Operations-level VRRP options ............................................................................................................. 187
Boot Options
Introduction ....................................................................................................................................... 188
Updating the switch software image ..................................................................................................... 188
Downloading new software to the switch ......................................................................................... 188
Selecting a software image to run ........................................................................................................ 190
Uploading a software image from the switch ......................................................................................... 190
Selecting a configuration block ............................................................................................................ 191
Resetting the switch ............................................................................................................................ 191
Accessing the AOS CLI .................................................................................................................. 191
Maintenance Commands
Introduction ....................................................................................................................................... 192
System maintenance ...................................................................................................................... 192
Forwarding Database maintenance ................................................................................................. 193
Debugging options........................................................................................................................ 193
ARP cache maintenance................................................................................................................. 194
IGMP Snooping maintenance ......................................................................................................... 194
IGMP Mrouter maintenance............................................................................................................ 195
Uuencode flash dump .................................................................................................................... 195
FTP/TFTP system dump put ............................................................................................................. 196
Clearing dump information............................................................................................................. 196
7
Contents
Panic command ............................................................................................................................ 197
Unscheduled system dumps ................................................................................................................. 197
Index
8
ISCLI reference
ISCLI reference
Introduction
The HP 10Gb Ethernet BL-c Switch is ready to perform basic switching functions right out of the box. Some
of the more advanced features, however, require some administrative configuration before they can be
used effectively. This guide provides a command reference for the HP 10GbE switch.
The extensive switching software included in the switch provides a variety of options for accessing and
configuring the switch:
•
Text-based command line interfaces (AOS CLI and ISCLI) for access via a local terminal or remote
Telnet/Secure Shell (SSH) session
•
Simple Network Management Protocol (SNMP) support for access through network management
software such as HP Systems Insight Manager
•
A browser-based management interface for interactive network access through a Web browser
The ISCLI provides a direct method for collecting switch information and performing switch configuration.
Use a basic terminal to view information and statistics about the switch, and to perform any necessary
configuration.
This chapter explains how to access the ISCLI to the switch.
Additional references
Additional information about installing and configuring the switch is available in the following guides,
which are available at http://www.hp.com/go/bladesystem/documentation.
•
•
•
•
•
HP 10Gb Ethernet BL-c Switch User Guide
HP 10Gb Ethernet BL-c Switch Command Reference
HP 10Gb Ethernet BL-c Switch Application Guide
HP 10Gb Ethernet BL-c Switch Browser-based Interface Reference
HP 10Gb Ethernet BL-c Switch Quick Setup Instructions
Connecting to the switch
You can access the command line interface in one of the following ways:
•
•
•
Using a console connection via the console port
Using a Telnet connection over the network
Using a Secure Shell (SSH) connection to securely log in over a network
9
ISCLI reference
Establishing a console connection
To establish a console connection with the switch, you need:
•
A null modem cable with a female DB-9 connector (See the HP 10Gb Ethernet BL-c Switch User
Guide for more information.)
•
An ASCII terminal or a computer running terminal emulation software set to the parameters shown in
the table below.
Table 1 Console configuration parameters
Parameter
Value
Baud Rate
9600
Data Bits
8
Parity
None
Stop Bits
1
Flow Control
None
To establish a console connection with the switch:
1. Connect the terminal to the console port using the null modem cable.
2. Power on the terminal.
3. Press the Enter key a few times on the terminal to establish the connection.
4. You will be required to enter a password for access to the switch.
Setting an IP address
To access the switch via a Telnet or an SSH connection, you need to have an Internet Protocol (IP) address
set for the switch. The switch can get its IP address in one of the following ways:
•
Management port access:
○ Using a Dynamic Host Control Protocol (DHCP) server—When the /cfg/sys/dhcp command
is enabled, the management interface (interface 250) requests its IP address from a DHCP
server. The default value for the /cfg/sys/dhcp command is enabled.
○ Configuring manually—If the network does not support DHCP, you must configure the
management interface (interface 250) with an IP address. If you want to access the switch from a
remote network, you also must configure the management gateway (gateway 254).
•
Uplink port access:
○ Using a Bootstrap Protocol (BOOTP) server—By default, the management interface is set up to
request its IP address from a BOOTP server. If you have a BOOTP server on the network, add the
Media Access Control (MAC) address of the switch to the BOOTP configuration file located on
the BOOTP server. The MAC address can be found in the System Information (See the “System
information” section in the “Information Commands” chapter.) If you are using a DHCP server
that also does BOOTP, you do not have to configure the MAC address.
○ Configuring manually—If the network does not support BOOTP, you must configure the
management port with an IP address.
10
ISCLI reference
Establishing a Telnet connection
A Telnet connection offers the convenience of accessing the HP 10GbE switch from any workstation
connected to the network. Telnet provides the same options for user, operator, and administrator access
as those available through the console port. By default, Telnet is enabled on the switch. The switch
supports four concurrent Telnet connections.
Once the IP parameters are configured, you can access the ISCLI using a Telnet connection. To establish a
Telnet connection with the switch, run the Telnet program on the workstation and enter the telnet
command, followed by the switch IP address:
telnet <10GbE switch IP address>
You will then be prompted to enter a password. The password determines the access level: administrator,
operator, or user. See the “Accessing the switch” section later in this chapter for description of default
passwords.
Establishing an SSH connection
Although a remote network administrator can manage the configuration of a switch via Telnet, this
method does not provide a secure connection. The Secure Shell (SSH) protocol enables you to securely
log into the switch over the network.
As a secure alternative to using Telnet to manage switch configuration, SSH ensures that all data sent over
the network is encrypted and secure. In order to use SSH, you must first configure it on the switch. See the
“Secure Shell Server configuration” section in the “Configuration Commands” chapter for information on
how to configure SSH.
The switch can perform only one session of key/cipher generation at a time. Therefore, an SSH/Secure
Copy (SCP) client will not be able to log in if the switch is performing key generation at that time or if
another client has just logged in before this client. Similarly, the system will fail to perform the key
generation if an SSH/SCP client is logging in at that time.
The supported SSH encryption and authentication methods are listed below.
•
•
•
Server Host Authentication—Client RSA authenticates the switch in the beginning of every connection
Key Exchange—RSA
Encryption:
○
○
○
○
○
○
•
AES256-CBC
AES192-CBC
AES128-CBC
3DES-CBC
3DES
ARCFOUR
User Authentication—Local password authentication; Remote Authentication Dial-in User Service
(RADIUS)
11
ISCLI reference
The following SSH clients are supported:
•
•
•
•
•
SSH 3.0.1 for Linux (freeware)
SecureCRT® 4.1.8 (VanDyke Technologies, Inc.)
OpenSSH_3.9 for Linux (FC 3)
FedoraCore 3 for SCP commands
PuTTY Release 0.58 (Simon Tatham) for Windows
NOTE: The HP 10GbE switch implementation of SSH is based on versions 1.5 and 2.0, and
supports SSH clients from version 1.0 through version 2.0. SSH clients of other versions are not
supported. You may configure the client software to use protocol SSH version 1 or version 2.
By default, SSH service is not enabled on the switch. Once the IP parameters are configured, you can
access the ISCLI to enable SSH.
To establish an SSH connection with the switch, run the SSH program on the workstation by issuing the
ssh command, followed by the user account name and the switch IP address:
>> # ssh <user>@<10GbE switch IP address>
You will then be prompted to enter your password.
NOTE: The first time you run SSH from the workstation, a warning message might appear. At the
prompt, enter yes to continue.
Accessing the switch
To enable better switch management and user accountability, the HP 10GbE switch provides different
levels or classes of user access. Levels of access to the CLI and Web management functions and screens
increase as needed to perform various switch management tasks. The three levels of access are:
•
User—Interaction with the switch is completely passive—nothing can be changed on the switch.
Users may display information that has no security or privacy implications, such as switch statistics
and current operational state information.
•
Operator—Interaction with the switch is completely passive—nothing can be changed on the switch.
Users may display information that has no security or privacy implications, such as switch statistics
and current operational state information.
•
Administrator—Administrators are the only ones that may make permanent changes to the switch
configuration—changes that are persistent across a reload/reset of the switch. Administrators can
access switch functions to configure and troubleshoot problems on the switch. Because administrators
can also make temporary (operator-level) changes as well, they must be aware of the interactions
between temporary and permanent changes.
Access to switch functions is controlled through the use of unique usernames and passwords. Once you
are connected to the switch via the local console, Telnet, or SSH, you are prompted to enter a password.
The password entered determines the access level. The default user names/password for each access
level is listed in the following table.
NOTE: It is recommended that you change default switch passwords after initial configuration and
as regularly as required under your network security policies. For more information, see the “Setting
passwords” section in the “First-time configuration” chapter.
12
ISCLI reference
Table 2 User access levels
User account
Description and tasks performed
User
The User has no direct responsibility for switch management. He or she can view all switch
status information and statistics, but cannot make any configuration changes to the switch.
The user account is enabled by default, and the default password is user.
Oper
The Operator has no direct responsibility for switch management. He or she can view all switch
status information and statistics, but cannot make any configuration changes to the switch.
By default, the operator account is disabled and has no password.
Admin
The super user administrator has complete access to all command modes on the switch,
including the ability to change both the user and administrator passwords.
The admin account is enabled by default, and the default password is admin.
NOTE: With the exception of the admin user, access to each user level can be disabled by setting
the password to an empty value.
Once you enter the administrator password and it is verified, you are given complete access to the
HP 10GbE switch.
Idle timeout
By default, the HP 10GbE switch disconnects the console, Telnet, or SSH session after five minutes of
inactivity. This function is controlled by the idle timeout parameter, which can be set from 1 to 60 minutes.
To change this parameter, see the “System configuration” section in the “Configuration Commands”
chapter.
13
ISCLI reference
Typographical conventions
The following table describes the typographic styles used in this guide:
Table 3 Typographical conventions
Typeface or symbol
Meaning
angle brackets < >
Indicate a variable to enter based on the description inside the brackets. Do not type
the brackets as you enter the command.
Example: If the command syntax is
ping <IP address>
Enter: ping 192.32.10.12
bold body text
Indicates user-interface objects, such as buttons and tabs.
plain Courier text
Indicates command syntax and system output (for example: prompts and system
messages). Example:
configure terminal
braces { }
Indicate required elements in syntax descriptions where there is more than one
option. You must choose only one of the options. Do not type the braces when
entering the command.
Example: If the command syntax is:
show portchannel {<1-12>|hash|information}
Enter one of the following:
• show portchannel <1-12>
• show portchannel hash
• show portchannel information
brackets [ ]
Indicate optional elements in syntax descriptions. Do not type the brackets when
entering the command.
Example: If the command syntax is:
show ip interface [<1-250>]
Enter one of the following:
• show ip interface
• show ip interface 1
italic text
Indicates variables in command syntax descriptions. Also indicates new terms and
book titles.
Example: If the command syntax is:
show spanning-tree stp <1-128>
Then, <1-128> represents a number between 1 and 128.
vertical line |
Separates choices for command keywords and arguments. Enter only one of the
choices. Do not type the vertical line when entering the command.
Example: If the command syntax is:
show portchannel {<1-12>|hash|information}
Enter one of the following:
• show portchannel <1-12>
• show portchannel hash
• show portchannel information
14
ISCLI basics
ISCLI basics
Introduction
The ISCLI is used for viewing switch information and statistics. In addition, the administrator can use the
CLI for performing all levels of switch configuration.
This chapter describes the ISCLI Command Modes, and provides a list of commands and shortcuts that
typically are from all the command modes within the ISCLI.
Accessing the ISCLI
The first time you start the HP 10GbE switch, it boots into the AOS CLI. To access the ISCLI, enter the
following command and reset the switch:
Main# boot/mode iscli
To access the AOS CLI, enter the following command from the ISCLI and reload the switch:
Switch(config)# boot cli-mode aos
The switch retains your CLI selection, even when you reset the configuration to factory defaults. The CLI
boot mode is not part of the configuration settings.
ISCLI Command Modes
The ISCLI has three major command modes, listed in order of increasing privileges, as follows:
User EXEC mode: This is the initial mode of access. By default, password checking is disabled for this
mode.
Privileged EXEC mode: The mode is accessed from User EXEC mode. If the Privileged EXEC password is
enabled, you must enter a password to access Privileged EXEC mode.
Global Configuration mode: This mode allows you to make changes to the running configuration of the
switch. If you save the configuration, the settings survive a reload of the HP 10GbE switch. Several
submodes are available within the Global Configuration mode (the following table for more information.
Each command mode provides a specific set of commands. The command set of each higher-privilege
mode is a superset of the lower-privilege mode(s). All commands available in lower-lower-privilege modes
are available in the higher-privilege modes.
15
ISCLI basics
The following table describes the ISCLI command modes.
Table 4 ISCLI Command Modes
Command Mode/Prompt
User EXEC
Switch>
Command used to enter or exit.
Default mode, entered automatically
• exit—Exit
• logout—Exit
Privileged EXEC
Switch#
• enable—Enter Privileged EXEC mode, from User EXEC mode
• disable—Exit to User EXEC mode
• exit or logout—Quit ISCLI
Global configuration
Switch(config)#
• configure terminal—Enter Global Configuration mode, from
Privileged EXEC mode
• end or exit—Exit to Privileged EXEC mode
Interface port
Switch(config-if)#
• interface port <port number>—Enter Interface port mode, from
Global Configuration mode
• exit—Exit to Global Configuration mode
• end—Exit to Privileged EXEC mode
VLAN configuration
Switch(config-vlan)#
• vlan <1-4095>—Enter VLAN Configuration mode, from Global
Configuration mode
• exit—Exit to Global Configuration mode
• end—Exit to Privileged EXEC mode
Interface IP configuration
Switch(config-ip-if)#
• interface ip <1-250>—Enter Interface IP Configuration mode, from
Global Configuration mode
• exit—Exit to Global Configuration mode
• end—Exit to Privileged EXEC mode
16
ISCLI basics
Global commands
Some basic commands are recognized throughout the ISCLI hierarchy. These commands are useful for
obtaining online Help, navigating through the interface, and saving configuration changes. To get help
about a specific command, type the command, followed by help.
The following table describes the global commands.
Table 5 Global commands
Command
Action
?
Provides more information about a specific command or lists commands available at
the current level.
exit
Go up one level in the command-mode structure.
copy running-config
startup-config
Write configuration changes to non-volatile flash memory.
exit or quit
Exit from the command line interface and log out.
ping
Verifies station-to-station connectivity across the network. The format is:
ping <host name>|<IP address> [attempts (1-32)> [msec delay]]
[-m|-mgt|-d|-data]
•
•
•
•
traceroute
IP address is the hostname or IP address of the device.
number of tries (optional) is the number of attempts (1-32).
msec delay (optional) is the number of milliseconds between attempts.
By default, the -m or -mgt option for the management port is used. To use data
ports, specify the -d or –data option.
Identifies the route used for station-to-station connectivity across the network. The format
is:
traceroute <host name>|<IP address> [<max-hops> [ msec delay ]]
• IP address is the hostname or IP address of the target station.
• max-hops (optional) is the maximum distance to trace (1-32 devices).
• msec delay (optional) is the number of milliseconds to wait for the response.
telnet
Allows you to Telnet out of the switch. The format is as follows:
telnet <host name> | <IP address> [<port number>]
show history
Displays the 10 most recent commands.
console-log
Enables or disables console logs for the current session.
who
Displays a list of users who are currently logged in.
17
ISCLI basics
Command line interface shortcuts
The following shortcuts allow you to enter commands quickly and easily.
Command abbreviation
Most commands can be abbreviated by entering the first characters that distinguish the command from
the others in the same mode. For example, consider the following full command:
Switch(config)# spanning-tree stp 1 bridge hello 2
The command shown above could also be entered as:
Switch(config)# sp stp 1 br h 2
Tab completion
Enter the first letter of a command at any prompt and press the Tab key to display all available
commands or options that begin with that letter. Enter additional letters to further refine the list of
commands or options displayed.
If only one command fits the input text when you press the Tab key, that command is supplied on the
command line, waiting to be entered.
18
Information Commands
Information Commands
Introduction
You can view configuration information for the switch in the ISCLI. This chapter discusses how to use the
ISCLI to display switch information.
The following table describes general information commands.
Table 6 Information commands
Command
Usage
show sys-info
Displays system information.
Command mode: All
show layer2 information
Displays Layer 2 information.
Command mode: All
show layer3 information
Displays Layer 3 information.
Command mode: All
show rmon
Displays Remote Monitoring Information.
Command mode: All
show interface link
Displays configuration information about each port, including:
•
•
•
•
•
Port number
Port speed (10 Mb/s, 100 Mb/s, 1000 Mb/s, or any)
Duplex mode (half, full, or any)
Flow control for transmit and receive (no, yes, or any)
Link status (up or down)
Command mode: All except User EXEC
show interface information Displays port status information, including:
•
•
•
•
•
Port number
Whether the port uses VLAN tagging or not
Port VLAN ID (PVID)
Port name
VLAN membership
Command mode: All except User EXEC
show geaport
Displays GEA port mapping information, used by service personnel.
Command mode: All
show sfp
Displays the status of the Small Form Pluggable (SFP) module on each Fiber
External Port.
Command mode: All
show ufd
Displays Uplink Failure Detection information.
Command mode: All
19
Information Commands
Table 6 Information commands
Command
Usage
show information-dump
Dumps all switch information available (10K or more, depending on your
configuration).
If you want to capture dump data to a file, set your communication software
on your workstation to capture session data prior to issuing the dump
commands.
Command mode: All
System Information commands
The following table describes the System Information commands.
Table 7 System Information commands
Command
Usage
show snmp-server v3
Displays SNMP v3 information.
Command mode: All
show sys-info
Displays system information, including:
System date and time
Switch model name and number
Switch name and location
Time of last boot
MAC address of the switch management processor
IP address of IP interface #1
Hardware version and part number
Software image file and version number
Configuration name
Log-in banner, if one is configured
Command mode: All
show logging messages
Displays most recent syslog messages.
Command mode: All
show access user
Displays User Access information.
Command mode: All except User EXEC
20
Information Commands
SNMPv3 Information commands
SNMP version 3 (SNMPv3) is an extensible SNMP Framework that supplements the SNMPv2 Framework
by supporting the following:
•
•
•
•
a new SNMP message format
security for messages
access control
remote configuration of SNMP parameters
For more details on the SNMPv3 architecture, see RFC2271 to RFC2276.
The following table describes the SNMPv3 Information commands.
Table 8 SNMPv3 Information commands
Command
Usage
show snmp-server v3 user
Displays User Security Model (USM) table information.
Command mode: All
show snmp-server v3 view
Displays information about view name, subtrees, mask and
type of view.
Command mode: All
show snmp-server v3 access
Displays View-based Access Control information.
Command mode: All
show snmp-server v3 group
Displays information about the group that includes the security
model, user name, and group name.
Command mode: All
show snmp-server v3 community
Displays information about the community table.
Command mode: All
show snmp-server v3 target-address
Displays the Target Address table.
Command mode: All
show snmp-server v3 target-parameters
Displays the Target parameters table.
Command mode: All
show snmp-server v3 notify
Displays the Notify table.
Command mode: All
show snmp-server v3
Displays all the SNMPv3 information.
Command mode: All
21
Information Commands
SNMPv3 USM User Table information
The following command displays SNMPv3 user information:
show snmp-server v3 user
Command mode: All
The User-based Security Model (USM) in SNMPv3 provides security services such as authentication and
privacy of messages. This security model makes use of a defined set of user identities displayed in the
USM user table. The USM user table contains information like:
•
•
•
the user name
•
the privacy protocol.
a security name in the form of a string whose format is independent of the Security Model
an authentication protocol, which is an indication that the messages sent on behalf of the user can
be authenticated
The following table describes the SNMPv3 User Table information.
Table 9 User Table parameters
Field
Description
User Name
This is a string that represents the name of the user that you can use to access the switch.
Protocol
This indicates whether messages sent on behalf of this user are protected from disclosure
using a privacy protocol. Switch software supports DES algorithm for privacy. The
software also supports two authentication algorithms: MD5 and HMAC-SHA.
SNMPv3 View Table information
The following command displays the SNMPv3 View Table:
show snmp-server v3 view
Command mode: All
View Name
Subtree
------------------ ----------------------------
Mask
Type
-------------
--------
iso
1
included
v1v2only
1
included
v1v2only
1.3.6.1.6.3.15
excluded
v1v2only
1.3.6.1.6.3.16
excluded
v1v2only
1.3.6.1.6.3.18
excluded
The user can control and restrict the access allowed to a group to only a subset of the management
information in the management domain that the group can access within each context by specifying the
group’s rights in terms of a particular MIB view for security reasons.
22
Information Commands
The following table describes the SNMPv3 View Table information.
Table 10 View Table parameters
Field
Description
View Name
Displays the name of the view.
Subtree
Displays the MIB subtree as an OID string. A view subtree is the set of all MIB object
instances which have a common Object Identifier prefix to their names.
Mask
Displays the bit mask.
Type
Displays whether a family of view subtrees is included or excluded from the MIB view.
SNMPv3 Access Table information
The following command displays SNMPv3 access information:
show snmp-server v3 access
Command mode: All
Group Name
---------v1v2grp
admingrp
Model
------snmpv1
usm
Level
-----------noAuthNoPriv
authPriv
ReadV
WriteV
NotifyV
--------- -------- ------iso
iso
v1v2only
iso
iso
iso
The access control sub system provides authorization services.
The vacmAccessTable maps a group name, security information, a context, and a message type,
which could be the read or write type of operation or notification into a MIB view.
The View-based Access Control Model defines a set of services that an application can use for checking
access rights of a group. This group’s access rights are determined by a read-view, a write-view, and a
notify-view. The read-view represents the set of object instances authorized for the group while reading
the objects. The write-view represents the set of object instances authorized for the group when writing
objects. The notify-view represents the set of object instances authorized for the group when sending a
notification.
The following table describes the SNMPv3 Access Table information.
Table 11 Access Table parameters
Field
Description
Group Name
Displays the name of group.
Prefix
Displays the prefix that is configured to match the values.
Model
Displays the security model used, for example, SNMPv1, or SNMPv2 or USM.
Level
Displays the minimum level of security required to gain rights of access. For example,
noAuthNoPriv, authNoPriv, or auth-Priv.
ReadV
Displays the MIB view to which this entry authorizes the read access.
WriteV
Displays the MIB view to which this entry authorizes the write access.
NotifyV
Displays the Notify view to which this entry authorizes the notify access.
23
Information Commands
SNMPv3 Group Table information
The following command displays SNMPv3 group information:
show snmp-server v3 group
Command mode: All
Sec Model
---------snmpv1
usm
usm
User Name
----------------------------v1v2only
adminmd5
adminsha
Group Name
------------------------------v1v2grp
admingrp
admingrp
A group is a combination of security model and security name that defines the access rights assigned to
all the security names belonging to that group. The group is identified by a group name.
The following table describes the SNMPv3 Group Table information.
Table 12 Group Table parameters
Field
Description
Sec Model
Displays the security model used, which is any one of: USM, SNMPv1, SNMPv2, and SNMPv3.
User Name
Displays the name for the group.
Group Name
Displays the access name of the group.
SNMPv3 Community Table information
The following command displays SNMPv3 community information:
show snmp-server v3 community
Command mode: All
Index
Name
User Name
Tag
---------- ---------- -------------------- ---------trap1
public
v1v2only
v1v2trap
This command displays the community table information stored in the SNMP engine.
The following table describes the SNMPv3 Community Table information.
Table 13 Community Table information
Field
Description
Index
Displays the unique index value of a row in this table.
Name
Displays the community string, which represents the configuration.
User Name
Displays the User Security Model (USM) user name.
Tag
Displays the community tag. This tag specifies a set of transport endpoints from which a
command responder application accepts management requests and to which a command
responder application sends an SNMP trap.
24
Information Commands
SNMPv3 Target Address Table information
The following command displays SNMPv3 target address information:
show snmp-server v3 target-address
Command mode: All
Name
Transport Addr Port Taglist
Params
---------- --------------- ---- ---------- --------------trap1
47.81.25.66
162 v1v2trap
v1v2param
This command displays the SNMPv3 target address table information, which is stored in the SNMP
engine.
The following table describes the SNMPv3 Target Address Table information.
Table 14 Target Address Table information
Field
Description
Name
Displays the locally arbitrary, but unique identifier associated with this
snmpTargetAddrEntry.
Transport Addr
Displays the transport addresses.
Port
Displays the SNMP UDP port number.
Taglist
This column contains a list of tag values which are used to select target addresses for
a particular SNMP message.
Params
The value of this object identifies an entry in the snmpTargetParamsTable. The
identified entry contains SNMP parameters to be used when generating messages to
be sent to this transport address.
SNMPv3 Target Parameters Table information
The following command displays SNMPv3 target parameters information:
show snmp-server v3 target-parameters
Command mode: All
Name
MP Model User Name
Sec Model Sec Level
------------------- -------- -------------------- --------- ----------v1v2param
snmpv2c v1v2only
snmpv1
noAuthNoPriv
The following table describes the SNMPv3 Target Parameters Table information.
Table 15 Target Parameters Table information
Field
Description
Name
Displays the locally arbitrary, but unique identifier associated with this
snmpTargeParamsEntry.
MP Model
Displays the Message Processing Model used when generating SNMP messages using this entry.
User Name
Displays the securityName, which identifies the entry on whose behalf SNMP messages will be
generated using this entry.
25
Information Commands
Table 15 Target Parameters Table information
Field
Description
Sec Model
Displays the security model used when generating SNMP messages using this entry. The system
may choose to return an inconsistentValue error if an attempt is made to set this variable to
a value for a security model which the system does not support.
Sec Level
Displays the level of security used when generating SNMP messages using this entry.
SNMPv3 Notify Table information
The following command displays the SNMPv3 Notify Table:
show snmp-server v3 notify
Command mode: All
Name
Tag
-------------------- -------------------v1v2trap
v1v2trap
The following table describes the SNMPv3 Notify Table information.
Table 16 SNMPv3 Notify Table information
Field
Description
Name
The locally arbitrary, but unique identifier associated with this snmpNotifyEntry.
Tag
This represents a single tag value which is used to select entries in the snmpTargetAddrTable.
Any entry in the snmpTargetAddrTable that contains a tag value equal to the value of this
entry is selected. If this entry contains a value of zero length, no entries are selected.
26
Information Commands
SNMPv3 dump
The following command displays SNMPv3 information:
show snmp-server v3
Command mode: All
Engine ID = 80:00:07:50:03:00:0F:6A:F8:EF:00
usmUser Table:
User Name
Protocol
-------------------------------- -------------------------------admin
NO AUTH, NO PRIVACY
adminmd5
HMAC_MD5, DES PRIVACY
adminsha
HMAC_SHA, DES PRIVACY
v1v2only
NO AUTH, NO PRIVACY
vacmAccess Table:
Group Name Prefix Model
---------- ------ ------admin
usm
v1v2grp
snmpv1
admingrp
usm
Level
-----------noAuthNoPriv
noAuthNoPriv
authPriv
Match
-----exact
exact
exact
ReadV
------org
org
org
vacmViewTreeFamily Table:
View Name
Subtree
Mask
-------------------- --------------- -----------org
1.3
v1v2only
1.3
v1v2only
1.3.6.1.6.3.15
v1v2only
1.3.6.1.6.3.16
v1v2only
1.3.6.1.6.3.18
vacmSecurityToGroup Table:
Sec Model
User Name
---------- ------------------------------snmpv1
v1v2only
usm
admin
usm
adminsha
WriteV
-------org
org
org
NotifyV
-----org
v1v2only
org
Type
-------------included
included
excluded
excluded
excluded
Group Name
----------------------v1v2grp
admin
admingrp
snmpCommunity Table:
Index
Name
User Name
Tag
---------- ---------- -------------------- ---------snmpNotify Table:
Name
Tag
-------------------- -------------------snmpTargetAddr Table:
Name
Transport Addr Port Taglist
Params
---------- --------------- ---- ---------- --------------snmpTargetParams Table:
Name
MP Model User Name
Sec Model Sec Level
-------------------- -------- ------------------ --------- -------
27
Information Commands
System information
The following command displays system information:
show sys-info
Command mode: All
System Information at 6:56:22 Thu Jan 11, 2007
Time zone: America/US/Pacific
HP 10 Gb Ethernet Blade Switch
sysName:
sysLocation:
RackId: Default RUID
RackName: Default Rack Name
EnclosureSerialNumber: -noneEnclosureName: Default Chassis Name
BayNumber: 1
Switch has been up for 3 days, 14 hours, 56 minutes and 22 seconds.
Last boot: 17:25:38 Mon Jan 8, 2007 (software reset)
MAC address: 00:10:00:01:00:01
IP (If 1) address: 10.14.4.16
Revision:
Switch Serial No:
Hardware Part No:
Spare Part No:
Software Version 1.0.0 (FLASH image2), active configuration.
System information includes:
•
•
•
•
•
•
•
•
•
System date and time
Switch model name and number
HP c-Class Rack name and location
Time of last boot
MAC address of the switch management processor
IP address of the switch
Software image file and version number
Current configuration block (active, backup, or factory default)
Login banner, if one is configured
28
Information Commands
Show recent syslog messages
The following command displays system log messages:
show logging messages
Command mode: All
Date
---Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Jul 8
Time
---17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:41
17:25:42
17:25:42
17:25:42
17:25:42
17:25:42
17:25:42
Severity level
----------------NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
NOTICE
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
system:
Message
------link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
link up on
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
port
1
8
7
12
11
14
13
16
15
17
20
18
19
21
4
3
6
5
10
9
Each message contains a date and time field and has a severity level associated with it. One of eight
different prefixes is used to indicate the condition:
•
•
•
•
•
•
•
•
EMERG—indicates the system is unusable
ALERT—indicates action should be taken immediately
CRIT—indicates critical conditions
ERR—indicates error conditions or eroded operations
WARNING—indicates warning conditions
NOTICE—indicates a normal but significant condition
INFO—indicates an information message
DEBUG—indicates a debug-level message
29
Information Commands
System user information
The following command displays user status information:
show access user
Command mode: All except User EXEC
Usernames:
user
- enabled
oper
- disabled
admin
- Always Enabled
Current User ID table:
1: name tech1
, ena, cos user
2: name tech2
, ena, cos user
, password valid, online
, password valid, offline
The following table describes the User Name information.
Table 17 User Name Information
Field
Usage
user
Displays the status of the user access level.
oper
Displays the status of the oper (operator) access level.
admin
Displays the status of the admin (administrator) access level.
Current User ID Table
Displays the status of configured user IDs. To configure new user IDs, use the
following command: access user x
30
Information Commands
Layer 2 information
The following table describes the Layer 2 Information commands. The following sections provide more
detailed information and commands.
Table 18 Layer 2 information commands
Command
Usage
show mac-address-table
Displays Forwarding Database Information.
Command mode: All
show lacp information
Displays a summary of LACP information.
Command mode: All
show qos transmit-queue information
Displays 802.1p Information.
Command mode: All
show dot1x information
Displays 802.1x Information.
Command mode: All
show spanning-tree stp <1-128>
information
In addition to seeing if STP is enabled or disabled, you can
view the following STP bridge information:
•
•
•
•
•
•
Priority
Hello interval
Maximum age value
Forwarding delay
Aging time
You can also refer to the following port-specific STP
information:
• Port number and priority
• Cost
• State
Command mode: All
show spanning-tree mstp cist
information
Displays Common internal Spanning Tree (CIST) bridge
information, including the following:
•
•
•
•
•
Priority
Hello interval
Maximum age value
Forwarding delay
You can also view port-specific CIST information, including
the following:
• Port number and priority
• Cost
• State
Command mode: All
show portchannel information
When trunk groups are configured, you can view the state of
each port in the various trunk groups.
Command mode: All
31
Information Commands
Table 18 Layer 2 information commands
Command
Usage
show vlan information
Displays VLAN configuration information, including:
•
•
•
•
VLAN Number
VLAN Name
Status
Port membership of the VLAN
Command mode: All
show layer2
Dumps all switch information available from Layer 2 memory
(10K or more, depending on your configuration).
If you want to capture dump data to a file, set your
communication software on your workstation to capture session
data prior to issuing the dump commands.
Command mode: All
FDB information commands
The forwarding database (FDB) contains information that maps the media access control (MAC) address
of each known device to the switch port where the device address was learned. The FDB also shows
which other ports have seen frames destined for a particular MAC address.
NOTE: The master forwarding database supports up to 8K MAC address entries on the
management processor (MP) per switch.
Table 19 FDB information commands
Command
Usage
show mac-address-table address
<mac-address>
Displays a single database entry by its MAC address. You are
prompted to enter the MAC address of the device.
Enter the MAC address using the format:
xx:xx:xx:xx:xx:xx. (For example:
08:00:20:12:34:56)
You can also enter the MAC address using the format:
xxxxxxxxxxxx. (For example: 080020123456)
Command mode: All
show mac-address-table port <port
number>
Displays all FDB entries for a particular port.
show mac-address-table vlan <1-4095>
Displays all FDB entries on a single VLAN. The range is
1-4095.
Command mode: All
Command mode: All
show mac-address-table state
{flood|forward|ifmac|ignore|trunk|
unknown}
Displays all FDB entries that match a particular state.
show mac-address-table
Displays all entries in the Forwarding Database.
Command mode: All
Command mode: All
32
Information Commands
Show all FDB information
The following command displays Forwarding Database information:
show mac-address-table
Command mode: All
MAC address
----------------00:02:01:00:00:00
00:02:01:00:00:01
00:02:01:00:00:02
00:02:01:00:00:03
00:02:01:00:00:04
00:02:01:00:00:05
00:02:01:00:00:06
00:02:01:00:00:07
00:02:01:00:00:08
00:02:01:00:00:09
00:02:01:00:00:0a
00:02:01:00:00:0b
00:02:01:00:00:0c
VLAN
---300
300
300
300
300
300
300
300
300
300
300
300
300
Port
----
Trnk
---1
20
20
20
20
20
20
20
20
20
20
20
20
State
----TRK
FWD
FWD
FWD
FWD
FWD
FWD
FWD
FWD
FWD
FWD
FWD
FWD
An address that is in the forwarding (FWD) state indicates that the switch has learned it. When in the
trunking (TRK) state, the Trnk field displays the trunk group number. If the state for the port is listed as
unknown (UNK), the MAC address has not yet been learned by the switch, but has only been seen as a
destination address. When an address is in the unknown state, no outbound port is indicated.
Clearing entries from the forwarding database
To delete a static MAC address from the forwarding database (FDB), see the “Static FDB configuration”
section in the “Configuration Commands” chapter.
Link Aggregation Control Protocol information
The following table describes the Link Aggregation Control Protocol information commands.
Table 20 LACP information commands
Command
Usage
show interface port <port number> lacp
aggregator
Displays LACP aggregator information for the port.
show lacp
Displays LACP information for the port.
Command mode: All
Command mode: All
show lacp information
Displays all LACP information parameters.
Command mode: All
33
Information Commands
LACP dump
The following command displays LACP information:
show lacp information
Command mode: All
>> LACP# dump
port lacp
adminkey
operkey
selected
prio
attached trunk
aggr
---------------------------------------------------------------------1 off
1
1
n
32768
--2 off
2
2
n
32768
--3 off
3
3
n
32768
--4 off
4
4
n
32768
--5 off
5
5
n
32768
--6 off
6
6
n
32768
--7 off
7
7
n
32768
--8 off
8
8
n
32768
--…
LACP dump includes the following information for each port in the HP 10GbE switch:
•
•
•
•
•
•
•
lacp—Displays the port’s LACP mode (active, passive, or off)
adminkey—Displays the value of the port’s adminkey.
operkey—Shows the value of the port’s operational key.
selected—Indicates whether the port has been selected to be part of a Link Aggregation Group.
prio—Shows the value of the port priority.
attached aggr—Displays the aggregator associated with each port.
trunk—This value represents the LACP trunk group number.
34
Information Commands
802.1x information
The following command displays 802.1x information:
show dot1x information
Command mode: All
System capability : Authenticator
System status
: disabled
Protocol version : 1
Authenticator
Backend
Port
Auth Mode
Auth Status
PAE State
Auth State
---- ------------ ------------ -------------- ---------1
force-auth
unauthorized initialize
initialize
2
force-auth
unauthorized initialize
initialize
3
force-auth
unauthorized initialize
initialize
4
force-auth
unauthorized initialize
initialize
5
force-auth
unauthorized initialize
initialize
6
force-auth
unauthorized initialize
initialize
7
force-auth
unauthorized initialize
initialize
8
force-auth
unauthorized initialize
initialize
9
force-auth
unauthorized initialize
initialize
10
force-auth
unauthorized initialize
initialize
11
force-auth
unauthorized initialize
initialize
12
force-auth
unauthorized initialize
initialize
13
force-auth
unauthorized initialize
initialize
14
force-auth
unauthorized initialize
initialize
15
force-auth
unauthorized initialize
initialize
16
force-auth
unauthorized initialize
initialize
*17
force-auth
unauthorized initialize
initialize
*19
force-auth
unauthorized initialize
initialize
*20
force-auth
unauthorized initialize
initialize
*21
force-auth
unauthorized initialize
initialize
-----------------------------------------------------------------* - Port down or disabled
The following table describes the IEEE 802.1x parameters.
Table 21 802.1x information
Field
Description
Port
Displays each port’s name.
Auth Mode
Displays the Access Control authorization mode for the port. The
Authorization mode can be one of the following:
• force-unauth
• auto
• force-auth
Auth Status
Displays the current authorization status of the port, either authorized or
unauthorized.
35
Information Commands
Table 21 802.1x information
Field
Description
Authenticator PAE State
Displays the Authenticator Port Access Entity State. The PAE state can be
one of the following:
•
•
•
•
•
•
•
•
Backend Auth State
initialize
disconnected
connecting
authenticating
authenticated
aborting
held
forceAuth
Displays the Backend Authorization State. The Backend Authorization state
can be one of the following:
•
•
•
•
•
•
request
response
success
fail
timeout
idle
36
Information Commands
Spanning Tree information
The following table describes the Spanning Tree Protocol (STP) information commands.
Table 22 STP information commands
Command
Usage
show spanning-tree stp <1-128>
Displays information about the spanning tree group.
Command mode: All
Displays STP bridge information.
show spanning-tree stp <1-128> bridge
Command mode: All
show spanning-tree [<1-128>] information
Displays STP information.
Command mode: All
The following command displays Spanning Tree information:
show spanning-tree stp <1-128> information
Command mode: All
-----------------------------------------------------------------upfast disabled, update 40
-----------------------------------------------------------------Spanning Tree Group 1: On (STP/PVST+)
VLANs: 1
Current Root:
8000 00:02:a5:d1:0f:ed
Parameters:
Port
---1
2
3
Priority
32768
Priority
-------0
0
0
Cost
---0
0
0
Path-Cost
8
Hello
2
FastFwd
-------n
n
n
MaxAge
20
Port
20
FwdDel
15
Hello MaxAge FwdDel
2
20
15
Aging
180
State
Designated Bridge
Des Port
---------------------------- ------FORWARDING *
FORWARDING *
FORWARDING *
The switch software uses the IEEE 802.1d Spanning Tree Protocol (STP). If RSTP/MSTP is turned on, see
the “Rapid Spanning Tree information” section for Spanning Tree Group information. In addition to
seeing if STP is enabled or disabled, you can view the following STP bridge information:
•
•
•
•
•
•
•
•
Status of Uplink Fast (upfast)
Current root MAC address
Path cost
Port
Hello interval
Maximum age value
Forwarding delay
Aging time
37
Information Commands
You can also refer to the following port-specific STP information:
•
•
•
•
•
•
Port number and priority
Cost
State
Port Fast Forwarding state
Designated bridge
Designated port
The following table describes the STP parameters.
Table 23 STP parameters
Parameter
Description
Current Root
Shows information about the root bridge for the Spanning Tree. Information includes
the priority (hex) and MAC address of the root.
Path-Cost
Path-cost is the total path cost to the root bridge. It is the summation of the path cost
between bridges (up to the root bridge).
Port
The current root port refers to the port on the switch that receives data from the current
root. Zero (0) indicates the root bridge of the STP.
Priority (bridge)
The bridge priority parameter controls which bridge on the network will become the
STP root bridge.
Hello
The hello time parameter specifies, in seconds, how often the root bridge transmits a
configuration bridge protocol data unit (BPDU). Any bridge that is not the root bridge
uses the root bridge hello value.
MaxAge
The maximum age parameter specifies, in seconds, the maximum time the bridge
waits without receiving a configuration bridge protocol data unit before it reconfigures
the STP network. If the bridge is not the root bridge, it uses the MaxAge value of the
root bridge.
FwdDel
The forward delay parameter specifies, in seconds, the amount of time that a bridge
port has to wait before it changes from learning state to forwarding state. If the bridge
is not the root bridge, it uses the FwdDel value of the root bridge.
Aging
The aging time parameter specifies, in seconds, the amount of time the bridge waits
without receiving a packet from a station before removing the station from the
Forwarding Database.
Priority (port)
The port priority parameter helps determine which bridge port becomes the
designated port. In a network topology that has multiple bridge ports connected to a
single segment, the port with the lowest port priority becomes the designated port for
the segment.
Cost
The port path cost parameter is used to help determine the designated port for a
segment. Generally speaking, the faster the port, the lower the path cost.
State
The State field shows the current state of the port. The State field can be one of the
following: BLOCKING, LISTENING, LEARNING, FORWARDING, or DISABLED.
Designated bridge
Shows information about the bridge connected to each port, if applicable. Information
includes the priority (hex) and MAC address of the Designated Bridge.
Designated port
The port ID of the port on the Designated Bridge to which this port is connected. This
information includes the port priority (hex) and the port number (hex).
38
Information Commands
Rapid Spanning Tree and Multiple Spanning Tree information
The following command displays RSTP/MSTP information:
show spanning-tree stp <1-128> information
Command mode: All
-----------------------------------------------------------------upfast disabled, update 40
-----------------------------------------------------------------Spanning Tree Group 1: On (RSTP)
VLANs: 1-3
Current Root:
8000 00:00:01:00:19:00
Parameters:
Port
---1
2
3
4
5
6
7
8
9
10
11
12
Prio
---0
0
0
0
0
0
0
0
0
0
0
0
Priority
32768
Cost
---0
0
0
0
0
0
0
0
0
0
0
0
Path-Cost
0
Hello
9
MaxAge
20
Port Hello MaxAge FwdDel
0
9
20
15
FwdDel
15
Aging
300
State Role
Designated Bridge
Des Port
------ ---- --------------------- -------DSB
DSB
DSB
DSB
DSB
DSB
DSB
DSB
DSB
DISC
FWD
DESG 8000-00:00:01:00:19:00
8017
FWD
DESG 8000-00:00:01:00:19:00
8018
Type
----
P2P2,Edge
P2P
The switch software can be set to use the IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) or the IEEE
802.1s Multiple Spanning Tree Protocol (MSTP). If RSTP/MSTP is turned on, you can view the following
RSTP bridge information for the Spanning Tree Group:
•
•
•
•
•
•
•
•
Status of Uplink Fast (upfast)
Current root MAC address
Path-Cost
Port
Hello interval
Maximum age value
Forwarding delay
Aging time
39
Information Commands
You can also refer to the following port-specific RSTP information:
•
•
•
•
•
•
Port number and priority
Cost
State
Role
Designated bridge and port
Link type
The following table describes the STP parameters in RSTP or MSTP mode.
Table 24 Rapid Spanning Tree parameter descriptions
Parameter
Description
Current Root
Shows information about the root bridge for the Spanning Tree. Information includes
the priority (hex) and MAC address of the root.
Path-Cost
Path-cost is the total path cost to the root bridge. It is the summation of the path cost
between bridges (up to the root bridge).
Port
The current root port refers to the port on the switch that receives data from the current
root. Zero (0) indicates the root bridge of the STP.
Priority (bridge)
The bridge priority parameter controls which bridge on the network will become the
STP root bridge.
Hello
The hello time parameter specifies, in seconds, how often the root bridge transmits a
configuration bridge protocol data unit (BPDU). Any bridge that is not the root bridge
uses the root bridge hello value.
MaxAge
The maximum age parameter specifies, in seconds, the maximum time the bridge waits
without receiving a configuration bridge protocol data unit before it reconfigures the
STP network. If the bridge is not the root bridge, it uses the MaxAge value of the root
bridge.
FwdDel
The forward delay parameter specifies, in seconds, the amount of time that a bridge
port has to wait before it changes from learning state to forwarding state. If the bridge
is not the root bridge, it uses the FwdDel value of the root bridge.
Aging
The aging time parameter specifies, in seconds, the amount of time the bridge waits
without receiving a packet from a station before removing the station from the
Forwarding Database.
Priority (port)
The port priority parameter helps determine which bridge port becomes the designated
port. In a network topology that has multiple bridge ports connected to a single
segment, the port with the lowest port priority becomes the designated port for the
segment.
Cost
The port path cost parameter is used to help determine the designated port for a
segment. Generally speaking, the faster the port, the lower the path cost. A setting of
zero (0) indicates that the cost will be set to the appropriate default after the link speed
has been auto-negotiated.
State
Shows the current state of the port. The State field in RSTP/MSTP mode can be one of
the following: Discarding (DISC), Learning (LRN), Forwarding (FWD), or Disabled
(DSB).
40
Information Commands
Table 24 Rapid Spanning Tree parameter descriptions
Parameter
Description
Role
Shows the current role of this port in the Spanning Tree. The port role can be one of the
following: Designated (DESG), Root (ROOT), Alternate (ALTN), Backup (BKUP), Master
(MAST), or Unknown (UNK).
Designated bridge
Shows information about the bridge connected to each port, if applicable. Information
includes the priority (hex) and MAC address of the Designated Bridge.
Designated port
The port ID of the port on the Designated Bridge to which this port is connected.
Type
Type of link connected to the port, and whether the port is an edge port. Link type
values are AUTO, P2P, or SHARED.
Common Internal Spanning Tree information
The following command displays Common Internal Spanning Tree (CIST) information:
show spanning-tree mstp cist information
Command mode: All
Mstp Digest: 0xac36177f50283cd4b83821d8ab26de62
Common Internal Spanning Tree:
VLANs MAPPED: 1-16 18-31 33-4094
VLANs: 1 25 26 4095
Current Root:
8000 00:03:42:fa:3b:80
Path-Cost
0
Port
1
MaxAge
20
FwdDel
15
CIST Regional Root:
Path-Cost
8000 00:03:42:fa:3b:81
11
Parameters:
Port
---1
2
3
4
5
6
7
8
9
10
11
12
...
Prio
---128
128
128
128
128
128
128
128
128
128
128
128
Priority
32768
MaxAge
20
FwdDel
15
Hops
20
Cost State Role Designated Bridge
Des Port Hello Type
---- ------ ---- --------------------- -------- ----- ---2000
FWD
DESG 8000-00:03:42:fa:3b:80 8001
4 P2P, Edge
2000
FWD
DESG 8000-00:03:42:fa:3b:80 8002
2000
DSB
2000
DSB
2000
DSB
2000
DSB
2000
DSB
2000
DSB
2000
DSB
0
DSB
2000
FWD
DESG 8000-00:03:42:fa:3b:80
2000
DSB
41
Information Commands
In addition to seeing if Common Internal Spanning Tree (CIST) is enabled or disabled, you can view the
following CIST bridge information:
•
•
•
•
•
•
•
Status of Uplink Fast (upfast)
CIST root
CIST regional root
Priority
Maximum age value
Forwarding delay
Hops
You can also refer to the following port-specific CIST information:
•
•
•
•
•
•
•
Port number and priority
Cost
State
Role
Designated bridge and port
Hello interval
Link type and port type
The following table describes the CIST parameters.
Table 25 Common Internal Spanning Tree parameter descriptions
Parameter
Description
CIST Root
Shows information about the root bridge for the Common Internal Spanning Tree
(CIST). Values on this row of information refer to the CIST root.
CIST Regional Root
Shows information about the root bridge for this MSTP region. Values on this row of
information refer to the regional root.
Priority (bridge)
The bridge priority parameter controls which bridge on the network will become the
STP root bridge.
MaxAge
The maximum age parameter specifies, in seconds, the maximum time the bridge
waits without receiving a configuration bridge protocol data unit before it reconfigures
the STP network.
FwdDel
The forward delay parameter specifies, in seconds, the amount of time that a bridge
port has to wait before it changes from learning state to forwarding state.
Hops
Shows the maximum number of bridge hops allowed before a packet is dropped.
Priority (port)
The port priority parameter helps determine which bridge port becomes the
designated port. In a network topology that has multiple bridge ports connected to a
single segment, the port with the lowest port priority becomes the designated port for
the segment.
Cost
The port path cost parameter is used to help determine the designated port for a
segment. Generally speaking, the faster the port, the lower the path cost. A setting of
zero (0) indicates that the cost will be set to the appropriate default after the link
speed has been auto-negotiated.
State
Shows the current state of the port. The state field can be one of the following:
Discarding (DISC), Forwarding (FWD), or Disabled (DSB).
42
Information Commands
Table 25 Common Internal Spanning Tree parameter descriptions
Parameter
Description
Role
Shows the current role of this port in the Spanning Tree. The port role can be one of
the following: Designated (DESG), Root (ROOT), Alternate (ALTN), Backup (BKUP),
Master (MAST).
Designated Bridge
Shows information about the bridge connected to each port, if applicable. Information
includes the priority (hex) and MAC address of the Designated Bridge.
Designated Port
The port ID of the port on the Designated Bridge to which this port is connected.
Information includes the port priority (hex) and the port number (hex).
Hello
The hello time parameter specifies, in seconds, how often the root bridge transmits a
configuration bridge protocol data unit (BPDU). Any bridge that is not the root bridge
uses the root bridge hello value.
Type
Type of link connected to the port, and whether the port is an edge port. Link type
values are AUTO, P2P, or SHARED.
Trunk group information
The following command displays Trunk Group information:
show portchannel information
Command mode: All
Trunk group 1, Enabled
port state:
20: STG 1 forwarding
21: STG 1 forwarding
When trunk groups are configured, you can view the state of each port in the various trunk groups.
NOTE: If Spanning Tree Protocol on any port in the trunk group is set to forwarding, the remaining
ports in the trunk group are set to forwarding.
43
Information Commands
VLAN information
The following table describes the VLAN information commands.
Table 26 VLAN information commands
Command
Usage
show vlan
Displays VLAN information
Command mode: All
show vlan information
Displays VLAN information, including spanning tree assignment.
Command mode: All
The following command displays VLAN information:
show vlan
Command mode: All
VLAN
---1
2
7
11
14
15
16
17
18
19
20
21
22
24
300
4000
4095
Name
Status
-------------------------------- -----Default VLAN
ena
pc03p
ena
pc07f
ena
pc04u
ena
8600-14
ena
8600-15
ena
8600-16
ena
8600-17
ena
35k-1
ena
35k-2
ena
35k-3
ena
35k-4
ena
pc07z
ena
redlan
ena
ixiaTraffic
ena
bpsports
ena
Mgmt VLAN
ena
Ports
---------------4 5
2
7
11
14
15
16
6
18
19
20
21
21
21
1 12 13 21
3-6 8-10
17
This information display includes all configured VLANs and all member ports that have an active link
state.
VLAN information includes:
•
•
•
•
VLAN Number
VLAN Name
Status
Port membership of the VLAN
44
Information Commands
Layer 3 information
The following table describes basic Layer 3 Information commands. The following sections provide more
detailed information and commands.
Table 27 Layer 3 information commands
Command
Usage
show ip route
Displays all routes configured in the switch.
Command mode: All except User EXEC
show ip information
Displays general IP information.
Command mode: All except User EXEC
show ip arp
Displays Address Resolution Protocol (ARP) Information.
Command mode: All except User EXEC
show ip ospf information
Displays the OSPF information.
Command mode: All except User EXEC
show interface ip rip
Displays RIP user’s configuration.
Command mode: All
show layer3 information
Displays IP Information. IP information, includes:
• IP interface information: Interface number, IP address, subnet mask, VLAN
number, and operational status.
• Default gateway information: Metric for selecting which configured
gateway to use, gateway number, IP address, and health status
• IP forwarding information: Enable status, lnet and lmask
• Port status
Command mode: All except User EXEC
show ip igmp
Displays IGMP Information.
Command mode: All except User EXEC
show ip vrrp information
Displays the VRRP Information.
Command mode: All except User EXEC
show layer3
Dumps all switch information available from Layer 3 memory (10K or more,
depending on your configuration).
If you want to capture dump data to a file, set your communication software
on your workstation to capture session data prior to issuing the dump
commands.
Command mode: All except User EXEC
45
Information Commands
Route information
Using the commands listed below, you can display all or a portion of the IP routes currently held in the
switch.
Table 28 Route Information commands
Command
Usage
show ip route address <IP address>
Displays a single route by destination IP address.
Command mode: All except User EXEC
Displays routes to a single gateway.
show ip route gateway <IP address>
Command mode: All except User EXEC
show ip route type
{indirect|direct|local|broadcast|martian|
multicast}
Displays routes of a single type.
show ip route tag
{fixed|static|addr|rip|ospf|broadcast|
multicast|martian}
Displays routes of a single tag.
show ip route interface <1-250>
Displays routes on a single interface.
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
Displays all routes configured in the switch.
show ip route
Command mode: All except User EXEC
Show all IP Route information
The following command displays IP route information:
show ip route
Command mode: All except User EXEC
Status code: * Destination
--------------* 11.0.0.0
* 11.0.0.1
* 11.255.255.255
* 12.0.0.0
* 12.0.0.1
* 12.255.255.255
* 13.0.0.0
* 47.0.0.0
* 47.133.88.0
* 172.30.52.223
* 224.0.0.0
* 224.0.0.5
best
Mask
--------------255.0.0.0
255.255.255.255
255.255.255.255
255.0.0.0
255.255.255.255
255.255.255.255
255.0.0.0
255.0.0.0
255.255.255.0
255.255.255.255
224.0.0.0
255.255.255.255
Gateway
--------------11.0.0.1
11.0.0.1
11.255.255.255
12.0.0.1
12.0.0.1
12.255.255.255
11.0.0.2
47.133.88.1
47.133.88.46
172.30.52.223
0.0.0.0
0.0.0.0
Type
--------direct
local
broadcast
direct
local
broadcast
indirect
indirect
direct
broadcast
martian
multicast
Tag
--------fixed
addr
broadcast
fixed
addr
broadcast
ospf
static
fixed
broadcast
martian
addr
Metr If
---- -211
211
211
12
12
12
2
211
24
24
2
46
Information Commands
The following table describes the Type parameter.
Table 29 IP Routing Type information
Field
Description
indirect
The next hop to the host or subnet destination will be forwarded through a router at the
Gateway address.
direct
Packets will be delivered to a destination host or subnet attached to the switch.
local
Indicates a route to one of the switch’s IP interfaces.
broadcast
Indicates a broadcast route.
martian
The destination belongs to a host or subnet which is filtered out. Packets to this
destination are discarded.
multicast
Indicates a multicast route.
The following table describes the Tag parameter.
Table 30 IP Routing Tag information
Field
Description
fixed
The address belongs to a host or subnet attached to the switch.
static
The address is a static route which has been configured on the switch.
addr
The address belongs to one of the switch’s IP interfaces.
rip
The address was learned by the Routing Information Protocol (RIP).
ospf
The address was learned by Open Shortest Path First (OSPF).
broadcast
Indicates a broadcast address.
martian
The address belongs to a filtered group.
47
Information Commands
ARP information
The Address Resolution Protocol (ARP) information includes IP address and MAC address of each entry,
address status flags, VLAN, and port for the address, and port referencing information.
The following table describes the Address Resolution Protocol commands.
Table 31 ARP information
Command
Usage
show ip arp find <IP address>
Displays a single ARP entry by IP address.
Command mode: All except User EXEC
show ip arp interface port <port
number>
Displays the ARP entries on a single port.
show ip arp vlan <1-4095>
Displays the ARP entries on a single VLAN.
Command mode: All except User EXEC
Command mode: All except User EXEC
Displays all ARP entries, including:
show ip arp
•
•
•
•
IP address and MAC address of each entry
Address status flag
The VLAN and port to which the address belongs
The ports which have referenced the address (empty if no
port has routed traffic to the IP address shown)
Command mode: All except User EXEC
Displays the ARP address list: IP address, IP mask, MAC address,
and VLAN flags.
show ip arp reply
Command mode: All except User EXEC
Show all ARP entry information
The following command displays ARP information:
show ip arp
Command mode: All except User EXEC
IP address
Flags
--------------- ----192.168.2.4
192.168.2.19
192.168.2.61
P
MAC address
----------------00:50:8b:b2:32:cb
00:0e:7f:25:89:b5
00:0f:6a:ed:46:00
VLAN
---1
1
1
Port
---18
17
The Flag field provides additional information about an entry. If no flag displays, the entry is normal.
Table 32 ARP dump flag parameters
Flag
Description
P
Permanent entry created for switch IP interface.
R
Indirect route entry.
U
Unresolved ARP entry. The MAC address has not been learned.
48
Information Commands
ARP address list information
The following command displays ARP address list information:
show ip arp reply
Command mode: All except User EXEC
IP address
--------------205.178.18.66
205.178.50.1
205.178.18.64
IP mask
--------------255.255.255.255
255.255.255.255
255.255.255.255
MAC address
VLAN Flags
----------------- ---- ----00:70:cf:03:20:04
P
00:70:cf:03:20:06
1
00:70:cf:03:20:05
1
This screen displays all entries in the ARP cache.
OSPF information
The following table describes the OSPF commands.
Table 33 OSPF information commands
Command
Usage
show ip ospf general-information
Displays general OSPF information.
Command mode: All except User EXEC
show ip ospf area information [<0-2>]
Displays area information for a particular area index. If no
parameter is supplied, it displays area information for all the
areas.
Command mode: All except User EXEC
show ip ospf interface [<1-249>]
Displays interface information for a particular interface. If no
parameter is supplied, it displays information for all the
interfaces.
Command mode: All except User EXEC
show ip ospf area-virtual-link
information
Displays information about all the configured virtual links.
show ip ospf neighbor
Displays the status of all the current neighbors.
Command mode: All except User EXEC
Command mode: All except User EXEC
show ip ospf summary-range <0-2>
Displays the list of summary ranges belonging to non-NSSA
areas.
Command mode: All except User EXEC
show ip ospf summary-range-nssa <0-2>
Displays the list of summary ranges belonging to NSSA areas.
Command mode: All except User EXEC
show ip ospf routes
Displays OSPF routing table.
Command mode: All except User EXEC
show ip ospf information
Displays the OSPF information.
Command mode: All except User EXEC
49
Information Commands
OSPF general information
The following command displays general OSPF information:
show ip ospf general-information
Command mode: All except User EXEC
OSPF Version 2
Router ID: 10.10.10.1
Started at 1663 and the process uptime is 4626
Area Border Router: yes, AS Boundary Router: no
LS types supported are 6
External LSA count 0
External LSA checksum sum 0x0
Number of interfaces in this router is 2
Number of virtual links in this router is 1
16 new lsa received and 34 lsa originated from this router
Total number of entries in the LSDB 10
Database checksum sum 0x0
Total neighbors are 1, of which
2 are >=INIT state,
2 are >=EXCH state,
2 are =FULL state
Number of areas is 2, of which 3-transit 0-nssa 0-stub
Area Id : 0.0.0.0
Authentication : none
Import ASExtern : yes
Number of times SPF ran : 8
Area Border Router count : 2
AS Boundary Router count : 0
LSA count : 5
Summary : noSummary
OSPF interface information
The following command displays OSPF interface information:
show ip ospf interface [<1-249>]
Command mode: All except User EXEC
Ip Address 10.10.12.1, Area 0.0.0.1, Admin Status UP
Router ID 10.10.10.1, State DR, Priority 1
Designated Router (ID) 10.10.10.1, Ip Address 10.10.12.1
Backup Designated Router (ID) 10.10.14.1, Ip Address 10.10.12.2
Timer intervals, Hello 10, Dead 40, Wait 40, Retransmit 5,
Transit delay 1
Neighbor count is 1 If Events 4, Authentication type none
50
Information Commands
OSPF Database information
The following table describes the OSPF Database information commands.
Table 34 OSPF Database information commands
Command
Usage
show ip ospf database advertisingrouter <router ID>
Takes advertising router as a parameter. Displays all the Link
State Advertisements (LSAs) in the LS database that have the
advertising router with the specified router ID, for example:
20.1.1.1.
Command mode: All except User EXEC
show ip ospf database asbr-summary
[advertising-router <router ID>
|link-state-id <A.B.C.D> | self]
Displays ASBR summary LSAs. The usage of this command is as
follows:
• asbrsum adv-rtr 20.1.1.1 displays ASBR summary
LSAs having the advertising router 20.1.1.1.
• asbrsum link_state_id 10.1.1.1 displays ASBR
summary LSAs having the link state ID 10.1.1.1.
• asbrsum self displays the self advertised ASBR summary
LSAs.
• asbrsum with no parameters displays all the ASBR summary
LSAs.
Command mode: All except User EXEC
show ip ospf database databasesummary
Displays the following information about the LS database in a
table format:
• The number of LSAs of each type in each area.
• The total number of LSAs for each area.
• The total number of LSAs for each LSA type for all areas
combined.
• The total number of LSAs for all LSA types for all areas
combined.
No parameters are required.
Command mode: All except User EXEC
show ip ospf database external
[advertising-router <router ID>
|link-state-id <A.B.C.D> | self]
Displays the AS-external (type 5) LSAs with detailed information
of each field of the LSAs.
show ip ospf database network
[advertising-router <router ID>
|link-state-id <A.B.C.D> | self]
Displays the network (type 2) LSAs with detailed information of
each field of the LSA.network LS database.
show ip ospf database nssa
[advertising-router <router ID>
|link-state-id <A.B.C.D> | self]
Displays the NSSA (type 7) LSAs with detailed information of
each field of the LSAs.
show ip ospf database router
[advertising-router <router ID>
|link-state-id <A.B.C.D> | self]
Displays the router (type 1) LSAs with detailed information of
each field of the LSAs.
show ip ospf database self
Displays all the self-advertised LSAs. No parameters are
required.
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
51
Information Commands
Table 34 OSPF Database information commands
Command
Usage
show ip ospf database summary
[advertising-router <router ID> |
linkstate-id <A.B.C.D> | self]
Displays the network summary (type 3) LSAs with detailed
information of each field of the LSAs.
show ip ospf database
Displays all the LSAs.
Command mode: All except User EXEC
Command mode: All except User EXEC
OSPF route codes information
The following command displays OSPF route information:
show ip ospf routes
Command mode: All except User EXEC
Codes: IA - OSPF inter area,
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
* - best
IA 10.10.0.0/16 via 200.1.1.2
IA 40.1.1.0/28 via 20.1.1.2
IA 80.1.1.0/24 via 200.1.1.2
IA 100.1.1.0/24 via 20.1.1.2
IA 140.1.1.0/27 via 20.1.1.2
IA 150.1.1.0/28 via 200.1.1.2
E2 172.18.1.1/32 via 30.1.1.2
E2 172.18.1.2/32 via 30.1.1.2
E2 172.18.1.3/32 via 30.1.1.2
E2 172.18.1.4/32 via 30.1.1.2
E2 172.18.1.5/32 via 30.1.1.2
E2 172.18.1.6/32 via 30.1.1.2
E2 172.18.1.7/32 via 30.1.1.2
E2 172.18.1.8/32 via 30.1.1.2
52
Information Commands
Routing Information Protocol
The following table describes the Routing Information Protocol (RIP) information commands.
Table 35 RIP information commands
Command
Usage
show ip rip routes
Displays RIP routes.
Command mode: All except User EXEC
show ip rip interface [<1-249>]
Displays RIP interface information.
Command mode: All except User EXEC
show interface ip rip
Displays RIP user’s configuration.
Command mode: All
RIP Routes information
The following command displays RIP route information:
show ip rip routes
Command mode: All except User EXEC
3.0.0.0/8 via 30.1.1.11 metric 4
4.0.0.0/16 via 30.1.1.11 metric 16
10.0.0.0/8 via 30.1.1.2 metric 3
20.0.0.0/8 via 30.1.1.2 metric 2
This table contains all dynamic routes learned through RIP, including the routes that are undergoing
garbage collection with metric = 16. This table does not contain directly connected routes and locally
configured static routes.
RIP user configuration
The following command displays RIP user information:
show interface ip [<1-250>] rip
Command mode: All
RIP USER CONFIGURATION :
RIP on update 30
RIP Interface 2 : 102.1.1.1, enabled
version 2, listen enabled, supply enabled, default none
poison disabled, trigg enabled, mcast enabled, metric 1
auth none, key none
RIP Interface 3 : 103.1.1.1, enabled
version 2, listen enabled, supply enabled, default none
poison disabled, trigg enabled, mcast enabled, metric 1
53
Information Commands
IP information
The following command displays Layer 3 information:
show layer3 information
Command mode: All
IP information:
Interface information:
1: 10.80.23.243
255.255.254.0
250: 10.20.7.144
255.255.0.0
10.80.23.255,
10.20.255.255,
vlan 1, up
vlan 4095, up
Default gateway information: metric strict
1: 10.80.22.1,
vlan any, up active
254: 10.20.1.1,
vlan 4095, up active
Current BOOTP relay settings: OFF
0.0.0.0, 0.0.0.0
Current IP forwarding settings: OFF, dirbr disabled
Current network filter settings:
none
Current route map settings:
The following interface and default gateway information is displayed:
•
•
•
•
•
Interface number
IP address
IP mask
IP broadcast address
Operational status
54
Information Commands
IGMP multicast group information
The following table describes the commands used to display information about IGMP groups learned by
the switch.
Table 36 IGMP Multicast Group commands
Command
Usage
show ip igmp groups address <IP
address>
Displays a single IGMP multicast group by its IP address.
Command mode: All except User EXEC
Displays all IGMP multicast groups on a single VLAN.
show ip igmp groups vlan <1-4094>
Command mode: All except User EXEC
show ip igmp groups interface port
<port number>
Displays all IGMP multicast groups on a single port.
show ip igmp groups portchannel <1-40>
Displays all IGMP multicast groups on a single trunk group.
Command mode: All except User EXEC
Command mode: All except User EXEC
Displays details about IGMP multicast groups, including
source and timer information.
show ip igmp groups detail
Command mode: All except User EXEC
Displays information for all multicast groups.
show ip igmp groups
Command mode: All except User EXEC
IGMP group information
The following command displays IGMP group information:
show ip igmp groups
Command mode: All
Note: Local groups (224.0.0.x) are not snooped/relayed and will not appear.
Expires
Fwd
-------------- --------------- ------- ------ --------
Source
----- -------
---
10.1.1.1
232.1.1.1
2
21
V3
INC
4:16
Yes
10.1.1.5
232.1.1.1
2
21
V3
INC
4:16
Yes
232.1.1.1
2
21
V3
INC
235.0.0.1
9
21
V3
INC
236.0.0.1
9
21
V3
EXC
*
10.10.10.43
*
Group
VLAN
Port
Version
Mode
-
No
2:26
-
Yes
Yes
IGMP Group information includes:
•
•
•
•
•
•
•
IGMP source address
IGMP Group address
VLAN and port
IGMP version
IGMPv3 filter mode
Expiration timer value
IGMP multicast forwarding state
55
Information Commands
IGMP multicast router information
The following table describes the commands used to display information about multicast routers learned
through IGMP Snooping.
Table 37 IGMP Multicast Router information commands
Command
Usage
show ip igmp mrouter vlan <1-4094> Displays information for all multicast groups on a single VLAN.
Command mode: All except User EXEC
show ip igmp mrouter information
Displays information for all multicast groups learned by the switch.
Command mode: All except User EXEC
56
Information Commands
VRRP information
Virtual Router Redundancy Protocol (VRRP) support on HP 10GbE switch provides redundancy between
routers in a LAN. This is accomplished by configuring the same virtual router IP address and ID number on
each participating VRRP-capable routing device. One of the virtual routers is then elected as the master,
based on a number of priority criteria, and assumes control of the shared virtual router IP address. If the
master fails, one of the backup virtual routers will assume routing authority and take control of the virtual
router IP address.
The following command displays VRRP information:
show ip vrrp information
Command mode: All except User EXEC
VRRP information:
1: vrid 2, 205.178.18.210, if 1, renter, prio 100, master, server
2: vrid 1, 205.178.18.202, if 1, renter, prio 100, backup
3: vrid 3, 205.178.18.204, if 1, renter, prio 100, master, proxy
When virtual routers are configured, you can view the status of each virtual router using this command.
VRRP information includes:
•
•
•
•
Virtual router number
Virtual router ID and IP address
Interface number
Ownership status
○ owner identifies the preferred master virtual router. A virtual router is the owner when the IP
address of the virtual router and its IP interface are the same.
○ renter identifies virtual routers which are not owned by this device
•
•
Priority value. During the election process, the virtual router with the highest priority becomes master.
Activity status
○ master identifies the elected master virtual router.
○ backup identifies that the virtual router is in backup mode.
○ init identifies that the virtual router is waiting for a startup event. Once it receives a startup
event, it transitions to master if its priority is 255, (the IP address owner), or transitions to backup
if it is not the IP address owner.
•
•
Server status. The server state identifies virtual routers.
Proxy status. The proxy state identifies virtual proxy routers, where the virtual router shares the same
IP address as a proxy IP address. The use of virtual proxy routers enables redundant switches to
share the same IP address, minimizing the number of unique IP addresses that must be configured.
57
Information Commands
802.1p information
The following command displays 802.1p information:
show qos transmit-queue information
Command mode: All
Current priority to COS queue information:
Priority COSq Weight
-------- ---- -----0
0
1
1
0
1
2
0
1
3
0
1
4
1
2
5
1
2
6
1
2
7
1
2
Current port priority information:
Port
Priority COSq Weight
----- -------- ---- -----1
0
0
1
2
0
0
1
3
0
0
1
4
0
0
1
…
20
0
0
1
21
0
0
1
The following table describes the IEEE 802.1p priority to COS queue information.
Table 38 802.1p Priority to COS Queue information
Field
Description
Priority
Displays the 802.1p Priority level.
Cosq
Displays the Class of Service queue.
Weight
Displays the scheduling weight of the COS queue.
The following table describes the IEEE 802.1p port priority information.
Table 39 802.1p Port Priority information
Field
Description
Port
Displays the port number.
Priority
Displays the 802.1p Priority level.
Cosq
Displays the Class of Service queue.
Weight
Displays the scheduling weight.
58
Information Commands
ACL information
The following table describes the commands used to display information about Access Control Lists and
Groups.
Table 40 ACL information commands
Command
Usage
show access-control list <1-384>
Displays information about the selected ACL.
Command mode: All except User EXEC
show access-control group <1-384>
Displays information about ACL Groups.
Command mode: All except User EXEC
show access-control
Displays information about all ACLs.
Command mode: All
The following command displays Access Control List information:
show access-control
Command mode: All
Current ACL information:
-----------------------Filter 1 profile:
Ethernet
- VID
: 1/0xfff
Actions
: Set COS to 0
Filter 2 profile:
Ethernet
- VID
: 1/0xfff
Actions
: Permit
No ACL groups configured.
ACL information provides configuration parameters for each Access Control List. It also shows which ACLs
are included in each ACL Group.
59
Information Commands
RMON Information
The following command displays general RMON information:
show rmon
Command mode: All
RMON history information
The following command displays RMON history information:
show rmon history
Command mode: All
RMON History group configuration:
Index
----1
2
3
4
5
IFOID
-----------------------------1.3.6.1.2.1.2.2.1.1.21
1.3.6.1.2.1.2.2.1.1.18
1.3.6.1.2.1.2.2.1.1.20
1.3.6.1.2.1.2.2.1.1.19
1.3.6.1.2.1.2.2.1.1.21
Interval
-------30
30
30
30
1800
Rbnum
----5
5
5
5
5
Gbnum
----5
5
5
5
5
The following table describes the RMON History Information parameters.
Table 41 RMON History Information
Command
Usage
Index
Displays the index number that identifies each history instance.
IFOID
Displays the MIB Object Identifier.
Interval
Displays the time interval for each sampling bucket.
Rbnum
Displays the number of requested buckets, which is the number of data slots into
which data is to be saved.
Gbnum
Displays the number of granted buckets that may hold sampled data.
60
Information Commands
RMON alarm information
The following command displays RMON alarm information:
show rmon alarm
Command mode: All
RMON Alarm group configuration:
Index
----1
2
3
4
5
8
10
11
15
18
100
Interval
-------30
900
300
1800
1800
1800
1800
1800
1800
1800
1800
Type
---abs
abs
abs
abs
abs
abs
abs
abs
abs
abs
abs
rLimit
-------10
0
10
10
10
10
10
10
10
10
10
fLimit
-------0
10
20
0
0
0
0
0
0
0
0
Index
----1
2
3
4
5
8
10
11
15
18
100
OID
-----------------------------1.3.6.1.2.1.2.2.1.10.257
1.3.6.1.2.1.2.2.1.11.258
1.3.6.1.2.1.2.2.1.12.259
1.3.6.1.2.1.2.2.1.13.260
1.3.6.1.2.1.2.2.1.14.261
1.3.6.1.2.1.2.2.1.10.271
1.3.6.1.2.1.2.2.1.15.262
1.3.6.1.2.1.2.2.1.16.263
1.3.6.1.2.1.2.2.1.19.266
1.3.6.1.2.1.2.2.1.10.270
1.3.6.1.2.1.2.2.1.17.264
rEvtIdx
------1
0
0
1
1
1
1
1
1
1
1
fEvtIdx
------0
2
0
0
0
0
0
0
0
0
0
last value
---------0
0
0
0
0
56344540
0
0
0
0
0
The following table describes the RMON Alarm Information parameters.
Table 42 RMON Alarm Information
Command
Usage
Index
Displays the index number that identifies each alarm instance.
Interval
Displays the time interval over which data is sampled and compared with the rising and
falling thresholds.
Type
Displays the method of sampling the selected variable and calculating the value to be
compared against the thresholds, as follows:
• abs—absolute value, the value of the selected variable is compared directly with the
thresholds at the end of the sampling interval.
• delta—delta value, the value of the selected variable at the last sample is subtracted
from the current value, and the difference compared with the thresholds.
rLimit
Displays the rising threshold for the sampled statistic.
fLimit
Displays the falling threshold for the sampled statistic.
61
Information Commands
Table 42 RMON Alarm Information
Command
Usage
rEvtIdx
Displays the rising alarm event index that is triggered when a rising threshold is crossed.
fEvtIdx
Displays the falling alarm event index that is triggered when a falling threshold is crossed.
Last value
Displays the last sampled value.
OID
Displays the MIB Object Identifier for each alarm index.
RMON event information
The following command displays RMON event information:
show rmon event
Command mode: All
RMON Event group configuration:
Index
----1
2
3
4
5
10
11
15
100
Type
---both
none
log
trap
both
both
both
both
both
Last Sent
---------------0D: 0H: 1M:20S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
0D: 0H: 0M: 0S
Description
--------------------------------Event_1
Event_2
Event_3
Event_4
Log and trap event for Link Down
Log and trap event for Link Up
Send log and trap for icmpInMsg
Send log and trap for icmpInEchos
Event_100
The following table describes the RMON Event Information parameters.
Table 43 RMON Event Information
Command
Usage
Index
Displays the index number that identifies each event instance.
Type
Displays the type of notification provided for this event, as follows: log, trap, both.
Last Sent
Displays the time that passed since the last switch reboot, when the most recent event was
triggered. This value is cleared when the switch reboots.
Description
Displays a text description of the event.
62
Information Commands
Link status information
The following command displays link information:
show interface link
Command mode: All except User EXEC
-----------------------------------------------------------------Port
Speed
Duplex
Flow Ctrl
Link
--------------- --TX-----RX------1
10000
full
yes
yes
down
2
10000
full
yes
yes
down
3
10000
full
yes
yes
down
4
10000
full
yes
yes
down
5
10000
full
yes
yes
down
6
10000
full
yes
yes
down
7
10000
full
yes
yes
down
8
10000
full
yes
yes
down
9
10000
full
yes
yes
up
10
10000
full
yes
yes
down
11
10000
full
yes
yes
down
12
10000
full
yes
yes
down
13
10000
full
yes
yes
down
14
10000
full
yes
yes
down
15
10000
full
yes
yes
down
16
10000
full
yes
yes
down
17
100
full
yes
yes
up
18
10000
full
yes
yes
down
19
10000
full
yes
yes
down
20
10000
full
yes
yes
down
21
10000
full
yes
yes
down
Use this command to display link status information about each port on a switch, including:
•
•
•
•
•
Port number
Port speed (10000 Mb/s or 100 Mb/s)
Duplex mode (half, full, or any)
Flow control for transmit and receive (no, yes, or any)
Link status (up, down, or disabled)
63
Information Commands
Port information
The following command displays port information:
show interface information
Command mode: All except User EXEC
Port Tag RMON PVID
NAME
---- --- ---- ---- -------------1
n
d
1 Downlink1
2
n
d
1 Downlink2
3
n
d
1 Downlink3
4
n
d
1 Downlink4
5
n
d
1 Downlink5
6
n
d
1 Downlink6
7
n
d
1 Downlink7
8
n
d
1 Downlink8
9
n
d
1 Downlink9
10
n
d
1 Downlink10
11
n
d
1 Downlink11
12
n
d
1 Downlink12
13
n
d
1 Downlink13
14
n
d
1*Downlink14
15
n
d
1*Downlink15
16
n
d
1*Downlink16
17
n
d
4095 Mgmt
18
n
d
1*Uplink1
19
n
d
1*Uplink2
20
n
d
1*Uplink3
21
n
d
1*Uplink4
* = PVID is tagged.
VLAN(s)
------------------------------1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4095
1
1
1
1
Port information includes:
•
•
•
•
•
•
Port number
Whether the port uses VLAN tagging or not (y or n)
Whether Remote Monitoring (RMON) is enabled or disabled (e or d)
Port VLAN ID (PVID)
Port name
VLAN membership
64
Information Commands
Logical Port to GEA Port mapping
The following command displays information about GEA ports:
show geaport
Command mode: All
Logical Port
-----------1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
GEA Port(0-based)
----------------2
4
6
8
10
12
14
16
3
5
7
9
11
13
15
17
255
18
19
0
1
GEA Unit
--------0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
This display correlates the logical port number to the GEA unit on which each port resides.
Fiber Port SFP status
The following command displays XFP information:
show sfp
Command mode: All
-----------------------------------------Port Device TX-Enable RX-Signal TX-Fault
------ ------ --------- --------- -------XFP1 SR-XFP enabled
ok
N/A
XFP2 SR-XFP enabled
LOST
N/A
XFP3 SR-XFP enabled
ok
N/A
XFP4 SR-XFP
**** NOT Installed ****
This command displays the status of the Small Form Pluggable (SFP) module on each Fiber External Port.
65
Information Commands
Uplink Failure Detection information
The following command displays Uplink Failure Detection (UFD) information:
show ufd
Command mode: All except User EXEC
Uplink Failure Detection: Enabled
LtM status: Down
Member
STG
STG State
---------------------port 20
1
DISABLED
10
DISABLED *
15
DISABLED *
* = STP turned off for this port.
Link Status
----------down
LtD status: Auto Disabled
Member
Link Status
------------------port 1
disabled
port 2
disabled
port 3
disabled
port 4
disabled
Uplink Failure Detection (UFD) information includes:
•
•
•
•
UFD status, either enabled or disabled
LtM status and member ports
Spanning Tree status for LtM ports
LtD status and member ports
Information dump
The following command dumps switch information:
show information-dump
Command mode: All
Use the dump command to dump all switch information available from switch memory (10K or more,
depending on your configuration). This data is useful for tuning and debugging switch performance.
If you want to capture dump data to a file, set the communication software on your workstation to capture
session data prior to issuing the dump commands.
66
Statistics Commands
Statistics Commands
Introduction
You can view switch performance statistics in the user, operator, and administrator command modes. This
chapter discusses how to use the ISCLI to display switch statistics.
The following table describes general Statistics commands.
Table 44 Statistics commands
Command
Usage
show layer3 counters
Displays Layer 3 Statistics.
Command mode: All
show snmp-server counters
Displays SNMP statistics.
Command mode: All
show ntp counters
Displays Network Time Protocol (NTP) Statistics.
You can execute the clear command option to delete all statistics.
Command mode: All
clear ntp
Clears Network Time Protocol (NTP) Statistics.
Command mode: All
show ufd counters
Displays Uplink Failure Detection statistics.
Command mode: All
show counters
Dumps all switch statistics. Use this command to gather data for tuning and
debugging switch performance. If you want to capture dump data to a file,
set your communication software on your workstation to capture session
data prior to issuing the dump command.
Command mode: All
67
Statistics Commands
Port Statistics
The following table describes the Port Statistics commands. The following sections provide more detailed
information and commands.
Table 45 Port Statistics commands
Command
Usage
show interface port <port number> dot1x
counters
Displays IEEE 802.1x statistics for the port.
show interface port <port number>
bridging-counters
Displays bridging (“dot1”) statistics for the port.
show interface port <port number>
ethernet-counters
Displays Ethernet (“dot3”) statistics for the port.
show interface port <port number>
interface-counters
Displays interface statistics for the port.
show interface port <port number> ipcounters
Displays Internet Protocol statistics for the port.
show interface port <port number> linkcounters
Displays link statistics for the port.
show interface port <port number> rmoncounters
Displays Remote Monitoring (RMON) statistics for the
port.
Command mode: All
Command mode: All
Command mode: All
Command mode: All
Command mode: All
Command mode: All
Command mode: All
68
Statistics Commands
802.1x statistics
Use the following command to display the 802.1x authenticator statistics of the selected port:
show interface port <port number> dot1x counters
Command mode: All
Authenticator Statistics:
eapolFramesRx
=
eapolFramesTx
=
eapolStartFramesRx
=
eapolLogoffFramesRx
=
eapolRespIdFramesRx
=
eapolRespFramesRx
=
eapolReqIdFramesTx
=
eapolReqFramesTx
=
invalidEapolFramesRx
=
eapLengthErrorFramesRx =
lastEapolFrameVersion =
lastEapolFrameSource
=
0
0
0
0
0
0
0
0
0
0
0
00:00:00:00:00:00
Authenticator Diagnostics:
authEntersConnecting
authEapLogoffsWhileConnecting
authEntersAuthenticating
authSuccessesWhileAuthenticating
authTimeoutsWhileAuthenticating
authFailWhileAuthenticating
authReauthsWhileAuthenticating
authEapStartsWhileAuthenticating
authEapLogoffWhileAuthenticating
authReauthsWhileAuthenticated
authEapStartsWhileAuthenticated
authEapLogoffWhileAuthenticated
backendResponses
backendAccessChallenges
backendOtherRequestsToSupplicant
backendNonNakResponsesFromSupplicant
backendAuthSuccesses
backendAuthFails
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
The following table describes the 802.1x authenticator diagnostics for a selected port:
Table 46 802.1x statistics for port
Statistics
Description
Authenticator Diagnostics
authEntersConnecting
Total number of times that the state machine transitions to the
CONNECTING state from any other state.
authEapLogoffsWhileConnecting
Total number of times that the state machine transitions from
CONNECTING to DISCONNECTED as a result of receiving an
EAPOL-Logoff message.
69
Statistics Commands
Table 46 802.1x statistics for port
Statistics
Description
authEntersAuthenticating
Total number of times that the state machine transitions from
CONNECTING to AUTHENTICATING, as a result of an
EAPResponse/Identity message being received from the
Supplicant.
authSuccessesWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to AUTHENTICATED, as a result of the Backend
Authentication state machine indicating successful authentication of
the Supplicant.
authTimeoutsWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to ABORTING, as a result of the Backend
Authentication state machine indicating authentication timeout.
authFailWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to HELD, as a result of the Backend
Authentication state machine indicating authentication failure.
authReauthsWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to ABORTING, as a result of a re-authentication
request
authEapStartsWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to ABORTING, as a result of an EAPOL-Start
message being received from the Supplicant.
authEapLogoffWhileAuthenticating
Total number of times that the state machine transitions from
AUTHENTICATING to ABORTING, as a result of an EAPOL-Logoff
message being received from the Supplicant.
authReauthsWhileAuthenticated
Total number of times that the state machine transitions from
AUTHENTICATED to CONNECTING, as a result of a reauthentication request.
authEapStartsWhileAuthenticated
Total number of times that the state machine transitions from
AUTHENTICATED to CONNECTING, as a result of an EAPOL-Start
message being received from the Supplicant.
authEapLogoffWhileAuthenticated
Total number of times that the state machine transitions from
AUTHENTICATED to DISCONNECTED, as a result of an
EAPOLLogoff message being received from the Supplicant.
backendResponses
Total number of times that the state machine sends an initial AccessRequest packet to the Authentication server. Indicates that the
Authenticator attempted communication with the Authentication
Server.
backendAccessChallenges
Total number of times that the state machine receives an initial
Access-Challenge packet from the Authentication server. Indicates
that the Authentication Server has communication with the
Authenticator.
backendOtherRequestsToSupplicant
Total number of times that the state machine sends an EAP-Request
packet (other than an Identity, Notification, Failure, or Success
message) to the Supplicant. Indicates that the Authenticator chose an
EAP-method.
70
Statistics Commands
Table 46 802.1x statistics for port
Statistics
Description
backendNonNakResponsesFrom
Supplicant
Total number of times that the state machine receives a response from
the Supplicant to an initial EAP-Request, and the response is
something other than EAP-NAK. Indicates that the Supplicant can
respond to the Authenticators chosen EAP-method.
backendAuthSuccesses
Total number of times that the state machine receives an Accept
message from the Authentication Server. Indicates that the Supplicant
has successfully authenticated to the Authentication Server.
backendAuthFails
Total number of times that the state machine receives a Reject
message from the Authentication Server. Indicates that the Supplicant
has not authenticated to the Authentication Server.
Bridging statistics
Use the following command to display the bridging statistics of the selected port:
show interface port <port number> bridging-counters
Command mode: All
Bridging statistics for port 1:
dot1PortInFrames:
dot1PortOutFrames:
dot1PortInDiscards:
dot1TpLearnedEntryDiscards:
dot1StpPortForwardTransitions:
63242584
63277826
0
0
0
The following table describes the bridging statistics for a selected port:
Table 47 Bridging statistics for port
Statistics
Description
dot1PortInFrames
The number of frames that have been received by this port from its
segment.
A frame received on the interface corresponding to this port is counted
by this object, if and only if, it is for a protocol being processed by the
local bridging function, including bridge management frames.
dot1PortOutFrames
The number of frames that have been transmitted by this port to its
segment.
A frame transmitted on the interface corresponding to this port is counted
by this object, if and only if, it is for a protocol being processed by the
local bridging function, including bridge management frames.
dot1PortInDiscards
Count of valid frames received which were discarded (that is, filtered) by
the forwarding process.
71
Statistics Commands
Table 47 Bridging statistics for port
Statistics
Description
dot1TpLearnedEntryDiscards
The total number of Forwarding Database entries, which have been or
would have been learned, but have been discarded due to a lack of
space to store them in the Forwarding Database.
If this counter is increasing, it indicates that the Forwarding Database is
regularly becoming full (a condition which has adverse performance
effects on the sub network).
If this counter has a significant value but is not presently increasing, it
indicates that the problem has been occurring but is not persistent.
dot1StpPortForwardTransitions
The number of times this port has transitioned from the Learning state to
the Forwarding state.
Ethernet statistics
Use the following command to display the ethernet statistics of the selected port:
show interface port <port number> ethernet-counters
Command mode: All
Ethernet statistics for port 1:
dot3StatsAlignmentErrors:
dot3StatsFCSErrors:
dot3StatsSingleCollisionFrames:
dot3StatsMultipleCollisionFrames:
dot3StatsLateCollisions:
dot3StatsExcessiveCollisions:
dot3StatsInternalMacTransmitErrors:
dot3StatsFrameTooLongs:
dot3StatsInternalMacReceiveErrors:
0
0
0
0
0
0
NA
0
0
The following table describes the Ethernet statistics for a selected port:
Table 48 Ethernet statistics for port
Statistics
Description
dot3StatsAlignmentErrors
A count of frames received on a particular interface that are not an
integral number of octets in length and do not pass the Frame
Check Sequence (FCS) check.
The count represented by an instance of this object is incremented
when the alignmentError status is returned by the MAC service
to the Logical Link Control (LLC) (or other MAC user).
Received frames for which multiple error conditions obtained are,
according to the conventions of IEEE 802.3 Layer Management,
counted exclusively according to the error status presented to the
LLC.
72
Statistics Commands
Table 48 Ethernet statistics for port
Statistics
Description
dot3StatsFCSErrors
A count of frames received on a particular interface that are an
integral number of octets in length but do not pass the Frame
Check Sequence (FCS) check.
The count represented by an instance of this object is incremented
when the frameCheckError status is returned by the MAC
service to the LLC (or other MAC user).
Received frames for which multiple error conditions obtained are,
according to the conventions of IEEE 802.3 Layer Management,
counted exclusively according to the error status presented to the
LLC.
dot3StatsSingleCollisionFrames
A count of successfully transmitted frames on a particular interface
for which transmission is inhibited by exactly one collision.
A frame that is counted by an instance of this object is also
counted by the corresponding instance of the ifOutUcastPkts,
ifOutMulticastPkts, or ifOutBroadcastPkts, and is not
counted by the corresponding instance of the
dot3StatsMultipleCollisionFrame object.
dot3StatsMultipleCollisionFrames
A count of successfully transmitted frames on a particular interface
for which transmission is inhibited by more than one collision.
A frame that is counted by an instance of this object is also
counted by the corresponding instance of either the
ifOutUcastPkts, ifOutMulticastPkts, or
ifOutBroadcastPkts, and is not counted by the corresponding
instance of the dot3StatsSingleCollisionFrames object.
dot3StatsLateCollisions
The number of times that a collision is detected on a particular
interface later than 512 bit-times into the transmission of a packet.
Five hundred and twelve bit-times corresponds to 51.2
microseconds on a 10 Mbps system. A (late) collision included in a
count represented by an instance of this object is also considered
as a (generic) collision for purposes of other collision-related
statistics.
dot3StatsExcessiveCollisions
A count of frames for which transmission on a particular interface
fails due to excessive collisions.
dot3StatsInternalMacTransmitErrors A count of frames for which transmission on a particular interface
fails due to an internal MAC sublayer transmit error.
A frame is only counted by an instance of this object if it is not
counted by the corresponding instance of either the
dot3StatsLateCollisions object, the
dot3StatsExcessiveCollisions object, or the
dot3StatsCarrierSenseErrors object.
The precise meaning of the count represented by an instance of this
object is implementation specific. In particular, an instance of this
object may represent a count of transmission errors on a particular
interface that are not otherwise counted.
73
Statistics Commands
Table 48 Ethernet statistics for port
Statistics
Description
dot3StatsFrameTooLongs
A count of frames received on a particular interface that exceeds
the maximum permitted frame size.
The count represented by an instance of this object is incremented
when the frameTooLong status is returned by the MAC service to
the LLC (or other MAC user).
Received frames for which multiple error conditions obtained are,
according to the conventions of IEEE 802.3 Layer Management,
counted exclusively according to the error status presented to the
LLC.
dot3StatsInternalMacReceiveErrors
A count of frames for which reception on a particular interface fails
due to an internal MAC sublayer receive error.
A frame is only counted by an instance of this object if it is not
counted by the corresponding instance of the
dot3StatsFrameTooLongs object, the
dot3StatsAlignmentErrors object, or the
dot3StatsFCSErrors object.
The precise meaning of the count represented by an instance of this
object is implementation specific. In particular, an instance of this
object may represent a count of received errors on a particular
interface that are not otherwise counted.
Interface statistics
Use the following command to display the interface statistics of the selected port:
show interface port <port number> interface-counters
Command mode: All
Interface statistics for port 1:
ifHCIn Counters
Octets:
51697080313
UcastPkts:
65356399
BroadcastPkts:
0
MulticastPkts:
0
Discards:
0
Errors:
0
ifHCOut Counters
51721056808
65385714
6516
0
0
21187
The following table describes the interface (IF) statistics for a selected port:
Table 49 Interface statistics for port
Statistics
Description
Octets—IfHCIn
The total number of octets received on the interface, including framing characters.
UcastPkts—IfHCIn
The number of packets, delivered by this sublayer to a higher sublayer, which were
not addressed to a multicast or broadcast address at this sublayer.
BroadcastPkts—IfHCIn
The number of packets, delivered by this sublayer to a higher sublayer, which were
addressed to a broadcast address at this sublayer.
74
Statistics Commands
Table 49 Interface statistics for port
Statistics
Description
MulticastPkts—IfHCIn
The total number of packets, delivered by this sublayer. These are the packets that
higher-level protocols requested to be transmitted, and which were addressed to a
multicast address at this sublayer, including those that were discarded or not sent.
For a MAC layer protocol, this includes both group and functional addresses.
Discards—IfHCIn
The number of inbound packets which were chosen to be discarded even though
no errors were detected to prevent their being delivered to a higher-layer protocol.
One possible reason for discarding such a packet could be to free up buffer space.
Errors—IfHCIn
For packet-oriented interfaces, the number of inbound packets that contained errors
preventing them from being delivered to a higher-layer protocol.
For character-oriented or fixed-length interfaces, the number of inbound
transmission units that contained errors preventing them from being deliverable to a
higher-layer protocol.
Octets—IfHCOut
The total number of octets transmitted out of the interface, including framing
characters.
UcastPkts—IfHCOut
The total number of packets that higher-level protocols requested to be transmitted,
and which were not addressed to a multicast or broadcast address at this sublayer,
including those that were discarded or not sent.
BroadcastPkts—IfHCOut
The total number of packets that higher-level protocols requested to be transmitted,
and which were addressed to a broadcast address at this sublayer, including those
that were discarded or not sent. This object is a 64-bit version of
ifOutBroadcastPkts.
MulticastPkts—IfHCOut
The total number of packets that higher-level protocols requested to be transmitted,
and which were addressed to a multicast address at this sublayer, including those
that were discarded or not sent.
For a MAC layer protocol, this includes both group and functional addresses. This
object is a 64-bit version of ifOutMulticastPkts.
Discards—IfHCOut
The number of outbound packets that were chosen to be discarded even though no
errors had been detected to prevent their being transmitted. One possible reason
for discarding such a packet could be to free up buffer space.
Errors—IfHCOut
For packet-oriented interfaces, the number of outbound packets that could not be
transmitted because of errors.
For character-oriented or fixed-length interfaces, the number of outbound
transmission units that could not be transmitted because of errors.
75
Statistics Commands
Internet Protocol (IP) statistics
Use the following command to display the interface protocol statistics of the selected port:
show interface port <port number> ip-counters
Command mode: All
GEA IP statistics for port 1:
ipInReceives
:
0
ipInHeaderError:
0
ipInDiscards
:
0
The following table describes the Internet Protocol (IP) statistics for a selected port:
Table 50 IP statistics for port
Statistics
Description
ipInReceives
The total number of input datagrams received from interfaces, including those received
in error.
ipInHeaderError
The number of input datagrams discarded because the IP address in their IP header's
destination field was not a valid address to be received at this entity (the switch).
ipInDiscards
The number of input IP datagrams for which no problems were encountered to prevent
their continued processing, but which were discarded (for example, for lack of buffer
space). Note that this counter does not include any datagrams discarded while awaiting
re-assembly.
Link statistics
Use the following command to display the link statistics of the selected port:
show interface port <port number> link-counters
Command mode: All
Link statistics for port 1:
linkStateChange:
2
The following table describes the link statistics for a selected port:
Table 51 Link statistics for port
Statistic
Description
linkStateChange
The total number of link state changes.
76
Statistics Commands
Layer 2 statistics
The following table describes the Layer 2 statistics commands. The following sections provide more
detailed information and commands.
Table 52 Layer 2 Statistics commands
Command
Usage
show mac-address-table counters
Displays the Forwarding Database statistics.
Command mode: All
show interface port <port number>
lacp counters
Displays Link Aggregation Control Protocol (LACP) statistics.
show layer2 counters
Displays all Layer 2 statistics.
Command mode: All
Command mode: All
FDB statistics
Use the following command to display statistics regarding the use of the forwarding database, including
the number of new entries, finds, and unsuccessful searches:
show mac-address-table counters
Command mode: All
FDB statistics:
current:
91
hiwat:
91
These commands enable you to display statistics regarding the use of the forwarding database, including
the number of current entries and the maximum number of entries ever recorded.
The following table describes the Forwarding Database (FDB) statistics:
Table 53 Forwarding Database statistics
Statistic
Description
current
Current number of entries in the Forwarding Database.
hiwat
Highest number of entries recorded at any given time in the Forwarding Database.
77
Statistics Commands
LACP statistics
Use the following command to display Link Aggregation Control Protocol (LACP) statistics:
show interface port <port number> lacp counters
Command mode: All
Valid LACPDUs received
Valid Marker PDUs received
Valid Marker Rsp PDUs received
Unknown version/TLV type
Illegal subtype received
LACPDUs transmitted
Marker PDUs transmitted
Marker Rsp PDUs transmitted
-
0
0
0
0
0
0
0
0
78
Statistics Commands
Layer 3 statistics
The following table describes basic Layer 3 statistics commands. The following sections provide more
detailed information and commands.
Table 54 Layer 3 Statistics commands
Command
Usage
show ip counters
Displays IP statistics.
Command mode: All except User EXEC
clear ip counters
Clears IP statistics. Use this command with caution as it deletes all
the IP statistics.
Command mode: All except User EXEC
show ip route counters
Displays route statistics.
Command mode: All except User EXEC
show ip arp counters
Displays Address Resolution Protocol (ARP) statistics.
Command mode: All except User EXEC
show ip dns counters
Displays Domain Name System (DNS) statistics.
Command mode: All except User EXEC
show ip icmp counters
Displays ICMP statistics.
Command mode: All except User EXEC
show ip tcp counters
Displays Transmission Control Protocol (TCP) statistics.
Command mode: All except User EXEC
show ip udp counters
Displays User Datagram Protocol (UDP) statistics. Add the argument,
clear, to clear UDP statistics.
Command mode: All except User EXEC
show ip igmp counters
Displays IGMP statistics.
Command mode: All except User EXEC
show layer3 igmp-groups
Displays the total number of IGMP groups that are
learned/configured on the switch.
Command mode: All except User EXEC
show layer3 ipmc-groups
Displays the total number of current IP multicast groups.
Command mode: All except User EXEC
clear ip igmp [<1-4094>] counters
Clears all IGMP statistics for the selected VLANs.
Command mode: All above Priv EXEC
show ip ospf counters
Displays OSPF statistics.
Command mode: All above Priv EXEC
clear ip ospf counters
Clears all OSPF statistics.
Command mode: All above Priv EXEC
show ip vrrp counters
When virtual routers are configured, you can display VRRP statistics:
Command mode: All above Priv EXEC
clear ip vrrp counters
Clears VRRP statistics.
Command mode: All above Priv EXEC
79
Statistics Commands
Table 54 Layer 3 Statistics commands
Command
Usage
show ip rip counters
Displays Routing Information Protocol (RIP) statistics.
Command mode: All above Priv EXEC
Clears Routing Information Protocol (RIP) statistics.
clear ip rip counters
Command mode: All above Priv EXEC
Displays GEA statistics.
show ip gea
Command mode: All above Priv EXEC
Displays all Layer 3 statistics.
show layer3 counters
Command mode: All except User EXEC
IP statistics
The following command displays IP statistics:
show ip counters
Command mode: All except User EXEC
IP statistics:
ipInReceives: 36475
ipInAddrErrors: 905
ipInUnknownProtos: 0
ipInDelivers: 4103
ipOutDiscards: 0
ipDefaultTTL: 255
ipInHdrErrors: 0
ipInDiscards: 0
ipOutRequests: 30974
The following table describes the IP statistics:
Table 55 IP statistics
Statistics
Description
ipInReceives
The total number of input datagrams received from interfaces, including those
received in error.
ipInHdrErrors
The number of input datagrams discarded due to errors in their IP headers,
including bad checksums, version number mismatch, other format errors, time-to-live
exceeded, errors discovered in processing their IP options, and so on.
ipInAddrErrors
The number of input datagrams discarded because the IP address in their IP header
destination field was not a valid address to be received at this switch. This count
includes invalid addresses (for example, 0.0.0.0) and addresses of unsupported
classes (for example, Class E).
For entities which are not IP gateways and therefore do not forward datagrams, this
counter includes datagrams discarded because the destination address was not a
local address.
ipInUnknownProtos
The number of locally addressed datagrams received successfully but discarded
because of an unknown or unsupported protocol.
80
Statistics Commands
Table 55 IP statistics
Statistics
Description
ipInDiscards
The number of input IP datagrams for which no problems were encountered to
prevent their continued processing, but which were discarded (for example, for lack
of buffer space).
This counter does not include any datagrams discarded while awaiting re-assembly.
ipInDelivers
The total number of input datagrams successfully delivered to IP user-protocols
(including ICMP).
ipOutRequests
The total number of IP datagrams that local IP user-protocols (including ICMP)
supplied to IP in requests for transmission.
This counter does not include any datagrams counted in ipForwDatagrams.
ipOutDiscards
The number of output IP datagrams for which no problem was encountered to
prevent their transmission to their destination, but which were discarded (for
example, for lack of buffer space).
This counter would include datagrams counted in ipForwDatagrams if any such
packets met this (discretionary) discard criterion.
ipDefaultTTL
The default value inserted into the Time-To-Live (TTL) field of the IP header of
datagrams originated at this switch, whenever a TTL value is not supplied by the
transport layer protocol.
Route statistics
The following command displays route statistics:
show ip route counters
Command mode: All except User EXEC
Route statistics:
ipRoutesCur:
ipRoutesMax:
8
4096
ipRoutesHighWater:
8
The following table describes the Route statistics:
Table 56 Route statistics
Statistics
Description
ipRoutesCur
The total number of outstanding routes in the route table.
ipRoutesMax
The maximum number of supported routes.
ipRoutesHighWater
The highest number of routes ever recorded in the route table.
81
Statistics Commands
ARP statistics
The following command displays Address Resolution Protocol statistics.
show ip arp counters
Command mode: All except User EXEC
ARP statistics:
arpEntriesCur:
arpEntriesMax:
2
4095
arpEntriesHighWater:
4
The following table describes the Address Resolution Protocol (ARP) statistics:
Table 57 ARP statistics
Statistic
Description
arpEntriesCur
The total number of outstanding ARP entries in the ARP table.
arpEntriesMax
The maximum number of ARP entries that are supported.
arpEntriesHighWater
The highest number of ARP entries ever recorded in the ARP table.
DNS statistics
show ip dns counters
Command mode: All except User EXEC
DNS statistics:
dnsInRequests:
dnsBadRequests:
0
0
dnsOutRequests:
0
The following table describes the Domain Name System (DNS) statistics:
Table 58 DNS statistics
Statistic
Description
dnsInRequests
The total number of DNS request packets that have been received.
dnsOutRequests
The total number of DNS response packets that have been transmitted.
dnsBadRequests
The total number of DNS request packets received that were dropped.
82
Statistics Commands
ICMP statistics
The following command displays ICMP statistics:
show ip icmp counters
Command mode: All except User EXEC
ICMP statistics:
icmpInMsgs:
icmpInDestUnreachs:
icmpInParmProbs:
icmpInRedirects:
icmpInEchoReps:
icmpInTimestampReps:
icmpInAddrMaskReps:
icmpOutErrors:
icmpOutTimeExcds:
icmpOutSrcQuenchs:
icmpOutEchos:
icmpOutTimestamps:
icmpOutAddrMasks:
245802
41
0
0
244350
0
0
0
0
0
253777
0
0
icmpInErrors:
icmpInTimeExcds:
icmpInSrcQuenchs:
icmpInEchos:
icmpInTimestamps:
icmpInAddrMasks:
icmpOutMsgs:
icmpOutDestUnreachs:
icmpOutParmProbs:
icmpOutRedirects:
icmpOutEchoReps:
icmpOutTimestampReps:
icmpOutAddrMaskReps:
1393
0
0
18
0
0
253810
15
0
0
18
0
0
The following table describes the Internet Control Messaging Protocol (ICMP) statistics:
Table 59 ICMP statistics
Statistics
Description
icmpInMsgs
The total number of ICMP messages which the switch received. Note that this counter
includes all those counted by icmpInErrors.
icmpInErrors
The number of ICMP messages which the switch received but determined as having
ICMP specific errors (for example bad ICMP checksums and bad length).
icmpInDestUnreachs
The number of ICMP Destination Unreachable messages received.
icmpInTimeExcds
The number of ICMP Time Exceeded messages received.
icmpInParmProbs
The number of ICMP Parameter Problem messages received.
icmpInSrcQuenchs
The number of ICMP Source Quench (buffer almost full, stop sending data) messages
received.
icmpInRedirects
The number of ICMP Redirect messages received.
icmpInEchos
The number of ICMP Echo (request) messages received.
icmpInEchoReps
The number of ICMP Echo Reply messages received.
icmpInTimestamps
The number of ICMP Timestamp (request) messages received.
icmpInTimestampReps
The number of ICMP Timestamp Reply messages received.
icmpInAddrMasks
The number of ICMP Address Mask Request messages received.
icmpInAddrMaskReps
The number of ICMP Address Mask Reply messages received.
icmpOutMsgs
The total number of ICMP messages which this switch attempted to send. Note that
this counter includes all those counted by icmpOutErrors.
83
Statistics Commands
Table 59 ICMP statistics
Statistics
Description
icmpOutErrors
The number of ICMP messages that this switch did not send due to problems
discovered within ICMP such as a lack of buffer. This value should not include errors
discovered outside the ICMP layer such as the inability of IP to route the resultant
datagram. In some implementations there may be no types of errors that contribute to
this counter's value.
icmpOutDestUnreachs
The number of ICMP Destination Unreachable messages sent.
icmpOutTimeExcds
The number of ICMP Time Exceeded messages sent.
icmpOutParmProbs
The number of ICMP Parameter Problem messages sent.
icmpOutSrcQuenchs
The number of ICMP Source Quench (buffer almost full, stop sending data) messages
sent.
icmpOutRedirects
The number of ICMP Redirect messages sent.
icmpOutEchos
The number of ICMP Echo (request) messages sent.
icmpOutEchoReps
The number of ICMP Echo Reply messages sent.
icmpOutTimestamps
The number of ICMP Timestamp (request) messages sent.
icmpOutTimestampReps
The number of ICMP Timestamp Reply messages sent.
icmpOutAddrMasks
The number of ICMP Address Mask Request messages sent.
icmpOutAddrMaskReps
The number of ICMP Address Mask Reply messages sent.
TCP statistics
The following command displays TCP statistics:
show ip tcp counters
Command mode: All except User EXEC
TCP statistics:
tcpRtoAlgorithm:
tcpRtoMax:
tcpActiveOpens:
tcpAttemptFails:
tcpInSegs:
tcpRetransSegs:
tcpCurBuff:
tcpOutRsts:
4
240000
252214
528
756401
0
0
417
tcpRtoMin:
tcpMaxConn:
tcpPassiveOpens:
tcpEstabResets:
tcpOutSegs:
tcpInErrs:
tcpCurConn:
0
512
7
4
756655
0
3
The following table describes the Transmission Control Protocol (TCP) statistics:
Table 60 TCP statistics
Statistics
Description
tcpRtoAlgorithm
The algorithm used to determine the timeout value used for retransmitting unacknowledged
octets.
84
Statistics Commands
Table 60 TCP statistics
Statistics
Description
tcpRtoMin
The minimum value permitted by a TCP implementation for the retransmission timeout,
measured in milliseconds. More refined semantics for objects of this type depend upon the
algorithm used to determine the retransmission timeout. In particular, when the timeout
algorithm is rsre(3), an object of this type has the semantics of the LBOUND quantity
described in Request For Comments (RFC) 793.
tcpRtoMax
The maximum value permitted by a TCP implementation for the retransmission timeout,
measured in milliseconds. More refined semantics for objects of this type depend upon the
algorithm used to determine the retransmission timeout. In particular, when the timeout
algorithm is rsre(3), an object of this type has the semantics of the UBOUND quantity
described in RFC 793.
tcpMaxConn
The limit on the total number of TCP connections the switch can support. In entities where the
maximum number of connections is dynamic, this object should contain the value -1.
tcpActiveOpens
The number of times TCP connections have made a direct transition to the SYN-SENT state
from the CLOSED state.
tcpPassiveOpens
The number of times TCP connections have made a direct transition to the SYN-RCVD state
from the LISTEN state.
tcpAttemptFails
The number of times TCP connections have made a direct transition to the CLOSED state
from either the SYN-SENT state or the SYN-RCVD state, plus the number of times TCP
connections have made a direct transition to the LISTEN state from the SYN-RCVD state.
tcpEstabResets
The number of times TCP connections have made a direct transition to the CLOSED state
from either the ESTABLISHED state or the CLOSE- WAIT state.
tcpInSegs
The total number of segments received, including those received in error. This count includes
segments received on currently established connections.
tcpOutSegs
The total number of segments sent, including those on current connections but excluding
those containing only retransmitted octets.
tcpRetransSegs
The total number of segments retransmitted, that is, the number of TCP segments transmitted
containing one or more previously transmitted octets.
tcpInErrs
The total number of segments received in error (for example, bad TCP checksums).
tcpCurBuff
The total number of outstanding memory allocations from heap by TCP protocol stack.
tcpCurConn
The total number of outstanding TCP sessions that are currently opened.
tcpOutRsts
The number of TCP segments sent containing the reset (RST) flag.
85
Statistics Commands
UDP statistics
The following command displays UDP statistics:
show ip udp counters
Command mode: All except User EXEC
UDP statistics:
udpInDatagrams:
udpInErrors:
54
0
udpOutDatagrams:
udpNoPorts:
43
1578077
The following table describes the User Datagram Protocol (UDP) statistics:
Table 61 UDP statistics
Statistics
Description
udpInDatagrams
The total number of UDP datagrams delivered to the switch.
udpOutDatagrams
The total number of UDP datagrams sent from this switch.
udpInErrors
The number of received UDP datagrams that could not be delivered for reasons other
than the lack of an application at the destination port.
udpNoPorts
The total number of received UDP datagrams for which there was no application at the
destination port.
IGMP Multicast Group statistics
The following command displays statistics about the use of the IGMP Multicast Groups:
show ip igmp counters
Command mode: All except User EXEC
IGMP Snoop vlan 1 statistics:
-----------------------------------------------------------rxIgmpValidPkts:
0
rxIgmpInvalidPkts:
0
rxIgmpGenQueries:
0
rxIgmpGrpSpecificQueries:
0
rxIgmpGroupSrcSpecificQueries:
0
rxIgmpLeaves:
0
rxIgmpReports:
0
txIgmpReports:
0
txIgmpGrpSpecificQueries:
0
txIgmpLeaves:
0
rxIgmpV3CurrentStateRecords:
0
rxIgmpV3SourceListChangeRecords:
0
rxIgmpV3FilterChangeRecords:
0
These commands enable you to display statistics regarding the use of the IGMP Multicast Groups.
The following table describes the IGMP statistics:
Table 62 IGMP statistics
Statistic
Description
rxIgmpValidPkts
Total number of valid IGMP packets received
rxIgmpInvalidPkts
Total number of invalid packets received
rxIgmpGenQueries
Total number of General Membership Query packets received
86
Statistics Commands
Table 62 IGMP statistics
Statistic
Description
rxIgmpGrpSpecificQueries
Total number of Membership Query packets received from specific
groups
Total number of Group Source
Specific Queries (GSSQ) received
rxIgmpLeaves
Total number of Leave requests received
rxIgmpReports
Total number of Membership Reports received
txIgmpReports
Total number of Membership reports transmitted
txIgmpGrpSpecificQueries
Total number of Membership Query packets transmitted to specific
groups
txIgmpLeaves
Total number of Leave messages transmitted
rxIgmpV3CurrentStateRecords
Total number of Current State records received
rxIgmpV3SourceListChangeRecords
Total number of Source List Change records received
rxIgmpV3FilterChangeRecords
Total number of Filter Change records received.
OSPF statistics
The following table describes OSPF statistics commands.
Table 63 OSPF Statistics commands
Command
Usage
show ip ospf counters general
Displays OSPF global statistics.
Command mode: All except User EXEC
show ip ospf counters aindex [<0-2>]
Displays area index statistics.
Command mode: All except User EXEC
show ip ospf counters interface [<1-249>]
Displays interface statistics.
Command mode: All except User EXEC
87
Statistics Commands
OSPF global statistics
The following command displays OSPF global statistics:
show ip ospf counters general
Command mode: All except User EXEC
OSPF stats
---------Rx/Tx Stats:
Pkts
hello
database
ls requests
ls acks
ls updates
Nbr change stats:
hello
start
n2way
adjoint ok
negotiation done
exchange done
bad requests
bad sequence
loading done
n1way
rst_ad
down
Timers kickoff
hello
retransmit
lsa lock
lsa ack
dbage
summary
ase export
Rx
-------0
23
4
3
7
9
2
0
2
2
2
2
0
0
2
0
0
1
Tx
-------0
518
12
1
7
7
Intf change Stats:
up
4
down 2
loop 0
unloop 0
wait timer 2
backup 0
nbr change 5
514
1028
0
0
0
0
0
The following table describes the OSPF global statistics:
Table 64 OSPF global statistics
Statistic
Description
Rx Tx stats:
Rx Pkts
The sum total of all OSPF packets received on all OSPF areas and interfaces.
Tx Pkts
The sum total of all OSPF packets transmitted on all OSPF areas and interfaces.
Rx Hello
The sum total of all Hello packets received on all OSPF areas and interfaces.
Tx Hello
The sum total of all Hello packets transmitted on all OSPF areas and interfaces.
Rx Database
The sum total of all Database Description packets received on all OSPF areas and
interfaces.
88
Statistics Commands
Table 64 OSPF global statistics
Statistic
Description
Tx Database
The sum total of all Database Description packets transmitted on all OSPF areas and
interfaces.
Rx ls Requests
The sum total of all Link State Request packets received on all OSPF areas and interfaces.
Tx ls Requests
The sum total of all Link State Request packets transmitted on all OSPF areas and
interfaces.
Rx ls Acks
The sum total of all Link State Acknowledgement packets received on all OSPF areas and
interfaces.
Tx ls Acks
The sum total of all Link State Acknowledgement packets transmitted on all OSPF areas
and interfaces.
Rx ls Updates
The sum total of all Link State Update packets received on all OSPF areas and interfaces.
Tx ls Updates
The sum total of all Link State Update packets transmitted on all OSPF areas and
interfaces.
Nbr change stats:
hello
The sum total of all Hello packets received from neighbors on all OSPF areas and
interfaces.
Start
The sum total number of neighbors in this state (that is, an indication that Hello packets
should now be sent to the neighbor at intervals of HelloInterval seconds) across all
OSPF areas and interfaces.
n2way
The sum total number of bidirectional communication establishment between this router
and other neighboring routers.
adjoint ok
The sum total number of decisions to be made (again) as to whether an adjacency should
be established/maintained with the neighbor across all OSPF areas and interfaces.
negotiation done
The sum total number of neighbors in this state wherein the Master/slave relationship has
been negotiated, and sequence numbers have been exchanged, across all OSPF areas
and interfaces.
exchange done
The sum total number of neighbors in this state (that is, in an adjacency's final state)
having transmitted a full sequence of Database Description packets, across all OSPF
areas and interfaces.
bad requests
The sum total number of Link State Requests which have been received for a link state
advertisement not contained in the database across all interfaces and OSPF areas.
bad sequence
The sum total number of Database Description packets which have been received that
either:
• Has an unexpected DD sequence number
• Unexpectedly has the init bit set
• Has an options field differing from the last Options field received in a Database
Description packet.
Any of these conditions indicate that some error has occurred during adjacency
establishment for all OSPF areas and interfaces.
loading done
The sum total number of link state updates received for all out-of-date portions of the
database across all OSPF areas and interfaces.
89
Statistics Commands
Table 64 OSPF global statistics
Statistic
Description
n1way
The sum total number of Hello packets received from neighbors, in which this router is not
mentioned across all OSPF interfaces and areas.
rst_ad
The sum total number of times the Neighbor adjacency has been reset across all OPSF
areas and interfaces.
down
The total number of Neighboring routers down (that is, in the initial state of a neighbor
conversation) across all OSPF areas and interfaces.
Intf Change Stats:
up
The sum total number of interfaces up in all OSPF areas.
down
The sum total number of interfaces down in all OSPF areas.
loop
The sum total of interfaces no longer connected to the attached network across all OSPF
areas and interfaces.
unloop
The sum total number of interfaces, connected to the attached network in all OSPF areas.
wait timer
The sum total number of times the Wait Timer has been fired, indicating the end of the
waiting period that is required before electing a (Backup) Designated Router across all
OSPF areas and interfaces.
backup
The sum total number of Backup Designated Routers on the attached network for all OSPF
areas and interfaces.
nbr change
The sum total number of changes in the set of bidirectional neighbors associated with
any interface across all OSPF areas.
Timers Kickoff:
hello
The sum total number of times the Hello timer has been fired (which triggers the send of
a Hello packet) across all OPSF areas and interfaces.
retransmit
The sum total number of times the Retransmit timer has been fired across all OPSF areas
and interfaces.
lsa lock
The sum total number of times the Link State Advertisement (LSA) lock timer has been fired
across all OSPF areas and interfaces.
lsa ack
The sum total number of times the LSA Ack timer has been fired across all OSPF areas
and interfaces.
dbage
The total number of times the data base age (Dbage) has been fired.
summary
The total number of times the Summary timer has been fired.
ase export
The total number of times the Autonomous System Export (ASE) timer has been fired.
90
Statistics Commands
VRRP statistics
Virtual Router Redundancy Protocol (VRRP) support on the HP 10GbE switch provides redundancy
between routers in a LAN. This is accomplished by configuring the same virtual router IP address and ID
number on each participating VRRP-capable routing device.
One of the virtual routers is then elected as the master, based on a number of priority criteria, and
assumes control of the shared virtual router IP address. If the master fails, one of the backup virtual routers
will assume routing authority and take control of the virtual router IP address.
When virtual routers are configured, you can display protocol statistics for VRRP:
The following command displays statistics for the VRRP LAN:
show ip vrrp counters
Command mode: All except User EXEC
>> Layer 3 Statistics# vrrp
VRRP statistics:
vrrpInAdvers:
0
vrrpOutAdvers:
0
vrrpBadVersion:
0
vrrpBadAddress:
0
vrrpBadPassword:
0
vrrpBadAdvers:
0
vrrpBadVrid:
vrrpBadData:
vrrpBadInterval:
0
0
0
The following table describes the VRRP statistics.
Table 65 VRRP statistics
Field
Description
vrrpInAdvers
The total number of VRRP advertisements that have been received.
vrrpOutAdvers
The total number of VRRP advertisements that have been sent.
vrrpBadVersion
The total number of VRRP advertisements that had a bad version number.
vrrpBadAddress
The total number of VRRP advertisements that had a bad address.
vrrpBadPassword
The total number of VRRP advertisements that had a bad password.
vrrpBadAdvers
The total number of VRRP advertisements received that were dropped.
vrrpBadVrid
The total number of VRRP advertisements that had a bad virtual router ID.
vrrpBadData
The total number of VRRP advertisements that had bad data.
vrrpBadInterval
The total number of VRRP advertisements that had a bad interval.
91
Statistics Commands
RIP statistics
The following command displays RIP statistics:
show ip rip counters
Command mode: All except User EXEC
RIP ALL STATS INFORMATION:
RIP packets received = 12
RIP packets sent = 75
RIP request received = 0
RIP response received = 12
RIP request sent = 3
RIP response sent = 72
RIP route timeout = 0
RIP bad size packet received = 0
RIP bad version received = 0
RIP bad zeros received = 0
RIP bad src port received = 0
RIP bad src IP received = 0
RIP packets from self received = 0
GEA Layer 3 statistics
The following table describes the Layer 3 GEA statistics commands.
Table 66 Layer 3 GEA statistics commands
Command
Usage
show ip gea bucket <IP address>
Displays GEA statistics for a specific IP address.
Command mode: All except User EXEC
Displays all GEA statistics.
show ip gea
Command mode: All except User EXEC
GEA Layer 3 statistics
The following command displays GEA statistics:
show ip gea
Command mode: All except User EXEC
GEA L3 statistics:
Max L3 table size
Number of L3 entries used
Max LPM table size
Number of LPM entries used
: 4096
: 3
: 512
: 4
92
Statistics Commands
Management Processor statistics
The following table describes the MP-specific Statistics commands. The following sections provide more
detailed information and commands.
Table 67 MP-specific Statistics commands
Command
Usage
show mp packet
Displays packet statistics, to check for leads and load.
Command mode: All
show mp tcp-block
Displays all Transmission Control Protocol (TCP) control blocks (TCB) that are in use.
Command mode: All
show mp udp-block
Displays all User Datagram Protocol (UDP) control blocks (UCB) that are in use.
Command mode: All
show mp cpu
Displays CPU utilization for periods of up to 1, 4, and 64 seconds.
Command mode: All
Packet statistics
The following command displays packet statistics:
show mp packet
Command mode: All except User EXEC
Packet counts:
allocs:
mediums:
jumbos:
smalls:
failures:
36692
0
0
0
0
frees:
mediums hi-watermark:
jumbos hi-watermark:
smalls hi-watermark:
36692
3
0
2
The following table describes the packet statistics.
Table 68 MP specific packet statistics
Field
Description
allocs
Total number of packet allocations from the packet buffer pool by the TCP/IP protocol
stack.
frees
Total number of times the packet buffers are freed (released) to the packet buffer pool
by the TCP/IP protocol stack.
mediums
Total number of packet allocations with size between 128 to 1536 bytes from the
packet buffer pool by the TCP/IP protocol stack.
mediums hi-watermark
The highest number of packet allocation with size between 128 to 1536 bytes from
the packet buffer pool by the TCP/IP protocol stack.
jumbos
Total number of packet allocations with more than 1536 bytes from the packet buffer
pool by the TCP/IP protocol stack.
jumbos hi-watermark
The highest number of packet allocation with more than 1536 bytes from the packet
buffer pool by the TCP/IP protocol stack.
93
Statistics Commands
Table 68 MP specific packet statistics
Field
Description
smalls
Total number of packet allocations with size less than 128 bytes from the packet
buffer pool by the TCP/IP protocol stack.
smalls hi-watermark
The highest number of packet allocation with size less than 128 bytes from the packet
buffer pool by the TCP/IP protocol stack.
failures
Total number of packet allocation failures from the packet buffer pool by the TCP/IP
protocol stack.
TCP statistics
The following command displays TCP statistics:
show mp tcp-block
Command mode: All except User EXEC
All TCP allocated control blocks:
10ad41e8: 0.0.0.0
0 <=> 0.0.0.0
10ad5790: 47.81.27.5
1171 <=> 47.80.23.243
80
23
listen
established
The following table describes the Transmission Control Protocol (TCP) control block (TCB) statistics shown
in this example:
Table 69 TCP statistics
Description
Example statistic
Memory
10ad41e8/10ad5790
Destination IP address
0.0.0.0/47.81.27.5
Destination port
0/1171
Source IP
0.0.0.0/47.80.23.243
Source port
80/23
State
listen/established
94
Statistics Commands
UDP statistics
The following command displays UDP statistics:
show mp udp-block
Command mode: All except User EXEC
All UDP allocated control blocks:
161: listen
The following table describes the User Datagram Protocol (UDP) control block (UCB) statistics shown in
this example:
Table 70 UDP statistics
Description
Example Statistic
Control block
161
State
listen
CPU statistics
The following command displays the CPU utilization statistics:
show mp cpu
Command mode: All except User EXEC
CPU utilization:
cpuUtil1Second:
cpuUtil4Seconds:
cpuUtil64Seconds:
8%
9%
8%
The following table describes the management port CPU utilization statistics:
Table 71 CPU statistics
Statistics
Description
cpuUtil1Second
The utilization of MP CPU over 1 second. This is shown as a percentage.
cpuUtil4Seconds
The utilization of MP CPU over 4 seconds. This is shown as a percentage.
cpuUtil64Seconds
The utilization of MP CPU over 64 seconds. This is shown as a percentage.
ACL statistics
The following command displays the statistics for Access Control Lists (ACLs):
show access-control counters
Command mode: All except User EXEC
Hits for ACL 1: 26057515
Hits for ACL 2: 26057497
95
Statistics Commands
SNMP statistics
The following command displays SNMP statistics:
show snmp-server counters
Command mode: All except User EXEC
SNMP statistics:
snmpInPkts:
snmpInBadC'tyNames:
snmpInASNParseErrs:
snmpOutPkts:
snmpInTooBigs:
snmpInBadValues:
snmpInGenErrs:
snmpInTotalSetVars:
snmpInGetNexts:
snmpInGetResponses:
snmpOutTooBigs:
snmpOutBadValues:
snmpOutGenErrs:
snmpOutGetNexts:
snmpOutGetResponses:
snmpSilentDrops:
54
0
0
54
0
0
0
0
52
0
0
0
0
0
54
0
snmpInBadVersions:
snmpInBadC'tyUses:
snmpEnableAuthTraps:
snmpInBadTypes:
snmpInNoSuchNames:
snmpInReadOnlys:
snmpInTotalReqVars:
snmpInGetRequests:
snmpInSetRequests:
snmpInTraps:
snmpOutNoSuchNames:
snmpOutReadOnlys:
snmpOutGetRequests:
snmpOutSetRequests:
snmpOutTraps:
snmpProxyDrops:
0
0
0
0
0
0
105
2
0
0
2
0
0
0
0
0
The following table describes the Simple Network Management Protocol (SNMP) statistics:
Table 72 SNMP statistics
Statistics
Description
snmpInPkts
The total number of messages delivered to the SNMP entity from the transport service.
snmpInBadVersions
The total number of SNMP messages, which were delivered to the SNMP protocol
entity and were for an unsupported SNMP version.
snmpInBadC'tyNames
The total number of SNMP messages delivered to the SNMP entity that used an SNMP
community name not known to the switch.
snmpInBadC'tyUses
The total number of SNMP messages delivered to the SNMP protocol entity that
represented an SNMP operation which was not allowed by the SNMP community
named in the message.
snmpInASNParseErrs
The total number of ASN.1 (Abstract Syntax Notation One) or BER (Basic Encoding
Rules), errors encountered by the SNMP protocol entity when decoding SNMP
messages received.
The Open Systems Interconnection (OSI) method of specifying abstract objects is called
ASN.1 (Abstract Syntax Notation One, defined in X.208), and one set of rules for
representing such objects as strings of ones and zeros is called the BER (Basic
Encoding Rules, defined in X.209).
ASN.1 is a flexible notation that allows one to define a variety of data types, from
simple types such as integers and bit strings to structured types such as sets and
sequences.
BER describes how to represent or encode values of each ASN.1 type as a string of
eight-bit octets.
snmpEnableAuthTraps
An object to enable or disable the authentication traps generated by this switch.
96
Statistics Commands
Table 72 SNMP statistics
Statistics
Description
snmpOutPkts
The total number of SNMP messages which were passed from the SNMP protocol
entity to the transport service.
snmpInBadTypes
The total number of SNMP messages which failed ASN.1 parsing.
snmpInTooBigs
The total number of SNMP Protocol Data Units (PDUs) that were delivered to the SNMP
protocol entity and for which the value of the error-status field is too big.
snmpInNoSuchNames
The total number of SNMP Protocol Data Units (PDUs) that were delivered to the SNMP
protocol entity and for which the value of the error-status field is noSuchName.
snmpInBadValues
The total number of SNMP Protocol Data Units (PDUs) that were delivered to the SNMP
protocol entity and for which the value of the error-status field is badValue.
snmpInReadOnlys
The total number of valid SNMP Protocol Data Units (PDUs), which were delivered to
the SNMP protocol entity and for which the value of the error-status field is read-only.
It should be noted that it is a protocol error to generate an SNMP PDU, which contains
the value read-only in the error-status field. As such, this object is provided as a means
of detecting incorrect implementations of the SNMP.
snmpInGenErrs
The total number of SNMP Protocol Data Units (PDUs), which were delivered to the
SNMP protocol entity and for which the value of the error-status field is genErr.
snmpInTotalReqVars
The total number of MIB objects which have been retrieved successfully by the SNMP
protocol entity as a result of receiving valid SNMP Get-Request and Get-Next Protocol
Data Units (PDUs).
snmpInTotalSetVars
The total number of MIB objects, which have been altered successfully by the SNMP
protocol entity as a result of receiving valid SNMP Set-Request Protocol Data Units
(PDUs).
snmpInGetRequests
The total number of SNMP Get-Request Protocol Data Units (PDUs), which have been
accepted and processed by the SNMP protocol entity.
snmpInGetNexts
The total number of SNMP Get-Next Protocol Data Units (PDUs), which have been
accepted and processed by the SNMP protocol entity.
snmpInSetRequests
The total number of SNMP Set-Request Protocol Data Units (PDUs), which have been
accepted and processed by the SNMP protocol entity.
snmpInGetResponses
The total number of SNMP Get-Response Protocol Data Units (PDUs), which have been
accepted and processed by the SNMP protocol entity.
snmpInTraps
The total number of SNMP Trap Protocol Data Units (PDUs), which have been accepted
and processed by the SNMP protocol entity.
snmpOutTooBigs
The total number of SNMP Protocol Data Units (PDUs), which were generated by the
SNMP protocol entity and for which the value of the error-status field is too big.
snmpOutNoSuchNames
The total number of SNMP Protocol Data Units (PDUs), which were generated by the
SNMP protocol entity and for which the value of the error-status is noSuchName.
snmpOutBadValues
The total number of SNMP Protocol Data Units (PDUs), which were generated by the
SNMP protocol entity and for which the value of the error-status field is badValue.
snmpOutReadOnlys
Not in use.
snmpOutGenErrs
The total number of SNMP Protocol Data Units (PDUs), which were generated by the
SNMP protocol entity and for which the value of the error-status field is genErr.
97
Statistics Commands
Table 72 SNMP statistics
Statistics
Description
snmpOutGetRequests
The total number of SNMP Get-Request Protocol Data Units (PDUs), which have been
generated by the SNMP protocol entity.
snmpOutGetNexts
The total number of SNMP Get-Next Protocol Data Units (PDUs), which have been
generated by the SNMP protocol entity.
snmpOutSetRequests
The total number of SNMP Set-Request Protocol Data Units (PDUs), which have been
generated by the SNMP protocol entity.
snmpOutGetResponses
The total number of SNMP Get-Response Protocol Data Units (PDUs), which have been
generated by the SNMP protocol entity.
snmpOutTraps
The total number of SNMP Trap Protocol Data Units (PDUs), which have been
generated by the SNMP protocol entity.
snmpSilentDrops
The total number of GetRequest-PDUs, GetNextRequest-PDUs,
GetBulkRequest-PDUs, SetRequest-PDUs, and InformRequest-PDUs
delivered to the SNMP entity that were silently dropped because the size of a reply
containing an alternate Response-PDU with an empty variable-bindings field was too
large.
snmpProxyDrops
The total number of GetRequest-PDUs, GetNextRequest-PDUs,
GetBulkRequest-PDUs, SetRequest-PDUs, and InformRequest-PDUs
delivered to the SNMP entity that were silently dropped because the transmission of the
message to a proxy target failed in a manner (other than a time-out) such that no
Response-PDU could be returned.
NTP statistics
The following command displays NTP statistics:
show ntp counters
Command mode: All
NTP statistics:
Primary Server:
Requests Sent:
17
Responses Received:
17
Updates:
1
Secondary Server:
Requests Sent:
0
Responses Received:
0
Updates:
0
Last update based on response from primary server.
Last update time: 18:04:16 Tue Mar 13, 2006
Current system time: 18:55:49 Tue Mar 13, 2006
The switch uses NTP (Network Timing Protocol) version 3 to synchronize the switch’s internal clock with an
atomic time-calibrated NTP server. With NTP enabled, the switch can accurately update its internal clock
to be consistent with other devices on the network and generates accurate syslogs.
The following table describes the NTP statistics:
98
Statistics Commands
Table 73 NTP statistics
Statistics
Description
Primary Server
• Requests Sent—The total number of NTP requests the switch sent to
the primary NTP server to synchronize time.
• Responses Received—The total number of NTP responses received
from the primary NTP server.
• Updates—The total number of times the switch updated its time based
on the NTP responses received from the primary NTP server.
Secondary Server
• Requests Sent—The total number of NTP requests the switch sent to
the secondary NTP server to synchronize time.
• Responses Received—The total number of NTP responses received
from the secondary NTP server.
• Updates—The total number of times the switch updated its time based
on the NTP responses received from the secondary NTP server.
Last update based on
response from primary server
Last update of time on the switch based on either primary or secondary
NTP response received.
Last update time
The time stamp showing the time when the switch was last updated.
Current system time
The switch system time when the command show ntp counters was
issued.
Uplink Failure Detection statistics
The following command allows you to display Uplink Failure Detection (UFD) statistics.
show ufd counters
Command mode: All
Uplink
Number
Number
Number
Failure Detection statistics:
of times LtM link failure: 1
of times LtM link in Blocking State: 0
of times LtD got auto disabled: 1
The following table describes the Uplink Failure Detection (UFD) statistics:
Table 74 Uplink Failure Detection statistics
Statistic
Description
Number of times LtM link failure
The total numbers of times that link failures were detected on
the uplink ports in the Link to Monitor group.
Number of times LtM link in Blocking
State
The total number of times that Spanning Tree Blocking state
was detected on the uplink ports in the Link to Monitor group.
Number of times LtD got auto disabled
The total numbers of times that downlink ports in the Link to
Disable group were automatically disabled because of a
failure in the Link to Monitor group.
99
Statistics Commands
Statistics dump
The following command dumps switch statistics:
show counters
Use the dump command to dump all switch statistics available (40K or more, depending on your
configuration). This data can be used to tune or debug switch performance.
If you want to capture dump data to a file, set your communication software on your workstation to
capture session data prior to issuing the dump commands.
100
Configuration Commands
Configuration Commands
Introduction
The Configuration commands are available only from an administrator login. They include commands for
configuring every aspect of the HP 10GbE switch . Changes can be saved to non-volatile memory
(NVRAM).
The following table describes the basic Configuration commands. The following sections provide more
detailed information and commands.
Table 75 Configuration commands
Command
Usage
show running-config
Dumps current configuration to a script file.
Command mode: All
copy running-config {ftp|tftp}
Backs up current configuration to FTP/TFTP server.
Command mode: All
copy {ftp|tftp} running-config
Restores current configuration from FTP/TFTP server.
Command mode: All
Viewing and saving changes
As you use the configuration commands to set switch parameters, the changes you make take effect
immediately. You do not need to apply configuration changes when you use the ISCLI. Any changes are
lost the next time the switch boots unless the changes are explicitly saved.
Saving the configuration
You must save configuration changes to flash memory, so the switch reloads the setting when you reset
the switch.
IMPORTANT: If you do not save the changes, they are lost the next time the system is reloaded.
To save the new configuration, enter the following command at any prompt:
Switch# copy running-config startup-config
When you save configuration changes, the changes are saved to the active configuration block.
For instructions about selecting the configuration to run at the next system reload, see the “Selecting a
configuration block” section in the “Boot Options” chapter.
101
Configuration Commands
System configuration
These commands allow you to configure switch management parameters such as user and administrator
privilege mode passwords, browser-based management settings, and management access list.
The following table describes the System Configuration commands.
Table 76 System Configuration commands
Command
Usage
system date <yyyy> <mm> <dd>
Prompts the user for the system date.
Command mode: Global configuration
system time <hh>:<mm>:<ss>
Configures the system time using a 24-hour clock format.
Command mode: Global configuration
system timezone
Configures the time zone where the switch resides. You are prompted to
select your location (continent, country, region) by the timezone wizard.
Once a region is selected, the switch updates the time to reflect local
changes to Daylight Savings Time, etc.
Command mode: Global configuration
[no] system daylight
Enables or disables Daylight Savings Time in the system clock. When
enabled, the switch adds an extra hour to the system clock so that it is
consistent with the local clock. The default setting is disabled.
Command mode: Global configuration
system idle <1-60>
Sets the idle timeout for CLI sessions, from 1 to 60 minutes. The default
value is 5 minutes.
This setting affects both the console port and Telnet port.
Command mode: Global configuration
[no] system notice <1-1024
characters multi-line> <’-‘
to end>
Displays login notice immediately before the “Enter password:” prompt.
This notice can contain up to 1024 characters and new lines.
Command mode: Global configuration
[no] banner <1-80 characters> Configures a login banner of up to 80 characters. When a user or
administrator logs into the switch, the login banner is displayed.
Command mode: Global configuration
[no] hostname <string>
Enables or disables displaying of the host name (system administrator’s
name) in the command line interface.
Command mode: Global configuration
[no] system bootp
Enables or disables the use of BOOTP. If you enable BOOTP, the switch
will query its BOOTP server for all of the switch IP parameters. The default
value is enabled.
Command mode: Global configuration
[no] dhcp
Enables or disables Dynamic Host Control Protocol for setting the
management IP address on interface 250. When enabled, the IP address
obtained from the DHCP server overrides the static IP address.
Command mode: Global configuration
102
Configuration Commands
Table 76 System Configuration commands
Command
Usage
[no] enable <string>
Allows administrators to assign the Privilege EXEC password. The
password will be required to enter Privilege EXEC mode. The default value
is disabled.
Command mode: Global configuration
show system
Displays the current system parameters.
Command mode: All
System host log configuration
The following table describes the Syslog Configuration commands.
Table 77 Syslog Configuration commands
Command
Description
[no] logging host {<1-2>} address {<IP
address>}
Sets the IP address of the first or second syslog host. For
example, 100.10.1.1.
Command mode: Global configuration
logging host {<1-2>} severity {<1-7>}
Sets the severity level of the first or second syslog host
displayed. The default is 7, which means log all the severity
levels.
Command mode: Global configuration
logging host {<1-2>} facility {<1-7>}
This option sets the facility level of the first or seconds syslog
host displayed. The default is 0.
Command mode: Global configuration
[no] logging console
Enables or disables delivering syslog messages to the
console. When necessary, disabling console ensures the
switch is not affected by syslog messages. It is enabled by
default.
Command mode: Global configuration
103
Configuration Commands
Table 77 Syslog Configuration commands
Command
Description
[no] logging log {<feature>}
Displays a list of features for which syslog messages can be
generated. You can choose to enable/disable specific
features or enable/disable syslog on all available features.
Features include:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
cfg
cli
console
do1x
ip
management
ntp
ospf
rmon
spanning-tree-group
ssh
system
ufd
vlan
vrrp
web
Command mode: Global configuration
show logging
Displays the current syslog settings.
Command mode: All
104
Configuration Commands
Secure Shell Server configuration
Telnet traffic on the network is not secure. These commands enable Secure Shell (SSH) access from any
SSH client. The SSH program securely logs into another computer over a network and executes
commands in a secure environment. All data using SSH is encrypted.
NOTE: See the HP 10Gb Ethernet BL-c Switch Application Guide for information on SSH.
The following table describes the SSHD Configuration commands.
Table 78 SSHD Configuration commands
Command
Description
ssh interval <0-24>
Defines interval for auto-generating the RSA server key. The switch will
auto-generate the RSA server key at the interval defined in this command.
The range is 0-24 hours.
The value of zero (0) means the RSA server key auto-generation is
disabled. If the switch has been busy performing any other key generation
and the assigned time of interval expires, the RSA server will skip
generating the key.
Command mode: Global configuration
ssh scp-password
Defines the administrator password that is for Secure Copy (SCP) only.
The username for this SCP administrator is scpadmin.
Typically, SCP is used to copy files securely from one machine to another.
In the switch, SCP is used to download and upload the switch
configuration using secure channels.
Command mode: Global configuration
ssh generate-host-key
Generates the RSA host keys manually. The switch creates this key
automatically while configuring the switch with Secure Shell (SSH). But
you can generate the key manually by using this command if you need to
overwrite the key for security reasons. The command will take effect
immediately.
Command mode: Global configuration
ssh generate-server-key
Generates the RSA server key. The switch creates this key automatically
while configuring the switch with Secure Shell (SSH). You can generate
the key manually by using this command if you need to overwrite the key
for security reasons. The command will take effect immediately.
Command mode: Global configuration
ssh port <TCP port number>
Sets the SSH server port number.
Command mode: Global configuration
ssh scp-enable
Enables the SCP apply and save.
Command mode: Global configuration
no ssh scp-enable
Disables the SCP apply and save. This is the default for SCP.
Command mode: Global configuration
ssh enable
Enables the SSH server.
Command mode: Global configuration
105
Configuration Commands
Table 78 SSHD Configuration commands
Command
Description
no ssh enable
Disables the SSH server. This is the default for the SSH server.
Command mode: Global configuration
show ssh
Displays the current SSH server configuration.
Command mode: All
RADIUS server configuration
NOTE: See the HP 10Gb Ethernet BL-c Switch Application Guide for information on RADIUS.
The following table describes the RADIUS Server Configuration commands.
Table 79 RADIUS Server Configuration commands
Command
Description
[no] radius-server primary-host
<IP address> key <1-32 characters>
Sets the primary RADIUS server address and shared secret
between the switch and the RADIUS server(s).
Command mode: Global configuration
[no] radius-server secondary-host
<IP address> key <1-32 characters>
Sets the secondary RADIUS server address and shared secret
between the switch and the RADIUS server(s).
Command mode: Global configuration
radius-server port <UDP port
number>
Enter the number of the User Datagram Protocol (UDP) port to be
configured, between 1500-3000. The default is 1645.
Command mode: Global configuration
radius-server retransmit <1-3>
Sets the number of failed authentication requests before switching
to a different RADIUS server. The range is 1-3 requests. The
default is 3 requests.
Command mode: Global configuration
radius-server timeout <1-10>
Sets the amount of time, in seconds, before a RADIUS server
authentication attempt is considered to have failed. The range is
1-10 seconds. The default is 3 seconds.
Command mode: Global configuration
[no] radius-server telnet-backdoor
Enables or disables the RADIUS back door for
telnet/SSH/HTTP/HTTPS. This command does not apply when
secure backdoor is enabled.
Command mode: Global configuration
[no] radius-server secure-backdoor
Enables or disables the RADIUS back door using secure password
for telnet/SSH/HTTP/HTTPS. This command does not apply when
backdoor (telnet) is enabled.
Command mode: Global configuration
radius-server enable
Enables the RADIUS server.
Command mode: Global configuration
106
Configuration Commands
Table 79 RADIUS Server Configuration commands
Command
Description
no radius-server enable
Disables the RADIUS server. This is the default.
Command mode: Global configuration
show radius-server
Displays the current RADIUS server parameters.
Command mode: All
IMPORTANT: If RADIUS is enabled, you must login using RADIUS authentication when connecting
via the console or Telnet/SSH/HTTP/HTTPS. Backdoor for console is always enabled, so you can
connect using noradius and the administrator password even if the backdoor or secure backdoor
(secbd) are disabled.
If Telnet backdoor is enabled, type in noradius as a backdoor to bypass RADIUS checking, and
use the administrator password to log into the switch. The switch allows this even if RADIUS servers
are available.
If secure backdoor is enabled, type in noradius as a backdoor to bypass RADIUS checking, and
use the administrator password to log into the switch. The switch allows this only if RADIUS servers
are not available.
TACACS+ server configuration
TACACS+ (Terminal Access Controller Access Control System) is an authentication protocol that allows a
remote access server to forward a user's logon password to an authentication server to determine whether
access can be allowed to a given system. TACACS+ and Remote Authentication Dial-In User Service
(RADIUS) protocols are more secure than the TACACS encryption protocol. TACACS+ is described in
RFC 1492.
TACACS+ protocol is more reliable than RADIUS, as TACACS+ uses the Transmission Control Protocol
(TCP) whereas RADIUS uses the User Datagram Protocol (UDP). Also, RADIUS combines authentication
and authorization in a user profile, whereas TACACS+ separates the two operations.
TACACS+ offers the following advantages over RADIUS as the authentication device:
•
•
•
TACACS+ is TCP-based, so it facilitates connection-oriented traffic.
It supports full-packet encryption, as opposed to password-only in authentication requests.
It supports decoupled authentication, authorization, and accounting.
The following table describes the TACACS+ Server Configuration commands.
Table 80 TACACS+ Server Configuration commands
Command
Description
[no] tacacs-server primary-host <IP
address> key <1-32 characters>
Defines the primary TACACS+ server address and shared
secret between the switch and the TACACS+ server(s).
Command mode: Global configuration
[no] tacacs-server secondary-host <IP
address> key <1-32 characters>
Defines the secondary TACACS+ server address and shared
secret between the switch and the TACACS+ server(s).
Command mode: Global configuration
107
Configuration Commands
Table 80 TACACS+ Server Configuration commands
Command
Description
tacacs-server port <TCP port number>
Enter the number of the TCP port to be configured, between 1
and 65000. The default is 49.
Command mode: Global configuration
tacacs-server retransmit <1-3>
Sets the number of failed authentication requests before
switching to a different TACACS+ server. The range is 1-3
requests. The default is 3 requests.
Command mode: Global configuration
tacacs-server timeout <4-15>
Sets the amount of time, in seconds, before a TACACS+
server authentication attempt is considered to have failed. The
range is 4-15 seconds. The default is 5 seconds.
Command mode: Global configuration
[no] tacacs-server telnet-backdoor
Enables or disables the TACACS+ back door for
telnet/SSH/HTTP/HTTPS. This command does not apply when
secure backdoor is enabled.
Command mode: Global configuration
[no] tacacs-server secure-backdoor
Enables or disables the TACACS+ back door using secure
password for telnet/SSH/HTTP/HTTPS. This command does
not apply when backdoor (telnet) is enabled.
Command mode: Global configuration
[no] tacacs-server privilege-mapping
Enables or disables TACACS+ privilege-level mapping.
The default value is disabled.
Command mode: Global configuration
tacacs-server user-mapping {<0-15>
user|oper|admin}
Maps a TACACS+ authorization level to a switch user level.
Enter a TACACS+ privilege level (0-15), followed by the
corresponding HP 10GbE switch user level (user, oper,
admin).
Command mode: Global configuration
tacacs-server enable
Enables the TACACS+ server.
Command mode: Global configuration
no tacacs-server enable
Disables the TACACS+ server.
Command mode: Global configuration
show tacacs-server
Displays current TACACS+ configuration parameters.
Command mode: All
IMPORTANT: If TACACS+ is enabled, you must login using TACACS+ authentication when
connecting via the console or Telnet/SSH/HTTP/HTTPS. Backdoor for console is always enabled,
so you can connect using notacacs and the administrator password even if the backdoor or
secure backdoor are disabled.
If Telnet backdoor is enabled, type in notacacs as a backdoor to bypass TACACS+ checking,
and use the administrator password to log into the switch. The switch allows this even if TACACS+
servers are available.
If secure backdoor is enabled, type in notacacs as a backdoor to bypass TACACS+ checking,
108
Configuration Commands
and use the administrator password to log into the switch. The switch allows this only if TACACS+
servers are not available.
NTP server configuration
These commands enable you to synchronize the switch clock to a Network Time Protocol (NTP) server. By
default, this option is disabled.
The following table describes the NTP Server Configuration commands.
Table 81 NTP Server Configuration commands
Command
Description
[no] ntp primary-server [<IP
address>|mgt-port|data-port]
Prompts for the IP addresses of the primary NTP server to which you want
to synchronize the switch clock. For example, 100.10.1.1.
By default, the mgt-port option for the management port is used. To
use data ports, specify the data-port option.
Command mode: Global configuration
[no] ntp secondary-server
[<IP address>|mgt-port|dataport]
Prompts for the IP addresses of the secondary NTP server to which you
want to synchronize the switch clock. For example, 100.10.1.2.
By default, the mgt-port option for the management port is used. To
use data ports, specify the data-port option.
Command mode: Global configuration
ntp interval <1-44640>
Specifies the interval, in minutes (1-44640), to resynchronize the switch
clock with the NTP server. The default is 1440 seconds.
Command mode: Global configuration
ntp enable
Enables the NTP synchronization service.
Command mode: Global configuration
no ntp enable
Disables the NTP synchronization service. This is the default.
Command mode: Global configuration
show ntp
Displays the current NTP service settings.
Command mode: All
109
Configuration Commands
System SNMP configuration
The switch software supports SNMP-based network management. In SNMP model of network
management, a management station (client/manager) accesses a set of variables known as
MIBs (Management Information Base) provided by the managed device (agent). If you are running an
SNMP network management station on your network, you can manage the switch using the following
standard SNMP MIBs:
•
•
•
MIB II (RFC 1213)
Ethernet MIB (RFC 1643)
Bridge MIB (RFC 1493)
An SNMP agent is a software process on the managed device that listens on UDP port 161 for SNMP
messages. Each SNMP message sent to the agent contains a list of management objects to retrieve or to
modify.
•
•
•
•
•
•
•
SNMP parameters that can be modified include:
System name
System location
System contact
Use of the SNMP system authentication trap function
Read community string
Write community string
The following table describes the System SNMP Configuration commands. The following sections provide
more detailed information and commands.
Table 82 System SNMP Configuration commands
Command
Description
hostname <1-64 characters>
Configures the name for the system. The name can have a maximum of
64 characters.
Command mode: Global configuration
snmp-server location <1-64
characters>
Configures the name of the system location. The location can have a
maximum of 64 characters.
Command mode: Global configuration
snmp-server contact <1-64
characters>
Configures the name of the system contact. The contact can have a
maximum of 64 characters.
Command mode: Global configuration
snmp-server read-community
<1-32 characters>
Configures the SNMP read community string. The read community string
controls SNMP “get” access to the switch. It can have a maximum of 32
characters. The default read community string is public.
Command mode: Global configuration
snmp-server write-community
<1-32 characters>
Configures the SNMP write community string. The write community string
controls SNMP “set” and “get” access to the switch. It can have a
maximum of 32 characters. The default write community string is
private.
Command mode: Global configuration
110
Configuration Commands
Table 82 System SNMP Configuration commands
Command
Description
snmp-server timeout <1-30>
Sets the timeout value for the SNMP state machine. The range is 1-30
minutes. The default value is 5 minutes.
Command mode: Global configuration
Enables or disables the use of the system authentication trap facility. The
default setting is disabled.
[no] snmp-server
authentication-trap enable
Command mode: Global configuration
Enables or disables the sending of SNMP link up and link down traps. The
default setting is enabled.
[no] snmp-server link-trap
Command mode: Global configuration
Enables or disables the sending of Uplink Failure Detection traps. The
default setting is disabled.
[no] snmp-server ufd-trap
Command mode: Global configuration
Displays the current SNMP configuration.
show snmp-server
Command mode: All
SNMPv3 configuration
SNMP version 3 (SNMPv3) is an extensible SNMP Framework that supplements the SNMPv2 Framework
by supporting the following:
•
•
•
•
a new SNMP message format
security for messages
access control
remote configuration of SNMP parameters
For more details on the SNMPv3 architecture please see RFC2271 to RFC2275.
The following table describes the SNMPv3 Configuration commands.
Table 83 SNMPv3 Configuration commands
Command
Description
snmp-server user <1-16>
Configures a user security model (USM) entry for an authorized user. You can
also configure this entry through SNMP. The range is 1-16.
Command mode: Global configuration
snmp-server view <1-128>
Configures different MIB views. The range is 1-128.
Command mode: Global configuration
snmp-server access <1-32>
Configures access rights. The View-based Access Control Model defines a set
of services that an application can use for checking access rights of the user.
You need access control when you have to process retrieval or modification
request from an SNMP entity. The range is 1-32.
Command mode: Global configuration
111
Configuration Commands
Table 83 SNMPv3 Configuration commands
Command
Description
snmp-server group <1-16>
Configures an SNMP group. A group maps the user name to the access group
names and their access rights needed to access SNMP management objects.
A group defines the access rights assigned to all names that belong to a
particular group. The range is 1-16.
Command mode: Global configuration
snmp-server community
<1-16>
Configures a community table entry. The community table contains objects for
mapping community strings and version-independent SNMP message
parameters. The range is 1-16.
Command mode: Global configuration
snmp-server target-address Configures the destination address and user security levels for outgoing
<1-16>
notifications. This is also called the transport endpoint. The range is 1-16.
Command mode: Global configuration
snmp-server targetparameters <1-16>
Configures SNMP parameters, consisting of message processing model,
security model, security level, and security name information. There may be
multiple transport endpoints associated with a particular set of SNMP
parameters, or a particular transport endpoint may be associated with several
sets of SNMP parameters. The range is 1-16.
Command mode: Global configuration
snmp-server notify <1-16>
Configures a notification index. A notification application typically monitors a
system for particular events or conditions, and generates Notification-Class
messages based on these events or conditions. The range is 1-16.
Command mode: Global configuration
snmp-server version
{v1v2v3|v3only}
Enables or disables the access to SNMP version 1 and version 2. This
command is enabled by default.
Command mode: Global configuration
show snmp-server v3
Displays the current SNMPv3 configuration.
Command mode: All
112
Configuration Commands
User Security Model configuration
You can make use of a defined set of user identities using this Security Model. An SNMP engine must
have the knowledge of applicable attributes of a user.
These commands help you create a user security model entry for an authorized user. You need to provide
a security name to create the USM entry.
The following table describes the User Security Model Configuration commands.
Table 84 User Security Model Configuration commands
Command
Description
snmp-server user <1-16> name
<1-32 characters>
Configures a string up to 32 characters long that represents the name
of the user. This is the login name that you need in order to access the
switch.
Command mode: Global configuration
snmp-server user <1-16>
authentication-protocol
{md5|sha|none} authenticationpassword <password>
Configures the authentication protocol and password.
The authentication protocol can be HMAC-MD5-96 or HMAC-SHA-96,
or none. The default algorithm is none.
When you configure an authentication algorithm, you must provide a
password; otherwise you receive an error message during validation.
This command allows you to create or change your password for
authentication.
Command mode: Global configuration
snmp-server user <1-16>
privacy-protocol {des|none}
privacy-password <password>
Configures the type of privacy protocol and the privacy password.
The privacy protocol protects messages from disclosure. The options
are des (CBC-DES Symmetric Encryption Protocol) or none. If you
specify des as the privacy protocol, then make sure that you have
selected one of the authentication protocols (MD5 or HMAC-SHA-96).
If you select none as the authentication protocol, you receive an error
message.
You can create or change the privacy password.
Command mode: Global configuration
no snmp-server user <1-16>
Deletes the USM user entries.
Command mode: Global configuration
show snmp-server user <1-16>
Displays the USM user entries.
Command mode: All
113
Configuration Commands
SNMPv3 View configuration
The following table describes the SNMPv3 View Configuration commands.
Table 85 SNMPv3 View Configuration commands
Command
Description
snmp-server view <1-128> name
<1-32 characters>
Defines the name for a family of view subtrees up to a maximum of 32
characters.
Command mode: Global configuration
snmp-server view <1-128> tree
<1-64 characters>
Defines the Object Identifier (OID), a string which, when combined with
the corresponding mask, defines a family of view subtrees.
An example of an OID is 1.3.6.1.2.1.1.1.0.
Command mode: Global configuration
snmp-server view <1-128> mask
<1-32 characters>
Defines the bit mask, which in combination with the corresponding tree
defines a family of view subtrees. The mask can have a maximum of 32
characters.
Command mode: Global configuration
snmp-server view <1-128> type
{included|excluded}
Selects whether the corresponding instances of
vacmViewTreeFamilySubtree and vacmViewTreeFamilyMask
define a family of view subtrees, which is included in or excluded from
the MIB view.
Command mode: Global configuration
no snmp-server view <1-128>
Deletes the vacmViewTreeFamily group entry.
Command mode: Global configuration
show snmp-server view <1-128>
Displays the current vacmViewTreeFamily configuration.
Command mode: All
View-based Access Control Model configuration
The view-based Access Control Model defines a set of services that an application can use for checking
access rights of the user. Access control is needed when the user has to process SNMP retrieval or
modification request from an SNMP entity.
The following table describes the User Access Control Configuration commands.
Table 86 View-based Access Control Configuration commands
Command
Description
snmp-server access <1-32> name
<1-32 characters>
Defines the name of the group, up to a maximum of 32 characters.
snmp-server access <1-32>
security {usm|snmpv1|snmpv2}
Allows you to select the security model to be used.
Command mode: Global configuration
Command mode: Global configuration
114
Configuration Commands
Table 86 View-based Access Control Configuration commands
Command
Description
snmp-server access <1-32> level
{noAuthNoPriv|authNoPriv|authPriv}
Defines the minimum level of security required to gain access rights.
The level noAuthNoPriv means that the SNMP message will be
sent without authentication and without using a privacy protocol.
The level authNoPriv means that the SNMP message will be sent
with authentication but without using a privacy protocol. The
authPriv means that the SNMP message will be sent both with
authentication and using a privacy protocol.
Command mode: Global configuration
Defines a 32 character long read view name that allows you read
access to a particular MIB view. If the value is empty or if there is no
active MIB view having this value then no access is granted.
snmp-server access <1-32> readview <1-32 characters>
Command mode: Global configuration
snmp-server access <1-32> writeview <1-32 characters>
Defines a 32 character long write view name that allows you write
access to the MIB view. If the value is empty or if there is no active
MIB view having this value then no access is granted.
Command mode: Global configuration
snmp-server access <1-32> notifyview <1-32 characters>
Defines a 32 character long notify view name that allows you notify
access to the MIB view.
Command mode: Global configuration
no snmp-server access <1-32>
Deletes the View-based Access Control entry.
Command mode: Global configuration
show snmp-server access <1-32>
Displays the View-based Access Control configuration.
Command mode: All
SNMPv3 Group configuration
The following table describes the SNMPv3 Group Configuration commands.
Table 87 SNMPv3 Group Configuration commands
Command
Description
snmp-server group <1-16>
security {usm|snmpv1|snmpv2}
Defines the security model.
snmp-server group <1-16>
user-name <1-32 characters>
Sets the user name. The user name can have a maximum of
32 characters.
Command mode: Global configuration
Command mode: Global configuration
snmp-server group <1-16>
group-name <1-32 characters>
The name for the access group. The group name can have a maximum of
32 characters.
Command mode: Global configuration
no snmp-server group <1-16>
Deletes the vacmSecurityToGroup entry.
Command mode: Global configuration
115
Configuration Commands
Table 87 SNMPv3 Group Configuration commands
Command
Description
show snmp-server group <1-16>
Displays the current vacmSecurityToGroup configuration.
Command mode: All
SNMPv3 Community Table configuration
These commands are used for configuring the community table entry. The configured entry is stored in the
community table list in the SNMP engine. This table is used to configure community strings in the Local
Configuration Datastore (LCD) of SNMP engine.
The following table describes the SNMPv3 Community Table Configuration commands.
Table 88 SNMPv3 Community Table Configuration commands
Command
Description
snmp-server community <1-16>
index <1-32 characters>
Configures the unique index value of a row in this table. The index can
have a maximum of 32 characters.
Command mode: Global configuration
snmp-server community <1-16>
name <1-32 characters>
Defines the name, up to 32 characters.
snmp-server community <1-16>
user-name <1-32 characters>
Defines a readable 32 character string that represents the corresponding
value of an SNMP community name in a security model.
Command mode: Global configuration
Command mode: Global configuration
snmp-server community <1-16>
tag <1-255 characters>
Configures a tag of up to 255 characters maximum. This tag specifies a
set of transport endpoints to which a command responder application
sends an SNMP trap.
Command mode: Global configuration
no snmp-server community
<1-16>
Deletes the community table entry.
show snmp-server community
<1-16>
Displays the community table configuration.
Command mode: Global configuration
Command mode: All
SNMPv3 Target Address Table configuration
These commands allow you to set passwords and display current user statistics. Passwords can be a
maximum of 15 characters. To disable a user, set the password to null.
The following table describes the SNMPv3 Target Address Table Configuration commands.
Table 89 SNMPv3 Target Address Table Configuration commands
Command
Description
snmp-server target-address <1-16>
address <IP address> name <1-32
characters>
Configures the locally arbitrary, but unique identifier, target
address name associated with this entry.
Command mode: Global configuration
116
Configuration Commands
Table 89 SNMPv3 Target Address Table Configuration commands
Command
Description
snmp-server target-address <1-16> name
<1-32 characters> address <transport
IP address>
Configures a transport address IP that can be used in the
generation of SNMP traps.
snmp-server target-address <1-16> port
<transport address port (1-65535)>
Configures a transport address port that can be used in the
generation of SNMP traps.
Command mode: Global configuration
Command mode: Global configuration
Configures a list of tags (up to 255 characters maximum) that
are used to select target addresses for a particular operation.
snmp-server target-address <1-16>
taglist <1-255 characters>
Command mode: Global configuration
snmp-server target-address <1-16>
parameters-name <1-32 characters>
Defines the name.
no snmp-server target-address <1-16>
Deletes the Target Address Table entry.
Command mode: Global configuration
Command mode: Global configuration
show snmp-server target-address <1-16>
Displays the current Target Address Table configuration.
Command mode: All
SNMPv3 Target Parameters Table configuration
You can configure the target parameters entry and store it in the target parameters table in the SNMP
engine. This table contains parameters that are used to generate a message. The parameters include the
message processing model (for example: SNMPv3, SNMPv2c, SNMPv1), the security model (for
example: USM), the security name, and the security level (noAuthnoPriv, authNoPriv, or
authPriv).
The following table describes the SNMPv3 Target Parameters Table Configuration commands.
Table 90 SNMPv3 Target Parameters Table Configuration commands
Command
Description
snmp-server target-parameters <1-16>
name <1-32 characters>
Configures the locally arbitrary, but unique identifier that is
associated with this entry.
Command mode: Global configuration
snmp-server target-parameters <1-16>
message {snmpv1|snmpv2c|snmpv3}
Configures the message processing model that is used to
generate SNMP messages.
Command mode: Global configuration
snmp-server target-parameters <1-16>
security {usm|snmpv1|snmpv2}
Selects the security model to be used when generating the
SNMP messages.
Command mode: Global configuration
snmp-server target-parameters <1-16>
user-name <1-32 characters>
Defines the name that identifies the user in the USM table, on
whose behalf the SNMP messages are generated using this
entry.
Command mode: Global configuration
117
Configuration Commands
Table 90 SNMPv3 Target Parameters Table Configuration commands
Command
Description
snmp-server target-parameters <1-16>
level {noAuthNoPriv|authNoPriv|authPriv}
Selects the level of security to be used when generating the
SNMP messages using this entry. The level noAuthNoPriv
means that the SNMP message will be sent without authentication and without using a privacy protocol. The level
authNoPriv means that the SNMP message will be sent with
authentication but without using a privacy protocol. The
authPriv means that the SNMP message will be sent both
with authentication and using a privacy protocol.
Command mode: Global configuration
no snmp-server target-parameters
<1-16>
Deletes the targetParamsTable entry.
show snmp-server target-parameters
<1-16>
Displays the current targetParamsTable configuration.
Command mode: Global configuration
Command mode: All
SNMPv3 Notify Table configuration
SNMPv3 uses Notification Originator to send out traps. A notification typically monitors a system for
particular events or conditions, and generates Notification-Class messages based on these events or
conditions.
The following table describes the SNMPv3 Notify Table Configuration commands.
Table 91 SNMPv3 Notify Table Configuration commands
Command
Description
snmp-server notify <1-16> name
<1-32 characters>
Defines a locally arbitrary but unique identifier associated with this
SNMP notify entry.
Command mode: Global configuration
snmp-server notify <1-16> tag
<1-255 characters>
Defines a tag of 255 characters maximum that contains a tag value
which is used to select entries in the Target Address Table. Any entry in
the snmpTargetAddrTable, that matches the value of this tag, is
selected.
Command mode: Global configuration
no snmp-server notify <1-16>
Deletes the notify table entry.
Command mode: Global configuration
show snmp-server notify <1-16>
Displays the current notify table configuration.
Command mode: All
118
Configuration Commands
System Access configuration
The following table describes the System Access Configuration commands.
Table 92 System Access Configuration commands
Command
Description
[no] access http enable
Enables or disables HTTP (Web) access to the Browser-based Interface. It
is enabled by default.
Command mode: Global configuration
access http port <TCP port
number>
Sets the switch port used for serving switch Web content. The default is
HTTP port 80.
Command mode: Global configuration
[no] access snmp {read-only|
read-write}
Disables or provides read-only/write-read SNMP access.
[no] access tsbbi enable
Enables or disables BBI configuration control s for Telnet and SSH.
Command mode: Global configuration
Command mode: Global configuration
access telnet port <TCP port
number>
Sets an optional telnet server port number for cases where the server
listens for telnet sessions on a non-standard port.
Command mode: Global configuration
[no] access telnet enable
Enables or disables Telnet access.
Command mode: Global configuration
access tftp-port <TFTP port
number>
Sets an optional telnet server port number for cases where the server
listens for TFTP sessions on a non-standard port.
Command mode: Global configuration
show access
Displays the current system access parameters.
Command mode: All
Management Networks configuration
The following table describes the Management Networks Configuration commands. You can configure up
to 10 management networks on the HP 10GbE switch .
Table 93 Management Networks Configuration commands
Command
Description
access management-network <IP
address> <IP mask>
Adds a defined network through which switch access is allowed
through Telnet, SNMP, SSH, or the browser-based interface. A range
of IP addresses is produced when used with a network mask address.
Specify an IP address and mask address in dotted-decimal notation.
Command mode: Global configuration
no access management-network
<IP address> <IP mask>
Removes a defined network, which consists of a management network
address and a management network mask address.
Command mode: Global configuration
show access management-network
Displays the current management networks parameters.
Command mode: All except User EXEC
119
Configuration Commands
Table 93 Management Networks Configuration commands
Command
Description
clear access management-network
Clears the management network definitions.
Command mode: All except User EXEC
User Access Control configuration
The following table describes the User Access Control commands.
Table 94 User Access Control Configuration commands
Command
Description
access user <1-10>
Configures the User ID.
Command mode: Global configuration
access user eject
<username>
Ejects the selected user from the switch.
access user userpassword <1-128
characters>
Sets the user (user) password (maximum of 128 characters). The user has no
direct responsibility for switch management. He or she can view switch status
information and statistics, but cannot make any configuration changes.
Command mode: Global configuration
Command mode: Global configuration
access user operatorpassword <1-128
characters>
Sets the operator (oper) password (maximum of 128 characters). The operator
manages all functions of the switch. He or she can view all switch information
and statistics and can reset ports or the entire switch.
Command mode: Global configuration
access user
administrator-password
<1-128 characters>
Sets the administrator (admin) password (maximum of 128 characters). The
super user administrator has complete access to all information and
configuration commands on the switch, including the ability to change both the
user and administrator passwords.
Command mode: Global configuration
show access user
Displays the current user status.
Command mode: All
User ID configuration
The following table describes the User ID Configuration commands.
Table 95 User ID Configuration commands
Command
Description
access user <1-10> level
{user|operator|administrator}
Sets the Class-of-Service to define the user’s authority level.
access user <1-10> name <1-8
characters>
Defines the user name of maximum eight characters.
Command mode: Global configuration
Command mode: Global configuration
120
Configuration Commands
Table 95 User ID Configuration commands
Command
Description
access user <1-10> password <1-128 Sets the user password of up to 128 characters maximum.
characters>
Command mode: Global configuration
access user <1-10> enable
Enables the user ID.
Command mode: Global configuration
no access user <1-10> enable
Disables the user ID.
Command mode: Global configuration
no access user <1-10>
Deletes the user ID.
Command mode: Global configuration
show access user
Displays the current user ID parameters.
Command mode: All
121
Configuration Commands
HTTPS Access configuration
The following table describes the HTTPS Access Configuration commands.
Table 96 HTTPS Access Configuration commands
Command
Description
[no] access https enable Enables or disables BBI access (Web access) using HTTPS. The default value is
disabled.
Command mode: Global configuration
access https port <TCP
port number>
Defines the HTTPS Web server port number.
access https generatecertificate
Allows you to generate a certificate to connect to the SSL to be used during the
key exchange. A default certificate is created when HTTPS is enabled for the first
time. The user can create a new certificate defining the information that they
want to be used in the various fields. For example:
Command mode: Global configuration
•
•
•
•
•
•
•
Country Name (2 letter code) [ ]: CA
State or Province Name (full name) [ ]: Ontario
Locality Name (for example, city) [ ]: Ottawa
Organization Name (for example, company) [ ]: Hewlett-Packard
Organizational Unit Name (for example, section) [ ]: ProLiant
Common Name (for example, user’s name) [ ]: Mr Smith
Email (for example, email address) [ ]: [email protected]
You must confirm if you want to generate the certificate. It takes approximately
30 seconds to generate the certificate. Then the switch restarts SSL agent.
Command mode: Global configuration
access https savecertificate
Allows the client, or the Web browser, to accept the certificate and save the
certificate to Flash to be used when the switch is rebooted.
Command mode: Global configuration
show access
Displays the current SSL Web Access configuration.
Command mode: All except User EXEC
122
Configuration Commands
Port configuration
Use the port configuration commands to configure settings for individual switch ports.
NOTE: Port 17 is reserved for switch management.
The following table describes the Port Configuration commands. The following sections provide more
detailed information and commands.
Table 97 Port Configuration commands
Command
Description
interface port {<port
number>}
Enter Interface Port configuration mode for the selected port.
dot1p <0-7>
Configures the port’s 802.1p priority level.
Command mode: Global configuration
Command mode: Interface port
pvid {<1-4094>}
Sets the default VLAN number which will be used to forward frames which
are not VLAN tagged. The default number is 1.
NOTE: VLAN 4095 is reserved for switch management.
Command mode: Interface port
name {<1-64 characters>}
Sets a name for the port (maximum 64 characters). The assigned port name
displays next to the port number on some information and statistics screens.
Command mode: Interface port
[no] rmon
Enables or disables Remote Monitoring for the port. RMON must be
enabled for any RMON configurations to function.
Command mode: Interface port
[no] tagging
Disables or enables VLAN tagging for this port. It is disabled by default.
Command mode: Interface port
[no] tag-pvid
Disables or enables VLAN tag persistence. When disabled, the VLAN tag is
removed from packets whose VLAN tag matches the port PVID. The default
value is enabled.
Command mode: Interface port
broadcast-threshold
{<0-262143>}
Limits the number of broadcast packets per second to the specified value. If
disabled (dis), the port forwards all broadcast packets.
Command mode: Interface port
multicast-threshold
{<0-262143>}
Limits the number of multicast packets per second to the specified value. If
disabled (dis), the port forwards all multicast packets.
Command mode: Interface port
dest-lookup-threshold
{<0-262143>}
Limits the number of unknown unicast packets per second to the specified
value. If disabled (dis), the port forwards all unknown unicast packets.
Command mode: Interface port
no shutdown
Enables the port.
Command mode: Interface port
123
Configuration Commands
Table 97 Port Configuration commands
Command
Description
shutdown
Disables the port. To temporarily disable a port without changing its
configuration attributes, see the “Temporarily disabling a port” section later
in this chapter.
Command mode: Interface port
show interface port {<port
number>}
Displays current port parameters.
Command mode: All
Temporarily disabling a port
To temporarily disable a port without changing its stored configuration attributes, enter the following
command at any prompt:
Switch# interface port <port number> shutdown
Because this configuration sets a temporary state for the port, you do not need to perform a save
operation. The port state reverts to its original configuration when the switch is reloaded.
Port link configuration
Use these commands to set port parameters for the port link.
Link commands are described in the following table. Using these commands, you can set port parameters
such as speed, duplex, flow control, and negotiation mode for the port link.
The following table describes the Gigabit Link Configuration commands.
Table 98 Gigabit Link Configuration commands
Command
Description
speed {100|10000}
Sets the link speed.
NOTE: All downlink and uplink ports are fixed at 10000 Mbps, and cannot be
changed. Management port 17 is fixed at 100 Mbps.
Command mode: Interface port
duplex
Sets the operating mode, as follows:
• Full-duplex
NOTE: All ports are fixed at full duplex, and cannot be changed.
Command mode: Interface port
flowcontrol
{receive|send|both}
Sets the flow control. The choices include:
•
•
•
•
Receive (rx) flow control
Send (tx) flow control
Both receive and transmit flow control (default)
No flow control
NOTE: Management port 17 is fixed at both, and cannot be changed.
Command mode: Interface port
124
Configuration Commands
Table 98 Gigabit Link Configuration commands
Command
Description
no flowcontrol
Sets the flow control to none.
Command mode: Interface port
[no] auto
Enables or disables auto-negotiation for the port.
All downlink and uplink ports are fixed at 10000 Mbps, and cannot be
set to auto-negotiate.
Command mode: Interface port
show interface port
{<port number>}
Displays current port parameters.
Command mode: All
ACL Port configuration
The following table describes the basic Access Control List Configuration commands for the port.
Table 99 ACL Port Configuration commands
Command
Description
[no] access-control list <1-384>
Adds or removes the specified ACL.
Command mode: Interface port
[no] access-control group <1-384>
Adds or removes the specified ACL Group.
Command mode: Interface port
show interface port [<port number>]
access-control
Displays current ACL QoS parameters.
Command mode: All
125
Configuration Commands
Layer 2 configuration
The following table describes the Layer 2 Configuration commands. The following sections provide more
detailed information and commands.
Table 100 Layer 2 Configuration commands
Command
Description
vlan {<1-4094>}
Enter VLAN configuration mode.
Command mode: Global configuration
[no] spanning-tree uplinkfast Enables or disables Fast Uplink Convergence, which provides rapid
Spanning Tree convergence to an upstream switch during failover.
NOTE: When enabled, this feature increases bridge priorities to 65500
for all STGs and path cost by 3000 for all external STP ports.
Command mode: Global configuration
spanning-tree uplinkfast max- Configures the station update rate, in packets per second.
update-rate <10-200>
The range is 10-200. The default value is 40.
Command mode: Global configuration
show layer2
Displays current Layer 2 parameters.
Command mode: All
802.1x configuration
This feature allows you to configure the HP 10GbE switch as an IEEE 802.1x Authenticator, to provide
port-based network access control. The following table describes the 802.1x Configuration commands.
Table 101 802.1x Configuration commands
Command
Description
dot1x enable
Globally enables 802.1x.
Command mode: Global configuration
no dot1x enable
Globally disables 802.1x.
Command mode: Global configuration
show dot1x
Displays current 802.1x parameters.
Command mode: All
126
Configuration Commands
802.1x Global configuration
The global 802.1x commands allow you to configure parameters that affect all ports in the switch (except
management port 17). The following table describes the 802.1x Global Configuration commands.
Table 102 802.1x Global Configuration commands
Command
Description
dot1x mode {[force-unauthorized|
auto|force-authorized]}
Sets the type of access control for all ports:
• force-unauth—the port is unauthorized unconditionally.
• auto—the port is unauthorized until it is successfully authorized
by the RADIUS server.
• force-auth—the port is authorized unconditionally, allowing
all traffic.
The default value is force-auth.
Command mode: Global configuration
dot1x quiet-time {<0-65535>}
Sets the time, in seconds, the authenticator waits before transmitting
an EAP-Request/ Identity frame to the supplicant (client) after an
authentication failure in the previous round of authentication. The
default value is 60 seconds.
Command mode: Global configuration
dot1x transmit-interval
{<1-65535>}
Sets the time, in seconds, the authenticator waits for an EAPResponse/Identity frame from the supplicant (client) before
retransmitting an EAP-Request/Identity frame. The default value is
30 seconds.
Command mode: Global configuration
dot1x supplicant-timeout
{<1-65535>}
Sets the time, in seconds, the authenticator waits for an EAPResponse packet from the supplicant (client) before retransmitting
the EAP-Request packet from the authentication server. The default
value is 30 seconds.
dot1x server-timeout {<1-65535>}
Sets the time, in seconds, the authenticator waits for a response
from the Radius server before declaring an authentication timeout.
The default value is 30 seconds.
Command mode: Global configuration
dot1x max-request {<1-10>}
Sets the maximum number of times the authenticator retransmits an
EAP-Request packet to the supplicant (client). The default value is 2.
Command mode: Global configuration
dot1x re-authentication-interval
{<1-604800>}
Sets the time, in seconds, the authenticator waits before reauthenticating a supplicant (client) when periodic re-authentication
is enabled. The default value is 3600 seconds.
Command mode: Global configuration
[no] dot1x re-authenticate
Sets the re-authentication status to on or off. The default value is
off.
Command mode: Global configuration
default dot1x
Resets the global 802.1x parameters to their default values.
Command mode: Global configuration
127
Configuration Commands
Table 102 802.1x Global Configuration commands
Command
Description
show dot1x
Displays current global 802.1x parameters.
Command mode: All
802.1x Port configuration
The 802.1x port commands allow you to configure parameters that affect the selected port in the switch.
These settings override the global 802.1x parameters.
The following table describes the 802.1x Port Configuration commands.
Table 103 802.1x Port Configuration commands
Command
Description
dot1x mode {[force-unauthorized|
auto|force-authorized]}
Sets the type of access control for the port:
• force-unauth—the port is unauthorized unconditionally.
• auto—the port is unauthorized until it is successfully authorized
by the RADIUS server.
• force-auth—the port is authorized unconditionally, allowing
all traffic.
The default value is force-auth.
Command mode: Interface port
dot1x quiet-time {<0-65535>}
Sets the time, in seconds, the authenticator waits before transmitting
an EAP-Request/Identity frame to the supplicant (client) after an
authentication failure in the previous round of authentication. The
default value is 60 seconds.
Command mode: Interface port
dot1x transmit-interval
{<1-65535>}
Sets the time, in seconds, the authenticator waits for an EAPResponse/Identity frame from the supplicant (client) before
retransmitting an EAP-Request/Identity frame. The default value is
30 seconds.
Command mode: Interface port
dot1x supplicant-timeout
{<1-65535>}
Sets the time, in seconds, the authenticator waits for an EAPResponse packet from the supplicant (client) before retransmitting
the EAP-Request packet from the authentication server. The default
value is 30 seconds.
Command mode: Interface port
dot1x server-timeout {<1-65535>}
Sets the time, in seconds, the authenticator waits for a response
from the RADIUS server before declaring an authentication timeout.
The default value is 30 seconds.
Command mode: Interface port
dot1x max-request {<1-10>}
Sets the maximum number of times the authenticator retransmits an
EAP-Request packet to the supplicant (client). The default value is 2.
Command mode: Interface port
128
Configuration Commands
Table 103 802.1x Port Configuration commands
Command
Description
dot1x re-authentication-interval
{<1-604800>}
Sets the time, in seconds, the authenticator waits before reauthenticating a supplicant (client) when periodic re-authentication
is enabled. The default value is 3600 seconds.
Command mode: Interface port
[no] dot1x re-authenticate
Sets the re-authentication status to on or off. The default value is
off.
Command mode: Interface port
default dot1x
Resets the global 802.1x parameters to their default values.
Command mode: Interface port
dot1x apply-global
Applies the global 802.1x parameters to the port.
Command mode: Interface port
show interface port {<1-16,
18-21>} dot1x
Displays current 802.1x parameters on the specified port
Command mode: All
Rapid Spanning Tree Protocol /
Multiple Spanning Tree Protocol configuration
The switch supports the IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1s Multiple
Spanning Tree Protocol (MSTP). MSTP allows you to map many VLANs to a small number of spanning
tree groups, each with its own topology.
MSTP supports up to 32 Spanning Tree Groups on the switch (STG 32 is reserved for switch
management). MRST is turned off by default.
NOTE: When Multiple Spanning Tree is turned on, VLAN 1 is moved from Spanning Tree Group 1
to the Common Internal Spanning Tree (CIST). When Multiple Spanning Tree is turned off, VLAN 1
is moved back to Spanning Tree Group 1.
The following table describes the Multiple Spanning Tree Configuration commands.
Table 104 Multiple Spanning Tree Configuration commands
Command
Description
[no] spanning-tree mstp name
{<1-32 characters>}
Configures a name for the MSTP region. All devices within a MSTP
region must have the same region name.
Command mode: Global configuration
spanning-tree mstp version
{<0-65535>}
Configures the revision level for the MSTP region. The revision level
is used as a numerical identifier for the region. All devices within a
MSTP region must have the same revision level number. The default
value is 1.
Command mode: Global configuration
129
Configuration Commands
Table 104 Multiple Spanning Tree Configuration commands
Command
Description
spanning-tree mstp maximum-hop
<4-60>
Configures the maximum number of bridge hops a packet may to
traverse before it is dropped. The range is from 4 to 60 hops. The
default is 20.
Command mode: Global configuration
spanning-tree mode
{mst|rstp|pvst}
Selects the spanning-tree mode, as follows:
• Rapid Spanning Tree mode (rstp)
• Multiple Spanning Tree mode (mstp)
• Per VLAN Spanning Tree (pvst)
The default mode is pvst.
Command mode: Global configuration
show spanning-tree mstp mrst
Displays the current RSTP/MSTP configuration.
Command mode: All
NOTE:
• IEEE 802.1w standard-based RSTP implementation runs on one STG (i.e. same as one spanning tree
instance) only. As a result, if ‘rstp’ mode is selected, then only a single RSTP instance (default for STG 1) is
supported for all VLANs, including the Default VLAN 1.
• If multiple spanning tree instances are required, then select ‘mstp’ mode so that multiple VLANs are handled
by multiple spanning tree instances, as specified by IEEE 802.1s standard-based MSTP implementation.
• IEEE 802.1s MSTP supports rapid convergence using IEEE 802.1w RSTP.
• PVST+ does not support rapid convergence in current versions.
NOTE:
The following configurations are unsupported:
• HP PVST+ (default Spanning Tree setting) is NOT interoperable with Cisco Rapid PVST+.
• HP MSTP/RSTP (with mode set to either ‘mstp’ or ‘rstp’) is NOT interoperable with Cisco Rapid PVST+.
The following configurations are supported:
• HP PVST+ (default Spanning Tree setting) is interoperable with Cisco PVST+.
• HP MSTP/RSTP (with mode set to ‘mstp’) is interoperable with Cisco MST/RSTP.
130
Configuration Commands
Common Internal Spanning Tree configuration
The Common Internal Spanning Tree (CIST) provides compatibility with different MSTP regions and with
devices running different Spanning Tree instances. It is equivalent to Spanning Tree Group 0.
The following table describes the commands used to configure CIST commands.
Table 105 CIST Configuration commands
Command
Description
spanning-tree mstp cist-add-vlan <1-4095>
Adds VLANs to the CIST. Enter one VLAN per line, and
press Enter to add the VLANs.
Command mode: Global configuration
Resets all CIST parameters to their default values.
default spanning-tree mstp cist
Command mode: Global configuration
Displays the current CIST configuration.
show spanning-tree mstp cist
Command mode: All
CIST bridge configuration
CIST bridge parameters are used only when the switch is in MSTP mode. CIST parameters do not affect
operation of STP/PVST.
The following table describes the commands used to configure CIST Bridge Configuration commands.
Table 106 CIST Bridge Configuration commands
Command
Description
spanning-tree mstp cistbridge priority {<0-65535>}
Configures the CIST bridge priority. The bridge priority parameter
controls which bridge on the network is the MSTP root bridge.
To make this switch the root bridge, configure the bridge priority lower
than all other switches and bridges on your network. The lower the value,
the higher the bridge priority. The range is 0 to 65535, and the default
is 32768.
This command does not apply to RSTP. See the "Bridge Spanning Tree
configuration" section for more information.
Command mode: Global configuration
spanning-tree mstp cistbridge maximum-age {<6-40>}
Configures the CIST bridge maximum age. The maximum age parameter
specifies the maximum time the bridge waits without receiving a
configuration bridge protocol data unit before it reconfigures the MSTP
network. The range is 6 to 40 seconds, and the default is 20 seconds.
This command does not apply to RSTP. See the "Bridge Spanning Tree
configuration" section for more information.
Command mode: Global configuration
131
Configuration Commands
Table 106 CIST Bridge Configuration commands
Command
Description
spanning-tree mstp cistbridge forward-delay {<4-30>}
Configures the CIST bridge forward delay parameter. The forward delay
parameter specifies the amount of time that a bridge port has to wait
before it changes from the listening state to the learning state and from
the learning state to the forwarding state. The range is 4 to 30 seconds,
and the default is 15 seconds.
This command does not apply to RSTP. See the "Bridge Spanning Tree
configuration" section for more information.
Command mode: Global configuration
show spanning-tree mstp cist
Displays the current CIST bridge configuration.
Command mode: All
CIST port configuration
CIST port parameters are used to modify MRST operation on an individual port basis. CIST parameters do
not affect operation of STP/PVST.
For each port, CIST is turned on by default. Port parameters include:
•
•
•
•
•
•
•
Port priority
Port path cost
Port Hello time
Link type
Edge
On and off
Current port configuration
The port option of MRST is turned on by default.
The following table describes the commands used to configure CIST Port Configuration commands.
Table 107 CIST Port Configuration commands
Command
Description
spanning-tree mstp cist
interface-priority {<0-240>}
Configures the CIST port priority. The port priority helps determine
which bridge port becomes the designated port. In a network
topology that has multiple bridge ports connected to a single segment,
the port with the lowest port priority becomes the designated port for
the segment. The range is 0 to 240, in steps of 16 (0, 16, 32...), and
the default is 128.
Command mode: Interface port
spanning-tree mstp cist pathcost {<1-200000000>}
Configures the CIST port path cost. The port path cost is used to help
determine the designated port for a segment. Generally speaking, the
faster the port, the lower the path cost. The default for Gigabit ports is
20000, and for 10Gb ports is 2000.
Command mode: Interface port
132
Configuration Commands
Table 107 CIST Port Configuration commands
Command
Description
spanning-tree mstp cist hello
{<1-10>}
Configures the CIST port Hello time. The Hello time specifies how
often the root bridge transmits a configuration bridge protocol data
unit (BPDU). Any bridge that is not the root bridge uses the root bridge
Hello value. The range is 1 to 10 seconds, and the default is
2 seconds.
Command mode: Interface port
spanning-tree mstp cist linktype {auto|p2p|shared}
Defines the type of link connected to the port, as follows:
• auto—Configures the port to detect the link type, and
automatically match its settings.
• p2p—Configures the port for Point-To-Point protocol.
• shared—Configures the port to connect to a shared medium
(usually a hub).
The default link type is auto.
Command mode: Interface port
[no] spanning-tree mst cist
edge
Enables or disables this port as an edge port. An edge port is not
connected to a bridge, and can begin forwarding traffic as soon as
the link is up. Configure server ports as edge ports (enabled). This
command is disabled by default.
Command mode: Interface port
spanning-tree mst cist enable
Enables CIST on the port.
Command mode: Interface port
no spanning-tree mst cist
enable
Disables CIST on the port.
show interface port {<port
number>} spanning-tree mstp
cist
Displays the current CIST port configuration.
Command mode: Interface port
Command mode: All
133
Configuration Commands
Spanning Tree configuration
The switch supports the IEEE 802.1d Spanning Tree Protocol (STP) and Cisco proprietary PVST and PVST+
protocols. You can configure up to 127 spanning tree groups on the switch (STG 128 is reserved for
switch management). Spanning Tree is turned on by default.
NOTE: When RSTP is turned on, only STP group 1 can be configured.
The following table describes the Spanning Tree Configuration commands.
Table 108 Spanning Tree Configuration commands
Command
Description
spanning-tree stp {<1-128>} vlan
{<1-4094>}
Associates a VLAN with a spanning tree and requires an external
VLAN ID as a parameter.
Command mode: Global configuration
no spanning-tree stp {<1-128>}
vlan {<1-4094>}
Breaks the association between a VLAN and a spanning tree and
requires an external VLAN ID as a parameter.
Command mode: Global configuration
no spanning-tree stp {<1-128>}
vlan all
Removes all VLANs from a spanning tree.
spanning-tree stp {<1-128>}
enable
Globally enables Spanning Tree Protocol.
no spanning-tree stp {<1-128>}
enable
Globally disables Spanning Tree Protocol.
default spanning-tree <1-128>
Restores a spanning tree instance to its default configuration.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
show spanning-tree stp {<1-128>}
Displays current Spanning Tree Protocol parameters.
Command mode: All
134
Configuration Commands
Bridge Spanning Tree configuration
Spanning tree bridge parameters can be configured for each Spanning Tree Group. STP bridge
parameters include:
•
•
•
•
•
Bridge priority
Bridge hello time
Bridge maximum age
Forwarding delay
Current bridge configuration
The following table describes the Bridge Spanning Tree Configuration commands.
Table 109 Bridge Spanning Tree Configuration commands
Command
Description
spanning-tree stp {<1-128>}
bridge priority {<0-65535>}
Configures the bridge priority. The bridge priority parameter controls
which bridge on the network is the STP root bridge.
To make this switch the root bridge, configure the bridge priority lower
than all other switches and bridges on your network. The lower the value,
the higher the bridge priority. The range is 0 to 65535, and the default
is 32768.
RSTP/MSTP: The range is 0 to 61440, in steps of 4096 (0, 4096,
8192...), and the default is 32768.
This command does not apply to MSTP. See the “Common Internal
Spanning Tree configuration” section for more information.
Command mode: Global configuration
spanning-tree stp {<1-128>}
bridge hello-time {<1-10>}
Configures the bridge hello time. The hello time specifies how often the
root bridge transmits a configuration bridge protocol data unit (BPDU).
Any bridge that is not the root bridge uses the root bridge hello value.
The range is 1 to 10 seconds, and the default is 2 seconds.
This command does not apply to MSTP. See the “Common Internal
Spanning Tree configuration” section for more information.
Command mode: Global configuration
spanning-tree stp {<1-128>}
bridge maximum-age {<6-40>}
Configures the bridge maximum age. The maximum age parameter
specifies the maximum time the bridge waits without receiving a
configuration bridge protocol data unit before it reconfigures the STP
network. The range is 6 to 40 seconds, and the default is 20 seconds.
This command does not apply to MSTP. See the “Common Internal
Spanning Tree configuration” section for more information.
Command mode: Global configuration
spanning-tree stp {<1-128>}
bridge forward-delay {<4-30>}
Configures the bridge forward delay parameter. The forward delay
parameter specifies the amount of time that a bridge port has to wait
before it changes from the listening state to the learning state and from
the learning state to the forwarding state. The range is 4 to 30 seconds,
and the default is 15 seconds.
This command does not apply to MSTP. See the “Common Internal
Spanning Tree configuration” section for more information.
Command mode: Global configuration
show spanning-tree stp
{<1-128>} bridge
Displays the current bridge STP parameters.
Command mode: All
135
Configuration Commands
When configuring STP bridge parameters, the following formulas must be used:
•
•
2*(fwd-1) ≥ mxage
2*(hello+1) ≤ mxage
Spanning Tree port configuration
The default configuration for STP/PVST+ is off for downlink ports (1-16) and the management port (17),
and on for uplink ports (18-21). The default configuration for RSTP/MSTP is Spanning Tree off for all
downlink ports (1-16) and the management port (17), and on for all uplink ports (18-21), with downlink
ports configured as edge ports.
Spanning tree port parameters are used to modify STP operation on an individual port basis. STP port
parameters include:
•
•
Port priority
Port path cost
The following table describes the Spanning Tree Port Configuration commands.
Table 110 Spanning Tree Port Configuration commands
Command
Description
spanning-tree stp {<1-128>}
priority {<0-255>}
Configures the port priority. The port priority helps determine which
bridge port becomes the designated port.
In a network topology that has multiple bridge ports connected to a
single segment, the port with the lowest port priority becomes the
designated port for the segment.
The range is 0 to 255, and the default is 128.
RSTP/MSTP: The range is 0 to 240, in steps of 16 (0, 16, 32...) and the
default is 128.
Command mode: Interface port
spanning-tree stp {<1-128>}
path-cost {<1-65535>}
Configures the port path cost. The port path cost is used to help
determine the designated port for a segment. Generally speaking, the
faster the port, the lower the path cost.
The range is 1 to 65535. The default is 100 for 10Mb ports, 10 for 100
Mb ports, 4 for Gigabit ports, and 2 for 10Gb ports.
A value of 0 indicates that the default cost will be computed for an autonegotiated link speed.
RSTP/MSTP: The range is 1 – 200000000, and the default it 20000 for
Gigabit ports, 2000 for 10Gb ports.
Command mode: Interface port
spanning-tree stp {<1-128>}
link {auto|p2p|shared}
Defines the type of link connected to the port, as follows:
• auto—Configures the port to detect the link type, and automatically
match its settings.
• p2p—Configures the port for Point-To-Point protocol.
• shared—Configures the port to connect to a shared medium (usually
a hub).
This command only applies when RSTP is turned on. See the “Common
Internal Spanning Tree configuration” section for more information.
Command mode: Interface port
136
Configuration Commands
Table 110 Spanning Tree Port Configuration commands
Command
Description
[no] spanning-tree stp
{<1-128>} edge
Enables or disables this port as an edge port. An edge port is not
connected to a bridge, and can begin forwarding traffic as soon as the
link is up. Configure server ports as edge ports (enabled).
This command only applies when RSTP is turned on. See the “Common
Internal Spanning Tree configuration” section for more information.
Command mode: Interface port
spanning-tree stp {<1-128>}
fastforward
Enables or disables Port Fast Forward on the port.
spanning-tree stp {<1-128>}
enable
Enables STP on the port.
no spanning-tree stp
{<1-128>} enable
Disables STP on the port.
show interface port {<port
number>} spanning-tree stp
{<1-128>}
Displays the current STP port parameters.
Command mode: Interface port
Command mode: Interface port
Command mode: Interface port
Command mode: All
Forwarding Database configuration
The following table describes the Forwarding Database Configuration commands.
Table 111 FDB Configuration commands
Command
Description
aging <0-65535>
Configures the aging value for FDB entries. The default value is 300.
show mac-address-table
Displays current FDB parameters.
Static FDB configuration
The following table describes the Static FDB Configuration commands.
Table 112 Static FDB Configuration commands
Command
Description
mac-address-table static
[<MAC address> vlan <VLAN>
port <port>]
Adds a static entry to the forwarding database.
no mac-address-table static
[<MAC address>| all]
Deletes a static entry from the forwarding database.
Command mode: Global configuration
Command mode: Global configuration
137
Configuration Commands
Table 112 Static FDB Configuration commands
Command
Description
mac-address-table static all
[<interface>|<VLAN>|<port>]
Clears specified static FDB entries from the forwarding database, as
follows:
• Interface
• MAC address
• VLAN
Command mode: Global configuration
Trunk configuration
Trunk groups can provide super-bandwidth connections between switches or other trunk capable devices.
A trunk is a group of ports that act together, combining their bandwidth to create a single, larger port. Up
to 12 trunk groups can be configured on the switch, with the following restrictions.
•
•
•
•
Any physical switch port can belong to no more than one trunk group.
Up to six ports can belong to the same trunk group.
All ports in a trunk must have the same configuration for speed, flow control, and auto negotiation.
Trunking from other devices must comply with Cisco® EtherChannel® technology.
NOTE: See the HP 10Gb Ethernet BL-c Switch Application Guide for information on how to use port
trunks.
The following table describes the Trunk Group Configuration commands.
Table 113 Trunk Group Configuration commands
Command
Description
portchannel {<1-12>} port
{<port number>}
Adds a physical port to the current trunk group.
no portchannel {<1-12>} port
{<port number>}
Removes a physical port from the current trunk group.
portchannel {<1-12>} enable
Enables the current trunk group.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
no portchannel {<1-12>} enable
Disables the current trunk group.
Command mode: Global configuration
no portchannel {<1-12>}
Removes the current trunk group configuration.
Command mode: Global configuration
show portchannel {<1-12>}
Displays current trunk group parameters.
Command mode: All
138
Configuration Commands
Layer 2 IP Trunk Hash configuration
Trunk hash parameters are set globally for the HP 10GbE switch. You can enable one or two parameters,
to configure any of the following valid combinations:
•
•
•
•
•
•
SMAC (source MAC only)
DMAC (destination MAC only)
SIP (source IP only)
DIP (destination IP only)
SIP + DIP (source IP and destination IP)
SMAC + DMAC (source MAC and destination MAC)
The following table describes the IP Trunk Hash Configuration commands.
Table 114 IP Trunk Hash Set commands
Command
Description
portchannel hash source-macaddress
Enable or disable trunk hashing on the source MAC.
portchannel hash destination-macaddress
Enable or disable trunk hashing on the destination MAC.
portchannel hash source-ipaddress
Enable or disable trunk hashing on the source IP.
portchannel hash destination-ipaddress
Enable or disable trunk hashing on the destination IP.
portchannel hash sourcedestination-ip
Enable trunk hashing on the source and destination IP.
portchannel hash sourcedestination-mac
Enable trunk hashing on the source and destination MAC address.
show portchannel hash
Display current trunk hash configuration.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: All
139
Configuration Commands
Link Aggregation Control Protocol configuration
The following table describes the LACP Configuration commands.
Table 115 LACP Configuration commands
Command
Description
lacp system-priority
{<1-65535>}
Defines the priority value (1 through 65535) for the switch. Lower numbers provide
higher priority. The default value is 32768.
Command mode: Global configuration
lacp timeout
{short|long}
Defines the timeout period before invalidating LACP data from a remote partner.
Choose short (3 seconds) or long (90 seconds). The default value is long.
NOTE: HP recommends that you use a timeout value of long, to reduce LACPDU
processing. If your switch’s CPU utilization rate remains at 100% for periods of 90
seconds or more, consider using static trunks instead of LACP.
Command mode: Global configuration
show lacp
Display current LACP configuration.
Command mode: All
LACP Port configuration
The following table describes the LACP Port Configuration commands.
Table 116 LACP Port Configuration commands
Command
Description
lacp mode
{off|active|passive}
Set the LACP mode for this port, as follows:
• off—Turn LACP off for this port. You can use this port to manually
configure a static trunk. The default value is off.
• active—Turn LACP on and set this port to active. Active ports initiate
LACPDUs.
• passive—Turn LACP on and set this port to passive. Passive ports do not
initiate LACPDUs, but respond to LACPDUs from active ports.
Command mode: Global configuration
lacp priority {<1-65535>}
Sets the priority value for the selected port. Lower numbers provide higher
priority. Default is 128.
Command mode: Global configuration
lacp key {<1-65535>}
Set the admin key for this port. Only ports with the same admin key and oper
key (operational state generated internally) can form a LACP trunk group.
Command mode: Global configuration
show interface port
{<port number>} lacp
Displays the current LACP configuration for this port.
Command mode: All
140
Configuration Commands
VLAN configuration
The commands in this section configure VLAN attributes, change the status of the VLAN, delete the VLAN,
and change the port membership of the VLAN.
By default, the VLANs are disabled except VLAN 1, which is always enabled. The switch supports a
maximum of 1,000 VLANs. VLAN 4095 is reserved for switch management.
NOTE: See the HP 10Gb Ethernet BL-c Switch Application Guide for information about VLANs.
The following table describes the VLAN Configuration commands.
Table 117 VLAN Configuration commands
Command
Description
vlan {<1-4094>}
Enter VLAN configuration mode.
Command mode: Global configuration
name {<1-32 characters>}
Assigns a name to the VLAN or changes the existing name. The default
VLAN name is the first one.
Command mode: VLAN configuration
stg {<1-127>}
Assigns a VLAN to a spanning tree group. If MSTP is used, the range
is 0-32 (0 = CIST).
Command mode: VLAN configuration
member {<port number>}
Adds ports to the VLAN membership.
Command mode: VLAN configuration
no member {<port number>}
Removes ports from the VLAN membership.
Command mode: VLAN configuration
enable
Enables this VLAN.
Command mode: VLAN configuration
no enable
Disables this VLAN without removing it from the configuration.
Command mode: VLAN configuration
no vlan {<1-4094>}
Deletes this VLAN.
Command mode: Global configuration
show vlan [<1-4095>]
Displays the current VLAN configuration.
Command mode: All
IMPORTANT: All ports must belong to at least one VLAN. Any port which is removed from a
VLAN and which is not a member of any other VLAN is automatically added to default VLAN 1.
You cannot remove a port from VLAN 1 if the port has no membership in any other VLAN. Also,
you cannot add a port to more than one VLAN unless the port has VLAN tagging turned on.
141
Configuration Commands
Layer 3 configuration
The following table describes basic Layer 3 Configuration commands. The following sections provide
more detailed information and commands.
Table 118 L3 Configuration commands
Command
Description
interface ip {<1-250>}
Enter IP Interface mode.
Command mode: Global configuration
route-map <1-32>
Enter IP Route Map mode.
Command mode: Global configuration
router rip
Enter Router RIP mode.
Command mode: Global configuration
router ospf
Enter Router OSPF mode.
Command mode: Global configuration
router vrrp
Enter VRRP configuration mode.
Command mode: Global configuration
ip router-id <IP address>
Sets the router ID.
Command mode: Global configuration
show layer3
Displays the current IP configuration.
Command mode: All except User EXEC
IP interface configuration
The switch can be configured with up to 250 IP interfaces. Each IP interface represents the switch on an IP
subnet on your network. The IP Interface option is disabled by default.
The following table describes the IP Interface Configuration commands.
Table 119 IP Interface Configuration commands
Command
Description
interface ip {<1-250>}
Enter IP interface mode.
Command mode: Global configuration
ip address {<IP address>}{<IP
netmask>}
Configures the IP address and mask of the switch interface using dotted
decimal notation.
Command mode: Interface IP
vlan {<1-4094>}
Configures the VLAN number for this interface. Each interface can
belong to one VLAN, though any VLAN can have multiple IP interfaces
in it.
Command mode: Interface IP
[no] relay
Enables or disables the BOOTP relay on this interface. The default value
is enabled.
Command mode: Interface IP
enable
Enables this IP interface.
Command mode: Interface IP
142
Configuration Commands
Table 119 IP Interface Configuration commands
Command
Description
no enable
Disables this IP interface.
Command mode: Interface IP
no interface ip {<1-250>}
Removes this IP interface.
Command mode: Global configuration
show interface ip {<1-250>}
Displays the current interface settings.
Command mode: All
NOTE: If you enter an IP address for interface 1, you are prompted to change the BOOTP setting.
Default Gateway configuration
The switch supports up to four gateways, plus management gateway 254. By default, no gateways are
configured on the switch. Enter 1, 2, 3, 4, or 254 in the command as the ip gateway instance,
depending upon which gateway you want to configure.
The following table describes the Default IP Gateway Configuration commands.
Table 120 Default IP Gateway Configuration commands
Command
Description
ip gateway {<1-4, 254>}
address {<IP address>}
Configures the IP address of the default IP gateway using dotted decimal
notation.
Command mode: Global configuration
ip gateway {<1-4, 254>}
interval {<0-60>}
The switch pings the default gateway to verify that it is up. This option sets the
time between health checks. The range is from 0 to 60 seconds. The default is
2 seconds.
Command mode: Global configuration
ip gateway {<1-4, 254>}
retry {<1-120>}
Sets the number of failed health check attempts required before declaring this
default gateway inoperative. The range is from 1 to 120 attempts. The default
is 8 attempts.
Command mode: Global configuration
[no] ip gateway {<1-4,
254>} arp-health-check
Enables or disables Address Resolution Protocol (ARP) health checks. This
command is disabled by default.
Command mode: Global configuration
ip gateway {<1-4, 254>}
enable
Enables the gateway for use.
no ip gateway {<1-4,
254>} enable
Disables the gateway.
no ip gateway {<1-4,
254>}
Deletes the gateway from the configuration.
show ip gateway {<1-4,
254>}
Displays the current gateway settings.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
143
Configuration Commands
IP Static Route configuration
The following table describes the Static Route Configuration commands.
Table 121 Static Route Configuration commands
Command
Description
ip route <IP subnet> <IP netmask>
<IP nexthop> [<IP interface (1-250)>]
Adds a static route. You will be prompted to enter a
destination IP address, destination subnet mask, and gateway
address. Enter all addresses using dotted decimal notation.
Command mode: Global configuration
Removes a static route. The destination address of the route to
remove must be specified using dotted decimal notation.
no ip route {<IP subnet>}{<IP
netmask>}
Command mode: Global configuration
Displays the current IP static route configuration.
show ip route static
Command mode: All except User Exec
Address Resolution Protocol configuration
Address Resolution Protocol (ARP) is the TCP/IP protocol that resides within the Internet layer. ARP resolves
a physical address from an IP address. ARP queries machines on the local network for their physical
addresses. ARP also maintains IP to physical address pairs in its cache memory. In any IP communication,
the ARP cache is consulted to see if the IP address of the computer or the router is present in the ARP
cache. Then the corresponding physical address is used to send a packet.
The following table describes the ARP Configuration commands.
Table 122 ARP Configuration commands
Command
Description
ip arp rearp <2-120>
Defines re-ARP period in minutes. You can set this duration between 2
and 120 minutes.
show ip arp
Displays the current ARP configurations.
Command mode: All except User EXEC
144
Configuration Commands
Static ARP configuration
Static ARP entries are permanent in the ARP cache and do not age out like the ARP entries that are
learnt dynamically. Static ARP entries enable the switch to reach the hosts without sending an ARP
broadcast request to the network. Static ARPs are also useful to communicate with devices that do
not respond to ARP requests. Static ARPs can also be configured on some gateways as a protection
against malicious ARP Cache corruption and possible DOS attacks.
The following table describes the Static ARP Configuration commands.
Table 123 Static ARP Configuration commands
Command
Description
ip arp <IP address> <MAC
address> <VLAN number> <port
number>
Adds a permanent ARP entry.
no ip arp {<IP address>}
Deletes a permanent ARP entry.
Command mode: Global configuration
Command mode: Global configuration
clear ip arp-cache
Clears static ARP entries.
Command mode: Global configuration
show ip arp static
Displays current static ARP configuration.
Command mode: All except User EXEC
145
Configuration Commands
IP Forwarding configuration
The following table describes the IP Forwarding Configuration commands.
Table 124 IP Forwarding Configuration commands
Command
Description
[no] ip routing direct-broadcasts
Enables or disables forwarding directed broadcasts. This
command is disabled by default.
Command mode: Global configuration
ip routing
Enables IP forwarding (routing) on the switch.
Command mode: Global configuration
no ip routing
Disables IP forwarding (routing) on the switch. Forwarding is
turned off by default.
Command mode: Global configuration
show ip routing
Displays the current IP forwarding settings.
Command mode: All except User EXEC
Network Filter configuration
The following table describes the Network Filter Configuration commands.
Table 125 Network Filter Configuration commands
Command
Description
ip match-address <1-256> <IP address>
<IP netmask>
Sets the starting IP address the IP subnet mask for this filter.
The default address is 0.0.0.0.
This command defines the range of IP addresses that will be
accepted by the peer when the filter is enabled.
Command mode: Global configuration
ip match-address <1-256> enable
Enables the Network Filter configuration.
Command mode: Global configuration
no ip match-address <1-256> enable
Disables the Network Filter configuration.
Command mode: Global configuration
no ip match-address <1-256>
Deletes the Network Filter configuration.
Command mode: Global configuration
show ip match-address [<1-256>]
Displays the current the Network Filter configuration.
Command mode: All except User EXEC
146
Configuration Commands
Route Map configuration
Routing maps control and modify routing information. The map number <1-32> represents the routing
map you wish to configure.
The following table describes the basic Route Map Configuration commands. The following sections
provide more detailed information and commands.
Table 126 Route Map Configuration commands
Command
Description
route-map <1-32>
Enter Route Map configuration mode.
Command mode: Global configuration
[no] access-list <1-8>
Configures the Access List.
Command mode: Route Map
[no] metric <0-16777214>
Sets the metric of the matched route.
Command mode: Route Map
[no] metric-type {type1|type2}
Assigns the type of OSPF metric. The default is type 1.
• Type 1—External routes are calculated using both internal and
external metrics.
• Type 2—External routes are calculated using only the external
metrics. Type 2 routes have more cost than Type 2.
• none—Removes the OSPF metric.
Command mode: Route Map
precedence <1-256>
Sets the precedence of the route map. The smaller the value, the
higher the precedence. Default value is 10.
Command mode: Route Map
enable
Enables the route map.
Command mode: Route Map
no enable
Disables the route map.
Command mode: Route Map
no route-map <1-32>
Deletes the route map.
Command mode: Route Map
show route-map [<1-32>]
Displays the current route configuration.
Command mode: All except User EXEC
147
Configuration Commands
IP Access List configuration
The route map number <1-32> and the access list number <1-8> represent the IP access list you wish to
configure. The following table describes the IP Access List Configuration commands.
Table 127 IP Access List Configuration commands
Command
Description
[no] access-list <1-8> match-address <1-32>
Sets the network filter number.
Command mode: Route Map
[no] access-list <1-8> metric <1-16777214>
Sets the metric value in the AS-External (ASE) LSA.
Command mode: Route Map
access-list <1-8> action {permit|deny}
Permits or denies action for the access list.
Command mode: Route Map
Enables the access list.
access-list <1-8> enable
Command mode: Route Map
Disables the access list.
no access-list <1-8> enable
Command mode: Route Map
Deletes the access list.
no access-list <1-8>
Command mode: Route Map
show route-map <1-32> access-list {<1-8>}
Displays the current Access List configuration.
Command mode: All except User EXEC
Routing Information Protocol configuration
The RIP commands are used for configuring Routing Information Protocol parameters. This option is turned
off by default.
The following table describes the basic RIP Configuration commands. The following section provides more
detailed information and commands.
Table 128 RIP Configuration commands
Command
Description
router rip
Enter router RIP configuration mode.
Command mode: Global configuration
timers update {<1-120>}
Configures the time interval for sending for RIP table updates, in seconds.
The default value is 30 seconds.
Command mode: Router RIP
enable
Globally turns RIP on.
Command mode: Router RIP
no enable
Globally turns RIP off.
Command mode: Router RIP
show ip rip
Displays the current RIP configuration.
Command mode: All except User EXEC
148
Configuration Commands
RIP Interface configuration
The RIP commands are used for configuring Routing Information Protocol parameters. This option is turned
off by default.
NOTE: Do not configure RIP version 1 parameters if your routing equipment uses RIP version 2.
The following table describes the RIP Interface Configuration commands.
Table 129 RIP Interface Configuration commands
Command
Description
ip rip version {1|2|both}
Configures the RIP version used by this interface.
The default value is version 2.
Command mode: Interface IP
[no] ip rip supply
When enabled, the switch supplies routes to other routers. This
command is enabled by default.
Command mode: Interface IP
[no] ip rip listen
When enabled, the switch learns routes from other routers. This
command is enabled by default.
Command mode: Interface IP
[no] ip rip poison
When enabled, the switch uses split horizon with poisoned reverse.
When disabled, the switch uses only split horizon. This command is
disabled by default.
Command mode: Interface IP
[no] ip rip split-horizon
Enables or disables split horizon. The default value is enabled.
[no] ip rip triggered
Enables or disables Triggered Updates. Triggered Updates are used
to speed convergence. When enabled, Triggered Updates force a
router to send update messages immediately, even if it is not yet time
for the update message. The default value is disabled.
Command mode: Interface IP
[no] ip rip multicast-updates
Enables or disables multicast updates of the routing table (using
address 224.0.0.9). The default value is enabled.
Command mode: Interface IP
[no] ip rip default-action
{none|listen|supply|both}
When enabled, the switch accepts RIP default routes from other
routers, but gives them lower priority than configured default
gateways. When disabled, the switch rejects RIP default routes.
The default value is disabled.
Command mode: Interface IP
[no] ip rip metric {<1-15>}
Configures the route metric, which indicates the relative distance to
the destination. The default value is 1.
Command mode: Interface IP
[no] ip rip authentication type
{<password>}
Configures the authentication type. The default is none.
Command mode: Interface IP
149
Configuration Commands
Table 129 RIP Interface Configuration commands
Command
Description
ip rip authentication key
{<password>}
Configures the authentication key password.
ip rip enable
Enables this RIP interface.
Command mode: Interface IP
Command mode: Interface IP
no ip rip enable
Disables this RIP interface.
Command mode: Interface IP
show interface ip [<1-250>] rip
Displays the current RIP configuration.
Command mode: All except User EXEC
RIP Route Redistribution configuration
The following table describes the RIP Route Redistribute commands.
Table 130 RIP Redistribute commands
Command
Description
redistribute
{fixed|static|ospf|eospf} <1-32>
Adds selected routing maps to the RIP route redistribution list. This
option adds a route map to the route redistribution list. The routes of
the redistribution protocol matched by the route maps in the route
redistribution list will be redistributed.
Command mode: Router RIP
no redistribute
{fixed|static|ospf|eospf} <1-32>
Removes the route map from the RIP route redistribution list.
redistribute
{fixed|static|ospf|eospf} export
metric <1-15>
Exports the routes of this protocol in which the metric and metric type
are specified. To remove a previous configuration and stop exporting
the routes of the protocol, enter none.
Command mode: Router RIP
Command mode: Router RIP
show ip rip redistribute
Displays the current RIP route redistribute configuration.
Command mode: Router RIP
150
Configuration Commands
Open Shortest Path First configuration
The following table describes the basic Open Shortest Path First (OSPF) commands. The following sections
provide more detailed information and commands.
Table 131 OSPF Configuration commands
Command
Description
router ospf
Enter Router OSPF configuration mode.
Command mode: Router OSPF
area <0-2>
Configures the OSPF area.
Command mode: Router OSPF
area-range <0-16>
Configures the summary range.
Command mode: Router OSPF
ip ospf <1-249)>
Configures the OSPF interface.
Command mode: Interface IP
area-virtual-link <1-3>
Configures a Virtual Link.
Command mode: Router OSPF
message-digest-key <1-255>
md5-key <key string>
Assigns a string to MD5 authentication key.
host <1-128>
Configures an OSPF host route. Up to 128 host routes can be configured.
Host routes are used for advertising network device IP addresses to external
networks to perform server load balancing within OSPF. It also makes Area
Border Route (ABR) load sharing and ABR failover possible.
Command mode: Router OSPF
Command mode: Router OSPF
lsdb-limit <0-2000>
Sets the link state database limit.
Command mode: Router OSPF
[no] default-information
<1-16777214> <as-value>
Sets one default route among multiple choices in an area.
enable
Enables OSPF.
Command mode: Router OSPF
Command mode: Router OSPF
no enable
Disables OSPF.
Command mode: Router OSPF
show ip ospf
Displays the current OSPF configuration settings.
Command mode: All except User EXEC
151
Configuration Commands
OSFP Area Index configuration
The following table describes the Area Index Configuration commands.
Table 132 OSPF Area Index Configuration commands
Command
Description
area <0-2> area-id <A.B.C.D>
Defines the area ID of the OSPF area number.
Command mode: Router OSPF
area <0-2> type
{transit|stub|nssa}
Defines the type of area. For example, when a virtual link has to be
established with the backbone, the area type must be defined as
transit.
• transit—allows area summary information to be exchanged
between routing devices. Any area that is not a stub area or
NSSA is considered to be transit area.
• stub—is an area where external routing information is not
distributed. Typically, a stub area is connected to only one
other area.
• nssa—Not-So-Stubby Area (NSSA) is similar to stub area with
additional capabilities. For example, routes originating from
within the NSSA can be propagated to adjacent transit and
backbone areas. External routes from outside the Autonomous
System (AS) can be advertised within the NSSA but are not
distributed into other areas.
Command mode: Router OSPF
area <0-2> stub-metric <1-65535>
Configures a stub area to send a numeric metric value. All routes
received via that stub area carry the configured metric to
potentially influencing routing decisions.
Metric value assigns the priority for choosing the switch for default
route. Metric type determines the method for influencing routing
decisions for external routes.
Command mode: Router OSPF
[no] area <0-2> authenticationtype {password|md5}
Defines the authentication method, as follows:
• no—No authentication required.
• password—Authenticates simple passwords so that only
trusted routing devices can participate.
• md5—This parameter is used when MD5 cryptographic
authentication is required.
Command mode: Router OSPF
area <0-2> spf-interval <0-255>
Sets time interval between two successive SPF (shortest path first)
calculations of the shortest path tree using the Dijkstra’s algorithm.
Command mode: Router OSPF
area <0-2> enable
Enables the OSPF area.
Command mode: Router OSPF
no area <0-2> enable
Disables the OSPF area.
Command mode: Router OSPF
no area <0-2>
Deletes the OSPF area.
Command mode: Router OSPF
152
Configuration Commands
Table 132 OSPF Area Index Configuration commands
Command
Description
show ip ospf area <0-2>
Displays the current OSPF configuration.
Command mode: All except User EXEC
OSPF Summary Range configuration
The following table describes the OSPF Summary Range Configuration commands.
Table 133 OSPF Summary Range Configuration commands
Command
Description
area-range <1-16> address
<IP address> <IP netmask>
Configures the base IP address and IP address mask for the range.
area-range <1-16> area <0-2>
Configures the area index used by the switch.
Command mode: Router OSPF
Command mode: Router OSPF
[no] area-range <1-16> hide
Hides the OSPF summary range.
Command mode: Router OSPF
area-range <1-16> enable
Enables the OSPF summary range.
Command mode: Router OSPF
no area-range <1-16> enable
Disables the OSPF summary range.
Command mode: Router OSPF
no area-range <1-16>
Deletes the OSPF summary range.
Command mode: Router OSPF
show ip ospf area-range <1-16>
Displays the current OSPF summary range.
Command mode: All except User EXEC
153
Configuration Commands
OSPF Interface configuration
The following table describes the OSPF Interface Configuration commands.
Table 134 OSPF Interface Configuration commands
Command
Description
ip ospf area <0-2>
Configures the OSPF area index.
Command mode: Interface IP
ip ospf priority <0-255>
Configures the assigned priority value to the OSPF interfaces.
(A priority value of 255 is the highest and 1 is the lowest. A priority value of 0
specifies that the interface cannot be used as Designated Router (DR) or Backup
Designated Router (BDR).)
Command mode: Interface IP
ip ospf cost <1-65535>
Configures cost set for the selected path—preferred or backup. Usually the cost
is inversely proportional to the bandwidth of the interface. Low cost indicates
high bandwidth.
Command mode: Interface IP
ip ospf hello-interval
<1-65535>
ip ospf dead-interval
<1-65535>
Configures the interval in seconds between the hello packets for the interfaces.
Command mode: Interface IP
Configures the health parameters of a hello packet, which is set for an interval
of seconds before declaring a silent router to be down.
Command mode: Interface IP
ip ospf transit-delay
<1-3600>
Configures the transit delay in seconds.
ip ospf retransmitinterval <1-3600>
Configures the retransmit interval in seconds.
[no] ip ospf key <key
string>
Sets the authentication key to clear the password.
[no] ip ospf messagedigest-key <1-255>
Assigns an MD5 key to the interface.
ip ospf enable
Enables the OSPF interface.
Command mode: Interface IP
Command mode: Interface IP
Command mode: Interface IP
Command mode: Interface IP
Command mode: Interface IP
no ip ospf enable
Disables the OSPF interface.
Command mode: Interface IP
no ip ospf
Deletes the OSPF interface.
Command mode: Interface IP
show interface ip ospf
{<1-250>}
Displays the current settings for OSPF interface.
Command mode: All except User EXEC
154
Configuration Commands
OSPF Virtual Link configuration
The following table describes the OSPF Virtual Link Configuration commands.
Table 135 OSPF Virtual Link Configuration commands
Command
Description
area-virtual-link <1-3> area
<0-2>
Configures the OSPF area index.
area-virtual-link <1-3>
hello-interval <1-65535>
Configures the authentication parameters of a hello packet, which is set to
be in an interval of seconds.
Command mode: Router OSPF
Command mode: Router OSPF
area-virtual-link <1-3>
dead-interval <1-65535>
Configures the health parameters of a hello packet, which is set to be in an
interval of seconds. Default is 40 seconds.
Command mode: Router OSPF
area-virtual-link <1-3>
transit-delay <1-3600>
Configures the delay in transit in seconds. Default is one second.
area-virtual-link <1-3>
retransmit-interval <1-3600>
Configures the retransmit interval in seconds. Default is five seconds.
area-virtual-link <1-3>
neighbor-router <IP address>
Configures the router ID of the virtual neighbor. Default is 0.0.0.0.
[no] area-virtual-link <1-3>
key <key string>
Configures the password (up to eight characters) for each virtual link.
Default is none.
Command mode: Router OSPF
Command mode: Router OSPF
Command mode: Router OSPF
Command mode: Router OSPF
area-virtual-link <1-3>
message-digest-key <1-255>
Sets MD5 key ID for each virtual link. Default is none.
Command mode: Router OSPF
area-virtual-link <1-3>
enable
Enables OSPF virtual link.
no area-virtual-link <1-3>
enable
Disables OSPF virtual link.
no area-virtual-link <1-3>
Deletes OSPF virtual link.
Command mode: Router OSPF
Command mode: Router OSPF
Command mode: Router OSPF
show ip ospf area-virtuallink <1-3>
Displays the current OSPF virtual link settings.
Command mode: All except User EXEC
155
Configuration Commands
OSPF Host Entry configuration
The following table describes the OSPF Host Entry Configuration commands.
Table 136 OSPF Host Entry Configuration commands
Command
Description
host <1-128> address <IP address>
Configures the base IP address for the host entry.
Command mode: Router OSPF
host <1-128> area <0-2>
Configures the area index of the host.
Command mode: Router OSPF
host <1-128> cost <1-65535>
Configures the cost value of the host.
Command mode: Router OSPF
host <1-128> enable
Enables OSPF host entry.
Command mode: Router OSPF
no host <1-128> enable
Disables OSPF host entry.
Command mode: Router OSPF
no host <1-128>
Deletes OSPF host entry.
Command mode: Router OSPF
show ip ospf host {<1-128>}
Displays the current OSPF host entries.
Command mode: All except User EXEC
OSPF Route Redistribution configuration
The following table describes the OSPF Route Redistribution Configuration commands.
Table 137 OSPF Route Redistribution Configuration commands
Command
Description
redistribute {fixed|static|rip}
{<1-32>}
Adds selected routing maps to the rmap list.
This option adds a route map to the route redistribution list. The
routes of the redistribution protocol matched by the route maps
in the route redistribution list will be redistributed.
Command mode: Router OSPF
no redistribute {fixed|static|rip}
{<1-32>}
Removes the route map from the route redistribution list.
Removes routing maps from the rmap list.
Command mode: Router OSPF
[no] redistribute {fixed|static|rip}
export metric <1-16777214> metrictype {type1|type2}
Exports the routes of this protocol as external OSPF AS-external
LSAs in which the metric and metric type are specified.
show ip ospf redistribute
Displays the current route map settings.
Command mode: Router OSPF
Command mode: All except User EXEC
156
Configuration Commands
OSPF MD5 Key configuration
The following table describes the OSPF MD5 Key Configuration commands.
Table 138 OSPF MD5 Key Configuration commands
Command
Description
message-digest-key <1-255> md5-key
<key string>
Sets the authentication key for this OSPF packet.
no message-digest-key <1-255>
Deletes the authentication key for this OSPF packet.
Command mode: Router OSPF
Command mode: Router OSPF
show ip ospf message-digest-key
<1-255>
Displays the current MD5 key configuration.
Command mode: All except User EXEC
IGMP configuration
IGMP Snooping allows the switch to forward multicast traffic only to those ports that request it. IGMP
Snooping prevents multicast traffic from being flooded to all ports. The switch learns which server hosts
are interested in receiving multicast traffic, and forwards it only to ports connected to those servers.
IGMP Snooping configuration
The following table describes the IGMP Snooping Configuration commands.
Table 139 IGMP Snooping commands
Command
Description
ip igmp snoop timeout <1-255>
Sets the Maximum Response Time (MRT) for IGMP hosts. MRT is one
of the parameters used to determine the age out period of the IGMP
hosts. Increasing the timeout increases the age out period.
The range is from 1 to 255 seconds. The default is 10 seconds.
Command mode: Global configuration
ip igmp snoop mrouter-timeout
<1-600>
Configures the age-out period for the IGMP Mrouters in the Mrouter
table. If the switch does not receive a General Query from the
Mrouter for mrto seconds, the switch removes the multicast router
from its Mrouter table.
The range is from 1 to 600 seconds. The default is 255 seconds.
Command mode: Global configuration
ip igmp snoop query-interval
<1-600>
Sets the IGMP router query interval. The range is 1-600 seconds. The
default value is 125.
Command mode: Global configuration
ip igmp snoop robust <2-10>
Configures the IGMP Robustness variable, which allows you to tune
the switch for expected packet loss on the subnet. If the subnet is
expected to be lossy (high rate of packet loss), then increase the
value. The default value is 2.
Command mode: Global configuration
157
Configuration Commands
Table 139 IGMP Snooping commands
Command
Description
[no] ip igmp snoop flood
Configures the switch to flood unregistered IP multicast reports to all
ports.
Command mode: Global configuration
[no] ip igmp snoop aggregate
Enables or disables IGMP Membership Report aggregation.
Command mode: Global configuration
ip igmp snoop source-ip <IP
address>
Configures the source IP address used as a proxy for IGMP Group
Specific Queries.
Command mode: Global configuration
ip igmp snoop vlan <1-4094>
Adds the VLAN to IGMP Snooping.
Command mode: Global configuration
no ip igmp snoop vlan <1-4094>
Removes the VLAN from IGMP Snooping.
Command mode: Global configuration
no ip igmp snoop vlan all
Removes all VLANs from IGMP Snooping.
Command mode: Global configuration
[no] ip igmp snoop vlan <1-4094>
fastleave
Enables or disables FastLeave processing. FastLeave allows the
switch to immediately remove a port from the IGMP port list, if the
host sends a Leave message, and the proper conditions are met. This
command is disabled by default.
Command mode: Global configuration
ip igmp snoop enable
Enables IGMP Snooping.
Command mode: Global configuration
no ip igmp snoop enable
Disables IGMP Snooping.
Command mode: Global configuration
show ip igmp snoop
Displays the current IGMP Snooping parameters.
Command mode: All except User EXEC
IGMPv3 Snooping configuration
The following table describes the IGMP version 3 Snooping Configuration commands.
Table 140 IGMPv3 Snooping commands
Command
Description
ip igmp snoop igmpv3 sources
{<1-64>}
Configures the maximum number of IGMP multicast sources to snoop
from within the group record. Use this command to limit the number
of IGMP sources to provide more refined control.
Command mode: Global configuration
[no] ip igmp snoop igmpv3 v1v2
Enables or disables snooping on IGMP version 1 and version 2
reports. When disabled, the switch drops IGMPv1 and IGMPv2
reports. The default value is enabled.
Command mode: Global configuration
158
Configuration Commands
Table 140 IGMPv3 Snooping commands
Command
Description
[no] ip igmp snoop igmpv3
exclude
Enables or disables snooping on IGMPv3 Exclude Reports. When
disabled, the switch ignores Exclude Reports. The default value is
enabled.
Command mode: Global configuration
ip igmp snoop igmpv3 enable
Enables IGMP version 3. The default value is disabled.
Command mode: Global configuration
no ip igmp snoop igmpv3 enable
Disables IGMP version 3.
Command mode: Global configuration
show ip igmp
Displays the current IGMP configuration.
Command mode: All except User EXEC
159
Configuration Commands
IGMP static multicast router configuration
The following table describes the Static Multicast Router Configuration commands.
NOTE: When you configure a static multicast router on a VLAN, the process of learning multicast
routers is disabled for that VLAN.
Table 141 IGMP Static Multicast Router commands
Command
Description
ip igmp mrouter <port number>
<1-4094> <1-3>
Selects a port/VLAN combination on which the static multicast router
is connected, and configures the IGMP version (1, 2, or 3) of the
multicast router.
Command mode: Global configuration
no ip igmp mrouter <port
number> <1-4094> <1-3>
Removes a static multicast router from the selected port/VLAN
combination.
Command mode: Global configuration
ip igmp mrouter portchannel
{<trunk number (1-12)>|<LACP
trunk (13-40>} <1-4094> <1-3>
Selects a trunk group/VLAN combination on which the static multicast
router is connected, and configures the IGMP version (1, 2, or 3) of
the multicast router.
Command mode: Global configuration
no ip igmp mrouter portchannel
{<trunk number (1-12)>|<LACP
trunk (13-40>} <1-4094> <1-3>
Selects a trunk group/VLAN combination on which the static multicast
router is connected, and configures the IGMP version (1, 2, or 3) of
the multicast router.
Command mode: Global configuration
show ip igmp mrouter
Displays the current IGMP Static Multicast Router parameters.
Command mode: All except User EXEC
IGMP filtering configuration
The following table describes the IGMP Filter Configuration commands.
Table 142 IGMP Filtering commands
Command
Description
ip igmp profile <1-16>
Configures the IGMP filter.
Command mode: Global configuration
ip igmp filtering
Enables IGMP filtering globally.
Command mode: Global configuration
no ip igmp filtering
Disables IGMP Filtering globally.
Command mode: Global configuration
show ip igmp filtering
Displays the current IGMP Filtering parameters.
Command mode: All except User EXEC
160
Configuration Commands
IGMP filter definition
The following table describes the IGMP Filter Definition commands.
Table 143 IGMP Filter Definition commands
Command
Description
ip igmp profile <1-16> range <IP
multicast address> <IP multicast
address>
Configures the range of IP multicast addresses for this filter.
Enter the first IP multicast address of the ranger, followed by the
second IP multicast address of the range.
Command mode: Global configuration
ip igmp profile <1-16> action
{allow|deny}
Allows or denies multicast traffic for the IP multicast addresses
specified.
Command mode: Global configuration
ip igmp profile <1-16> enable
Enables this IGMP filter.
Command mode: Global configuration
no ip igmp profile <1-16> enable
Disables this IGMP filter.
Command mode: Global configuration
no ip igmp profile <1-16>
Deletes this filter’s parameter definitions.
Command mode: Global configuration
show ip igmp profile <1-16>
Displays the current IGMP filter.
Command mode: All except User EXEC
IGMP filtering port configuration
The following table describes the IGMP Port Filtering Configuration commands.
Table 144 IGMP Filtering Port commands
Command
Description
[no] ip igmp filtering
Enables or disables IGMP Filtering on this port.
Command mode: Interface port
ip igmp profile <1-16>
Adds an IGMP filter to this port.
Command mode: Interface port
no ip igmp profile <1-16>
Removes an IGMP filter from this port.
Command mode: Interface port
show interface port {<port number>}
igmp-filtering
Displays the current IGMP filter parameters for this port.
Command mode: All except User EXEC
161
Configuration Commands
Domain Name System configuration
The Domain Name System (DNS) Configuration commands are used for defining the primary and
secondary DNS servers on your local network, and for setting the default domain name served by the
switch services. DNS parameters must be configured prior to using hostname parameters with the ping,
traceroute, and tftp commands.
The following table describes the Domain Name System (DNS) Configuration commands.
Table 145 Domain Name System (DNS) Configuration commands
Command
Description
[no] ip dns primary-server <IP
address>
Sets the IP address for your primary DNS server. Use dotted
decimal notation.
Command mode: Global configuration
[no] ip dns secondary-server <IP
address>
Sets the IP address for your secondary DNS server. If the primary
DNS server fails, the configured secondary will be used instead.
Enter the IP address using dotted decimal notation.
Command mode: Global configuration
[no] ip domain-name <string>
Sets the default domain name used by the switch. For example:
mycompany.com.
Command mode: Global configuration
show ip dns
Displays the current Domain Name System (DNS) settings.
Command mode: All except User EXEC
Bootstrap Protocol Relay configuration
Bootstrap Protocol (BOOTP) Relay is used to allow hosts to obtain their configurations from a Dynamic
Host Configuration Protocol (DHCP) server. The BOOTP configuration enables the switch to forward a
client request for an IP address to two DHCP/BOOTP servers with IP addresses that have been configured
on the HP 10GbE switch.
BOOTP relay is turned off by default.
The following table describes the BOOTP Configuration commands.
Table 146 BOOTP Configuration commands
Command
Description
[no] ip bootp-relay server <IP address>
Sets the IP address of the first or second BOOTP server.
Command mode: Global configuration
ip bootp-relay enable
Globally turns on BOOTP relay.
Command mode: Global configuration
no ip bootp-relay enable
Globally turns on BOOTP relay.
Command mode: Global configuration
show ip bootp-relay
Displays the current BOOTP relay configuration.
Command mode: All
162
Configuration Commands
Virtual Router Redundancy Protocol configuration
Virtual Router Redundancy Protocol (VRRP) support on the HP 10GbE switch provides redundancy
between routers in a LAN. This is accomplished by configuring the same virtual router IP address and ID
number on each participating VRRP-capable routing device. One of the virtual routers is then elected as
the master, based on a number of priority criteria, and assumes control of the shared virtual router IP
address. If the master fails, one of the backup virtual routers will assume routing authority and take control
of the virtual router IP address.
By default, VRRP is disabled. For more information on VRRP, see the “High Availability” chapter in the
HP 10Gb Ethernet BL-c Switch Application Guide.
The following table describes the basic VRRP Configuration commands. The following sections provide
more detailed information and commands.
Table 147 VRRP Configuration commands
Command
Description
router vrrp
Enter VRRP configuration mode.
Command mode: Router VRRP
enable
Globally enables VRRP on this switch.
Command mode: Router VRRP
no enable
Globally disables VRRP on this switch.
Command mode: Router VRRP
show ip vrrp
Displays the current VRRP parameters.
Command mode: All except User EXEC
163
Configuration Commands
VRRP Virtual Router configuration
Virtual Router commands are used for configuring virtual routers for this switch. A virtual router is defined
by its virtual router ID and an IP address. On each VRRP-capable routing device participating in
redundancy for this virtual router, a virtual router will be configured to share the same virtual router ID
and IP address.
Virtual routers are disabled by default.
The following table describes the Virtual Router Configuration commands.
Table 148 Virtual Router Configuration commands
Command
Description
virtual-router <1-250>
virtual-router-id <1-250>
Defines the virtual router ID. This is used in conjunction with addr (below) to
define a virtual router on this switch. To create a pool of VRRP-enabled
routing devices which can provide redundancy to each other, each
participating VRRP device must be configured with the same virtual router:
one that shares the same virtual router ID and address
combination.
The vrid for standard virtual routers (where the virtual router IP address is
not the same as any virtual server) can be any integer between 1 and 250.
The default value is 1.
All virtual router ID values must be unique within the VLAN to which
the virtual router’s IP interface belongs.
Command mode: Router VRRP
[no] virtual-router <1-250>
address <IP address>
Defines the IP address for this virtual router using dotted decimal notation.
This is used in conjunction with the vrid (above) to configure the same
virtual router on each participating VRRP device. The default address is
0.0.0.0.
Command mode: Router VRRP
virtual-router <1-250>
interface <1-249>
Selects a switch IP interface. If the IP interface has the same IP address as
the address option above, this switch is considered the “owner” of the
defined virtual router. An owner has a special priority of 255 (highest) and
will always assume the role of master router, even if it must preempt another
virtual router which has assumed master routing authority. This preemption
occurs even if the preemption option below is disabled.
The default value is 1.
Command mode: Router VRRP
virtual-router <1-250>
priority <1-254>
Defines the election priority bias for this virtual server. This can be any
integer between 1 and 254. The default value is 100.
During the master router election process, the routing device with the highest
virtual router priority number wins. If there is a tie, the device with the
highest IP interface address wins. If this virtual router’s IP address is the
same as the one used by the IP interface, the priority for this virtual router
will automatically be set to 255 (highest).
When priority tracking is used, this base priority value can be modified
according to a number of performance and operational criteria.
Command mode: Router VRRP
virtual-router <1-250>
timers advertise <1-255>
Defines the time interval between VRRP master advertisements. This can be
any integer between 1 and 255 seconds. The default value is 1.
Command mode: Router VRRP
164
Configuration Commands
Table 148 Virtual Router Configuration commands
Command
Description
[no] virtual-router <1-250>
preemption
Enables or disables master preemption. When enabled, if this virtual router
is in backup mode but has a higher priority than the current master, this
virtual router will preempt the lower priority master and assume control.
Note that even when preemption is disabled, this virtual router will
always preempt any other master if this switch is the owner (the IP interface
address and virtual router address are the same). By default, this option is
enabled.
virtual-router <1-250>
enable
Enables this virtual router.
no virtual-router <1-250>
enable
Disables this virtual router.
no virtual-router <1-250>
Deletes this virtual router from the switch configuration.
Command mode: Router VRRP
Command mode: Router VRRP
Command mode: Router VRRP
show ip vrrp virtual-router
<1-255>
Displays the current configuration information for this virtual router.
Command mode: All except User EXEC
VRRP Virtual Router Priority Tracking configuration
These commands are used to modify the priority system used when electing the master router from a pool
of virtual routers. Various tracking criteria can be used to bias the election results. Each time one of the
tracking criteria is met, the priority level for the virtual router is increased by an amount defined through
VRRP Tracking.
Criteria are tracked dynamically, continuously updating virtual router priority levels when enabled. If the
virtual router preemption option is enabled, this virtual router can assume master routing authority when its
priority level rises above that of the current master.
Some tracking criteria (virtual routers, interfaces, and ports below) apply to standard virtual
routers, otherwise called virtual interface routers. A virtual server router is defined as any virtual router
whose IP address is the same as any configured virtual server IP address.
The following table describes the Virtual Router Priority Tracking Configuration commands.
Table 149 Virtual Router Priority Tracking Configuration commands
Command
Description
[no] virtual-router <1-250>
track virtual-routers
When enabled, the priority for this virtual router will be increased for each
virtual router in master mode on this switch. This is useful for making sure
that traffic for any particular client/server pairing are handled by the same
switch, increasing routing and load balancing efficiency. This command is
disabled by default.
Command mode: Router VRRP
165
Configuration Commands
Table 149 Virtual Router Priority Tracking Configuration commands
Command
Description
[no] virtual-router <1-250>
track interfaces
When enabled, the priority for this virtual router will be increased for each
other IP interface active on this switch. An IP interface is considered active
when there is at least one active port on the same VLAN. This helps elect
the virtual routers with the most available routes as the master. This
command is disabled by default.
Command mode: Router VRRP
[no] virtual-router <1-250>
track ports
When enabled, the priority for this virtual router will be increased for each
active port on the same VLAN. A port is considered active if it has a link
and is forwarding traffic. This helps elect the virtual routers with the most
available ports as the master. This command is disabled by default.
Command mode: Router VRRP
show ip vrrp virtual-router
<1-250> track
Displays the current configuration for priority tracking for this virtual router.
Command mode: All except User EXEC
VRRP Virtual Router Group configuration
The Virtual Router Group commands are used for associating all virtual routers into a single logical virtual
router, which forces all virtual routers on the switch to either be master or backup as a group. A virtual
router is defined by its virtual router ID and an IP address. On each VRRP-capable routing device
participating in redundancy for this virtual router, a virtual router will be configured to share the same
virtual router ID and IP address.
The following table describes the Virtual Router Group Configuration commands.
Table 150 Virtual Router Group Configuration commands
Command
Description
group virtual-router-id
<1-250>
Defines the virtual router ID.
The virtual router ID for standard virtual routers (where the virtual
router IP address is not the same as any virtual server) can be any integer
between 1 and 250. All virtual router ID values must be unique
within the VLAN to which the virtual router’s IP interface belongs. The default
virtual router ID is 1.
Command mode: Router VRRP
group interface <1-249>
Selects a switch IP interface. The default switch IP interface number is 1.
Command mode: Router VRRP
group priority <1-254>
Defines the election priority bias for this virtual router group. This can be any
integer between 1 and 254. The default value is 100.
During the master router election process, the routing device with the highest
virtual router priority number wins. If there is a tie, the device with the highest
IP interface address wins. If this virtual router’s IP address is the same as the
one used by the IP interface, the priority for this virtual router will
automatically be set to 255 (highest).
When priority tracking is used, this base priority value can be modified
according to a number of performance and operational criteria.
Command mode: Router VRRP
166
Configuration Commands
Table 150 Virtual Router Group Configuration commands
Command
Description
group advertisement
<1-255>
Defines the time interval between VRRP master advertisements. This can be
any integer between 1 and 255 seconds. The default is 1.
Command mode: Router VRRP
[no] group preemption
Enables or disables master preemption. When enabled, if the virtual router
group is in backup mode but has a higher priority than the current master,
this virtual router will preempt the lower priority master and assume control.
Note that even when preemption is disabled, this virtual router will always
preempt any other master if this switch is the owner (the IP interface address
and virtual router address are the same). By default, this option is enabled.
Command mode: Router VRRP
group enable
Enables the virtual router group.
Command mode: Router VRRP
no group enable
Disables the virtual router group.
Command mode: Router VRRP
no group
Deletes the virtual router group from the switch configuration.
Command mode: Router VRRP
show ip vrrp group
Displays the current configuration information for the virtual router group.
Command mode: All except User EXEC
VRRP Virtual Router Group Priority Tracking configuration
The following table describes the Virtual Router Group Priority Tracking Configuration commands.
Table 151 Virtual Router Group Priority Tracking Configuration commands
Command
Description
[no] group track interfaces
When enabled, the priority for this virtual router will be increased for each
other IP interface active on this switch. An IP interface is considered active
when there is at least one active port on the same VLAN. This helps elect the
virtual routers with the most available routes as the master. This command is
disabled by default.
Command mode: Router VRRP
[no] group track ports
When enabled, the priority for this virtual router will be increased for each
active port on the same VLAN. A port is considered “active” if it has a link
and is forwarding traffic. This helps elect the virtual routers with the most
available ports as the master. This command is disabled by default.
Command mode: Router VRRP
show ip vrrp group track
Displays the current configuration for priority tracking for this virtual router.
Command mode: All except User EXEC
NOTE: If Virtual Router Group Tracking is enabled, then the tracking option will be available only
under group option. The tracking setting for the other individual virtual routers is ignored.
167
Configuration Commands
VRRP Interface configuration
These commands are used for configuring VRRP authentication parameters for the IP interfaces used with
the virtual routers. The interface number represents the IP interface on which authentication parameters
must be configured.
The following table describes the VRRP Interface Configuration commands.
Table 152 VRRP Interface Configuration commands
Command
Description
interface <1-249>
authentication
{password|none}
Defines the type of authentication that will be used: none (no authentication), or
password (password authentication).
interface <1-249>
password <password>
Defines a plain text password up to eight characters long. This password will be
added to each VRRP packet transmitted by this interface when password
authentication is chosen.
Command mode: Router VRRP
Command mode: Router VRRP
no interface <1-249>
Clears the authentication configuration parameters for this IP interface. The IP
interface itself is not deleted.
Command mode: Router VRRP
show ip vrrp interface
<1-249>
Displays the current configuration for this IP interface’s authentication parameters.
Command mode: All except User EXEC
VRRP Tracking configuration
These commands are used for setting weights for the various criteria used to modify priority levels during
the master router election process. Each time one of the tracking criteria is met, the priority level for the
virtual router is increased.
The following table describes the VRRP Tracking Configuration commands.
Table 153 VRRP Tracking Configuration commands
Command
Description
tracking-priority-increment
virtual-routers <0-254>
Defines the priority increment value (0 through 254) for virtual routers in
master mode detected on this switch. The default value is 2.
Command mode: Router VRRP
tracking-priority-increment
interfaces <0-254>
Defines the priority increment value (0 through 254) for active IP
interfaces detected on this switch. The default value is 2.
Command mode: Router VRRP
tracking-priority-increment
ports <0-254>
Defines the priority increment value (0 through 254) for active ports on the
virtual router’s VLAN. The default value is 2.
Command mode: Router VRRP
show ip vrrp trackingpriority-increment
Displays the current configuration of priority tracking increment values.
Command mode: All except User EXEC
168
Configuration Commands
NOTE: These priority tracking options only define increment values. These options do not affect the
VRRP master router election process until options under VRRP Virtual Router Priority Tracking are
enabled.
169
Configuration Commands
Quality of Service configuration
Use the Quality of Service (QoS) commands to configure the IEEE 802.1p priority value of incoming
packets. This allows you to differentiate between various types of traffic, and provide different priority
levels.
QoS 802.1p configuration
This feature provides the HP 10GbE switch the capability to filter IP packets based on the IEEE 802.1p
bits in the packet's VLAN header. The 802.1p bits specify the priority that you should give to the packets
while forwarding them. The packets with a higher (non-zero) priority bits are given forwarding preference
over packets with numerically lower priority bits value.
The following table describes the 802.1p Configuration commands.
Table 154 802.1p Configuration commands
Command
Description
qos transmit-queue mapping
<priority (0-7)>
<queue (0-1)|(0-7)>
Maps the 802.1p priority of to the Class of Service queue (COSq)
priority. Enter the 802.1p priority value (0-7), followed by the Class of
Service queue (0-1) that handles the matching traffic.
Command mode: Global configuration
qos transmit-queue weight-cos
<queue (0-1)|(0-7)> <weight
(0-15)>
Configures the weight of the selected Class of Service queue (COSq).
Enter the queue number, followed by the scheduling weight (0-15).
qos transmit-queue
number-cos 2|8
Sets the number of Class of Service queues for switch ports.
The default value is 2.
Command mode: Global configuration
Command mode: Global configuration
default qos transmit-queue
Resets 802.1p configuration to default values.
Command mode: Global configuration
show qos transmit-queue
Displays the current 802.1p parameters.
Command mode: All except User EXEC
show qos transmit-queue
information
Displays the current 802.1p parameters, and the 802.1p priority level
for each port.
Command mode: All except User EXEC
170
Configuration Commands
Access Control configuration
Use these commands to create Access Control Lists (ACLs) and ACL Groups. ACLs define matching criteria
used for IP filtering and Quality of Service functions.
Access Control List configuration
These commands allow you to define filtering criteria for each Access Control List (ACL). The following
table describes the basic ACL Configuration commands.
Table 155 ACL Configuration commands
Command
Description
[no] access-control list <1384> egress-port <port
number>
Configures the ACL to function on egress packets.
The egress port ACL will not match a Layer 2 broadcast or multicast
packet. The egress port ACL will not match packets if the destination port
is a trunk.
Command mode: Global configuration
access-control list <1-384>
action {permit|deny|setpriority <0-7>}
Configures a filter action for packets that match the ACL definitions. You
can choose to permit (pass) or deny (drop) packets, or set the Class of
Service queue that handles the packets.
Command mode: Global configuration
access-control list <1-384>
statistics
Enables or disables the statistics collection for the Access Control List.
default access-control list
<1-384>
Resets the ACL parameters to their default values.
show access-control list <1384>
Displays the current ACL parameters.
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
ACL Ethernet Filter configuration
These commands allow you to define Ethernet matching criteria for an ACL. The following table describes
the Ethernet Filter Configuration commands.
Table 156 Ethernet Filter Configuration commands
Command
Description
access-control list <1-384> ethernet
source-mac-address <MAC address>
{<MAC mask>}
Defines the source MAC address and MAC mask for this ACL.
For example:
00:60:cf:40:56:00 ff:ff:ff:ff:ff:fc
Command mode: Global configuration
access-control list <1-384> ethernet
destination-mac-address <MAC address>
{<MAC mask>}
Defines the destination MAC address and MAC mask for this
ACL. For example:
00:60:cf:40:56:00 ff:ff:ff:ff:ff:fc
Command mode: Global configuration
access-control list <1-384> ethernet
vlan <1-4095> <mask>
Defines a VLAN number and mask for this ACL.
Command mode: Global configuration
171
Configuration Commands
Table 156 Ethernet Filter Configuration commands
Command
Description
access-control list <1-384> ethernet
ethernet-type {ARP|IP|IPv6|MPLS|
RARP|any|0xXXXX}
Defines the Ethernet type for this ACL.
access-control list <1-384> ethernet
priority <0-7>
Defines the Ethernet priority value for the ACL.
default access-control list <1-384>
ethernet
Resets Ethernet parameters for the ACL to their default values.
show access-control list {<1-384>}
ethernet
Displays the current Ethernet parameters for the ACL.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
ACL IP Version 4 Filter configuration
These commands allow you to define IPv4 matching criteria for an ACL. The following table describes the
IP version 4 Filter Configuration commands.
Table 157 IPv4 Filter Configuration commands
Command
Description
access-control list <1-384> ipv4
source-ip-address <IP address>
{<IP mask>}
Defines a source IP address for the ACL. If defined, traffic with this
source IP address will match this ACL. Specify an IP address in
dotted decimal notation.
Command mode: Global configuration
access-control list <1-384> ipv4
destination-ip-address <IP
address> {<IP mask>}
Defines a destination IP address for the ACL. If defined, traffic
with this destination IP address will match this ACL.
access-control list <1-384> ipv4
protocol <0-255>
Defines an IP protocol for the ACL. If defined, traffic from the
specified protocol matches this filter. Specify the protocol number.
Some of the well-known protocols include:
Command mode: Global configuration
1—icmp
2—igmp
6—tcp
17—udp
89—ospf
112—vrrp
Command mode: Global configuration
access-control list <1-384> ipv4
type-of-service <0-255>
Defines a Type of Service value for the ACL. For more information
on ToS, see RFC 1340 and 1349.
Command mode: Global configuration
default access-control list <1384> ipv4
Resets the IPv4 parameters for the ACL to their default values.
show access-control list <1-384>
ipv4
Displays the current IPV4 parameters.
Command mode: Global configuration
Command mode: All except User EXEC
172
Configuration Commands
ACL TCP/UDP Filter configuration
These commands allow you to define TCP/UDP matching criteria for an ACL. The following table
describes the TCP/UDP Filter Configuration commands.
Table 158 TCP/UDP Filter Configuration commands
Command
Description
access-control list <1-384> tcpudp source-port <1-65535> {<port
mask>}
Defines a source port for the ACL. If defined, traffic with the
specified TCP or UDP source port will match this ACL. Specify the
port number. Some of the well-known ports include:
20—ftp-data
21—ftp
22—ssh
23—telnet
25—smtp
37—time
42—name
43—whois
53—domain
69—tftp
70—gopher
79—finger
80—http
Command mode: Global configuration
access-control list <1-384> tcpudp destination-port <1-65535>
{<port mask>}
Defines a destination port for the ACL. If defined, traffic with the
specified TCP or UDP destination port will match this ACL. Specify
the port number, just as with source-port above.
Command mode: Global configuration
access-control list <1-384> tcpudp flags <value (0x0-0x3f)>
Defines a TCP/UDP flag for the ACL.
default access-control list <1
384> tcp-udp
Resets the TCP/UDP parameters for the ACL to their default values.
Command mode: Global configuration
Command mode: Global configuration
show access-control list [<1-384>] Displays the current TCP/UDP Filtering parameters.
tcp-udp
Command mode: All except User EXEC
173
Configuration Commands
ACL Packet Format configuration
The following table describes the Packet Format Configuration commands.
Table 159 Packet Format Configuration commands
Command
Description
access-control list <1-384>
packet-format ethernet
{ethertype2|snap|llc}
Defines the Ethernet format for the ACL.
[no] access-control list
<1-384> packet-format tagged
Defines the tagging format for the ACL.
default access-control list
<1-384> packet-format
Resets Packet Format parameters for the ACL to their default values.
show access-control list
<1-384> packet-format
Displays the current Packet Format parameters for the ACL.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
ACL Metering configuration
The following table describes the ACL Metering Configuration commands.
Table 160 ACL Metering Configuration commands
Command
Description
access-control list <1-384>
meter committed-rate
<1000-10000000>
Configures the committed rate, in Kilobits per second. The committed rate
must be a multiple of 1,000.
access-control list <1-384>
meter maximum-burst-size
<32-4096>
Configures the maximum burst size, in Kilobits. Enter one of the following
values for mbsize: 32, 64, 128, 256, 512, 1024, 2048, 4096
[no] access-control list
<1-384> meter enable
Enables or disables Metering on the ACL.
access-control list <1-384>
meter action {drop|pass}
Configures the ACL Meter to either drop or pass out-of-profile traffic.
default access-control list
<1-384> meter
Reset ACL Metering parameters to their default values.
show access-control list
<1-384> meter
Displays the current ACL metering parameters.
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
174
Configuration Commands
ACL Re-mark configuration
You can choose to re-mark IP header data for the selected ACL. You can configure different re-mark
values, based on whether packets fall within the ACL Metering profile, or out of the ACL Metering profile.
The following table describes the ACL Re-mark Configuration commands.
Table 161 ACL Re-mark Configuration commands
Command
Description
[no] access-control list <1-384>
re-mark
Assign an ACL for DSCP Re-marking.
default access-control list <1-384>
re-mark
Reset ACL Re-mark parameters to their default values.
show access-control list <1-384>
re-mark
Displays the current ACL re-mark parameters.
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
ACL Re-mark In-Profile configuration
The following table describes the ACL Re-mark In-Profile Configuration commands.
Table 162 ACL Re-mark In-Profile Configuration commands
Command
Description
access-control list <1-384>
re-mark in-profile dscp <0-63>
Sets the DiffServ Code Point (DSCP) of In-Profile packets to the
selected value.
Command mode: Global configuration
default access-control list
<1-384> re-mark
Resets the update DSCP parameters to their default values.
show access-control list <1-384>
re-mark
Displays the current ACL re-mark parameters.
Command mode: Global configuration
Command mode: All except User EXEC
175
Configuration Commands
Re-Mark Update User Priority configuration
The following table describes the Update User Priority Configuration commands.
Table 163 ACL Update User Priority Configuration commands
Command
Description
access-control list <1-384>
re-mark in-profile dot1p <0-7>
Defines 802.1p value. The value is the priority bits information in
the packet structure.
Command mode: Global configuration
[no] access-control list <1-384>
re-mark in-profile use-tosprecedence
Enable or disable mapping of TOS (Type of Service) priority to
802.1p priority for In-Profile packets. When enabled, the TOS
value is used to set the 802.1p value.
Command mode: Global configuration
default access-control list
<1-384> re-mark
Resets UP1P settings to their default values.
show access-control list <1-384>
re-mark
Displays the current ACL re-mark parameters.
Command mode: Global configuration
Command mode: All except User EXEC
ACL Re-mark Out-of-Profile configuration
The following table describes the Re-mark Out-of-Profile Configuration commands.
Table 164 ACL Re-mark Out-of-Profile Configuration commands
Command
Description
access-control list <1-384>
re-mark out-profile dscp
<0-63>
Sets the DiffServ Code Point (DSCP) of Out-of-Profile packets to the
selected value. The switch sets the DSCP value on Out-of-Profile packets.
default access-control list
<1-384> re-mark
Resets the update DSCP parameters for Out-of-Profile packets to their
default values.
Command mode: Global configuration
Command mode: Global configuration
show access-control list
<1-384> re-mark
Displays the current ACL re-mark parameters.
Command mode: All except User EXEC
176
Configuration Commands
ACL Group configuration
These commands allow you to compile one or more ACLs into an ACL Group. Once you create an ACL
Group, you can assign the ACL Group to one or more ports.
The following table describes the ACL Group Configuration commands.
Table 165 ACL Group Configuration commands
Command
Description
access-control group <1-384> list <1-384>
Adds the selected ACL to the ACL Group. You can
add up to 96 ACLs to each ACL Group.
Command mode: Global configuration
no access-control group <1-384> list <1-384>
Removes the selected ACL from the ACL Group.
Command mode: Global configuration
show access-control group <1-384>
Displays the current ACL group parameters.
Command mode: All except User EXEC
177
Configuration Commands
Remote Monitoring configuration
Remote Monitoring (RMON) allows you to monitor traffic flowing through the switch. The RMON MIB is
described in RFC 1757.
The following table describes the basic RMON Configuration commands. The following sections provide
more detailed commands.
Table 166 RMON commands
Command
Description
show rmon
Displays the current RMON configuration.
Command mode: All
RMON history configuration
The following table describes the RMON History commands.
Table 167 RMON History commands
Command
Description
rmon history <1-65535>
interface-oid <1-127
characters>
Configures the interface MIB Object Identifier. The IFOID must correspond
to the standard interface OID, as follows: 1.3.6.1.2.1.2.2.1.1.x
where x is the ifIndex (1-16, 18-21)
The interface OID can have a maximum of 127 characters.
Command mode: Global configuration
rmon history <1-65535>
requested-buckets <1-65535>
Configures the requested number of buckets, which is the number of
discrete time intervals over which data is to be saved.
NOTE: The maximum number of buckets that can be granted is 50.
The range is from 1 to 65535. The default is 30.
Command mode: Global configuration
rmon history <1-65535>
polling-interval <1-3600>
Configures the time interval over which the data is sampled for each
bucket.
The range is from 1 to 3600 seconds. The default value is 1800 seconds.
Command mode: Global configuration
rmon history <1-65535> owner
<1-127 characters>
Enter a text string that identifies the person or entity that uses this history
index.
The owner can have a maximum of 127 characters.
Command mode: Global configuration
no rmon history <1-65535>
Deletes the selected history group.
Command mode: Global configuration
show rmon history
Displays the current RMON History parameters.
Command mode: All
178
Configuration Commands
RMON event configuration
The following table describes the RMON Event commands.
Table 168 RMON Event commands
Command
Description
rmon event <1-65535> description
<1-127 characters>
Enter a text string to describe the event.
The description can have a maximum of 127 characters.
Command mode: Global configuration
rmon event <1-65535> type
<log|trap|both>
Selects the type of notification provided for this event. For log
events, an entry is made in the log table and sent to the
configured syslog host. For trap events, an SNMP trap is sent to
the management station.
Command mode: Global configuration
rmon event <1-65535> owner <1-127
characters>
Enter a text string that identifies the person or entity that uses this
event index.
The owner can have a maximum of 127 characters.
Command mode: Global configuration
no rmon event <1-65535>
Deletes this event index.
Command mode: Global configuration
show rmon event
Displays the current RMON Event parameters.
Command mode: All
179
Configuration Commands
RMON alarm configuration
The Alarm RMON group can track rising or falling values for a MIB object. The MIB object must be a
counter, gauge, integer, or time interval. Each alarm index must correspond to an event index that
triggers once the alarm threshold is crossed.
The following table describes the RMON Alarm commands.
Table 169 RMON Alarm commands
Command
Description
rmon alarm <1-65535> alarm
oid <1-127 characters>
Configures an alarm MIB Object Identifier.
The alarm OID can have a maximum of 127 characters.
Command mode: Global configuration
rmon alarm <1-65535> interval
<1-65535>
Configures the time interval over which data is sampled and compared
with the rising and falling thresholds.
The range is from 1 to 65535 seconds. The default is 1800 seconds.
Command mode: Global configuration
rmon alarm <1-65535>
sample {abs|delta}
Configures the method of sampling the selected variable and calculating
the value to be compared against the thresholds, as follows:
• abs—absolute value, the value of the selected variable is compared
directly with the thresholds at the end of the sampling interval.
• delta—delta value, the value of the selected variable at the last
sample is subtracted from the current value, and the difference
compared with the thresholds.
Command mode: Global configuration
rmon alarm <1-65535> alarmtype {rising|falling|either}
Configures the alarm type as rising, falling, or either (rising or falling).
rmon alarm <1-65535> risinglimit <-2147483647 to
2147483647>
Configures the rising threshold for the sampled statistic. When the current
sampled value is greater than or equal to this threshold, and the value at
the last sampling interval was less than this threshold, a single event is
generated.
Command mode: Global configuration
Command mode: Global configuration
rmon alarm <1-65535> fallinglimit <-2147483647 to
2147483647>
Configures the falling threshold for the sampled statistic. When the
current sampled value is less than or equal to this threshold, and the
value at the last sampling interval was greater than this threshold, a
single event is generated.
Command mode: Global configuration
rmon alarm <1-65535> risingcrossing-index <0-65535>
Configures the rising alarm event index that is triggered when a rising
threshold is crossed.
The range is from 0 to 65535. The default value is 0.
Command mode: Global configuration
rmon alarm <1-65535> fallingcrossing-index <0-65535>
Configures the falling alarm event index that is triggered when a falling
threshold is crossed.
The range is from 0 to 65535. The default value is 0.
Command mode: Global configuration
180
Configuration Commands
Table 169 RMON Alarm commands
Command
Description
rmon alarm <1-65535> owner
<1-127 characters>
Enter a text string that identifies the person or entity that uses this alarm
index.
The owner can have a maximum of 127 characters.
Command mode: Global configuration
no rmon alarm <1-65535>
Deletes this alarm index.
show rmon alarm
Displays the current RMON Alarm parameters.
Command mode: All
Port mirroring
Port Mirroring is used to configure, enable, and disable the monitored port. When enabled, network
packets being sent and/or received on a target port are duplicated and sent to a monitor port. By
attaching a network analyzer to the monitor port, you can collect detailed information about your network
performance and usage. Port mirroring is disabled by default.
NOTE: See the “Troubleshooting tools” appendix in the HP 10Gb Ethernet BL-c Switch Application
Guide for information on how to use port mirroring.
The following table describes the Port Mirroring Configuration commands.
Table 170 Port Mirroring Configuration commands
Command
Description
[no] port-mirroring enable
Enables or disables port mirroring.
Command mode: Global configuration
show port-mirroring
Displays current settings of the mirrored and monitoring ports.
Command mode: All except User EXEC
181
Configuration Commands
Port-based port mirroring
The following table describes the port-based Port Mirroring Configuration commands.
Table 171 Port Mirroring Configuration commands
Command
Description
port-mirroring monitor-port
<port number> mirroring-port
<port number> {in|out|both}
Adds the port to be mirrored. This command also allows you to enter
the direction of the traffic. It is necessary to specify the direction
because:
• If the source port of the frame matches the mirrored port and the
mirrored direction is ingress or both (ingress and egress), the frame
is sent to the mirrored port.
• If the destination port of the frame matches the mirrored port and
the mirrored direction is egress or both, the frame is sent to the
monitoring port.
Command mode: Global configuration
no port-mirroring monitor-port
<port number> mirroring-port
<port number>
Removes the mirrored port.
no port-mirroring monitor-port
<port number>
Deletes this monitor port.
show port-mirroring
Displays the current settings of the monitoring port.
Command mode: Global configuration
Command mode: Global configuration
Command mode: All except User EXEC
Uplink Failure Detection configuration
Uplink Failure Detection (UFD) supports network fault tolerance in network adapter teams. Use these
commands to configure a Failure Detection Pair of one Links to Monitor (LtM) group and one Links to
Disable (LtD) group. When UFD is enabled and a Failure Detection Pair is configured, the switch
automatically disables ports in the LtD if it detects a failure in the LtM. The failure conditions which are
monitored in the LtM group include port link state moving to down, or port state moving to Blocking if
Spanning Tree Protocol is enabled.
The following table describes the Uplink Failure Detection (UFD) Configuration commands.
Table 172 Uplink Failure Detection Configuration commands
Command
Description
ufd enable
Globally turns Uplink Failure Detection ON.
Command mode: Global configuration
no ufd enable
Globally turns Uplink Failure Detection OFF.
Command mode: Global configuration
show ufd
Displays the current Uplink Failure Detection configuration parameters.
Command mode: All
182
Configuration Commands
Failure Detection Pair configuration
Use these commands to configure a Failure Detection Pair, which consists of one Link to Monitor (LtM) and
one Link to Disable (LtD). When the switch detects a failure on the LtM, it automatically disables the ports
in the LtD.
The following table describes the Failure Detection Pair (FDP) configuration commands.
Table 173 Failure Detection Pair Configuration commands
Command
Description
ufd fdp enable
Enables the FDP Parameters.
Command mode: Global configuration
Disables the FDP Parameters.
no ufd fdp enable
Command mode: Global configuration
Link to Monitor configuration
The following table describes the Link to Monitor (LtM) commands. The LtM can consist of only one uplink
port (ports 18-21) or a single trunk containing only uplink ports.
Table 174 Link to Monitor commands
Command
Description
ufd fdp ltm port <port
number>
Adds a port to the LtM. Only uplink ports (18-21) are allowed in the LtM.
no ufd fdp ltm port <port
number>
Removes a port from the LtM.
ufd fdp ltm portchannel <112>
Adds a trunk group to the LtM. The LtM trunk group can contain only
uplink ports (18-21).
Command mode: Global configuration
Command mode: Global configuration
Command mode: Global configuration
no ufd fdp ltm portchannel
<1-12>
ufd fdp ltm adminkey
<1-65535>
Removes a trunk group from the LtM.
Command mode: Global configuration
Adds a LACP admin key to the LtM. LACP trunks formed with this admin
key will be included in the LtM.
Command mode: Global configuration
no ufd fdp ltm adminkey
<1-65535>
Removes a LACP admin key from the LtM.
Command mode: Global configuration
183
Configuration Commands
Link to Disable configuration
The following table describes the Link to Disable (LtD) commands. The LtD can consist of any mix of
downlink ports (ports 1-16) and trunk groups that contain only downlink ports.
Table 175 Link to Disable commands
Command
Description
ufd fdp ltd port <port number>
Adds a port to the current LtD group. Only downlink
ports (1-16) are allowed in the LtD.
Command mode: Global configuration
no ufd fdp ltd port <port number>
Removes a port from the current LtD group.
Command mode: Global configuration
ufd fdp ltd portchannel <1-12>
Adds a trunk group to the current LtD group. LtD trunk
groups can contain only downlink ports (1-16).
Command mode: Global configuration
no ufd fdp ltd portchannel <1-12>
Removes a trunk group from the current LtD group.
Command mode: Global configuration
ufd fdp ltd adminkey
<1-65535>
Adds a LACP admin key to the LtD. LACP trunks formed
with this admin key will be included in the LtD.
Command mode: Global configuration
no ufd fdp ltd adminkey <1-65535>
Removes a LACP admin key from the LtD.
Command mode: Global configuration
Configuration Dump
The dump program writes the current switch configuration to the terminal screen. To start the dump
program, at the prompt, enter:
Switch(config)# show running-config
The configuration is displayed with parameters that have been changed from the default values. The
screen display can be captured, edited, and placed in a script file, which can be used to configure other
switches. Paste the configuration commands from the script file at the command line prompt of the switch.
The active configuration can also be saved or loaded via FTP/TFTP.
184
Configuration Commands
Saving the active switch configuration
When the copy running-global configuration {tftp|ftp} command is used, the active
configuration commands of the switch will be uploaded to the specified script configuration file on the
FTP/TFTP server. To start the switch configuration upload, at the prompt, enter:
Switch(config)# copy running-config startup-config
NOTE: The output file is formatted with line-breaks but no carriage returns. The file cannot be
viewed with editors that require carriage returns (such as Microsoft Notepad).
NOTE: If the FTP/TFTP server is running SunOS™ or the Solaris™ operating system, the specified
file must exist prior to executing the copy running-config {tftp|ftp} command and must
be writable (set with proper permission, and not locked by any application). The contents of the
specified file will be replaced with the current configuration data.
Restoring the active switch configuration
When the copy {tftp|ftp} running-config command is used, the active configuration will be
replaced with the commands found in the specified configuration file. The file can contain a full switch
configuration or a partial configuration.
To start the switch configuration download, at the prompt, enter:
Switch(config)#
copy {tftp|ftp} running-config
NOTE: The switch supports three configuration files: active, backup, and factory. See the “Selecting
a configuration block” section in the “Boot Options” chapter for information on how to set which
configuration file to use upon boot up.
185
Operations Commands
Operations Commands
Introduction
Operations-level commands are used for making immediate and temporary changes to switch
configuration. Operations commands are used for bringing ports temporarily in and out of service. These
commands are available only from an administrator and operator login.
The following table describes basic Operations commands. The following sections provide more detailed
information and commands.
Table 176 Operations commands
Command
Description
password
Allows the user to change the password. You need to enter the current
password in use for validation.
clear logging
Clears all Syslog messages.
Command Mode: Priv EXEC
ntp send
Allows the user to send requests to the NTP server.
Command Mode: Priv EXEC
Operations-level port options
Operations-level port options are used for temporarily disabling or enabling a port.
Table 177 Operations-Level Port commands
Command
Description
[no] rmon
Enables or disables Remote Monitoring for the port. RMON must be
enabled for any RMON configurations to function.
Command mode: Interface port
no interface port <port
number> shutdown
Temporarily enables the port. The port will be returned to its configured
operation mode when the switch is reloaded.
NOTE: This command does not enable a port that has been disabled by an
ekeying mismatch error.
Command Mode: Priv EXEC
interface port <port
number> shutdown
Temporarily disables the port. The port will be returned to its configured
operation mode when the switch is reloaded.
Command Mode: Priv EXEC
show interface port <port
number> operation
Displays the current settings for the port.
Command Mode: Priv EXEC
186
Operations Commands
Operations-level port 802.1x options
Operations-level port 802.1x options are used to temporarily set 802.1x parameters for a port.
Table 178 Operations-Level Port 802.1x commands
Command
Description
interface port <port
number> dot1x init
Re-initializes the 802.1x access-control parameters for the port. The
following actions take place,
depending on the 802.1x port configuration:
• force unauth—the port is placed in unauthorized state, and traffic is
blocked.
• auto—the port is placed in unauthorized state, then authentication is
initiated.
• force auth—the port is placed in authorized state, and authentication
is not required.
Command Mode: Privileged EXEC
interface port {<port
number>} dot1x reauthenticate
Re-authenticates the supplicant (client) attached to the port. This command
only applies if the port’s 802.1x mode is configured as auto.
Command Mode: Privileged EXEC
Operations-level VRRP options
Operations-level VRRP options are described in the following table.
Table 179 Operations-Level VRRP commands
Command
Description
router vrrp backup <1-256>
Forces the specified master virtual router on this switch into backup mode.
This is generally used for passing master control back to a preferred switch
once the preferred switch has been returned to service after a failure. When
this command is executed, the current master gives up control and initiates a
new election by temporarily advertising its own priority level as 0 (lowest).
After the new election, the virtual router forced into backup mode by this
command will resume master control in the following cases:
• This switch owns the virtual router (the IP addresses of the virtual router
and its IP interface are the same)
• This switch’s virtual router has a higher priority and preemption is
enabled.
• There are no other virtual routers available to take master control.
Command Mode: Privileged EXEC
187
Boot Options
Boot Options
Introduction
You must be logged in to the switch as the administrator to use the Boot Options commands.
The Boot Options allow you to perform the following functions:
•
•
•
Select a switch software image to be used when the switch is next reloaded.
Select a configuration block to be used when the switch is next reloaded.
Download or upload a new software image to the switch via FTP/TFTP.
Each of the Boot Options commands is discussed in the following sections.
Updating the switch software image
The switch software image is the executable code running on the switch. A version of the image ships
with the HP 10GbE switch , and comes pre-installed on the switch. As new versions of the image are
released, you can upgrade the software running on the switch.
To upgrade the software image on the switch:
•
•
•
Load the new image onto a FTP/TFTP server on your network.
Download the new image from the FTP/TFTP server to the switch.
Select the new software image to be loaded into switch memory the next time the switch is reloaded.
Downloading new software to the switch
The switch can store up to two different software images, called image1 and image2, as well as boot
software, called boot. When you download new software, you must specify where it should be placed:
either into image1, image2, or boot.
For example, if your active image is currently loaded into image1, you would probably load the new
image software into image2. This lets you test the new software and reload the original active image
(stored in image1), if needed.
To download new software to the switch, you need the following:
•
•
•
•
The image or boot software loaded on a TFTP server on your network
The hostname or IP address of the FTP/TFTP server
The user name and password for FTP server, if necessary
The name of the new software image or boot file
NOTE: The DNS parameters must be configured if specifying hostnames. See the “Domain name
system configuration” section in the “Configuration Commands” chapter.
188
Boot Options
When the above requirements are met, use the following procedure to download the new software to the
HP 10GbE switch .
1. In Privileged EXEC mode, enter:
Switch# copy tftp {<image1|image2|boot-image>}
-orSwitch# copy ftp {<image1|image2|boot-image>}
2. Enter the port type to use for the file transfer:
Port type: ["data-port"/"mgt-port"]: <port type>
3. Enter the hostname or IP address of the FTP/TFTP server:
Address or name of remote host: <server name or IP address>
4. Enter the name of the new software file on the server:
Source file name: <filename>
5. The exact form of the name will vary by server. However, the file location is normally relative to the
FTP or TFTP directory.
6. Enter the user name, if you are using a FTP server:
Enter username for FTP server or hit return for TFTP server: <userID>
7. Enter the password for the FTP server (if prompted):
Enter password for username on FTP server: <password>
8. The system prompts you to confirm your request.
9. You should next select a software image to run, as described in the “Selecting a Soft Image to Run”
section.
10. If you are loading an image from which you are not currently booted, the system prompts you to
change the image.
image2 currently contains Software Version 1.0.0
that was downloaded at 15:46:36 Wed Mar 21, 2007.
New download will replace image2 with file "1.0.1_OS.img"
from TFTP server 10.168.2.4.
Confirm download operation [y/n]: y
Invoking TFTP over port 69...
Starting download...
File appears valid
Download in
progress....................................................
Image download complete (1333953 bytes)
Writing to flash...This takes about 90 seconds. Please wait
Write complete (1333953 bytes), now verifying FLASH...
Verification of new image2 in FLASH successful.
image2 now contains Software Version 1.0.1
Switch is currently set to boot software image1.
Do you want to change that to the new image2? [y/n] y
Next boot will use new software image2.
189
Boot Options
Selecting a software image to run
You can select which software image (image1 or image2) you want to run in switch memory for the
next reboot.
1. In Global Configuration mode, enter:
Router(config)# boot image {image1|image2}
2. Enter the name of the image you want the switch to use upon the next boot. The system informs you
of which image is currently set to be loaded at the next reset, and prompts you to enter a new
choice:
Currently set to use switch software "image1" on next reset.
Specify new image to use on next reset ["image1"/"image2"]:
Uploading a software image from the switch
You can upload a software image from the switch to a FTP or TFTP server.
1. In Privileged EXEC mode, enter:
Switch# copy {<image1|image2|boot-image>} tftp
-orSwitch# copy {<image1|image2|boot-image>} ftp
2. The system prompts you for information. Enter the desired image:
Enter name of switch software image to be uploaded
["image1"|"image2"|"boot"]: <image> <hostname or server-IP-addr>
<server-filename>
3. Enter the name or the IP address of the FTP/TFTP server:
Address or name of remote host: <server name or IP address>
4. Enter the name of the file into which the image will be uploaded on the FTP/TFTP server:
Destination file name: <filename>
5. Enter the user name, if you are using a FTP server:
Enter username for FTP server or hit return for TFTP server: <userID>
6. Enter the password for the FTP server (if prompted):
Enter password for username on FTP server: <password>
7. The system then requests confirmation of what you have entered. To have the file uploaded, enter y.
image2 currently contains Software Version 1.0.0
Upload will transfer image2 (1889411 bytes) to file "test"
on TFTP server 10.1.1.1.
Confirm upload operation [y/n]: y
190
Boot Options
Selecting a configuration block
When you make configuration changes to the switch, you must save the changes so that they are retained
beyond the next time the switch is reset. When you execute a save operation (copy running-config
startup-config), your new configuration changes are placed in the active configuration block. The
previous configuration is copied into the backup configuration block.
There is also a factory configuration block. This holds the default configuration set by the factory when the
switch was manufactured. Under certain circumstances, it may be desirable to reset the switch
configuration to the default. This can be useful when a custom-configured switch is moved to a network
environment where it will be re-configured for a different purpose.
Use the following procedure to set which configuration block you want the switch to load the next time it
is reset:
1. In Global Configuration mode, enter:
Switch(config)# boot configuration-block {active|backup|factory}
2. Enter the name of the configuration block you want the switch to use.
3. The system indicates which configuration block is currently set to be loaded at the next reset, and
prompts you to enter a new choice:
Currently set to use active configuration block on next reset.
Specify new block to use ["active"/"backup"/"factory"]:
Resetting the switch
You can reset the switch to make your software image file and configuration block changes occur.
Resetting the switch causes the Spanning Tree Protocol to restart. This process can be lengthy, depending
on the topology of your network.
To reset the switch, at the prompt, enter:
>> Switch# reload
You are prompted to confirm your request.
To display current boot options, enter:
>> Switch# show boot
Accessing the AOS CLI
To access the AOS CLI, enter the following command from the ISCLI, and reload the switch:
>> Switch# boot cli-mode aos
The default command-line interface for the HP 10GbE switch is the AOS CLI. To access the ISCLI, enter the
following command and reset the switch:
Main# boot/mode iscli
Users can select the CLI mode upon login, if the following command is enabled:
boot cli-mode prompt
Only an administrator connected through the console port can view and enable the prompt command.
When prompt is enabled, the first user to log in can select the CLI mode. Subsequent users must use the
selected CLI mode, until all users have logged out.
191
Maintenance Commands
Maintenance Commands
Introduction
The Maintenance commands are used for debugging purposes, enabling you to generate a technical
support dump of the critical state information in the switch, and to clear entries in the Forwarding
Database and the Address Resolution Protocol (ARP) and routing tables. These commands are available
only from an administrator login.
Dump information contains internal switch state data that is written to flash memory on the switch after
any one of the following occurs:
•
The switch administrator forces a switch panic. The panic option causes the switch to dump state
information to flash memory, and then causes the switch to reboot.
•
The switch administrator enters the switch reset key combination (Ctrl-Shift-6) on a device that is
attached to the console port.
•
The switch detects a hardware or software problem that requires a reboot.
The following sections provide detailed information and commands.
System maintenance
The System Maintenance commands are reserved for use by HP technical support. The options are used to
perform system debugging.
The following table describes the System Maintenance commands.
Table 180 System Maintenance commands
Command
Usage
debug debug-flags
Sets the flags that are used for debugging purposes by HP technical support.
Command mode: All except User EXEC
192
Maintenance Commands
Forwarding Database maintenance
The Forwarding Database (FDB) Manipulation commands can be used to view information and to delete
a MAC address from the Forwarding Database or clear the entire Forwarding Database. This is helpful in
identifying problems associated with MAC address learning and packet forwarding decisions.
The following table describes the FDB Manipulation commands.
Table 181 FDB Manipulation commands
Command
Usage
show mac-address-table
address {<MAC address>}
Displays a single database entry by its MAC address. You are prompted to
enter the MAC address of the device. Enter the MAC address using one of
the following:
• xx:xx:xx:xx:xx:xx format (for example: 08:00:20:12:34:56)
• xxxxxxxxxxxx format (for example: 080020123456)
Command mode: All except User EXEC
show mac-address-table port
{<port number>}
Displays all FDB entries for a particular port.
show mac-address-table vlan
{<1-4095>}
Displays all FDB entries on a single VLAN.
show mac-address-table
Displays all entries in the Forwarding Database.
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
clear mac-address-table
Clears the entire Forwarding Database from switch memory, then adds the
static entries to the Forwarding Database.
Command mode: All except User EXEC
Debugging options
The Miscellaneous Debug commands display trace buffer information about events that can be helpful in
understanding switch operation. You can view the following information using Debug commands:
•
•
Events traced by the management processor (MP)
Events traced to a buffer area when a reset occurs
If the switch resets for any reason, the management processor (MP) trace buffer is saved into the snap
trace buffer area. The output from these commands can be interpreted by HP technical support.
The following table describes the Miscellaneous Debug commands:
Table 182 Miscellaneous Debug commands
Command
Usage
debug mp-trace
Displays the management processor trace buffer. Header information similar to the
following is shown:
MP trace buffer at 13:28:15 Fri May 25, 2002; mask: 0x2ffdf748
The buffer information is displayed after the header.
Command mode: All except User EXEC
193
Maintenance Commands
Table 182 Miscellaneous Debug commands
Command
Usage
debug mp-snap
Displays the management processor snap (or post-mortem) trace buffer. This buffer
contains information traced at the time that a reset occurred.
Command mode: All except User EXEC
clear flash-config
Deletes all flash configuration blocks. The next time the switch is rebooted, it returns to
the factory default settings.
Command mode: All except User EXEC
ARP cache maintenance
The following table describes the Address Resolution Protocol commands:
Table 183 ARP Maintenance commands
Command
Usage
show ip arp find <IP
address>
Shows a single ARP entry by IP address.
show ip arp interface
<port number>
Shows ARP entries on a single port.
show ip arp vlan <1-4095>
Shows ARP entries on a single VLAN.
Command mode: All except User EXEC
Command mode: All except User EXEC
Command mode: All except User EXEC
show ip arp reply
Shows the list of IP addresses that the switch will respond to for ARP requests.
Command mode: All except User EXEC
show ip arp
Shows all ARP entries.
Command mode: All except User EXEC
clear ip arp-cache
Clears the entire ARP list from switch memory.
Command mode: All except User EXEC
NOTE: To display all ARP entries currently held in the switch, or a portion according to one of the
commands listed above, see the “ARP information” section of the “Information Commands” chapter.
IGMP Snooping maintenance
The following table describes the IGMP Snooping Maintenance commands.
Table 184 IGMP Snooping Maintenance commands
Command
Usage
show ip igmp groups address <IP address>
Shows a single IGMP Multicast group by IP address.
Command mode: All except User EXEC
show ip igmp groups vlan <1-4094>
Shows IGMP Multicast groups on a single VLAN.
Command mode: All except User EXEC
194
Maintenance Commands
Table 184 IGMP Snooping Maintenance commands
Command
Usage
show ip igmp groups interface <port number>
Shows IGMP Multicast groups on a single port.
Command mode: All except User EXEC
show ip igmp groups
Shows all IGMP Multicast groups.
Command mode: All except User EXEC
clear ip igmp snoop
Clears IGMP Multicast data from switch memory.
Command mode: All except User EXEC
IGMP Mrouter maintenance
The following table describes the IGMP Multicast Routers Maintenance commands.
Table 185 IGMP Multicast Group Maintenance commands
Command
Usage
show ip igmp mrouter vlan <1-4094>
Shows IGMP Multicast groups on a single VLAN.
Command mode: All except User EXEC
show ip igmp mrouter
Shows all IGMP Multicast routers.
Command mode: All except User EXEC
clear ip igmp mrouter
Clears IGMP Multicast router data from switch memory.
Command mode: All except User EXEC
Uuencode flash dump
show flash-dump-uuencode
Command mode: All
Using this command, dump information is presented in uuencoded format. This format makes it easy to
capture the dump information as a file or a string of characters.
If you want to capture dump information to a file, set your communication software on your workstation to
capture session data prior to issuing the command. This will ensure that you do not lose any information.
Once entered, the command will cause approximately 23,300 lines of data to be displayed on your
screen and copied into the file.
Using the above command, dump information can be read multiple times. The command does not cause
the information to be updated or cleared from flash memory.
Dump information is not cleared automatically. In order for any subsequent dump information to be
written to flash memory, you must manually clear the dump region. For more information on clearing the
dump region, see the “Clearing dump information” section later in this chapter.
195
Maintenance Commands
To access dump information, at the prompt, enter:
Switch# show flash-dump-uuencode
The dump information is displayed on your screen and, if you have configured your communication
software to do so, captured to a file. If the dump region is empty, the following displays:
No FLASH dump available.
FTP/TFTP system dump put
Use this command to put (save) the system dump to a FTP/TFTP server.
NOTE: If the FTP/TFTP server is running SunOS or the Solaris operating system, the specified
copy flash-dump tftp (or ftp) file must exist prior to executing the copy flash-dump
tftp command (or copy flash-dump ftp) command, and must be writable (set with proper
permission, and not locked by any application). The contents of the specified file will be replaced
with the current dump data.
To save dump information via FTP/TFTP, at the prompt, enter:
Switch# copy flash-dump tftp [mgt-port|data-port]
-orTo save dump information via FTP/TFTP, at the prompt, enter:
Switch# copy flash-dump ftp [mgt-port|data-port]
You are prompted for the server hostname or IP address, and the file name.
Clearing dump information
To clear dump information from flash memory, at the prompt, enter:
Switch# clear flash-dump
The switch clears the dump region of flash memory and displays the following message:
FLASH dump region cleared.
If the flash dump region is already clear, the switch displays the following message:
FLASH dump region is already clear.
196
Maintenance Commands
Panic command
The panic command causes the switch to dump state information immediately to flash memory and
reboot.
To select panic, at the prompt, enter:
>> Switch# debug panic
A FLASH dump already exists.
Confirm replacing existing dump and reboot [y/n]:
Enter y to confirm the command:
Confirm dump and reboot [y/n]: y
A list of messages is displayed:
Starting system dump...done.
Reboot at 11:54:08 Wednesday March 14, 2007...
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rebooted because of console PANIC command.
Booting complete
Unscheduled system dumps
If there is an unscheduled system dump to flash memory, the following message is displayed when you
log on to the switch:
Note: A system dump exists in FLASH. The dump was saved
at 13:43:22 Wednesday March 14, 2007.
Use show flash-dump uuencode to
extract the dump for analysis and clear flash-dump to
clear the FLASH region. The region must be cleared
before another dump can be saved.
197
Index
Index
8
802.1x information, 35
802.1x statistics, 69
A
abbreviating commands, 18
access control, user, 116
active configuration block, 101, 191
active switch configuration: gtcfg,
185; ptcfg, 185; restoring, 185
Address Resolution Protocol (ARP):
address list, 194
Address Resolution Protocol (ARP)
Menu, 48
aging: STP information, 38, 40
auto-negotiation: enable/disable on
port, 125; flow control
configuration, 124
B
backup configuration block, 101,
191
banner (system option), 102
Boot Options Menu, 188
bootstrap protocol (BOOTP): obtain
the IP address, 10
bridge maximum age parameter:
configuration, 135; information,
38, 40, 42
bridge priority, 38
Bridge Protocol Data Unit (BPDU),
38, 40, 43
bridge Spanning Tree parameters,
135
C
capture dump information to a file,
195
clear: ARP entries, 194; dump
information, 196
commands: abbreviations, 18;
global commands, 17; shortcuts,
18; tab completion, 18
Common Internal Spanning Tree
information, 41
configuration: default gateway
interval, for health checks, 143;
default gateway IP address, 143;
dump command, 184; flow
control, 124; operating mode,
124; port mirroring, 181; port
trunking, 138; switch IP address,
142; VLAN default (PVID), 123;
VLAN IP interface, 142; VLAN
tagging, 123
configuration block, 191
configuring RMON (remote
monitoring), 178
connecting: via console, 10; via
Secure Shell (SSH), 11; via
Telnet, 11
console port, connecting, 10
cost: STP information, 38, 40, 42;
STP port option, 136
D
debugging, 192
default gateway, interval for health
checks, 143
disconnect idle timeout, 13
download software, 188
dump: configuration, 184;
information, 66; state
information, 197; statistics, 100
duplex mode, link status, 19, 63
F
factory configuration block, 191
flow control: configuration, 124;
display setting, 19; link status, 63
Forwarding Database (FDB):
maintenance, 193
Forwarding Database Information
Menu, 32
Forwarding Database Manipulation
Menu, 193
forwarding state (FWD), 33, 38, 40,
42, 43
fwd (STP bridge option), 135
FwdDel (forward delay), bridge port,
38, 40, 42
IGMP Mrouter options, 195
IGMP Snooping options, 194
IGMPv3: configuration, 158
image: download, 188; software,
selection, 190
information dump, 66
Information Menu, 19
interface statistics, 74, 76
Internet Protocol (IP) statistics, 76
IP address: ARP information, 48;
BOOTP, 10; default gateway
configuration, 143
active IP interface: active, 167
IP interface: address configuration,
142; information, 54; VLAN
configuration, 142
IP Interface Configuration Menu,
142
L
LACP statistics, 78
Layer 2 information, 31
Layer 2 statistics, 77
Layer 3 information, 45
Layer 3 statistics, 79, 87
LEARNING (port state), 38, 40, 42
Link Aggregation Control Protocol
information, 33, 44
link status: command, 63; display
setting, 19; duplex mode, 19, 63;
port speed, 19, 63
log, syslog messages, 104
login notice, 102
M
health checks: default gateway
interval, retries, 143; retry,
number of failed health checks,
143
hello, STP information, 38, 40, 43
Maintenance Menu, 192
management processor (MP): trace
buffer, 193
MD5 cryptographic authentication,
152
media access control (MAC)
address: ARP information, 48;
display address, 10; FDB
information, 32; FDB
manipulation, 193
Miscellaneous Debug Menu, 193
monitor port, 181
I
N
idle timeout, overview, 13
IEEE standards, 802.1d Spanning
Tree Protocol, 37
Network Time Protocol (NTP):
synchronization, 109
null modem cable, 10
G
global commands, 17
gtcfg (TFTP load command), 185
H
198
Index
O
online help, 17
operating mode, configuration, 124
Operations-level port options, 186,
187
ospf: interface, 151; Not-So-Stubby
Area, 152; stub area, 152; transit
area, 152
P
panic: command, 197; switch, 192
ping command, 17
port configuration, 123
port mirroring, configuration, 181
port number, 63
port speed, 19, 63
port trunking configuration, 138
ports: disable (temporarily), 124;
information, 64; membership of
the VLAN, 44; priority, 38, 40, 42;
STP port priority, 136
preemption: assuming VRRP
master routing authority, 165
priority (STP port option), 136
prisrv, primary radius server, 106
ptcfg (TFTP save command), 185
R
Rapid Spanning Tree and Multiple
Spanning Tree information, 39
read community string (SNMP
option), 110
reboot, 192, 197
retries, radius server, 106
retry, health checks for default
gateway, 143
RMON: alarm information, 61;
history information, 60
RMON configuration: alarm, 180;
event, 179; history, 178
RMON Information Menu, 60
poisoned reverse, as used with split
horizon: poisoned reverse, 149
Routing Information Protocol (RIP):
version 1 parameters, 145, 149
split horizon: split horizon, 149
S
save command, 191
secret, radius server, 106
Secure Shell (SSH): encryption and
authentication methods, 11
Secure Shell Server (SSHD) Menu,
105
shortcuts, 18
snap traces, buffer, 193
SNMP: set and get access, 110
SNMPv3 Access Table information,
23
SNMPv3 Community Table
information, 24
SNMPv3 dump, 27
SNMPv3 Group Table information,
24
SNMPv3 Information Menu, 21
SNMPv3 Notify Table information,
26
SNMPv3 Target Address Table
information, 25
SNMPv3 Target Parameters Table
information, 25
SNMPv3 USM User Table
information, 22
SNMPv3 View Table information,
22
software: image, 188
Spanning Tree Protocol (STP):
bridge parameters, 135;
information, 37; port cost option,
136; port priority option, 136; root
bridge, 135; switch reset effect,
191; with trunk groups, 43
state (STP information), 38, 40, 42
statistics dump, 100
Statistics Menu, 67
subnets: IP interface, 142
switch: reset, 191
syslog: display messages, 29
system: date and time, 20, 21, 22,
23, 24, 25, 26, 30, 31;
information, 28, 66
System Configuration Menu, 102
System Information Menu, 20
system options: login banner, 102;
tnport, 102
T
tab completion, 18
TCP statistics, 93, 94
Telnet: requirements, 11
timeout, radius server, 106
timeouts, idle connection, 13
tnport, system option, 102
trace buffer, 193
traceroute command, 17
transmit flow control, 124
Trivial File Transfer Protocol
(TFTP): PUT and GET
commands, 185; use for
updating switch software image,
188
typographical conventions, 14
U
UDP statistics, 86
unscheduled system dump, 197
upgrade, switch software, 188
user access control configuration,
116
user access levels, 12
uuencode flash dump, 195
V
virtual router: description, 164
Virtual Router Redundancy Protocol
(VRRP): password,
authentication; VRRP
authentication, 168; group
options (prio); virtual router;
priority, 166; priority election for
the virtual router, 164
virtual routers: increasing priority
level of, 165; master preemption
(preem); virtual router, 167;
master preemption (prio); virtual
router, 165
VLAN: active port; VLAN, 167
VLAN tagging: port configuration,
123
VLANs: ARP entry information, 48;
configuration, 141; information,
44; name, 44; port membership,
44; setting default number
(PVID), 123; tagging, 19, 64;
VLAN number, 44
VRID (virtual router ID), 164, 166
VRRP: master advertisements, 164
VRRP configuration, 163
VRRP information, 57
VRRP master advertisements: time
interval, 167
VRRP statistics menu, 91
