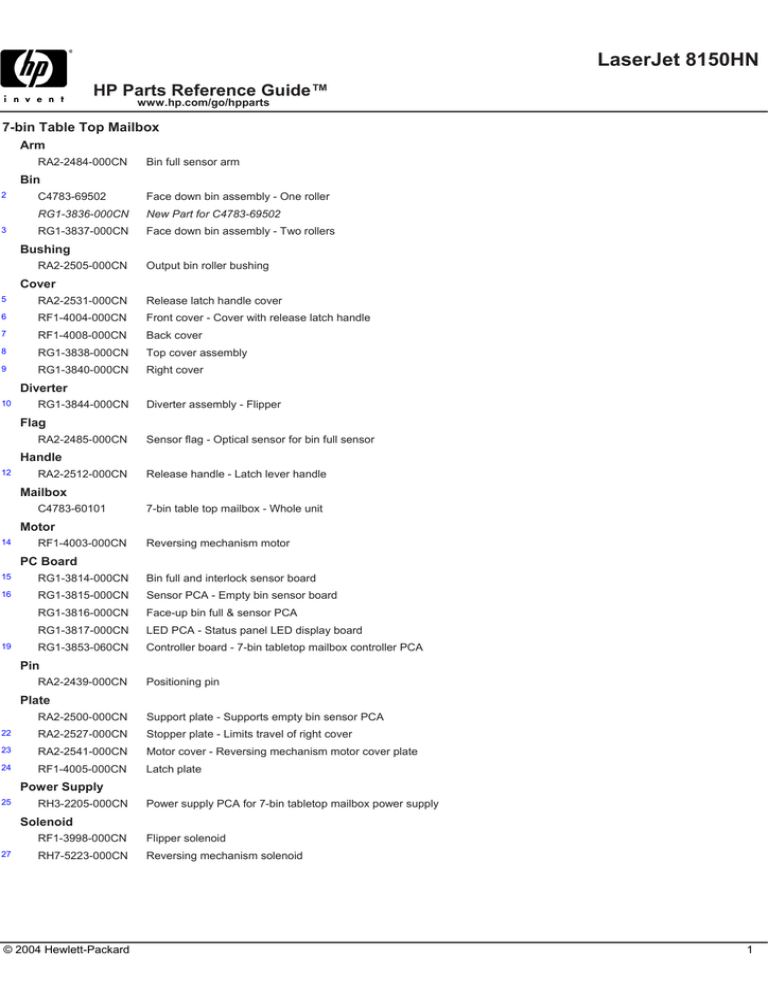

LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
7-bin Table Top Mailbox
Arm
RA2-2484-000CN
Bin full sensor arm
Bin
2
3
C4783-69502
Face down bin assembly - One roller
RG1-3836-000CN
New Part for C4783-69502
RG1-3837-000CN
Face down bin assembly - Two rollers
Bushing
RA2-2505-000CN
Output bin roller bushing
Cover
5
RA2-2531-000CN
6
RF1-4004-000CN
Front cover - Cover with release latch handle
7
RF1-4008-000CN
Back cover
8
RG1-3838-000CN
Top cover assembly
9
RG1-3840-000CN
Right cover
Release latch handle cover
Diverter
10
RG1-3844-000CN
Diverter assembly - Flipper
Flag
RA2-2485-000CN
Sensor flag - Optical sensor for bin full sensor
Handle
12
RA2-2512-000CN
Release handle - Latch lever handle
Mailbox
C4783-60101
7-bin table top mailbox - Whole unit
Motor
14
RF1-4003-000CN
Reversing mechanism motor
PC Board
15
RG1-3814-000CN
Bin full and interlock sensor board
16
RG1-3815-000CN
Sensor PCA - Empty bin sensor board
RG1-3816-000CN
Face-up bin full & sensor PCA
19
RG1-3817-000CN
LED PCA - Status panel LED display board
RG1-3853-060CN
Controller board - 7-bin tabletop mailbox controller PCA
Pin
RA2-2439-000CN
Positioning pin
Plate
RA2-2500-000CN
Support plate - Supports empty bin sensor PCA
22
RA2-2527-000CN
Stopper plate - Limits travel of right cover
23
RA2-2541-000CN
Motor cover - Reversing mechanism motor cover plate
24
RF1-4005-000CN
Latch plate
Power Supply
25
RH3-2205-000CN
Power supply PCA for 7-bin tabletop mailbox power supply
Solenoid
27
RF1-3998-000CN
Flipper solenoid
RH7-5223-000CN
Reversing mechanism solenoid
© 2004 Hewlett-Packard
1
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
7-bin Table Top Mailbox
Spring
RA2-2513-000CN
Tension spring - Provides tension for latch handle
Tray
29
RA2-2408-000CN
Bottom bin tray
30
RA2-2487-000CN
Reversing output tray (Face-up)
ADF Unit Parts
ADF Assembly
33
PA03002-C108FJ
Automatic document feeder assembly
Arm
34
PA03002-C234FJ
Sensor arm - Detects leading edge of ADF paper input
35
PA03002-C235FJ
Sensor arm - Paper sensor arm for ADF
Bearing
36
PA03002-C233FJ
Drive roller bearing - Front drive roller bearing
37
PA03002-C265FJ
Drive roller bearing - Rear drive roller bearing
Belt
38
PA03002-C111FJ
ADF belt - Drives automatic document feeder rollers
Brush
39
PA03002-C246FJ
Paper antistatic brush asembly
Bushing
40
PA03002-C269FJ
Pick roller brass bushings - Supports pickup roller
Cable
41
PA03002-C228FJ
Sensor cable - Connects ADF sensors to copier control board
Clutch
42
PA03002-C250FJ
Pickup roller clutch/gear assembly
Cover
43
PA03002-C112FJ
Pickup roller assembly cover
Frame
44
PA03002-C236FJ
Pad assembly frame - Supports separation pad assembly
Gear
45
PA03002-C231FJ
Drive roller gear
46
PA03002-C232FJ
Reduction cluster gear
Hardware
47
PA03002-C123FJ
Paper guide / pick roller cover thumbscrew
LED
49
PA03002-C126FJ
LED assembly - Status display with cable - Green LED that indicates when paper is correctly loaded in ADF
Lamp
48
PA03002-C115FJ
Upper lamp - Lamp in upper portion of ADF unit
Motor
50
PA03002-C109FJ
ADF motor unit - Drives ADF rollers
Optical Unit
51
PA03002-C117FJ
Upper scanner portion of ADF unit - Scans page as it feeds through the ADF - Provides double sided copies
PC Board
53
PA03002-C252FJ
© 2004 Hewlett-Packard
ADF unit lamp PCA
2
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
ADF Unit Parts
Pad
52
PA03002-C122FJ
Separation pad assembly
Roller
54
PA03002-C120FJ
Pick roller assembly
55
PA03002-C230FJ
Drive roller shaft - Two used
Sensor
56
PA03002-C110FJ
Sensor assembly - Includes eight sensors, sensor cable and sensor mount assembly
Spring
57
PA03002-C240FJ
Pick spring - Provides pressure for separation pad
58
PA03002-C245FJ
ADF latch spring - Holds tension on ADF release latch
59
PA03002-C247FJ
Front ADF lift spring
60
PA03002-C248FJ
Rear ADF lift spring
61
PA03002-C249FJ
Leaf spring - Idle roller leaf spring
Support
62
PA03002-C227FJ
Optical unit tie down / hold-down bracket
Washer
63
PA03002-C241FJ
Key washer
Accessories
Cleaning Supplies
5090-3379
Toner cleaning cloth - Specially treated cloth for absorbing toner (1 per package) - Ideal for clening up toner spills
Roller Kit
H3977-60001
Paper path roller kit - Contains four feed/separation rollers and 2 pickup rollers used in Paper Input Assembly - Also has
MP/Tray1 pickup roller - Procedure requires service manual
C4780A Input Tray Parts
Cable
64
RG5-3909-000CN
Power supply cable - Between power supply and controller PCA
65
RG5-4440-000CN
Main cable on input assembly
Caster
66
XZ9-0442-000CN
Caster wheel
Cover
67
RB2-3666-000CN
Right side cabinet cover
68
RB2-3668-000CN
Paper storage tray front cover
69
RB2-3675-000CN
Back cover
70
RF5-2762-000CN
Front top cover
71
RF5-2764-000CN
Left cover
72
RF5-2766-000CN
Paper tray top cover - Includes label
Drive Assembly
73
RG5-4416-000CN
Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller
Feed Assembly
74
C4780-69503
Paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input
REQUIRES RETURN OF DEFECTIVE PART
RG5-4403-000CN
New Part for C4780-69503
© 2004 Hewlett-Packard
3
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
C4780A Input Tray Parts
Foot
75
RG5-4203-000CN
Outrigger adjustable foot - Adjusts up and down
76
RG5-4205-000CN
Cabinet stabilizer (outrigger) - With adjustable foot
Fuse
77
VD7-1893-151CN
Power supply fuse, 250V max
Labels
78
RB2-5342-000CN
2000 sheet paper tray cassette size label
Latch
79
XZ9-0379-000CN
Door latch insert (Black)
Module
C4781-60500
AC power box - Holds AC recptacle, fuse holder, and four cable connections - Includes mounting clips
PC Board
81
RB2-3667-000CN
Holder size PCA
82
RG5-1845-000CN
Paper size sensor board - Used to sense paper size in upper and lower paper trays
83
RG5-4441-000CN
Front LED PCA - LED status display board
84
RG5-4442-000CN
Controller PCA - 2 x 500-SHEET input tray controller PCA
Pickup Assembly
85
C4780-69505
Paper pickup
REQUIRES RETURN OF DEFECTIVE PART
RG5-4410-090CN
New Part for C4780-69505
Pin
86
RF5-2556-000CN
Positioning pin - Metal locating pins - Set of 3
Plate
87
RB1-6894-000CN
Paper cassette size plate - Self adhesive label NOT included
Power Cord
C4781-60501
'Daisy chain' power cord - Has C13 (F) connector and C14 (M) connector - 250V, 10A - 71.5cm (28.1 inches) long
C4781-60502
'Daisy chain' power cord - 18 AWG, 2.6m (8.4ft) long - Has C14 (M) plug for power input and C13 (F) plug for power
output - 250V, 10A
Power Supply
90
RG5-4021-000CN
Universal power supply
Roller
91
RF5-1834-000CN
Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit
assembly (4 used)
92
RF5-2708-000CN
Pickup roller - Used in paper pickup assembly - 2 used
Spacer
93
RB2-3705-000CN
Latch spacer - Black plastic piece that latch engages
Tray
94
R98-1006-000CN
Tray 5 assembly - Complete tray with identification label
95
R98-1007-000CN
Tray 4 assembly - Complete tray with identification label
96
RB2-3669-000CN
Paper storage tray - Stores up to twenty pounds of paper
C4781A Input Tray Parts
Bushing
97
RS5-1399-000CN
© 2004 Hewlett-Packard
Drive bushing - Paper deck drive assembly bushing
4
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
C4781A Input Tray Parts
Cable
98
RG5-3909-000CN
Power supply cable - Between power supply and controller PCA
99
RG5-3919-000CN
Main cable - Largest cable in C4781A
Caster
100
XZ9-0442-000CN
Caster wheel
Cover
101
RB1-7832-020CN
2000 sheet paper tray right side cover
RB2-2509-000CN
Clutch cover for 2000 sheet input tray
103
RB2-2519-000CN
Back cover - Protects back of tray assembly
104
RF5-2568-000CN
Front cover - Contains LED status display window
105
RF5-2644-000CN
Paper tray top cover - Includes label
106
RF5-2646-000CN
Left cover
Drive Assembly
107
RG5-3851-000CN
Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller
Feed Assembly
108
C4781-69510
Paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input
REQUIRES RETURN OF DEFECTIVE PART
RG5-3854-000CN
New Part for C4781-69510
Foot
109
RG5-3853-000CN
Adjustable foot - Threaded attachment for leveling
110
RG5-4205-000CN
Cabinet stabilizer (outrigger) - With adjustable foot
Fuse
111
VD7-1893-151CN
Power supply fuse, 250V max
Labels
112
RB2-5342-000CN
2000 sheet paper tray cassette size label
Lock
RB1-7746-000CN
Tray shipping lock clip - Secures paper tray during shipping
Module
C4781-60500
AC power box - Holds AC recptacle, fuse holder, and four cable connections - Includes mounting clips
PC Board
115
RG5-2166-000CN
Sensor PCA - Paper quantity sensor PCA
116
RG5-2168-000CN
Sensor PCA - Paper size sensor PCA
117
RG5-3908-000CN
Paper deck PCA - Input tray controller PCA
Pickup Assembly
118
C4781-69505
2000 sheet paper tray paper pickup assembly - Not compatible with C3763A and C3773A Input Tray
REQUIRES RETURN OF DEFECTIVE PART
RG5-3843-000CN
New Part for C4781-69505
RG5-3843-000CN
2000 sheet paper tray paper pickup assembly - Not compatible with C3763A and C3773A Input Tray
Pin
120
RF5-2556-000CN
Positioning pin - Metal locating pins - Set of 3
Plate
121
RB1-6894-000CN
Paper cassette size plate - Self adhesive label NOT included
122
RG5-3849-000CN
Middle paper limit plate
123
RG5-3850-000CN
Front paper reference plate - Front paper limit plate for 2000 sheet feeder
124
RG5-4201-000CN
Rear paper limit plate - Back paper limit plate for 2000 sheet feeder
© 2004 Hewlett-Packard
5
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
C4781A Input Tray Parts
Power Cord
C4781-60501
'Daisy chain' power cord - Has C13 (F) connector and C14 (M) connector - 250V, 10A - 71.5cm (28.1 inches) long
C4781-60502
'Daisy chain' power cord - 18 AWG, 2.6m (8.4ft) long - Has C14 (M) plug for power input and C13 (F) plug for power
output - 250V, 10A
Power Supply
127
RG5-4021-000CN
Universal power supply
Roller
128
129
RF5-1834-000CN
Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit
assembly (4 used)
RF5-1835-000CN
Pickup roller assembly - Has attached black plastic gear - Mounts in the 2000 sheet paper tray
Spring
130
131
RB1-7835-000CN
Leaf spring - Retaining spring
RS5-2561-000CN
Tension spring
Status Panel
132
RG5-4204-000CN
LED display - Status display with holder and cable
Tab
133
RB1-7677-000CN
Retainer tab
Tray
134
C4781-69506
2000 sheet paper tray (Tray 4) - Paper holder cassette ONLY
REQUIRES RETURN OF DEFECTIVE PART
RG5-3845-000CN
New Part for C4781-69506
C4782A Duplexer Parts
Duplexer
C4782-69501
Duplexer assembly - For 2 sided printing capability
REQUIRES RETURN OF DEFECTIVE PART
C4782-60501
New Part for C4782-69501
C4782A
Auto duplexer assembly - Provides double sided printing capability on laserJets 8100, 8500, 8000, and 5Si
Copier Cover Parts
Bracket
PA03002-C257FJ
Front bracket - Front panel support bracket
Cap
PA03002-C201FJ
Latch cap - ADF cover latch cap
Control Panel
C4166-60102
Front control panel assembly - LCD touch screen and complete control button panel - This is the control panel for the
copier module only
Cover
PA03002-C106FJ
ADF cover - Automatic document feeder top cover
PA03002-C107FJ
Upper cover - Frame around glass plate assembly
PA03002-C264FJ
Control panel cover
Spring
PA03002-C266FJ
Ground spring - Front panel frame ground spring
Tray
PA03002-C121FJ
Output tray assembly - ADF output tray with flip-out paper support tray extender
PA03002-C263FJ
ADF output tray extender - Flip-out tray extender
© 2004 Hewlett-Packard
6
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Drive Parts
Drive
C2985-61021
20GB hard drive (Laserjet) - LaserJet EIO font/print job storage - Used as replacement for 2.1GB and 3.2GB drives
when used in a LaserJet
Electronic Accessories
Cable (Interface)
5063-1254
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin high density IEEE-1284C (M) connector
(type C) - 3.0m (9.8ft) long
5063-1255
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin high density IEEE-1284C (M) connector
(type C) - 10m (33ft) long
92215N
Interface cable kit - For HP peripherals designed for use in an AppleTalk/Phonenet network - Not for Macintosh models
that have recessed I/O connectors
92215S
RS-422 serial cable - 8 pin (M) to 8 pin (M) - 2.0m (6.6ft) long - For connecting Apple Macintosh with LocalTalk/serial
connector
C2946A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin high density IEEE-1284C (M) connector
(type C) - 3.0m (9.8ft) long
C2947A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin high density IEEE-1284C (M) connector
(type C) - 10m (33ft) long
Interface (Product)
J6057A
JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot Has a RJ-45 connector - Comes with software on CD-ROM and manual
J6057AR
JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot Has a RJ-45 connector - Comes with software on CD-ROM and manual
Memory (DIMM)
C7842-67901
8MB, 100-pin SDRAM DIMM memory module
C7843-67901
16MB, 100-pin SDRAM DIMM memory module
C7845-67901
32MB, 100-pin SDRAM DIMM memory module
C7846-67901
64MB SDRAM - 100MHz synchronous DRAM - DIMM package
Q1887-67901
New Part for C7846-67901
Memory (Product)
C4135A
4MB, 100-pin, 32-bit, 60nS, EDO DRAM DIMM memory module
C4136A
8MB, 100-pin, 32-bit, 60nS, EDO DRAM DIMM memory module
C4137A
16MB, 100-pin, 32-bit, 60nS, EDO DRAM DIMM memory module
C4140A
4MB, 100-pin SDRAM DIMM memory module
NO LONGER SUPPLIED
C7842A
New Part for C4140A
C4286A
2MB flash DIMM memory - Font storage device
C4292A
8MB Traditional Chinese MROM DIMM - For LaserJet 4000 and 5100 series printers
C4293A
8MB Simplified Chinese MROM DIMM - For LaserJet 4000 and 5100 series printers
C7842A
8MB, 100-pin SDRAM DIMM memory module
C7843A
16MB, 100-pin SDRAM DIMM memory module
C7845A
32MB, 100-pin SDRAM DIMM memory module
C9680A
64MB, 100MHz SDRAM DIMM memory module
Electronics/Power Supply
Power Cord
8120-6798
Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 100V in Japan)
8120-6800
Power cord (Flint Gray) - 16 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in Israel)
8120-6809
Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in the United Kingdom,
Hong Kong, Singapore, Malaysia)
© 2004 Hewlett-Packard
7
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics/Power Supply
Power Cord
8120-6810
Power cord (Flint Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in Australia, New Zealand)
8120-6811
Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in Europe, Saudi Arabia,
South Africa, India, and Korea)
8120-6812
Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in the USA, Canada,
Mexico, Philippines, and Taiwan)
8120-6813
Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in South Africa, Saudi
Arabia, and India)
8120-6815
Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in Switzerland)
External Case Parts
Clip
178
RB2-3636-000CN
Tray lock clip - At rear of top output tray
Control Panel
179
RG5-5268-000CN
Control panel - Includes display
Cover
5021-0349
EIO slot cover
181
RB1-6480-000CN
Lower left cover
182
RB1-6489-000CN
AC access cover - Has cut out for A/C power cord connection
183
RB1-6492-000CN
Power switch cover - Has cutout for power switch
184
RB2-3642-000CN
Right rear cover
185
RF5-1402-000CN
Rear cover - Sheet metal
186
RG5-4360-000CN
Top cover assembly - Does NOT include face up tray or control panel display
187
RG5-4362-000CN
Front cover
Door
188
RB2-3558-000CN
Diverter door assembly - Upper door on left side of printer - Two struts are mounted to door
189
RB2-3626-000CN
Front access door - Duplexer jam removal access door
190
RG5-1915-040CN
Right door assembly - Door below paper tray 1 - Support strap attached to right side
Foot
191
RB1-6421-000CN
Chassis foot
Guard
192
RB2-3641-000CN
Hinge plate - Bottom half of top cover hinge
Label
193
RS5-8676-000CN
Operation label
Overlay
C4214-40029
LaserJet 8100 control panel overlay (English)
C4214-40031
LaserJet 8100 control panel overlay (Italian)
C4214-40042
LaserJet 8100 control panel overlay (Spanish)
Spring
197
RB1-6493-000CN
Compression spring - Center support for left output bin
198
RB1-6509-000CN
Torsion spring - Helps support left output bin tray
Strap
199
RB1-6484-000CN
Support strap - Supports door when open
Support
200
RF5-2701-060CN
© 2004 Hewlett-Packard
Access door struts - Attached to each side of diverter door assembly
8
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
External Case Parts
Tray
201
RB1-6490-000CN
Face-down output tray - At top of printer
202
RB1-6491-000CN
Face-up output tray - At upper left side
203
RG5-4329-000CN
Multi-Purpose paper input tray (Tray 1) - Includes pull out extender tray
Feeder Assembly Parts
Arm
204
RB1-6417-000CN
Registration paper sensor arm - Senses paper in registration assembly
Cable
205
RG5-1843-000CN
Paper sensor cable - J11 to J15
Roller
RB2-3562-000CN
Fuser pressure roller - Roller that provides pressure against heating roller in fuser asssembly
Spring
207
209
RB1-6409-000CN
Sensor arm spring - Holds tension on paper feeder sensor arm
RS6-2072-000CN
Compression spring - Holds tension on front support block
RS6-2073-000CN
Compression spring - Holds tension on rear support block
Support
210
RB2-3503-000CN
Shaft holding block - Front registration roller support
211
RB2-3504-000CN
Shaft holding block - Rear registration roller support
Fusing Assembly Parts
Fusing Assembly
212
213
C4214-69018
Fusing assembly (For 100V to 120V operation) - Bonds toner to paper with heat
REQUIRES RETURN OF DEFECTIVE PART
RG5-6532-000CN
New Part for C4214-69018
C4214-69019
Fusing assembly (For 220V to 240V operation) - Bonds toner to paper with heat
REQUIRES RETURN OF DEFECTIVE PART
RG5-6533-000CN
New Part for C4214-69019
Lock
RB1-6615-020CN
Right fusing assembly lock - Locks fuser in place
RB1-6616-020CN
Left fusing assembly lock - Locks fuser in place
Interface Board Parts
PC Board (Interface)
J3110-69001
JetDirect 600N EIO internal print server 10Base-T LAN interface board - Has one RJ-45 connector - (J3110A) - NOTE:
EIO Interface Boards are NOT Interchangeable with MIO Boards
J6057-69001
New Part for J3110-69001
J3111-69001
JetDirect 600N EIO internal print server 10Base-T, 10BASE-2, and LocalTalk LAN interface board - Has one RJ-45,
BNC, and 8-pin DIN connector - (J3111A) - NOTE: EIO interface boards are NOT interchangeable with MIO boards
REQUIRES RETURN OF DEFECTIVE PART
J3111-61001
New Part for J3111-69001
Internal Components
Heater
RH7-4126-000CN
Heater element for fusing assembly - 120V
Labels and Transparencies
Film (Transparency)
92296U
LaserJet printer transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per box
92296T
LaserJet printer transparency film - A size (8.5 x 11-inches) - 50 sheets per box
© 2004 Hewlett-Packard
9
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Labels and Transparencies
Labels
92296A
LaserJet printer addressing labels - 2.54cm (1.00in) x 6.67cm (2.63in) labels - 30 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296B
LaserJet printer addressing labels - 3.38cm (1.33in) x 10.2cm (4.00in) labels - 14 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296C
LaserJet printer addressing labels - 2.54cm (1.00in) x 10.2cm (4.00in) labels - 20 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296D
LaserJet printer addressing/shipping labels - 5.08cm (2.00in) x 10.2cm (4.00in) labels - 10 per sheet - 100 sheets per
box
NO LONGER SUPPLIED
92296E
LaserJet printer shipping labels - 8.47cm (3.33in) x 10.2cm (4.00in) labels - Six per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296F
LaserJet printer return address labels - 1.27cm (0.50in) x 4.45cm (1.75in) labels - 80 per sheet - 25 sheets per box
NO LONGER SUPPLIED
92296G
LaserJet printer file folder labels - 1.69cm (0.67in) x 8.73cm (3.44in) labels - 30 per sheet - 25 sheets per box
NO LONGER SUPPLIED
92296H
LaserJet printer labels for 3.5-inch diskettes - 7.00cm (2.75in) x 7.00cm (2.75in) labels - Nine per sheet - 70 sheets per
box
NO LONGER SUPPLIED
92296J
LaserJet printer labels for 5.25-inch diskettes - 3.81cm (1.50in) x 10.2cm (4.00in) labels - 12 per sheet - 70 sheets per
box
NO LONGER SUPPLIED
92296K
LaserJet printer full sheet label - A size (8.5 x 11-inches) label - One per sheet - 100 sheets per box
NO LONGER SUPPLIED
Logic/Control Electronics
Cable
231
RG5-4386-000CN
Cable assembly - From DC controller board to main motor
Drive (Product)
C2985A
2.1GB hard drive - LaserJet EIO font/print job storage
NO LONGER SUPPLIED
C2985B
New Part for C2985A
C2985B
3.2GB hard drive - DesignJet or LaserJet EIO font/print job storage
Memory Module
C8530-67908
8MB flash firmware ROM memory
PC Board
235
C4214-69009
DC controller board assembly
REQUIRES RETURN OF DEFECTIVE PART
RG5-4375-030CN
New Part for C4214-69009
C4265-69001
Formatter board - Main logic PCA
REQUIRES RETURN OF DEFECTIVE PART
C4265-67901
New Part for C4265-69001
237
RG5-1846-000CN
Switch/sensor board - Includes face down tray sensors, fusing delivery sensor and door switch
238
RG5-1860-000CN
Paper pickup board - Includes 8 photosensors
239
RG5-1884-000CN
Multipurpose paper tray board - Includes paper sensors PS1301 and PS1302
Power Cord
RH2-5263-000CN
© 2004 Hewlett-Packard
Power cord (Gray) - 14 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in the USA and Canada)
10
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Mailbox Components
Bin
241
C3764-60505
Face up output bin - Top bin on multi-bin mailbox
242
C4785-60502
Single paper output bin - For the multi-bin mailbox assembly
Cable
243
C4787-60507
Stapler unit C-link cable - Has two high density 15 pin (M) connectors - 91.4cm (36 inches) long
Caster
244
C4785-60510
Fixed caster - Non-adjustable height caster
245
C4785-60511
Fixed caster - Adjustable height caster
Clip
246
C4785-60512
Multibin mailbox attachment clip
Cover
247
C3764-60555
Top cover
248
C4785-60503
Blind cover - Covers space trays and face-up bin - Home position cover for head assembly
249
C4785-60504
Front cover - Front side cover
250
C4785-60505
Side cover - Back side cover
Extension
C4785-60531
C-link cable adapter extension - Used when no input device is used with 8-bin or 5-bin mailbox
Flipper
252
C4785-60540
Flipper assembly (with cable) - Moves paper from printer to face down mailbox tray or the face up bin on top - Includes
firmware chip
Guide
253
C3764-60561
Paper input guide - Mounted in top of multi-bin mailbox
Head Assembly
254
C4785-60523
Head assembly - Moves paper up and down the mailbox to the correct mailbox bin
Kit
C4785-60513
Repackaging kit
256
C4785-60516
Attachment kit - Attachment rod, bracket and cables
257
C4785-60519
Plastic parts kit - Contains paper anticurl spring/strings, small bottom pulley, flat cable holder, edge and gasket
258
C4785-60520
Cable kit - Includes interlock switch, head motor cable, flipper sensor, encoder, motor controller cables, ESD cable, and
delivery head assembly flat cable
LED
259
C4785-60515
Status LED display - With cable
Lock
C4787-60503
Shipping lock kit - For 8-bin and 5-bin mailboxes
Mailbox
261
C4787-69506
5-bin mailbox - Used when stapler option is present
REQUIRES RETURN OF DEFECTIVE PART
C4787-60510
New Part for C4787-69506
Motor
263
C3764-60507
Elevator stepper motor
C4785-60518
Transport belt motor - Includes fan
PC Board
264
C4785-60514
Diagnostic LED display board - With cable
C4785-60539
Mailbox contoller PCA
© 2004 Hewlett-Packard
11
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Mailbox Components
Stapling Unit
266
C4787-69513
Stapling unit - Includes top cover, bed assembly, and board
REQUIRES RETURN OF DEFECTIVE PART
C4787-60513
New Part for C4787-69513
Tape
267
C4785-60507
Metallic tape and housing assembly - Narrow tape version used with the double belt transport belt system
268
C4785-60524
Metallic tape and housing assembly - Wide tape version used with the single belt transport belt system
Optional Interfaces
Interface (Product)
J3110A
Ethernet 10Base-T (RJ-45) EIO network internal print server PC board
J3111A
Ethernet 10Base-T/10Base2 and LocalTalk (RJ-45, BNC, LocalTalk) EIO network PCA
J3112A
JetDirect 600N token ring LAN interface board - DB-9 and RJ-45 connectors
NO LONGER SUPPLIED
J3113A
JetDirect 600N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot
J4135A
JetDirect connectivity card - Has one USB port, one serial (DB9) port and one LocalTalk port - Plugs in the EIO slot on
selected DesignJet and LaserJet printers
J4167A
JetDirect 610N token ring LAN interface board - DB-9 and RJ-45 connectors
J4169A
JetDirect 610N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot Has a RJ-45 connector - Comes with software on CD-ROM and manual
PC Board (Interface)
J3112-69001
JetDirect 600N EIO internal print server token ring LAN interface board - Has one RJ-45 and DB-9 connector
J4167-69001
New Part for J3112-69001
J3113-69001
JetDirect 600N EIO internal print server 10Base-T and 100Base-T LAN interface board - Has one RJ-45 connector
J4135-61001
JetDirect connectivity card - Has one USB port, one serial (DB9) port and one LocalTalk port
Optional Paper Trays
Envelope Feeder
C3765-69501
Replacement optional envelope feeder - Holds 100 envelopes
REQUIRES RETURN OF DEFECTIVE PART
C3765-60501
New Part for C3765-69501
C3765B
Optional envelope feeder - Automatically feeds 100 envelopes
Guide
RF5-1484-000CN
Paper size guide/stop - For upper or lower paper input tray
Mailbox
282
C4787A
5-bin mail box with stapler - Holds 2100 sheets of paper used with 5Si family, mopier and 8000 printers
Stop
RF5-2002-030CN
Paper length stop
Tray
285
C4780A
HP LaserJet 8000 and 8100 Series Optional 1000 (2 x 500) sheet paper trays (Trays 4 & 5) - Holds up to 1000 sheets of
letter, legal, tabloid/ledger, A3, A4, B, or B4 size paper - Does NOT include paper handling PCA
C4781A
HP LaserJet 8000, 8100, and 5Si Series Optional 2000 sheet paper tray (Tray 4) - Holds up to 2000 sheets of letter,
legal, tabloid/ledger, A3, A4, B, or B4 size paper - Does NOT include paper handling controller board
C4785A
8 bin mail box - Holds 2600 sheets of paper - Used with 2000 sheet paper tray or printer cabinet
R98-1004-000CN
Lower paper input tray (Tray 3) - 500 sheet capacity - For letter, legal, 11 x 17 inch (B-size), A4 (210MM x 297MM), A3
(297MM x 420MM) and B4 (257MM x 364MM) size paper
R98-1005-000CN
Upper input paper tray (Tray 2) - 500 sheet capacity - For letter, legal, and A4 (210MM x 297MM) size paper
© 2004 Hewlett-Packard
12
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
CD-ROM (Support)
C4214-60103
LaserJet 8100 series user guide - 23 languages
Cartridge
C4182X
Black Ultra-Precise toner cartridge
Certificate
C7819-90903
Email license certificate for MFP
C8539-90901
FAX license certificate for MFP
C9122-90901
NT authentication certificate for MFP
C3914A
Maintenance kit (120V) - Replacement parts after 350K pages includes, fusing assembly, 8 feed/separation rollers, and
transfer roller
Kit
Manual Kit
5021-0377
HP-GL/2, PCL5 and PJL technical reference manual kit
C4214-99021
LaserJet 8100 service manual bundle - Includes service manual supplement for paper-handling accessories
Software
C6072-60301
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(English)
C6072-60304
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(German)
C6072-60305
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(French)
C6072-60306
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(Spanish)
C6072-60307
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (Italian)
Stand
C2975A
HP LaserJet Printer Cabinet - For LaserJet 5Si family and 8000/8100 series printers - Supports the printer, and provides
storage for supplies and accessories
C4784A
7-bin Tabletop Mailbox Stand - Wheeled stand that allows 7-bin tabletop mailbox to be used when printer is mounted on
2 x 500 or 2000 sheet input - For LasetJet 8000/8100 series printers
NO LONGER SUPPLIED
Staple Cartridge
C3772A
HP LaserJet flat-wire staple cartridges for Multi-Bin Mailbox with Stapler - For LaserJet 8000, 8100, 8150, 5Si series and
Mopier 240, 320 - Package of 3 with 2000 staples/cartridge - (C3774A)
Training Kit
C4214-67901
Self Paced Training Kit for LaserJet 5Si Series,8000,8100 and 8150
Other Internal Parts
Arm
306
RB1-6444-000CN
Release arm - Front toner cartridge release arm - Hook shaped cartridge holder
307
RB1-6446-000CN
Release arm - Toner cartridge release arm - Hook shaped cartridge holder
Cable
308
RG5-1850-000CN
Duplexer cable assembly - From duplexer to DC controller
309
RG5-1859-000CN
Sensor cable - PIU PS2 sensor cable - J13 to J1205
310
RG5-1861-000CN
Cable assembly - 20 pin (F) connector on each end - 39.4cm (15.5 inches) long
311
RG5-1920-000CN
Cassette size sensor cable - Between cassette size sensor PCA's and formatter board
312
RG5-1921-000CN
Fan cable - Fan 3 power cable
313
RG5-1928-000CN
Registration cable assembly - Includes 7P and 3P connectors
314
RG5-4377-000CN
Cable assembly - An 11 pin (F) connector, a 10 pin (F) connector, and two 7 pin (F) connectors - 1.1m (3.7ft) long
© 2004 Hewlett-Packard
13
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Internal Parts
Cable
315
RG5-4378-000CN
Cable assembly with ferrites - Has many connectors: A 14 pin (F), an 11 pin (F), two 7 pin (F), a 5 pin (F), two 4 pin (F),
and two 3 pin (F) - 85.6cm (33.7 inches) long
316
RG5-4381-000CN
Cable assembly - 18 pin (F) connector to 25.4cm (10 inch) grounding wire with ring terminal, 35.7cm (14 inch) cable with
4 pin (F) connector, 53.3cm (21 inch) cable with 1 pin (F) connector, and 86.4cm (34 inch) cable with 4 pin (F) connector
Cable (Interface)
C4781-60504
Multi-Bin mailbox interface C-link cable - 45cm (17.7 inches) long
Cover
318
RB1-6464-000CN
Upper right cover
Fan
319
RH7-1266-000CN
Tubeaxial fan assembly (FM2)
320
RH7-1271-000CN
Formatter board fan (FM3)
321
RH7-1289-000CN
Delivery assembly fan (FM4)
322
RH7-1396-000CN
Power supply fan (FM1)
323
RH7-1397-000CN
Tray 1 fan (FM5)
Guide
324
RB1-6771-000CN
PCA guide - Formatter board support guides
325
RB1-6775-000CN
Slide guide - Guide for formatter PCA
326
RB1-6776-000CN
Tray rail guide - Spring loaded metal guide
327
RB2-3622-000CN
Toner cartridge guide - Plastic piece with slot to guide toner cartridge
328
RG5-4364-000CN
Toner cartridge guide - Rear guide - Plastic piece with slot to guide toner cartridge
Laser/Scanner
329
C4214-69003
Laser/scanner assembly
REQUIRES RETURN OF DEFECTIVE PART
RG5-4344-000CN
New Part for C4214-69003
Lever
330
RB1-6692-000CN
Paper sensing lever - Senses paper in face down delivery assembly
331
RB1-6693-020CN
Paper height lever - Senses when face-down tray is full
Motor
332
RH7-1350-000CN
Paper input motor
Plate
333
RF5-1464-000CN
Switch/sensor board plate - Shields switch/sensor PCA
Rail
334
RB1-6777-000CN
Right side tray rail
Rod
335
RB1-6778-000CN
Rod - Tray connector rod for springs
Roller
336
RF5-1834-000CN
Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit
assembly (4 used)
Sensor
337
WG8-0291-000CN
Photo sensor
Shield
338
RF5-2678-000CN
© 2004 Hewlett-Packard
Formatter board EMI shield
14
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Internal Parts
Spring
339
RS5-2499-000CN
Tension spring - Front spring on metal slide
Stop
340
RB1-6427-000CN
CG stopper - Toner cartridge guide stop - Holds toner cartridge in place
341
RB1-6783-000CN
Tray stop - Right side tray stopper - Attached to right rear side of Tray 2 and 3 - Blue plastic piece
Paper Path Parts
Arm
342
RB1-6557-000CN
Paper input unit sensor arm - Senses when paper passes through paper input unit
Bushing
343
RB1-6441-000CN
Transfer guide bushing
Clutch
345
RG5-4308-000CN
Registration assembly clutch
RH7-5188-000CN
Paper feed clutch
RH7-5204-000CN
New Part for RH7-5188-000CN
Cover
346
RB2-3631-000CN
Paper feed clutch cover
Delivery
347
RG5-1874-110CN
Face down delivery assembly - Feeds paper to top of printer
Diverter
348
RG5-4325-000CN
Diverter assembly - Diverts paper to duplexer assembly or face up tray or face down delivery assembly
Drive Assembly
349
RF9-1249-000CN
Diverter drive assembly - 4 gear drive assembly - 20 tooth gear NOT included
350
RG5-4365-000CN
Main drive gear assembly
Feed Assembly
351
RG5-4305-000CN
Feeder assembly - Transfer roller and registration assembly are mounted on this assembly
Guide
353
RF5-1394-000CN
Transfer guide - Guide transfer roller is mounted into
RF5-2676-000CN
Transfer guide
Holder
354
RB1-6461-000CN
Damper holder - Front damper holder
355
RB1-6462-000CN
Damper holder - Rear damper holder
C3914-67902
Maintenance kit (120V) - Replacement parts after 350K pages includes, fusing assembly, eight feed/separation rollers,
and transfer roller - NOTE: Pickup rollers are not included in this kit - Please order separately if needed
C3914-69001
Maintenance kit (120V) - Replacement parts after 350K pages includes, fusing assembly, eight feed/separation rollers,
and transfer roller - NOTE: Pickup rollers are not included in this kit - Please order separately if needed
REQUIRES RETURN OF DEFECTIVE PART
C3914-67902
New Part for C3914-69001
C3915-67902
Maintenance kit (220V) - Replacement parts after 350K pages includes, fusing assembly, eight feed/separation rollers,
and transfer roller - NOTE: Pickup rollers are not included in this kit - Please order separately if needed
C3915-69001
Maintenance kit (220V) - Replacement parts after 350K pages includes, fusing assembly, eight feed/separation rollers,
and transfer roller - NOTE: Pickup rollers are not included in this kit - Please order separately if needed
REQUIRES RETURN OF DEFECTIVE PART
C3915-67902
New Part for C3915-69001
Kit
© 2004 Hewlett-Packard
15
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Path Parts
Motor
360
RH7-5219-000CN
Main motor
Pad
361
RF5-2703-000CN
Separation pad - Tray 1 separation pad
Pickup Assembly
362
363
C4214-69017
Paper pickup assembly - Includes pickup, feed and separation rollers
REQUIRES RETURN OF DEFECTIVE PART
RG5-4334-260CN
New Part for C4214-69017
RG5-4330-000CN
Paper pickup assembly
Plate
364
RB1-6582-020CN
Upper paper guide plate
Roller
365
RB1-9526-000CN
Pickup roller - Used in tray 1 paper pickup assembly
366
RF9-1394-000CN
Transfer roller - Transfer charge roller (Black)
367
RG9-1361-000CN
Transfer roller assembly - Includes transfer guide, both transfer bushings and transfer roller
Roller Assembly
368
RG5-4303-030CN
Registration assembly - Set of rollers before toner cartridge and after feed rollers - Has green handle with the number 2
printed on it
Shield
RB1-6749-000CN
Internal cover for Tray 1 pickup assembly
Solenoid
370
RG5-1875-000CN
Face up solenoid assembly
Spring
371
RB1-6558-020CN
Sensor arm torsion spring - Holds tension on PIU paper sensor arm
Power Supplies and Parts
Fuse
372
VD5-0056-301CN
Low voltage power supply fuse - For 110/120V operation
373
VD7-0646-301CN
Low voltage power supply fuse - For 220/240V operation
Power Supply
374
C4214-69020
Low voltage power supply (120v,60Hz) - Includes power switch, AC receptacle and DC power supply
REQUIRES RETURN OF DEFECTIVE PART
RG5-4357-000CN
New Part for C4214-69020
375
RG5-4301-000CN
Low voltage power supply - 240VAC, 50Hz - Includes power switch, AC receptacle and DC power supply
376
RG5-4306-050CN
High voltage power supply assembly
Power Supply Kit
C4789A
Power supply kit - For connecting a multi-bin mailbox to printer when printer is on a stand
Scanner Flatbed Parts
Bushing
378
PA03002-C206FJ
Rail bushing - Carrier unit support bushing
Cable
379
PA03002-C125FJ
Front panel cable - Between front panel and junction PCA
380
PA03002-C204FJ
Carrier flex cable - From carrier unit to junction PCA
Carrier
381
C4230-50000
© 2004 Hewlett-Packard
Carrier unit assembly - Holds optical scanner for flatbed scanner portion of copier
16
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Scanner Flatbed Parts
Collar
382
PA03002-C214FJ
Carrier tension pulley collar - Sleeve that carrier pulley tension spring slides over
Cover
383
PA03002-C104FJ
Flatbed cover assembly - With paper chuter flip out and document holding pad
384
PA03002-C256FJ
Carrier unit dust cover
Cover Pad
385
PA03002-C267FJ
Junction PCA cover - Protects junction PCA
386
PA03002-C270FJ
Front panel cable cover - Protects front panel cable
Extension
387
PA03002-C260FJ
Paper chute flip out - Flip out paper tray extension
Ferrite Assembly
388
PA03002-C262FJ
Ferrite core - Attaches to the carrier ribbon cable
Foot
389
PA03002-C218FJ
Rubber foot
Glass Assembly
390
PA03002-C219FJ
Glass plate assembly - Copier flatbed glass, frame and lower ADF exit roller assembly
Lamp
391
PA03002-C114FJ
Lower lamp - Front side of carrier unit
Motor
392
PA03002-C116FJ
Carrier unit motor
Pad
393
PA03002-C105FJ
Document holding pad - Foam piece on bottom of flatbed cover that holds document to copier glass
Pulley
394
PA03002-C210FJ
Carrier tension pulley - Carrier belt idler pulley
Rail
395
PA03002-C205FJ
Carrier rail - Carrier unit front support rail
Sensor
396
PA03002-C207FJ
Home postion sensor - Senses when carrier unit is parked in the home position
Shaft
397
PA03002-C211FJ
Carrier tension pulley shaft - Axle for carrier belt tension pulley
Spacer
398
PA03002-C213FJ
Carrier tension pulley spacer
Spring
399
PA03002-C208FJ
Frame ground spring
400
PA03002-C209FJ
Idle roller coil spring - Provides tension for idle roller
PA03002-C212FJ
Carrier spring - Provides tension for carrier belt pulley
401
Stop
402
PA03002-C226FJ
Document cover rubber stop
Tool
403
PA03002-C259FJ
Lubrication applicator - Carrier unit rail lubricator
Scanner Internal Parts
Bracket
404
PA03002-C222FJ
Output tray bracket - Rear ADF output tray mount
405
PA03002-C223FJ
Output tray bracket - Front ADF output tray mount
© 2004 Hewlett-Packard
17
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Scanner Internal Parts
Cable
406
PA03002-C203FJ
DC cable - From power supply to copier logic board
407
PA03002-C229FJ
CCD cable - From control PCA to CCD PCA on optical unit
Cable (Interface)
408
8120-8749
IEEE-1394 (FireWire) cable with two ferrites - 6 pin to 6 pin - 1.9m (6.3ft) long
Fan
409
PA03002-C118FJ
PC board cooling fan assembly
Ring
410
PA03002-C225FJ
V2 HK ring - Special application spacer
Roller
411
PA03002-C224FJ
Exit idle roller
Shield
412
PA03002-C202FJ
RFI cover shield for PC boards
Stapler Components
Bed
413
C3766-60503
Stapling unit bed assembly - Includes sliders that move sheets of paper to stapling position
Brush
414
C3766-60508
Stapling unit antistatic brush - Eliminates static charge on paper
Cable
415
C4787-60507
Stapler unit C-link cable - Has two high density 15 pin (M) connectors - 91.4cm (36 inches) long
Cover
416
C3766-60501
Stapling unit top cover
Guide
417
C3766-60507
Stapling unit wire form guide
Hinge
418
C3766-60506
Stapling unit hinges - Set of 2
PC Board
419
C4787-60514
Stapling unit control board
Plate
C3766-60505
© 2004 Hewlett-Packard
Stapling Unit Back Plate - Covers rear of Stapling Unit
18
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
2 X 500 Input Tray
72
/
65
/
_
77, 111
_
_
90, 127
73
69
_
86, 120
\
_
84
64, 98
\
\
71
87, 121
\
|
81
78, 112
\
_
74
70
/
/
83
\
79
\
93
96
/
76, 110
/
66, 100
/
75
/
\
85
95
\
/
68
\
91, 128, 336
\
91, 128, 336
\
92
/
94
\
67
© 2004 Hewlett-Packard
19
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
2000 Sheet Input Tray (1 of 2)
105
/
_
106
103
/
_
123
86, 120
/
_
124
/
107
|
122
\
97
_
101
66, 100
/
_
87, 121
\
134
118
\
\
78, 112
_
104
_
108
\
129
\
91, 128, 336
\
91, 128, 336
© 2004 Hewlett-Packard
20
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
2000 Sheet Input Tray (2 of 2)
117
/
99
/
_
115
130
/
132
/
_
130
116
/
131
|
133
\
76, 110
\
109
/
131
|
_
64, 98
90, 127
/
77, 111
_
\
133
© 2004 Hewlett-Packard
21
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
7-bin Tabletop Mailbox
_
19
30
/
_
_
3
/
25
23
27
\
8
\
_
7
2
/
14
/
\
10
29
/
_
_
9
15
16
_
22
/
5
12
6
_
© 2004 Hewlett-Packard
_
_
24
\
22
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
ADF Unit (1 of 2)
49
/
50
\
38
\
37
\
63
/
_
55
\
57
37
\
/
58
45
\
/
46
39
\
/
3662
\
\
55
\
36
44
\
/
58
_
41
\
\
52
34
|
© 2004 Hewlett-Packard
35
\
56
23
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
ADF Unit (2 of 2)
_
47
43
\
60
\
59
\
61
\
\
46
40
\
\
40
40
\
\
54
\
42
\
40
© 2004 Hewlett-Packard
24
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Carrier Unit
381
_
391
\
/
378
_
403
\
384
© 2004 Hewlett-Packard
25
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Covers and Doors
201
/
_
198
\
_
178
186
/
197
/
179
_
193
/ 182
192
/
/
202
200
188
_
_
_
184
/
185
200
_
\
348
181
_
_
183
199
_
_
_
190
187
189
/
© 2004 Hewlett-Packard
26
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Delivery Assembly
7
_
\
331
\
347
© 2004 Hewlett-Packard
\
330
\
321
27
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Diverter Assembly
|
349
© 2004 Hewlett-Packard
28
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Document Cover Assembly
383
_
\
387
402
|
393
/
© 2004 Hewlett-Packard
29
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Feeder Assembly
351
_
205
|
351
\
_
211
/
207
/
210
_
204
_
© 2004 Hewlett-Packard
209
30
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Flatbed Parts
385
\
380
/ 388
/
394
\
397
\
\
398
395
/
\
398
396
/
_
382
/
400
\
399
/
401
392
/
389
_
386
\
379
\
© 2004 Hewlett-Packard
31
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Glass Plate and PCA Assembly
407
/
408
\
406
/
390
_
_
409
410
\
\
411
410
\
\
411
_
404
412
/
_
© 2004 Hewlett-Packard
405
32
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (1 of 4)
366
\
367
_
\
353
346
\
343
_
351
\
\
347
\
368
\
212, 213
360
_
231
/
/
370
\
355
\
354
_
363
_
/
350
203
\
362
© 2004 Hewlett-Packard
33
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (2 of 4)
_
307
328
_
318
\
306
/
327
\
|
311
334
\
\
341
191
_
335
\
|
339
© 2004 Hewlett-Packard
326
|
34
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (3 of 4)
315
/
329
\
322
/
314
_
340
\
340
\
© 2004 Hewlett-Packard
35
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (4 of 4)
338
/
324
_
_
312
\
320
325
/
_
\
316
333
308
|
_
313, 376
374, 375
/
|
372, 373
_
© 2004 Hewlett-Packard
319
36
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Major Printer and Paper Handling Parts
282
_
99, 285
© 2004 Hewlett-Packard
_
37
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Multibin Mailbox (1 of 3)
_
_
266
247
/
261
_
/
248
259
/
241
_
249
242
/
_
245
_
_
244
245
256
|
© 2004 Hewlett-Packard
38
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Multibin Mailbox (2 of 3)
252
/
_
267, 268
_
257
/
254
257
/
257
/
257
/
© 2004 Hewlett-Packard
39
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Multibin Mailbox (3 of 3)
_
|
253
258
258
_
_
246
\
257
\
\
258
258
_
258
/
258
_
257
/
246
\
258
264
_
\
257
_
_
© 2004 Hewlett-Packard
250
263
40
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optical Unit
51
_
53
\
48
\
51
_
\
33
© 2004 Hewlett-Packard
41
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Pickup Assembly
362
\
362
_
310
/
332
/
\
364
_
\
91, 128, 336
345
/
\
309
/
342
\
92
/
371
© 2004 Hewlett-Packard
238
\
337
42
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
PCB Assembly Location
/
237
_
_
235
239
/
82
/
82
© 2004 Hewlett-Packard
238
/
43
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Stapler
266
/
414
/
243, 415
|
/
419
_
416
_
413
_
418
/
417
© 2004 Hewlett-Packard
44
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
Tray 1 Assembly
363
_
_
363
323
\
\
365
© 2004 Hewlett-Packard
\
361
45
LaserJet 8150HN
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
© 2004 Hewlett-Packard
46
Download PDF

advertising
