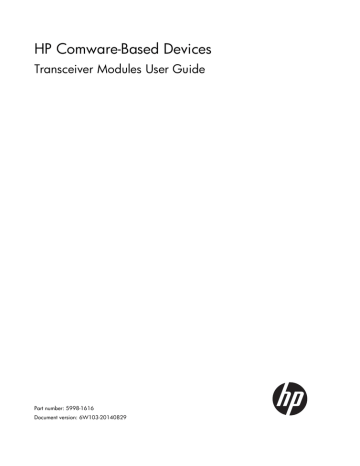

HP Comware-Based Devices
Transceiver Modules User Guide
Part number: 5998-1616
Document version: 6W103-20140829
Legal and notice information
© Copyright 2014 Hewlett-Packard Development Company, L.P.
No part of this documentation may be reproduced or transmitted in any form or by any means without
prior written consent of Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained
herein or for incidental or consequential damages in connection with the furnishing, performance, or
use of this material.
The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein.
Contents
Overview ······································································································································································ 1 Types of transceiver modules ··········································································································································· 2 Fiber transceiver modules················································································································································· 3 Data rate ··································································································································································· 4 Transmission distance ·············································································································································· 4 Central wavelength ·················································································································································· 4 Fiber ··········································································································································································· 4 Connector ·································································································································································· 6 Optical parameters ·················································································································································· 7 Copper transceiver modules ············································································································································ 7 Transmission distance ·············································································································································· 7 Connector ·································································································································································· 8 SFP modules·································································································································································· 9 100-Megabit SFP fiber transceiver module ···················································································································· 9 Models and specifications ······································································································································· 9 622-Megabit SFP fiber transceiver module ················································································································· 10 Models and specifications ···································································································································· 10 Gigabit SFP fiber transceiver module ·························································································································· 11 Models and specifications ···································································································································· 11 2.5-Gigabit SFP fiber transceiver module ··················································································································· 12 Models and specifications ···································································································································· 12 100-Megabit BIDI fiber transceiver module ················································································································ 13 Models and specifications ···································································································································· 13 Gigabit BIDI fiber transceiver module·························································································································· 14 Models and specifications ···································································································································· 14 Gigabit CWDM fiber transceiver module ··················································································································· 14 Models and specifications ···································································································································· 15 Gigabit SFP copper transceiver module ······················································································································ 16 Models and specifications ···································································································································· 16 Gigabit SFP cable ·························································································································································· 16 Models and specifications ···································································································································· 17 SFP+ modules ····························································································································································· 18 10-Gigabit SFP+ fiber transceiver module ·················································································································· 18 Models and specifications ···································································································································· 18 10-Gigabit SFP+ cable ·················································································································································· 19 Models and specifications ···································································································································· 19 XFP transceiver modules ············································································································································ 20 Models and specifications ············································································································································ 20 CX4 cables ································································································································································· 23 Models and specifications ············································································································································ 23 QSFP+ modules ·························································································································································· 24 QSFP+ fiber transceiver modules that use a 12-fiber MPO connector····································································· 24 Models and specifications ···································································································································· 24 QSFP+ fiber transceiver modules that use an LC connector ······················································································ 25 Models and specifications ···································································································································· 25 40-Gigabit QSFP+ cable··············································································································································· 26 i
Models and specifications ···································································································································· 26 QSFP+ to SFP+ cable ···················································································································································· 26 Models and specifications ···································································································································· 27 CFP transceiver modules ············································································································································ 28 Models and specifications ···································································································································· 28 CXP modules······························································································································································· 30 CXP fiber transceiver modules ······································································································································ 30 Models and specifications ···································································································································· 30 CXP AOC ········································································································································································ 31 Models and specifications ············································································································································ 31 Support and other resources ····································································································································· 32 Contacting HP ································································································································································ 32 Subscription service ·············································································································································· 32 Related information ························································································································································ 32 Documents ······························································································································································ 32 Websites································································································································································· 32 Conventions ···································································································································································· 33 Index ··········································································································································································· 35 ii
Overview
This guide describes transceiver modules available on the following HP Comware-Based devices:
•
HP FlexFabric 12900 Switch Series
•
HP 12500 Switch Series
•
HP FlexFabric 12500E Switch Series
•
HP FlexFabric 11900 Switch Series
•
HP 10500 Switch Series
•
HP 9500 Switch Series
•
HP FlexFabric 7900 Switch Series
•
HP 7500 Switch Series
•
HP 6125 Blade Switch Series
•
HP FlexFabric 5930 Switch Series
•
HP 5920 Switch Series
•
HP 5900 Switch Series
•
HP 5700 Switch Series
•
HP 5830 Switch Series
•
HP 5820X Switch Series
•
HP 5800 Switch Series
•
HP 5500 HI Switch Series
•
HP 5500 EI Switch Series
•
HP 5500 SI Switch Series
•
HP 5120 EI Switch Series
•
HP 5120 SI Switch Series
•
HP 3600 v2 Switch Series
•
HP 3100-48 v2 Switch
•
HP 3100 v2 Switch Series
•
HP 1920 Gigabit Ethernet Switch Series
•
HP 1910 Gigabit Ethernet Switch Series
•
HP 1910 Fast Ethernet Switch Series
•
HP 8800 Router Series
•
HP 6600 Router Series
•
HP HSR6600 Router Series
•
HP HSR6800 Router Series
•
HP MSR1002-4 Router
•
HP MSR2004-24 Router
•
HP MSR3000 Router Series
1
•
HP MSR4000 Router Series (with SPU-200 / SPU-300)
•
HP MSR30-40 / MSR30-60 Routers
•
HP MSR50 Router Series
•
HP F5000 Firewall
•
HP F5000-S VPN Firewall Appliance
•
HP F5000-C VPN Firewall Appliance
•
HP F1000-E VPN Firewall Appliance
•
HP F1000-S-EI VPN Firewall Appliance
•
HP F1000-A-EI VPN Firewall Appliance
•
HP U200-A Unified Threat Management Appliance
•
HP 7500 VPN Firewall Module
•
HP 9500 VPN Firewall Module
•
HP 12500 VPN Firewall Module
•
HP 6600 VPN Firewall Module
•
HP 8800 VPN Firewall Module
•
HP 10500/11900/7500 20Gbps VPN FW Module
•
HP 12500 20Gbps VPN Firewall Module
•
HP 12900 40Gbps VPN Firewall Module
•
HP 7500 NetStream Monitoring Module
•
HP 9500 NetStream Monitoring Module
•
HP 12500 NetStream Monitoring Module
•
HP 7500 Load Balancing Module
•
HP 9500 Load Balancing Module
•
HP 12500 Load Balancing Module
•
HP 8800 Load Balancing Module
•
HP 830 8-Port PoE+ Unified Wired-WLAN Switch
•
HP 830 24-Port PoE+ Unified Wired-WLAN Switch
•
HP 850 Unified Wired-WLAN Appliance
•
HP 870 Unified Wired-WLAN Appliance
Types of transceiver modules
Table 1 Types of transceiver modules
Transceiver module type
Connector type
100-Megabit SFP fiber transceiver module
Small form-factor pluggable (SFP)
module (transceiver)
622-Megabit SFP fiber transceiver module
Gigabit SFP fiber transceiver module
2.5-Gigabit SFP fiber transceiver module
2
LC
Transceiver module type
Connector type
100-Megabit bi-direction (BIDI) fiber
transceiver module
LC
Gigabit BIDI fiber transceiver module
SFP+ module (transceiver)
Gigabit coarse wavelength division
multiplexing (CWDM) fiber transceiver
module
LC
Gigabit SFP copper transceiver module
RJ-45
Gigabit SFP cable (for interconnecting
devices)
N/A
10-Gigabit SFP+ fiber transceiver module
LC
10-Gigabit SFP+ cable (for interconnecting
devices)
N/A
10-Gigabit small form-factor pluggable (XFP) module (transceiver)
LC
10-Gigabit CX4 cable (for interconnecting devices)
N/A
QSFP+ module
(transceiver)
CFP module
(transceiver)
CXP module
(transceiver)
40-Gigabit QSFP+ fiber transceiver module
MPO/LC
40-Gigabit QSFP+ cable (for interconnecting QSFP+
ports)
N/A
QSFP+ to SFP+ cable (for connecting one 40-Gigabit
QSFP+ port to four 10-Gigabit SFP+ ports)
N/A
40-Gigabit/100-Gigabit CFP fiber transceiver module
LC
100-Gigabit CXP fiber transceiver module
MPO
100-Gigabit CXP AOC
N/A
NOTE:
• The available transceiver modules vary by HP Comware-Based device models and are subject to change
over time. For the most up-to-date list of transceiver modules, contact your HP sales representative or
technical support engineer.
• For information about the transceiver modules available for each HP Comware-Based device model, see
the installation guides.
Fiber transceiver modules
Fiber modules transmit signals over optical fibers. Optical transmission features low loss and is fit for long
distance transmission.
The HP Comware-Based devices support fiber transceiver module models of different specifications. You
can choose fiber transceiver modules as needed for data transmission over optical fibers.
The fiber transceiver modules include optical transmitters, optical receivers, transceivers, and
transponders.
The HP Comware-Based devices support transceivers. Transceivers are mainly used for
optical-to-electrical and electrical-to-optical conversions and provide the following functions: optical
3
power control, modulation transmission, signal probe, IV conversion, and limiting amplifier and decision
regeneration. In addition, transceivers provide some other functions, such as counterfeit-prevention query
and TX-disable. Common transceivers include XFP, SFP, SFP+, and QSFP+.
Data rate
Data rate is the number of bits transmitted per second. The unit of measure for data rate is Megabits per
second (Mbps) or Gigabits per second (Gbps). Fiber transceiver modules available for HP
Comware-Based devices mainly provide the following levels of data rates: 100 Mbps, 155 Mbps, 622
Mbps, 1000 Mbps, 2.5 Gbps, 10 Gbps, 40 Gbps, and 100 Gbps.
Transmission distance
The transmission distance of fiber transceiver modules is divided into short and long-range types. A
distance of 2 km (1.24 miles) and below is generally considered as short-range type. 10 km (6.21 miles)
is considered as long-range type.
Transmission distances provided by fiber transceiver modules are mainly limited by certain loss and
dispersion suffered during the transmission of fiber signals over fibers.
•
Loss is the optical energy loss due to the absorption, dispersion and leakage over the media when
light travels through optical fibers. This loss increases in direct ratio to transmission distance.
•
Dispersion happens mainly because electromagnetic waves of different wavelengths travel at
different rates over the same medium, causing different wave components of optical signals to
reach the receiving end early or late as the transmission distance increases, which in turn causes
impulse broadening, making the signal values indistinguishable.
To meet different transmission distance requirements, choose suitable fiber transceiver modules
according to actual networking conditions.
Central wavelength
Central wavelength represents the wave band used for optical signal transmission. The following central
wavelengths are available for common fiber transceiver modules: 850 nm, 1310 nm, and 1550 nm,
respectively representing three wavebands.
•
The 850 nm wave band is used for short-reach transmission.
•
The 1310 nm and 1550 nm wave bands are used for middle-reach and long-haul transmissions.
Fiber
Fiber types
Fibers are classified as multimode fibers and single-mode fibers.
•
Multimode fibers
Multimode fibers (MMFs) have thicker fiber cores and can transport light in multiple modes.
However, the intermodal dispersion is greater and worsens as the transmission distance increases.
Multimode fibers can be classified into multiple grades according to their diameters and modal
bandwidth. For more information, see Table 2. The modal bandwidth of a multimode fiber is
determined by the expression the modulation frequency of the maximum modulation frequency
4
pulse that can pass a fiber × the fiber length. The modal bandwidth is a comprehensive index
reflecting the optical characteristics of a multimode fiber.
International Telecommunication Union (ITU) defines multimode fiber types in its G series
standards. The commonly-used multimode fiber is defined in the ITU G.651 standard. The
G.651-compliant fiber transmits light at the wavelength range 800 nm to 900 nm or 1200 nm to
1350 nm.
Table 2 Multimode fiber grades
Fiber mode
Multimode fiber
Fiber grade
Fiber diameter (μm)
Modal bandwidth at
850 nm (MHz*km)
OM1
62.5/125
200
OM2
50/125
500
OM3
50/125
2000
Other factors that influence the transmission distance of multimode fibers include interface type,
central wavelength, and fiber grade. For more information, see Table 3.
Table 3 Multimode fiber specifications
Interface type
Central
wavelength (nm)
1000BASE-SX
850
10GBASE-SR
10GBASE-LRM
•
850
1310
Fiber grade
Transmission distance
OM1
< 275 m (902.23 ft)
OM2
< 550 m (1804.46 ft)
OM1
< 33 m (108.27 ft)
OM2
< 82 m (269.03 ft)
OM3
< 300 m (984.25 ft)
OM1
< 220 m (721.78 ft)
OM2
< 220 m (721.78 ft)
OM3
< 220 m (721.78 ft)
Single-mode fibers
Single-mode fibers (SMFs) have a small core size, typically 9 μm or 10 μm, and can transmit light
in only one mode. Single-mode fibers suffer little intermodal dispersion and are suitable for
long-haul communication. Single-mode fibers transmit light at the central wavelength of 1310 nm
or 1550 nm.
Telecommunication Industries Alliance (TIA)/Electronic Industries Alliance (EIA) defines that
single-mode fibers use yellow outer jackets with the mark "SM".
ITU defines single-mode fiber types in its G series standards. The mostly-commonly used
single-mode fibers are defined in ITU G.652 and G.655 standards. Table 4 describes features of
the G.652 and G.655-compliant fibers.
5
Table 4 Features of G.652 and G.655-compliant fibers
Single-mode fiber
type
Wavelength (nm)
Features
Applications
G.652-compliant
fiber (standard
single-mode fiber)
• 1260 to 1360
• 1530 to 1565
Zero dispersion at 1310
nm.
Connecting transceiver
modules with a central
wavelength of 1310
nm or 1550 nm.
1530 to 1565
Near-zero dispersion
around 1550 nm.
For 1550-nm
wavelength-division
multiplexing (WDM)
transmissions.
G.655-compliant
fiber (non-zero
dispersion shifted
fiber)
Fiber diameter
Fiber diameter is expressed as core diameter/cladding diameter, in μm. For example, 9/125 μm means
the fiber core diameter is 9 μm and the fiber cladding diameter is 125 μm.
For the HP Comware-Based devices, the following fiber diameters are recommended:
•
G.652 standard single-mode fiber—9/125 μm.
•
G.655 single-mode fiber—9/125 μm.
•
G.651 standard multimode fiber—50/125 μm or 62.5/125 μm.
Connector
CAUTION:
Cover the connector with a dust cap when it is not connected to any optical fiber.
Connectors connect transceiver modules to the corresponding transmission media. The transceiver
modules available for the HP Comware-Based devices use the following types of connectors:
•
Lucent connector or local connector (LC).
•
Multi-fiber Push On connector (MPO).
Figure 1 LC connector
6
Figure 2 MPO connector
Optical parameters
NOTE:
Average transmit and receive power ranges are provided for transceiver modules in this guide.
Transmit power
Transmit power is the power at which the transmitter of a fiber transceiver module transmits optical
signals, in dBm.
Receive power
Receive power is the power at which the receiver of a fiber transceiver module receives optical signals,
in dBm.
Copper transceiver modules
Copper transceiver modules transmit signals over Category-5 unshielded twisted pair (UTP). UTP
transmission cover shorter distances than fiber transmission and can be used in small-sized networks
only.
The HP Comware-Based devices support the HP X120 1G SFP RJ45 T Transceiver (JD089B) copper
transceiver modules.
Transmission distance
Through UTP cables, signals can be transmitted over a distance of 100 m (328.08 ft.) only. This is
because signals attenuate during transmission through the UTP cables.
Attenuation refers to the dissipation of the power of a transmitted signal as it travels over a cable.
Attenuation occurs because signal transmission suffers certain resistance from the cable, which weakens
the signals as they travel over the cable. When signals are transmitted over a very long distance, signal
strength decreases significantly, causing the signal-to-noise ratio to drop below the accepted level. This
makes it impossible to distinguish between signals and noise, resulting in decision errors.
When signals are to be transmitted over a short distance, use copper transceiver modules only.
7
Connector
Registered Jack-45 (RJ-45) twisted pair connectors are used as connectors for copper transceiver
modules.
Figure 3 RJ-45 connector
Table 5 RJ-45 GE connector pin assignment
Pin
Signal
Function
1
MX_0+
Data transmit/receive
2
MX_0-
Data transmit/receive
3
MX_1+
Data transmit/receive
4
MX_2+
Data transmit/receive
5
MX_2-
Data transmit/receive
6
MX_1-
Data transmit/receive
7
MX_3+
Data transmit/receive
8
MX_3-
Data transmit/receive
8
SFP modules
100-Megabit SFP fiber transceiver module
Figure 4 100-Megabit/622-Megabit/Gigabit/2.5-Gigabit SFP fiber transceiver module
Models and specifications
100-Megabit SFP fiber transceiver modules use LC connectors.
Table 6 Specifications for 100-Megabit SFP fiber transceiver modules (1)
Product
code
Name
Central
wavelen
gth (nm)
Data
rate
(Mbps)
Fiber
mode
JD102B
HP X115 100M SFP
LC FX Transceiver
1310
155
MMF
JF833A
HP X110 100M SFP
LC FX Transceiver
1310
125
MMF
JF832A
HP X120 100M/1G
SFP LC LX Transceiver
1310
125
SMF
9/125
10 km (6.21 miles)
JD120B
HP X110 100M SFP
LC LX Transceiver
1310
155
SMF
9/125
15 km (9.32 miles)
JD090A
HP X110 100M SFP
LC LH40 Transceiver
1310
155
SMF
9/125
40 km (24.86 miles)
JD091A
HP X110 100M SFP
LC LH80 Transceiver
1550
155
SMF
9/125
80 km (49.71 miles)
Fiber
diameter
(μm)
50/125
62.5/125
50/125
62.5/125
Transmission
distance
2 km (1.24 miles)
2 km (1.24 miles)
Table 7 Specifications for 100-Megabit SFP fiber transceiver modules (2)
Product
code
Name
JD102B
HP X115 100M SFP LC FX
Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–19 to –14
–30 to –14
9
Product
code
Name
JF833A
Optical parameters (dBm)
Transmit power
Receive power
HP X110 100M SFP LC FX
Transceiver
–20 to –14
–31.5 to –8
JF832A
HP X120 100M/1G SFP LC
LX Transceiver
–15 to –8
–28 to –8
JD120B
HP X110 100M SFP LC LX
Transceiver
–15 to –8
–28 to –7
JD090A
HP X110 100M SFP LC
LH40 Transceiver
–5 to 0
–34 to –9
JD091A
HP X110 100M SFP LC
LH80 Transceiver
–5 to 0
–34 to –10
622-Megabit SFP fiber transceiver module
See Figure 4 for a view of the 622-Megabit SFP fiber transceiver module.
Models and specifications
622-Megabit SFP fiber transceiver modules use LC connectors.
Table 8 Specifications for 622-Megabit SFP fiber transceiver modules (1)
Product
code
Name
Central
wavelen
gth (nm)
Fiber
mode
Fiber
diameter
(μm)
Transmission distance
JF829A
HP X120 622M SFP
LC
LX
15km
Transceiver
1310
SMF
9/125
15 km (9.32 miles)
JF830A
HP X120 622M SFP
LC LH 40km 1310
Transceiver
1310
SMF
9/125
40 km (24.86 miles)
JF831A
HP X120 622M SFP
LC LH 80km 1550
Transceiver
1550
SMF
9/125
80 km (49.71 miles)
Table 9 Specifications for 622-Megabit SFP fiber transceiver modules (2)
Product
code
Name
JF829A
JF830A
Optical parameters (dBm)
Transmit power
Receive power
HP X120 622M SFP LC LX
15km Transceiver
–15 to–8
–28 to –8
HP X120 622M SFP LC LH
40km 1310 Transceiver
–3 to +2
–28 to –8
10
Optical parameters (dBm)
Product
code
Name
JF831A
HP X120 622M SFP LC LH
80km 1550 Transceiver
Transmit power
Receive power
–3 to +2
–28 to –8
Gigabit SFP fiber transceiver module
See Figure 4 for a view of the Gigabit SFP fiber transceiver module.
Models and specifications
Gigabit SFP fiber transceiver modules provide a transmission rate of 1250 Mbps and use LC connectors.
Table 10 Specifications for Gigabit SFP fiber transceiver modules (1)
Product
code
Name
Central
wavelen
gth (nm)
Fiber
mode
Fiber
diameter
(μm)
50/125
JD118B
HP X120 1G SFP LC
SX Transceiver
850
MMF
62.5/125
JD119B
HP X120 1G SFP LC
LX Transceiver
1310
Modal
bandwidth
(MHz*km)
Transmission
distance
500
550 m (1804.46 ft)
400
500 m (1640.42 ft)
200
275 m (902.23 ft)
160
220 m (721.78 ft)
SMF
9/125
N/A
10 km (6.21 miles)
MMF
50/125
500 or 400
550 m (1804.46 ft)
MMF
62.5/125
500
550 m (1804.46 ft)
JF832A
HP X120 100M/1G
SFP LC LX Transceiver
1310
SMF
9/125
N/A
10 km (6.21 miles)
JD061A
HP X125 1G SFP LC
LH40 1310nm
Transceiver
1310
SMF
9/125
N/A
40 km (24.86 miles)
JD062A
HP X120 1G SFP LC
LH40 1550nm
Transceiver
1550
SMF
9/125
N/A
40 km (24.86 miles)
JD063B
HP X125 1G SFP LC
LH70 Transceiver
1550
SMF
9/125
N/A
70 km (43.5 miles)
JD103A
HP X120 1G SFP LC
LH100 Transceiver
1550
SMF
9/125
N/A
100 km (62.14
miles)
Table 11 Specifications for Gigabit SFP fiber transceiver modules (2)
Product
code
Name
JD118B
HP X120 1G SFP LC SX
Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–9.5 to 0
–17 to 0
11
Product
code
Name
JD119B
Optical parameters (dBm)
Transmit power
Receive power
HP X120 1G SFP LC LX
Transceiver
–9.5 to –3
–20 to –3
JF832A
HP X120 100M/1G SFP LC LX
Transceiver
–9.5 to –3
–22 to –3
JD061A
HP X125 1G SFP LC LH40
1310nm Transceiver
–2 to +5
–22 to –3
JD062A
HP X120 1G SFP LC LH40
1550nm Transceiver
–4 to +1
–21 to –3
JD063B
HP X125 1G SFP LC LH70
Transceiver
–4 to +5
–22 to –3
JD103A
HP X120 1G SFP LC LH100
Transceiver
0 to +5
–30 to –9
2.5-Gigabit SFP fiber transceiver module
See Figure 4 for a view of the 2.5-Gigabit SFP fiber transceiver module.
Models and specifications
2.5-Gigabit SFP fiber transceiver modules use LC connectors.
Table 12 Specifications for 2.5-Gigabit SFP fiber transceiver modules (1)
Product
code
Name
Central
wavelength
(nm)
Fiber
mode
Fiber diameter
(μm)
Transmission
distance
JD084A
HP X160 2.5G SFP LC
2km Transceiver
1310
SMF
9/125
2 km (1.24 miles)
JD085A
HP X160 2.5G SFP LC
15km Transceiver
1310
SMF
9/125
15 km (9.32 miles)
JD086A
HP X160 2.5G SFP LC
40km Transceiver
1310
SMF
9/125
40 km (24.86
miles)
JD087A
HP X160 2.5G SFP LC
80km Transceiver
1550
SMF
9/125
80 km (49.71
miles)
Table 13 Specifications for 2.5-Gigabit SFP fiber transceiver modules (2)
Product
code
Name
JD084A
JD085A
Optical parameters (dBm)
Transmit power
Receive power
HP X160 2.5G SFP LC 2km
Transceiver
–10 to –3
–18 to –3
HP X160 2.5G SFP LC 15km
Transceiver
–5 to 0
–18 to 0
12
Product
code
Name
JD086A
JD087A
Optical parameters (dBm)
Transmit power
Receive power
HP X160 2.5G SFP LC 40km
Transceiver
–2 to +3
–27 to –9
HP X160 2.5G SFP LC 80km
Transceiver
–20 to –14
–31 to –12
100-Megabit BIDI fiber transceiver module
Figure 5 100-Megabit/Gigabit BIDI fiber transceiver module
Models and specifications
100-Megabit BIDI fiber transceiver modules provide a transmission rate of 155 Mbps and use LC
connectors.
Table 14 Specifications for 100-Megabit BIDI fiber transceiver modules (1)
Central wavelength (nm)
Product
code
Name
JD100A
JD101A
Transmitting
end (TX)
Receiving
end (RX)
HP X110 100M SFP LC
BX 10-U Transceiver
1310
1550
HP X110 100M SFP LC
BX 10-D Transceiver
1550
Fiber
mode
Fiber
diameter
(μm)
Transmission
distance
SMF
9/125
15 km (9.32
miles)
1310
Table 15 Specifications for 100-Megabit BIDI transceiver modules (2)
Product
code
Name
JD100A
HP X110 100M SFP LC BX
10-U Transceiver
JD101A
HP X110 100M SFP LC BX
10-D Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–15 to –8
–31 to –3
13
NOTE:
• BIDI fiber transceiver modules use different central wavelengths in transmit and receive directions to
implement bidirectional transmission of fiber signals over the same fiber.
• You must use the HP X115 100M SFP LC BX 10-U Transceiver (JD100A) and HP X115 100M SFP LC BX
10-D Transceiver (JD101A) in pairs.
Gigabit BIDI fiber transceiver module
See Figure 5 for a view of the Gigabit BIDI fiber transceiver module.
Models and specifications
Gigabit BIDI fiber transceiver modules provide a transmission rate of 1250 Mbps and use LC connectors.
Table 16 Specifications for Gigabit BIDI fiber transceiver modules (1)
Central wavelength (nm)
Product
code
Name
JD098B
JD099B
Transmitting
end (TX)
Receiving
end (RX)
HP X120 1G SFP LC
BX 10-U Transceiver
1310
1490
HP X120 1G SFP LC
BX 10-D Transceiver
1490
Fiber
mode
Fiber
diameter
(μm)
Transmission
distance
SMF
9/125
10 km (6.21
miles)
1310
Table 17 Specifications for Gigabit BIDI transceiver modules (2)
Product
code
Name
JD098B
HP X120 1G SFP LC BX 10-U
Transceiver
JD099B
HP X120 1G SFP LC BX 10-D
Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–9 to –3
–18.7 to –3
NOTE:
• BIDI fiber transceiver modules use different central wavelengths in transmit and receive directions, in
order to implement bidirectional transmission of fiber signals over the same fiber.
• You must use the HP X120 1G SFP LC BX 10-U Transceiver (JD098B) and HP X120 1G SFP LC BX 10-D
Transceiver (JD099B) in pairs.
Gigabit CWDM fiber transceiver module
Figure 6 Gigabit CWDM fiber transceiver module
14
Models and specifications
Gigabit CWDM fiber transceiver modules provide a transmission rate of 1250 Mbps and use LC
connectors.
Table 18 Specifications for Gigabit CWDM fiber transceiver modules (1)
Product
code
Name
Central
wavelength (nm)
JD113A
HP X170 1G SFP LC LH70
1470 Transceiver
1470
JD114A
HP X170 1G SFP LC LH70
1490 Transceiver
1490
JD115A
HP X170 1G SFP LC LH70
1510 Transceiver
1510
JD116A
HP X170 1G SFP LC LH70
1530 Transceiver
1530
JD109A
HP X170 1G SFP LC LH70
1550 Transceiver
1550
JD110A
HP X170 1G SFP LC LH70
1570 Transceiver
1570
JD111A
HP X170 1G SFP LC LH70
1590 Transceiver
1590
JD112A
HP X170 1G SFP LC LH70
1610 Transceiver
1610
Fiber
mode
Fiber
diameter (μm)
Transmission
distance
SMF
9/125
70 km (43.5
miles)
Table 19 Specifications for Gigabit CWDM fiber transceiver modules (2)
Product
code
Name
JD113A
HP X170 1G SFP LC LH70 1470
Transceiver
JD114A
HP X170 1G SFP LC LH70 1490
Transceiver
JD115A
HP X170 1G SFP LC LH70 1510
Transceiver
JD116A
HP X170 1G SFP LC LH70 1530
Transceiver
JD109A
HP X170 1G SFP LC LH70 1550
Transceiver
Optical parameters (dBm)
15
Transmit power
Receive power
0 to +5
–23 to –3
Optical parameters (dBm)
Product
code
Name
JD110A
HP X170 1G SFP LC LH70 1570
Transceiver
JD111A
HP X170 1G SFP LC LH70 1590
Transceiver
JD112A
HP X170 1G SFP LC LH70 1610
Transceiver
Transmit power
Receive power
NOTE:
Gigabit CWDM fiber transceiver modules adopt the CWDM technology that uses wavelength division
multiplexers to multiplex optical signals with different wavelengths for transmission over a single optical
fiber, thereby saving optical fiber resources. The receiving end uses a wavelength division demultiplexer
to demultiplex the multiplexed optical signals.
Gigabit SFP copper transceiver module
Figure 7 Gigabit SFP copper transceiver module
Models and specifications
Table 20 Specifications for SFP copper transceiver modules
Product
code
Name
Transmission
distance
Data rate
Cable type
Connector
type
JD089B
HP X120 1G SFP
RJ45 T Transceiver
100 m (328.08 ft)
1250 Mbps
UTP/STP
RJ-45
Gigabit SFP cable
Figure 8 Gigabit SFP cable
16
Models and specifications
Table 21 Specifications for Gigabit SFP cables
Product code
Name
Cable length
Data rate
Cable type
JD324A
HP A3600 Switch SFP
Stacking Kit
1.5 m (4.92 ft)
1250 Mbps
UTP/STP
17
SFP+ modules
10-Gigabit SFP+ fiber transceiver module
Figure 9 10-Gigabit SFP+ fiber transceiver module
Models and specifications
10-Gigabit SFP+ fiber transceiver modules provide a transmission rate of 10.31 Gbps and use LC
connectors.
Table 22 Specifications for 10-Gigabit SFP+ fiber transceiver modules (1)
Product
code
Name
Central
wavelen
gth (nm)
Fiber
mode
Fiber
diameter
(μm)
50/125
JD092B
HP X130 10G SFP+
LC SR Transceiver
850
MMF
62.5/125
50/125
JD093B
HP X130 10G SFP+
LC LRM Transceiver
1310
MMF
62.5/125
Modal
bandwidth
(MHz*km)
Transmission
distance
2000
300 m (984.25 ft)
500
82 m (269.03 ft)
400
66 m (216.54 ft)
200
33 m (108.27 ft)
160
26 m (85.30 ft)
1500
220 m (721.78 ft)
500
220 m (721.78 ft)
400
100 m (328.08 ft)
200
220 m (721.78 ft)
160
220 m (721.78 ft)
JD094B
HP X130 10G SFP+
LC LR Transceiver
1310
SMF
9/125
N/A
10 km (6.21 miles)
JG234A
HP X130 10G SFP+
LC ER 40km
Transceiver
1550
SMF
9/125
N/A
40 km (24.86 miles)
JG915A
HP X130 10G SFP+
LC LH 80km
Transceiver
1550
SMF
9/125
N/A
80 km (49.71 miles)
18
Table 23 Specifications for 10-Gigabit SFP+ fiber transceiver modules (2)
Product
code
Name
JD092B
Optical parameters (dBm)
Transmit power
Receive power
HP X130 10G SFP+ LC SR
Transceiver
–7.3 to –1
–9.9 to +0.5
JD093B
HP X130 10G SFP+ LC LRM
Transceiver
–6.5 to +0.5
–6.5 to +1.5
JD094B
HP X130 10G SFP+ LC LR
Transceiver
–8.2 to +0.5
–14.4 to +0.5
JG234A
HP X130 10G SFP+ LC ER
40km Transceiver
–4.7 to +4
–15.8 to –1
JG915A
HP X130 10G SFP+ LC LH
80km Transceiver
0 to +4
–24 to –7
10-Gigabit SFP+ cable
Figure 10 10-Gigabit SFP+ cable
Models and specifications
Table 24 Specifications for 10-Gigabit SFP+ cables
Product
code
Name
Cable length
JD095C
HP X240 10G SFP+ SFP+
0.65m DA Cable
0.65 m (2.13 ft)
JD096C
HP X240 10G SFP+ SFP+
1.2m DA Cable
1.2 m (3.94 ft)
JD097C
HP X240 10G SFP+ SFP+
3m DA Cable
3 m (9.84 ft)
JG081C
HP X240 10G SFP+ SFP+
5m DA Cable
5 m (16.40 ft)
JC784C
HP X240 10G SFP+ SFP+
7m Direct Attach Copper
Cable
7 m (22.97 ft)
19
Data rate
Type
10.31 Gbps
SFP+ cable
XFP transceiver modules
Figure 11 XFP transceiver module
Models and specifications
10-Gigabit XFP fiber transceiver modules use LC connectors.
Table 25 Specifications for XFP transceiver modules (1)
Product
code
Name
Central
wavelen
gth (nm)
Data
rate
(Gbps)
Fiber
mode
Fiber
diameter
(μm)
50/125
JD117B
HP X130 10G XFP
LC SR Transceiver
850
10.31
MMF
62.5/12
5
Modal
bandwidth
(MHz*km)
Maximum
transmission
distance
2000
300 m
(984.25 ft)
500
82 m (269.03
ft)
400
66 m (216.54
ft)
200
33 m (108.27
ft)
160
26 m (85.30 ft)
JD108B
HP X130 10G XFP
LC LR 1310nm
Transceiver
1310
10.31
SMF
9/125
N/A
10 km (6.21
miles)
JD088A
HP X130 10G POS
XFP LC LR
Transceiver
1310
9.95 to
11.3
SMF
9/125
N/A
10 km (6.21
miles)
JD121A
HP X135 10G XFP
LC ER Transceiver
1550
9.95 to
10.7
SMF
9/125
N/A
40 km (24.86
miles)
JD107A
HP X130 10G XFP
LC ZR 1550nm
Transceiver
1550
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG226A
HP X180 10G XFP
LC LH 80km
1538.98nm
DWDM Transceiver
1538.98
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
20
Product
code
Name
Central
wavelen
gth (nm)
Data
rate
(Gbps)
Fiber
mode
Fiber
diameter
(μm)
Modal
bandwidth
(MHz*km)
Maximum
transmission
distance
JG227A
HP X180 10G XFP
LC LH 80km
1539.77nm
DWDM Transceiver
1539.77
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG228A
HP X180 10G XFP
LC LH 80km
1540.56nm
DWDM Transceiver
1540.56
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG229A
HP X180 10G XFP
LC LH 80km
1542.14nm
DWDM Transceiver
1542.14
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG230A
HP X180 10G XFP
LC LH 80km
1542.94nm
DWDM Transceiver
1542.94
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG231A
HP X180 10G XFP
LC LH 80km
1558.98nm
DWDM Transceiver
1558.98
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG232A
HP X180 10G XFP
LC LH 80km
1559.79nm
DWDM Transceiver
1559.79
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
JG233A
HP X180 10G XFP
LC LH 80km
1560.61nm
DWDM Transceiver
1560.61
9.95 to
10.31
SMF
9/125
N/A
80 km (49.71
miles)
Table 26 Specifications for XFP transceiver modules (2)
Product
code
Name
JD117B
Optical parameters (dBm)
Transmit power
Receive power
HP X130 10G XFP LC SR
Transceiver
–7.3 to –1.08
–9.9 to –1
JD108B
HP X130 10G XFP LC LR 1310nm
Transceiver
–8.2 to +0.5
–14.4 to +0.5
JD088A
HP X130 10G POS XFP LC LR
Transceiver
–6 to –1
–10.3 to +0.5
JD121A
HP X135 10G XFP LC ER
Transceiver
–1 to +2
–14.1 to –1
JD107A
HP X130 10G XFP LC ZR
1550nm Transceiver
0 to +4
–24 to –7
JG226A
HP X180 10G XFP LC LH 80km
1538.98nm DWDM Transceiver
–1 to +3
–24 to –7
21
Product
code
Name
JG227A
Optical parameters (dBm)
Transmit power
Receive power
HP X180 10G XFP LC LH 80km
1539.77nm DWDM Transceiver
–1 to +3
–24 to –7
JG228A
HP X180 10G XFP LC LH 80km
1540.56nm DWDM Transceiver
–1 to +3
–24 to –7
JG229A
HP X180 10G XFP LC LH 80km
1542.14nm DWDM Transceiver
–1 to +3
–24 to –7
JG230A
HP X180 10G XFP LC LH 80km
1542.94nm DWDM Transceiver
–1 to +3
–24 to –7
JG231A
HP X180 10G XFP LC LH 80km
1558.98nm DWDM Transceiver
–1 to +3
–24 to –7
JG232A
HP X180 10G XFP LC LH 80km
1559.79nm DWDM Transceiver
–1 to +3
–24 to –7
JG233A
HP X180 10G XFP LC LH 80km
1560.61nm DWDM Transceiver
–1 to +3
–24 to –7
NOTE:
The 9/125μm single-mode fibers used by transceiver modules JG226A through JG233A should conform
to ITU-T G.655, and those used by other transceiver modules should conform to ITU-T G.652.
22
CX4 cables
Figure 12 CX4 cable
Models and specifications
Table 27 Specifications for CX4 cables
Product code
Name
Cable length
JD363B
HP X230 Local Connect
50cm CX4 Cable
0.5 m (1.64 ft)
JD364B
HP X230 Local Connect
100cm CX4 Cable
1 m (3.28 ft)
JD365A
HP X230 CX4 to CX4 3m
Cable
3 m (9.84 ft)
23
Data rate
Description
12 Gbps
Used for interconnecting
deices, and supports IRF
QSFP+ modules
QSFP+ modules provide a transmission rate of 40 Gbps.
QSFP+ fiber transceiver modules that use a 12-fiber
MPO connector
Figure 13 QSFP+ fiber transceiver module that use a 12-fiber MPO connector
Models and specifications
Table 28 Specifications for QSFP+ fiber transceiver modules that use a 12-fiber MPO connector (1)
Product
code
HP description
Central
wavelen
gth (nm)
Fiber
mode
Fiber
diamete
r (μm)
JG325B
HP X140 40G QSFP+
MPO SR4 Transceiver
850
MMF
50/125
HP X140 40G QSFP+
MPO MM 850nm CSR4
300m Transceiver
850
JG709A
MMF
50/125
Modal
bandwidth
(MHz*km)
Transmission
distance
2000
100 m (328.08 ft)
4700
150 m (492.12 ft)
2000
300 m (984.25 ft)
4700
400 m (1312.33 ft)
Table 29 Specifications for QSFP+ fiber transceiver modules using a 12-fiber MPO connector (2)
Product
code
Name
JG325B
HP X140 40G QSFP+ MPO
SR4 Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–7.6 to 0
–9.5 to +2.4
24
Optical parameters (dBm)
Product
code
Name
JG709A
HP X140 40G QSFP+ MPO
MM 850nm CSR4 300m
Transceiver
Transmit power
Receive power
–7.6 to 0
–9.9 to +2.4
NOTE:
The 40G QSFP+ ports of the JG325B and JG709A fiber transceiver modules can be split into four
channels. You can connect a 40G QSFP+ port to four 10G SFP+ ports. The QSFP+ fiber transceiver
module and SFP+ fiber transceiver modules to be connected must be the same in specifications, including
central wavelength and fiber type.
QSFP+ fiber transceiver modules that use an LC
connector
Figure 14 QSFP+fiber transceiver module that use an LC connector
Models and specifications
Table 30 Specifications for QSFP+ transceiver modules that use an LC connector (1)
Product
code
Name
JG661A
HP X140 40G
QSFP+ LC LR4 SM
10km 1310nm
Transceiver Module
Central
wavelength
(nm)
Fiber
mode
Fiber
diameter
(μm)
Modal
bandwidth
(MHz*km)
Transmission
distance
SMF
9/125
N/A
10 km (6.21
miles)
Four lanes:
•
•
•
•
1271
1291
1311
1331
Table 31 Specifications for QSFP+ transceiver modules that use an LC connector (2)
Product
code
Name
Optical parameters (dBm)
Transmit power
25
Receive power
Product
code
Name
JG661A
HP X140 40G QSFP+ LC LR4
SM 10km 1310nm
Transceiver Module
Optical parameters (dBm)
Transmit power
Receive power
–7 to +2.3
–13.7 to +2.3
40-Gigabit QSFP+ cable
Figure 15 40-Gigabit QSFP+ cable
Models and specifications
Table 32 Specifications for 40-Gigabit QSFP+ cables
Product
code
Name
Cable length
JG326A
HP X240 40G QSFP+ QSFP+ 1m
Direct Attach Copper Cable
1 m (3.28 ft)
JG327A
HP X240 40G QSFP+ QSFP+ 3m
Direct Attach Copper Cable
3 m (9.84 ft)
JG328A
HP X240 40G QSFP+ QSFP+ 5m
Direct Attach Copper Cable
5 m (16.40 ft)
Data rate
Description
40 Gbps
Used for interconnecting
40-Gigabit QSFP ports
QSFP+ to SFP+ cable
One end of a QSFP+ to SFP+ cable provides a 40-Gigabit QSFP+ module, and the other end provides
four 10-Gigabit SFP+ modules.
26
Figure 16 QSFP+ to SFP+ cable
Models and specifications
Table 33 Specifications for QSFP+ to SFP+ cables
Product
code
Name
Cable length
JG329A
HP X240 40G QSFP+ to
4x10G SFP+ 1m Direct Attach
Copper Splitter Cable
1 m (3.28 ft)
JG330A
HP X240 40G QSFP+ to
4x10G SFP+ 3m Direct Attach
Copper Splitter Cable
3 m (9.84 ft)
JG331A
HP X240 40G QSFP+ to
4x10G SFP+ 5m Direct Attach
Copper Splitter Cable
5 m (16.40 ft)
27
Data rate
Description
40 Gbps
Used for connecting a
40-Gigabit QSFP+ port to
four 10-Gigabit SFP+ ports
CFP transceiver modules
Figure 17 CFP transceiver module
Models and specifications
CFP transceiver modules use LC connectors.
Table 34 Specifications for CFP transceiver modules (1)
Product
code
Name
Central
wavelength
(nm)
Data
rate
Fiber
mode
Fiber
diameter
(μm)
Maximum
transmission distance
40
Gbps
SMF
9/125
10 km (6.21 miles)
100
Gbps
SMF
9/125
10 km (6.21 miles)
100
Gbps
SMF
9/125
10 km (6.21 miles)
Four lanes:
JC857A
HP X140 40G
CFP LC LR4 10km
SM Transceiver
•
•
•
•
1271
1291
1311
1331
Four lanes:
JG829A
(end of
sale)
HP X150 100G
CFP LC LR4 10km
SM Transceiver
•
•
•
•
1295.56
1300.05
1304.58
1309.14
Four lanes:
JG829B
HP X150 100G
CFP LC LR4 10km
SM Transceiver
•
•
•
•
1295.56
1300.05
1304.58
1309.14
Table 35 Specifications for CFP transceiver modules (2)
Product
code
Name
JC857A
HP X140 40G CFP LC LR4
10km SM Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–4 to +3 per lane
–11.5 to +3 per lane
28
Product
code
Name
JG829A
(end of
sale)
JG829B
Optical parameters (dBm)
Transmit power
Receive power
HP X150 100G CFP LC LR4
10km SM Transceiver
–4.3 to +4.5 per lane
–10.6 to +4.5 per lane
HP X150 100G CFP LC LR4
10km SM Transceiver
–4.3 to +4.5 per lane
–10.6 to +4.5 per lane
29
CXP modules
CXP fiber transceiver modules
Figure 18 CXP fiber transceiver module
Models and specifications
CXP fiber transceiver modules provide a transmission rate of 100 Gbps and use 24-fiber MPO
connectors.
Table 36 Specifications for CXP fiber transceiver modules (1)
Product
code
Name
Central
wavelength
(nm)
Fiber
mode
Fiber diameter
(μm)
Maximum transmission
distance
JG881A
HP X150 100G
CXP MPO SR
100m Multimode
Transceiver
850
MMF
50/125
100 m (328.08 ft)
Table 37 Specifications for CXP fiber transceiver modules (2)
Product
code
Name
JG881A
HP X150 100G CXP MPO
SR 100m Multimode
Transceiver
Optical parameters (dBm)
Transmit power
Receive power
–7.6 to +2.4
–9.5 to +2.4
30
CXP AOC
Figure 19 CXP AOC
Models and specifications
Table 38 Specifications for CXP AOCs
Product code
Name
Cable length
Data rate
JG883A
HP X2A0 100G CXP
CXP 30m Active
Optical Cable
30 m (98.43 ft)
100 Gbps
JG882A
HP X2A0 100G CXP
CXP 10m Active
Optical Cable
10 m (32.81 ft)
100 Gbps
31
Support and other resources
Contacting HP
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
•
Product model names and numbers
•
Technical support registration number (if applicable)
•
Product serial numbers
•
Error messages
•
Operating system type and revision level
•
Detailed questions
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/wwalerts
After registering, you will receive email notification of product enhancements, new driver versions,
firmware updates, and other product resources.
Related information
Documents
To find related documents, browse to the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
•
For related documentation, navigate to the Networking section, and select a networking category.
•
For a complete list of acronyms and their definitions, see HP FlexNetwork Technology Acronyms.
Websites
•
HP.com http://www.hp.com
•
HP Networking http://www.hp.com/go/networking
•
HP manuals http://www.hp.com/support/manuals
•
HP download drivers and software http://www.hp.com/support/downloads
•
HP software depot http://www.software.hp.com
•
HP Education http://www.hp.com/learn
32
Conventions
This section describes the conventions used in this documentation set.
Command conventions
Convention
Description
Boldface
Bold text represents commands and keywords that you enter literally as shown.
Italic
Italic text represents arguments that you replace with actual values.
[]
Square brackets enclose syntax choices (keywords or arguments) that are optional.
{ x | y | ... }
Braces enclose a set of required syntax choices separated by vertical bars, from which
you select one.
[ x | y | ... ]
Square brackets enclose a set of optional syntax choices separated by vertical bars, from
which you select one or none.
{ x | y | ... } *
Asterisk-marked braces enclose a set of required syntax choices separated by vertical
bars, from which you select at least one.
[ x | y | ... ] *
Asterisk-marked square brackets enclose optional syntax choices separated by vertical
bars, from which you select one choice, multiple choices, or none.
&<1-n>
The argument or keyword and argument combination before the ampersand (&) sign can
be entered 1 to n times.
#
A line that starts with a pound (#) sign is comments.
GUI conventions
Convention
Description
Boldface
Window names, button names, field names, and menu items are in bold text. For
example, the New User window appears; click OK.
>
Multi-level menus are separated by angle brackets. For example, File > Create > Folder.
Convention
Description
Symbols
WARNING
An alert that calls attention to important information that if not understood or followed can
result in personal injury.
CAUTION
An alert that calls attention to important information that if not understood or followed can
result in data loss, data corruption, or damage to hardware or software.
IMPORTANT
An alert that calls attention to essential information.
NOTE
TIP
An alert that contains additional or supplementary information.
An alert that provides helpful information.
33
Network topology icons
Represents a generic network device, such as a router, switch, or firewall.
Represents a routing-capable device, such as a router or Layer 3 switch.
Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports
Layer 2 forwarding and other Layer 2 features.
Represents an access controller, a unified wired-WLAN module, or the switching engine
on a unified wired-WLAN switch.
Represents an access point.
Represents a mesh access point.
Represents omnidirectional signals.
Represents directional signals.
Represents a security product, such as a firewall, UTM, multiservice security gateway, or
load-balancing device.
Represents a security card, such as a firewall, load-balancing, NetStream, SSL VPN, IPS,
or ACG card.
Port numbering in examples
The port numbers in this document are for illustration only and might be unavailable on your device.
34
Index
CFGMQRT
C
M
Contacting HP,32
Models and specifications,23
Conventions,33
Models and specifications,31
Copper transceiver modules,7
Models and specifications,20
CXP AOC,31
Q
CXP fiber transceiver modules,30
F
QSFP+ fiber transceiver modules that use a 12-fiber
MPO connector,24
Fiber transceiver modules,3
QSFP+ fiber transceiver modules that use an LC
connector,25
G
QSFP+ to SFP+ cable,26
Gigabit BIDI fiber transceiver module,14
R
Gigabit CWDM fiber transceiver module,14
Gigabit SFP cable,16
Related information,32
Gigabit SFP copper transceiver module,16
T
Gigabit SFP fiber transceiver module,11
Types of transceiver modules,2
35
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
